o

WHYNTER ECO-FRIENDLY 14,000 BTU PORTABLE AIR CONDITIONER WITH HEATER

MODEL#: ARC-14SH

Instruction Manual

Congratulations on your new WHYNTER product. To ensure proper operation, please read this

Instruction

Manual carefully before using this product. Keep this manual in a safe place for future

reference.

2|P a g e

TABLE OF CONTENTS

INTRODUCTION 3

SAFETY PRECAUTIONS 4-5

IDENTIFICATION OF ACCESSORIES 6

IDENTIFICATION OF PARTS 7

OPERATING YOUR AIR CONDITIONER 8

INSTALLATION INSTRUCTIONS 9-10

AIR FILTERS INSTALLATION 11

OPERATION INSTRUCTIONS 12-13

WATER DRAINAGE 14

REMOTE CONTROL 15

CARE AND MAINTENANCE 16

TECHNICAL DATA 17

TROUBLESHOOTING 18-19

WARRANTY INFORMATION 20

3|P a g e

Thank you for choosing the Whynter portable air conditioner. Please follow the instructions provided

in this user guide to obtain the very best performance from your portable air conditioner and take full

advantage of the many features your portable air conditioner offers you. We trust that your Whynter

air conditioner will provide the performance and reliability that we stand for.

Please keep this user manual in a safe place for future reference.

DISPOSAL

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal

domestic trash, but must be handed in at a collection point for recycling electric and electronic

appliances. Your contribution to the correct disposal of this product protects the environment. Further

information about the recycling of this product can be obtained from your local municipal authority.

4|P a g e

Your safety and the safety of others are very important to

us.

To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic

precautions.

SAFETY PRECAUTIONS

Before the portable air conditioner is used, it must be properly positioned and installed

as detailed in this manual.

 Do not under any circumstances cut or remove the third (ground) prong from the power

cord.

 Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an

extension cord or power strip.

 The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection,

interruption) circuit breaker for added safety. If the power supply is interrupted, press the

reset button to reconnect the unit to power source.

 It is recommended to use a separate circuit that its size should be 15 Amps for the air

conditioner.

 Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this

portable air conditioner.

 To avoid the risk of shock, the product should never be used in bathrooms, shower rooms,

or in any other steamy or wet areas.

 Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliances.

 Do not repair, disassemble and/or modify the unit by yourself.

 Always turn off the portable air conditioner when cleaning the air filter, and transporting.

 Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch.

 Transport the unit in an upright position only, or leave it in an upright position for at least 2

hours before first use.

 Ensure curtains or other objects are not obstructing the air inlet filters.

 Do not bend or crush the exhaust hose while in use.

 Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit

inside closets, cabinets and/or cramped spaces between furniture.

 This unit is optimized to operate in an ambient temperature of 64°F – 95°F.

 This unit must be installed in an area protected from the element, such as wind, rain, water

spray or drips.

 The unit should not be located next to ovens, grills or other sources of high heat.

 Always place the unit on even and hard and level surface.

 Do not sit or place objects on the unit.

 Do not allow children to climb, stand or hang on the unit. The air conditioner could tip over

and get damaged and/or seriously injure somebody.

5|P a g e

 Keep fingers out of the air intakes and air outlets.

 The unit is an electrical appliance. To avoid injury from electrical shock do not operate it with

wet hands, while standing on a wet surface or while standing in water. Do not use it in

outdoors or in wet conditions.

 When positioning or moving the unit, ensure it is not turned upside down or greater than 45°

or more off level.

 This unit is designed for household, non-commercial use only. Any other use will void the

warranty.

 Do not plug into the power outlet before set up is completed.

 Do not operate this unit without the air filter(s).

 Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s)

into the unit.

 Do not add extra length to the exhaust hose by more than a total length of 9’. This will

reduce the cooling efficiency of the portable air conditioner.

 At the end of each season, all water must be drained from the unit and filter(s) must be

cleaned before storage.

THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS

ARE NOT FOLLOWED.

OPERATING CONDITION

MODE

ROOM TEMPERATURE

COOL Higher than 64°F

DRY Higher than 60°F

HEAT Higher than 45°F

Your portable air conditioner is supplied with a Leakage-Current

Detection and Interruption (LCDI) plug. This plug reduces the risk of

fire due to arcing faults in the power supply cord. Please follow the

instructions below to ensure that LCDI plug works properly.

1. Plug the power cord to a grounded wall outlet. Do not plug to

a power strip or extension cord.

2. Press the TEST button on the plug. This should trip the plug

and cut the power to the air conditioner. If the plug does not

trip and the unit comes on, please contact technical support.

3. Press the RESET button to start the air conditioner.

4. Do NOT use the TEST and RESET buttons to turn the air

conditioner on and off.

6|P a g e

IDENTIFICATION OF ACCESSORIES


A

CCESSORY N

A

ME QU

A

NTITY

Intake and Exhaust

hose

2 pieces

Fixture

2 pieces

Screws

8 pieces

Hose connector 4 pieces

Window slider kit 1

set

Cover

2 pieces

Remote

control

1 piece

Optional Intake pre-filter (sold separately) 1 piece

Optional 3M™ Antimicrobial Filter (sold

separately) 1 piece

7|P a g e

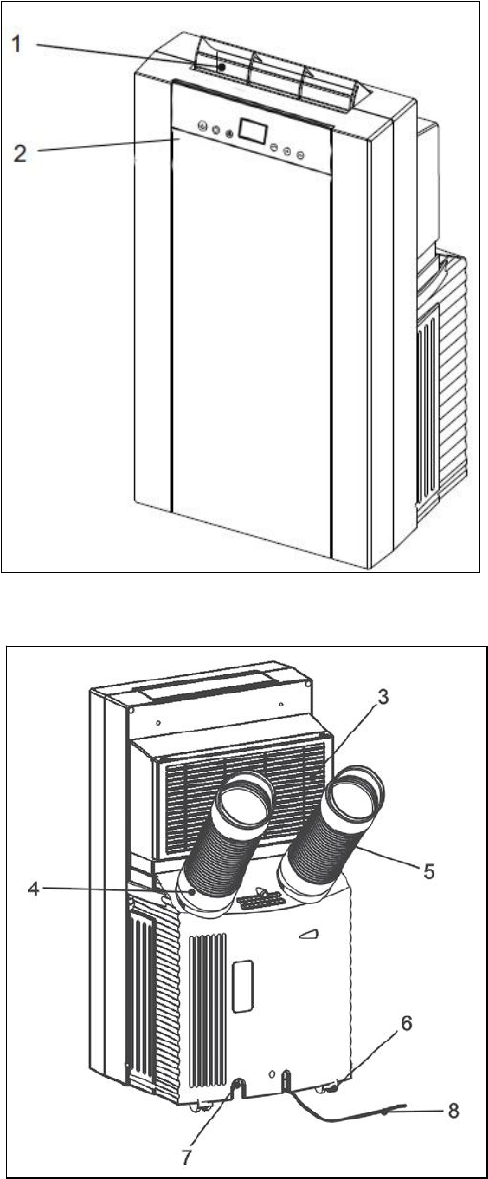

IDENTIFICATION OF PARTS

Front

1. Air vent

2. Control panel

Rear

3. Evaporator air intake / air filter

4. Air intake hose

5. Air exhaust hose

6. Casters

7. Drain port

8. Power cord

8|P a g e

OPERATING YOUR AIR CONDITIONER

Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of

the functions. Follow the symbol for the desired function. The unit can be controlled by the unit

control panel alone or with the remote control.

CONTROL PANEL

Power Control

Turns the unit on and off.

Timer

Turns the timer function on and off.

Warning Light

Condensation water may accumulate in the unit. If the

internal reservoir becomes full, the warning light and the

STOP light will come on and the unit will stop until the

water is drained.

Timer / Temperature Set Control

Adjusts set thermostat temperature and timer.

The display temperature is the set temperature.

NOTE: This unit is capable of displaying set temperature

in Fahrenheit or in Celsius. To convert from one to the

other, press and hold the Up and Down buttons for 3

seconds.

Mode Control

Controls the 4 function modes: COOL, DEHUMIDIFY

FAN and HEAT.

Fan Speed Control

Controls the 3 fan speeds: High, Medium & Low.

NOTE: Unit does not need to be vented in Fan mode

9|P a g e

INSTALLATION INSTRUCTIONS

Location

The air conditioner should be placed on a hard and level surface strong enough to support the

unit. The unit has casters and it should only be rolled on smooth, flat surfaces. Use caution

when rolling on carpet surfaces. Do not attempt to roll the unit over objects.

Never place any obstacles around the air inlet or outlet and allow at least 20 inch of clearance

for efficient air-conditioning.

Intake and Exhaust hose Installation

When you use this air conditioner unit, hot air must be exhausted out of the room to complete

the air exchange of the condenser. When the unit is operating in DEHUMIDIFYING or FAN only

mode, no exhaust is required.

1. Pull out about 6” of one end of the hoses.

2. Attach the hose connectors to the hoses by turning clockwise.

3. Align the slots on the hose connector to the tabs on the air intake / outlet and snap the

hose to the unit.

4. Only extend the exhaust hoses to the necessary length. We do not recommend

extending the exhaust hose more than 9' long. Additional 4’ exhaust hose sold

separately.

5. An optional intake pre-filter can be purchased to be added to the intake hose in

locations with poor air quality.

* If you are interested in purchasing optional accessories, please contact info@whynter.com

for retail sales information.

EXHAUST

INTAKE

10 | P a g e

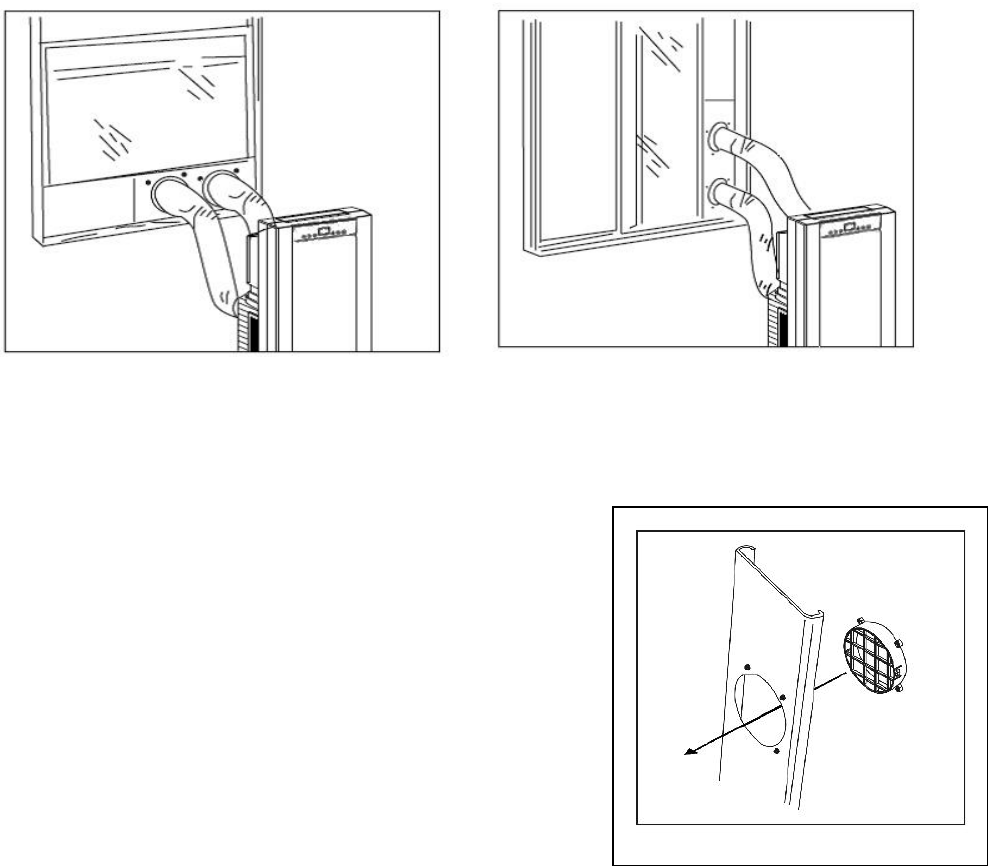

Window kit Installation

When you use this air conditioner unit, hot air must be exhausted out of the room to complete

the air exchange of the condenser. When the unit is operating in dehumidifying and fan-only

mode, no exhaust is required.

Your window kit has been designed to fit most standard vertical and horizontal windows.

However, it may be necessary for you to modify the installation procedures for your window.

NOTE: If your window opening is less than the mentioned minimum length of the window slider

kit, cut the slide bar with hole to fit window opening. Never cut out the hole on the window slide

bar.

NOTE: When using the window kit on a window or sliding door it will cause the window or

sliding door not to be properly closed and locked. Additional security measurements may

be needed.

1. Open window approximately 5”.

2. Adjust the length of the window bars to the same length and width of the opening of the

window. Cut the window piece if necessary to fit the length of your window.

3. Insert the fixtures through the back grooved side of the window slide bar with holes.

Line up the 4 holes and tighten the fixtures with 4 screws

from the front. Fig 1.

4. Close the window on the window slide bars. For long

term installation, you may screw the window kit into your

window frame.

5. Move the unit to the window, extend the hoses and

attach the other end of the hoses to the window slide bar.

6. Align the slots on the hose connectors to the tabs on

the fixtures and snap the hoses to the window slide

bar.

Figure

1

11 | P a g e

AIR FILTERS INSTALLATION

Your Whynter portable air conditioner is equipped with a washable Pre-Filter and an Activated

Carbon Filter.

The washable Pre-Filter removes large particles such as dust, pet hair and dander.

The Activated Carbon filter is designed to remove smoke and other odors. It is recommended

you replace the Activated Carbon filter every 2-3 months or as needed. Follow the steps below

to install the filters.

WARNING: NEVER OPERATE THE AIR CONDITIONER WITHOUT THE PRE-FILTER

1. Pull up the pre-filter frame

2. Remove the Pre-Filter from the filter frame.

3. Place the Activated Carbon filter on the Pre-Filter.

4. Reattach the filter frame.

5. Insert the assembled filter frame into the unit.

An optional 3M™ Antimicrobial Filter can also be purchased to replace the activated carbon

filter. The 3M™ Antimicrobial Filter has an antimicrobial agent helps inhibit the growth of

mold and mildew on the filter. This filter is electrostatically charged for enhanced particle

capture and retention.

**If you are interested in purchasing optional accessories, please contact info@whynter.com

for retail sales information.

12 | P a g e

OPERATION

INSTRUCTIONS

 BEFORE USING YOUR PORTABLE AIR CONDITIONER

 Remove the exterior and interior packaging.

 Before connecting the unit to the power source, let it stand upright for approximately 4

hours. This will reduce the possibility of a malfunction in the cooling system from handling

during transportation.

SWITCHING ON/OFF THE AIR CONDITIONER

 The unit can be switched ON or OFF by pressing the Power button on the control panel or

the Power button on the remote control.

COOLING MODE

 In this mode, the air conditioner cools and dehumidifies the room. To activate this function

mode, press the Mode Control button until the indicator comes on. When the cooling

mode is set, the compressor will start in approximately 3 minutes.

NOTE: In cooling mode, hot air is exhausted from the outdoor exhaust port and the exhaust

hose must be connected to exhaust out the hot air.

 The temperature setting range of this air conditioner is from 61°F to 89°F. To set the

temperature, press the + or - buttons. This air conditioner has a 5°F temperature cushion

which if the set temperature is within 5°F of the ambient temperature, the unit runs on fan

only mode. This saves energy and prolongs the life of the compressor of the air

conditioner. Once the set temperature is achieved, the fan runs continuously.

 To set the fan speed, press the Fan Speed button. In cooling mode, the difference in

noise level between the 3 fan speeds is not very noticeable when the compressor is

on. Try setting the unit to Fan only mode, you should be able to hear the difference

between high and low fan speed settings.

DEHUMIDIFYING MODE

 In this mode, the air conditioner only dehumidifies the room, the compressor will activate

intermittently depending on the ambient temperature and the fan speed is set to LOW. To

activate this function mode, press the Mode Control button until the indicator comes on.

Please note that when switching function mode, there will be an approximately 3 minute

transition time. In dehumidifying mode, do not connect the exhaust hose and let the warm air

return to the room. If room temperature is higher than 77°F, the fan speed can be adjusted. If

room temperature is lower than 77°F, the fan speed is set at Low.

NOTE: When using the Dehumidifying mode, the air exhaust hose should not be vented to

the outside. If the warm air is exhausted to the outside, cooling may occur. Additionally, you

must manually drain the water from the unit.

FAN ONLY MODE

 In this mode, only the fan of the air conditioner runs and circulates the air in the room. To

activate this function mode, press the Mode Control button until the indicator comes on.

In this function mode, the temperature cannot be set. Subsequently, set the desired fan

speed by pressing the Fan Speed button. Fan Only mode requires that the exhaust hose

be removed.

NOTE: The unit does not need to be vented in Fan Only mode.

13 | P a g e

HEAT MODE

 In this mode, the air conditioner heats the room. To activate this function mode, press the

Mode Control button until the indicator comes on. When the heating mode is set, the

compressor will start in approximately 3-5 minutes.

NOTE: In heating mode, cold air is exhausted from the outdoor exhaust port and the

exhaust hose must be connected to exhaust out the cold air. If outside temperature is lower

than inside temperature, air intake hose should be blocked and unit will take in air from the

air filter.

 The temperature setting range of this air conditioner is from 61F to 77F. To set the

temperature, press the + or – buttons. Once the set temperature is achieved, the

compressor and the fan will stop

NOTE: This unit uses heat pump from heating and the heating mode does not

work when temperature is below 45F.

 To set the fan speed, press the Fan Speed button. In heating mode, the difference in

noise level between the 3 fan speeds is not very noticeable when the compressor is

on. Try setting the unit to Fan only mode, you should be able to hear the difference

between high and low fan speed settings.

TIMER (DELAYED SWITCH ON / OFF) FUNCTION

 This function mode enables a delayed switch ON or delayed switch OFF of the air

conditioner. The time (hours) delay can be set, enabled and disabled. The timer is

adjustable between 1-24 hours.

SETTING SWITCH OFF TIMER

With the air conditioner operating in any function mode, press the Timer Control button. Then

set the desired time delay OFF hours by pressing the + or - buttons. When the delay time set

has elapsed, the air conditioner switches off.

SETTING DELAYED SWITCH ON TIMER

With the air conditioner is off, press the Timer Control button. Then set the desired time delay

ON hours by pressing the + or - buttons. When the delay time set has elapsed, the air

conditioner switches on.

AUTO RESTART

In the event of a power outage, the air conditioner restarts at the previously set function mode

and settings when power is restored.

NOISE LEVEL

Portable air conditioners may make sounds that are not familiar to you. The sounds listed below

are normal. Noise reflecting off hard surfaces such as a floor or wall can make the sounds seem

louder than they actually are.

 The compressor may make a pulsating or high-pitched sound.

 Water running from the evaporator to the water tank may make a splashing sound.

 Refrigerant flowing may make a gurgling sound.

 Fan sound may come from front and back air vents.

14 | P a g e

WATER DRAINAGE

During the process of cooling, some water will be extracted from the air into the unit. Most of

this water is used to cool and exhausted to the outside. If the unit is operated in high humidity or

low temperature environment, water will collect in the reservoir inside the unit. If the reservoir is

full, the compressor will stop. To continue the cooling function, please drain the water.

1. Turn off the unit.

2. Position a flat container or dish under the drain plug.

3. Remove the drain plug and the condensed water will drain out automatically.

4. Once all the condensed water is drained, replace the drain plug into the drain firmly.

15 | P a g e

REMOTE CONTROL

The portable air conditioner can be switched on by the remote control.

NOTE:

 Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.),

may cause interferences.

 Electronic and fluorescent lamps may interfere with the signal transmissions between the

remote control and the air conditioner.

 Remove the batteries if the remote control is not used for long periods.

INSTALLING BATTERIES

 Only use two AAA 1.5V Batteries in the remote control.

 Always change both batteries at the same time.

To insert the batteries, open the flap on the back of the remote control by sliding if off. Strictly

adhere to the polarity signs on the bottom of the battery housing, close the flap once the batteries

have been inserted.

16 | P a g e

CARE AND MAINTENANCE

IMPORTANT:

 Switch off the air conditioner and disconnect the plug from the power outlet

 Drain water by removing the drain plug.

 Always transport the air conditioner in an upright position only.

CLEANING THE PRE-FILTER

 To ensure the air intake is filtered properly and to assure that your air conditioner runs

efficiently, it is recommended to clean the Pre-filter at least once every two weeks.

 Switch off the air conditioner and pull out the filter frame from the unit.

 Remove the Activated Carbon filter from the Pre-filter.

 Use a vacuum cleaner or tap lightly to remove loose dust and dirt from the Pre-filter. Then

rinse it thoroughly under warm or cold running water (no hotter than 100F.)

 Dry thoroughly before re-inserting the filters.

 NOTE: The Activated Carbon filter is not washable. It should be replaced every 2-3 months or as

needed.

WARNING! Never operate the air conditioner without the filter in place.

CLEANING THE AIR CONDITIONER

 Always switch off the air conditioner and disconnect the plug from the power supply outlet

before cleaning the air conditioner.

 Use a soft damp cloth to wipe the body of the unit.

 Never use harsh chemicals, oil-based products, detergents, chemically treated cloths or

other cleaning solutions. These could possibly damage the body of the air conditioner.

END OF SEASON STORAGE

 Switch off the air conditioner and disconnect the power plug from the power supply outlet

before cleaning the air conditioner.

 Clean the air filters.

 Drain the condensed water COMPLETELY.

 On a warm day, turn on the Fan only mode for half a day so that the inside can dry out

completely.

 Wrapped the power cord and bundle it with the tape.

 Remove the batteries from the remote controller.

 Disconnect the exhaust hose and cover the window / wall hole with the cover.

 It is recommended that the air conditioner be put back into its original carton for storage.

 To avoid damage to the unit, please leave the hose connectors in place or slightly turn,

push and gently pull the connectors off.

17 | P a g e

TECHNICAL DATA

Model ARC-14SH

Cooling capacity 14,000 BTU

Heating capacity 13,000 BTU

Power supply 115v/ 60Hz

Maximum power input 1250 Watts Cooling

1200 Watts Heating

Maximum input 10.8 Amps Cooling

10.5 Amps Heating

Dehumidifying capacity 101 Pts / Day

Thermostat 61°F to 89°F

Refrigerant R-410A

Air flow (max.) 360 m3/ Hour

Fan speeds 3 (H, M, L)

Exhaust hose length 49”

Unit Dimensions 19” W x 16” D x 35.5” H

Unit Weight 81 lbs

18 | P a g e

TROUBLESHOOTING

Problem Possible Causes Solutions

The portable air

conditioner does not

turn on



Power failure / outage.

 The automatic switch, line

fuse, or breaker has been

tripped.

 The power supply voltage is

too low.

 The power cord is damaged.

 The L.C.D.I. power plug for the

unit is tripped.

 The internal water reservoir is

full.

 Possible loose connection

 Internal fuse has blown



Restore the power supply.

 Flip the switch / change the fuse / turn the breaker

back on. Also note that you may have too many

appliances drawing power on one circuit, you may

need to move the other appliances to another

circuit.

 Move the unit onto another circuit with the correct

voltage.

 Contact Whynter Service Department. Only

authorized personnel should replace damaged

power cord or power plug.

 Press the Reset button on the L.C.D.I. power plug.

 Drain water from the air conditioner.

 Contact Whynter Service Department

The unit turns on but

the compressor does

not turn on (the fan

runs but the unit is not

cooling)



The room temperature is

outside of the operational

tolerances of the unit.

 The Cooling mode is not on.

 The compressor has not

turned on yet because of its

time delay.

 The set temperature is too

high.

 The internal water reservoir is

full.



This unit is designed to work in ambient

temperatures of 64°F to 95°F.

 Press the MODE button until the COOL light is

shown on the display.

 Give the compressor 3 minutes to turn on after the

Cooling mode has been selected.

 Set the air conditioner to a lower temperature. It is

recommended to set the temperature to at least

5°F of the ambient temperature.

 Either manually drain the water by removing the

drain plug or allow the unit to exhaust the water

itself by running the fan only mode. Then cooling

will resume.

The air coming out of

the unit is not very

cold, or the airflow

volume is weak



The filters are dirty or

obstructed.

 The air intake or exhaust is

obstructed.

 The unit is set in DRY or FAN

mode.

 The unit is set to low fan

speed.



Clean the air filters.

 Make sure there is at least 20" of clearance from

the air intake. Make the length of the exhaust hose

is as short as possible.

 Set the unit to the cooling mode.

 Set the unit to a higher fan speed.

19 | P a g e

The unit has worked for a

long time, but the room is

not cold enough



Windows or doors are open.

 There are too many people in

the room.

 There is direct sunshine into

the room.

 The room is a kitchen or with

many heat-producing

appliances

 There is a server in the room.

 The room is too large.



Close all windows and doors.

 You may need additional cooling or another

air conditioner.

 Close curtains or blinds and try to minimize

the amount of direct sunlight into the room.

 You may need additional cooling or another

air conditioner.

 You may need additional cooling or another

air conditioner.

 You may need additional cooling or another

air conditioner.

The unit is very noisy



The unit is not level.

 The surface underneath the

unit is uneven.

 Low power voltage.



Make sure the unit is on hard, level and

stable surface.

 Move the unit to a location with a level and

hard floor.

 Make sure the wall outlet and support the

required power consumption of the air

conditioner and do not use an extension cord.

The unit leaks water



The unit is tilted or not leveled

 The water tank is full.



Make use the unit is leveled.

 Drain water from the drain plug at the back of

the air conditioner.

The unit needs to be

drained too often



The humidity in the area may

very high

 Possible loose connection



Remove the intake hose if the outside

humidity is high or it is raining

 Contact Whynter Service Department

Fan speed cannot be

changed



Fan speed differences are not

very noticeable



The fan speed difference is not very

noticeable when the compressor is on. Try

setting the unit to Fan only mode, you should

be able to hear the difference between high

and low fan speed settings.

The unit does not heat  The room temperature is too

low.

 The heating mode is not on.

 The compressor has not

turned on yet because of its

time delay.

 The set temperature is too low.

 The internal water reservoir is

full.

 The humidity in the area may

very high

 There may be a loose

connection



The heat pump of the air conditioner does not

operate when temperature is below 45F.

 Press the MODE button until the HEAT light is

show on the display

 Give the compressor 3 minutes to turn on

after the Heating mode has been selected.

 Set the air conditioner to a higher

temperature. It is recommended to set the

temperature to at least 5F of the ambient

temperature.

 Either manually drain the water by removing

the drain plug or allow the unit to exhaust the

water itself by running the fan only mode. The

cooling will resume.

 Remove the intake hose if the outside

humidity is high or it is raining

 Contact Whynter Service Department

20 | P a g e

ONE YEAR LIMITED WARRANTY &

THREE YEAR WARRANTY ON COMPRESSOR

This WHYNTER portable air conditioner is warranted, to the original owner within the 48

continental states, for one year from the date of purchase against defects in material and

workmanship under normal use and service. Should your WHYNTER portable air conditioner

prove defective within one year from the date of purchase, return the defective part or unit,

freight prepaid (within two months of purchase; after two months to one year, customer will be

responsible for freight cost to Whynter’s service department), along with an explanation of the

claim to Whynter LLC. Please package the portable air conditioner carefully in its original

packaging material to avoid damage in transit. Please retain the original box and packaging

material. Under this warranty, Whynter will repair or replace any parts found defective. This

warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will

be the responsibility of the original owner of the unit.

THIS WARRANTY DOES NOT COVER:

 Acts of God, such as fire, flood, hurricanes, earthquakes and tornadoes.

 Damage, accidental or otherwise, to the air conditioner while in the possession of

a consumer not caused by a defect in material or workmanship;

 Damage caused by consumer misuse, tampering, or failure to follow the care and

special handling provisions in the instructions.

 Damage to the finish of the case, or other appearance parts caused by wear.

 Damage caused by repairs or alterations to the product by anyone other than

authorized by the manufacturer.

 Freight and Insurance cost for the warranty service.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR

REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST

PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL

OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY

BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, OR LIMITATIONS ON

THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS

WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM

STATE TO STATE.

To obtain service or information, contact

Whynter LLC via email at service@whynter.com or call

866-WHYNTER.

Product contents and specifications may change without

notice.

Copyright © 2014 Whynter

LLC

www.Whynter.com
