Wistron Huron Schematics. Www.s Manuals.com. Rsd Schematics

User Manual: Motherboard Wistron Huron - Schematics. Free.

Open the PDF directly: View PDF .
Page Count: 45

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BLOCK DIAGRAM

A3

144Monday, March 12, 2007

Volvi

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BLOCK DIAGRAM

A3

144Monday, March 12, 2007

Volvi

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BLOCK DIAGRAM

A3

144Monday, March 12, 2007

Volvi

KBC

30

WPC8768L

Winbond

INT.

KB

Touch

Pad

31 31

DDR2

CLK GEN.

533/667 MHz

3

13,14

Huron Block Diagram

Codec

ALC268

Line In

MIC In

IDTCV125PAG 71.00125.A0W

a/b/g/n

PATA

HDD

20

LPC BUS

Mini Card

DDR2

533/667 MHz

13,14

533/667MHz

PCI Express

20

27

Project code: 91.4V301.001

PCB P/N : 07205

REVISION : SD

TOP

VCC

S

S

GND

BOTTOM

PCB STACKUP

Kedron

G1431Q

OP AMP

AZALIA

G1412

29

INT.SPKR

Line Out

(SPDIF)

SATA

G792

20

533/667MHz

2323

TXFM RJ45

27 28

New card

P2231NFC1

28

29

29

TV Out

VGA Borad

14

13

CRT14

LCD

USB

MINI USB

BlueTooth

21

22

USB

2 Port CAMERA13

W25X80-VSS

BIOS

32

PCI BUS

MS/MS Pro/xD/

MMC/SD

25

1394

CONN

25

5 in 1

Cardreader BD

24

OP AMP

29

26

SPI I/F

OZ129

1394

CardReader

BCM5787MKMLG

Giga LAN

22

MEDIA BD

31

4, 5

Mobile CPU

Yonah 478

Celeron M

62.10079.001

DMI

FSB 400/533/667MHz

100MHz

4, 5

6,7,8,9,10

15,16,17,18

Calistoga

ICH7M

4 PCIe ports

AGTL+ CPU I/F

LVDS, CRT I/F

INTEGRATED GRAHPICS

DDR Memory I/F

ETHERNET (10/100/1000MbE)

8 USB 2.0/1.1 ports

High Definition Audio

1 PATA 66/100

ACPI 2.0

PCI/PCI BRIDGE

2 SATA

LPC I/F

71.ICH7M.00U

71.CALIS.00U

Serial Peripheral I/F

DCBATOUT

INPUTS

SYSTEM DC/DC

TPS51120

5V_S5

37

OUTPUTS

TPS51100

DDR_VREF1D8V_S3

40

3V_S5

TPS51124

1D8V_S3

38

DCBATOUT

INPUTS OUTPUTS

SYSTEM DC/DC

APL5308

3D3V_S0 2D5V_S0

APL5912

1D8V_S3

1D5V_S0

40

39

41

35

VCC_CORE

0~1.3V

48A

OUTPUTS

CPU DC/DC

INPUTS

DCBATOUT

Intersil CHARGER

OUTPUTSINPUTS

BT+

DCBATOUT

UP+5V

5V 100mA

18V 4.0A

MAX8731

ISL6262

1D05V_S0

CDROM

DVI 42

RTM865T-433 71.00865.B0W

USB BD

21

PWM BD

31

LAUNCH BD

31

e-Key BD

31

MODEM Card RJ11

AZALIA

OP AMP

G1442

29

29

SUBWF

INT.MIC

PCB P/N:07517

PCB : 07518PCB : 07519PCB : 07520PCB : 07521 56.41004.031

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

Reference

244Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

Reference

244Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

Reference

244Monday, March 12, 2007

<Core Design>

Calistoga Strapping Signals and

Configuration

RTM865T-433 100Mhz/LCDCLK Spread

and Frequency Selection Table

SS3

Byte9

bit 7

SS2

bit6

SS1

bit5

SS0

bit4 Spread Amount%

000

00

0

0

0

0

1

11

0

1

0.8% Down

1.0% Down

1.25% Down

1.50% Down

1.75% Down

2.0% Down

2.5% Down

3.0% Down

page 7

page 3

ICH7 internal 20K pull-ups

approximately 33 ohm

DD[15:0],

DDACK#,

ICH7 internal 20K pull-downs

IORDY,

LAN_RXD[2:0]

ICH7M Integrated Pull-up

and Pull-down Resistors

DCS3#,

DCS1#,

DIOR#, DREQ,DIOW#,

ICH7-M EDS 17837 1.5V1

DA[2:0],

ACZ_BIT_CLK, ACZ_RST#, ACZ_SDIN[2:0],

ACZ_SYNC,ACZ_SDOUT,

USB[7:0][P,N]

ICH7 internal 11.5K pull-downs

LAN_CLK

DD[7],

ICH7 internal 100K pull-down

ICH7M IDE Integrated Series

Termination Resistors

DDREQ

ICH7 internal 15K pull-downs

DPRSLPVR/GPIO16,

EE_DIN, EE_DOUT,

EE_CS,

GNT[5]#/GPO17,

GPIO[25],

LAD[3:0]#/FHW[3:0]#,

LDRQ[0], LDRQ[1]/GPIO[41],

PME#,

PWRBTN#,

SPKR,

TP[3]

IDEIRQ

00

0

0

1

1

1

11

11

+-1.0% Center

+-1.25% Center

+-1.5% Center

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

1

1

1

1

1 +-0.3% Center

+-0.4% Center

+-0.5% Center

+-0.6% Center

+-0.8% Center

INT -> PIRQ

AD22

REQ0# ->REQ0#

PCI Routing

OZ129TZ

REQ/GNTIDSEL

CFG[2:0]

CFG[4:3]

CFG5

CFG8

Pin Name

001 = FSB533

011 = FSB667

FSB Frequency Select

0 = DMI x2

others = Reserved

Reserved

(Default)

1 = DMI x4

Strap Description

DMI x2 Select

Reserved

Configuration

ReservedCFG6

CFG7

0 = Reserved

1 =Mobile CPU(Default)

CPU Strap

CFG9

0 = 1.05V

00 = Reserved

(Default)

(Default)

edge of the Calistoga GMCH PWORK in signal.

CFG16

10 = All Z mode enabled

0 = No SDVO Card present

_DATA

CFG[15:14]

SDVO Present

(Default)

CFG19

CFG20

straps

VCC Select

CFG17

CFG18

11 = Normal Operation

1 = Dynamic ODT Enabled

All strap signals are sampled with respect to the leading

0 = Dynamic ODT Disabled

1= SDVO Card present

SDVOCRTL

SDVO/PCIE

Concurrent

XOR/ALL Z test

1 = 1.5V

FSB Dynamic ODT

Global R-comp Disable

(All R-comps)

Reserved

01 = XOR mode enabled

DMI Lane Reversal

NOTE:

(Default)

PCI Express Graphics

Lane Reversal

0 = Reverse Lanes,15->0,14->1 ect..

1= Normal operation(Default):Lane

Numbered in order

CFG[11:10] Reserved

CFG[13:12]

Reserved

0 = Normal operation (Default):lane

Numbered in order

0 = All R-comp Disable

1 = Normal Operation (Default)

1 =Reverse Lane,4->0,3->1 ect...

0 = Only SDVO or PCIE x1 is

operational (Default)

1 =SDVO and PCIE x1 are operating

simultaneously via the PEG port

EDS 17050 0.71

SPI_ARB, SPI_CLK,

GNT[3:0],

GNT[4]#/GPIO48,

ICH7 internal 15K pull-upSATALED#

page 16

Reserved

EE_DOUT

GNT2#

Sets bit0 of RPC.PC(Config Registers:Offset 224h)

Top-Block

Swap Override.

Rising Edge of PWROK.

GNT5#/

GPIO17#,

GNT4#/

GPIO48

Boot BIOS Destination

Selection.

Rising Edge of PWROK.

Controllable via Boot BIOS Destination bit

(Config Registers:Offset 3410h:bit 11:10).

GNT5# is MSB, 01-SPI, 10-PCI, 11-LPC.

DPRSLPVR Reserved

ACZ_SDOUT

ACZ_SYNC

EE_CS

GNT3#

Signal

Sampled low:Top-Block Swap mode(inverts A16 for

all cycles targeting FWH BIOS space).

Note: Software will not be able to clear the

Top-Swap bit until the system is rebooted

without GNT3# being pulled down.

This signal should not be pull high.

XOR Chain Entrance/

PCIE Port Config bit1,

Rising Edge of PWROK

TBD, Chapter 8.

Allows entrance to XOR Chain testing when TP3

pulled low.When TP3 not pulled low at rising edge

of PWROK,sets bit1 of RPC.PC(Config Registers:

offset 224h)

PCIE bit0,

Rising Edge of PWROK.

GPIO25

Usage/When Sampled

Requires an external pull-up resistor.

Reserved.

Rising Edge of RSMRST#.

Comment

ICH7M Functional Strap Definitions

Reserved

This signal should not be pull low.

Reserved

This signal should not be pull low.

This signal should not be pull high.

INTVRMEN

LINKALERT#

REQ[4:1]#

SATALED#

SPKR

TP3

This signal should not be pull low.

Integrated VccSus1_05

VRM Enable/Disable.

Always sampled.

Enables integrated VccSus1_05 VRM when

sampled high

Reserved

XOR Chain Selection.

Rising Edge of PWROK.

Reserved This signal should not be pull low.

No Reboot.

Rising Edge of PWROK.

XOR Chain Entrance.

Rising Edge of PWROK. This signal should not be pull low unless using

XOR Chain testing.

If sampled high, the system is strapped to the

"No Reboot" mode(ICH7 will disable the TCO Timer

system reboot feature). The status is readable

via the NO REBOOT bit.

page 16

A→G

USB4

BlueTooth

NewCard

USB1

CCD

Pair

4 MINICARD

USB ports definition

USB2

5

0

2

3

1

Device

USB3

6

7

LAN BCM5787M

LANE2

LANE1

MiniCard WLAN

PCIE Routing

LANE3 NewCard WLAN

USB Table

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

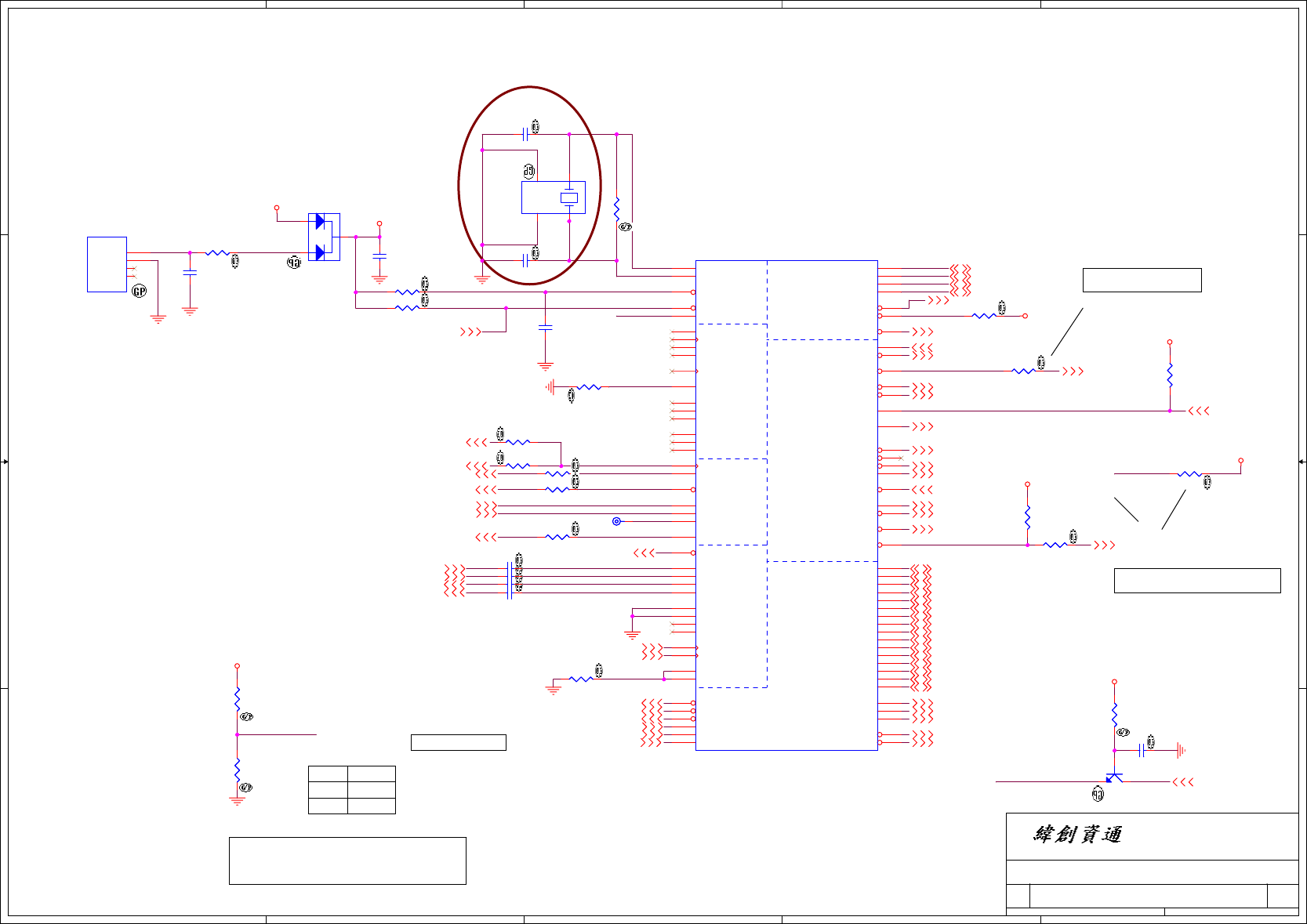

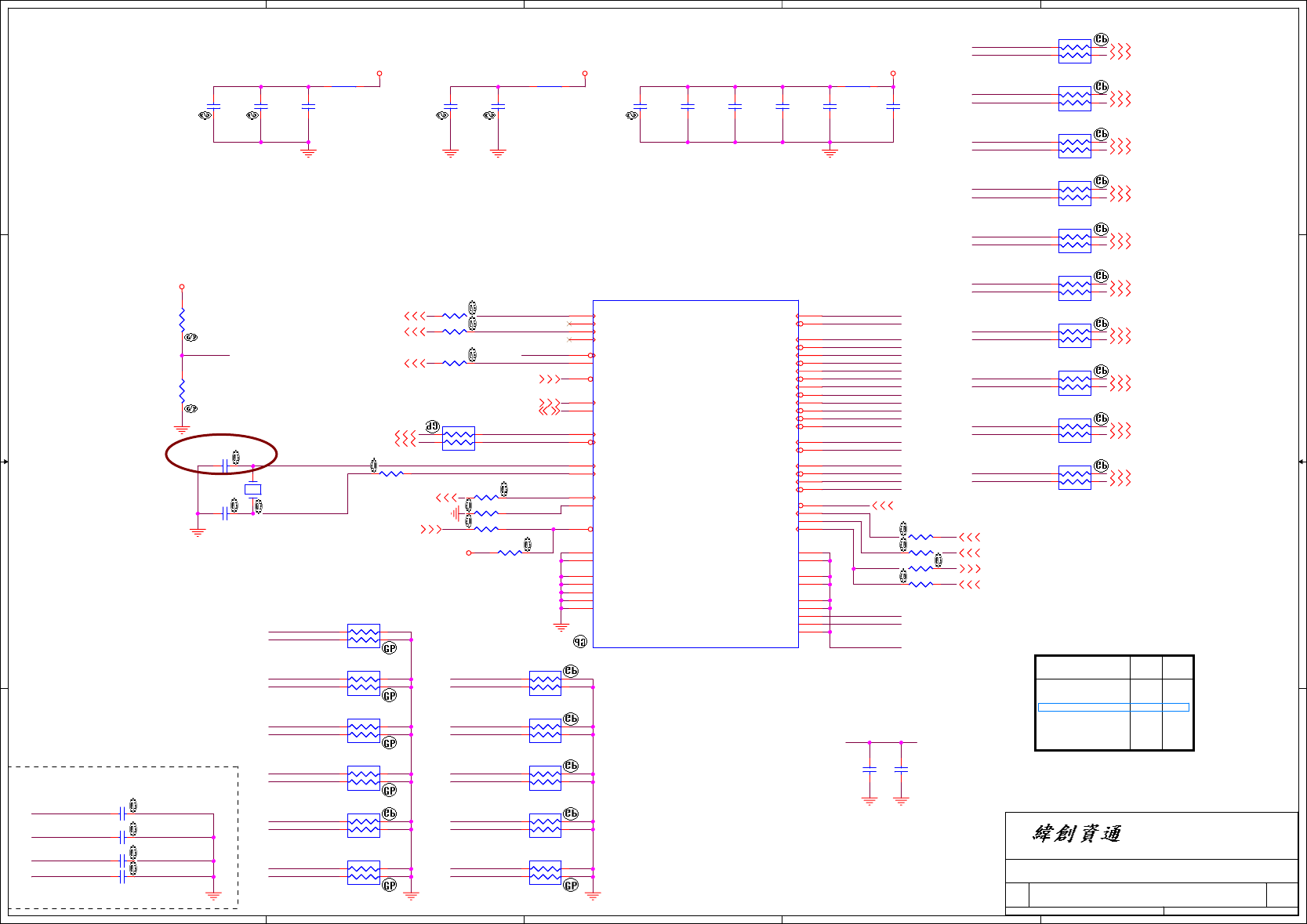

CLK48_ICH

CLK_ICHPCI

PCLK_KBC

CLK_ICH14

GEN_IREF

DREFSSCLK#_1

DREFSSCLK_1

DREFCLK_1

DREFCLK#_1

CLK_PCIE_ICH_1#

CLK_PCIE_ICH_1

DREFSSCLK#_1

DREFSSCLK_1

GEN_XTAL_IN

3D3V_CLKGEN_S0

GEN_XTAL_OUT

GEN_REF

GEN_XTAL_OUT_R

CLK_MCH_BCLK_1#

CLK_MCH_BCLK_1

3D3V_CLKPLL_S0

CLK_PCIE_ICH_1#

CLK_PCIE_ICH_1

CLK_CPU_BCLK_1

CLK_CPU_BCLK_1#

SS_SEL CLK_MCH_3GPLL_1#

CLK_MCH_3GPLL_1

CLK_PCIE_MINI_1#

CLK_PCIE_MINI_1

3D3V_48MPWR_S0

CLK48

PCLKPCM

PCLKICH

CLK_PCIE_MINI1

CLK_PCIE_MINI1#

CLK_PCIE_SATA

CLK_PCIE_SATA#

CLK_PCIE_ICH#

CPU_SEL1_R

CLK_PCIE_ICH

CLK_PCIE_PEG_1

CLK_PCIE_PEG_1#

CPU_SEL2_R

PCLKKBC

CLK_PCIE_LAN#_R

CLK_PCIE_LAN_R

CLK_PCIE_NEW#_R

CLK_PCIE_NEW_R

CLK_PCIE_NEW#_R

CLK_PCIE_NEW_R

3D3V_48MPWR_S0

CLK_PCIE_SATA_1

CLK_MCH_3GPLL_1#

CLK_MCH_3GPLL_1

DREFSSCLK#

DREFSSCLK

DREFCLK#

DREFCLK

CLK_CPU_BCLK

CLK_CPU_BCLK#

CLK_MCH_3GPLL

CLK_MCH_3GPLL#

3D3V_CLKGEN_S0

CLK_PCIE_SATA_1#

CLK_PCIE_SATA_1#

CLK_PCIE_SATA_1

CLK_PCIE_NEW#

CLK_PCIE_NEW

3D3V_CLKPLL_S0

3D3V_CLKGEN_S0

SS_SEL

CLK_PCIE_MINI_1

CLK_PCIE_MINI_1#

CLK_CPU_BCLK_1

CLK_CPU_BCLK_1#

CLK_PCIE_PEG_1

CLK_PCIE_PEG_1#

CLK_PCIE_PEG

CLK_PCIE_PEG#

CLK_PCIE_LAN#_R

CLK_PCIE_LAN_R

CLK_PCIE_LAN#

CLK_PCIE_LAN

CLK_MCH_BCLK_1

CLK_MCH_BCLK_1#

CLK_MCH_BCLK

CLK_MCH_BCLK#

3D3V_S0

3D3V_S0

3D3V_S03D3V_S03D3V_S0

CLK48_ICH 16

CLK_ICH1416

SMBD_ICH11,18

SMBC_ICH11,18

DREFSSCLK# 7

DREFSSCLK 7

PM_STPPCI#16

CPU_SEL1 4,7

CPU_SEL0 4,7

CPU_SEL2 4,7

PM_STPCPU# 16

CLK_PCIE_SATA 15

CLK_PCIE_SATA# 15

PCLK_PCM24

CLK_ICHPCI16

DREFCLK7 DREFCLK#7

CLK_PCIE_ICH 16

CLK_PCIE_ICH# 16

PCLK_KBC30

CLK_PCIE_NEW 27

CLK_PCIE_NEW# 27

CLK_EN#35

CLK_MCH_3GPLL 7

CLK_MCH_3GPLL# 7

CLK_PCIE_MINI1 27

CLK_PCIE_MINI1# 27

CLK_CPU_BCLK 4

CLK_CPU_BCLK# 4

CLK_PCIE_PEG 26

CLK_PCIE_PEG# 26

CLK_PCIE_LAN# 22

CLK_PCIE_LAN 22

CLK_MCH_BCLK 6

CLK_MCH_BCLK# 6

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Clock Generator

344Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Clock Generator

344Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Clock Generator

344Monday, March 12, 2007

HURON

SD

<Core Design>

EMI

CL=20pF±0.2pF

H/L: 100/96MHz

X

X

X

X

X

X

00

1200M

0

1

0

1 100M

FSB

0133M

1

11

CPU

0

0

0

333M

FSC

1

1

166M

0

1

1

0

0

0

1

FSA

1

266M

400M

FSB

533M

Reserved

667M

ENG

1

2 3

4

RN45

SRN49D9F-GP

MXM

RN45

SRN49D9F-GP

MXM

1

2 3

4

RN2

SRN33J-5-GP-U

RN2

SRN33J-5-GP-U

1

2 3

4

RN59

SRN49D9F-GP

RN59

SRN49D9F-GP

1

2 3

4

RN47

SRN49D9F-GP

RN47

SRN49D9F-GP

1 2

C70 SC33P50V2JN-3GPC70 SC33P50V2JN-3GP

1 2

R244

0R0603-PAD

R244

0R0603-PAD

12

R50

2K2R2J-2-GP

R50

2K2R2J-2-GP

12

C96

SCD1U16V2ZY-2GP

C96

SCD1U16V2ZY-2GP

12

R66

10KR2J-3-GP

DY

R66

10KR2J-3-GP

DY

1

23

4

RN8

SRN33J-5-GP-U

UMA

RN8

SRN33J-5-GP-U

UMA

1

2 3

4

RN3

SRN33J-5-GP-U

RN3

SRN33J-5-GP-U

12

R72

10KR2J-3-GP

R72

10KR2J-3-GP

12

C397

SCD1U16V2ZY-2GP

C397

SCD1U16V2ZY-2GP

1

2 3

4

RN11

SRN33J-5-GP-U

RN11

SRN33J-5-GP-U

12

R254 0R2J-2-GPR254 0R2J-2-GP

12

R58 0R2J-2-GPR58 0R2J-2-GP

1 2

EC16 SC10P50V2JN-4GP

DY

EC16 SC10P50V2JN-4GP

DY

12

R61

2K2R2J-2-GP

R61

2K2R2J-2-GP

1

2 3

4

RN5

SRN33J-5-GP-U

RN5

SRN33J-5-GP-U

12

EC20

SCD1U16V2ZY-2GP

DY

EC20

SCD1U16V2ZY-2GP

DY

1

2 3

4

RN9

SRN33J-5-GP-U

UMA

RN9

SRN33J-5-GP-U

UMA

1

2 3

4

RN62

SRN49D9F-GP

RN62

SRN49D9F-GP

1

2 3

4

RN12

SRN33J-5-GP-U

NEW

RN12

SRN33J-5-GP-U

NEW

1 2

R49 33R2J-2-GPR49 33R2J-2-GP

1 2

EC22 SC10P50V2JN-4GP

DY

EC22 SC10P50V2JN-4GP

DY

1

2 3

4

RN44

SRN49D9F-GP

RN44

SRN49D9F-GP

1 2

R67

33R2J-2-GP

R67

33R2J-2-GP

1

2 3

4

RN61

SRN49D9F-GP

RN61

SRN49D9F-GP

12

C382

SC1U16V3ZY-GP

C382

SC1U16V3ZY-GP

1 2

EC97 SC10P50V2JN-4GP

DY

EC97 SC10P50V2JN-4GP

DY

12

EC19

SCD1U16V2ZY-2GP

DY

EC19

SCD1U16V2ZY-2GP

DY

12

R253

2K2R2J-2-GP

R253

2K2R2J-2-GP

1

2 3

4

RN13

SRN33J-5-GP-U

RN13

SRN33J-5-GP-U

PCI_3

3

PCI_4

4

PCI_5

5

PCIF_0/ITP_EN

8PCIF_1/DOT96SS_SEL#

9

VTT_POWER_GOOD#/PWRDWN

10 USB48MHZ/FSA 12

DOT96

14

DOT96#

15

FSB/TEST_MODE 16

SRC_0/DOT96SS 17

SRC_0#/DOT96SS# 18

SRC_1 19

SRC_1# 20

SRC_2 22

SRC_2# 23

SRC_3 24

SRC_3# 25

SRC_4_SATA 26

SRC_4_SATA# 27

PCI_2/REQ_SEL

56

PCI_STOP#

55

CPU_STOP# 54

FSC/TEST_SEL/REF_1 53

REF_0

52

X1

50

X2

49

SDATA

47 SCLK

46

CPU_0 44

CPU_0# 43

CPU_1 41

CPU1_# 40

IREF

39

CPU_2_ITP/SRC_7 36

CPU_2_ITP#/SRC_7# 35

SRC_6/PCIE_REQ_1# 33

SRC_6#/PCIE_REQ_2# 32

SRC_5 31

SRC_5# 30

VDD_3.3_PCI 1

VDD_3.3_PCI 7

VDD_3.3_48M 11

VDD_3.3_SRC 21

VDD_3.3_SRC 28

VDD_3.3_REF 48

VDD_3.3_CPU 42

VDD_3.3_CORE 37

VDD_3.3_SRC 34

GND_PCI

2

GND_PCI

6

GND_48

13

GND_REF

51

GND_CPU

45

GND_CORE

38

GND_SRC

29

U11

RTM865T-433-GP

71.00865.B0W

U11

RTM865T-433-GP

71.00865.B0W

12

C71

SCD1U16V2ZY-2GP

C71

SCD1U16V2ZY-2GP

1

2 3

4

RN60

SRN49D9F-GP

RN60

SRN49D9F-GP

1

2 3

4

RN10

SRN33J-5-GP-U

RN10

SRN33J-5-GP-U

12

C107

SC1U16V3ZY-GP

C107

SC1U16V3ZY-GP

1 2

EC21 SC10P50V2JN-4GP

DY

EC21 SC10P50V2JN-4GP

DY

12

R53

475R2F-L1-GP

R53

475R2F-L1-GP

1 2

R51

33R2J-2-GP

R51

33R2J-2-GP

1

2 3

4

RN6

SRN33J-5-GP-U

RN6

SRN33J-5-GP-U

12

C106

SC4D7U6D3V3KX-GP

DY

C106

SC4D7U6D3V3KX-GP

DY

1

2 3

4

RN43

SRN49D9F-GP

RN43

SRN49D9F-GP

1 2

R255

10KR2J-3-GP

DY

R255

10KR2J-3-GP

DY

1 2

R64 33R2J-2-GPR64 33R2J-2-GP

1

2 3

4

RN4

SRN33J-5-GP-U

MXM

RN4

SRN33J-5-GP-U

MXM

12

C66

SCD1U16V2ZY-2GP

C66

SCD1U16V2ZY-2GP

1 2

R252

0R0603-PAD

R252

0R0603-PAD

12

C63

SCD1U16V2ZY-2GP

C63

SCD1U16V2ZY-2GP

1

2 3

4

RN46

SRN49D9F-GP

RN46

SRN49D9F-GP

1 2

R75

0R0603-PAD

R75

0R0603-PAD

12

C100

SCD1U16V2ZY-2GP

C100

SCD1U16V2ZY-2GP

12

C92

SC4D7U6D3V3KX-GP

C92

SC4D7U6D3V3KX-GP

1 2

C79

SC27P50V2JN-2-GP

C79

SC27P50V2JN-2-GP

1

2 3

4

RN57

SRN49D9F-GP

RN57

SRN49D9F-GP

1 2

R65 33R2J-2-GPR65 33R2J-2-GP

1

2 3

4

RN58

SRN49D9F-GP

NEW

RN58

SRN49D9F-GP

NEW

12

C383

SC4D7U6D3V3KX-GP

DY

C383

SC4D7U6D3V3KX-GP

DY

12

X2 X-14D31818M-44GP

82.30005.951

X2 X-14D31818M-44GP

82.30005.951

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

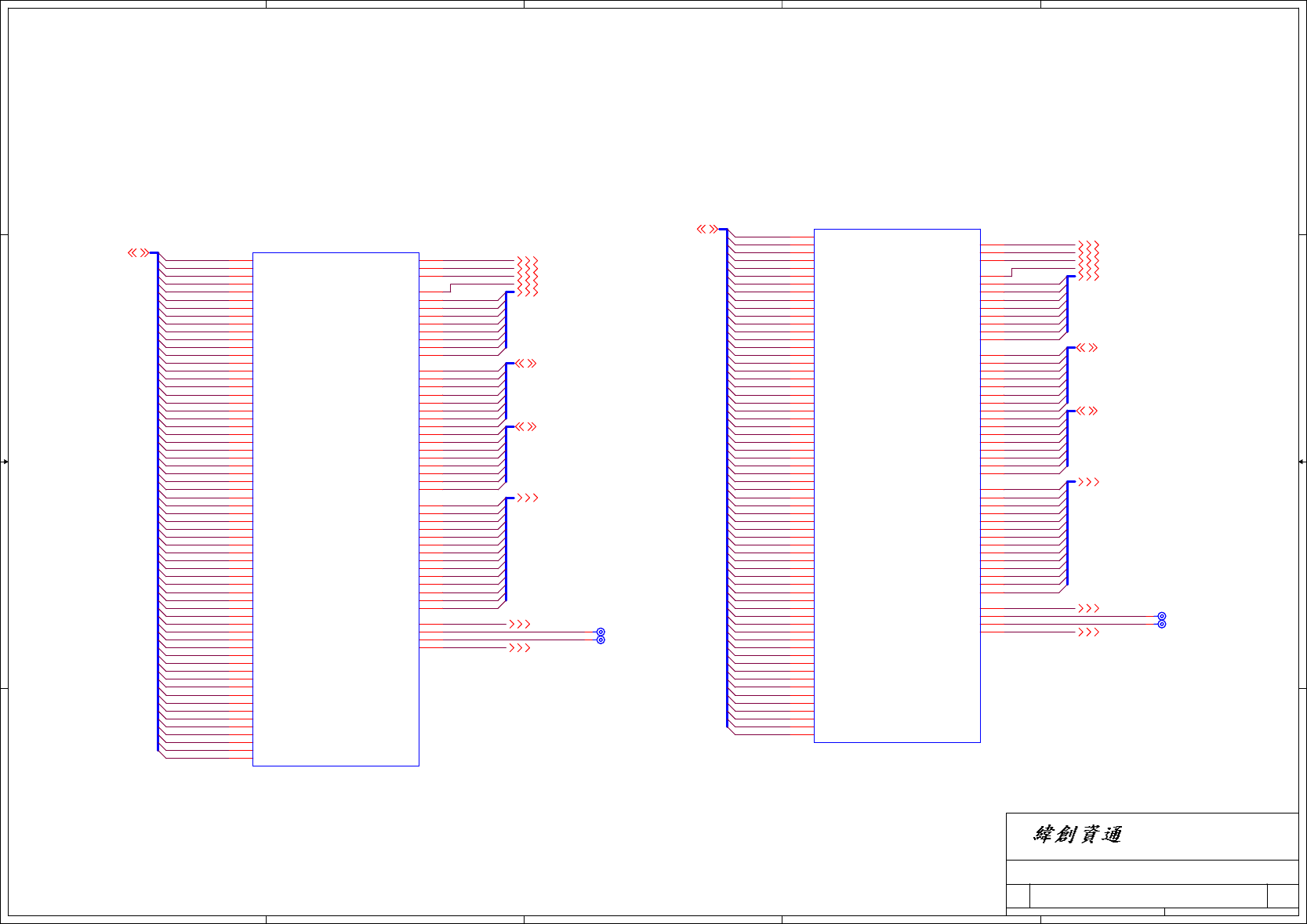

XDP_TDI

XDP_TMS

XDP_TRST#

XDP_TDO

H_CPURST#

XDP_DBRESET#

XDP_TCK

H_A#3

H_A#4

H_A#5

H_A#6

H_A#7

H_A#8

H_A#9

H_A#10

H_A#11

H_A#12

H_A#13

H_A#14

H_A#15

H_A#16

H_REQ#0

H_REQ#1

H_REQ#2

H_REQ#3

H_REQ#4

H_D#32

H_D#33

H_D#34

H_D#35

H_D#36

H_D#37

H_D#38

H_D#39

H_D#41

H_D#40

H_D#42

H_D#43

H_D#44

H_D#45

H_D#46

H_D#47

H_INIT#

CPU_PROCHOT#_1

XDP_TCK

XDP_TDI

XDP_TMS

XDP_TRST#

XDP_TDO

XDP_DBRESET#

CPU_GTLREF0 COMP0

COMP1

COMP2

COMP3TEST1

H_THERMDC

H_D#0

H_D#1

H_D#2

H_D#3

H_D#4

H_D#5

H_D#6

H_D#7

H_D#8

H_D#9

H_D#10

H_D#11

H_D#12

H_D#13

H_D#14

H_D#15

TEST2

H_D#16

H_D#17

H_D#18

H_D#19

H_D#20

H_D#21

H_D#22

H_D#23

H_D#24

H_D#25

H_D#26

H_D#27

H_D#28

H_D#29

H_D#30

H_D#31

H_THERMDA

H_A#18

H_A#20

H_A#21

H_A#22

H_A#17

H_A#19

H_A#23

H_A#24

H_A#25

H_A#26

H_A#27

H_A#28

H_A#29

H_A#30

H_A#31

H_RS#1

H_RS#0

H_RS#2

H_IERR#

H_D#48

H_D#49

H_D#51

H_D#50

H_D#52

H_D#53

H_D#54

H_D#55

H_D#57

H_D#56

H_D#58

H_D#59

H_D#60

H_D#61

H_D#63

H_D#62

1D05V_S0

1D05V_S0

1D05V_S0

3D3V_S0

1D05V_S0

H_ADS# 6

H_BNR# 6

H_DRDY# 6

H_DBSY# 6

H_BREQ#0 6

H_HIT# 6

H_HITM# 6

H_LOCK# 6

H_DSTBN#2 6

H_DSTBP#2 6

H_DINV#2 6

H_D#[63..0] 6

H_DSTBN#3 6

H_DSTBP#3 6

H_DINV#3 6

H_ADSTB#16

H_A#[31..3]6

H_ADSTB#06 H_REQ#[4..0]6

H_DSTBN#06 H_DSTBP#06 H_DINV#06

H_DSTBN#16 H_DSTBP#16 H_DINV#16

H_BPRI# 6

H_DEFER# 6

H_INIT# 15

H_CPURST# 6,31

H_RS#[2..0] 6

H_TRDY# 6

H_THERMDA 19

CLK_CPU_BCLK 3

CLK_CPU_BCLK# 3

H_DPRSTP# 15,35

H_DPSLP# 15

H_DPWR# 6

H_FERR#15

H_PWRGD 15,31,33

H_CPUSLP# 6,15

H_THERMDC 19

H_INTR15 H_NMI15 H_SMI#15

H_IGNNE#15

H_A20M#15

H_DINV#[3..0] 6

H_DSTBN#[3..0] 6

H_DSTBP#[3..0] 6

CPU_SEL23,7

CPU_SEL03,7 CPU_SEL13,7

H_STPCLK#15

PSI# 35

PM_THRMTRIP-A# 7,15,33

CPU_PROCHOT# 35

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (1 of 2)

444Monday, March 12, 2007

HURON SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (1 of 2)

444Monday, March 12, 2007

HURON SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (1 of 2)

444Monday, March 12, 2007

HURON SD

<Core Design>

H_IERR# with a GND

0.1" away

Place testpoint on

All place within 2" to CPU

2nd source: 62.10053.401

Layout Note:

0.5" max length.

( No stub)

should connect to

PM_THRMTRIP#

without T-ing

ICH7 and Calistoga

Layout Note:

Comp0, 2 connect with Zo=27.4 ohm, make

Comp1, 3 connect with Zo=55 ohm, make

trace length shorter than 0.5" .

trace length shorter than 0.5" .

2nd source: 62.10053.401

12

C376

SC1KP50V2KX-1GP

C376

SC1KP50V2KX-1GP

TP5 TPAD30TP5 TPAD30

1 2

R55 27D4R2F-L1-GPR55 27D4R2F-L1-GP

TP3 TPAD30TP3 TPAD30

1 2

R48 39D2R3F-2-GPR48 39D2R3F-2-GP

12

R69

56R2J-4-GP

R69

56R2J-4-GP

1 2

R279 1KR2J-1-GP

DY

R279 1KR2J-1-GP

DY

1 2

R46 680R3F-GPR46 680R3F-GP

12

C127

SC2200P50V2KX-2GP

C127

SC2200P50V2KX-2GP

A[10]#

N3

A[11]#

P5

A[12]#

P2

A[13]#

L1

A[14]#

P4

A[15]#

P1

A[16]#

R1

A[17]#

Y2

A[18]#

U5

A[19]#

R3

A[20]#

W6

A[21]#

U4

A[22]#

Y5

A[23]#

U2

A[24]#

R4

A[25]#

T5

A[26]#

T3

A[27]#

W3

A[28]#

W5

A[29]#

Y4

A[3]#

J4

A[30]#

W2

A[31]#

Y1

RSVD[01]

AA1

RSVD[02]

AA4

RSVD[03]

AB2

RSVD[04]

AA3

RSVD[05]

M4

RSVD[06]

N5

RSVD[07]

T2

RSVD[08]

V3

A[4]#

L4

A[5]#

M3

A[6]#

K5

A[7]#

M1

A[8]#

N2

A[9]#

J1

A20M#

A6

ADS# H1

ADSTB[0]#

L2

ADSTB[1]#

V4

RSVD[09]

B2

RSVD[10]

C3

BCLK[0] A22

BCLK[1] A21

BNR# E2

BPM[0]# AD4

BPM[1]# AD3

BPM[2]# AD1

BPM[3]# AC4

BPRI# G5

BR0# F1

DBR# C20

DBSY# E1

DEFER# H5

DRDY# F21

FERR#

A5

RSVD[11]

B25

HIT# G6

HITM# E4

IERR# D20

IGNNE#

C4

INIT# B3

LINT0

C6

LINT1

B4

LOCK# H4

PRDY# AC2

PREQ# AC1

PROCHOT# D21

REQ[0]#

K3

REQ[1]#

H2

REQ[2]#

K2

REQ[3]#

J3

REQ[4]#

L5

RESET# B1

RS[0]# F3

RS[1]# F4

RS[2]# G3

SMI#

A3

STPCLK#

D5

TCK AC5

TDI AA6

TDO AB3

THERMTRIP# C7

THERMDA A24

THERMDC A25

TMS AB5

TRDY# G2

TRST# AB6

RSVD[13] D2

RSVD[14] F6

RSVD[15] D3

RSVD[16] C1

RSVD[17] AF1

RSVD[18] D22

RSVD[19] C23

RSVD[20] C24

RSVD[12] T22

ADDR GROUP 0

ADDR GROUP 1

CONTROL

XDP/ITP SIGNALSH CLK

THERM

RESERVED

U36A

BGA479-SKT6-GPU3

62.10079.001

ADDR GROUP 0

ADDR GROUP 1

CONTROL

XDP/ITP SIGNALSH CLK

THERM

RESERVED

U36A

BGA479-SKT6-GPU3

62.10079.001

1 2

R238 54D9R2F-L1-GPR238 54D9R2F-L1-GP

12

C136

SC4700P50V2KX

DY

C136

SC4700P50V2KX

DY

1 2

R70

56R2J-4-GP

R70

56R2J-4-GP

TP4 TPAD30TP4 TPAD30

TP1 TPAD30TP1 TPAD30

1 2

R45 27D4R2F-L1-GPR45 27D4R2F-L1-GP

12

R228

2KR2F-3-GP

R228

2KR2F-3-GP

1 2

R56 54D9R2F-L1-GP

DY

R56 54D9R2F-L1-GP

DY

TP29 TPAD30TP29 TPAD30

1 2

R227

1KR2J-1-GP

R227

1KR2J-1-GP

1 2

R288

0R2J-2-GP

DY

R288

0R2J-2-GP

DY

TP19 TPAD30TP19 TPAD30

1 2

R274 51R2F-2-GPR274 51R2F-2-GP

1 2

R57 150R2F-1-GPR57 150R2F-1-GP

TP2 TPAD30TP2 TPAD30

COMP[0] R26

COMP[1] U26

COMP[2] U1

COMP[3] V1

D[0]#

E22

D[1]#

F24

D[10]#

J24

D[11]#

J23

D[12]#

H26

D[13]#

F26

D[14]#

K22

D[15]#

H25

D[16]#

N22

D[17]#

K25

D[18]#

P26

D[19]#

R23

D[2]#

E26

D[20]#

L25

D[21]#

L22

D[22]#

L23

D[23]#

M23

D[24]#

P25

D[25]#

P22

D[26]#

P23

D[27]#

T24

D[28]#

R24

D[29]#

L26

D[3]#

H22

D[30]#

T25

D[31]#

N24

D[32]# AA23

D[33]# AB24

D[34]# V24

D[35]# V26

D[36]# W25

D[37]# U23

D[38]# U25

D[39]# U22

D[4]#

F23

D[40]# AB25

D[41]# W22

D[42]# Y23

D[43]# AA26

D[44]# Y26

D[45]# Y22

D[46]# AC26

D[47]# AA24

D[48]# AC22

D[49]# AC23

D[5]#

G25

D[50]# AB22

D[51]# AA21

D[52]# AB21

D[53]# AC25

D[54]# AD20

D[55]# AE22

D[56]# AF23

D[57]# AD24

D[58]# AE21

D[59]# AD21

D[6]#

E25

D[60]# AE25

D[61]# AF25

D[62]# AF22

D[63]# AF26

D[7]#

E23

D[8]#

K24

D[9]#

G24

TEST2

D25

DINV[0]#

J26

DINV[1]#

M26

DINV[2]# V23

DINV[3]# AC20

DPRSTP# E5

DPSLP# B5

DPWR# D24

DSTBN[0]#

H23

DSTBN[1]#

M24

DSTBN[2]# W24

DSTBN[3]# AD23

DSTBP[0]#

G22

DSTBP[1]#

N25

DSTBP[2]# Y25

DSTBP[3]# AE24

GTLREF

AD26

PSI# AE6

PWRGOOD D6

SLP# D7

TEST1

C26

BSEL[0]

B22

BSEL[1]

B23

BSEL[2]

C21

DATA GRP 0 DATA GRP 1

DATA GRP 2

DATA GRP 3

MISC

U36B

BGA479-SKT6-GPU3

62.10079.001

DATA GRP 0 DATA GRP 1

DATA GRP 2

DATA GRP 3

MISC

U36B

BGA479-SKT6-GPU3

62.10079.001

1 2

R52 54D9R2F-L1-GPR52 54D9R2F-L1-GP

1 2

R240 27D4R2F-L1-GPR240 27D4R2F-L1-GP

1 2

R85 150R2F-1-GP

DY

R85 150R2F-1-GP

DY

1 2

R60 54D9R2F-L1-GP

DY

R60 54D9R2F-L1-GP

DY

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

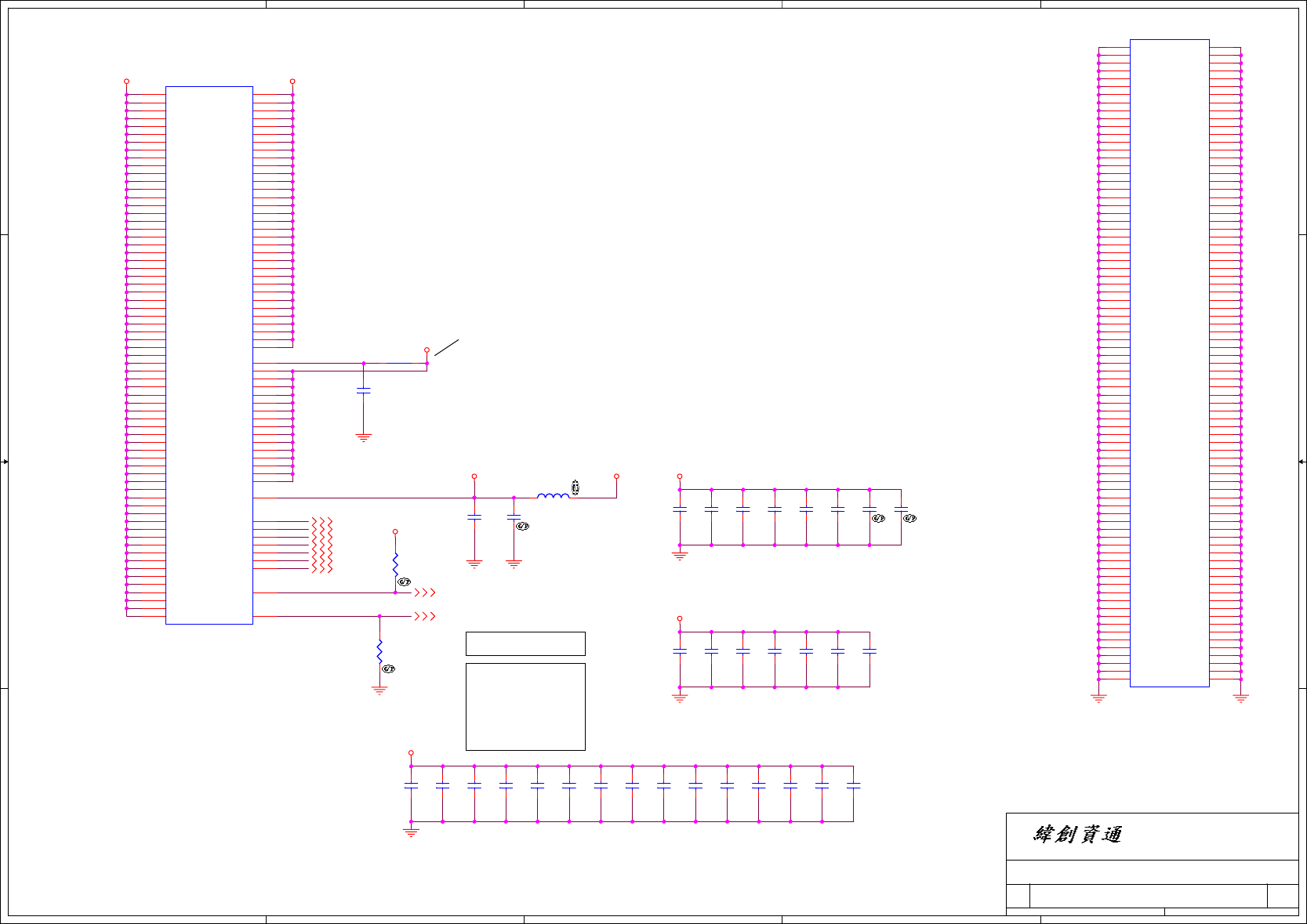

1D05V_CPU_V6

H_VID6

H_VID3

H_VID2

H_VID1

H_VID0

H_VID5

H_VID4

VCC_CORE_S0

1D5V_VCCA_S0 1D05V_S01D5V_S0

VCC_CORE_S0

VCC_CORE_S0

1D05V_S0

VCC_CORE_S0

VCC_CORE_S0

VSS_SENSE 35

VCC_SENSE 35

H_VID0 35

H_VID1 35

H_VID2 35

H_VID3 35

H_VID4 35

H_VID5 35

H_VID6 35

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (2 of 2)

544Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (2 of 2)

544Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

CPU (2 of 2)

544Monday, March 12, 2007

HURON

SD

Layout Note

differential probe

no stub) to connect a

Provide a test point (with

Layout Note:

55 ohm transmission line.

resistors terminate the

where the two 54.9ohm

VSSSENSE at the location

between VCCSENSE and

should be of equal length.

Layout Note:

VCCSENSE and VSSSENSE lines

12

C60

SC10U10V5ZY-1GP

DY

C60

SC10U10V5ZY-1GP

DY

12

C56

SCD1U10V2KX-4GP

C56

SCD1U10V2KX-4GP

12

C412

SCD01U16V2KX-3GP

C412

SCD01U16V2KX-3GP

12

C109

SC10U10V5ZY-1GP

C109

SC10U10V5ZY-1GP

VCC[001]

A7

VCC[002]

A9

VCC[003]

A10

VCC[004]

A12

VCC[005]

A13

VCC[006]

A15

VCC[007]

A17

VCC[008]

A18

VCC[009]

A20

VCC[010]

B7

VCC[011]

B9

VCC[012]

B10

VCC[013]

B12

VCC[014]

B14

VCC[015]

B15

VCC[016]

B17

VCC[017]

B18

VCC[018]

B20

VCC[019]

C9

VCC[020]

C10

VCC[021]

C12

VCC[022]

C13

VCC[023]

C15

VCC[024]

C17

VCC[025]

C18

VCC[026]

D9

VCC[027]

D10

VCC[028]

D12

VCC[029]

D14

VCC[030]

D15

VCC[031]

D17

VCC[032]

D18

VCC[033]

E7

VCC[034]

E9

VCC[035]

E10

VCC[036]

E12

VCC[037]

E13

VCC[038]

E15

VCC[039]

E17

VCC[040]

E18

VCC[041]

E20

VCC[042]

F7

VCC[043]

F9

VCC[044]

F10

VCC[045]

F12

VCC[046]

F14

VCC[047]

F15

VCC[048]

F17

VCC[049]

F18

VCC[050]

F20

VCC[051]

AA7

VCC[052]

AA9

VCC[053]

AA10

VCC[054]

AA12

VCC[055]

AA13

VCC[056]

AA15

VCC[057]

AA17

VCC[058]

AA18

VCC[059]

AA20

VCC[060]

AB9

VCC[061]

AC10

VCC[062]

AB10

VCC[063]

AB12

VCC[064]

AB14

VCC[065]

AB15

VCC[066]

AB17

VCC[067]

AB18

VCC[068] AB20

VCC[069] AB7

VCC[070] AC7

VCC[071] AC9

VCC[072] AC12

VCC[073] AC13

VCC[074] AC15

VCC[075] AC17

VCC[076] AC18

VCC[077] AD7

VCC[078] AD9

VCC[079] AD10

VCC[080] AD12

VCC[081] AD14

VCC[082] AD15

VCC[083] AD17

VCC[084] AD18

VCC[085] AE9

VCC[086] AE10

VCC[087] AE12

VCC[088] AE13

VCC[089] AE15

VCC[090] AE17

VCC[091] AE18

VCC[092] AE20

VCC[093] AF9

VCC[094] AF10

VCC[095] AF12

VCC[096] AF14

VCC[097] AF15

VCC[098] AF17

VCC[099] AF18

VCC[100] AF20

VCCA B26

VCCP[01] V6

VCCP[02] G21

VCCP[03] J6

VCCP[04] K6

VCCP[05] M6

VCCP[06] J21

VCCP[07] K21

VCCP[08] M21

VCCP[09] N21

VCCP[10] N6

VCCP[11] R21

VCCP[12] R6

VCCP[13] T21

VCCP[14] T6

VCCP[15] V21

VCCP[16] W21

VCCSENSE AF7

VID[0] AD6

VID[1] AF5

VID[2] AE5

VID[3] AF4

VID[4] AE3

VID[5] AF2

VID[6] AE2

VSSSENSE AE7

U36C

BGA479-SKT6-GPU3

62.10079.001

U36C

BGA479-SKT6-GPU3

62.10079.001

12

R41

100R2F-L1-GP-U

R41

100R2F-L1-GP-U

12

C59

SC10U10V5ZY-1GP

DY

C59

SC10U10V5ZY-1GP

DY

12

C72

SC4D7U6D3V3KX-GP

C72

SC4D7U6D3V3KX-GP

12

C113

SCD1U10V2KX-4GP

C113

SCD1U10V2KX-4GP

12

C82

SCD1U10V2KX-4GP

C82

SCD1U10V2KX-4GP

12

C365

SC10U10V5ZY-1GP

C365

SC10U10V5ZY-1GP

1 2

R54

0R0402-PAD

R54

0R0402-PAD

12

C75

SCD1U10V2KX-4GP

C75

SCD1U10V2KX-4GP

12

C85

SC10U10V5ZY-1GP

C85

SC10U10V5ZY-1GP

12

C98

SC10U10V5ZY-1GP

C98

SC10U10V5ZY-1GP

12

C91

SCD1U10V2KX-4GP

C91

SCD1U10V2KX-4GP

12

C108

SC10U10V5ZY-1GP

DY

C108

SC10U10V5ZY-1GP

DY

12

C68

SCD1U10V2KX-4GP

C68

SCD1U10V2KX-4GP

12

C81

SCD1U10V2KX-4GP

C81

SCD1U10V2KX-4GP

12

C57

SCD1U10V2KX-4GP

DY

C57

SCD1U10V2KX-4GP

DY

12

C54

SC10U10V5ZY-1GP

C54

SC10U10V5ZY-1GP

12

C65

SC10U10V5ZY-1GP

C65

SC10U10V5ZY-1GP

12

C90

SCD1U10V2KX-4GP

C90

SCD1U10V2KX-4GP

12

C52

SC4D7U6D3V3KX-GP

C52

SC4D7U6D3V3KX-GP

12

C112

SCD1U10V2KX-4GP

C112

SCD1U10V2KX-4GP

12

C86

SC10U10V5ZY-1GP

C86

SC10U10V5ZY-1GP

12

C74

SC10U10V5ZY-1GP

C74

SC10U10V5ZY-1GP

12

C366

SC10U10V5ZY-1GP

C366

SC10U10V5ZY-1GP

12

C415

SC4D7U6D3V3KX-GP

C415

SC4D7U6D3V3KX-GP

12

C115

SC10U10V5ZY-1GP

C115

SC10U10V5ZY-1GP

12

C53

SC10U10V5ZY-1GP

C53

SC10U10V5ZY-1GP

12

C64

SC10U10V5ZY-1GP

C64

SC10U10V5ZY-1GP

12

C73

SC10U10V5ZY-1GP

C73

SC10U10V5ZY-1GP

12

R40

100R2F-L1-GP-U

R40

100R2F-L1-GP-U

1 2

L9

HCB1608KF121T30-GP

68.00230.041

L9

HCB1608KF121T30-GP

68.00230.041

VSS[082] P6

VSS[148] AE11

VSS[002]

A8

VSS[003]

A11

VSS[004]

A14

VSS[005]

A16

VSS[006]

A19

VSS[007]

A23

VSS[008]

A26

VSS[009]

B6

VSS[010]

B8

VSS[011]

B11

VSS[012]

B13

VSS[013]

B16

VSS[014]

B19

VSS[015]

B21

VSS[016]

B24

VSS[017]

C5

VSS[018]

C8

VSS[019]

C11

VSS[020]

C14

VSS[021]

C16

VSS[022]

C19

VSS[023]

C2

VSS[024]

C22

VSS[025]

C25

VSS[026]

D1

VSS[027]

D4

VSS[028]

D8

VSS[029]

D11

VSS[030]

D13

VSS[031]

D16

VSS[032]

D19

VSS[033]

D23

VSS[034]

D26

VSS[035]

E3

VSS[036]

E6

VSS[037]

E8

VSS[038]

E11

VSS[039]

E14

VSS[040]

E16

VSS[041]

E19

VSS[042]

E21

VSS[043]

E24

VSS[044]

F5

VSS[045]

F8

VSS[046]

F11

VSS[047]

F13

VSS[048]

F16

VSS[049]

F19

VSS[050]

F2

VSS[051]

F22

VSS[052]

F25

VSS[053]

G4

VSS[054]

G1

VSS[055]

G23

VSS[056]

G26

VSS[057]

H3

VSS[058]

H6

VSS[059]

H21

VSS[060]

H24

VSS[061]

J2

VSS[062]

J5

VSS[063]

J22

VSS[064]

J25

VSS[065]

K1

VSS[066]

K4

VSS[067]

K23

VSS[068]

K26

VSS[069]

L3

VSS[070]

L6

VSS[071]

L21

VSS[072]

L24

VSS[073]

M2

VSS[074]

M5

VSS[075]

M22

VSS[076]

M25

VSS[077]

N1

VSS[078]

N4

VSS[079]

N23

VSS[080]

N26

VSS[081]

P3 VSS[162] AF24

VSS[161] AF21

VSS[160] AF19

VSS[159] AF16

VSS[158] AF13

VSS[157] AF11

VSS[156] AF8

VSS[155] AF6

VSS[154] AF3

VSS[153] AE26

VSS[152] AE23

VSS[151] AE19

VSS[083] P21

VSS[084] P24

VSS[085] R2

VSS[086] R5

VSS[087] R22

VSS[088] R25

VSS[089] T1

VSS[090] T4

VSS[091] T23

VSS[092] T26

VSS[093] U3

VSS[094] U6

VSS[095] U21

VSS[096] U24

VSS[097] V2

VSS[098] V5

VSS[099] V22

VSS[100] V25

VSS[101] W1

VSS[102] W4

VSS[103] W23

VSS[104] W26

VSS[105] Y3

VSS[107] Y21

VSS[108] Y24

VSS[109] AA2

VSS[110] AA5

VSS[111] AA8

VSS[112] AA11

VSS[113] AA14

VSS[114] AA16

VSS[115] AA19

VSS[116] AA22

VSS[117] AA25

VSS[118] AB1

VSS[119] AB4

VSS[120] AB8

VSS[121] AB11

VSS[122] AB13

VSS[123] AB16

VSS[124] AB19

VSS[125] AB23

VSS[126] AB26

VSS[127] AC3

VSS[128] AC6

VSS[129] AC8

VSS[130] AC11

VSS[131] AC14

VSS[132] AC16

VSS[133] AC19

VSS[134] AC21

VSS[135] AC24

VSS[136] AD2

VSS[137] AD5

VSS[138] AD8

VSS[139] AD11

VSS[140] AD13

VSS[141] AD16

VSS[142] AD19

VSS[143] AD22

VSS[144] AD25

VSS[145] AE1

VSS[146] AE4

VSS[106] Y6

VSS[001]

A4

VSS[149] AE14

VSS[150] AE16

VSS[147] AE8

U36D

BGA479-SKT6-GPU3

62.10079.001

U36D

BGA479-SKT6-GPU3

62.10079.001

12

C116

SC10U10V5ZY-1GP

DY

C116

SC10U10V5ZY-1GP

DY

12

C67

SCD1U10V2KX-4GP

C67

SCD1U10V2KX-4GP

12

C97

SC10U10V5ZY-1GP

C97

SC10U10V5ZY-1GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

H_RS#1

H_RS#2

H_RS#0

H_D#0

H_D#1

H_D#2

H_D#3

H_D#4

H_D#5

H_D#6

H_D#7

H_D#8

H_D#9

H_D#10

H_D#11

H_D#12

H_D#13

H_D#14

H_D#15

H_D#16

H_D#17

H_D#18

H_D#19

H_D#20

H_D#21

H_D#22

H_D#23

H_D#24

H_D#25

H_D#26

H_D#27

H_D#28

H_D#29

H_D#30

H_D#31

H_D#32

H_D#33

H_D#34

H_D#35

H_D#36

H_D#37

H_D#38

H_D#39

H_D#40

H_D#41

H_D#42

H_D#43

H_D#44

H_D#45

H_D#46

H_D#47

H_D#48

H_D#49

H_D#50

H_D#51

H_D#52

H_D#53

H_D#54

H_D#55

H_D#56

H_D#57

H_D#58

H_D#59

H_D#60

H_D#61

H_D#62

H_D#63

H_A#29

H_A#30

H_A#31

H_A#26

H_A#27

H_A#28

H_A#23

H_A#24

H_A#25

H_A#20

H_A#21

H_A#22

H_A#17

H_A#18

H_A#19

H_A#14

H_A#15

H_A#16

H_A#11

H_A#12

H_A#13

H_A#8

H_A#9

H_A#10

H_A#5

H_A#6

H_A#7

H_A#3

H_A#4

H_XRCOMP

H_XSCOMP

H_XSWING

H_REQ#1

H_REQ#3

H_REQ#2

H_REQ#0

H_REQ#4

H_YRCOMP

H_YSCOMP

H_YSWING

H_DSTBN#3

H_DSTBN#2

H_DSTBN#1

H_DSTBN#0

H_YRCOMP

H_YSCOMP

H_YSWING

H_DSTBP#2

H_DSTBP#0

H_DSTBP#3

H_DSTBP#1

H_DINV#0

H_DINV#1

H_DINV#2

H_DINV#3

H_XRCOMP

H_XSCOMP

H_XSWING

H_VREF

1D05V_S0

1D05V_S0

1D05V_S0

1D05V_S0

1D05V_S0

H_A#[31..3] 4

H_BNR# 4

H_BREQ#0 4

H_ADS# 4

H_ADSTB#0 4

H_ADSTB#1 4

H_DBSY# 4

H_DRDY# 4

H_DINV#[3..0] 4

H_DSTBN#[3..0] 4

H_DSTBP#[3..0] 4

H_HIT# 4

H_HITM# 4

H_REQ#[4..0] 4

H_D#[63..0]4

CLK_MCH_BCLK3CLK_MCH_BCLK#3

H_LOCK# 4

H_BPRI# 4

H_CPURST# 4,31

H_DEFER# 4

H_DPWR# 4

H_TRDY# 4

H_RS#[2..0] 4

H_CPUSLP# 4,15

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (1 of 5)

644Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (1 of 5)

644Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (1 of 5)

644Monday, March 12, 2007

HURON

SD

<Core Design>

DIS : 945PN P/N is KI.94501.006

UMA : 945GM P/N is KI.94501.005

Place them near to the chip ( < 0.5")

H_A#_3 H9

H_A#_4 C9

H_A#_5 E11

H_A#_6 G11

H_A#_7 F11

H_A#_8 G12

H_A#_9 F9

H_A#_10 H11

H_A#_11 J12

H_A#_12 G14

H_A#_13 D9

H_A#_14 J14

H_A#_15 H13

H_A#_16 J15

H_A#_17 F14

H_A#_18 D12

H_A#_19 A11

H_A#_20 C11

H_A#_21 A12

H_A#_22 A13

H_A#_23 E13

H_A#_24 G13

H_A#_25 F12

H_A#_26 B12

H_A#_27 B14

H_A#_28 C12

H_A#_29 A14

H_A#_30 C14

H_A#_31 D14

H_ADS# E8

H_ADSTB#_0 B9

H_ADSTB#_1 C13

H_VREF_0 J13

H_BNR# C6

H_BPRI# F6

H_BREQ#0 C7

H_CLKIN#

AG1 H_CLKIN

AG2

H_CPURST# B7

H_XRCOMP

E1

H_XSCOMP

E2

H_XSWING

E4

H_YRCOMP

Y1

H_YSCOMP

U1

H_YSWING

W1

H_D#_0

F1

H_D#_1

J1

H_D#_2

H1

H_D#_3

J6

H_D#_4

H3

H_D#_5

K2

H_D#_6

G1

H_D#_7

G2

H_D#_8

K9

H_D#_9

K1

H_D#_10

K7

H_D#_11

J8

H_D#_12

H4

H_D#_13

J3

H_D#_14

K11

H_D#_15

G4

H_D#_16

T10

H_D#_17

W11

H_D#_18

T3

H_D#_19

U7

H_D#_20

U9

H_D#_21

U11

H_D#_22

T11

H_D#_23

W9

H_D#_24

T1

H_D#_25

T8

H_D#_26

T4

H_D#_27

W7

H_D#_28

U5

H_D#_29

T9

H_D#_30

W6

H_D#_31

T5

H_D#_32

AB7

H_D#_33

AA9

H_D#_34

W4

H_D#_35

W3

H_D#_36

Y3

H_D#_37

Y7

H_D#_38

W5

H_D#_39

Y10

H_D#_40

AB8

H_D#_41

W2

H_D#_42

AA4

H_D#_43

AA7

H_D#_44

AA2

H_D#_45

AA6

H_D#_46

AA10

H_D#_47

Y8

H_D#_48

AA1

H_D#_49

AB4

H_D#_50

AC9

H_D#_51

AB11

H_D#_52

AC11

H_D#_53

AB3

H_D#_54

AC2

H_D#_55

AD1

H_D#_56

AD9

H_D#_57

AC1

H_D#_58

AD7

H_D#_59

AC6

H_D#_60

AB5

H_D#_61

AD10

H_D#_62

AD4

H_D#_63

AC8

H_DBSY# A7

H_DEFER# C3

H_DINV#_0 J7

H_DINV#_1 W8

H_DINV#_2 U3

H_DINV#_3 AB10

H_DPWR# J9

H_DRDY# H8

H_DSTBN#_0 K4

H_DSTBN#_1 T7

H_DSTBN#_2 Y5

H_DSTBN#_3 AC4

H_DSTBP#_0 K3

H_DSTBP#_1 T6

H_DSTBP#_2 AA5

H_DSTBP#_3 AC5

H_HIT# D3

H_HITM# D4

H_LOCK# B3

H_REQ#_0 D8

H_REQ#_1 G8

H_REQ#_2 B8

H_REQ#_3 F8

H_REQ#_4 A8

H_RS#_0 B4

H_RS#_1 E6

H_RS#_2 D6

H_SLPCPU# E3

H_TRDY# E7

H_VREF_1 K13

HOST

U40A

71.CALIS.00U

HOST

U40A

71.CALIS.00U

12

R301

24D9R2F-L-GP

R301

24D9R2F-L-GP

1 2

C167

SCD1U16V2ZY-2GP

C167

SCD1U16V2ZY-2GP

12

R119

221R2F-2-GP

R119

221R2F-2-GP

12

R120

100R2F-L1-GP-U

R120

100R2F-L1-GP-U

12

R116

100R2F-L1-GP-U

R116

100R2F-L1-GP-U

12

R127

100R2F-L1-GP-U

R127

100R2F-L1-GP-U

1 2

C154

SCD1U16V2ZY-2GP

C154

SCD1U16V2ZY-2GP

1 2

R302

54D9R2F-L1-GP

R302

54D9R2F-L1-GP

1 2

C159

SCD1U16V2ZY-2GP

C159

SCD1U16V2ZY-2GP

12

R108

221R2F-2-GP

R108

221R2F-2-GP

12

R303

24D9R2F-L-GP

R303

24D9R2F-L-GP

1 2

R114

54D9R2F-L1-GP

R114

54D9R2F-L1-GP

12

R126

200R2F-L-GP

R126

200R2F-L-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

GMCH_RGB#

TV_IREF

1D5V_PCIE_S0_R

PM_EXTTS#1

L_LVBG

LCTLB_DATA

LCTLA_CLK

LIBG

TV_DACB

TV_DACC

TV_DACA

GMCH_HS

CRT_IREF

GMCH_VS

M_OCDCOMP1

M_OCDCOMP0

M_RCOMPP

M_RCOMPN

CTRLDATA

CTRLCLK

PM_EXTTS#0

RSTIN#

GMCH_BLUE

GMCH_GREEN

GMCH_RED

CRT_IREF

TV_DACB

TV_DACA

LCTLB_DATA

LCTLA_CLK

CRT_IREF

GMCH_RGB#

PWROK_GD

LIBG

GMCH_BL_ON

GMCH_LCDVDD_ON

GMCH_RED

GMCH_BLUE

TV_IRTNB

TV_IRTNA

TV_IRTNC

M_RCOMPN

M_RCOMPP

L_BKLTCTL

TV_DACC

TV_IREF

PEG_RXN0

PEG_RXN1

PEG_RXN2

PEG_RXN3

PEG_RXN4

PEG_RXN5

PEG_RXN6

PEG_RXN7

PEG_RXN8

PEG_RXN9

PEG_RXN10

PEG_RXN11

PEG_RXN12

PEG_RXN13

PEG_RXN14

PEG_RXN15

GTXN1

PEG_RXP0

PEG_RXP1

PEG_RXP2

PEG_RXP3

PEG_RXP4

PEG_RXP5

PEG_RXP6

PEG_RXP7

PEG_RXP8

PEG_RXP9

PEG_RXP10

PEG_RXP11

PEG_RXP12

PEG_RXP13

PEG_RXP14

PEG_RXP15

GTXN5

GTXN4

GTXN3

GTXN2

GTXN7

GTXN6

GTXN9

GTXN8

GTXN13

GTXN12

GTXN11

GTXN10

GTXN14

GTXP1

GTXP3

GTXP2

GTXP4

GTXP5

GTXP7

GTXP6

GTXP8

GTXP9

GTXP11

GTXP10

GTXP12

GTXP13

GTXP14

GTXN15

GTXN0

GTXP15

GMCH_HS

GMCH_VS

GTXP0

GMCH_GREEN

PM_EXTTS#0

PM_EXTTS#1

PEG_TXN4

PEG_TXN10

PEG_TXN14

PEG_TXP2

PEG_TXP6

PEG_TXP4

PEG_TXP8

PEG_TXP10

PEG_TXN7

PEG_TXN9

PEG_TXN12

PEG_TXN3

PEG_TXN2

PEG_TXN11

PEG_TXN13

PEG_TXN6

PEG_TXN1

PEG_TXN8

PEG_TXP12

PEG_TXP9

PEG_TXP11

PEG_TXP7

PEG_TXP13

PEG_TXP5

PEG_TXP14

PEG_TXN5

PEG_TXP1

PEG_TXN15

PEG_TXP15

PEG_TXP3

PEG_TXP0

PEG_TXN0

TV_IRTNA

TV_IRTNB

TV_IRTNC

GMCH_CFG_9

1D5V_PCIE_S0

1D5V_S0

1D05V_S0 3D3V_S0

1D8V_S3

3D3V_S0

DDR_VREF_S3

3D3V_S0

1D05V_S0

GMCH_TXBOUT0+13 GMCH_TXBOUT1+13 GMCH_TXBOUT2+13

GMCH_TXBCLK+13

TV_DACA14 TV_DACB14 TV_DACC14

CPU_SEL1 3,4

CPU_SEL2 3,4

M_CLK_DDR#211 M_CLK_DDR#311

M_CLK_DDR011 M_CLK_DDR111

M_CKE011,12 M_CKE111,12 M_CKE211,12 M_CKE311,12

M_CLK_DDR211 M_CLK_DDR311

GMCH_TXBOUT1-13

CLK_MCH_3GPLL3 CLK_MCH_3GPLL#3

PM_BMBUSY# 16

GMCH_TXBOUT0-13

GMCH_TXBOUT2-13

PLT_RST1# 16,20,26,30

M_CS1#11,12 M_CS2#11,12 M_CS3#11,12

M_CS0#11,12

M_CLK_DDR#011 M_CLK_DDR#111

CPU_SEL0 3,4

MCH_ICH_SYNC# 16

M_ODT011,12 M_ODT111,12 M_ODT211,12 M_ODT311,12

VGATE_PWRGD 16,35

PWROK 16,19

GMCH_GREEN14

GMCH_BLUE14

GMCH_RED14

GMCH_TXAOUT0+13 GMCH_TXAOUT1+13 GMCH_TXAOUT2+13

GMCH_LCDVDD_ON13

GMCH_TXAOUT0-13

CLK_DDC_EDID13 DAT_DDC_EDID13

GMCH_TXAOUT1-13 GMCH_TXAOUT2-13

GMCH_TXACLK-13 GMCH_TXACLK+13

GMCH_BL_ON30

GMCH_DDCCLK14 GMCH_DDCDATA14

DREFCLK#3 DREFCLK3 DREFSSCLK#3 DREFSSCLK3

DMI_RXN016

DMI_TXN016 DMI_TXN116

DMI_TXP116

DMI_TXN216 DMI_TXN316

DMI_TXP016

DMI_TXP216 DMI_TXP316

DMI_RXN116 DMI_RXN216 DMI_RXN316

DMI_RXP016

DMI_RXP216 DMI_RXP316

DMI_RXP116

PEG_RXP[15..0] 26

PEG_RXN[15..0] 26

GMCH_TXBCLK-13

PEG_TXN[15..0] 26

PEG_TXP[15..0] 26

GMCH_VSYNC14

GMCH_HSYNC14

PM_THRMTRIP-A# 4,15,33

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (2 of 5)

744Thursday, March 15, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (2 of 5)

744Thursday, March 15, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (2 of 5)

744Thursday, March 15, 2007

HURON

SD

for calistoga configuration

ENG

ENG

1 2

C290 SCD1U10V2KX-5GP

MXM

C290 SCD1U10V2KX-5GP

MXM

1 2

C266 SCD1U10V2KX-5GP

MXM

C266 SCD1U10V2KX-5GP

MXM

1 2

C283 SCD1U10V2KX-5GP

MXM

C283 SCD1U10V2KX-5GP

MXM

1 2

R141

0R2J-2-GP

MXM

R141

0R2J-2-GP

MXM

12

C254

SC180P50V2JN-1GP

C254

SC180P50V2JN-1GP

1 2

R135

150R2F-1-GP

UMA

R135

150R2F-1-GP

UMA

NC0 D1

NC1 C41

NC2 C1

NC3 BA41

NC4 BA40

NC5 BA39

NC6 BA3

NC7 BA2

NC8 BA1

NC9 B41

NC10 B2

NC11 AY41

NC12 AY1

NC13 AW41

NC14 AW1

NC15 A40

NC16 A4

NC17 A39

NC18 A3

SDVO_CTRLCLK H28

SDVO_CTRLDATA H27

SM_CK_0

AY35

SM_CK_1

AR1

SM_CK_2

AW7

SM_CK_3

AW40

SM_CK#_0

AW35

SM_CK#_1

AT1

SM_CK#_2

AY7

SM_CK#_3

AY40

SM_CKE_0

AU20

SM_CKE_1

AT20

SM_CKE_2

BA29

SM_CKE_3

AY29

SM_CS#_0

AW13

SM_CS#_1

AW12

SM_CS#_2

AY21

SM_CS#_3

AW21

SM_OCDCOMP_0

AL20

SM_OCDCOMP_1

AF10

SM_ODT_0

BA13

SM_ODT_1

BA12

SM_ODT_2

AY20

SM_ODT_3

AU21

SM_RCOMP#

AV9

SM_RCOMP

AT9

SM_VREF_0

AK1

SM_VREF_1

AK41

CFG_18 J25

CFG_19 K27

CFG_20 J26

CFG_0 K16

CFG_1 K18

CFG_2 J18

CFG_3 F18

CFG_4 E15

CFG_5 F15

CFG_6 E18

CFG_7 D19

CFG_8 D16

CFG_9 G16

CFG_10 E16

CFG_11 D15

CFG_12 G15

CFG_13 K15

CFG_14 C15

CFG_15 H16

CFG_16 G18

CFG_17 H15

PM_BMBUSY# G28

PM_EXTTS#_0 F25

PM_EXTTS#_1 H26

PM_THRMTRIP# G6

PWROK AH33

RSTIN# AH34

D_REFCLKIN#

A27

D_REFCLKIN

A26

D_REFSSCLKIN#

C40

D_REFSSCLKIN

D41

DMI_RXN_0

AE35

DMI_RXN_1

AF39

DMI_RXN_2

AG35

DMI_RXN_3

AH39

DMI_RXP_0

AC35

DMI_RXP_1

AE39

DMI_RXP_2

AF35

DMI_RXP_3

AG39

DMI_TXN_0

AE37

DMI_TXN_1

AF41

DMI_TXN_2

AG37

DMI_TXN_3

AH41

DMI_TXP_0

AC37

DMI_TXP_1

AE41

DMI_TXP_2

AF37

DMI_TXP_3

AG41

G_CLKIN#

AF33

G_CLKIN

AG33

RSVD_1 T32

RSVD_2 R32

RSVD_5 AG11

RSVD_6 AF11

LT_RESET# K28

RSVD_8 J19

RSVD_0 H32

RSVD_3 F3

RSVD_4 F7

RSVD_7 H7

RSVD_9 K30

RSVD_10 J29

RSVD_11 A41

RSVD_12 A35

RSVD_13 A34

RSVD_14 D28

RSVD_15 D27

PM

MISC

NC

DDR MUXINGCLKDMI

CFGRSVD

U40B

71.CALIS.00U

PM

MISC

NC

DDR MUXINGCLKDMI

CFGRSVD

U40B

71.CALIS.00U

1 2

C257 SCD1U10V2KX-5GP

MXM

C257 SCD1U10V2KX-5GP

MXM

1 2

C278 SCD1U10V2KX-5GP

MXM

C278 SCD1U10V2KX-5GP

MXM

1 2

C261 SCD1U10V2KX-5GP

MXM

C261 SCD1U10V2KX-5GP

MXM

1

2 3

4

RN68

SRN10KJ-5-GP

RN68

SRN10KJ-5-GP

1 2

C285 SCD1U10V2KX-5GP

MXM

C285 SCD1U10V2KX-5GP

MXM

1

2

3

4 5

6

7

8

RN17 SRN0J-7-GP

UMA

RN17 SRN0J-7-GP

UMA

1 2

R359

1K5R2F-2-GP

UMA

R359

1K5R2F-2-GP

UMA

1 2

C288 SCD1U10V2KX-5GP

MXM

C288 SCD1U10V2KX-5GP

MXM

1 2

C260 SCD1U10V2KX-5GP

MXM

C260 SCD1U10V2KX-5GP

MXM

1

2 3

4

RN66

SRN0J-6-GP

MXM

RN66

SRN0J-6-GP

MXM

12

C509

SCD1U16V2ZY-2GP

C509

SCD1U16V2ZY-2GP

12

R128

40D2R2F-GP

DY

R128

40D2R2F-GP

DY

1

2 3

4

RN71

SRN10KJ-5-GP

UMA

RN71

SRN10KJ-5-GP

UMA

1 2

C282 SCD1U10V2KX-5GP

MXM

C282 SCD1U10V2KX-5GP

MXM

1 2

C277 SCD1U10V2KX-5GP

MXM

C277 SCD1U10V2KX-5GP

MXM

1 2

C262 SCD1U10V2KX-5GP

MXM

C262 SCD1U10V2KX-5GP

MXM

1 2

R159 100R2J-2-GP

R159 100R2J-2-GP

12

R139

40D2R2F-GP

DY

R139

40D2R2F-GP

DY

1 2

R345 39R2J-L-GP

UMA

R345 39R2J-L-GP

UMA

1

2 3

4

RN31

SRN100KJ-6-GP

UMA

RN31

SRN100KJ-6-GP

UMA

1 2

C270 SCD1U10V2KX-5GP

MXM

C270 SCD1U10V2KX-5GP

MXM

1 2

C275 SCD1U10V2KX-5GP

MXM

C275 SCD1U10V2KX-5GP

MXM

1

2 3

4

RN21

SRN0J-6-GP

MXM

RN21

SRN0J-6-GP

MXM

TP37 TPAD30TP37 TPAD30

1 2

R140

255R2F-L-GP

UMA

R140

255R2F-L-GP

UMA

1

2 3

4

RN70

SRN0J-6-GP

MXM

RN70

SRN0J-6-GP

MXM

1 2

C259 SCD1U10V2KX-5GP

MXM

C259 SCD1U10V2KX-5GP

MXM

1 2

C281 SCD1U10V2KX-5GP

MXM

C281 SCD1U10V2KX-5GP

MXM

12

R125

80D6R2F-L-GP

R125

80D6R2F-L-GP

1 2

R162 0R0402-PADR162 0R0402-PAD

TP158TPAD30TP158 TPAD30

12

R122

80D6R2F-L-GP

R122

80D6R2F-L-GP

1 2

R136

4K99R2F-L-GP

UMA

R136

4K99R2F-L-GP

UMA

1 2

C274 SCD1U10V2KX-5GP

MXM

C274 SCD1U10V2KX-5GP

MXM

1 2

C269 SCD1U10V2KX-5GP

MXM

C269 SCD1U10V2KX-5GP

MXM

1 2

C284 SCD1U10V2KX-5GP

MXM

C284 SCD1U10V2KX-5GP

MXM

1

2 3

4

RN80

SRN0J-6-GP

UMA

RN80

SRN0J-6-GP

UMA

1 2

R145

150R2F-1-GP

UMA

R145

150R2F-1-GP

UMA

1

2

3

4 5

6

7

8

RN18

SRN0J-7-GP

MXM

RN18

SRN0J-7-GP

MXM

1

2 3

4

RN69

SRN10KJ-5-GP

RN69

SRN10KJ-5-GP

1 2

C287 SCD1U10V2KX-5GP

MXM

C287 SCD1U10V2KX-5GP

MXM

1 2

C286 SCD1U10V2KX-5GP

MXM

C286 SCD1U10V2KX-5GP

MXM

1 2

C263 SCD1U10V2KX-5GP

MXM

C263 SCD1U10V2KX-5GP

MXM

1 2

R151

150R2F-1-GP

UMA

R151

150R2F-1-GP

UMA

1 2

C267 SCD1U10V2KX-5GP

MXM

C267 SCD1U10V2KX-5GP

MXM

TP38 TPAD30TP38 TPAD30

1 2

R148

150R2F-1-GP

UMA

R148

150R2F-1-GP

UMA

12

R143

0R2J-2-GP

MXM

R143

0R2J-2-GP

MXM

1 2

C268 SCD1U10V2KX-5GP

MXM

C268 SCD1U10V2KX-5GP

MXM

1 2

C276 SCD1U10V2KX-5GP

MXM

C276 SCD1U10V2KX-5GP

MXM

EXP_A_COMPI D40

EXP_A_COMPO D38

EXP_A_RXN_0 F34

EXP_A_RXN_1 G38

EXP_A_RXN_2 H34

EXP_A_RXN_3 J38

EXP_A_RXN_4 L34

EXP_A_RXN_5 M38

EXP_A_RXN_6 N34

EXP_A_RXN_7 P38

EXP_A_RXN_8 R34

EXP_A_RXN_9 T38

EXP_A_RXN_10 V34

EXP_A_RXN_11 W38

EXP_A_RXN_12 Y34

EXP_A_RXN_13 AA38

EXP_A_RXN_14 AB34

EXP_A_RXN_15 AC38

EXP_A_RXP_0 D34

EXP_A_RXP_1 F38

EXP_A_RXP_2 G34

EXP_A_RXP_3 H38

EXP_A_RXP_4 J34

EXP_A_RXP_5 L38

EXP_A_RXP_6 M34

EXP_A_RXP_7 N38

EXP_A_RXP_8 P34

EXP_A_RXP_9 R38

EXP_A_RXP_10 T34

EXP_A_RXP_11 V38

EXP_A_RXP_12 W34

EXP_A_RXP_13 Y38

EXP_A_RXP_14 AA34

EXP_A_RXP_15 AB38

EXP_A_TXN_0 F36

EXP_A_TXN_1 G40

EXP_A_TXN_2 H36

EXP_A_TXN_3 J40

EXP_A_TXN_4 L36

EXP_A_TXN_5 M40

EXP_A_TXN_6 N36

EXP_A_TXN_7 P40

EXP_A_TXN_8 R36

EXP_A_TXN_9 T40

EXP_A_TXN_10 V36

EXP_A_TXN_11 W40

EXP_A_TXN_12 Y36

EXP_A_TXN_13 AA40

EXP_A_TXN_14 AB36

EXP_A_TXN_15 AC40

EXP_A_TXP_0 D36

EXP_A_TXP_1 F40

EXP_A_TXP_2 G36

EXP_A_TXP_3 H40

EXP_A_TXP_4 J36

EXP_A_TXP_5 L40

EXP_A_TXP_6 M36

EXP_A_TXP_7 N40

EXP_A_TXP_8 P36

EXP_A_TXP_9 R40

EXP_A_TXP_10 T36

EXP_A_TXP_11 V40

EXP_A_TXP_12 W36

EXP_A_TXP_13 Y40

EXP_A_TXP_14 AA36

EXP_A_TXP_15 AB40

L_BKLTEN

J30

L_CLKCTLA

H30

L_CLKCTLB

H29

L_DDC_CLK

G26

L_DDC_DATA

G25

L_IBG

B38

L_VBG

C35

L_VDDEN

F32

L_VREFH

C33

L_VREFL

C32

LA_CLK#

A33

LA_CLK

A32

LA_DATA#_0

C37

LA_DATA#_1

B35

LA_DATA#_2

A37

LA_DATA_0

B37

LA_DATA_1

B34

LA_DATA_2

A36

LB_CLK#

E27

LB_CLK

E26

LB_DATA#_0

G30

LB_DATA#_1

D30

LB_DATA#_2

F29

LB_DATA_0

F30

LB_DATA_1

D29

LB_DATA_2

F28

L_BKLTCTL

D32

TV_DACA_OUT

A16

TV_DACB_OUT

C18

TV_DACC_OUT

A19

TV_IREF

J20

TV_IRTNA

B16

TV_IRTNB

B18

TV_IRTNC

B19

CRT_BLUE

E23

CRT_BLUE#

D23

CRT_DDC_CLK

C26

CRT_DDC_DATA

C25

CRT_GREEN

C22

CRT_GREEN#

B22

CRT_HSYNC

G23

CRT_IREF

J22

CRT_RED

A21

CRT_RED#

B21

CRT_VSYNC

H23

LVDS

PCI-EXPRESS GRAPHICS

TV VGA

U40C

71.CALIS.00U

LVDS

PCI-EXPRESS GRAPHICS

TV VGA

U40C

71.CALIS.00U

1 2

C265 SCD1U10V2KX-5GP

MXM

C265 SCD1U10V2KX-5GP

MXM

12

C429

SCD1U16V2ZY-2GP

C429

SCD1U16V2ZY-2GP

1 2

R132

150R2F-1-GP

UMA

R132

150R2F-1-GP

UMA

1 2

C291 SCD1U10V2KX-5GP

MXM

C291 SCD1U10V2KX-5GP

MXM

1 2

C264 SCD1U10V2KX-5GP

MXM

C264 SCD1U10V2KX-5GP

MXM

12

R163

24D9R2F-L-GP

R163

24D9R2F-L-GP

1 2

C279 SCD1U10V2KX-5GP

MXM

C279 SCD1U10V2KX-5GP

MXM

TP42TPAD30 TP42TPAD30

1 2

R158 0R2J-2-GP

DY

R158 0R2J-2-GP

DY

1

2 3

4

RN67

SRN0J-6-GP

MXM

RN67

SRN0J-6-GP

MXM

1 2

R146

0R2J-2-GP

UMA

R146

0R2J-2-GP

UMA

1 2

R129

150R2F-1-GP

UMA

R129

150R2F-1-GP

UMA

1 2

C289 SCD1U10V2KX-5GP

MXM

C289 SCD1U10V2KX-5GP

MXM

1 2

C280 SCD1U10V2KX-5GP

MXM

C280 SCD1U10V2KX-5GP

MXM

TP39TPAD30 TP39TPAD30

1 2

C258 SCD1U10V2KX-5GP

MXM

C258 SCD1U10V2KX-5GP

MXM

1 2

R351 39R2J-L-GP

UMA

R351 39R2J-L-GP

UMA

1 2

R144

0R2J-2-GP

MXM

R144

0R2J-2-GP

MXM

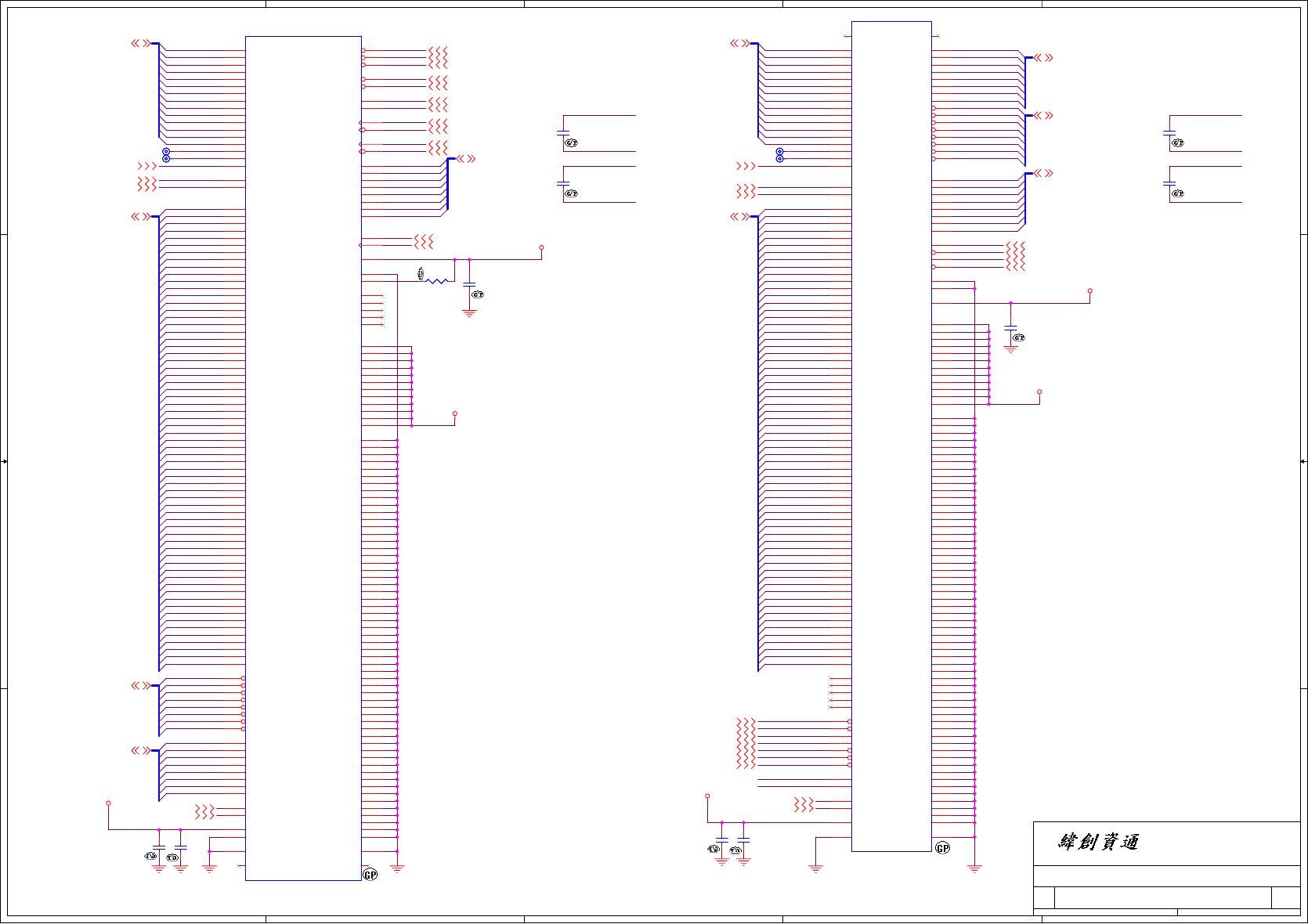

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

M_A_DQS#3

M_A_DQS#0

M_A_DQS#6

M_A_DQS#4

M_A_DQS#1

M_A_DQS#2

M_A_DQS#5

M_A_DQS#7

M_A_A0

M_A_A6

M_A_A3

M_A_A5

M_A_A7

M_A_A1

M_A_A2

M_A_A4

M_A_A10

M_A_A8

M_A_A13

M_A_A11

M_A_A9

M_A_A12

M_B_DQS#0

M_B_DQS#1

M_B_DQS#2

M_B_DQS#3

M_B_DQS#4

M_B_DQS#5

M_B_DQS#6

M_B_DQS#7

M_B_DQ0

M_B_DQ1

M_B_DQ2

M_B_DQ3

M_B_DQ4

M_B_DQ5

M_B_DQ6

M_B_DQ7

M_B_DQ8

M_B_DQ9

M_B_DQ10

M_B_DQ11

M_B_DQ15

M_B_DQ13

M_B_DQ12

M_B_DQ14

M_B_DQ16

M_B_DQ17

M_B_DQ18

M_B_DQ19

M_B_DQ23

M_B_DQ21

M_B_DQ20

M_B_DQ22

M_B_DQ28

M_B_DQ26

M_B_DQ29

M_B_DQ25

M_B_DQ31

M_B_DQ24

M_B_DQ27

M_B_DQ30

M_B_DQ32

M_B_DQ33

M_B_DQ34

M_B_DQ35

M_B_DQ39

M_B_DQ37

M_B_DQ36

M_B_DQ38

M_B_DQ44

M_B_DQ42

M_B_DQ45

M_B_DQ41

M_B_DQ47

M_B_DQ40

M_B_DQ43

M_B_DQ46

M_A_DM0

M_B_DQ48

M_B_DQ49

M_B_DQ50

M_A_DM1

M_A_DM2

M_A_DM3

M_A_DM4

M_A_DM5

M_B_DQ51

M_B_DQ55

M_B_DQ53

M_B_DQ52

M_B_DQ54

M_B_DQ60

M_B_DQ58

M_B_DQ61

M_A_DM6

M_A_DM7

M_B_DQ57

M_B_DQ63

M_B_DQ56

M_B_DQ59

M_B_DQ62

M_A_DQ44

M_A_DQ36

M_A_DQ47

M_A_DQ40

M_A_DQ39

M_A_DQ37

M_A_DQ35

M_A_DQ34

M_A_DQ59

M_A_DQ54

M_A_DQ53

M_A_DQ63

M_A_DQ60

M_A_DQ61

M_A_DQ58

M_A_DQ51

M_A_DQ48

M_A_DQ57

M_A_DQ55

M_A_DQ49

M_A_DQ50

M_A_DQ62

M_A_DQ52

M_A_DQ56

M_A_DQ0

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ7

M_A_DQ5

M_A_DQ4

M_A_DQ6

M_A_DQ12

M_A_DQ10

M_A_DQ13

M_A_DQ9

M_A_DQ8

M_A_DQ11

M_A_DQ15

M_A_DQ14

M_A_DQ27

M_A_DQ25

M_A_DQ20

M_A_DQ19

M_A_DQ30

M_A_DQ18

M_A_DQ16

M_A_DQ28

M_A_DQ17

M_A_DQ26

M_A_DQ31

M_A_DQ29

M_A_DQ22

M_A_DQ23

M_A_DQ24

M_A_DQ21

M_A_DQ46

M_A_DQ42

M_A_DQ38

M_A_DQ32

M_A_DQ45

M_A_DQ33

M_A_DQ43

M_A_DQ41

M_B_DQS0

M_B_DQS1

M_B_DQS2

M_B_DQS3

M_B_DQS4

M_B_DQS5

M_B_DQS6

M_B_DQS7M_A_DQS5

M_A_DQS7

M_A_DQS2

M_A_DQS3

M_A_DQS4

M_A_DQS0

M_A_DQS1

M_A_DQS6

SB_RCVENIN#

SB_RCVENOUT#

M_B_A12

M_B_A9

M_B_A11

M_B_A13

M_B_A8

M_B_A10

M_B_A0

M_B_A1

M_B_A2

M_B_A3

M_B_A4

M_B_A5

M_B_A6

M_B_A7

SA_RCVENIN#

SA_RCVENOUT#

M_B_DM0

M_B_DM1

M_B_DM2

M_B_DM3

M_B_DM4

M_B_DM5

M_B_DM6

M_B_DM7

M_A_DQS#[7..0] 11

M_B_DQS#[7..0] 11

M_B_DQS[7..0] 11

M_A_DQS[7..0] 11

M_B_DQ[63..0]11

M_A_DQ[63..0]11 M_A_BS#0 11,12

M_A_BS#1 11,12

M_A_BS#2 11,12

M_A_A[13..0] 11,12

M_A_DM[7..0] 11

M_B_BS#0 11,12

M_B_BS#1 11,12

M_B_BS#2 11,12

M_B_WE# 11,12

M_B_RAS# 11,12

M_B_A[13..0] 11,12

M_A_WE# 11,12

M_A_RAS# 11,12

M_B_DM[7..0] 11

M_A_CAS# 11,12

M_B_CAS# 11,12

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (3 of 5)

844Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (3 of 5)

844Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (3 of 5)

844Monday, March 12, 2007

HURON

SD

Place Test PAD Near to Chip

ascould as possible

Place Test PAD Near to Chip

as could as possible

SB_DQ0

AK39

SB_DQ1

AJ37

SB_DQ2

AP39

SB_DQ3

AR41

SB_DQ4

AJ38

SB_DQ5

AK38

SB_DQ6

AN41

SB_DQ7

AP41

SB_DQ8

AT40

SB_DQ9

AV41

SB_DQ10

AU38

SB_DQ11

AV38

SB_DQ12

AP38

SB_DQ13

AR40

SB_DQ14

AW38

SB_DQ15

AY38

SB_DQ16

BA38

SB_DQ17

AV36

SB_DQ18

AR36

SB_DQ19

AP36

SB_DQ20

BA36

SB_DQ21

AU36

SB_DQ22

AP35

SB_DQ23

AP34

SB_DQ24

AY33

SB_DQ25

BA33

SB_DQ26

AT31

SB_DQ27

AU29

SB_DQ28

AU31

SB_DQ29

AW31

SB_DQ30

AV29

SB_DQ31

AW29

SB_DQ32

AM19

SB_DQ33

AL19

SB_DQ34

AP14

SB_DQ35

AN14

SB_DQ36

AN17

SB_DQ37

AM16

SB_DQ38

AP15

SB_DQ39

AL15

SB_DQ40

AJ11

SB_DQ41

AH10

SB_DQ42

AJ9

SB_DQ43

AN10

SB_DQ44

AK13

SB_DQ45

AH11

SB_DQ46

AK10

SB_DQ47

AJ8

SB_DQ48

BA10

SB_DQ49

AW10

SB_DQ50

BA4

SB_DQ51

AW4

SB_DQ52

AY10

SB_DQ53

AY9

SB_DQ54

AW5

SB_DQ55

AY5

SB_DQ56

AV4

SB_DQ57

AR5

SB_DQ58

AK4

SB_DQ59

AK3

SB_DQ60

AT4

SB_DQ61

AK5

SB_DQ62

AJ5

SB_DQ63

AJ3

SB_BS_0 AT24

SB_BS_1 AV23

SB_BS_2 AY28

SB_CAS# AR24

SB_DM_0 AK36

SB_DM_1 AR38

SB_DM_2 AT36

SB_DM_3 BA31

SB_DM_4 AL17

SB_DM_5 AH8

SB_DM_6 BA5

SB_DM_7 AN4

SB_DQS_0 AM39

SB_DQS_1 AT39

SB_DQS_2 AU35

SB_DQS_3 AR29

SB_DQS_4 AR16

SB_DQS_5 AR10

SB_DQS_6 AR7

SB_DQS_7 AN5

SB_DQS#_0 AM40

SB_DQS#_1 AU39

SB_DQS#_2 AT35

SB_DQS#_3 AP29

SB_DQS#_4 AP16

SB_DQS#_5 AT10

SB_DQS#_6 AT7

SB_DQS#_7 AP5

SB_MA_0 AY23

SB_MA_1 AW24

SB_MA_2 AY24

SB_MA_3 AR28

SB_MA_4 AT27

SB_MA_5 AT28

SB_MA_6 AU27

SB_MA_7 AV28

SB_MA_8 AV27

SB_MA_9 AW27

SB_MA_10 AV24

SB_MA_11 BA27

SB_MA_12 AY27

SB_MA_13 AR23

SB_RAS# AU23

SB_RCVENIN# AK16

SB_RCVENOUT# AK18

SB_WE# AR27

DDR SYSTEM MEMORY B

U40E

71.CALIS.00U

DDR SYSTEM MEMORY B

U40E

71.CALIS.00U

SA_DQ0

AJ35

SA_DQ1

AJ34

SA_DQ2

AM31

SA_DQ3

AM33

SA_DQ4

AJ36

SA_DQ5

AK35

SA_DQ6

AJ32

SA_DQ7

AH31

SA_DQ8

AN35

SA_DQ9

AP33

SA_DQ10

AR31

SA_DQ11

AP31

SA_DQ12

AN38

SA_DQ13

AM36

SA_DQ14

AM34

SA_DQ15

AN33

SA_DQ16

AK26

SA_DQ17

AL27

SA_DQ18

AM26

SA_DQ19

AN24

SA_DQ20

AK28

SA_DQ21

AL28

SA_DQ22

AM24

SA_DQ23

AP26

SA_DQ24

AP23

SA_DQ25

AL22

SA_DQ26

AP21

SA_DQ27

AN20

SA_DQ28

AL23

SA_DQ29

AP24

SA_DQ30

AP20

SA_DQ31

AT21

SA_DQ32

AR12

SA_DQ33

AR14

SA_DQ34

AP13

SA_DQ35

AP12

SA_DQ36

AT13

SA_DQ37

AT12

SA_DQ38

AL14

SA_DQ39

AL12

SA_DQ40

AK9

SA_DQ41

AN7

SA_DQ42

AK8

SA_DQ43

AK7

SA_DQ44

AP9

SA_DQ45

AN9

SA_DQ46

AT5

SA_DQ47

AL5

SA_DQ48

AY2

SA_DQ49

AW2

SA_DQ50

AP1

SA_DQ51

AN2

SA_DQ52

AV2

SA_DQ53

AT3

SA_DQ54

AN1

SA_DQ55

AL2

SA_DQ56

AG7

SA_DQ57

AF9

SA_DQ58

AG4

SA_DQ59

AF6

SA_DQ60

AG9

SA_DQ61

AH6

SA_DQ62

AF4

SA_DQ63

AF8

SA_BS_0 AU12

SA_BS_1 AV14

SA_BS_2 BA20

SA_CAS# AY13

SA_DM_0 AJ33

SA_DM_1 AM35

SA_DM_2 AL26

SA_DM_3 AN22

SA_DM_4 AM14

SA_DM_5 AL9

SA_DM_6 AR3

SA_DQS_0 AK33

SA_DQS_1 AT33

SA_DQS_2 AN28

SA_DQS_3 AM22

SA_DQS_4 AN12

SA_DQS_5 AN8

SA_DQS_6 AP3

SA_DQS_7 AG5

SA_DM_7 AH4

SA_DQS#_0 AK32

SA_DQS#_1 AU33

SA_DQS#_2 AN27

SA_DQS#_3 AM21

SA_DQS#_4 AM12

SA_DQS#_5 AL8

SA_DQS#_6 AN3

SA_DQS#_7 AH5

SA_MA_0 AY16

SA_MA_1 AU14

SA_MA_2 AW16

SA_MA_3 BA16

SA_MA_4 BA17

SA_MA_5 AU16

SA_MA_6 AV17

SA_MA_7 AU17

SA_MA_8 AW17

SA_MA_9 AT16

SA_MA_10 AU13

SA_MA_11 AT17

SA_MA_12 AV20

SA_MA_13 AV12

SA_RAS# AW14

SA_RCVENIN# AK23

SA_RCVENOUT# AK24

SA_WE# AY14

DDR SYSTEM MEMORY A

U40D

71.CALIS.00U

DDR SYSTEM MEMORY A

U40D

71.CALIS.00U

TP32 TPAD30TP32 TPAD30 TP31 TPAD30TP31 TPAD30

TP30 TPAD30TP30 TPAD30

TP36 TPAD30TP36 TPAD30

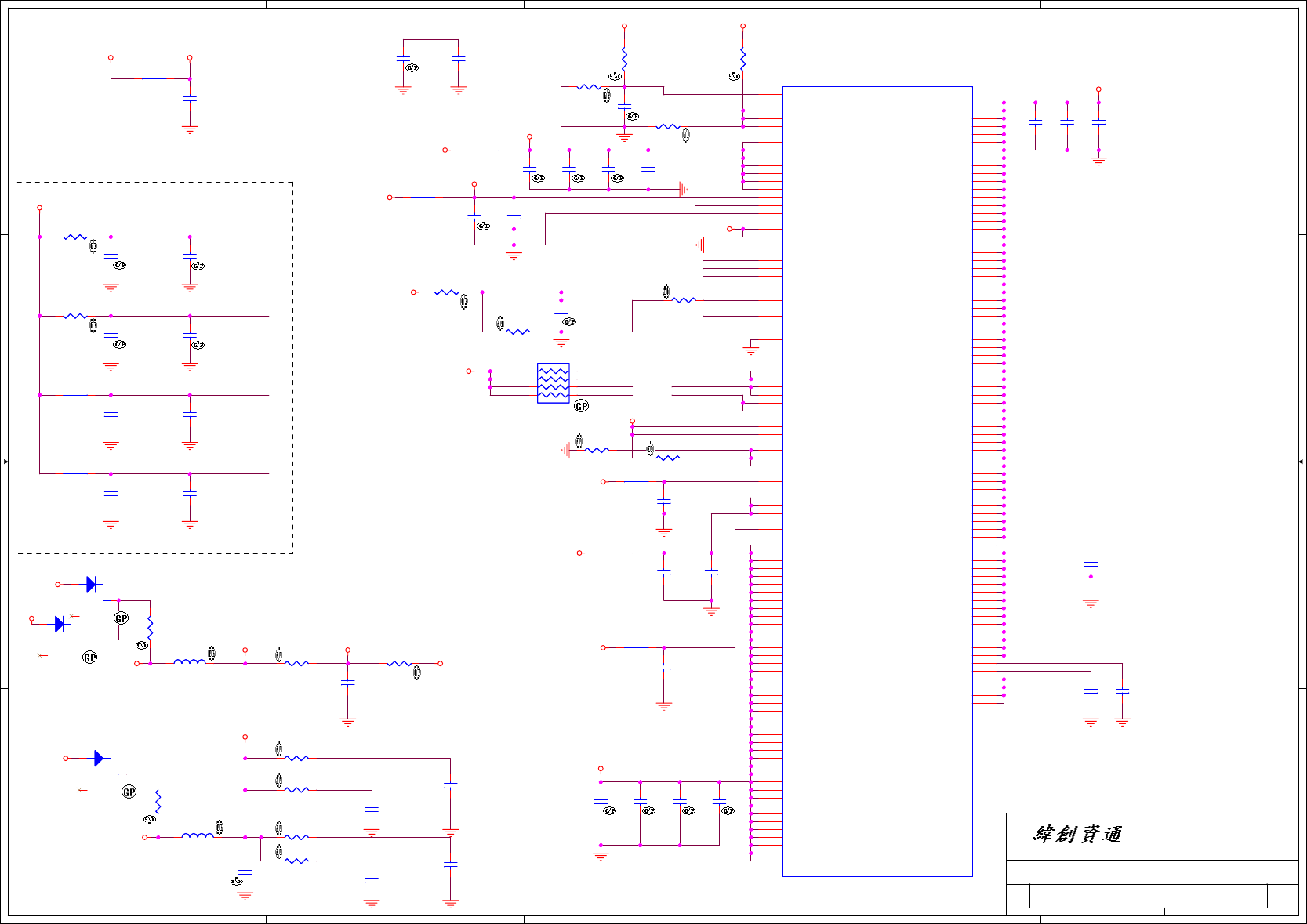

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

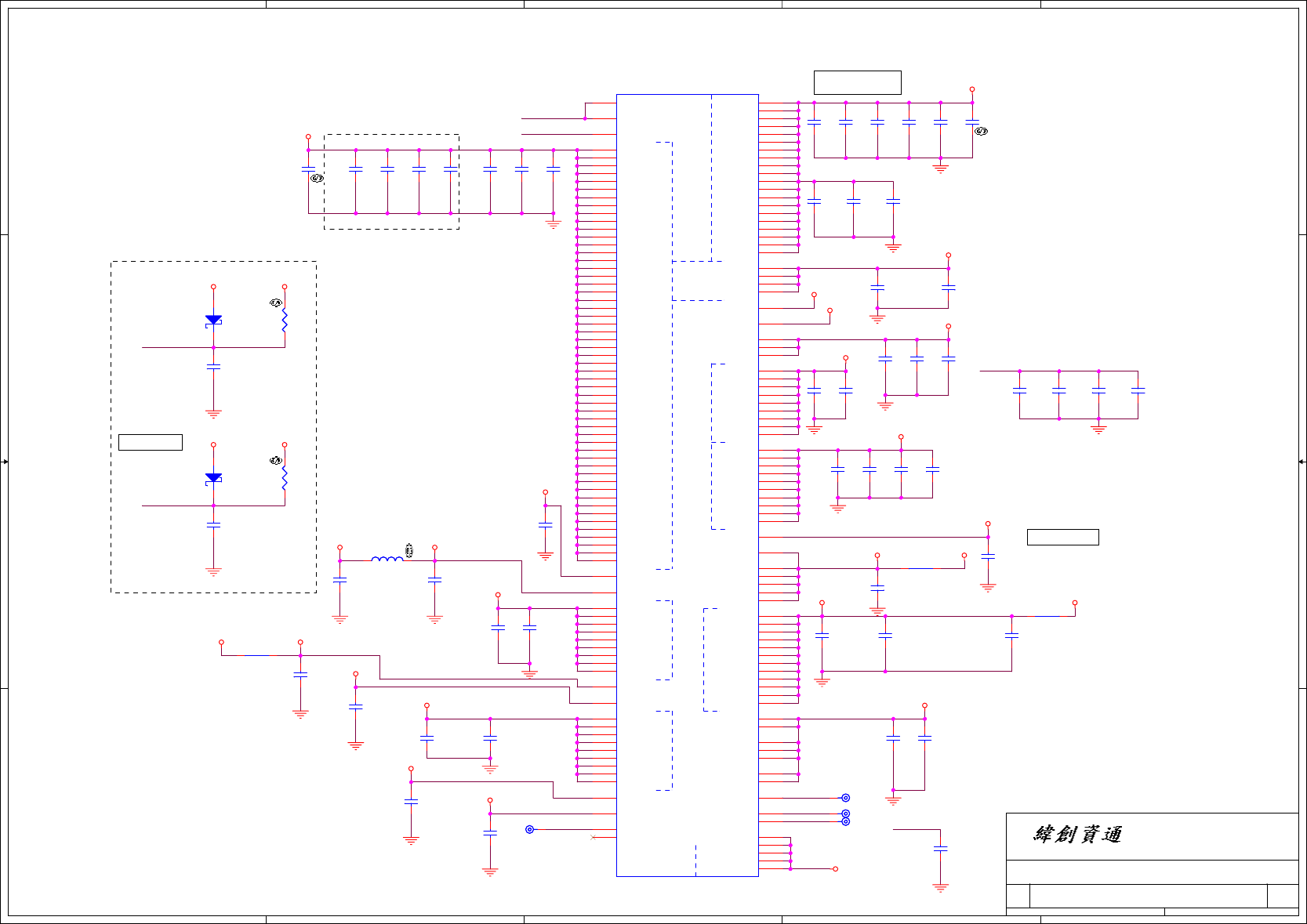

1D5V_DPLLA

2D5V_S0_LVDS

2D5V_VCC

2D5V_VCC

VCCD_LVDS

V_DACA

V_DACC

V_DACB

V_TVBG

1D5V_3D3V_S0

1D5V_2D5V_S0

VCCSYNC

1D5V_TVDAC_S0

1D5V_DPLLB

1D5V_DPLLA

VSSA_LVDS

1D5V_QTVDAC_S0

2D5V_3GBG_S0

VCCP_GMCH_CAP3

1D5V_MPLL_S0

VCCP_GMCH_CAP2

VCCP_GMCH_CAP1

1D5V_HPLL_S0

1D5V_MPLL_S0

3D3V_S0_VCC_HV

V_TVBG

V_DACC

V_DACA

V_DACB

1D5V_HPLL_S0

1D5V_DPLLB

V_DACC

V_DACB

2D5V_S0

1D5V_3GPLL_S0

3D3V_S0

1D5V_S0

2D5V_CRTDAC

2D5V_S0

1D5V_S0

3D3V_TVDAC

VCCA_CRTDAC

1D05V_S0

1D5V_S0

1D05V_S0

2D5V_S0

VCCA_CRTDAC

1D5V_S0

1D5V_S0

1D5V_S0

1D5V_PCIE_S0

1D5V_S0

3D3V_S0

1D5V_S0

1D5V_S0

2D5V_3GBG_S0

1D5V_S0

2D5V_S0

2D5V_S0

1D05V_S0

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (4 of 5)

944Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (4 of 5)

944Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (4 of 5)

944Monday, March 12, 2007

HURON

SD

Divide by Trace (Layout Rule approve)

12

R165

0R0603-PAD

R165

0R0603-PAD

12

C195

SCD1U10V2KX-4GP

C195

SCD1U10V2KX-4GP

12

C255

SCD1U10V2KX-4GP

C255

SCD1U10V2KX-4GP

12

C158

SCD1U10V2KX-4GP

C158

SCD1U10V2KX-4GP

12

C170

SCD1U10V2KX-4GP

C170

SCD1U10V2KX-4GP

12

R325

0R5J-6-GP

UMA

R325

0R5J-6-GP

UMA

12

C495

SC4D7U6D3V3KX-GP

C495

SC4D7U6D3V3KX-GP

1 2

R131

0R2J-2-GP

MXM

R131

0R2J-2-GP

MXM

12

C227

SC10U10V5ZY-1GP

UMA

C227

SC10U10V5ZY-1GP

UMA

12

R352

0R3-0-U-GP

MXM

R352

0R3-0-U-GP

MXM

12

C146

SC10U10V5ZY-1GP

C146

SC10U10V5ZY-1GP

1 2

L14

HCB1608KF121T30-GP

68.00230.041

UMA

L14

HCB1608KF121T30-GP

68.00230.041

UMA

12

C157

SC2D2U6D3V3MX-1-GP

C157

SC2D2U6D3V3MX-1-GP

12

C294

SC4D7U6D3V3KX-GP

C294

SC4D7U6D3V3KX-GP

12

R130

0R3-0-U-GP

UMA

R130

0R3-0-U-GP

UMA

1

2

3

4 5

6

7

8

RN19

SRN0J-7-GP

MXM

RN19

SRN0J-7-GP

MXM

12

C220

SCD1U10V2KX-4GP

C220

SCD1U10V2KX-4GP

12

R349

0R3-0-U-GP

UMA

R349

0R3-0-U-GP

UMA

1 2

R99

0R0603-PAD

R99

0R0603-PAD

C162

SC4D7U10V5ZY-3GP

C162

SC4D7U10V5ZY-3GP

12

C175

SCD1U10V2KX-4GP

UMA

C175

SCD1U10V2KX-4GP

UMA

12

C295

SC4D7U6D3V3KX-GP

C295

SC4D7U6D3V3KX-GP

12

C203

SCD1U10V2KX-4GP

C203

SCD1U10V2KX-4GP

1

2

3

D27

BAT54-7-F-GP

UMA

D27

BAT54-7-F-GP

UMA

12

R156

0R3-0-U-GP

UMA

R156

0R3-0-U-GP

UMA

12

C216

SC4D7U6D3V3KX-GP

C216

SC4D7U6D3V3KX-GP

12

C168

SCD1U10V2KX-4GP

C168

SCD1U10V2KX-4GP

1 2

R171 0R0805-PADR171 0R0805-PAD

1 2

R155

0R2J-2-GP

MXM

R155

0R2J-2-GP

MXM

12

C223

SCD1U10V2KX-4GP

C223

SCD1U10V2KX-4GP

12

C166

SCD1U10V2KX-4GP

UMA

C166

SCD1U10V2KX-4GP

UMA

12

C198

SCD1U10V2KX-4GP

C198

SCD1U10V2KX-4GP

12

R134

0R3-0-U-GP

UMA

R134

0R3-0-U-GP

UMA

1 2

R362

0R3-0-U-GP

UMA

R362

0R3-0-U-GP

UMA

1 2

R100

0R0603-PAD

R100

0R0603-PAD

12

C209

SC10U10V5ZY-1GP

C209

SC10U10V5ZY-1GP

12

C183

SCD1U10V2KX-4GP

UMA

C183

SCD1U10V2KX-4GP

UMA

12

R124 0R3-0-U-GP

UMA

R124 0R3-0-U-GP

UMA

12

R361

0R2J-2-GP

MXM

R361

0R2J-2-GP

MXM

12

C153

SCD22U16V3ZY-GP

C153

SCD22U16V3ZY-GP

12

C494

SCD1U10V2KX-4GP

C494

SCD1U10V2KX-4GP

1

2

3

D14

BAT54-7-F-GP

UMA

D14

BAT54-7-F-GP

UMA

12

R150

0R0603-PAD

R150

0R0603-PAD

12

R142

0R3-0-U-GP

UMA

R142

0R3-0-U-GP

UMA

12

C145

SC10U10V5ZY-1GP

C145

SC10U10V5ZY-1GP

12

C428

SCD47U10V3ZY-GP

C428

SCD47U10V3ZY-GP

1 2

R133

0R3-0-U-GP

MXM

R133

0R3-0-U-GP

MXM

12

C212

SCD1U10V2KX-4GP

UMA

C212

SCD1U10V2KX-4GP

UMA

12

R152

0R0603-PAD

R152

0R0603-PAD

VCC_TXLVDS0

C30

VCC_TXLVDS1

B30

VCC_TXLVDS2

A30

VTT_19 R13

VTT_20 N13

VTT_21 M13

VTT_22 L13

VTT_23 AB12

VTT_24 AA12

VTT_25 Y12

VTT_26 W12

VTT_27 V12

VTT_28 U12

VTT_29 T12

VTT_30 R12

VTT_31 P12

VTT_32 N12

VTT_33 M12

VTT_34 L12

VTT_35 R11

VTT_36 P11

VTT_37 N11

VTT_38 M11

VTT_39 R10

VTT_40 P10

VTT_41 N10

VTT_42 M10

VTT_43 P9

VTT_44 N9

VTT_45 M9

VTT_46 R8

VTT_47 P8

VTT_48 N8

VTT_49 M8

VTT_50 P7

VTT_51 N7

VTT_52 M7

VTT_53 R6

VTT_54 P6

VTT_55 M6

VTT_56 A6

VTT_57 R5

VTT_58 P5

VTT_59 N5

VTT_60 M5

VTT_61 P4

VTT_62 N4

VTT_63 M4

VTT_64 R3

VTT_65 P3

VTT_66 N3

VTT_67 M3

VTT_68 R2

VTT_69 P2

VTT_70 M2

VTT_71 D2

VTT_72 AB1

VCC3G0

AJ41

VCC3G1

AB41

VCC3G2

Y41

VCC3G3

V41

VCC3G4

R41

VCC3G5

N41

VCCA_3GBG

G41 VCCA_3GPLL

AC33

VCCA_CRTDAC0

F21

VCCA_CRTDAC1

E21

VCCA_DPLLA

B26

VCCA_DPLLB

C39

VCCA_HPLL

AF1

VCCA_LVDS

A38

VCCA_MPLL

AF2

VCCA_TVBG

H20

VCCA_TVDACA0

E19

VCCA_TVDACA1

F19

VCCA_TVDACB0

C20

VCCA_TVDACB1

D20

VCCA_TVDACC0

E20

VCCA_TVDACC1

F20

VCCD_HMPLL0

AH1

VCCD_HMPLL1

AH2

VCCD_LVDS0

A28

VCCD_LVDS1

B28

VCCD_LVDS2

C28

VCCD_TVDAC

D21

VCC_HV0

A23

VCC_HV1

B23

VCC_HV2

B25

VCCD_QTVDAC

H19

VCCAUX0

AK31

VCCAUX1

AF31

VCCAUX2

AE31

VCCAUX3

AC31

VCCAUX4

AL30

VCCAUX5

AK30

VCCAUX6

AJ30

VCCAUX7

AH30

VCCAUX8

AG30

VCCAUX9

AF30

VCCAUX10

AE30

VCCAUX11

AD30

VTT_15 W13

VTT_16 V13

VTT_17 U13

VTT_18 T13

VTT_12 AB13

VTT_13 AA13

VTT_14 Y13

VCCSYNC

H22

VCC3G6

L41

VTT_0 AC14

VTT_1 AB14

VTT_2 W14

VTT_4 T14

VTT_5 R14

VTT_6 P14

VTT_7 N14

VTT_8 M14

VTT_9 L14

VTT_10 AD13

VTT_11 AC13

VCCAUX12

AC30

VCCAUX13

AG29

VCCAUX14

AF29

VCCAUX15

AE29

VCCAUX16

AD29

VCCAUX17

AC29

VCCAUX18

AG28

VCCAUX19

AF28

VCCAUX20

AE28

VCCAUX21

AH22

VCCAUX22

AJ21

VCCAUX23

AH21

VCCAUX24

AJ20

VCCAUX25

AH20

VCCAUX26

AH19

VCCAUX27

P19

VCCAUX28

P16

VCCAUX29

AH15

VCCAUX30

P15

VCCAUX31

AH14

VCCAUX32

AG14

VCCAUX33

AF14

VCCAUX34

AE14

VTT_73 R1

VTT_74 P1

VTT_75 N1

VTT_76 M1

VTT_3 V14

VCCAUX35

Y14

VCCAUX36

AF13

VSSA_CRTDAC

G21

VSSA_LVDS

B39

VSSA_TVBG

G20

VSSA_3GBG

H41

VCCAUX37

AE13

VCCAUX38

AF12

VCCAUX39

AE12

VCCAUX40

AD12

POWER

U40H

71.CALIS.00U

POWER

U40H

71.CALIS.00U

1 2

R365

0R3-0-U-GP

UMA

R365

0R3-0-U-GP

UMA

1

2

3

D28

BAT54-7-F-GP

DY

D28

BAT54-7-F-GP

DY

12

R138

0R3-0-U-GP

UMA

R138

0R3-0-U-GP

UMA

12

C505

SCD1U10V2KX-4GP

UMA

C505

SCD1U10V2KX-4GP

UMA

12

R147 0R0603-PADR147 0R0603-PAD

12

R364

0R2J-2-GP

UMA

R364

0R2J-2-GP

UMA

12

C164

SCD1U10V2KX-4GP

UMA

C164

SCD1U10V2KX-4GP

UMA

12

C501

SCD1U10V2KX-4GP

UMA

C501

SCD1U10V2KX-4GP

UMA

12

R153

10R2J-2-GP

UMA

R153

10R2J-2-GP

UMA

12

C150

SCD1U10V2KX-4GP

C150

SCD1U10V2KX-4GP

12

C443

SCD47U10V3ZY-GP

C443

SCD47U10V3ZY-GP

12

C169

SCD1U10V2KX-4GP

C169

SCD1U10V2KX-4GP

12

C506

SC10U10V5ZY-1GP

UMA

C506

SC10U10V5ZY-1GP

UMA

12

C213

SC10U10V5ZY-1GP

UMA

C213

SC10U10V5ZY-1GP

UMA

12

C172

SCD1U10V2KX-4GP

UMA

C172

SCD1U10V2KX-4GP

UMA

12

C149

SCD1U10V2KX-4GP

C149

SCD1U10V2KX-4GP

1 2

R154

0R3-0-U-GP

UMA

R154

0R3-0-U-GP

UMA

12

R123

0R0603-PAD

R123

0R0603-PAD

12

C293

SC4D7U6D3V3KX-GP

C293

SC4D7U6D3V3KX-GP

12

C163

SCD1U10V2KX-4GP

C163

SCD1U10V2KX-4GP

12

R331

10R2J-2-GP

UMA

R331

10R2J-2-GP

UMA

1 2

L4

HCB1608KF121T30-GP

68.00230.041

UMA

L4

HCB1608KF121T30-GP

68.00230.041

UMA

12

C292

SCD1U10V2KX-4GP

C292

SCD1U10V2KX-4GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

1D8V_S3

1D5V_S0

1D05V_S0

1D05V_S0

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (5 of 5)

10 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (5 of 5)

10 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

GMCH (5 of 5)

10 44Monday, March 12, 2007

HURON

SD

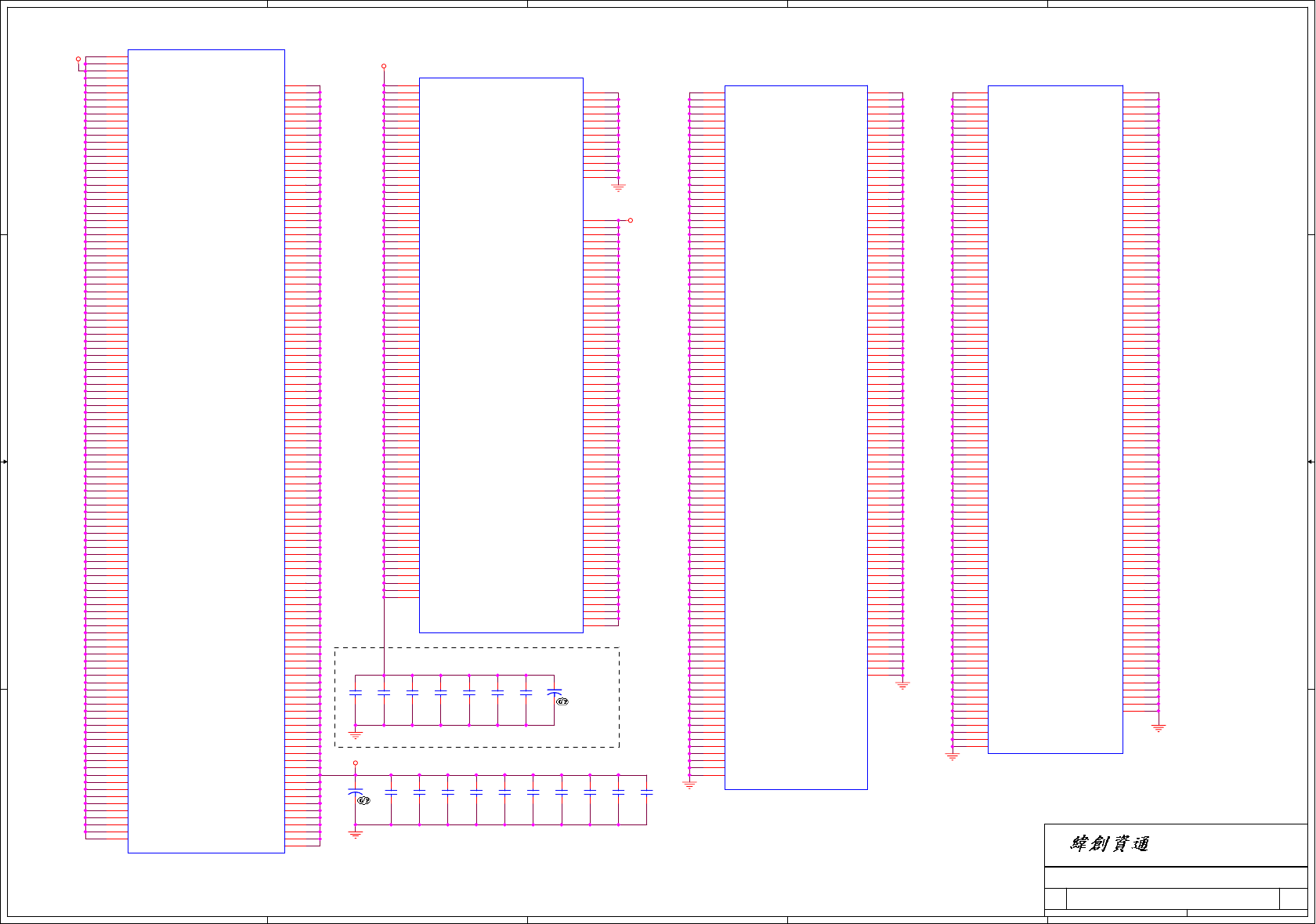

Place these Caps close VCC_0 ~ VCC_110

VCC_NCTF0

AD27

VCC_NCTF1

AC27

VCC_NCTF2

AB27

VCC_NCTF3

AA27

VCC_NCTF4

Y27

VCC_NCTF5

W27

VCC_NCTF6

V27

VCC_NCTF7

U27

VCC_NCTF8

T27

VCC_NCTF9

R27

VCC_NCTF10

AD26

VCC_NCTF11

AC26

VCC_NCTF12

AB26

VCC_NCTF13

AA26

VCC_NCTF14

Y26

VCC_NCTF15

W26

VCC_NCTF16

V26

VCC_NCTF17

U26

VCC_NCTF18

T26

VCC_NCTF19

R26

VCC_NCTF20

AD25

VCC_NCTF21

AC25

VCC_NCTF22

AB25

VCC_NCTF23

AA25

VCC_NCTF24

Y25

VCC_NCTF25

W25

VCC_NCTF26

V25

VCC_NCTF27

U25

VCC_NCTF28

T25

VCC_NCTF29

R25

VCC_NCTF30

AD24

VCC_NCTF31

AC24

VCC_NCTF32

AB24

VCC_NCTF33

AA24

VCC_NCTF34

Y24

VCC_NCTF35

W24

VCC_NCTF36

V24

VCC_NCTF37

U24

VCC_NCTF38

T24

VCC_NCTF39

R24

VCC_NCTF40

AD23

VCC_NCTF41

V23

VCC_NCTF42

U23

VCC_NCTF43

T23

VCC_NCTF44

R23

VCC_NCTF45

AD22

VCC_NCTF46

V22

VCC_NCTF47

U22

VCC_NCTF48

T22

VCC_NCTF49

R22

VCC_NCTF50

AD21

VCC_NCTF51

V21

VCC_NCTF52

U21

VCC_NCTF53

T21

VCC_NCTF54

R21

VCC_NCTF55

AD20

VCC_NCTF56

V20

VCC_NCTF57

U20

VCC_NCTF58

T20

VCC_NCTF59

R20

VCC_NCTF60

AD19

VCC_NCTF61

V19

VCC_NCTF62

U19

VCC_NCTF63

T19

VCC_NCTF64

AD18

VCC_NCTF65

AC18

VCC_NCTF66

AB18

VCC_NCTF67

AA18

VCC_NCTF68

Y18

VCC_NCTF69

W18

VCC_NCTF70

V18

VCC_NCTF71

U18

VCC_NCTF72

T18

VSS_NCTF0 AE27

VSS_NCTF1 AE26

VSS_NCTF2 AE25

VSS_NCTF3 AE24

VSS_NCTF4 AE23

VSS_NCTF5 AE22

VSS_NCTF6 AE21

VSS_NCTF7 AE20

VSS_NCTF8 AE19

VSS_NCTF9 AE18

VSS_NCTF10 AC17

VSS_NCTF11 Y17

VSS_NCTF12 U17

VCCAUX_NCTF18 R19

VCCAUX_NCTF19 AG18

VCCAUX_NCTF20 AF18

VCCAUX_NCTF21 R18

VCCAUX_NCTF22 AG17

VCCAUX_NCTF23 AF17

VCCAUX_NCTF24 AE17

VCCAUX_NCTF25 AD17

VCCAUX_NCTF26 AB17

VCCAUX_NCTF27 AA17

VCCAUX_NCTF28 W17

VCCAUX_NCTF29 V17

VCCAUX_NCTF30 T17

VCCAUX_NCTF31 R17

VCCAUX_NCTF32 AG16

VCCAUX_NCTF33 AF16

VCCAUX_NCTF34 AE16

VCCAUX_NCTF35 AD16

VCCAUX_NCTF36 AC16

VCCAUX_NCTF37 AB16

VCCAUX_NCTF38 AA16

VCCAUX_NCTF39 Y16

VCCAUX_NCTF40 W16

VCCAUX_NCTF41 V16

VCCAUX_NCTF42 U16

VCCAUX_NCTF43 T16

VCCAUX_NCTF44 R16

VCCAUX_NCTF45 AG15

VCCAUX_NCTF46 AF15

VCCAUX_NCTF47 AE15

VCCAUX_NCTF48 AD15

VCCAUX_NCTF49 AC15

VCCAUX_NCTF50 AB15

VCCAUX_NCTF0 AG27

VCCAUX_NCTF1 AF27

VCCAUX_NCTF2 AG26

VCCAUX_NCTF3 AF26

VCCAUX_NCTF4 AG25

VCCAUX_NCTF5 AF25

VCCAUX_NCTF6 AG24

VCCAUX_NCTF7 AF24

VCCAUX_NCTF8 AG23

VCCAUX_NCTF9 AF23

VCCAUX_NCTF10 AG22

VCCAUX_NCTF11 AF22

VCCAUX_NCTF12 AG21

VCCAUX_NCTF13 AF21

VCCAUX_NCTF14 AG20

VCCAUX_NCTF15 AF20

VCCAUX_NCTF16 AG19

VCCAUX_NCTF17 AF19

VCCAUX_NCTF51 AA15

VCCAUX_NCTF52 Y15

VCCAUX_NCTF53 W15

VCCAUX_NCTF54 V15

VCCAUX_NCTF55 U15

VCCAUX_NCTF56 T15

VCCAUX_NCTF57 R15

NCTF

U40F

71.CALIS.00U

NCTF

U40F

71.CALIS.00U

12

C179

SCD1U10V2KX-4GP

C179

SCD1U10V2KX-4GP

12

C204

SCD1U10V2KX-4GP

C204

SCD1U10V2KX-4GP

12

C201

SCD1U16V2ZY-2GP

C201

SCD1U16V2ZY-2GP

12

C178

SCD1U10V2KX-4GP

C178

SCD1U10V2KX-4GP

12

C173

SCD1U10V2KX-4GP

C173

SCD1U10V2KX-4GP

VSS_0

AC41

VSS_1

AA41

VSS_2

W41

VSS_3

T41

VSS_4

P41

VSS_5

M41

VSS_6

J41

VSS_7

F41

VSS_8

AV40

VSS_9

AP40

VSS_10

AN40

VSS_11

AK40

VSS_12

AJ40

VSS_13

AH40

VSS_14

AG40

VSS_15

AF40

VSS_16

AE40

VSS_17

B40

VSS_18

AY39

VSS_19

AW39

VSS_20

AV39

VSS_21

AR39

VSS_22

AN39

VSS_23

AJ39

VSS_24

AC39

VSS_25

AB39

VSS_26

AA39

VSS_27

Y39

VSS_28

W39

VSS_29

V39

VSS_30

T39

VSS_31

R39

VSS_32

P39

VSS_33

N39

VSS_34

M39

VSS_35

L39

VSS_36

J39

VSS_37

H39

VSS_38

G39

VSS_39

F39

VSS_40

D39

VSS_41

AT38

VSS_42

AM38

VSS_43

AH38

VSS_44

AG38

VSS_45

AF38

VSS_46

AE38

VSS_47

C38

VSS_48

AK37

VSS_49

AH37

VSS_50

AB37

VSS_51

AA37

VSS_52

Y37

VSS_53

W37

VSS_54

V37

VSS_55

T37

VSS_56

R37

VSS_57

P37

VSS_58

N37

VSS_59

M37

VSS_60

L37

VSS_61

J37

VSS_62

H37

VSS_63

G37

VSS_64

F37

VSS_65

D37

VSS_66

AY36

VSS_67

AW36

VSS_68

AN36

VSS_69

AH36

VSS_70

AG36

VSS_71

AF36

VSS_72

AE36

VSS_73

AC36

VSS_74

C36

VSS_75

B36

VSS_76

BA35

VSS_77

AV35

VSS_78

AR35

VSS_79

AH35

VSS_80

AB35

VSS_81

AA35

VSS_82

Y35

VSS_83

W35

VSS_84

V35

VSS_85

T35

VSS_86

R35

VSS_87

P35

VSS_99 AF34

VSS_100 AE34

VSS_101 AC34

VSS_102 C34

VSS_103 AW33

VSS_104 AV33

VSS_105 AR33

VSS_106 AE33

VSS_107 AB33

VSS_108 Y33

VSS_109 V33

VSS_110 T33

VSS_111 R33

VSS_112 M33

VSS_113 H33

VSS_114 G33

VSS_115 F33

VSS_116 D33

VSS_117 B33

VSS_118 AH32

VSS_119 AG32

VSS_120 AF32

VSS_121 AE32

VSS_122 AC32

VSS_123 AB32

VSS_124 G32

VSS_125 B32

VSS_126 AY31

VSS_127 AV31

VSS_128 AN31

VSS_129 AJ31

VSS_130 AG31

VSS_131 AB31

VSS_132 Y31

VSS_133 AB30

VSS_134 E30

VSS_135 AT29

VSS_136 AN29

VSS_137 AB29

VSS_138 T29

VSS_139 N29

VSS_140 K29

VSS_141 G29

VSS_142 E29

VSS_143 C29

VSS_144 B29

VSS_145 A29

VSS_146 BA28

VSS_147 AW28

VSS_148 AU28

VSS_149 AP28

VSS_150 AM28

VSS_151 AD28

VSS_152 AC28

VSS_153 W28

VSS_154 J28

VSS_155 E28

VSS_156 AP27

VSS_157 AM27

VSS_158 AK27

VSS_159 J27

VSS_160 G27

VSS_161 F27

VSS_162 C27

VSS_163 B27

VSS_164 AN26

VSS_165 M26

VSS_166 K26

VSS_167 F26

VSS_168 D26

VSS_169 AK25

VSS_170 P25

VSS_171 K25

VSS_172 H25

VSS_173 E25

VSS_174 D25

VSS_175 A25

VSS_176 BA24

VSS_177 AU24

VSS_178 AL24

VSS_179 AW23

VSS_88

N35

VSS_89

M35

VSS_90

L35

VSS_91

J35

VSS_92

H35

VSS_93

G35

VSS_94

F35

VSS_95

D35

VSS_96

AN34

VSS_97 AK34

VSS_98 AG34

VSS

U40I

71.CALIS.00U

VSS

U40I

71.CALIS.00U

VCC_0

AA33

VCC_1

W33

VCC_2

P33

VCC_3

N33

VCC_4

L33

VCC_5

J33

VCC_6

AA32

VCC_7

Y32

VCC_8

W32

VCC_9

V32

VCC_10

P32

VCC_11

N32

VCC_12

M32

VCC_13

L32

VCC_14

J32

VCC_15

AA31

VCC_16

W31

VCC_17

V31

VCC_18

T31

VCC_19

R31

VCC_20

P31

VCC_21

N31

VCC_22

M31

VCC_23

AA30

VCC_24

Y30

VCC_25

W30

VCC_26

V30

VCC_27

U30

VCC_28

T30

VCC_29

R30

VCC_30

P30

VCC_31

N30

VCC_32

M30

VCC_33

L30

VCC_34

AA29

VCC_35

Y29

VCC_36

W29

VCC_37

V29

VCC_38

U29

VCC_39

R29

VCC_40

P29

VCC_41

M29

VCC_42

L29

VCC_43

AB28

VCC_44

AA28

VCC_45

Y28

VCC_46

V28

VCC_47

U28

VCC_48

T28

VCC_49

R28

VCC_50

P28

VCC_51

N28

VCC_52

M28

VCC_53

L28

VCC_54

P27

VCC_55

N27

VCC_56

M27

VCC_57

L27

VCC_58

P26

VCC_59

N26

VCC_60

L26

VCC_61

N25

VCC_62

M25

VCC_63

L25

VCC_64

P24

VCC_65

N24

VCC_66

M24

VCC_67

AB23

VCC_68

AA23

VCC_69

Y23

VCC_70

P23

VCC_71

N23

VCC_72

M23

VCC_73

L23

VCC_74

AC22

VCC_75

AB22

VCC_76

Y22

VCC_77

W22

VCC_78

P22

VCC_79

N22

VCC_80

M22

VCC_81

L22

VCC_82

AC21

VCC_83

AA21

VCC_84

W21

VCC_85

N21

VCC_86

M21

VCC_87

L21

VCC_88

AC20

VCC_89

AB20

VCC_90

Y20

VCC_91

W20

VCC_92

P20

VCC_93

N20

VCC_94

M20

VCC_95

L20

VCC_96

AB19

VCC_97

AA19

VCC_98

Y19

VCC_99

N19

VCC_100

M19

VCC_101

L19

VCC_102

N18

VCC_103

M18

VCC_SM_0 AU41

VCC_SM_1 AT41

VCC_SM_2 AM41

VCC_SM_3 AU40

VCC_SM_4 BA34

VCC_SM_5 AY34

VCC_SM_6 AW34

VCC_SM_7 AV34

VCC_SM_8 AU34

VCC_SM_9 AT34

VCC_SM_10 AR34

VCC_SM_11 BA30

VCC_SM_12 AY30

VCC_SM_13 AW30

VCC_SM_14 AV30

VCC_SM_15 AU30

VCC_SM_16 AT30

VCC_SM_17 AR30

VCC_SM_18 AP30

VCC_SM_19 AN30

VCC_SM_20 AM30

VCC_SM_21 AM29

VCC_SM_22 AL29

VCC_SM_23 AK29

VCC_SM_24 AJ29

VCC_SM_25 AH29

VCC_SM_26 AJ28

VCC_SM_27 AH28

VCC_SM_28 AJ27

VCC_SM_29 AH27

VCC_SM_30 BA26

VCC_SM_31 AY26

VCC_SM_32 AW26

VCC_SM_33 AV26

VCC_SM_34 AU26

VCC_SM_35 AT26

VCC_SM_36 AR26

VCC_SM_37 AJ26

VCC_SM_38 AH26

VCC_SM_39 AJ25

VCC_SM_40 AH25

VCC_SM_41 AJ24

VCC_SM_42 AH24

VCC_SM_43 BA23

VCC_SM_44 AJ23

VCC_SM_45 BA22

VCC_SM_46 AY22

VCC_SM_47 AW22

VCC_SM_48 AV22

VCC_SM_49 AU22

VCC_SM_50 AT22

VCC_SM_51 AR22

VCC_SM_52 AP22

VCC_SM_53 AK22

VCC_SM_54 AJ22

VCC_SM_55 AK21

VCC_SM_56 AK20

VCC_SM_57 BA19

VCC_SM_58 AY19

VCC_SM_59 AW19

VCC_SM_60 AV19

VCC_SM_61 AU19

VCC_SM_62 AT19

VCC_SM_63 AR19

VCC_SM_64 AP19

VCC_SM_65 AK19

VCC_SM_66 AJ19

VCC_SM_67 AJ18

VCC_SM_68 AJ17

VCC_SM_69 AH17

VCC_SM_70 AJ16

VCC_SM_71 AH16

VCC_SM_72 BA15

VCC_SM_73 AY15

VCC_SM_74 AW15

VCC_SM_75 AV15

VCC_SM_76 AU15

VCC_SM_77 AT15

VCC_SM_78 AR15

VCC_SM_79 AJ15

VCC_SM_80 AJ14

VCC_SM_81 AJ13

VCC_SM_82 AH13

VCC_SM_83 AK12

VCC_SM_84 AJ12

VCC_SM_85 AH12

VCC_SM_86 AG12

VCC_SM_87 AK11

VCC_SM_88 BA8

VCC_SM_89 AY8

VCC_SM_90 AW8

VCC_SM_91 AV8

VCC_SM_92 AT8

VCC_SM_93 AR8

VCC_SM_94 AP8

VCC_SM_95 BA6

VCC_SM_96 AY6

VCC_SM_97 AW6

VCC_SM_98 AV6

VCC_SM_99 AT6

VCC_SM_100 AR6

VCC_SM_101 AP6

VCC_SM_102 AN6

VCC_SM_103 AL6

VCC_SM_104 AK6

VCC_SM_105 AJ6

VCC_SM_106 AV1

VCC_SM_107 AJ1

VCC_104

L18

VCC_105

P17

VCC_106

N17

VCC_107

M17

VCC_108

N16

VCC_109

M16

VCC_110

L16

VCC

U40G

71.CALIS.00U

VCC

U40G

71.CALIS.00U

12

TC3

ST220U2VBM-3GP

TC3

ST220U2VBM-3GP

12

C185

SCD1U10V2KX-4GP

C185

SCD1U10V2KX-4GP

12

C151

SCD1U16V2ZY-2GP

C151

SCD1U16V2ZY-2GP

12

C222

SC10U10V5ZY-1GP

C222

SC10U10V5ZY-1GP

12

TC10

ST220U2VBM-3GP

TC10

ST220U2VBM-3GP

12

C237

SCD1U16V2ZY-2GP

DY

C237

SCD1U16V2ZY-2GP

DY

12

C200

SCD1U10V2KX-4GP

C200

SCD1U10V2KX-4GP

12

C199

SCD1U10V2KX-4GP

C199

SCD1U10V2KX-4GP

12

C176

SC10U10V5ZY-1GP

C176

SC10U10V5ZY-1GP

12

C171

SCD1U10V2KX-4GP

C171

SCD1U10V2KX-4GP

12

C165

SCD1U10V2KX-4GP

C165

SCD1U10V2KX-4GP

12

C221

SCD1U16V2ZY-2GP

C221

SCD1U16V2ZY-2GP

12

C253

SC10U10V5ZY-1GP

DY

C253

SC10U10V5ZY-1GP

DY

12

C215

SCD1U10V2KX-4GP

C215

SCD1U10V2KX-4GP

VSS_180

AT23

VSS_181

AN23

VSS_182

AM23

VSS_183

AH23

VSS_184

AC23

VSS_185

W23

VSS_186

K23

VSS_187

J23

VSS_188

F23

VSS_189

C23

VSS_190

AA22

VSS_191

K22

VSS_192

G22

VSS_193

F22

VSS_194

E22

VSS_195

D22

VSS_196

A22

VSS_197

BA21

VSS_198

AV21

VSS_199

AR21

VSS_200

AN21

VSS_201

AL21

VSS_202

AB21

VSS_203

Y21

VSS_204

P21

VSS_205

K21

VSS_206

J21

VSS_207

H21

VSS_208

C21

VSS_209

AW20

VSS_210

AR20

VSS_211

AM20

VSS_212

AA20

VSS_213

K20

VSS_214

B20

VSS_215

A20

VSS_216

AN19

VSS_217

AC19

VSS_218

W19

VSS_219

K19

VSS_220

G19

VSS_221

C19

VSS_222

AH18

VSS_223

P18

VSS_224

H18

VSS_225

D18

VSS_226

A18

VSS_227

AY17

VSS_228

AR17

VSS_229

AP17

VSS_230

AM17

VSS_231

AK17

VSS_232

AV16

VSS_233

AN16

VSS_234

AL16

VSS_235

J16

VSS_236

F16

VSS_237

C16

VSS_238

AN15

VSS_239

AM15

VSS_240

AK15

VSS_241

N15

VSS_242

M15

VSS_243

L15

VSS_244

B15

VSS_245

A15

VSS_246

BA14

VSS_247

AT14

VSS_248

AK14

VSS_249

AD14

VSS_250

AA14

VSS_251

U14

VSS_252

K14

VSS_253

H14

VSS_254

E14

VSS_255

AV13

VSS_256

AR13

VSS_257

AN13

VSS_258

AM13

VSS_259

AL13

VSS_260

AG13

VSS_261

P13

VSS_262

F13

VSS_263

D13

VSS_264

B13

VSS_265

AY12

VSS_266

AC12

VSS_267

K12

VSS_268

H12

VSS_269

E12

VSS_270

AD11

VSS_271

AA11

VSS_272

Y11

VSS_273 J11

VSS_274 D11

VSS_275 B11

VSS_276 AV10

VSS_285 AW9

VSS_286 AR9

VSS_287 AH9

VSS_288 AB9

VSS_289 Y9

VSS_290 R9

VSS_291 G9

VSS_292 E9

VSS_293 A9

VSS_294 AG8

VSS_295 AD8

VSS_296 AA8

VSS_297 U8

VSS_298 K8

VSS_299 C8

VSS_300 BA7

VSS_301 AV7

VSS_302 AP7

VSS_303 AL7

VSS_304 AJ7

VSS_305 AH7

VSS_306 AF7

VSS_307 AC7

VSS_308 R7

VSS_309 G7

VSS_310 D7

VSS_311 AG6

VSS_312 AD6

VSS_313 AB6

VSS_314 Y6

VSS_315 U6

VSS_316 N6

VSS_317 K6

VSS_318 H6

VSS_319 B6

VSS_320 AV5

VSS_321 AF5

VSS_322 AD5

VSS_323 AY4

VSS_324 AR4

VSS_325 AP4

VSS_326 AL4

VSS_327 AJ4

VSS_328 Y4

VSS_329 U4

VSS_330 R4

VSS_331 J4

VSS_332 F4

VSS_333 C4

VSS_334 AY3

VSS_335 AW3

VSS_336 AV3

VSS_337 AL3

VSS_338 AH3

VSS_339 AG3

VSS_340 AF3

VSS_341 AD3

VSS_342 AC3

VSS_343 AA3

VSS_344 G3

VSS_345 AT2

VSS_346 AR2

VSS_347 AP2

VSS_348 AK2

VSS_349 AJ2

VSS_350 AD2

VSS_351 AB2

VSS_352 Y2

VSS_353 U2

VSS_354 T2

VSS_355 N2

VSS_356 J2

VSS_280 AG10

VSS_281 AC10

VSS_282 W10

VSS_283 U10

VSS_284 BA9

VSS_278 AL10

VSS_279 AJ10

VSS_277 AP10

VSS_357 H2

VSS_358 F2

VSS_359 C2

VSS_360 AL1

VSS

U40J

71.CALIS.00U

VSS

U40J

71.CALIS.00U

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

M_A_DQ0

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ4

M_A_DQ5

M_A_DQ7

M_A_DQ6

M_A_DQ8

M_A_DQ9

M_A_DQ11

M_A_DQ10

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ12

M_A_DQ16

M_A_DQ17

M_A_DQ19

M_A_DQ18

M_A_DQ21

M_A_DQ22

M_A_DQ23

M_A_DQ20

M_A_DQ28

M_A_DQ31

M_A_DQ30

M_A_DQ27

M_A_DQ25

M_A_DQ24

M_A_DQ26

M_A_DQ29

M_A_DQ32

M_A_DQ33

M_A_DQ35

M_A_DQ34

M_A_DQ37

M_A_DQ38

M_A_DQ39

M_A_DQ36

M_A_DQ44

M_A_DQ47

M_A_DQ60

M_A_DQ49

M_A_DQ51

M_A_DQ50

M_A_DQ63

M_A_DQ53

M_A_DQ54

M_A_DQ46

M_A_DQ43

M_A_DQ41

M_A_DQ40

M_A_DQ42

M_A_DQ45

M_A_DQ55

M_A_DQ48

M_A_DQ52

M_A_DQ58

M_A_DQ62

M_A_DQ61

M_A_DQ57

M_A_DQ59

M_A_DQ56

SMBC_ICH

SMBD_ICH

M_A_A0

M_A_A1

M_A_A2

M_A_A3

M_A_A4

M_A_A5

M_A_A6

M_A_A7

M_A_A8

M_A_A9

M_A_A10

M_A_A11

M_A_A12

M_A_A13

M_A_DQS#2

M_A_DQS#3

M_A_DQS#5

M_A_DQS#6

M_A_DQS#7

M_A_DQS#1

M_A_DQS#0

M_A_DQS#4

M_A_DQS7

M_A_DQS5

M_A_DQS4

M_A_DQS2

M_A_DQS1

M_A_DQS3

M_A_DQS0

M_A_DQS6

M_A_DM5

M_A_DM7

M_A_DM0

M_A_DM3

M_A_DM2

M_A_DM1

M_A_DM6

M_A_DM4

M_A_A15

M_B_DQ0

M_B_DQ8

M_B_DQ3

M_B_DQ10

M_B_DQ1

M_B_DQ9

M_B_DQ4

M_B_DQ6

M_B_DQ2

M_B_DQ11

M_B_DQ5

M_B_DQ19

M_B_DQ14

M_B_DQ30

M_B_DQ22

M_B_DQ16

M_B_DQ28

M_B_DQ18

M_B_DQ27

M_B_DQ15

M_B_DQ23

M_B_DQ17

M_B_DQ31

M_B_DQ13

M_B_DQ21

M_B_DQ12

M_B_DQ20

M_B_DQ35

M_B_DQ24

M_B_DQ46

M_B_DQ38

M_B_DQ32

M_B_DQ44

M_B_DQ34

M_B_DQ43

M_B_DQ26

M_B_DQ39

M_B_DQ33

M_B_DQ47

M_B_DQ25

M_B_DQ37

M_B_DQ29

M_B_DQ36

M_B_DQ53

M_B_DQ45

M_B_DQ52

M_B_DQ51

M_B_DQ40

M_B_DQ62

M_B_DQ54

M_B_DQ48

M_B_DQ60

M_B_DQ50

M_B_DQ59

M_B_DQ42

M_B_DQ55

M_B_DQ49

M_B_DQ63

M_B_DQ41

M_B_DQ57

M_B_DQ61

M_B_DQ56

M_B_DQ58

M_B_DQ7

M_B_DQS1

M_B_DQS0

M_B_DQS7

M_B_DQS5

M_B_DQS4

M_B_DQS2

M_B_DQS6

M_B_DQS3

M_B_DQS#4

M_B_DQS#2

M_B_DQS#7

M_B_DQS#3

M_B_DQS#6

M_B_DQS#0

M_B_DQS#5

M_B_DQS#1

M_B_A10

M_B_A7

M_B_A1

M_B_A8

M_B_A5

M_B_A2

M_B_A11

M_B_A6

M_B_A3

M_B_A12

M_B_A9

M_B_A0

M_B_A4

M_B_A13

M_B_A15

DDRB_SA0

M_B_DM0

M_B_DM1

M_B_DM7

M_B_DM6

M_B_DM5

M_B_DM4

M_B_DM3

M_B_DM2

M_B_A14 M_A_A14M_CLK_DDR#3

M_CLK_DDR3

M_CLK_DDR#2

M_CLK_DDR2

M_CLK_DDR#0

M_CLK_DDR0

M_CLK_DDR#1

M_CLK_DDR1

1D8V_S3

DDR_VREF_S3

3D3V_S0

DDR_VREF_S3

3D3V_S0

1D8V_S3

M_ODT07,12 M_ODT17,12

M_A_DQ[63..0]8

M_CLK_DDR1 7

M_CLK_DDR#1 7

M_A_RAS#8,12

M_CS0#7,12 M_CS1#7,12

M_A_BS#08,12 M_A_BS#18,12

M_A_BS#28,12

M_A_CAS#8,12

M_CKE07,12 M_CKE17,12

M_A_A[13..0]8,12

M_A_DQS#[7..0] 8

M_A_DQS[7..0] 8

M_A_DM[7..0] 8

M_A_WE#8,12

M_CLK_DDR0 7

M_CLK_DDR#0 7

SMBD_ICH 3,18

SMBC_ICH 3,18

M_B_DQ[63..0]8

M_B_DQS[7..0]8

M_ODT27,12 M_ODT37,12

M_B_DQS#[7..0]8

M_B_BS#28,12

M_B_BS#08,12 M_B_BS#18,12

M_B_A[13..0]8,12

M_CLK_DDR2 7

M_CLK_DDR3 7

M_CLK_DDR#2 7

M_CLK_DDR#3 7

M_B_RAS# 8,12

M_B_WE# 8,12

M_B_CAS# 8,12

M_CS2# 7,12

M_CS3# 7,12

M_CKE2 7,12

M_CKE3 7,12

M_B_DM[7..0] 8

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Socket

11 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Socket

11 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Socket

11 44Monday, March 12, 2007

High 9.2mm

High 5.2mm

REVERSE TYPE

REVERSE TYPE

Place near DM2 Place near DM1

12

C148

SCD1U16V2ZY-2GP

C148

SCD1U16V2ZY-2GP

12

C299

SC10P50V2JN-4GP

DY

C299

SC10P50V2JN-4GP

DY

12

C308

SC4D7U6D3V3KX-GP

DY

C308

SC4D7U6D3V3KX-GP

DY

12

C160

SC10P50V2JN-4GP

DY

C160

SC10P50V2JN-4GP

DY

12

C306

SCD1U16V2ZY-2GP

C306

SCD1U16V2ZY-2GP

12

R103

10KR2J-3-GP

R103

10KR2J-3-GP

A0

102

A1

101

A2

100

A3

99

A4

98

A5

97

A6

94

A7

92

A8

93

A9

91

A10/AP

105

A11

90

A12

89

A13

116

A14

86

A15

84

A16/BA2

85

BA0

107

BA1

106

DQ0

5

DQ1

7

DQ2

17

DQ3

19

DQ4

4

DQ5

6

DQ6

14

DQ7

16

DQ8

23

DQ9

25

DQ10

35

DQ11

37

DQ12

20

DQ13

22

DQ14

36

DQ15

38

DQ16

43

DQ17

45

DQ18

55

DQ19

57

DQ20

44

DQ21

46

DQ22

56

DQ23

58

DQ24

61

DQ25

63

DQ26

73

DQ27

75

DQ28

62

DQ29

64

DQ30

74

DQ31

76

DQ32

123

DQ33

125

DQ34

135

DQ35

137

DQ36

124

DQ37

126

DQ38

134

DQ39

136

DQ40

141

DQ41

143

DQ42

151

DQ43

153

DQ44

140

DQ45

142

DQ46

152

DQ47

154

DQ48

157

DQ49

159

DQ50

173

DQ51

175

DQ52

158

DQ53

160

DQ54

174

DQ55

176

DQ56

179

DQ57

181

DQ58

189

DQ59

191

DQ60

180

DQ61

182

DQ62

192

DQ63

194

DQS0#

11

DQS1#

29

DQS2#

49

DQS3#

68

DQS4#

129

DQS5#

146

DQS6#

167

DQS7#

186

DQS0

13

DQS1

31

DQS2

51

DQS3

70

DQS4

131

DQS5

148

DQS6

169

DQS7

188

OTD0

114

OTD1

119

VREF

1

VSS

2

GND

202

RAS# 108

WE# 109

CAS# 113

CS0# 110

CS1# 115

CKE0 79

CKE1 80

CK0 30

CK0# 32

CK1 164

CK1# 166

DM0 10

DM1 26

DM2 52

DM3 67

DM4 130

DM5 147

DM6 170

DM7 185

SDA 195

SCL 197

VDDSPD 199

SA0 198

SA1 200

NC#50 50

NC#69 69

NC#83 83

NC#120 120

NC#163/TEST 163

VDD 81

VDD 82

VDD 87

VDD 88

VDD 95

VDD 96

VDD 103

VDD 104

VDD 111

VDD 112

VDD 117

VDD 118

VSS 3

VSS 8

VSS 9

VSS 12

VSS 15

VSS 18

VSS 21

VSS 24

VSS 27

VSS 28

VSS 33

VSS 34

VSS 39

VSS 40

VSS 41

VSS 42

VSS 47

VSS 48

VSS 53

VSS 54

VSS 59

VSS 60

VSS 65

VSS 66

VSS 71

VSS 72

VSS 77

VSS 78

VSS 121

VSS 122

VSS 127

VSS 128

VSS 132

VSS 133

VSS 138

VSS 139

VSS 144

VSS 145

VSS 149

VSS 150

VSS 155

VSS 156

VSS 161

VSS 162

VSS 165

VSS 168

VSS 171

VSS 172

VSS 177

VSS 178

VSS 183

VSS 184

VSS 187

VSS 190

VSS 193

VSS 196

GND 201

MH1

MH1 MH2 MH2

DM1

DDR2-200P-23-GP-U1

62.10017.A71

DM1

DDR2-200P-23-GP-U1

62.10017.A71

TP40

TPAD30 TP40

TPAD30

A0

102

A1

101

A2

100

A3

99

A4

98

A5

97

A6

94

A7

92

A8

93

A9

91

A10/AP

105

A11

90

A12

89

A13

116

A14

86

A15

84

A16_BA2

85

BA0

107

BA1

106

DQ0

5

DQ1

7

DQ2

17

DQ3

19

DQ4

4

DQ5

6

DQ6

14

DQ7

16

DQ8

23

DQ9

25

DQ10

35

DQ11

37

DQ12

20

DQ13

22

DQ14

36

DQ15

38

DQ16

43

DQ17

45

DQ18

55

DQ19

57

DQ20

44

DQ21

46

DQ22

56

DQ23

58

DQ24

61

DQ25

63

DQ26

73

DQ27

75

DQ28

62

DQ29

64

DQ30

74

DQ31

76

DQ32

123

DQ33

125

DQ34

135

DQ35

137

DQ36

124

DQ37

126

DQ38

134

DQ39

136

DQ40

141

DQ41

143

DQ42

151

DQ43

153

DQ44

140

DQ45

142

DQ46

152

DQ47

154

DQ48

157

DQ49

159

DQ50

173

DQ51

175

DQ52

158

DQ53

160

DQ54

174

DQ55

176

DQ56

179

DQ57

181

DQ58

189

DQ59

191

DQ60

180

DQ61

182

DQ62

192

DQ63

194

NC#50

50

NC#69

69

NC#83

83

NC#120

120

NC#163/TEST

163

CS0#

110

CS1#

115

CKE0

79

CKE1

80

RAS#

108

CAS#

113

WE#

109

SCL

197

SDA

195

ODT0

114

ODT1

119

VREF

1

GND

201

DQS0 13

DQS1 31

DQS2 51

DQS3 70

DQS4 131

DQS5 148

DQS6 169

DQS7 188

DQS0# 11

DQS1# 29

DQS2# 49

DQS3# 68

DQS4# 129

DQS5# 146

DQS6# 167

DQS7# 186

DM0 10

DM1 26

DM2 52

DM3 67

DM4 130

DM5 147

DM6 170

DM7 185

CK0 30

CK0# 32

CK1 164

CK1# 166

SA0 198

SA1 200

VDD_SPD 199

VDD 81

VDD 82

VDD 87

VDD 88

VDD 95

VDD 96

VDD 103

VDD 104

VDD 111

VDD 112

VDD 117

VDD 118

VSS 2

VSS 3

VSS 8

VSS 9

VSS 12

VSS 15

VSS 18

VSS 21

VSS 24

VSS 27

VSS 28

VSS 33

VSS 34

VSS 39

VSS 40

VSS 41

VSS 42

VSS 47

VSS 48

VSS 53

VSS 54

VSS 59

VSS 60

VSS 65

VSS 66

VSS 71

VSS 72

VSS 77

VSS 78

VSS 121

VSS 122

VSS 127

VSS 128

VSS 132

VSS 133

VSS 138

VSS 139

VSS 144

VSS 145

VSS 149

VSS 150

VSS 155

VSS 156

VSS 161

VSS 162

VSS 165

VSS 168

VSS 171

VSS 172

VSS 177

VSS 178

VSS 183

VSS 184

VSS 187

VSS 190

VSS 193

VSS 196

GND 202

MH1

MH1 MH2 MH2

DM2

SKT-SODIMM20022U2GP

62.10017.691

DM2

SKT-SODIMM20022U2GP

62.10017.691

12

C300

SC10P50V2JN-4GP

DY

C300

SC10P50V2JN-4GP

DY

12

C307

SCD1U16V2ZY-2GP

C307

SCD1U16V2ZY-2GP

12

C161

SC10P50V2JN-4GP

DY

C161

SC10P50V2JN-4GP

DY

12

C305

SC4D7U6D3V3KX-GP

DY

C305

SC4D7U6D3V3KX-GP

DY

TP41

TPAD30 TP41

TPAD30

12

C147

SCD1U16V2ZY-2GP

C147

SCD1U16V2ZY-2GP

TP44

TPAD30 TP44

TPAD30 TP43

TPAD30 TP43

TPAD30

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

M_A_A6

M_A_A4

M_A_A[13..0]

M_B_A[13..0]

M_A_A11

M_A_A7

M_A_A13

M_A_A0

M_A_A2

M_A_A9

M_B_A8

M_A_A5

M_B_A13

M_B_A4

M_B_A2

M_B_A9

M_B_A12

M_A_A8

M_A_A10

M_B_A11

M_B_A6

M_B_A7

M_A_A3

M_A_A1

M_A_A12

M_B_A5

M_B_A3

M_B_A0

M_B_A1

M_B_A10

1D8V_S3

1D8V_S3

DDR_VREF_S0

DDR_VREF_S0

M_A_BS#1 8,11

M_CS0# 7,11

M_ODT0 7,11

M_A_RAS# 8,11

M_A_A[13..0] 8,11

M_B_A[13..0] 8,11

M_B_RAS# 8,11

M_B_BS#2 8,11

M_A_BS#2 8,11

M_A_CAS# 8,11

M_ODT3 7,11

M_ODT2 7,11

M_CS2# 7,11

M_B_BS#1 8,11

M_CKE2 7,11

M_CKE0 7,11

M_ODT1 7,11

M_CS1# 7,11

M_CKE3 7,11

M_A_WE# 8,11

M_A_BS#0 8,11

M_CKE1 7,11

M_B_BS#0 8,11

M_B_CAS# 8,11

M_CS3# 7,11

M_B_WE# 8,11

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Termination Resistor

12 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Termination Resistor

12 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

DDR2 Termination Resistor

12 44Monday, March 12, 2007

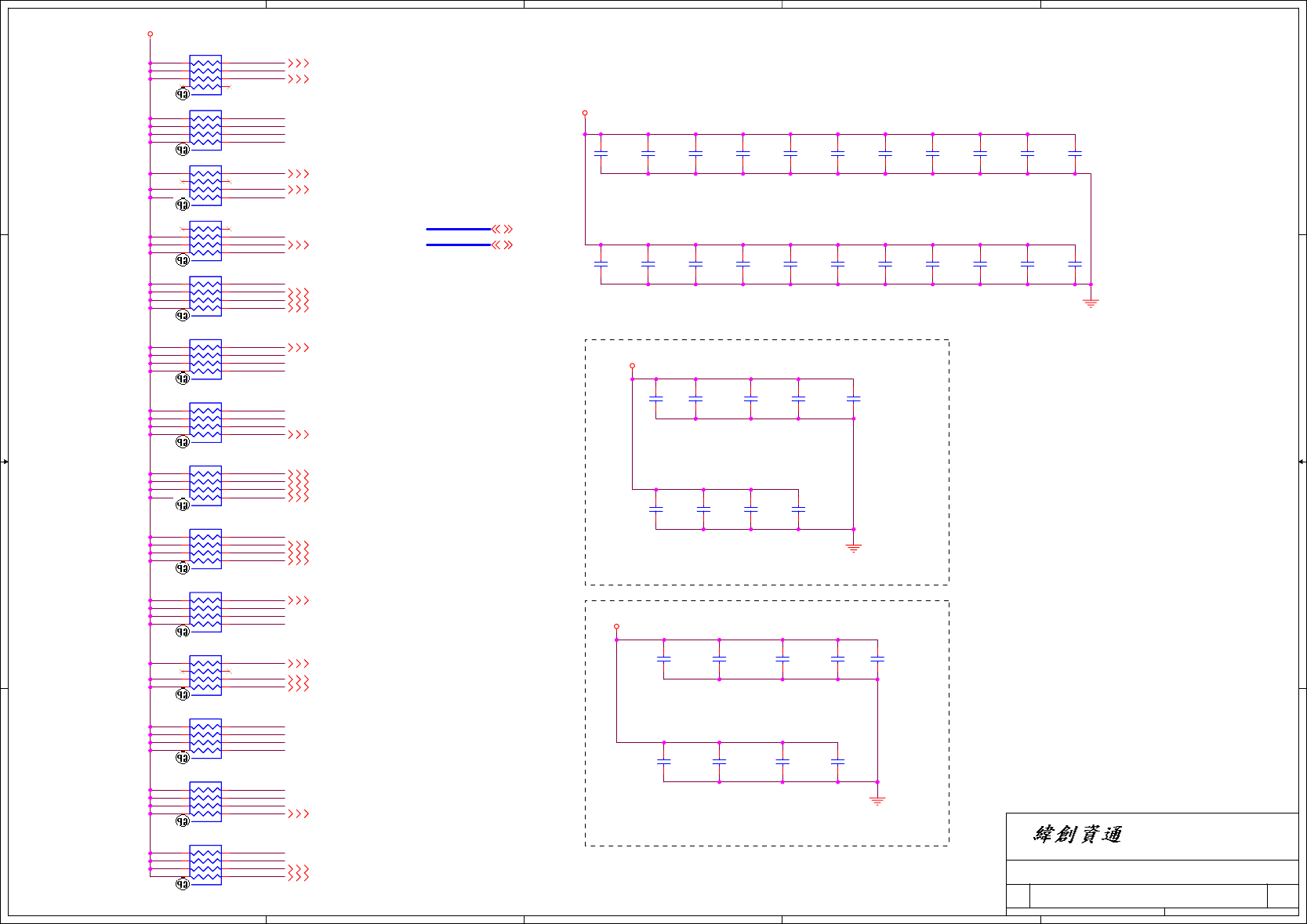

Decoupling Capacitor

Place these Caps near DM1

Put decap near power(0.9V) and pull-up resistor

Place these Caps near DM2

Put decap near power(0.9V)

and pull-up resistor

PARALLEL TERMINATION

12

C187

SCD1U16V2ZY-2GP

C187

SCD1U16V2ZY-2GP

12

C238

SCD1U16V2ZY-2GP

C238

SCD1U16V2ZY-2GP

12

C190

SCD1U16V2ZY-2GP

DY

C190

SCD1U16V2ZY-2GP

DY

12

C189

SCD1U16V2ZY-2GP

DY

C189

SCD1U16V2ZY-2GP

DY

1

2

3

45

6

7

8

RN29

SRN56J-5-GP

RN29

SRN56J-5-GP

12

C235

SCD1U16V2ZY-2GP

C235

SCD1U16V2ZY-2GP

12

C250

SC2D2U6D3V3MX-1-GP

C250

SC2D2U6D3V3MX-1-GP

1

2

3

45

6

7

8

RN33

SRN56J-5-GP

RN33

SRN56J-5-GP

12

C208

SCD1U16V2ZY-2GP

DY

C208

SCD1U16V2ZY-2GP

DY

12

C192

SCD1U16V2ZY-2GP

DY

C192

SCD1U16V2ZY-2GP

DY

12

C244

SCD1U16V2ZY-2GP

C244

SCD1U16V2ZY-2GP

1

2

3

45

6

7

8

RN25

SRN56J-5-GP

RN25

SRN56J-5-GP

1

2

3

45

6

7

8

RN28

SRN56J-5-GP

RN28

SRN56J-5-GP

12

C249

SCD1U16V2ZY-2GP

DY

C249

SCD1U16V2ZY-2GP

DY

12

C205

SCD1U16V2ZY-2GP

C205

SCD1U16V2ZY-2GP

12

C241

SC2D2U6D3V3MX-1-GP

C241

SC2D2U6D3V3MX-1-GP

12

C233

SCD1U16V2ZY-2GP

C233

SCD1U16V2ZY-2GP

12

C214

SCD1U16V2ZY-2GP

C214

SCD1U16V2ZY-2GP

12

C180

SC2D2U6D3V3MX-1-GP

C180

SC2D2U6D3V3MX-1-GP

1

2

3

45

6

7

8

RN22

SRN56J-5-GP

RN22

SRN56J-5-GP

1

2

3

45

6

7

8

RN34

SRN56J-5-GP

RN34

SRN56J-5-GP

1

2

3

45

6

7

8

RN23

SRN56J-5-GP

RN23

SRN56J-5-GP

12

C206

SCD1U16V2ZY-2GP

DY

C206

SCD1U16V2ZY-2GP

DY

12

C191

SCD1U16V2ZY-2GP

C191

SCD1U16V2ZY-2GP

12

C218

SCD1U16V2ZY-2GP

C218

SCD1U16V2ZY-2GP

12

C242

SC2D2U6D3V3MX-1-GP

C242

SC2D2U6D3V3MX-1-GP

12

C197

SCD1U16V2ZY-2GP

C197

SCD1U16V2ZY-2GP

1

2

3

45

6

7

8

RN35

SRN56J-5-GP

RN35

SRN56J-5-GP

12

C182

SCD1U16V2ZY-2GP

DY

C182

SCD1U16V2ZY-2GP

DY

12

C231

SCD1U16V2ZY-2GP

DY

C231

SCD1U16V2ZY-2GP

DY

12

C245

SCD1U16V2ZY-2GP

C245

SCD1U16V2ZY-2GP

12

C228

SCD1U16V2ZY-2GP

DY

C228

SCD1U16V2ZY-2GP

DY

12

C188

SCD1U16V2ZY-2GP

DY

C188

SCD1U16V2ZY-2GP

DY

12

C243

SCD1U16V2ZY-2GP

C243

SCD1U16V2ZY-2GP

12

C239

SC2D2U6D3V3MX-1-GP

C239

SC2D2U6D3V3MX-1-GP

12

C177

SC2D2U6D3V3MX-1-GP

C177

SC2D2U6D3V3MX-1-GP

12

C236

SCD1U16V2ZY-2GP

C236

SCD1U16V2ZY-2GP

12

C234

SCD1U16V2ZY-2GP

C234

SCD1U16V2ZY-2GP

12

C184

SC2D2U6D3V3MX-1-GP

C184

SC2D2U6D3V3MX-1-GP

12

C174

SCD1U16V2ZY-2GP

DY

C174

SCD1U16V2ZY-2GP

DY

12

C219

SCD1U16V2ZY-2GP

DY

C219

SCD1U16V2ZY-2GP

DY

12

C194

SCD1U16V2ZY-2GP

DY

C194

SCD1U16V2ZY-2GP

DY

1

2

3

45

6

7

8

RN26

SRN56J-5-GP

RN26

SRN56J-5-GP

12

C217

SCD1U16V2ZY-2GP

DY

C217

SCD1U16V2ZY-2GP

DY

1

2

3

45

6

7

8

RN27

SRN56J-5-GP

RN27

SRN56J-5-GP

12

C240

SC2D2U6D3V3MX-1-GP

C240

SC2D2U6D3V3MX-1-GP

12

C181

SC2D2U6D3V3MX-1-GP

C181

SC2D2U6D3V3MX-1-GP

1

2

3

45

6

7

8

RN20

SRN56J-5-GP

RN20

SRN56J-5-GP

1

2

3

45

6

7

8

RN30

SRN56J-5-GP

RN30

SRN56J-5-GP

1

2

3

45

6

7

8

RN32

SRN56J-5-GP

RN32

SRN56J-5-GP

1

2

3

45

6

7

8

RN24

SRN56J-5-GP

RN24

SRN56J-5-GP

12

C207

SC2D2U6D3V3MX-1-GP

C207

SC2D2U6D3V3MX-1-GP

12

C226

SCD1U16V2ZY-2GP

C226

SCD1U16V2ZY-2GP

12

C232

SCD1U16V2ZY-2GP

C232

SCD1U16V2ZY-2GP

USB_6-

USB_6+

CCD_PWR

CHARGE_LED#_R

NV_EDID_DAT

NV_EDID_CLK

LCDVDD_ON_1

BLON_OUT

BRIGHTNESS

NV_EDID_DAT

NV_EDID_CLK

BLON_OUT

BRIGHTNESS

DC_BATFULL#_R

CCD_PWR

LCD_TXAOUT0-

LCD_TXAOUT2+

LCD_TXAOUT2-

LCD_TXBOUT2+

LCD_TXBOUT2-

LCD_TXACLK+

LCD_TXAOUT1-

LCD_TXAOUT0+

LCD_TXAOUT1+

LCD_TXACLK-

LCD_TXBOUT0+

LCD_TXBOUT0-

LCD_TXBOUT1+

LCD_TXBOUT1-

LCD_TXBCLK+

LCD_TXBCLK-

LCD_TXAOUT0-

LCD_TXAOUT2+

LCD_TXAOUT2-

LCD_TXBOUT2+

LCD_TXBOUT2-

LCD_TXACLK+

LCD_TXAOUT1-

LCD_TXAOUT0+

LCD_TXAOUT1+

LCD_TXACLK-

LCD_TXBCLK+

LCD_TXBCLK-

LCD_TXBOUT0+

LCD_TXBOUT0-

LCD_TXBOUT1+

LCD_TXBOUT1-

USB_6+

USB_6-

STDBY_LED#_R

LCD_TXAOUT2-

LCD_TXBOUT2+

LCD_TXBCLK+

LCD_TXAOUT1-

LCD_TXACLK+

LCD_TXAOUT0+

LCD_TXBOUT1-

LCD_TXBOUT1+

LCD_TXAOUT1+

LCD_TXBOUT0-

LCD_TXBOUT0+

LCD_TXAOUT2+

LCD_TXBOUT2-

LCD_TXAOUT0-

LCD_TXBCLK-

LCD_TXACLK-

LCD_TXBCLK+

LCD_TXBCLK-

LCD_TXBOUT2+

LCD_TXBOUT2-

LCD_TXBOUT1+

LCD_TXBOUT1-

LCD_TXBOUT0+

LCD_TXBOUT0-

LCD_TXAOUT1+

LCD_TXAOUT1-

LCD_TXAOUT0+

LCD_TXAOUT0-

LCD_TXACLK+

LCD_TXACLK-

LCD_TXAOUT2-

LCD_TXAOUT2+

WLAN_LED#_1

FRONT_PWRLED#_R

3D3V_S0

3D3V_S0

3D3V_S5

LCDVDD 3D3V_S0

DCBATOUT

3D3V_S0

LCDVDD

5V_S0

5V_S0

5V_S5

USBPN6 16

USBPP6 16

CLK_DDC_EDID7

DAT_DDC_EDID7

NV_EDID_CLK_126

NV_EDID_DAT_126

NV_LCDVDD_ON26

GMCH_LCDVDD_ON7

WLAN_LED#_MC27

BRIGHTNESS 30

BLON_OUT 30

CHARGE_LED30

DC_BATFULL30

PWR_G_LED30

WLAN_TEST_LED30

BT_LED30

PWR_O_LED30

GMCH_TXBOUT1+ 7

GMCH_TXBOUT1- 7

GMCH_TXAOUT0+ 7

GMCH_TXAOUT0- 7

GMCH_TXBCLK- 7

GMCH_TXBCLK+ 7

GMCH_TXBOUT0- 7

GMCH_TXBOUT0+ 7

GMCH_TXAOUT2- 7

GMCH_TXAOUT2+ 7

GMCH_TXACLK+ 7

GMCH_TXACLK- 7

GMCH_TXAOUT1+ 7

GMCH_TXAOUT1- 7

GMCH_TXBOUT2- 7

GMCH_TXBOUT2+ 7

LVDS_TXBCLK+ 26

LVDS_TXBCLK- 26

LVDS_TXBOUT2- 26

LVDS_TXBOUT2+ 26

LVDS_TXBOUT1+ 26

LVDS_TXBOUT1- 26

LVDS_TXBOUT0+ 26

LVDS_TXBOUT0- 26

LVDS_TXAOUT1- 26

LVDS_TXAOUT1+ 26

LVDS_TXAOUT0+ 26

LVDS_TXAOUT0- 26

LVDS_TXACLK+ 26

LVDS_TXACLK- 26

LVDS_TXAOUT2- 26

LVDS_TXAOUT2+ 26

PWRLED#_DB31

STDBY_LED#_DB31

WLAN_LED# 31

BT_LED# 31

CCD_ON 30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

LCD CONN & LED

13 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

LCD CONN & LED

13 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

LCD CONN & LED

13 44Tuesday, March 13, 2007

<Core Design>

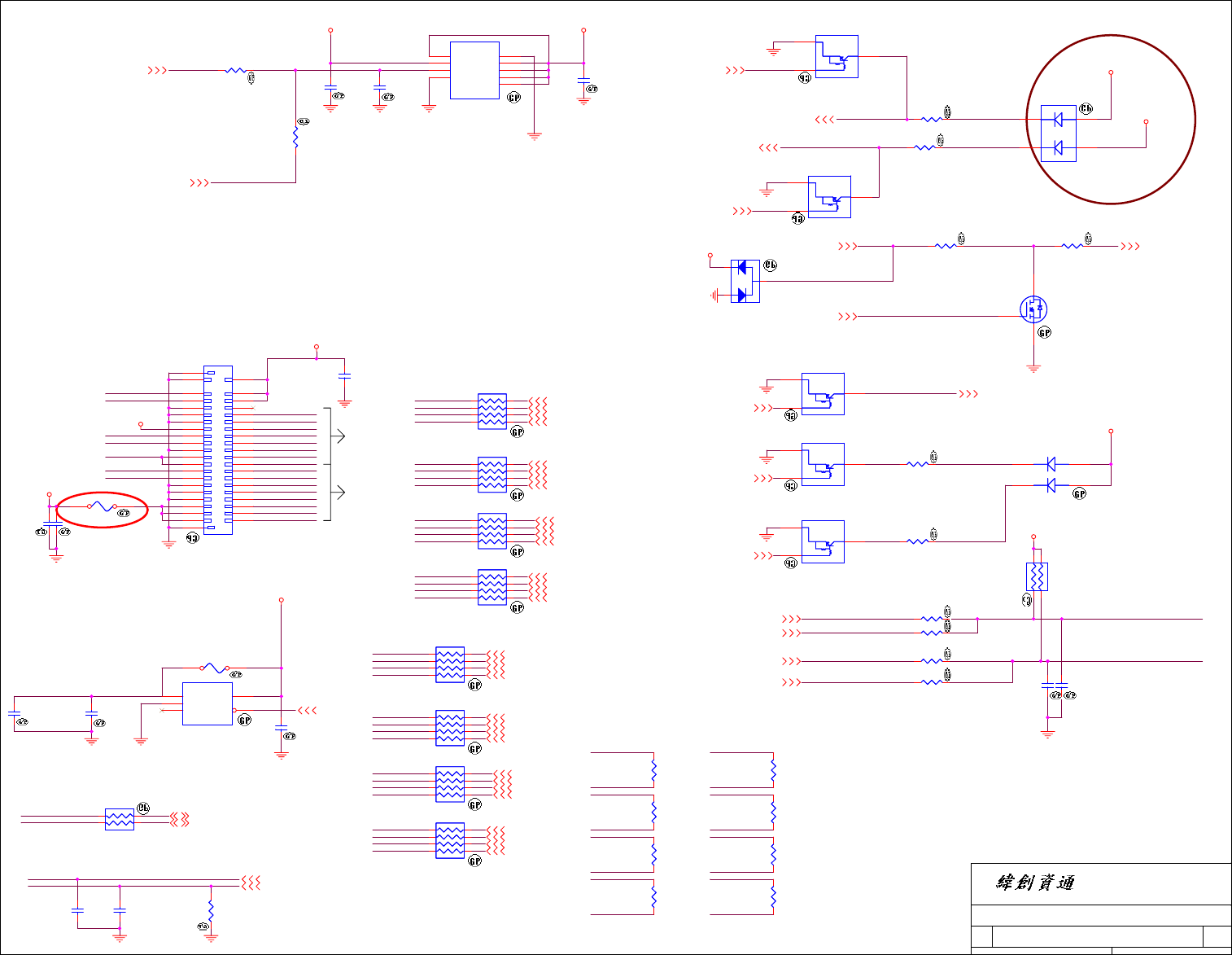

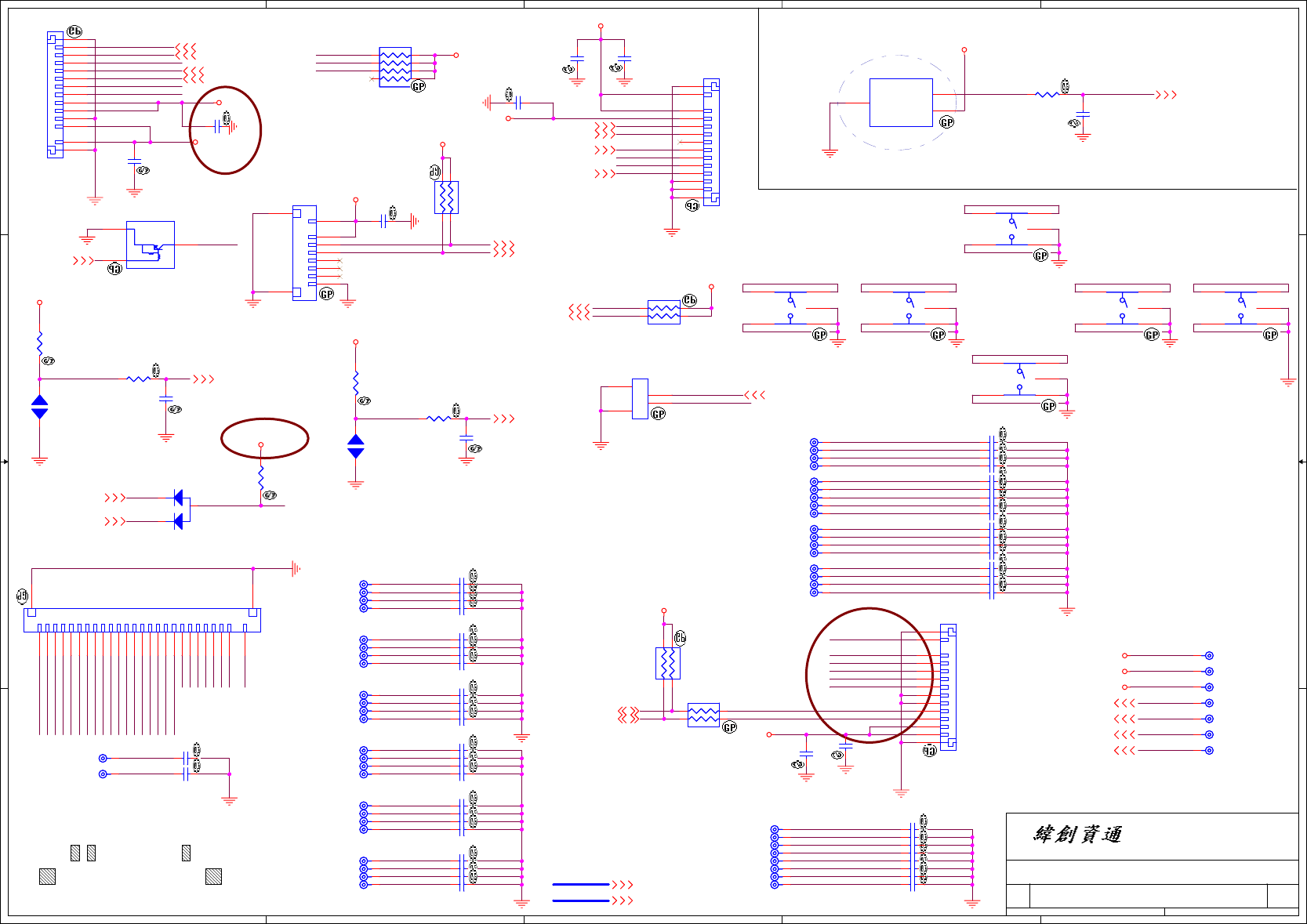

LCD/INVERTER CONN

EMI

ODD CHANNEL

EVEN CHANNEL

ENG

12

EC67

SCD1U50V3ZY-GP

DY

EC67

SCD1U50V3ZY-GP

DY

12

EC87

SC470P50V2KX-3GP

DY

EC87

SC470P50V2KX-3GP

DY

1

2

3

4 5

6

7

8

RN55

SRN0J-7-GP

MXM

RN55

SRN0J-7-GP

MXM

1 2

R243

0R2J-2-GP

MXM

R243

0R2J-2-GP

MXM

2

1

3

IN

OUT

GND

R1

R2

Q27

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q27

CHDTC143ZUPT-GP

84.00143.B1K

12

C9

SC1U16V3ZY-GP

C9

SC1U16V3ZY-GP

1

23

4

RN56

SRN2K2J-1-GP

UMA

RN56

SRN2K2J-1-GP

UMA

1 2

R242

0R2J-2-GP

UMA

R242

0R2J-2-GP

UMA

1

2

3

4 5

6

7

8

RN52

SRN0J-7-GP

UMA

RN52

SRN0J-7-GP

UMA

1 2

R5

330R2J-3-GP

DY

R5

330R2J-3-GP

DY

12

C1

SC100P50V2JN-3GP

C1

SC100P50V2JN-3GP

VOUT

1

GND

2

NC#3

3EN/EN# 4

VIN 5

U1

RT9711-APBG-GP

74.09711.A7F

DY

U1

RT9711-APBG-GP

74.09711.A7F

DY

2

1

3

IN

OUT

GND

R1

R2

Q26

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q26

CHDTC143ZUPT-GP

84.00143.B1K

1

2

3

4 5

6

7

8

RN51

SRN0J-7-GP

MXM

RN51

SRN0J-7-GP

MXM

12

C7

SC4D7U10V5ZY-3GP

C7

SC4D7U10V5ZY-3GP

12

C346

SC10U35V0ZY-GP

C346

SC10U35V0ZY-GP

13

24

LED1

LED-GY-14-GP

83.00195.I70

LED1

LED-GY-14-GP

83.00195.I70

1

2

3

4 5

6

7

8

RN53

SRN0J-7-GP

MXM

RN53

SRN0J-7-GP

MXM

1 2

R263

0R2J-2-GP

MXM

R263

0R2J-2-GP

MXM

1

2 3

4

RN1

SRN0J-6-GP

RN1

SRN0J-6-GP

1 2

R251

0R2J-2-GP

MXM

R251

0R2J-2-GP

MXM

1 2

R262

0R2J-2-GP

UMA

R262

0R2J-2-GP

UMA

1 2

R7

330R2J-3-GP

DY

R7

330R2J-3-GP

DY

12

EC84

SC470P50V2KX-3GP

DY

EC84

SC470P50V2KX-3GP

DY

1 2

R10

330R2J-3-GP

DY

R10

330R2J-3-GP

DY

1 2

R6

330R2J-3-GP

DY

R6

330R2J-3-GP

DY

IN#1

1

IN#5 5

IN#6 6

IN#7 7

IN#8 8

OUT

2

EN

3

GND

4

GND 9

U2

G5281RC1U-GP

74.05281.093

U2

G5281RC1U-GP

74.05281.093

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30 3132 3334 3536 3738 3940

41

42

LCD1

ACES-CONN40A-2GP

20.F0993.040

LCD1

ACES-CONN40A-2GP

20.F0993.040

1

2

3

4 5

6

7

8

RN50

SRN0J-7-GP

UMA

RN50

SRN0J-7-GP

UMA

G

S D

Q2

2N7002-11-GP

84.27002.W31

Q2

2N7002-11-GP

84.27002.W31

12

R1

10KR2J-3-GP

R1

10KR2J-3-GP

1 2

R488 100R2J-2-GPR488 100R2J-2-GP

1

2

3

4 5

6

7

8

RN48

SRN0J-7-GP

UMA

RN48

SRN0J-7-GP

UMA

1

2

3

D4

BAV99-5-GP

DY

D4

BAV99-5-GP

DY

1 2

R8

330R2J-3-GP

DY

R8

330R2J-3-GP

DY

12

C4

SCD1U16V2ZY-2GP

C4

SCD1U16V2ZY-2GP

1

2

3

4 5

6

7

8

RN49

SRN0J-7-GP

MXM

RN49

SRN0J-7-GP

MXM

1 2

R250

0R2J-2-GP

UMA

R250

0R2J-2-GP

UMA

1 2

F2

FUSE-3A32V-8-GP

69.43001.111

F2

FUSE-3A32V-8-GP

69.43001.111

1 2

R3

330R2J-3-GP

DY

R3

330R2J-3-GP

DY

1 2

R487

100R2J-2-GP

R487

100R2J-2-GP

1 2

R486

100R2J-2-GP

R486

100R2J-2-GP

12

C5

SC1U16V3ZY-GP

C5

SC1U16V3ZY-GP

12

C2

SC100P50V2JN-3GP

C2

SC100P50V2JN-3GP

1 2

F1 FUSE-1A6V-2-GPF1 FUSE-1A6V-2-GP

1 2

R489 100R2J-2-GPR489 100R2J-2-GP

12

C12

SCD1U10V2KX-4GP

C12

SCD1U10V2KX-4GP

2

1

3

IN

OUT

GND

R1

R2

Q25

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q25

CHDTC143ZUPT-GP

84.00143.B1K

1 2

R9

330R2J-3-GP

DY

R9

330R2J-3-GP

DY

1

3 2

4

LED2

LED-OB-2-GP

83.19223.A70

LED2

LED-OB-2-GP

83.19223.A70

2

1

3

IN

OUT

GND

R1

R2

Q22

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q22

CHDTC143ZUPT-GP

84.00143.B1K

1 2

R4

330R2J-3-GP

DY

R4

330R2J-3-GP

DY

12

C6

SCD1U25V3ZY-1GP

C6

SCD1U25V3ZY-1GP

12

C8

SCD1U16V2ZY-2GP

C8

SCD1U16V2ZY-2GP

2

1

3

IN

OUT

GND

R1

R2

Q24

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q24

CHDTC143ZUPT-GP

84.00143.B1K

1

2

3

4 5

6

7

8

RN54

SRN0J-7-GP

UMA

RN54

SRN0J-7-GP

UMA

1 2

R249

75R2J-1-GP

R249

75R2J-1-GP

1 2

R248

33R2J-2-GP

R248

33R2J-2-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

CRT_G

CRT_R

CRT_B

CRT_G

CRT_R

CRT_B

DAT_DDC1_5

CLK_DDC1_5

DAT_DDC1_5

CRT_G_1

CRT_R_1

LUMA_1

CRMA_1

CRT_HSYNC1_R

CRT_VSYNC1_R

CRT_B_1

COMP_1_1

LUMA_1_1

CRMA_1_1

NV_DDCCLK_1

5V_CRT_S0

CLK_DDC1_5

CRT_VSYNC1

CRT_HSYNC1

COMP_1

CRT_VSYNC

CRT_HSYNC

CRT_DEC_R

CRT_DEC#

CRT_HSYNC1

CRT_VSYNC1

NV_DDCDAT_1

3D3V_S0

5V_S0

5V_S0

3D3V_S0

5V_CRT_S0 3D3V_S0

NV_DDCCLK26

NV_TV_CRMA26

NV_TV_LUMA26

NV_TV_COMP26

NV_HSYNC26

NV_VSYNC26

GMCH_HSYNC7

GMCH_VSYNC7 GMCH_DDCDATA7

GMCH_DDCCLK7

TV_DACC7

TV_DACB7

TV_DACA7

CRT_DEC#30

NV_RED26

NV_GREEN26

NV_BLUE26

GMCH_BLUE7

GMCH_GREEN7

GMCH_RED7

NV_DDCDAT26

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

CRT/TV Connector

14 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

CRT/TV Connector

14 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

CRT/TV Connector

14 44Monday, March 12, 2007

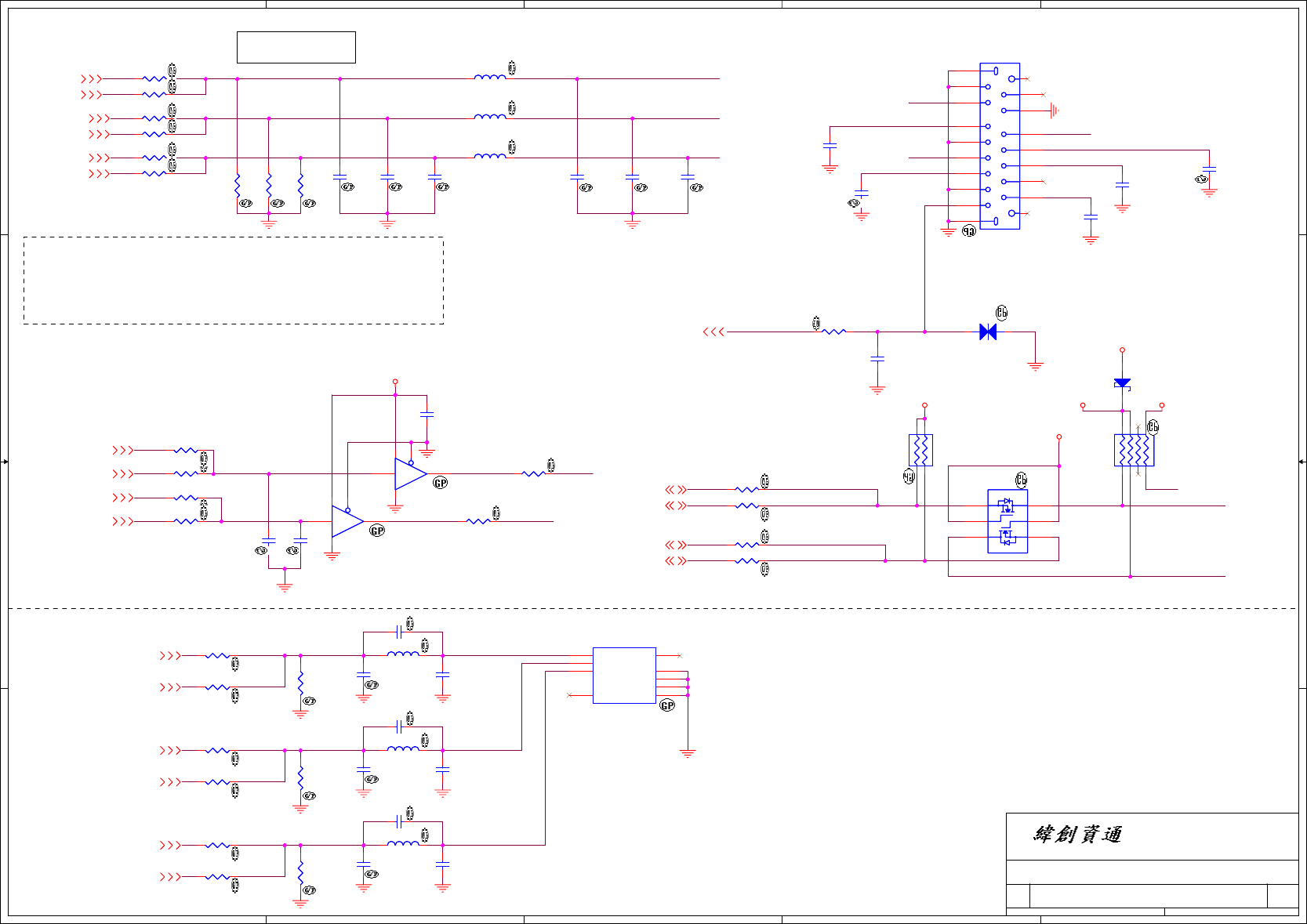

CRT I/F & CONNECTOR

Layout Note:

* Must be a ground return path between this ground and the ground on

the VGA connector.

Pi-filter & 150 Ohm pull-down resistors should be as close as to CRT

CONN. RGB will hit 75 Ohm first, pi-filter, then CRT CONN.

TV CONN

Layout Note:

close to the CRT-out

connector

Place these resistors

Ferrite bead impedance: 10 ohm@100MHz

DDC_CLK & DATA level shift

Hsync & Vsync level shift

12

C469

SC270P50V2JN-2GP

C469

SC270P50V2JN-2GP

1 2

C478

SC33P50V2JN-3GP

C478

SC33P50V2JN-3GP

12

C425

SC18P50V2JN-1-GP

C425

SC18P50V2JN-1-GP

1 2

R337

0R2J-2-GP

UMA

R337

0R2J-2-GP

UMA

1 2

L10

FCB1608CF-GP

68.00230.021

L10

FCB1608CF-GP

68.00230.021

12

R261

470R2J-2-GP

R261

470R2J-2-GP

1 2

R101 0R2J-2-GP

MXM

R101 0R2J-2-GP

MXM

2 3

14

1

7

U39A

TSAHCT125PW-GP

73.74125.L13

U39A

TSAHCT125PW-GP

73.74125.L13

1 2

R299

0R2J-2-GP

R299

0R2J-2-GP

1 2

R111 0R2J-2-GP

MXM

R111 0R2J-2-GP

MXM

12

D24

CDS2C16GTH-GP

DY

D24

CDS2C16GTH-GP

DY

12

C418

SC22P50V2JN-4GP

MXM

C418

SC22P50V2JN-4GP

MXM

1 2

R304 0R2J-2-GP

MXM

R304 0R2J-2-GP

MXM

12

C426

SC18P50V2JN-1-GP

C426

SC18P50V2JN-1-GP

1 2

R104 0R2J-2-GP

MXM

R104 0R2J-2-GP

MXM

12

R327

150R2F-1-GP

R327

150R2F-1-GP

1 2

R319

0R2J-2-GP

MXM

R319

0R2J-2-GP

MXM

12

R289

150R2F-1-GP

R289

150R2F-1-GP

12

C156

SCD1U16V2ZY-2GP

C156

SCD1U16V2ZY-2GP

12

C416

SC22P50V2JN-4GP

MXM

C416

SC22P50V2JN-4GP

MXM

1 2

R326

0R2J-2-GP

UMA

R326

0R2J-2-GP

UMA

1 2

R329

0R2J-2-GP

MXM

R329

0R2J-2-GP

MXM

12

C474

SC150P50V2JN-3GP

C474

SC150P50V2JN-3GP

12

C410

SC100P50V2JN-3GP

C410

SC100P50V2JN-3GP

12

R338

150R2F-1-GP

R338

150R2F-1-GP

12

C421

SC22P50V2JN-4GP

MXM

C421

SC22P50V2JN-4GP

MXM

1 2

L11

FCB1608CF-GP

68.00230.021

L11

FCB1608CF-GP

68.00230.021

1 2

R322

0R2J-2-GP

MXM

R322

0R2J-2-GP

MXM

12

R292

150R2F-1-GP

R292

150R2F-1-GP

C414

SCD01U16V2KX-3GP

C414

SCD01U16V2KX-3GP

1 2

L15

IND-1D2UH-5-GP

L15

IND-1D2UH-5-GP

1 2

R102 0R2J-2-GP

UMA

R102 0R2J-2-GP

UMA

5 6

14

4

7

U39B

TSAHCT125PW-GP

73.74125.L13

U39B

TSAHCT125PW-GP

73.74125.L13

1

2

3

4 5

6

7

8

RN63

SRN10KJ-6-GP

RN63

SRN10KJ-6-GP

GND 1

NC#2 2

GND 3

LUMA

4

NC#5

5

CRMA

6

COMP

7

GND 8

GND 9

TVOUT1

MINDIN7-19-GP-U2

22.10021.H61

TVOUT1

MINDIN7-19-GP-U2

22.10021.H61

12

R321

150R2F-1-GP

R321

150R2F-1-GP

1 2

L12

IND-1D2UH-5-GP

L12

IND-1D2UH-5-GP

12

C419

SC6D8P50V2DN-GP

C419

SC6D8P50V2DN-GP

1 2

R306 0R2J-2-GP

UMA

R306 0R2J-2-GP

UMA

1 2

R107 0R2J-2-GP

UMA

R107 0R2J-2-GP

UMA

1 2

R297 0R2J-2-GP

UMA

R297 0R2J-2-GP

UMA

12

C413

SC100P50V2JN-3GP

C413

SC100P50V2JN-3GP

1 2

R106 0R2J-2-GP

MXM

R106 0R2J-2-GP

MXM

1 2

C466

SC33P50V2JN-3GP

C466

SC33P50V2JN-3GP

1 2

L13

IND-1D2UH-5-GP

L13

IND-1D2UH-5-GP

1 2

R112 0R2J-2-GP

UMA

R112 0R2J-2-GP

UMA

12

C417

SC6D8P50V2DN-GP

C417

SC6D8P50V2DN-GP

1

23

4

RN64

SRN2K2J-1-GP

UMA

RN64

SRN2K2J-1-GP

UMA

12

C453

SC270P50V2JN-2GP

C453

SC270P50V2JN-2GP

12

C481

SC270P50V2JN-2GP

C481

SC270P50V2JN-2GP

1 2

C450

SC33P50V2JN-3GP

C450

SC33P50V2JN-3GP

21

D23

CH751H-40PT

D23

CH751H-40PT

1 2

R298

0R2J-2-GP

R298

0R2J-2-GP

12

C422

SC6D8P50V2DN-GP

C422

SC6D8P50V2DN-GP

1 2

R300 0R2J-2-GP

MXM

R300 0R2J-2-GP

MXM

1 2

R109 0R2J-2-GP

MXM

R109 0R2J-2-GP

MXM

1 2

R105 0R2J-2-GP

UMA

R105 0R2J-2-GP

UMA

12

C152

SC18P50V2JN-1-GP

DY

C152

SC18P50V2JN-1-GP

DY

12

C463

SC150P50V2JN-3GP

C463

SC150P50V2JN-3GP

12

C394

SC100P50V2JN-3GP

C394

SC100P50V2JN-3GP

1 2

R320

0R2J-2-GP

UMA

R320

0R2J-2-GP

UMA

12

R284

150R2F-1-GP

R284

150R2F-1-GP

12

C155

SC18P50V2JN-1-GP

DY

C155

SC18P50V2JN-1-GP

DY

17

6

1

12

8

3

14

10

5

16

MH1

MH2

11

7

2

13

9

4

15

CRT1

VIDEO-15-21-U4-GP

20.20334.015

CRT1

VIDEO-15-21-U4-GP

20.20334.015

12

C448

SC150P50V2JN-3GP

C448

SC150P50V2JN-3GP

1 2

L8

FCB1608CF-GP

68.00230.021

L8

FCB1608CF-GP

68.00230.021

1

2

34

5

6

Q14

2N7002DW-1-GP

Q14

2N7002DW-1-GP

1 2

R110 0R2J-2-GP

UMA

R110 0R2J-2-GP

UMA

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

INTRUDER#

H_PWRGD

SATARBIAS

INTVRMEN

SATA_RXN0_C

SATA_RXP0_C

SATA_TXN0_C

SATA_TXP0_C

LAN_RSTYNC

3D3V_LDRQ1_S0

LPC_LAD0

LPC_LAD1

LPC_LAD2

LPC_LAD3RTC_RST#

RCT_X1

RCT_X2

INTVRMEN

H_CPUSLP#_2

BAT

ACZ_BIT_CLK

ACZ_SYNC_R

ACZ_SDIN2

ACZ_RST#_R

ACZ_SDATAOUT_R

BAT_D

H_THERMTRIP_R

PM_THRMTRIP-A#

1D05V_S0

RTC_AUX_S5

RTC_AUX_S5

3D3V_AUX_S5

1D05V_S0

1D05V_S0

3D3V_S0

1D05V_S0

INTRUDER#19

LDRQ0# 30

IDE_PDDACK#20

ACZ_RST#25,28

ACZ_SDATAOUT25,28

ACZ_SYNC25,28

ACZ_SDATAIN028

SATA_LED#31

CLK_PCIE_SATA#3 CLK_PCIE_SATA3

KBRCIN# 30

LPC_LFRAME# 30

H_IGNNE# 4

H_INIT# 4

H_INTR 4

H_STPCLK# 4

H_NMI 4

H_SMI# 4

KA20GATE 30

H_FERR# 4

H_A20M# 4

H_CPUSLP# 4,6

H_DPRSTP# 4,35

SATA_TXN020 SATA_TXP020

SATA_RXN020 SATA_RXP020 IDE_PDD0 20

IDE_PDD1 20

IDE_PDD2 20

IDE_PDD3 20

IDE_PDD4 20

IDE_PDD5 20

IDE_PDD6 20

IDE_PDD7 20

IDE_PDD8 20

IDE_PDD9 20

IDE_PDD10 20

IDE_PDD11 20

IDE_PDD12 20

IDE_PDD13 20

IDE_PDD14 20

IDE_PDD15 20

IDE_PDA0 20

IDE_PDA1 20

IDE_PDA2 20

IDE_PDCS1# 20

IDE_PDCS3# 20IDE_PDDREQ20 IDE_PDIORDY20 INT_IRQ1420

IDE_PDIOW#20 IDE_PDIOR#20

ACZ_BITCLK28

H_PWRGD 4,31,33

H_DPSLP# 4

ACZ_BTCLK_MDC25

ACZ_SDATAIN125

LPC_LAD0 30

LPC_LAD1 30

LPC_LAD2 30

LPC_LAD3 30

PM_THRMTRIP-A# 4,7,33

THRMTRIP#_KBC 33

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (1 of 4)

15 44Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (1 of 4)

15 44Monday, March 12, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (1 of 4)

15 44Monday, March 12, 2007

HURON

SD

<Core Design>

P.H. for internal VCCSUS1_05

Open R for Dothan A step

Shunt for Dothan B step

& all Yonah

Layout Note: R568 needs to placed

within 2" of ICH7, R568 must be placed

within 2" of R169 w/o stub.

INTVRMEN

Enable

Disable

1

0

Place within 500 mils

of ICH7ball

Placement Note:

should be identical distance between the ICH-7 M and cap

Diatance between the ICH-7 M and cap on the "P" signal

on the "N" signal for same pair.

RTC circuitry

PN:KI.80101.017

ENG

1 2

R357

1KR2J-1-GP

R357

1KR2J-1-GP

1 2

R333 39R2J-L-GPR333 39R2J-L-GP

1 2

R330 1MR2J-1-GPR330 1MR2J-1-GP

1 2

C211 SC12P50V2JN-3GPC211 SC12P50V2JN-3GP

12

R149

10MR2J-L-GP

R149

10MR2J-L-GP

12

C490

SC1U10V3ZY-6GP

C490

SC1U10V3ZY-6GP

1 2

R324

24D9R2F-L-GP

R324

24D9R2F-L-GP

12

R296

56R2J-4-GP

R296

56R2J-4-GP

PWR 1

GND 2

MH1 MH1

MH2 MH2

RTC1

BAT-CON2-U2-GP

RTC1

BAT-CON2-U2-GP

1 2

R328

10KR2J-3-GP

R328

10KR2J-3-GP

1 2

C210 SC12P50V2JN-3GPC210 SC12P50V2JN-3GP

12

R342

0R2J-2-GP

DY

R342

0R2J-2-GP

DY

12

R335

300KR2J-GP

R335

300KR2J-GP

1 2

R339 33R2J-2-GPR339 33R2J-2-GP

12

R294

56R2J-4-GP

R294

56R2J-4-GP

1

2 3

4

X3

X-32D768KHZ-38GPU

82.30001.691

X3

X-32D768KHZ-38GPU

82.30001.691

12

R340

0R2J-2-GP

DY

R340

0R2J-2-GP

DY

RTXC1

AB1

RTCX2

AB2

INTVRMEN

W4 INTRUDER#

Y5

EE_CS

W1

EE_SHCLK

Y1

EE_DOUT

Y2

EE_DIN

W3

LAN_CLK

V3

LAN_RSTSYNC

U3

LAN_RXD0

U5

LAN_RXD1

V4

LAN_RXD2

T5

LAN_TXD0

U7

LAN_TXD1

V6

LAN_TXD2

V7

ACZ_BIT_CLK

U1

ACZ_SYNC

R6

ACZ_RST#

R5

ACZ_SDIN0

T2

ACZ_SDIN1

T3

ACZ_SDIN2

T1

ACZ_SDOUT

T4

SATALED#

AF18

SATA0RXN

AF3

SATA0RXP

AE3

SATA0TXN

AG2

SATA0TXP

AH2

SATA2RXN

AF7

SATA2RXP

AE7

SATA2TXN

AG6

SATA2TXP

AH6

SATA_CLKN

AF1

SATA_CLKP

AE1

SATARBIASN

AH10

SATARBIASP

AG10

DA0 AH17

DA1 AE17

DA2 AF17

DCS1# AE16

DCS3# AD16

DD0 AB15

DD1 AE14

DD2 AG13

DD3 AF13

DD4 AD14

DD5 AC13

DD6 AD12

DD7 AC12

DD8 AE12

DD9 AF12

DD10 AB13

DD11 AC14

DD12 AF14

DD13 AH13

DD14 AH14

DD15 AC15

DDREQ

AE15 IORDY

AG16 IDEIRQ

AH16 DDACK#

AF16 DIOW#

AH15 DIOR#

AF15

LAD0 AA6

LAD1 AB5

LAD2 AC4

LAD3 Y6

LDRQ0# AC3

LDRQ1#/GPIO23 AA5

LFRAME# AB3

A20GATE AE22

A20M# AH28

CPUSLP# AG27

TP1/DPRSTP# AF24

TP2/DPSLP# AH25

FERR# AG26

GPIO49/CPUPWRGD AG24

IGNNE# AG22

INIT3_3V# AG21

INIT# AF22

INTR AF25

RCIN# AG23

SMI# AF23

NMI AH24

STPCLK# AH22

THERMTRIP# AF26

RTCRST#

AA3

RTCLAN

AC-97/AZALIA

SATA

IDE

LPCCPU

U14A

71.ICH7M.00U

RTCLAN

AC-97/AZALIA

SATA

IDE

LPCCPU

U14A

71.ICH7M.00U

1

2

3

D30

BAS40CW-GP

D30

BAS40CW-GP

1 2

C196 SC3900P50V3KX-GPC196 SC3900P50V3KX-GP

1 2

R334

39R2J-L-GP

R334

39R2J-L-GP

1 2

R290

0R2J-2-GP

DY

R290

0R2J-2-GP

DY

C

B

E

Q28

MMBT2222A-3-GP

Q28

MMBT2222A-3-GP

1 2

R291

0R2J-2-GP

DY

R291

0R2J-2-GP

DY

1 2

C202 SC3900P50V3KX-GPC202 SC3900P50V3KX-GP

1 2

R293

200R2F-L-GP

DY

R293

200R2F-L-GP

DY

12

R490

2K2R2J-2-GP

R490

2K2R2J-2-GP

1 2

C496

SCD1U16V2ZY-2GP

DY

C496

SCD1U16V2ZY-2GP

DY

1 2

C186 SC3900P50V3KX-GPC186 SC3900P50V3KX-GP

12

R348

22R2J-2-GP

R348

22R2J-2-GP

1 2

C193 SC3900P50V3KX-GPC193 SC3900P50V3KX-GP

12

C484

SC1U10V3ZY-6GP

C484

SC1U10V3ZY-6GP

12

R347

22R2J-2-GP

R347

22R2J-2-GP

1 2

C606

SCD1U16V2KX-3GP

C606

SCD1U16V2KX-3GP

TP35TPAD30 TP35TPAD30

1 2

R344 20KR2J-L2-GPR344 20KR2J-L2-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

TXP3

TXN3

INT_PIRQF#

INT_PIRQG#

INT_PIRQE#

INT_PIRQH#

TXP1

TXN1

PSW_CLR#

CLKGNT_SEL

RSMRST#_SB

RSMRST#_SB

ECSWI#_1

INT_PIRQB#

INT_PIRQC#

INT_PIRQD#

INT_PIRQA#

USB_OC#7

ICH7_GPI12

PCI_AD24

PCI_AD18

PCI_AD3

PCI_AD31

PCI_AD28

PCI_AD7

PCI_AD19

PCI_AD4

PCI_AD0

PCI_AD8

PCI_AD5

PCI_AD9

PCI_AD12

PCI_AD17

PCI_AD14

PCI_AD22

PCI_AD1

PCI_AD25

PCI_AD10

PCI_AD15

PCI_AD11

PCI_AD2

PCI_AD13

PCI_AD27

PCI_AD21

PCI_AD29

PCI_AD23

PCI_AD20

PCI_AD16

PCI_AD30

PCI_AD26

PCI_AD6

ECSCI#_1

ECSMI#

PM_CLKRUN#

SMLINK0

PWROK

ECSMI#

USB_OC#1

USB_OC#2

USB_OC#3

USB_OC#4

USB_OC#5

PCIRST#

PCI_PERR#

PCI_LOCK#

PCI_SERR#

SPI_ARB

SMLINK1

PCI_REQ#2

PCI_REQ#1

PCI_REQ#3

PCI_REQ#5

PCI_GNT#1

PCI_GNT#3

PCI_GNT#2

PCI_GNT#4

PCI_REQ#4

PCI_GNT#5

SATA0_R2

SATA0_R0

SATA0_R3

SATA0_R1

DMI_IRCOMP_R

USB_OC#6 USB_RBIAS_PN

SMLINK1

SMLINK0

SMB_LINK_ALERT#

PWRBTN#_ICH

PM_DPRSLPVR_R

PM_BATLOW#_R

SATA0_R0

SATA0_R1

SATA0_R2

SMB_ALERT#

PM_RI#

LAN_RST#

DBRESET#

ACZ_SPKR

ICH_PME#

PLTRST#

SLPS5#

SATA0_R3

PSW_CLR#

TXP2

TXN2

DISUMA_SEL

ICH7_GPI12

DBRESET#

PM_BATLOW#_R

PCIE_WAKE#

PM_RI#

PSW_CLR#

SMB_LINK_ALERT#

SMB_ALERT#

INT_PIRQH#

INT_PIRQE#

PCI_DEVSEL#

PCI_STOP#

PCI_REQ#3

PCI_REQ#2

PCI_TRDY#

PCI_REQ#1

PCI_LOCK# PCI_FRAME#

PCI_REQ#4

PCB_VER1

PCB_VER0

USB_OC#0 USB_OC#3

USB_OC#4

USB_OC#1

USB_OC#2

USB_OC#5

USB_OC#7

USB_OC#6

PCI_IRDY#

INT_PIRQG#

PCI_REQ#5

PCI_PERR# PCI_REQ#0

INT_SERIRQ

INT_PIRQF#

MCH_ICH_SYNC# INT_PIRQC#

INT_PIRQA#

INT_PIRQD#

PCI_SERR#

INT_PIRQB#

PCB_VER1

PCB_VER0

3D3V_S0

3D3V_S0

3D3V_S5

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S5

3D3V_S0

3D3V_S5

3D3V_S5

1D5V_S0

3D3V_S5

3D3V_S5

3D3V_S0

3D3V_S0

PCIE_RXN327 PCIE_RXP327 PCIE_TXN327 PCIE_TXP327

USBPN6 13

USBPP6 13

PCIE_WAKE#22,27

PCIE_RXN122 PCIE_RXP122 PCIE_TXN122 PCIE_TXP122

RSMRST#_KBC30

USBPN7 27

USBPP7 27

PCI_GNT#0 24

PCI_REQ#0 24

ECSCI#_130

PCI_AD[31..0]24

PCI_C/BE#0 24

PCI_C/BE#1 24

PCI_C/BE#2 24

PCI_C/BE#3 24

PCI_IRDY# 24

PCI_PAR 24

PCI_STOP# 24

PCI_TRDY# 24

PCI_DEVSEL# 24 PCIRST1# 22,24,27

PCI_FRAME# 24

CLK_ICHPCI 3

PLT_RST1# 7,20,26,30

ACZ_SPKR28

PM_STPPCI#3

PM_SUS_CLK 19

CLK_PCIE_ICH# 3

CLK_PCIE_ICH 3

DMI_RXN3 7

DMI_RXP3 7

USBPN3 21

DMI_RXN2 7

DMI_RXP2 7

DMI_RXN1 7

DMI_RXP1 7

DMI_RXN0 7

PM_BMBUSY#7

DMI_RXP0 7

DMI_TXN0 7

DMI_TXP0 7

DMI_TXN1 7

DMI_TXP1 7

DMI_TXN2 7

DMI_TXP2 7

DMI_TXN3 7

DMI_TXP3 7

VGATE_PWRGD7,35

SMB_CLK18,27 SMB_DATA18,27

PM_STPCPU#3 PM_DPRSLPVR 35

PWROK 7,19

PM_PWRBTN# 30,31

INT_SERIRQ30 THRM#19

PM_CLKRUN#24,30

PM_SLP_S4# 27,30,38,40

CLK_ICH14 3

CLK48_ICH 3

MCH_ICH_SYNC# 7

PM_SLP_S3# 19,26,27,30,33,38,39,40

ECSWI#_1 30

USBPN0 21

USBPP0 21

USBPN2 21

USBPP2 21

USBPN1 21

USBPP1 21

USBPN4 27

USBPN5 21

USBPP4 27

USBPP5 21USB_OC#021

INT_PIRQG# 24

PCIE_RXN227 PCIE_RXP227 PCIE_TXN227 PCIE_TXP227

USBPP3 21

USB_OC#121

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (2 of 4)

16 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (2 of 4)

16 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (2 of 4)

16 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

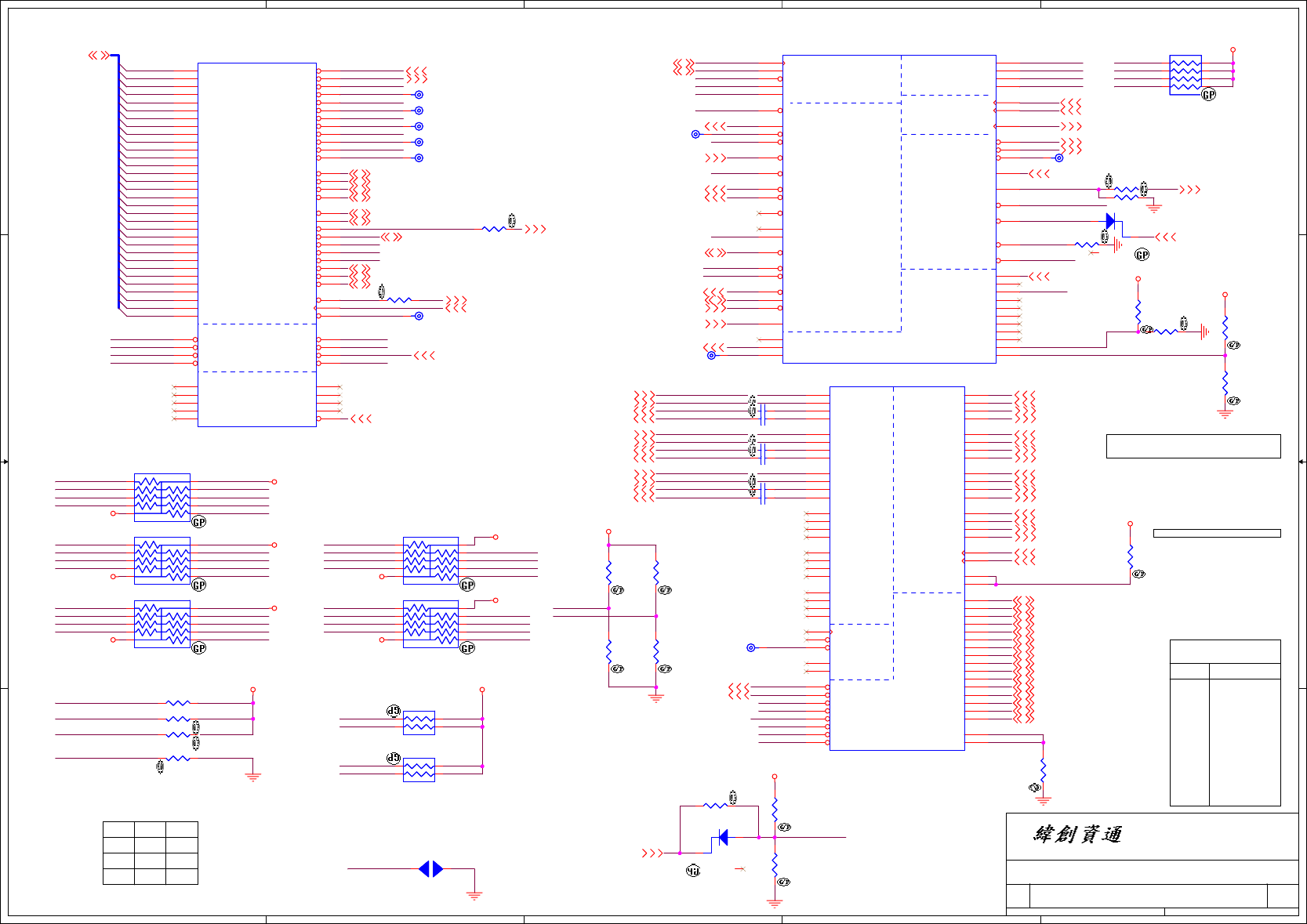

NEW CARD

LAN

GAP

放在

Dimm Door

打開可量測處

L:RTM865-433

H:IDTCV125

LPC H H

USB4

PCI H L

BlueTooth

SPI L H

NewCard

USB1

CCD

Pair

4 MINICARD

USB ports definition

USB2

5

0

2

3

1

Device

USB3

6

7

Default:H

Layout Note:

PCIE AC coupling caps

need to be within 250 mils of the driver.

Place within 500 mils of ICH

GNT5# GNT4#

MINI CARD

PlanarID

(1,0)

SA: 0,0

SB: 0,1

SC: 1,0

SD: 1,1

1

2

3

D13

BAT54PT-GP

DY

D13

BAT54PT-GP

DY

TP34TPAD30 TP34TPAD30

TP73 TPAD30TP73 TPAD30

12

C123 SCD1U10V2KX-5GPC123 SCD1U10V2KX-5GP

1

2

3

4

5 6

7

8

9

10

RP5 SRN8K2J-2-GP-URP5 SRN8K2J-2-GP-U

PERn1

F26

PERp1

F25

PETn1

E28

PETp1

E27

PERn2

H26

PERp2

H25

PETn2

G28

PETp2

G27

PERn3

K26

PERp3

K25

PETn3

J28

PETp3

J27

PERn4

M26

PERp4

M25

PETn4

L28

PETp4

L27

PERn5

P26

PERp5

P25

PETn5

N28

PETp5

N27

PERn6

T25

PERp6

T24

PETn6

R28

PETp6

R27

DMI0RXN V26

DMI0RXP V25

DMI0TXN U28

DMI0TXP U27

DMI1RXN Y26

DMI1RXP Y25

DMI1TXN W28

DMI1TXP W27

DMI2RXN AB26

DMI2RXP AB25

DMI2TXN AA28

DMI2TXP AA27

DMI3RXN AD25

DMI3RXP AD24

DMI3TXN AC28

DMI3TXP AC27

DMI_CLKN AE28

DMI_CLKP AE27

DMI_ZCOMP C25

DMI_IRCOMP D25

OC0#

D3

OC1#

C4

OC2#

D5

OC3#

D4

OC4#

E5

OC5#/GPIO29

C3

OC6#/GPIO30

A2

OC7#/GPIO31

B3

USBP0N F1

USBP0P F2

USBP1N G4

USBP1P G3

USBP2N H1

USBP2P H2

USBP3N J4

USBP3P J3

USBP4N K1

USBP4P K2

USBP5N L4

USBP5P L5

USBP6N M1

USBP6P M2

USBP7N N4

USBP7P N3

USBRBIAS# D2

USBRBIAS D1

SPI_CLK

R2

SPI_CS#

P6

SPI_ARB

P1

SPI_MOSI

P5

SPI_MISO

P2

PCI-Express

Direct Media Interface

USB

SPI

U14D

71.ICH7M.00U

PCI-Express

Direct Media Interface

USB

SPI

U14D

71.ICH7M.00U

12

R314

10KR2J-3-GP

R314

10KR2J-3-GP

1

2

3

4

5 6

7

8

9

10

RP3 SRN10KJ-L3-GPRP3 SRN10KJ-L3-GP

12

R355

10KR2J-3-GP

R355

10KR2J-3-GP

12

R332

2K2R2F-GP

R332

2K2R2F-GP

12

C122 SCD1U10V2KX-5GPC122 SCD1U10V2KX-5GP

1

2

3

4

5 6

7

8

9

10

RP1 SRN8K2J-2-GP-URP1 SRN8K2J-2-GP-U

12

R98

0R2J-2-GP

R98

0R2J-2-GP

21

G55

GAP-OPEN

G55

GAP-OPEN

1

23

4

RN14 SRN10KJ-5-GPRN14 SRN10KJ-5-GP

12

R343

22D6R2F-L1-GP

R343

22D6R2F-L1-GP

TP23TPAD30 TP23TPAD30

1 2

R118

10KR2J-3-GP

R118

10KR2J-3-GP

12

R341 10KR2J-3-GPR341 10KR2J-3-GP

12

R315

10KR2J-3-GP

IDT

R315

10KR2J-3-GP

IDT

12

C121 SCD1U10V2KX-5GPC121 SCD1U10V2KX-5GP

1 2

R117 1KR2J-1-GP

DY

R117 1KR2J-1-GP

DY

TP71 TPAD30TP71 TPAD30

1 2

R121

47R2J-2-GP

R121

47R2J-2-GP

1

23

4

RN16 SRN100KJ-6-GPRN16 SRN100KJ-6-GP

GPIO21/SATA0GP AF19

GPIO19/SATA1GP AH18

GPIO36/SATA2GP AH19

GPIO37/SATA3GP AE19

SMBCLK

C22

SMBDATA

B22

LINKALERT#

A26

SMLINK0

B25

SMLINK1

A25

SPKR

A19

SUS_STAT#

A27

SYS_RST#

A22

GPIO0/BM_BUSY#

AB18

GPIO6

AC21

GPIO7

AC18

GPIO8

E21

GPIO9 E20

GPIO10 A20

GPIO11/SMBALERT#

B23

GPIO12 F19

GPIO13 E19

GPIO14 R4

GPIO15 E22

GPIO18/STPPCI#

AC20

GPIO20/STPCPU#

AF21

GPIO24 R3

GPIO25 D20

GPIO32/CLKRUN#

AG18

GPIO33/AZ_DOCK_EN#

AC19

GPIO34/AZ_DOCK_RST#

U2

GPIO35 AD21

GPIO38 AD20

GPIO39 AE20

WAKE#

F20

SERIRQ

AH21

THRM#

AF20

VRMPWRGD

AD22

CLK14 AC1

CLK48 B2

SUSCLK C20

SLP_S3# B24

SLP_S4# D23

SLP_S5# F22

PWROK AA4

GPIO16/DPRSLPVR AC22

TP0/BATLOW# C21

PWRBTN# C23

LAN_RST# C19

RSMRST# Y4

RI#

A28

GPIO26

A21

GPIO27

B21

GPIO28

E23

SATA

SMB

SYS

GPIO

GPIO

GPIO

Clocks

Power MGT

U14C

71.ICH7M.00U

SATA

SMB

SYS

GPIO

GPIO

GPIO

Clocks

Power MGT

U14C

71.ICH7M.00U

TP25TPAD30 TP25TPAD30

1 2

R310 8K2R2J-3-GPR310 8K2R2J-3-GP

12

R305

100R2J-2-GP

R305

100R2J-2-GP

12

R313

10KR2J-3-GP

DY

R313

10KR2J-3-GP

DY

TP26 TPAD30TP26 TPAD30

12

R316

10KR2J-3-GP

RTL

R316

10KR2J-3-GP

RTL

1

2

3

D8

BAS16-1-GP

D8

BAS16-1-GP

12

C130 SCD1U10V2KX-5GPC130 SCD1U10V2KX-5GP

TP74 TPAD30TP74 TPAD30

1 2

R317 10KR2J-3-GPR317 10KR2J-3-GP

12

C120 SCD1U10V2KX-5GPC120 SCD1U10V2KX-5GP

12

R350

10KR2J-3-GP

DY

R350

10KR2J-3-GP

DY

12

R295

24D9R2F-L-GP

R295

24D9R2F-L-GP

12

C129 SCD1U10V2KX-5GPC129 SCD1U10V2KX-5GP

1 2

R307

100KR2J-1-GP

DY

R307

100KR2J-1-GP

DY

12

R312

10KR2J-3-GP

MXM

R312

10KR2J-3-GP

MXM

1

2

3

4

5 6

7

8

9

10

RP2 SRN10KJ-L3-GPRP2 SRN10KJ-L3-GP

1 2

R137 0R2J-2-GPR137 0R2J-2-GP

TP76 TPAD30TP76 TPAD30

1 2

R308

10KR2J-3-GP

UMA

R308

10KR2J-3-GP

UMA

TP27 TPAD30TP27 TPAD30

TP28 TPAD30TP28 TPAD30

1

2

3

4 5

6

7

8

RN65

SRN10KJ-6-GP

RN65

SRN10KJ-6-GP

1

2

3

4

5 6

7

8

9

10

RP4 SRN8K2J-2-GP-URP4 SRN8K2J-2-GP-U

AD0

E18

AD1

C18

AD2

A16

AD3

F18

AD4

E16

AD5

A18

AD6

E17

AD7

A17

AD8

A15

AD9

C14

AD10

E14

AD11

D14

AD12

B12

AD13

C13

AD14

G15

AD15

G13

AD16

E12

AD17

C11

AD18

D11

AD19

A11

AD20

A10

AD21

F11

AD22

F10

AD23

E9

AD24

D9

AD25

B9

AD26

A8

AD27

A6

AD28

C7

AD29

B6

AD30

E6

AD31

D6

REQ0# D7

GNT0# E7

REQ1# C16

GNT1# D16

REQ2# C17

GNT2# D17

REQ3# E13

GNT3# F13

REQ4#/GPIO22 A13

GNT4#/GPIO48 A14

GPIO1/REQ5# C8

GPIO17/GNT5# D8

C/BE0# B15

C/BE1# C12

C/BE2# D12

C/BE3# C15

IRDY# A7

PAR E10

PCIRST# B18

DEVSEL# A12

PERR# C9

PLOCK# E11

SERR# B10

STOP# F15

TRDY# F14

FRAME# F16

PLTRST# C26

PCICLK A9

PME# B19

PIRQA#

A3

PIRQB#

B4

PIRQC#

C5

PIRQD#

B5 GPIO5/PIRQH# G7

GPIO4/PIRQG# F8

GPIO3/PIRQF# F7

GPIO2/PIRQE# G8

RSVD[1]

AE5

RSVD[2]

AD5

RSVD[3]

AG4

RSVD[4]

AH4

RSVD[5]

AD9 MCH_SYNC# AH20

RSVD[9] F21

RSVD[8] AH8

RSVD[7] AG8

RSVD[6] AE9

PCI

Interrupt I/F

MISC

U14B

71.ICH7M.00U

PCI

Interrupt I/F

MISC

U14B

71.ICH7M.00U

12

R336

100KR2D-1-GP

R336

100KR2D-1-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

VccSus1_05[3]

VccLan1_05[1] 1D5V_S0

V5REF_S0

V5REF_S5

VccSus1_05[1]

3D3V_S0

VccSus1_05[2]

V5REF_S0

V5REF_S5

V3D3A_VCCPSUS

1D5V_ICH_S01D5V_S0

3D3V_S5

1D5V_S0

3D3V_S0

5V_S53D3V_S5

5V_S0

1D5V_S0

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0

1D05V_S0

RTC_AUX_S5

3D3V_S53D3V_ICH_S5

1D5V_S0

1D5V_S0

3D3V_ICH_S5

3D3V_S5

1D5V_S0

1D5V_GPLL_ICH_S0

1D05V_S0

3D3V_S5

3D3V_S0

1D5V_S0

1D5V_S0

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (3 of 4)

17 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (3 of 4)

17 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (3 of 4)

17 44Monday, March 12, 2007

HURON

SD

Place near pin AA19

Layout Note:

*Within a given well, 5VREF needs to be up before the

corresponding 3.3V rail

Layout Note:

Place near ICH7

Place near AB3

Layout Note:

12

C427

SCD1U10V2KX-4GP

C427

SCD1U10V2KX-4GP

12

C446

SCD1U10V2KX-4GP

C446

SCD1U10V2KX-4GP

12

C420

SCD01U16V2KX-3GP

C420

SCD01U16V2KX-3GP

12

C447

SCD1U10V2KX-4GP

C447

SCD1U10V2KX-4GP

12

C464

SCD1U10V2KX-4GP

C464

SCD1U10V2KX-4GP

12

C445

SCD1U10V2KX-4GP

C445

SCD1U10V2KX-4GP

12

C465

SCD1U16V2ZY-2GP

C465

SCD1U16V2ZY-2GP

12

C479

SCD1U10V2KX-4GP

C479

SCD1U10V2KX-4GP

12

C470

SCD1U10V2KX-4GP

C470

SCD1U10V2KX-4GP

12

C456

SCD1U10V2KX-4GP

C456

SCD1U10V2KX-4GP

12

C480

SCD1U10V2KX-4GP

C480

SCD1U10V2KX-4GP

12

C459

SCD1U10V2KX-4GP

C459

SCD1U10V2KX-4GP

12

C438

SCD1U10V2KX-4GP

C438

SCD1U10V2KX-4GP

12

C451

SCD1U10V2KX-4GP

C451

SCD1U10V2KX-4GP

12

C471

SCD1U10V2KX-4GP

C471

SCD1U10V2KX-4GP

12

C485

SCD1U10V2KX-4GP

C485

SCD1U10V2KX-4GP

12

C439

SC10U10V5ZY-1GP

DY

C439

SC10U10V5ZY-1GP

DY

21

D26

CH751H-40PT

D26

CH751H-40PT

12

C444

SC4D7U10V5ZY-3GP

C444

SC4D7U10V5ZY-3GP

12

C457

SCD1U10V2KX-4GP

C457

SCD1U10V2KX-4GP

12

C488

SCD1U10V2KX-4GP

C488

SCD1U10V2KX-4GP

12

C440

SCD1U10V2KX-4GP

DY

C440

SCD1U10V2KX-4GP

DY

12

C483

SCD1U10V2KX-4GP

C483

SCD1U10V2KX-4GP

1 2

R346

0R0603-PAD

R346

0R0603-PAD

12

C433

SCD1U10V2KX-4GP

C433

SCD1U10V2KX-4GP

12

C476

SCD1U10V2KX-4GP

DY

C476

SCD1U10V2KX-4GP

DY

12

C460

SCD1U10V2KX-4GP

DY

C460

SCD1U10V2KX-4GP

DY

12

C475

SC10U10V5ZY-1GP

C475

SC10U10V5ZY-1GP

12

C477

SCD1U16V2ZY-2GP

C477

SCD1U16V2ZY-2GP

12

C489

SC10U10V5ZY-1GP

C489

SC10U10V5ZY-1GP

TP72

TPAD28

TP72

TPAD28

12

C434

SCD1U10V2KX-4GP

C434

SCD1U10V2KX-4GP

1 2

R353

100R2J-2-GP

R353

100R2J-2-GP

12

C435

SCD1U10V2KX-4GP

C435

SCD1U10V2KX-4GP

12

C432

SCD1U10V2KX-4GP

C432

SCD1U10V2KX-4GP

12

C487

SCD1U10V2KX-4GP

C487

SCD1U10V2KX-4GP

21

D29

CH751H-40PT

D29

CH751H-40PT

12

C454

SCD1U10V2KX-4GP

C454

SCD1U10V2KX-4GP

12

C458

SCD1U10V2KX-4GP

C458

SCD1U10V2KX-4GP

12

C424

SCD1U10V2KX-4GP

C424

SCD1U10V2KX-4GP

TP18

TPAD28

TP18

TPAD28

12

C125

SCD01U16V2KX-3GP

C125

SCD01U16V2KX-3GP

12

C452

SCD1U10V2KX-4GP

C452

SCD1U10V2KX-4GP

12

C472

SCD1U10V2KX-4GP

C472

SCD1U10V2KX-4GP

1 2

R323

100R2J-2-GP

R323

100R2J-2-GP

12

C461

SCD1U10V2KX-4GP

C461

SCD1U10V2KX-4GP

1 2

L3

IND-1D2UH-5-GP

68.1R220.10A

L3

IND-1D2UH-5-GP

68.1R220.10A

12

C482

SCD1U10V2KX-4GP

C482

SCD1U10V2KX-4GP

12

C486

SCD1U10V2KX-4GP

C486

SCD1U10V2KX-4GP

12

R354

0R0603-PAD

R354

0R0603-PAD

TP33

TPAD28

TP33

TPAD28

12

C455

SCD1U10V2KX-4GP

C455

SCD1U10V2KX-4GP

12

C462

SCD1U10V2KX-4GP

DY

C462

SCD1U10V2KX-4GP

DY

12

C449

SC10U10V5ZY-1GP

C449

SC10U10V5ZY-1GP

12

C468

SCD1U10V2KX-4GP

C468

SCD1U10V2KX-4GP

V5REF[1]

G10

V5REF[2]

AD17

V5REF_Sus

F6

Vcc1_5_B[1]

AA22

Vcc1_5_B[2]

AA23

Vcc1_5_B[3]

AB22

Vcc1_5_B[4]

AB23

Vcc1_5_B[5]

AC23

Vcc1_5_B[6]

AC24

Vcc1_5_B[7]

AC25

Vcc1_5_B[8]

AC26

Vcc1_5_B[9]

AD26

Vcc1_5_B[10]

AD27

Vcc1_5_B[11]

AD28

Vcc1_5_B[12]

D26

Vcc1_5_B[13]

D27

Vcc1_5_B[14]

D28

Vcc1_5_B[15]

E24

Vcc1_5_B[16]

E25

Vcc1_5_B[17]

E26

Vcc1_5_B[18]

F23

Vcc1_5_B[19]

F24

Vcc1_5_B[20]

G22

Vcc1_5_B[21]

G23

Vcc1_5_B[22]

H22

Vcc1_5_B[23]

H23

Vcc1_5_B[24]

J22

Vcc1_5_B[25]

J23

Vcc1_5_B[26]

K22

Vcc1_5_B[27]

K23

Vcc1_5_B[28]

L22

Vcc1_5_B[29]

L23

Vcc1_5_B[30]

M22

Vcc1_5_B[31]

M23

Vcc1_5_B[32]

N22

Vcc1_5_B[33]

N23

Vcc1_5_B[34]

P22

Vcc1_5_B[35]

P23

Vcc1_5_B[36]

R22

Vcc1_5_B[37]

R23

Vcc1_5_B[38]

R24

Vcc1_5_B[39]

R25

Vcc1_5_B[40]

R26

Vcc1_5_B[41]

T22

Vcc1_5_B[42]

T23

Vcc1_5_B[43]

T26

Vcc1_5_B[44]

T27

Vcc1_5_B[45]

T28

Vcc1_5_B[46]

U22

Vcc1_5_B[47]

U23

Vcc1_5_B[48]

V22

Vcc1_5_B[49]

V23

Vcc1_5_B[50]

W22

Vcc1_5_B[51]

W23

Vcc1_5_B[52]

Y22

Vcc1_5_B[53]

Y23

Vcc3_3[1]

B27

VccDMIPLL

AG28

Vcc1_5_A[1]

AB7

Vcc1_5_A[2]

AC6

Vcc1_5_A[3]

AC7

Vcc1_5_A[4]

AD6

Vcc1_5_A[5]

AE6

Vcc1_5_A[6]

AF5

Vcc1_5_A[7]

AF6

Vcc1_5_A[8]

AG5

Vcc1_5_A[9]

AH5

VccSATAPLL

AD2

Vcc3_3[2]

AH11

Vcc1_5_A[10]

AB10

Vcc1_5_A[11]

AB9

Vcc1_5_A[12]

AC10

Vcc1_5_A[13]

AD10

Vcc1_5_A[14]

AE10

Vcc1_5_A[15]

AF10

Vcc1_5_A[16]

AF9

Vcc1_5_A[17]

AG9

Vcc1_5_A[18]

AH9

VccUSBPLL

C1

VccSus1_05/VccLAN1_05[1]

AA2

VccSus1_05/VccLAN1_05[2]

Y7

Vcc1_05[1] L11

Vcc1_05[2] L12

Vcc1_05[3] L14

Vcc1_05[4] L16

Vcc1_05[5] L17

Vcc1_05[6] L18

Vcc1_05[7] M11

Vcc1_05[8] M18

Vcc1_05[9] P11

Vcc1_05[10] P18

Vcc1_05[11] T11

Vcc1_05[12] T18

Vcc1_05[13] U11

Vcc1_05[14] U18

Vcc1_05[15] V11

Vcc1_05[16] V12

Vcc1_05[17] V14

Vcc1_05[18] V16

Vcc1_05[19] V17

Vcc1_05[20] V18

VccSus3_3/VccLAN3_3[1] V5

VccSus3_3/VccLAN3_3[2] V1

VccSus3_3/VccLAN3_3[3] W2

VccSus3_3/VccLAN3_3[4] W7

Vcc3_3/VccHDA U6

VccSus3_3/VccSusHDA R7

V_CPU_IO[1] AE23

V_CPU_IO[2] AE26

V_CPU_IO[3] AH26

Vcc3_3[3] AA7

Vcc3_3[4] AB12

Vcc3_3[5] AB20

Vcc3_3[6] AC16

Vcc3_3[7] AD13

Vcc3_3[8] AD18

Vcc3_3[9] AG12

Vcc3_3[10] AG15

Vcc3_3[11] AG19

Vcc3_3[12] A5

Vcc3_3[13] B13

Vcc3_3[14] B16

Vcc3_3[15] B7

Vcc3_3[16] C10

Vcc3_3[17] D15

Vcc3_3[18] F9

Vcc3_3[19] G11

Vcc3_3[20] G12

Vcc3_3[21] G16

VccRTC W5

VccSus3_3[1] P7

VccSus3_3[2] A24

VccSus3_3[3] C24

VccSus3_3[4] D19

VccSus3_3[5] D22

VccSus3_3[6] G19

VccSus3_3[7] K3

VccSus3_3[8] K4

VccSus3_3[9] K5

VccSus3_3[10] K6

VccSus3_3[11] L1

VccSus3_3[12] L2

VccSus3_3[13] L3

VccSus3_3[14] L6

VccSus3_3[15] L7

VccSus3_3[16] M6

VccSus3_3[17] M7

VccSus3_3[18] N7

Vcc1_5_A[19] AB17

Vcc1_5_A[20] AC17

Vcc1_5_A[21] T7

Vcc1_5_A[22] F17

Vcc1_5_A[23] G17

Vcc1_5_A[24] AB8

Vcc1_5_A[25] AC8

VccSus1_05[1] K7

VccSus1_05[2] C28

VccSus1_05[3] G20

Vcc1_5_A[26] A1

Vcc1_5_A[27] H6

Vcc1_5_A[28] H7

Vcc1_5_A[29] J6

Vcc1_5_A[30] J7

VccSus3_3[19]

E3

CORE

VCCA3GP

VCC PAUX

USB

ATXARX

IDE

USB CORE PCI

U14F

71.ICH7M.00U

CORE

VCCA3GP

VCC PAUX

USB

ATXARX

IDE

USB CORE PCI

U14F

71.ICH7M.00U

12

C441

SCD1U10V2KX-4GP

C441

SCD1U10V2KX-4GP

TP75

TPAD28

TP75

TPAD28

12

C431

SCD1U10V2KX-4GP

C431

SCD1U10V2KX-4GP

12

C124

SC10U10V5ZY-1GP

C124

SC10U10V5ZY-1GP

12

C442

SC10U10V5ZY-1GP

C442

SC10U10V5ZY-1GP

12

R309

0R0603-PAD

R309

0R0603-PAD

12

C423

SCD1U10V2KX-4GP

C423

SCD1U10V2KX-4GP

12

C473

SCD1U10V2KX-4GP

C473

SCD1U10V2KX-4GP

12

C467

SCD1U10V2KX-4GP

C467

SCD1U10V2KX-4GP

12

C430

SCD1U10V2KX-4GP

C430

SCD1U10V2KX-4GP

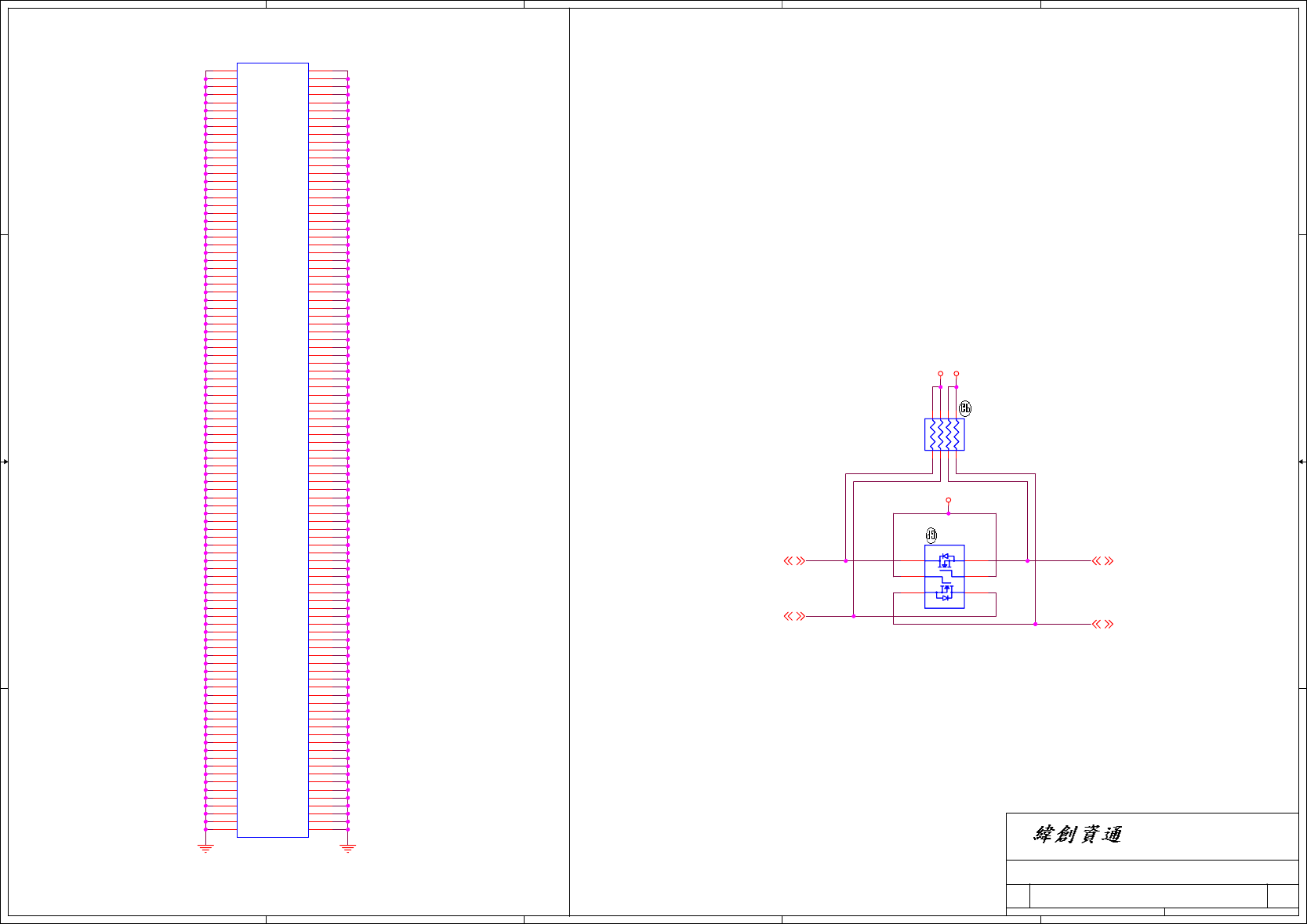

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

5V_S0

3D3V_S5 3D3V_S0

SMBC_ICH 3,11

SMBD_ICH 3,11

SMB_CLK16,27

SMB_DATA16,27

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (4 of 4)

18 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (4 of 4)

18 44Monday, March 12, 2007

HURON

SD

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

ICH7-M (4 of 4)

18 44Monday, March 12, 2007

HURON

SD

Q14 connect SMLINK and

SMBUS in S) for SMBus 2.0

compliance

SMBUS

VSS[1]

A4

VSS[2]

A23

VSS[3]

B1

VSS[4]

B8

VSS[5]

B11

VSS[6]

B14

VSS[7]

B17

VSS[8]

B20

VSS[9]

B26

VSS[10]

B28

VSS[11]

C2

VSS[12]

C6

VSS[13]

C27

VSS[14]

D10

VSS[15]

D13

VSS[16]

D18

VSS[17]

D21

VSS[18]

D24

VSS[19]

E1

VSS[20]

E2

VSS[21]

E4

VSS[22]

E8

VSS[23]

E15

VSS[24]

F3

VSS[25]

F4

VSS[26]

F5

VSS[27]

F12

VSS[28]

F27

VSS[29]

F28

VSS[30]

G1

VSS[31]

G2

VSS[32]

G5

VSS[33]

G6

VSS[34]

G9

VSS[35]

G14

VSS[36]

G18

VSS[37]

G21

VSS[38]

G24

VSS[39]

G25

VSS[40]

G26

VSS[41]

H3

VSS[42]

H4

VSS[43]

H5

VSS[44]

H24

VSS[45]

H27

VSS[46]

H28

VSS[47]

J1

VSS[48]

J2

VSS[49]

J5

VSS[50]

J24

VSS[51]

J25

VSS[52]

J26

VSS[53]

K24

VSS[54]

K27

VSS[55]

K28

VSS[56]

L13

VSS[57]

L15

VSS[58]

L24

VSS[59]

L25

VSS[60]

L26

VSS[61]

M3

VSS[62]

M4

VSS[63]

M5

VSS[64]

M12

VSS[65]

M13

VSS[66]

M14

VSS[67]

M15

VSS[68]

M16

VSS[69]

M17

VSS[70]

M24

VSS[71]

M27

VSS[72]

M28

VSS[73]

N1

VSS[74]

N2

VSS[75]

N5

VSS[76]

N6

VSS[77]

N11

VSS[78]

N12

VSS[79]

N13

VSS[80]

N14

VSS[81]

N15

VSS[82]

N16

VSS[83]

N17

VSS[84]

N18

VSS[85]

N24

VSS[86]

N25

VSS[87]

N26

VSS[88]

P3

VSS[89]

P4

VSS[90]

P12

VSS[91]

P13

VSS[92]

P14

VSS[93]

P15

VSS[94]

P16

VSS[95]

P17

VSS[96]

P24

VSS[97]

P27

VSS[98] P28

VSS[99] R1

VSS[100] R11

VSS[101] R12

VSS[102] R13

VSS[103] R14

VSS[104] R15

VSS[105] R16

VSS[106] R17

VSS[107] R18

VSS[108] T6

VSS[109] T12

VSS[110] T13

VSS[111] T14

VSS[112] T15

VSS[113] T16

VSS[114] T17

VSS[115] U4

VSS[116] U12

VSS[117] U13

VSS[118] U14

VSS[119] U15

VSS[120] U16

VSS[121] U17

VSS[122] U24

VSS[123] U25

VSS[124] U26

VSS[125] V2

VSS[126] V13

VSS[127] V15

VSS[128] V24

VSS[129] V27

VSS[130] V28

VSS[131] W6

VSS[132] W24

VSS[133] W25

VSS[134] W26

VSS[135] Y3

VSS[136] Y24

VSS[137] Y27

VSS[138] Y28

VSS[139] AA1

VSS[140] AA24

VSS[141] AA25

VSS[142] AA26

VSS[143] AB4

VSS[144] AB6

VSS[145] AB11

VSS[146] AB14

VSS[147] AB16

VSS[148] AB19

VSS[149] AB21

VSS[150] AB24

VSS[151] AB27

VSS[152] AB28

VSS[153] AC2

VSS[154] AC5

VSS[155] AC9

VSS[156] AC11

VSS[157] AD1

VSS[158] AD3

VSS[159] AD4

VSS[160] AD7

VSS[161] AD8

VSS[162] AD11

VSS[163] AD15

VSS[164] AD19

VSS[165] AD23

VSS[166] AE2

VSS[167] AE4

VSS[168] AE8

VSS[169] AE11

VSS[170] AE13

VSS[171] AE18

VSS[172] AE21

VSS[173] AE24

VSS[174] AE25

VSS[175] AF2

VSS[176] AF4

VSS[177] AF8

VSS[178] AF11

VSS[179] AF27

VSS[180] AF28

VSS[181] AG1

VSS[182] AG3

VSS[183] AG7

VSS[184] AG11

VSS[185] AG14

VSS[186] AG17

VSS[187] AG20

VSS[188] AG25

VSS[189] AH1

VSS[190] AH3

VSS[191] AH7

VSS[192] AH12

VSS[193] AH23

VSS[194] AH27

U14E

71.ICH7M.00U

U14E

71.ICH7M.00U

1

2

3 4

5

6

Q3

2N7002DW-1-GP

84.27002.D3F

Q3

2N7002DW-1-GP

84.27002.D3F

1

2

3

4 5

6

7

8

RN15

SRN4K7J-10-GP

RN15

SRN4K7J-10-GP

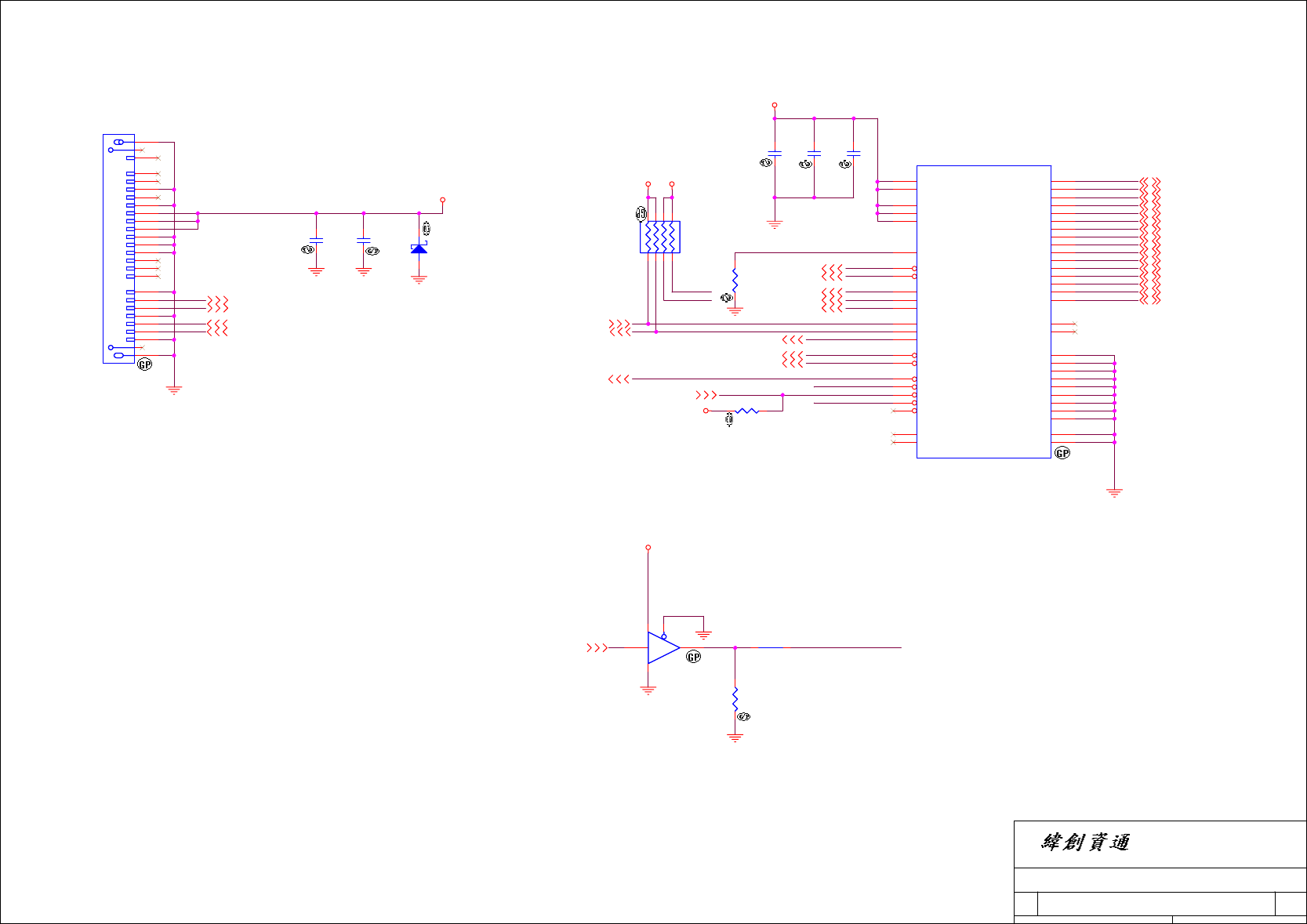

ALERT#

G792_DXN3

G792_RESET#

FAN1_FG1

G792_32K

G792_DXP2

V_DEGREE G792_DXN2

G792_DXP3

5V_G792_S0

PURE_HW_SHUTDOWN#

32KHZ G792_32K

FAN1_FG1

FAN1_VCC

PURE_HW_SHUTDOWN#

FAN1_VCC

5V_S0

5V_S0

5V_S0 3D3V_S0

FAN1_VCC

3D3V_AUX_S5

3D3V_S5

RUN_POWER_ON

H_THERMDC 4

PWROK7,16

H_THERMDA 4

THRM#16

SMBD_G792 26,30

SMBC_G792 26,30

INTRUDER# 15

RSMRST# 30

PM_SLP_S3#16,26,27,30,33,38,39,40 PM_SUS_CLK16

PURE_HW_SHUTDOWN#33

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Thermal/Fan Controllor

19 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Thermal/Fan Controllor

19 44Monday, March 12, 2007

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Thermal/Fan Controllor

19 44Monday, March 12, 2007

Digital Output Data Bits

TEMP.

Sign MSB

+127.875

+25.5

0

+1.75 0

1

111 111

011

100

110

100

001

111

LSB EXT

+126.375

1

1

111

000

000

111

100

001

000

111

110

0111

0

1

+0.5

+0.125

-0.125

-1.125

-65.000

-55.25

-25.5

111

100

110

000

1111

1110

1001

0001

0000

0000

1111

1110

0110

1000

1111

0

0

0

3.System Sensor,

Put between CPU and NB.

V_DEGREE

=(((Degree-72)*0.02)+0.34)*VCC

Setting T8 as

90 Degree

*Layout* 30 mil

1.For CPU Sensor

2.HW T8 sensor

*Layout* 15 mil

*Layout* 15 mil

Place near chip as close

as possible

DXP1:108 Degree (CPU)

DXP2:H/W Setting 100(System)

DXP3:105 Degree (SYSTEM)

2004/11/10 CHANGE

(dummy, KBC already delay)

32K suspend clock output

Tahoe

OE

1

A

2

GND

3Y4

VCC 5

U31

NC7SZ126P5X-GP

DY

73.7S126.AAH

U31

NC7SZ126P5X-GP

DY

73.7S126.AAH

12

R237

100KR2F-L1-GP

R237

100KR2F-L1-GP

12

C373

SC2200P50V2KX-2GP

C373

SC2200P50V2KX-2GP

1 2

R224

10R3J-3-GP

R224

10R3J-3-GP

12

C368

SC2200P50V2KX-2GP

C368

SC2200P50V2KX-2GP

12

R218

10KR2F-2-GP

DY

R218

10KR2F-2-GP

DY

1

2

3

D20

BAS16-1-GP

D20

BAS16-1-GP

12

C126

SC2200P50V2KX-2GP

C126

SC2200P50V2KX-2GP

TP86TPAD28 TP86TPAD28

12

C378

SCD1U16V2ZY-2GP

DY

C378

SCD1U16V2ZY-2GP

DY

12

C357

SC2200P50V2KX-2GP

C357

SC2200P50V2KX-2GP

1 2

R236

10R2J-2-GP

R236

10R2J-2-GP

12

R233

10KR2J-3-GP

R233

10KR2J-3-GP

TP84TPAD28 TP84TPAD28

C437

SC470P50V3JN-2GP

C437

SC470P50V3JN-2GP

FAN1 1

RESET#

2THERM_SET

3

FG1 4

DGND 5

VCC

6

DXP1

7

SGND1 8

DXP2

9

SGND2 10

DXP3

11

SGND3 12

THERM#

13

CLK 14

ALERT#

15

SDA 16

DGND 17

SCL 18

NC#19 19

DVCC

20

U6

G792SFUF-GP

74.00792.A79

U6

G792SFUF-GP

74.00792.A79

12

R234

10KR2J-3-GP

R234

10KR2J-3-GP

5

1

2

3

4

FAN1

MLX-CON3-10-GP

20.F1000.003

FAN1

MLX-CON3-10-GP

20.F1000.003

12

C364

SC1U16V3ZY-GP

C364

SC1U16V3ZY-GP

12

C362

SCD1U16V2ZY-2GP

C362

SCD1U16V2ZY-2GP

TP85TPAD28 TP85TPAD28

C

B

E

Q1

MMBT3904-3-GP

Q1

MMBT3904-3-GP

12

C370

SCD1U16V2ZY-2GP

C370

SCD1U16V2ZY-2GP

G

SD

Q13

2N7002-11-GP

Q13

2N7002-11-GP

C372

SC4D7U10V5ZY-3GP

C372

SC4D7U10V5ZY-3GP

1

2

3

D21

BAT54-7-F-GP

DY

D21

BAT54-7-F-GP

DY

12

R221

49K9R2F-L-GP

R221

49K9R2F-L-GP

12

R231

0R2J-2-GP

R231

0R2J-2-GP

12

R222

21KR2F-GP

R222

21KR2F-GP

12

C371

SCD1U16V2ZY-2GP

DY

C371

SCD1U16V2ZY-2GP

DY

1 2

R230

0R2J-2-GP

DY

R230

0R2J-2-GP

DY

12

R229

10KR2J-3-GP

R229

10KR2J-3-GP

C

B

E

Q15

MMBT3904-3-GP

Q15

MMBT3904-3-GP

12

C381

SC1KP50V2KX-1GP

C381

SC1KP50V2KX-1GP

12

R232

0R2J-2-GP

DY

R232

0R2J-2-GP

DY

1 2

G48

GAP-CLOSE

G48

GAP-CLOSE

12

C367

SC4D7U6D3V3KX-GP

C367

SC4D7U6D3V3KX-GP

1 2

R219

4K7R2F-GP

R219

4K7R2F-GP

1 2

G49

GAP-CLOSE

G49

GAP-CLOSE

2

1

3

D22

BAW56PT-U

DY

D22

BAW56PT-U

DY

C78

SC470P50V3JN-2GP

C78

SC470P50V3JN-2GP

HDDDRV#_5

HDDDRV#_5

PDIAG

IDE_PDDACK#

PDIAG

ODD_LED#

5V_S0

3D3V_S0

5V_S0

5V_S0

3D3V_S0

5V_S0

PLT_RST1#7,16,26,30

IDE_PDDREQ15

IDE_PDD8 15

IDE_PDD9 15

IDE_PDD10 15

IDE_PDD11 15

IDE_PDD12 15

IDE_PDD13 15

IDE_PDD14 15

IDE_PDD15 15

IDE_PDIORDY15

INT_IRQ1415

IDE_PDCS3#15

ODD_LED#31

IDE_PDIOR#15

IDE_PDDACK#15

IDE_PDA015 IDE_PDA115 IDE_PDA215

IDE_PDCS1#15

IDE_PDD0 15

IDE_PDD1 15

IDE_PDD2 15

IDE_PDD3 15

IDE_PDD4 15

IDE_PDD5 15

IDE_PDD6 15

IDE_PDD7 15

IDE_PDIOW#15

SATA_TXP0 15

SATA_TXN0 15

SATA_RXN0 15

SATA_RXP0 15

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

HDD and CDROM

20 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

HDD and CDROM

20 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

HDD and CDROM

20 44Monday, March 12, 2007

<Core Design>

SATA HD Connector ODD Connector

12

C301

SCD1U16V2ZY-2GP

DY

C301

SCD1U16V2ZY-2GP

DY

12

C298

SCD1U16V2ZY-2GP

C298

SCD1U16V2ZY-2GP

1 2

R179

0R0402-PAD

R179

0R0402-PAD

AUDIO_L_CH

1

AUDIO_R_CH

2

RESET#

5

DMARQ

22

DIOR#

24

DIOW#

25

IORDY

27

DMACK#

28

INTRQ

29

IOCS16#

30

DA1

31

PDIAG#

32

DA0

33

DA2

34

CSIFX#

35

CS3FX#

36

DASP#

37

+5V(MOTOR)

38

+5V(MOTOR)

39

+5V(MOTOR)

40

+5V(LOGIC)

41

+5V(LOGIC)

42

DEVICE_CONFIG(CSEL)

47

VENDER_UNIQUE#49 49

VENDER_UNIQUE#50 50

GND 51

GND 52

AUDIO_GROUND 3

GROUND 4

GROUND 23

GROUND 26

GROUND 43

GROUND 44

GROUND 45

GROUND 46

GROUND 48

DD0 21

DD1 19

DD2 17

DD3 15

DD4 13

DD5 11

DD6 9

DD7 7

DD8 6

DD9 8

DD10 10

DD11 12

DD12 14

DD13 16

DD14 18

DD15 20

ODD1

SPD-CONN50-4R-20GPU

20.80355.050

ODD1

SPD-CONN50-4R-20GPU

20.80355.050

NP1

NP2

23

24

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

SATA1

ALP-CON22-GP

20.F0754.022

SATA1

ALP-CON22-GP

20.F0754.022

1

2

3

4 5

6

7

8

RN72

SRN10KJ-6-GP

RN72

SRN10KJ-6-GP

12

R311

10KR2J-3-GP

R311

10KR2J-3-GP

KA

D15

SSM24PT-GP

D15

SSM24PT-GP

12 11

14

13

7

U39D

TSAHCT125PW-GP

73.74125.L13

U39D

TSAHCT125PW-GP

73.74125.L13

12

R363

10KR2J-3-GP

DY

R363

10KR2J-3-GP

DY

12

C316

SCD1U16V2ZY-2GP

C316

SCD1U16V2ZY-2GP

12

C296

SC10U10V5ZY-1GP

C296

SC10U10V5ZY-1GP

12

TC4

SC10U10V5ZY-1GP

TC4

SC10U10V5ZY-1GP

12

R170

0R2J-2-GP

R170

0R2J-2-GP

3D3V_BT_S0

3D3V_BT_S0

USB_5+

USB_5-

USB_PWR_EN#

USB_5-

USB_5+

USBPP1

USBPN1

USBPP3

USBPN3

USB_PWR_EN#

USB_OC#1

3D3V_BT_S0 3D3V_S0

5V_USB1_S0

5V_USB1_S0

5V_S5 5V_USB1_S0

5V_USB1_S0

5V_S5

BLUETOOTH_EN 30

USBPN216 USBPP216

USBPN016 USBPP016

USBPP5 16

USBPN5 16

USB_OC#0

16

USBPN1 16

USBPP1 16

USBPN3 16

USBPP3 16

USB_OC#1 16

USB_PWR_EN# 30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

USB / BLUETOOTH

21 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

USB / BLUETOOTH

21 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

USB / BLUETOOTH

21 44Tuesday, March 13, 2007

<Core Design>

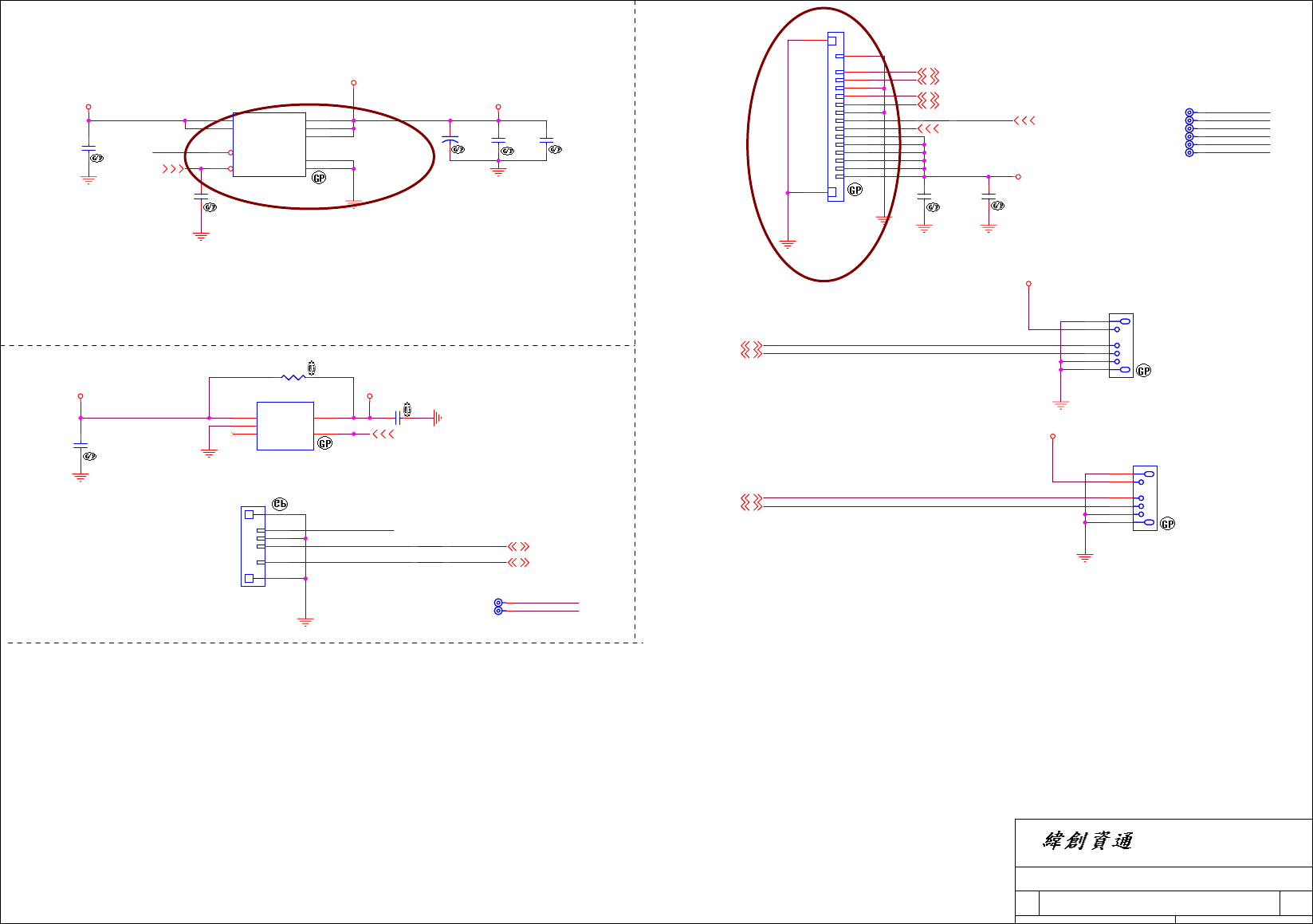

BLUETOOTH MODULE

EC21 put near

BLUE1 / all

USB put one

choke near

connector by

EMI request

100 mil

ENG ENG

TP90TPAD28 TP90TPAD28

1 2

R183 0R0402-PADR183 0R0402-PAD

TP87TPAD28 TP87TPAD28

12

EC49

SCD1U16V2ZY-2GP

DY

EC49

SCD1U16V2ZY-2GP

DY

TP89TPAD28 TP89TPAD28

TP88TPAD28 TP88TPAD28

12

TC11

SE150U10VM-2GP

TC11

SE150U10VM-2GP

TP91TPAD28 TP91TPAD28 TP92TPAD28 TP92TPAD28

1 2

R35 0R0402-PADR35 0R0402-PAD

1 2

R182 0R0402-PADR182 0R0402-PAD

5

1

2

3

4

6

USB2

SKT-USB-97-UGP

22.10218.H01

USB2

SKT-USB-97-UGP

22.10218.H01

1 2

R374 0R3-0-U-GP

DY

R374 0R3-0-U-GP

DY

1 2

C523

SC4D7U10V5ZY-3GP

C523

SC4D7U10V5ZY-3GP

TP94TPAD28 TP94TPAD28

12

C229

SCD1U16V3KX-3GP

C229

SCD1U16V3KX-3GP

12

C363

SC1U16V3ZY-GP

C363

SC1U16V3ZY-GP

5

1

2

3

4

6

USB1

SKT-USB-97-UGP

22.10218.H01

USB1

SKT-USB-97-UGP

22.10218.H01

1

2

3

4

5

6

BLUE1

ACES-CON4-GP

20.F0714.004

BLUE1

ACES-CON4-GP

20.F0714.004

TP93TPAD28 TP93TPAD28

12

EC89

SC1000P50V3JN-GP

DY

EC89

SC1000P50V3JN-GP

DY

12

EC90

SCD1U16V2ZY-2GP

DY

EC90

SCD1U16V2ZY-2GP

DY

12

EC88

SCD1U16V2ZY-2GP

DY

EC88

SCD1U16V2ZY-2GP

DY

12

EC75

SCD1U16V2ZY-2GP

DY

EC75

SCD1U16V2ZY-2GP

DY

GND 1

IN#2

2

IN#3

3

EN/EN#

4

OC#

5

OUT#6 6

OUT#7 7

OUT#8 8

GND 9

U42

G545B2RD1U-GP

74.00545.073

U42

G545B2RD1U-GP

74.00545.073

OUT

1

GND

2

NC#3

3EN 4

IN 5

U45

G5240B1T1U-GP

74.05240.A7F

U45

G5240B1T1U-GP

74.05240.A7F

4

3

2

1

5

6

7

8

9

10

11

12

13

14

15

16

17

USBCN1

JST-CON15-1-GP

21.D0214.115

USBCN1

JST-CON15-1-GP

21.D0214.115

5

5

4

4

3

3

2

2

1

1

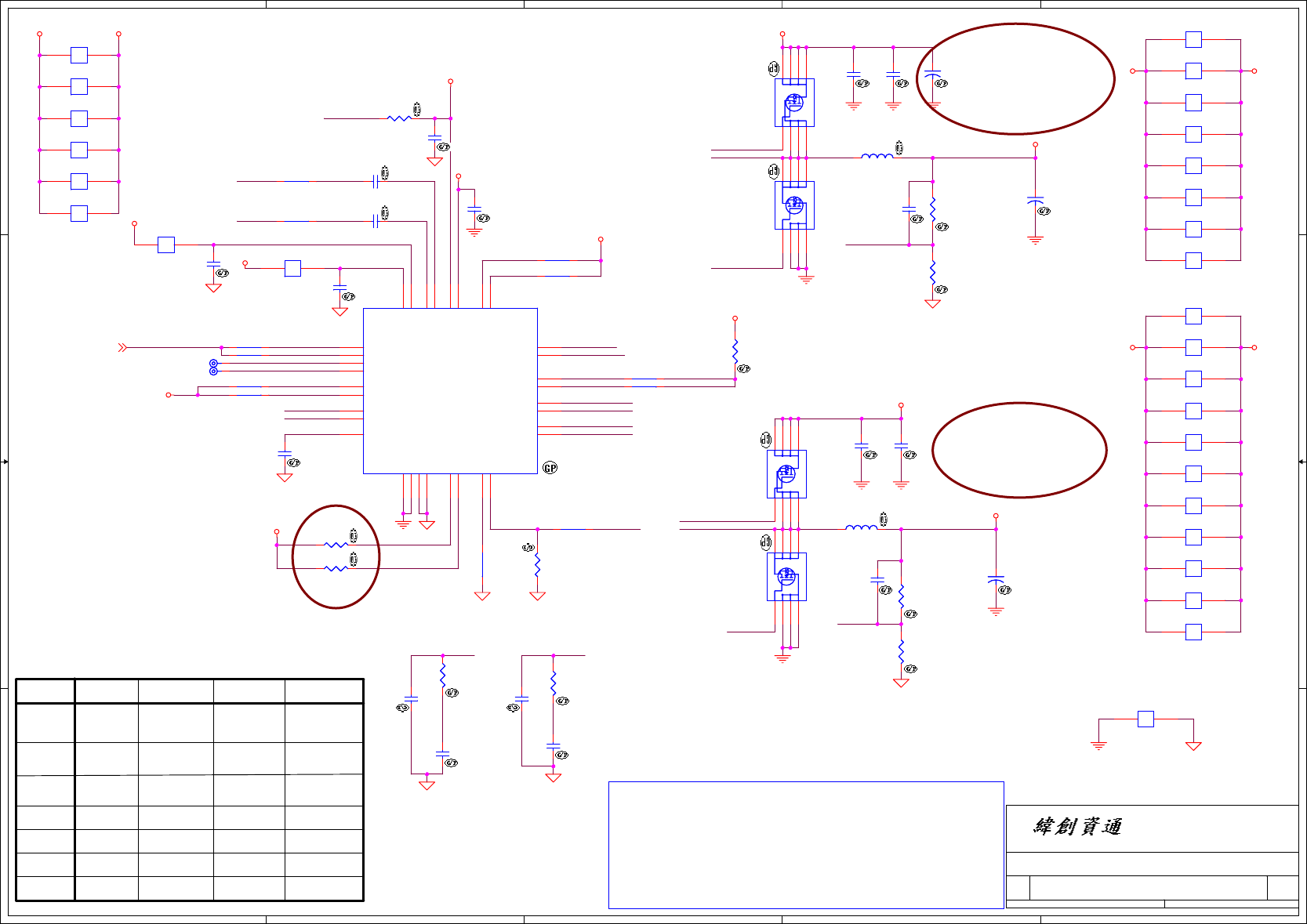

D D

C C

B B

A A

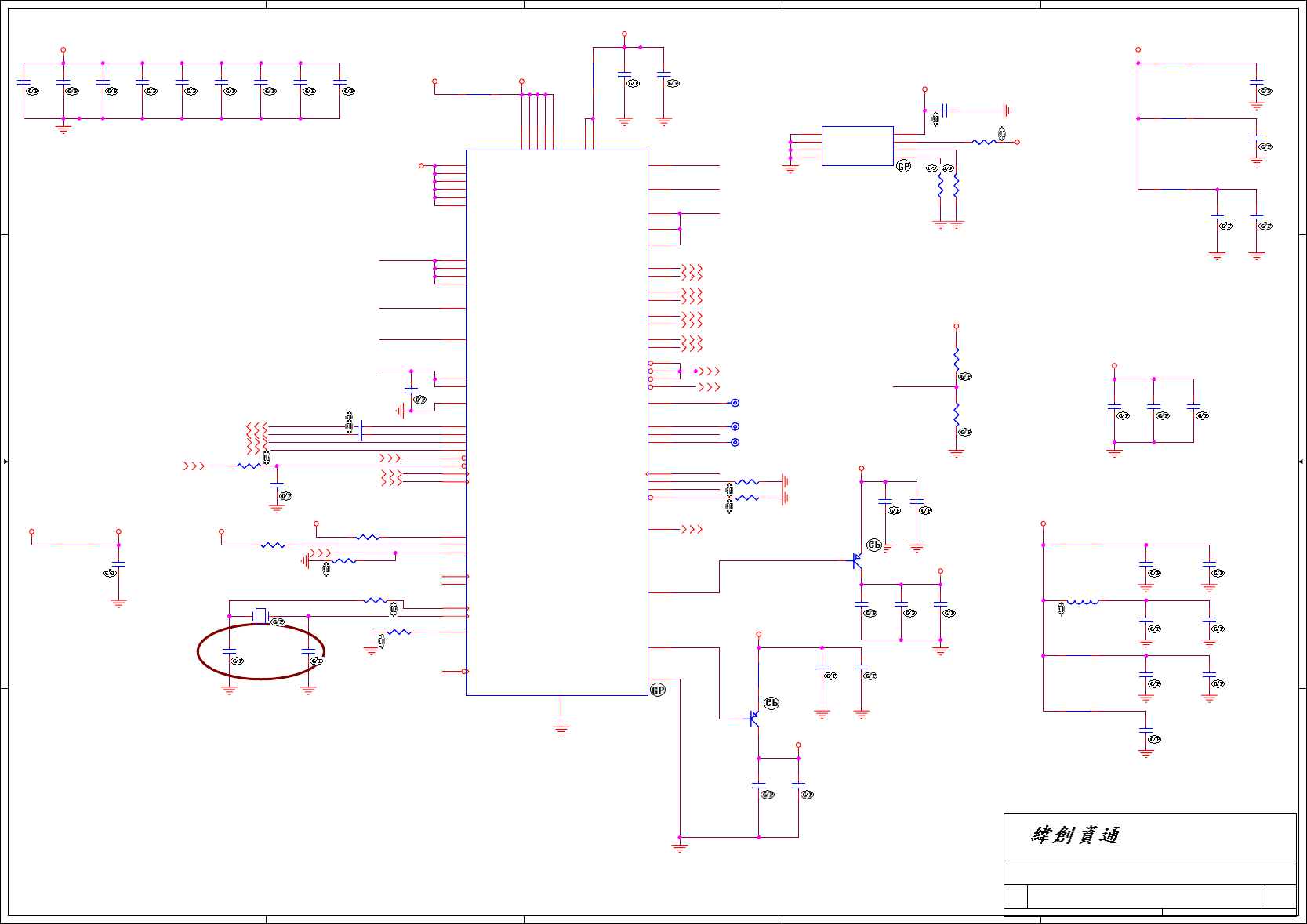

LOW_PWR

SCLK

ENERGY_DET

SO

PCIE_SDSVDD

UART_MODE

EE_WP

SI

PCIE_RXDN

PCIE_RXDP

BIASVDD_G

XTALVDD_G

LAN_AVDD

PCIE_PLLVDD

GPHY_PLLVDD

VDDP

RDAC

EE_WP

XTALVDD_G

BIASVDD_G

PCIE_PLLVDD

GPHY_PLLVDD

PCIE_SDSVDD

AVDDL_GVMAINPRSNT

VAUX_PRESENT

LAN_XO_R

LAN_XI

AVDDL_G

SCLK

GPIO0

LAN_AVDD

LAN_X0

LAN_RST

SO

CS#

REGCTL25

REGCTL12

GPIO2

3D3V_LAN_S5

3D3V_LAN_S0

2D5V_LAN_S5

2D5V_LAN_S5

3D3V_LAN_S5

3D3V_LAN_S5

1D2V_LAN_S5

3D3V_S5

3D3V_LAN_S5

1D2V_LAN_S5

1D2V_LAN_S5

3D3V_LAN_S5

3D3V_LAN_S03D3V_S0

2D5V_LAN_S5

3D3V_AUX_S5

1D2V_LAN_S5

3D3V_LAN_S5

3D3V_LAN_S5

CLK_PCIE_LAN3CLK_PCIE_LAN#3

PCIRST1#16,24,27 PCIE_WAKE#16,27

MDI1- 23

MDI0- 23

MDI0+ 23

MDI1+ 23

MDI3- 23

MDI2- 23

MDI2+ 23

MDI3+ 23

LAN_ACT_LED# 23

10M/100M/1G_LED# 23

PCIE_TXN116 PCIE_TXP116 PCIE_RXN116 PCIE_RXP116

LOW_PWR30

ENERGY_DET 30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN BCM5787

A3

22 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN BCM5787

A3

22 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN BCM5787

A3

22 44Monday, March 19, 2007

<Core Design>

R606 change to Bead

for Transmitter Distortion

Place PLLVDD/AVDDL

CKT as close to chip as

possible

part change to 71.05787.M02

ENG

12

C37

SC15P50V2JN-2-GP

C37

SC15P50V2JN-2-GP

12

C369

SC47P50V2JN-3GP

C369

SC47P50V2JN-3GP

12

R33

4K7R2J-2-GP

R33

4K7R2J-2-GP

1 2

R216

4K7R2J-2-GP

DY

R216

4K7R2J-2-GP

DY

12

C42

SCD1U10V2KX-4GP

C42

SCD1U10V2KX-4GP

12

C62

SC4D7U10V5ZY-3GP

C62

SC4D7U10V5ZY-3GP

A0

1

A1

2

A2

3

GND

4SDA 5

SCL 6

WP 7

VCC 8

U5

AT24C64AN-10SU-1GP

72.24C64.D01

U5

AT24C64AN-10SU-1GP

72.24C64.D01

12

C45

SCD1U10V2KX-4GP

C45

SCD1U10V2KX-4GP

12

C374

SCD1U10V2KX-4GP

C374

SCD1U10V2KX-4GP

TP68 TPAD30TP68 TPAD30

2

1

3

Q11

BCP69T1-1-GP

Q11

BCP69T1-1-GP

12

C58

SC4D7U10V5ZY-3GP

C58

SC4D7U10V5ZY-3GP

12

C51

SCD1U10V2KX-4GP

C51

SCD1U10V2KX-4GP

12

C358

SCD1U10V2KX-4GP

C358

SCD1U10V2KX-4GP

1 2

R31

0R0603-PAD

R31

0R0603-PAD

1 2

R36

0R0603-PAD

R36

0R0603-PAD

12

C38

SC15P50V2JN-2-GP

C38

SC15P50V2JN-2-GP

12

C28

SCD1U10V2KX-4GP

C28

SCD1U10V2KX-4GP

12

C26

SCD1U10V2KX-4GP

C26

SCD1U10V2KX-4GP

2

1

3

Q12

BCP69T1-1-GP

Q12

BCP69T1-1-GP

12

C356

SCD1U10V2KX-4GP

C356

SCD1U10V2KX-4GP

12

C361

SCD1U10V2KX-4GP

C361

SCD1U10V2KX-4GP

12

C379

SC10U10V5ZY-1GP

C379

SC10U10V5ZY-1GP

1 2

R220

4K7R2J-2-GP

DY

R220

4K7R2J-2-GP

DY

12

C33SCD1U10V2KX-5GP C33SCD1U10V2KX-5GP

12

C25

SCD1U10V2KX-4GP

C25

SCD1U10V2KX-4GP

12

C24 SC4D7U10V5ZY-3GPC24 SC4D7U10V5ZY-3GP

12

C380

SC4D7U10V5ZY-3GP

C380

SC4D7U10V5ZY-3GP

1 2

R27

0R0603-PAD

R27

0R0603-PAD

1 2

R223

0R2J-2-GP

R223

0R2J-2-GP

12

R212 1KR2J-1-GPR212 1KR2J-1-GP

12

C355

SC10U10V5ZY-1GP

C355

SC10U10V5ZY-1GP

VDDC

5

VDDC

13

VDDC

20

VDDC

34

VDDC

55

VDDC

60

AVDDL

39

AVDDL

44

AVDDL

46

AVDDL

51

VDDIO 6

VDDIO 15

VDDIO 19

VDDIO 56

VDDIO 61

VDDP 17

VDDP 68

GPHY_PLLVDD

35

PCIE_PLLVDD

30

PCIE_VDD

27

PCIE_VDD

33

PCIE_GND

24

WAKE#

12

PCIE_TXDP

26

PCIE_TXDN

25

PCIE_RXDP

31

PCIE_RXDN

32

PERST#

10

REFCLK+

29

REFCLK-

28

VAUXPRSNT

54

VMAINPRSNT

53

LOW_PWR

3

SMB_CLK

58

SMB_DATA

57

XTALO

22

XTALI

21

RDAC

37

NC#11(CLK_REQ#)

11

NC#59/(ENERGY_DET) 59

REGCTL25 18

REGCTL12 14

REG_GND 16

SCLK 65

SI 63

SO 64

CS# 62

UART_MODE 9

GPIO1_SERIALDI 7

GPIO0_SERIALDO 4

LINKLED# 2

SPD100LED# 1

SPD1000LED# 67

TRAFFICLED# 66

GPIO2 8

TRD0+ 40

TRD1- 42

TRD2+ 47

TRD3- 49

TRD0- 41

TRD1+ 43

TRD2- 48

TRD3+ 50

BIASVDD 36

XTALVDD 23

AVDD 38

AVDD 45

AVDD 52

GND

69

U4

BCM5787MKMLG-GP

71.05787.A03

U4

BCM5787MKMLG-GP

71.05787.A03

1 2

R225

0R0402-PAD

R225

0R0402-PAD

TP70 TPAD30TP70 TPAD30

1 2

R44

0R0603-PAD

R44

0R0603-PAD

12

R37

0R2J-2-GP

DY

R37

0R2J-2-GP

DY

12

C29

SCD1U10V2KX-4GP

C29

SCD1U10V2KX-4GP

12

C30

SCD1U10V2KX-4GP

C30

SCD1U10V2KX-4GP

12

C55

SCD1U10V2KX-4GP

C55

SCD1U10V2KX-4GP

1 2

R47

0R0603-PAD

R47

0R0603-PAD

12

R214

10KR2J-3-GP

DY

R214

10KR2J-3-GP

DY

12

C27

SCD1U10V2KX-4GP

C27

SCD1U10V2KX-4GP

12

C46

SCD1U10V2KX-4GP

C46

SCD1U10V2KX-4GP

1 2

R39

10KR2J-3-GP

R39

10KR2J-3-GP

12

R213

1KR2J-1-GP

R213

1KR2J-1-GP

1 2

R34

200R2J-L1-GP

R34

200R2J-L1-GP

12

R21

1K24R2F-GP

R21

1K24R2F-GP

12

C31 SC4D7U10V5ZY-3GPC31 SC4D7U10V5ZY-3GP

1 2

R43

0R0603-PAD

R43

0R0603-PAD

12

C32

SCD1U10V2KX-4GP

C32

SCD1U10V2KX-4GP

1 2

X1

XTAL-25MHZ-67GP

82.30020.571

X1

XTAL-25MHZ-67GP

82.30020.571

12

C36

SCD1U10V2KX-4GP

C36

SCD1U10V2KX-4GP

12

C43

SCD1U10V2KX-4GP

C43

SCD1U10V2KX-4GP

12

C359

SC4D7U10V5ZY-3GP

C359

SC4D7U10V5ZY-3GP

12

C40

SCD1U10V2KX-4GP

C40

SCD1U10V2KX-4GP

12

C44

SCD1U10V2KX-4GP

C44

SCD1U10V2KX-4GP

12

C21

SCD1U10V2KX-4GP

C21

SCD1U10V2KX-4GP

12

R215

10KR2J-3-GP

DY

R215

10KR2J-3-GP

DY

12

R30

4K7R2J-2-GP

R30

4K7R2J-2-GP

12

C34SCD1U10V2KX-5GP C34SCD1U10V2KX-5GP

12

C39

SCD1U10V2KX-4GP

C39

SCD1U10V2KX-4GP

12

C354

SCD1U10V2KX-4GP

C354

SCD1U10V2KX-4GP

12

R24

FCM1608K-601T03GP

R24

FCM1608K-601T03GP

TP69 TPAD30TP69 TPAD30

1 2

R210

0R0603-PAD

R210

0R0603-PAD

12

C41

SCD1U10V2KX-4GP

C41

SCD1U10V2KX-4GP

1 2

R42

0R0603-PAD

R42

0R0603-PAD

12

C377

SC4D7U10V5ZY-3GP

C377

SC4D7U10V5ZY-3GP

12

C23

SCD1U10V2KX-4GP

C23

SCD1U10V2KX-4GP

12

C35 SC4D7U10V5ZY-3GPC35 SC4D7U10V5ZY-3GP

12

C22 SC4D7U10V5ZY-3GP

DY

C22 SC4D7U10V5ZY-3GP

DY

12

C47

SCD1U10V2KX-4GP

C47

SCD1U10V2KX-4GP

1 2

R25

0R0603-PAD

R25

0R0603-PAD

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

MCT2

MCT1

RJ45_1

RJ45_2

CONN_PWR_2

10M/100M/1G_LED#

CONN_PWR_1

MCT3

MCT4

LAN_ACT_LED#

LAN_TERMINAL

MCT4

MCT3

RJ45_8

RJ45_7

RJ45_5

RJ45_4

MCT2

MCT1

RJ45_3

RJ45_6

CONN_PWR_2

RJ45_8

RJ45_7

RJ45_6

RJ45_5

RJ45_4

RJ45_3

RJ45_2

RJ45_1

CONN_PWR_1

3D3V_LAN_S5

3D3V_LAN_S5

2D5V_LAN_S5

MDI3-22

MDI2-22 MDI2+22

MDI3+22

MDI0-22 MDI0+22

MDI1-22 MDI1+22

10M/100M/1G_LED# 22

LAN_ACT_LED# 22

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN Connector

A3

23 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN Connector

A3

23 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

LAN Connector

A3

23 44Monday, March 19, 2007

<Core Design>

LAN Data: Yellow(B2), when LAN is

transfering data.

Green(A3), behavior is the

same for 10/100/1000 bits

LAN Link:

LAN Connector

1.route on bottom as differential pairs.

2.Tx+/Tx- are pairs. Rx+/Rx- are pairs.

3.No vias, No 90 degree bends.

4.pairs must be equal lengths.

5.6mil trace width,12mil separation.

6.36mil between pairs and any other trace.

7.Must not cross ground moat,except

RJ-45 moat.

RJ11 signal must leave the other signal

or power plane 100mil.

DOC_TIP,DOC_RING,TIP,RING:

W/S : 10/100 @ Surface layers

10/20 @ Inner layers

3D3V_LAN_S5

VDDP

5787

2D5V_S5

Don't Care

2D5V_S5

1D2V_S5

3D3V_S5

1D8V_LAN_S5

Don't Care

Don't Care

3D3V_2D5V_S5

1D8V_1D2V_S5

5789

VDDC

3D3V_LAN_S5

3D3V_LAN_S5

4401E

VDDIO

VDDIO_PCI

Voltage

Rail

3D3V_S0

1D2V_LAN_S5

VESD

3D3V_LAN_S5

3D3V_S0

1D8V_LAN_S5

B2:YELLOW

A3:Green

GIGA Lan Transformer

RD- --> RX-

RD+ --> RX+

TD+ --> TX+

10/100 LAN Transformer RJ45 PIN

RJ45-2

RJ45-3

RJ45-6

TD- --> TX-

RJ45-1

12

C351

SCD1U16V2ZY-2GP

C351

SCD1U16V2ZY-2GP

12

EC71

SC100P50V2JN-3GP

DY

EC71

SC100P50V2JN-3GP

DY

12

EC68

SC100P50V2JN-3GP

DY

EC68

SC100P50V2JN-3GP

DY

1 2

C349

SC1KP2KV8KX-GP

C349

SC1KP2KV8KX-GP

1

2

3

4

5

6

7

8

9

10

A1

A2

A3

B1

B2

RJ1

RJ45-124-GP-U1

RJ1

RJ45-124-GP-U1

12

C352

SCD1U16V2ZY-2GP

C352

SCD1U16V2ZY-2GP

12

C348

SCD1U16V2ZY-2GP

C348

SCD1U16V2ZY-2GP

12

EC70

SC100P50V2JN-3GP

DY

EC70

SC100P50V2JN-3GP

DY

RD+

1

RD-

2

RDCT

3

TDCT

4

TD+

5

TD-

6TX- 7

TX+ 8

TXCT 9

RXCT 10

RX- 11

RX+ 12

XF1

XFORM-208-GP

68.68161.30A

XF1

XFORM-208-GP

68.68161.30A

1

2

3

45

6

7

8

RN41

SRN75J-1-GP

RN41

SRN75J-1-GP

RD+

1

RD-

2

RDCT

3

TDCT

4

TD+

5

TD-

6TX- 7

TX+ 8

TXCT 9

RXCT 10

RX- 11

RX+ 12

XF2

XFORM-208-GP

68.68161.30A

XF2

XFORM-208-GP

68.68161.30A

12

EC69

SC100P50V2JN-3GP

DY

EC69

SC100P50V2JN-3GP

DY

1 2

R204

470R2J-2-GP

R204

470R2J-2-GP

1 2

R202

470R2J-2-GP

R202

470R2J-2-GP

12

C347

SCD1U16V2ZY-2GP

C347

SCD1U16V2ZY-2GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

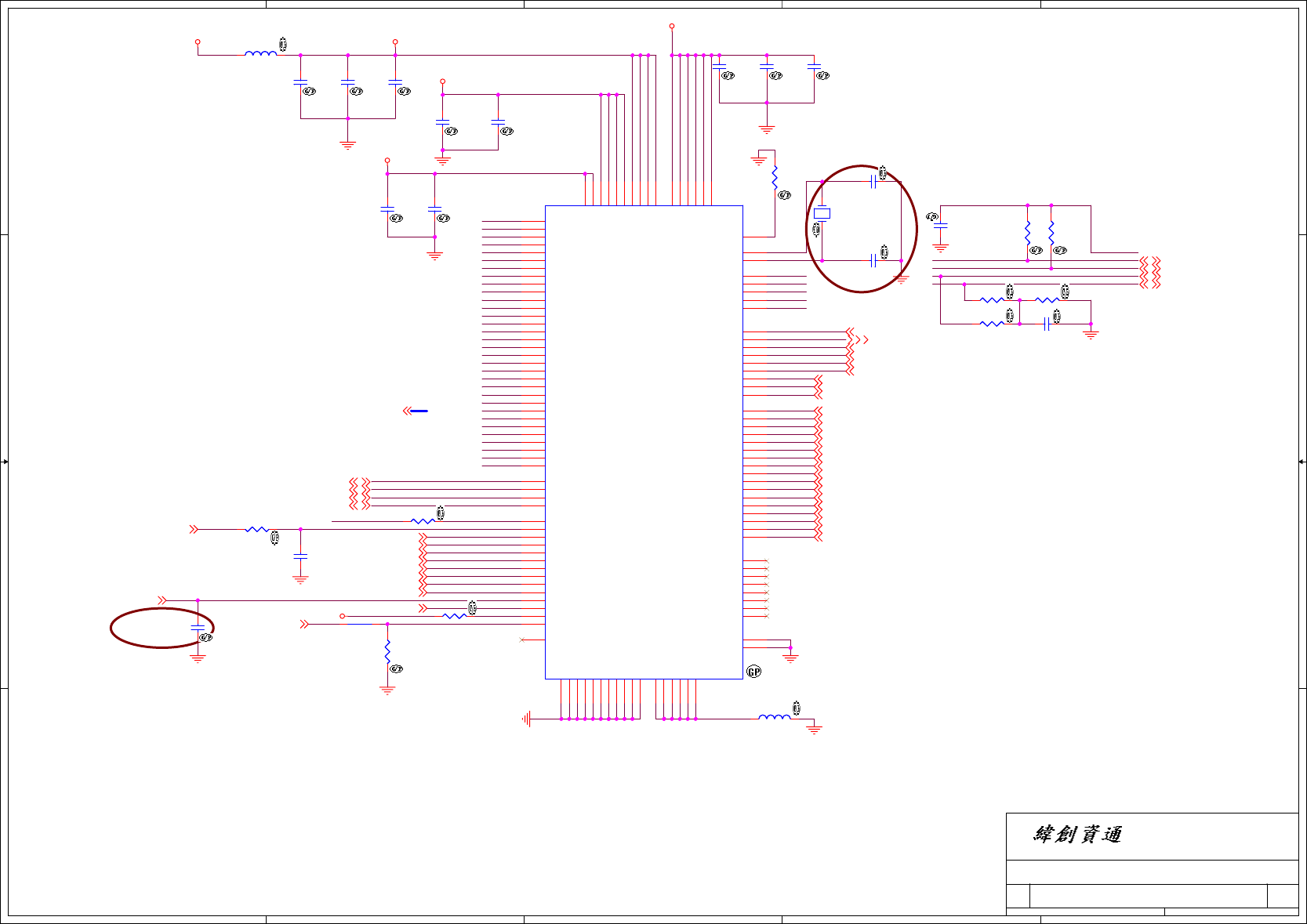

PCLK_PCM_1

PCI_AD20

PCI_AD21

PCI_AD2

PCI_AD10

PCI_AD24

PCI_AD5

PCI_AD4

PCI_AD6

PCI_AD22

PCI_AD31

PCI_AD0

PCI_AD7

PCI_AD26

PCI_AD13

PCI_AD16

PCI_AD23

PCI_AD30

PCI_AD27

PCI_AD8

PCI_AD19

PCI_AD14

PCI_AD29

PCI_AD9

PCI_AD1

PCI_AD3

PCI_AD11

PCI_AD12

PCI_AD15

PCI_AD28

PCI_AD25

PCI_AD17

PCI_AD18

PCI_C/BE#0

PCI_C/BE#2

PCI_C/BE#1

PCI_AD22 OZ129_IDSEL

PM_CLKRUN#_OZ129 CBUS_PME#

PCI_C/BE#3

OZ129_AGND

OZ129_XI

OZ129_XO

TPB0N

TPA0N

TPA0P

TPBIAS0

1394_TPB1_R

TPB0PTPBIAS0

TPB0N

TPB0P

TPA0N

TPA0P

SD/XD/MS_CLK

CARD_EN#

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0 +3VRUN

1D8V_S0

PCI_AD[31..0]16

PM_CLKRUN#16,30

INT_PIRQG#16

PCI_GNT#016 PCI_REQ#016

PCI_FRAME#16

PCI_TRDY#16 PCI_IRDY#16

PCI_STOP#16

PCI_DEVSEL#16

PCLK_PCM3

PCI_PAR16

PCIRST1#16,22,27

TPB0N 25

TPA0P 25

TPA0N 25

TPB0P 25

SD/XD/MS_CLK 25

CARD_EN# 25

SD_D0 25

SD_D1 25

SD_D2 25

SD_D3 25

SD_CD# 25

SM_WPI#/SD_WP 25

SD_CMD 25

MS_D1/XD_D7 25

MS_BS/XD_D3 25

MS_D0/XD_D2 25

MS_D2/XD_D1 25

MS_CD# 25

MS_D3/XD_D0 25

XD_CLE 25

XD_ALE 25

XD_WE# 25

XD_RE# 25

XD_WPO# 25

XD_CD# 25

XD_R/B# 25

XD_CE# 25

XD_D6 25

XD_D5 25

XD_D4 25

PCI_C/BE#016 PCI_C/BE#116 PCI_C/BE#216 PCI_C/BE#316

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

OZ129T

24 44Monday, March 19, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

OZ129T

24 44Monday, March 19, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

OZ129T

24 44Monday, March 19, 2007

HURON

SD

<Core Design>

IDSEL:AD22

INTA-->:INT_PIRQG#

GNT:PCI_GNT#0

REQ:PCI_REQ#0

NOTE 1:

The Ferrite beads, FB1 & FB2,

are shown for referrence.

The actual value, or even the

requirement, must be based on

post-layout testing.

SC

NOTE 2:

These 1394 signals are high

speed differential pairs and

must be kept equal length

with a differential impedance

(Zo) of 110ohms.

ENG

ENG

12

X4

X-24D576MHZ-44GP

82.30023.391

X4

X-24D576MHZ-44GP

82.30023.391

1 2

C271

SCD01U16V2KX-3GP

C271

SCD01U16V2KX-3GP

12

C607

SC12P50V2JN-3GP

C607

SC12P50V2JN-3GP

1 2

R169

100R2J-2-GP

R169

100R2J-2-GP

12

C251

SCD1U10V2KX-4GP

C251

SCD1U10V2KX-4GP

12

C493

SC10P50V2JN-4GP

DY

C493

SC10P50V2JN-4GP

DY

1 2

L16

MLB-160808-4-GP

L16

MLB-160808-4-GP

1 2

L17

MLB-160808-4-GP

68.00108.031

L17

MLB-160808-4-GP

68.00108.031

1 2

R168

0R0402-PAD

R168

0R0402-PAD

1 2

R160

5K11R2F-L1-GP

R160

5K11R2F-L1-GP

1 2

R172 10KR2J-3-GP

DY

R172 10KR2J-3-GP

DY

12

R166

56R2J-4-GP

R166

56R2J-4-GP

PCI_VCC 26

PCI_VCC 56

3.3VCCD 7

3.3VCCD 102

3.3VCCD 103

3.3VCCD 122

3.3VCCA 67

3.3VCCA 73

3.3VCCA 79

3.3VCCA 81

1.8VCCD 14

1.8VCCD 15

1.8VCCD 91

1.8VCCD 92

1.8VCCD 120

1.8VCCD 125

AD31

19

AD30

20

AD29

21

AD28

22

AD27

23

AD26

24

AD25

25

AD24

27

AD23

29

AD22

30

AD21

31

AD20

32

AD19

34

AD18

35

AD17

36

AD16

37

AD15

47

AD14

48

AD13

49

AD12

50

AD11

51

AD10

52

AD9

53

AD8

54

AD7

57

AD6

58

AD5

59

AD4

60

AD3

61

AD2

62

AD1

63

AD0

64

C/BE3#

28

C/BE2#

38

C/BE1#

46

C/BE0#

55

IDSEL

5

PCI_CLK

45

DEVSEL#

42

FRAME#

39

IRDY#

40

TRDY#

41

STOP#

43

PAR

44

PCI_REQ#

17

PCI_GNT#

18

PCI_RST#

1

INTA#

11

PME#

3

CLKRUN#

6

MEDIA_LED

106

REF 78

XI 83

XO 84

TPBIAS 76

TPA+ 75

TPA- 74

TPB+ 72

TPB- 71

MC_3V# 4

SD/MS_CLK 113

SD_D3 111

SD_D2 112

SD_D1 107

SD_D0 108

SD_CMD 110

SM_WPI#/SD_WP 117

SD_CD# 114

MS_D1/XD_D7 95

XD_D6 93

XD_D5 89

XD_D4 87

MS_BS/XD_D3 88

MS_D0/XD_D2 90

MS_D2/XD_D1 94

MS_D3/XD_D0 96

XD_CE# 119

XD_RB# 100

XD_CLE 118

XD_ALE 109

XD_WE# 105

XD_RE# 101

XD_WPO# 98

MS_CD# 99

XD_CD# 97

NC#2 2

NC#8 8

NC#9 9

NC#19 10

NC#13 13

NC#126 126

NC#127 127

NC#128 128

TEST0 85

TEST1 86

DGND

12

DGND

16

DGND

33

DGND

66

DGND

68

DGND

104

DGND

115

DGND

116

DGND

121

DGND

123

DGND

124

AGND

65

AGND

69

AGND

70

AGND

77

AGND

80

AGND

82

U15

OZ129TN-GP

71.OZ129.00G

U15

OZ129TN-GP

71.OZ129.00G

1 2

R356

10R2J-2-GP

R356

10R2J-2-GP

1 2

R157

56R2J-4-GP

R157

56R2J-4-GP

12

C225

SC4D7U10V5ZY-3GP

C225

SC4D7U10V5ZY-3GP

12

R167

1KR2J-1-GP

DY

R167

1KR2J-1-GP

DY

12

R164

56R2J-4-GP

R164

56R2J-4-GP

12

C503

SCD1U10V2KX-4GP

C503

SCD1U10V2KX-4GP

12

C297

SCD1U10V2KX-4GP

C297

SCD1U10V2KX-4GP

1 2

R161

56R2J-4-GP

R161

56R2J-4-GP

12

C510

SCD1U10V2KX-4GP

C510

SCD1U10V2KX-4GP

12

C504

SCD1U10V2KX-4GP

C504

SCD1U10V2KX-4GP

12

R366

5K9R2F-GP

R366

5K9R2F-GP

1 2

C272

SC8P250V2CC-GP

C272

SC8P250V2CC-GP

12

C512

SC4D7U10V5ZY-3GP

C512

SC4D7U10V5ZY-3GP

12

C256

SCD1U10V2KX-4GP

C256

SCD1U10V2KX-4GP

12

C511

SC4D7U10V5ZY-3GP

C511

SC4D7U10V5ZY-3GP

1 2

C252

SC820P50V2KX-1GP

C252

SC820P50V2KX-1GP

1 2

C273

SC6D8P50V2DN-GP

C273

SC6D8P50V2DN-GP

12

C248

SC4D7U10V5ZY-3GP

C248

SC4D7U10V5ZY-3GP

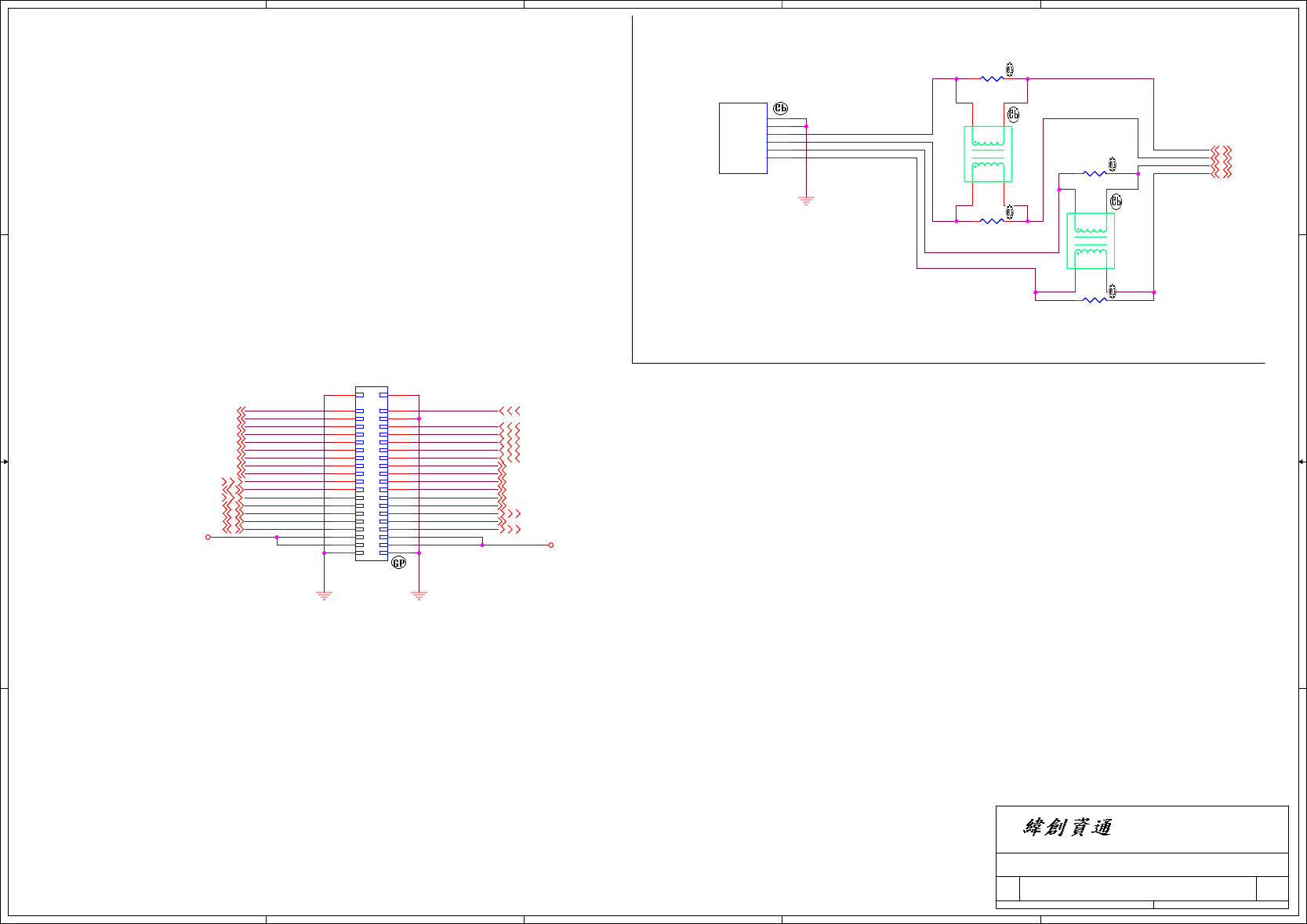

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

TPB0-

TPB0+

TPA0-

TPB0N

TPA0P

TPA0N

TPB0P

TPA0+

XD_D6

MS_D1/XD_D7

XD_D4

XD_D5

MS_D0/XD_D2

MS_BS/XD_D3

MS_D3/XD_D0

MS_D2/XD_D1

XD_CE#

XD_ALE

XD_CLE

ACZ_SDATAIN1

ACZ_SYNC

ACZ_RST#

ACZ_SDATAOUT

SD/XD/MS_CLK

SD_CD#

CARD_EN#

ACZ_BTCLK_MDC

3D3V_S5 3D3V_S0

TPB0N 24

TPA0P 24

TPA0N 24

TPB0P 24

MS_D1/XD_D724

MS_BS/XD_D324 MS_D0/XD_D224 MS_D2/XD_D124 MS_D3/XD_D024

XD_D624 XD_D524 XD_D424

XD_CD#24

XD_WE#24

XD_CE#24

XD_ALE24

XD_RE#24

XD_WPO#24

XD_CLE24

XD_R/B#24

ACZ_SDATAOUT 15,28

ACZ_SDATAIN1 15

ACZ_RST# 15,28

ACZ_SYNC 15,28

SD/XD/MS_CLK 24

SM_WPI#/SD_WP 24

SD_CD# 24

MS_CD# 24

SD_D0 24

SD_D1 24

SD_D2 24

SD_D3 24

SD_CMD 24

CARD_EN# 24

ACZ_BTCLK_MDC 15

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

1394 / CARD READER BD

25 44Tuesday, March 13, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

1394 / CARD READER BD

25 44Tuesday, March 13, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

1394 / CARD READER BD

25 44Tuesday, March 13, 2007

HURON

SD

<Core Design>

1394 Connector

check with EMI, can change to 0 ohm

CONN on Bottom side

1 2

R368 0R3-0-U-GP

DY

R368 0R3-0-U-GP

DY

1

3

4

2

L18

NCMS20C900-GP

68.20900.201

1394

L18

NCMS20C900-GP

68.20900.201

1394

1 2

R367 0R3-0-U-GP

DY

R367 0R3-0-U-GP

DY

1

3

4

2

L19

NCMS20C900-GP

68.20900.201

1394

L19

NCMS20C900-GP

68.20900.201

1394

1 2

R370 0R3-0-U-GP

DY

R370 0R3-0-U-GP

DY

1 2

R369 0R3-0-U-GP

DY

R369 0R3-0-U-GP

DY

TPB0- 1

TPB0+ 2

TPA0- 3

TPA0+ 4

GND 5

GND 6

1394

SKT-1394-4P-10GP-U

22.10218.H21

1394

1394

SKT-1394-4P-10GP-U

22.10218.H21

1394

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

CARDREADER1

MLX-CONN40D-6GP

20.F0673.040

CARDREADER1

MLX-CONN40D-6GP

20.F0673.040

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PLT_RST1#_MXM

PEG_RXN15

PEG_RXP15

PEG_RXN14

PEG_RXP14

PEG_RXP11

PEG_RXP12

PEG_RXP10

PEG_RXN12

PEG_RXN13

PEG_RXP8

PEG_RXP9

PEG_RXN10

PEG_RXN8

PEG_RXN11

PEG_RXP13

PEG_RXN4

PEG_RXP4

PEG_RXN9

PEG_RXN7

PEG_RXP7

PEG_RXP6

PEG_RXP5

PEG_RXN6

PEG_RXN2

PEG_RXN5

PEG_RXN0

PEG_RXP3

PEG_RXN3

PEG_RXP2

PEG_RXP0

PEG_RXP1

PEG_RXN1

NV_3D3V_S0

G72_27MHZ

G72_27MHZSS

DVI_B_HPD

TMDS_B_TXC-

TMDS_B_TX0+

TMDS_B_TX0-

TMDS_B_TX1+

TMDS_B_TX1-

TMDS_B_TX2+

TMDS_B_TX2-

TMDS_B_TXC+

PEG_TXN0

PEG_TXP0

PEG_TXN2

PEG_TXP2

PEG_TXN1

PEG_TXP1

PEG_TXP15

PEG_TXN15

PEG_TXN14

PEG_TXN4

PEG_TXP4

PEG_TXP3

PEG_TXN3

PEG_TXP8

PEG_TXP7

PEG_TXP6

PEG_TXN6

PEG_TXP5

PEG_TXN7

PEG_TXN5

PEG_TXN8

PEG_TXN10

PEG_TXP10

PEG_TXN11

PEG_TXN12

PEG_TXP11

PEG_TXP12

PEG_TXP9

PEG_TXN9

PEG_TXP13

PEG_TXN13

PEG_TXP14

3D3V_S0

5V_S0

DCBATOUT

1D8V_S0

PM_SLP_S3#16,19,27,30,33,38,39,40

NV_TV_LUMA14 NV_TV_CRMA14

LVDS_TXBOUT0-13 LVDS_TXBOUT1+13 LVDS_TXBOUT1-13 LVDS_TXBOUT2+13 LVDS_TXBOUT2-13

LVDS_TXBOUT0+13

LVDS_TXBCLK-13 LVDS_TXBCLK+13

NV_GREEN14 NV_BLUE14

NV_RED14

NV_HSYNC14 NV_VSYNC14

PLT_RST1#7,16,20,30

CLK_PCIE_PEG#3 CLK_PCIE_PEG3

NV_TV_COMP14

PEG_TXP[15..0]7

PEG_TXN[15..0]7

PEG_RXP[15..0]7

PEG_RXN[15..0]7

NV_DDCCLK14 NV_DDCDAT14

CPUCORE_ON35,38,39

LVDS_TXACLK- 13

NV_LCDVDD_ON 13

NV_BLON 30

LVDS_TXACLK+ 13

LVDS_TXAOUT2- 13

LVDS_TXAOUT2+ 13

LVDS_TXAOUT1- 13

LVDS_TXAOUT1+ 13

LVDS_TXAOUT0- 13

LVDS_TXAOUT0+ 13

NV_EDID_DAT_1 13

NV_EDID_CLK_1 13

MXM_THER33

SMBC_G79219,30

SMBD_G79219,30

NV_DVI_HPD 43

MXM_TMDS_TXC- 43

MXM_TMDS_TXC+ 43

MXM_TMDS_TX0- 43

MXM_TMDS_TX0+ 43

MXM_TMDS_TX2+ 43

MXM_TMDS_TX2- 43

NV_DVI_CLK 43

NV_DVI_DAT 43

MXM_TMDS_TX1+ 43

MXM_TMDS_TX1- 43

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Graphic MXM CONN

A3

26 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Graphic MXM CONN

A3

26 44Tuesday, March 13, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

Graphic MXM CONN

A3

26 44Tuesday, March 13, 2007

<Core Design>

Put near graphic connector

NV SMBus

A(pin143&145) : VGA(CRT) / DOCK

B(pin218&220) : DVI

C(pin208&210) : HDMI / TPI / LVDS

EMI REQUEST

ENG

TP15 TPAD30TP15 TPAD30

TP10 TPAD30TP10 TPAD30

12

R318 0R2J-2-GP

MXM

R318 0R2J-2-GP

MXM

1 2

R113

0R2J-2-GP

MXM

R113

0R2J-2-GP

MXM

1 2

R247

0R3-0-U-GP

NV

R247

0R3-0-U-GP

NV

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

51

53

55

57

59

61

63

65

67

69

71

73

75

77

79

81

83

85

87

89

91

93

95

97

99

101

103

105

107

109

111

113

115

117

119

121

123

125

127

129

131

133

135

137

139

141

143

145

147

149

151

153

155

157

159

161

163

165

167

169

171

173

175

177

179

181

183

185

187

189

191

193

195

197

199

201

203

205

207

209

211

213

215

217

219

221

223

225

227

229

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

82

84

86

88

90

92

94

96

98

100

102

104

106

108

110

112

114

116

118

120

122

124

126

128

130

132

134

136

138

140

142

144

146

148

150

152

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

198

200

202

204

206

208

210

212

214

216

218

220

222

224

226

228

230

231

MH1

MH2

232

MXM1

AMP-CONN230A-GP-U2

MXM 20.F0623.230

MXM1

AMP-CONN230A-GP-U2

MXM 20.F0623.230

12

C230

SCD1U25V3KX-GP

DY

C230

SCD1U25V3KX-GP

DY

TP14 TPAD30TP14 TPAD30

TP16 TPAD30TP16 TPAD30

TP21 TPAD30TP21 TPAD30

TP22 TPAD30TP22 TPAD30

TP9 TPAD30TP9 TPAD30

TP12 TPAD30TP12 TPAD30

12

C502

SC4D7U25V6KX-1GP

DY

C502

SC4D7U25V6KX-1GP

DY

12

R358 0R2J-2-GP

MXM

R358 0R2J-2-GP

MXM

12

R360 0R2J-2-GP

DY

R360 0R2J-2-GP

DY

12

C388

SC10U10V5ZY-1GP

MXM

C388

SC10U10V5ZY-1GP

MXM

TP77TPAD30TP77TPAD30

TP17 TPAD30TP17 TPAD30

1 2

R115

0R2J-2-GP

MXM

R115

0R2J-2-GP

MXM

12

C436

SC100P50V2JN-3GP

DY

C436

SC100P50V2JN-3GP

DY

TP20 TPAD30TP20 TPAD30

TP11 TPAD30TP11 TPAD30

12

C389

SCD1U25V3KX-GP

DY

C389

SCD1U25V3KX-GP

DY

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

TPS2231_PERST#

CPUTSB#

CPPE#

NEWCARD_TEST

CPPE#

CPUTSB# CONN_TP2

CONN_TP1

PCIE_WAKE#_R

TPS2231_PERST#

SMB_DATA_NEW

SMB_CLK_NEW

3D3V_S0

3D3V_NEW_S0

1D5V_NEW_S0

1D5V_S0

NEW_PCIRST1#

MINI_WAKE#

5V_AUX_S5_MINI_1

5V_AUX_S5_MINI

SMB_CLK_MINI

SMB_DATA_MINI

LED_WPAN#

LED_WWAN#

3D3V_NEW_S0

3D3V_NEW_S0 1D5V_NEW_S03D3V_S0 3D3V_NEW_LAN_S5

3D3V_S01D5V_S0

3D3V_S5

3D3V_NEW_LAN_S5

1D5V_NEW_S0

3D3V_S0

3D3V_NEW_S0

1D5V_NEW_S0

1D5V_S0

3D3V_NEW_LAN_S5

3D3V_S5

3D3V_S0

5V_S5

3D3V_S0 1D5V_S0 3D3V_S0

3D3V_S0

3D3V_S5

CLK_PCIE_NEW3 CLK_PCIE_NEW#3

PCIE_RXN316 PCIE_RXP316

USBPN716

USBPP716

PCIE_WAKE#16,22

SMB_DATA16,18 SMB_CLK16,18

PCIE_TXP316 PCIE_TXN316

PM_SLP_S3# 16,19,26,30,33,38,39,40

PM_SLP_S4# 16,30,38,40

PCIRST1#16,22,24

CLK_PCIE_MINI13

CLK_PCIE_MINI1#3

E51_TxD30 E51_RxD30

PCIE_RXN216 PCIE_RXP216

PCIE_TXN216 PCIE_TXP216

WIRELESS_EN 30

PCIRST1# 16,22,24

SMB_CLK 16,18

SMB_DATA 16,18

USBPP4 16

USBPN4 16

WLAN_LED#_MC 13

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

MINI CARD / NEW CARD

27 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

MINI CARD / NEW CARD

27 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

MINI CARD / NEW CARD

27 44Wednesday, March 14, 2007

HURON

SD

<Core Design>

Mini Card Connector

NEWCARD Connector

Reserve the symbol

for bottom side

connector

Place them Near to ConnectorPlace them Near to Chip

Place near MINIC1

ENG

ENG

ENG

ENG

12

C525

SC4D7P50V2CN-1GP

C525

SC4D7P50V2CN-1GP

TP45TP45

1 2

R241

10KR2J-3-GP

DY

R241

10KR2J-3-GP

DY

12

C524

SCD1U16V2ZY-2GP

NEW

C524

SCD1U16V2ZY-2GP

NEW

12

C312

SCD1U16V2ZY-2GP

NEW

C312

SCD1U16V2ZY-2GP

NEW

12

R492

0R2J-2-GP

R492

0R2J-2-GP

1 2

R178 0R2J-2-GP

DY

R178 0R2J-2-GP

DY

12

EC60

SCD1U10V2KX-4GP

DY

EC60

SCD1U10V2KX-4GP

DY

12

C103

SCD1U16V2ZY-2GP

C103

SCD1U16V2ZY-2GP

12

C69

SCD1U16V2ZY-2GP

C69

SCD1U16V2ZY-2GP

TP46TP46

12

C314

SC1U16V3ZY-GP

NEW

C314

SC1U16V3ZY-GP

NEW

1 2

C608 SC4D7P50V2CN-1GPC608 SC4D7P50V2CN-1GP

12

EC59

SCD1U10V2KX-4GP

DY

EC59

SCD1U10V2KX-4GP

DY

12

C395

SC1U16V3ZY-GP

C395

SC1U16V3ZY-GP

GND

7

GND 21

NC#4

4NC#5

5

NC#13 13

NC#14 14

NC#16 16

1_5VIN 12

1_5VOUT 11

3_3VIN

23_3VOUT

3

STBY#

1

SYSRST#

6

PERST#

8CPUSB#

9CPPE#

10

RCLKEN 18

OC# 19

SHDN# 20

AUXIN 17

AUXOUT 15

U46

W83L351YG-GP

NEW

U46

W83L351YG-GP

NEW

12

C392

SC10U6D3V5MX-3GP

DY

C392

SC10U6D3V5MX-3GP

DY

1 2

R385 100KR2J-1-GP

DY

R385 100KR2J-1-GP

DY

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

51

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

NP1

NP2

53

54

MINI1

MINIPCI52P-1-GP-U2

62.10043.331

MINI1

MINIPCI52P-1-GP-U2

62.10043.331

1 2

R379

0R2J-2-GP

R379

0R2J-2-GP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

NP1

NP2

NEW1

FCI-CON26-4-GP-U

62.10081.011

NEW

NEW1

FCI-CON26-4-GP-U

62.10081.011

NEW

TP8 TPAD30TP8 TPAD30

1 2

R77

0R0603-PAD

R77

0R0603-PAD

1 2

SK1

CARDBUS2P-3-GP

21.H0129.001

NEW

SK1

CARDBUS2P-3-GP

21.H0129.001

NEW

12

C95

SC10U6D3V5MX-3GP

DY

C95

SC10U6D3V5MX-3GP

DY

TP55TP55

TP7 TPAD30TP7 TPAD30

12

C375

SC10U6D3V5MX-3GP

DY

C375

SC10U6D3V5MX-3GP

DY

12

R491

0R2J-2-GP

DY

R491

0R2J-2-GP

DY

12

C401

SC1U16V3ZY-GP

C401

SC1U16V3ZY-GP

TP6TPAD30 TP6TPAD30

12

C77

SC10U6D3V5MX-3GP

DY

C77

SC10U6D3V5MX-3GP

DY

12

C61

SCD1U16V2ZY-2GP

C61

SCD1U16V2ZY-2GP

12

R246 0R2J-2-GP

DY

R246 0R2J-2-GP

DY

12

C531

SC1U16V3ZY-GP

NEW

C531

SC1U16V3ZY-GP

NEW

12

R245 0R2J-2-GP

DY

R245 0R2J-2-GP

DY

12

C313

SCD1U16V2ZY-2GP

NEW

C313

SCD1U16V2ZY-2GP

NEW

12

C522

SCD1U16V2ZY-2GP

NEW

C522

SCD1U16V2ZY-2GP

NEW

1 2

R386 100KR2J-1-GP

DY

R386 100KR2J-1-GP

DY

1

2 3

4

RN38

SRN33J-5-GP-U

DY

RN38

SRN33J-5-GP-U

DY

12

R71

0R2J-2-GP

DY

R71

0R2J-2-GP

DY

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

5VA_SET

AUDIP_PC_BEEP

BCLK

ALC861_LINE_IN_R

ALC861_LINE_IN_L

KBC_BEEP_1 AUDIO_BEEP

SPKR_SB_1

MONO-OUT

ALC268_SENSE

ALC_GPIO0

MIC1V_R

MIC1-L_PORT-B

MIC2-L_PORT-F

MIC2-R_PORT-F

MIC1V_L

MIC1-R_PORT-B

JDREF

AC97_DATIN

RESET#

MIC2-VREFO

VREF

SPDIF

SPDIF_ON

ALC_EAPD

5VA_S0

5V_S0

3D3V_S0 5VA_S0

3D3V_S0

ACZ_RST# 15,25

ACZ_SYNC 15,25

ACZ_BITCLK 15

ACZ_SDATAIN0 15

ACZ_SDATAOUT 15,25

LINE_IN_L29 LINE_IN_R29

ACZ_SPKR16

KBC_BEEP30

LINEIN_JD# 29

MIC_JD# 29

LINEOUT_JD# 29

SOUNDR 29

SOUNDL 29

FRONTL 29

FRONTR 29

AUD_MICIN_L29 AUD_MICIN_R29

SPDIF 29

SPDIF_ON 29

INT_MIC1_CN29 INT_MIC2_CN29

G1410_SHDN#29

AMP_SHUTDOWN# 29,30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AZALIA CODEC - ALC268

28 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AZALIA CODEC - ALC268

28 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AZALIA CODEC - ALC268

28 44Wednesday, March 14, 2007

<Core Design>

"VAUX" Pull high to enable standby mode

ALC268

2nd:74.09198.A7F

(RT9198-4GPBG)

ENG

1 2

C586

SC22P50V2JN-4GP

DY

C586

SC22P50V2JN-4GP

DY

1 2

C593

SC1U10V3KX-3GP

C593

SC1U10V3KX-3GP

1 2

C602SC4D7U10V5ZY-3GP C602SC4D7U10V5ZY-3GP

12

R186

20KR2F-L-GP

R186

20KR2F-L-GP

1 2

C573

SC22P50V2JN-4GP

DY

C573

SC22P50V2JN-4GP

DY

12

C595

SC10U10V5ZY-1GP

DY

C595

SC10U10V5ZY-1GP

DY

1

2

3

4 5

6

7

8

RN78

SRN2K2J-2-GP

RN78

SRN2K2J-2-GP

12

R180

0R2J-2-GP

DY

R180

0R2J-2-GP

DY

1 2

C590SC2D2U10V3KX-1GP C590SC2D2U10V3KX-1GP

12

C326

SCD1U10V2KX-4GP

C326

SCD1U10V2KX-4GP

12

R469

10KR2F-2-GP

R469

10KR2F-2-GP

12

C592

SC100P50V2JN-3GP

DY

C592

SC100P50V2JN-3GP

DY

1 2

R458 0R2J-2-GP

R458 0R2J-2-GP

1 2

C603SC4D7U10V5ZY-3GP C603SC4D7U10V5ZY-3GP

12

R460

28K7R2F-GP

R460

28K7R2F-GP

1 2

C574SC1U16V3ZY-GP C574SC1U16V3ZY-GP

1 2

R4640R2J-2-GP

R4640R2J-2-GP

1 2

C594

SC4D7U10V5ZY-3GP

C594

SC4D7U10V5ZY-3GP

12

C569

SC1U10V3ZY-6GP

C569

SC1U10V3ZY-6GP

1 2

C582

SCD47U16V3ZY-3GP

C582

SCD47U16V3ZY-3GP

DVDD 1

DMIC-12/GPIO0

2

DMIC-34/GPIO3

3

DVSS

4

SDATA-OUT 5

BCLK 6

DVSS

7

SDATA-IN 8

DVDD-IO 9

SYNC 10

RESET# 11

PCBEEP 12

SENSE_A 13

NC#14

14

NC#15

15

MIC2-L_PORT-F

16

MIC2-R_PORT-F

17

CD-L

18

CD-G

19 CD-R

20

MIC1-L_PORT-B

21

MIC1-R_PORT-B

22

LINE1-L_PORT-C

23

LINE1-R_PORT-C

24

AVDD1 25

AVSS1

26

VREF

27

MIC1-VREFO-L

28

LINE1-VREFO

29

MIC2-VREFO

30

GPIO1

31

MIC1-VREFO-R

32

NC#33 33

SENSE_B 34

LINE-OUT-L_PORT-D 35

LINE-OUT-R_PORT-D 36

MONO-OUT

37

AVDD2 38

HP-OUT-L_PORT-A 39

JDREF

40

HP-OUT-R_PORT-A 41

AVSS2

42

NC#43 43

NC#44 44

NC#45 45

DMIC-CLK 46

EAPD 47

SPDIFO 48

U26

ALC268-GR-GP

71.00268.00G

U26

ALC268-GR-GP

71.00268.00G

12

C341

SCD47U16V3ZY-3GP

C341

SCD47U16V3ZY-3GP

1 2

C581

SCD47U16V3ZY-3GP

C581

SCD47U16V3ZY-3GP

1 2

C604

SC4D7U10V5ZY-3GP

C604

SC4D7U10V5ZY-3GP

1 2

C587SC2D2U10V3KX-1GP C587SC2D2U10V3KX-1GP

1 2

C580SC1U16V3ZY-GP C580SC1U16V3ZY-GP

12

C579

SC22P50V2JN-4GP

C579

SC22P50V2JN-4GP

1

2

3

4 5

6

7

8

RN79

SRN47KJ-1-GP

RN79

SRN47KJ-1-GP

SHDN#

1

GND

2

IN

3OUT 4

SET 5

U56

G913CF-GP

74.00913.A3F

U56

G913CF-GP

74.00913.A3F

1 2

C588

SC22P50V2JN-4GP

DY

C588

SC22P50V2JN-4GP

DY

12

C345

SC10U10V5ZY-1GP

C345

SC10U10V5ZY-1GP

1 2

R463 39R2J-L-GPR463 39R2J-L-GP

1 2

R480

5K1R2F-2-GP

R480

5K1R2F-2-GP

TP65

TPAD30

TP65

TPAD30

1

2

3

D16

BAW56-7-F-GP

DY

2ND = 83.00056.G11

D16

BAW56-7-F-GP

DY

2ND = 83.00056.G11

12

C584

SC1U10V3KX-3GP

C584

SC1U10V3KX-3GP

1 2

C605

SC4D7U10V5ZY-3GP

C605

SC4D7U10V5ZY-3GP

1 2

R479

20KR2F-L-GP

R479

20KR2F-L-GP

12

C331

SC10U10V5ZY-1GP

C331

SC10U10V5ZY-1GP

12

R473

10KR2J-3-GP

R473

10KR2J-3-GP

2

1

3

D35

BAW56PT-U

83.00056.E11

D35

BAW56PT-U

83.00056.E11

12

C342

SCD1U10V2KX-4GP

C342

SCD1U10V2KX-4GP

1 2

R181

10KR2J-3-GP

DY

R181

10KR2J-3-GP

DY

1 2

R478

10KR2F-2-GP

R478

10KR2F-2-GP

12

R457

10KR2J-3-GP

DY

R457

10KR2J-3-GP

DY

12

C565

SC2D2U6D3V3MX-1-GP

C565

SC2D2U6D3V3MX-1-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

AUD_MIC_R

AUD_MIC_L

AUD_LINE_R

AUD_LINE_L

SPKR_L+1

SPKR_R+1 SPKR_L_A1

L_LINE_IN_1 L_LINE_IN

R_LINE_INR_LINE_IN_1

RIN+

R_LINE_IN

SPKR_R+

SPKR_L+

SPKR_L-

SPKR_R-

L_LINE_IN

GAIN0

GAIN1

LIN+

BYPASS

SPKR_R_A1

GAIN0GAIN1

SPKR_L+

SPKR_R-

SPKR_R+

SPKR_L-

HP_R

1410_VSS

SPKR_R+1

SOUND_R1 HP_R

SOUND_L1

G1410_SHDN#

1410_VSS SPKR_L+1

HP_L

C1P

C1N

3D3V_S0_AU

HP_L

1410_VSS

SPKR_R+1

SPKR_L+1

3D3V_S0_AU

5V_SPDIF_S05V_SPDIF_S0

SOUND_WOFSOUNDR

SOUNDL LINE_W_L

LINE_W_R

SOUND_WOF_1

TVL2462_1O

TVL2462_1N-

TVL2462_1O

TVL2462_1N-_1

TVL2462_L

SOUNDR

SOUNDL

SOUND_WOF

SOUND_WOF_IN-

WOOFER-

AMP_SHUTDOWN#

SOUND_WOF SOUND_WOF_IN+ SOUND_WOF_IN+

WOOFER+

WOOFER-

WOOFER+

WOOFER+

WOOFER+_1

WOOFER-_1

TVL2462_2N+

TVL2462_R

SOUND_WOF

G1442_IN+

AMP_SHUTDOWN#

WOOFER+

G1442_IN+

WOOFER-

SOUND_WOF

INT_MIC1_CN

INT_MIC2_CN

SPKR_R-

SPKR_L+

SPKR_R+

SPKR_L-

WOOFER-_1

WOOFER+_1

5V_S0 5VA_OP_S0

5VA_OP_S0

5VA_OP_S0

3D3V_S0_AU

3D3V_S0_AU

3D3V_S0

5V_S0

5V_S0

2D5V_S0

2D5V_S0

5V_S0

5V_S0

5V_S0

AUD_MICIN_R28

AUD_MICIN_L28

LINE_IN_R28

LINE_IN_L28

MIC_JD#28

LINEIN_JD#28

SOUNDL28

SOUNDR28

AMP_SHUTDOWN# 28,30

LINEOUT_JD#28

SPDIF28

FRONTL28

FRONTR28

SPDIF_ON

28

AMP_SHUTDOWN#28,30

G1410_SHDN#28

INT_MIC2_CN28

INT_MIC1_CN28

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AUDIO AMP AND JACK

29 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AUDIO AMP AND JACK

29 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

AUDIO AMP AND JACK

29 44Thursday, March 15, 2007

<Core Design>

Internal Speaker

LINE OUT

MIC IN

LINE IN

KBC_MUTE_GPIO8

Internal Microphone

AUDIO OP AMPLIFIER

Tahoe

SB:U30 trace modify

R,L 2W Speaker

SUBWOOFER CONN. SUBWOOFER AMP.

ENG

ENG

ENG

ENG

ENG

ENG

ENG

12

EC92

SC680P50V2KX-2GP

EC92

SC680P50V2KX-2GP

1 2

C17 SC1U16V3ZY-GPC17 SC1U16V3ZY-GP

12

EC1

SCD1U16V2ZY-2GP

EC1

SCD1U16V2ZY-2GP

12

C13

SC1U16V3ZY-GP

C13

SC1U16V3ZY-GP

OUT

1

IN

2

C1-

3GND 4

SHDN# 5

C1+ 6

U24

G5930TBU-GP

74.05930.07P

U24

G5930TBU-GP

74.05930.07P

12

C329

SC22P50V2JN-4GP

C329

SC22P50V2JN-4GP

1 2

G47

GAP-CLOSE-PWR

G47

GAP-CLOSE-PWR

12

R14

10KR2J-3-GP

DY

R14

10KR2J-3-GP

DY

1 2

R185

10KR2J-3-GP

R185

10KR2J-3-GP

1 2

C601

SCD47U10V3KX-3GP

C601

SCD47U10V3KX-3GP

12

R459

0R2J-2-GP

DY

R459

0R2J-2-GP

DY

1 2

R18

0R2J-2-GP

DY

R18

0R2J-2-GP

DY

12

R200

10KR2J-3-GP

DY

R200

10KR2J-3-GP

DY

12

C15

SC4D7U10V5ZY-3GP

C15

SC4D7U10V5ZY-3GP

12

R19310KR2J-3-GP

DY

R19310KR2J-3-GP

DY

1 2

R187

10KR2J-3-GP

R187

10KR2J-3-GP

12

C600

SCD047U10V2KX-2GP

DY

C600

SCD047U10V2KX-2GP

DY

1 2

R199

1KR2F-3-GP

R199

1KR2F-3-GP

12

EC66

SC1KP50V2KX-1GP

DY

EC66

SC1KP50V2KX-1GP

DY

1 2

C591

SC2D2U10V3KX-1GP

DY

C591

SC2D2U10V3KX-1GP

DY

12

C589

SC1D5U25V5KX-5GP

DY

C589

SC1D5U25V5KX-5GP

DY

12

C330

SC4D7U6D3V3MX-2GP

C330

SC4D7U6D3V3MX-2GP

1 2

R476

100R2J-2-GP

DY

R476

100R2J-2-GP

DY

1 2

R192 22R2J-2-GPR192 22R2J-2-GP

1 2

R452

30KR2F-GP

DY

R452

30KR2F-GP

DY

1 2

R482

100KR2F-L1-GP

DY

R482

100KR2F-L1-GP

DY

1 2

R194 1KR2F-3-GPR194 1KR2F-3-GP

12

R197

10KR2J-3-GP

DY

R197

10KR2J-3-GP

DY

1 2

R188

20KR2F-L-GP

R188

20KR2F-L-GP

1 2

C18 SC1U16V3ZY-GP

C18 SC1U16V3ZY-GP

1 2

R481

1KR2J-1-GP

DY

R481

1KR2J-1-GP

DY

1 2

R477

18KR2F-GP

R477

18KR2F-GP

TP101TPAD28 TP101TPAD28

1 2

R198

1KR2F-3-GP

R198

1KR2F-3-GP

12

C14

SC4D7U10V5ZY-3GP

C14

SC4D7U10V5ZY-3GP

1 2

C333

SC47P50V2JN-3GP

C333

SC47P50V2JN-3GP

1 2

R184

0R2J-2-GP

R184

0R2J-2-GP

TP102TPAD28 TP102TPAD28

12

EC6

CDS2C16GTH-GP

EC6

CDS2C16GTH-GP

12

C597

SCD047U10V2KX-2GP

DY

C597

SCD047U10V2KX-2GP

DY

1

2

3

4

5

6

INTMIC1

ACES-CON4-GP

20.F0714.004

INTMIC1

ACES-CON4-GP

20.F0714.004

12

EC63

SC1KP50V2KX-1GP

DY

EC63

SC1KP50V2KX-1GP

DY

1

23

4

RN40

SRN1KJ-7-GP

DY

RN40

SRN1KJ-7-GP

DY

SHUTDOWN#

1

BYPASS

2

IN+

3

IN-

4VO1 5

VDD 6

GND 7

VO2 8

GND

9

U27

G1442RD1U-GP

U27

G1442RD1U-GP

TP100TPAD28 TP100TPAD28

1 2

R201 22R2J-2-GPR201 22R2J-2-GP

12

R466

0R0402-PAD

R466

0R0402-PAD

1 2

C334 SC3300P50V2KX-1GPC334 SC3300P50V2KX-1GP

12

R455

0R0402-PAD

R455

0R0402-PAD

1 2

G42

GAP-CLOSE-PWR

G42

GAP-CLOSE-PWR

12

C343

SC680P50V2KX-2GP

C343

SC680P50V2KX-2GP

TP99TPAD28 TP99TPAD28

1 2

C598

SCD47U10V3KX-3GP

C598

SCD47U10V3KX-3GP

1 2

R16

0R2J-2-GP

R16

0R2J-2-GP

5

4

1

NP1

NP2

2

3

6

MICIN1

PHONE-JK273-GP-U

22.10133.C81

MICIN1

PHONE-JK273-GP-U

22.10133.C81

1 2

C332

SC1U10V3ZY-6GP

C332

SC1U10V3ZY-6GP

12

EC98

SCD1U16V2ZY-2GP

EC98

SCD1U16V2ZY-2GP

1 2

C596

SC1U10V2KX-1GP

DY

C596

SC1U10V2KX-1GP

DY

1 2

R195 1KR2F-3-GPR195 1KR2F-3-GP

1 2

R484

18KR2F-GP

R484

18KR2F-GP

1 2

C337

SC47P50V2JN-3GP

C337

SC47P50V2JN-3GP

TP98TPAD28 TP98TPAD28

1 2

R190

20KR2F-L-GP

R190

20KR2F-L-GP

OUTL 5

SVSS 6

OUTR 7

INR 8

NC#9 9

NVDD 10

NC#11 11

NC#12 12

PGND

13

NC#14

14

PVDD

15

SHDNL#

16

GND

17

SHDNR#

1

SGND

2

SVDD

3

INL

4

U25

G1412R41U-GP

74.01412.0E3

U25

G1412R41U-GP

74.01412.0E3

12

C585

SC1U10V2KX-1GP

DY

C585

SC1U10V2KX-1GP

DY

OUT 1

GND 2

NC#3 3

ON/OFF#

4

IN

5

U57

AAT4250IGV-T1-GP

74.04250.A3F

U57

AAT4250IGV-T1-GP

74.04250.A3F

1 2

C344 SC4D7U6D3V3MX-2GPC344 SC4D7U6D3V3MX-2GP

1 2

R472

1KR2J-1-GP

DY

R472

1KR2J-1-GP

DY

SHUTDOWN 1

BYPASS 2

IN+

3IN-

4

VO+

5

VDD

6

GND 7

VO-

8

GND 9

U55

APA3010XAI-TRLGP

DY

U55

APA3010XAI-TRLGP

DY

1 2

R475

100KR2F-L1-GP

DY

R475

100KR2F-L1-GP

DY

TP97TPAD28 TP97TPAD28

12

C578

SCD1U16V2ZY-2GP

C578

SCD1U16V2ZY-2GP

1 2

R19

15KR2J-1-GP

R19

15KR2J-1-GP

1 2

R20

15KR2J-1-GP

R20

15KR2J-1-GP

1 2

R456

10KR2F-2-GP

DY

R456

10KR2F-2-GP

DY

12

EC4

CDS2C16GTH-GP

EC4

CDS2C16GTH-GP

12

C340

SC680P50V2KX-2GP

C340

SC680P50V2KX-2GP

1 2

R189

18KR2F-GP

R189

18KR2F-GP

12

EC5

CDS2C16GTH-GP

EC5

CDS2C16GTH-GP

1 2

C339 SC3300P50V2KX-1GPC339 SC3300P50V2KX-1GP

1 2

C577

SCD1U16V2KX-3GP

C577

SCD1U16V2KX-3GP

5

4

1

NP1

NP2

2

3

6

LIN1

PHONE-JK274-GP-U

22.10133.C91

LIN1

PHONE-JK274-GP-U

22.10133.C91

12

EC2

SCD1U16V2ZY-2GP

EC2

SCD1U16V2ZY-2GP

12

EC3

CDS2C16GTH-GP

EC3

CDS2C16GTH-GP

1

2

3

4

5

6

SPKR1

ACES-CON4-GP

20.F0714.004

SPKR1

ACES-CON4-GP

20.F0714.004

GND 1

GAIN0

2

GAIN1

3

LOUT+ 4

LIN-

5

PVDD

6

RIN+

7LOUT- 8

LIN+

9

BYPASS 10

GND 11

NC#12

12

GND 13

ROUT- 14

PVDD

15

VDD

16

RIN-

17

ROUT+ 18

SHUTDOWN# 19

GND 20

GND 21

U3

G1431F2U-GP

74.01431.A1G

U3

G1431F2U-GP

74.01431.A1G

1 2

C576

SCD1U10V2KX-4GP

DY

C576

SCD1U10V2KX-4GP

DY

12

C328

SC2D2U10V3KX-1GP

C328

SC2D2U10V3KX-1GP

12

EC65

SC1KP50V2KX-1GP

DY

EC65

SC1KP50V2KX-1GP

DY

12

C338

SC2D2U10V3KX-1GP

C338

SC2D2U10V3KX-1GP

TP96TPAD28 TP96TPAD28

1 2

R17

0R2J-2-GP

DY

R17

0R2J-2-GP

DY

1 2

C19

SCD22U10V3KX-GP

C19

SCD22U10V3KX-GP

1 2

C324

SC4D7U10V5ZY-3GP

C324

SC4D7U10V5ZY-3GP

1 2

R485

100KR2F-L1-GP

DY

R485

100KR2F-L1-GP

DY

1 2

R15

0R2J-2-GP

R15

0R2J-2-GP

1 2

C570

SC10U6D3V5MX-3GP

C570

SC10U6D3V5MX-3GP

12

C564

SC3300P50V2KX-1GP

DY

C564

SC3300P50V2KX-1GP

DY

TP95TPAD28 TP95TPAD28

12

EC64

SC1KP50V2KX-1GP

DY

EC64

SC1KP50V2KX-1GP

DY

1 2

C336

SC1U10V3ZY-6GP

C336

SC1U10V3ZY-6GP

12

C575

SCD015U25V2KX-GP

DY

C575

SCD015U25V2KX-GP

DY

1 2

C20

SCD22U10V3KX-GP

C20

SCD22U10V3KX-GP

12

C335

SC2D2U10V3KX-1GP

DY

C335

SC2D2U10V3KX-1GP

DY

12

C325

SC1U16V3ZY-GP

C325

SC1U16V3ZY-GP

3

4

1

2

SPKR2

ETY-CON2-5-GP-U

20.D0196.102

SPKR2

ETY-CON2-5-GP-U

20.D0196.102

1 2

C16 SC1U16V3ZY-GP

C16 SC1U16V3ZY-GP

12

EC91

SC680P50V2KX-2GP

EC91

SC680P50V2KX-2GP

1 2

R483

100R2J-2-GP

DY

R483

100R2J-2-GP

DY

12

R13

10KR2J-3-GP

DY

R13

10KR2J-3-GP

DY

1 2

C327

SC680P50V2KX-2GP

C327

SC680P50V2KX-2GP

12

R19610KR2J-3-GP

DY

R19610KR2J-3-GP

DY

1 2

R191

10KR2J-3-GP

R191

10KR2J-3-GP

2

3

5

4

1

8

9

6

7

16

NP1

NP2

VIN

VCC

GND

LOUT1

PHONE-JK237-GP-U4

22.10205.251

VIN

VCC

GND

LOUT1

PHONE-JK237-GP-U4

22.10205.251

1OUT

1

1IN-

2

1IN+

3

GND

42IN+ 5

2IN- 6

2OUT 7

VDD+ 8

U58

TLV2462CDGK-GP

DY

U58

TLV2462CDGK-GP

DY

A

A

4 4

3 3

2 2

1 1

ECRST#

THER_SDA

THER_SCL

PCLK_KBC_RC

KBRCIN#

KA20GATE

THER_SCL

THER_SDA

VCORF

CAP_LED#

ECSWI#

SPICLK_1

SPIDO_1

CHG_I_PWM

CHG_VCTL1

NUM_LED#

IRRX1

ECRST#

VBAT

KBC_XI

KBC_XO

KCOL1

E51_RxD

E51_TxD

KCOL7

KCOL6

KCOL3

KCOL4

KCOL1

KCOL8

KCOL5

KCOL2

KCOL9

KCOL10

KCOL12

KCOL15

KCOL11

KCOL16

KCOL14

KCOL13

KROW1

KROW4

KROW7

KROW8

KROW3

KROW6

KROW2

KROW5

1394_DETECT

IRTX

KCOL17

KCOL18

PLT_RST1#_1

VBAT

NV_BLON

KBC_PWRBTN#

KBRCIN#

KA20GATE

BLUETOOTH_EN

S5_ENABLE

ENERGY_DET

CHG_3S_4S#

E51_RxD

E51_TxD

AD_IA MAIL#

INTERNET#

DC_BATFULL

KBC_CIR

CHG_ON#

KBC_MATRIX0#

DVR_1

DVR_0

KBC_MATRIX0#1394_DETECT

THER_SDA

BAT_SCL

E51_TxD

THER_SCL

BAT_SDA

KBC_CIR_1

CHG_VCTL0

KBC_XO_1

DVR_0_C

DVR_1_C DVR_1

DVR_0

ECSCI#_KBC

ECSCI#_KBC

ECSWI#

5V_AUX_S5

3D3V_S0

3D3V_S0

3D3V_S0

3D3V_S0 3D3V_AUX_S5

3D3V_S0

3D3V_AUX_S5

5V_AUX_S5

3D3V_AUX_S53D3V_S0

3D3V_AUX_S5

3D3V_S0

3D3V_AUX_S5

3D3V_S0

3D3V_AUX_S5

SMBD_G792 19,26

SMBC_G792 19,26

LPC_LAD015 LPC_LAD115 LPC_LAD215 LPC_LAD315

LPC_LFRAME#15

PLT_RST1#7,16,20,26

INT_SERIRQ16 PM_CLKRUN#16,24

PCLK_KBC3

BAT_SCL41,42 BAT_SDA41,42

TPDATA31

S5_ENABLE31,33,37

RSMRST#_KBC 16

BLON_OUT 13

NV_BLON 26

BRIGHTNESS13

AC_IN# 41

LID_CLOSE# 31

SPICS#32

TPCLK31

PM_SLP_S3# 16,19,26,27,33,38,39,40

PM_PWRBTN# 16,31

PWR_G_LED 13

BLUETOOTH_EN21

SPIDI32

KROW[1..8] 31

KCOL[1..18] 31

GMCH_BL_ON7

WIRELESS_EN27

PM_SLP_S4#16,27,38,40

LDRQ0# 15

KBC_PWRBTN# 31

NUM_LED# 31

CAP_LED# 31

CRT_DEC# 14

BAT_IN#42

AD_OFF 42

WLAN_TEST_LED 13

E51_RxD27 E51_TxD27

PWR_O_LED 13

CHARGE_LED 13

RSMRST#19

AD_IA 41

MAIL# 31

INTERNET# 31

DC_BATFULL13

E-BUTTON#31

AMP_SHUTDOWN#28,29

USB_PWR_EN# 21

BT_BTN# 31

WIRELESS_BTN# 31

L-line_LED 31

KBRCIN#15 KA20GATE15

Media_DATA31 Media_CLK31

A_BTN#31

BT_LED 13

ECSCI#_116

ENERGY_DET 22

LOW_PWR22

CCD_ON13

ECSWI#_116

SPICLK32

SPIDO32

THRMTRIP#_KBC 33

KBC_BEEP28

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

KBC WPC8768L

Custom

30 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

KBC WPC8768L

Custom

30 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

KBC WPC8768L

Custom

30 44Wednesday, March 14, 2007

<Core Design>

FOR KBC DEBUG

THERMAL----->

BATTERY----->

C533,C534 colse to Pin VDD C535,C536 colse to Pin102

Tahoe

Tahoe

Big KB(17")

Small KB (Biwa)

H

L

Ver.SB

ENG

TP78TPAD28 TP78TPAD28

12

R378

10KR2J-3-GP

NO_1394

R378

10KR2J-3-GP

NO_1394

12

EC96

SC4D7P50V2CN-1GP

EC96

SC4D7P50V2CN-1GP

1

2

3

4

NP1

NP2

5

VR1

VR-10M-GP-U

17.10131.106

VR1

VR-10M-GP-U

17.10131.106

1 2

R394

150R2J-L1-GP-U

R394

150R2J-L1-GP-U

1

2

3

45

6

7

8

RN76

SRN10KJ-6-GP

RN76

SRN10KJ-6-GP

12

C547

SC39P50V2JN-1GP

C547

SC39P50V2JN-1GP

TP58TPAD28 TP58TPAD28

1 2

R444

0R0603-PAD

R444

0R0603-PAD

12

C317

SC1U10V3KX-3GP

C317

SC1U10V3KX-3GP

1 2

R43110KR2J-3-GP

DY

R43110KR2J-3-GP

DY

12

C318

SCD1U16V2ZY-2GP

C318

SCD1U16V2ZY-2GP

1 2

R43010KR2J-3-GP R43010KR2J-3-GP

1 2

C555

SC4D7P50V2CN-1GP

DY

C555

SC4D7P50V2CN-1GP

DY

12

R396

10KR2J-3-GP

DY

R396

10KR2J-3-GP

DY

1

2

3

4 5

6

7

8

RN73

SRN4K7J-10-GP

RN73

SRN4K7J-10-GP

1

2

3

D33

BAS16-1-GP

D33

BAS16-1-GP

TP67TPAD28 TP67TPAD28

12

C321

SCD1U16V2ZY-2GP

C321

SCD1U16V2ZY-2GP

1

2

34

5

6

Q16

2N7002DW-1-GP

Q16

2N7002DW-1-GP

12

C527

SC15P50V2JN-2-GP

C527

SC15P50V2JN-2-GP

TP83TPAD28 TP83TPAD28

12

R421

10KR2J-3-GP

DY

R421

10KR2J-3-GP

DY

12

R415

10KR2J-3-GP

DY

R415

10KR2J-3-GP

DY

1 2

R390

10MR2J-L-GP

R390

10MR2J-L-GP

12

C323

SC1U16V3ZY-GP

C323

SC1U16V3ZY-GP

12

R468

10KR2J-3-GP

R468

10KR2J-3-GP

12

C315

SCD1U16V2ZY-2GP

C315

SCD1U16V2ZY-2GP

12

C322

SCD1U16V2ZY-2GP

C322

SCD1U16V2ZY-2GP

12

C559

SC10U10V5ZY-1GP

DY

C559

SC10U10V5ZY-1GP

DY

12

C541

SCD1U16V2ZY-2GP

C541

SCD1U16V2ZY-2GP

12

R38

10KR2J-3-GP

R38

10KR2J-3-GP

12

C542

SCD1U16V2ZY-2GP

DY

C542

SCD1U16V2ZY-2GP

DY

1 2

R405

10KR2J-3-GP

R405

10KR2J-3-GP

12

C521

SCD1U16V2ZY-2GP

C521

SCD1U16V2ZY-2GP

12

R410

10KR2J-3-GP

R410

10KR2J-3-GP

12

R467

10KR2J-3-GP

R467

10KR2J-3-GP

12

C548

SC10U10V5ZY-1GP

C548

SC10U10V5ZY-1GP

1 2

R402

150R2J-L1-GP-U

R402

150R2J-L1-GP-U

32KX1/32KCLKIN

77

32KX2

79

CLKOUT/GPIO55

30

TB1/GPIO14/HGPIO04

63

TA2/GPIO20

117

TA1/GPIO56

31

A_PWM0

32

A_PWM1/GPIO21

118

B_PWM0/GPIO13

62

KBSOUT0/JENK# 53

KBSOUT1/TCK 52

KBSOUT2/TMS 51

KBSOUT3/TDI 50

KBSOUT4 49

KBSOUT5/TDO 48

KBSOUT6/RDY# 47

KBSOUT7 43

KBSOUT8 42

KBSOUT9 41

KBSOUT10 40

KBSOUT11 39

KBSOUT12/GPIO64 38

KBSOUT13/GPIO63 37

KBSOUT14/GPIO62 36

KBSOUT15/GPIO61/XOR_OUT 35

KBSOUT16/GPIO60 34

KBSOUT17/GPIO57/HGPIO03 33

PSDAT3/GPIO12

13

PSCLK3/GPIO25

12

PSDAT2/GPIO27

11

PSCLK2/GPIO26

10

PSDAT1

71

PSCLK1

72

F_SDI

86

F_SDO

87

F_CS0#

90

F_SCK

92

KBSIN0 54

KBSIN1 55

KBSIN2 56

KBSIN3 57

KBSIN4 58

KBSIN5 59

KBSIN6 60

KBSIN7 61

VCC_POR# 85

KBC

FIU

PS/2

2 OF 2

U47B

WPC8768LDG-GP

71.08768.00G

KBC

FIU

PS/2

2 OF 2

U47B

WPC8768LDG-GP

71.08768.00G

12

C558

SC10U10V5ZY-1GP

C558

SC10U10V5ZY-1GP

12

C571

SC100P50V2JN-3GP

C571

SC100P50V2JN-3GP

12

R380

10KR2J-3-GP

R380

10KR2J-3-GP

TP59TPAD28 TP59TPAD28

12

C572

SC100P50V2JN-3GP

C572

SC100P50V2JN-3GP

12

R395 0R2J-2-GP

UMA

R395 0R2J-2-GP

UMA

1

23

4

X5

X-32D768KHZ-38GPU

82.30001.691

X5

X-32D768KHZ-38GPU

82.30001.691

VREF 104

AD0/GPI90 97

AD1/GPI91 98

AD2/GPI92 99

AD3/GPI93 100

AD4/GPIO05 108

AD5/GPIO04 96

DA0/GPI94 101

DA1/GPI95 105

DA2/GPI96 106

DA3/GPI97 107

GPIO01 64

GPIO03 95

GPIO06/HGPIO06 93

GPIO07/HGPIO07 94

GPIO23 119

LDRQ#/GPIO24/HGPIO01 6

GPIO30 109

GPIO31 120

GPIO32 65

GPIO33 66

GPIO40 16

GPIO42/TCK 17

GPIO43/TMS 20

GPIO44/TDI 21

GPIO45 22

GPIO46/TRST# 23

GPIO47/JEN0# 24

GPIO50/TDO 25

GPIO51 26

GPIO52/RDY# 27

GPIO53 28

IRRX2_IRSL0/GPIO70 73

IRTX/GPIO71 74

IRRX1/GPIO72 75

GPIO82/HGPIO00/TRIS# 110

LPCPD#/GPIO10/HGPIO00

124

LRESET#

7

LCLK

2

LFRAME#

3

LAD0

126

LAD1

127

LAD2

128

LAD3

1

SERIRQ

125

CLKRUN#/GPIO11/HGPIO02

8

KBRST#

122

GA20

121

ECSCI#

29

SMI#

9

PWUREQ#

123

SDA2

68

SCL2

67

SDA1

69

SCL1

70

SWD/GPIO66

81

SPI_DI/GPIO77

84

SPI_DO/GPIO76/SHBM

83

SPI_SCK/GPIO75

82

GPIO81

91

SOUT_CR/GPIO83/BADDR1

111

SIN_CR/CIRRX/GPIO87

113

GPIO84/HGPIO01/BADDR0

112

CIRTX/GPIO16/HGPIO04

114

GPIO34/CIRRX2

14

GPIO36

15

VCORF

44

GND

116 GND

89 GND

78 GND

45 GND

18 GND

5

AGND

103

VCC 115

VCC 88

VCC 76

VCC 46

VCC 19

AVCC 102

VDD 4

VBAT 80

LPC

SER/IR

SPI GPIO

A/D

D/A

SP

SMB

1 OF 2

U47A

WPC8768LDG-GP

71.08768.00G

LPC

SER/IR

SPI GPIO

A/D

D/A

SP

SMB

1 OF 2

U47A

WPC8768LDG-GP

71.08768.00G

1 2

R462

100R2F-L1-GP-U

R462

100R2F-L1-GP-U

1 2

EC94 SCD1U16V2KX-3GP

DY

EC94 SCD1U16V2KX-3GP

DY

TP60TPAD28 TP60TPAD28

12

C528

SC15P50V2JN-2-GP

C528

SC15P50V2JN-2-GP

1 2

R384

10MR2J-L-GP

R384

10MR2J-L-GP

TP66TPAD28 TP66TPAD28

12

C520

SCD1U16V2ZY-2GP

C520

SCD1U16V2ZY-2GP

TP56 TPAD28TP56 TPAD28

TP62TPAD28 TP62TPAD28

TP57 TPAD28TP57 TPAD28

1 2

R41610KR2J-3-GP

DY

R41610KR2J-3-GP

DY

1

2

3

45

6

7

8

RN77

SRN10KJ-6-GP

RN77

SRN10KJ-6-GP

1 2

R413

33R2F-3-GP

R413

33R2F-3-GP

1 2

R377

10KR2J-3-GP

1394

R377

10KR2J-3-GP

1394

12 R373 10KR2J-3-GP

DY

R373 10KR2J-3-GP

DY

1 2

R427

0R2J-2-GP

DY

R427

0R2J-2-GP

DY

1

2

3

D34

BAS16-1-GP

D34

BAS16-1-GP

C

B

E

Q4

MMBT3906-3-GP

Q4

MMBT3906-3-GP

1 2

R461

100R2F-L1-GP-U

R461

100R2F-L1-GP-U

12

R391

33KR2J-3-GP

R391

33KR2J-3-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

KROW[1..8]

KCOL[1..18]

KCOL3

KCOL18

KROW3

KROW5

KROW8

KROW1

KROW2

KROW4

KROW6

KROW7

KCOL9

KCOL7

KCOL5

KCOL8

KCOL4

KCOL6

KCOL11

KCOL12

KCOL3

KCOL1

KCOL2

KCOL10

KCOL16

KCOL14

KCOL13

KCOL15

KCOL17

KCOL18

KCOL17

COVER_SW#

KROW6

KROW5

KROW4

KROW3

KROW2

KROW1

KCOL4

KCOL2

KCOL1

KROW7

KROW8

KCOL8

KCOL7

KCOL5

KCOL6

KCOL9

KCOL11

KCOL12

KCOL10

KCOL14

KCOL15

KCOL16

KCOL13

TP_RIGHTTP_SCROLL_LEFT

TP_SCROLL_UP

TP_SCROLL_DOWN

TP_SCROLL_RIGHTTP_LEFT

WLAN_LED#

INTERNET#

BT_BTN#

WIRELESS_BTN#

BT_LED#

MAIL#

A_BTN#_CN

L-line_LED#

INTERNET#

MAIL#

E-BUTTON#

KBC_PWRBTN#_CN

NUM_LED#

CAP_LED#

L-line_LED#

A_BTN#_CN

MEDIA_LED#

PWRLED#_DB

STDBY_LED#_DB

NUM_LED#

KBC_PWRBTN#_CN

MEDIA_LED#

CAP_LED#

L-line_LED#

KBC_PWRBTN#_CN

E-BUTTON#

MEDIA_LED#

A_BTN#_CN

E-BUTTON#

TP_LEFT

TP_SCROLL_DOWN

TP_SCROLL_LEFT

TP_SCROLL_UP

TP_SCROLL_RIGHT

TP_RIGHT

BT_LED#

WLAN_LED#

INTERNET#

MAIL#

TP_DATA

TP_CLK

Media_DATA

Media_CLK

WIRELESS_BTN#

BT_BTN#

TP_LEFT

TP_SCROLL_DOWN

TP_SCROLL_LEFT

TP_SCROLL_UP

TP_SCROLL_RIGHT

TP_RIGHT

TP_CLK

TP_DATA

5V_S5

3D3V_AUX_S5

3D3V_S5

3D3V_S0

3D3V_AUX_S5

3D3V_S0

5V_S0

3D3V_AUX_S5

3D3V_AUX_S5

3D3V_S0

3D3V_S0

3D3V_S0

5V_S0

5V_S5

5V_S0

5V_S0

5V_S0

KROW[1..8] 30

KCOL[1..18] 30

LID_CLOSE# 30

S5_ENABLE30,33,37

H_CPURST#4,6

PM_PWRBTN#16,30

H_PWRGD4,15,33

ODD_LED#20

SATA_LED#15

BT_BTN#30

WIRELESS_BTN#30

Media_DATA 30

Media_CLK 30

INTERNET#30

WLAN_LED#13 BT_LED#13

MAIL#30

L-line_LED30

PWRLED#_DB 13

STDBY_LED#_DB 13

NUM_LED# 30

CAP_LED# 30

E-BUTTON# 30

A_BTN# 30

KBC_PWRBTN# 30

TPCLK30 TPDATA30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BUTTONs / KB / TOUCHPAD

31 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BUTTONs / KB / TOUCHPAD

31 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

BUTTONs / KB / TOUCHPAD

31 44Wednesday, March 14, 2007

<Core Design>

Internal KeyBoard CONN

Cover Up Switch

125

........

EMI Bypass cap.

CHECK KB SPEC. AND PIN DEFINE

Check test point

Test Point放在Dimm Door打開可量測處

SCROLL KEY

Tahoe

ENG

ENG

ENG

12

R425

10KR2J-3-GP

R425

10KR2J-3-GP

1 2

EC28 SC220P50V2JN-3GPEC28 SC220P50V2JN-3GP

1 2

43

5

SCRL1

SW-TACT-45-U1-GP

62.40009.341

SCRL1

SW-TACT-45-U1-GP

62.40009.341

2 1

G96

GAP-OPEN

G96

GAP-OPEN

1 2

EC30 SC220P50V2JN-3GPEC30 SC220P50V2JN-3GP

1

2 3

4

RN36

SRN100J-3-GP

RN36

SRN100J-3-GP

TP79 TPAD30TP79 TPAD30

1 2

43

5

RIGHT1

SW-TACT-45-U1-GP

62.40009.341

RIGHT1

SW-TACT-45-U1-GP

62.40009.341

1 2

EC58 SC220P50V2JN-3GP

DY

EC58 SC220P50V2JN-3GP

DY

1 2

EC57 SC220P50V2JN-3GP

DY

EC57 SC220P50V2JN-3GP

DY

1

2

3

4

5

6

7

8

9

10

11

12

13

14

LAUNCHCN1

ACES-CON12-GP

20.K0174.012

LAUNCHCN1

ACES-CON12-GP

20.K0174.012

12

C3

SCD22U16V3KX-2-GP

C3

SCD22U16V3KX-2-GP

TP103TPAD28 TP103TPAD28

1 2

EC80SC100P50V2JN-3GP

DY

EC80SC100P50V2JN-3GP

DY

1 2

EC78SC100P50V2JN-3GP

DY

EC78SC100P50V2JN-3GP

DY

TP134TPAD28 TP134TPAD28

12

R59

10KR2J-3-GP

R59

10KR2J-3-GP

1 2

EC8SC100P50V2JN-3GP

DY

EC8SC100P50V2JN-3GP

DY

1 2

EC35 SC220P50V2JN-3GPEC35 SC220P50V2JN-3GP

1 2

EC54 SC220P50V2JN-3GP

DY

EC54 SC220P50V2JN-3GP

DY

1 2

43

5

SCRL3

SW-TACT-45-U1-GP

62.40009.341

SCRL3

SW-TACT-45-U1-GP

62.40009.341

TP136TPAD28 TP136TPAD28

TP130TPAD28 TP130TPAD28

TP105TPAD28 TP105TPAD28

12

R418

10KR2J-3-GP

R418

10KR2J-3-GP

TP129TPAD28 TP129TPAD28

1 2

EC46 SC220P50V2JN-3GPEC46 SC220P50V2JN-3GP

TP104TPAD28 TP104TPAD28

1 2

EC85SC100P50V2JN-3GP

DY

EC85SC100P50V2JN-3GP

DY

TP137TPAD28 TP137TPAD28

1 2

EC86SC100P50V2JN-3GP

DY

EC86SC100P50V2JN-3GP

DY

1 2

EC33 SC220P50V2JN-3GPEC33 SC220P50V2JN-3GP

TP138TPAD28 TP138TPAD28

TP106TPAD28 TP106TPAD28

12

C543

SCD1U16V2ZY-2GP

C543

SCD1U16V2ZY-2GP

1 2

EC47 SC220P50V2JN-3GPEC47 SC220P50V2JN-3GP

TP140TPAD28 TP140TPAD28

12

C224

SC1U16V3ZY-GP

C224

SC1U16V3ZY-GP

TP108TPAD28 TP108TPAD28

TP139TPAD28 TP139TPAD28

12

C540

SCD1U16V2ZY-2GP

C540

SCD1U16V2ZY-2GP

1 2

EC34 SC220P50V2JN-3GPEC34 SC220P50V2JN-3GP

TP141TPAD28 TP141TPAD28

2

1

3

IN

OUT

GND

R1

R2

Q23

CHDTC143ZUPT-GP

84.00143.B1K

IN

OUT

GND

R1

R2

Q23

CHDTC143ZUPT-GP

84.00143.B1K

2

1

3

D25

BAW56PT-U

83.00056.E11

D25

BAW56PT-U

83.00056.E11

1 2

EC52 SC47P50V2JN-3GP

DY

EC52 SC47P50V2JN-3GP

DY

1 2

R417

470R2J-2-GP

R417

470R2J-2-GP

1 2

EC45 SC220P50V2JN-3GPEC45 SC220P50V2JN-3GP

TP133TPAD28 TP133TPAD28

1 2

EC25 SC220P50V2JN-3GPEC25 SC220P50V2JN-3GP

1

2 3

4

RN37

SRN10KJ-5-GP

RN37

SRN10KJ-5-GP

TP142TPAD28 TP142TPAD28

1 2

R420

470R2J-2-GP

R420

470R2J-2-GP

TP63 TPAD30TP63 TPAD30

TP146TPAD28 TP146TPAD28

1 2

EC32 SC220P50V2JN-3GPEC32 SC220P50V2JN-3GP

TP119TPAD28 TP119TPAD28

TP110TPAD28 TP110TPAD28

TP151TPAD28 TP151TPAD28

1

2

3

4 5

6

7

8

RN75

SRN10KJ-6-GP

RN75

SRN10KJ-6-GP

1 2

EC26 SC220P50V2JN-3GPEC26 SC220P50V2JN-3GP

TP118TPAD28 TP118TPAD28

1 2

EC44 SC220P50V2JN-3GPEC44 SC220P50V2JN-3GP

1

2

3

4

5

6

7

8

9

10

MEDIA1

ACES-CON8-6-GP

20.K0238.008

MEDIA1

ACES-CON8-6-GP

20.K0238.008

12

C385

SC1U16V3ZY-GP

C385

SC1U16V3ZY-GP

1 2

EC48 SC220P50V2JN-3GPEC48 SC220P50V2JN-3GP

1 2

EC39 SC220P50V2JN-3GPEC39 SC220P50V2JN-3GP

TP150TPAD28 TP150TPAD28

TP109TPAD28 TP109TPAD28

TP132TPAD28 TP132TPAD28

TP121TPAD28 TP121TPAD28

1 2

EC7SC100P50V2JN-3GP

DY

EC7SC100P50V2JN-3GP

DY

1 2

R2

100R2F-L1-GP-U

R2

100R2F-L1-GP-U

1 2

EC31 SC220P50V2JN-3GPEC31 SC220P50V2JN-3GP

TP131TPAD28 TP131TPAD28

TP123TPAD28 TP123TPAD28

TP13 TPAD30TP13 TPAD30

TP111TPAD28 TP111TPAD28

1 2

EC76SC100P50V2JN-3GP

DY

EC76SC100P50V2JN-3GP

DY

TP135TPAD28 TP135TPAD28

TP124TPAD28 TP124TPAD28

2 1

G94

GAP-OPEN

G94

GAP-OPEN

TP143TPAD28 TP143TPAD28

12

EC50

SCD1U16V2ZY-2GP

DY

EC50

SCD1U16V2ZY-2GP

DY

1 2

EC100SC100P50V2JN-3GP

DY

EC100SC100P50V2JN-3GP

DY

TP126TPAD28 TP126TPAD28

TP113TPAD28 TP113TPAD28

TP144TPAD28 TP144TPAD28

1

2

3

4

E_KEY1

ACES-CON2-GP-U

20.F0714.002

E_KEY1

ACES-CON2-GP-U

20.F0714.002

VCC 1

OUT 3

GND

2

LID1

MRS22L-GP

74.00022.0BB

LID1

MRS22L-GP

74.00022.0BB

1 2

EC93SCD1U16V2ZY-2GP

DY

EC93SCD1U16V2ZY-2GP

DY

1

2 3

4

RN7

SRN10KJ-5-GP

RN7

SRN10KJ-5-GP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

TPAD1

ACES-CON12-GP

20.K0174.012

TPAD1

ACES-CON12-GP

20.K0174.012

TP145TPAD28 TP145TPAD28

TP125TPAD28 TP125TPAD28

1 2

EC99SC100P50V2JN-3GP

DY

EC99SC100P50V2JN-3GP

DY

1 2

EC55 SC220P50V2JN-3GP

DY

EC55 SC220P50V2JN-3GP

DY

TP147TPAD28 TP147TPAD28

1 2

EC79SC100P50V2JN-3GP

DY

EC79SC100P50V2JN-3GP

DY

1 2

EC18SC100P50V2JN-3GP

DY

EC18SC100P50V2JN-3GP

DY

TP112TPAD28 TP112TPAD28

TP149TPAD28 TP149TPAD28

TP127TPAD28 TP127TPAD28

1 2

EC81SC100P50V2JN-3GP

DY

EC81SC100P50V2JN-3GP

DY

1 2

EC82SC100P50V2JN-3GP

DY

EC82SC100P50V2JN-3GP

DY

TP148TPAD28 TP148TPAD28

TP128TPAD28 TP128TPAD28

TP115TPAD28 TP115TPAD28

TP153TPAD28 TP153TPAD28 TP152TPAD28 TP152TPAD28

TP114TPAD28 TP114TPAD28

1 2

EC38 SC220P50V2JN-3GPEC38 SC220P50V2JN-3GP

TP64 TPAD30TP64 TPAD30

1 2

EC83SC100P50V2JN-3GP

DY

EC83SC100P50V2JN-3GP

DY

TP120TPAD28 TP120TPAD28

1 2

EC42 SC220P50V2JN-3GPEC42 SC220P50V2JN-3GP

1 2

C83

SC1U16V3ZY-GP

C83

SC1U16V3ZY-GP

1 2

EC24 SC220P50V2JN-3GPEC24 SC220P50V2JN-3GP

1 2

EC36 SC220P50V2JN-3GPEC36 SC220P50V2JN-3GP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

PWRCN1

ACES-CON12-GP

20.K0174.012

PWRCN1

ACES-CON12-GP

20.K0174.012

1 2

C84

SC1U16V3ZY-GP

C84

SC1U16V3ZY-GP

1

2 3

4

RN39

SRN10KJ-5-GP

RN39

SRN10KJ-5-GP

TP24 TPAD30TP24 TPAD30

TP159TPAD28 TP159TPAD28

1 2

EC43 SC220P50V2JN-3GPEC43 SC220P50V2JN-3GP

12

EC17

SCD1U16V2ZY-2GP

DY

EC17

SCD1U16V2ZY-2GP

DY

1 2

43

5

SCRL2

SW-TACT-45-U1-GP

62.40009.341

SCRL2

SW-TACT-45-U1-GP

62.40009.341

1 2

EC51 SC47P50V2JN-3GP

DY

EC51 SC47P50V2JN-3GP

DY

12

C384

SC1U16V3ZY-GP

C384

SC1U16V3ZY-GP

TP116TPAD28 TP116TPAD28

TP122TPAD28 TP122TPAD28

1 2

43

5

SCRL4

SW-TACT-45-U1-GP

62.40009.341

SCRL4

SW-TACT-45-U1-GP

62.40009.341

TP61 TPAD30TP61 TPAD30

1 2

EC27 SC220P50V2JN-3GPEC27 SC220P50V2JN-3GP

1 2

EC41 SC220P50V2JN-3GPEC41 SC220P50V2JN-3GP

1 2

EC23 SC220P50V2JN-3GPEC23 SC220P50V2JN-3GP

1 2

EC53 SC220P50V2JN-3GP

DY

EC53 SC220P50V2JN-3GP

DY

TP117TPAD28 TP117TPAD28

TP82 TPAD30TP82 TPAD30

1 2

EC77SC100P50V2JN-3GP

DY

EC77SC100P50V2JN-3GP

DY

1 2

43

5

LEFT1

SW-TACT-45-U1-GP

62.40009.341

LEFT1

SW-TACT-45-U1-GP

62.40009.341

12

C76

SC1U16V3ZY-GP

C76

SC1U16V3ZY-GP

1 2

EC29 SC220P50V2JN-3GPEC29 SC220P50V2JN-3GP

1 2

EC40 SC220P50V2JN-3GPEC40 SC220P50V2JN-3GP

1 2

EC56 SC220P50V2JN-3GP

DY

EC56 SC220P50V2JN-3GP

DY

1 2

EC37 SC220P50V2JN-3GPEC37 SC220P50V2JN-3GP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

KB1

ETY-CON26-2-GP

20.K0127.026

KB1

ETY-CON26-2-GP

20.K0127.026

1 2

EC95SCD1U16V2ZY-2GP

DY

EC95SCD1U16V2ZY-2GP

DY

SPI_WP#

SPICS#_1 SPI_HOLD#SPIDI_1

SPI_HOLD#

3D3V_AUX_S5

3D3V_AUX_S5

SPICS#30

SPICLK 30

SPIDO 30

SPIDI30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

BIOS

A3

32 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

BIOS

A3

32 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

BIOS

A3

32 44Monday, March 12, 2007

<Core Design>

8M Bits

SPI FLASH ROM

CS#

1

DO

2

WP#

3

GND

4DIO 5

CLK 6

HOLD# 7

VCC 8

U52

W25X80-VSSI-GP

72.25X80.001

U52

W25X80-VSSI-GP

72.25X80.001

1 2

R424

0R0402-PAD

R424

0R0402-PAD

1 2

EC61

SCD1U16V2KX-3GP

DY

EC61

SCD1U16V2KX-3GP

DY

1 2

R393

150R2J-L1-GP-U

R393

150R2J-L1-GP-U

1 2

R397

0R0402-PAD

R397

0R0402-PAD

12

EC62

SC47P50V2JN-3GP

DY

EC62

SC47P50V2JN-3GP

DY

1

2

3

4 5

6

7

8

RN74

SRN10KJ-6-GP

RN74

SRN10KJ-6-GP

Z_12V

Z_12V_G3

Z_12V_D3

Z_12V_D3

3D3V_runpwr

G913_SET

H_PWRGD#

RUN_POWER_ON_1

DCBATOUT

3D3V_S0

3D3V_S0 3D3V_S5

5V_S0 5V_S5

RUN_POWER_ON

5V_AUX_S5

3D3V_AUX_S5

1D05V_S0

1D8V_S0 1D8V_S3

3D3V_S5

PM_SLP_S3#16,19,26,27,30,38,39,40

H_PWRGD4,15,31

PM_THRMTRIP-A# 4,7,15

PURE_HW_SHUTDOWN# 19

S5_ENABLE30,31,37

MXM_THER 26

THRMTRIP#_KBC 30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

RUN POWER

33 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

RUN POWER

33 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

RUN POWER

33 44Thursday, March 15, 2007

<Core Design>

Run Power

I max = 120 mA

Vout = 1.25*(1+ R1/R2)

R1

R2

Aux Power

3D3V_AUX_S5

2nd:74.09198.07F

(RT9198-33PBG)

check

12

R376

47KR2J-2-GP

R376

47KR2J-2-GP

12

R375

100KR2J-1-GP

R375

100KR2J-1-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U17

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U17

AO4468-GP

84.04468.037

1

2

3

D32

BAS16-1-GP

D32

BAS16-1-GP

12

R383 330KR2F-L-GPR383 330KR2F-L-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U43

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U43

AO4468-GP

84.04468.037

12

BC3

SC1U16V3ZY-GP

DY

BC3

SC1U16V3ZY-GP

DY

KA

D31

MMGZ5242BPT-GP

D31

MMGZ5242BPT-GP

C

B

E

Q21

MMBT2222A-3-GP

DY

Q21

MMBT2222A-3-GP

DY

G

S D

Q18

2N7002-11-GP

Q18

2N7002-11-GP

12

BC2

SC1U16V3ZY-GP

DY

BC2

SC1U16V3ZY-GP

DY

E

BC

R1

R2

Q20

PDTC124EU-1-GP

R1

R2

Q20

PDTC124EU-1-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U16

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U16

AO4468-GP

84.04468.037

12

R448

36K5R3F-2-GP

DY

R448

36K5R3F-2-GP

DY

1

2 3

G

S

D

Q17

TP0610T-T1-E3-GP

84.00610.D31

G

S

D

Q17

TP0610T-T1-E3-GP

84.00610.D31

1 2

R388 10KR2J-3-GP

DY

R388 10KR2J-3-GP

DY

12

R429

10KR2J-3-GP

R429

10KR2J-3-GP

SHDN#

1

GND

2

IN

3OUT 4

SET 5

U54

G913CF-GP

74.00913.A3F

DY

U54

G913CF-GP

74.00913.A3F

DY

12

C530

SCD1U16V2ZY-2GP

DY

C530

SCD1U16V2ZY-2GP

DY

12

BC1

SC22P50V2JN-4GP

DY

BC1

SC22P50V2JN-4GP

DY

1 2

C526

SCD1U25V3KX-GP

DY

C526

SCD1U25V3KX-GP

DY

1 2

R382 20KR2J-L2-GPR382 20KR2J-L2-GP

12

R381

100R5J-3-GP

DY

R381

100R5J-3-GP

DY

12

C529

SCD1U25V3KX-GP

C529

SCD1U25V3KX-GP

12

R446

0R2J-2-GP

DY

R446

0R2J-2-GP

DY

1 2

R392

56R2J-4-GP

R392

56R2J-4-GP

1 2

R387

1KR2J-1-GP

DY

R387

1KR2J-1-GP

DY

12

R389

200KR3F-GP

R389

200KR3F-GP

G

S D

Q19

2N7002-11-GP

DY

Q19

2N7002-11-GP

DY

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

Power Block Diagram

A3

34 44Monday, March 12, 2007

Huron

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

Power Block Diagram

A3

34 44Monday, March 12, 2007

Huron

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

Power Block Diagram

A3

34 44Monday, March 12, 2007

Huron

<Core Design>

SHDN#

51120_SHDN#

VID1(I / 1.05V)

VID2(I / 1.05V)

VID3(I / 1.05V)

VID4(I / 1.05V)

H_VID1

PSI#

VSS_SENSE

VCC_SENSE

PWRG(OD / 3.3V)

VCC(I)

Input Signal

Output Power

CPU_CORE

ISL6262

VID0(I / 1.05V)

H_VID0

VCC_CORE_S0(Imax=44A)

VCC(I)

5V_S0

VID Setting Output Signal

VGATE_PWRGD

PSI# (I / 3.3V)

CCI(I / Vcore)

GNDS(I / Vcore)

DCBATOUT_6262

VCC_CORE_PWR(O)

H_VID2

H_VID3

H_VID4

Voltage Sense

Input Power

VDD(I)

5V_S0

PM_DPRSLPVR

VID5(I / 1.05V)

VID6(I / 1.05V)

CPUCORE_ON SHDN#(I / 3.3V)

H_VID5

H_VID6

DCBATOUT

TPS51120

5V_S5 / 3D3V_S5

ON5

S5_ENABLE

VIN

DPRSTP# (I / 3.3V)

PGOOD3(O)

Output Power

3D3V_S5 (8A)

PGOOD1(OD / 5V)

Output Signal

DPRSLPVR (I / 3.3V)

H_DPRSTP#

S5_ENABLE

5V_S5 (6A)

Input Power

Input Signal

ON3

PGOOD5(O)

CPUCORE_ON

CPUCORE_ON

VDD

PGOOD2(OD / 5V)

Input Power

VCC

PM_SLP_S3#

Input Signal

TPS51124

1D8V_S3 / 1D05V_S0

1D05V_S0 (8A)

1D8V_S3 (8A)

1D05V(O)

PM_SLP_S4# EN1

PGOOD1

CPUCORE_ON

Output Signal

1D8V (O)

EN2

DCBATOUT

Output Power

5V_S0

VIN

APL5308

VOUT

3D3V_S0

VTT

5V_S5

PM_SLP_S3#

PM_SLP_S4#

2D5V_S0 (300mA)

2D5V_S0

S3

TPS51100

DDR_VREF_S0

1D8V_S3

VIN

VLDOIN DDR_VREF_S0 (1.2A)

DDR_VREF_S3

S5

VTTREF

Output SignalInput Signal

DCBATOUT

VOUT (O)

Output PowerInput Power

ACOK AC_IN

Charger MAX8731A

VOUT (O)

ICTL

BT_TH

BT+

ACIN

AD+

CHGON#/OFF

BATT BT+SENSE

PKPRES

POK

APl5912

1D5V_S0

1D5V(O)

CPUCORE_ON

1D8V_S3 VIN

EN

PM_SLP_S3#

1D5V_S0 (3.6A)

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

6262_BOOT1_16262_BOOT1

6262_VSUM

6262_BOOT2_16262_BOOT2

6262_COMP_1

6262_VW

6262_FB2

6262_5VS0_VCC

6262_PWRGOOD

6262_CORE_ON

6262_CLKEN#

CPUCORE_ON

6262_RBIAS

6262_NTC_1

H_VID0

6262_DROOP

6262_VSUM

6262_VO

6262_OCSET

6262_DFB

6262_DPRSTP#

6262_RTN

6262_VSEN

6262_VSUM

6262_VSUM_2

6262_VIN

6262_DPRSLP

6262_NTC

6262_PMON

6262_VID0

6262_PSI#

6262_SOFT

6262_VID3

H_VID1

H_VID2

H_VID3

H_VID5

H_VID4

6262_VID1

6262_VID2

6262_VID5

H_VID6

6262_PMON

6262_VID6

6262_VID4

6262_FB

6262_ISENN2

6262_ISENN1

6262_ISENN1

6262_VO

6262_ISENN2

6262_COMP

6262_VDIFF

6262_AGND

6262_AGND

6262_AGND6262_AGND

6262_AGND

6262_AGND

6262_AGND

6262_AGND

5V_S0 3D3V_S0

5V_S0

6262_AGND

6262_AGND

DCBATOUT_6262_1

DCBATOUT_6262_2DCBATOUT

6262_AGND

DCBATOUT DCBATOUT_6262_1

CPU_PROCHOT#4 PSI#4

VSS_SENSE5

VCC_SENSE5

6262_ISENP1 36

6262_ISENN1 36

6262_ISENP2 36

6262_ISENN2 36

CLK_EN#3

PM_DPRSLPVR16 H_DPRSTP#4,15

6262_UGATE1 36

6262_PHASE1 36

6262_LGATE1 36

6262_UGATE2 36

6262_PHASE2 36

6262_LGATE2 36

VGATE_PWRGD 7,16

H_VID[6..0]5

CPUCORE_ON26,38,39

CPUCORE_ON26,38,39

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_1

35 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_1

35 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_1

35 44Thursday, March 15, 2007

<Core Design>

ENG

ENG

ENG

ENG

ENG

ENG

1 2

R265 10KR3J-L1-GP

DY

R265 10KR3J-L1-GP

DY

12

R272

2K61R3F-GP

R272

2K61R3F-GP

GND

21

GND_T

49

PSI#

2

PMON

3

RBIAS

4

VR_TT#

5

NTC

6

SOFT

7

VID0

37

VID1

38

VID2

39

VID3

40

VID4

41

VID5

42

VID6

43

VR_ON

44

DPRSLPVR

45

DPRSTP#

46

CLK_EN#

47

VDIFF

13

FB2

12

FB

11

COMP

10

VW

9

RTN

15

VSEN

14

DROOP

16

DFB

17

VDD 22

VIN 20

3V3 48

PGOOD 1

UGATE1 35

BOOT1 36

PHASE1 34

LGATE1 32

PGND1 33

ISEN1 24

PVCC 31

UGATE2 27

BOOT2 26

PHASE2 28

LGATE2 30

PGND2 29

ISEN2 23

NC#25 25

OCSET8 8

VSUM 19

VO 18

U13

ISL6262ACRZ-T-GP-U

U13

ISL6262ACRZ-T-GP-U

1 2

R82

2K61R2F-1-GP

R82

2K61R2F-1-GP

1 2

R282

12K7R3F-GP

R282

12K7R3F-GP

1 2

R239 4K02R3F-GPR239 4K02R3F-GP

1 2

G51

GAP-CLOSE-PWR

G51

GAP-CLOSE-PWR

1 2

C139 SC2200P50V2KX-2GP

C139 SC2200P50V2KX-2GP

1 2

C141 SC1KP50V2KX-1GP

C141 SC1KP50V2KX-1GP

1 2

R96

97K6R2F-GP

R96

97K6R2F-GP

1 2

R68 3K65R3F-GP

R68 3K65R3F-GP

12

C398

SCD22U16V3KX-1-GP

C398

SCD22U16V3KX-1-GP

1 2

C140 SCD01U16V2KX-3GP

C140 SCD01U16V2KX-3GP

1 2

R269 0R2J-2-GPR269 0R2J-2-GP

1 2

R287 0R0402-PADR287 0R0402-PAD

1 2

R286 0R0402-PADR286 0R0402-PAD

1 2

R91 1KR2F-3-GPR91 1KR2F-3-GP

12

C409

SCD22U10V2KX-1GP

C409

SCD22U10V2KX-1GP

12

C406

SCD22U10V3KX-2GP

C406

SCD22U10V3KX-2GP

1 2

R81 0R2J-2-GPR81 0R2J-2-GP

12

C399

SC1U10V3ZY-6GP

C399

SC1U10V3ZY-6GP

1 2

G52

GAP-CLOSE-PWR

G52

GAP-CLOSE-PWR

1 2

C142 SC470P50V2KXC142 SC470P50V2KX

1 2

R74 0R2J-2-GPR74 0R2J-2-GP

1 2

C143

SC180P50V2JN-1GP

C143

SC180P50V2JN-1GP

1 2

R97 1KR3F-GPR97 1KR3F-GP

1 2

R281 0R0402-PADR281 0R0402-PAD

12

R267

10R3J-3-GP

R267

10R3J-3-GP

1 2

R259 10KR3J-L1-GPR259 10KR3J-L1-GP

1 2

R89

0R0603-PAD

R89

0R0603-PAD

12

R285

1K91R3F-GP

R285

1K91R3F-GP

12

C411

SC1U25V3KX-GP

DY

C411

SC1U25V3KX-GP

DY

1 2

R79 0R2J-2-GPR79 0R2J-2-GP

1 2

G14

GAP-CLOSE-PWR

G14

GAP-CLOSE-PWR

1 2

R95 6K81R2F-1-GP

R95 6K81R2F-1-GP

1 2

R283 0R0402-PADR283 0R0402-PAD

12

C119

SCD01U25V2KX-3GP

C119

SCD01U25V2KX-3GP

1 2

R73 10KR3J-L1-GPR73 10KR3J-L1-GP

12

C111

SCD22U16V3KX-1-GP

C111

SCD22U16V3KX-1-GP

1 2

R235 NTC-470K-1-GPR235 NTC-470K-1-GP

1 2

R256

3K65R3F-GP

R256

3K65R3F-GP

1 2

R278 0R2J-2-GPR278 0R2J-2-GP

1 2

R63

0R0603-PAD

R63

0R0603-PAD

1 2

G54

GAP-CLOSE-PWR

G54

GAP-CLOSE-PWR

12

C134

SCD01U25V2KX-3GP

C134

SCD01U25V2KX-3GP

1 2

G50

GAP-CLOSE-PWR

G50

GAP-CLOSE-PWR

1 2

R94 147KR2F-GPR94 147KR2F-GP

1 2

C144 SCD015U25V3KX-GPC144 SCD015U25V3KX-GP

1 2

R264 10KR3J-L1-GP

DY

R264 10KR3J-L1-GP

DY

1 2

R268 1R3F-GP

R268 1R3F-GP

1 2

R78 1R3F-GPR78 1R3F-GP

12

C405

SCD033U25V3KX-GP

C405

SCD033U25V3KX-GP

1 2

G12

GAP-CLOSE-PWR

G12

GAP-CLOSE-PWR

1 2

G53

GAP-CLOSE-PWR

G53

GAP-CLOSE-PWR

12

TC21

ST15U25VDM-3-GP

TC21

ST15U25VDM-3-GP

1 2

C118 SC180P-GPC118 SC180P-GP

12

C128

SCD01U25V2KX-3GP

C128

SCD01U25V2KX-3GP

1 2

R280

4K99R3F-GP

DY

R280

4K99R3F-GP

DY

12

C104

SCD22U16V3ZY-GP

C104

SCD22U16V3ZY-GP

1 2

R84 0R0402-PADR84 0R0402-PAD

12

R276

11KR2F-L-GP

R276

11KR2F-L-GP

1 2

R62

0R0603-PAD

R62

0R0603-PAD

1 2

C94 SC4D7U10V5ZY-3GPC94 SC4D7U10V5ZY-3GP

12

R270

10R3J-3-GP

R270

10R3J-3-GP

1 2

R93

1K4R3F-1-GP

R93

1K4R3F-1-GP

1 2

R87 0R0402-PADR87 0R0402-PAD

1 2

R86

0R0603-PAD

R86

0R0603-PAD

12

R80

1KR3F-GP

R80

1KR3F-GP

12

C402

SCD1U25V3ZY-1GP

C402

SCD1U25V3ZY-1GP

1 2

R273 0R2J-2-GPR273 0R2J-2-GP

12

C101 SCD22U16V3ZY-GPC101 SCD22U16V3ZY-GP

1 2

G9

GAP-CLOSE-PWR

G9

GAP-CLOSE-PWR

1 2

G11

GAP-CLOSE-PWR

G11

GAP-CLOSE-PWR

12

R277

NTC-10K-9-GP

R277

NTC-10K-9-GP

1 2

R83 0R2J-2-GPR83 0R2J-2-GP

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DCBATOUT_6262_2

VCC_CORE_S0

DCBATOUT_6262_1

6262_ISENP1 35

6262_ISENN1 35

6262_ISENP235

6262_ISENN235

6262_LGATE235

6262_PHASE235

6262_UGATE235

6262_LGATE135

6262_PHASE135

6262_UGATE135

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_2

36 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_2

36 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

CPU Vcore Power_2

36 44Monday, March 12, 2007

<Core Design>

Id=13A

Qg=10~14nC

Rdson=9.4~12mohm

Id=14.5A

Qg=25~35nC

Rdson=5.9~7.25mohm

Id=14.5A

Qg=25~35nC

Rdson=5.9~7.25mohm

PANASONIC

330uF / 2V / V size

ESR=9mohm / Iripple=3.7A

Iomax=44A

Id=13A

Qg=10~14nC

Rdson=9.4~12mohm

12

TC9

SE330U2VDM-L-GP

TC9

SE330U2VDM-L-GP

12

C387

SC10U25V6KX-1GP

C387

SC10U25V6KX-1GP

12

C88

SC10U25V6KX-1GP

C88

SC10U25V6KX-1GP

12

C391

SC10U25V6KX-1GP

C391

SC10U25V6KX-1GP

1 2

L5

IND-D36UH-9-GP

L5

IND-D36UH-9-GP

12

TC7

SE330U2VDM-L-GP

TC7

SE330U2VDM-L-GP

1 2

G5

GAP-CLOSE-PWR

G5

GAP-CLOSE-PWR

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U35

AO4474-GP

S

S

S

GD

D

D

D

U35

AO4474-GP

12

C99

SC10U25V6KX-1GP

C99

SC10U25V6KX-1GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U32

AO4474-GP

S

S

S

GD

D

D

D

U32

AO4474-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U7

AO4474-GP

S

S

S

GD

D

D

D

U7

AO4474-GP

12

C386

SC10U25V6KX-1GP

C386

SC10U25V6KX-1GP

1 2

G4

GAP-CLOSE-PWR

G4

GAP-CLOSE-PWR

12

C87

SC10U25V6KX-1GP

C87

SC10U25V6KX-1GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U34

AO4456-GP

S

S

S

GD

D

D

D

U34

AO4456-GP

12

TC1

SE330U2VDM-L-GP

TC1

SE330U2VDM-L-GP

12

TC8

SE330U2VDM-L-GP

TC8

SE330U2VDM-L-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U8

AO4456-GP

S

S

S

GD

D

D

D

U8

AO4456-GP

12

TC5

SE330U2VDM-L-GP

TC5

SE330U2VDM-L-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U9

AO4456-GP

S

S

S

GD

D

D

D

U9

AO4456-GP

12

C390

SC10U25V6KX-1GP

C390

SC10U25V6KX-1GP

12

C93

SCD1U50V3ZY-GP

DY

C93

SCD1U50V3ZY-GP

DY

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U33

AO4456-GP

S

S

S

GD

D

D

D

U33

AO4456-GP

1 2

G7

GAP-CLOSE-PWR

G7

GAP-CLOSE-PWR

1 2

L6

IND-D36UH-9-GP

L6

IND-D36UH-9-GP

1 2

G6

GAP-CLOSE-PWR

G6

GAP-CLOSE-PWR

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U10

AO4474-GP

S

S

S

GD

D

D

D

U10

AO4474-GP

12

C102

SC10U25V6KX-1GP

C102

SC10U25V6KX-1GP

12

TC6

SE330U2VDM-L-GP

TC6

SE330U2VDM-L-GP

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

51120_COMP1

51120_DRVL2

51120_COMP2

51120_DRVH1

51120_COMP1_PL

51120_COMP1

51120_VFB2

51120_DRVH2

51120_DRVL2

51120_DRVL1

51120_VREF2

51120_EN1

51120_VREG3

51120_TONSEL

51120_DRVH1

51120_DRVH2

51120_EN2

51120_COMP2

51120_COMP2_PL

51120_VREG5

51120_SKIPSEL

51120_PGD1

51120_VFB2 51120_PGD2

51120_VFB1

5V_PWR

3D3V_PWR

51120_PGD

51120_CS1

51120_LL2

51120_CS2

51120_LL1

51120_EN3

51120_LL1_1

51120_LL2_1 51120_VBST2

51120_VBST1

51120_VREF2

51120_LL2

51120_LL1

51120_EN4

51120_DRVL1

51120_VFB151120_VREG5

51120_LL1

51120_LL2

DCBATOUT DCBATOUT_51120

51120_GND

51120_GND

5V_S55V_PWR

3D3V_PWR 3D3V_S5

5V_PWR

3D3V_PWR

DCBATOUT_51120

DCBATOUT_51120

DCBATOUT_51120

51120_V5FILT

51120_V5FILT

51120_V5FILT

51120_V5FILT

51120_GND

51120_GND

51120_GND

51120_GND

51120_GND

51120_GND

51120_GND

51120_GND 51120_GND

3D3V_S5

51120_GND

5V_AUX_S5

3D3V_AUX_S5

S5_ENABLE30,31,33

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

3D3V_S5 & 5V_S5

37

44

Thursday, March 15, 2007

Huron

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

3D3V_S5 & 5V_S5

37

44

Thursday, March 15, 2007

Huron

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

3D3V_S5 & 5V_S5

37

44

Thursday, March 15, 2007

Huron

<Core Design>

Id=9.2A

Qg=9~12nC,

Rdson=17.4~22mohm

Id=13.2A

Qg=27nC,

Rdson=6.8~8.2mohm

Id=13.2A

Qg=27nC,

Rdson=6.8~8.2mohm

Vout=1V*(R1+R2)/R2

Id=9.2A

Qg=9~12nC,

Rdson=17.4~22mohm

280k/CH1

not use

FLOAT

EN3,EN5 not use VREG3 on

3.3V

Fixed Output

Swithchr ON

ADJ.

LDO ON

330k/CH2

N/A

VREF2

590k/CH2

430k/CH2

ADJ.

VFB2

PWM

Switcher OFF

380k/CH1

not use

220k/CH1

D-Cap

MODE

N/A

VFB1

CURRENT

MODE

5V

Fixed Output

N/A

LDO OFF

180k/CH1

/FAULTS

OFF

COMP

Switcher ON

GND

AUTOSKIP

V5FILT

TONSEL

PWM

280k/CH2

AUTOSKIP

N/A

EN1,EN2

not use

SKIPSEL

For TPS51120,

Vout=5V

1. If you use a 6.8uH inductor, the minimum ESR is 70m ohm.

2. If you use a 4.7uH inductor, the minimum ESR is 48m ohm.

3. If you use a 3.3uH inductor, the minimum ESR is 34m ohm.

Vout=3.3V

1. If you use a 4.7uH inductor, the minimum ESR is 51m ohm.

2. If you use a 3.3uH inductor, the minimum ESR is 36m ohm.

3. If you use a 2.5uH inductor, the minimum ESR is 27m ohm.

ENG

5V Iomax=6A

OCP>9A(10A)

3D3V Iomax=8A

OCP>12A(12.7A)

1 2

G59

GAP-CLOSE-PWR

G59

GAP-CLOSE-PWR

1 2

R422 0R0603-PADR422 0R0603-PAD

12

C566

SCD1U50V3ZY-GP

C566

SCD1U50V3ZY-GP

12

C536

SC10U25V6KX-1GP

C536

SC10U25V6KX-1GP

12

R419

13KR2F-GP

DY

R419

13KR2F-GP

DY

1 2

R454

5K9R2F-GP

R454

5K9R2F-GP

12

C554

SC390P50V3JN-GP

DY

C554

SC390P50V3JN-GP

DY

12

C550

SC390P50V3JN-GP

DY

C550

SC390P50V3JN-GP

DY

1 2

R445 0R0603-PADR445 0R0603-PAD

1 2

G66

GAP-CLOSE-PWR

G66

GAP-CLOSE-PWR

1 2

G68

GAP-CLOSE-PWR

G68

GAP-CLOSE-PWR

12

C534

SC10U25V6KX-1GP

C534

SC10U25V6KX-1GP

12

C567

SC10U10V5ZY-1GP

C567

SC10U10V5ZY-1GP

1 2

G85

GAP-CLOSE-PWR

G85

GAP-CLOSE-PWR

1 2

R407 0R0603-PADR407 0R0603-PAD

12

C535

SC10U25V6KX-1GP

C535

SC10U25V6KX-1GP

12

R426

30K9R3F-GP

DY

R426

30K9R3F-GP

DY

VO1

1

COMP1 2

VFB1

3

VREF2

4

GND

5

VFB2

6

COMP2 7

VO2

8

EN5

9EN3

10

PGOOD2 11

EN2

12

VBST2 13

DRVH2 14

LL2 15

DRVL2 16

PGND2

17

CS2

18

VREG3 19

V5FILT 20

VREG5 21

VIN 22

CS1

23

PGND1

24

DRVL1 25

LL1 26

DRVH1 27

VBST1 28

EN1

29

PGOOD1 30

TONSEL

31 SKIPSEL

32

GND

33

U53

TPS51120RHBR-GPU1

U53

TPS51120RHBR-GPU1

12

TC22

ST15U25VDM-3-GP

TC22

ST15U25VDM-3-GP

12

C557

SC33P50V3JN-GP

DY

C557

SC33P50V3JN-GP

DY

1 2

R447 0R0402-PADR447 0R0402-PAD

12

R436

0R0603-PAD

R436

0R0603-PAD

1 2

R443

0R3-0-U-GP

DY

R443

0R3-0-U-GP

DY

1 2

G89

GAP-CLOSE-PWR

G89

GAP-CLOSE-PWR

12

C537

SC10U25V6KX-1GP

C537

SC10U25V6KX-1GP

12

R439

100KR2J-1-GP

R439

100KR2J-1-GP

1 2

G97

GAP-CLOSE-PWR-2U

G97

GAP-CLOSE-PWR-2U

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U51

AO4706-GP

84.04706.037

S

S

S

GD

D

D

D

U51

AO4706-GP

84.04706.037

1 2

G91

GAP-CLOSE-PWR

G91

GAP-CLOSE-PWR

1 2

G63

GAP-CLOSE-PWR

G63

GAP-CLOSE-PWR

1 2

C561

SCD1U50V3ZY-GP

C561

SCD1U50V3ZY-GP

1 2

G67

GAP-CLOSE-PWR

G67

GAP-CLOSE-PWR

TP80 TPAD30TP80 TPAD30

1 2

L20

IND-4D7UH-104-GP

L20

IND-4D7UH-104-GP

1 2

G69

GAP-CLOSE-PWR

G69

GAP-CLOSE-PWR

12

R432

7K5R2F-1-GP

DY

R432

7K5R2F-1-GP

DY

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U50

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U50

AO4468-GP

84.04468.037

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U48

AO4706-GP

84.04706.037

S

S

S

GD

D

D

D

U48

AO4706-GP

84.04706.037

12

C551

SC1000P50V3JN-GP

C551

SC1000P50V3JN-GP

12

C583

SC1U10V3KX-3GP

C583

SC1U10V3KX-3GP

1 2

G60

GAP-CLOSE-PWR

G60

GAP-CLOSE-PWR

12

TC15

ST220U6D3VDM-LGP

TC15

ST220U6D3VDM-LGP

1 2

R449 0R0603-PADR449 0R0603-PAD

1 2

G88

GAP-CLOSE-PWR

G88

GAP-CLOSE-PWR

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U49

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U49

AO4468-GP

84.04468.037

1 2

G44

GAP-CLOSE-PWR-2U

G44

GAP-CLOSE-PWR-2U

1 2

G65

GAP-CLOSE-PWR

G65

GAP-CLOSE-PWR

1 2

R406 0R0603-PADR406 0R0603-PAD

1 2

R451

0R0603-PAD

R451

0R0603-PAD

1 2

G64

GAP-CLOSE-PWR

G64

GAP-CLOSE-PWR

1 2

G56

GAP-CLOSE-PWR

G56

GAP-CLOSE-PWR

12

C549

SC680P50V3JN-GP

DY

C549

SC680P50V3JN-GP

DY

1 2

L21

IND-4D7UH-104-GP

L21

IND-4D7UH-104-GP

12

R435

22KR2F-GP

DY

R435

22KR2F-GP

DY

1 2

G81

GAP-CLOSE-PWR

G81

GAP-CLOSE-PWR

1 2

R465

5D1R3F-GP

R465

5D1R3F-GP

1 2

G83

GAP-CLOSE-PWR

G83

GAP-CLOSE-PWR

1 2

G61

GAP-CLOSE-PWR

G61

GAP-CLOSE-PWR

12

C568

SC10U10V5ZY-1GP

C568

SC10U10V5ZY-1GP

1 2

G43

GAP-CLOSE-PWR

G43

GAP-CLOSE-PWR

12

C556

SC33P50V3JN-GP

DY

C556

SC33P50V3JN-GP

DY

12

TC13

ST220U6D3VDM-LGP

TC13

ST220U6D3VDM-LGP

1 2

G87

GAP-CLOSE-PWR

G87

GAP-CLOSE-PWR

1 2

R414 0R0603-PADR414 0R0603-PAD

1 2

G58

GAP-CLOSE-PWR

G58

GAP-CLOSE-PWR

1 2

R453

8K87R3-GP

R453

8K87R3-GP

12

R423

30KR2F-GP

DY

R423

30KR2F-GP

DY

1 2

G57

GAP-CLOSE-PWR

G57

GAP-CLOSE-PWR

1 2

G82

GAP-CLOSE-PWR

G82

GAP-CLOSE-PWR

TP81 TPAD30TP81 TPAD30

12

R428

30KR2F-GP

DY

R428

30KR2F-GP

DY

1 2

G84

GAP-CLOSE-PWR

G84

GAP-CLOSE-PWR

1 2

G62

GAP-CLOSE-PWR

G62

GAP-CLOSE-PWR

1 2

C563

SCD1U50V3ZY-GP

C563

SCD1U50V3ZY-GP

1 2

R450

0R0603-PAD

R450

0R0603-PAD

1 2

G86

GAP-CLOSE-PWR

G86

GAP-CLOSE-PWR

1 2

R437

0R0603-PAD

R437

0R0603-PAD

1 2

R440 0R0402-PADR440 0R0402-PAD

1 2

G90

GAP-CLOSE-PWR

G90

GAP-CLOSE-PWR

12

C546

SC1000P50V3JN-GP

DY

C546

SC1000P50V3JN-GP

DY

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

51124_VBST1

51124_TRIP2

51124_VBST2

51124_LL1

51124_LL2 51124_LL2_1

51124_LL1

51124_LL2

51124_LL1_1

51124_VFB1

51124_LL1

51124_DRVH1

51124_DRVL1

51124_VFB2

51124_TONSEL 51124_V5FILT51124_V5FILT

51124_PGD1

1D8V_PWR

51124_DRVL2

51124_PGD2

51124_DRVH2

51124_LL2

1D05V_PWR

51124_DRVL1

51124_DRVL2

51124_TRIP1

51124_DRVH1

51124_DRVH2

51124_EN2_1

51124_VFB1

51124_EN1_1

51124_VFB2

1D05V_PWR

DCBATOUT_51124

1D8V_PWR 1D8V_S3

5V_S5

51124_GND

51124_GND

51124_GND 51124_GND

51124_GND 51124_GND

51124_GND

51124_GND

DCBATOUT DCBATOUT_51124

1D8V_PWR

DCBATOUT_51124

51124_GND

1D05V_PWR 1D05V_S0

51124_GND

3D3V_S5 3D3V_S5

CPUCORE_ON 26,35,39

PM_SLP_S4#16,27,30,40 PM_SLP_S3#9,26,27,30,33,39,40

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

TPS51124_1D8V_1D05V

A3

38 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

TPS51124_1D8V_1D05V

A3

38 44Monday, March 19, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

TPS51124_1D8V_1D05V

A3

38 44Monday, March 19, 2007

<Core Design>

P/H CPU CORE PAGE

Id=9.2A

Qg=9~12nC,

Rdson=17.4~22mohm

Id=9.2A

Qg=9~12nC,

Rdson=17.4~22mohm

Netswap

DCR=7.5m ohm

Irms=12A,Isat=20A

Netswap

DCR=7.5m ohm

Irms=12A,Isat=20A

2007.1.19

300k/CH2

240k/CH1

TONSEL

GND

300k/CH1

OPEN

360k/CH2

360k/CH1

420k/CH2

V5FILT

Id=13.2A

Qg=27nC,

Rdson=6.8~8.2mohm

Voutsetting=1.8046V

OCP

Vtrip(mV)=Rtrip(Kohm)*10(uA)

Iocp=(Vtrip/Rdson)+((1/(2*L*f))*((Vin-Vout)*Vout)/Vin))

Vout=0.758V*(R1+R2)/R2

Voutsetting=1.05V

Kemet

220uF/ 4V

ESR=15mohm

Kemet

220uF/ 4V

ESR=15mohm

Id=13.2A

Qg=27nC,

Rdson=6.8~8.2mohm

ENG

1D8V Iomax=10A

OCP>15

1D05V Iomax=8A

OCP>12A

12

C320

SC10U25V6KX-1GP

C320

SC10U25V6KX-1GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U22

AO4706-GP

84.04706.037

S

S

S

GD

D

D

D

U22

AO4706-GP

84.04706.037

12

C562

SC4D7U10V5ZY-3GP

C562

SC4D7U10V5ZY-3GP

1 2

G79

GAP-CLOSE-PWR

G79

GAP-CLOSE-PWR

1 2

L22

IND-1D5UH-18-GP-U

L22

IND-1D5UH-18-GP-U

1 2

R411 0R0402-PADR411 0R0402-PAD

1 2

G31

GAP-CLOSE-PWR

G31

GAP-CLOSE-PWR

12

R442

3D3R3J-L-GP

R442

3D3R3J-L-GP

12

C545

SCD01U25V2KX-3GP

DY

C545

SCD01U25V2KX-3GP

DY

1 2

G74

GAP-CLOSE-PWR

G74

GAP-CLOSE-PWR

1 2

C552

SCD1U50V3ZY-GP

C552

SCD1U50V3ZY-GP

12

R441

9K76R3F-GP

R441

9K76R3F-GP

1 2

G30

GAP-CLOSE-PWR

G30

GAP-CLOSE-PWR

1 2

R412 0R0402-PADR412 0R0402-PAD

1 2

R434

0R0603-PAD

R434

0R0603-PAD

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U19

AO4706-GP

84.04706.037

S

S

S

GD

D

D

D

U19

AO4706-GP

84.04706.037

1 2

G75

GAP-CLOSE-PWR

G75

GAP-CLOSE-PWR

1 2

G29

GAP-CLOSE-PWR

G29

GAP-CLOSE-PWR

1 2

R433

0R0603-PAD

R433

0R0603-PAD

12

R398

64K9R2F-1-GP

R398

64K9R2F-1-GP

12

C319

SC10U25V6KX-1GP

C319

SC10U25V6KX-1GP

1 2

G76

GAP-CLOSE-PWR

G76

GAP-CLOSE-PWR

12

C513

SCD1U50V3ZY-GP

DY

C513

SCD1U50V3ZY-GP

DY

1 2

G28

GAP-CLOSE-PWR

G28

GAP-CLOSE-PWR

12

R401

75KR3F-GP

R401

75KR3F-GP

1 2

G77

GAP-CLOSE-PWR

G77

GAP-CLOSE-PWR

12

R403

10KR2J-3-GP

DY

R403

10KR2J-3-GP

DY

1 2

L23

IND-1D5UH-18-GP-U

L23

IND-1D5UH-18-GP-U

1 2

G78

GAP-CLOSE-PWR

G78

GAP-CLOSE-PWR

12

C532

SC10U25V6KX-1GP

C532

SC10U25V6KX-1GP

VO1 1

VFB1 2

TONSEL 4

VFB2 5

VO2 6

PGOOD2 7

EN2

8

VBST2

9

DRVH2 10

LL2

11

TRIP1

17

V5IN

16 V5FILT

15

TRIP2

14

PGOOD1 24

EN1

23

VBST1

22

DRVH1 21

LL1

20

GND 3

PGND1 18

PGND2 13

GND 25

DRVL1

19

DRVL2

12

U23

TPS51124RGER-GPU1

U23

TPS51124RGER-GPU1

12

C533

SC10U25V6KX-1GP

C533

SC10U25V6KX-1GP

12

TC18

ST330U2D5VDM-LGP

TC18

ST330U2D5VDM-LGP

1 2

G93

GAP-CLOSE

G93

GAP-CLOSE

12

R404

10KR2J-3-GP

DY

R404

10KR2J-3-GP

DY

12

R408

0R2J-2-GP

DY

R408

0R2J-2-GP

DY

12

R399

29K4R2F-GP

R399

29K4R2F-GP

12

C544

SCD01U25V2KX-3GP

DY

C544

SCD01U25V2KX-3GP

DY

12

TC17

ST330U2D5VDM-LGP

TC17

ST330U2D5VDM-LGP

1 2

G27

GAP-CLOSE-PWR

G27

GAP-CLOSE-PWR

1 2

G95

GAP-CLOSE-PWR

G95

GAP-CLOSE-PWR

12

R400

47KR3F-GP

R400

47KR3F-GP

12

R438

8K2R3F-GP

R438

8K2R3F-GP

1 2

G80

GAP-CLOSE-PWR

G80

GAP-CLOSE-PWR

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U20

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U20

AO4468-GP

84.04468.037

1 2

G26

GAP-CLOSE-PWR

G26

GAP-CLOSE-PWR

12

C560

SC1U10V3ZY-6GP

C560

SC1U10V3ZY-6GP

1 2

G70

GAP-CLOSE-PWR

G70

GAP-CLOSE-PWR

1 2

G36

GAP-CLOSE-PWR

G36

GAP-CLOSE-PWR

1 2

C553

SCD1U50V3ZY-GP

C553

SCD1U50V3ZY-GP

1 2

R409

10KR2J-3-GP

DY

R409

10KR2J-3-GP

DY

1 2

G25

GAP-CLOSE-PWR

G25

GAP-CLOSE-PWR

12

C539

SC33P50V3JN-GP

DY

C539

SC33P50V3JN-GP

DY

1 2

G71

GAP-CLOSE-PWR

G71

GAP-CLOSE-PWR

1 2

G37

GAP-CLOSE-PWR

G37

GAP-CLOSE-PWR

1 2

G24

GAP-CLOSE-PWR

G24

GAP-CLOSE-PWR

1 2

G72

GAP-CLOSE-PWR

G72

GAP-CLOSE-PWR

1 2

G38

GAP-CLOSE-PWR

G38

GAP-CLOSE-PWR

1 2

G23

GAP-CLOSE-PWR

G23

GAP-CLOSE-PWR

1 2

G73

GAP-CLOSE-PWR

G73

GAP-CLOSE-PWR

12

C538

SC33P50V3JN-GP

DY

C538

SC33P50V3JN-GP

DY

1 2

G39

GAP-CLOSE-PWR

G39

GAP-CLOSE-PWR

1 2

G22

GAP-CLOSE-PWR

G22

GAP-CLOSE-PWR

1 2

G40

GAP-CLOSE-PWR

G40

GAP-CLOSE-PWR

12

TC20

ST15U25VDM-3-GP

TC20

ST15U25VDM-3-GP

1 2

G92

GAP-CLOSE

G92

GAP-CLOSE

1 2

G41

GAP-CLOSE-PWR

G41

GAP-CLOSE-PWR

12

C518

SCD1U50V3ZY-GP

DY

C518

SCD1U50V3ZY-GP

DY

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U21

AO4468-GP

84.04468.037

S

S

S

GD

D

D

D

U21

AO4468-GP

84.04468.037

12

TC19

ST15U25VDM-3-GP

TC19

ST15U25VDM-3-GP

1 2

G21

GAP-CLOSE-PWR

G21

GAP-CLOSE-PWR

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

5912_POK_U74

PM_SLP_S3#

5912_FB

5912_EN_U74

1D8V_S3

1D5V_S0

1D5V_LDO

5V_S5

3D3V_S0

CPUCORE_ON26,35,38

PM_SLP_S3#16,19,26,27,30,33,38,40

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron SD

APL5912_1D5V

A3

39 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron SD

APL5912_1D5V

A3

39 44Wednesday, March 14, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron SD

APL5912_1D5V

A3

39 44Wednesday, March 14, 2007

<Core Design>

1D5V_S0

Iomax=3.6A

SO-8-P

Vo(cal.)=1.5096V

SANYO

100uF, 4V, B2 Size

Iripple=1.1A, ESR=70mohm

Vo=0.8*(1+(R1/R2))

Iomax=3.6A

1 2

G20

GAP-CLOSE-PWR

G20

GAP-CLOSE-PWR

12

C309

SC82P50V2JN-3GP

C309

SC82P50V2JN-3GP

12

R177

30K1R3F-GP

R177

30K1R3F-GP

12

R176

26K7R3F-GP

R176

26K7R3F-GP

12

C303

SC1U16V3ZY-GP

C303

SC1U16V3ZY-GP

1 2

G19

GAP-CLOSE-PWR

G19

GAP-CLOSE-PWR

12

C311

SC10U10V5ZY-1GP

C311

SC10U10V5ZY-1GP

12

C302

SC10U10V5ZY-1GP

C302

SC10U10V5ZY-1GP

12

C304

SC10U10V5ZY-1GP

C304

SC10U10V5ZY-1GP

1 2

R173

0R0402-PAD

R173

0R0402-PAD

GND

1

FB 2

VOUT 3

VOUT 4

VIN 5

VCNTL 6

POK

7

EN

8

VIN 9

U18

APL5912-KAC-GP

U18

APL5912-KAC-GP

12

R175

10KR2F-2-GP

R175

10KR2F-2-GP

1 2

R174

0R0402-PAD

R174

0R0402-PAD

1 2

G18

GAP-CLOSE-PWR

G18

GAP-CLOSE-PWR

1 2

G17

GAP-CLOSE-PWR

G17

GAP-CLOSE-PWR

12

TC2

ST100U4VBM-U

DY

TC2

ST100U4VBM-U

DY

12

C310

SC10U10V5ZY-1GP

C310

SC10U10V5ZY-1GP

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

51100_S3

51100_S5

1D8V_S3

DDR_VREF_S3

5V_S5

DDR_VREF_S0DDR_VREF_PWR

3D3V_S0 2D5V_S0

PM_SLP_S3#16,19,26,27,30,33,38,39

PM_SLP_S4#16,27,30,38

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

0D9V/2D5V

A3

40 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

0D9V/2D5V

A3

40 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

Huron

SD

0D9V/2D5V

A3

40 44Monday, March 12, 2007

<Core Design>

OCP=3A

0D9V_S3

Iomax=1.2A

Iomax=300mA

12

C497

SC2D2U16V5ZY-2GP

C497

SC2D2U16V5ZY-2GP

1 2

G32

GAP-CLOSE-PWR

G32

GAP-CLOSE-PWR

12

C491

SC1U10V3ZY-6GP

C491

SC1U10V3ZY-6GP

1 2

G35

GAP-CLOSE-PWR

G35

GAP-CLOSE-PWR

VDDQSNS 1

VLDOIN 2

VTT 3

PGND 4

VTTSNS 5

VIN

10

S5

9

GND

8

S3

7

VTTREF

6

GND

11

U44

TPS51100DGQ-1-GP

U44

TPS51100DGQ-1-GP

1 2

R372

0R0402-PAD

R372

0R0402-PAD

12

C517

SC10U10V5ZY-1GP

C517

SC10U10V5ZY-1GP

1 2

R371

0R0402-PAD

R371

0R0402-PAD

12

C519

SCD1U16V2ZY-2GP

C519

SCD1U16V2ZY-2GP

12

C516

SC10U10V5ZY-1GP

C516

SC10U10V5ZY-1GP

12

C492

SC10U10V5ZY-1GP

DY

C492

SC10U10V5ZY-1GP

DY

12

C515

SC10U10V5ZY-1GP

C515

SC10U10V5ZY-1GP

1 2

G33

GAP-CLOSE-PWR

G33

GAP-CLOSE-PWR

GND 1

VOUT 2

VIN

3

U41

APL5308-25AC-1GPU

U41

APL5308-25AC-1GPU

12

C514

SC10U10V5ZY-1GP

C514

SC10U10V5ZY-1GP

1 2

G34

GAP-CLOSE-PWR

G34

GAP-CLOSE-PWR

12

C500

SC10U10V5ZY-1GP

DY

C500

SC10U10V5ZY-1GP

DY

ACAV_IN

AC_IN#

ACAV_IN

PWR_MAX8731PWR_MAX8731

DCIN_GATE2

MAX8731_DCIN

MAX8731_CSIP

MAX8731_DAC

ACAV_IN

MAX8731_CSSP

MAX8731_CSSN

BAT_SCL

BAT_SDA

MAX8731_LX1

MAX8731_CSIN

MAX8731_CCI

MAX8731_CCS

MAX8731_VCC

MAX8731_LDO

MAX8731_CCV

MAX8731_CCV1

MAX8731_DHI

MAX8731_DLO

MAX8731_BST

MAX8731_LX

MAX8731_REF

MAX8731_ACIN

MAX8731_BST1

BAT_SENSE

DC_IN_D

BATT_SENSE

DCIN_GATE1

ACAV_IN

BT+

5V_AUX_S5

MAX8731_LDO

CHG_AGND

CHG_AGND

CHG_AGND CHG_AGND

CHG_AGND CHG_AGND

CHG_AGND

CHG_AGND

CHG_PWR

AD+

AD+

AD+_TO_SYS

AD+

BT+

DCBATOUT

3D3V_AUX_S5

AC_IN#30

BATT_SENSE 42

BAT_SDA30,42

BAT_SCL30,42

AD_IA30

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

CHARGER MAX8731

A3

41 44Monday, March 12, 2007

HURON

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

CHARGER MAX8731

A3

41 44Monday, March 12, 2007

HURON

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

SD

CHARGER MAX8731

A3

41 44Monday, March 12, 2007

HURON

<Core Design>

Layout Trace 300mil

Layout Trace 250mil

Layout Trace 250mil

Layout Trace 300mil

2nd:A04433(84.04433.A37) 2nd:A04407(84.04407.A37)

Adaptor In Soft-Start Circuit

Need Check MAXIM Sming Use MAX8731 or MAX8731A

SB

NEAR

Near KBC

12

C50

SC10U25V6KX-1GP

DY

C50

SC10U25V6KX-1GP

DY

12

C135

SC1U10V3KX-3GP

C135

SC1U10V3KX-3GP

12

C360

SC1U10V3KX-3GP

C360

SC1U10V3KX-3GP

12

C105

SC10U25V0KX-3GP

DY

C105

SC10U25V0KX-3GP

DY

1 2

R88 4K7R2F-GPR88 4K7R2F-GP

12

R92

365KR3F-GP

R92

365KR3F-GP

G

S D

Q8

2N7002-11-GP

Q8

2N7002-11-GP

1 2

R205

49K9R2F-L-GP

R205

49K9R2F-L-GP

12

C138

SCD01U50V2ZY-1GP

C138

SCD01U50V2ZY-1GP

1

2

3

45

6

7

8

S

S

S

GD

D

D

D

U29

P2003EVG-GP

S

S

S

GD

D

D

D

U29

P2003EVG-GP

12

C133

SCD1U16V2ZY-2GP

C133

SCD1U16V2ZY-2GP

12

R260

15K4R2F-GP

R260

15K4R2F-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U37

SI4800BDY-T1

S

S

S

GD

D

D

D

U37

SI4800BDY-T1

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U38

SI4800BDY-T1

S

S

S

GD

D

D

D

U38

SI4800BDY-T1

G

S D

Q10

2N7002-11-GP

Q10

2N7002-11-GP

1 2

C396 SC220P50V2JN-3GPC396 SC220P50V2JN-3GP

12

C404

SCD1U16V2ZY-2GP

C404

SCD1U16V2ZY-2GP

12

R275

10KR2F-2-GP

R275

10KR2F-2-GP

1 2

R29

100R2F-L1-GP-U

R29

100R2F-L1-GP-U

1 2

G8

GAP-CLOSE-PWR

G8

GAP-CLOSE-PWR

12

R90

49K9R2F-L-GP

R90

49K9R2F-L-GP

12

C132

SCD01U50V2ZY-1GP

C132

SCD01U50V2ZY-1GP

12

R258

10KR2F-2-GP

R258

10KR2F-2-GP

1 2

G3

GAP-CLOSE-PWR

G3

GAP-CLOSE-PWR

12

C131

SCD01U50V2ZY-1GP

C131

SCD01U50V2ZY-1GP

1 2

G45

GAP-CLOSE-PWR

G45

GAP-CLOSE-PWR

12

C400

SC1U25V5KX-1GP

C400

SC1U25V5KX-1GP

1 2

G13

GAP-CLOSE-PWR

G13

GAP-CLOSE-PWR

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U30

AO4433-GP

S

S

S

GD

D

D

D

U30

AO4433-GP

1 2

G10

GAP-CLOSE-PWR

G10

GAP-CLOSE-PWR

12

C407

SC1U10V3KX-3GP

C407

SC1U10V3KX-3GP

1 2

G2

GAP-CLOSE-PWR

G2

GAP-CLOSE-PWR

1 2

G16

GAP-CLOSE-PWR

G16

GAP-CLOSE-PWR

1 2

R209

10KR2J-3-GP

R209

10KR2J-3-GP

1 2

R266

0R0603-PAD

R266

0R0603-PAD

1 2

R206

100KR2J-1-GP

R206

100KR2J-1-GP

12

R271

33R2J-2-GP

R271

33R2J-2-GP

12

C137

SCD01U50V2ZY-1GP

C137

SCD01U50V2ZY-1GP

12

C408

SCD1U25V3KX-GP

C408

SCD1U25V3KX-GP

1 2

G15

GAP-CLOSE-PWR

G15

GAP-CLOSE-PWR

12

C48

SC10U25V0KX-3GP

C48

SC10U25V0KX-3GP

12

R217

100KR2J-1-GP

R217

100KR2J-1-GP

1 2

L7

IND-5D6UH-19GP

L7

IND-5D6UH-19GP

1 2

R208

D01R2512F-4-GP

R208

D01R2512F-4-GP

DAC

7

VDD

11

DCIN

22

PGND 19

SCL

10

SDA

9

ACIN

2

BATSEL

14

INP

8

ACOK

13

GND

12

CCV

6

CCI

5

CCS

4

CSSP 28

CSSN 27

REF

3

BST 25

LDO 21

DHI 24

LX 23

DLO 20

ASNS 1

CSIN 17

FBSB 16

FBSA 15

VCC 26

CSIP 18

GND

29

U12

MAX8731ETI-GP

74.08731.073

U12

MAX8731ETI-GP

74.08731.073

12

C49

SC10U25V0KX-3GP

C49

SC10U25V0KX-3GP

12

C393

SCD01U50V2ZY-1GP

C393

SCD01U50V2ZY-1GP

1 2

R76

0R0402-PAD

R76

0R0402-PAD

1 2

C117

SC1U10V3KX-3GP

C117

SC1U10V3KX-3GP

1 2

G46

GAP-CLOSE-PWR

G46

GAP-CLOSE-PWR

12

C403

SCD1U25V3KX-GP

C403

SCD1U25V3KX-GP

1 2

R226

D01R2512F-4-GP

R226

D01R2512F-4-GP

12

R211

470KR2J-2-GP

R211

470KR2J-2-GP

1 2

C110

SCD1U25V3KX-GP

C110

SCD1U25V3KX-GP

12

C89

SC10U25V0KX-3GP

C89

SC10U25V0KX-3GP

G

S D

Q9

2N7002-11-GP

Q9

2N7002-11-GP

21

D5

1SS400PT

D5

1SS400PT

12

C114 SCD1U25V3KX-GPC114 SCD1U25V3KX-GP

12

C80

SCD1U25V3KX-GP

C80

SCD1U25V3KX-GP

1 2

R257

1R3F-GP

R257

1R3F-GP

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

BATA_SDA_1

AD+_2

AD+_JK

BATA_SCL_1

BAT_IN#

BATA_SCL_1

BATA_SDA_1

AD+_JK

BT+

3D3V_AUX_S5

AD+

3D3V_AUX_S5

BAT_IN#30

AD_OFF30

BAT_SCL30,41 BAT_SDA30,41

BATT_SENSE41

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

AD/BATT CONN

A3

42 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

AD/BATT CONN

A3

42 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

AD/BATT CONN

A3

42 44Monday, March 12, 2007

<Core Design>

Adaptor in to generate DCBATOUT

ID = -10A/70deg

Rds(ON) = 24mohm

SO-8

BATTERY CONNECTOR

Layout Trace 250mil Layout Trace 250mil

Layout Trace 320mil

2nd:A04433(84.04433.A37)

12

R12

100KR2F-L1-GP

R12

100KR2F-L1-GP

1

2

3

D3

BAV99-5-GP

DY

D3

BAV99-5-GP

DY

TP154TPAD28 TP154TPAD28

12

C10

SCD47U50V5ZY

C10

SCD47U50V5ZY

12

R26

470KR2F-GP

R26

470KR2F-GP

SCL

3

SDA

4

BAT_IN#

5

BT+#6

6

BT+#7

7

GND 1

GND 2

GND 8

GND 9

BAT1

SYN-CON7-17-GP-U1

20.80701.007

BAT1

SYN-CON7-17-GP-U1

20.80701.007

12

R203

1KR2J-1-GP

R203

1KR2J-1-GP

12

C350

SCD1U50V3ZY-GP

C350

SCD1U50V3ZY-GP

1

2

3

D2

BAV99-5-GP

DY

D2

BAV99-5-GP

DY

12

EC9

SCD1U50V3ZY-GP

DY

EC9

SCD1U50V3ZY-GP

DY

12

R11

200KR2F-L-GP

R11

200KR2F-L-GP

1 2

R32 27R3F-GPR32 27R3F-GP

E

BC

R1

R2

Q5

PDTA124EU-1-GP

R1

R2

Q5

PDTA124EU-1-GP

1 2

R28 27R3F-GPR28 27R3F-GP

TP157TPAD28 TP157TPAD28

12

C11

SCD1U50V3ZY-GP

C11

SCD1U50V3ZY-GP

1

2

3

4 5

6

7

8

S

S

S

GD

D

D

D

U28

P2003EVG-GP

S

S

S

GD

D

D

D

U28

P2003EVG-GP

TP155TPAD28 TP155TPAD28

KA

D17

P4SSMJ24PT-GP

D17

P4SSMJ24PT-GP

TP156TPAD28 TP156TPAD28

12

EC13

SC1000P50V3JN-GP

EC13

SC1000P50V3JN-GP

1

2

3

D1

BAV99-5-GP

DY

D1

BAV99-5-GP

DY

12

EC15

SC100P50V2JN-3GP

DY

EC15

SC100P50V2JN-3GP

DY

12

EC12

SC1000P50V3JN-GP

DY

EC12

SC1000P50V3JN-GP

DY

12

EC14

SC100P50V2JN-3GP

DY

EC14

SC100P50V2JN-3GP

DY

12

EC10

SCD1U50V3ZY-GP

DY

EC10

SCD1U50V3ZY-GP

DY

12

G1

GAP-CLOSE-PWR

G1

GAP-CLOSE-PWR

E

BC

R1

R2

Q6

PDTC124EU-1-GP

R1

R2

Q6

PDTC124EU-1-GP

1

2

3

4

5

6

7

DC1

ACES-CON5-7-GP-U

20.F1002.005

DC1

ACES-CON5-7-GP-U

20.F1002.005

12

EC11

SCD1U50V3ZY-GP

DY

EC11

SCD1U50V3ZY-GP

DY

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

TMDS_SDA

TMDS_SCL

5V_S0_DVI

TMDS_SCL

5V_S0_DVI

TMDS_SDA

3D3V_S0

5V_S0_DVI

5V_S0

5V_S0

NV_DVI_CLK 26

NV_DVI_DAT 26

MXM_TMDS_TXC+26

MXM_TMDS_TX0-26

MXM_TMDS_TX1-26

MXM_TMDS_TX1+26

MXM_TMDS_TXC-26

MXM_TMDS_TX2+ 26

MXM_TMDS_TX2- 26

MXM_TMDS_TX0+26

NV_DVI_HPD 26

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

DVI CONNECTOR

A3

43 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

DVI CONNECTOR

A3

43 44Monday, March 12, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON SD

DVI CONNECTOR

A3

43 44Monday, March 12, 2007

<Core Design>

1

2

3

D18

BAV99-5-GP

DY

D18

BAV99-5-GP

DY

12

R207

100KR2F-L1-GP

MXM

R207

100KR2F-L1-GP

MXM

12

R23 0R2J-2-GP

DY

R23 0R2J-2-GP

DY

12

EC73 SCD1U10V2KX-4GP

DY

EC73 SCD1U10V2KX-4GP

DY

KA

D19

SDM20U30-7-GP

MXM

D19

SDM20U30-7-GP

MXM

1

2 3

4

RN42

SRN4K7J-8-GP

MXM

RN42

SRN4K7J-8-GP

MXM

12

R22 0R2J-2-GP

DY

R22 0R2J-2-GP

DY

1

2

34

5

6

Q7

2N7002DW-1-GP

MXM

Q7

2N7002DW-1-GP

MXM

EC72

SC220P50V3JN-GP

MXM

EC72

SC220P50V3JN-GP

MXM

12

C353 SC1U16V3ZY-GP

MXM

C353 SC1U16V3ZY-GP

MXM

EC74

SC220P50V3JN-GP

MXM

EC74

SC220P50V3JN-GP

MXM

19

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

NP1

NP2

2

3

4

5

6

7

8

DVI1

FOX-CONN24-3R-1GP-U

20.10172.024

MXM

DVI1

FOX-CONN24-3R-1GP-U

20.10172.024

MXM

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

5V_S0

BT+ DCBATOUT

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

EMI/Spring/Boss

44 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

EMI/Spring/Boss

44 44Thursday, March 15, 2007

<Core Design>

Title

Size Document Number Rev

Date: Sheet of

Wistron Corporation

21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih,

Taipei Hsien 221, Taiwan, R.O.C.

HURON

SD

EMI/Spring/Boss

44 44Thursday, March 15, 2007

<Core Design>

MXM

34.4T902.001

CPU

34.4T901.001

NB

34.4T901.001

MINICard

34.4G502.001

BD to BD

34.4G501.001

ENG

Spring

1

H4H4

1

H22

HOLE

H22

HOLE

1

H16

HOLE

H16

HOLE

1

GND10

SPRING-7

DY

GND10

SPRING-7

DY

1

H14

HOLE

H14

HOLE

1

H2H2

1

H15

HOLE

H15

HOLE

1

H6H6

1

H7H7

1

H18

HOLE

H18

HOLE

1

H3H3

1

H9H9

1

H21

HOLE

H21

HOLE

1

GND1

HOLE

GND1

HOLE

1

H10H10

12

EC102

SCD1U25V2ZY-1GP

EC102

SCD1U25V2ZY-1GP

1

H11

HOLE

H11

HOLE

1

GND5

HOLE

GND5

HOLE

1

GND6

HOLE

GND6

HOLE

1

GND4

HOLE

GND4

HOLE

12

EC101

SCD1U25V2ZY-1GP

EC101

SCD1U25V2ZY-1GP

1

GND12

SPRING-7

DY

GND12

SPRING-7

DY

1

H23

HOLE

H23

HOLE

1

GND7

HOLE

GND7

HOLE

1

H24

HOLE

H24

HOLE

1

H17

HOLE

H17

HOLE

1

GND3

HOLE

GND3

HOLE

9 8

14

10

7

U39C

TSAHCT125PW-GP

73.74125.L13

U39C

TSAHCT125PW-GP

73.74125.L13

1

H5H5

1

H1H1

1

H13

HOLE

H13

HOLE

1

H12

HOLE

H12

HOLE

1

GND11

SPRING-7

DY

GND11

SPRING-7

DY

1

H19

HOLE

H19

HOLE

1

GND9

SPRING-7

GND9

SPRING-7

1

H8H8

1

GND8

HOLE

GND8

HOLE

1

H20

HOLE

H20

HOLE

1

GND2

HOLE

GND2

HOLE

www.s-manuals.com
