Yamaha DVX 1000 (DVR 1000, NX SW1000, P1000) Service Manual. Www.s Manuals.com. Manual
User Manual: DVD Player Yamaha DVR-1000 - Service manuals and Schematics. Free.
Open the PDF directly: View PDF
.
Page Count: 87
SERVICE MANUAL
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA
Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and
specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
IMPORTANT NOTICE
101083
SERVICE MANUAL

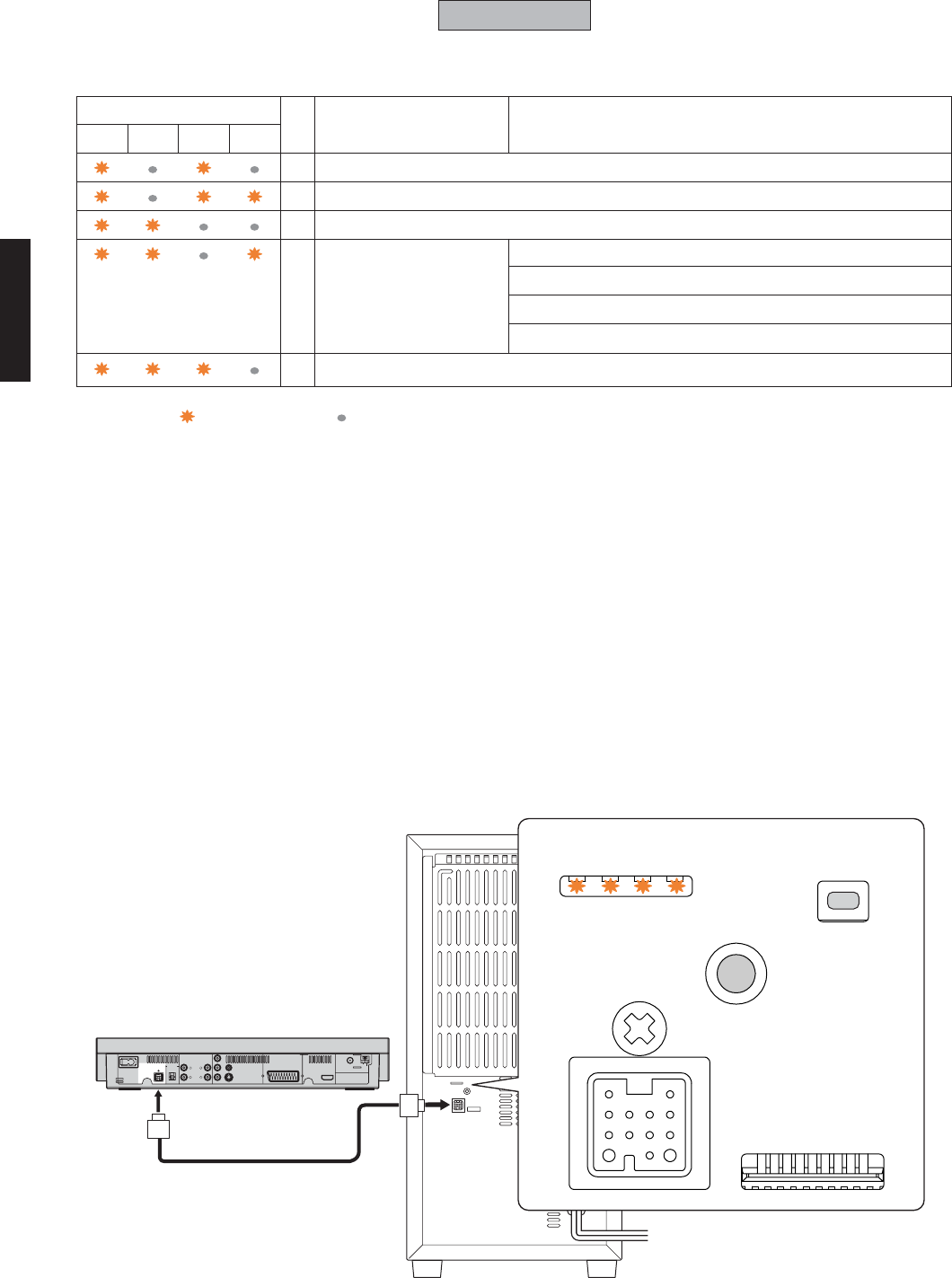

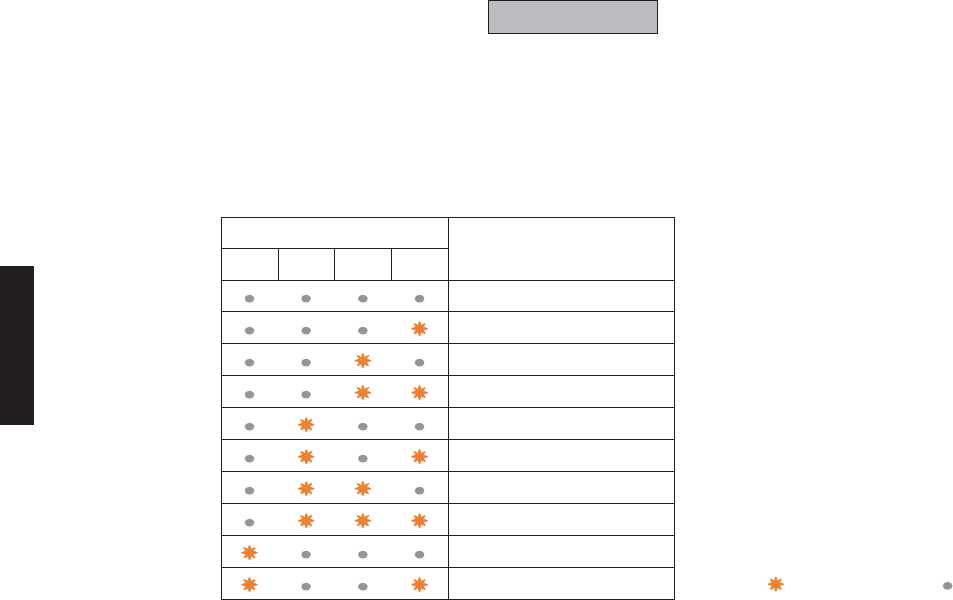

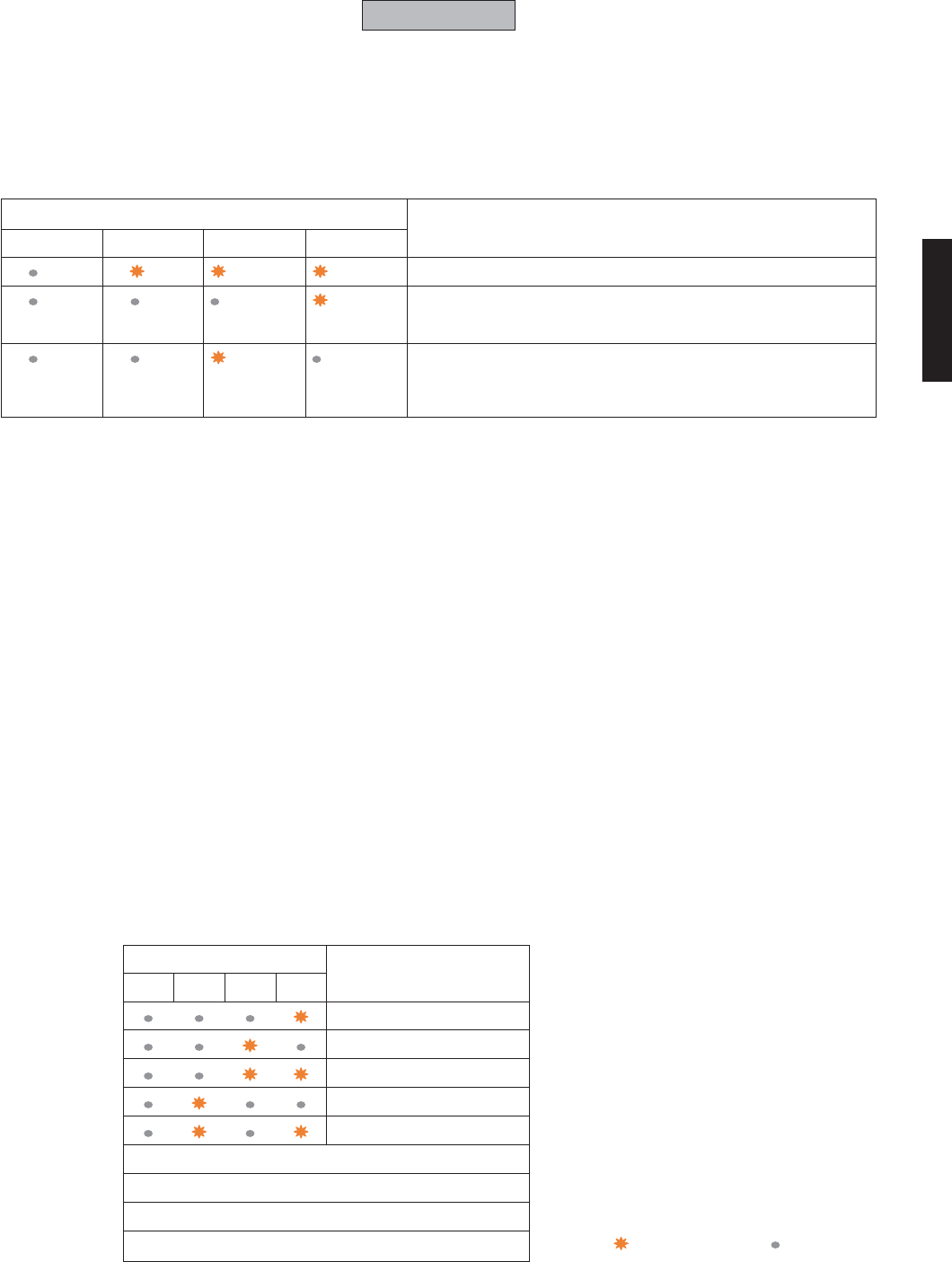

SELF-DIAGNOSIS FUNCTION /
.........................................................23–30
AMP ADJUSTMENT ................................................... 31
IC DATA ................................................................32–40
BLOCK DIAGRAMS .............................................41–43
PIN CONNECTION DIAGRAM................................... 44

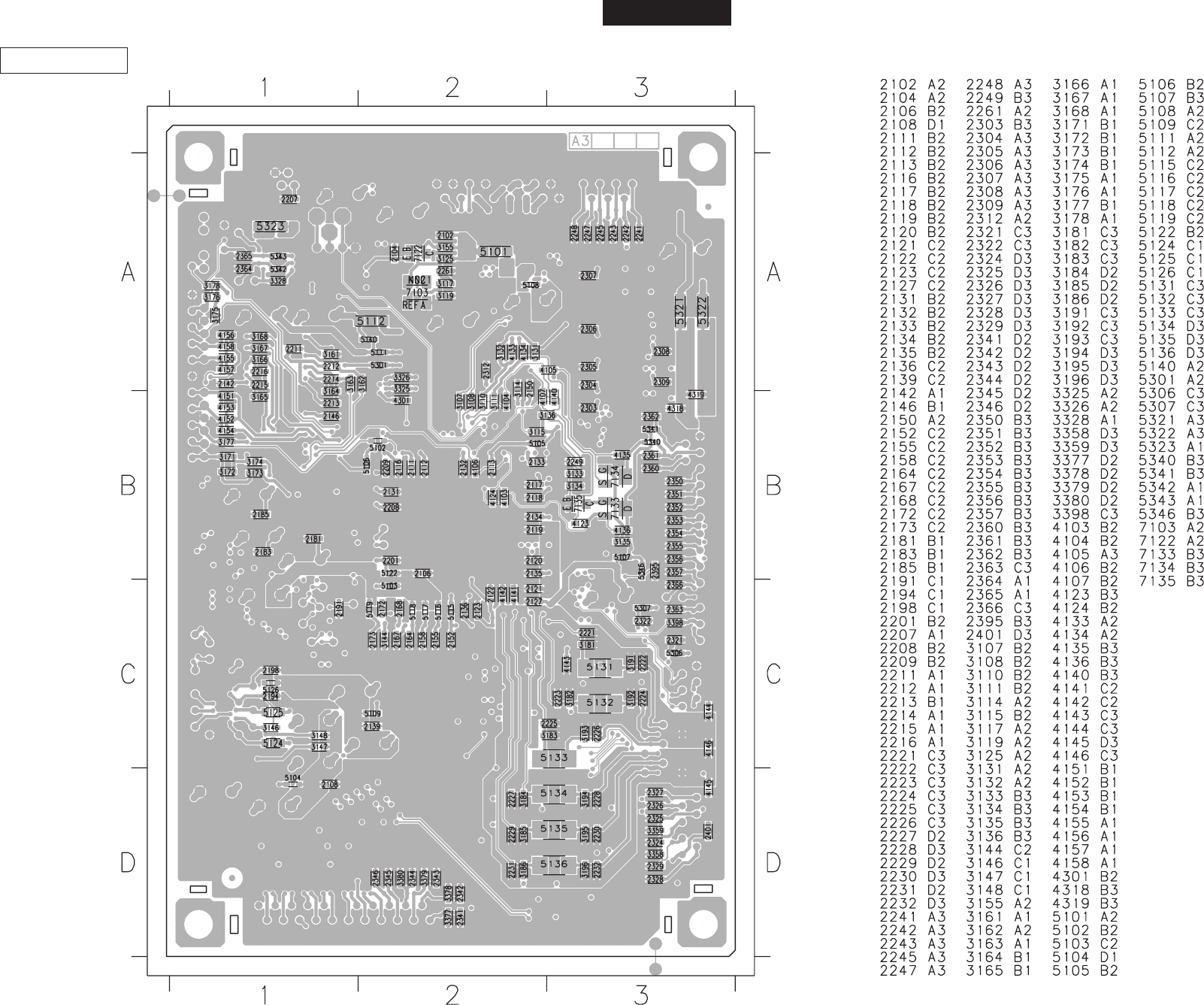

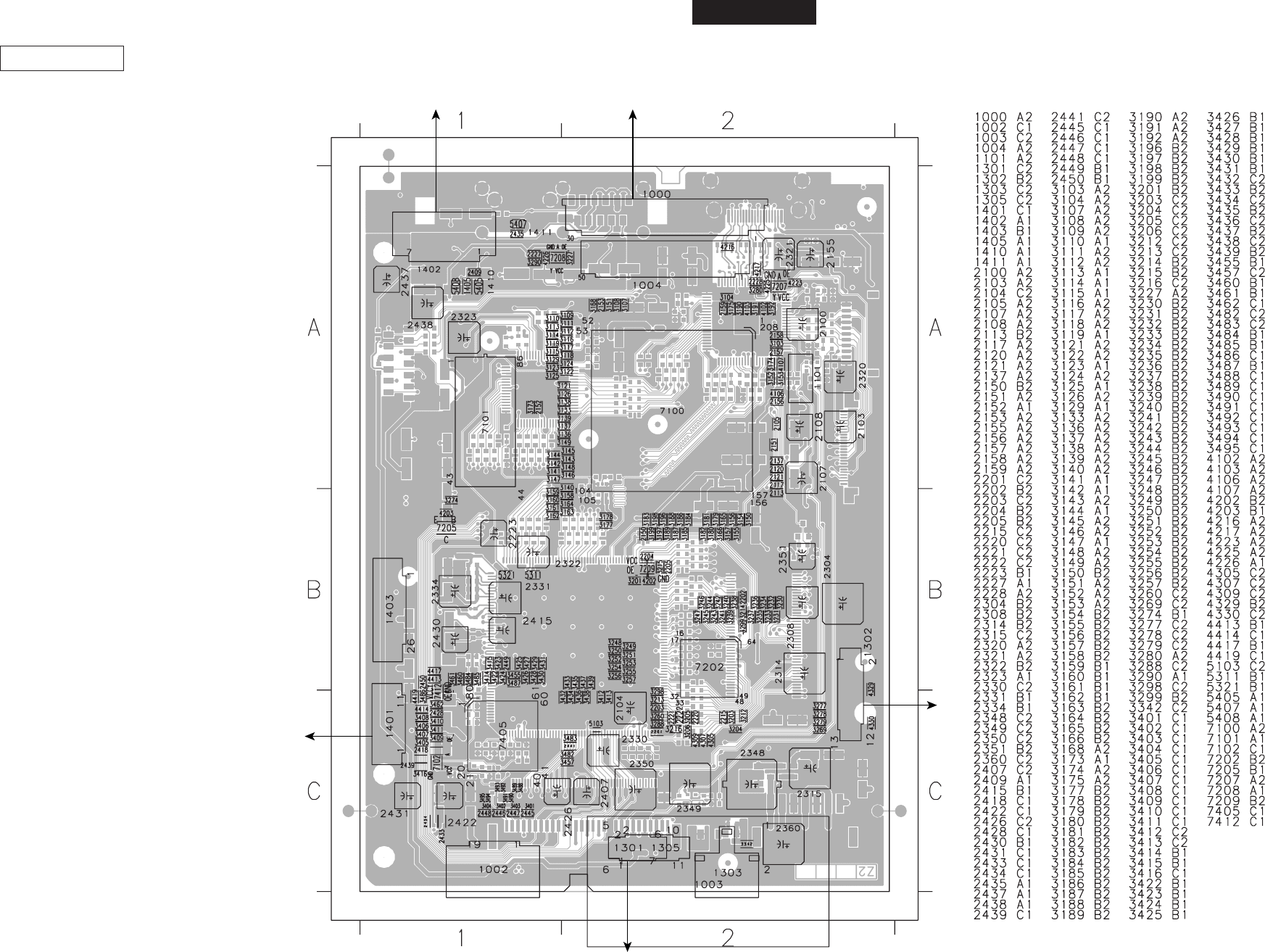

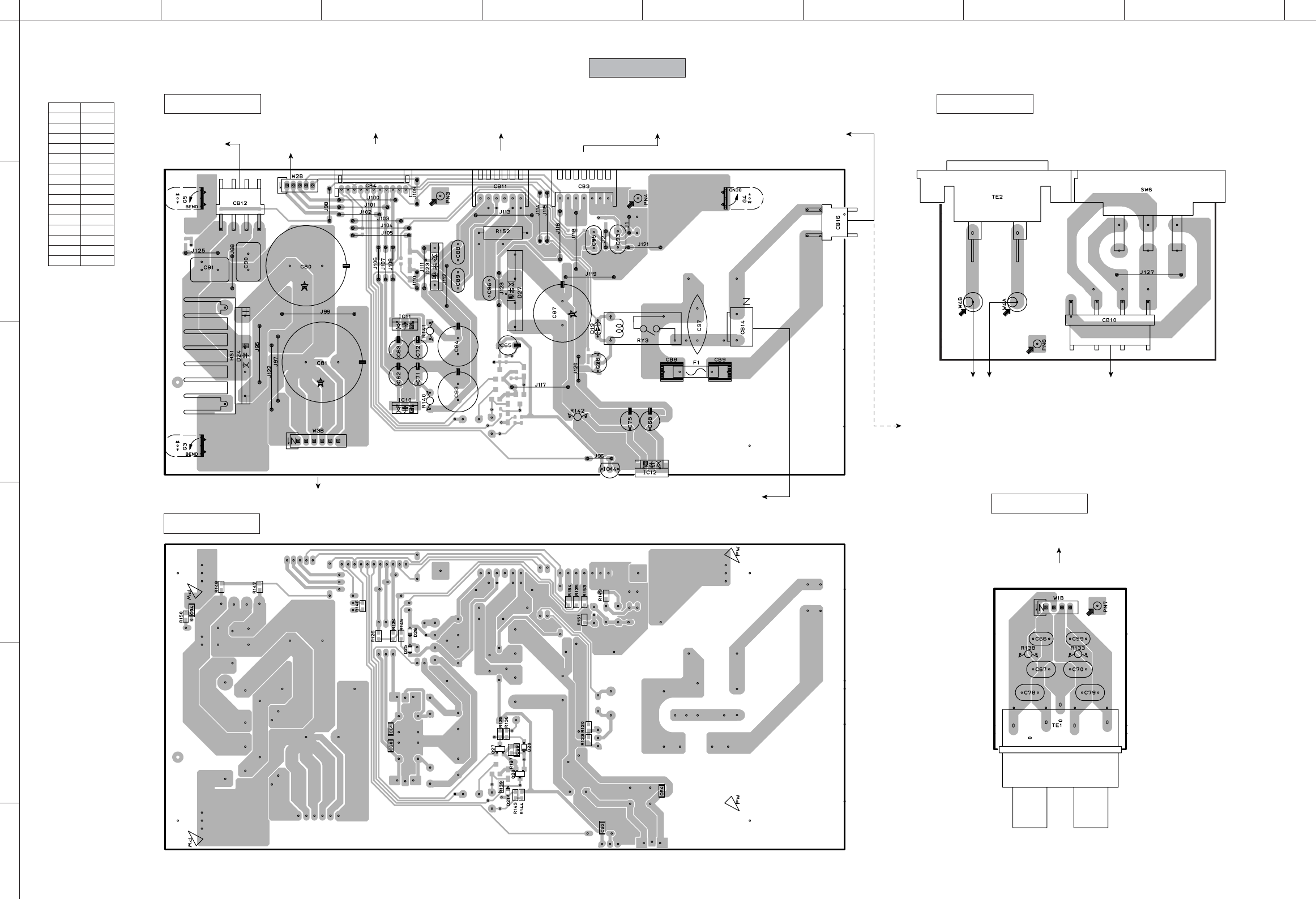

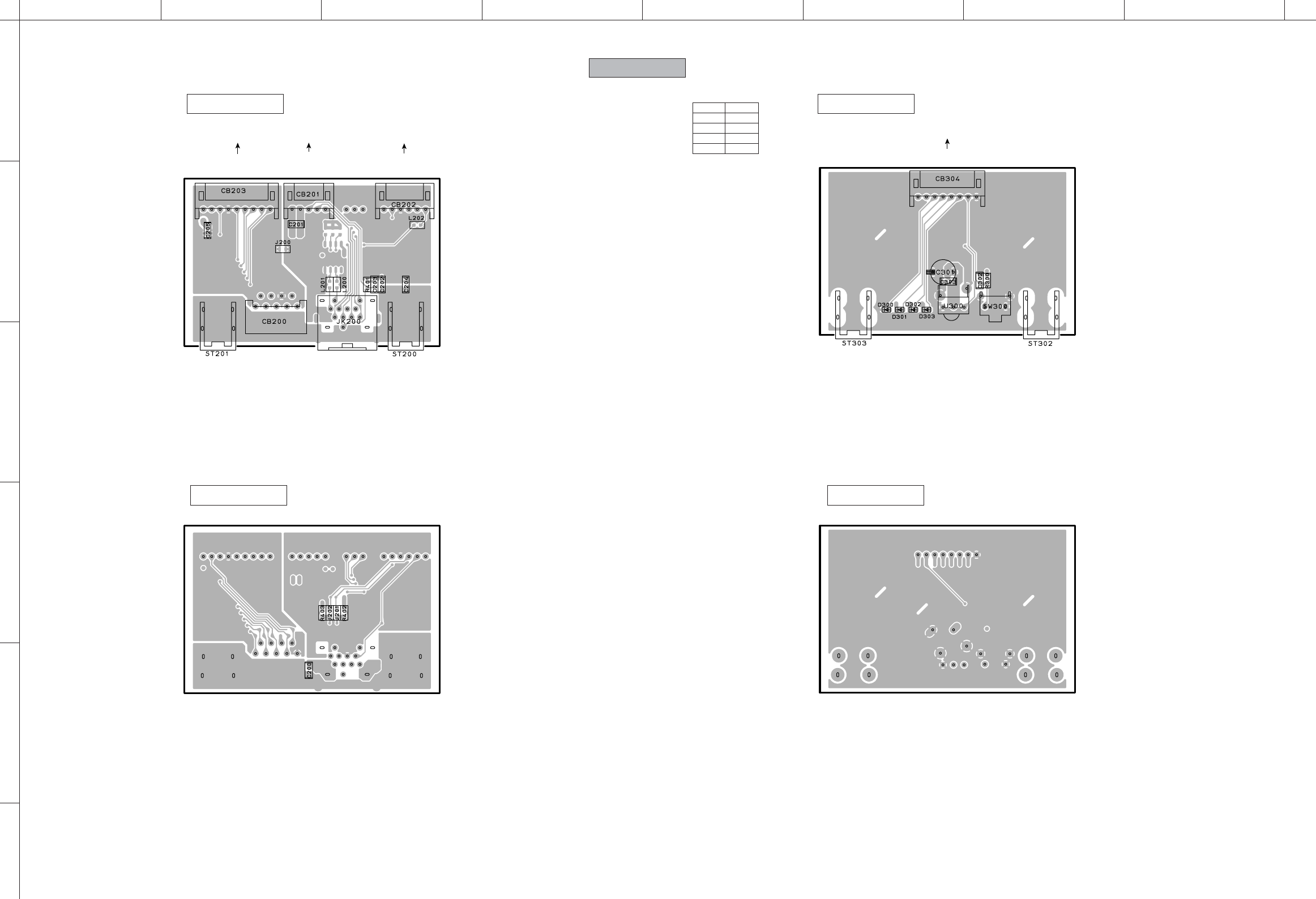

PRINTED CIRCUIT BOARDS ..............................45–58

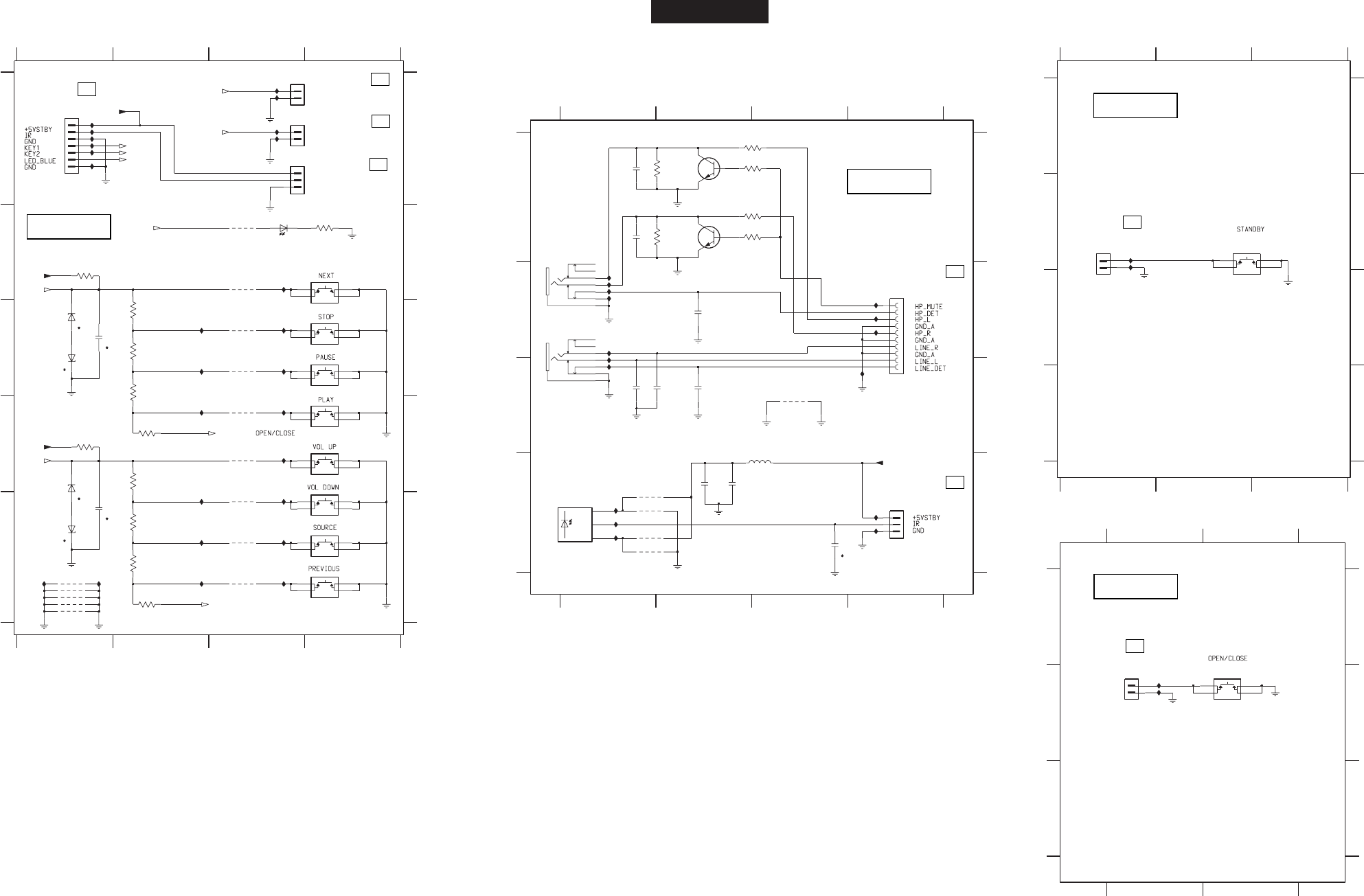

SCHEMATIC DIAGRAMS .................................... 59–74
REPLACEMENT PARTS LIST............................. 75–85
REMOTE CONTROL .................................................. 86
■ CONTENTS
TO SERVICE PERSONNEL ..................................... 2–3
PREVENTION OF ELECTROSTATIC DISCHARGE ......
4
LOCALE MANAGEMENT INFORMATION ................. 4
SYSTEM COMPOSITION / 5
FRONT PANELS....................................................... 5–6
REAR PANELS ....................................................... 7–10
REMOTE CONTROL PANEL..................................... 11
SPECIFICATIONS / ..............................12–14

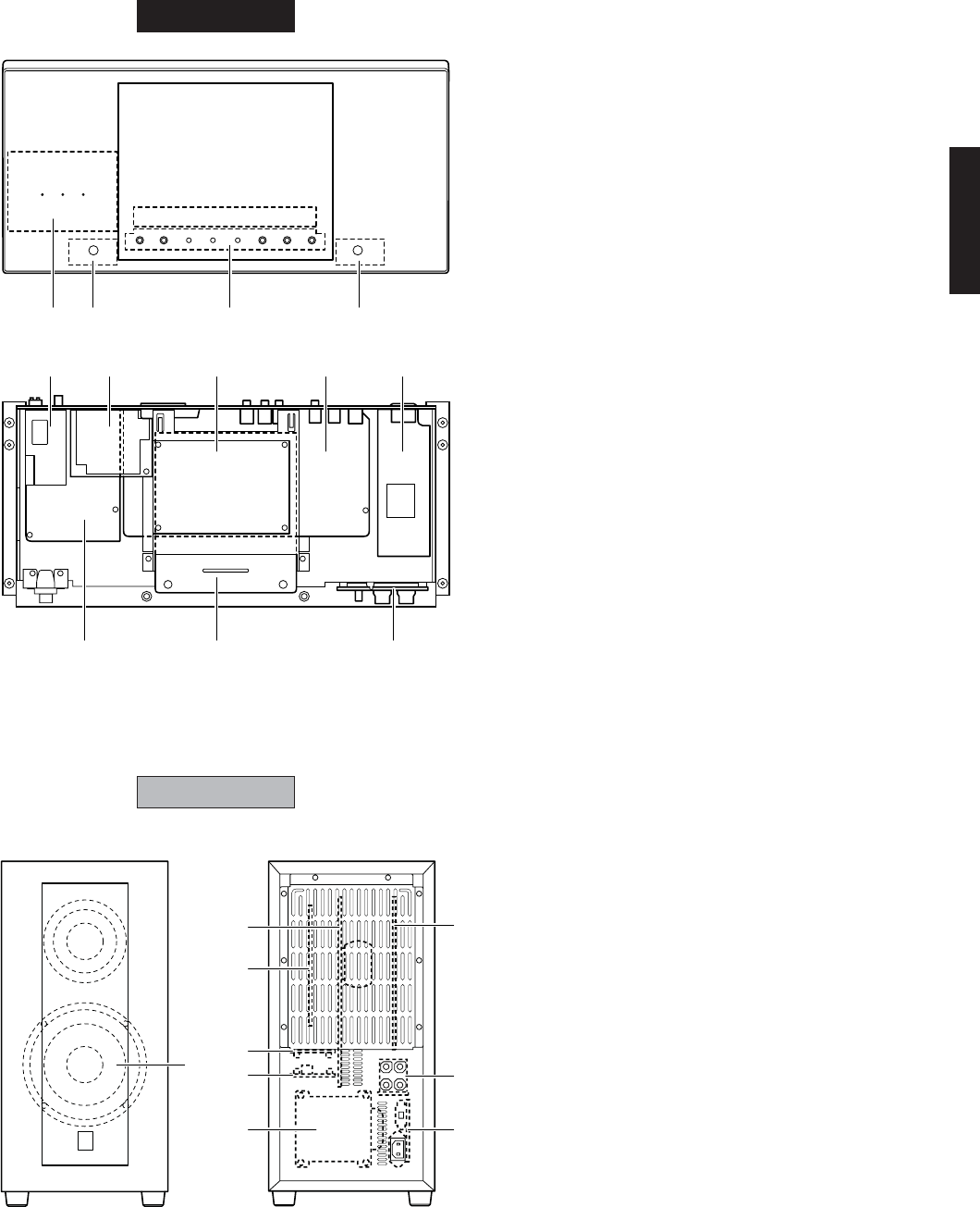

INTERNAL VIEW ........................................................ 15
DISASSEMBLY PROCEDURES / ........16–20

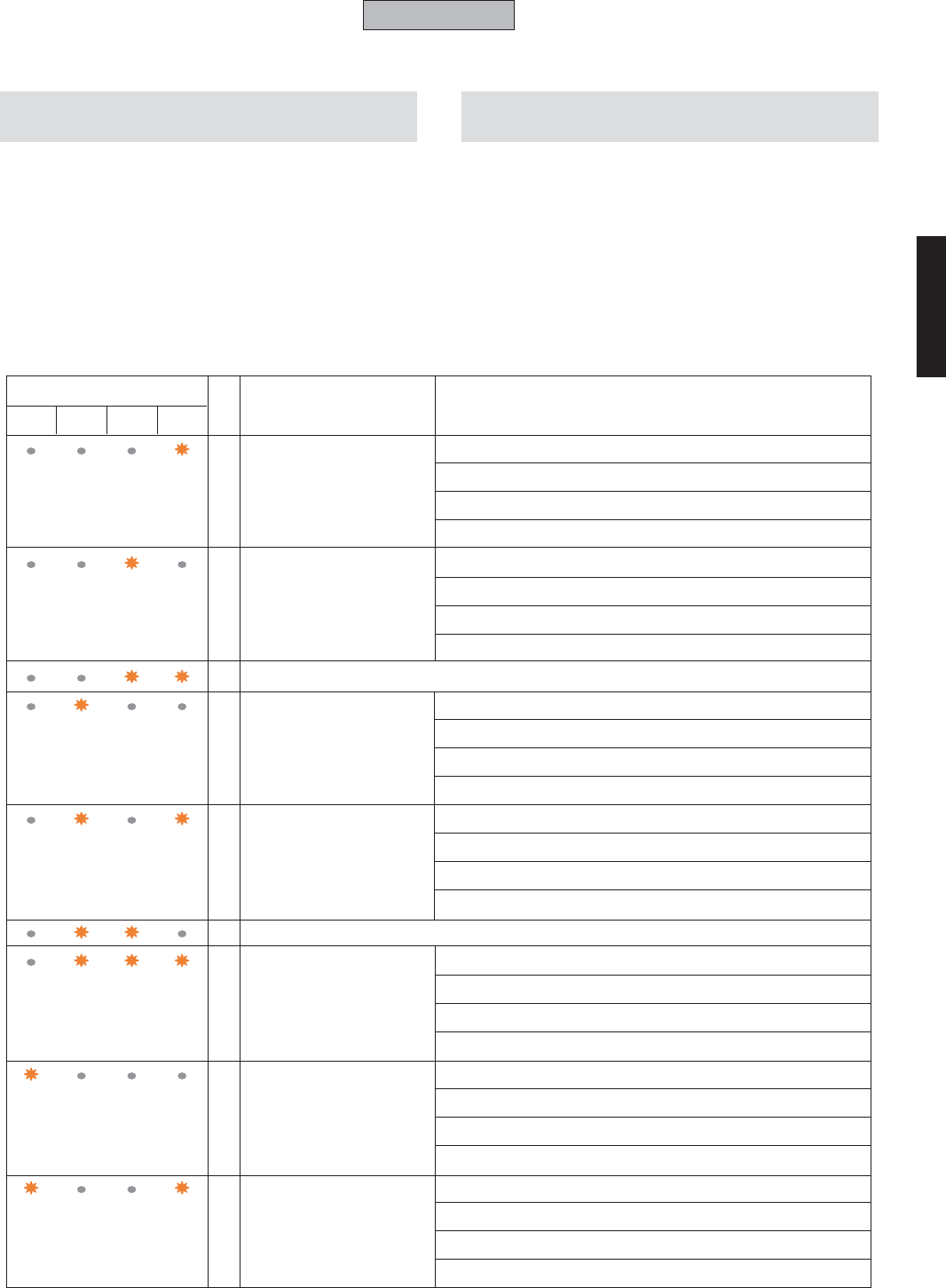

PROTECTION INFORMATION DISPLAY /
....................................21–22
•The DVX-1000 consists of the DVR-1000, NX-SW1000 and NX-P1000.
•When accepting a repair order from the user, it is recommended to receive DVR-1000, NX-SW1000
and NX-P1000 as a set for the repair work.
•
•
DVD RECEIVER/ SUBWOOFER/ SPEAKERS
DVR-1000/NX-SW1000/NX-P1000
DVD HOME THEATER SOUND SYSTEM
DVX -1000
DVX -1000
© 2008 YAMAHA CORPORATION. All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
’08.03
2
DVX-1000
DVX -1000
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked Z
and must be replaced with parts having specifications equal
to those originally installed.

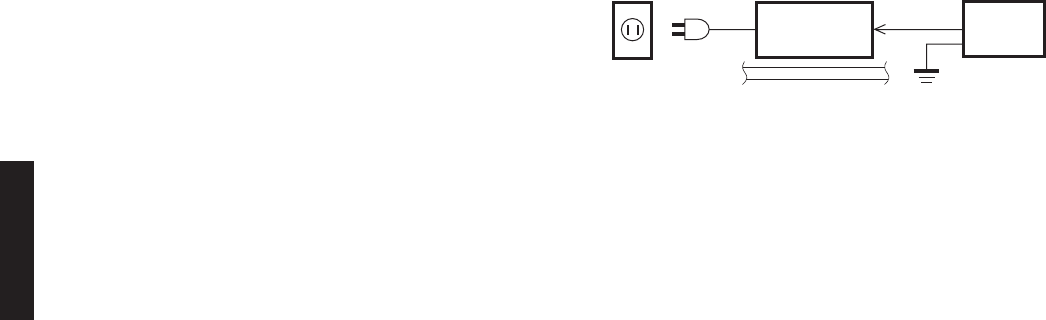

2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohms
shunted by 0.15µF.
AC LEAKAGE
TESTER OR
EQUIVALENT
EQUIPMENT
UNDER TEST
INSULATING
TABLE
WALL
OUTLET

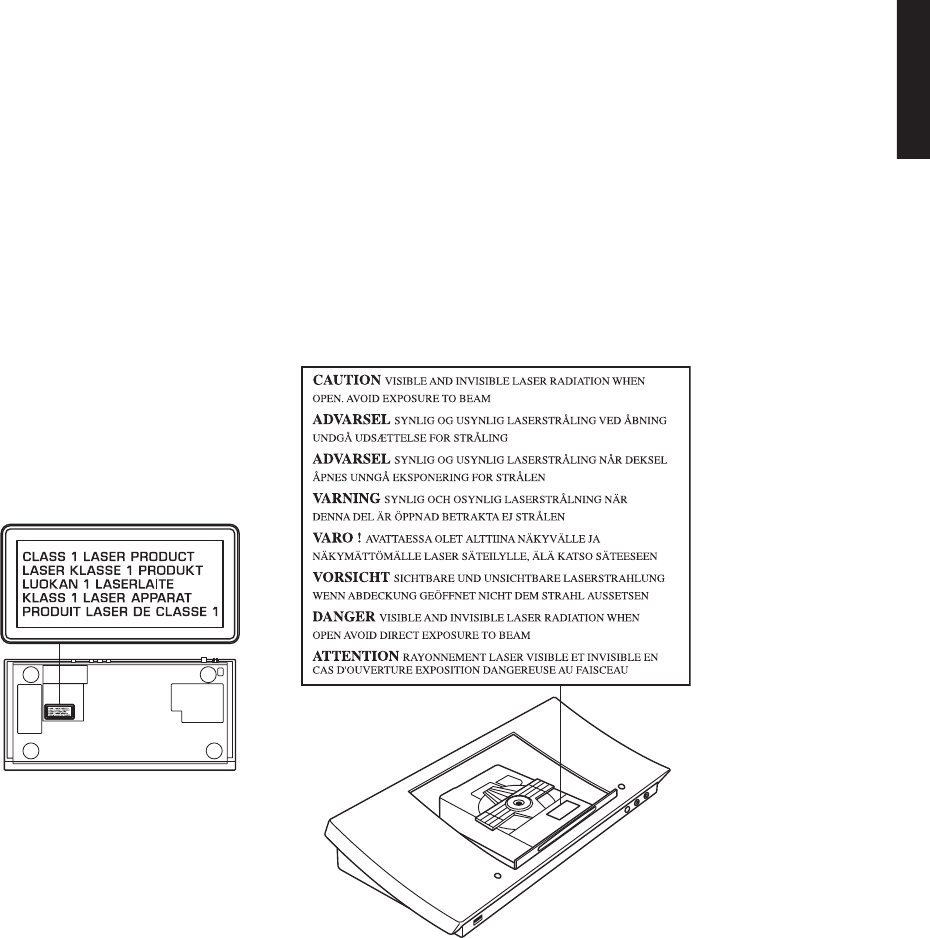

WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where
applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly
other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON
WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling
food.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both
polarities.
About Lead Free Solder /
All of the P.C.B.s installed in this unit and solder joints are
soldered using the lead free solder.
Among some types of lead free solder currently available, it is
recommended to use one of the following types for the repair
work.
• Sn + Ag + Cu (tin + silver + copper)
• Sn + Cu (tin + copper)
• Sn + Zn + Bi (tin + zinc + bismuth)
Caution:
As the melting point temperature of the lead free solder is
about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
3
DVX -1000
DPX -1200
DVX -1000
Laser Emitting conditions:
1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through
the lens of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
Laser Diode Properties
Type: Semiconductor laser GaAlAs
Wave length: 650 nm (DVD)
784 nm (VCD/CD)
Output Power: 7 mW (DVD/VCD/CD)
Beam divergence: 60 degree
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player.
Warning for power supply
The primary side of the power supply carries live mains voltage when the player is connected to the mains even when
the player is switched off !
This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player.
Service personnel have to take precautions to prevent touching this area or components in this area.
Note:
The screws on the DVD mechanism may never be touched, removed or re-adjusted.
Handle the DVD mechanism with care when the unit has to be exchanged!
The DVD mechanism is very sensitive for dropping or giving shocks.
4
DVX-1000
DVX -1000

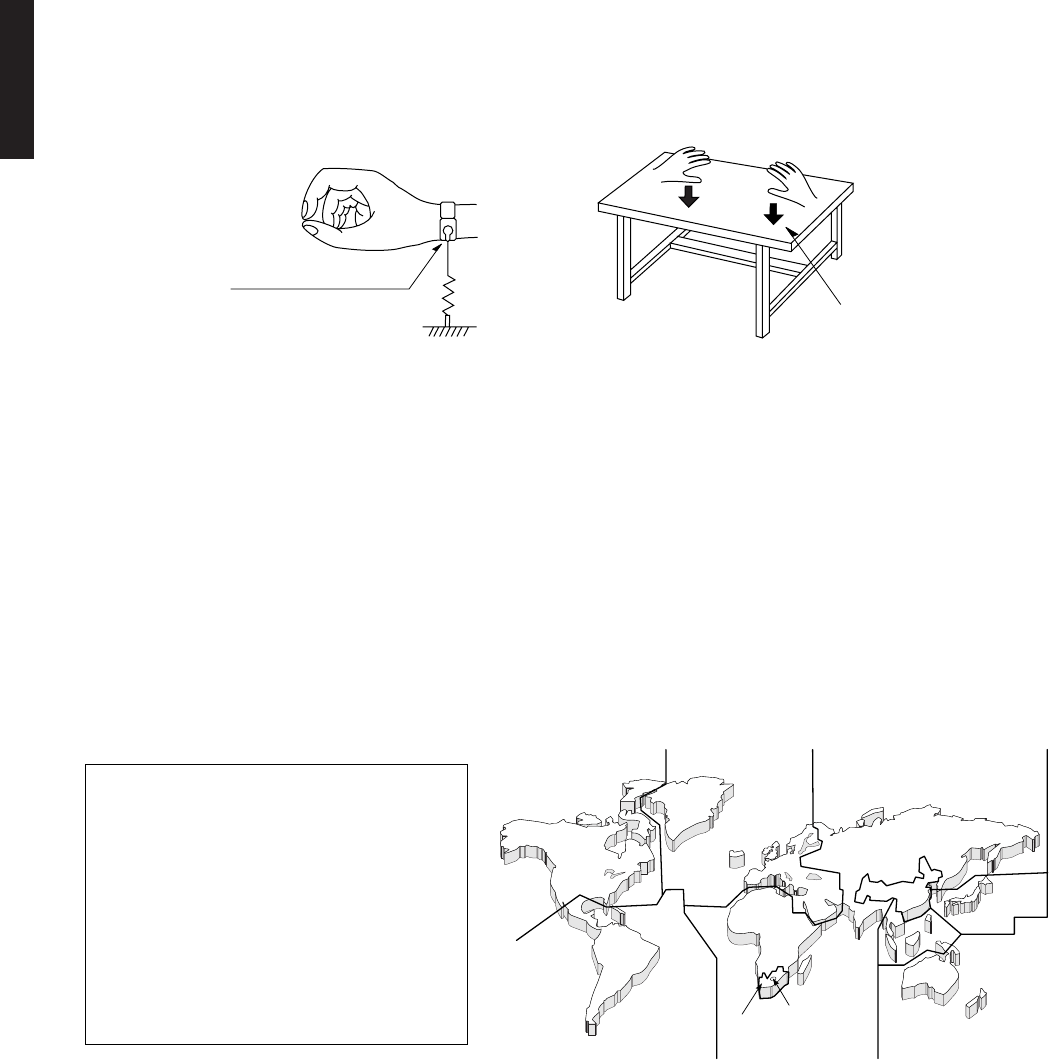

■PREVENTION OF ELECTROSTATIC DISCHARGE
■LOCALE MANAGEMENT INFORMATION
Locale Management Information : This DVD player is designed and manufactured to respond to the Locale
Management Information that is recorded on a DVD disc. If the Locale number described on the DVD disc does not
correspond to the Locale number of this DVD player, this DVD player cannot play this disc.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
q
w
r
w
t
t
r
w
y
e
t
The laser diode in the DVD mechanism may be damaged due to static electricity from clothes or the human body.
Use caution to prevent electrostatic damage when servicing or handling the DVD-mechanism.
1. Grounding for electrostatic damage prevention
Some devices, such as the DVD player, use an optical pickup (laser diode) that will be damaged by static electricity
in the working environment. Only attempt service after ensuring that all grounding procedures have been completed.
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
2. Handling Precautions for DVD mechanism
1. Handle the DVD mechanism gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.
1M-ohms
Conductive material
(sheet) or steel sheet
Anti-static wrist strap
5
DVX -1000
DPX -1200
DVX -1000
The DVX-1000 consists of the DVR-1000, NX-XSW1000 and NX-P1000.

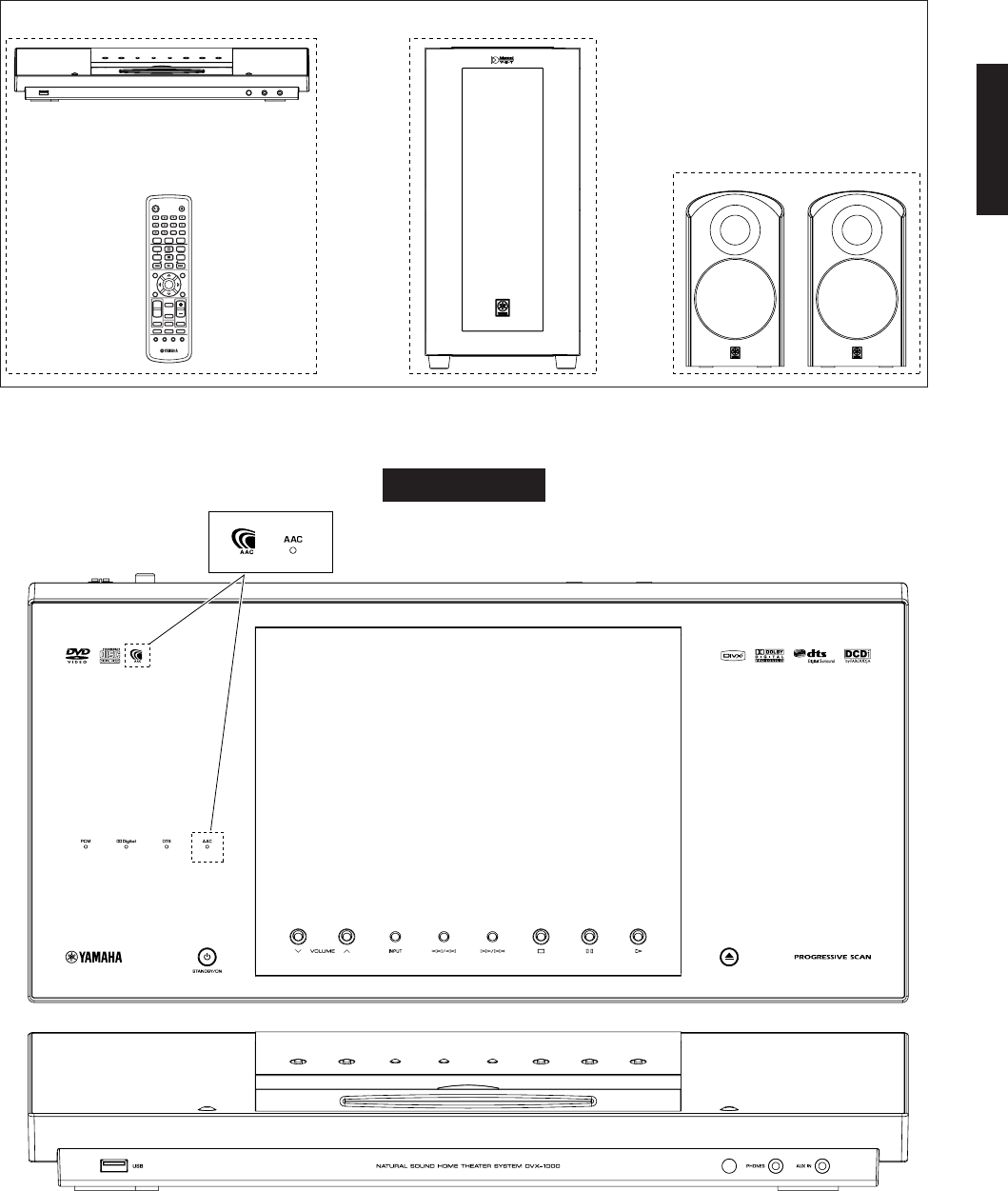

■SYSTEM COM POSITION /
■ FRONT PANELS
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
FREQ/TEXT
MODE START
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
PTY SEEK
▼DVX-1000
DVR-1000 x1 NX-SW1000 x1
NX-P1000 x2
J model only
Front view
Top view
DVR-1000
6
DVX-1000
DVX -1000
Front view Side view
Front view Side view

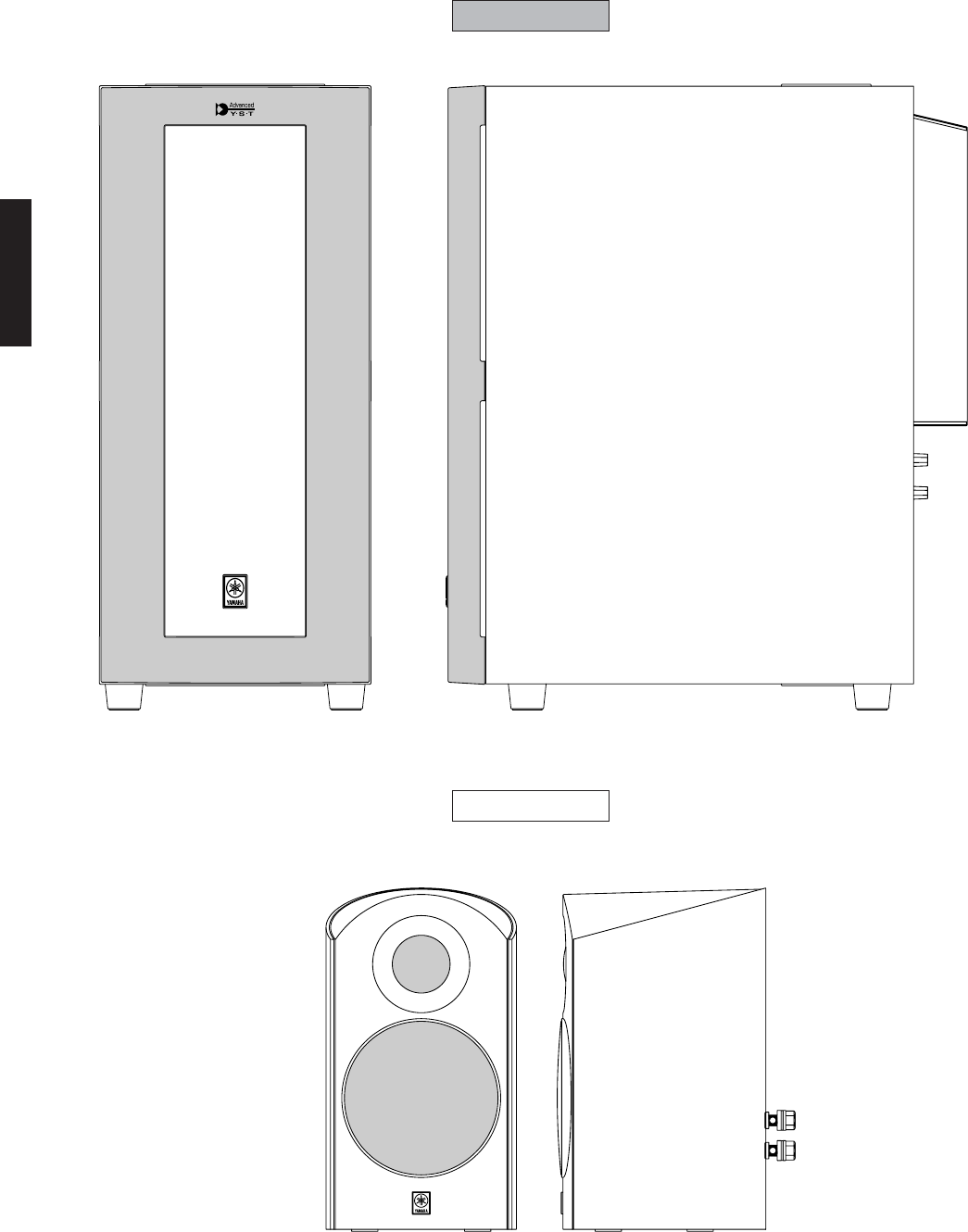

NX-SW1000
NX-P1000
7
DVX -1000
DPX -1200
DVX -1000

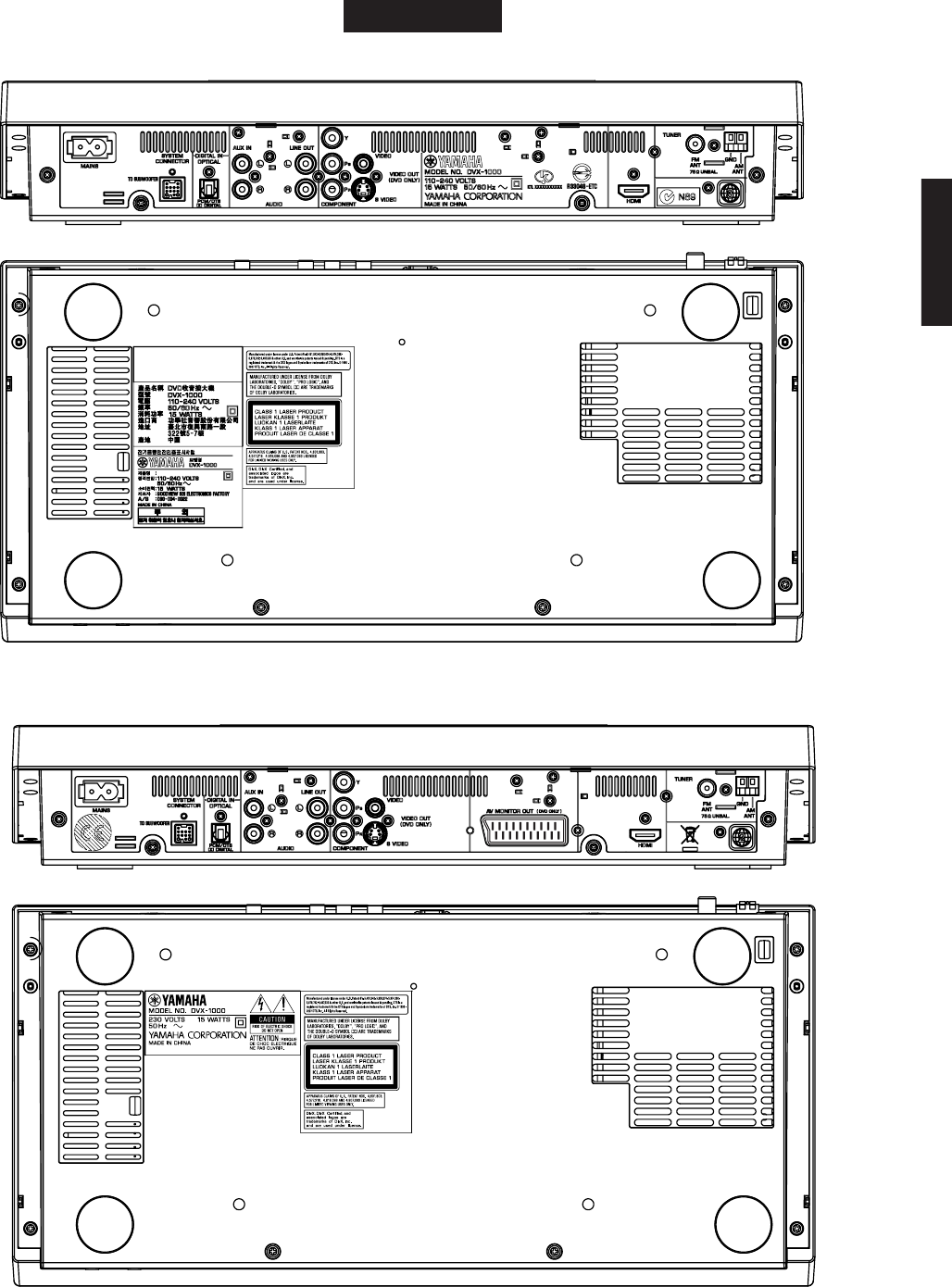

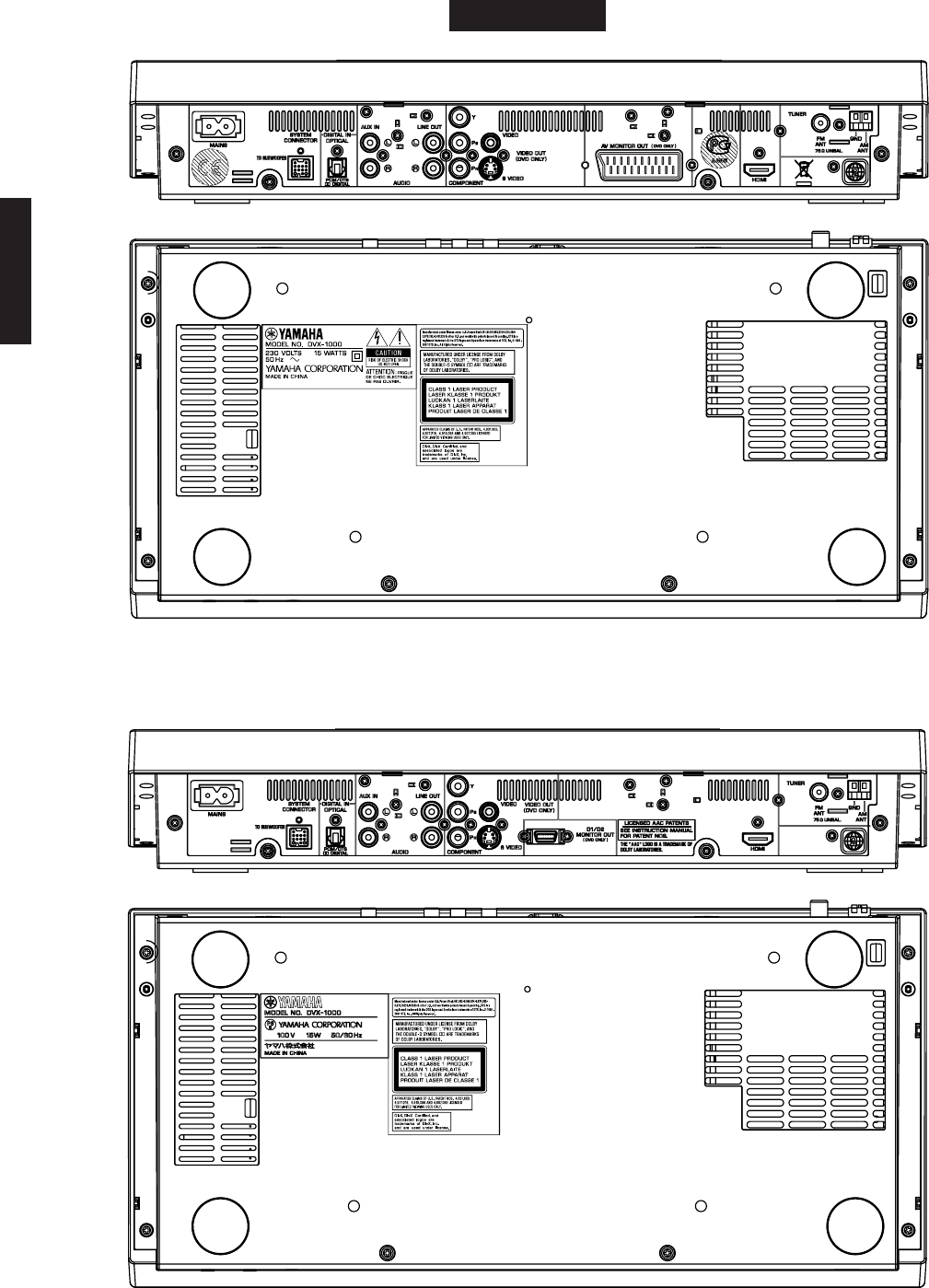

■ REAR PANELS
▼R, K, A, L models
▼G model
DVR-1000
Rear view
Bottom view
Rear view
Bottom view
8
DVX-1000
DVX -1000
▼F model
▼J model
Rear view
Bottom view
Rear view
Bottom view
DVR-1000
9
DVX -1000
DPX -1200
DVX -1000
▼R model
▼A model
▼K model
▼G, F models

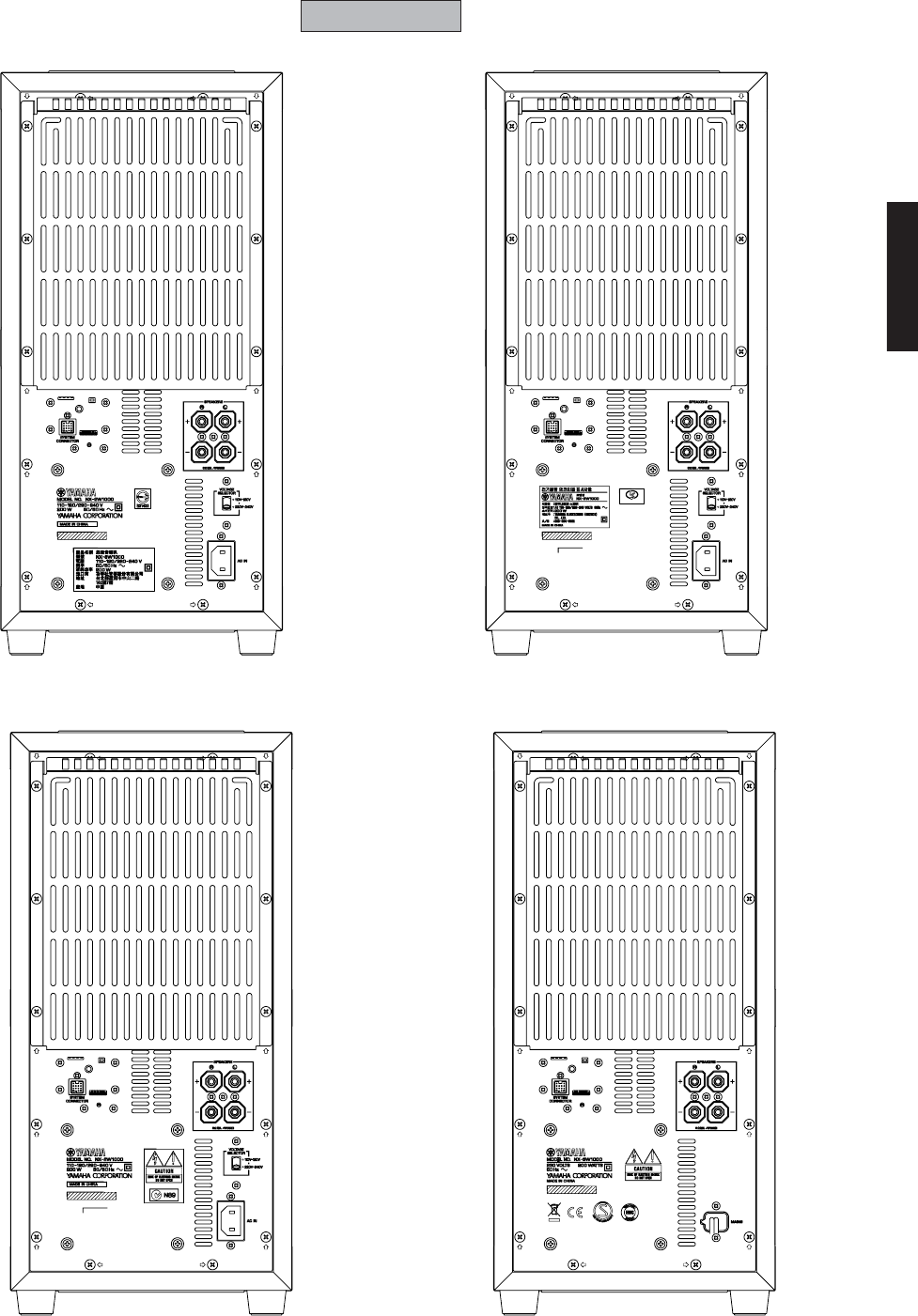

NX-SW1000
10
DVX-1000
DVX -1000

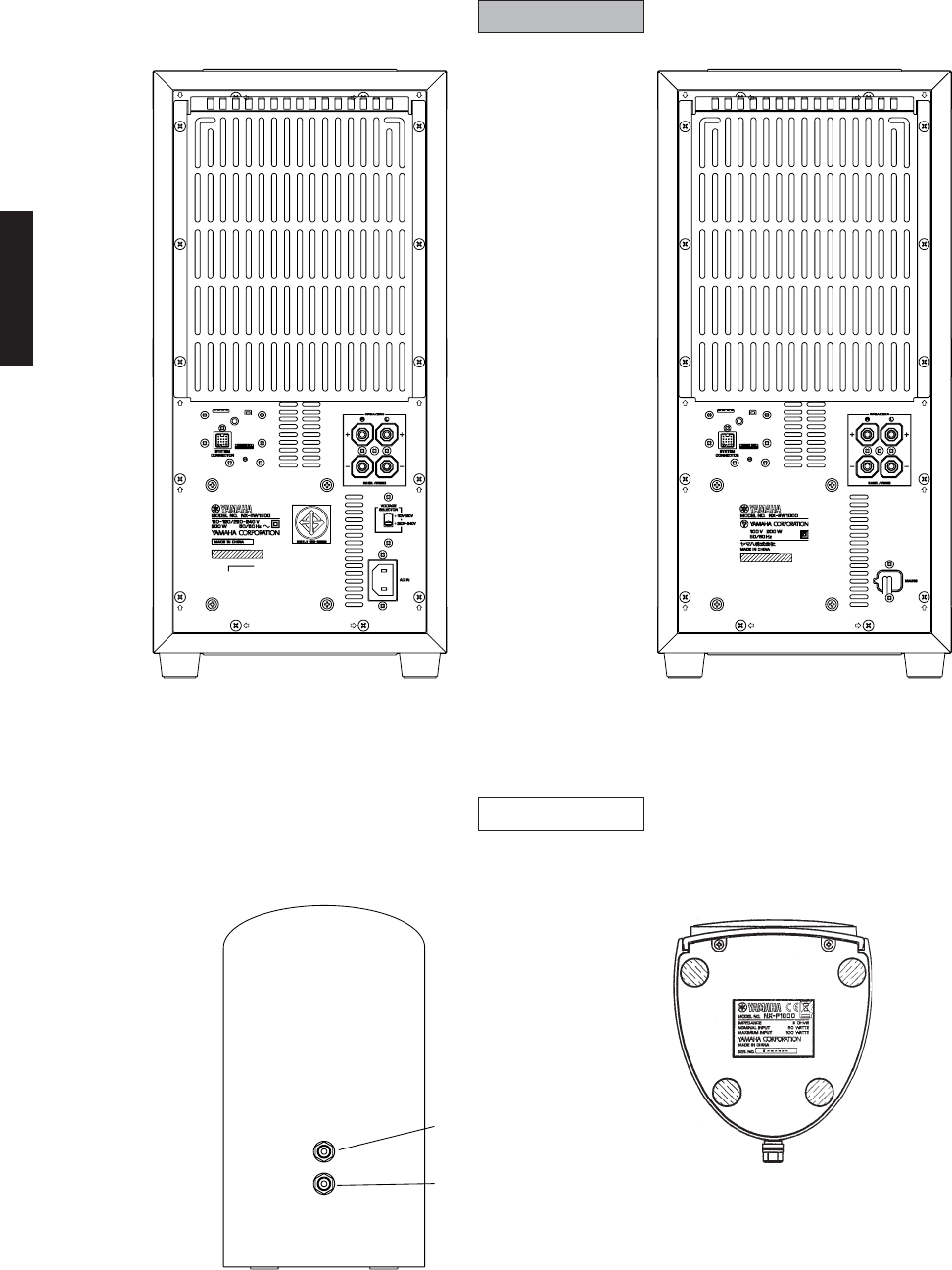

▼L model ▼J model
Red (+)
Black (-)
NX-SW1000
NX-P1000
Rear view Bottom view
11
DVX -1000
DPX -1200
DVX -1000

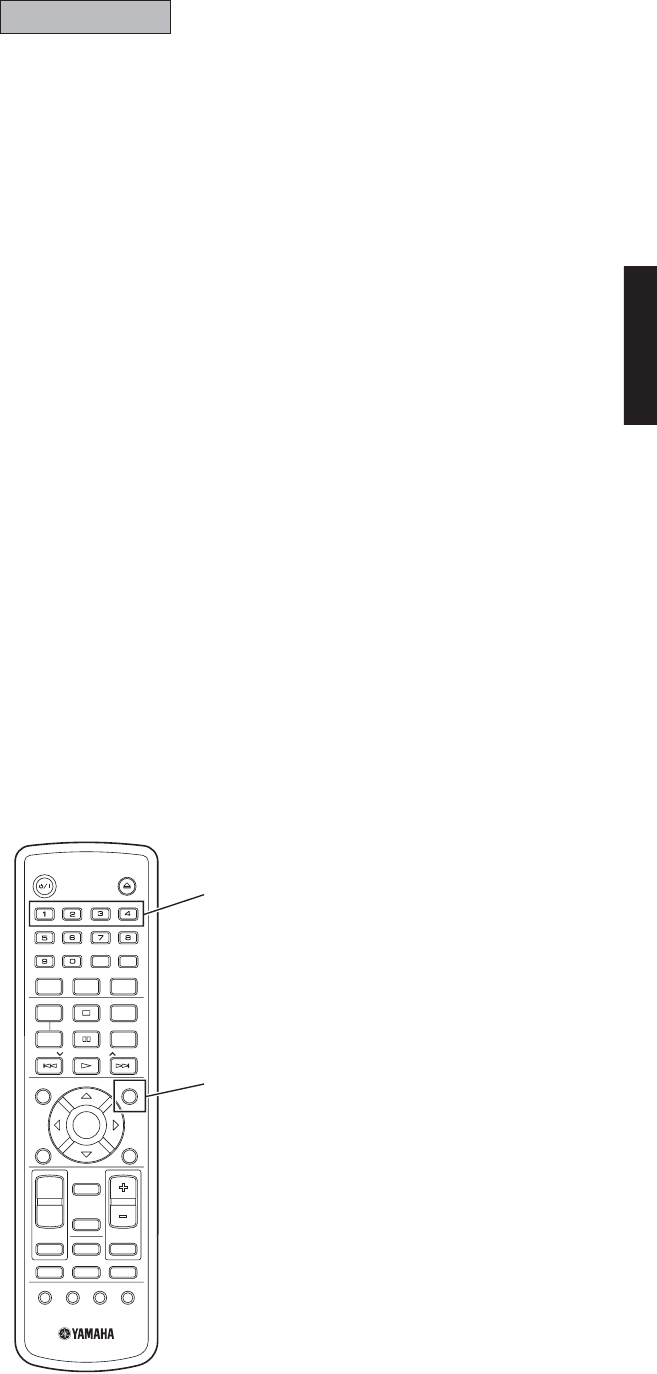

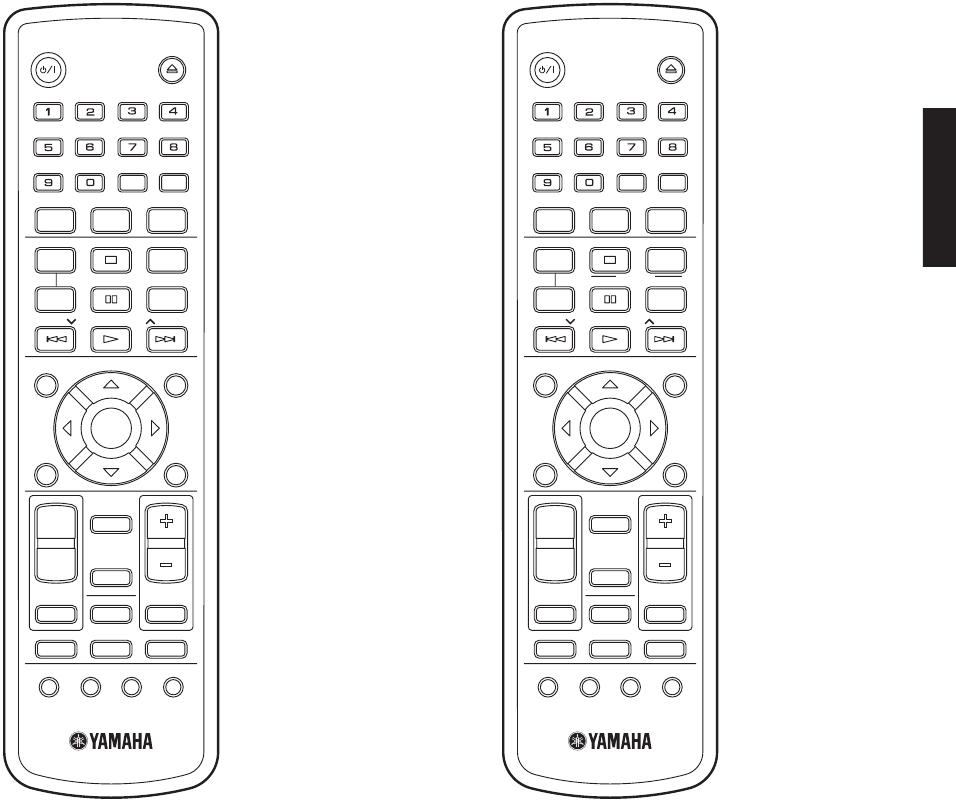

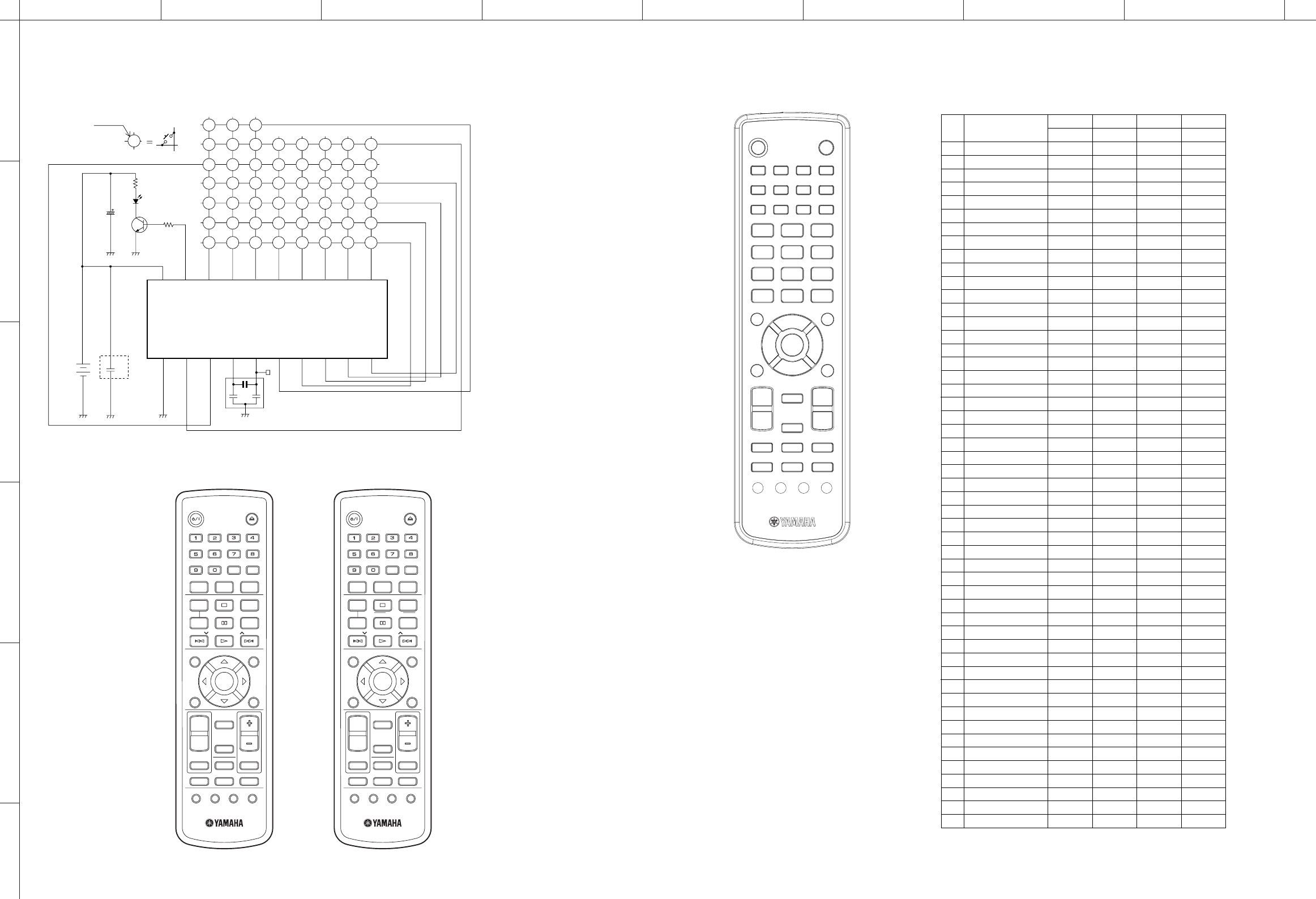

■ REM OTE CONTROL PANELS
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
DVX-1000 WM23860
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
FREQ/TEXT
MODE START
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
PTY SEEK
DVX-1000 WM23870
▼R, K, A, L, J models ▼G, F models
12
DVX-1000
DVX -1000
GENERAL /
Power Supply Rating /
R model 220-240 V, 50/60 Hz
K model 220 V, 60 Hz
A model 240 V, 50 Hz
G, F models 230 V, 50 Hz
L model 110-120 V, 50/60 Hz
J model 100 V, 50/60 Hz
Power Consumption /
26 W (Max.) /
0.5 W (Standby) /
Frequency Response 20 Hz to 20 kHz/±0.2 dB
Signal to Noise Ratio > 100 dB
Input Sensitivity
SCART In (G, F models only) 500 mV
HDMI Output / Type A
USB Type A
AUX IN (Stereo mini) /
ø3.5 mm mini jack /
Dimensions / (W x H x D)
435 x 78 (rear)/38 (front) x 208 mm
(17-1/8" x 3-1/16"/1-1/2" x 8-3/16")
Weight / 3.2 kg (7 lbs. 1 oz.)
Finish / Black color
Accessories / Remote Control x1
Battery x2
Indoor FM Antenna x1
AM Loop Antenna x1
Video Pin Cable
(1.5m)
x1
Power Cable
(1.5m)
x1
*Specifications subject to change without prior notice.
■ SPECIFICATIONS /
TUNER SECTION /
FM Tuning Range /
R, K, A, G, F, L models 87.50 to 108.00 MHz
J model 76.0 to 90.0 MHz
AM Tuning Range /
K, A, G, F, J models 531 to 1602 kHz
R, L models
531 to 1602 kHz/530 to 1700 kHz
DISC SECTION /
Laser Type / Semiconductor /
Disc Diameter / 12cm
Video Decoding /
MPEG-1 / MPEG-2 /DivX 3.11,
4.x & 5.x / DivX Ultra
Video DAC / 12 bits/108 MHz
Signal System / PAL / NTSC
Video Format /
4:3 / 16:9
Composite Video Output /
1.0 Vp-p, 75 ohms
S-video Output / Y - 1.0 Vp-p, 75 ohms
C - 0.3 Vp-p, 75 ohms
RGB (SCART) Output 0.7 Vp-p, 75 ohms
Component Video Output /
Y - 1.0 Vp-p, 75 ohms
PB/CB PR/CR – 0.7 Vp-p, 75 ohms
Audio DAC / 24 bits / 192 kHz
Frequency Response /
4 Hz to 20 kHz (44.1 kHz)
4 Hz to 22 kHz (48 kHz)
4 Hz to 44 kHz (96 kHz)
Audio S/N / 100 dB
Distortion / 0.0035 %
Dynamic Range /
90 dB
AUDIO FORMAT /
Digital Dolby Digital/DTS/MPEG Compressed Digital
PCM 16, 20, 24 bits
fs 44.1, 48, 88.2, 96, 176.4, 192 kHz
MP3 (ISO 9660)
24, 32, 56, 64, 96, 128, 256 kbps
fs 16, 22.05, 24, 32, 44.1, 48 kHz
WMA 32 to 192 kbps, mono, stereo
Full decoding of Dolby Digital and DTS multi-channel sound/
Dolby Surround Compatible Downmix from Dolby Digital multi-
channel sound
DVR-1000
13
DVX -1000
DPX -1200
DVX -1000
AMPLIFIER SECTION /
Output Power /
R, K, A, L models
120/240V
L/R 70W+70W (1KHz 0.9% L+R)
90W+90W (1KHz 10% L+R)
Subwoofer 80W (100Hz 0.9%)
100W (100Hz 10%)
110/220V
L/R 60W+60W (1KHz 0.9% L+R)
75W+75W (1KHz 10% L+R)
Subwoofer 70W (100Hz 0.9%)
90W (100Hz 10%)
G, F models
L/R 70W+70W (1KHz 0.7% L+R)
90W+90W (1KHz 10% L+R)
Subwoofer 80W (100Hz 0.9%)
100W (100Hz 10%)
J model
L/R 90W+90W (1KHz 10%)
Subwoofer 100W (100Hz 10%)
GENERAL /
Power Supply Rating /
R, K, A, L models 110-120/220-240V, 50/60Hz
G and F models 230 V, 50 Hz
J model 100V, 50/60Hz
Power Consumption /
200 W
System / Advanced Yamaha Active
Servo Technology
Impedance / 6 ohms
Speaker Driver /
16cm cone woofer, magnetic
shielding type
Frequency Response /
35Hz – 100Hz (-10dB)
Input Sensitivity /
AUX In 300 mV
Dimensions / (W x H x D)
230 x 477 x 440 mm
(9-1/16" x 18-3/4" x 17-5/16")
Weight / 16.0 kg (35 lbs. 4 oz.)
Finish / Black color
Accessories /
System Control Cable (4m) x1
Power Cable
(1.5m)
x1 (R, K, A, L models)
*Specifications subject to change without prior notice.
NX-SW1000 NX-P1000
System /
2-way acoustic suspension speaker system
Impedance / 6 ohms
Speaker Drivers /
11.0cm woofer, magnetic shielding type
+ 2.5cm soft dome tweeter, magnetic
shielding type
Frequency Response /
100 Hz – 20 kHz (-10dB)
Dimensions / (W x H x D)
145 x 262 x 178 mm
(5-11/16" x 10-5/16" x 7")
Weight / 2.9 kg (6 lbs. 6 oz.)
Finish / Black color
Accessories /
Speaker Cable (4m) x2
*Specifications subject to change without prior notice.
R .......... General model F....... Russian model
K .......... Korean model L....... Singapore model
A .......... Australian model J ....... Japanese model
G .......... European model
14
DVX-1000
DVX -1000
This subwoofer system (NX-SW1000)
employes Advanced Yamaha Active Servo
Technology which Yamaha has developed for
reproducing higher quality super-bass sound.

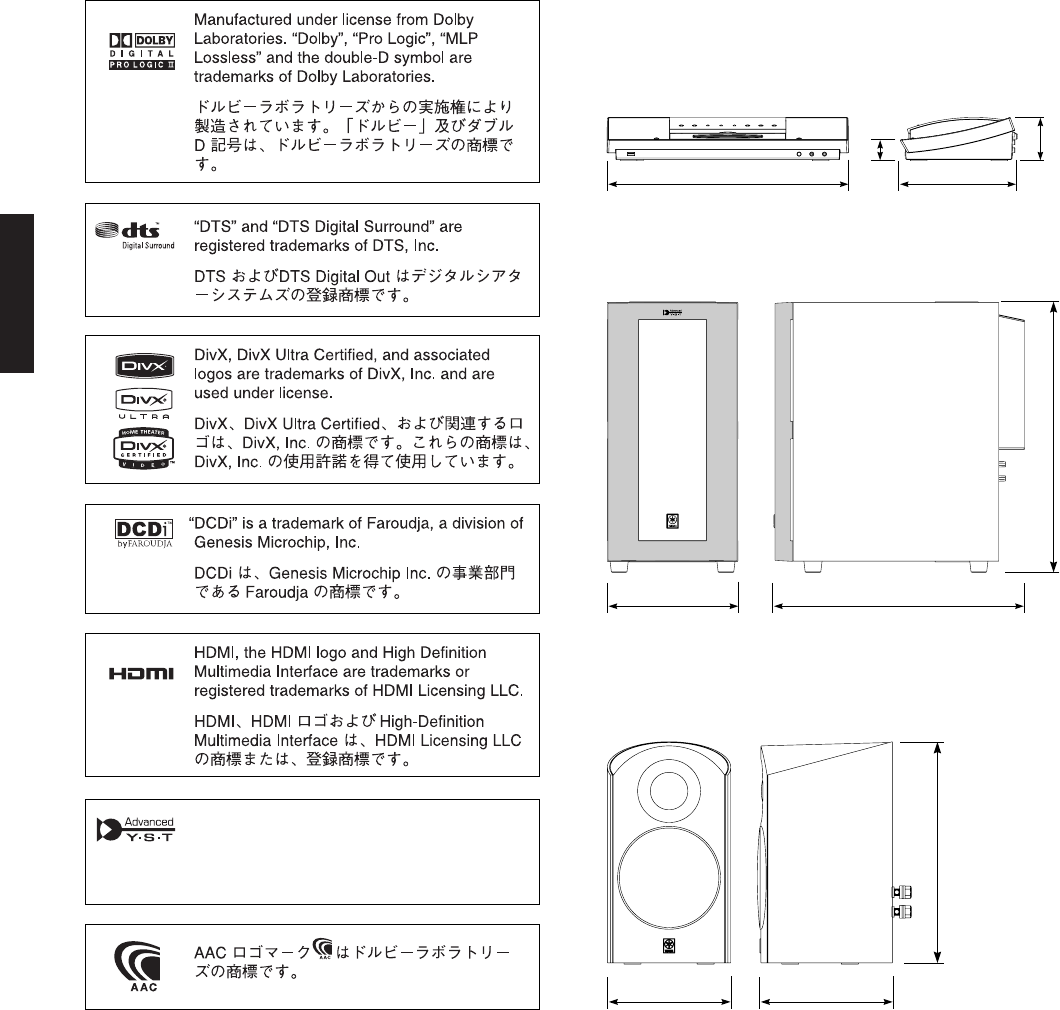

DIM ENSIONS
Unit : mm (inch)
78
(3-1/16")
38
(1-1/2")
435 (17-1/8") 208 (8-3/16")
477 (18-3/4")
230 (9-1/16") 440 (17-5/16")
262 (10-5/16")
145 (5-11/16") 178 (7")
●DVR-1000
●NX-P1000
●NX-SW1000
15
DVX -1000
DPX -1200
DVX -1000

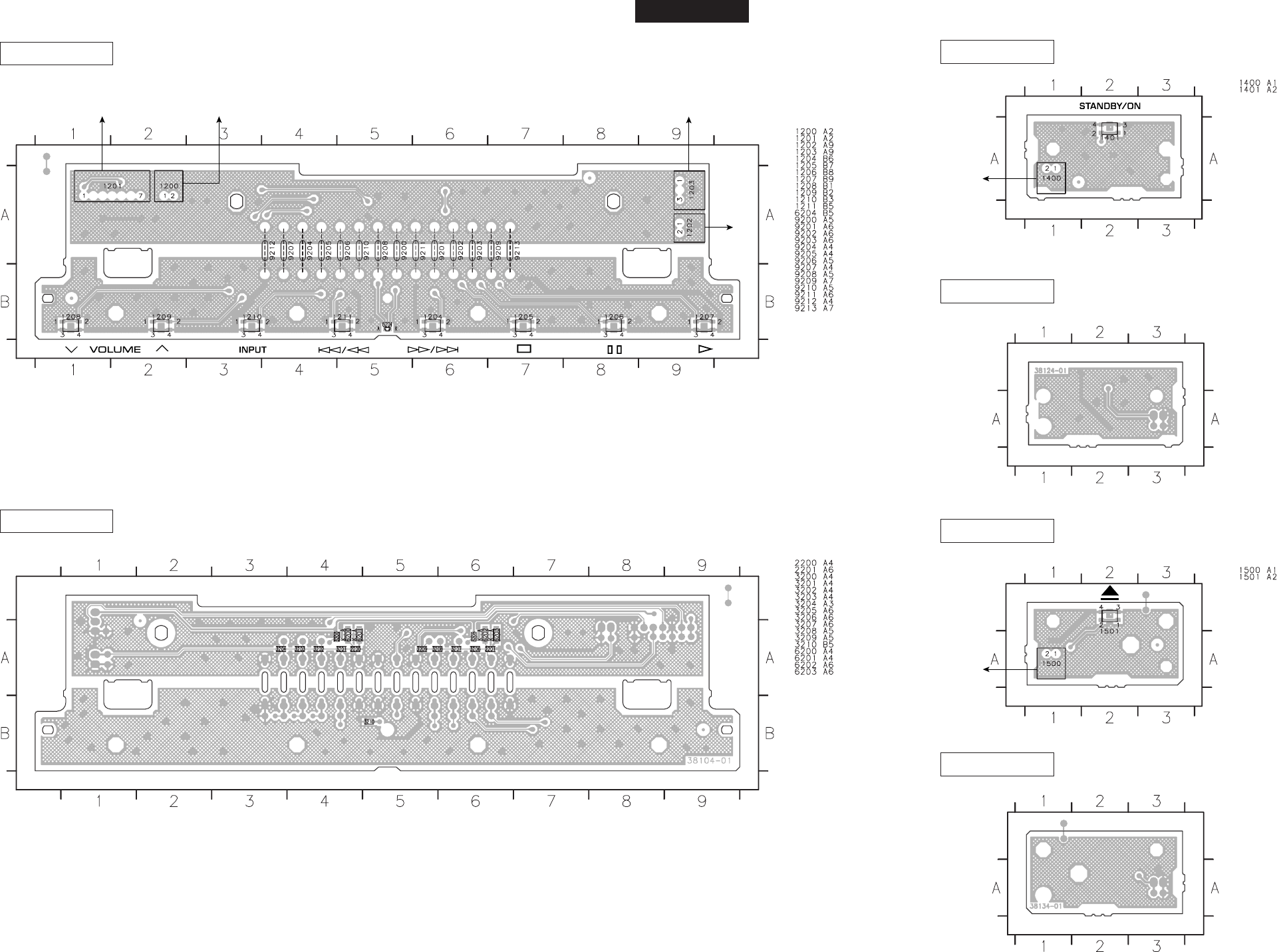

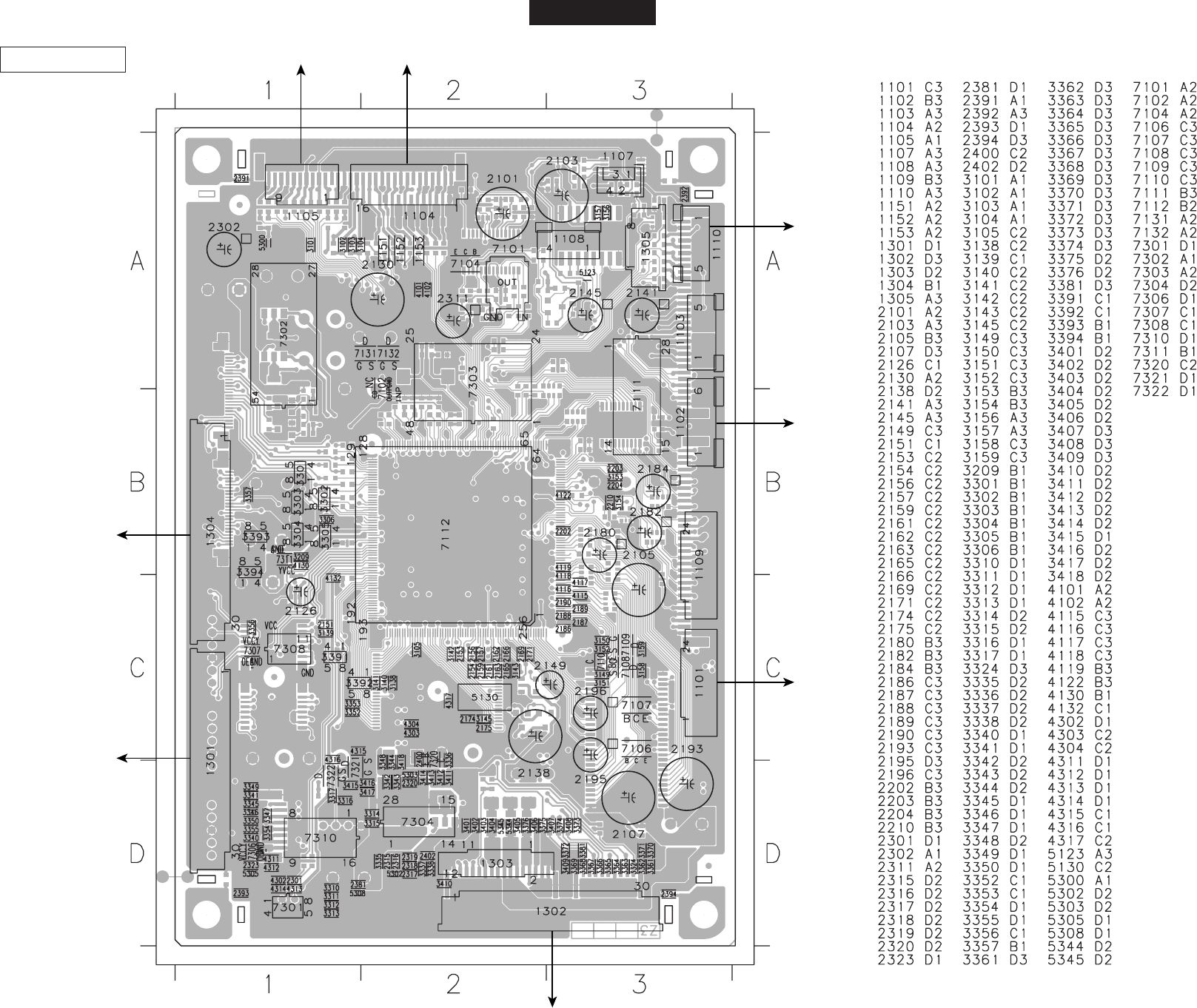

■ INTERNAL VIEW
qFRONT (1) P.C.B.
wFRONT (4) P.C.B.
eFRONT (2) P.C.B.
rFRONT (5) P.C.B.
tAM/FM TUNER
yUSB P.C.B.
uMONO P.C.B.
iAV P.C.B.
oPOWER SUPPLY UNIT
!0 HDMI P.C.B.
!1 LOADER ASS'Y
!2 FRONT (3) P.C.B.
DVR-1000
NX-SW1000
qDRIVER WOOFER
wMAIN (1) P.C.B.
eDSP (1) P.C.B.
rDSP (3) P.C.B.
tDSP (2) P.C.B.
yPOWER TRANSFORMER
uMAIN (2) P.C.B.
iMAIN (4) P.C.B.
oMAIN (3) P.C.B.
otuyi
!1 !2
qw re
!0
Top view
q
u
i
o
y
w
e
t
r
Front view Rear view
16
DVX-1000
DVX -1000
q w
■DISASSEM BLY PROCEDURES /
e r
t y
u
(Remove parts in the order as numbered.)

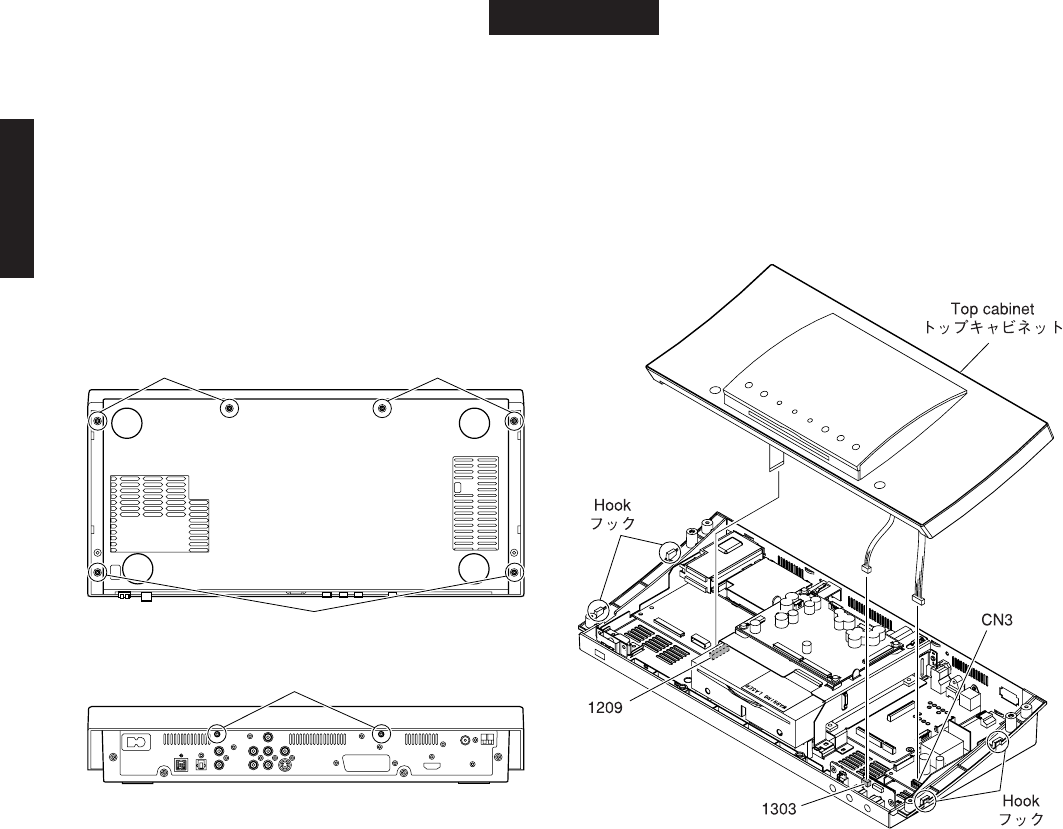

1. Removal of Top Cabinet
a. Remove 6 screws (q) and 2 screws (w). (Fig. 1)
b. Release 4 hooks and then pull out the top cabinet
slowly. (Fig. 2)
c. Remove 1209, 1303 and CN3. (Fig. 2)
d. Remove the top cabinet. (Fig. 2)
2. Removal of Loader Ass'y
a. Remove screw (e) and screw (r). (Fig. 3)
b. Remove 1100 and 1103. (Fig. 3)
c. Remove the USB P.C.B.. (Fig. 3)
d. Remove 2 screws (t) and 2 screws (y). (Fig. 3)
e. Unlock 1101 and then disconnect the flexible flat
cable, and ground the terminal face of the flexible
flat cable with a clip or the like. (Fig. 3)
f. Remove 1102, 1104, 1105 and 1110. (Fig. 3)
g. Unlock 1301, 1302 and 1304 and then disconnect
the flexible flat cable. (Fig. 3)
h. Remove MONO P.C.B. together with the support
MPEG. (Fig. 3)
i. Remove 4 screws (u). (Fig. 3)
j. Remove the loader ass'y. (Fig. 3)
DVR-1000
Fig. 1
Fig. 2
q
q
q
w
Rear view
Bottom view
17
DVX -1000
DPX -1200
DVX -1000
13 mm
(1/2")
1101
1101
(MONO P.C.B.)
1301, 1302, 1304
re
u
y
t
1101
1102
1110
1104
1105
1100
1103
1304
1301 1301
Fig. 3
Fig. 4
*How to manually eject a disc
If the inserted disc cannot be ejected, it is possible to
eject it manually.
a. Remove the Loader ass'y. (Refer to Disassembly
Procedures)
b. Turn the loading gear in the arrow direction until the
disc is ejected. (Fig. 4)
18
DVX-1000
DVX -1000
Disassembly Procedure of Front section
1. Removal of Front Panel Sub Ass'y
*The front panel sub ass'y is fixed to the cabinet ass'y
with dowels.
As a flatblade screwdriver and metalblade or the like
are used for removal, give special care not to cause
damage to the cabinet ass'y.
a. First, insert a flatblade screwdriver at 2 locations on
the bottom to push up the front panel sub ass'y.
(Fig. 6)
b. Then, using a metalblade or the like, push up the
front panel sub ass'y to remove it. (Fig. 6)
Notes:
•When removing the front panel sub ass'y, use both
flatblade screwdriver and the metalblade on the like to
prevent possible deformation of the front panel sub
ass'y.
•When installing the front panel sub ass'y, apply quick-
drying bond or the like to dowels and then fit them into
dowel holes for secure installation.
(The front grille ass'y will come off easily without
quick-drying bond or the like.)

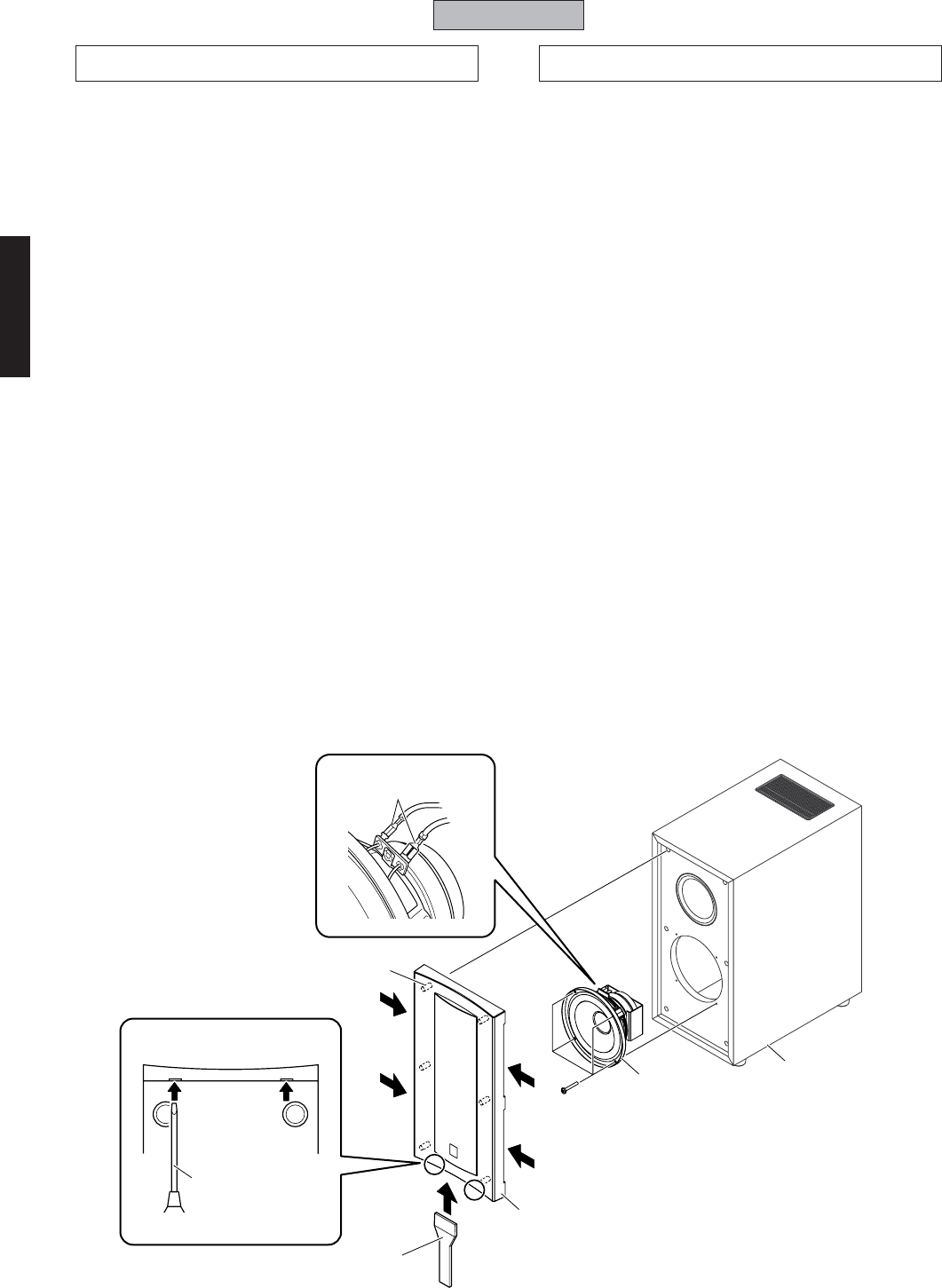

2. Removal of Driver Woofer
a. Remove 4 screws (q). (Fig. 6)
b. Pull out the driver woofer.
c. Disconnect the connector connected to the terminal
of the driver woofer. (Fig. 6)
d. Remove the driver woofer. (Fig. 6)
q
NX-SW1000
Bottom view
q
Fig. 6
19
DVX -1000
DPX -1200
DVX -1000
q
w
Disassembly Procedure of Rear section
1. Removal of Rear Panel Ass'y
a. Remove 8 screws (q). (Fig. 7)
b. Remove the rear cover. (Fig. 7)
c. Remove 6 screws (w). (Fig. 7)
d. Pull out the rear panel ass'y slowly. (Fig. 7)
e. Remove CB15. (Fig. 7)
f. Remove the rear panel ass'y. (Fig. 7)
When Checking the P.C.B.:
•Connect all the removed connectors during
disassembly back to its original positions.
•Spread the rubber sheet and cloth for insulation
purpose and place the rear panel ass'y on them.
(Fig. 8)
q
w
Fig. 7
Fig. 8
20
DVX-1000
DVX -1000

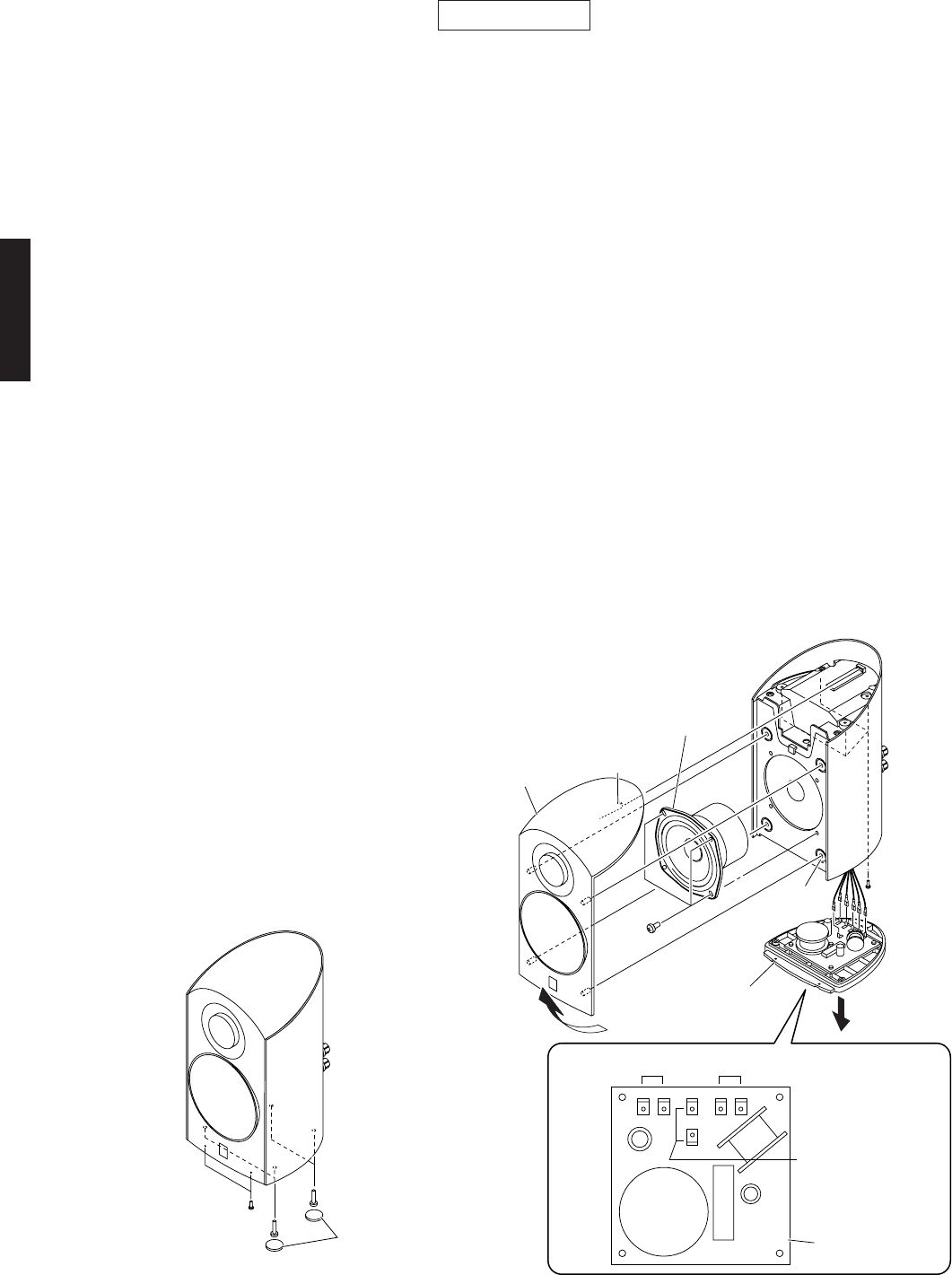

1. Removal of Cover Bottom Ass'y
a. Remove 4 nonskid pads. (Fig. 9)
*The old nonskid pad once removed cannot be reused.
Be sure to replace them with new ones.
b. Remove 4 screws (q) and 2 screws (w). (Fig. 9)
c. Pull out the cover bottom ass'y downward gradually.
(Fig. 10)
d. Disconnect 6 connectors and then remove cover
bottom ass'y. (Fig. 10)
Note: Make sure that all the removed connectors parts
are reinstalled at specified positions.
2. Removal of Front Panel Ass'y
a. Remove 4 screws (e). (Fig. 10)
b. Slide the lower part of the front panel ass'y forward
gradually and remove it from 4 dowels. (Fig. 3)
*At this time, use care not to cause damage to the hook
in the upper part of the front panel ass'y.
*When installing the front panel ass'y, fit the hook in
its upper part first and then install it by 4 dowels.

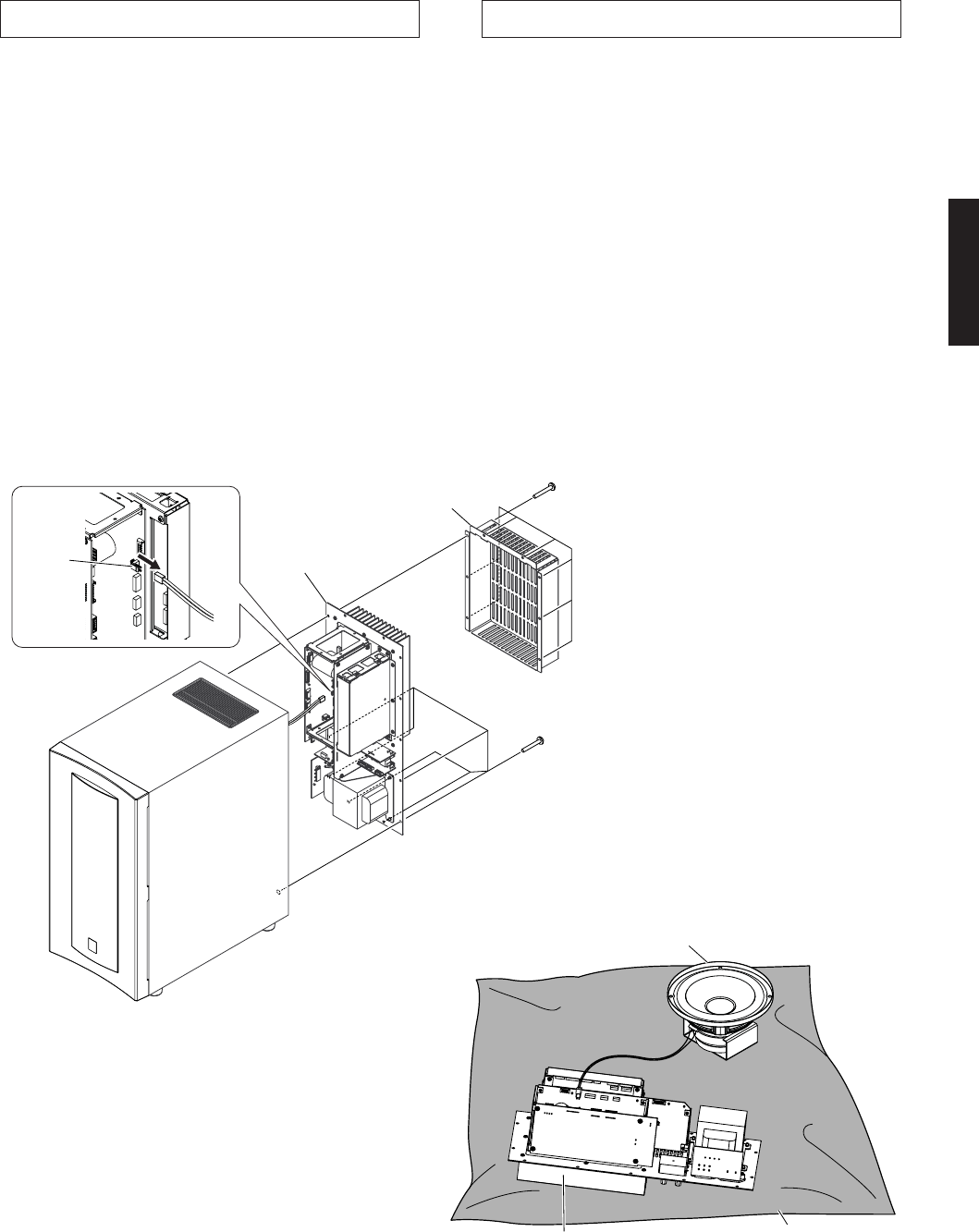

3. Removal of Driver Woofer
a. Remove 4 screws (r) and then remove the driver
woofer. (Fig. 10)
q w
e
r
NX-P1000
q
q
w
Fig. 9 Fig. 10
e
r
21
DVX -1000
DPX -1200
DVX -1000
SYSTEM
CONNECTOR
6
MIN. /SPEAKER
SPEAKERS
MAINS
L
R
SYSTEM
CONNECTOR
MAINS
TO SUBWOOFER
AUX IN
AUDIO
LINE OUT
AV MONITOR OUT
(DVD ONLY)
S VIDEO
VIDEO
COMPONENT
Y
P
R
P
B
PCM/DTS
DIGITAL
OPTICAL
DIGITAL IN
VIDEO OUT
(DVD ONLY)
AM
ANT
GND
TUNER
HDMI
FM
ANT
75 UNBAL
L
R
L
R
NX-SW1000
DVR-1000

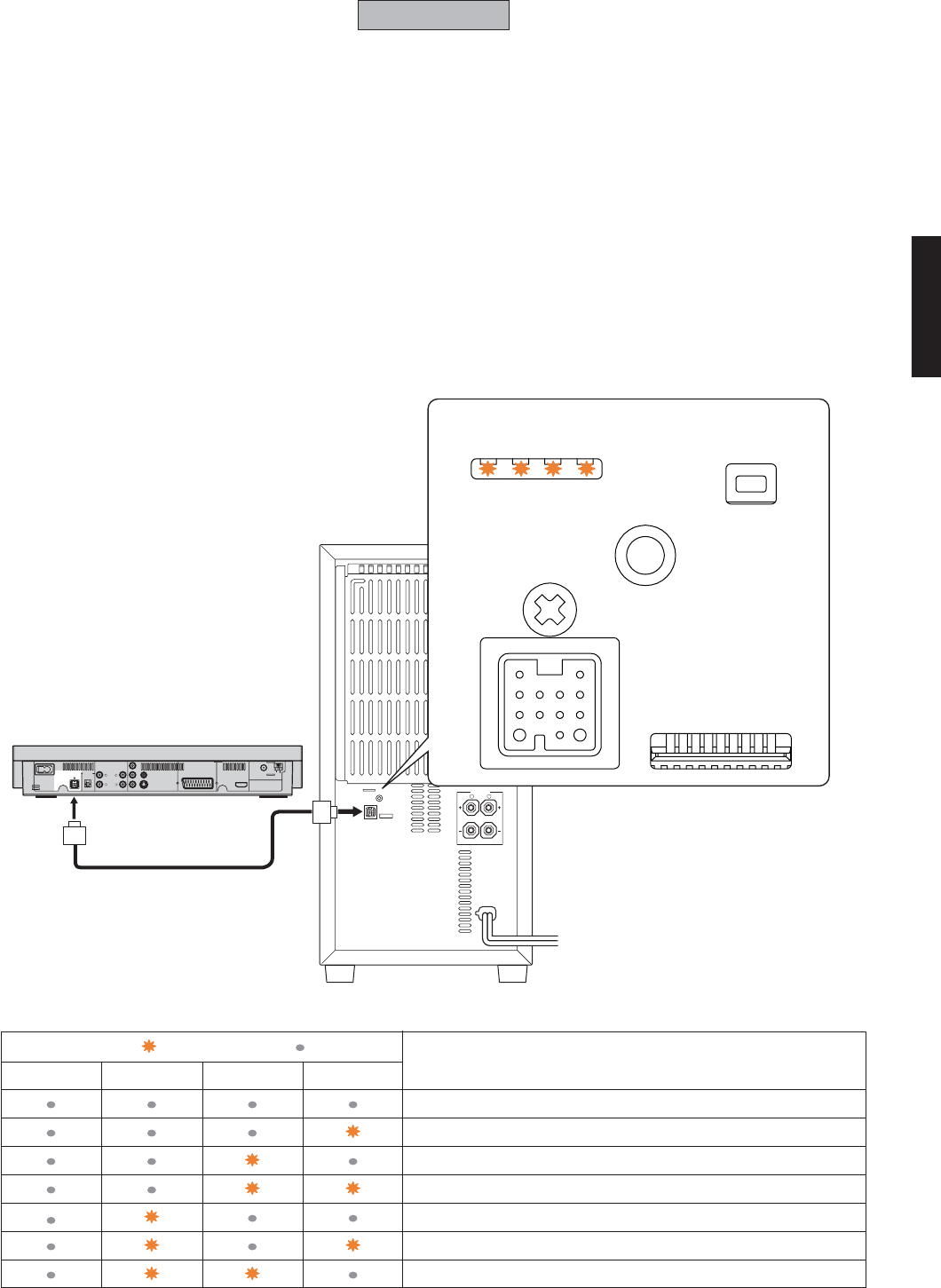

■PROTECTION INFORM ATION DISPLAY /
NX-SW1000
Connect the DVR-1000 system connector and NX-
SW1000 system connector by using the system cable
and then connect the power cables of DVR-1000 and
NX-SW1000 to AC outlets.
Turn on the power by pressing the STANDBY/ON key
of DVR-1000 or STANDBY/ON key of the remote
controller. At this time, if the indicator for service on the
rear panel of NX-SW1000 is flashing, the normal
operation is not available because the protection
function is at work.
The protection information is provided by the indicator
for service on the rear panel of NX-SW1000.
22
DVX -1000
●Details of Protection Information
1. I protection
Cause : Excess current flow into amplifier
Detection port : PRI (DSP P.C.B. 73 pin of
microprocessor IC13)
Detected at : Amplifier output of MAIN P.C.B.
2. PS1 protection
Cause : The voltage in the power supply
section is abnormal.
Detection port : PRV1 (DSP P.C.B. 95 pin of
microprocessor IC13)
Detected at : +12V (IC10 of MAIN P.C.B.), -12V
(IC11 of MAIN P.C.B.), +5V (IC12
of MAIN P.C.B.)
3. PS2 protection
Cause : The voltage in the power supply
section is abnormal.
Detection port : PRV2 (DSP P.C.B. 94 pin of
microprocessor IC13)
Detected at : AC2 (D23 of MAIN P.C.B.), +5V
(IC12 of MAIN P.C.B.)
3. PS3 protection
Cause : The voltage in the power supply
section is abnormal.
Detection port : PRV3 (DSP P.C.B. 93 pin of
microprocessor IC13)
Detected at : AC1 (D24 of MAIN P.C.B.), +5V
(IC12 of MAIN P.C.B.)
4. THM protection
Cause : Abnormal temperature of heat sink.
Detection port : THM (DSP P.C.B. 92 pin of
microprocessor IC13)
Detected at : IC14 of MAIN P.C.B.
5. AMP DC protection
Cause : Abnormal DC voltage of amplifier
output L/R/SW.
Detection port : PRD (DSP P.C.B. 97 pin of
microprocessor IC13)
Detected at : SPE_L of speaker output L, SPE_R
of speaker output R, SP- of
subwoofer output.
●
NX-SW1000
23
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
*It is not possible to activate the self-diagnostic function
while the protection function is at work.
*To operate the self-diagnostic function, prepare DVR-
1000, NX-SW1000, system cable and remote controller
in advance.
There are 14 main menu items, each of which has
submenu items.
Listed in the table below are menu items and sub-menu
items.
■SELF-DIAGNOSTIC FUNCTION /
24
DVX -1000
NX-SW1000
●
● Starting Self-Diagnostic Function
Connect the DVR-1000 system connector and NX-
SW1000 system connector by using the system cable
and then connect the power cables of DVR-1000 and
NX-SW1000 to AC outlets.
Next, turn on the power by pressing the STANDBY/ON
key of DVR-1000 or STANDBY/ON key of the remote
controller while pressing the key for service (SW300)
on the rear panel of NX-SW1000.
At this time, keep pressing the key for service (SW300)
on the rear panel of NX-SW1000 for 5 seconds or
longer. All indicators for service flash 5 times and
remain on when the self-diagnostic function mode is
activated. for 3 seconds or longer.
SYSTEM
CONNECTOR
6
MIN. /SPEAKER
SPEAKERS
MAINS
L
R
SYSTEM
CONNECTOR
MAINS
TO SUBWOOFER
AUX IN
AUDIO
LINE OUT
AV MONITOR OUT
(DVD ONLY)
S VIDEO
VIDEO
COMPONENT
Y
P
R
P
B
PCM/DTS
DIGITAL
OPTICAL
DIGITAL IN
VIDEO OUT
(DVD ONLY)
AM
ANT
GND
TUNER
HDMI
FM
ANT
75 UNBAL
L
R
L
R
NX-SW1000
DVR-1000
25
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
● Canceling Self-Diagnostic Function
Turn off the power by pressing the STANDBY/ON key
of this unit or the “STANDBY/ON” key of the remote
control.
● Operation procedure of Main menu and Sub-
menu
There are 14 menu items, each of them having sub-
menu items.
*Set the mode to DVD/CD by pressing the DVD/CD key
on the remote controller.
Main menu selection
To select the main menu, press the key for on the rear
panel of NX-SW1000 or the MENU key on the remote
controller.
Sub-menu selection
To select the sub-menu, press the applicable numeric
key among 1 to 4 on the remote controller.
Numeric “1” key: Select the sub-menu No. 1
Numeric “2” key: Select the sub-menu No. 2
Numeric “3” key: Select the sub-menu No. 3
Numeric “4” key: Select the sub-menu No. 4
●
●
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
DVX-1000 WM23860
Numeric key (1–4)
26
DVX -1000
NX-SW1000
●
● Details of Self-Diagnostic Function menu
1. DSP THROUGH
The output level can be selected by using SUB-MENU.
The signal is output in digital full bit without including
the head margin.
1-1 MASTER VOLUME -90 dB
1-2 MASTER VOLUME -40 dB
1-3 MASTER VOLUME -20 dB
1-4 MASTER VOLUME 0 dB
2. MUTE CHECK
The output condition can be selected by using SUB-
MENU.
The signal is output in digital full bit without including
the head margin.
2-1 MUTE OFF (Volume -20 dB)
2-2 SPEAKERS MUTE
SUBWOOFER
(50Hz)
- ∞
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
- ∞
SUBWOOFER
(50Hz)
- 21.5 dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
- 16.0 dBm
SUBWOOFER
(50Hz)
- 0.5 dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
+ 4.0 dBm
SUBWOOFER
(50Hz)
+ 19.5 dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
+ 24.0 dBm
SUBWOOFER
(50Hz)
- 0.5 dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
+ 4.0 dBm
SUBWOOFER
(50Hz)
- ∞
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
- ∞
27
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
2-3 FRONT L/R MUTE
2-4 SUBWOOFER MUTE
3. RESERVED
Not applied to this model
4. OUTPUT PORT CHECK
4-1 Not applied to this model
4-2 Not applied to this model
4-3 PATTERN 1
4-4 PATTERN 2
Set the output port of the microprocessor to HIGH
or LOW.
SUBWOOFER
(50Hz)
- 0.5 dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
- 47.0 dBm
SUBWOOFER
(50Hz)
- ∞ dBm
Input level
(AUX IN)
Both ch, -20 dBm
SPEAKER OUTPUT (1 kHz)
FRONT L/R
+ 4.0 dBm
28
DVX -1000
NX-SW1000
5. TEST TONE
The built-in noise generator outputs the test noise
through the channels specified by the sub-menu.
The noise frequency for subwoofer is 35 to 250 Hz.
Other than that, the center frequency is 800 Hz.
5-1 All CHANNEL
A test tone is output from all the speakers.
5-2 TURN CHANGEOVER
Every time the key of the numeric "2" (sub-menu
2 key) is pushed, a test tone is output in the
following order more than a speaker.
5-3 SUBWOOFER OUTPUT
A test tone is output from the subwoofer.
5-4 FRONT L/R 1kHz, SUBWOOFER 100Hz
A 1kHz sine wave is output at the FRONT L/R
channel and a 100Hz sine wave at the
SUBWOOFER channel.
6. RESERVED
Not applied to this model
1. TEST ALL
Noise is output from all channels.
2. TEST FRONT L
Noise is output from the FRONT L channel.
3. TEST FRONT R
Noise is output from the FRONT R channel.
4. TEST SUBWOOFER
29
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
7. DEVICE CHECK
Self-diagnostic is performed to determine whether or
not communication between devices of each IC and
register access are correct.
7-1 DEVICE CHECK
7-2 Not applied to this model
7-3 Not applied to this model
7-4 Not applied to this model
8. CPU INFORMATION
A 1 5
A: 1st digit
1: 2nd digit
5: 3rd digit
The indicator for service indicates the firmware version
of the microprocessor in the binary system.
This indication is available only while the numeric key
of each sub-menu on the remote controller is pressed.
*If all indicators for service are off or flashing, the
firmware version is not correct.
8-1FIRMWARE VERSION
The 1st digit of the firmware version is indicated.
8-2 Not applied to this model
30
DVX -1000
NX-SW1000
8-3 SERIAL VERSION BIT 4-7
The 2nd digit of the firmware version is indicated.
8-4 SERIAL VERSION BIT 0-3
The 3rd digit of the firmware version is indicated.
9. EMC TEST (7ch stereo output)
Output can be adjusted in the range of master volume
control for -90 to 0 dB.
10. RESERVED
Not applied to this model
11. RESERVED
Not applied to this model
12. RESERVED
Not applied to this model
13. DSP PROGRAM WRITING
Used when writing the DSP firmware.
13-1 READY FOR WRITING
Used to set to the mode ready for writing the DSP
firmware.
13-2 Not applied to this model
13-3 Not applied to this model
13-4 WRITING START
Used to start writing the DSP firmware.
14 RESERVED
Not applied to this model
31
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
■AM P ADJUSTM ENT /
CONFIRMATION OF IDLING CURRENT

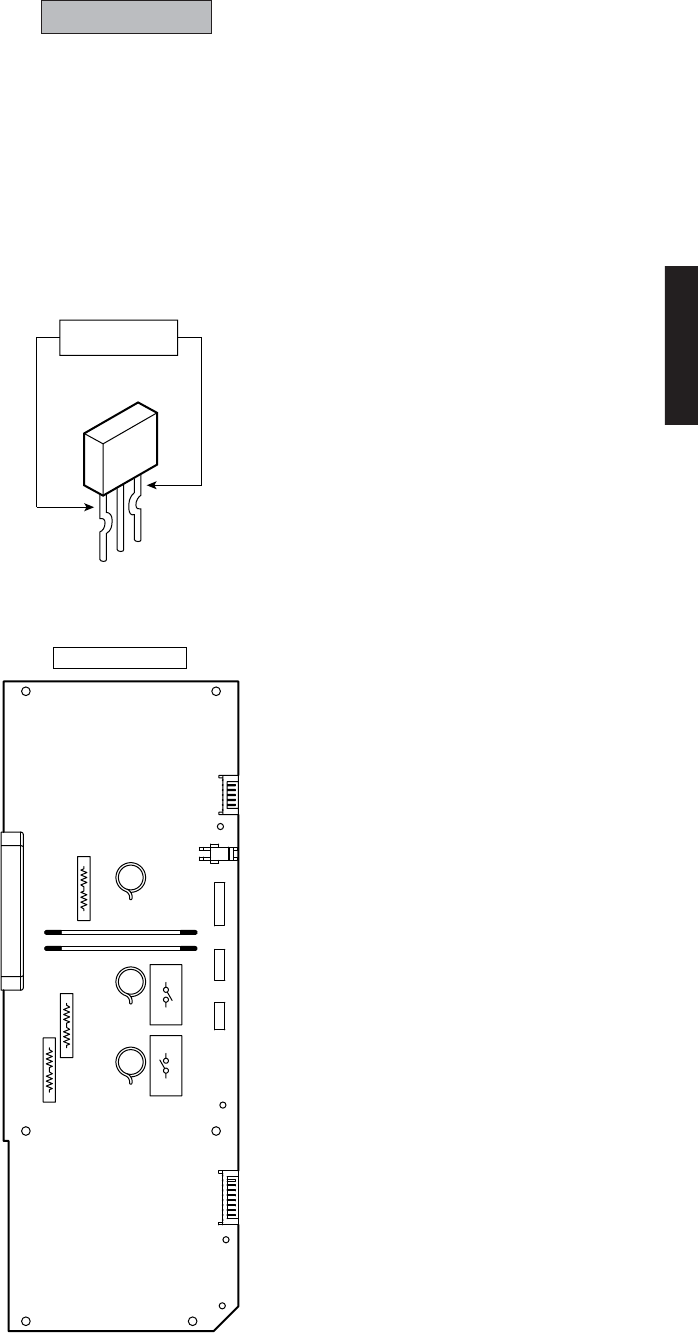

•Right after power is turned on, confirm that the
voltage across the terminals of R79 (FRONT L ch),
R80 (FRONT R ch), R71 (SUBWOOFER ch) are
between 0.1 mV and 10.0 mV.
R79 (FRONT L ch)
R80 (FRONT R ch)
R71 (SUBWOOFER ch)
0.1mV – 10.0mV
(DC)
R79
R71
R80
MAIN (1) P.C.B.
Rear Front
32
DVX -1000
NX-SW1000

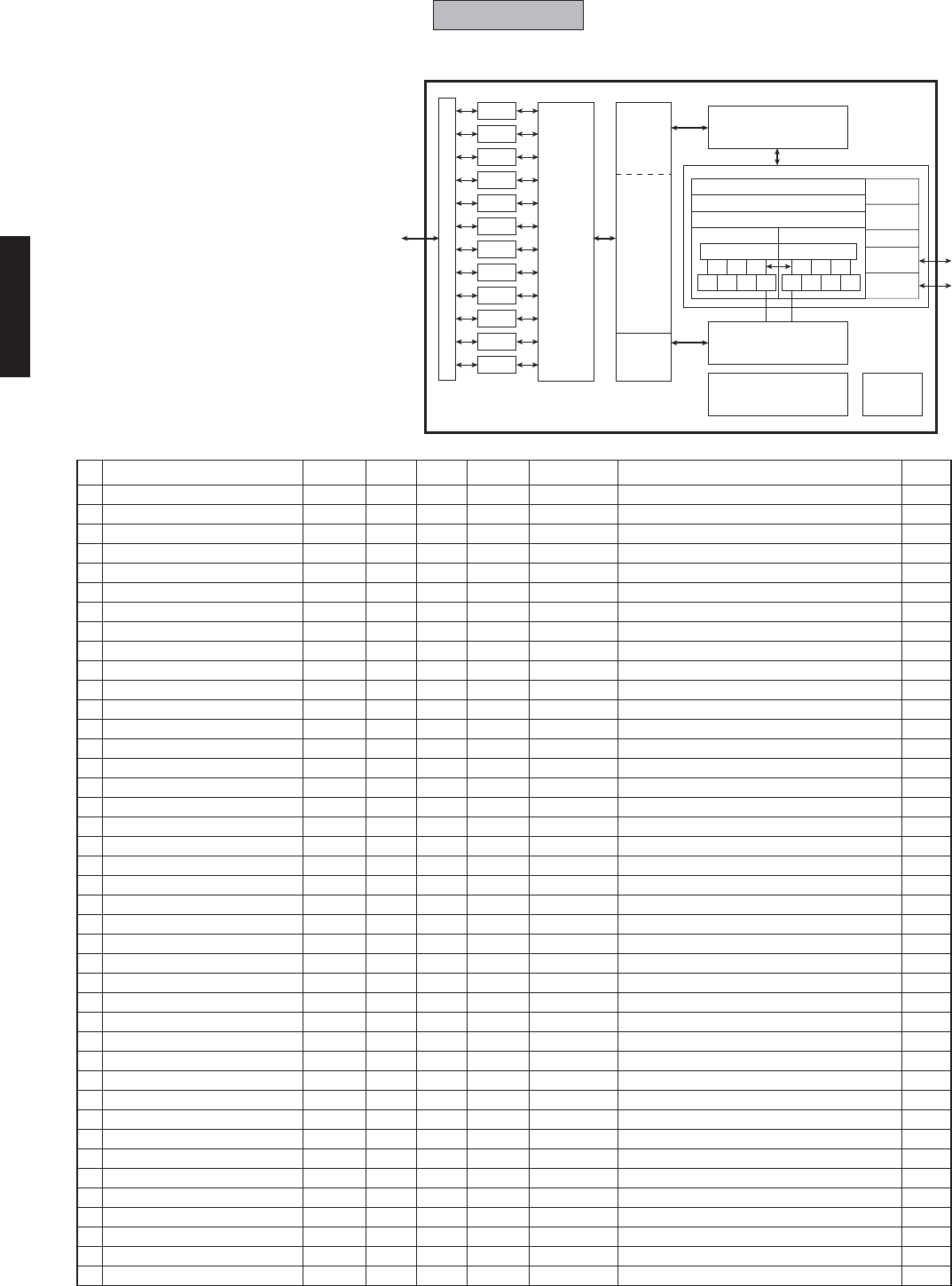

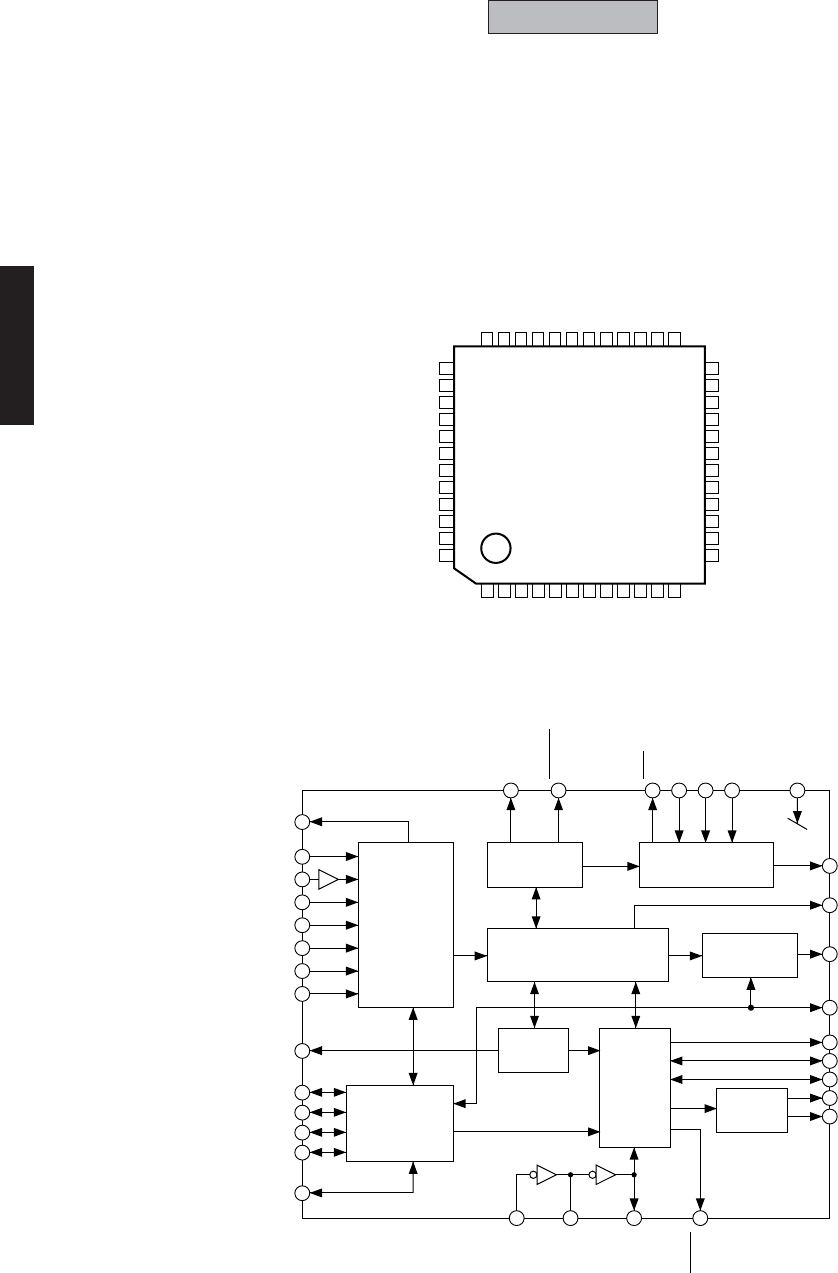

No. Port Name I/O Signal Name Explanation
Resistance
Function
State1 State2

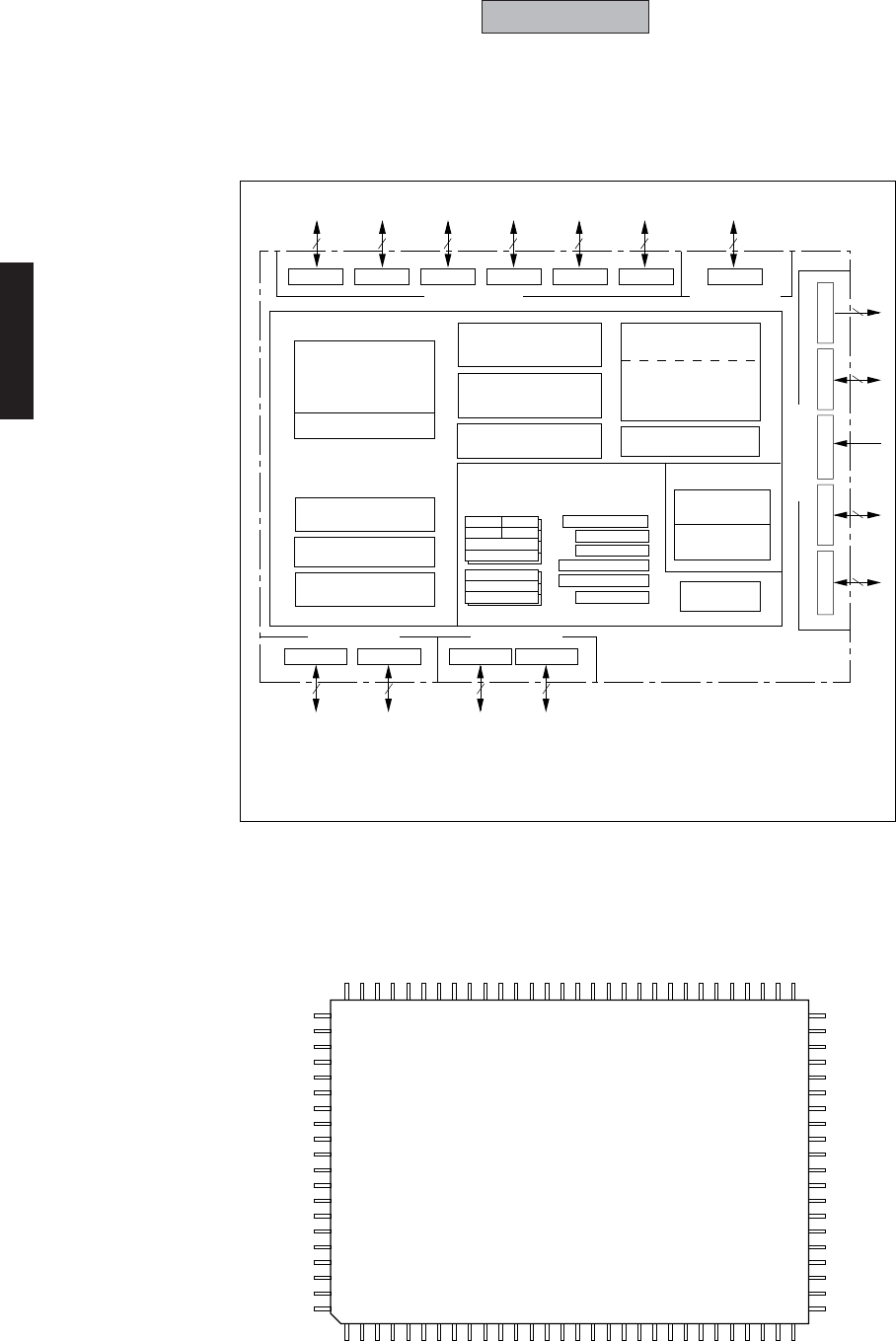

Pin Multiplexing
EMIF32 L1P Cache
Direct Mapped
4K Bytes Total
Digital Signal Processors
L1D Cache
2-Way Set
Associative
4K Bytes Total
Clock Generator,
Oscillator and PLL
x4 through x25 Multipliers
/1 through /32 Dividers
Power-Down
Logic
Instruction Fetch
Instruction Dispatch
Instruction Decode
Data Path BData Path A
B Register File
Control
Registers
C67x
TM
CPU
Control
Logic
In-Circuit
Emulation
Interrupt
Control
Test
A Register File
.L1t
McASP1
McASP0
McBSP1
McBSP0
I2C1
I2C0
Timer 1
Timer 0
.S1t .M1t .D1 .D2 .M2t .S2t .L2t
GP1
GP0
HPI16
Enhanced
DMA
Controller
(16 channel)
L2 Cache/
Memory
4 Banks
64K Bytes
Total
(4-Way)
L2
Memory
DA610:
192K Bytes
DA601:
64K Bytes
R2 ROM
512K
Bytes
Total
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
GP0[4]/EXT_INT4/AMUTEIN1
GP0[6]/EXT_INT6
CVDD
VSS
DVDD
GP0[5]/EXT_INT5/AMUTEIN0
GP0[7]/EXT_INT7
SLKS1/SCL1
DVDD
VSS
CVDD
TINP1/AHCLKX0
TOUT1/AXR0[4]/AXR1[11]
CVDD
VSS
CLKX0/ACLKX0
TINP0/AXR0[3]/AXR1[12]
TOUT0/AXR0[2]/AXR1[13]
CLKR0/ACLKR0
DX0/AXR0[1]/AXR1[14]
FSX0/AFSX0
CVDD
VSS
FSR0/AFSR0
DVDD
VSS
DR0/AXR0[0]/AXR1[15]
CLKS0/AHCLKR0
CVDD
VSS
FSX1
DX1/AXR0[5]/AXR1[10]
CLKX1/AMUTE0
VSS
CVDD
CLKR1/AXR0[6]/AXR1[9]
DR1/SDA1
FSR1/AXR0[7]/AXR1[8]
VSS
CVDD
SCL0
I/O
I/O
POWER
GND
POWER
I/O
I/O
I
POWER
GND
POWER
I
I/O
POWER
GND
I/O
I/O
I/O
I/O
I/O
I/O
POWER
GND
I/O
POWER
GND
I/O
I/O
POWER
GND
I/O
I/O
I/O
GND
POWER
I/O
I
I/O
GND
POWER
I/O
DSP_MUTE3
-
P12V
DGND
P33V
-
-
P33V
P33V
DGND
P12V
-
-
P12V
DGND
-
-
-
DSP_BCK
-
-
P12V
DGND
DSP_WCK
P33V
DGND
-
-
P12V
DGND
DSP_CEN3
DSP_SDO3
DSP_SCK3
DGND
P12V
-
DSP_SDI3
-
DGND
P12V
P33V
DSP MUTE control “H” → MUTE
General purpose I/O port (no used)
1.2V power supply
Ground
3.3V power supply
General purpose I/O port (no used)
General purpose I/O port (no used)
Outside pull up
3.3V power supply
Ground
1.2V power supply
Inside pull down (timer1 input)
Inside pull down (audio data input)
1.2V power supply
Ground
Inside pull down (McASP0 transmission BCLK)
Inside pull down (audio data input)
Inside pull down (audio data input)
DSP bit clock input
Inside pull up (McASP0 sending and receiving data)
Inside pull down (McASP0 transmission LRCLK)
1.2V power supply
Ground
DSP word clock input
3.3V power supply
Ground
Inside pull up (McASP0 sending and receiving data)
Inside pull down (McASP0 transmission MCLK)
1.2V power supply
Ground
Chip enable “L” (McBSP1)
Microcomputer I/F serial data OUT (McBSP1)
Chip enable “L” (McBSP1)
Ground
1.2V power supply
Inside pull down (McBSP1 reception clock)
Microcomputer I/F serial data IN (McBSP1)
Inside pull down (McBSP1 frame Sync)
Ground
1.2V power supply
Outside pull up
13 kΩ
13 kΩ
13 kΩ
10 kΩ
18 kΩ
18 kΩ
18 kΩ
18 kΩ
18 kΩ
18 kΩ
13 kΩ
18 kΩ
18 kΩ
13 kΩ
18 kΩ
18 kΩ
13 kΩ
18 kΩ
18 kΩ
10 kΩ
I
I/O/Z
I/O/Z
I/O/Z
I
I
I
I/O/Z
I
I
I
I
I/O/Z
I
I
I/O/Z
I
I/O
I/O
I/O/Z
I
I/O/Z
I/O/Z
PU
PU
PU
PU
PD
PD
PD
PD
PD
PD
PU
PD
PD
PU
PD
PD
PU
PD
PD
PD
default
default
default
default
default
default
McASP1
McASP0
McASP1
McASP1
McASP0
McASP0
McASP0
McASP0
McASP0
McASP0
McBSP1
default
default
default
default
default
IC1: D60YA003BPYP225 (DSP (1) P.C.B.)
Decoder
*No replacement part available.
■ IC DATA
33
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
No. Port Name I/O Signal Name Explanation
Resistance
Function
State1 State2
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
SDA0
CVDD
DVDD
VSS
CVDD
DVDD
VSS
VSS
CVDD
CVDD
VSS
CVDD
VSS
DVDD
ARDY
CE3N
DVDD
VSS
CVDD
CE2N
EA2
EA3
EA4
DVDD
VSS
CVDD
EA5
EA6
EA7
EA8
DVDD
VSS
EA9
AOEN/SDRASN/SSOEN
EA10
ECLKOUT
ECLKIN
AREN/SDCASN/SSADSN
CVDD
VSS
CLKOUT2/GP0[2]
AWEN/SDWEN/SSWEN
DVDD
VSS
EA11
DVDD
VSS
CVDD
EA14
EA13
EA16
EA12
EA15
EA18
CVDD
VSS
DVDD
EA17
EA19
EA20
I/O
POWER
POWER
GND
POWER
POWER
GND
GND
POWER
POWER
GND
POWER
GND
POWER
I
O
POWER
GND
POWER
O
O
O
O
POWER
GND
POWER
O
O
O
O
POWER
GND
O
O
O
O
I
O
POWER
GND
O
O
POWER
GND
O
POWER
GND
POWER
O
O
O
O
O
O
POWER
GND
POWER
O
O
O
I/O/Z
I
Z
Z
O
O
O
O
O
O
O
O
O
O
O
I
O
O/Z
O
O
O
O
O
O
O
O
O
O
O
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PD
PD
PU
PD
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
GP0
P33V
P12V
P33V
DGND
P12V
P33V
DGND
DGND
P12V
P12V
DGND
P12V
DGND
P33V
P33V
-
P33V
DGND
P12V
-
EA2
EA3
EA3
P33V
DGND
P12V
EA5
EA6
EA7
EA8
P33V
DGND
EA9
OENSDRASN
EA10
SDCLKO
-
SDCASN
P12V
DGND
-
WEN
P33V
DGND
EA11
P33V
DGND
P12V
EA14
EA13
EA16
EA12
EA15
EA18
P12V
DGND
P33V
EA17
EA20
EA11
Outside pull up
1.2V power supply
3.3V power supply
Ground
1.2V power supply
3.3V power supply
Ground
Ground
1.2V power supply
1.2V power supply
Ground
1.2V power supply
Ground
3.3V power supply
Outside pull up (Asynchronous system RAM Ready input)
Inside pull up (external memory enable 3)
3.3V power supply
Ground
1.2V power supply
Inside pull up (external memory enable 2)
Address bus for external memory
Address bus for external memory
Address bus for external memory
3.3V power supply
Ground
1.2V power supply
Address bus for external memory
Address bus for external memory
Address bus for external memory
Address bus for external memory
3.3V power supply
Ground
Address bus for external memory
Asynchronous system RAM OE / SDRAM RAS
Address bus for external memory
Clock output for EMIF
Clock input for EMIF
SDRAM CAS
1.2V power supply
Ground
General purpose I/O port (no used)
Asynchronous system RAM WE / SDRAM WE
3.3V power supply
Ground
Address bus for external memory
3.3V power supply
Ground
1.2V power supply
Address bus for external memory
Address bus for external memory
Address bus for external memory
Address bus for external memory
Address bus for external memory
Address bus for external memory
1.2V power supply
Ground
3.3V power supply
Address bus for external memory
Address bus for external memory
Address bus for external memory
10 kΩ
10 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
18 kΩ
18 kΩ
13 kΩ
18 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
34
DVX -1000
NX-SW1000
No. Port Name I/O Signal Name Explanation
Resistance
Function
State1 State2
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
CE0N
CE1N
CVDD
CVDD
VSS
DVDD
BE1N
EA21
BE0N
ED13/GP1[13]
ED15/GP1[15]
ED14/GP1[14]
DVDD
VSS
CVDD
ED11/GP1[11]
ED12/GP1[12]
ED9/GP1[9]
ED10/GP1[10]
ED6/GP1[6]
ED7/GP1[7]
ED8/GP1[8]
CVDD
VSS
DVDD
ED4/GP1[4]
ED5/GP1[5]
ED3/GP1[3]
ED2/GP1[2]
ED1/GP1[1]
ED0/GP1[0]
CVDD
VSS
HINTN/GP0[1]
BUSREQ
HOLDAN
HOLDN
HHWIL/AFSR1
HRDY/ACLKR1
DVDD
VSS
HR/W/AXR0[15]/AXR1[0]
HCNTL1/AXR0[14]/AXR1[1]
HCS/AXR0[13]/AXR1[2]
HCNTL0/AXR0[12]/AXR1[3]
HD0/AXR0[11]/AXR1[4]
VSS
CVDD
HDS2/AXR0[10]/AXR1[5]
HDS1N/AXR0[9]/AXR1[6]
HD1/AXR0[8]/AXR1[7]
HASN/ACLKX1
HD3/AMUTE1
HD2/AFSX1
HD4/GP0[0]
CVDD
VSS
HD5/AHCLKX1
HD8/GP0[8]
HD6/AHCLKR1
O
O
POWER
POWER
GND
POWER
O
O
O
I/O
I/O
I/O
POWER
GND
POWER
I/O
I/O
I/O
I/O
I/O
I/O
I/O
POWER
GND
POWER
I/O
I/O
I/O
I/O
I/O
I/O
POWER
GND
I/O
O
O
I
I/O
I/O
POWER
GND
I/O
I/O
I/O
I/O
I/O
GND
POWER
I/O
I/O
I/O
I/O
I/O
I/O
I/O
POWER
GND
I/O
I/O
I/O
Z
Z
O
O
O
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
I/O/Z
O
O
I
I
I
I
I/O/Z
O
O
O
O
I/O/Z
I
O
I
I
I/O
I
I/O/Z
I/O/Z
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PD
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PU
PD
PU
PU
PU
default
default
default
default
default
default
default
default
default
default
default
default
default
default
default
default
GP0
McASP1
McASP1
McASP1
McASP1
McASP1
McASP1
McASP1
McASP1
McASP1
McASP0
McASP1
default
McASP0
both
McASP1
both
McASP1
CE0N
CE1N
P12V
P12V
DGND
P33V
BE1N
EA21
BE0N
ED13
ED15
ED14
P33V
DGND
P12V
ED11
ED12
ED9
ED10
ED6
ED7
ED8
P12V
DGND
P33V
ED4
ED5
ED3
ED2
ED1
ED0
P12V
DGND
DSP_BUSYN3
-
-
P33V
DIR_WCK
DIR_BCK
P33V
DGND
DIR_SDO
-
DSP_SW
DSP_S
DSP_C
DGND
P12V
DSP_F
-
DIR_SDO
DSP_BCK
DGND
DSP_WCK
DSP_RDYN3
P12V
DGND
DIR_MCK
P33V
DGND
Inside pull up (external memory enable 3)
Inside pull up (external memory enable 3)
1.2V power supply
1.2V power supply
Ground
3.3V power supply
Byte Enable control 1 for external memory
Address bus for external memory
Byte Enable control 0 for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
3.3V power supply
Ground
1.2V power supply
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
1.2V power supply
Ground
3.3V power supply
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
Data bus for external memory
1.2V power supply
Ground
DSP BUSY signal output
Bus request output for external memory
Hold request output approval for external memory
Outside pull up (Hold request for external memory)
DIR word clock input (McASP1)
DIR bit clock input (McASP1)
3.3V power supply
Ground
DIR audio data input (McASP1)
Inside pull up (McASP1 sending and receiving data)
Audio data output (SW/-)
Audio data output (SL/SR)
Audio data output (CL/CR)
Ground
1.2V power supply
Audio data output (FL/FR)
Inside pull up (McASP1 sending and receiving data)
Audio data input (DIR)
DSP bit clock output
Outside pull up (Dvice config)
DSP word clock output
Microcomputer I/F ready signal output (outside pull up)
1.2V power supply
Ground
DIR master clock input (McASP1)
Outside pull up (Dvice config)
Out side pull up (McASP1 reception MCLK)
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
4.7 kΩ
13 kΩ
18 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
1 kΩ
13 kΩ
1 kΩ
13 kΩ
13 kΩ
47 Ω
35
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
No. Pin Name I/O Signal Name Explanation
Resistance
Function
State1 State2
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203?
204
205
206
207
208
DVDD
VSS
HD7/GP0[3]
HD9/GP0[9]
HD10/GP0[10]
HD11/GP0[11]
HD12/GP0[12]
CVDD
VSS
CVDD
HD13/GP0[13]
HD14/GP0[14]
HD15/GP0[15]
NMI
RESETN
CVDD
OSCIN
OSCOUT
OSCVSS
OSCVDD
VSS
DVDD
CLKOUT3
EMU1
EMU0
TDO
DVDD
VSS
CVDD
TDI
TMS
TCK
VSS
CVDD
CVDD
TRSTN
RSV2
VSS
RSV0
CVDD
PLLHV
RSV1
CLKIN
CLKMODE0
DVDD
VSS
CVDD
POWER
GND
I/O
I/O
I/O
I/O
I/O
POWER
GND
POWER
I/O
I/O
I/O
I
I
POWER
I
O
GND
POWER
GND
POWER
O
I/O
I/O
O
POWER
GND
POWER
I
I
I
GND
POWER
POWER
I
-
GND
-
POWER
POWER
-
I
I
POWER
GND
POWER
O
O
O
O
O
I
I
I
I
I
I
O
O
I/O/Z
I/O/Z
O
I
I
I
I
-
-
-
I
I
PU
PU
PU
PU
PU
PU
PU
PU
PD
PD
PU
PU
PU
PU
PU
PU
PD
-
-
-
PD
PU
GP0
GP0
GP0
GP0
GP0
default
default
GP0
-
-
-
P33V
DGND
DSP_INT3
-
-
-
-
P12V
DGND
P12V
P33V
DGND
-
P33V
DSP_ICN3
P12V
DGND
-
-
-
DGND
P33V
-
EMU1
EMU0
TDO
P33V
DGND
P12V
TDI
TMS
TCK
DGND
P12V
P12V
TRSTN
-
DGND
-
P12V
P33V
DGND
XMCK
P33V
P33V
DGND
P12V
3.3V power supply
Ground
DSP interrupt signal output
General purpose I/O port (no used)
General purpose I/O port (no used)
General purpose I/O port (no used)
General purpose I/O port (Microphone input select signal no used)
1.2V power supply
Ground
1.2V power supply
Outside pull up (Dvice config)
Outside pull down (Dvice config)
General purpose I/O port (Microphone detection select signal no used)
Outside pull up (Non maskable Interrupt)
Device reset signal “L”
1.2V power supply
Outside pull down (XTL input terminal)
XTL output terminal
GND for XTL (Internal connection)
Power supply for XTL (Internal connection)
Ground
3.3V power supply
Programmable clock output
JTAG Emulation PIN1 (Outside pull down)
JTAG Emulation PIN0 (Outside pull down)
JTAG data output
3.3V power supply
Ground
1.2V power supply
JTAG data input
JTAG mode select
JTAG clock
Ground
1.2V power supply
1.2V power supply
JTAG reset signal
Reserved
Ground
Reserved
1.2V power supply
Analog power supply for PLL
Ground
System clock input
Outside pull up (PLL clock select “H” : CLKIN)
3.3V power supply
Ground
1.2V power supply
13 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
1 kΩ
1 kΩ
13 kΩ
1 kΩ
2.2 Ω
13 kΩ
4.7 kΩ
4.7 kΩ
13 kΩ
13 kΩ
13 kΩ
13 kΩ
18 kΩ
18 kΩ
4.7 kΩ
36
DVX -1000
NX-SW1000
IC4: LC89057W-VF4AD-E (DSP (1) P.C.B.)
Digital Audio Interface Transceiver
Input
Selector
Cbit, Ubit
Data
Selector
PLL
1/N
Modulation
&
Parallel Port
Demodulation
&
Lock Detect
Microcontroller
I/F
EMPHA/UO
Clock
Selector
36
35
34
33
32
31
30
29
28
27
26
25
RERR
INT
CKST
AUDIO/VO
EMPHA/UO
DGND
DVDD
XIN
XOUT
XMCK
DVDD
DGND
1
2
3
4
5
6
7
8
9
10
11
12
RXOUT
*RX0
RX1
RX2
RX3
DGND
DVDD
*RX4
RX5/VI
*RX6/UI
DVDD
DGND
37
38
39
40
41
42
43
44
45
46
47
48
24
23
22
21
20
19
18
17
16
15
14
13
SDIN
SLRCK
SBCK
RDATA
RLRCK
DVDD
DGND
RBCK
RMCK
AGND
AVDD
LPF
DO
DI
CE
CL
XMODE
DGND
DVDD
TMCK/PIO0
TBCK/PIO1
TLRCK/PIO2
TDATA/PIO3
TXO/PIOE
*: Pull-down resistor internal
1
RXOUT
2
RX0
3
RX1
4
RX2
5
RX3
8
RX4
9
RX5/VI
10
RX6/UI
13
LPF
44
TMCK/PIO0
45
TBCK/PIO1
46
TLRCK/PIO2
47
TDATA/PIO3
48
32
AUDIO/VO
33
TXO/PIOEN
37
DO
24
SDIN
36
RERR
INT
35
CL
40
CE
39
XMODE
CI
38
CKST
34
XMCK
27
XIN
29
XOUT
28
41
21
RDATA
16
RMCK
17
RBCK
20
RLRCK
22
SBCK
23
SLRCK
37
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
1) Withstand voltage input/output: I or O = -0.3 to 3.6 V, Is = -0.3 to 5.5 V
2) Pins 32 and 33 are input pins for chip address setting, when pin 41 = "L".
3) Pin 34 is a demodulation function master or an input pin for slave setting, when pin 41 = "L".
4) Pin 35 is a modulation function or an input pin for general-purpose I/O function switch setting, when pin 41 = "L".
5) ON/OFF for all power supplies must be done at the same timing as a latch-up countermeasure.
Pin No.
Function Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
RXOUT
RX0
RX1
RX2
RX3
DGND
DVD D
RX4
RX5
RX6
DVD D
DGND
LPF
AVD D
AGND
RMCK
RBCK
DGND
DVD D
RLRCK
RDAT A
SBCK
SLRCK
SDIN
DGND
DVD D
XMCK
XOUT
XIN
DVD D
DGND
EMPHA/UO/CD
AUDIO/VO
CKST/PT
INT
RERR
DO
DI
CE
CL
XMODE
DGND
DVD D
PIO0
PIO1
PIO2
PIO3
PIOEN
I/O
O
Is
I
Is
Is
Is
Is
Is
O
O
O/I
O/I
O
O
O
Is
O
O
I
I/O
I/O
I/O
I/O
O
O
Is
Is
Is
Is
I/O
I/O
I/O
I/O
I/O
Detail of Function
Output pin of input bi-phase selection data
Input pin of TTL-compatible digital data
Digital data input pin with built-in amplifier that supports coaxial
Input pin of TTL-compatible digital data
Input pin of TTL-compatible digital data
Digital GND
Digital power supply (3.3 V)
Input pin of TTL-compatible digital data
TTL-compatible digital data / Validity flag input pin for modulation
TTL-compatible digital data / User data input pin for modulation
Digital power supply for PLL
Digital GND for PLL
PLL loop filter connection pin
Analog power supply for PLL (3.3 V)
Analog GND for PLL
R system clock output pin (256 fs, 512 fs, XIN, VCO)
R bit clock input/output pin (64 fs)
Digital GND
Digital power supply (3.3 V)
R LR clock input/output pin (fs)
Output pin of serial audio data
).detcennoc oN()sf 821 ,sf 46 ,sf 23( nip tuptuo kcolc tib S
).detcennoc oN()sf 2 ,sf ,2/sf( nip tuptuo kcolc RL S
Input pin of serial audio data
Digital GND
Digital power supply (3.3 V)
Oscillation amplifier output pin
Quartz resonator connection output pin
Quartz resonator connection, input pin of external supply clock (24.576 MHz or 12.288 MHz)
Digital power supply (3.3 V)
Digital GND
Emphasis information / U data output / C data output / Chip address setting pin
Non-PCM detection / V flag output / Chip address setting pin
Output of clock switch transitional period signal / Preamble B output / Demodulation master or slave
function switch pin
Interrupt output for microprocessor (Possible to select an interrupt factor.) / Modulation or general-
purpose I/O switch pin
).detcennoc oN(tuptuo galf rorre atad ,rorre kcolc LLP
Microprocessor I/F, read data output pin (3-state )
Microprocessor I/F, write data input pi n
Microprocessor I/F, chip enable input pi n
Microprocessor I/F, clock input pin "
System reset input pin
Digital GND
Digital power supply (3.3 V)
512 fs, 256 fs, 128 fs system clock input for modulation or external / General-purpose I/O input/output
pin
64 fs bit clock input for modulation / General-purpose I/O input/output pin
fs clock input for modulation / General-purpose I/O input/output pin
Serial audio data input for modulation / General-purpose I/O input/output pin
Modulation data output / General-purpose I/O enable output pin
38
DVX -1000
NX-SW1000
IC13: M30626FHPFP (DSP (1) P.C.B.)
Microprocessor
/VOL_CE
LED_STB
LED_CLB
ROY_B
ROT_A
CGND
CGND
CGND
CGND
CGND
CGND
KEY0
DC_PRT1
DC_PRT2
DC_PRT3
CGND
DEST
VRef
Avcc
CGND
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
DIR_CLK
DIR_DO
DIR_DI
BSY
CLKF
BXDF
TXDF
LED_DAT
LED_CLK
CGND
CGND
DSP_DO
DSP_DI
DSP_CLK
CGND
CNVSS
DSP_MUTE
/DSP_BUSY
/RESET
XOUT
CGND
XIN
VCC
NMI
/DSP_INT
/DIR_INT
AMP_PRT
DIR_CE
/DSP_CE
CGND
/DIR_IC
/DSP_IC
/DSP_RDY
/CEEEP
Y_CLK
FET
Y_DAT
/AMP_CE
/AMP_MUTE
SW_CTRL
SP_MUTE
HP_MUTE
REMOTE
STNDBY
PMON
HP_DET
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
CGND
AMP_PRSTN
MODE_SW
POWER_RY
DAC_SMUTE
Output (timer A): 5
Input (timer B): 6
Internal peripheral functions
Watchdog timer
(15-bit)
DMAC
(2-channel)
D/A converter
(8-bit x 2-channel)
Memory
ROM (1)
RAM (2)
A/D converter
(10-bit
X
8-channel
Expandable up to 26-channel)
UART or
clock synchronous serial I/O
(8-bit
X
3-channel)
System clock
generation circuit
XIN-XOUT
XCIN-XCOUT
PLL frequency synthesizer
On-chip oscillator
M16C/60 series16-bit
microprocessor
core
Port P0
8
Port P1
8
Port P2
8 8 8 8
Port P6
8
8
R0LR0H
R1H R1L
R2
R3
A0
A1
FB
SB
ISP
USP
INTB
CRC arithmetic circuit (CCITT)
(Polynomial : X16+X12+X5+1)
Multiplier
788
Port P10 Port P9 Port P8_5 Port P8 Port P7
NOTES :
1. ROM size depends on
microprocessor
type.
3. Ports P11 to P14 exist only in 128-pin version.
4. Use M16C/62PT on VCC1= VCC2.
Port P5
Port P4Port P3
Clock synchronous serial I/O
(8-bit
X
2-channel)
PC
FLG
Timer (16-bit)
Three-phase motor
control circuit
8 8 82
Port P11 Port P12
Port P14 Port P13
(3)
<VCC2 ports>(4) <VCC1 ports>(4)
<VCC1 ports>
(4)
<VCC2 ports>(4)
<VCC1 ports>(4)
(3) (3) (3)
39
DVX -1000
DPX -1200
DVX -1000
NX-SW1000
Pin No. Pin Name Function Name I/O Type Description
1P9_6/ANEX1/SOUT4 SOUT4 O Send Data to E-Vol
2P9_5/ANEX0/CLK4 CLK4 O Serial Clock for E-VOl Communication
3P9_4/DA1/TB4IN - pull down
4P9_3/DA0/TB3IN DA0 LIM O Limiter Level Control
5P9_2/TB2IN/SOUT3 SOUT3 O Send Data to D60Y
6P9_1/TB1IN/SIN3 SIN3 I Receive Data from D60Y
7P9_0/TB0IN/CLK3 CLK3 O Serial Clock for D60Y Communication
8BYTE - VSS
9CNVSS CNVSS I Normal:L, Flash Update:H
10 P8_7/XCIN P87 O Mute D60Y
11 P8_6/XCOUT P86 I D60Y Busy Detection
12 RESET RESET I Reset uP
13 XOUT XOUT O For Main Clock Circuit
14 VSS - VSS
15 XIN XIN I For Main Clock Circuit
16 VCC1 - VCC1
17 P8_5/NMI - pull up (VCC1)
18 P8_4/INT2/ZP INT2 I D60Y Interrupt
19 P8_3/INT1 INT1 I DIR Interrupt
20 P8_2/INT0 INT0 I Power Down Detection
21 P8_1/TA4IN/U P8_1 O DIR Chip Enable
22 P8_0/TA4OUT/U P8_0 O D60Y Chip Enable
23 P7_7/TA3IN P7_7 O CODEC Reset
24 P7_6/TA3OUT P7_6 O DIR Reset
25 P7_5/TA2IN/W P7_5 O D60Y Reset
26 P7_4/TA2OUT/W P7_4 I D60Y Ready
27 P7_3/CTS2/RTS2/TA1IN/V P7_3 O EEPROM Chip Enable (reserve)
28 P7_2/CLK2/TA1OUT/V - pull down
29 P7_1/RXD2/SCL2/TA0IN/TB5IN SCL2 I/O Central Unit Communication
30 P7_0/TXD2/SDA2/TA0OUT SDA2 I/O Central Unit Communication
31 P6_7/TXD1/SDA1 TXD1 O Send Data to External JIG
32 P6_6/RXD1/SCL1 RXD1 I Receive Data from External JIG
33 P6_5/CLK1 CLK1 I/O Serial Clock for External JIG
34 P6_4/CTS1/RTS1/CTS0/CLKS1 RTS1 O BUSY Output for External JIG
35 P6_3/TXD0/SDA0 TXD0 O Send Data to DIR
36 P6_2/RXD0/SCL0 RXD0 I Receive Data from DIR
37 P6_1/CLK0 CLK0 O Serial Clock for DIR Communication
38 P6_0/CTS0/RTS0 - pull down
39 P5_7/RDY/CLKOUT - pull down
40 P5_6/ALE - pull down
41 P5_5/HOLD P5_5 I pull down (/EPM for External JIG)
42 P5_4/HLDA - pull down
43 P5_3/BCLK - pull down
44 P5_2/RD - pull down
45 P5_1/WRH/BHE - pull down
46 P5_0/WRL/WR P5_0 I pull up (VCC2) (/CE for External JIG)
47 P4_7/CS3 - pull down
48 P4_6/CS2 - pull down
49 P4_5/CS1 - pull down
50 P4_4/CS0 - pull down
40
DVX -1000
NX-SW1000
Pin No. Pin Name Function Name I/O Type Description
51 P4_3/A19 P4_3 O CODEC Soft Mute
52 P4_2/A18 P4_2 O Power Relay Control
53 P4_1/A17 P4_1 O Interruput for I2C communication request
54 P4_0/A16 - pull down
55 P3_7/A15 - pull down
56 P3_6/A14 - pull down
57 P3_5/A13 - pull down
58 P3_4/A12 - pull down
59 P3_3/A11 - pull down
60 P3_2/A10 - pull down
61 P3_1/A9 - pull down
62 VCC2 VCC2 VCC2
63 P3_0/A8(/-/D7) - pull down
64 VSS VSS VSS
65 P2_7/AN2_7/A7(/D7/D6) - pull down
66 P2_6/AN2_6/A6(/D6/D5) - pull down
67 P2_5/AN2_5/A5(/D5/D4) - pull down
68 P2_4/AN2_4/A4(/D4/D3) P2_4 O LED3
69 P2_3/AN2_3/A3(/D3/D2) P2_3 O LED2
70 P2_2/AN2_2/A2(/D2/D1) P2_2 O LED1
71 P2_1/AN2_1/A1(/D1/D0) P2_1 O LED0
72 P2_0/AN2_0/A0(/D0/-) P2_0 I Mute Request from the Center Unit
73 P1_7/D15/INT5 P1_7 PRI I Protection by Electric Current Observation
74 P1_6/D14/INT4 P1_6 I Self-mode SW
75 P1_5/D13/INT3 INT3 I RC Signal Detection
76 P1_4/D12 P1_4 /FMT O Front Speaker Mute Control
77 P1_3/D11 P1_3 /SWMT O Sub Woofer Mute Control
78 P1_2/D10 P1_2 /SPMT O Speaker Mute
79 P1_1/D9 P1_1 FRY O Front Speaker Relay Drive
80 P1_0/D8 P1_0 SWRY O Sub Woofer Speaker Relay Drive
81 P0_7/AN0_7/D7 P0_7 O E-Vol Chip Enable
82 P0_6/AN0_6/D6 - pull down
83 P0_5/AN0_5/D5 - pull down
84 P0_4/AN0_4/D4 - pull down
85 P0_3/AN0_3/D3 - pull down
86 P0_2/AN0_2/D2 - pull down
87 P0_1/AN0_1/D1 - pull down
88 P0_0/AN0_0/D0 - pull down
89 P10_7/AN7/KI3 - pull down
90 P10_6/AN6/KI2 - pull down
91 P10_5/AN5/KI1 AN5 PLDET I Protection by Total Output Level
92 P10_4/AN4/KI0 AN4 THM I Heat Protection
93 P10_3/AN3 AN3 PRV3 I DC Protection 3
94 P10_2/AN2 AN2 PRV2 I DC Protection 2
95 P10_1/AN1 AN1 PRV1 I DC Protection 1
96 AVSS AVSS AVSS
97 P10_0/AN0 AN0 PRD I DC Protection on amp output
98 VREF VREF VREF
99 AVCC AVCC VCC1
100 P9_7/ADTRG/SIN4 - pull down
12345678
A
B
C
D
E
F41
DVX -1000

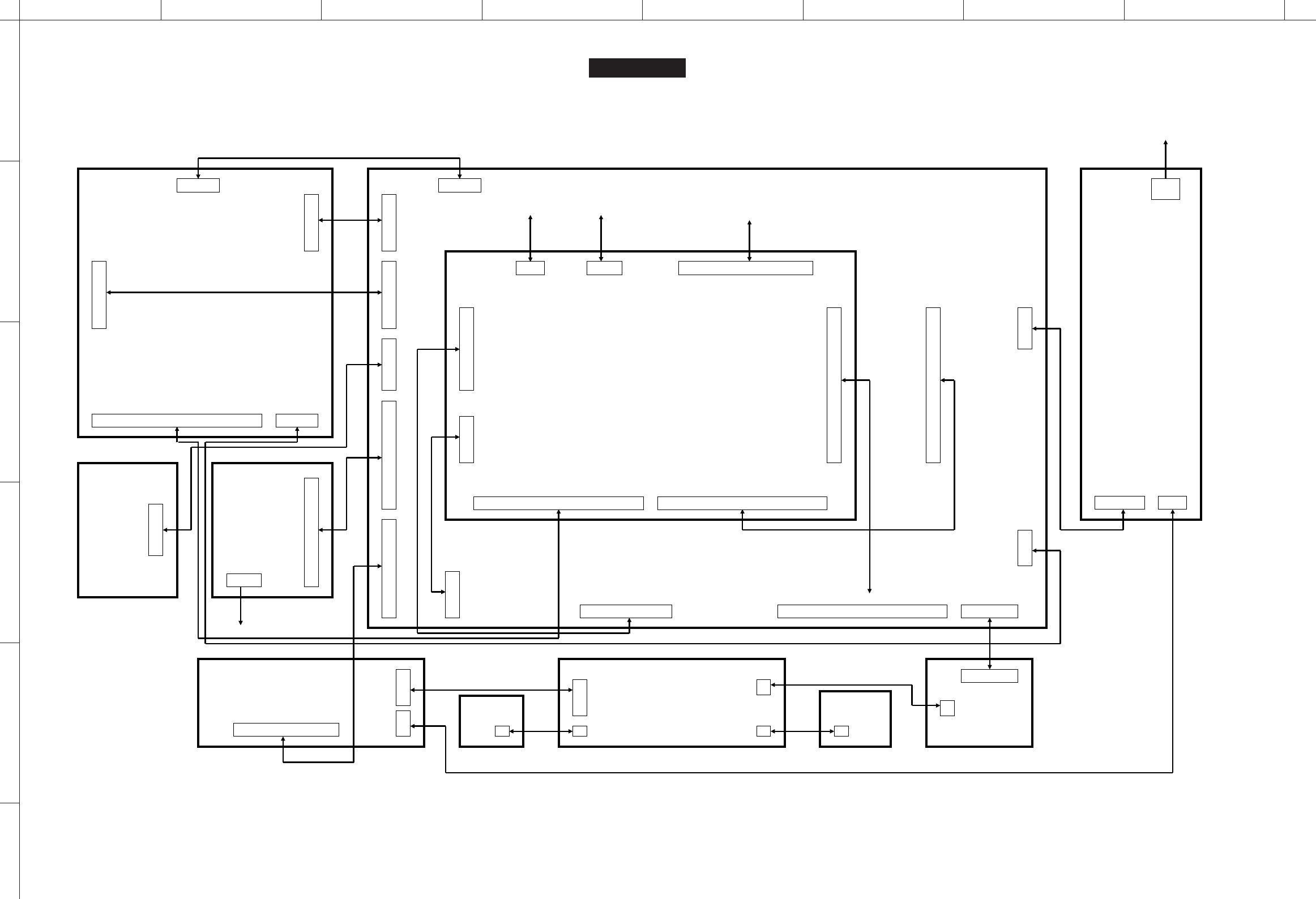

■BLOCK DIAGRAM S

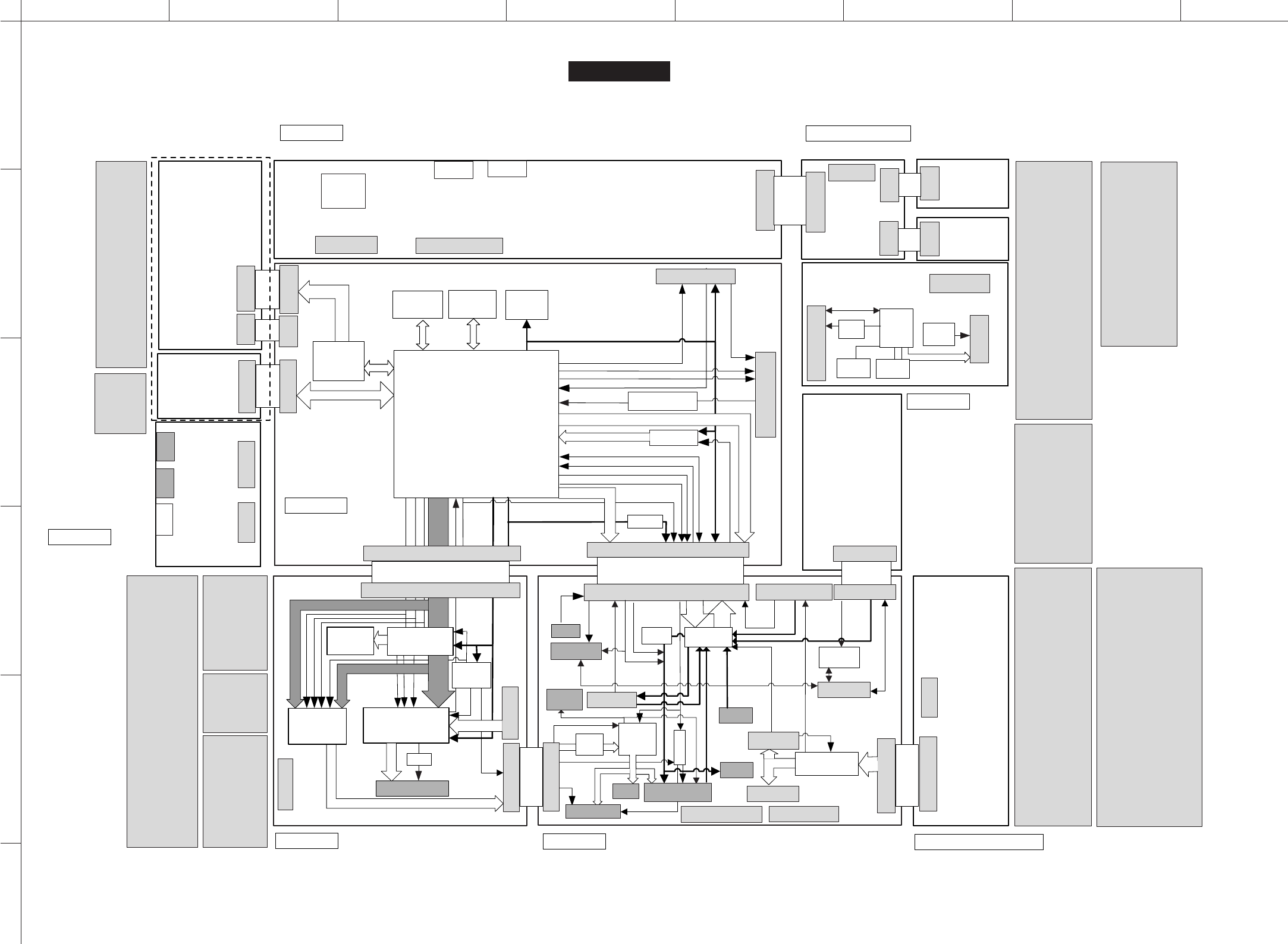

●BLOCK DIAGRAM
DVR-1000
DDR
SDRAM
4MX16
Flash
2MX8
E2PROM
SPDIF_OUT (225)
RC6 (111)
VSDA (100)
VSCL (99)
Front_IRQ (104)
CHIP_SEL (179), SEL_0 (177), SEL_1 (176)
AV_MUTE (188), TV_MUTE (172)
Regulator
3.3V
MOTOR
DRIVER
24P 0.5 FFC H6P PH V
5P PH V
19P 1.0 FFC H to AV
1 GND
2 LD_DVD
3 NC
4 HFM
5 MD
6 LD_CD
7 VR_DVD
8 VR_CD
9 NC
10 E
11 VCC
12 VC
13 GND
14 F
15 B
16 A
17 RF
18 CD/DVD
19 D
20 C
21 T-
22 T+
23 F+
24 F-
1 SP-
2 SP+
3 L_SW
4 L_SW
5 SLED-
6 SLED+
87CM75
MCU
9P FFC 1.0 V
SCART
Connector
HDMI Tx
Sil9030CTU-7
HDMI Con.
V_CLK (178)
HSYNC (207)
VSYNC (205)
Buffer
P_HSYNC
P_VSYNC
P_CLK
7P PH H SM
Faroudja
FLI2310L
Line_Det (169), HP_DET (168) AuX-IN (224)
MCU_IRQ (174), DAC_STB (170)
I2S_0_1_2_3
30P 1.0 FFC H + 30P 1.0 FCC H
30P 1.0 FFC H
30P 1.0 FFC H
IR
LEDS
1 LOAD-
2 LOAD+
3 GND
4 TROUT
5 TRIN
SCL_0 (102)
SDA_0 (103)
ITU601
HDMI_INT (186)
SYS_RST (181)
HDMI_RST
HDMI_INT
I2C
DDC_I2C
Video DAC
ADV7320
20Bit YCbCr
SDRAM
MT48LC2M32
IO
Expander
PCF8573T
VIDEO_RST
8 Bit ITU601
13P + 7P 1.0 FFC V
1 +5V
2 CEC
3 GND
4 +3V3
5 GND
6 +3V3
7 +12V
1 GND_V
2 Y
3 GND_V
4 U
5 GND_V
6 V
7 GND_V
5P PH H
1 GND
2 PBOX_CTRL
3 PBOX_DET
4 PBOX_IRQ
5 TU_STEREO
6 TU_SD
7 +5VL
8 SDA_2
9 GND
10 SCL_2
11 RDS_CLK
12 RDS_DATA
13 STDBY_CTRL
14 IR
15 SCL_0
16 SDA_0
17 FRONT_IRQ
18 GND
19 FRONT_MUTE
CVBS
+S-video
Optical
SPDIF_OUT
SPDIF_IN
SPDIF Rx
CS8416
SPDIF_IN
1 +5V_STBY
2 GND
3 +5V_STBY
4 GND
5 +12VA
6 +5V_STBY
7 -12VA
8 NC
5P EH V
to Front
1 GND
2 +12VA
3 GND
4 +5V_STBY
5 -24V
8P EH V
YUV
Regulator +
Power Switch
Video
AMP
13P SMK
Codec
WM8776
VSEL
LINE_L/R
STBY_CTRL
VSCK, VSDA
7P PH V
Pre-AMP
SCL_2,
SDA_2,
PBox_IRQ,
Pbox_Det
Pbox_Ctrl
Transistor
P8, P16
AUX_IN
30P 1.0 FFC H + 30P 1.0 FFC H
I2S
x1
I2S
x 1
CVBS, Y/C
SCART_OUT_L/R
MT1389B
SCL_1 (101)
SDA_1 (105)
6-ch Video Output ( CVBS/Y/C/Y/Pb/Pr)
21P 1.0 FFC H
to USB DRM
RDS
(Euro Only)
RDS_CLK,
RDS_DATA
MCU_IRQ
AUX_L/R
13P + 7P 1.0 FFC V
VSEL,STB_CTRL
12P 1.0 FFC H
to Front
SCART_IN_L/R
10P 1.0 FFC H
to Front IO
AV_MUTE
8P EH V
TV_MUTE
HP_DET,
LINE_DET
5P EH H to PSU
1 +5VSTBY
2 IR
3 GND
4 KEY1
5 KEY2
6 LED_BLUE
7 GND
7P EH H
HP_IN
1 GND_A
2 HP_L
3 GND_A
4 HP_R
5 HP_DET
6 HP_MUTE
7 LINE_L
8 GND_B
9 LINE_R
10 LINE_DET
10P 1.0 FFC
V to AV
+5V_XM, +5V_IPOD
1 GND_V
2 S_Y
3 GND_V
4 S_C
5 GND_V
6 CVBS
7 GND_V
8 +5VA
9 S0_L3_0
10 D2_L2
11 S1_L3_1
12 DP_DET
13 GND_V
D_L3
D_L2, DP_DET
S0_L3_0, S1_L3_1
YUV Video
SW
CVBS
Line_IN
1 +5VSTBY
2 IR
3 GND
3P EH V to
Front Key
USB_L/R
1 GND
2 SDA
3 SCL
4 GND
5 27M
6 GND
7 YUV(0)
8 GND
9 YUV(1)
10 GND
11 YUV(2)
12 GND
13 YUV(3)
14 +5V
15 YUV(4)
16 +3V3
17 YUV(5)
18 +3V3
19 YUV(6)
20 GND
21 YUV(7)
22 GND
23 MCLK
24 GND
25 VSYN
26 GND
27 SPDIF_OUT
28 GND
29 HDMI_DET
30 HSYN
1 GND
2 PCM_MCLK
3 GND
4 PCM_LoRo
5 PCM_Clfe
6 PCM_LsRs
7 PCM_LR
8 GND
9 PCM_BCLK
10 PCM_SCLK
11 GND
I2S
11P 1.0 FFC V
To AV
1 GND
2 VIDEO_SEL
3 NC (L2)
4 NC (S1_L3_1)
5 NC (S0_L3_0)
6 NC (SDA_HDMI)
7 Y_REF
8 Y
9 C_REF
10 C
11 CVBS_REF
12 CVBS
13 G_REF
14 G_Y
15 B_REF
16 B_U
17 R_REF
18 R_V
19 GND
20 PCM_BCLK
21 PCM_LTRT
22 GND
23 PCMCLK
24 PCM_SCLK
25 GND
26 SPDIF_OUT
27 GND
28 PCM_AUX_IN
29 GND
30 AV_MUTE
1 GND
2 PCM_LR
3 GND
4 PCM_LsRs
5 GND
6 PCM_Clfe
7 GND
8 PCM_Cs
9 GND
10 SCL_0
11 SDA_0
12 GND
13 NC (VIDEO_SEL)
14 SYS_RST (TU_CE)
15 S2 (TU_DI)
16 NC (TU_DO_ST)
17 NC (TU_CLK/27M)
18 GND
19 SPDIF_IN
20 GND
21 NC (ERR)
22 SP_MUTE
23 NC (HYSN)
24 MCU_IRQ
25 TV_MUTE (FREQ_HOP)
26 HP_DET
27 GND
28 LINE_DET (RDS_CLK)
29 DAC_STB
30 GND
16P 1.0 FFC V
1 GND
2 GND
3 +8V
4 +1V8
5 +1V8
6 +5VL
7 +5VL
8 +5VL
9 GND
10 +8V
11 GND
12 STBY_CTRL
13 DAC_STB
14 VSCK
15 VSDA
16 GND
STDBY_CTRL
16P 1.0 FFC H
5P PH V
USB
SH7263 Current
Limiter
I2S
Flash SDRAM
I2C, IRQ
USB DRM I/F
1 GND
2 VCC
3 NC/RDS
4 TU_RIGHT
5 TU_STEREO
6 TU_LEFT
7 TU_SD
8 SDA_2
9 SCL_2
10 PORT_S
10P 1.25 FFC V
D2 Connector
TUNER_LR
RDS_IN
SCL_2, SDA_2, TU_SD,
TU_STEREO
VFD
7P EH H
10P 1.25 FFC H
2P EH H
2P EH H
2P EH H
2P EH H
1 NC
2 NC
3 NC
4MCU_IRQ
5 SCL_0
6SDA_0
7 +5V_USB
8 +5V_USB
9GND
10 +3V3
11 GND
12 +12V
13 -12V
14 NC
15 GND
16 SYS_RST
17 USB_L
18 GND_A
19 USB_R
20 +5V_SH
21 GND
21P 1.0 FFC V to AV
DAC
MM1646XH
3P EH to
Front IO
L/R_OUT
1 GND
2 AUDCK
3 GND
4 AUDATA0
5 GND
6 AUDATA1
7 GND
8 AUDATA2
9 GND
10 AUDATA3
11 GND
12 AUDSYNC
13 GND
14 TCK
15 GND
16 TMS
17 GND
18 nTRST
19 GND
20 TDI
21 GND
22 TDO
23 GND
24 nASEBRKAK
25 +3V3
26 +3V3
27 RESET
28 GND
29 Reserved
30 Reserved
30P FFC 1.0 V
19P 1.0 FFC V to FR 9P 1.0 FFC V to SD
1 Front_IRQ
2 SDA_0
3 SCL_0
4 GND
5 NC (1kHz)
6 RC6_OUT
7 STBY_CTRL
8 NC (VOLA)
9 NC (VOLB)
(KHM313AAM)
(Valleywood
Slot loader)
Interface between KHM313 and Mono board:
Interface between USB DRM and AV board:
LOARDER ASS'Y
FRONT (3)
(Front IO)
FRONT (1)
(DISPLAY)
MONO (SD6.3)
FRONT (2)
FRONT (4)
(Standby Key)
FRONT (5)
(Eject Key)
USB
AM/FM TUNER
POWER SUPPLY
UNIT
(PSU PSU06P30)
Interface between Mono and AV board:
AV
Buffer
74LVC125
HDMI
Interface between Mono and HDMI board:
FRONT (1)
• See page 63 → SCHEMATIC DIAGRAM
FRONT (2), (4), (5)
• See page 64 → SCHEMATIC DIAGRAM
USB
• See page 69 →
SCHEMATIC DIAGRAM
POWER SUPPLY UNIT
• See page 70 → SCHEMATIC DIAGRAM
AV
• See page 61, 62 → SCHEMATIC DIAGRAM
HDMI
• See page 65–68 → SCHEMATIC DIAGRAM
MONO
• See page 59, 60 →
SCHEMATIC DIAGRAM
FRONT (3)
• See page 64 →
SCHEMATIC DIAGRAM
12345678
A
B
C
D
E
F42
DVX-1000
●WIRING DIAGRAM
DVR-1000
AV P.C.B.
1302
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1301
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1304
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1101
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1102
1
2
3
4
5
6
1110
1
2
3
4
5
1104
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1105
1
2
3
4
5
6
7
8
9
1205
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1203
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
HDMI P.C.B.
1000
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1402
1
2
3
4
5
6
7
1401
1
2
3
4
5
6
7
8
9
10
11
1302
1
2
3
4
5
6
7
8
9
10
11
12
13
1301
1
2
3
4
5
6
7
1114
1
2
3
4
5
6
7
1204
1
2
3
4
5
6
7
8
9
10
11
1115
1
2
3
4
5
6
7
8
9
10
11
12
13
1108
1
2
3
4
5
6
7
8
9
10
1107
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1209
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1201
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
1
2
3
4
5
1208
1
2
3
4
5
6
7
8
9
10
1106
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1100
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1112
1
2
3
4
5
6
7
1111
1
2
3
4
5
6
7
8
1203
1
2
3
1
2
1
2
1
2
1104
1
2
3
4
5
6
7
1105
1
2
3
4
5
AM/FM TUNER USB P.C.B.
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1201
1
2
3
4
5
6
7
1
2
1301
1
2
3
4
5
6
7
8
9
10
8021
1200 1202
8020
8018
8004
1303
1
2
3
8019
8012
8007
1103
8017
8013
8022
8011
8010
8006
8008
8009
8003
8001
8000
8014
8016
8015
8005
8002
14001500
FRONT (1) P.C.B.
(Front Display)
FRONT (5)
P.C.B.
(Eject)
FRONT (2) P.C.B.
(Front Control)
FRONT (4)
P.C.B.
(Standby)
FRONT (3)
P.C.B.
(Front IO)
MONO P.C.B.
(SD6.3)
USB Cable Ass'y
Cable Ass'y
Power Supply Unit
Loader Ass'y
(Loader Module)
Loader Ass'y
(Traverse Module)
Loader Ass'y
(Traverse Module)
CN1 CN3
CN4
1100
12345678
A
B
C
D
E
F43
DVX -1000

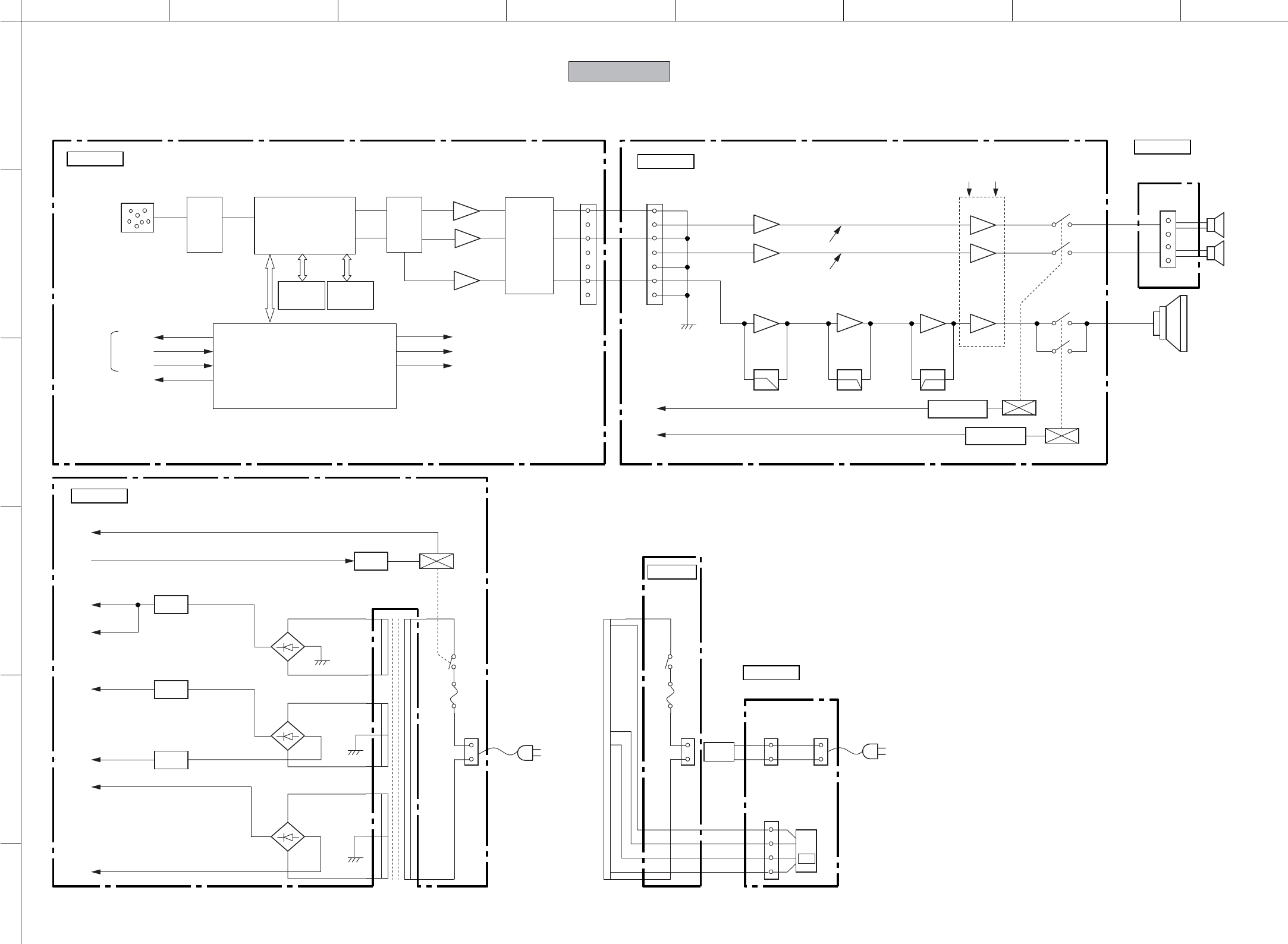

●BLOCK DIAGRAM
NX-SW1000
+12V
IC12
IC10
-12V
+B
IC11
IC7
+5
RYC
SP TARMINAL SPEAKER L
SPEAKER R
WOOFER
Q26
IC2
IC3 IC3
RY3
F1
– B
+5C
D24
D23
D27
RY3
CB10 SW6
TE2
CB16
CB16
S12
RY2
CB1
L
R
SW
IC2
IC1
L.P.F.
6dB/oct.
L.P.F.
12dB/oct.
H.P.F.
12dB/oct.
Q21,23,30
Q22,24,31
RY3
RY1
RY2
RY1
POWER
TRANSFORMER
G,J models
R,K,A,L models
FRY
SWRY
+B – B
31
7
5
112357
16
14
11
JK200
To DVR-1000 IC4
DIR
6
SPDIF
3IC1
DSP
21
DIRSD0
143
IC10
CODEC
6
DSP SW
12
27
FL
21
FR
SW
28
150
DSP F
145
IC13
MICROPROCESSOR
IC14
IC15
2
6
2
1
7
1
IC5
SDRAM IC7
FLASH
IC17
E-VOL
W9
FL
FR
SW
3
4
9
34
33
28
FMUTE
FMUTE TE1
SPEL
SPER
POWER
TRANSFORMER
AC IN AC IN
10V
AC3
AC2
AC1
FMUTE
76
FRY
79
80 SWRY
LED0-3
REM
SELF_SW
68-71
75
74
52
RYC
For SERVICE
DSP
• See page 71, 72 → SCHEMATIC DIAGRAM
MAIN (1)
• See page 73 → SCHEMATIC DIAGRAM
MAIN (4)
• See page 74 →
SCHEMATIC DIAGRAM
MAIN (2)
• See page 74 → SCHEMATIC DIAGRAM
MAIN (3)
• See page 74 → SCHEMATIC DIAGRAM
MAIN (2)
12345678
A
B
C
D
E
F44
DVX-1000

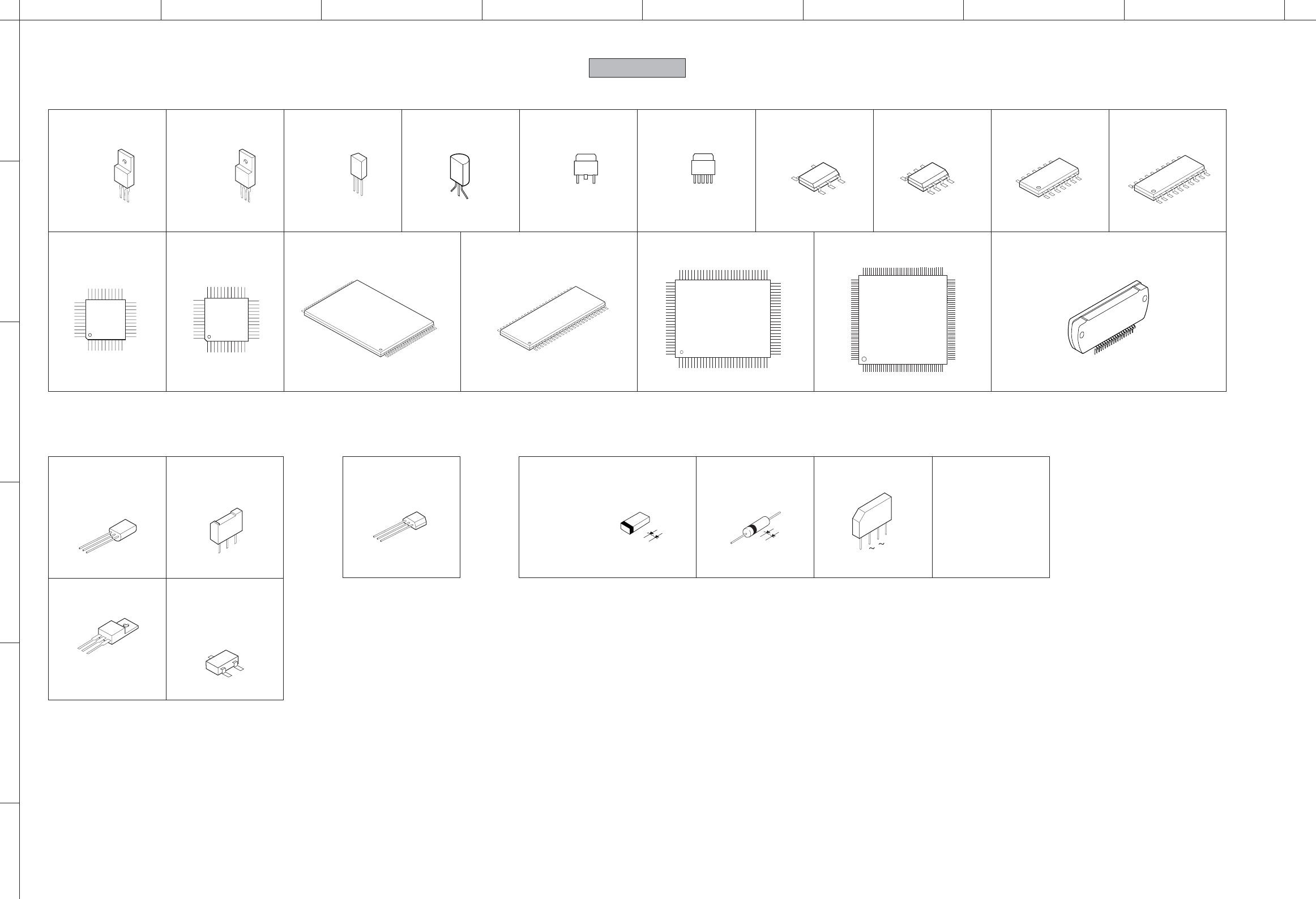

■PIN CONNECTION DIAGRAM NX-SW1000
ICs
KIA7812API
KIA7805API
1
19
KIA7912PI KIA78L05BP LM61CIZ µPC29M33T-E1-AZ PQ012FZ01ZPH SN74AHC1G08DCKR NJM4580E (TE2) MM74HCU04SJX
SN74AHCT080PWR
123
1:OUTPUT
2:COMMON
3:INPUT 321
1:OUTPUT
2:INPUT
3:COMMON
123
1:OUTPUT
2:COMMON
3:INPUT
3
12
4
1: INPUT
2: GND
3: OUTPUT
4: GND
5
1
1: VIN
2: VC
3: VO
4: NC
5: GND
1: +Vs
2: Vout
3: GND
5
3
1
4
8
4
1
5
SN74LV245APWR
AK4628VQ LC89057W-VF4D-E
YAC523-VZ S29AL004D70TFI020 W9816G6CH-7 M30626FHPFP D60YA003BPYP225
14 7
1
8
20 10
1
11
24
13
12
1
25
36
37
48
22
12
11
1
23
33
34
44
48
24
1
25
51
50
31
81
80
100
30
1
50
25
1
26
2SC1815 Y
KTA1266 Y-AT
KTC3198 Y-AT
2N5401C-AT/P
2N5551C-AT/P
105
104
53
156
157
208
52
1
DiodesTransistors
STK433-330-E
2SA1770 S, T
2SB1274 R, S 2SC2412K Q, R, S
2SD1938 F S, T
DTA114EKA
KPA104S-RTK/P
KRC102S-RTK/P
KRC104S-RTK/P
2SK304 E
B
C
E
E
B
C
BCEC
E
B
D
GS
FET
1SS355
KDS160-RTK/P
MA8027
MA8051-M
MA8056-M
MA8068-M
MA8082-M
MA8270-H
RB501V-40
1SS133, 176
2SS270A
KBP103G-01X0
RS403M-B-C-J80 TS6P03-08
Anode
Cathode
+
–
Anode
Cathode
45
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

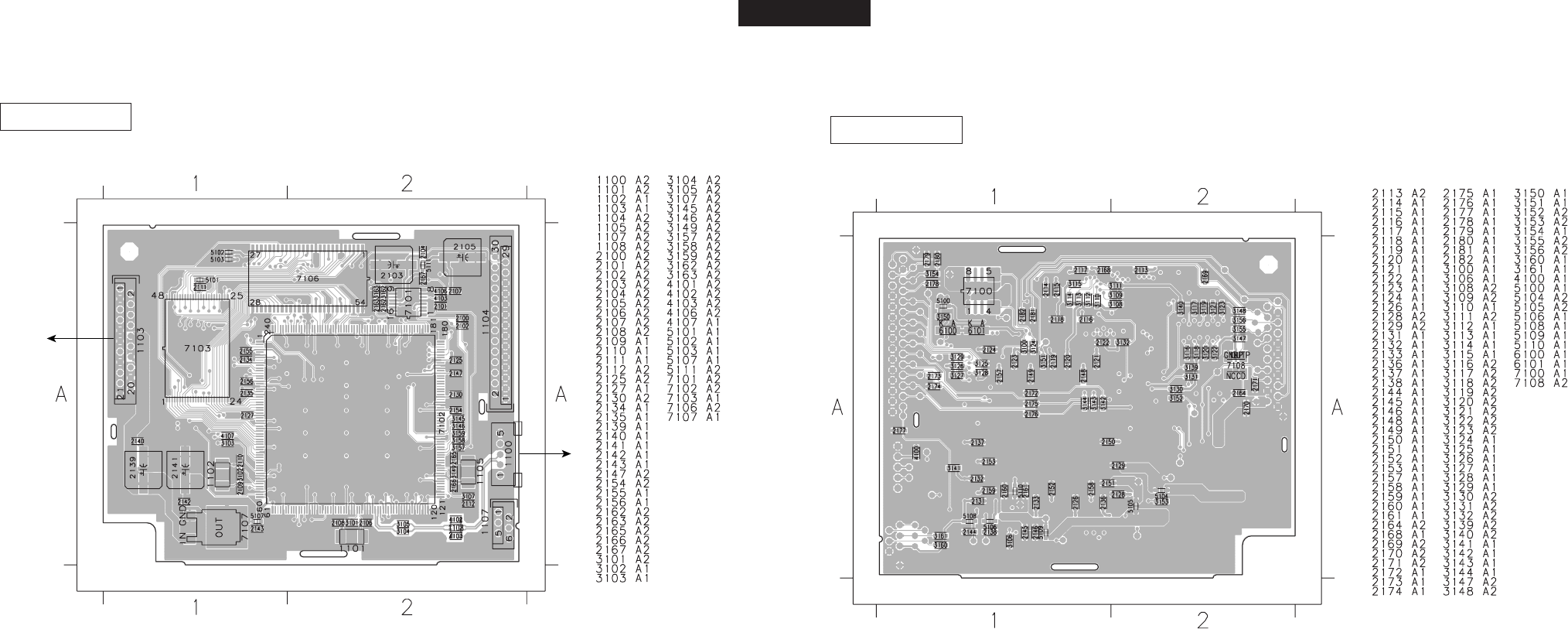

USB (Top view) USB (Bottom view)
AV (1107)
USB Cable Ass'y
■PRINTED CIRCUIT BOARDS
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
DVR-1000
46
DVX-1000
AV
(1201)
AV
(1106)
Loader Ass'yLoader Ass'yLoader Ass'y
HDMI
(1000)
AV
(1205)
AV
(1203)
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

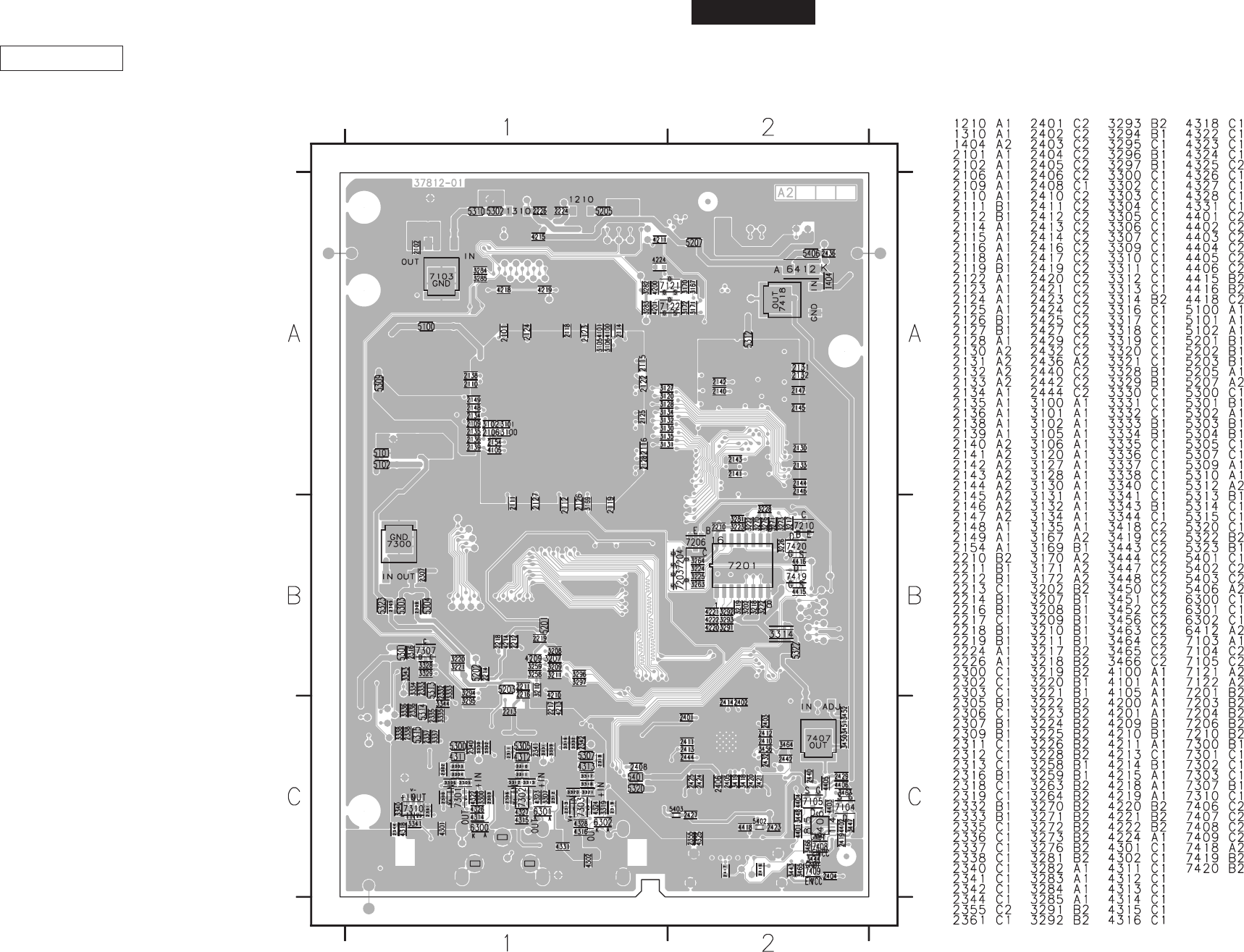

MONO (Top view)
DVR-1000
47
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

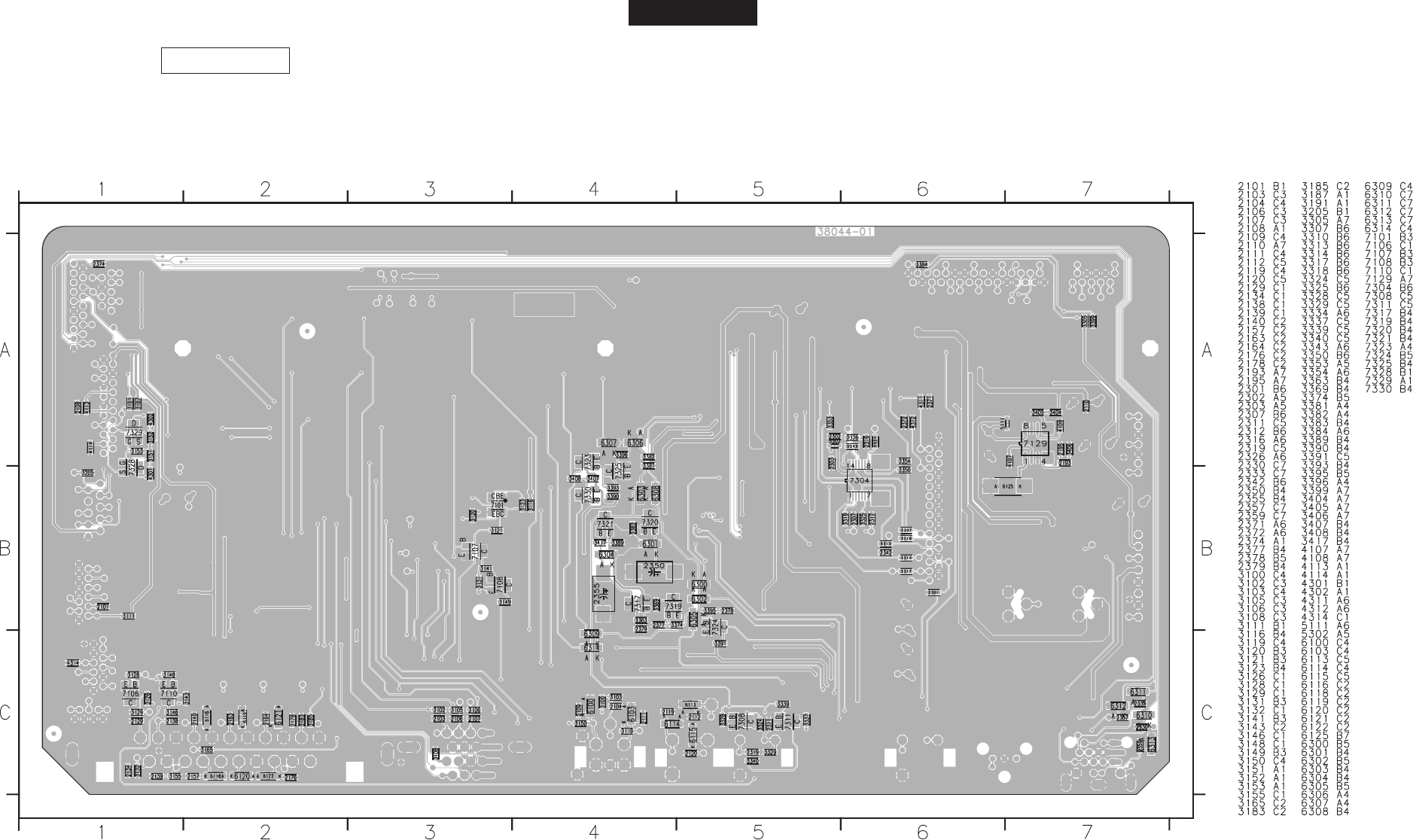

MONO (Bottom view)
DVR-1000
48
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

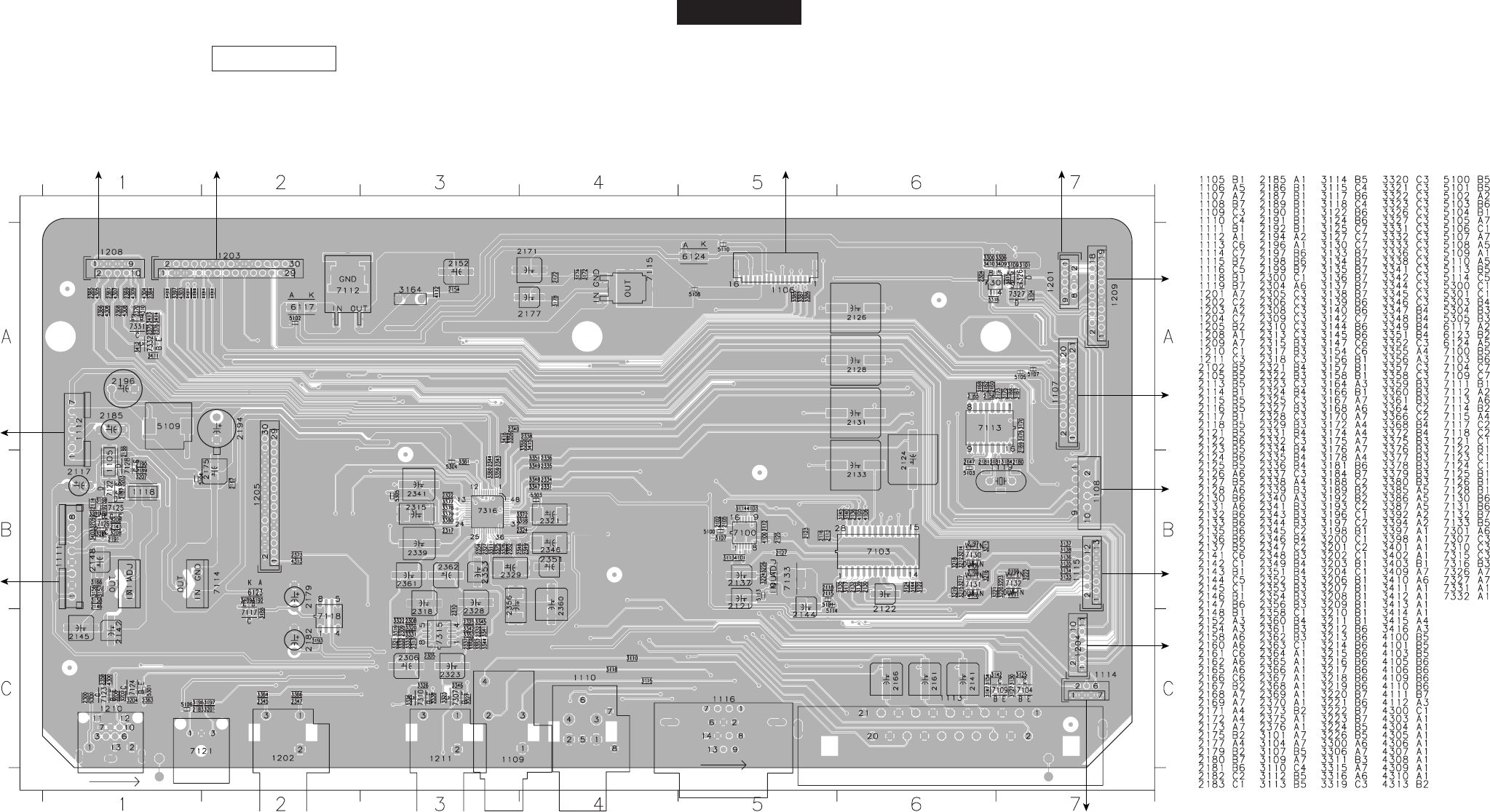

AV (Top view)
HDMI (1402)Power Supply Unit (CN1)
FRONT (3) (1301) MONO (1302) MONO (1104) MONO (1105)
FRONT (1) (1100)USB (1103)AM/FM TunerHDMI (1302)HDMI (1401)
HDMI (1301)
SYSTEM
CONNECTOR
AUX IN
DIGITAL IN
OPTICAL
LINE OUT
D1/D2
MONITOR OUT
J model only
VIDEO
S VIDEO
COMPONENT
Y
P
B
P
R
AV MONITOR OUT
G, F models only
DVR-1000
49
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
AV (Bottom view)
DVR-1000
50
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FRONT (2) (1201)
Power Supply Unit (CN3)

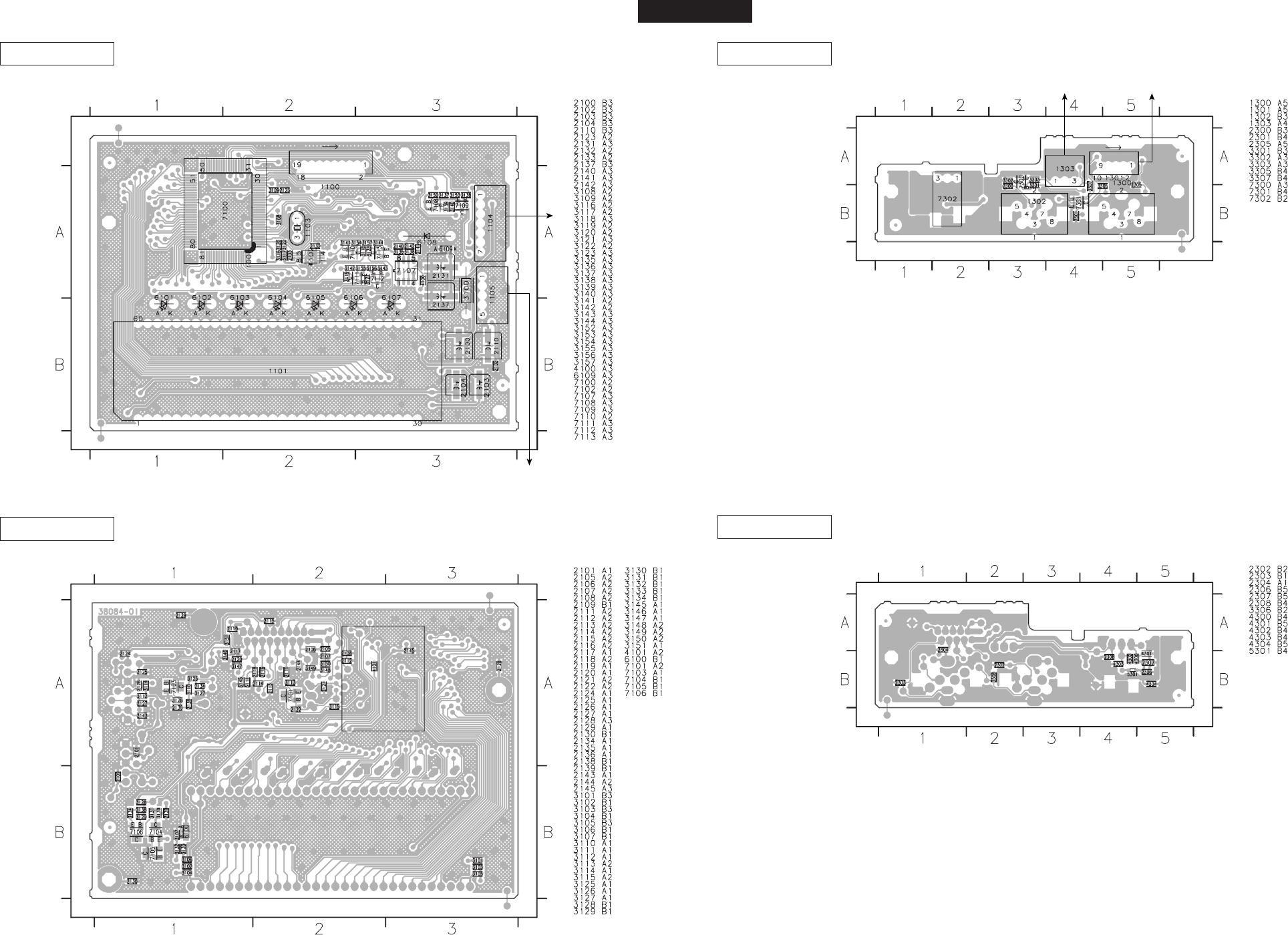

FRONT (1) (Top view)
FRONT (1) (Bottom view)
FRONT (2) (1203) AV (1208)
PHONES AUX IN
FRONT (3) (Top view)
FRONT (3) (Bottom view)
DVR-1000
51
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FRONT (1) (1104) FRONT (5) (1500) FRONT (3) (1303)
FRONT (4) (1400)
FRONT (2) (1202)
FRONT (2) (Top view) FRONT (4) (Top view)
FRONT (2) (Bottom view)
FRONT (4) (Bottom view)
FRONT (5) (Top view)
FRONT (5) (Bottom view)
FRONT (2) (1200)
DVR-1000
52
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
HDMI (Top view)
AV (1112) MONO (1304)
AV (1204)
AV (1114)
HDMI
AV (1115)
DVR-1000
53
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
HDMI (Bottom view)
DVR-1000
12345678
A
B
C
D
E
F54
DVX-1000

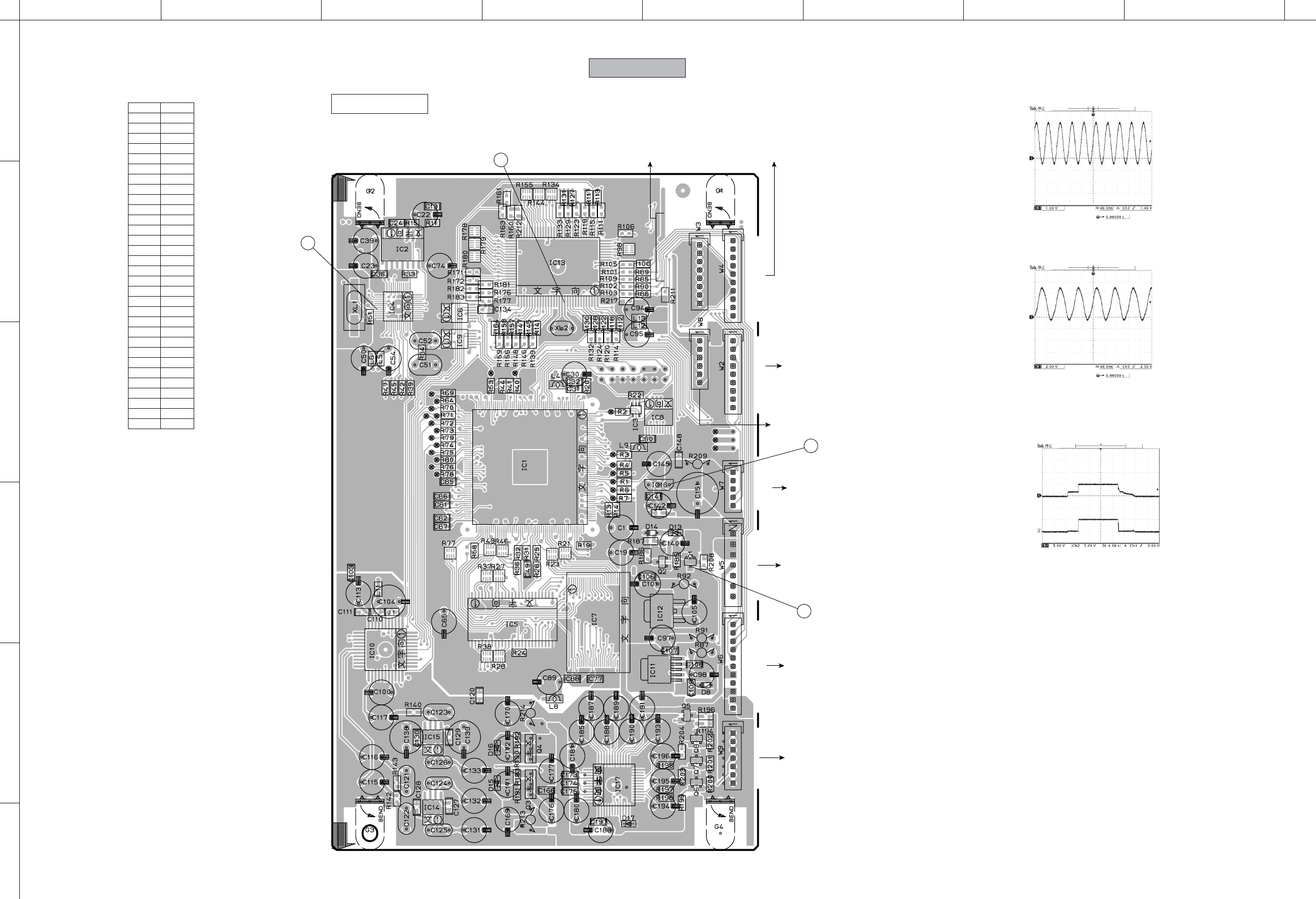

DSP (1) (Side A)
NX-SW1000
DSP (3) (CB304) MAIN (1) (CB2)
DSP (2)
(CB203)
DSP (2)
(CB201)
MAIN (2)
(CB3)
MAIN (2)
(CB4)
MAIN (1)
(CB1)
DSP (2)
(CB202)
1
4
8
5
1
4
8
5
1
1
1
1
3
1
54
3
10
11
20
208
157
156
105
104 53
52
1
1
1
3
4
5
1
1
1
12
13 24
25
36
37
48
11
12
22
23
3334 44
25
2650
25
48
24
1
100
30
31
50
51 80
81
1
1
17
8
14
12
13
24
25
3637 48
7
7
14
8
14
8
1
2
3
CH1
3
CH2
/FMT
NC
/SWMT
PRI
PRD
PLDET
LIN
FRY
SWRY
NC
+5V
REM
LED0
LED1
LED2
LED3
SELF_SW
DGND
TVccd
TCK
/RES
DGND
-
TMODE
TRXD
BOOT
TTXD
+5VI2C
SCL_1
DG
SDA_1
G_SPD
SPDIF
GND_RY
12RY
PB_DET
MUTE
PB_INT
S5V
+5
+5
+5C
MG
MG
MG
PRV1
PRV2
PRV3
THM
/PDET
/RESET
+12
AGND
-12
S12
RYC
AGND
FL
AGND
FR
AGND
SW
AGND
Point q Pin 29 of IC4
Point w Pin 13 of IC13
Point e
CH 1 : Out of IC16
CH 2 : Collector of Q1
↑
SYSTEM POWER SW ON ↑
SYSTEM POWER SW OFF
Ref. No. Location
D8 E5
D13 D5
D14 D5
D15 E4
D16 E4
D17 F4
IC1 C4
IC2 B3
IC3 C4
IC4 B3
IC5 D4
IC6 B3
IC7 D4
IC8 C5
IC9 C3
IC10 E3
IC11 E5
IC12 D5
IC13 B4
IC14 F3
IC15 E3
IC16 D5
IC17 E4
Q1 D5
Q2 D5
Q3 E4
Q4 E4
Q5 E5
Q6 E5
Q7 E5
Q8 E5
● Semiconductor Location
12345678
A
B
C
D
E
F55
DVX -1000

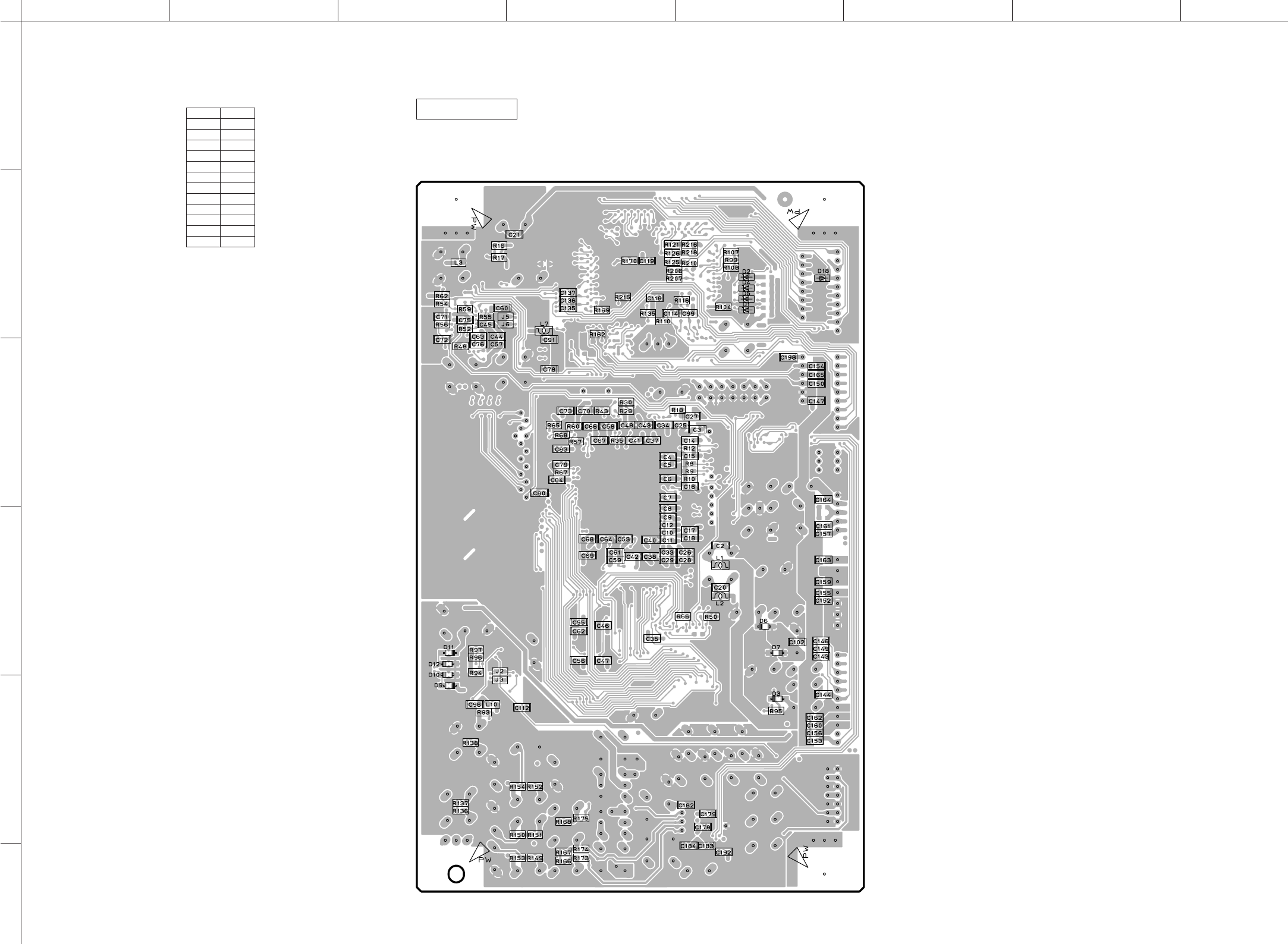

DSP (1) (Side B)
Ref. No. Location
D1 B5
D2 B5
D3 E5
D4 B5
D5 B5
D6 D5
D7 D5
D9 E3
D10 D3
D11 D3
D12 D3
D18 B5
● Semiconductor Location
12345678
A
B
C
D
E
F56
DVX-1000
NX-SW1000
DSP (2) (Side B) DSP (3) (Side B)
DSP (2) (Side A) DSP (3) (Side A)
GND_RY
12RY
PB_DET
MUTE
PB_INT
SYSTEM
CONNECTOR
DSP (1) (W2) DSP (1) (W7) DSP (1) (W8)
+5VI2C
SCL_1
DG
SDA_1
G_SPD
SPDIF
TVccd
TCK
/RES
DGND
-
TMODE
TRXD
BOOT
TTXD
DSP (1) (W3)
+5V
REM
LED0
LED1
LED2
LED3
SELF_SW
DGND
Ref. No. Location
D301 B6
D302 B6
D303 B6
D304 B6
● Semiconductor Location
12345678
A
B
C
D
E
F57
DVX -1000
DSP (1)
(W9)
MAIN (2)
(W3B)
Speaker MAIN (4)
(W1B)
MAIN (2)
(W2B)
DSP (1)
(W4)
AGND
SW
AGND
R
AGND
L
AGND
+B
SP-SWG
SPE-RG
SPE-LG
PRG
-B
SPE-L
SPE-LG
SPE-RG
SPE-R
+12
NC
-12
S5V
S12V
NC
SWRY
LIN
PLDET
PRD
PRI
/SWMT
NC
/FMT
1
19
SP –
SP +
14
85
14
85
58
41 58
4
1

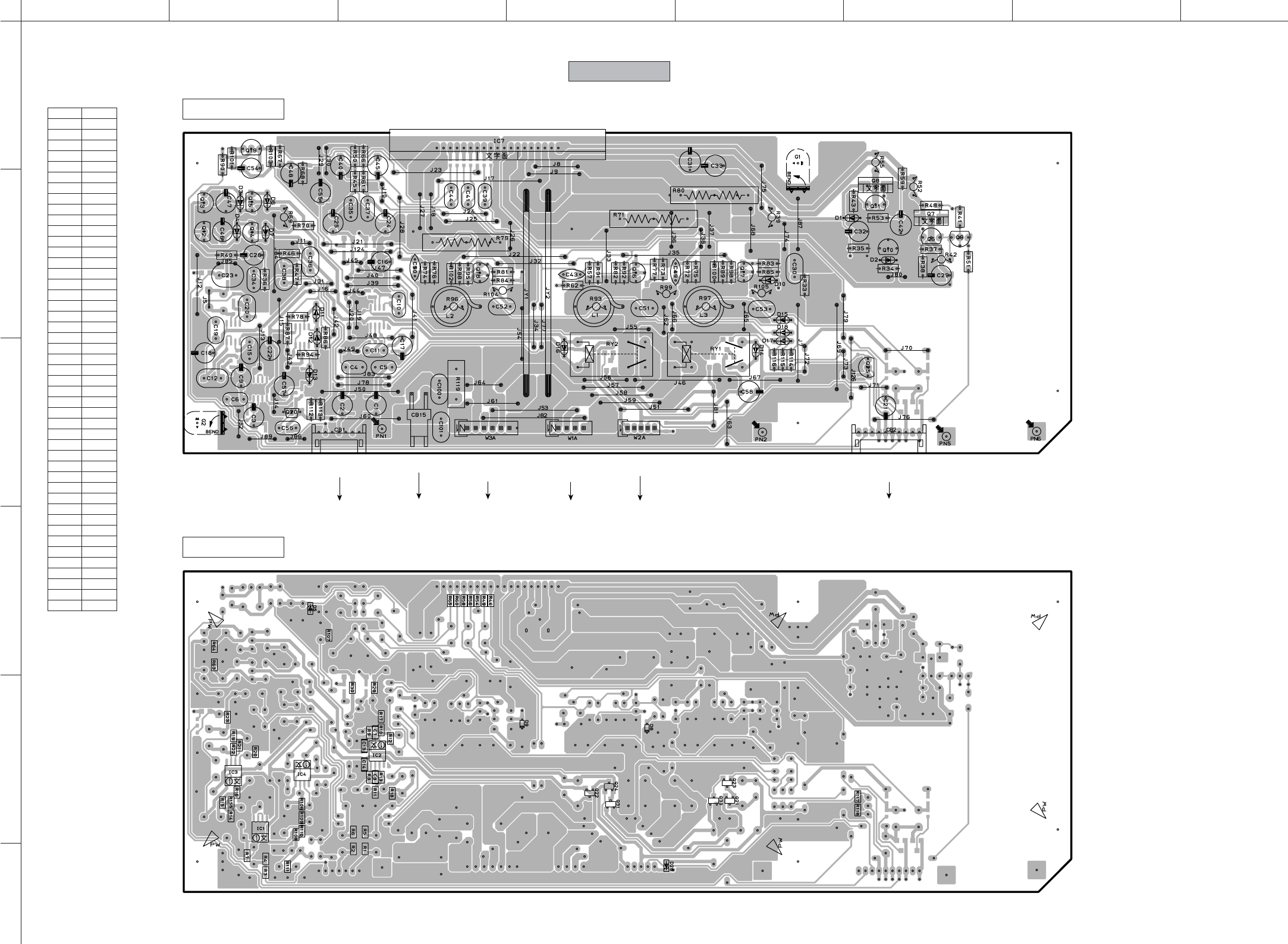

MAIN (1) (Side A)
MAIN (1) (Side B)
NX-SW1000
Ref. No. Location
D1 B6
D2 B6
D3 B2
D4 B2
D5 D2
D6 B2
D7 B2
D8 E4
D9 E4
D10 B5
D11 B2
D12 B2
D13 C2
D14 C5
D15 B5
D16 C4
D17 C5
D18 B5
D28 F4
IC1 E2
IC2 E3
IC3 E2
IC4 E2
IC7 A3
Q6 B6
Q7 B6
Q8 B6
Q9 B6
Q10 B6
Q11 B6
Q12 B2
Q13 B2
Q14 B2
Q15 B2
Q16 B4
Q17 B5
Q18 B3
Q19 A2
Q20 C2
Q21 E5
Q22 E4
Q23 E5
Q24 E4
Q25 C6
Q30 E5
Q31 E4
● Semiconductor Location
12345678
A
B
C
D
E
F58
DVX-1000
POWER
TRANSFORMER
POWER TRANSFORMER G, F, J models
POWER CABLE
R, K, A, L models
MAIN (3)
(W4A, W4B)
POWER TRANSFORMER
MAIN (1)
(W2A)
DSP (1)
(W6)
DSP (1)
(W5)
MAIN (1)
(W3A)
+B
SP-SWG
SPE-RG
SPE-LG
PRG
-B
AC1
E
E
AC1
+12
AGND
-12
S5V
S12
PRV1
PRV2
PRV3
THM
/PDET
/RESET
+12
AGND
-12
S12
RYC
AC2
E
AC2
NC
AC3
AC3
S5V
+5
+5
+5C
MG
MG
MG
ACIN-L
ACIN-N
N
L
MAIN (2) (Side A)
MAIN (2) (Side B)
NX-SW1000
MAIN (3) (Side A)
POWER TRANSFORMER
MAIN (2) (CB16)
AC IN VOLTAGE
SELECTOR
OR
RE
YE
VI
N
L
R, K, A, L models
MAIN (4) (Side A)
MAIN (1) (W1A)
SPEAKERS
SPE-L
SPE-LG
SPE-RG
SPE-R
Ref. No. Location
D19 C4
D20 E4
D21 E4
D23 B3
D24 C2
D25 E3
D26 D3
D27 B4
IC10 C3
IC11 C3
IC12 C5
IC14 C4
Q26 C4
Q27 E4
Q28 E4
● Semiconductor Location
59
DVX -1000

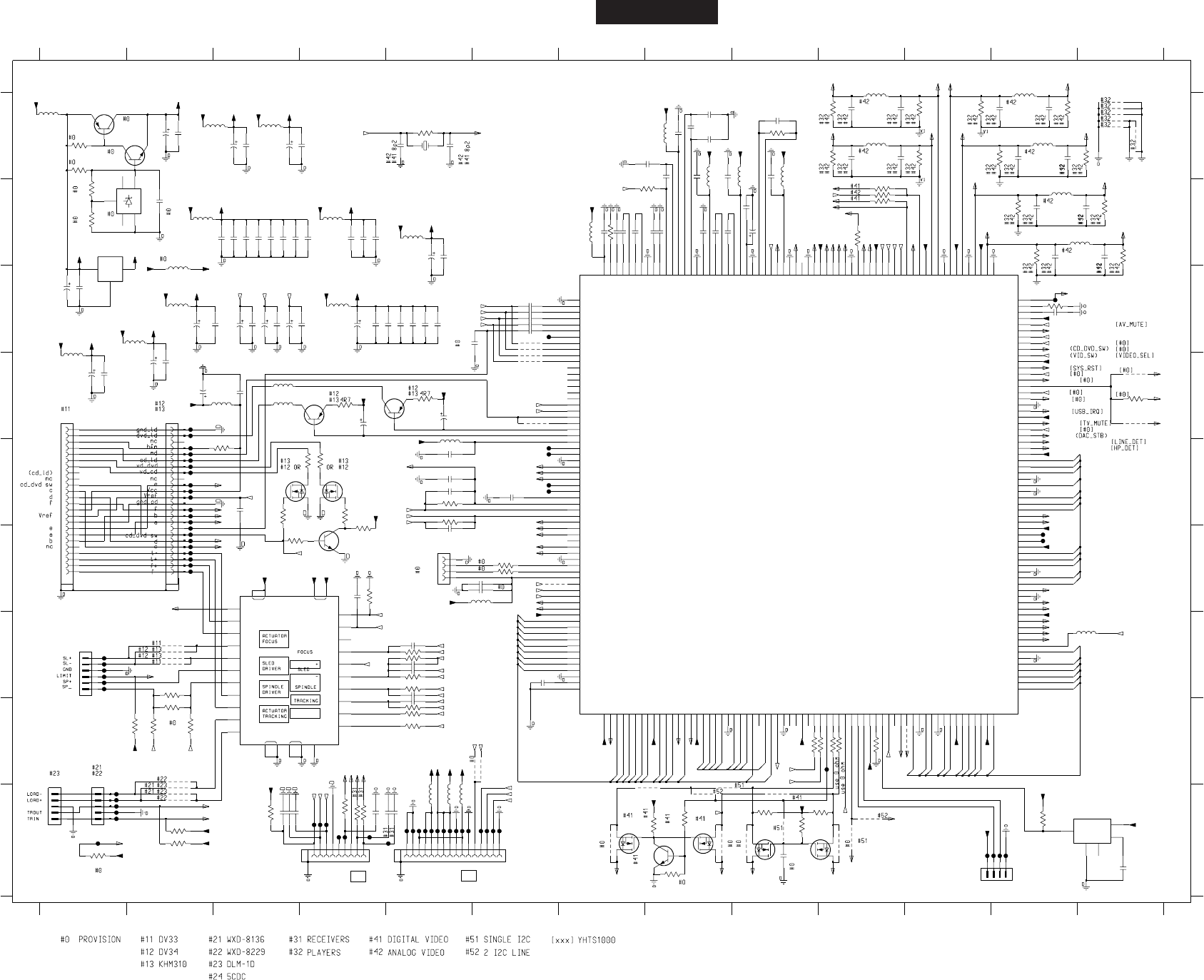

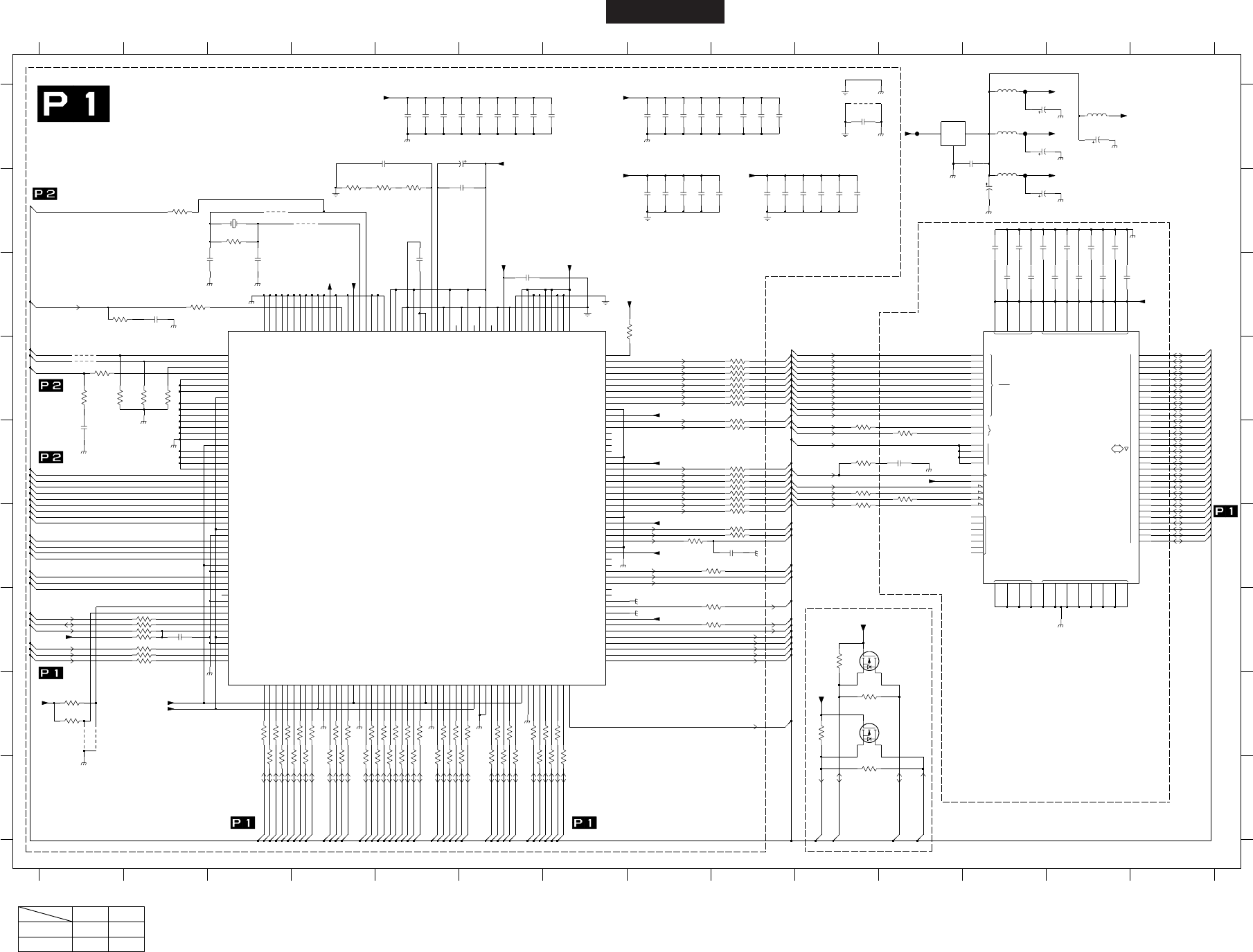

■SCHEM ATIC DIAGRAM S
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

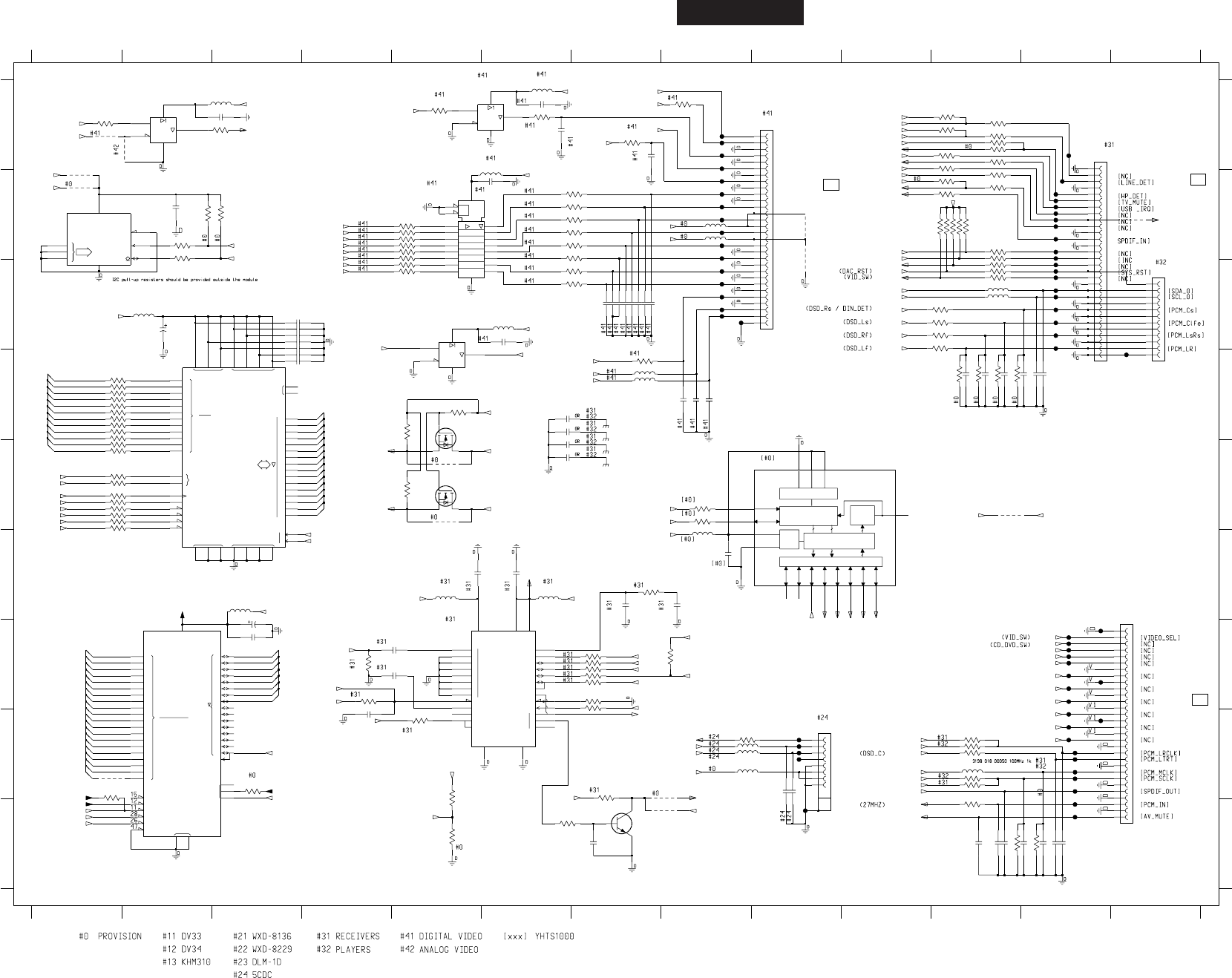

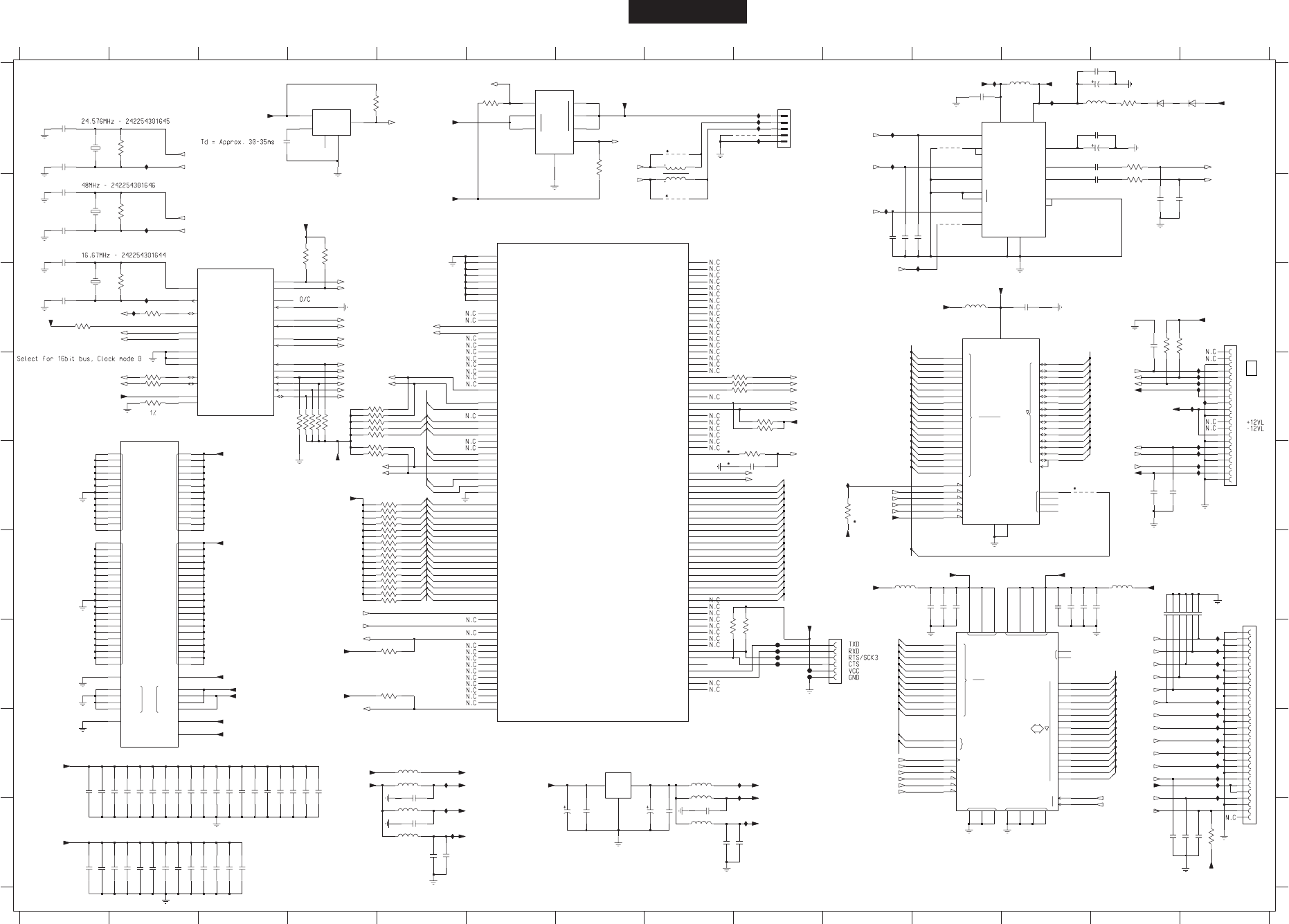

MONO 1/2
NCNC
A
REF
K
COM
OUTIN
VIN3
VIN4
VINLOp
VINLOn
PREGND
PWRVCC
PREVCC
PS
VBIAS
SB
VIN1
VIN2p
VIN2n
PWRGND
HS_GND
OUTLn
OUTLp
OUT4n
OUT4p
OUT3n
OUT3p
OUT2n
OUT2p
OUT1n
OUT1p
VO2
T164 I5
T165 I5
T166 I5
T167 I1
T142 I5
T144 I6
T145 I6
T146 I6
T147 I6
T148 I4
T149 I4
T150 I4
T151 I4
T152 I4
T153 I4
T154 I5
T155 I11
T156 I11
T157 I12
T158 I12
T161 I5
T162 I5
T163 I5
T130 G1
T131 I1
T132 I1
T133 I1
T134 I1
T135 I1
T136 E6
T137 E6
T138 I5
T139 I5
T140 I5
T141 I5
T109 E2
T110 E2
T111 E2
T113 E2
T114 E2
T115 E2
T116 F2
T117 F2
T118 F2
T119 F2
T120 F2
T121 F2
T122 F2
T123 F2
T125 G1
T126 G1
T127 G1
T128 G1
T129 G1
F155 E6
F156 E6
T101 D2
T102 D2
T103 E2
T104 E2
T105 E2
T106 E2
T107 E2
5136 A10
5140 B2
7101 B1
7102 I13
7103 B1
7104 A1
7106 D5
7107 D4
7108 E4
7109 E3
7110 F4
7111 F3
7112 E9
7122 A1
7131 I9
7132 I9
7133 I8
7134 I7
7135 I7
F125 F12
F126 F12
F127 H10
F128 C12
F141 C6
5104 A3
5105 B4
5106 B2
5107 B5
5108 C4
5109 C1
5111 C2
5112 C2
5115 A9
5116 A9
5117 A8
5118 A8
5119 B7
5122 E5
5123 F6
5124 D3
5125 D3
5126 D3
5130 A5
5131 B13
5132 B12
5133 A12
5134 A12
5135 A10
4130 D13
4132 D13
4133 I9
4134 I10
4135 I7
4136 I8
4140 I8
4141 A13
4142 A13
4143 A13
4144 A13
4145 A13
4146 A13
4151 G2
4152 G2
4153 G2
4154 G2
4155 H2
4156 I2
4157 I2
4158 I2
5101 A1
5102 G13
5103 A3
3193 A12
3194 A12
3195 A10
3196 A10
3209 D13
4101 H6
4102 H6
4103 I10
4104 I8
4105 I8
4106 H10
4107 I9
4115 C6
4116 C6
4117 D6
4118 D6
4119 D6
4122 F6
4123 I9
4124 I10
3164 G5
3165 G5
3166 H5
3167 H5
3168 H5
3171 G2
3172 H2
3173 H2
3174 H2
3175 I2
3176 I2
3177 H2
3178 I1
3181 B12
3182 B12
3183 A11
3184 A11
3185 A11
3186 A11
3191 B13
3192 B13
3140 B10
3141 B10
3142 A9
3143 B8
3144 B7
3145 A5
3146 E3
3147 D5
3148 D4
3149 E4
3150 E3
3151 F4
3152 F3
3153 E5
3154 E5
3155 A1
3156 F6
3157 F6
3158 E4
3159 E3
3161 F4
3162 G5
3163 G5
2261 B2
3101 I3
3102 I4
3103 I4
3104 I4
3105 B10
3107 H9
3108 H9
3110 H10
3111 H10
3114 H10
3115 I12
3117 B1
3119 B1
3125 A1
3131 I10
3132 I9
3133 I8
3134 I8
3135 I7
3136 I9
3138 B10
3139 C12
2210 F5
2211 F4
2212 G5
2213 G5
2214 G5
2215 G5
2216 H5
2221 B12
2222 B13
2223 B12
2224 B12
2225 A12
2226 A12
2227 A11
2228 A12
2229 A10
2230 A10
2231 A10
2232 A10
2241 I3
2242 I3
2243 I3
2245 I4
2247 I4
2248 I5
2249 I9
2181 C3
2182 C3
2183 C3
2184 C3
2185 C4
2186 C6
2187 C6
2188 C6
2189 C6
2190 C6
2191 C5
2193 D2
2194 D3
2195 D5
2196 D4
2198 E3
2201 E5
2202 E6
2203 E5
2204 E5
2207 F6
2208 F6
2209 G6
2155 B8
2156 B8
2157 B8
2158 B8
2159 B8
2161 A8
2162 A8
2163 A8
2164 A8
2165 A7
2166 A8
2167 B8
2168 B8
2169 B7
2171 B7
2172 B7
2173 B7
2174 A4
2175 A5
2180 C3
2130 C4
2131 C4
2132 C5
2133 C5
2134 C5
2135 C5
2136 C5
2138 D1
2139 D1
2141 D2
2142 D2
2145 C2
2146 C3
2149 B9
2150 I13
2151 C12
2152 B9
2153 A9
2154 B9
1109 D1
1110 H1
1151 I5
1152 I5
1153 I5
2101 C1
2102 C1
2103 A2
2104 A2
2105 A3
2106 A3
2107 A3
2108 A4
2111 B4
2112 B4
2113 B4
2116 B3
2117 B3
2118 B3
2119 B3
2120 B3
2121 B3
2122 B3
2123 B4
2126 C5
2127 C5
12 13
12345678910111213
A
B
C
D
E
F
G
H
I
A
1234567891011
B
C
D
E
F
G
H
I
1101 D2
1102 G1
1103 H1
1104 I6
1105 I3
1107 F5
1108 I12
100n2185
3158
100R
2193
220u
4118
31021K0
2247
8K23165
100p
100n 2207
3162 27K
4123
4119
4104
T106
100n2158
100p
7131
BSH103
2241
100n
BLM18P
5126
60R
2211
150R
3191
7104
2SB1132
47u2184
2n22204
3146
390R
2168 33n
BLM18P
5115
60R
150R
3194
2150
470p
100n
2216
2230
60R
5111
BLM18P
47p
2191
120p
4105
4151
4133
3117
20K
1%
2123 100n
100n2169
1u02188
T132
2245 100p
3192
150R
2261
100n
2174
6p8
2153
50R
100n
5112
BLM31
4156
3131
4K7
47p
2226
47p
2221
2108 100n
2181 100n
1n02162
100K
3149
47p
2228
2130 220u
10R 3111
T123
4101
BLM18P
5140
60R
53
12
4
TS431L
7103
414112
4
5
6
7
8
9
17
18
10
11
12
13
14
15
16
2
3
1104
HFW16R-2STE1
1
1u02186
3164 15K
100n2203
100n2133
5102
600R
2232
47p
100n2112
16V47u
2196
10u
T133
2126
2146
T131
100n
1
2
3
4
319804000040
1108
60R
5107
BLM18P
10K3175
1K0
3136
BSH103
7134
4116
6
7
8
9
2526
19
2
20
21
22
23
24
3
4
5
1
10
11
12
13
14
15
16
17
18
SFV24R-2STE1-LF
1101
3147
10R
2135 100n
10R
BC817-25W
3157
7122
2145 47u
3181
150R
3171 1R0
60R
5119
BLM18P
4124
60R
5118
BLM18P
100n
2171
3138 22R
2166
1n0
2149
3140 22R
10u
100R 3108
2201 100n
2103 220u
2242 22p
4152
47p
2223
7107
2SB1132
7132
BSH103
4130
T118
4134
100n2164
317710K
4K7
3134
2202 100n
2248 100p
100n2183
100n2122
2138 220u
2249
100n
10u
5124
T116
T119
31141K0
470p2212
BC817-25W
7110
3186
150R
4157
100R
4102
3159
5133
1u8
2111 100n
3155
22R
2155 100n
4153
3185
150R
150R
3182
T111
4155
BLM18P
5104
60R
2
100n2120
41431
50R
1152
BLM31
22p2165
100n2127
2104 100n
2163
F155
100n
T109
T110
T114
T115
10R
3148
47p
2231
22R3141
BLM31
50R
1153
100n
CD
5
GND
3
INP
2
4
NC
OUTP
1
2151
NCP303LSN30
7102
BLM18P
5106
60R
3139
560R
5
6
1102
319804000060
1
2
3
4
2136 100n
60R
F127
5105
BLM18P
2180 47u
12
V
4146
680K
4140
3153
2132 100n
150R
3193
2116 100n
1u8
5134
100n2167
2214 100n
2161 100n
3135
4K7
T113
4106
1%
3119
9K1
10u
5125
4107
2225
60R
5103
BLM18P
47p
100n2117
4103
9
28
2
3
5
4
23
24
26
27
6
15
20
19
25
7
22
1
10
21
8
29
30
13
14
11
12
18
17
16
MM1646XH
7111
Φ
150R
3184
47u
10K
3178
2141
100n2215
470n2154
2
4122
7101
LD1117DT33
1
3
414412
3183
150R
2195
47u 16V
330K
3174
3168 10K
1u02159
1u8
5136
F156
2134 100n
2139 100n
BLM18P
5122 60R
15K3144
F125
56K
3163
513027M
BSH103
7108
T129
3107100R
T127
2121 100n
2142 100n
100n2118
2243 22p
3151
10K
4154
3
4
1107
1
2
7135
BC817-25W
HLW4S-2C7
2210 2n2
2213 150n
6p8
2175
F141
4158
T103
T101
T104
T102
3133
4135
2102
4K7
100n
3161 10K
3125
60R
5116
BLM18P
100R
4115
47p
2224
T138
T140
T135
T137
T125
100n2131
50R
BLM31
1151
2106 100n
V
2156 47n
1u02187
T165
T163
BLM18P
5117
60R
3176 10K
5132
1u8
2222
100n
47p
2152
7133
4136
BSH103
T154
T155
31031K0
T152
10R3156
1u8
5131
10K
4117
3167
414512
F128
T153
T150
T151
T148
T149
T147
3142 750K
T144
60R
5123
BLM18P
T145
T142
T141
T139
100n2172
T167
T158
T166
4K7
3132
3152 10K
BLM18P
5108
60R
T164
T162
T161
T157
T156
2182
3
4
5
47u
319804000050
1
2
T126
1103
100K
3150
3154 680K
150R
47p
2229
3195
2101 220u
4K7
V
3115
10R 3110
T117 F126
3172
1R0
220u2107
T107
4
5
T105
1110
1
2
3
319804000050
3105 100R
2173
5135
100n
1u8
100n
2198
1u02189
3143
100K
2194
100n
22K3166
5
6
7
8
9
10
11
1105
HFW9R-2STE1
1
2
3
4
T121
2190 1u0
3173
330K
100n2113
31041K0
BSH103
7109
2208100n
BLM31
5101
50R
150R
3196
60R
5109
BLM18P
10K 3101
2209 1n5
2SB1132
47n2157
7106
100K3145
T122
6
7
8
9
2526
T120
18
19
2
20
21
22
23
24
3
4
5
1
10
11
12
13
14
15
16
17
SFV24R-2STE1-LF
1109
4132
T134
T136
V
100R
3209
414212
T146
93 IOA0
94 DVSS_3
95 UWR#
96 URD#
DVDD18_2
97
UP1_2
98
UP1_3
99
86 AD4
AD5
87
AD6
88
89 IOA21
9MB
90 ALE
91 AD7
92 A17
79 IOOE#
MA
8
DVDD3_2
80
81 AD0
82 AD1
83 AD2
84 AD3
85 DVSS_2
HIGHA4
71
HIGHA3
72
73 DVDD3_1
HIGHA2
74
75 HIGHA1
IOA20
76
IOCS#
77
IOA1
78
APLLVSS
APLLVDD3
65
66 IOWR#
A16
67
68 HIGHA7
HIGHA6
69
DVDRFIN
7
HIGHA5
70
57
IOA7
58
HIGHA0
59
DVDRFIP
6
60 IOA18
61 IOA19
DVSS_1
62
APLLCAP
63
64
5
50 TCK
51 TDO
DVDD18_1
52
53 IOA2
54 IOA3
IOA4
55
IOA5
56
IOA6
FOO
43 USB_VSS
44 USBP
USBM
45
46 USB_VDD3
FG
47
48 TDI
49 TMS
DVDD
OP_INN
36 OP_INP
DMO
37
FMO
38
39 TROPENPWM
DVDC
4
40 PWMOUT1
41 TRO
42
V2REFO
29 V20
3DVDB
VREFO
30
31 FEO
32 TEO
33 TEZISLV
34 OP_OUT
35
CEQN
252
OSP
OSN 253
RFGC 254
255
IREF
AVDD3 256
26 RFLVL
27 SGND
28
RFVDD3
245
RFRPDC
RFRPAC 246
HRFZC 247
CRTPLP 248
249
RFGND
25 CSO
250
CEQP
251
LPFIN
LPFOP 238
ADCVDD3 239
24 SVDD3
240
S_VCM
ADCVSS 241
242
S_VREFP
S_VREFN 243
244
LDO1
JITFO 230
JITFN 231
PLLVSS 232
IDACEXLP 233
234
PLLVDD3
235
LPFON
236
LPFIP
237
ASDATA4
DVSS_13 223
MC_DATA 224
SPDIF 225
226
RFGND18
RFVDD18 227
228
XTALO
229
XTALI
23
DVSS_12 216
ASDATA0 217
218
ASDATA1
ASDATA2 219
22 LDO2
220
ASDATA3
221
DVDD18_6
222
SPDATA 209
MDI2
21
210
SPLRCK
SPBCK 211
212
DVDD3_10
213
ALRCK
214
ABCK
ACLK 215
YUV4
201
DACVSSA
YUV5 202
203
YUV6
DVDD3_9 204
VSYN 205
206
YUV7
HSYN 207
SPMCLK 208
YUV1
DACVDDB 195
YUV2 196
DACVSSB 197
198
YUV3
DACVDDA 199
2DVDA
20 MDI1
200
188
DACVDDC 189
TPI
19
190
VREF
FS 191
YUV0 192
193
DACVSSC
194
180
RD23
RD22 181
DVDD3_8 182
183
RD21
184
RD20
RD19 185
RD18 186
RD17 187
RD16
DVDD18_5
174
RD26
DVSS_11 175
RD25 176
177
RD24
DQM3 178
179
DQM2
18 TNI
166
RA4
DVDD3_7 167
168
RD31
169
RD30
17 CDFOP
RD29 170
171
RD28
172
RD27
173
159
CDFON
16
RA8 160
161
DVSS_9
162
RA7
163
DVSS_10
164
RA6
165
RA5
151
DVDD18_4 152
RVREF 153
RCLKB 154
155
DVDD3_6
RCLK 156
CKE 157
RA11 158
RA9
144
DVSS_7
BA1 145
146
RA10
147
RA0
DVSS_8 148
149
RA1
SD
15
RA2 150
RA3
137
DQM1
RWE# 138
139
CAS#
14 SC
140
RAS#
141
DVDD3_5
142
RCS#
143
BA0
13 SB
130
RD12
RD11 131
RD10 132
133
RD9
134
DVSS_6
135
RD8
DQS1 136
122
RD2
123
124 RD1
RD0
125
RD15
126
127 DVDD3_4
128 RD14
129
RD13
RD7
116 DVSS_4
RD6
117
RD5
118
DVSS_5
119
SA
12
120 RD4
RD3
121
DVDD18_3
DVDD3_3
ICE
109
11 MD
PRST#
110
IR
111
112 INT0#
113 DQM0
114 DQS0
115
UP1_5
101
102 UP1_6
UP1_7
103
UP3_0
104
UP3_1
105
106 UP3_4
107 UP3_5
108
7112
AGND
1
10 MC
UP1_4
100
47p
MT1389
2227
2119 100n
V1
T128
T130
2105 220u
FP_IRQ
PWR_ON_
SCL_DAC
SDA_DAC
VSDA
VSCK
RDS_DAT
+5V
TU_CLK
27M_IN
VSCK
VSDA
TxD
RxD
AV_MUTE
SDA_HDMI#
SDA_HDMI#
27M
OP+
OP-
TROUT
TRIN
+8M +5M
OP-
ADIN
md
XTALI
YUV6
YUV5
R_Cr
B_Cb YUV4 G_Y
YUV3
CVBS
YUV2
C
YUV1
Y
IOA
V20
C_
B_
D_
E
+3V3
XO
rf
+5D
SDA_DAC
+3V3
VSYN
HSYN
CH_IRQ
t+
f-
hfm
vd_dvd
vd_cd
+1V8
+5VL
+5VL
+8V
+3V3
LIMIT
F
VOLB
A_
gnd_pd
gnd_ld
CH_IRQ
HDMI_DET
TU_SD
cd_ld
f+
t-
Vcc
YUV0
dvd_ld
+S_V33
+S_V33 +S_V33
+S_V33
+3V3
+3V3
+5D
PWR_ON_
RDS_CLK
RDS_DAT
VOLA
DSD_LFE
FREQ_HOP
AMP_ON
PW_DN_
ERR
TU_DO_ST
TROPEN
FP_IRQ
+3V3
SCL_DAC
+L_V33
+L_V33
SCL_HDMI SDA_HDMI
+3V3
+RF_V5
+RF_V5
+V18
MUTE_TV
+8V
+8M
+5VL
+5M
+5D
+RF_V5
+S_V33
+3V3
+3V3
+3V3
+L_V33
+3V3
+DV33A
+3V3
+DV33B
+3V3
+V_V33
+1V8
+V18
DQM0
V1P4
V1P4
A(0)
LIMIT
ADIN
OP+
V1P4
PCM_MIC_IN
+DV33B
MIC_DET
STBY
V1P4
+8M
+5M
TRCLOSE
+3V3
+3V3
+3V3
+8M
VO2
VO2
TRIN
+DV33B
V1P4
+V18
SP_RST
F
TU_CE
TU_DI
+5D
+V18
+V18
+V18
+S_V33
+DV33A
+DV33A
PWR
PRD
PCE
+DV33A
+DV33B
+DV33B
+DV33B
+DV33B
+DV33B
+V_V33
+V_V33
+V_V33
XTALI
A_
FMO
TRO
DMO
FMO
V1P4
FOO
V1P4
V1P4
PCM_LRCK
PCM_MCLK
PCM_LTRT
PCM_SCLK
PCM_LR
PCM_CLfe
PCM_LsRs
PCM_Cs
SP_OUT
SPMCLK
SPBCK
SPLRCK
SPDATA
YUV7
RC6
VOLA
VOLB
E
D_
B_
C_
V20
V2P8
V2P8
V20
V1P4
IOA
AD(4)
AD(5)
AD(6)
A(21)
AD(7)
A(17)
+V18
A(0:21)
AD(0:7)
DQ(0:15) MA(0:11)
DCKE
DCLK
BA0
WE
RAS
CAS
CS
BA1
DQM1
XO
DMO
TROPEN
TRO
FOO
TROUT
STBY
TRCLOSE
+V18
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)
A(18)
A(19)
+DV33B
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)
A(9)
A(20)
A(1)
AD(0)
AD(1)
AD(2)
AD(3)
FP_IRQ
RC6
DQ(7)
DQ(6)
DQ(5)
DQ(4)
DQ(3)
DQ(2)
DQ(1)
DQ(0)
DQ(15)
DQ(14)
DQ(13)
DQ(12)
DQ(11)
DQ(10)
DQ(9)
DQ(8)
MA(10)
MA(0)
MA(1)
MA(2)
MA(3)
MA(11)
MA(9)
MA(8)
MA(7)
MA(6)
MA(5)
MA(4)
V1P4
to Loader Ass'y
to Loader Ass'y
to Loader Ass'y
to AV_1201 to AV_1106
Page 62 A5 Page 61 I1
DVR-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
Z
60
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

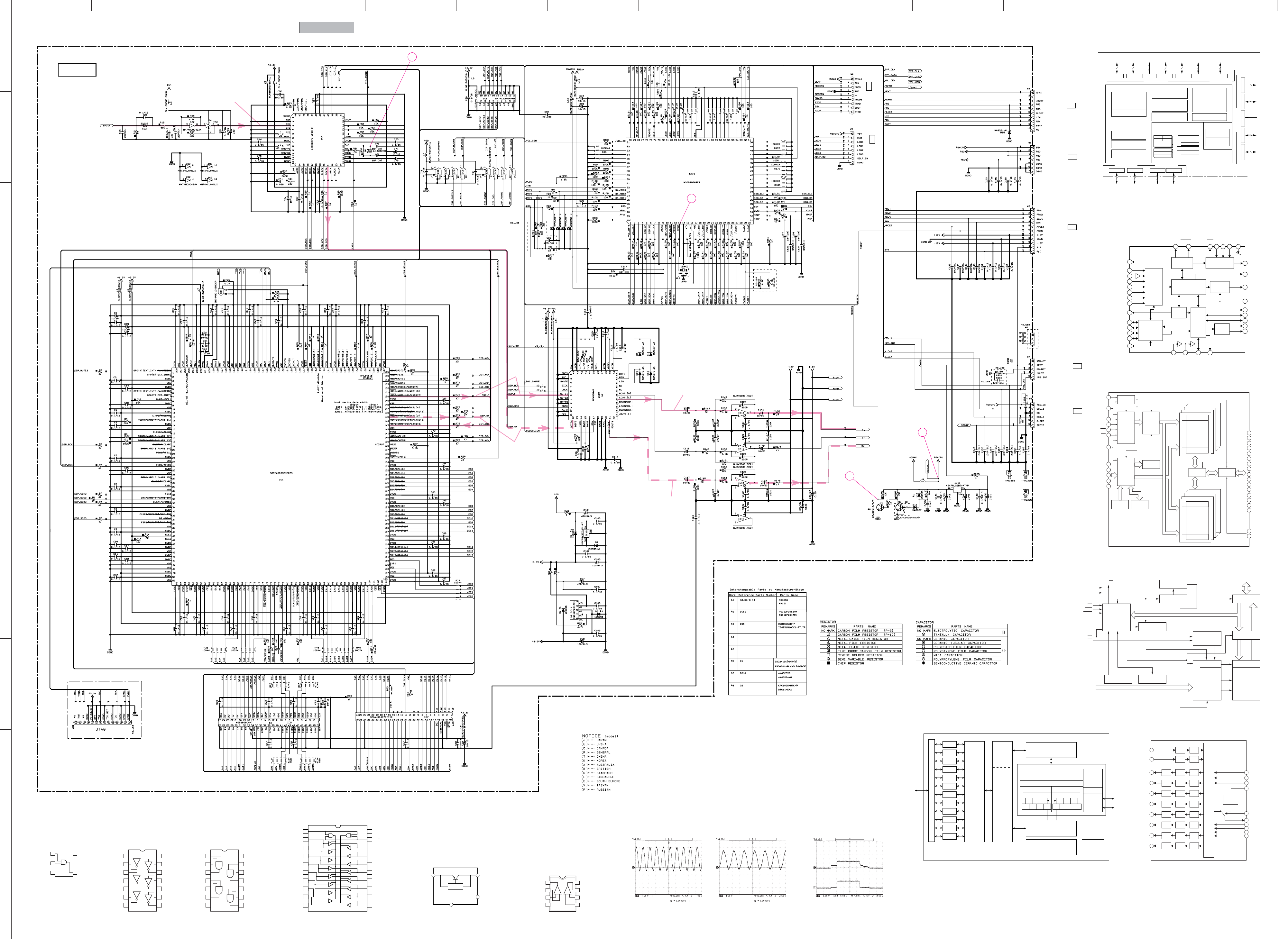

MONO 2/2
11
1
0
13
12
9
8
9
10
VSS
VDDQ
1M-1
DQM
VDD
VSSQ
0
A
BA
1
6
H
0
WE
L
NC
CAS
RAS
7
5
4
3
2
15
14
11
10
CS
CKE
CLK
D
0
1
2
3
4
5
6
7
8
EN
EN
CS
SDA
SDOUT
OLRCK
OSCLK
RMCK
FILT
AGND DGND
RXP
CCLK
CDOUT
AD<0:2>
GPO
0
VL
SCL
OMCK
RXN
0
VA VD
RST
1
2
3
4
5
6
7
1
2
CDIN
19
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
VSS
VDD
0
A
D
5
2
4
RB
OE
CE
7
6
WE
3
1
RP
0
BYTE
2M-1 / 1M-1
NC
A-1
8
9
10
11
12
13
14
15
EN
1
EN
&
SCL
ADR
0
1
2SDA
WC
8
88 8
88
13
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1301 F13
1302 A12
1303 C13
1304 A9
1305 H9
2301 B2
12345678910111213
123456789101112
2355 C7
2356 C7
2357 C7
2360 D8
2302 C2
2303 C3
2304 C3
2305 C3
2306 C3
2307 C3
2308 D3
2309 D3
2311 G3
2312 G3
2315 G5
2316 G5
2317 F8
2318 F7
2319 F5
2320 F6
2321 A6
3303-3 D1
2322 B6
2323 A2
2324 I12
2325 I12
2326 I12
2327 I12
2328 I11
2329 I11
2341 D11
2342 D11
2343 D11
2344 D12
2345 D12
2346 D12
2350 C7
2351 C7
2352 C7
2353 C7
2354 C7
2361 D8
2362 D8
2363 A6
2364 I9
2365 I9
2366 A7
2381 F8
2391 D6
2392 D6
2393 E6
2394 E6
2395 C6
2400 I7
2401 I11
2402 G4
3301-1 E1
3301-2 E1
3301-3 E1
3301-4 E1
3302-1 D1
3302-2 E1
3302-3 E1
3302-4 E1
3303-2 D1
3303-4 D1
3304-1 D1
3304-2 D1
3304-3 D1
3304-4 D1
3305-1 D1
3305-2 D1
3305-3 E1
3305-4 E1
3306 E1
3310 B2
3311 B3
3312 B2
3313 B2
3314 G7
3315 H5
3316 E8
3317 E8
3324 A11
3325 H1
3326 H3
3328 H8
3335 G4
3336 H7
3391-3 C4
3337 F7
3338 G4
3340 I11
3341 H11
3342 G7
3343 G7
3344 G7
3345 H11
3346 H11
3347 H11
3348 G7
3349 H11
3350 H11
3352 A7
3353 A5
3354 A1
3355 A2
3356 A6
3357 D7
3358 I11
3359 I12
3361 A11
3411 G7
3362 A11
3363 A11
3364 A10
3365 A11
3366 A10
3367 B11
3368 B11
3369 B10
3370 A10
3371 A10
3372 B11
3373 B11
3374 B11
3375 B11
3376 B11
3377 D11
3378 D11
3379 D11
3380 D11
3381 B10
3391-1 B4
3391-2 B4
3391-4 C4
3392-1 B4
3392-2 B4
3392-3 B4
3392-4 B4
3393-1 B6
3393-2 B6
3393-3 C6
3393-4 C6
3394-1 B6
3394-2 B6
3394-3 B6
3394-4 B6
3398 A8
3401 C10
3402 C10
3403 C10
3404 C10
3405 C11
3406 C11
3407 C11
3408 B11
3409 B11
3410 G7
3412 H5
3413 I5
3414 I6
3415 D5
3416 D5
3417 E5
3418 G8
4301 H1
4302 B13
4303 H8
4304 I8
4311 A1
4312 A1
4313 B1
4314 B1
4315 E5
4316 E5
4317 E11
4318 B9
4319 B9
5300 C2
5301 F3
5302 F5
5303 F6
5305 A3
5306 A6
5307 A6
5308 F8
5321 B8
5322 B8
5323 H8
5340 D7
5341 D7
5342 H8
5343 H8
5344 C11
5345 C11
5346 C6
7301 B1
7302 E3
7303 G2
7304 G5
7306 A2
7307 A5
7308 B5
7310 E8
7311 C5
7320 I7
7321 D5
7322 E5
T200 D13
T201 A12
T202 B12
T203 B12
T204 B12
T205 B12
T206 B12
T207 B12
T208 B12
T209 B12
T210 B12
T211 C12
T212 C12
T251 C8
T252 C8
T253 C8
T254 C8
T213 C12
T214 C12
T215 C12
T216 C12
T217 C12
T218 C12
T219 C12
T220 G12
T221 G12
T222 G12
T223 G12
T224 G12
T225 G12
T226 G12
T227 G12
T228 G12
T229 H12
T230 H12
T231 H12
T232 H12
T233 H12
T234 H12
T235 H12
T236 H12
T237 I12
T238 I12
T239 G12
T240 B12
T241 H12
T255 C8
T256 C8
T257 B8
T258 B8
T259 B8
T260 B8
T261 B8
T262 B8
T263 A8
T264 A8
T265 B8
T266 A8
T267 A8
T271 H9
T272 H9
T273 H9
T274 H9
T275 I9
BLM18P
5307
60R
3302-2 22R
3356
22R
22R3394-3
T206
2392 100n
2309
2342 22p
100n
22R3401
3345 22R
60R
5300
BLM18P
4K73311
2395 100n
3346
BLM18P
60R
46
52
16
27
3
9
43
49
28
41
54
6
12
13
42
44
39
15
36
40
18
1
14
45
47
48
50
51
53
5
7
8
10
11
32
33
34
20
21
17
37
38
19
2
4
Φ
DRAM
23
24
22
35
25
26
29
30
31
1M X 16 X 4
7302
IS42S16400D-7TL
100K
3414
3301-4 22R
T265
5
4
2
3
1
7307
74HC1G125
7311
2
3
1
5
4
47u2311
74HC1G125
16V
10K
Chassis1
3372
Chassis2
4302
22p2329
2322
100n
100n2308
3362 22R
T261
3392-2 22R
3368 22R
T262
3310 4K7
3326
22R
22R
T225
3404
100n2307
T233
3350 22R
T238
26
6
23
21
4
3
2
1
10
11
12
13
16
17
7
22
8
20
19
28
25
27
24
9
5
DIG. AUDIO IF
CS8416-CZ
7304
14
15
18
4303
RECEIVER
Φ
22R3314
BLM18P
5344
60R
22p
2351
37
27
46
T226
40
42
44
30
32
13
14
10
29
31
34
36
39
41
43
45
33
35
38
23
22
21
20
19
18
8
7
6
5
4
3
2
1
48
17
16
9
M29W160ET70N6F
7303
2Mx8/1Mx16
[FLASH]
25
24
T229
22R3361
3392-1 22R
T275
T273
3328 22R
10K3375
22R
3398
22R3407
T215
22R3348
T205
T216
5
4
74HC1G125
7306
2
3
1
T240
3315
22R
T218
10K3371
2318
3324
47n
22R
22R
3304-3
3418
47K
5343
BLM18P
22R
60R
T217
3301-1
4314
4313
2353 22p
22p
2352
BLM18P5341
60R
2303 100n
T259
T236
100n
2315
3305-2 22R
3412
3347
47K
22R
3378 1K0
3336
2346
10K
22p
3402 22R
100n
22R
2391
3366
4K73410
2317
100n
3338
10K
22R3313
22R3312
22R
5
6
7
8
9
3304-1
23
24
25
26
27
28
29
3
30
4
13
14
15
16
17
18
19
2
20
21
22
1304
1
10
11
12
2393 100n
SFW30R-2STE1
22R3302-4
T210
2362 100p
2361 100p
4315
BSN20
7322 BSN20
7321
BLM18P
5302
60R
T274
T224
BLM18P
5346
60R
3393-1
T263
22R
5
6
7
8
9
T213
22
23
24
25
26
27
28
29
3
30
4
13
14
15
16
17
18
19
2
20
21
SFW30R-2STE1
1
10
11
12
12
11
1302
10
1
19
20
18
17
16
15
14
13
7308
2
3
4
5
6
7
8
9
100n
74AHC541PW
2319
22R3342
100n
2394
3305-3 22R
3415
1K0
4K7
3417 3416
4K7
4316
22R3394-2
2301
100n
4312
22p2341
3379 1K0
10K3374
1K0
3354
T264
60R
5308
BLM18P
100n
1K2
3337
2323
T222
T255
1K03380
T239
3392-4 22R
2304
3377
100n
1K0
T204
22R3355
10K
3325
2366
22p
5
6
7
8
9
1303
1
10
11
12
2
3
4
SFW12S-2STE1
22p
2354
T207
22R3393-3
22R3393-2
22R3317
3316 22R
T241
3406 22R
T219
60R
5303
BLM18P
3391-4 22R
T258
BLM315322
50R
T228
3391-3 22R
3302-3 22R
22p2344
T208
D
T211
T267
T200
T202
T212
3391-2 22R
3391-1 22R
3303-2 22R
T221
BLM31
5323
50R
22R
3357
3305-4 22R
3359 1K0
100n
2320
4311
60R
5306
BLM18P
3381 4K7
T209
T272
BLM18P
5342
60R
3408 22R
3305-1
2350 22p
22R
T260
3353
1K0
T232
T231
22R3306
T230
3343
T203
BLM18P
22R
T201
60R
5340
22p2326
22R3369
3303-4
3303-3 22R
22R
T220
22R3394-4
3373 10K
EEPROM
Φ
1
2
3
6
5
84
7
(2Kx8)
M24C16-RDW6
7301
2328 22p
3376 10K
3304-2
2365 22p
22R
22p2364
75R
3335
T266
2306 100n
2316
3365 22R
100n
3363 22R
60R
5345
BLM18P
3367 22R
2360 22p
T254
T252
T257
2381
100n
22p
2357
3413
47K
22p
2363
2321 100n
22R3364
50R
5321 BLM31
2356 22p
60R
5301
BLM18P
3302-1 22R
4301
12
22R
3370
3409
10K
8
910
100p
2400
SFW8R-2STE1
1
2
3
4
5
6
7
1305
3304-4 22R
Chassis3
BLM18P
5305
60R
100n2312
T237
3301-2 22R
22p
22R3341
2325
22p2343
3301-3 22R
100n2305
4318 4319
3344 22R
22R3403
16V
T214
2302
47u
T271
7
8
9
T256
25
26
27
28
29
3
30
4
5
6
15
16
17
18
19
2
20
21
22
23
24
1
10
11
12
13
14
22p
SFW30R-2STE1
1301
3405
2345
22R
22R
3352
2327 22p
3392-3 22R
2402 100p
22p2401
T227
3
SO 1
VDD
13
D3
7
D4
9
D5
10
D6
11
D7
12
GND
8
SCL
2
SDA
CS0 16
15
CS1
CS2 14
D0
4
D1
5
D2
6
REG
SHIFT
INI/OOUT
RES
PWR DATA LATCHES
I/O PORT
TRANSCEIVER
C BUS
2
I
CHIP SELECT
M62320FP
7310
T235
Chassis4
22R3394-1
22R3393-4
22R3340
2324 22p
BC817-25W
7320
T234
4304
2355 22p
4317
3358 1K0
3411 4K7
T223
T251
T253
3349 22R
MIC_DET
AV_MUTE
I2C_AD2
+3V3S
+3V3
SPDATA
SCL_DAC
SDA_DAC
+3V3
SDA_3V3
SCL_3V3
SCL_3V3
+5D
+3V3
MIC_DET
PCM_MIC_INPCM_Cs
Y
C
B_Cb
SP_RST
+3V3
+3V3 +3V3
+3V3
I2C_AD2
+3V3
27M_IN
SP_MUTE
27M
R_Cr
TU_SD
SPDIF_OUT
L2
S1_L3_1
S0_L3_0
AV_MUTE
PCM_MCLK
VSYN
HSYN
HDMI_DET
DSD_LFE
PW_DN_
HP_DET
ERR
AMP_ON
RDS_CLK
RDS_DAT
PCM_LRCK
PCM_SCLK
+3V3
+3V3
+3V3
+3V3
27M
YUV1
YUV3
YUV5
YUV7
YUV0
YUV2
YUV4
YUV6
S0_L3_0
S1_L3_1
L2
CH_IRQ
CVBS
G_Y
SDA_DAC
SCL_DAC
+8V
+3V3
+3V3
BA1
DCLK
DCKE
CS
RAS
CAS
WE
PCM_SCLK
PCM_LTRT
PCM_MCLK
PCM_LRCK
PCM_MIC_IN
SCL_DAC
SDA_DAC
SDA_3V3
SCL_DAC
SDA_DAC
SP_MUTE
CH_RST
+5D
HP_DET
+3V3
+3V3_FL +3V3
+3V3
+5V
MA(0)
MA(1)
MA(2)
MA(3)
MA(4)
MA(5)
MA(6)
MA(7)
MA(8)
MA(9)
MA(10)
MA(11)
BA0
TU_SD
TU_CE
TU_DI
TU_DO_ST
TU_CLK
MUTE_TV
FREQ_HOP
PCM_Cs
PCM_CLfe
PCM_LsRs
PCM_LR
SDA_HDMI
SCL_HDMI
SP_OUT
SP_MUTE
A(2)
A(1)
SPBCK
SPLRCK
SPDIF_IN
+3V3_FL
SPMCLK
SDA_DAC
SCL_DAC
+5D
+5D
+5D
SPDIF_IN
A(0:21)
PWR
+3V3_FL
PRD
AD(7)
AD(6)
AD(5)
AD(4)
AD(3)
AD(2)
A(0)
AD(1)
AD(0)
PCE
A(10)
A(9)
A(8)
A(7)
A(6)
A(5)
A(4)
A(3)
A(19)
A(18)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
SPDIF_OUT
SP_OUT
DQ(0:15)
MA(0:11)
DQM0
DQM1
DQ(9)
DQ(8)
DQ(7)
DQ(6)
DQ(5)
DQ(4)
DQ(3)
DQ(2)
DQ(15)
DQ(14)
DQ(13)
DQ(12)
DQ(11)
DQ(10)
DQ(1)
DQ(0)
+3V3_FL A(21)
AD(0:7)
A(20)
to HDMI_1000 to AV_1203
to AV_1205
Page 66 E1 Page 62 H1
Page 62 A1
DVR-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
Z
61
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
AV 1/2
IN OUT
ADJ
COM
OUTIN
YOUT
CYOUT
CBOUT
CROUT
IP
S2
S1
GND1 GND2
CVBSOUT
COUT
CLP
YCMIX
CIN
CVBSIN
YIN
CYIN
CBIN
CRIN
SDCOUT
BIAS
VCC2VCC1
MUTE1
MUTE2
IN OUT
ADJ
COM
OUTIN
OSCO
RDSCL
SCOUT
VREF
RDDA
QUAL
VDDD VDDA
MPX
CIN
MODE
SYNC
TCON
OSCI
VSSAVSSD
COM
OUTIN
VIN
2NC
GND
3VOUT
4
1
EN
B
D
1A
2A
2C
2D
S
S
S
S
1D
A
IN
VCC
GND
1C
D
1B
2B
C
*
To Tuner Module
EU
T455 I4
T456 E9
T457 H2
T458 I5
FBOUT or Pin16 Scart
*
* : Optional
2.1V 4:3 LB
T338 F1
T339 I6
T430 A9
T431 A9
T432 A9
T433 A9
T440 B2
T441 A5
T442 A5
T443 A5
T444 A5
T445 A5
T446 A5
T447 D5
T448 E5
T449 E5
T450 F5
T451 G4
T452 G1
T453 G1
T454 H2
Digital SPDIF In
*
*
*
*
*
T155 C2
T156 C2
T304 I1
T305 I1
T306 E2
T307 I1
T308 E1
T309 E2
T310 I1
T313 I1
T315 I1
T316 E2
T317 H1
T318 E2
T321 I6
T322 I6
T331 G5
T332 H12
T334 F1
T336 F1
T337 F1
FBOUT
4.6V : 16:9
T121 F7
T122 F8
T124 A12
T126 A11
T127 C13
T128 D12
T129 D12
T130 E12
T131 E11
T132 E12
T133 F12
T134 F12
T135 F12
T137 A11
T146 B2
T147 B2
T148 B2
T149 B2
T150 B2
T151 C2
T152 C2
T153 C2
T154 C2
0V: 4:3 Normal
9.5 - 12V : 4:3 DVD
FOR Japan VERSION ONLY
7115 F4
7117 G4
7118 G5
7121 H13
7122 H4
7123 H3
7124 H3
7125 I4
7126-1 I3
7126-2 I4
7128 I4
7129 G7
7130 H11
7131 I11
7132 G11
7133 I8
T115 B11
T116 B11
T117 A11
T118 D10
0 - 0.4V : CVBS
FOR EU VERSION ONLY
EU
6121 F11
6122 F12
6123 G3
6124 I2
6125 H8
7100 A4
7101-1 C4
7101-2 C4
7103 C8
7104 C10
7106 C11
7107 C3
7108 D4
7109 D10
7110 D11
7111 D3
7112 E4
7113 E7
7114 F3
*
*
1 - 3.0V : EXT RGB
5106 G12
5107 G2
5108 I2
5109 G8
5110 I2
5111 G6
5113 I7
5114 A6
5115 H6
6100 A10
6103 A11
6113 B10
6114 B10
6115 A10
6116 E11
6117 E4
6118 E12
6119 E11
6120 E12
EU
U
4101 A5
4103 A5
4105 B9
4106 B9
4107 H8
4108 H8
4109 I10
4110 I10
4111 H10
4112 E5
4113 G1
4114 G1
5100 A4
5101 A6
5102 D4
5103 D7
5104 F2
5105 G2
GREEN
0/6/12
FOR EU VERSION ONLY
EU
0 - 2V : TV BCAST
*
3212 H11
3213 I10
3214 I10
3215 I11
3216 I10
3217 I10
3218 I11
3219 I11
3220 G11
3221 H11
3222 H10
3223 H10
3224 I9
3226 I8
3403 I2
3404 G9
3405 H8
3406 H7
4100 A5
3191 G2
3192 G3
3193 G5
3196 H12
3197 H12
3198 H4
3200 H2
3201 H12
3202 H3
3203 H4
3204 H3
3205 I6
3206 I4
3207 I4
3208 I4
3209 I2
3210 I3
3211 I2
JP
SVIDEO_C
3159 B3
3164 E5
3165 E10
3166 E3
3167 E6
3168 E9
3170 E6
3172 F5
3174 F5
3175 F7
3176 F7
3178 F4
3181 F7
3183 F12
3184 F7
3185 G11
3187 G1
3188 G4
3189 G3
CVBS
*
3137 D2
3138 D3
3139 C7
3140 C9
3141 C4
3142 D10
3143 D11
3144 D7
3145 D9
3146 D12
3147 D10
3148 D11
3149 D4
3150 A10
3154 D10
3155 D11
3156 E3
3157 E3
3158 E4
CVBS
NC
Component Sw
VIDEO PART
3119 A10
3120 B3
3121 B4
3122 B7
3123 B4
3124 B8
3125 C10
3126 C11
3127 C10
3128 C11
3129 C12
3130 C10
3131 C4
3132 C12
3133 D2
3134 D2
3135 D2
3136 D2
4.5 - 7V : 16:9 DVD
2195 H6
2196 H9
2197 H11
2198 I11
2199 G11
3100 A10
3102 A9
3103 A11
3105 A9
3106 A9
3107 A3
3108 A9
3110 B10
3111 A9
3112 B5
3113 B5
3114 B5
3115 B10
3116 B4
3117 B7
3118 A10
L : YPbPr
RED
2172 F5
2173 F7
2175 F3
2176 F12
2177 F5
2178 G12
2179 G4
2180 F7
2181 F8
2182 G5
2183 H13
2185 H5
2186 H5
2187 H5
2189 I5
2190 I5
2191 I2
2192 I3
2193 H7
2194 H6
0|6|12 or Pin8 Scart
*
Y
2154 E5
2157 E12
2158 E8
2160 E9
2161 E10
2162 E8
2163 F11
2164 F12
2165 E8
2166 F10
2167 F4
2168 E6
2169 E7
2171 F5
SCART
FOR EU VERSION ONLY
V
sC DC out/ D2-Line 2
RCH
*
2139 D11
2140 D12
2141 E10
2142 E2
2143 I4
2144 I9
2145 E4
2146 E4
2147 D8
2148 E3
2149 I6
2150 I8
2152 E5
LCH
POWER_PART
Vsel|P50
2120 A11
2121 I8
2122 B7
2123 C6
2124 C9
2125 C6
2126 C9
2127 C6
2128 C9
2129 C12
2130 C6
2131 C9
2132 C6
2133 C9
2134 C12
2135 C6
2136 C9
2137 I9
2138 D12
*
*
EU
*
*
2106 A8
2107 A8
2108 H1
2109 A11
2110 H9
2111 A12
2112 B11
2113 A7
2114 H4
2115 A7
2116 B7
2117 H3
2118 B7
2119 B11
H :RGB Svideo_Y
1106 H1
1107 G1
1108 I7
1109 B13
1110-A A13
1110-B A12
1110-C A13
1111 E1
1112 F1
1113-1 C13
1113-2 C13
1114 A2
1115 B2
1116 A8
1118 I5
1119 F8
2101 B2
2102 A4
2103 A8
2104 A11
2105 A4
12345678910111213
12345678910111213
A
B
C
D
E
*
*
*
F
G
H
I
A
B
C
D
E
F
G
H
I
1105 G5
100K
3103
10K
3159
1
2
3
4
5
6
7
T306
1112
319804000070
4K7
75R3115
3107
2137
10u 16V
1
32
7114
LD1086V33
3148
1K5
100n
2146
2121
10u 16V
1
32
7111
LM317T
PDZ11-B
6116
PDZ11-B 6118
3403
47K
T442
T132
T441
47K3175
33R
3191
10
2
3
4
5
6
7
8
9
HLEM10S-1R
1108
1
1118
1A F
5115
600R
4109
T129
5101
6125
MBRS230L
600R
3133 1K2
BC817-40
7104
PDZ11-B
6114
T338
T315
7
8
9
1516
21051n0
12
13
14
2
3
4
5
6
CSS0514-0801
1116
1
10
11
10K
T134
3139
1
32
T128
7133
LD1117
315547K
3201
820R
3213
1K2 1K2
3214
3
4
1
52
220u
7130
AD8091ART
28
5
62 1
6.3V
2161
17
19
22
9
3
13
25
24
27
1
11
26
14 16
42 3
10 20
7
15
Φ
DRIVER
8
12 18
2
T336
FOR DVD
MM1623XFBE
7103
2130 100n
2185
22u
3207
6.3V
1K0
1K23134
1K53147
BC857B
7108
4K7
3202
GND
7126-2
5
3
4
8
9
PUMH7
10
11
12
13
2
3
4
5
6
7
1115
HLW13S-2C7
1
100n2190
7128
3
1
2
22K
SI2312BDS
3208
3117 10K
BC857B
7123
16V10u
2144
470R
3226
120R
3224
5114
600R
5113
600R
T456
10K3111
100n
2114
2117
6.3V
1
2
3
4
5
6
7
8
22u
B8B-EH-A
1111
T116
T133
3170 1K0
T127
BC817-25
7117
12
GND
T443
4106
4114
2176
10V 1m02131
220p
T115
2169 100p
4112
3196
4K7
6103
PDZ11-B
22u 16V
T318
2145
30R
5111
6120
PDZ11-B
T150
100n
2147
2u22173
10K3145
1
2
3
4
5
1110-A
MSP-801V1-02-01-B NI FE LF
3128
1K5
220R
GND
3149
3121
3127
75R
1K5
5
GND
7
INH
3
OUT 1
SYNC 2
VCC
8
VREF 6
7129
L5970D
COMP
4FB
220p
2119
220p
2104
PDZ11-B
6100
100n2135
6123
BZX384-C12
220p2106
21344n7
10K 3187
1K2
3222
T453
6.3V22u
2122
5108
T156
600R
T307
GND
2108 100n
2103 220p
T440
3157 1K2
4113
10K
3406
5102
100n
2110
600R
2101
100n
T334
1K0
3203
220K3181
10K3168
1n02160
3106 75R
T154
3185 75R
2148
10u 16V
3120
10K
2178 100p
10K
3211
2129
T310
680p
10K
3206
2116
10n
GND
2192 1u0
7107
PDTC144ET
2GND
3OUT
VS
1
100n
2154
JFJ2001-010010
7121
10V 1m02128
4M332
1119
7122
SI2312BDS
3
1
2
SI2301BDS
7125
5107
220R
2112
220p
T304
T146
T147
GND
8
6124 S1D
1110-C
MSP-801V1-02-01-B NI FE LF
5103
600R
2
22K3158
1105
F2.0A
1
T152
3114 75R
3118 75R
T331
2113
2u2
10u16V
T122
2179
8
9
T457
19
2
20
21
3
4
5
6
7
MRC-021V-19 PC
1
10
11
12
13
14
15
16
17
18
1113-1
3116
1K5
220p
2195
3221
75R
4111
2197
100n
3212
75R
T445
T339
3119
75R
3183
0R47
3164
100K
5109
47u
3188
22R
82p
2181
2K2
3184
6
11
5K6
3404
14
1
2
16
810
15
5
12
3
7113
SAA6581T
Φ
7
9
4
13
2136 100n
1K5
3166
41
52
AD8091ART
7132
3
13
GND
7112
L7805CD2T
2
T451
100n
2199
75R
3220
3223
1K2
220K
3130
T322
T118
T433
T321
2223
MRC-021V-19 PC
MT
1113-2
10K
3189
T317
2107 220p
3193
22K
2142 10u 16V
1K0
10n
2118
3141
100n
2172
6.3V 220u
2141
T446
3165 75R
16V
2194
330u
2196
560u 6.3V
5104
220R
3125
100R
1K0
3210
2
7115
LD1117DT
1
3
BC817-40
7109
T431
22n2193
T430
3122 10K
2u2
2102
3105 75R
30R
5105
2132 100n
BC817-40
7110
7124
150R
3172
BC847B
1K8
3123
22K
3198
4110
75R
3150
5100
600R
GND
3135 1K2
T151
3176 47K
560p
2165
3197
330R
600R
5106
3K3
3405
47p
2162
S1D 6117
T135
10K
3200
T117
1u0
2123
3146
68K
21394n7
T332
12
2163 220p
T454
4103
T447
100n2183
T313
3131
22K
3143 100R
4107 12
T316
3110 75R
6119PDZ11-B
T432
2164 220p
1u0
2187
3144
3102
10K
12
75R
4101
3100
75R
2189
1u0
2
3
4
5
6
7
8
9
1718
1
10
11
12
13
14
15
16
1106
HFW16R-2STE1
100n
2198
75R
3215
3217
1K21K2
3216
AD8091ART
7131
3
4
1
52
T148
T452
2166
6.3V 220u
T149
16V22u
2152
T337
2177
16V10u
6122PDZ11-B
T455
22u
2171
16V
PDZ11-B
6121
5
3
4
2111
220p
PUMH7
7101-2
T448
1K03167
T153 10V
T305
2126 1m0
3178 75R
1K23138 1K23137
6
1K23136
MSP-801V1-02-01-B NI FE LF
1110-B7
6115
PDZ11-B
T130
T155
3192
470R
T137
3108 10K
10K3124
2133 1m010V
T450
2120
220p
910R
3174
75R3112
2u2
2115
2125 1u0
T309
2157 220p
47p
2180
3209
4K7
12
2138
680p
4108
3129
68K
5
4
8
2
3
6
7
1
12
-V REG
L79L08ACD
7118
3
4
1
4100
1109
LPR6520-G000F
2
5110 600R
20
21
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
2
HLW21S-2C7LF
1107
1
10
T444
T308
T126
1
2127 100n
7126-1
PUMH7
2
6
16V 10u
2182
32044K7
100p2168
10V 1m02124
4105
12
75R3113
T449
PUMH7
2
6
1
7101-1
3219
75R 75R
3218
220p
2109
100n
2149
2140
220p
100R
3126
T131
PDZ11-B
6113
1u02143
100K
2186
100n
T458
3154
6
7
T124
1114
HLW7S-2C7
1
2
3
4
5
BC817-40
7106
100n
2167
13
16
10K3205
15
8
1
2
5
11
14
3
6
10
VIDEO SW
Φ
4
7
9
12
TS5V330PW
7100
300R
3156
2175
22u 16V
1u0 2191
560p2158
T121
3140 10K
3142 100R
47K 3132
+8VA
+8VA
2150
100n
+5V
+5V_VID
+5VA
+5V_VID
+12V
+5VA
S0_L3_0
S1_L3_1D2_5V
+12VA
S_Y_0
+5VA
+1V8
S_C
S_C_0
+5VA
CVBS
CVBS_0
+5VA
+5VA
STB_CONTROL
Mute_scart
S_Y
V
+3V3
B|U_1
G|Y_1
R|V_1
B
G
+3V3
+1V8
G|Y
B|U
+12VA
5V_USB
+12V
-12V
-12V
-12VA
+12VA
+8VA
12V_Pbox
3V3_USB
+5VL
STB_CONTROL
DAC_STB
VSDA
3V3_USB
+5VL
+5VL
+5VL
+5V
+5V
DPDET
S1_L3_1
S0_L3_0
+5VA
CVBS
0|2|5
DPDET
D2_5V
+12VA
5V_USB
+8VA
8NV
VSCK
S_C
S_Y
+12VA
Pbox_Ctl
+5VL
+5V
+5VA
St_Aud_R_i
-12VA
SDA_USB
+3V3
USB_irqN
+5VA
+12V
RDS_Det
TU_R
TU_Stereo
TU_L
TU_SD
SDA_2
SCL_2
VSEL|P50
RDS_Det
RDS_Clk
RDS_Data
+5VA
SysRstN
USB_L
USB_R
SCL_USB
VSEL|P50
+5VA
FBOUT
0|6|12
R|V
B|U
G|Y
R|V
R|V_1
R
+5VA
St_Aud_L_i
FBOUT
B
0|6|12
CVBS_1
LT
RT
R
G
V
U
Y
+5VL
U
S_Y_1
Y
Y
CVBS_1
S0_L3_0
S1_L3_1
S_C_1
0|2|5
S_C_1
SPDIF_i
+5VA
CVBS_OUT
CVBS_1
G|Y_1
S_Y_0
S_C_0
CVBS_0
B|U_1
V
U
B|U
G|Y
R|V
S_Y_1
to HDMI_1301
to HDMI_1302
to Power Supply Unit_CN1
to HDMI_1402
to USB_1103
to MONO_1104
to AM/FM Tuner
D1/D2
MONITOR OUT
VIDEO
S VIDEO
COMPONENT
AV MONITOR OUT
DIGITAL IN
OPTICAL
Page 67 D14
Page 67 G14
Page 70 E4
Page 68 G1
Page 69 D14
Page 59 I6
DVR-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
Z
62
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

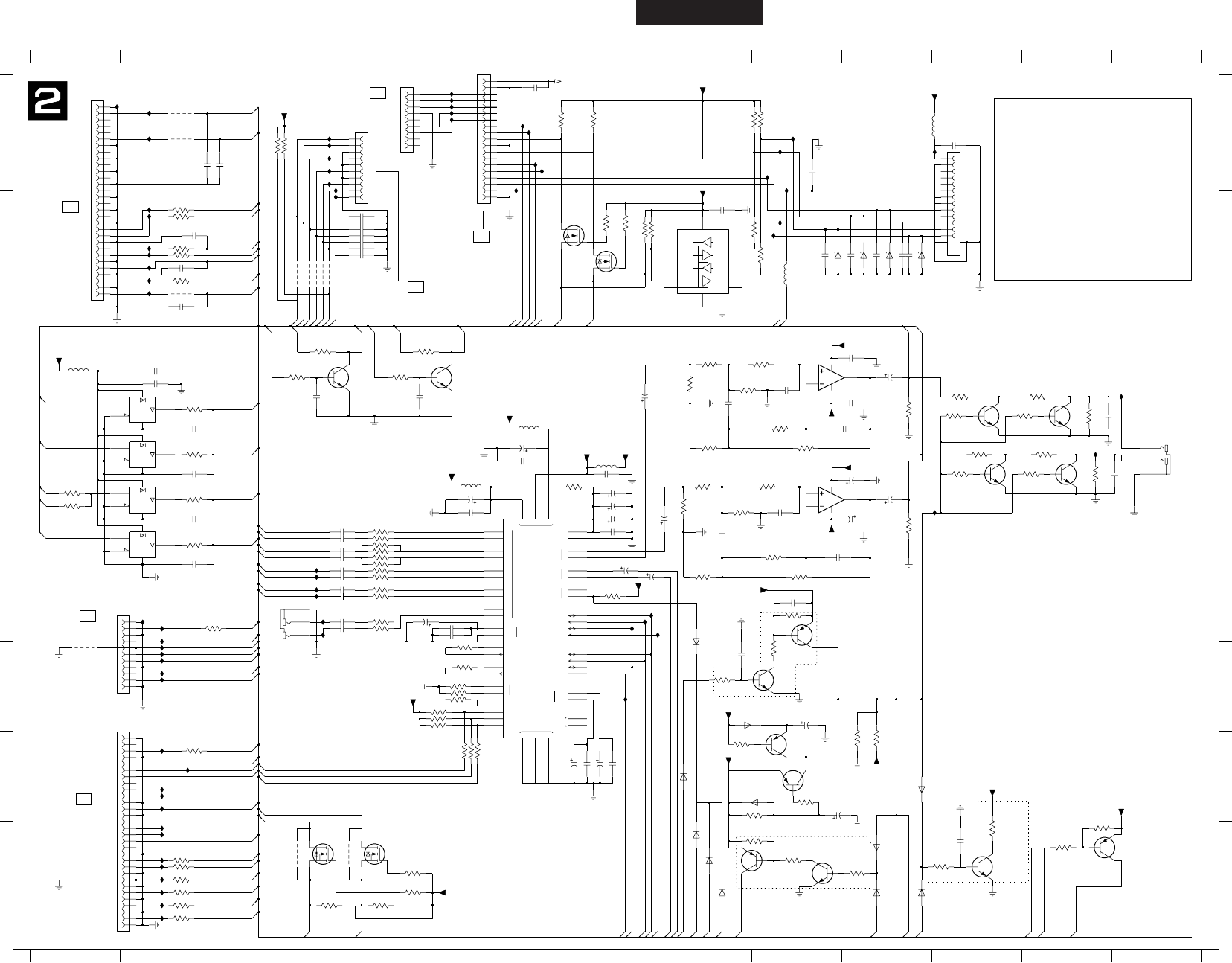

AV 2/2
EN
EN
EN
EN
AINOPR
AINOPL
P
N
DIN
P
GND
DACREF
VMID
1R
HP
2R
2L
3R
3L
4R
4L
5R
5L
AINVGR
AINVGL
DA
AIN
ADC
BCLK
MCLK
LRC
ADCREF
AUX
GND
DAC
ADC
MODE
NC
CL
DI
CE
VDD
VOUT
L
R
HPOUT
L
R
ZFLAG
DAC
R
1L
LRC
MCLK
BCLK
HPDA
DOUT
L
L
R
T591 I2
T592 I2
T593 I2
T594 I2
T595 I2
T596 I2
T597 I2
Power Down Mute
To Pbox
Input Level must be 1Vrms
NC
NC
NC
T570 F4
T571 F4
T572 F4
T573 F4
T574 F4
T575 A10
T578 H2
T579 F7
T580 F7
T581 F7
T582 F4
T583 F7
T584 G7
T585 H2
T586 H2
T587 H2
T590 H2
HDMI (50mA)
1 1 0
Both gain can be set to work separately
T235 C2
T236 A5
T237 A5
T238 A5
T239 A5
T240 A2
T550 A5
T551 A6
T552 A4
T553 A9
T554 A4
T555 A9
T556 A4
T557 A4
T558 A6
T559 A4
T560 A6
T561 A9
T562 A4
T563 B9
T564 B4
T565 A6
T567 A9
T568 B9
T569 E10
5VPU at Front
PEMD15
Pbox
1.8V Regulator(0.2A)----
Codec(8mA)
Front
7331 D4
7332 D5
T206 I2
T214 F2
T215 F2
T216 G2
T217 G2
T218 G2
T219 F2
T220 G2
T221 G2
T222 A2
T223 A2
T224 D13
T225 D12
T228 B2
1 0 0
T229 B2
T230 B2
T231 B2
T232 B2
T233 C2
T234 A6
7315-2 D9
7316 G6
7317 F9
7319 G9
7320 H9
7321 H9
7323 I9
7324 I11
7325 I9
7326 B7
7327 B7
7328 I4
7329 I4
7330 I12
2Vrms
FRONT_IRQ
1 0 1
0.6Vrms
Opamp(20mA)
#I2C Bus 2
6312 B10
6313 B10
6314 H8
7301 B8
7304-1 D2
7304-2 D2
7304-3 E2
7304-4 E2
7307 E11
7308 E12
7310 D11
7311 D12
7315-1 E9
#Only I2C Bus 0 & 2 route to AV
HDMI
5VPU at Front
0 0 0
______________________
Stdby AV_Mute Mute_2CH
|
HP gain bet. +6dB~-73dB in 1 dB steps
0 0 1
sd6.3 (0.1A)
Performance measrued @ Fs=48kHz
5304 E7
5305 D6
6300 F8
6301 G8
6302 I8
6303 H10
6304 H8
6305 I8
6306 I10
6307 I10
6308 I10
6309 I8
6310 B9
6311 B10
However ADC max. sampling rate can only be 96kHz
L
DAC gain control
0 1 0
3.3V Regulator(1.8A)----
4308 B4
4309 B4
4310 B4
4311 A2
4312 A2
4313 C2
4314 G1
5300 A10
5301 C9
5302 C1
5303 E6
ADC gain control
1 1 1
|
tuner(90mA)
____________________________
VidBuf(0.15A)
_______________
sd6.3(0.2A)
HP_Det MUTE_2CH Pbox_Mute
Audio Output 0dB
3417 H9
3418 B7
3419 I5
4300 B9
4301 I3
4302 I4
4303 I1
4304 B3
4305 B4
4306 B4
4307 B4
_______________
Digital attenuation bet 0dB~-127.5dB in 0.5dB steps
200mA
0 1 1
Xtalk@20k : >75dB
_____________________
_____________________
_____________________
3398 I2
3399 A3
3401 I2
3402 I2
3407 H12
3408 I12
3409 B8
3410 B9
3411 C4
3412 C5
3413 D3
3414 D5
3415 E4
3416 F4
R
Codec running at 1 sampling rate dictate by SD6.3
0.5W
14mA
65mA
3382 H10
3383 H8
3384 H2
3385 H5
3386 H5
3387 H6
3389 H8
3390 I9
3391 I11
3392 I2
3393 I9
3394 I2
3395 I11
3396 I10
3397 I2
Power Up Mute
AHC Logic(0.2A)
Analog input gain bet +24dB~-21dB in 0.5dB steps
Digital attenuation bet -21.5dB~-103dB in 0.5dB steps
Xtalk@1k : >99dB
Current Consumption
VidSw(0.15A)
2Vrms
3354 E1
3355 F4
3356 F4
3357 F8
3358 F9
3359 E4
3360 E4
3361 F7
3363 F9
3364 F4
3366 F4
3368 G5
3369 G9
3372 G5
3374 G8
3375 G5
3376 G5
3377 G5
3378 G5
3379 G5
3380 G5
3381 H10
1Vrms
Codec(0.1A)
R
USB(0.8A)
3336 D11
3337 D12
3338 D11
3339 D12
3340 D12
3341 E8
3342 E9
3343 E2
3344 E8
3345 E8
3346 E10
3347 F4
3348 F4
3349 F4
3350 E1
3351 F4
3352 F9
3353 F2
5VA Regulator(0.5A)----
sd6.3(0.25A)
USB(22mA)
|
SMPS Regulatot (0.2A)
|
+5V (2.1A(2.8A Surge)
RDS(10mA)
L
3320 C9
3321 D8
3322 D8
3323 D11
3324 D12
3325 D2
3326 D10
3327 E11
3328 E12
3329 E12
3331 D9
3332 D8
3333 D9
3334 E2
2Vrms
5V_USB(0.5A)
THD@20k : >80dB
_____________________
10mA
Aux In
* Optional
#I2C Bus 0
3101 A6
3104 A7
3109 B7
3151 I4
3152 I4
3153 I5
3300 A9
3305 A3
3306 A8
3307 B2
3310 B2
3311 E6
3313 B2
3314 B2
3315 B7
3316 B7
3317 C2
3318 D2
3319 C8
SPDIF(10mA)
2355 H9
2356 E7
2357 B10
2358 B10
2359 B10
2360 E7
2361 D7
2362 E7
2363 A9
2364 B4
2365 B4
2366 B4
2367 B4
2368 B4
2369 B4
2370 B4
2371 A3
2372 A3
2373 C2
2374 A6
2375 D4
2376 D5
2377 G8
2378 I11
2379 F9
HDMI (50mA)
I2C Bus 1
+12V (0.8A)
*
Monoboard
THD@1k : 85dB
2330 B9
2331 F4
2332 E8
2333 B10
2334 F4
2335 F4
2336 F4
2337 F9
2338 F4
2339 F7
2340 F4
2341 F7
2342 B2
2343 E4
2344 E4
2345 F4
2346 F5
2347 F4
2348 F5
2349 F5
2350 G9
2351 H6
2352 H7
2353 H7
2354 H7
WM8776 Codec
5VPU at Front
PEMD15
9V Regulator (0.7A) ----
2303 D2
2304 B8
2305 C10
2306 D10
2307 D2
2308 D9
2309 D8
2310 D10
2311 E12
2312 E2
2313 D10
2315 D6
2316 E2
2317 E6
2318 E10
2319 D12
2321 E5
2322 E7
2323 E10
2324 E5
2325 E9
2326 F2
2327 E7
2328 E10
2329 E7
*
PEMD15
SCL_0
SDA_0
51mA
STDBY_CTRL
678910111213
12345678910111213
A
B
C
D
*
HDMI(0.8A)
SNR (w/o filterting) : 99dB
*
2302 C2
E
F
G
H
I
A
B
C
D
E
F
G
H
I
1201 A5
1202 F3
1203 I2
1204 G2
1205 A1
1208 A4
1209 B6
1210 B11
1211 E13
2300 A11
2301 B2
5VPD at Front
5VPU at Front
12345
4K7
3395
tuner
(2Vrms)
IR
T220
5302
600R
3310
33R
T578
33R3307
T583
T581
GND
10u 2335
1u0
2378
T568
2377
1u0
1K8
3300
33R
2346
330u
10V
3350
T218
100n
2305
1K0
3419
4K7
3418
2376
1u0
233810u
+5VA
GND
GND
GND
T222
3314 33R
+5V
600R5301
T582
T584
7319
BC847B
3375
10K
3
4
5
6
7
8
9
14 15
16
1
10
11
12
13
2
LAC1315-0102FC
1210
2310
100n
1u0
2375
330u10V
2355
1202 3
1
2
MSP-242V2-01 NI-FE
230712p
1K0
3414
10R
3412
7332
BC817-25
3413
1K0
3411
10R
BC817-25
7331
10K 3378
220u
T217
2341
6.3V
3319
2339
220u
6.3V
GND
2K7
3313
4
5
6
7
8
9
GND
33R
22
23
24
25
26
27
28
29
3
30
12
13
14
15
16
17
18
19
2
20
21
HLW30S-2C7
1
10
11
5
7
4
14
6
1203
GND
74AHC125PW
7304-2
2302
GND
1n0
T223
T206
BAS316
GND
GND
6304
3321 68K
1K5
100n
3339
T555
2327
5K6
10K
3359
3333
33R 3394
T229
33R 3398
T231
T230
6305 BAS316
234510u
GND
GND
3V3D
4K7
3352
33R
3387
4K7
3342
33R3318
68K
3346
5
6
7
84
2313
220p
LM833
7315-2
10K
3391
4
5
6
7
8
9
T587
22
23
24
25
26
27
28
29
3
30
12
13
14
15
16
17
18
19
2
20
21
1205
HLW30S-2C7
1
10
11
T564
10K
3360
T232
GND
10V330u
2321
SDA1
8
VCC
T219
5EN
4
GND 1
NC
2SCL0 7SCL1
3SDA0 6
PCA9515A
7301
231612p
3
1
2
3
1
2
7328
BSN20
1211
MSP-242V2-01 NI-FE
3338
1K5
2348
100n
BC817-40
7307
2373
T569
22p
22p
12
2371
4312
12
4311
2372 22p
3320
4K7
3331
3334 33R
4K7
3337
100R
-12V
T572
16V
2362
22u
T550
T238
T239
T237
8
9
T236
1
2
3
4
5
6
7
1201
HLW9S-2C7
6313
10V
2315
330u
12V_Pbox
PDZ11-B
2K7
3357
2359 100p
T586
2328
22u
3316
16V
12
10K
4304
22u
6301
BAS316
BAS316
16V
2318
6308
5K6
3345
3382
100K
600R
5305
3385
+5VL
7311
33R
T557
BC817-40
2334
6
7
8
9
10u
1208
1
10
2
3
4
5
5
6
7
8
9
HLW10S-2D7
1
10
11
2
3
4
HLW11S-2C7
1204
3396
4K7
3353 33R
10K
3315
600R5304
+5VL
T567
100n
2300
68K
3109
4K7
3326
234410u
12
+5V
22p
4314
12
2374
4307
12
4313
12
4306
12
4305
2364 22p
22R3410
+5V
12
10V
330u
2356
7329
3
1
2
4301
4309
12
BSN20
12
T594
4308
4303 12
T240
BAS316
6314
6310 PDZ11-B
6311
6312 PDZ11-B
PDZ11-B
68K
3329
2311
680p
680p
2319
2331
3355 4K7
10u
234710u
T215
+8VA
3336
100R
4K7
3393
+8VA
4K7
3369
3341
2K7
3323
100R
33R3317
2349
1n0
T585
T562
T559
T596
+5V
T595
7321
BC857B
7317
BC857B
3325
33R
GND
GND
3381
220K
3101
4K7
340233R
T214
+3V3
GND
3344 68K
BC857B
GND
7320
22p
22p2365
2366
22p2367
2368 22p
22p2369
12
3409 22R
4310
2
7
1
14
3
T235
+5VL
74AHC125PW
7304-1
T233
GND
2304
100n
T553
T221
4K7
3104
3340
68K
3347 10K
3401
33R
4K7
3374
3386 33R
GND
22K3399
3349 2K7
6306 BAS316
2363 22p
GND
10u 2340
2370 22p
T597
GND
T575
+5V
GND
T551
T556
T565
T563
T234
T590
11
GND
T225
74AHC125PW
7304-4
12
7
13
14
10K
BC847B
7325
2K7
3361
3332
3328
1K5 7308
BC817-40
3322
5K6
3368
820p
4K7
2332
3
2
1
84
T228
3384
LM833
7315-1
T574
33R
3324
100R
2350
330u
12p 2312
12
10V
2324
100n
4300
GND
BC857B
7323
T570
8NV
10K
33R
3348
T579
3397
T561
3376
10K
9
7
10
14
8
1
2
74AHC125PW
7304-3
2
7327
BSN20
3
BSN20
7326
3
1
600R
5300
2325
220p
GND
33904K7
7324
BC847B
233610u
3305 22K
BAS316 6307
220p
2308
3383
4K7
234310u
10u
16V 2353
2322 100n
100n 2354
2317
100n
T571
2u2
4K7
3363
2303
12p 2326
3389
T224
T558
4K7
15p2301
8NV
16V
2306
22u
4K7
3151
12p
3V3D
GND
+3V3
2342
GND
T216
5K6
GND
3351 2K7 3358
3364 10K
3392
33R
2351
16V
10u
6302 BAS316
3354 33R
820p
220u
2360
2309
4K7
6.3V
T554
3372
T552
T560
3311
T593
330R
600R 5303
22u
2361
16V
2333 22p
22p2330
10K
3366
2337
6303
220p
10K 3380
BAS316
3379
10K
T592
T591
T580
GND
10V
2329 330u
BAS316
+3V3
6300
3408
4K7
7330
BC857B
4K73407
3V3D
2352
100n
7310
BC817-40
3327
2323
GND
1K5
GND
22u
3416 47K
3415 47K
3152
4K7
1K0
4302 12
3153
4u72379
3417
2K7
BAS316
+3V3
6309
T573
3356 4K7
23
22
16
24
25
33
28
26
27
9
8
5
29
30
14
18
6
12
15
21
20
41
39
40
38
32
31
36
17
19
4
7
3
2
1
48
47
46
45
44
43
42
10
13
11
34
35
37
33R
Φ
WM8776SEFT
7316
3343
100p2358
2357 100p
9
1K8
3306
17
18
19
2
3
4
5
6
7
8
HLW19S-2C7
1209
1
10
11
12
13
14
15
16
3377
10K
HP_R
HP_M_R
MUTE_2CH
Line_R_i
MUTE_2CH
Line_Det
HP_Det
SPDIF_MUTE
VSEL|P50
AV_Mute
PCM_DATA_Cs
HP_L
HP_M_L
MUTE_2CH
Pbox_DetN
Pbox_IrqN
SPDIF_MUTE
Line_Det
Line_L_i
HP_M_R
HP_M_L
Pbox_Mute
RDS_Clk
RDS_Data
FRONT_MUTE
Pbox_Ctl
TU_Stereo
TU_SD
FRONT_MUTE_H
FRONT_MUTE
SCL_0
SDA_0
SDA_USB
SCL_USB
FRONT_MUTE_H
PCM_MCLK
PCM_MCLK2
PCM_BCLK1
PCM_MCLK
PCM_MCLK
PCM_BCLK
PCM_2ch
St_Aud_L_i
St_Aud_R_i
SCL_2
SDA_2
PCM_LRCLK PCM_LRCLK1
PCM_MCLK2
HP_Det
Pbox_Mute
SPDIF_o
PCM_2ch
PCM_BCLK1
PCM_DATA_Cs
VSCK
MUTE_2CH
TV_Mute
STB_CONTROL
AV_Mute
Mute_scart
PCM_sdat_i
PCM_LRCLK1
VSDA
DAC_STB
RT
HP_L
HP_R
Line_R_i
Line_L_i
USB_R
USB_L
TU_R
TU_L
LT
USB_irqN
TV_Mute
HP_Det
PCM_LTRT
PCM_DATA_LR
PCM_sdat_i
SPDIF_o
PCM_DATA_SUBCEN
PCM_DATA_SLR
PCM_DATA_LR
PCM_LRCLK
PCM_LTRT
PCM_BCLK
PCM_DATA_SUBCEN
PCM_DATA_SLR
PCM_BCLK
PCM_LRCLK
PCM_DATA_LR
SCL_0
SDA_0
SysRstN
SPDIF_i
to HDMI_1401
to MONO_1302
AUX IN
to FRONT (3)_1301
to MONO_1105
to FRONT (1)_1100
SYSTEM CONNECTOR
LINE OUT
Page 64 B4
Page 59 I4
Page 63 C1
Page 68 G5
Page 60 B13
to MONO_1301
Page 60 G13
DVR-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
Z
63
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.

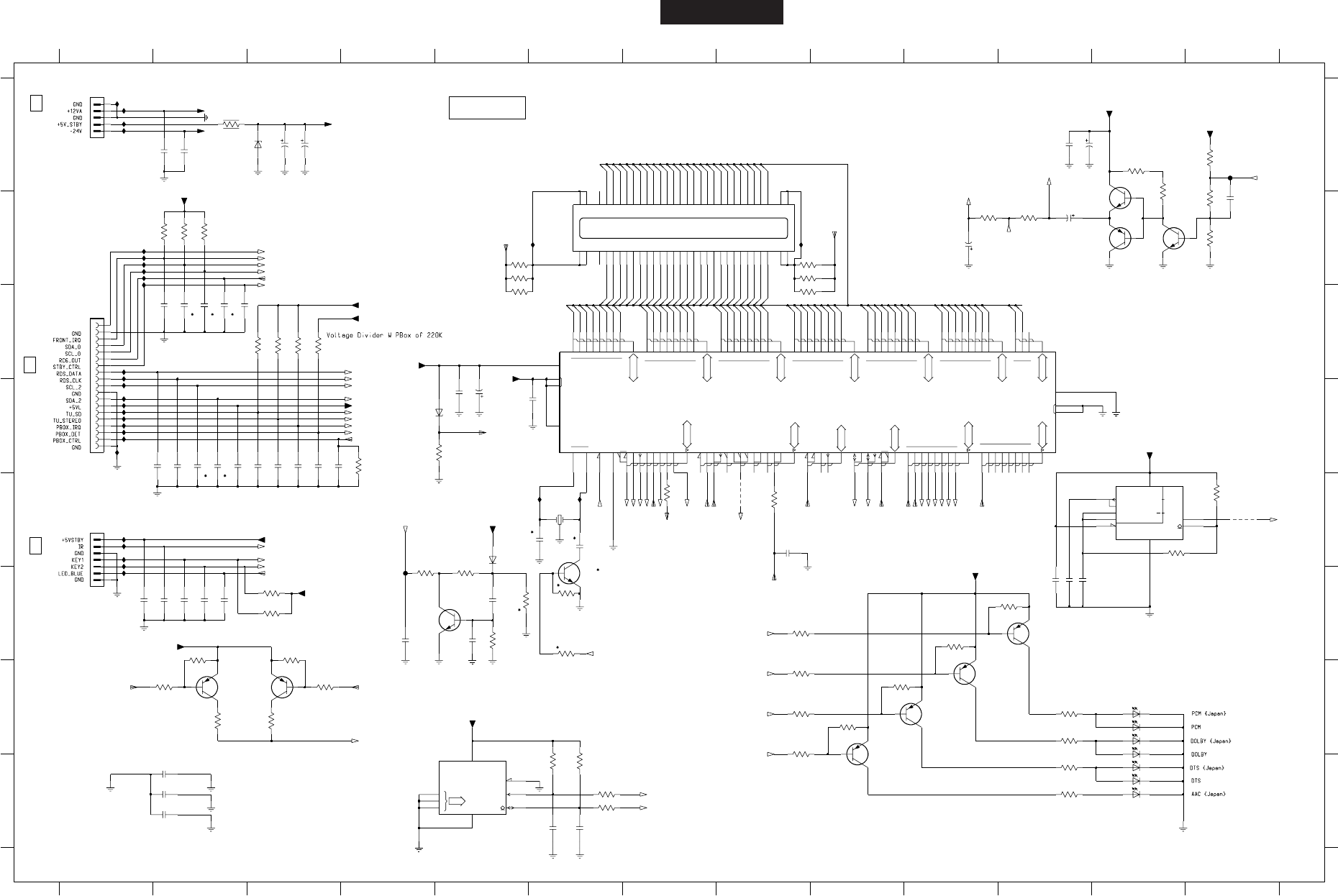

FRONT 1/2
SCL
ADR
0
1
2SDA
WC
AU
11
R1
Y
X
U
S
2
U
Y<
RX>U
SO1
38
39
7
6
5
4
3
2
13
12
11
10
7
INT0
INT1
TC2
DVO
TEST
8
VAREF
14
13
12
11
10
9
18
17
P4<0:7>
AIN
VKK
SDA
22
TC3
P1<0:7>
32
33
37
TC1
SCK0
0
1
2
3
4
5
6
SI1
SCK1
RESET
VASS
INT3
INT2
V
P8<0:7>
V
P9<0:7>
V
INT5
1
0
15
VSS
PDO
2
1XTAL
P0<0:7>
PPG
PWM
TC4
VDD
14
15
16
17
XTIN
XTOUT
SCL
29
28
27
26
25
24
23
16
21
20
19
35
36
40
41
45
46
47
PE<0:7>
V
42
43
44
48
49
50
PF<0:3>
V
P7<0:7>
V
P6<0:7>
V
PD<0:7>
P5<0:7>
30
31
AIN
STOP
P2<0:2>
SI0
SO0
P3<0:2>
INT4
34
E
F
G
H
1100 C1
1101 B6
1103 E6
1104 E1
1105 A1
2100 A11
2101 A2
23456789101112
E
F
G
H
A
B
C
D
7891011 12 13
A
B
C
D
1
2115 D2
2116 D3
2117 D3
2118 D3
2119 D3
2120 D4
2121 E6
2122 E6
2123 E8
2124 F1
2125 F2
13
123456
2129 H2
2130 H2
2131 A3
2132 H6
2133 H6
2134 F4
2135 F5
2136 F5
2137 A3
2138 B13
2139 A11
2102 A2
2103 B11
2104 B10
2105 C2
2106 C2
2107 C2
2108 C3
2109 D5
2110 D5
2111 D2
2112 D2
2113 D2
2114 D2
3100 A2
3101 B5
3102 B9
3103 B5
3104 B9
3105 C5
3106 C9
3107 D5
3108 E7
3109 E8
3110 F5
2126 F2
2127 F2
2128 H2
3111 C3
3112 F3
3113 F6
3114 F3
3115 F6
3116 H6
3117 H6
3118 G11
3119 G11
3120 H6
2140 F11
2141 F11
2142 F11
2143 F2
2144 C2
2145 D5
3122 H6
3123 H11
3125 F4
3126 F5
3127 F5
3128 A13
3129 B13
3130 A12
3131 B12
3132 B10
3133 B11
3135 E13
3136 E12
3137 G2
3138 G3
3139 G2
3140 G3
3141 F8
3142 G8
3143 G8
3144 G8
3145 C3
3121 H11
3152 F2
3153 F3
3154 F11
3155 F10
3156 G9
3157 G9
4100 E13
4101 E8
6100 D4
6101 G12
6102 G12
3134 B13
6108 E5
6109 A3
7100 D6
7101 F6
7102 H5
7103 F5
7104 B12
7105 B12
7106 B12
7107 E12
7108 G2
3146 C3
3147 D4
3148 B2
3149 B2
3150 B2
3151 C3
I106 B1
I107 B1
I108 B1
I109 C1
I110 C1
I111 D1
I112 D1
I113 D1
I114 D1
I115 D1
I116 D1
6103 G12
6104 G12
6105 H12
6106 H12
6107 H12
I121 E1
I122 E1
I123 E1
I124 B6
I125 B9
I126 E6
I127 E6
I128 F1
I129 A13
I130 F4
I131 B1
7109 G3
7110 F11
7111 G10
7112 G10
7113 H9
I100 A1
I101 A1
I102 A1
I103 A1
I104 B1
I105 B1
I117 D1
I118 D1
I119 D1
I120 E1
I104
3105 27R
LTL-816GE 6107
2130
22n
BC857B
7105
22n
2129
3127
100K
3112
4101
4K7
4
7
3104 27R
1
2
3
6
5
8
3
4
5
M24C16-RDW6
7102
EEPROM
Φ
(2Kx8)
1105
319804003050
1
2
BC807-25
7109
2125
100p
100p
2126
+5VDSTBY
100n
2124
I119
BC847B
7103
I131
I116
47p
2132
47p
2123
6109
PDZ5.6-B
4K7
3149
I125I124
2145
100n
16V100u
2131
3110
680K
PDZ6.2-B
6100
3100
4R7
4100
4K7
3129
10u35V
2104
2112
100p
100p
2111
6106LTL-816GE
10n
2135
470n
2136
I128
6108
1N4148
3128
4K7
330R
3131
3130
330R
2128
22n
27R
3106
10K
3107
2134
10n
I123
I115
I113
7106
BC847B
2120
100p
10K
3147
3102 27R
100p
2127
1
2
3
4
5
6
7
319804003070
1104
3119 100R
100R3118
1
3
4
6
2
8
COMP
7107
MC1455D-R2
5
7
+5VDSTBY
3126
1K0
3125
100K
15p
2122
2143
100p
+5VL
1K0
3141
LTL-816GE
I110
+5VDSTBY
6101
27R
3103
3144
1K0
3142
1K0
I117
100p
2107
3132
470R
2133
47p
100p
2106
3133
470R
10K
I106
I111
3152
5
6
7
8
9
Chasis_GND
12
13
14
15
16
17
18
19
2
3
4
HLW19R-2C7
1100
1
10
11
100p
2117
3146
100K
I101
I126
I100
100n
2101
33
P37
P4
12 P5
11 P6
10
9P7
8P8
7P9
P3
13
40
P30
P31 39
38
P32 37
P33 36
P34 35
P35 34
P36
P22 48
P23 47
P24 46
P25 45
44
P26 43
P27 42
P28 41
P29
55
P15 54
P16
P17 53
52
P18
P19 51
P2
14
P20 50
P21 49
3IC1 58
IC2
P1
15
6P10
5P11
P12
457
P13 56
P14
2F12 F13 60
59
F14
F21
29
30 F22 32
F23 31
F24
3G
26 4G
25 5G
24 6G
23 7G
22 8G
21 9G
20
F11
1
LCD
10G
19 11G
18 12G
17 13G
16
1G
28 2G
27
1101
HUV-13SS16T
6102LTL-816GE
3117 4K7
BC817-25
7104
2102
100n
2137
100u 16V
4K7
3114
2108
100p
Chasis2_GND
I105
6103LTL-816GE
2105
100p
LTL-816GE 6105
6104LTL-816GE
10K
3155
3156
10K
3157
10K
10K
3153
I109
I118
7113
BC807-25
BC807-25
7110
7111
BC807-25
33n
2139
100p
2113
+5VL
I129
I130
I102
4K7 3108
35V
2103
10u
2138
22p
3134
10K
+5VL
4K7
3151
3150
4K7
2140 100n
3148
4K7
100p
2119
+5VDSTBY
+5VL
BC847B
7101
10K
3113
3145
I120
10K
100p
2116
2115
100n
2114
100p
3154
10K
2141 10n
10n2142
4K7
3116
3121 100R
I114
68R
3140
2109
100n
3139
22R
1K0
3138
+5VDSTBY
3137
1K0 7108
BC807-25
3101 27R
+5VDSTBY
3109 100R
2121
15p
I122
I121
3122 47R
3120 47R
+12VL
1103
8M0
I103 +5VL
I107
I112
30
50
2
11
31
13
12
95
96
97
98
99
100
1
14
17
49
48
85
86
87
88
89
90
91
92
93
94
74
75
76
77
78
79
80
81
82
83
84
63
64
65
66
67
68
69
70
71
72
73
53
54
55
56
57
58
59
60
61
62
39
40
41
42
43
44
45
46
47
51
52
15
27
28
29
32
33
34
35
36
37
38
19
20
21
22
23
24
25
26
18
16
7100
TMP87CH75F
MC
Φ
3
4
5
6
7
8
9
10
2110
10u50V
100R
3135
+5VL
3136
1K8
I108
-27V
Chasis1_GND
4K7
3115
16V47u
2100
1K0
3143
100R3123
3111
4K7
+5VL
BC807-25
7112
10p
2144
100p
2118
I127
LED2
LED5_DIM
LED5
LED3
LED4
LED_BLUE
SCL_2
SDA_2
KEY2
KEY1
RESET
LED1
P07
RDS_CLK
TU_SD
40kHz
40kHz
STDBY_CTRL
IR
LED_BLUE
IR
SDA_0
SCL_0
P07
PBOX_CTRL
FRONT_IRQ
FRONT_MUTE
SDA_2
SCL_2
RESET
PBOX_DET
KEY2
KEY1
TU_STEREO
PBOX_IRQ
RDS_DATA
SDA_2
SCL_2
RDS_CLK
RDS_DATA
LED5_DIM
LED5
LED3
LED2
LED4
LED1
SCL_0
IR
STDBY_CTRL
-V_FIL
PBOX_CTRL
PBOX_DET
PBOX_IRQ
TU_STEREO
TU_SD
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
G13
G12
G11
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
FRONT_IRQ
SDA_0
P12
FRONT_MUTE
P37
P36
P35
P34
P33
P32
P31
P30
P29
P28
P27
P26
P25
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
G9
G10
G11
G12
G13
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
-V_FIL
VGL+1
VGL-1
VGL+1
G1
G2
G3
G4
G5
G6
G7
G8
P35
P34
P33
P32
P31
P30
P29
P28
P27
P26
P25
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
VGL-1
+5VDSTBY
-27V
+12VL
40kHz
P37
P36
to Power Supply Unit_CN3
to FRONT (2)_1201
FRONT (1)
to AV_1209
Page 62 B5 Page 70 E3
Page 64 A1
DVR-1000
Z
64
DVX-1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FRONT 2/2
I211 D2
I212 E2
I213 E2
I214 E2
I215 B3
I216 C3
I217 C3
3209 E2
3210 B4
6200 C1
6201 C1
6202 D1
6203 E1
6204 B3
9200 E1
I218 D3
I219 D3
I220 E3
I221 E3
I222 E3
I223 E1
I224 E1
I225 A1
9213 E1
I200 A1
I201 A1
I202 A1
I203 A1
I204 A1
I205 A3
I206 A3
I207 A3
I208 A3
I209 C2
I210 C2
1234
A
B
C
D
E
A
B
C
D
E
1200 A3
1201 A1
1202 A3
1203 A3
9201 B3
9202 C3
9203 C3
9204 E3
9205 E3
9206 E3
9207 D3
9208 B3
9209 D3
9210 E1
9211 E1
9212 E1
1205 C3
1206 C3
1207 D3
1208 D3
1209 E3
1210 E3
1211 E3
2200 C1
2201 E1
3200 B1
3201 C2
3202 C2
3203 C2
3204 D2
3205 D1
3206 D2
3207 E2
3208 E2
1234
SKRP1207
1
2
3
4
1204 B3
1
2
3
4
GND_K
1206 SKRP
12
I201
12
9200
9210
12
9213
12
9204
12
9205
I223 I224
12
9212
12
9209
I205
I206
2K7
3205
I222
I220
I221
1
2
3
4
I219 SKRP1208
LTST-S2706204
1209 SKRP
1
2
3
4
390R
3204
I207
I203
220R
3202
3209
390R
270R
3208 3207
220R 150R
3206
I204
3200
2K7
I218
I217
I216
I210
I215
I211
2200
100p
I209
6201
BZX384-C6V8 6200
BZX384-C6V8
GND_K
I225
3210 68R
319804003070
1
2
3
4
5
6
7
12
1201
1202
319804003020
1
2
9211
3203
270R
9207
12
I214
6203
BZX384-C6V8
I213
1
2
100p
2201
1
2
3
319804003020
1200
319804003030
1203
I200
1
2
3
4
I212
1204 SKRP
12
3201
150R
12
9203
9201
12
9202
12
9206
12
9208
1211 SKRP
1
2
3
4
GND_K
1
2
3
4
1
2
3
4
SKRP1205
SKRP1210
GND_K
I208
I202
BZX384-C6V8
6202
KEY2
KEY1
LED_BLUE
STANDBY_KEY
EJECT_KEY
+5VSTBY
KEY2
STANDBY_KEY
+5VSTBY
EJECT_KEY
+5VSTBY
KEY1
LED_BLUE
to FRONT (1)_1104 to FRONT (5)_1500
to FRONT (4)_1400
to FRONT (3)_1303
FRONT (2)
Page 63 E1 Page 64 B1
Page 64 B1
Page 64 D4
I314 B1
I319 D1
I320 D1
I321 D1
I305 B1
I306 C1
I307 C4
I308 D4
I309 B4
I310 D4
I311 B1
I312 B1
7301 A2
7302 D1
I300 B4
I301 B4
I302 B1
I304 B1
3305 A3
3306 A2
3307 A3
4300 D1
4301 D1
4302 D1
1234
1234
A
B
C
D
4303 D1
4304 C3
5301 D2
7300 A2
A
B
C
D
1300 C1
1301 C4
1302 B1
1303 D4
2300 A1
2301 A1
2302 B2
2303 C1
2304 C2
2305 C2
2306 D2
2307 D2
2308 D3
3301 A3
3302 A2
3303 A3
2307
4u7
7302
TSOP14838YA1
GND
OUT
VS
I312
I319
I311
4304
GND_D
GND_D
I302
I301
I300
6
7
8
9
I309
HLW10R-2C7LF
1301
1
10
2
3
4
5
319804003030
1
2
3
1303
BC817-25
7301
100p
23022305
100p
600R5301
I306
I320
2306
100n
GND_D
5
7
8
GND_D
1302
MSJ-035-18A SR
1
2
3
4
3
4
5
7
8
1300
MSJ-035-18A SR
1
2
I308
I304
I307
I321
4300
4303
4302
4301
10R
3305
3301
10R
47K
3306 3302
47K
1n0
2301 2300
1n0
7300
BC817-25
100p
2308
1n0
2304
2303
1n0
GND_D
I305
1K0
3307
I310
I314
3303
1K0
+5VSTBY
PHONES
AUX IN
to AV_1208
to FRONT (2)_1203
FRONT (3)
Page 62 A4
Page 64 A4
1
C
D
1400 B1
1401 B2
I400 B1
I401 C1
23
123
A
B
C
D
A
B
I400
I401
SKRP
1401
1400
319804003020
1
2
to FRONT (2)_1202
FRONT (4)
Page 64 A4
1
A
B
C
1500 B1
1501 B2
I500 B1
I501 B1
12
2
A
B
C
I501
I500
1501
1500
319804003020
1
2
SKRP
to FRONT (2)_1200
FRONT (5)
Page 64 A4
DVR-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
Z
65
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
HDMI 1/4
14
17
18
19
20
16
15
3
4
5
28
27
26
25
24
23
22
1
VDD
0
2
8
7
6
VDDQ
VSS VSSQ
NC
BA
2k-1
0
A
D
DQM
13
12
11
10
9
8
7
6
5
4
3
2
1
0
9
10
21
0
1
CLK
CKE
CS
WE
CAS
RAS
0
1
2
3
31
30
29
COM
OUTIN
3144 I6
3145 I6
3146 I6
3147 I7
*
P2,P4
P1
P2,P4
*
3198 F9
4100 H1
P2
2158 C2
P2
P2,P4
2139 B9
3183 F8
3184 E9
3185 E9
3186 E9
3187 E9
3188 E9
3189 E9
3190 D2
3149 I6
3151 G1
P1
2143 C13
2144 C13
2140 B13
3191 D2
3192 D1
3196 F9
3197 F9
2141 B13
2145 C12
2142 C14
2133 B13
3155 D9
3150 C7
*
# Refer Variant Table
P1
P2,P4
*
DECOUPLING CAP FOR FLI2301/ FLI2310
3152 B2
3153 B3
P2,P4
P1
P1
3130 I5
3140 I7
3137 I5
3154 D9
3141 I6
3142 I6
3143 I6
3133 I5
3126 I5
3127 I4
3128 I5
3148 I6
3199 F9
*
P2,P4
P1
P1
P2,P4
3179 D9
3180 D9
3181 E9
3182 E9
3101 B5
3100 B4
3104 D1
3105 H1
3109 G1
3110 G1
3107 G1
3103 C1
H
1101 B3
I
P2,P4
P1
*
C
D
E
F
2146 C12
2136 B9
2137 B9
2138 A9
4105 A10
*
P2,P4
4101 H1
2134 B10
2135 B10
3156 D9
3157 D9
3132 I5
P2,P4
*
3134 I5
3136 I5
3135 I5
3131 I5
P1
2151 C6
2152 E11
2149 B10
#
3138 I5
3139 I5
P2,P4
P2,P4
3124 I4
3125 I4
3117 I3
P2,P4
3129 I4
P1
3108 G1
DECOUPLING CAP FOR FLI2301 / FLI2310
P2
3120 I4
3121 I4
P1
3106 H1
3102 B5
2159 E1
2103 A12
2107 B12
2102 A12
2104 A13
2105 B6
2106 A5
P1
2100 A12
3456
P2,P4
P1
P1
2101 A5
11 12 13 14
G
P1
P1
P2,P4
II0
P1
Option
*
4103 D1
4102 D1
DECOUPLING CAP FOR FLI2301 / FLI2310
*
2147 C13
P2,P4
2154 A10
2155 B12
2156 C2
2153 G2
*
13 14
A
P2,P4
3116 I3
3115 I4
3122 I4
3123 I4
2125 A8
2124 A8
P2,P4
3119 I3
P1
3118 I4
*
2123 A8
2130 B12
P1
P1
3111 G1
3112 I3
3113 I3
3114 I3
10
P2,P4
6
AZ1
79
12
4107 B4
F103 B12
F101 A12
5101 A12
78910
F100 A11
7122 H11
7121 G11
5100 A12
1234
I
A
B
P2,P4
P1,P2,P4
2150 F9
2157 C3
2148 B10
E
D
*
F
G
P1
11 12
2110 A7
2111 A6
P1
3178 G8
2128 A9
2127 A9
P1
2126 A9
P1
P2,P4
P1
AV3
2132 B12
P1
*
P1
3160 E10
3161 E11
3162 E10
3163 E11
*
2131 B12
58
3168 G1
3169 F8
3170 H10
3171 H10
3172 I10
F102 A12
5102 B12
5103 A13
7103 A11
7101 C12
4106 B3
7100 C3
*
P1
C
H
P-scan_DeInterlacer
2112 A6
P1
*
B
P1,P2,P4
P1
P2,P4
2120 B8
2121 B8
2122 A8
2114 A5
2117 B8
2118 A5
2108 A6
2109 C5
3173 E10
3175 D1
3174 C2
P2,P4
P2,P4
3177 G8
3158 I7
3159 I7
3164 F10
3165 D9
3166 D9
3167 G10
2119 A6
AP1
*
*
2116 A6
2115 A5
2113 B8
4105
22p
2157
3163 22R
F101
3128 22R
2153 100p
22R
3109
22R
100n
2139
VSYNC2_PORT1
207
VSYNC_PORT2
191
XTAL_IN 192
XTAL_OUT
3127
VSS3
63 VSS4
89 VSS5
113
VSS6
129
VSS7
147
VSS8
194
VSS9
17 VSScore1
37 VSScore2
69 VSScore3
81 VSScore4
97 VSScore5
124
VSScore6
139
VSScore7
198
VSScore8
2VSYNC1_PORT1
6
VDD4
88 VDD5
112
VDD6
128
VDD7
VDD8 146
193
VDD9
16 VDDcore1
36 VDDcore2
68 VDDcore3
80 VDDcore4
96 VDDcore5
123
VDDcore6
138
VDDcore7
197
VDDcore8
9VSS1
31 VSS2
49
SDRAM_DATA_9
110
SDRAM_DQM
105
SDRAM_RASN
104 SDRAM_WEN
42 TEST
188
TEST0 189
TEST1 190
TEST2
115
TEST3
90 TEST_IN
116
TEST_OUT0
117
TEST_OUT1
8VDD1
30 VDD2
48 VDD3
62
77 SDRAM_DATA_23
78 SDRAM_DATA_24
79 SDRAM_DATA_25
82 SDRAM_DATA_26
83 SDRAM_DATA_27
84 SDRAM_DATA_28
85 SDRAM_DATA_29
53 SDRAM_DATA_3
86 SDRAM_DATA_30
87 SDRAM_DATA_31
54 SDRAM_DATA_4
55 SDRAM_DATA_5
56 SDRAM_DATA_6
57 SDRAM_DATA_7
58 SDRAM_DATA_8
59
SDRAM_DATA_0
51 SDRAM_DATA_1
60 SDRAM_DATA_10
61 SDRAM_DATA_11
64 SDRAM_DATA_12
65 SDRAM_DATA_13
66 SDRAM_DATA_14
67 SDRAM_DATA_15
70 SDRAM_DATA_16
71 SDRAM_DATA_17
72 SDRAM_DATA_18
73 SDRAM_DATA_19
52 SDRAM_DATA_2
74 SDRAM_DATA_20
75 SDRAM_DATA_21
76 SDRAM_DATA_22
SDRAM_ADDR_1
91 SDRAM_ADDR_10
101 SDRAM_ADDR_2
100 SDRAM_ADDR_3
99 SDRAM_ADDR_4
98 SDRAM_ADDR_5
95 SDRAM_ADDR_6
94 SDRAM_ADDR_7
93 SDRAM_ADDR_8
92 SDRAM_ADDR_9
108
SDRAM_BA0 107
SDRAM_BA1 106
SDRAM_CASN
SDRAM_CLKIN 114
111
SDRAM_CLKOUT
109
SDRAM_CSN
50
R|Cr|CbCr_4
26 R|Cr|CbCr_5
27 R|Cr|CbCr_6
28 R|Cr|CbCr_7
24 R|Cr|Cb|Cr_3
136
R|V|PR_OUT_0
137
R|V|PR_OUT_1
140
R|V|PR_OUT_2
141
R|V|PR_OUT_3
142
R|V|PR_OUT_4
143
R|V|PR_OUT_5
144
R|V|PR_OUT_6
145
R|V|PR_OUT_7
45 SCLK
46 SDATA
103 SDRAM_ADDR_0
102
G|Y|Y_OUT_7
1HSYNC1_PORT1
5HSYNC2_PORT1
208
HSYNC_PORT2
4IN_CLK1_PORT1
10 IN_CLK2_PORT1
41 IN_SEL
156
OE
157
PLL_PVDD 158
PLL_PVSS
47 RESET_N
21 R|Cr|CbCr_0
22 R|Cr|CbCr_1
23 R|Cr|CbCr_2
25
FIELD_ID_PORT2
29 G|Y|Y_0
32 G|Y|Y_1
33 G|Y|Y_2
34 G|Y|Y_3
35 G|Y|Y_4
38 G|Y|Y_5
39 G|Y|Y_6
40 G|Y|Y_7
148
G|Y|Y_OUT_0
149
G|Y|Y_OUT_1
G|Y|Y_OUT_2 150
151
G|Y|Y_OUT_3
152
G|Y|Y_OUT_4
153
G|Y|Y_OUT_5
154
G|Y|Y_OUT_6
155
DAC_COMP
186
DAC_GR_AVDD
185
DAC_GR_AVSS
173
DAC_G_OUT
187
DAC_PVDD
167
DAC_PVSS
180
DAC_RSET
176
DAC_R_OUT
168
DAC_VDD
182
DAC_VREFIN
181
DAC_VREFOUT
DAC_VSS 169
44 DEV_ADDR0
43 DEV_ADDR1
3FIELD_ID1_PORT1
7FIELD_ID2_PORT1
206
D1_IN_1 200
D1_IN_2 201
D1_IN_3 202
D1_IN_4 203
D1_IN_5 204
D1_IN_6 205
D1_IN_7
183
DAC_AVDD
171
DAC_AVDDB
174
DAC_AVDDG
177
DAC_AVDDR
DAC_AVSS 184
172
DAC_AVSSB
175
DAC_AVSSG
178
DAC_AVSSR
170
DAC_B_OUT
179
B|U|Pb_OUT_0
127
B|U|Pb_OUT_1
130
B|U|Pb_OUT_2
131
B|U|Pb_OUT_3
132
B|U|Pb_OUT_4
133
B|U|Pb_OUT_5
134
B|U|Pb_OUT_6
135
B|U|Pb_OUT_7
125
CLKOUT
195
CLK_PORT2
118
CTLOUT0
119
CTLOUT1
120
CTLOUT2
121
CTLOUT3
122
CTLOUT4
196
D1_IN_0
199
AVDDPLL_FE
164
AVDDPLL_SDI
160
AVDD_PLL_BE1 161
AVDD_PLL_BE2
166
AVSSPLL_FE
163
AVSSPLL_SDI
159
AVSS_PLL_BE1
162
AVSS_PLL_BE2
11 B|Cb|D1_0
12 B|Cb|D1_1
13 B|Cb|D1_2
14 B|Cb|D1_3
15 B|Cb|D1_4
18 B|Cb|D1_5
19 B|Cb|D1_6
20 B|Cb|D1_7
126
7100
FLI2310
165
7122
BSN20
2140
220n
319647R
3135 22R
2136
100n
100n
2125
5103
60R
27M
1101
22R3116
47R 3181
2103
47u
4101
3100
10R
3105 10K
3177 22R
220n
2144
DAC
2105
100n
2149
100n
3158 22R
3191
10K
100n
2117
100n
2109
3117 22R
22R3146
3148 22R
2156
84
17
22p
58
72
86
6
12
32
38
46
52
78
43
3
9
35
41
49
55
75
81
44
14
21
30
57
69
70
73
19
1
15
29
8
10
11
13
74
76
16
71
28
59
40
42
45
47
48
50
51
53
7
54
56
80
82
83
85
31
33
34
36
5
37
39
22
23
18
67
68
20
2
4
77
79
25
26
24
27
60
61
62
63
64
65
66
SDRAM
2M x 32
Φ
7101
MT48LC2M32B2TG-6
2123
100n
22R3145
100n
2124
27R
3102
10K3106
4103
10K
3192
3132 22R
220n
2145
319847R
3112 22R
22R3119
3149 22R
F100 13
7103
LF18ABDT
2
3120 22R
1R0
3170
47R 3154
2128
100n
5100
30R
3150
4K7
150R
3101
22R3141
2131
220n
220n
2130
2121
100n
2150
10p
2132
220n
3159 22R
22R
DAC
3142
22R
3103
3114 22R
2159
22p
16V
10u
2155
3144 22R
100n
2120
3167
4K7
220n
2143
3173
100n
2114
22R
22p
2158
3123 22R
3108 22R
2122
100n
22R3169
100n
2118
3139 22R
22R3138
47R 3186
3168 47K
47R 3157
22R3178
F103
DAC
2154
100n
318847R
220n
2141
3104
22R
22R3161
318747R
2146
220n
22R3162
3183
47R
3107 22R
22R3124
22R3136
PLL
100n
2111
319747R
318447R
4K7
3171
+3V3D_V
5101
600R
100n
2127
2138
100n
2147
220n
4107
47u
2100
3140 22R
220n
2102
22R3151
2101
3121
100n
22R
47R 3185
3133
F102
22R
4106
100n
2113
220n
2142
100n
2148
100n
2116
47R 3189
3147 22R
3137 22R
22R 3152
315647R
10u
2108
16V
3160 22R
10p
2152
3134 22R
4102
100n
2106
315547R
22R3118
100n
2126
22R3122
47R 3180
10K
3190
220n
2133
47u
2107
2104
47u6.3V
22R3143
PLL
PLL
BSN20
7121
317947R
3129 22R
22R3111
100n
2151
316647R
47R 3165
600R
5102
3126 22R
4100
22R3130
DAC
2119
100n
3172
1R0
3115 22R
2137
100n
22R3131
47R 3199
3164 22R
22R
3175
3174
22R
22R3125
3113 22R
2115
100n
100n
2134
2135
100n
2112
100n
+3V3D_V
3153
10K
22R3110
318247R
YB(3)
YB(4)
YB(5)
YB(6)
YB(7)
27M_CLK
27M_CLK
2110
100n
SRAM_DQM
27M_CLK
CLK
YB(0)
YB(1)
YB(2)
DATA(14)
DATA(13)
DATA(12)
DATA(11)
DATA(10)
DATA(1)
DATA(0)
CSN
+3V3_MEM
ADD(9)
ADD(8)
ADD(7)
ADD(6)
ADD(5)
ADD(4)
ADD(3)
ADD(2)
ADD(10)
ADD(1)
ADD(0)
SDA_5V
+3V3_D
+3V3_MEM
SDA_3V3
SCL_3V3
DATA(9)
DATA(8)
DATA(7)
DATA(6)
DATA(5)
DATA(4)
DATA(31)
DATA(30)
DATA(3)
DATA(29)
DATA(28)
DATA(27)
DATA(26)
DATA(25)
DATA(24)
DATA(23)
DATA(22)
DATA(21)
DATA(20)
DATA(2)
DATA(19)
DATA(18)
DATA(17)
DATA(16)
DATA(15)
+1V8_CORE
+3V3_D
SCL_5V
C(4)
C(5)
C(0)
C(3)
C(2)
RASN
WEN
CASN
BA1
BA0
+3V3_D
RESET_SII
+1V8_HDMI
C(6)
C(1)
+1V8_CORE
+1V8_CORE
+1V8_CORE
+1V8_CORE
+3V3_D
+3V3_D
+3V3_D
+3V3_D
RASN
CASN
BA0
BA1
+1V8_PLL
WEN
SRAM_DQM
CSN
DATA(28)
DATA(29)
DATA(30)
DATA(31)
DATA(23)
DATA(24)
DATA(25)
DATA(26)
DATA(27)
DATA(19)
DATA(20)
DATA(21)
DATA(22)
DATA(14)
DATA(15)
DATA(16)
DATA(17)
DATA(18)
DATA(10)
DATA(11)
DATA(12)
DATA(13)
DATA(5)
DATA(6)
DATA(7)
DATA(8)
DATA(9)
DATA(0)
DATA(1)
DATA(2)
DATA(3)
DATA(4)
+3V3_D
SCL_3V3
SDA_3V3
+3V3_D
P_CLK
+3V3_DAC
+1V8_PLL
+3V3_D
ADD(0)
ADD(5)
ADD(4)
ADD(3)
ADD(2)
ADD(1)
ADD(10)
ADD(9)
ADD(8)
ADD(7)
ADD(6)
+1V8_CORE
+1V8_DAC
C(7)
RESET
HSYNC
VSYNC
P_HSYNC
P_VSYNC
+3V3_DAC
UVA(1)
UVA(0)
YA(0)
UVA(6)
UVA(5)
UVA(4)
UVA(3)
UVA(2)
UVA(9)
UVA(8)
YA(1)
UVA(7)
YA(6)
YA(5)
YA(4)
YA(3)
YA(2)
YA(9)
YA(8)
YA(7)
+1V8_DAC
CLK
CLK
+1V8_PLL
Ref Des
DV6001
FLI2310
7100
Variant
FLI2310
DVR-1000
Z
66
DVX-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper

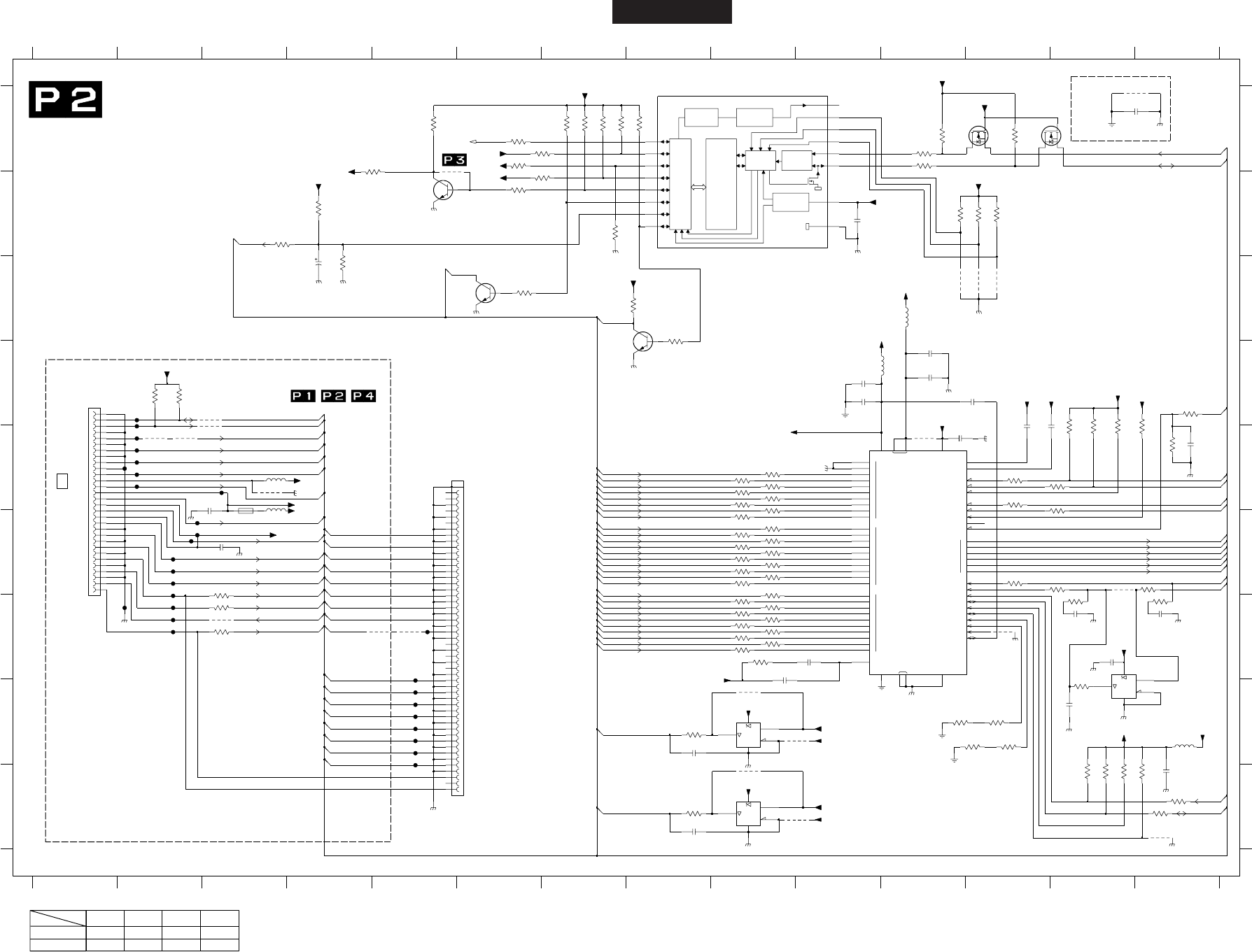

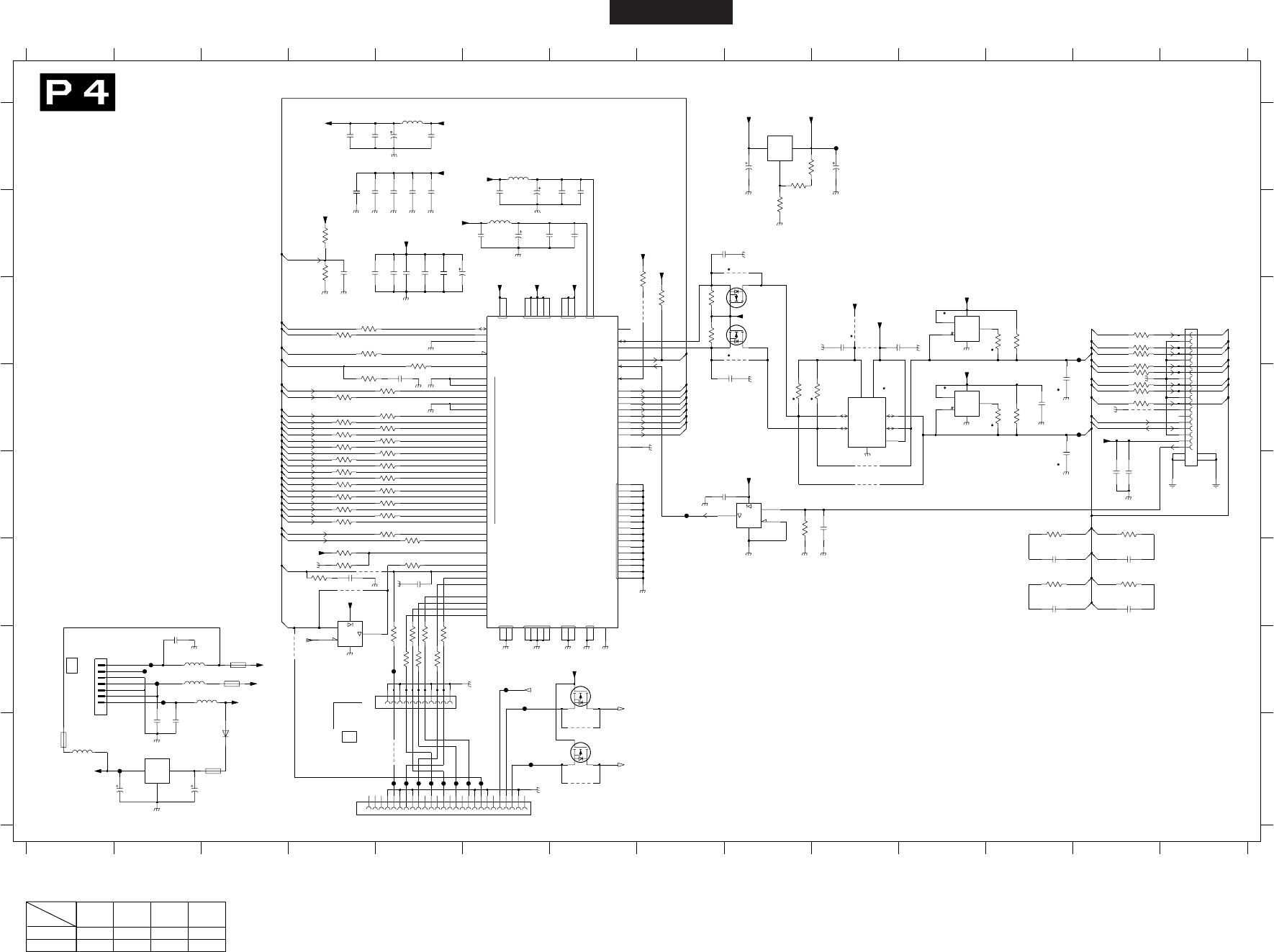

HDMI 2/4
EN
LOGIC
INTERRUPT
BIT 8
REGISTER
SHIFT
PORTS
I/O
RESET
POWER-ON
LP FILTER
CONTROL
BUS C2I
FILTER
INPUT
RSET1
ALSB
I2C
SDA
6
7
EXT_LF
VAA
SCLK
CLKIN_B
8
9
8
9
8
9
7
0
1
S
C
Y
S_VSYNC
S_HSYNC
COMP2
COMP1
AGND
0
2
1
RSET2
RTC_SCR_TR
VDD VDD_IO
DAC
GND_IO
DGND
6
VREF
3
4
5
2
3
4
5
6
7
0
1
2
3
4
5
CLKIN_A
F
E
D
C
B
A
RESET
P_BLANK
P_VSYNC
P_HSYNC
S_BLANK
EN
EN
F234 G5
F235 H5
F236 H5
F237 H5
F238 H5
F239 H5
F240 H5
F241 H5
F242 I5
F204 E2
F205 E2
F206 E2
F207 F2
F208 E2
F209 E3
*
#
F210 F3
P4
1210
*
DV6001
F219 G2
F233 G1
4216 E2
4217 E2
4218 G5
4219 G5
4220 C11
4221 C12
P4
* Option
4222 C12
4223 H10
4224 I10
4225 H9
F202 E2
F203 E2
3278 B7
3279 A5
3280 H8
3281 C4
3282 D2
3283 D2
P1, P2
7202
3284 G3
3285 G3
3288 E14
3290 I8
P4
#
F 1A
F211 F3
F212 F2
F213 F2
F214 E2
F215 F2
F216 G2
F217 G2
F218 G2
4214 E11
4215 E3
3245 G9
3246 G9
3247 G9
3248 F9
3249 F9
3250 F9
P4
2K7
P4
ADV7320
P-scan_Ext_DAC
330R
3251 F9
4226 I9
5201 H14
5205 F3
5207 E3
7201 A8
7202 E10
7203 A11
7204 A12
7205 B5
7206 C6
7207 H9
7208 I9
7209 G14
7210 D8
F201 D2
3276 C6
3277 A6
3223 A8
3224 A11
3225 A11
3226 C8
3227 G3
3228 B3
*
3204
P4
1206 0R
*
P4
3291 B11
3292 B12
3295 E12
3296 E12
3297 E12
3298 F12
3299 F12
4200 D3
4201 D3
4202 F13
4203 A5
4209 I14
4210 G12
4211 G3
4213 A14
3243 G9
3244 G9
D
E
F
G
H
I
P1,P2,P4
3206
AZ2
2228 H8
3201 G14
3202 A7
3203 H12
3252 F9
3253 F9
5202 C11
5203 D11
3256 F9
3257 F9
3258 I13
3259 I13
3260 D14
3263 A11
3264 A12
3269 A7
3270 A7
3271 A7
3272 A7
3273 B6
3274 A5
3221 E13
3222 B4
91011121314
330R
# Refer Variant Table
3293 B12
3294 E12
3230 E9
3231 E9
3232 E9
3233 E9
3234 E9
3235 E9
3236 E9
3237 F9
3238 G9
3239 G9
3240 G9
3241 G9
3242 G9
B
C
2221 G10
2222 G9
2223 C4
2224 E3
2226 F3
2227 I8
123
3204 H12
3205 H12
3254 F9
3255 F9
3208 I13
3209 I14
3210 E14
3211 I14
3212 E13
3213 G14
3214 G13
3215 H13
3216 G9
3217 C8
3218 B7
3219 A6
3220 E13
78
67
1000 G1
1004 I6
1210 F3
2201 E14
Ref Des
2K7
3203
Variant 3205
#
A
B
C
D
E
F
G
H
I
A
2219 I14
2220 E12
2205 H13
2210 B10
2211 D10
2212 D11
2213 D12
2214 D11
2215 E12
2216 D10
2217 A14
2218 E11
*
*
*
*
*
3206 H11
3207 I14
891011 12 13 14
123456
45
SCL
14
SCL
SDA
15
SDA
VDD
16
VDD
8VSS
+5VD
ADV7320
P1, P2
2202 G13
2203 G14
2204 G13
4P0
5P1
6P2
7P3
9P4
10 P5
11 P6
12 P7
1A0
2A1
3A2
13INT_
5
4
+5VD
7201 PCF8574T
2
3
1
74LVC1G125GW
7207
BSN20
7203
F237
F233
3228
3293
10K
1R0
47R3240
22R3298
22R3296 3297 22R
PCM_MCLK_IN
3295 22R
47R3248
10n
2218
3272
4K7
AV
BC847B
7210
2
4226
12
13
4225
1
1
46
2
3
4
5
6
7
8
9
12
62
22
21
48
50
49
41
10
56
47
35
31
51
52
53
54
55
58
59
60
61
37
11
57
34
64
19
25
23
24
33
32
63
45
36
44
43
42
39
38
20
14
15
16
17
18
26
27
28
29
30
7202
ADV7320KSTZ
Φ
VIDEO
ENCODER
40
F213
4K7
3222
3253 47R
12
AV
4209
F206
100n
2224
F238
3231 22R
1R0 3224 22R
3269 3225 22R
F202
F201
3203
2K7
3239
4223
12
47R
12
+12VD
4213
3282
47K
4202
22R
3211
3n3
2221
10K
3202
DLINE_1
F217 4219
12
4211
12
5202
30R
3251 47R2226
100n
100n
2213
10R3201
2202
10p
3288
30R
47K
5207
3233 22R
AV
22R3294
2204
100n
F214
47R3214
F208
47R3250
F210
F212
2205
100p
+3V3D
22R
3215
2201
1n0
330R
3206
2211
100n
4203
12
2214
10n
47K
3223
DLINE_3
F209
22R
3284
3232 22R
+3V3D_V
3257
12
47R
4220
12
4221
47R
+5VD
3252
4K7
3270
F211
47K
3276
+5VD
47R3255
2212
100n
7204
BSN20
30R
5201
3259
22K
3291
10K
47K
3283
3237 22R
1R0
3227
3207
4K7
22K
3263
1210 1AF
12K
3274
3256 47R
28
29
3
30
4
5
6
7
8
9
18
19
2
20
21
22
23
24
25
26
27
1
10
11
12
13
14
15
16
17
1000
SFW30R-2STE1
5203
30R
22K
3264
3213 22R
47R
10K
3212
3260
3245
22R
10K
3220
3277
100R
10p
2203
+5VD
F236
F234
F235
4216
12
4K7
3208
820p
2222
100n
2219
3258
22K
+5V
F219
1R0
3218
7206
BC847B
F204
10K
3210
F205
22R3230
22R3235
3299 22R
680R
3216
DPDET#
3221
10K
100n
2215
4215 12
3219
1R0
4K7
3273
7205
BC847B
AV
100n
2210
30R5205
100n
2217
4200
12
47R
3243
7208
74LVC1G125GW
2
3
1
5
4
3241 47R
3280 1R0
50
6
7
8
9
51 52
40
41
42
43
44
45
46
47
48
49
5
31
32
33
34
35
36
37
38
39
4
21
22
23
24
25
26
27
28
29
3
30
11
12
13
14
15
16
17
18
19
2
20
1004
AF7501-A2G1T
1
10
+5VD
47R3246
22R3234
3254
2K7
3205
47R
10n
F218
2216
5K6
3281
47R3244
DLINE_2
F215
3292
10K
2
2228
22p
4214 1
22p
2227
4218
12
100R
AV
3279
F203
F216
2220
100n
12
3209
22R
4222
F242
3290 22R
F241
F240
F239
3204
330R
3285 22R
3278
100R
4210
12
47R3238
12
27M_CLK_IN
3226
47K
+5VD
4224
47R
4K7
3242
3271
3249 47R
12
2223
4u7
4201
3236 22R
47R3247
+5VD
F207
4K7
3217
2
3
1
5
4
12
7209
74LVC1G125GW
RESET
4217
27M_CLK_IN
27M_CLK
P_VSYNC
HSYNC
VSYNC
P_HSYNC
27M_CLK
+VDD_PSCAN
+VDD_PSCAN
P_CLK
+2V5A_VAA
+VDD_PSCAN
YB(2)
YB(1)
YB(0)
27M_CLK_IN
+VDD_PSCAN
+VDD_PSCAN
PCM_MCLK
YB(7)
YB(2)
YB(1)
YB(0)
YB(4)
C(4)
C(5)
C(6)
C(7)
C(0)
C(1)
C(2)
YB(7)
YB(6)
YB(5)
YB(4)
YB(3)
SPDIF_MUTE
RESET
+3V3D_VDAC
YB(3)
C(3)
PCM_MCLK_IN
U
YA(5)
YA(4)
YA(3)
YA(1)
YA(2)
YA(0)
+3V3D_V
+3V3D_VDAC
SCL_3V3
SDA_3V3
SCL_3V3
RESET_SII
VSYNC
HSYNC
YB(6)
CVBS
CHROMA
YB(0)
YB(1)
SPDIF_IN
INT
SDA_5V
SCL_5V
RESET
YB(5)
+2V5D_V
V
Y
+2V5A_VAA
UVA(0)
UVA(9)
LUMA
+2V5A_VAA
+2V5A_V
+2V5A_VAA
+2V5A_V
+2V5A_V
YB(2)
YB(4)
YB(6)
YA(6)
YA(8)
UVA(2)
UVA(4)
UVA(6)
UVA(8)
YB(3)
YB(5)
YB(7)
YA(7)
YA(9)
UVA(1)
UVA(3)
UVA(5)
UVA(7)
SDA_3V3
to MONO_1304
Page 60 B9
DVR-1000
Z
67
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.

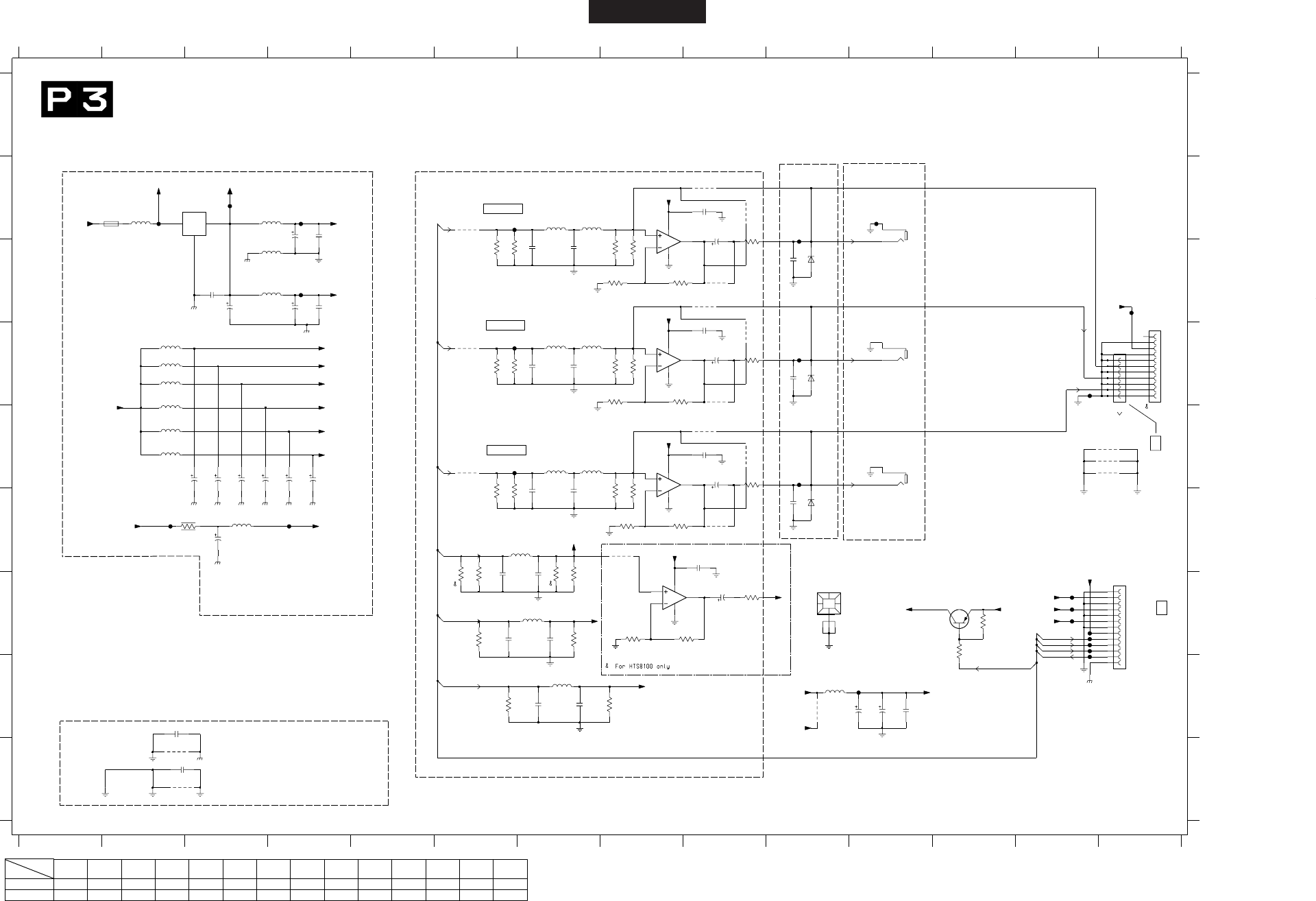

HDMI 3/4
COM
OUTIN
3304
1003
F308 H11
F309 F4
F310 B10
F313 D10
F314 G13
F315 G13
F316 G13
F317 E10
F329 G14
F330 B11
F331 C14
5314 G7
5315 H7
5320 D2
5321 D2
5322 F3
5323 C4
6300 C10
6301 D10
4u7
F303 B4
Pb
1301 3331
Pr
*
4323
P2
3309
2311
*
4330 F8
4331 E14
5300 B7
F320 B6
F321 D6
F322 E6
F324 D13
F325 G14
F326 G14
F327 G14
F328 G14
5311 E2
NOT USED
P2
Pr
*
3332
* Option
AZ2
*
#
150R
6302 F10
7300 B3
7301 B8
7302 D8
7303 E8
7307 G11
7310 G9
F302 B3
4329 H10
USED
Y / Y
*
C_SVIDEO
USED
P-scan_VideoBuffer
1K2 1K2
F304 B2
F306 C4
F307 F2
4301 E14
4302 E14
4305 B6
4307 D6
4309 E6
4311 B7
4312 D7
4313 E7
5301 H10
5302 B2
5303 B4
5304 C4
5305 D7
5307 E7
5309 D2
5310 D2
4326 B9
*
1K2
2348
AV1
NOT USED
5312 E2
5313 F7
2318
3320 F8
3321 F8
3328 G12
3329 G12
3330 C6
3331 D6
22p
1302 3316
(0805)
4327 D9
4328 E9
3341 G9
Y
AP1
USED
# Refer Variant Table
*
CVBS_VIDEO
1K2
2342
3300 B9
3302 C6
3303 C8
3304 C8
3305 C8
3306 C8
3307 D9
3309 D6
4314 B9
4315 C9
4316 E9
4318 I2
4322 C9
4323 D9
4324 F9
4325 I2
3319 E9
USED
2302
Output is 1Vpp.
#
AE1
5300
#
1K2
4312
2332 G6
2333 G7
2334 F3
2335 G6
2336 G7
2337 H7
3332 F6
3333 G6
3334 G7
3335 G6
3336 G7
3337 H6
3338 H8
3340 G8
2351 C3
*
Ref Des
Y_SVIDEO
NOT USED
*
4313
Pb / C
3342 G9
3343 G7
3344 G6
2307 C3
2308 C4
2309 C4
2311 D7
2312 D10
2313 E9
2314 H11
2315 H11
3310 D8
3311 D8
3312 D8
3313 D8
3314 F3
3316 F6
3317 F8
3318 F8
2331 E3
22p 4u7
*
3310
Output is 1Vpp.
22p
*
DV6001
*
Pr / CVBS
2u2
2350
#
2340
2u2
2338 H7
2340 C7
2341 D7
2342 F7
2344 I2
2348 C9
2349 D9
2350 F9
2303 C10
3303
Pb
5307
4311
P2
2355 H2
2360 G9
2361 F9
*
*
78910
2316 H11
2318 F7
2319 F10
2320 E3
2321 E3
2322 E4
2323 E4
2330 E3
E
3317
*
Output is 1Vpp.
AE6
USED
(0805)
22p
Y
3330
*
*
P2
4567891011
1003-3 E11
1301 D14
1302 H14
1303 G10
1305 D14
1310 B2
2300 B9
2302 C7
6
3318
#
F 2A
1206 0R
*
5305
#
2304 B4
2305 B4
2306 D9
23492341
JAPAN VER
11 12 13 14
A
B
C
D
2
P2
*
AZ3
F
G
H
I
A
B
12 13 14
12345
1003-2 D11
4324
3302
1
3311
AD2
P2
*
Variant
*
3
C
D
E
F
G
H
I
1003-1 B11
(0805)
1310 4322
1K2
1K2
NOT USED
1K2
3316
100n
2355
2305
100n
BC807-25
7307
30R
5322
47u
2330
AV
AV
AV
5305
4u7
2320
47u
F314
F328
AV
5304
30R
2u2
4313
F322
2321
47u
3
4
1
5
2
4
3
7302
AD8061ART
3313
YKC21-3930
1003-2
1K2
3319
AV
1K2
3312
68R
6300
BZX384-C4V7
1K2
3338
100n
2344
C
2u2
4312
AV
F321
4324
4323
3
220u
2349
7300
LF25CDT
2
1
2318
F302
22p
4327
68R
3307
2342
22p
2300
100n
1K2
3331
F315
C
220u
2304
AV
1K2
3321
600R
5309
F320
2306
100n
6302
BZX384-C4V7
AV
1K0
3329
3320
1K2
AV
1K2
3310
7
2348
470u
1301
HFW7S-2STE1
1
2
3
4
5
6
6301
BZX384-C4V7
3336
1K2
4301
4302
220u
4311
2350
2u2
3
4
5
6
7
8
9
+2V5D
1302
1
10
11
12
13
2
HFW13S-2STE1
30R
5320
C
4309
AV
5315
10u
2
1310
2A F
AD8061ART
7301
3
4
1
5
5
YKC21-3930
1003-3
6
1K2
3304
2337
22p
68R
3300
AV
47u
C
2322
2315
100u
C
2307
470n
30R
5303
4325
F324
1K2
3311
F313
2336
22p
1K2
3334
10u
5314
22p
4318
2311
F316
2312
100p
5311
600R
F329
F308
100n
2309
47K
3328
4329
F310
3342
75R
C
22p
2341
3306
3332
1K2
1K2
AV
C
4322
2308
F330
47u
F327
AV
30R
5312
3305
1K2
2340
22p
C
5323
10u
F317
AV
AV
2334
47u
100p
2303
22p
2338
1K2
3341
10u
F309
2351
1K2
3330
1K2
DAC
3317
9
F303
10
11
2
3
4
5
6
7
8
1305
HFW11S-2STE1
1
F306
100n
2316
AV
2313
5313
10u
100n
4326
AV
F304
4316
1K2
3333
1K2
3337
4330
3343
1K2
1K2
3302
1K2
3344
3340
1K2
C
22p
2333
4u7
5307
1K2
3309
3318
1K2
47u
AV
2323
47u
2331
5321
30R
2332
22p
F325
1K2
3303
AV
30R
5310
30R
5302
3335
1K2
4314
F307
F331
5301
30R
C
5
2
310310126941
1303
AD8061ART
7303
3
41
2319
100p
AV
+3V3D
F326
1003-1
YKC21-3930
2
1
100u
2360
2314
AV
AV
220u
4305
4u7
5300
3314
1R0
4315
4307
4331
22p
2335
AV
22p
2302
AV
4328
3
41
5
2
7310
AD8061ART
2361
100n
D2_Pb
D2_Y
+5VD
+5VA_IN
+5VA
CVBS
D2_Pr
CVBS_Out
CVBS_Out
+5VA
+5VA_D2
+VDD_PSCAN
+2V5A_V
+2V5D_V
DLINE_1
DLINE_3
D2_Pr
DPDET#
LUMA D2_Y
CHROMA D2_Pb
+5VA
+3V3_DAC
+3V3D_V
+3V3_MEM
+5VA
+5VA_IN
DPDET#
DLINE_2
+5VD_HDMI
Y
+3V3A_HDMI
+3V3_HDMI
+3V3_D
+VDD_PSCAN
+5VD
+5VA
V
U
+5VA
to AV_1114
to AV_1115
Page 61 A1
Page 61 B1
DVR-1000
Z
68
DVX-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
HDMI 4/4
1
X1
1
IN OUT
ADJ
EN
1
X1
1
NC
DSDA
DSCL
INT
HPD
EXT_SWING
TXC+
TXC-
TX0+
TX0-
TX1+
TX1-
TX2+
TX2-
RSVDL
VIA
SCK
WS
SD0
SD1
SD2
SD3
11
10
9
22
23
HSYNC
VSYNC
DE
SPDIF
MCLK
CVCC18 IOVCC PVCC
AGND CGND IOGND PGND
D
AVCC
8
7
12
13
CSDA
CSCL
CI2CA
RESET
IDCK
0
1
2
3
4
5
6
GND_HS
14
15
16
17
18
19
20
21
VCCA
VCCB
GND EN
SDAA
SCLASCLB
SDAB
EN
COM
OUT IN
F408 A10
F409 E8
F412 G5
F406 G2
F403 G2
F410 G2
P-scan_HDMI
F407 G2
7420 H7
4419 H5
22K
* Option
5V / 5V_STBY
5402 B6
4418 D13
4414 F4
4415 H7
4416 H7
3494 D13
3495 D13
4401 E10
4402 E10
4403 B9
4404 C9
4405 C10
4406 C10
4413 F4
3493 D13
*
3466 D12
3488 C13
3487 D5
3482 B4
A
12 141311
3436 E4
3434 E4
3435 E4
3437 E4
3439 E4
3438 E4
0805 1000mA
3433 E4
0805 1000mA
3432 E4
3415 D4
3416 E9
3418 C8
F401 D13
F411 H2
F 1A
2441
7419 H7
0805 1000mA
F402 D13
4417 G4
5405 G2
5403 A6
5401 A5
2414 B5
2413 B5
2411 B5
2417 D12
2415 B5
2419 C10
2416 E12
2409 G2
2418 E8
2410 B4
2420 B7
2412 B5
2401 B5
2402 B5
2403 B4
2404 D12
2405 A4
2406 A4
2407 A5
2408 A5
7
3483 B4
3491 D13
3490 C13
3465 C12
3486 F4
3485 F4
3484 F4
3483
3489 C13
3464 C8
3492 D13
56789101112 13 14
12345
3V3
2437 H2
2436 H2
2444 B5
2442 D9
2441 B4
3419 C8
3422 D4
3423 D4
3424 D4
3425 D4
3426 D4
3427 D4
3428 E4
3429 E4
3430 E4
3431 E4
2429 C10
2430 A9
2431 A10
2432 B4
2433 E13
2434 E13
2435 H2
7104 C9
7102 E9
GND
Variant
7105 C9
7418 H2
7412 G4
6412 H3
7406 D10
5407 G2
5408 H1
7407 A9
7405 C6
Ref Des
10
F 2A
F 2A
CEC
869
1234
F422 G6
F413 H5
F414 H5
F421 G6
F420 H6
F416 H5
F415 H5
3461 F5
3451 A9
#
470n
3463 C8
F 1A
3460 E4
3450 A9
3457 C4
3462 F5
3456 C8
3452 B9
1411
470n
2440 B8
2439 E10
2438 H2
2421 B7
2422 B6
2423 B6
2424 B7
2425 B7
2426 B6
2427 B6
2428 F5
3411 G5
3413 C4
22K
GND
3408 G5
3407 G5
3412 C4
*
2445 F12
2446 F13
2447 F12
2448 F13
2449 D5
2450 F4
3401 E12
3402 E13
3403 F12
3404 F13
3405 G5
1405 H1
1404 H3
CEC
7408 D11
7409 C11
# Refer Variant Table
5406 G2
F417 H5
F418 H5
F423 H6
F419 H6
3V3
12V
1403 H6
1410 G3
1411 G3
H
1002 C14
1401 G4
1402 G1
B
C
D
E
F
G
H
A
B
C
D
E
F
G
3448 D9
3455 D4
1410
DV6001
3443 C12
3444 D12
3447 D9
3414 D4
3409 G5
3406 G5
3410 G5
3444
1K8
F417
2414
100n
2450 10p
2405
100n
3403
300R
348622R
2439
100n
F407
3465
2K7
3466
2K7
3435 47R
22R3409
22R3411
2423
100n
3495 22R
2430
22u 6.3V
10K
35
1
2
3482
74HCT1G66GW
7409
4
1K8
3443
4417
12
10K
3463
2
BSN20
7420
4415
1
2428
10p
3418
390R
3424 47R
47R3438
BSN20
7419
22K
3483
3402
300R
100n
2444 2407
6.3V22u
30R
5401
2410
1n0
3447
47K
100n
2408
3412 22R
3436 47R
16V10u
2437
22R3408
100n
2429
2
3
4
5
6
7
8
9
1213
11FMN-SMT-A-TF
1401
1
10
11
3450
120R 1%
4406
22R3413
F420
100n
2421
F415
10K3485
2417
10p
3494 22R
6.3V
2415
22u
47R
F416
3455
3439
47R
100n
2406
1%120R
3451
47R3437
3452
390R 1%
5408
30R
2448
100n
22R3405
3423 47R
47R3430
22R3406
100n
2425
2409
100n
5407 30R
22R3410 2401
100n
2419
100n
47R3426
47R
3425
1
32
LM317MDT
7407
10p
2449
4401
4404
3461
3
4
5
6
789
100R
1402
S7B-PH-SM4-TB(LF)
1
2
3432 47R
2441
470n
3462 100R
3493 22R
2446
100n
3427 47R
2404
100n
47R3414
2
3
1
5
4
7412
74LVC1G125GW
47R
3422
4405
F408
3404
300R
3428 47R
3401
300R
200mA
1404
2447
100n
2445
100n
600R
5403
2424
1n0
100n
2436
S1D
6412
3457
F419
22R
4418
12
47u
2438
6.3V
10K
3464
2413
100n
22R3407
5402
600R
12
74HCT1G66GW
7408
4
35
1
2
4414
F411
F421
100n
2403
4
27
36
1
8
PCA9517DP
7406
Φ
5
25
26
3
4
5
6
7
8
9
2728
15
16
17
18
19
2
20
21
22
23
24
1
10
11
12
13
14
1403
SFV26R-1STE1-LF
3431
10p
2416
47R
BSN20
7105
100n
2412
F402
F401
F409
87
88
89
90
2
11
92
93
94
95
96
97
83
84
85
86
5
30
29
33
32
36
35
27
26
82
91
39 23
38
42
21
12
10
9
8
7
66 17
14
47
72
13
48
71
6
40
22
67
65
80
20
19
24
81
18
1
53
77
52
51
50
49
76
75
70
69
68
78
64
63
62
61
58
57
56
55
54
73
41
43
44
4
16
45
59
74
79
25
31
37
28
34
3
15
46
60
Φ
HDMI
TRANSMITTER
SII9030CTU
7405
47R3433
47K
3448
4413
12
2A F
3456
4K7
1411
3487
2422
10u
22R
100n
2418
2435
100n
F418
BSN20
7104
F403
4403
3460 100R
F414
10K3484
4402
10u
2426
1
32
1405
200mA
7418
LD1117DT
4
2
3
1
5
74LVC1G125GW
7102
F423
F422
47R
4416
12
3415
1n0
1n0
2420
2411
2434
100p
2433
100n
47K
3416
3488 22R
47R3429
30R5406
C
100p
2440
100p
2442
C
100n
2432
2427
100n
F406
F413
2402
100n
F410
1410
1A F
9
20 21
22 23
17
18
19
2
3
4
5
6
7
8
DC1R019JDA
1
10
11
12
13
14
15
16
12
1002
4419 F412
3419
5405 30R
6.3V22u
2431
47R3434
3492 22R
22R3491
3490 22R
RESET_SII
+3V3_HDMI
TX_DDC_SDA
TX_DDC_SCL
+5VD_HDMI
3489 22R
+5VD_HDMI
#TX2-
#TX1+
#TX1-
#TX0+
#TX0-
#TXC+
#TXC-
#TX0-#TX2-
#TX1-
#TX1+
#TXC-
#TXC+
#TX2+
+3V3_HDMI
P_CLK
+3V3_HDMI
+3V3_HDMI
+5VD
+5V_SOC
+5VD_HDMI
SDA_3V3
SCL_3V3
+3V3_HDMI
INT
SPDIF_IN
+1V8_HDMI
+3V3A_HDMI_1
+3V3A_HDMI_1
+5VD_HDMI +3V3_PLL
+3V3_HDMI
PCM_MCLK
TX2-
TX1-
TX0-
+1V8_HDMI
+3V3_HDMI
+3V3_HDMI
TXC+
+3V3_HDMI
SPDIF_MUTE
INT
UVA(8)
UVA(7)
UVA(6)
+3V3_HDMI
UVA(3)
UVA(5)
UVA(4)
UVA(2)
+12VD
+5V_SOC
+VDD_PSCAN
#TX0+
TXC-YA(1)
YA(0)
RESET_SII
TX0-
TX_DDC_SDA
+3V3A_HDMI
#TX2+
TXC+
TXC-
TX1+
TX1-
TX0+
TX2-
TX0+
TX1+
TX2+
+3V3_PLL
TX2+
UVA(9)
YA(9)
SDA_3V3
SCL_3V3
+3V3_PLL
P_HSYNC
P_VSYNC
TX_DDC_SCL
+3V3_HDMI
YA(8)
YA(7)
YA(6)
YA(5)
YA(4)
YA(3)
YA(2)
UVA(1)
UVA(0)
to AV_1112
to AV_1204
HDMI
Page 61 F1
Page 62 F1
DVR-1000
Z
69
DVX -1000
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
USB
18
16
RB
4
3
2
CE
7
6
WE
RP
1
0
BYTE
3
NC
5
8
9
10
11
12
13
14
15
A-1
10
4
9
8
7
6
0
8M-1
0
AD
5
11
2
1
17
OE
12
13
14
15
1
2IN
1
2
3
OUT
VOUTR
SFOR
PLL1
CLKOUT
VOUTL
VDDD
VDDA
BCK
SYSCLK
DATAI
PLL0
0
1
WS
MUTE
VSSA
VSSD
VREF_DAC
DEEM
USB
VCCPVCC
PVSS VSS
AVREF
AVCC
PVCC
PLLVCC
DPVCC
AVCC
APVCC
DVCC
VCC
AVSS
DVSS
APVSS
AVSS
DPVSS
PLLVSS
VSSPVSS
COM
OUTIN
11
1
0
13
12
9
8
9
10
VSS
VDDQ
1M-1
DQM
VDD
VSSQ
0
A
BA
1
6
H
0
WE
L
NC
CAS
RAS
7
5
4
3
2
15
14
11
10
CS
CKE
CLK
D
0
1
2
3
4
5
6
7
8
1101 B1
1102 C1
1103 C14
1104 G14
1105 A1
1107 G10
1108 B8
2100 B10
123
45678
I
A
B
C
D
E
F
G
H
I
1100 A9
2101 B10
2102 B10
2103 A13
2104 A12
2105 A13
456789101112 13 14
123
2120 I1
2121 I1
91011121314
A
B
C
D
E
F
G
H
2106 B1
2107 A12
2108 B1
2109 B1
2110 C1
2111 C12
2112 E9
2113 F11
2114 F11
2115 F12
2116 F12
2117 F12
2118 F13
2119 I1
2150 I2
2122 I2
2123 I2
2124 I2
2125 I2
2126 I2
2127 I2
2128 I2
2129 I3
2130 I3
2131 I3
2132 I3
2133 I3
2134 I3
2135 I3
2136 I4
2137 I4
2138 H5
2139 I7
2140 I7
2141 I8
2142 I8
2143 I8
2144 I5
2145 I8
2146 I9
2147 I1
2148 I1
2149 I1
2179 I14
2151 I2
2152 I2
2153 I2
2154 I2
2155 I2
2156 I2
2157 I3
2158 I3
2159 I3
2160 I5
2161 I5
2162 A12
2163 B12
2164 A4
3111 E4
3112 E4
3113 F4
2165 A1
2166 A1
2167 A11
2168 F11
2169 C13
2170 E13
2171 E13
2172 G13
2173 G13
2174 G13
2175 G14
2176 G14
2177 G14
2178 I13
3128 D4
3129 D4
3130 D4
2180 I14
2181 B13
2182 B14
3100 A6
3101 B2
3102 C2
3103 C2
3104 D2
3105 D2
3106 D2
3107 E9
3108 E4
3109 E4
3110 E4
3151 G4
3152 E10
3153 C1
3154 I14
3114 F4
3115 F4
3116 F4
3117 F4
3118 F4
3119 F4
3120 F4
3121 F4
3122 F4
3123 F4
3124 A7
3125 D4
3126 D4
3127 D4
4107 E12
5100 A13
5101 C11
5102 F10
5103 F13
3131 D4
3132 D4
3139 B4
3140 B4
3141 D4
3142 D4
3143 E4
3144 E4
3145 D9
3146 D9
3147 A5
3148 G4
3149 A2
3150 A13
3155 C13
3156 C14
3157 D9
3158 D9
3159 D9
3160 F9
3161 F9
3162 A13
3163 B13
4100 A9
4101 A8
4102 B8
4103 A11
4106 B11
I101 A9
I102 D14
I103 D14
I104 D14
I105 D14
I106 D14
I107 E14
I108 E14
I109 E14
I110 E14
I111 G14
5104 H5
5105 H8
5106 H5
5107 H8
5108 I5
5109 I8
5110 I5
5111 A12
6100 A13
6101 A14
7100 A7
7101 A11
7102-1 C3
7102-2 B6
I126 C2
I127 C2
I128 D14
I129 A2
I130 E10
7102-3 D2
7103 C11
7106 G12
7107 H7
7108 A4
F101 G9
F102 G9
F103 G9
F104 G9
F105 G9
F106 G9
I100 A9
I138 I5
I139 I5
I140 H9
I141 H9
I112 G14
I113 G14
I114 G14
I115 G14
I116 G14
I117 H14
I118 H14
I119 H14
I120 H14
I121 H14
I122 H14
I123 H14
I124 H14
I125 B2
I131 A12
I132 A11
I133 A10
I134 A10
I135 B10
I136 B11
I137 H5
100n
2167
2125 100n
4K7
3139
2108
22p
3146 4K7
I105
I104
100p
2172
2173 100p
100p
2174
2175 100p
100p
2176
2177 100p
100p
2178
2179 100p
100p
2180
2171
100p
100n
2170
100p
2169
2104 100n
2165
22p
22p
2166
4107
3152
10K
10
13
14
28
15
12
37
27
46
11
I135
43
45
33
35
38
40
42
44
30
32
9
8
7
47
26
29
31
34
36
39
41
1
48
17
16
23
22
21
20
19
18
7103
M29W800DT-70N6
25
24
6
5
4
3
2
EPROM
1Mx8/512Kx16
4K73109
I129
5101
600R
2154 100n
2148 100n
4K73145
4EN_
GND
1
2
3
OC_ 5
6
7
8
I128
TPS2051BD
7100
22R 3157
2107 100n
BAS316
6100
160
PF8|NAF0|LCD_DATA8|SD_D2 158
PF9|NAF1|LCD_DATA9|SD_D3
5100
600R
124
PF29|SSIDATA3
166
PF2|TCLKC|LCD_DATA2|SSO0
128
PF30|AUDIO_CLK
165
PF3|TCLKD|LCD_DATA3|SCS0 164
PF4|FWE|LCD_DATA4|SSCK1 163
PF5|FCDE|LCD_DATA5|SSI1 162
PF6|FOE|LCD_DATA6|SSO1 161
PF7|FSC|LCD_DATA7|SCS1
140
PF21|SSISCK1|LCD_CLK 142
PF22|SSIWS1|LCD_VCPWC|AUDATA2 145
PF23|SSIDATA1|LCD_VEPWC|AUDATA3 136
PF24|SSISCK2 135
PF25|SSIWS2 134
PF26|SSIDATA2 126
PF27|SSISCK3 125
PF28|SSIWS3
150
PF14|NAF6|LCD_DATA14|SD_WP 149
PF15|NAF7|LCD_DATA15|SD_CD 148
PF16|FRB|LCD_DON 147
PF17|FCE|LCD_CL1 137
PF18|SSISCK0|LCD_CL2 138
PF19|SSIWS0|LCD_M_DISP
167
PF1|TCLKB|LCD_DATA1|SSI0
139
PF20|SSIDATA0|LCD_FLM
69
PE7|FRAME|IRQ3|TXD2|DACK1 62
PE8|CE2A|IRQ4|SCK2 70
PE9|CS5|CE1A|IRQ5|SCK3
169
PF0|TCLKA|LCD_DATA0|SSCK0
155
PF10|NAF2|LCD_DATA10|SD_CMD 153
PF11|NAF3|LCD_DATA11|SD_SCLK 152
PF12|NAF4|LCD_DATA12|SD_D0 151
PF13|NAF5|LCD_DATA13|SD_D1
82
PE14|CS1|CTS3 83
PE15|IOIS16|RTS3
63
PE1|CS4|MRES|TXD0
47
PE2|A21|SCK0 48
PE3|A22|SCK1 64
PE4|A23|IRQ0|RXD1|DREQ0 66
PE5|A24|IRQ1|TXD1|DACK0 68
PE6|A25|IRQ2|RXD2|DREQ1
202 PD7|D23|IRQ7|SCS1|TCLKD|TIOC2B
201 PD8|D24|PINT0|SD_D2|DREQ0|TIOC3A
200 PD9|D25|PINT1|SD_D3|DACK0|TIOC3B
49
PE0|BS|RXD0|ADTRG
71
PE10|CE2B|IRQ6|TEND0 72
PE11|CS6|CE1B|IRQ7|TEND1 73
PE12|RXD3 81
PE13|TXD3
193 PD14|D30|PINT6|SD_WP|TIOC4C
192 PD15|D31|PINT7|SD_CD|ADTRG|TIOC4D
212 PD1|D17|IRQ1|SSI0|DACK2|TIOC0B
211 PD2|D18|IRQ2|SSO0|DREQ3|TIOC0C
210 PD3|D19|IRQ3|SCS0|DACK3|TIOC0D
208 PD4|D20|IRQ4|SSCK1|TCLKA|TIOC1A
205 PD5|D21|IRQ5|SSI1|TCLKB|TIOC1B
203 PD6|D22|IRQ6|SSO1|TCLKC|TIOC2A
5PC7|WE3|DQMUU|AH|ICIOWR
3PC8|RASL
2PC9|CASL
213 PD0|D16|IRQ0|SSCK0|DREQ2|TIOC0A
199 PD10|D26|PINT2|SD_CMD|TEND0|TIOC3C
197 PD11|D27|PINT3|SD_SCLK|DREQ1|TIOC3D
195 PD12|D28|PINT4|SD_D0|DACK1|TIOC4A
194 PD13|D29|PINT5|SD_D1|TEND1|TIOC4B
238 PC13|RD|WR
75 PC14|WAIT
20 PC1|A1
15 PC2|CS2
14 PC3|CS3
13 PC4|WE0|DQMLL
10 PC5|WE1|DQMLU|WR
8PC6|WE2|DQMUL|ICIORD
189 PB6|SCL3|PINT6|IRQ6
190 PB7|SDA3|PINT7|IRQ7
85 PB8|CRXD0|CRXD0|CRXD1
86 PB9|CTXD0|CTXD0&CTXD1
PC0|A0|CS7|AUDSYNC
17
1PC10|RASU|BACK|AUDATA0
240 PC11|CASU|BREQ|AUDATA1
239 PC12|CKE
88 PB11|CTXD1|IETXD
122 PB12|WDTOVF|IRQOUT|REFOUT|UBCTRG|AUDCK
180 PB1|SDA0|PINT1|IRQ1
181 PB2|SCL1|PINT2|IRQ2
182 PB3|SDA1|PINT3|IRQ3
185 PB4|SCL2|PINT4|IRQ4
186 PB5|SDA2|PINT5|IRQ5
112 PA2|AN2
113 PA3|AN3
115 PA4|AN4
117 PA5|AN5
118 PA6|AN6|DA0
119 PA7|AN7|DA1
179 PB0|SCL0|PINT0|IRQ0
87 PB10|CRXD1|IERXD
231 D4
230 D5
228 D6
225 D7
223 D8
222 D9
110 PA0|AN0
111 PA1|AN1
221 D10
220 D11
219 D12
217 D13
215 D14
214 D15
233 D2
232 D3
24
A4 25
A5 26
A6 27
A7 28
A8 30
A9
235 D0
234 D1
39
A15 40
A16 42
A17 44
A18 45
A19
22
A2
46
A20
23
A3
33
A10 35
A11 36
A12 37
A13 38
A14
USB_X1 93
USB_X2 94
VBUS
102
XTAL
55
R5S72630P200FP
7102-2
RES
59
RTC_X1 78
RTC_X2 79
TCK 178
TDI 174
TDO 177
TMS 172
TRST 176
DP
101
EXTAL
56
MD
90
MD_CLK0
97 MD_CLK1
96
NMI
57
RD 12
REFRIN
105 ASEBRKAK|ASEBRK 175
ASEMD
61
AUDIO_X1 131
AUDIO_X2 132
CKIO
50
CS0 11
DM
100
CONTROL
7102-1
R5S72630P200FP
2141
47u 16V
4K7
16V 47u
2103
3123
2
22p
2101
11
7
6
13
4
14
16
12
15
5
1
3
9
8
10
DAC
Φ
7101
UDA1334ATS
100n2152
2151 100n
I139
100n2168
24M576
1105
I130
I134
I133
4K7
3140
I127
4K73144
31294K7 3128
31274K7
4K7
100n2153
2105
47u16V
4K73132
4K73111
3131 4K7
5
GND
3
INP
2
NC
4
OUTP 1
NCP303LSN30
7108
CD
600R
5111
4K7 3126
91
129
143
156
141
154
6
170
188
206
226
18
32
52
76
4
168
191
204
224
16
34
51
74
89
127
84
92
107
106 103
104
99
98 108
109
196
207
216
227
19
236
31
41
53
65
77
80
95
123
7
121
130
144
157
171
187
184
198
209
218
229
21
237
29
43
54
67
116
120
6058
9
133
146
159
173
183
R5S72630P200FP
7102-3
114
3102
1M0
16M67
1102
2143 100n
2134 100n
600R5108
2102 22p
I138
2114 100n
20
21
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
2
HLW21S-2C7LF
1103
1
10
I132
I136
2100 22p
10u2163
2162 10u
2116 100n
4100
12
1M0
3101
100n2158
100n2126
6101
100n2123
BAS316
I113
4K7
3147
100n2147
3149
1M0
2117 100n
100n2118
4102
1222p
2106
12
100n2130
4101
100n2156
5107 600R
4K73148
2124 100n
4K73151
4103
12
31251K0
I102
I101
F101
F102
2115
100n2120
100n
2119 100n
100n2131
5K6
6
7
8
9
3106
24
25
26
27
28
29
3
30
4
5
15
16
17
18
19
2
20
21
22
23
1104
HLW30S-2C7
1
10
11
12
13
14
5110 600R
I112
5103
600R
100n2113
3112 4K7
3142 4K7
3108 4K7
I124
3107 22R
1101
48M
2155 100n
I109
I108
I120
2136 100n
4K73122
2149 100n
3105 22R
4K73130
600R5105
I100
4K73116
2122 100n
F104
3100
10K
22R3104
I110
I106
I107
100n 2145
2146100n
3110 4K7
I111
I119
I123
100n2135
600R
5102
32
16V47u
2139
7107
LD1117DT12
1
100n2127
I103
3160
4K7
I126
100n2121
3143 4K7
5106 600R
4K73121
4K73120
3119 4K7
4K73118
100n2157
4K7 3161
I144
I143
4K73153
100n2138
3117 4K7
I114
I115
I121
31544K7
5
6
100n2133
1
2
3
4
100n2150
HLW6S-2C7
1107
2128 100n
I122
3115 4K7
2160100n
315822R
22R 3159
2129 100n
5109 600R
600R5104
10n
2181
2182
10n
100R
100R3162
3163
F105
F103
2140 100n
100n2142
I118
22p
2110
I117
I116
F106
31552K2
I137
2K2 3156
I141
I142
I140
I131
4K73141
2109
22p
49
28
41
54
6
12
46
52
16
15
36
40
18
1
14
27
3
9
43
51
53
5
7
8
10
11
13
42
44
39
21
17
37
38
19
2
4
45
47
48
50
35
25
26
29
30
31
32
33
34
20
IS42S16400D-7TL
7106
23
24
22
14
23
1M X 16 X 4
DRAM
Φ
I125
1108
ACM
3150
150R
2137 100n
2111
100n
3103
22R
12
4K73113
4106
2112 100n
2159 100n
100n 2161
10K
3124
4K73114
2164
100n
22n
2144
2
3
4
5
100n2132
319804000050
1100
1
+5VL
ASEMDn
RESETn
ASEBRKAKn
AUDCK
AUDATA0
AUDATA1
AUDATA2
AUDATA3
USB_L
USB_R
A(4)
A(5)
A(6)
A(7)
A(8)
RXD0
TXD0
AUDATA2
AUDATA3
+3V3A_IN
+3V3_AVref_IN
+1V2_PLL_IN
+3V3_IN
+3V3_USB_IN
+1V2_USB_IN
+1V2_IN
+3V3_IN
+3V3_IN
A(19)
+5V_USB
MCU_IRQ
ASEBRKAKn
AUDIO_X1
AUDIO_X2
FLASH_CS
FLASH_RD
TCK
TDI
TDO
TMS
TRSTn
USB_X1
USB_X2
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(1)
A(19)
A(2)
A(3)
D(3)
D(4)
D(5)
D(6)
D(7)
D(8)
D(9)
AUDCK
SCL_0
SDA_0
AUDSYN
AUDATA0
AUDATA1
CKE
RDWRn
A(0)
SDRAM_CSn
DQMLL
DQMLU
RASn
CASn
USB_ENn
MCU_IRQ
USB_OCn
DAC_MUTE
+3V3D
+3V3A
A(10)
A(12)
+3V3_SDRAM
A(11)
DQMLU
+3V3_IN
+3V3_IN
+3V3_IN
SCL_0
SDA_0
+3V3_IN
USB_PCM_BCLK
USB_PCM_D0
D(0)
D(1)
D(10)
D(11)
D(12)
D(13)
D(14)
D(15)
D(2)
USB_DP_OUT
+3V3_IN
+3V3_IN
+3V3
+3V3_IN
+3V3_IN
USB_PCM_LRCLK
AUDIO_X2
AUDIO_X1
+5VL
+3V3_IN
USB_PCM_LRCLK
DAC_MUTE
USB_PCM_D0
USB_PCM_BCLK
D(3)
D(4)
D(6)
D(8)
D(10)
D(12)
D(14)
D(15)
D(13)
D(11)
D(9)
D(7)
D(5)
D(0:15)
+3V3_SDRAM_VDDQ
+3V3_IN
USB_ENn
USB_OCn
+3V3_IN
SDRAM_CSn
DQMLL
DQMLU
USB_DP
USB_DM_OUT
+3V3_IN
+3V3_IN
RESETn
A(3)
A(5)
A(4)
A(6)
A(7)
A(8)
A(9)
A(13)
SDRAM_CSn
+3V3
RASn
CASn
CKE
RDWRn
SDRAM_CLK
D(0:15)
D(1)
D(3)
D(5)
D(7)
D(9)
D(11)
D(13)
D(15)
+3V3
+5V_USB
D(0)
D(1)
D(2)
+3V3A_IN
+3V3_AVref_IN
+3V3_USB_IN
+3V3_IN
+1V2_IN
+3V3_FLASH
+3V3
+3V3
A(0)
D(0)
D(10)
D(12)
D(14)
D(2)
D(4)
D(6)
D(8)
DQMLL
A(0:18)
A(1)
A(2)
D(10)
D(11)
D(12)
D(13)
D(14)
D(15)
D(2)
D(3)
D(4)
D(5)
D(6)
D(7)
D(8)
D(9)
D(0:15)
A(0:19)
FLASH_RD
FLASH_CS
DQMLL
RESETn
+3V3
+3V3_IN
+1V2_IN
+1V2_PLL_IN
+1V2_USB_IN
TDI
TRSTn
TMS
TCK
AUDSYN
USB_L
USB_R
RESETn
USB_PCM_MCLK
A(1:19)
A(0)
A(1)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)
A(9)
D(0)
D(1)
USB_DM
+5V_USB_OUT
+3V3
SDRAM_CLK
RESETn
ASEMDn
USB_DM
USB_DP
+5V_USB_OUT
USB_X2
USB_X1
TDO
to USB Cable Ass'y
to AV_1107
Page 61 G1
DVR-1000
Z
12345678
A
B
C
D
E
F70
DVX-1000
*Components having special characteristics are marked Zand must be replaced
with parts having specifications equal to those originally installed.
*Schematic diagram is subject to change without notice.
POWER SUPPLY UNIT
to AV_1111
to FRONT (1)_1105
Page 63 A1 Page 61 E1
DVR-1000
Z
ABCDEFGH
1
2
3
4
5
6
IJKLMN
7
8
9
10
71
DVX -1000
IC1
IC2
IC4
IC6 IC9
IC8
IC13
IC10
IC14
IC15
IC16
IC12
IC11
IC5
IC7
IC3
DECODER
DSP
DIR
MICRO-
PROCESSOR
CODEC
4M FLASH ROM16M SDRAM
REGULATOR
REGULATOR
BUFFER
BUFFER
RESET
DVR IN
D_F
FL
SW
D_SW
5.0
2.5
5.0
5.0
2.1
0
0
2.1
3.3
3.3
0.6
3.3
0
1.7
1.3
1.3
1.3
1.7
1.7
1.3
1.3
1.3
3.3
3.2
3.0
3.3
3.3
3.3
3.3
3.3
3.3
1.3
1.3
1.3
1.3
1.3
1.3
3.3
3.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.7
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
0
0
0
00
3.3
1.7
0
3.3
1.7
1.3
0
3.3
0
0
5.0
5.0
5.0
5.0
0.1
0
0
0
0
0
0
0
3.3
5.0
5.0
4.8
3.3
3.3
3.3
0.1
0
3.3
5.0
3.3
3.3
3.0
5.0
5.0
5.0
5.0
3.2
3.2
0
0
0
0
0
0
5.0
5.0
0
0
0
0
0
0
0
0
0
0
0
5.0
0
0
0
0
0
0
0
1.7
1.7
1.3
1.3
2.5
2.5
00
0
00
0
0
0
2.9 3.3
1.3
2.7
0
0
0
00
0
2.5
2.5
1.0
2.4
2.6
2.6
2.5
5.0
5.0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
5.0
5.0
5.0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
5.0
5.0
5.0
0
0
0
0
4.9
4.9
4.9
1.7
5.0
0
0
0
0
0.7
0.1
3.3
5.0
5.0
2.5
12.012.0
4.5
4.53.3
4.5
2.91.3
5.0
0
5.0 12.2
5.0
3.6
0
2.1
0
0
0
-11.6
5.0
5.0
5.0
2.5
2.5
2.5
0
02.5
2.5
0
0
0
0
0
0
0
0
5.0
2.9
2.5
2.4
4.8
5.0
5.0
4.9
4.9
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
4.8
5.0
4.1
4.1
4.1
4.1
5.0
5.0 5.0
5.0
5.0
0
0
0
5.0
0
0
0
0
0
3.3
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
0
0
1.7
1.7
1.7
3.3
3.3
3.3
3.3
3.3
1.3
1.3
3.3
3.03.2
3.3
3.3
3.3
3.3
3.2
0.2 1.8
1.8
1.2
1.2
0.1
0.2
1.9
3.0
3.2
3.3
3.3
3.3
3.3
3.3
3.3
2.3
2.3
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.2
1.8
1.1
1.2
1.9
0.2
3.3
3.3
3.3
3.3
3.3
3.2
3.2
3.2
3.2
3.2
3.2
3.3
3.3
3.3
3.2
0
0
0
00
00
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1.8
1.3
1.3
1.3
1.3
1.1
1.2
0.2
1.2
1.7
1.8
1.8
1.9
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.0
3.2
3.4
0.2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
3.3
3.2
3.2
3.2
2.3
3.2
3.2
3.2
3.2
3.2
3.3
3.2
3.2
3.2
3.2
1.3
1.3
1.3
0.2
1.7
1.3
1.3
3.3
1.3
0.7
3.3
1.5
0
1.6
1.7
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
0
0
5.0
5.0
0
0
2.4
3CH1
3
CH2
1
2
to DSP (2)_CB203
to DSP (3)_CB304
to MAIN (1)_CB2
to MAIN (2)_CB3
to MAIN (2)_CB4
to DSP (2)_CB201
to DSP (2)_CB202
DSP (1) 1/2
No replacement part available.
Page 72 E9
Page 72 I7
Page 73 A2
Page 74 A3
Page 74 A5
Page 72 E7
Page 72 E8
■ SCHEM ATIC DIAGRAM S
DSP 1/2
*
All voltages are measured with a 10M
Ω
/V DC electronic volt meter.
*Components having special characteristics are marked
Z
and
must be replaced with parts having specifications equal to
those originally installed.
*Schematic diagram is subject to change without notice.
IC8: SN74LV245APWR
Octal 3-state bus transceivers
1
DIR
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
A8
10
GND
20 VCC
18 B1
17 B2
16 B3
15 B4
14 B5
13 B6
12 B7
11 B8
19 ENG
IC11: PQ012FZ01ZPH
Rgulator
DC INPUT (VIN) DC OUTPUT (VO)
ON/OFF CONTROL (VC)
GND
2
5
31
I C
A1
B1
A2
VDD
B4
1
2
3
411
Y1 A4
Y4
12
13
14
B2
Y2
B3
A3
5
6
7
VSS Y38
9
10
IC6, 9: SN74AHCT08PWR
Quad 2 input AND
Z
IC7: S29AL004D70TFI020
4M bit flash memory
IC5: W9816G6CH-7
512K x 2 banks x 16 bits SDRAM
CLOCK
BUFFER
ADDRESS
BUFFER
CLK 35
18
CKE 34
A10 20
CS
17RAS
16CAS
15WE
21A0
24A3
27A4
32A9
19BA
2 DQ0
3 DQ1
5 DQ2
6 DQ3
8 DQ4
9 DQ5
11 DQ6
12 DQ7
39 DQ8
40 DQ9
42 DQ10
43 DQ11
45 DQ12
46 DQ13
48 DQ14
49 DQ15
14 LDQM
36 UDQM
COMMAND
DECODER
REFRESH
COUNTER
REFRESH
COUNTER DQ
BUFFER
COLUMN
COUNTER
MODE
REGISTER
CONTROL
SIGNAL
GENERATOR
CELL ARRAY
BANK #0
R
O
W
D
E
C
O
D
E
R
COLUMN DECODER
SENSE AMPLIFIER
CELL ARRAY
BANK #1
R
O
W
D
E
C
O
D
E
R
COLUMN DECODER
SENSE AMPLIFIER
NX-SW1000
IC13: M30626FHPFP
Single-chip 16-bit CMOS microprocessor
IC14, 15: NJM4580E
Dual operational amplifier
–+
OUT
1
–IN
1
–V
CC
+V
CC
OUT
2
1
2
3
45
+IN
1
–IN
2
+IN
2
–+
6
7
8
IC3: SN74AHC1G08DCKR
Single 2 input AND
1
2
3
5
4
VDD
OUT X
IN B
VSS
IN A
1A
1Y
2Y
VDD
6A
1
2
3
411
2A 6Y
5A
12
13
14
3A
3Y
5Y
4A
5
6
7
VSS 4Y8
9
10
IC2: MM74HCU04SJX
Hex inverters
RY/BY
ERASE VOLTAGE
GENERATOR
SECTOR
SWITCHES
TIMER
VCC DETECTOR
VCC
VSS
WE
BYTE
CE
OE
A0–A17
RESET
STATE
CONTROL
COMMAND
REGISTER
CHIP ENABLE
OUTPUT ENABLE
LOGIC
PGM VOLTAGE
GENERATOR
I/O BUFFERS
DQ0–DQ15 (A-1)
DATA LATCH
Y-DECODER
X-DECODER
ADDRESS LATCH
STB
STB
Y-G ATING
CELL MATRIX
Point e
CH 1 : Out of IC16
CH 2 : Collector of Q1
↑
SYSTEM POWER SW ON ↑
SYSTEM POWER SW OFF
Point w Pin 13 of IC13Point q Pin 29 of IC4
Output (timer A): 5
Input (timer B): 6
Internal peripheral functions
Watchdog timer
(15-bit)
DMAC
(2-channel)
D/A converter
(8-bit x 2-channel)
Memory
ROM
(1)
RAM
(2)
A/D converter
(10-bit
X
8-channel
Expandable up to 26-channel)
UART or
clock synchronous serial I/O
(8-bit
X
3-channel)
System clock
generation circuit
XIN-XOUT
XCIN-XCOUT
PLL frequency synthesizer
On-chip oscillator
M16C/60 series16-bit
microprocessor
core
Port P0
8
Port P1
8
Port P2
8 8 8 8
Port P6
8
8
R0LR0H
R1H R1L
R2
R3
A0
A1
FB
SB
ISP
USP
INTB
CRC arithmetic circuit (CCITT)
(Polynomial : X
16
+X
12
+X
5
+1)
Multiplier
788
Port P10 Port P9 Port P8_5 Port P8 Port P7
NOTES :
1. ROM size depends on
microprocessor
type.
3. Ports P11 to P14 exist only in 128-pin version.
4. Use M16C/62PT on VCC1= VCC2.
Port P5
Port P4Port P3
Clock synchronous serial I/O
(8-bit
X
2-channel)
PC
FLG
Timer (16-bit)
Three-phase motor
control circuit
8 8 82
Port P11 Port P12
Port P14 Port P13
(3)
<VCC2 ports>
(4)
<VCC1 ports>
(4)
<VCC1 ports>
(4)
<VCC2 ports>
(4)
<VCC1 ports>
(4)
(3) (3) (3)
IC4: LC89057W-VF4AD-E
Digital audio interface transceiver
Input
Selector
RXOUT
RX0
RX1
RX2
RX3
RX4
RX5/VI
RX6/UI
LPF
TMCK/PIO0
TBCK/PIO1
TLRCK/PIO2
TDATA/PIO3
TXO/PIOEN
Cbit, Ubit Microcontroller
I/F
Data
Selector
Clock
Selector
Modulation
&
Parallel Port
PLL
XIN XOUT XMCK CKST
SLRCK
SBCK
RLRCK
RBCK
RMCK
SDIN
RDATA
RERR
DO
XMODECICECLINTAUDIO/VOEMPHA/UO
1/N
Demodulation
&
Lock detect
1
2
3
4
5
8
9
10
13
44
45
46
47
48
29 28 27 34
23
22
20
17
16
24
21
36
37
41383940353332
IC10: AK4628VQ
192 kHz 24-bit 8-channel CODEC
MCLK
LRCK
BICK
Format
Converter
SDOS
SDOUT
SDIN1
SDIN2
SDIN3
SDIN4
ADC HPF
Audio
I/F
ADC HPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
DAC DATTLPF
AK4628A
22
ROUT4
12
1
SDTI4
8
SDTI3
7
SDTI2
6
SDTI1
9
SDTO
10
DAUX
4
BICK
5
LRCK
39
MCLK
32
RIN
31
LIN
21
LOUT4
24
ROUT3
23
LOUT3
26
ROUT2
25
LOUT2
28
ROUT1
27
LOUT1
Pin Multiplexing
EMIF32 L1P Cache
Direct Mapped
4K Bytes Total
Digital Signal Processors
L1D Cache
2-Way Set
Associative
4K Bytes Total
Clock Generator,
Oscillator and PLL
x4 through x25 Multipliers
/1 through /32 Dividers
Power-Down
Logic
Instruction Fetch
Instruction Dispatch
Instruction Decode
Data Path BData Path A
B Register File
Control
Registers
C67x
TM
CPU
Control
Logic
In-Circuit
Emulation
Interrupt
Control
Test
A Register File
.L1t
McASP1
McASP0
McBSP1
McBSP0
I2C1
I2C0
Timer 1
Timer 0
.S1t .M1t .D1 .D2 .M2t .S2t .L2t
GP1
GP0
HPI16
Enhanced
DMA
Controller
(16 channel)
L2 Cache/
Memory
4 Banks
64K Bytes
Tot al
(4-Way)
L2
Memory
DA610:
192K Bytes
DA601:
64K Bytes
R2 ROM
512K
Bytes
Tot al
IC1: D60YA003BPYP225
Decoder
ABCDEFGH
1
2
3
4
5
6
IJKLMNO
7
8
9
10
72
DVX-1000
*
All voltages are measured with a 10M
Ω
/V DC electronic volt meter.
*Components having special characteristics are marked
Z
and
must be replaced with parts having specifications equal to
those originally installed.
*Schematic diagram is subject to change without notice.
DSP 2/2
Z
E-VOLUME
MUTE
REGULATOR
IC17
FL
SW
FL
SW
to MAIN (1)_CB1
DSP (1) 2/2
Page 73 A4
12.0
-11.6 -6.2
6.9
00
6.9-6.8
-6.8
6.3
5.0
0.1
5.0
6.3
6.3
-6.2
-6.2
-6.2
-6.2
6.3
-6.2 6.1
6.1
6.1
1.1
0
00
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
5.0
5.0
6.1
0
DVR IN
to DSP (1)_W7
to DSP (1)_W3
to DSP (1)_W8
to DSP (1)_W2
SYSTEM
CONNECTOR
DSP (2) DSP (3)
Page 71 L4
Page 71 L5
Page 71 J1
Page 71 J2
5.0
5.0
0
00
0
0
0
0
0
0
IC17: YAC523-VZ
Digital volume
3
IN1
34
OUT1
OUT2
VolB: 50kohm
VolA: 30kohm
45
TE1
44
TE2
39
ZCEN2
38
ZCEN1
2
AVDD
46
DGND
47
REF
1
AVSS
43
SDATAO (OD)
41
SDATAI
42
SCLK
40
20
19
18
CSN
Control
Register
25
REF1B
24
REF1A
0~95dB 100
0~+31.5dB
+
–
OPA
Zero Crossing
Detector
4
IN2
33
VolB: 50kohm
VolA: 30kohm
23
REF2B
22
REF2A
0~95dB 100
0~+31.5dB
+
–
OPA
Zero Crossing
Detector
Zero Crossing
Detector
5
IN3
32
OUT3
OUT4
VolB: 50kohm
VolA: 30kohm
21
REF3B
20
REF3A
0~95dB 100
0~+31.5dB
+
–
OPA
Zero Crossing
Detector
Zero Crossing
Detector
6
IN4
31
VolB: 50kohm
VolA: 30kohm
19
REF4B
18
REF4A
0~95dB 100
0~+31.5dB
CH1, 2, 3, 4 Control
56
+
–
OPA
Zero Crossing
Detector
Zero Crossing
Detector
S/P
Register
OUT5
14
REF6B
VolB: 50kohm
VolA: 30kohm
8
IN6
13
REF7A
0~95dB 100
0~+31.5dB
+
–
OPA
12
REF7B
OUT6
OUT7
VolB: 50kohm
VolA: 30kohm
9
IN7
15
REF6A
0~95dB 100
0~+31.5dB
+
–
OPA
16
REF5B
VolB: 50kohm
VolA: 30kohm
7
IN5
17
REF5A
0~95dB 100
0~+31.5dB
CH5, 6, 7 Control
+
–
OPA
NX-SW1000
ABCDEFGH
1
2
3
4
5
6
IJKLMN
7
8
9
10
73
DVX -1000
M AIN 1/2
*
All voltages are measured with a 10M
Ω
/V DC electronic volt meter.
*Components having special characteristics are marked
Z
and
must be replaced with parts having specifications equal to
those originally installed.
*Schematic diagram is subject to change without notice.
Z
REGULATOR
POWER AMP
MUTE
LIMITER
A.N.I.C
RELAY
DRIVE
PROTECTION
L.P.F
L.P.F
H.P.F
IC2
IC7
IC1
IC3
IC4
SUBWOOFER
FRONT L
FL
SW
5.6K 5.6K
1.5K
3.3K
STK433-330-E
STK433-330Y-E
IC7
to DSP (1)_W4
to DSP (1)_W9
to MAIN (4)_W1B
to MAIN (2)_W2B
to MAIN (2)_W3B
Page 71 L2
Page 72 I4
Page 74 H2
Page 74 A5
Page 74 A6
0.1
-11.6
12.0
0.1
0.1
0.1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
00
0
0
0
0
0
0
17.1
-46.5
-47.7
47.5
-47.7
47.7
047.7
47.5
0
0
0.1
0
47.5
0.1
0
00
0
0
0
47.5
0
0
47.5
47.5
-47.5
-47.5
47.547.5
-46.5
-46.5-47.1
-46.5
-0.4
2.92.9
2.3
0
0 -0.4
2.3
46.8
47.5
27.9
47.5
000
00
0
00 0
00
00 0 0 0
00
0.4
1.6
0
0
0
0
00
0.1
0.1
0
0
12.0-11.6
-11.6
12.0
00
0
0
0
0
-11.6
12.0
0
0.1
0.1
12.0
0
0
0
-11.6
0
0
0
0
0
0
0
0
5.0
0.1 0.1
4.9
3.7
3.7
4.9
0.1
0.1
0
0
0
0
0
0
12.0
12.0
3.7
11.9
11.9
11.9
11.9
11.9
-11.6
-11.6 -11.9
NX-SW1000
IC1–4 : NJM4580E
Dual operational amplifier
–+
OUT
1
–IN
1
–V
CC
+V
CC
OUT
2
1
2
3
45
+IN
1
–IN
2
+IN
2
–+
6
7
8
IC7: STK433-330-E
3-channel AF power amplifier, stand-by circuit built-in
SUB
Pre
Driver
CH1
+
–
Pre
Driver
CH2
MONO IC
Bias Circuit
Pre
Driver
CH3
9 5 4 6 7 10 13 14151617 19 18
3
8
11
12
1
2
+
–
+
–
ABCDEFGH
1
2
3
4
5
6
IJKLMNO
7
8
9
10
74
DVX-1000
M AIN 2/2
*
All voltages are measured with a 10M
Ω
/V DC electronic volt meter.
*Components having special characteristics are marked
Z
and
must be replaced with parts having specifications equal to
those originally installed.
*Schematic diagram is subject to change without notice.
Z
POWER SUPPLY
REGULATOR
AC DETECT
POWER DOWN
DETECT
IC14
IC12
IC10
IC11
FRONT L
s 9 R157 RD35715
15K
VU99960
MA8270-H
D31
s 10
s 9 s 10
1P 0.22
to DSP (1)_W5
to DSP (1)_W6
to MAIN (1)_W2A
to MAIN (1)_W3A
to MAIN (1)_W1A
to MAIN (2)_CB16
SPEAKERS
to POWER TRANSFORMER
to POWER TRANSFORMER
to POWER TRANSFORMER
G, F
J, G, F models
R, K, A, L models
Page 71 L2
Page 71 L3
Page 73 K2
Page 73 K3
Page 73 K1
00
00
0
0
0
0
0
0
0
0
0
19.2
47.7 -47.7
12.0
0
-19.1
11.6
0.1 12.1
0.1
0
0.8
0AC15.2
AC9.4
13.0
13.0
10.3
013.0
19.3
-19.2
4.8
4.8 5.0
1.0
0
5.0
5.0
4.9
4.7
10.2
AC70.1
NX-SW1000
IC14: LM61CIZ
Temperature sensor
Vout
+Vs
GND
75
DVX -1000
DVX-1000
●ELECTRICAL COMPONENT PARTS
WARNING
●Components having special characteristics are marked
Z
and must be replaced with parts having specifications equal
to those originally installed.
●The chip resistor is not supplied as a replacement part.
*When a chip resistor is necessary, use the following part.
AAX60720: CHIP RESISTOR SAMPLE BOOK
●Z
●
●
■REPLACEM ENT PARTS LIST
ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS :
C.A.EL.CHP : CHIP ALUMI. ELECTROLYTIC CAP
C.CE : CERAMIC CAP
C.CE.ARRAY : CERAMIC CAP ARRAY
C.CE.CHP : CHIP CERAMIC CAP
C.CE.ML : MULTILAYER CERAMIC CAP
C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP
C.CE.SAFTY : RECOGNIZED CERAMIC CAP
C.CE.TUBLR : CERAMIC TUBULAR CAP
C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP
C.EL : ELECTROLYTIC CAP
C.MICA : MICA CAP
C.ML.FLM : MULTILAYER FILM CAP
C.MP : METALLIZED PAPER CAP
C.MYLAR : MYLAR FILM CAP
C.MYLAR.ML : MULTILAYER MYLAR FILM CAP
C.PAPER : PAPER CAPACITOR
C.PLS : POLYSTYRENE FILM CAP
C.POL : POLYESTER FILM CAP
C.POLY : POLYETHYLENE FILM CAP
C.PP : POLYPROPYLENE FILM CAP
C.TNTL : TANTALUM CAP
C.TNTL.CHP : CHIP TANTALUM CAP
C.TRIM : TRIMMER CAP
CN : CONNECTOR
CN.BS.PIN : CONNECTOR, BASE PIN
CN.CANNON : CONNECTOR, CANNON
CN.DIN : CONNECTOR, DIN
CN.FLAT : CONNECTOR, FLAT CABLE
CN.POST : CONNECTOR, BASE POST
COIL.MX.AM : COIL, AM MIX
COIL.AT.FM : COIL, FM ANTENNA
COIL.DT.FM : COIL, FM DETECT
COIL.MX.FM : COIL, FM MIX
COIL.OUTPT : OUTPUT COIL
DIOD.ARRAY : DIODE ARRAY
DIODE.BRG : DIODE BRIDGE
DIODE.CHP : CHIP DIODE
DIODE.VAR : VARACTOR DIODE
DIOD.Z.CHP : CHIP ZENER DIODE
DIODE.ZENR : ZENER DIODE
DSCR.CE : CERAMIC DISCRIMINATOR
FER.BEAD : FERRITE BEADS
FER.CORE : FERRITE CORE
FET.CHP : CHIP FET
FL.DSPLY : FLUORESCENT DISPLAY
FLTR.CE : CERAMIC FILTER
FLTR.COMB : COMB FILTER MODULE
FLTR.LC.RF : LC FILTER ,EMI
GND.MTL : GROUND PLATE
GND.TERM : GROUND TERMINAL
HOLDER.FUS : FUSE HOLDER
IC.PRTCT : IC PROTECTOR
JUMPER.CN : JUMPER CONNECTOR
JUMPER.TST : JUMPER, TEST POINT
L.DTCT : LIGHT DETECTING MODULE
L.EMIT : LIGHT EMITTING MODULE
LED.DSPLY : LED DISPLAY
LED.INFRD : LED, INFRARED
MODUL.RF : MODULATOR, RF
PHOT.CPL : PHOTO COUPLER
PHOT.INTR : PHOTO INTERRUPTER
PHOT.RFLCT : PHOTO REFLECTOR
PIN.TEST : PIN, TEST POINT
PLST.RIVET : PLASTIC RIVET
R.ARRAY : RESISTOR ARRAY
R.CAR : CARBON RESISTOR
R.CAR.CHP : CHIP RESISTOR
R.CAR.FP : FLAME PROOF CARBON RESISTOR
R.CEMENT : CEMENT RESISTOR
R.FUS : FUSABLE RESISTOR
R.MTL.CHP : CHIP METAL FILM RESISTOR
R.MTL.FLM : METAL FILM RESISTOR
R.MTL.OXD : METAL OXIDE FILM RESISTOR
R.MTL.PLAT : METAL PLATE RESISTOR
RSNR.CE : CERAMIC RESONATOR
RSNR.CRYS : CRYSTAL RESONATOR
R.TW.CEM : TWIN CEMENT FIXED RESISTOR
SCR.BND.HD : BIND HEAD B-TITE SCREW
SCR.BW.HD : BW HEAD TAPPING SCREW
SCR.CUP : CUP TITE SCREW
SCR.TERM : SCREW TERMINAL
SCR.TR : SCREW, TRANSISTOR
SUPRT.PCB : SUPPORT, P.C.B.
SURG.PRTCT : SURGE PROTECTOR
SW.TACT : TACT SWITCH
SW.LEAF : LEAF SWITCH
SW.LEVER : LEVER SWITCH
SW.MICRO : MICRO SWITCH
SW.PUSH : PUSH SWITCH
SW.RT.ENC : ROTARY ENCODER
SW.RT.MTR : ROTARY SWITCH WITH MOTOR
SW.RT : ROTARY SWITCH
SW.SLIDE : SLIDE SWITCH
TERM.SP : SPEAKER TERMINAL
TERM.WRAP : WRAPPING TERMINAL
THRMST.CHP : CHIP THERMISTOR
TR.CHP : CHIP TRANSISTOR
TR.DGT : DIGITAL TRANSISTOR
TR.DGT.CHP : CHIP DIGITAL TRANSISTOR
TRANS : TRANSFORMER
TRANS.PULS : PULSE TRANSFORMER
TRANS.PWR : POWER TRANSFORMER ASS’y
TUNER.AM : TUNER PACK, AM
TUNER.FM : TUNER PACK, FM
TUNER.PK : FRONT-END TUNER PACK
VR : ROTARY POTENTIOMETER
VR.MTR : POTENTIOMETER WITH MOTOR
VR.SW : POTENTIOMETER WITH ROTARY SW
VR.SLIDE : SLIDE POTENTIOMETER
VR.TRIM : TRIMMER POTENTIOMETER
76
DVX-1000
DVX -1000
P.C.B. DSP
NX-SW1000
77
DVX -1000
DVX-1000
P.C.B. DSP
NX-SW1000
78
DVX-1000
DVX -1000
P.C.B. DSP & MAIN
NX-SW1000
79
DVX -1000
DVX-1000
P.C.B. MAIN
NX-SW1000
80
DVX-1000
DVX -1000
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.C.B. MAIN
NX-SW1000
81
DVX -1000
1/6W Type Part No.
HF45 7100
HF45 7110
HF85 7120
HF45 7130
HF45 7150
HF45 7180
HF45 7220
HF45 7240
HF85 7270
HF45 7300
HF45 7330
HF45 7360
HF45 7390
HF45 7470
HF45 7510
HF45 7560
HF45 7620
HF45 7680
HF45 7820
HF45 7910
HF45 8100
HF45 8110
HF45 8120
HF45 8150
HF45 8180
HF85 8220
HF45 8270
HF45 8300
HF45 8330
HF85 8390
HF45 8470
HF85 8560
HF85 8680
HF85 8820
HF45 9100
❊
HF85 9150
HF85 9180
HF85 9220
HF85 9330
❊
HF85 9470
1/4W Type Part No.
HF45 7100
HF45 7110
HJ35 7120
HF45 7130
HF45 7150
HF45 7180
HF45 7220
HF45 7240
HJ35 7270
HF45 7300
HF45 7330
HF45 7360
HF45 7390
HF45 7470
HF45 7510
HF45 7560
HF45 7620
HF45 7680
HF45 7820
HF45 7910
HF45 8100
HF45 8110
HF45 8120
HF45 8150
HF45 8180
HJ35 8220
HF45 8270
HF45 8300
HF45 8330
HJ35 8390
HF45 8470
HJ35 8560
HJ35 8680
HJ35 8820
HF45 9100
HJ35 9120
HJ35 9150
HJ35 9180
HJ35 9220
HJ35 9330
HJ35 9390
HJ35 9470
Value
10 kΩ
11 kΩ
12 kΩ
13 kΩ
15 kΩ
18 kΩ
22 kΩ
24 kΩ
27 kΩ
30 kΩ
33 kΩ
36 kΩ
39 kΩ
47 kΩ
51 kΩ
56 kΩ
62 kΩ
68 kΩ
82 kΩ
91 kΩ
100 kΩ
110 kΩ
120 kΩ
150 kΩ
180 kΩ
220 kΩ
270 kΩ
300 kΩ
330 kΩ
390 kΩ
470 kΩ
560 kΩ
680 kΩ
820 kΩ
1.0 MΩ
1.2 MΩ
1.5 MΩ
1.8 MΩ
2.2 MΩ
3.3 MΩ
3.9 MΩ
4.7 MΩ
1/6W Type Part No.
HF85 3100
❊
HF85 3220
HF85 3330
HF85 3470
HF85 3560
HF45 4100
HF85 4150
HF45 4220
HF85 4270
HF45 4330
HF85 4390
HF45 4470
HF45 4560
HF45 4680
HF45 4750
HF45 4820
HF45 4910
HF45 5100
HF85 5110
HF45 5120
HF45 5150
❊
HF45 5180
HF45 5200
HF45 5220
HF45 5270
HF45 5330
HF45 5390
HF45 5430
HF45 5470
HF45 5510
HF45 5560
HF45 5680
HF45 5820
HF45 5910
HF45 6100
HF45 6120
HF45 6150
HF45 6180
HF85 6200
HF45 6220
HF85 6240
HF45 6270
HF45 6300
HF45 6330
HF85 6360
HF45 6390
HF45 6470
HF45 6510
HF45 6560
HF45 6680
HF45 6820
HF45 6910
1/4W Type Part No.
HJ35 3100
HJ35 3180
HJ35 3220
HJ35 3330
HJ35 3470
HJ35 3560
HF45 4100
HJ35 4150
HF45 4220
HJ35 4270
HF45 4330
HJ35 4470
HF45 4470
HF45 4560
HF45 4680
HF45 4750
HF45 4820
HF45 4910
HF45 5100
HJ35 5110
HF45 5120
HF45 5150
HJ35 5160
HF45 5180
HF45 5200
HF45 5220
HF45 5270
HF45 5330
HF45 5390
HF45 5430
HF45 5470
HF45 5510
HF45 5560
HF45 5680
HF45 5820
HF45 5910
HF45 6100
HF45 6120
HF45 6150
HF45 6180
HJ35 6200
HF45 6220
HJ35 6240
HF45 6270
HF45 6300
HF45 6330
HJ35 6360
HF45 6390
HF45 6470
HF45 6510
HF45 6560
HF45 6680
HF45 6820
HF45 6910
Value
1.0 Ω
1.8 Ω
2.2 Ω
3.3 Ω
4.7 Ω
5.6 Ω
10 Ω
15 Ω
22 Ω
27 Ω
33 Ω
39 Ω
47 Ω
56 Ω
68 Ω
75 Ω
82 Ω
91 Ω
100 Ω
110 Ω
120 Ω
150 Ω
160 Ω
180 Ω
200 Ω
220 Ω
270 Ω
330 Ω
390 Ω
430 Ω
470 Ω
510 Ω
560 Ω
680 Ω
820 Ω
910 Ω
1.0 kΩ
1.2 kΩ
1.5 kΩ
1.8 kΩ
2.0 kΩ
2.2 kΩ
2.4 kΩ
2.7 kΩ
3.0 kΩ
3.3 kΩ
3.6 kΩ
3.9 kΩ
4.7 kΩ
5.1 kΩ
5.6 kΩ
6.8 kΩ
8.2 kΩ
9.1 kΩ
1992
1/4W Type
HF45
1/6W Type
HF85
1/4W Type
HJ35
10mm 5mm
Carbon Resistors
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
P.C.B. MAIN
NX-SW1000
12345678
A
B
C
D
E
F82
DVX-1000
128
130
119 120
101
125
126
127
122
123
250
251
251
250
250 250
250
250
251
290
152
251
250
150
295
251
251
250
251
250
250
250
250
250
1001
1001
1001
8013
1001
(5)
(2)
(1)
(4)
121
124
124
252
252 250
251
250
250
250
251
251
163
251
1001
(3)
1006
8002
8002
8012
1004
1009
1008
8011
8007
8015 8016
8014
8022
1003
8017
8009
8010
8008
8005
1002
1007
●OVERALL ASS’Y
DVR-1000
83
DVX -1000
Z
Z
Z
●ACCESSORIES
Z
Z
Z
Z
Z
Z
Z
Z
2000 2002 2003 2004
2005
2007
2011 2020
2010
2000-1
For DVR-1000
For NX-SW1000 For NX-P1000
(R, K A, L models)
2005 2006 2007 2008
* R, K A, L models
12345678
A
B
C
D
E
F84
DVX-1000
Z
Z
Z
Z
Z
●OVERALL ASS’Y
21
21
5
2-34
2-5
2-11
2-32
2-34
2-34
2-32
2-32
2-33
2-34
2-1 (1)
2-2 (3)
2-2 (2) 2-2 (1)
2-1
(4)
2-4
2-1 (2)
2-38
2-38
2-32
2-38
2-32
2-32
2-18
2-34
2-34
2-38
2-37
2-31
2-39
2-38
2-1 (3)
R, K, A, L
3
8
6
21
21
7
4
1-1
1-2
NX-SW1000
12345678
A
B
C
D
E
F85
DVX -1000
●OVERALL ASS’Y
534
30
31 6
4
18
32
33
3
7
23
33 31
23
1
4-4
3-5
3-4
3-3
4-4
4-6
4-7
33
2
●NETWORK CIRCUIT DIAGRAM
WH
GR
1.3mH
6.8µF
INPUT
TERMINAL
WOOFER
BL
3.9
3 ohms µF
0.19mH
TWEETER
R1
L1
C1
C2
L2
NX-P1000
12345678
A
B
C
D
E
F86
DVX-1000
REM OTE CONTROL
●SCHEM ATIC DIAGRAM
49 50 51
41 42 43 44 45 46 47 48
4039383736353433
3231302928272625
2423222120
20
C1
R1
R2
Q1 27 ohms
2SC3440-T112
D1
MIE-554A2
2 ohms (1/4W)
47µF
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
VDD CARR D0 D1 D2 D3 D4 D5 D6 D7
Vss E2 E1 XIN XOUT E0 G0 G1 G2 G3
10
10
9
9
87654321
87654
4MHz
321
C2
3.0V
IC1
M34283G2GP-W5/U1
Z-N0102-86027#1X
NOT MOUNTED
X1 T1
xx
KEY No.
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Function
STANDBY/ON
REPEAT A-B
PROG
EJECT
1
2
3
4
5
6
7
8
9
0
DIMMER
SLEEP
BASS
TREBLE
NIGHT
REPEAT
STOP
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
PAUSE
VOLUME (–)
RANDOM
SKIP (–)
PLAY
SKIP (+)
ON SCREEN
CURSOR UP
MENU
CURSOR LEFT
CURSOR ENTER
CURSOR RIGHT
SET UP
CURSOR DOWN
TOP MENU/RETURN
AREA
DIRECT
VOLUME (+)
MODE
ENHANCER
42
43
44
45
46
47
48
49
50
51
SURROUND
DVD/CD
MUTE
AUX
TUNER
USB
ANGLE
AUDIO
SUBTITLE
ZOOM
78-11
78-12
78-13
78-14
78-15
78-16
78-17
78-18
78-19
78-10
78-BA 78-BA 78-BA
78-4F
78-A7
78-A6
78-8A
7C-81
78-B3
78-B2
K46
–
78-82
78-83
78-1C
–
78-1B
–
78-B1
–
78-A9
–
78-AA
–
78-B0
–
–
–
–
–
–
–
–
–
–
–
K45
–
–
–
–
–
–
––
78-0F
78-00
78-0F
78-00
78-0F
78-00
78-0F
78-00
–
–
–
–
–
–
–
–
–
–
–
–
7C-85
––
–
K47
–
7C-83
7C-A1
7C-B9
7C-82
7C-BA
78-21
78-50
78-1E
78-22
78-CB
78-1F
78-C6
78-4A
78-9C
78-DE
78-4B
78-BC
78-21
78-50
78-1E
78-22
78-CB
78-1F
78-C6
78-4A
78-9C
78-DE
78-4B
78-BC
78-21
78-50
78-1E
78-22
78-CB
78-1F
78-C6
78-4A
78-9C
78-DE
78-4B
78-BC
78-21
78-50
78-1E
78-22
78-CB
78-1F
78-C6
78-4A
78-9C
78-DE
78-4B
78-BC
–
–
–
–
7C-AA
7C-AE
7C-D7
7C-AD
–
–
–
–
–
–
–
78-A5
7C-B4
–
7C-B5
7C-B8
7C-B6
–
7C-B3
–
–
–
–
–
–
–
–
–
7C-94
7C-95
7C-96
7C-97
7C-98
7C-99
7C-9A
7C-9B
7C-9C
7C-93
78-BA
78-4F 78-4F78-4F
78-A7 78-A778-A7
78-A6 78-A678-A6
78-8A 78-8A78-8A
7C-A3
7C-85
7C-A0
K43
TUNER AUX USBDVD/CD
7C-A4
7C-83
7C-A1
7C-B9
7C-82
7C-BA
7C-A6
7C-B4
7C-B2
7C-B5
7C-B8
7C-B6
7C-AC
7C-B3
7C-B1
1
27 29
33
48 49 50 51
35
3456
78910
11
15 16 17
18 19 20
21 22 23
24 25
28
31 3230
34
37
36
39
38
41
40
43
46
44
47
42
45
26
12 13 14
2
●KEY CODE●KEY NO. LAYOUT
●PANELS
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
DVX-1000 WM23860
STANDBY/ON EJECT
DIMMER
BASS TREBLE
ENTER
DIRECT
DVD/CD
TUNER
SURROUND
AUX
SUBTITLE
ANGLE ZOOM AUDIO
MUTE
AREA
MODE
USB
ENHANCER
NIGHT
REPEAT
ON SCREEN
MENU
SET UP
TOP MENU
/RETURN
FREQ/TEXT
MODE START
PRESET PRESET
PROG
A-B
SHUFFLE
SLEEP
PTY SEEK
DVX-1000 WM23870
▼R, K, A, L models ▼G, F models
