All about the

Use & Care

of your

TABLE OF CONTENTS

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Electric Range

316902315 (Jun 2011)

Important Safety Instructions ........................... 3-5

Before Setting Oven Controls ........................... 6-8

Before Setting Surface Controls ..................... 9-10

Setting Surface Controls (Ceramic cooktop) ...11-14

Oven Control Functions (330/probe) .................. 15

Setting Oven Controls ..................................16-24

Self-Cleaning ..............................................25-27

Care & Cleaning ..........................................28-31

Before You Call............................................32-35

Major Appliance Warranty .................... back cover

2

Thank you for choosing Frigidaire.

This Use & Care Guide is part of our commitment to customer

satisfaction and product quality throughout the service life of

your new appliance.We view your purchase as the beginning

of a relationship. To ensure our ability to continue serving you,

please use this page to record important product information.

©2011 Electrolux Home Products, Inc. All rights reserved. Printed in the USA

Registering your product with Frigidaire enhances our ability

to serve you. You can register online at

www.frigidaire.com or by dropping your Product

Registration Card in the mail.

PRODUCT RECORD AND REGISTRATION

Product Registration

Product Registration...................................................... 2

Important Safety Instructions ............................ 3-5

Before Setting Oven Controls...............................6-8

Removing, replacing & arranging the oven racks........... 6

Effortless™ Oven Rack system and assembly ................ 8

Before Setting Surface Controls......................... 9-10

About the ceramic cooktop & radiant elements ............. 9

Cookware material types .......................................... 10

Setting Surface Controls .................................. 11-14

Single radiant surface elements ................................ 11

Dual radiant surface elements................................... 12

Keep warm zone ..................................................... 13

Home canning ......................................................... 14

Oven Controls Functions ........................................ 15

Setting Oven Controls ...................................... 16-24

Setting the clock...................................................... 16

Changing between continuous bake or 12-Hour

Energy Saving features ............................................ 16

Changing oven temperature display (F° or C°)............ 16

Setting for audible or silent keypad operation ............. 16

Setting lock feature.................................................. 17

Setting the timer ..................................................... 17

Setting bake ........................................................... 18

Setting bake time .................................................... 18

Setting start time .................................................... 19

Setting quick bake (some models) ............................. 20

Easy probe .........................................................21-22

Setting broil ............................................................ 23

Adjusting the oven temperature ................................ 24

Operating the oven light ........................................... 24

Self-Cleaning .................................................... 25-27

Care & Cleaning ............................................... 28-31

Cleaning recommendation table ................................ 28

Cooktop maintenance & cleaning...........................29-30

Replacing the oven light ........................................... 30

Removing & replacing oven door ............................... 31

Before You Call

Solutions to common problems .............................32-35

Appliance Warranty ................................. back cover

Contents

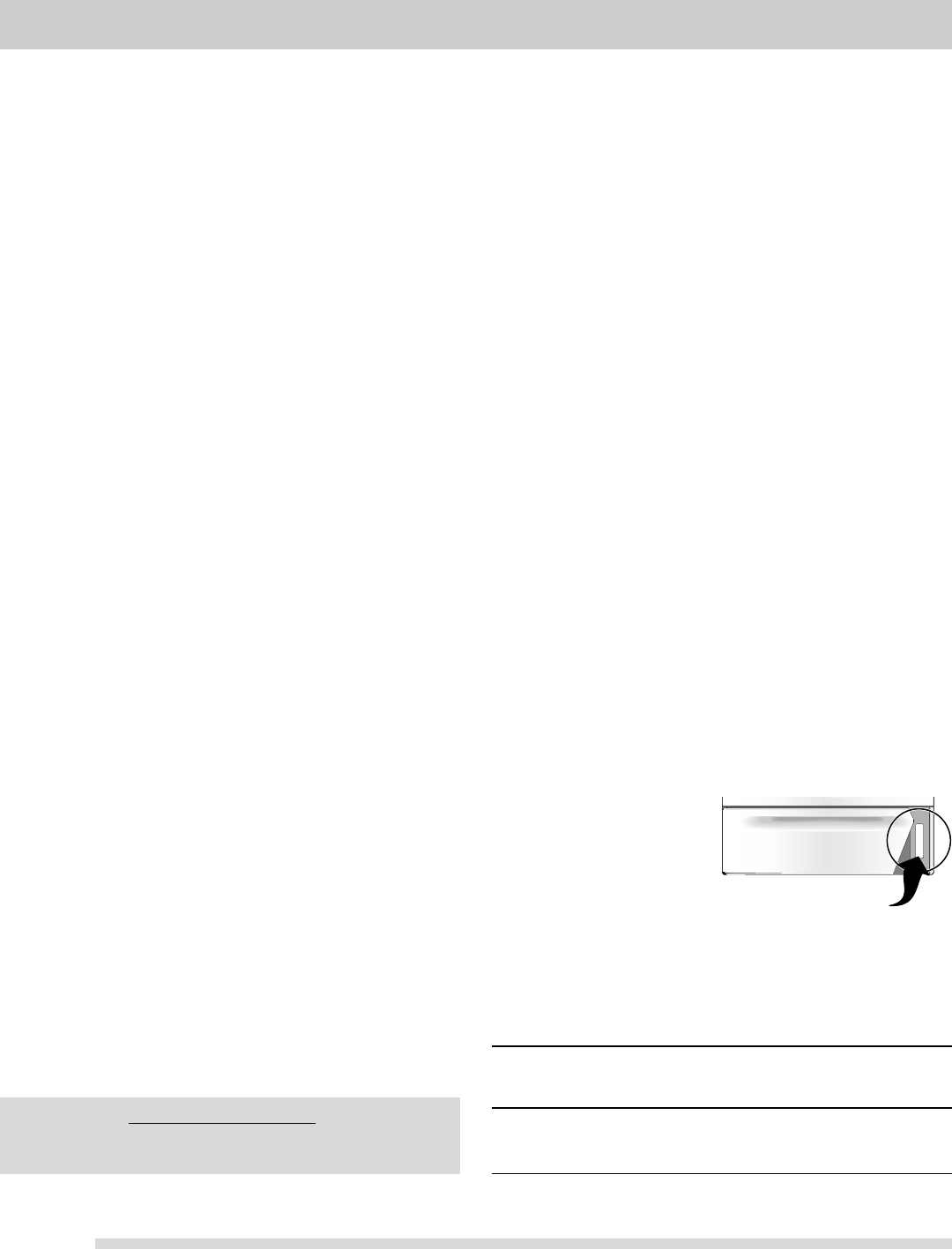

Serial plate location:

open storage drawer (some

models) or remove lower front

panel (some models).

Serial plate location

Purchase date

Model number

Serial number

Record model & serial numbers here

Need help??

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service, there are a few things you can

do to help us serve your better.

Read this Use & Care manual.

It contains instructions to help you use and maintain your

range properly.

If you received a damaged range ...

immediately contact the dealer (or builder) that sold you the

range.

Save time and money.

Check the section titled “Before You Call”. This section helps

step you through some common problems that might occur.

If you do need service, help is only a phone call away. Call

Frigidaire Customer Services at 1-800-944-9044.

Be sure to visit us online at

www.frigidaire.com

for a complete line of accessories.

3

Read all instructions before using this appliance.

Do not attempt to install or operate your appliance until you

have read the safety precautions in this manual. Safety

items throughout this manual are labeled with a WARNING

or CAUTION statement based on the risk type.

WARNING indicates a potentially hazardous

situation which, if not avoided, may result in death

or serious injury.

IMPORTANT SAFETY INSTRUCTIONS

• Remove all tape and packaging before using the

range. Destroy the carton and plastic bags after

unpacking the range. Never allow children to play with

packaging material.

• Proper installation—Be sure your appliance is

properly installed and grounded by a qualified

technician in accordance with the National Electrical

Code ANSI/NFPA No. 70 latest edition and local

electrical code requirements. Install only per

installation instructions provided in the literature package

for this range.

This is the safety alert symbol. It is used to alert you to

potential personal injury hazards. Obey all safety messages

that follow this symbol to avoid possible injury or death.

IMPORTANT

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

IMPORTANT indicates installation, operation,

maintenance or valuable information that is not hazard

related.

Definitions

Important Safety Instructions

• User servicing—Do not repair or replace any part

of the appliance unless specifically recommended in

the manuals. All other servicing should be done only by a

qualified technician. This may reduce the risk of personal

injury and damage to the range.

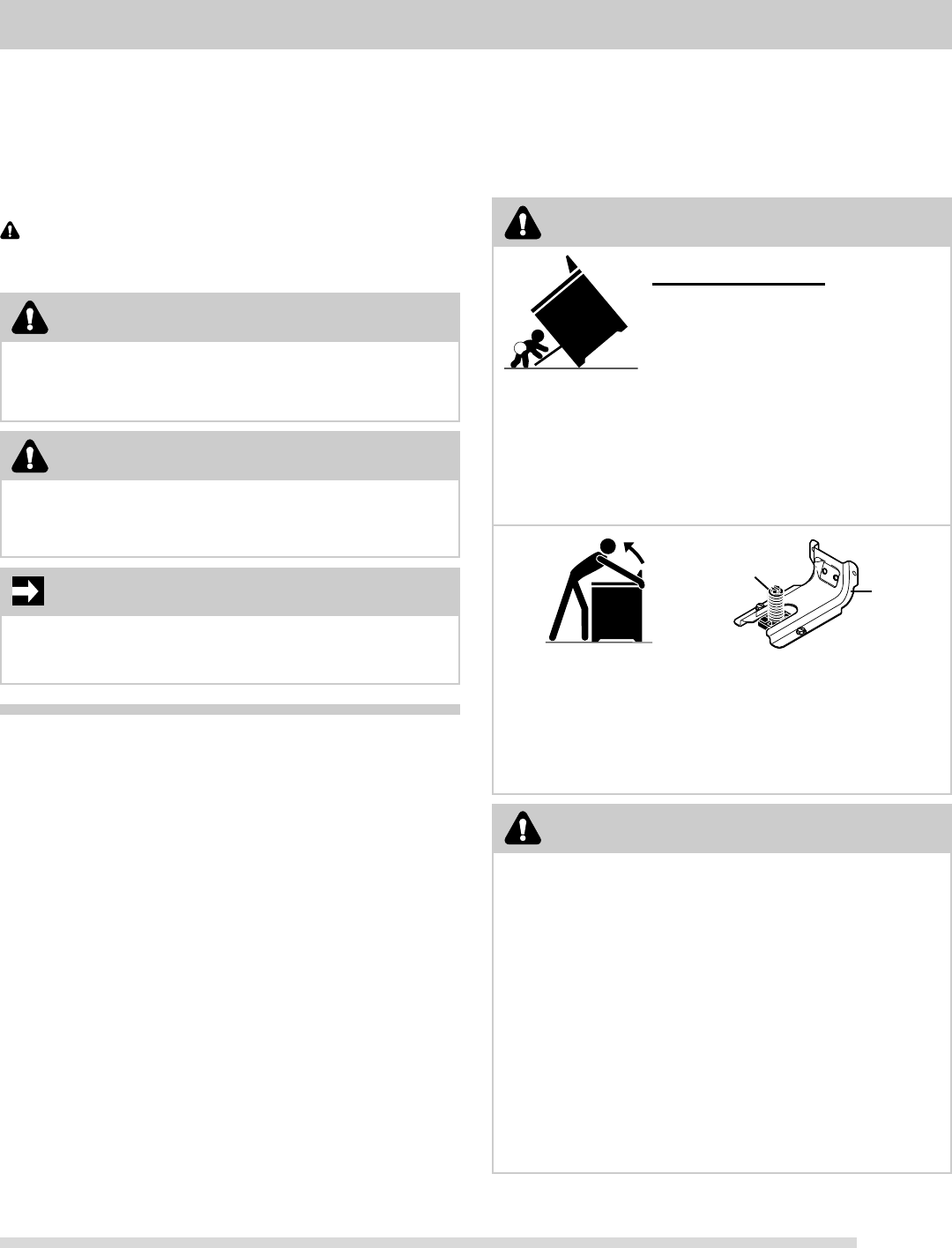

Tip Over Hazard

• A child or adult can tip the

range and be killed.

• Verify the anti-tip device has

been installed to floor or wall.

To check if the anti-tip bracket is installed properly, use

both arms and grasp the rear edge of range back.

Carefully attempt to tilt range forward. When properly

installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions

supplied with your range for proper installation.

• Ensure the anti-tip device is re-engaged when

the range is moved to floor or wall.

• Do not operate the range without the anti-tip

device in place and engaged.

• Failure to follow these instructions can result in

death or serious burns to children and adults.

Range

leveling leg Anti-Tip

bracket

Ask your dealer to recommend a qualified technician and

an authorized repair service. Know how to disconnect the

power to the range at the circuit breaker or fuse box in

case of an emergency.

• Stepping, leaning or sitting on the door or

drawers of a range can result in serious injuries

and also cause damage to the appliance. DO NOT

allow children to climb or play around the range. The

weight of a child on an open oven door may cause the

range to tip, resulting in serious burns or other injury.

• DO NOT LEAVE CHILDREN ALONE — to avoid injuries

or burns children should not be left alone or

unattended in the area where the range is in use.

They should never be allowed to sit or stand on any part

of the range including the storage drawer, lower broiler

drawer, lower oven or warmer drawer.

• To avoid a possible fire hazard, never use your

appliance for warming or heating the room.

CAUTION

WARNING

WARNING

WARNING

4

IMPORTANT SAFETY INSTRUCTIONS

• Use care when opening oven door , lower oven

door or warmer drawer (if equipped)—Stand to the

side of the range when opening the door of a hot oven.

Let hot air or steam escape before you remove or replace

food in the oven.

• Keep oven vent ducts unobstructed. The oven vent

is located under the left rear surface element if your

model is equipped with coil elements. The oven vent is

located below the backguard for models equipped with

ceramic-glass cook tops. Touching the surfaces in this

area when the oven is operating may cause severe

burns. Also, do not place plastic or heat-sensitive items

on or near the oven vent. These items could melt or

ignite.

• Placement of interior oven racks. Always place oven

racks in desired location while oven is cool. If rack must

be moved while oven is hot use extreme caution. Use

potholders and grasp the rack with both hands to

reposition. Do not let potholders contact the hot heating

elements in the oven. Remove all utensils from the rack

before moving.

• Do not use the broiler pan without its insert. The

broiler pan and its insert allow dripping fat to drain and

be kept away from the high heat of the broiler. Do not

cover the broiler insert with aluminum foil. Exposed

fat and grease could ignite.

Do not attempt to operate the range during a

power failure. If the power fails, always turn off the

range. If the range is not turned off and the power

resumes, the range will begin to operate again. Once the

power resumes, reset the clock and oven function.

IMPORTANT

• Be sure to always have an appropriate foam-type fire

extinguisher available, visible and easily accessible

located near the appliance.

• Never modify or alter the construction of a range

by removing the leveling legs, panels, wire covers,

anti-tip bracket/screws, or any other part of the

range.

• Remove the oven door from any unused range if it

is to be stored or discarded.

• Do not store items of interest to children in the

cabinets above a range or on the backguard of

the range. Children climbing on the range to reach

items could be seriously injured.

• Do not touch surface heating units or surface

cooking elements, areas near these units or

elements, or interior surfaces of oven. Both

surface heating and oven heating elements may be hot

even though they are dark in color. Areas near surface

cooking units may become hot enough to cause burns.

During and after use, do not touch, or let clothing or

other flammable materials touch these areas until they

have had sufficient time to cool. Among these areas are

the cooktop, surfaces facing the cooktop, the oven vent

openings and surfaces near these openings, oven door

and oven door window.

• Wear proper apparel — loose-fitting or hanging

garments should never be worn while using the

appliance. Do not let clothing or other flammable

materials contact hot surfaces.

• Do not use water or flour on grease fires — flour

may be explosive. Smother the fire with a pan lid,

or use baking soda, a dry chemical or foam-type

extinguisher.

• When heating fat or grease, watch it closely. Fat

or grease may catch fire if allowed to become too hot.

• Use dry potholders — moist or damp potholders

on hot surfaces may result in burns from steam.

Do not let potholders touch hot heating elements. Do

not use a towel or other bulky cloth instead of a

potholder.

• Do not heat unopened food containers - buildup

of pressure may cause container to burst and

result in injury.

• Storage in or on appliance — to avoid a fire hazard,

flammable materials should not be stored in an

oven, near surface units or in the storage drawer,

warmer drawer or lower oven. This includes paper,

plastic and cloth items, such as cookbooks, plasticware

and towels, as well as flammable liquids. Do not store

explosives, such as aerosol cans, on or near the range.

• Protective liners—Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended

in this manual. Improper installation of these liners may

result in risk of electric shock, or fire.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

CAUTION

WARNING

5

IMPORTANT SAFETY INSTRUCTIONS

Important Safety Notice

The California Safe Drinking Water and Toxic Enforcement

Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth

defects or other reproductive harm, and requires

businesses to warn customers of potential exposure to such

substances.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Clean the range regularly to keep all parts free of

grease that could catch fire. Pay particular attention

to the area around each surface element. Do not allow

grease to accumulate.

• Kitchen cleaners and aerosols—Always follow the

manufacturer’s recommended directions for use.

Be aware that excess residue from cleaners and aerosols

may ignite causing damage and injury.

• Clean ventilating hoods frequently—Grease should

not be allowed to accumulate on the hood or filter.

Follow the manufacturer’s instructions for cleaning hoods.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do not cook on broken cook top—If cook top should

break, cleaning solutions and spillovers may penetrate

the broken cook top and create a risk of electric shock.

Contact a qualified technician immediately.

• Clean cook top with caution—If a wet sponge or cloth

is used to wipe spills on a hot cooking area, be careful to

avoid a steam burn. Some cleaners can produce noxious

fumes if applied to a hot surface.

SELF-CLEANING OVENS

• Clean in the self-cleaning cycle only the parts

listed in this Use & Care Manual. Before self-cleaning

the oven, remove the broiler pan and any utensils or

foods from the oven.

• Do Not Use Oven Cleaners—No commercial oven

cleaner or oven liner protective coating of any kind should

be used in or around any part of the oven.

• Do Not Clean Door Gasket—The door gasket is

essential for a good seal. Care should be taken not to

rub, damage or move the gasket.

• The health of some birds is extremely sensitive to the

fumes given off during the self-cleaning cycle of any

range. Move birds to another well-ventilated room.

IMPORTANT INSTRUCTIONS FOR USING

YOUR COOKTOP

• Know which knob controls each surface heating

unit. Place a pan of food on the unit before turning it on,

and turn the unit off before removing the pan.

• Use proper pan size—This appliance is equipped with

one or more surface units of different sizes. Select

utensils having flat bottoms large enough to cover the

surface unit heating element. The use of undersized

utensils will expose a portion of the heating element to

direct contact and may result in ignition of clothing.

Proper relationship of utensil to element will also improve

efficiency.

• Utensil handles should be turned inward and not

extend over adjacent surface elements—To reduce

the risk of burns, ignition of flammable materials, and

spillage due to unintentional contact with the utensil, the

handle of the utensil should be positioned so that it is

turned inward, and does not extend over adjacent

surface units.

• Never leave surface elements unattended at high

heat settings—Boilovers cause smoking and greasy

spillovers that may ignite, or a pan that has boiled dry

may melt.

• Do not immerse or soak removable heating

elements—Heating elements should never be immersed

in water. Heating elements clean themselves during

normal operation.

• Glazed cooking utensils—Only certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed

utensils are suitable for cook top service without breaking

due to the sudden change in temperature. Check the

manufacturer’s recommendations for cook top use.

• When flaming foods under a ventilating hood, turn

the fan on.

• Do not touch the oven during the self-clean cycle.

•Keep children away from oven during self-clean cycle.

•Failure to follow these instructions can result in burns.

WARNING

6

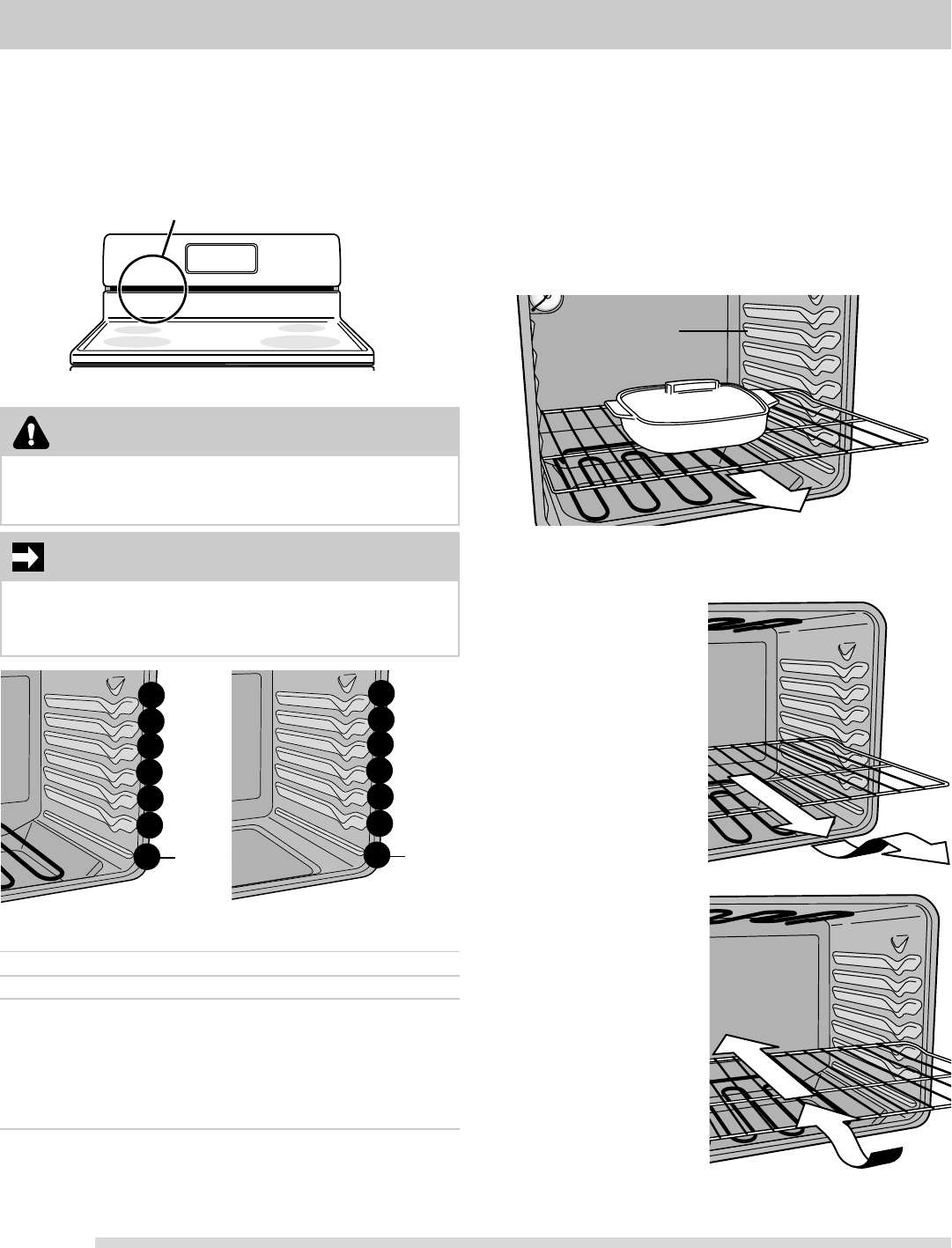

oven vent location

Fig. 1

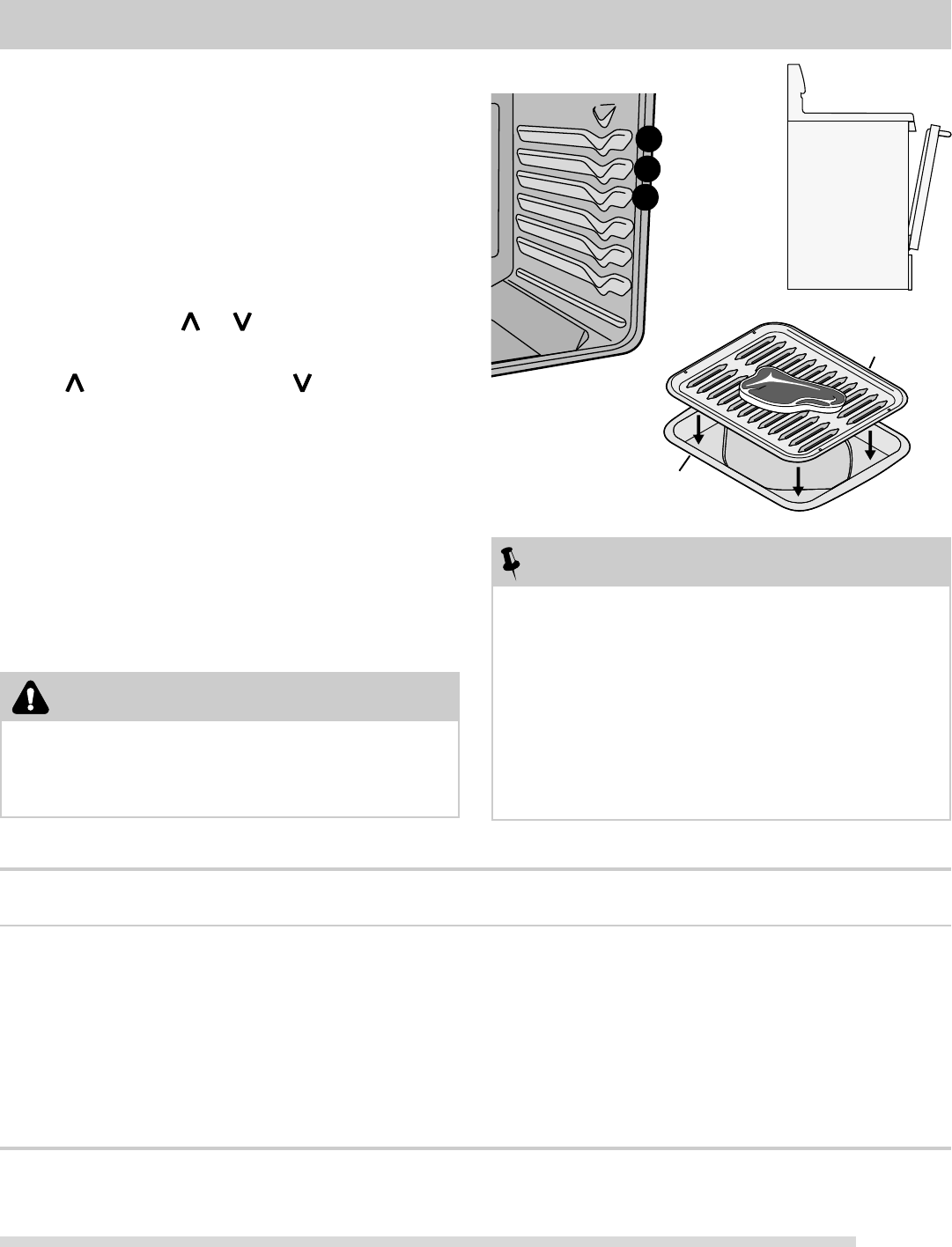

Recommended oven rack positions by food type

Food type Position

Broiling meats See broil

Cookies, cakes, pies, biscuits & muffins 4 or 5

Frozen pies, angel food cake, yeast, bread

and casseroles 2 or 3

Small cuts of meat or poultry 2 or 3

Turkey, roast or ham 1 or 2

Use only the offset oven (if equipped) rack if you choose to

use rack position 7.

Removing, replacing & arranging most oven

racks types

Arranging - always

arrange oven racks when

the oven is cool (prior to

operating the oven).

Fig. 4

Fig. 5

Oven rack stopOven vent location

The oven vent is located under the left side of the

control panel (See Fig. 1). When the oven is heating,

warm air passes through this vent. This venting is

necessary for proper air circulation in the oven which helps

to provide good baking results. Do not block the oven

vent.

Always use oven mitts to protect hands from possible

burns when using the oven or cooktop. The oven, oven

racks and cooktop will become very hot.

Oven racks

Do not remove or attempt to arrange oven racks with

cookware still on the racks. To avoid damaging cookware

or spilling food items, always remove any cookware first.

IMPORTANT

rack

guides

Fig. 3

Most oven racks slide on rack guides provided along the

oven cavity sides. The rack guides are curved near the front

of each guide. The curve will catch and hold the oven rack

stable into a stop position when an oven rack is extended

straight out from the oven.

For better access to food items in the oven, slowly pull the

oven rack straight out to the oven rack stop position (Fig.

3) before checking on food items or removing food dishes

from the oven.

To remove - Pull the

oven rack straight out

until it reaches the stop

position. Tilt up front of

oven rack to slide past the

stop position and pull the

rack out of the oven cavity

(Fig. 4).

Oven with visible

bake element

some

models

7

6

5

4

3

2

1

Oven with hidden

Bake Element

Fig. 2

To replace - Rest the

oven rack evenly between

a left and right front guide

along the oven walls so

that the oven rack rests

level. Tilt front of rack

upward and slide rack in

past the stop position.

Then bring the rack to a

level position and slide the

rack completely inside

oven (Fig. 5).

BEFORE SETTING OVEN CONTROLS

some

models

7

6

5

4

3

2

1

CAUTION

7

BEFORE SETTING OVEN CONTROLS

Types of oven racks

Fig. 1

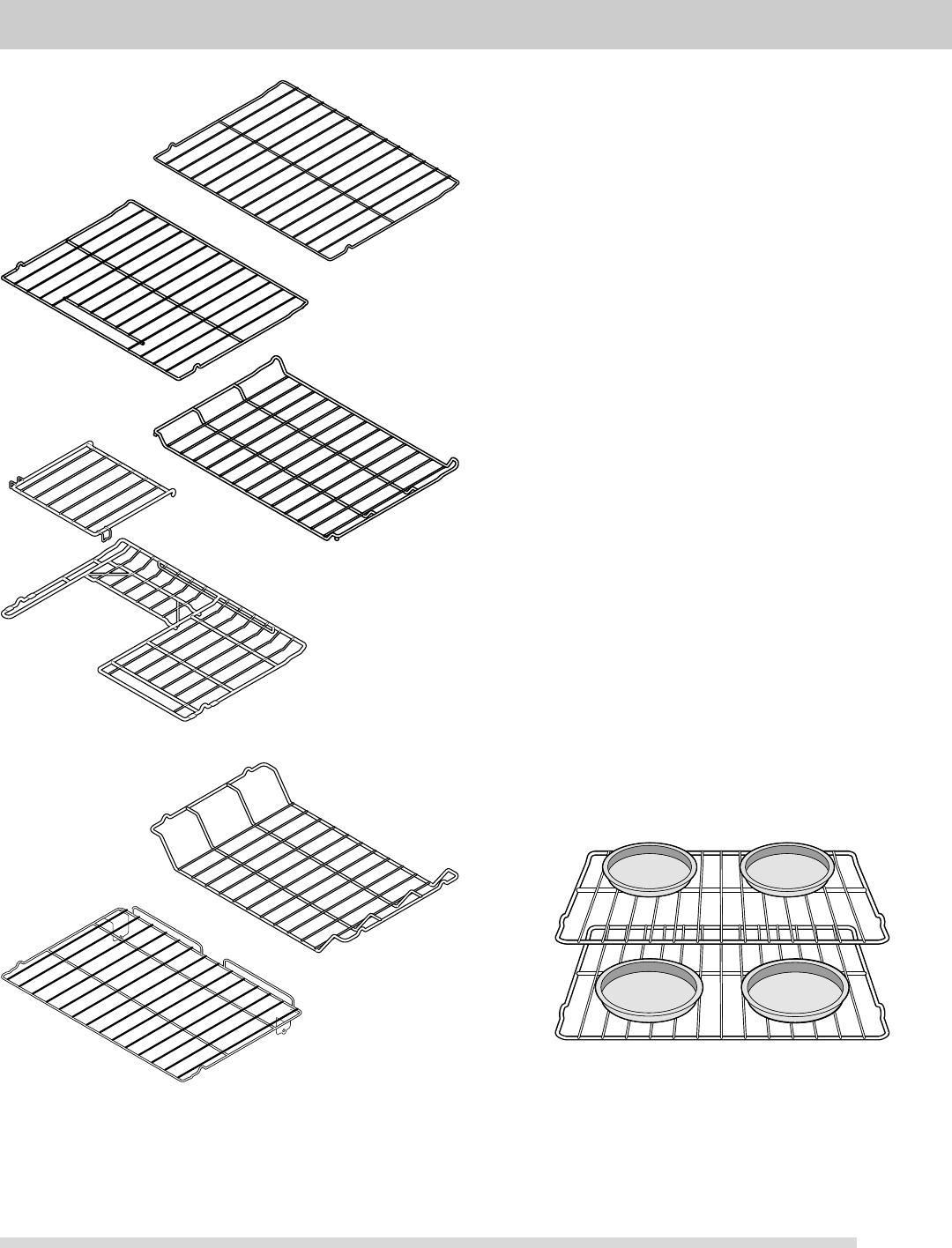

Your range may be equipped with one or more of the

following oven rack types listed below:

The flat oven rack (some models) may be used for most

cooking needs and may be placed in most rack positions.

The flat handle oven rack (some models) may be used

for most cooking needs. May be placed in most rack

positions. Similar to the flat oven rack but comes with a

built-in handle.

The offset oven rack (some models) provides additional

stepdown positions from the standard flat rack design. The

offset design positions the base of the rack about 1/2 of a

rack position lower than the flat rack and may be used in

most oven rack positions.

The half rack (some models) has a removable section to

allow for taller cooking utensils in the oven. When the

removable section is in place, the rack may be used like the

flat oven rack.

The Effortless™ Oven Rack (some models) instructions

are provided later in this section.

The bottom oven rack (if equipped) should only be used

in the lowest oven rack position. To maximize oven space,

place cookware on the bottom oven rack for example when

roasting large cuts of meat. Do not use the bottom oven

rack in any other oven rack position.

flat

oven

rack

flat

handle

oven rack

(some models)

offset

oven rack

(some

models)

Effortless™

Oven Rack

(some

models)

half

oven rack

with

removable

shelf (some models) bottom oven rack

(somemodels)

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 oven racks,

place cookware on rack in positions 2 & 5. For best results

when using a single or an offset oven rack, place cookware

on rack in position 2, 3 or 4.

Air circulation in the oven

For best baking results allow 2 to 4 inches (5-10 cm)

around the cookware for proper air circulation and be sure

pans and cookware do not touch each other, the oven door,

sides or back of the oven cavity. For even heating, hot air

must be able to circulate freely around the pans and

cookware (See Fig. 1).

8

BEFORE SETTING OVEN CONTROLS

Effortless™ Oven Rack system

Some models are equipped with a special oven rack system

that automatically partially extends the oven rack from the

interior oven glides to assist in easier access to your food

items. This feature works whenever the oven door is

opened or closed.

Never pick up hot oven rack parts. Make sure the

oven and oven racks are COMPLETLY cool and safe to

touch before attempting to assemble or disassemble the

Effortless™ Oven Rack.

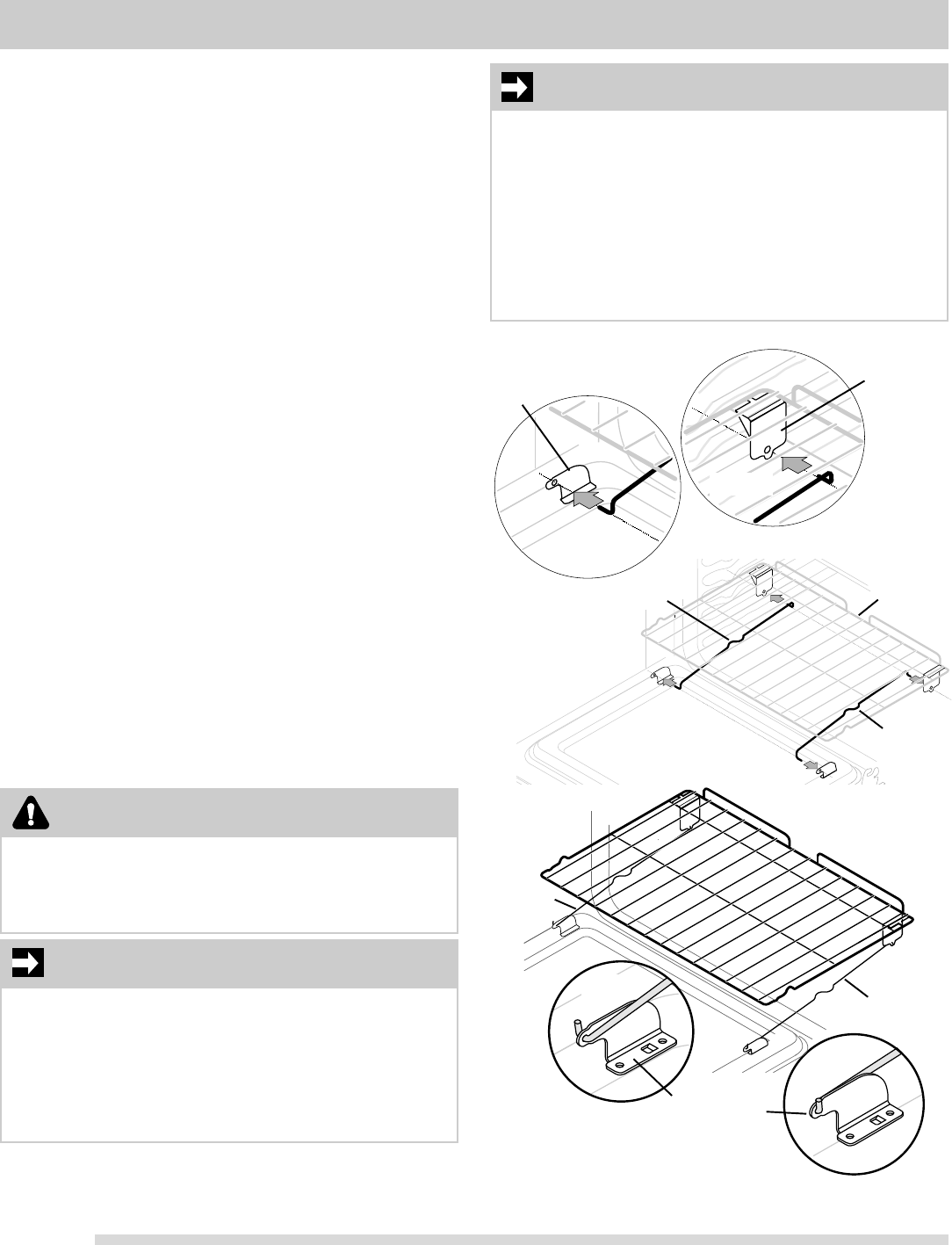

To assemble the Effortless™ Oven Rack system:

1. Locate all required parts. You will need the supplied

oven rack (Effortless™ Oven Rack is a flat rack with a

special dark coating on the left and right rack

sides) and the 2 supplied chrome connector arms.

2. Open the oven door. Be sure the oven is completely

cool before proceeding.

3. Place the oven rack in positions 2, 3 or 4 only (see

previous page to verify positions).Be sure the rack

connector brackets are at the rear of the range and

pointing towards oven bottom (See Fig. 2).

4. Assemble one connector arm at a time. With the oven

door open and the oven rack in place, install one end of

the connector arm to the hole in the door connector

bracket (Fig. 1) and the other end in the hole in the

rack connector bracket (Fig. 2 and as in Fig. 3). The

oven rack may need to be adjusted in or out in the rack

position to match the length of the connector arm.

5. While holding the connector arm in place, twist the

connector arm so the ends of the connector arm point

upwards (See Figs. 4 & 5). The connector arm should

now be locked into position.

6. Repeat steps 4 and 5 for the other connector arm.

7. Once both connector arms are properly in place, be

sure to test the oven rack operation by gently closing

the oven door. The oven rack should move in and out of

the oven freely when the door is opened or closed.

Fig. 6 - Effortless™ Oven Rack after assembly

left and right

door connector

brackets

with connector arm ends

shown in locked position

(pointing upwards)

connector

arm

connector

arm

Fig. 5

door

connector

bracket

rack connector

bracket

connector

arm

oven

rack

open oven

door

Fig. 2

Fig. 1

Fig. 3 - assembly

of the Effortless™

Oven Rack

IMPORTANT

REMOVE ALL OVEN RACKS and accessories before

starting a self-clean cycle. If the oven racks are left in

the oven during the self-clean cycle, the glide ability of

the Effortless™ Oven Rack system will be damaged and

will cause oven racks to loose their shiny finish. Remove

ALL oven racks and clean according to instructions

provided in the Care & Cleaning section of this manual.

• Only the Effortless™ Oven Rack system should be

used in oven rack position 2. Placing ANY other rack

in oven rack position 2 will prevent the oven door

from fully closing and may damage the oven door,

oven cavity or the door connector brackets.

•If the rack system is not assembled with the connector

arms the Effortless™ Oven rack may be used in oven

rack positions 2 thru 7. Do not attempt to use the

Effortless™ Oven rack in rack position 1.

IMPORTANT

connector

arm

Fig. 4

CAUTION

9

BEFORE SETTING SURFACE CONTROLS

About the ceramic glass cooktop

The design pattern on the ceramic cooktop outlines the

area and size of the surface element located just below the

ceramic glass cooktop. Be sure to match the pan size with

the diameter of the element outline on the cooktop and use

only quality flat-bottomed cookware.

The type and size of cookware, the number of surface

elements in use and their settings are all factors that will

affect the amount of heat that will spread to areas beyond

the surface elements. The areas surrounding the elements

may become hot enough to cause burns.

Element on & hot surface indicator lights

Your appliance is equipped with two different types of

radiant surface control indicator lights that will glow on the

backguard — the element on indicator lights and the hot

surface indicator light (See Fig. 1).

About the radiant surface elements

When first turned on, the element temperature rises

gradually and evenly. As the temperature rises, the element

will glow red. To maintain the selected power setting it is

normal for the element to cycle ON and OFF. The element

will retain enough heat to provide a uniform and consistent

heat during the off cycle.

For efficient cooking, turn the surface element OFF several

minutes before cooking is complete. This will allow residual

heat to complete the cooking process.

NOTES

element on

indicator

light hot

surface

indicator

light

Fig. 1

• Radiant elements have a limiter that allows the element

to cycle ON and OFF, even at the HI setting. This helps

to prevent damage to the ceramic smoothtop. Cycling at

the HI setting is normal and will occur more often if the

cookware is too small for the radiant element or if the

cookware bottom is not flat.

• Be sure to read the detailed instructions for ceramic

glass cooktop care in the Care & Cleaning and Before

You Call checklist sections of this Use & Care Manual.

The element on indicator lights are located on the

control panel above each radiant element control knob and

will glow when a surface element is turned ON. A quick

glance at this indicator light after cooking is an easy check

to be sure ALL surface controls are turned OFF. The hot

surface indicator light located on the control panel will

glow when any surface cooking area heats up and will

remain on

until the glass cooktop has cooled to a

MODERATE level.

Types of cooktop elements

The patterns provided on the ceramic glass surface outlines

the size, shape and type of element available at each

position on the cooktop. The single radiant element will

have a single round outline pattern.

The versatile dual radiant element (some models) will have

a dual ring pattern marked on the cooktop. This element

allows the user to set the smaller inner portion only or both

the inner and outer portions may be set to heat together.

The keep warm zone (some models) should always be

used to keep already cooked foods warm. This element is

located at the center rear position (Fig. 2).

Keep warm zone

surface control

(some models)

Single radiant

surface control Dual radiant

surface control

(some models)

Fig. 2

10

BEFORE SETTING SURFACE CONTROLS

Do not place empty aluminum, glass or porcelain-enamel

coated cookware on the ceramic cooktop! The melting

point of some cookware types may be reached if left

empty on the cooktop while heating. If the cookware

melts it could bond to and damage the cooktop! Be sure

to follow all the cookware manufacturer’s suggestions

when using any type of cookware on the ceramic cooktop.

IMPORTANT

Fig. 1

•Flat bottom and straight

sides.

•Curved or warped

cookware.

•Handle tilts cookware.

•Cookware larger than

cooking are marked on

cooktop by more than one-

half inch or 12mm.

•Cookware smaller than

cooking are marked on

cooktop.

•Tight fitting lids.

•Pan size matches the

amount of food to be

prepared and the size of

the surface element.

•Weight of handle does

not tilt pan. Pan is well

balanced.

•Made of material that

conducts heat well.

•Always match cookware

diameter to element

marking on cooktop.

•Easy to clean.

Fig. 2

Using proper cookware

The size and type of cookware used will influence the

setting needed for best cooking results. Be sure to follow

the recommendations for using proper cookware as

illustrated.

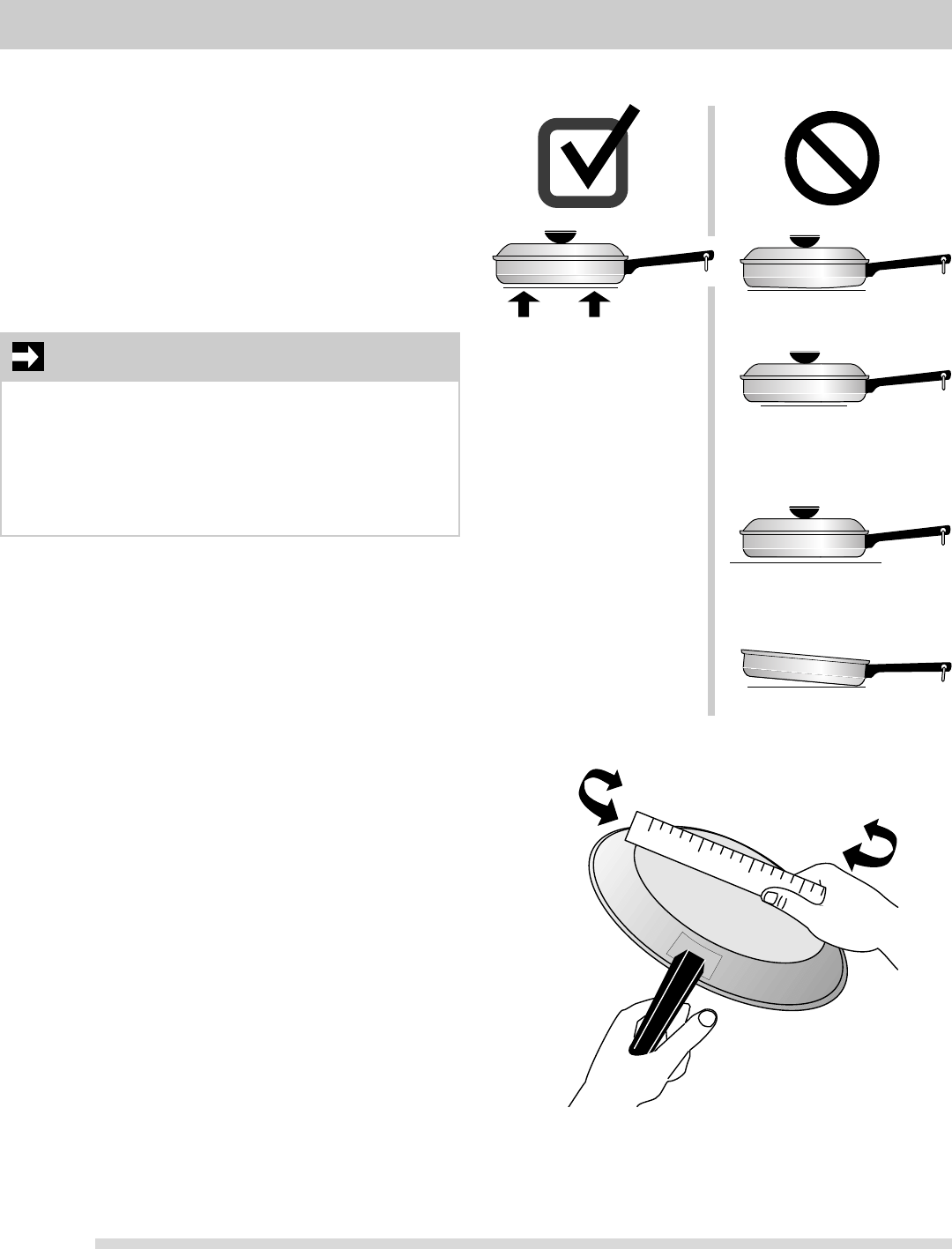

Cookware should have flat bottoms that make good contact

with the entire surface element (See Fig. 1). Check for

flatness by rotating a ruler across the bottom of the

cookware (Fig. 2). For additional information about the

ceramic cooktop see "Cooktop Cleaning" and "Cooktop

Maintenance" in the Care & Cleaning section.

Cookware material types for the cooktop

The cookware material determines how evenly and quickly

heat is transferred from the surface element to the pan

bottom. The most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food

will cause it to darken (Anodized aluminum cookware

resists staining & pitting). If aluminum pans slide across the

ceramic cooktop, they may leave metal marks which will

resemble scratches. Remove these marks immediately.

Copper - Excellent heat conductor but discolors easily. May

leave metal marks on ceramic glass (see Aluminum).

Stainless - Slow heat conductor with uneven cooking

results. Is durable, easy to clean and resists staining.

Cast iron - A slow heat conductor however will retain heat

very well. Cooks evenly once cooking temperature is

reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal - Heating characteristics will

vary depending on base material. Porcelain-enamel coating

must be smooth to avoid scratching ceramic cooktops.

Glass - Slow heat conductor. Not recommended for

ceramic cooktop surfaces because it may scratch the glass.

11

SETTING SURFACE CONTROLS

IMPORTANT

Do not allow aluminum foil, or ANY material that

can melt to make contact with the cooktop when

hot. If these items melt on the cooktop they may

damage the ceramic cooktop.

•Radiant surface elements may appear to have cooled

after they have been turned off. The glass surface

may still be hot and burns may occur if the glass

surface is touched before it has cooled sufficiently.

• Do not place flammable items such as plastic salt

and pepper shakers, spoon holders or plastic

wrappings on top of the range when it is in use. These

items could melt or ignite. Potholders, towels or

wooden spoons could catch fire if placed too close to

the surface elements.

The suggested settings found in Fig.1 below are based

when surface cooking with medium-weight aluminum pans

with lids. Settings may vary when using other types of pans.

Suggested power level settings for single or dual

radiant elements

Settings Type of cooking

High (HI - 9) Start most foods, bring water to a

boil, pan broiling

Medium high (7 - 8) Continue a rapid boil, fry, deep fat fry

Medium (5 - 6) Maintain a slow boil, thicken sauces

and gravies or

steam vegetables

Medium Low (2 - 4) Keep foods cooking, poach, stew

Low (LO - 1) Keep warm, melt, simmer

Fig. 1

Fig. 2

• The size and type of utensil used, and the amount and

type of food being cooked will influence the setting

needed for best cooking results.

• The element on indicator lights will glow when one or

more elements are turned ON. A quick glance at these

indicator lights when cooking is finished is an easy

check to be sure all control knobs are turned OFF. The

hot surface indicator light will continue to glow AFTER

the control knob is turned to the OFF position and will

glow until the heating surface area has cooled

sufficiently.

Single radiant surface elements

To operate a single radiant element:

1. Place correctly sized cookware on a single radiant

surface element.

2. Push in and turn the surface control knob in either

direction (Fig. 2) to the desired setting (See the

suggested power level settings for single or dual

radiant elements in Fig. 1).

3. When finished cooking, turn the radiant surface

element OFF before removing the cookware.

Start most cooking operations on a higher setting and then

turn to a lower setting to finish cooking. The control knobs

do not have to be set exactly on a particular spot. Use the

graphics provided as a guide and adjust the control knob as

needed.

Each surface element provides a constant amount of heat

at each setting. A glowing red surface heating area

extending beyond the bottom edge of the cookware

indicates the cookware is too small.

NOTES

Suggested surface element settings

CAUTION

12

Fig. 1 Fig. 2

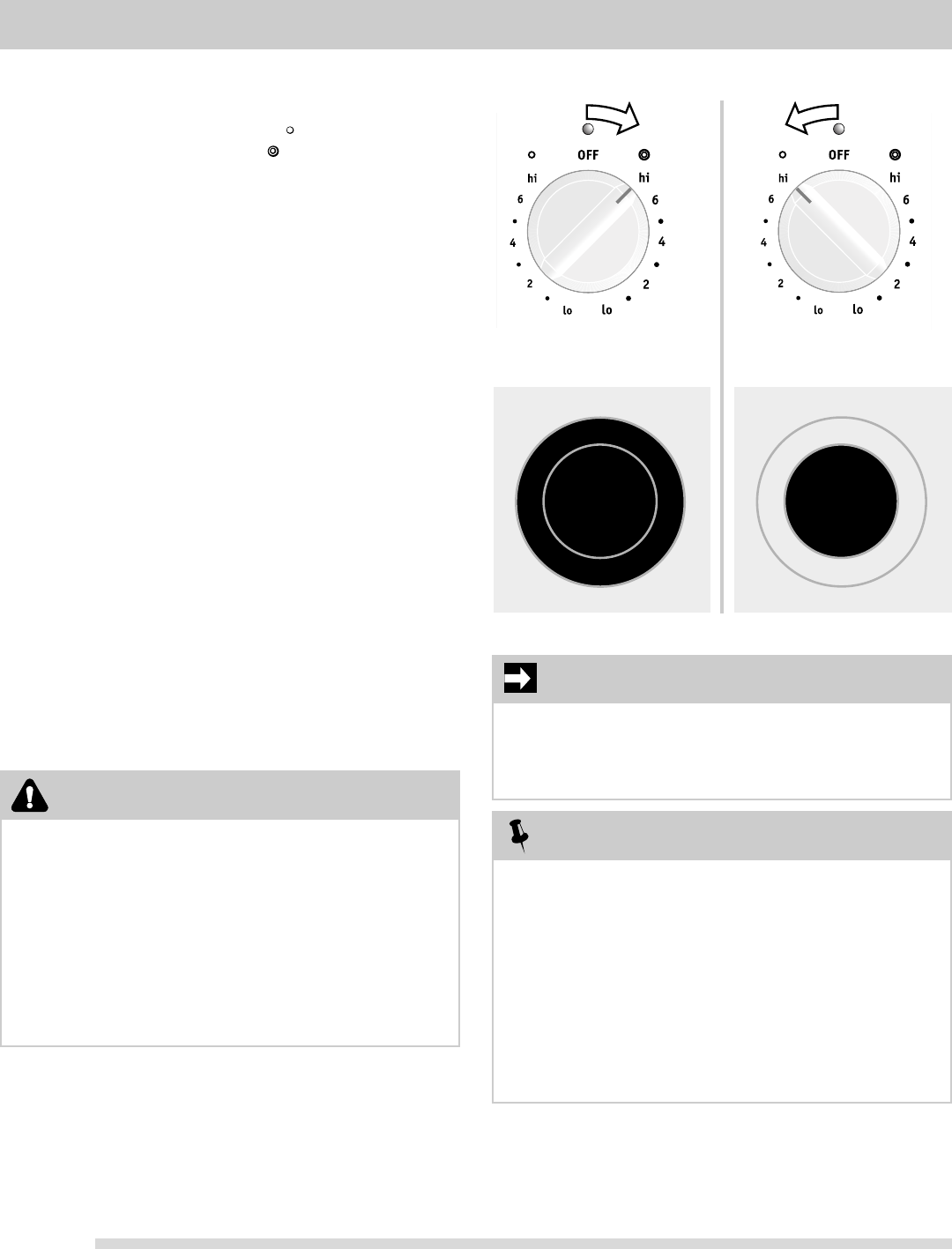

Symbols on the backguard will help choose which portion of

the dual radiant element to set. The symbol indicates a

setting for the inner coil only. The symbol indicates a

setting for both inner and outer coils.

SETTING SURFACE CONTROLS

You may switch from either single or dual element setting

at any time while cooking. For power level

recommendations see the suggested power level

settings for single or dual radiant elements provided

on the page for single element instructions.

To operate a dual radiant element:

1. Place correctly sized cookware on dual radiant surface

element.

2. Push in and turn the surface control knob clockwise

(See Fig. 1) to begin heating both the inner and outer

portions of the dual element. If only the inner heating

portion is needed for smaller cookware, push in and

turn the knob counter-clockwise (See Fig. 2).

3. When finished cooking, turn the dual radiant surface

element OFF before removing the cookware.

Start most cooking operations on a higher setting and then

turn to a lower setting to finish cooking. The surface control

knobs do not have to be set exactly on a particular mark.

Use the marks as a guide and adjust the control knob as

needed.

A glowing red surface heating area extending beyond the

bottom edge of the cookware indicates the cookware is too

small for the surface heating area.

Dual radiant surface elements (some models)

• The size and type of utensil used, and the amount and

type of food being cooked will influence the setting

needed for best cooking results.

• The element on indicator lights will glow when one or

more elements are turned ON. A quick glance at these

indicator lights when cooking is finished is an easy

check to be sure all control knobs are turned OFF. The

hot surface indicator light will continue to glow AFTER

the control knob is turned to the OFF position and will

glow until the heating surface area has cooled

sufficiently.

NOTES

•Radiant surface elements may appear to have cooled

after they have been turned off. The glass surface

may still be hot and burns may occur if the glass

surface is touched before it has cooled sufficiently.

• Do not place flammable items such as plastic salt

and pepper shakers, spoon holders or plastic

wrappings on top of the range when it is in use. These

items could melt or ignite. Potholders, towels or

wooden spoons could catch fire if placed too close to

the surface elements.

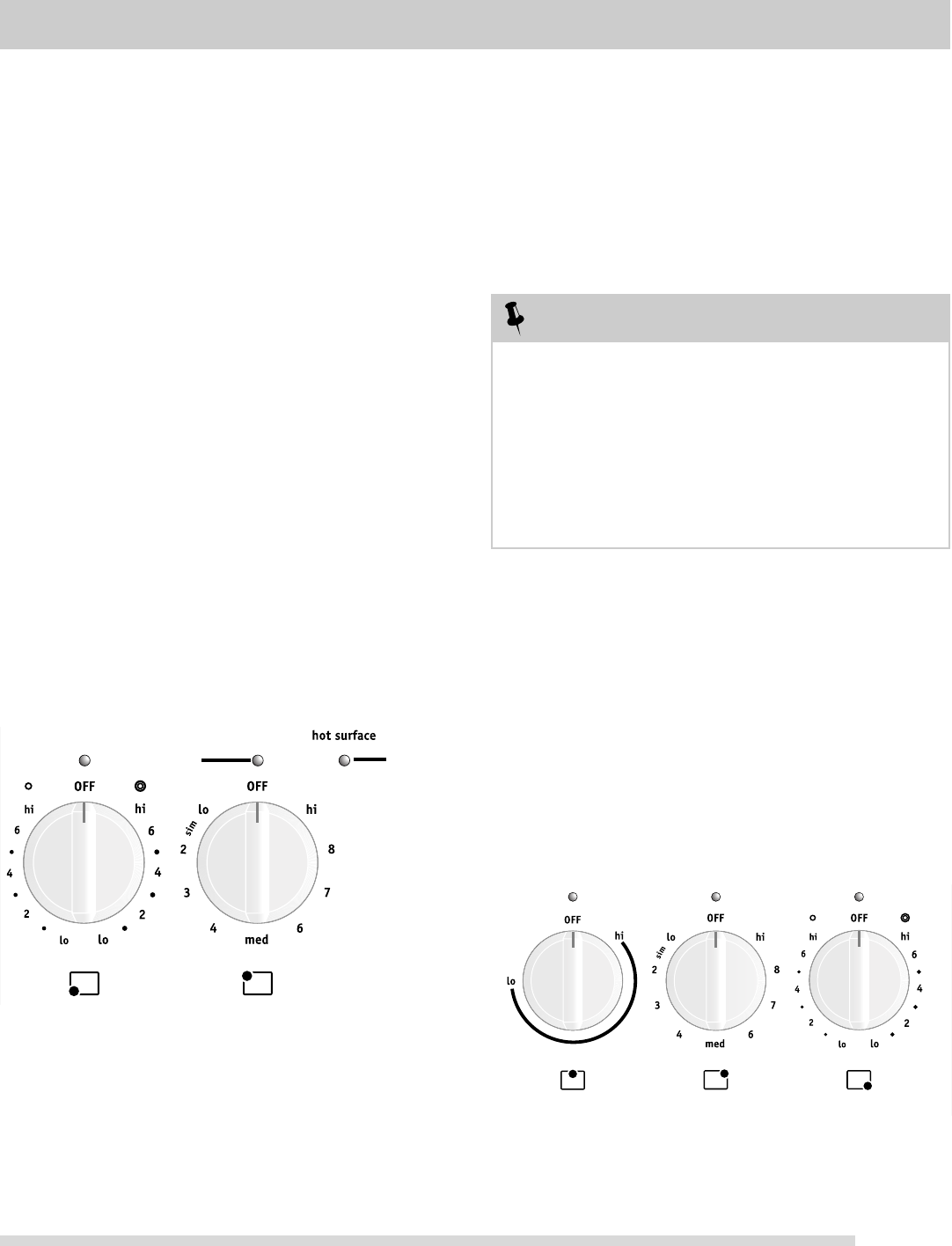

Heating with both

elements Heating with inner

(small) element only

IMPORTANT

CAUTION

Do not allow aluminum foil, or ANY material that

can melt to make contact with the cooktop when

hot. If these items melt on the cooktop they may

damage the ceramic cooktop.

13

Keep warm zone (some models)

The purpose of the keep warm zone is to keep hot cooked

foods at serving temperature. Use the keep warm feature

to keep cooked foods hot such as; vegetables, gravies,

casseroles, soups, stews, breads, pastries and oven-safe

dinner plates.

Always start with hot food. It is not recommended to heat

cold food on the keep warm zone. All food placed on the

warming zone should be covered with a lid to maintain

quality.

For best results, when warming pastries or breads, the

cover should have an opening to allow moisture to escape.

Do not use plastic wrap to cover food. Plastic may

melt onto the surface and be very difficult to clean.

Use only dishware, utensils and cookware recommended

for oven and cooktop use on the keep warm zone.

SETTING SURFACE CONTROLS

Temperature selection - Refer to the keep warm zone

recommended food settings table (See Fig. 2). If a

particular food is not listed, start with the medium level,

and adjust as needed. Most foods can be kept at serving

temperatures by using the medium level.

Keep warm zone recommended food settings

Food Item Heating Level

Breads/Pastries LO (Low)

Casseroles LO (Low)

Dinner Plates with Food LO (Low)

Eggs LO (Low)

Gravies LO (Low)

Meats MED (Medium)

Sauces MED (Medium)

Soups (cream) MED (Medium)

Stews MED (Medium)

Vegetables MED (Medium)

Fried Foods HI (High)

Hot Beverages HI (High)

Soups (liquid) HI (High)

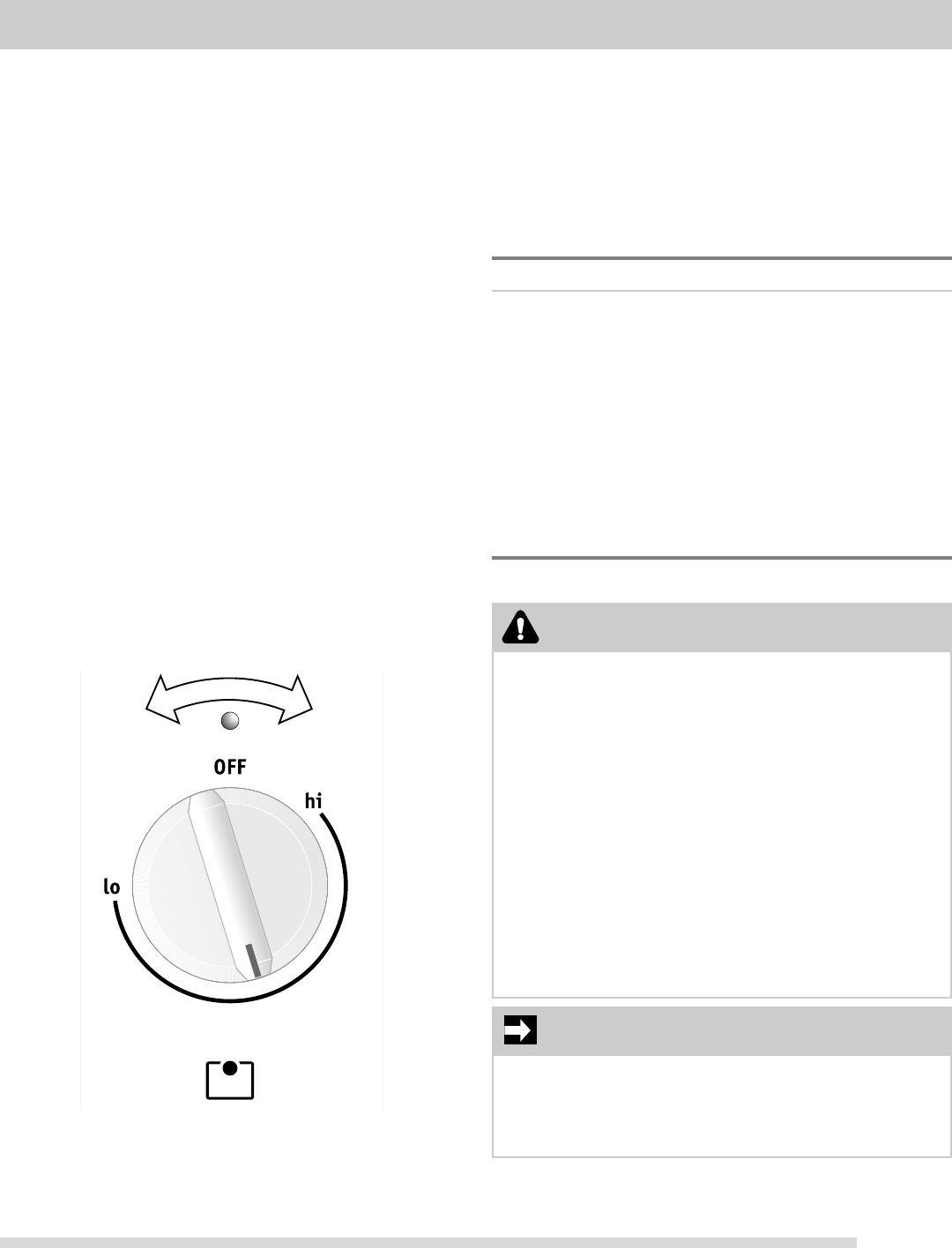

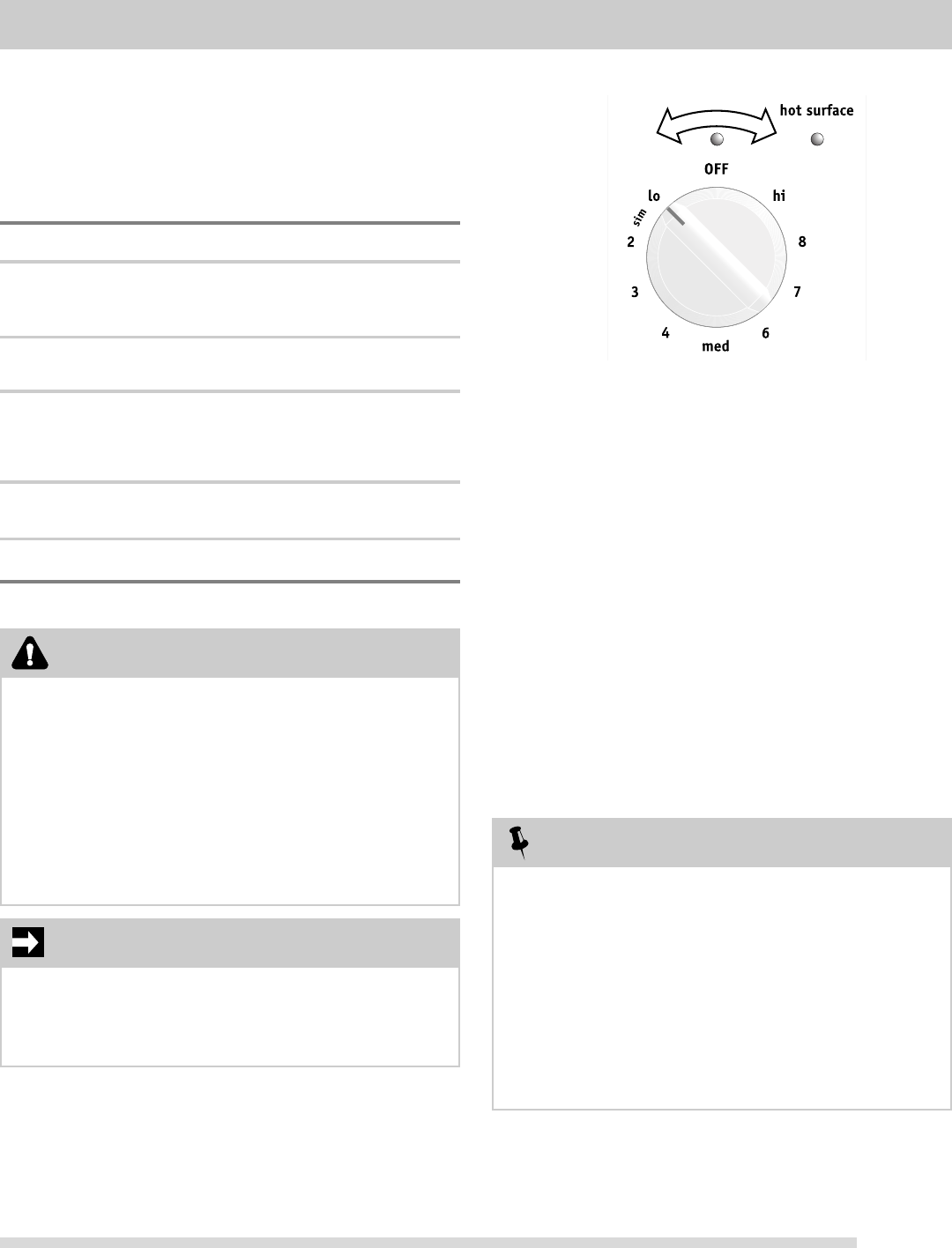

Fig. 2

med

Fig. 1

(with approximate setting for medium shown)

IMPORTANT

Do not allow aluminum foil, or ANY material that can

melt to make contact with the ceramic glass cooktop.

If these items melt on the cooktop they will damage the

ceramic cooktop.

Setting the keep warm zone control:

1. Push in and turn the knob in either direction to the

desired setting (See Fig 1). The temperatures are

approximate, and are designated by hi and lo.

However, the control may be set at any position

between hi and lo for different levels of warming.

2. When ready to serve, turn the control to OFF. The keep

warm zone will remain hot until the indicator light

turns OFF. •Unlike the surface elements, the keep warm zone will

not glow red when it is hot. To avoid burns always use

potholders or oven mitts when removing food from the

cooktop including the keep warm zone as cookware

and plates will be hot.

•Radiant surface elements may appear to have cooled

after they have been turned off. The glass surface

may still be hot and burns may occur if the glass

surface is touched before it has cooled sufficiently.

• Do not place flammable items such as plastic salt

and pepper shakers, spoon holders or plastic

wrappings on the cooktop when it is in use. These

items could melt or ignite. Potholders, towels or

wooden spoons could catch fire if placed too close to

the surface elements.

CAUTION

14

SETTING SURFACE CONTROLS

IMPORTANT

Do not allow aluminum foil, or ANY material that can

melt to make contact with the ceramic glass cooktop.

If these items melt on the cooktop they can damage the

ceramic cooktop.

•Radiant surface elements may appear to have cooled

after they have been turned off. The glass surface

may still be hot and burns may occur if the glass

surface is touched before it has cooled sufficiently.

• Do not place flammable items such as plastic salt

and pepper shakers, spoon holders or plastic

wrappings on the cooktop when it is in use. These

items could melt or ignite. Potholders, towels or

wooden spoons could catch fire if placed too close to

the surface elements.

Home canning

Be sure to read and observe all the following points when

home canning using your appliance.

• Use only quality flat bottom canners when home canning.

Use a straight-edge to check canner bottom. Be sure the

cookware has no ridges that radiate from the bottom

center when home canning using a ceramic cooktop.

• Start with hot tap water to bring water to boil more

quickly.

• Use the highest heat seating when first bringing the water

to a boil. Once boiling is achieved, reduce heat to lowest

possible setting to maintain that boil.

• Make sure the diameter of the canner does not

exceed 1 inch beyond the surface element

markings or burner. It is recommended to use smaller

diameter canners on electric coil and ceramic glass

cooktops.

• When using two canners at the same time, stagger the

canners on the left and right sides of the cooktop. This

will help distribute the heat generated more evenly.

IMPORTANT

NEVER place or straddle a cooking utensil over 2 different

surface cooking areas at the same time. This may cause

the ceramic cooktop to fracture.

Be sure to review the latest online information for home

canning. Some suggestions might be the

U.S. Department

of Agriculture Food Safety and Inspection Service

or the

National Center for Home Food Preservation (NCHFP).

CAUTION

15

OVEN CONTROL FUNCTIONS

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

For satisfactory use of your oven, become familiar with the various keypad functions as described below.

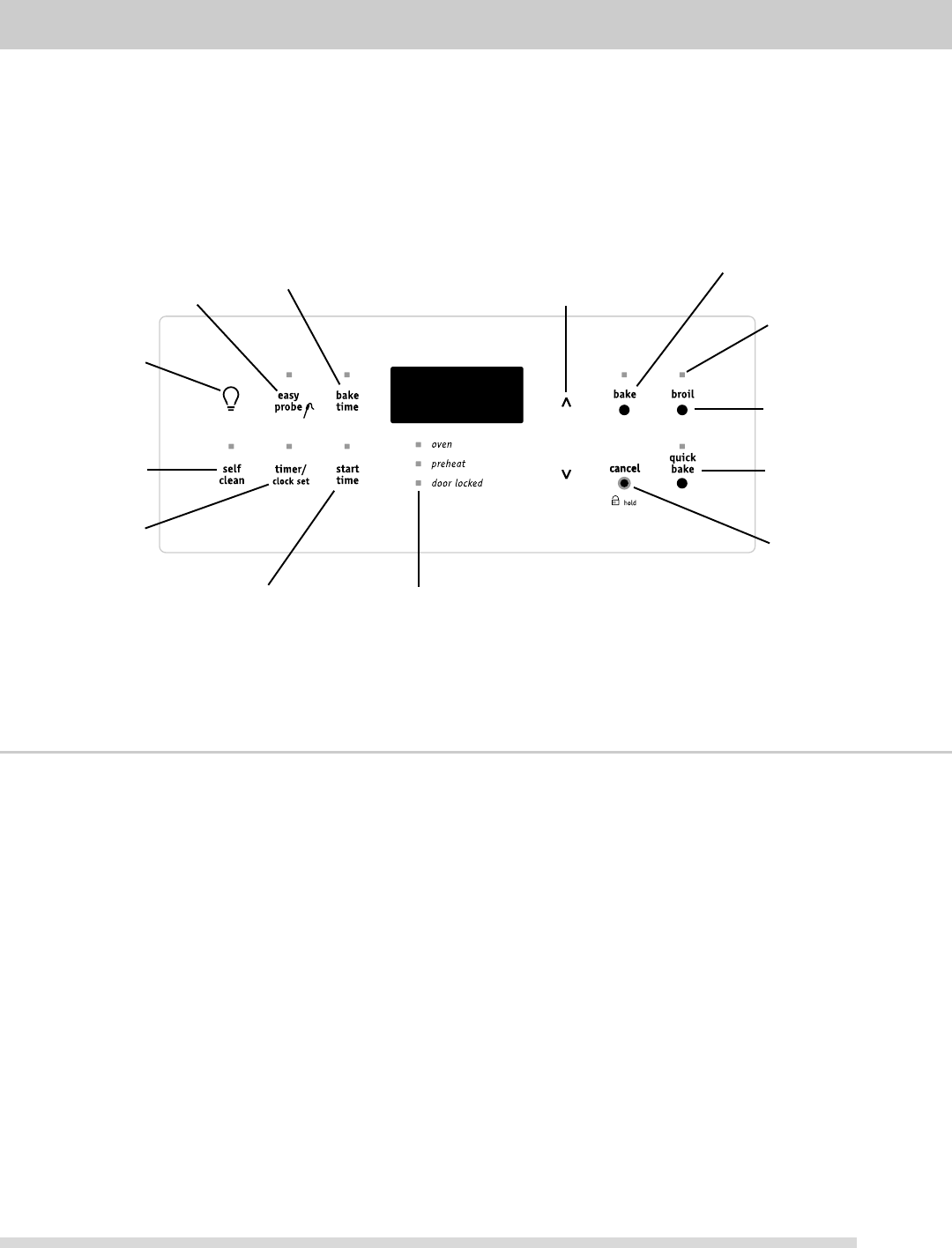

Oven control keypads (for models with probe feature only)

broil keypad— press to

select and set the variable

broil feature.

up and down arrow keypads— use with the

feature or function keypads to set oven

temperature, bake time, start time, clean time

(when programming an automatic start time),

setting or adjusting the clock and timer.

bake keypad—

press to set the

bake feature.

start time keypad—

use to set the desired

start time for baking &

self-clean. May be used

with bake time to

program a delayed

bake cycle.

bake time

keypad— use to

enter the length of

baking time needed.

self-clean

keypad— press to

set a self-clean cycle.

oven, preheat & door locked indicator lights — the

"oven" indicator will glow each time the oven turns on to

maintain the set oven temperature. The "preheat" indicator

will glow while the oven is heating up and turn off once the oven

reaches set temperature. The "door locked" indicator will glow

when the oven door is locked. This indicator will flash while the

oven door is locking or unlocking.

feature indicator

lights— the indicator lights

show which feature is

active.

cancel keypad— press

cancel to stop cooking or

clear any feature

previously entered except

the time of day and timer.

Also the cancel keypad is

used to set or cancel the

lock feature.

timer/clock set

keypad— press to

set or cancel the timer

or set the clock. Also,

the timer/clock set

keypad is used to

set select the

continuous bake

function.

oven light

keypad— press to

turn the interior oven

light ON or OFF.

quick bake keypad-

press to set the Quick

Bake™ feature.

easy probe keypad—

press to momentarily

display internal food

temperature while

cooking with the probe.

16

SETTING OVEN CONTROLS

The oven control is factory preset to display the oven

temperature with Fahrenheit (°F) values. The control may

be changed to display either Fahrenheit or Celsius

temperatures.

To change the temperature to display Celsius (°C) or

Fahrenheit (°F):

1. Press keypad. "— —" appears in the display.

2. Press and hold the keypad until "HI" appears in the

display.

3. Press and hold keypad until °F or °C appears in

the display.

4. Press the or keypad to change °F to °C or °C

to °F.

5. Press any keypad to return to normal operating mode.

1. Press and hold keypad for 5 seconds until a

tone sounds. " — — hr" will appear in display for

continuous cooking. The current time of day will return

to the display.

2. To cancel the continuous bake setting, press and hold

keypard for 5 seconds until a tone sounds.

"12hr" will appear in display indicating that the control

has returned to the 12-Hour Energy Saving feature.

NOTE

The temperature display mode cannot be changed when

the oven or self-clean is active.

Changing between continuous bake or 12-Hour Energy

savings mode does not change how the cooktop operates.

NOTE

To adjust the clock when the display is not flashing:

1. Press keypad twice (do not hold keypad down).

"CLO" will appear in the display.

2. Within 5 seconds, adjust the time by pressing the

or and release the keypad when the correct time

displays. Any adjustments made will accept in 5 seconds.

Setting the clock

When the appliance is first powered up or when the power

supply to the appliance has been interrupted and restored,

the display will flash the time of day. Be sure to set the

clock with the correct time of day before using the oven.

NOTE

The clock cannot be set or adjusted when the oven is

active including self-clean.

Press and hold the keypad until the control beeps

once (about 7 seconds). This will block the controls from

sounding when a keypad is pressed in the future.

Setting for audible or silent keypad

operation

Normally a beep will sound each time a keypad is pressed.

If desired, the oven control may be set for silent keypad

operation.

When the control is set for silent keypad operation the

timer, preheat and any end of cycle or any error tone

alerts will remain audible.

NOTE

To set for silent operation:

To set for audible operation:

Press and hold the keypad until the control beeps

once (about 7 seconds).

Changing temperature display mode

(°F or °C)

Changing to continuous bake setting:

Changing between continuous bake

setting or 12-Hour Energy Saving feature

The oven control has a built-in 12-Hour Energy Saving

feature that will shut off the oven if the control is left on for

more than 11 hours and 59 minutes. The oven may be

programmed to override this feature for continuous baking.

To set the clock when the display is flashing:

1. Press once. "CLO" will appear in the display.

2. Within 5 seconds, adjust the time by pressing the

or and release the keypad when the correct time

displays. The new setting will accept in 5 seconds.

17

NOTES

Setting lock feature

The oven control may be set to lock the oven door and most

oven control keypad operations.

To set the lock feature:

Press and hold the keypad for 3 seconds. "Loc" will

appear in display, the "door locked" indicator light will flash

and the motor driven door lock will begin to lock the oven

door. Allow about 15 seconds for the oven door to fully

lock. Once the oven door is locked, the current time of day

will appear in the display.

To cancel the lock feature:

Press and hold the keypad for 3 seconds. The

control will unlock the oven door and resume normal

keypad operation.

SETTING OVEN CONTROLS

•To avoid possible damage to the oven door latch

mechanism, do not attempt to force open or close the

oven door whenever the "door locked" indicator light is

flashing.

•If a control keypad is pressed when the lock feature is

active, "Loc" will appear in the display as a reminder

that the keypad action requested is not available when

the lock feature is active.

1. Press keypad once (do not hold keypad down).

2. Press the keypad to increase the time in one minute

increments. Press and hold the keypad to increase

the time in 10 minute increments. The timer may be set

for any amount of time from 1 minute to 11 hours and

59 minutes.

Note: If the keypad is pressed first, the timer will

initially advance to 11 hours and 59 minutes.

3. When the set time has run out, the timer will beep 3

times and will continue to beep 3 times every 60

seconds until is pressed.

To change the amount of time remaining:

When the timer is active and appears in the display, press

the or keypad to increase or decrease the time

remaining.

To cancel the timer before the set time has run out:

Press keypad once.

To set the timer:

Setting the timer

The built-in minute timer may be used as an extra reminder

in the kitchen that will beep when the set time has run out.

NOTES

• The timer does not start or stop the cooking process.

The timer may be used alone or when any other oven

function is active.

• The indicator light located above the keypad

will remain on whenever the timer is active.

•The timer will display hours and minutes until 1 hour

remains. When less than 1 hour remains, the display

will count down in minutes and seconds. Once the timer

has less than 1 minute remaining only seconds will

display.

•When cooking with an active timer, the timer will show

in the display by default. To view information of any

other active oven function, press the keypad once for

the active function to view status.

18

SETTING OVEN CONTROLS

The oven may be set to bake at any temperature from

170°F to 550°F (77°C to 287°C). The factory preset

automatic bake temperature is 350°F (177°C).

To set bake:

Use caution with the bake time and start time features.

Foods that can easily spoil such as milk, eggs, fish, meat

or poultry, should be chilled in the refrigerator first. Even

when chilled, they should not stand in the oven for more

than 1 hour before cooking begins, and should be

removed promptly when finished cooking.

NOTES

NOTES

• A short time after starting bake the "preheat" indicator

light will turn OFF, indicating your oven has reached

the set baking temperature. The control will sound 3

beeps as a reminder the oven is ready.

• The "oven" indicator light on the oven control display

will turn ON and OFF when the oven is heating. This is

normal and indicates that the oven elements are cycling

to maintain the selected baking temperature.

• A bake time or start time instruction cannot be set

when broiling.

• The bake time feature may be added when using quick

bake (some models).

•The maximum bake time setting is 11 hours & 59

minutes.

•While baking with a bake time setting, press the bake

time keypad to display any bake time remaining.

IMPORTANT

Dark or dull pans absorb more heat than shiny bakeware

resulting in dark or overbrowning of foods. It may be

necessary to reduce the oven temperature or cook time

to prevent overbrowning of some foods. Dark pans are

recommended for pies. Shiny pans are recommended for

cakes, cookies and muffins.

To change the oven temperature after bake has

started:

1. Press keypad. Visually check the bake

temperature at this time.

2. Press the or keypad to increase or decrease the

set temperature to the desired new oven temperature.

Setting bake Bake time

A bake time setting may be added to most oven baking

features. Use the bake time setting to start the oven

immediately and to turn off automatically after the set bake

time runs out.

1. Press keypad. "— — —" appears in the display.

2. Within 5 seconds, press the or keypad. The

display will show 350°F (177°C). By pressing or holding

down the or keypad, the temperature may be

adjusted in 5°F increments (1°C if the control is set to

display Celsius). Release the keypad when the desired

temperature appears in the display.

3. As soon as the or keypad is released, the oven

will begin heating to the selected temperature. When

the oven temperature reaches the set baking

temperature, the preheat indicator light will turn OFF.

The control will beep 3 times as a reminder.

To stop bake at any time, press .

1. Press keypad. " — — — ° " appears in display.

2. Press the or keypad. The display will show

350°F (177°C). By pressing or holding down

the or keypad, the temperature may be

adjusted in 5°F increments (1°C if the control is set to

display Celsius). Release the keypad when the desired

temperature appears in the display.

3. Press keypad. ":00" will appear in the display.

4. Press the or keypad until the desired bake time

displays.

5. The oven will turn on, begin to heat and will cook for

the amount of bake time entered before automatically

turning off.

To stop at any time, press .

To set the oven to start and automatically turn off

once the bake time runs out:

CAUTION

19

When the set bake time runs out:

1. "End" will appear in the display window and the oven

will shut-off automatically.

2. The control will beep 3 times every 60 seconds as a

reminder until is pressed.

To change the oven temperature or bake time after

baking has started:

1. Press the function keypad you want to change.

2. Press the or keypad to adjust the setting.

SETTING OVEN CONTROLS

1. Be sure the clock displays the correct time of day

before proceeding. Adjust if needed.

2. Press keypad. " — — — ° " appears in display.

3. Press the or keypad. The display will show

350°F (177°C). By pressing or holding down

the or keypad, the temperature may be

adjusted in 5°F increments (1°C if the control is set to

display Celsius). Release the keypad when the desired

temperature appears in the display.

4. Press keypad. ":00" will appear in the display.

5. Press the or keypad until the desired bake time

displays.

6. Press keypad. The time of day will appear in the

display.

7. Press the or keypad until the desired start time

displays.

8. The oven will turn ON at the specified start time, begin

to heat and will cook for the amount of bake time

entered before automatically turning off.

To stop at any time, press .

Use caution with the bake time and start time features.

Foods that can easily spoil such as milk, eggs, fish, meat

or poultry, should be chilled in the refrigerator first.

Even when chilled, they should not stand in the oven for

more than 1 hour before cooking begins, and should be

removed promptly when finished cooking.

FOOD POISONING HAZARD. Do not let food sit for more

than one hour before or after cooking. Doing so can result

in food poisoning or sickness.

NOTES

• The maximum bake time or start time setting is 11

hours & 59 minutes.

• A bake time or start time instruction cannot be set

when broiling.

•When setting a cooking feature with a start time

instruction the oven preheat will be delayed until the

set start time is reached.

Start time

Use this keypad to add start time instructions to the bake

time setting or with the self-clean feature.

To set bake with a delayed start time and to

automatically turn off once the bake time runs out:

CAUTION

WARNING

20

SETTING OVEN CONTROLS

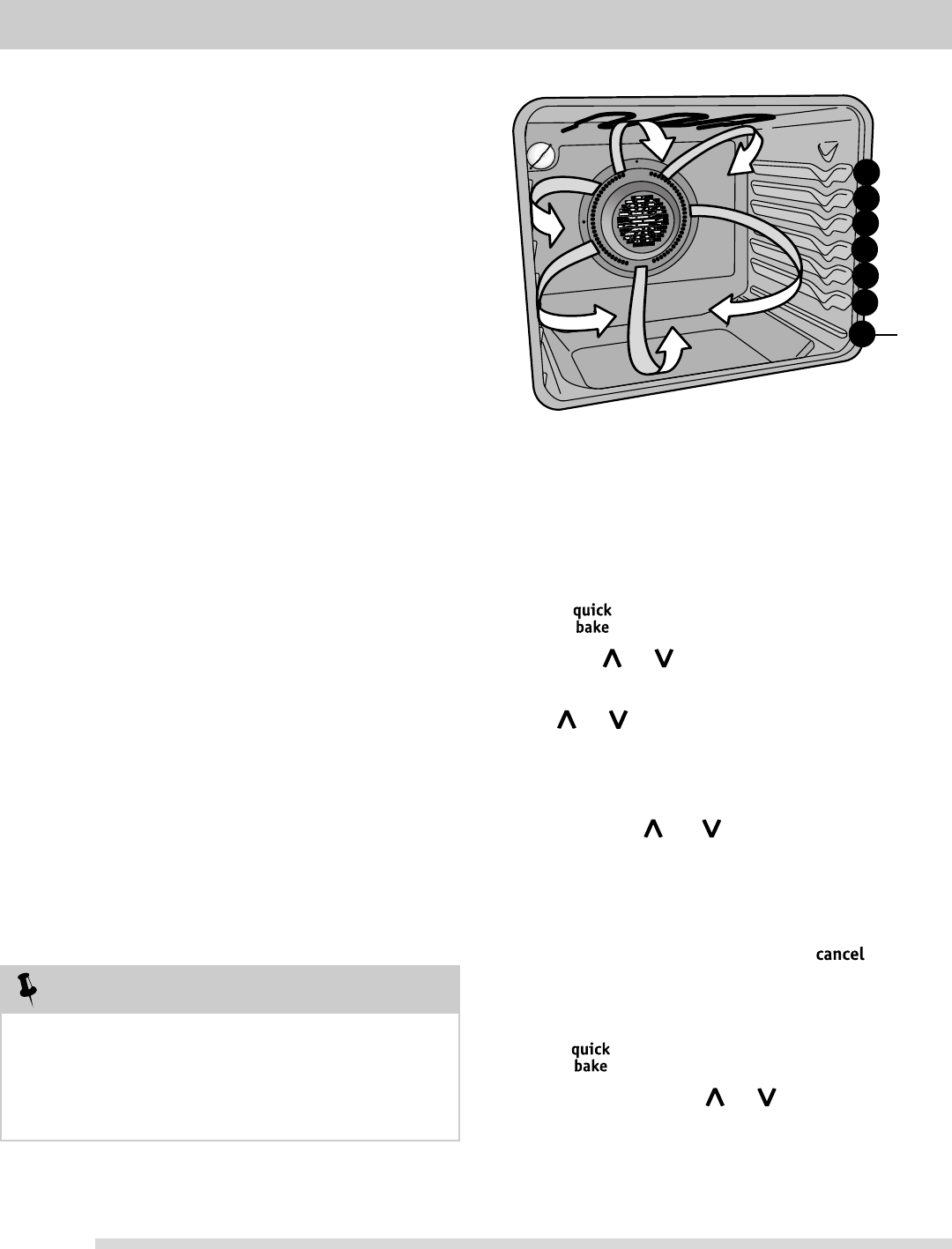

Quick bake (some models)

Benefits of the quick bake feature

— Foods will cook faster, saving time and energy.

— Multiple rack baking.

— No special pans or bakeware needed.

How quick bake works

Quick bake uses a fan to circulate the oven's heat

uniformly and continuously around the oven. This improved

heat distribution allows for fast, even cooking and browning

results. It also gives better baking results when using two

racks at the same time.

Heated air flows around the food from all sides, sealing in

juices and flavors. Meats cooked with quick bake are

juicer. Poultry is crisp on the outside while staying tender

and moist on the inside. Breads and pastry brown more

evenly. Most foods baked in a standard oven can be cooked

faster and more evenly with quick bake.

Suggestions for quick bake

When baking

•For optimum cooking results it is recommended to

preheat the oven when baking foods such as cookies,

biscuits and breads.

•Reduce oven temperature 25°F from recipe’s

recommended oven temperature. Follow the remainder

of the recipe’s instructions using the minimum

recommended cook time.

• When using 2 oven racks at the same time, place in

positions 2 & 5 for best results (See Fig. 1).

When roasting

•Preheating is not necessary when roasting foods using

quick bake.

•Since quick bake cooks food faster, reduce the cook

time by 25% from the recommended cook time of your

recipe. Check the food at this time. If necessary,

increase cook time until the desired doneness is

obtained.

•Do not cover foods when dry roasting - this will prevent

the air from circulating around the food.

Setting quick bake

The oven may be programmed to quick bake at any

temperature from 170°F to 550°F (77°C to 287°C). The

factory preset automatic bake temperature is 350°F

(177°C).

To set quick bake:

1. Press . "— — —" appears in the display.

2. Press the or keypad. The display will show

350°F (177°C). By pressing or holding down

the or keypad, the temperature may be

adjusted in 5°F increments (1°C if the control is set to

display Celsius). Release the keypad when the desired

temperature appears in the display.

3. As soon as the or keypad is released, the oven

will begin heating to the selected temperature. When

the displayed temperature reaches the desired baking

temperature, the preheat indicator light will turn OFF

and the control will beep 3 times.

To stop quick bake at any time, press .

To change the oven temperature after quick bake

has started:

1. Press keypad.

2. If necessary, press the or keypad to increase

or decrease the oven set temperature.

NOTES

• Layer cakes will have better results using the bake

feature.

• When using quick bake (some models) cook time

reductions may vary depending on the amount and type

of food being cooked.

Fig. 1

some

models

4

3

2

1

7

6

5

21

† The U.S. Department of Agriculture states, "Rare fresh

beef is popular, but you should know that cooking it to

only 140°F/60°C means some food poisoning organisms

may survive." (Source: Safe Food Book, Your Kitchen

Guide, USDA Rev. June 1985.) The lowest temperature

recommended by the USDA is 145°F/63°C for medium

rare fresh beef.

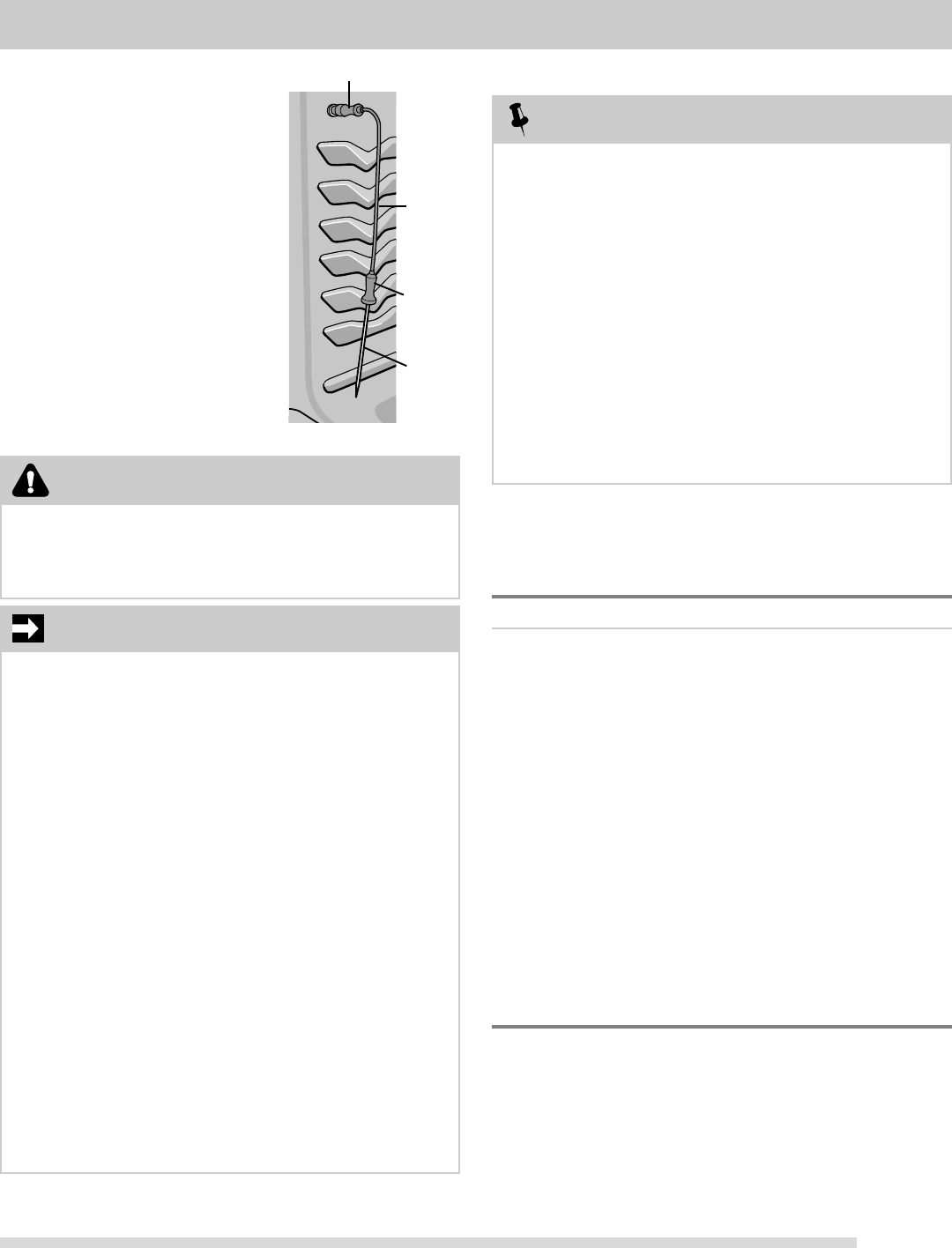

Easy probe

For the best results when cooking

many foods such as roasts, hams

or poultry, use the easy probe

feature. This feature also works

well with foods such as meat loaf

and casseroles.

The easy probe will provide you

with the internal temperature of

the food during cooking and

eliminates any need for

guesswork.

For some foods, especially poultry

or roasts, checking the internal

temperature is the best way to

insure properly cooked food.

• Use only the probe originally provided with this

appliance. Connecting any other probe or device to

the probe receptacle could result in damage to the

oven control, electronics and the probe receptacle.

•To avoid damaging the probe, handle the probe

carefully when inserting and removing from food or the

probe receptacle. Do not use tongs to pull on the

probe or probe cable. Always defrost frozen foods

completely before inserting the probe into food.

•When removing the probe from the receptacle or food,

always remove using the probe handles (Fig. 1).

•Remove the probe from the oven when finished. To

avoid damaging the probe do not store the probe

inside the oven.

•Always double check that the probe is removed from

the oven interior before starting self-clean. The probe

is not designed to withstand the high temperatures

produced during a self-clean cycle.

• Do not use the probe without the probe properly

inserted into the probe receptacle and the food. To

protect the probe when inserted in the receptacle, the

oven will automatically turn OFF if the probe

temperature sensor reaches 300°F (149°C) or more.

Minimum internal cooking temperatures:

Food type Internal Temp.

Beef, veal, lamb-roasts, steak & chops

Medium 160°F (71°C)

Well done 170°F (77°C)

Fresh pork-roasts, steaks & chops

Medium 160°F (71°C)

Well done 170°F (77°C)

Ham-Cook before eating 160°F (71°C)

Poultry

Whole chicken, turkey 165°F (74°C)

Breasts, roasts 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Leftovers 165°F (74°C)

Information courtesy the U.S. Department of Agriculture

Food Safety and Inspection Service.

Provided below are the minimum internal temperatures

that foods must reach to be considered safe to eat, no

matter how you prepare them.

•Do not remove the probe from receptacle or food until

the desired internal temperature is reached. If the

probe is removed from the receptacle the probe feature

will automatically cancel but the oven will remain ON. If

the probe is removed from the food only, the internal

food temperature reading will no longer be accurate.

•The easy probe feature cannot be set when broil or

self-clean is active. If the probe is inserted into the

receptacle and the broil or self-clean keypad is pressed,

the oven control will sound a triple beep error message

and the oven will not activate.

•If the probe is disconnected from the receptacle and

the easy probe keypad is pressed, the display will

show "- - -" (about 3 seconds), indicating the probe is

not active.

To avoid the possibility of burns after cooking, always

use caution when disconnecting the probe from the

receptacle or food. The probe may be hot. Be sure to

use a pot holder to protect hands.

IMPORTANT

NOTES

handle

handle

probe

cable

probe

sensor

Fig. 1

SETTING OVEN CONTROLS

CAUTION

22

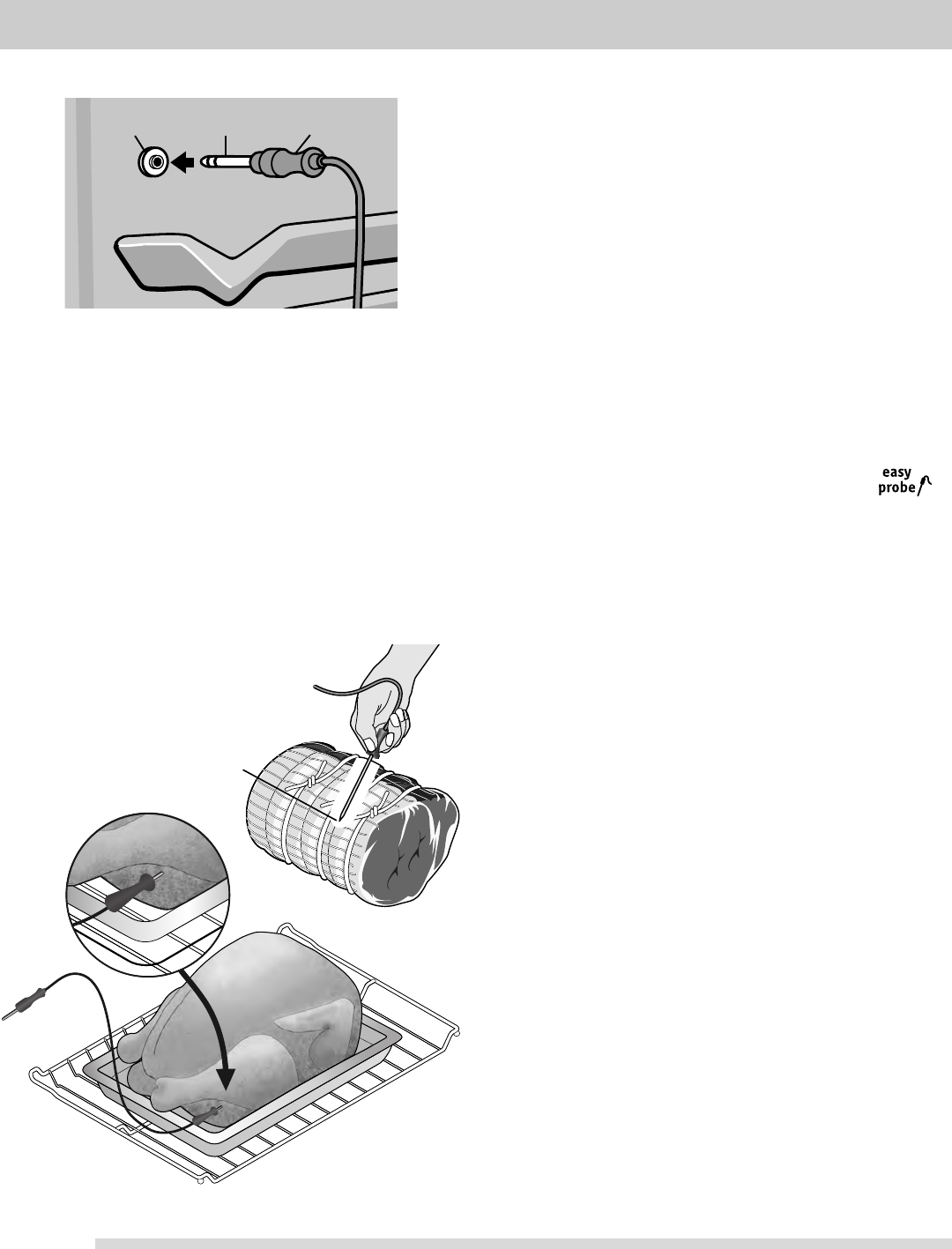

SETTING OVEN CONTROLS

Easy probe (cont’d) To set easy probe:

1. Prepare food and properly insert the probe sensor into

the middle portion of the food (See Figs. 2 & 3). The

probe should be inserted into the food before starting

the cooking process and while the oven is still cool.

2. Place the prepared food on desired oven rack position

and slide rack completely inside the oven.

3. Insert the probe connector completely into the probe

receptacle (Fig. 1) located at the upper left front side of

the oven interior.

4. In a few seconds a tone will sound and the indicator

light located above the easy probe keypad will turn ON

indicating that the probe is functioning correctly.

5. Close the oven door. Set the oven for bake or quick

bake and if needed, adjust to the desired baking

temperature.

6. To display the internal food temperature press

keypad at any time while cooking. The food internal

temperature will appear for about 3 seconds and the

display will revert back to the set oven temperature.

From time to time during the cooking process, press the

easy probe keypad to check on the internal food

temperature, especially as the temperature approaches

the desired target.

7. When the desired internal food temperature is reached,

press cancel to stop bake or quick bake.

8. Open oven door and using a pot holder carefully unplug

the probe from the probe receptacle. The range interior,

probe, cookware and food may be very hot.

9. Remove food from oven and carefully remove the probe

sensor from the food.

•Always insert the probe so that the probe tip rests in the

center of the thickest part of meat or food. For best

results, do not allow probe temperature sensor tip to

contact any bone, fat, gristle or the cookware.

•For bone-in ham or lamb, insert the probe into the center

of lowest large muscle or joint. For dishes such as meat

loaf or casseroles, insert the probe into center of food.

(See Fig. 2).

•When cooking fish, insert meat probe just above the gill.

•For whole poultry or turkey, insert the probe temperature

sensor into the thickest part of inner thigh, below the leg

(See Fig. 3).

Proper probe placement in food:

Fig. 1

Should the oven control display the error message "PErr",

it may be that the probe connector is not fully inserted into

the probe receptacle (see Fig. 1) or that the probe has

overheated. When this message displays, the control will

not allow any oven feature to activate until corrected.

Remove the probe from the receptacle, then reconnect

probe into the receptacle (check that it is fully inserted

into the receptacle). Be sure the probe sensor is covered by

food and not exposed to avoid overheating.

If the probe is properly connected into the receptacle and

properly positioned into the food but the error message

remains displayed, the probe might be defective and need

replaced. If so, remove the probe from the oven and call

your authorized service agent for assistance. You may

continue to use the oven without the probe feature.

Probe error message:

Fig. 3

Fig. 2

Insert

probe tip

to center of

food item

probe

receptacle probe

connector handle

23

Suggested broil settings table

Food Rack position Setting Cook time in minutes

1st side 2nd side Doneness

Steak 1" thick 5th or 7th* Hi 6 4 Medium

Steak 1" thick 6th or 7th* Hi 7 5 Medium-well

Steak 1" thick 6th or 7th* Hi 8 7 Well

Pork chops 3/4" thick 6th Hi 8 6 Well

Chicken-bone in 5th Lo 20 10 Well

Chicken-boneless 6th Lo 8 6 Well

Fish 6th Hi 13 n/a Well

Shrimp 5th Hi 5 n/a Well

Hamburger 1" thick 7th* Hi 9 7 Medium

Hamburger 1" thick 6th Hi 10 8 Well

Fig. 1

Fig. 4

*Use the off-set rack if you choose to use oven rack position 7.

Insert

Broil

pan Fig. 3

Fig. 2

•For better access to food while broiling, use oven mitts

and pull the oven rack out to the rack stop position

before turning or removing the food.

• bake time or start time instructions cannot be added

to the broil feature.

•The oven control will not provide a preheat indicator or

reminder tone when broiling.

•When using a pan made especially for broiling, be sure

to use only Electrolux Home Products, Inc. approved

broil pan & insert (See Fig. 4).

NOTES

SETTING OVEN CONTROLS

7

6

5

To set broil:

1. Arrange the oven rack while oven is still cool.

2. Press broil keypad. " — — "will appear in display.

3. Press and hold the or keypad until the desired

broil setting level appears in the display. Press

the keypad for HI broil or the keypad for LO

broil. Most foods may be broiled at the HI broil setting.

Select the LO broil setting to avoid excess browning or

drying of foods that should be cooked to the well-done

stage.

4. For optimum results, preheat oven for 5 minutes

before adding food.

5. Place prepared food directly under upper element.

6. Leave oven door open at broil stop position (Fig. 2).

7. Broil food on one side until desired browness is

obtained. Turn food and broil on other side.

Use the broil feature to cook meats that require direct

exposure to radiant heat for optimum browning results.

When broiling, always remember to arrange the oven racks

while the oven is still cool. Position the rack as suggested in

the broil settings table (See Figs. 1 & 4).

To stop broil at anytime press cancel.

Broil

Should an oven fire occur, close the oven door and turn

the oven OFF. If the fire continues, use a fire

extinguisher. DO NOT put water or flour on the fire. Flour

may be explosive.

WARNING

24

The interior oven light will automatically turn ON when the

oven door is opened.

Press the keypad to turn the interior oven light ON and

OFF whenever the oven door is closed.

The interior oven light is located at the upper left rear wall

of the oven interior and is covered with a glass shield held

by a wire holder. The glass shield must be in place

whenever the oven is in use.

To replace the oven light, see "Replacing the oven light" in

the Care & Cleaning section.

SETTING OVEN CONTROLS

Your appliance has been factory calibrated and tested to

ensure accurate baking temperatures. For the first few

uses, follow your recipe times and temperature

recommendations carefully. If you think the oven is cooking

too hot or too cool for your recipe times, you may adjust

the control so the oven cooks hotter or cooler than the

temperature displayed.

To adjust oven temperature:

1. Press keypad.

2. Set the temperature to 550°F (287°C) by pressing the

keypad.

3. Within 2 seconds, press and hold keypad until

the 2 digit display appears. Release keypad. The

display now indicates the amount of degrees offset

between the original factory temperature setting and

the current temperature setting. If the oven control has

the original factory calibration, the display will read "0".

4. The temperature may now be adjusted up or down

35°F (19°C), in 5°F increments by pressing and holding

the or keypad. Adjust until the desired

amount of offset appears in the display. When lowering

the oven temperature, a minus sign (-) will appear

before the number to indicate that the oven will be

cooler by the displayed amount of degrees.

5. When you have made the desired adjustment, press

keypad to accept.

Adjusting the oven temperature

NOTES

Operating the oven light

• Any oven temperature offset made will not affect the

broil or self-cleaning feature temperatures.

• If the oven display has been set to display Celsius,

adjustments made will be in 1°C increments with each

press of the or keypad.

• Do not use oven thermometers such as those found in

grocery stores to check the temperature settings inside

the oven. These oven thermometers may vary as much

as 20 to 40 degrees from actual temperatures.

25

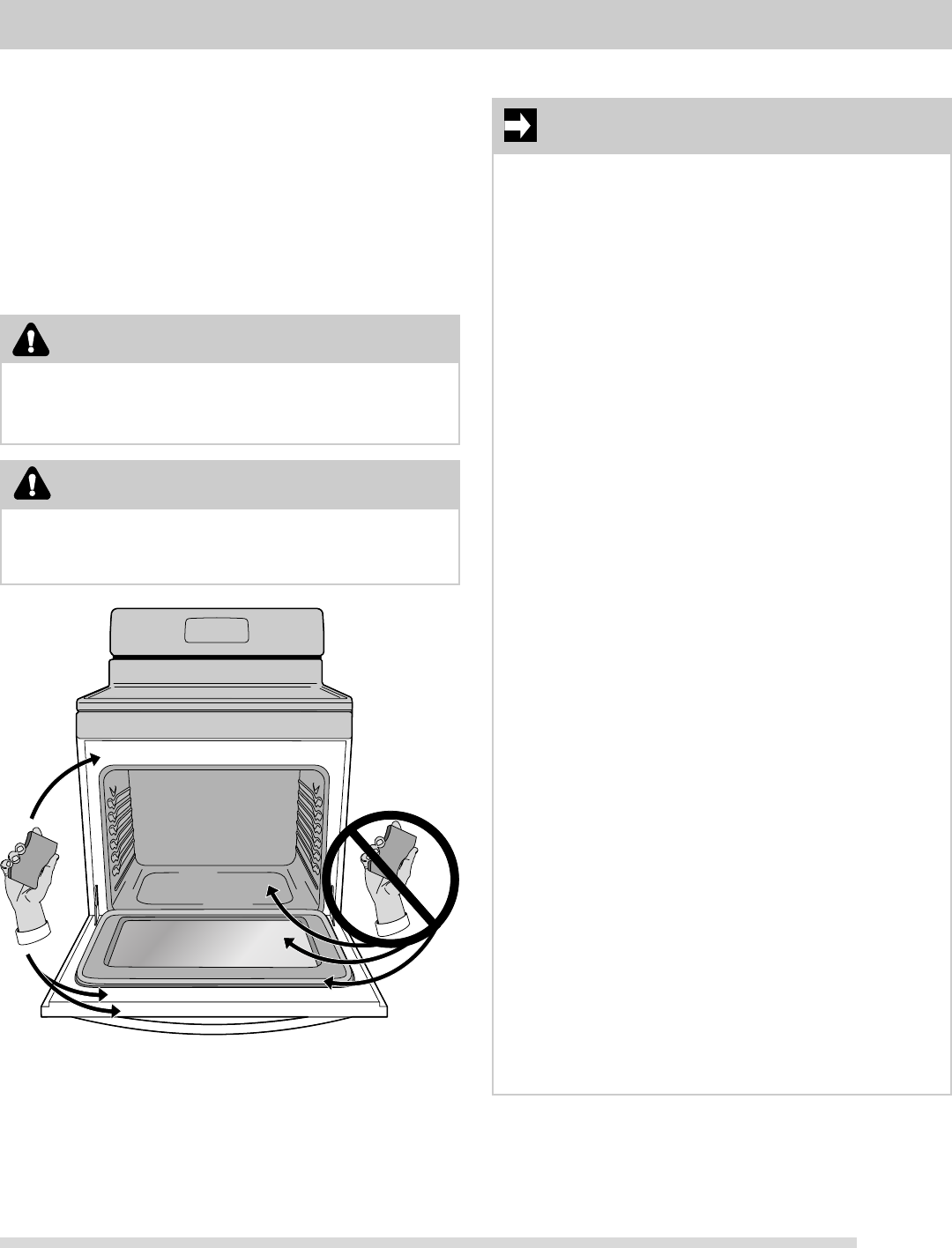

SELF-CLEANING

(For models with a visible bottom bake element ONLY) The

lower element may be tilted up from the front of the

element to make access to spills easier. Wait until the oven

is completely cool and remove bottom oven rack before

attempting to raise the element. Do not to raise the lower

element more than 4 or 5 inches from the resting position.

IMPORTANT

Fig. 1

clean do not

clean

A self-cleaning oven cleans itself using high temperatures

that are well above normal cooking temperatures. The

clean feature, if used properly, will eliminate soils from the

oven completely or reduce them to a fine powdered ash.

Once the oven has cooled, simply wipe away the ash using

a damp cloth.

• Do not touch the oven during the self-clean cycle.

•Keep children away from oven during self-clean cycle.

•Failure to follow these instructions can result in burns.

Self-clean

The health of some birds is extremely sensitive to the

fumes given off during the self-cleaning cycle of any

range. Move birds to another well-ventilated room.

The self-clean feature also provides optional cleaning

duration choices. A 3-hour cleaning time for normal

cleaning or a 2-hour clean for lighter soils.

Read before starting self-clean

•Remove all items from the oven and cooktop,

including food, cookware, utensils, plastic and any

aluminum foil. Aluminum foil will not withstand high

temperatures generated during a self-clean cycle.

•Remove all oven racks and any accessories from

the oven to avoid possible heat damage. If the oven

racks are not removed they may discolor. The

Effortless™ Oven Rack (some models) must be

removed before starting self-clean to avoid damaging

the glide ability of the rack.

•Be sure the oven vent area is clear.

•Remove all items from the lower storage drawer

(some models) or warming drawer (some models).

•Be sure the oven light shield is in place. Turn off the

oven light.

• Remove any excessive spillovers. Spills on the

oven bottom should be wiped-up and removed before

starting self-clean. To clean, use hot, soapy water

and a cloth. Large food spillovers can cause heavy

smoke or a fire during self-clean.

•Remove any food spills from oven that have a high

sugar or acid content (such as milk, tomatoes,

sauerkraut, fruit juices or pie filling) before starting a

self-clean cycle. If they are not removed they may

leave a dull spot even after self-cleaning.

•Clean any soil from the outer oven frame, the door

liner outside the oven door gasket and the small area

at the front center of the oven bottom. Clean using

soap and water before starting self-clean. These areas

(See Fig. 1) heat sufficiently to burn soil on.

• Do not clean the oven door gasket (See Fig. 1).

Do not use any cleaning materials on the oven door

gasket. Doing so could cause damage to the door

gasket. The woven material of the oven door gasket is

essential for a good seal. Care should be taken not to

rub, damage or remove the gasket.

• Do not use commercial oven cleaners or protective

coatings of any kind inside oven. Residue from oven

cleaners may damage the porcelain during the next

self-clean cycle.

CAUTION

WARNING

26

SELF-CLEANING

Setting clean

NOTE

1. Remove all items from the oven interior, cooktop,

storage (some models) or warmer drawer (some

models), all oven racks from the oven and be sure the

oven door is completely closed.

2. Press the keypad. "---" appears in the display.

3. To start press the or keypad once. "3:00" will

appear in the display indicating that a 3 hour self-clean

time is selected. To change to a shorter 2 hour self-

clean time press the keypad once ("2:00" will

appear in the display indicating that a 2 hour self-clean

time is selected.)

(some models) To set self-clean using a 4 hour clean

time press once (4:00 appears in display).

If it becomes necessary to stop or interrupt a self-

clean cycle after it has been activated:

1. Press keypad.

2. Once the oven has cooled down (as much as 1 hour)

and the "door locked" indicator light has turned off, the

oven door may be opened.

3. If the self-clean cycle did not completely finish cleaning

the oven, set for another self-clean cycle.

IMPORTANT

Whenever the self-clean feature is active you may

momentarily display the amount of clean time remaining

by pressing the self-clean keypad once. You will need to

add about 1 hour to the time displayed before the

oven cools down enough for the oven door to unlock.

To set self-clean:

To stop self-clean at any time press keypad.

Restarting self-clean after a power failure:

If a self-clean cycle was interrupted by a power failure,

your oven may not have thoroughly cleaned. If so, once

power is restored, the oven has cooled and the oven door

has unlocked, set for another self-clean cycle.

IMPORTANT

•To avoid possible burns use care when opening the

oven door after the clean cycle is finished. Stand to

the side of the oven when opening the oven door to

allow any hot air or steam to escape.

•The oven bake and broil elements may appear to have

cooled after they have turned OFF. The elements

may still be hot and burns may occur if these

elements are touched before they have cooled

sufficiently.

Immediately after setting self-clean the oven door will

start to lock. Check to be sure the oven is completely

empty before setting self-clean.

If self-clean was set and any items were left inside the

oven, you should try to remove them as soon as

possible.

Press cancel to stop self-clean and wait for the oven

door to unlock. Once unlocked, remove any items from

the oven, close the oven door and if needed set for self-

clean again.

Once the oven control is set for self-clean, the "door

locked" indicator light will flash while the latch is locking

the oven door. DO NOT attempt to open the oven door

while this indicator light is flashing (allow about 15

seconds for the oven door to completely lock). DO NOT try

to force the oven door open. This may damage the

automatic door locking system.

CAUTION

When the self-clean cycle ends:

•The time of day will appear in the oven display and the

"clean" and "door locked" indicator lights will continue

to glow.

•Once the oven has cooled down for about 1 hour and

the "door locked" light has turned off, the oven door

may be opened.

•Wait until the oven is completely cool, then wipe

away any residue or powdered ash from the oven

interior using a clean damp cloth or paper towel.

27

Setting self-clean with start time

To set self-clean with delay start instructions:

1. Remove all items from the oven interior, cooktop,

storage drawer (some models) or warmer drawer

(some models), all oven racks from the oven and be

sure the oven door is completely closed.

2. Press the keypad. The ":" in the time of day

display will flash.

3. Press and hold the keypad to scroll to the time to

start the self-clean cycle. Release the keypad when the

desired start time is displayed.

4. Press the keypad. "---" appears in the display.

5. To start press the or keypad once. "3:00" will

appear in the display indicating that a 3 hour self-clean

time is set. To change to a shorter 2 hour self-clean

time press the keypad once ("2:00" will appear in

the display indicating a 2 hour clean time is desired).

6. "CLn" will appear in the oven display during the clean

cycle and the "door locked" indicator light will remain

ON until the cleaning cycle is complete or cancelled and

the oven temperature has cooled.

NOTES

•The maximum start time setting with the self-clean

feature is 11 hours & 59 minutes.

• Check to be sure the oven is empty before setting a

self-clean cycle with a delayed start setting.

Immediately after setting self-clean with a start time

the oven door will lock, however, the self-clean feature

will not start heating the oven for cleaning until

reaching the delay start time.

•On models equipped with cooktop lockout the cooktop

will also lock.

You may add start time instructions to the self-clean

feature, which will automatically start clean at a later time.

IMPORTANT To avoid possible burns use care when opening the oven

door after the self-clean cycle is finished. Stand to the

side of the oven when opening the oven door to allow

any hot air or steam to escape.

When the self-clean cycle ends:

•The time of day will appear in the oven display and the

"clean" and "door locked" indicator lights will continue

to glow.

•Once the oven has cooled down for about 1 hour and

the "door locked" light has turned off, the oven door

may be opened.

•Wait until the oven is completely cool, then wipe

away any residue or powdered ash from the oven

interior using a clean damp cloth or paper towel.

Immediately after setting clean using start time

instructions the oven door will start to lock. Check

to be sure the oven is completely empty before setting

clean with start time. Be aware that the clean feature

will not start heating the oven for cleaning until the time

of day reaches the set starting time

If clean was set and any items remain inside the oven,

you will need to remove them before clean begins the

heating portion of the cycle.

Press cancel to stop self-clean and wait for the oven

door to unlock. Once unlocked, remove any items from

the oven, close the oven door and set for self-clean

again.

To stop self-clean at any time press keypad.

SELF-CLEANING

CAUTION

28

CARE & CLEANING

Surface type Recommendation

• Porcelain enamel broiler pan and

broiler pan insert (if equipped)

• Easy Care™ Stainless Steel

(some models)

Cleaning recommendation table

• Control panel

• Control key pad membrane

• Decorative trim (some models)

For general cleaning, use hot, soapy water and a cloth. For more difficult soils

and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil

for 30-60 minutes. Rinse with a damp cloth and dry. Do not use abrasive

cleaners on any of these materials; they can scratch. To remove control knobs,

turn to OFF position; grasp firmly and pull straight off the shaft. To replace

knobs after cleaning, line up the flat sides of both knob and shaft; then push

knob into place.

Before cleaning the control panel, turn all controls OFF, activate oven lockout (on

some models) and if needed remove any knobs from panel. Do not use abrasive

cleaners on any of these materials; they can scratch. Clean using hot, soapy

water and a dishcloth. Be sure to squeeze excess water from dishcloth before

wiping control panel; especially when wiping around the controls area. Excess

water in or around the controls may cause damage to the appliance. When

rinsing, use clean water and a dishcloth and be sure to squeeze excess water

from dishcloth before wiping the control panel.

• Control knobs (some models)

• Painted body parts

• Painted decorative trim

• Aluminum, plastic or vinyl trim

If your range finish is Easy Care™ Stainless Steel (some models), clean the

stainless with warm soapy water using a clean sponge or cloth. Rinse with clean

water and dry with a soft clean cloth. DO NOT use ANY store bought cleaners

like Stainless Steel cleaners or any other types of cleaners containing any

abrasive, chlorides, chlorines or ammonia. It is recommended to use mild dish

soap and water or a 50/50 solution of water and vinegar.

• Porcelain enamel parts

Remove excessive spillovers from oven cavity bottom before starting self-

clean. Clean any soils from oven frame and door liner outside the oven door

gasket. For very important prepartion information be sure to read all the

instructions in the self-clean section.

• Oven interior

Gentle scrubbing with a soapy no-scratch cleaning pad will remove most spots.

Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover

difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse

with clean water and a damp cloth, and then scrub with a soap-filled no-scratch

cleaning pad. Rinse and wipe dry with a clean cloth. Do not allow food spills with

high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling)

to remain on the surface; they may cause a dull spot even after cleaning.

• Oven racks

• Oven door

Oven racks must be removed from oven. Do not clean oven racks in

oven during the self-clean cycle. Remove and clean using a mild, abrasive

cleaner following manufacturer's instructions. Thoroughly rinse and dry.

Use soap & water to thoroughly clean the top, sides and front of the oven door.

Rinse well. You may use a glass cleaner on the outside glass of the oven door.

Do not immerse the door in water. Do not spray or allow water or the

glass cleaner to enter the door vents. Do not use oven cleaners, cleaning

powders or any harsh abrasive cleaning materials on the outside of the oven

door. Do not clean the oven door gasket. On self-cleaning models the oven

door gasket is made of a woven material which is essential for a good seal.

Care should be taken not to rub, damage or remove this gasket.

See Cooktop Cleaning and Maintenance in the Care & Cleaning section.• Ceramic cooktop

29

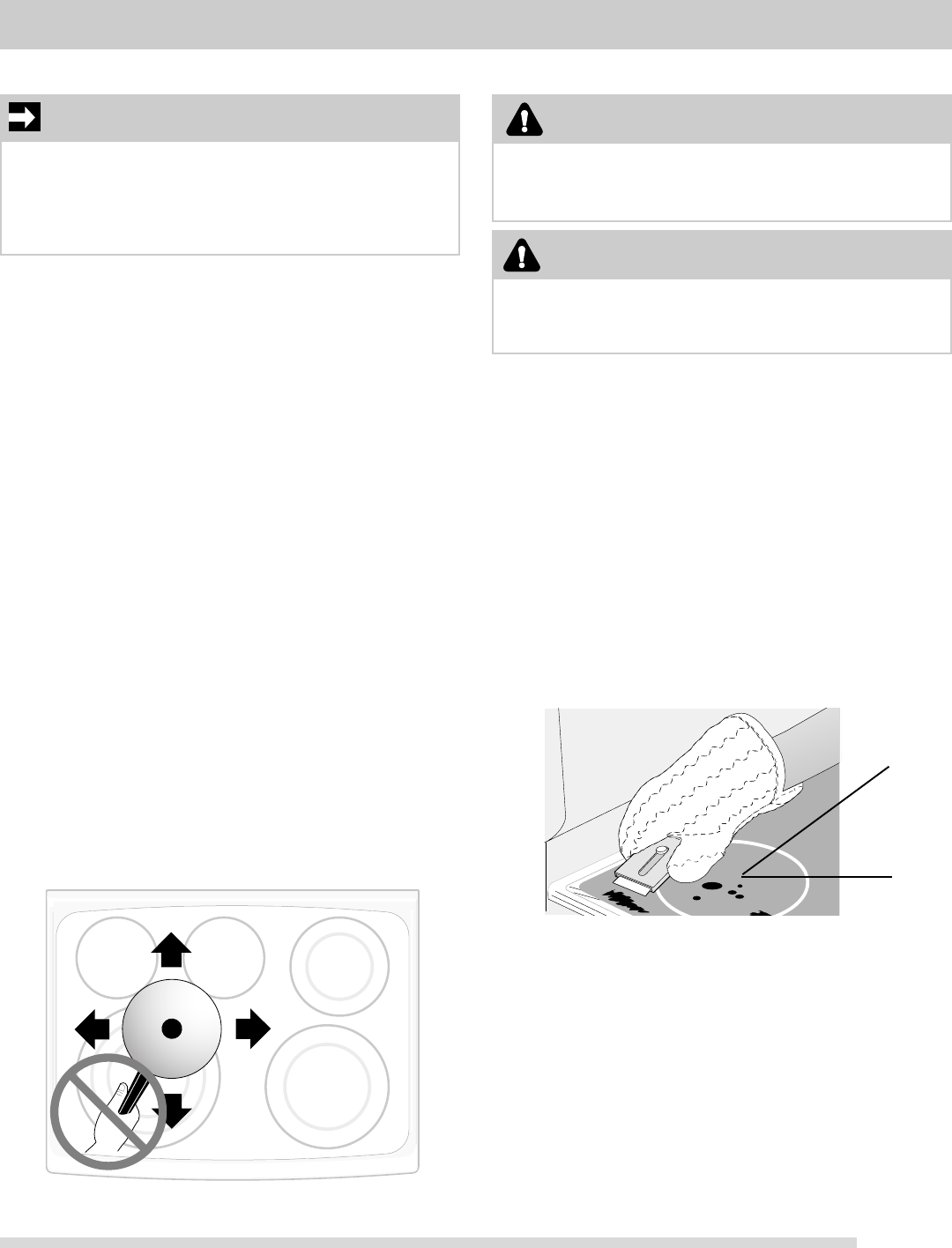

Consistent and proper cleaning is essential to

maintaining your ceramic glass cooktop.

Damage to the ceramic glass cooktop may occur if you

use an abrasive cleaning pad. Only use cleaning products

that have been specifically designed for cooktops.

To maintain the cooktop appearance :

• Never slide anything metal or glass across the cooktop

surface.

• DO NOT use cookware with dirt or dirt build up on

bottoms. Replace with clean flat bottom cookware before

using on the cooktop.

• Never use the ceramic cooktop as a cutting board or

work surface in the kitchen.

• Never cook foods directly on the cooktop surface.

• DO NOT drop heavy or hard objects on the ceramic glass

cooktop, this may cause it to crack.

For light to moderate soil- Apply a few drops of glass-

ceramic cooktop cleaner directly to the cooktop. Use a

paper towel or use a non-abrasive plastic type no-scratch

cleaning pad to clean the entire cooktop surface. Make sure

the cooktop is cleaned thoroughly, leaving no residue.

For heavy, burned on soil- Apply a few drops of glass-

ceramic cooktop cleaner directly to the soiled area. Rub the

soiled area using a non-abrasive plastic type no-scratch

cleaning pad, applying pressure as needed. Do not use the

pad you use to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor

blade scraper, holding scraper at a 30 degree angle to the

surface. Remove loosened soils with cooktop cleaning

cream and buff surface clean.

Prior to using your cooktop for the first time, apply some of

the glass-ceramic cooktop cleaner supplied with your new

appliance. Buff with a non-abrasive cloth or no-scratch

cleaning pad. This will make cleaning easier when soiled

from cooking. The special cooktop cleaning cream leaves a

protective finish on the glass to help prevent scratches and

abrasions.

Sliding aluminum or copper clad bottom pans on the

cooktop can leave metal markings on the surface. These

marks should be removed immediately after the cooktop

has cooled using the cooktop cleaning cream. Metal marks

can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough or

dirty bottoms can mark or scratch the cooktop surface.

To avoid possible burns, be sure the surface controls are

turned OFF and the cooktop is cool before cleaning

the cooktop.

Cooktop maintenance Cooktop cleaning

Removing plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled

or melted onto the ceramic cooktop surface. Permanent

damage (such as pitting of the cooktop surface) may occur

if not removed immediately. After turning the surface

elements OFF, use a razor blade scraper or a metal spatula

with a mitt and scrape the soil from the hot surface (as

illustrated). Allow the cooktop to cool, and use the same

method for heavy or burned on soils.

IMPORTANT

30°

DO NOT use a cooktop cleaner on a hot cooktop.

The fumes can be hazardous to your health and

can chemically damage the ceramic glass surface.

CARE & CLEANING

CAUTION

WARNING

30

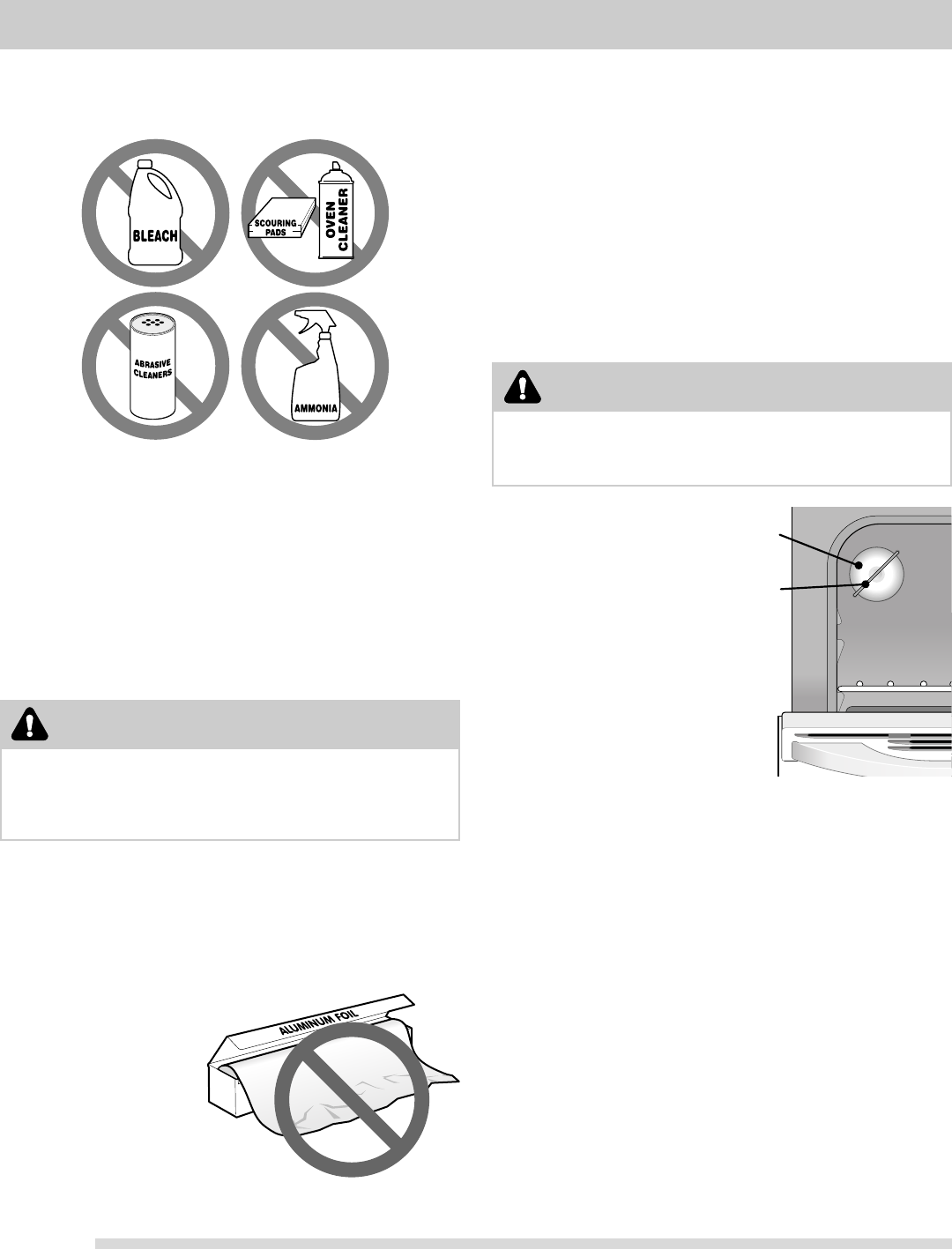

CARE & CLEANING

Aluminum foil and the cooktop - Use of aluminum foil on

a hot cooktop can damage the ceramic glass. Do not use

thin aluminum cooking utensils or allow aluminum foil to

touch the ceramic cooktop under ANY circumstances.

Aluminum utensils and the cooktop - Care must be

taken when aluminum pots or pans are used on the

cooktop. If aluminum pans are allowed to boil dry when

using the cooktop, the utensil be damaged or destroyed,

and may fuse to, break or mark the ceramic glass

surface, permanently damaging the cooktop surface.

•Do not use abrasive cleaners and scouring pads, such as

metal and some nylon pads. They may scratch the

cooktop, making it more difficult to clean.

•Do not use harsh cleaners, such as chlorine bleach,

ammonia or oven cleaners, as they may etch or discolor

the cooktop.

•Do not use dirty sponges, cloths or paper towels, as they

can leave soil or lint on the cooktop which can burn and

cause discoloration.

Cooktop cleaning (cont’d)

Replacing the oven light

To replace the oven light:

1. Turn electrical power off at the main source or unplug

the range.

2. While holding the glass shield in place, press wire

holder to one side to release the glass shield.

3. Remove glass shield. Replace bulb with a new 40 watt

appliance bulb.

4. Replace glass shield over bulb and snap wire holder

into place.

5. Turn power back on again at the main source (or plug

the range back in).

6. The clock will then need to be reset. To reset, see

Setting clock in this Use & Care Manual.

DO NOT use the following on the cooktop:

wire

holder

glass

shield

The interior oven light is

located at the rear of the

oven interior back wall and

is covered with a glass

shield held by a wire

holder.

The glass shield must

always be in place to

protect and shield the oven

interior light whenever

using the oven.

Be sure the range is unplugged and all parts are COOL before

replacing oven light. Wear a leather-faced glove for protection

against possible broken glass.

Aluminum foil and oven liners

Aluminum foil and oven liners (cont’d)

Using a liner in the oven will restrict the heat and air flow

needed to obtain the best possible cooking results for any

oven, including the warmer drawer (some models).

Protective liners—Do not use aluminum foil to line the

oven bottom. Only use aluminum foil as recommended

in this manual. Improper installation of these liners may

result in risk of electric shock, or fire.

Do not use oven bottom liners or use aluminum foil to cover

the oven bottom or any oven racks.

During self-clean the

oven temperature can

become hot enough to

melt aluminum cooking

utensils or aluminum

foil which could result in

damage to the oven

interior porcelain finish.

CAUTION

WARNING

31

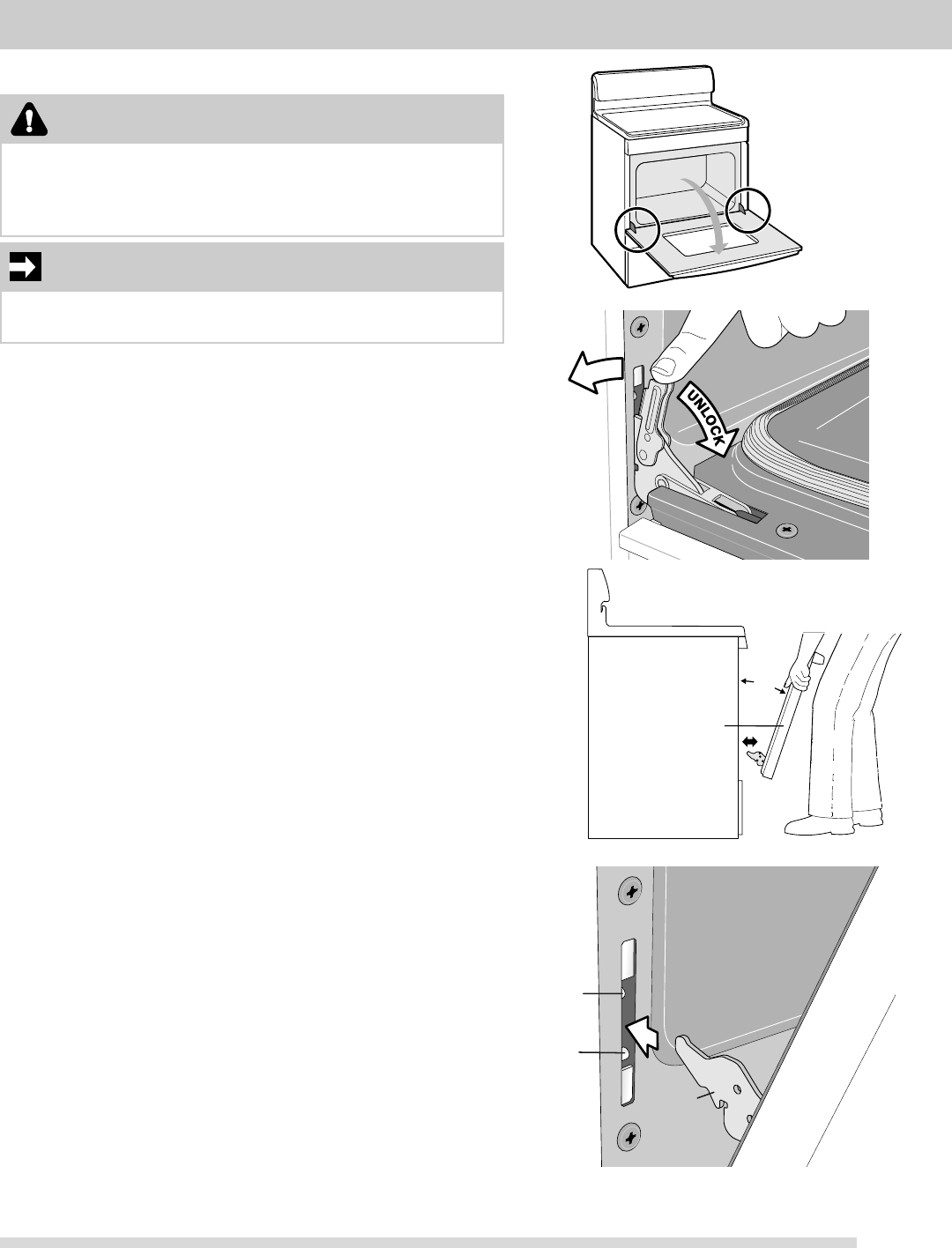

Fig. 3

To remove oven door:

1. Open oven door completely (horizontal with floor - See Fig.

1).

2. Pull the door hinge locks on both left and right door hinges

down from the oven frame completely towards the oven door

to unlock (See Fig. 2). A tool such as a small flat-blade

screwdriver may be required.

3. Firmly grasp both sides of oven door along the door sides (Do

not use the oven door handle).

4. Close the door to the broil stop position. The oven door will

stop into this position just before fully closing.

5. With the oven door in the broil stop position (Fig. 3), slightly

lift and carefully pull the oven door away from the oven

frame. To avoid finish damage, be careful not to allow the

oven door hinges to contact the oven front frame.

Special door care instructions - Most oven doors contain

glass that can break.

Removing and replacing the lift-off oven door

Oven door hinge

locations

with oven door

fully open.

Fig. 1

Fig. 2

Fig. 4

pin

about

10°

oven

door

door

hinge

arm

pin

L

O

C

K

CARE & CLEANING

To avoid possible injury when removing or replacing the oven

door, follow the instructions below carefully and always hold

the oven door with both hands positioned away from the door

hinge area.

To replace oven door:

1. Firmly grasp both sides of oven door along the door sides

(Do not use the oven door handle).

2. Holding the oven door at the same angle as the removal

position (See Fig. 3), carefully line up and insert both door

hinge arms between the pins located on each side of the

oven door frame (See Fig. 4).

3. With both door hinge arms in place, open the oven door

(horizontal with floor - See Fig. 1).

4. Push the door hinge locks up towards and into the oven

frame for both left and right oven door hinges to the locked

position (See Fig. 2).

5. Close the oven door.

The oven door is heavy. For safe, temporary storage, lay the

door flat with the inside of the door facing down.

IMPORTANT

•DO NOT close the oven door until all the oven racks are fully

positioned inside the oven interior.

•Do not hit the glass with pots, pans, or any other object.

•Scratching, hitting, jarring or stressing the glass may

weaken its structure causing an increased risk of breakage

at a later time.

Read the following recommendations:

CAUTION

32

BEFORE YOU CALL • Solutions to common problems

Problem Possible Causes Solutions

Oven control displays

F

__ (followed with

a number) and oven

control beeps.

Press cancel to clear the display & stop beeping. Try bake or broil

feature again. If the F code error repeats, remove electric power

from appliance, wait 5 minutes and then repower appliance and

set clock. Try bake or broil feature again.

Poor baking or

roasting results.

Try adjusting the recipe's recommended temperature or cooking

time. If you still feel the oven is too hot or cool, try offsetting the oven

temperature. See "Adjusting the oven temperature" in Setting

Oven Controls section.

The oven does not

respond or error

tone sounds when a

keypad is pressed.

Be sure to press center of keypad using flat portion of finger.

Cancel the lock feature (some models).

See "Entire appliance does not operate" in this checklist.

Warm air or steam

from oven vent area. This is normal. To ensure the best possible results, do not block

the oven vent area when cooking.

The oven control has detected

a fault or error condition.

Pressed outside keypad area.

Record fault code and call your authorized service agent.

Error condition recurs.

Lock feature may be active.

Oven vent may be blocked.

Incorrect cookware type or

size.

Clear any cookware or items that is blocking the oven vent area.

Dark or dull pans absorb more heat than shiny bakeware resulting in

overbrowning of some foods. Try reducing the oven temperature or

cook time to prevent overbrowning. Dark pans are recommended for

pies; shiny pans for cakes, cookies and muffins.

Try preheating the oven before placing food on oven rack.Baking started with cold oven.

Incorrect oven rack position. Adjust oven rack position upward or downward as needed.

Inadequate space around

cookware or air flow is blocked

by oven liner or using

aluminum foil as a liner.

Try centering food in oven for single items. When cooking multiple

food items space cookware to allow air to circulate completely

around the food items. Review section for "Aluminum foil and

liners" in the Care & Cleaning section.

Oven temperature or time

settings.

New oven cooks

hotter or cooler than

previous experience.

For the first few uses, follow your recipe times and temperature

recommendation carefully. If you feel the oven is too hot or cool from

your previous cooking experience, try offsetting the oven

temperature. See "Adjusting the oven temperature" in Setting

Oven Controls section.

Difference in oven

temperature settings between

the old and new range.

Odor or some

smoking coming from

the oven during first

few uses.

It is possible to experience some odors and/or a small amount of

smoke from a new range. The odor will diminish after first using

the oven. Before cooking for the first time, turn the oven ON to

400°F for 30 minutes to one hour. This will allow for an initial

burn-in period and help eliminate odors. If necessary, ventilate the

kitchen by opening a window.

New appliance.

Appliance makes

popping sounds. Oven expands and contracts

while heating or cooling. This is normal while the oven heats to the set temperature or when

the oven cools down.

The oven control is cycling the

oven ON and OFF. This is normal when the oven is active.

Moisture coming from food

while cooking using the oven.

Control panel makes

clicking noises.

Display flashes time. Power interruption. Press cancel then set the correct time of day.

Incorrect oven control setting. See Setting Oven Controls section and review instructions for

the desired cooking function.

No electric service.

33

Solutions to common problems • BEFORE YOU CALL

Oven portion of

appliance does not

operate.

Problem Possible Causes Solutions

Be sure the oven control was set correctly for the requested

feature. See Setting Oven Controls section and review

instructions for the desired cooking function in this manual or see

"Entire appliance does not operate" in this checklist.

Entire appliance does

not operate. Be sure appliance power cord is plugged properly to electrical

outlet. Check house circuit breaker; reset if needed. If the electric

service to the house is out, call your local electric utility for

service.

Incorrect oven control setting.

Power supply to appliance

disconnected or electrical

power outage.

Contact your dealer, installing agent or authorized service agent

for assistance.

Service wiring is incomplete.

Cannot move

appliance easily.

Appliance must be

accessible for

service.

Range is not level.

To correct, place oven rack in center of oven. Place a bubble (or

spirit) level centered on the oven rack. Adjust by turning leveling

legs at bottom of range until the oven rack rests level.

Quick bake fan turns

ON and OFF while

cooking.

The quick bake fan will turn OFF if the oven door is opened while

quick bake feature is active. Close oven door.

Quick bake fan turns

on with features that

should run without a

fan (some models).

For some models the quick

bake fan may turn ON while

preheating.

Oven control displays

"PErr". The probe is

not recognized by the

oven control.

If the error code remains, the

probe may be damaged or the

probe cable has a short.

Floor is not level, weak or

unstable. If floor under range is sagging or sloping, contact a carpenter to

correct the problem.

The cooktop or oven racks are

not level.

Be sure kitchen cabinets are square & have sufficient room for

appliance clearance.

Cabinet alignment may make

range appear not level.

Contact builder or installer to make appliance accessible.

Carpet interferes with range. Provide sufficient space so appliance may be lifted over carpet.

Cabinets are built in too tightly

to appliance sides.

Oven door is open.

This is normal (some models).

Quick bake fan makes

noise. The quick bake fan may turn

ON or OFF automatically. This is normal. On some cooking features the convection fan may

run until the feature is done or the door was opened or closed.

The probe is not fully inserted

into the probe receptacle. Double check that the probe is fully inserted into probe

receptacle. Use only the probe originally supplied with range.

Remove the probe from receptacle and oven. The oven may still

be used normally without the probe. Call your authorized service

agent for assistance.

Lock feature set (some models). Cancel the lock feature (some models).

Probe has overheated. Remove the probe from the receptacle, then reconnect probe into

the receptacle (check that it is fully inserted into the receptacle).

Be sure the probe sensor is covered by food and not exposed to

avoid overheating.

34

BEFORE YOU CALL • Solutions to common problems

These areas are not within the self-cleaning area, but get hot

enough to burn on residue. Clean these areas before starting a

self-clean cycle. Burned-on residue may be cleaned with a stiff

nylon brush and water or a nylon scrubber. Be careful not to

damage the oven gasket.

Oven rack finish is

dull or discolored.

Soil not completely

removed after self-

cleaning cycle.

Self-clean feature

will not start. The oven door must lock before the self-clean cycle will start. Be

sure the oven door is closed before starting self-clean.

Oven door did not

unlock after the self-

clean cycle.

Allow about 1 hour after the self-clean cycle for the oven to cool

enough before the oven door will unlock.

Set clock with correct time of day before adding a delay start

setting. See "Setting the clock" in Setting Oven Controls

section.

bake or self-clean

did not start at the

time expected.

The time of day is incorrect.

Problem Possible Causes Solutions

Oven is too hot.

Carefully follow the prepartion and programming instructions

under Self-cleaning.

Incorrect control setting.

Oven door open.

In some cases after cancelling self-clean, you may be required to

wait up to 4 hours before the self-clean feature may be used

again. Watch display for any messages.

Self-clean will not

restart afterbeing

cancelled.

The control has determined

oven is too hot to restart self-

clean (some models).

Heavy soils. Clean time too

short or spillovers were left

inside oven.

Set self-clean feature for maximum cleaning time. Remove any

excessive spillovers from oven before starting self-clean.

Carefully follow prepartion instructions under "Self-cleaning".

Interrupted by power outage. Once power is restored restart self-clean.

Oven rack no longer

slides in or out of

oven easily.

Oven racks left inside oven

during self-clean. Remove all oven racks from oven before starting self-clean.

Clean after removing from the oven using a mild, abrasive cleaner

following manufacturer's instructions. Thoroughly rinse and dry.

Oven racks left inside oven

during self-clean. Remove all oven racks from oven before starting self-clean. To

ease rack movement, remove from oven and clean if needed.

Then apply a small amount of vegetable oil to a paper towel and

wipe oil on edges of oven racks. Do not use lubricant spays.

Failure to clean soil from the

oven frame, the door liner

outside the oven door gasket

and the small area at the front

center of the oven bottom.

Strong odor from

range or smells hot. Self-clean was started for the

first few times. It is normal for odors to occur during self-clean, especially during

the first self-clean cycle. It is recommend to ventilate the kitchen

area. Open any windows and if available turn on an exhaust fan

or overhead range hood during the self-clean cycle.

Unable to remove

items from oven after

starting self-clean.

Oven door locks immediately

after setting self-clean. Press cancel to stop self-clean. Wait for the oven door to unlock.

Once unlocked, remove any items left in the oven, close the oven

door and set for self-clean again.

Powdered ash inside

the oven cavity after

self-clean cycle.

This is normal. The

temperature of the self-clean

feature turned dirt to ash.

Wait for the oven to completely cool. Wipe away any residue or

powdered ash from the oven interior using a clean damp cloth or

paper towel.

35

Problem Possible Causes Solutions

Oven smokes

excessively when

broiling.

Oven door was closed. Be sure oven door is open when broiling.

Meat too close to upper

element. Reposition oven rack lower to provide proper clearance between

the food & the upper element.

Excessive spillovers or

grease built up inside oven. Regular cleaning is needed when broiling frequently.

Meat not prepared for broil. Remove excess fat from meat. Remove fatty edges.

Insert placed incorrectly on

broil pan (some models). Always place insert on the broil pan with ribs up and slot holes

downward. This will allow grease to drip into pan (some models).

Flames inside oven

or smoking from

oven vent.

Excessive food spillovers in

oven. Wipe up any excessive spillovers before starting the oven. Should

an oven fire occur, close the oven door and turn the oven OFF. If

the fire continues, use a fire extinguisher. DO NOT put water or

flour on the fire! Flour may be explosive.

Surface element

does not heat.

Cookware materials and weight of the material affect heating.

Heavy & medium-weight pans heat evenly. Because lightweight

pans heat unevenly, foods may burn easily.

Surface element too

hot or not hot

enough.

Be sure the correct control is ON for the element that you are

attempting to use.

Incorrect control setting.

Incorrect control setting. Adjust the surface power level setting lower or higher to match

the cookware size and quantity of food.

Cookware material or

weight.

Element heating area

extends beyond

cookware bottom.

Cookware too small for

cooktop element used. If available, move cookware to smaller surface element or place

food in larger cookware.

Surface element

slow to heat food. Incorrect control setting.

Move cookware to larger element on cooktop if available or if

possible place food in smaller cookware.

Cookware much larger than

element pattern on cooktop.

Adjust the power level to a higher setting.

Condition of cookware. Use only flat, evenly balanced, medium or heavyweight cookware.

Flat pans heat better than warped pans.

Solutions to common problems • BEFORE YOU CALL

Scratches or

abrasions on

cooktop surface.

Coarse particles such as salt

or sand between cookware

and cooktop surface.

Be sure cooktop surface and bottom of cooking utensils are clean

before usage. Small scratches do not affect cooking and will

become less visible with time.

Use clean, smooth, flat-bottomed cookware.

Cleaning materials not

recommended for ceramic

cooktop have been used.

See "Cooktop Cleaning" and "Cooktop Maintenance" in the Care

and Cleaning section of this Use & Care Guide.

Cookware with rough or dirty

bottoms.

Brown streaks or

specks on cooktop

surface.

Boilovers are cooked onto

cooktop surface.

Metal marks on the

cooktop. Do not slide metal utensils on cooktop. Use a ceramic-glass

cooktop cleaning creme to remove marks. See "Cooktop Cleaning"

and "Cooktop Maintenance" in the Care and Cleaning section.

Remove discoloration using a ceramic-glass cooktop cleaning

creme. Always be sure to use cookware with clean, dry bottoms.

Sliding or scraping of metal

utensils on cooktop surface.

Boilovers are cooked onto surface. Use razor blade scraper to

remove soil. See "Cooktop Cleaning" in the Care & Cleaning

section.

Area of

discoloration on

cooktop surface.

Mineral deposits from water

and food.

This page is left blank intentionally

This page is left blank intentionally

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Your appliance is covered by a one year limited warranty. For one year from your original date of

purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove

to be defective in materials or workmanship when such appliance is installed, used and maintained in

accordance with the provided instructions.

Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR

OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT

BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL

EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED

WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under

this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

If You Need

Service

USA

1.800.944.9044

Electrolux Home Products, Inc.

10200 David Taylor Drive

Charlotte, NC 28262

MAJOR APPLIANCE WARRANTY
