825129300
(French 825129350)
©2006-2008 Dometic, LLC
LaGrange, IN 46761
DM2862
DM3862
NDM1062
NDR1292
RM2351
RM2354
RM2451
RM2454
RM2551
MO-M 0819
USA Corporate Ofce CANADA
Service Ofce 2320 Industrial Parkway Elkhart, IN 46515 Dometic, LLC
Dometic, LLC 48 Zatonski, Unit 3
2320 Industrial Pkwy. Brantford, ON N3T 5L8
Elkhart, IN 46516 For Service Center Assistance CANADA
Phone: 574-294-2511 Call: 800-544-4881 Phone: 519-720-9578
RM2554
DM2652
DM2662
DM2663
DM2852
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical switches.
3. Extinguish any open ame.
4. Immediately call your gas supplier.
POUR VOTRE SÉCURITÉ
Si vous sentez une odeur de gaz:
1. Ouvrez les fenêtres.
2. Ne touchez à aucun interrupteur.
3. Éteignez toute amme nue.
4. Avertissez immédiatement votre
fournisseur de gaz.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser de l’essence
ni d’autres vapeurs ou liquides inamma-
bles à proximité de cet appareil ou de tout
autre appareil.
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional infor-
mation consult a qualied installer, serv-
ice agency or the gas supplier.
Une installation, un réglage, une modi-
cation, une réparation ou un entretien non
conforme aux normes peut entraîner des
blessures ou des dommages matériels.
Lisez attentivement le mode d’emploi
fourni avec l’appareil. Pour obtenir de
l’aide ou des renseignements supplémen-
taires, consultez un installateur ou un
service d’entretien qualié ou le fournis-
seur de gaz.
AVERTISSEMENT
!
WARNING
!
iNstallatioN
&
opeRatiNg
iNstRuctioNs
- 3 -
operating instructions ____________ 13

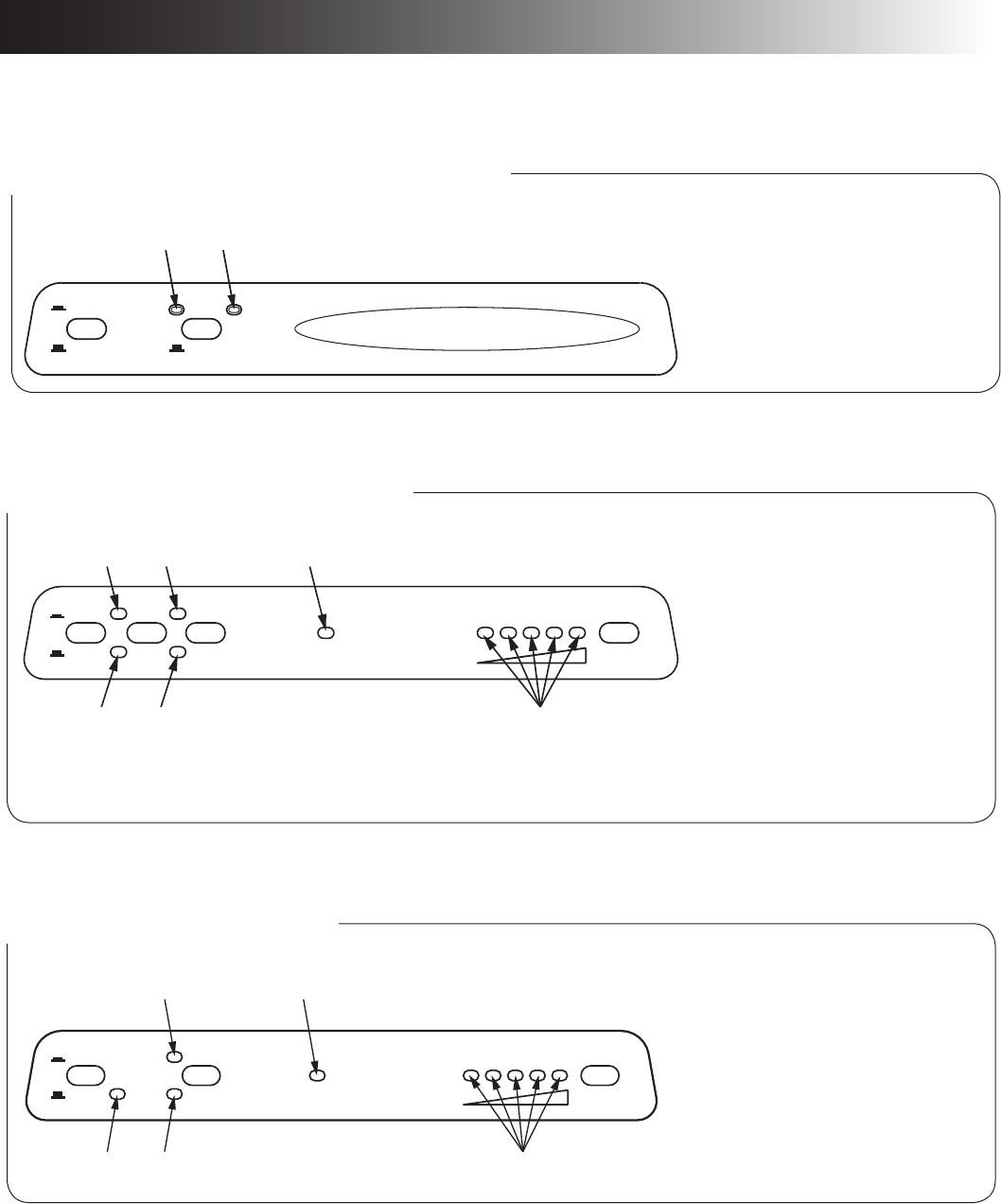

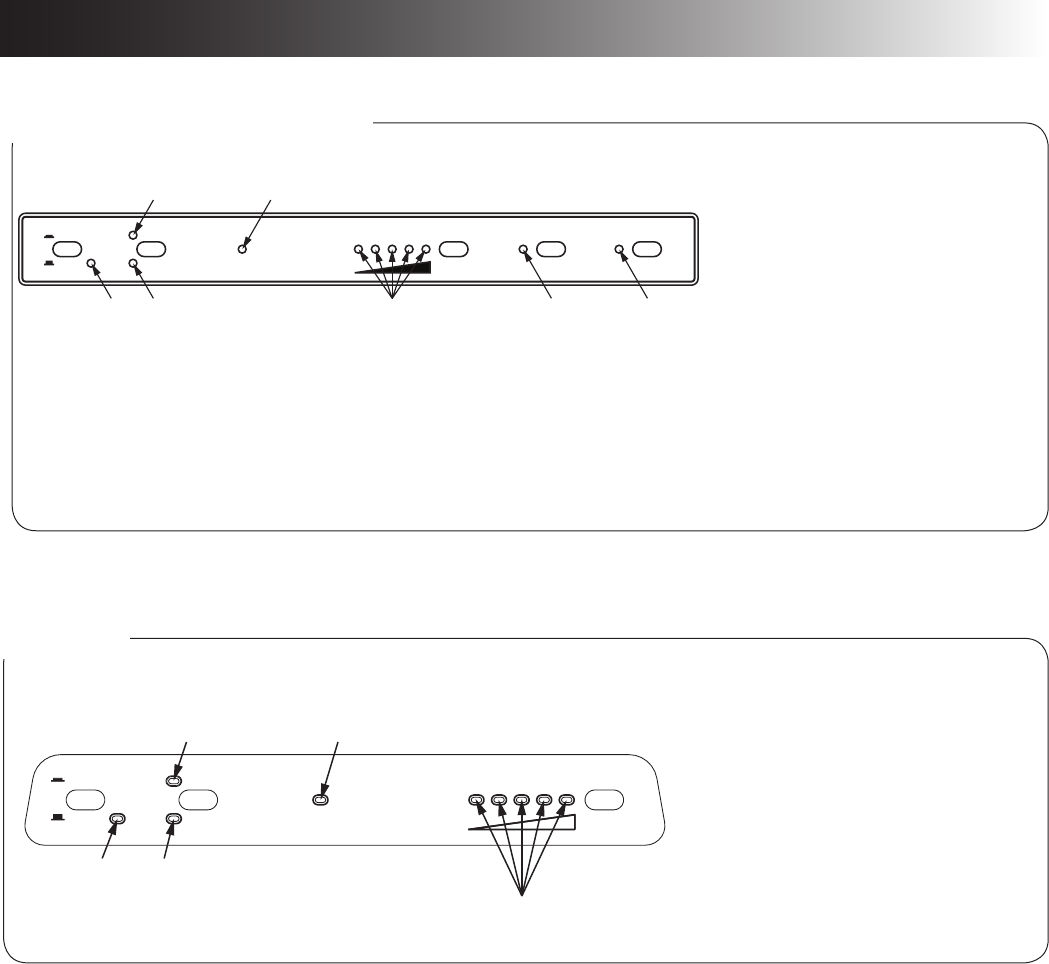

refrigerator overview .....................13
instructions for use . . . . . . . . . . . . . . . . . . . . . . 17

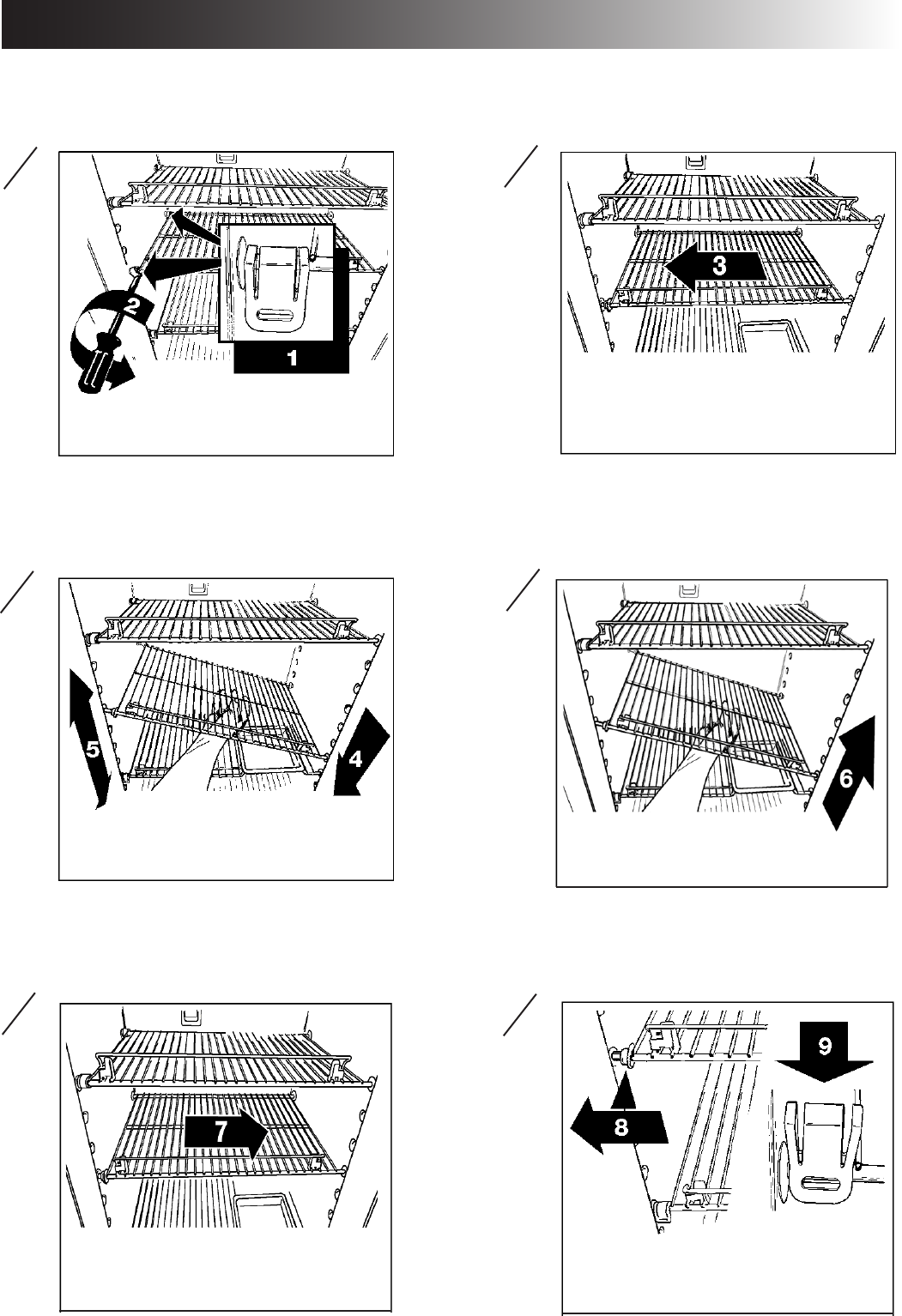

storage compartments ....................18
product care ..............................20

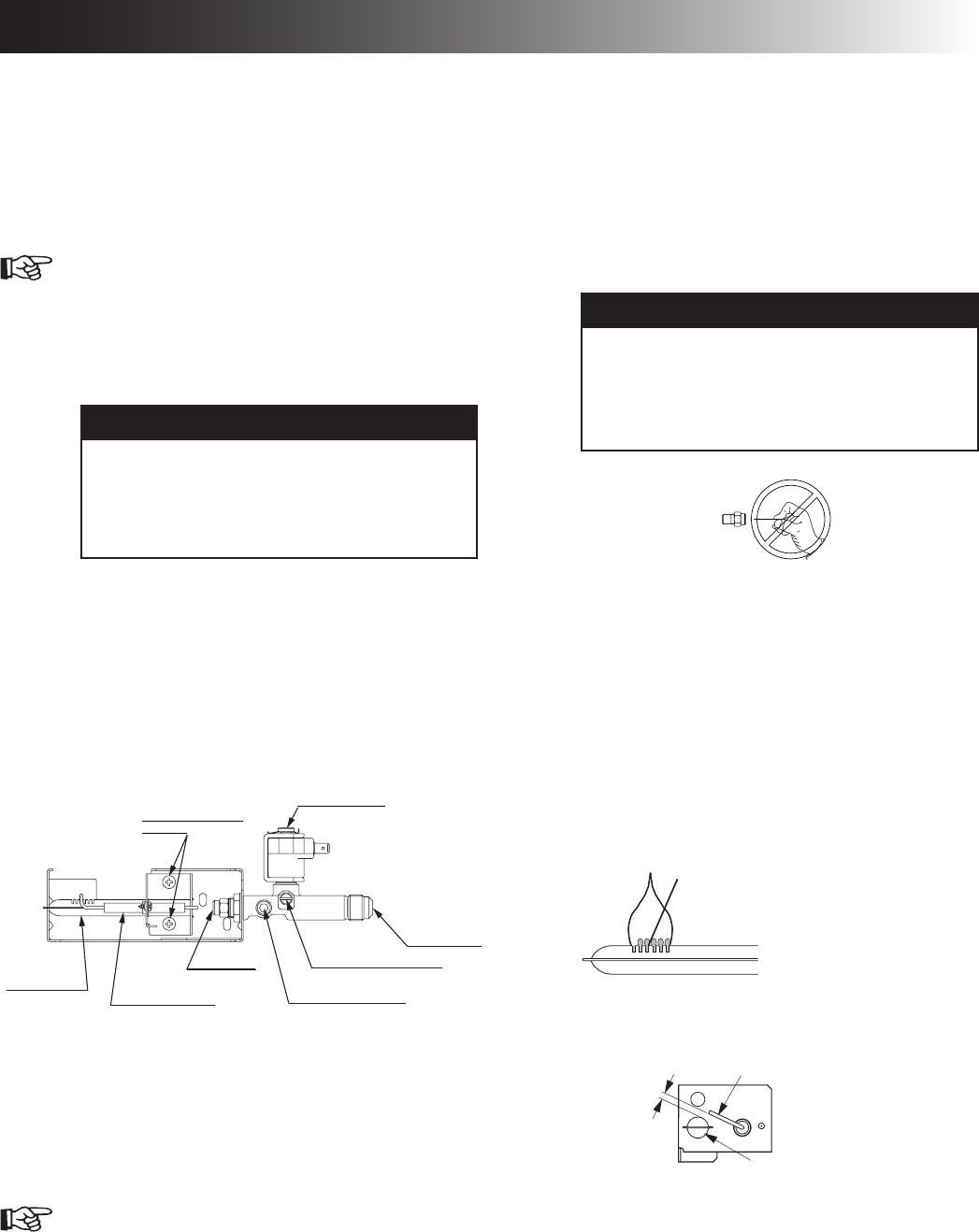

maintenance & service . . . . . . . . . . . . . . . . . . . . . 22
troubleshooting ..........................24
appendix a - spare parts ....................25

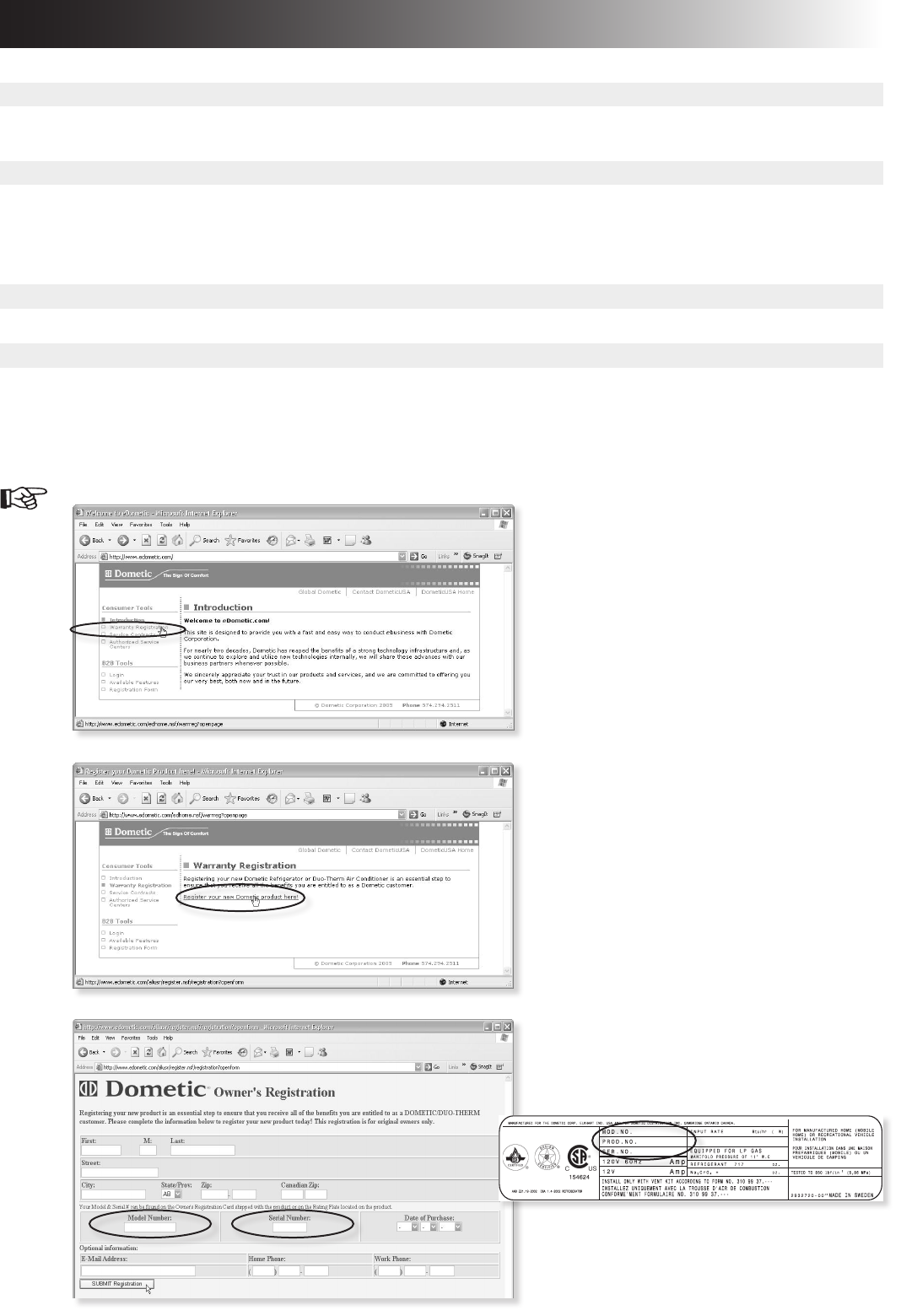

appendix b - consumer support . . . . . . . . . . . . 27
appendix c - dometic warranty & . . . . . . . . . . . . .
maintenance schedule .....................28
appendix d - rearview equipment . . . . . . . . . . . 31

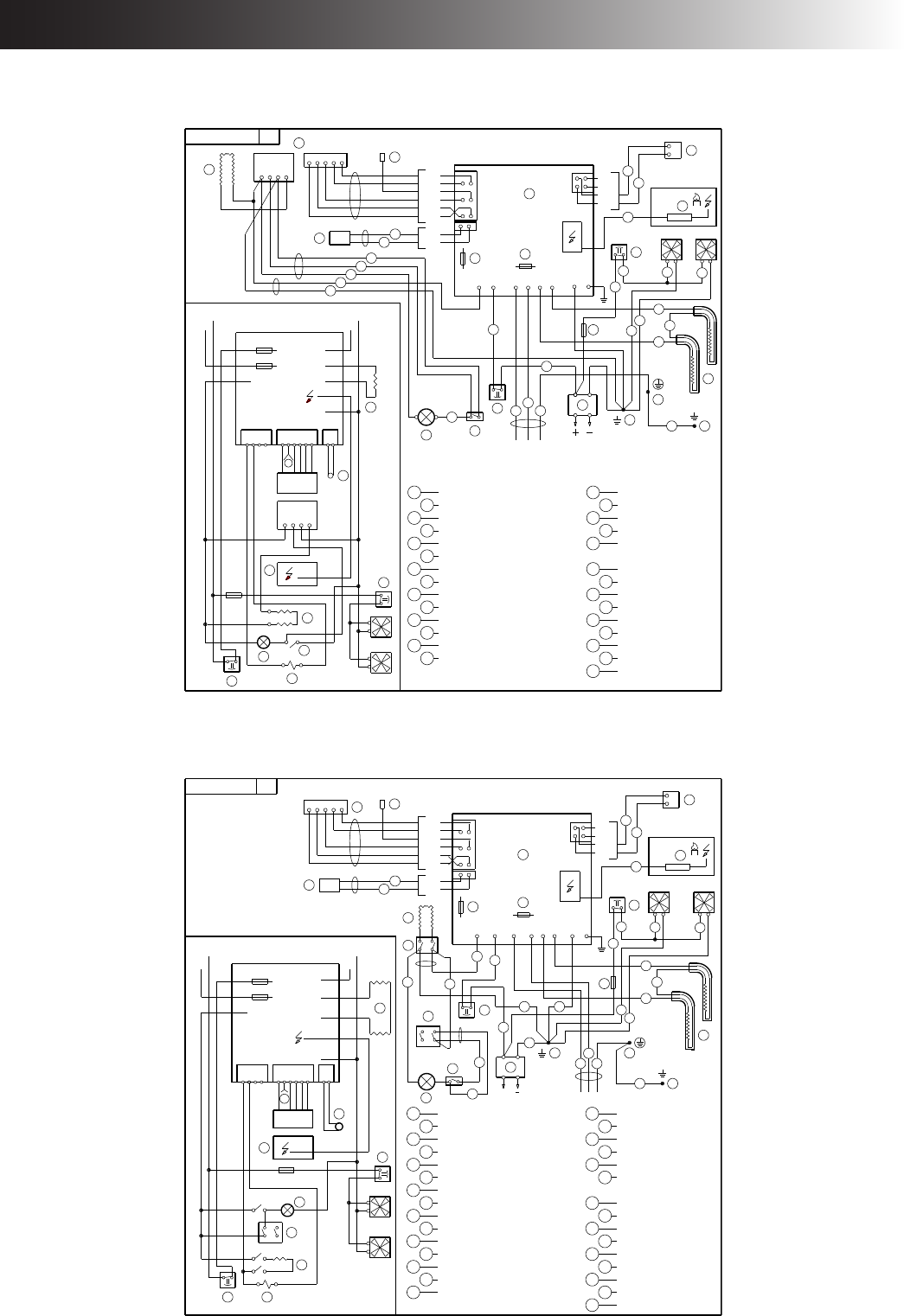

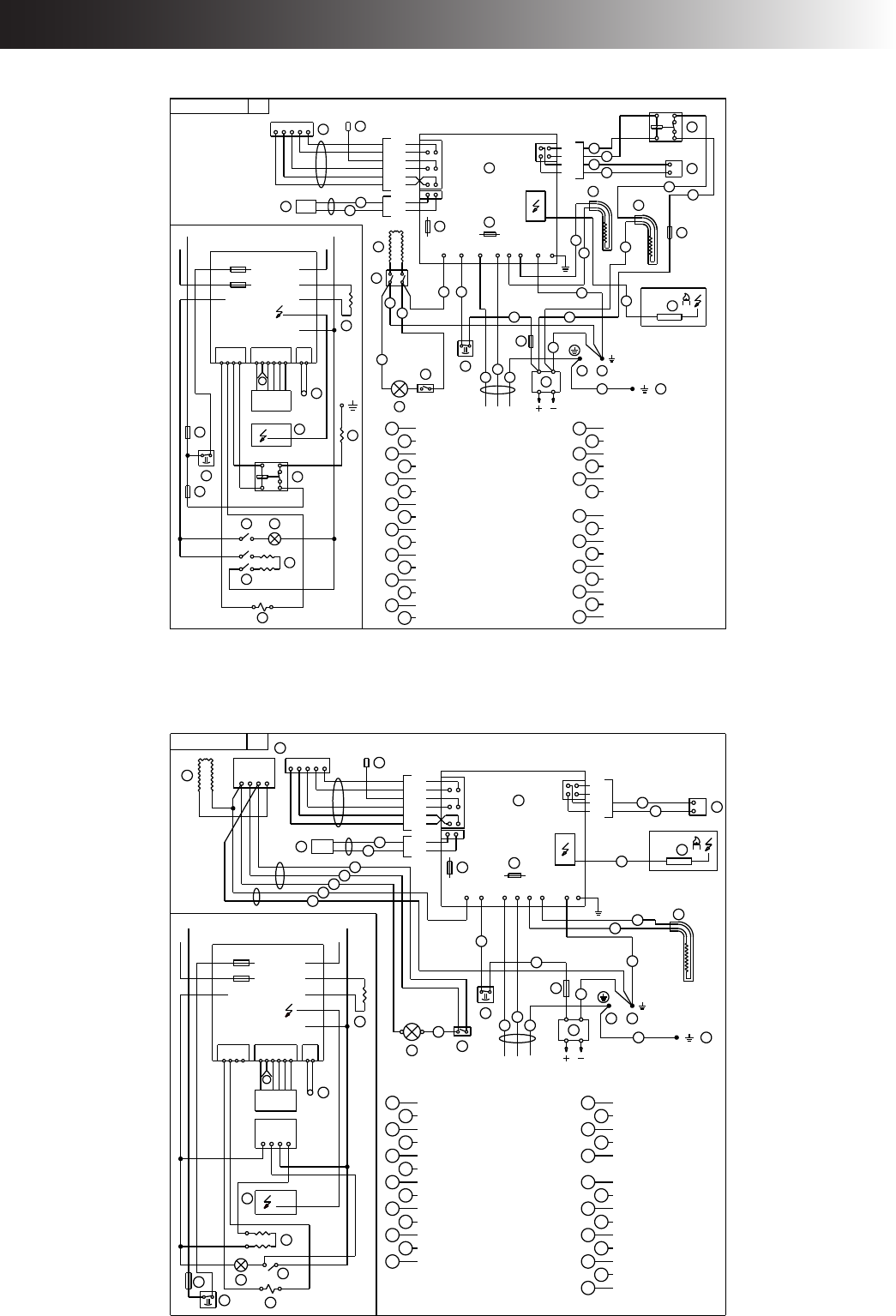

appendix e - wiring diagrams . . . . . . . . . . . . . . . 34
Thank you for entrusting us to supply your new quality-guaranteed refrigerator. It is to be used as a recreational device designed
for storage of foods, frozen foods and making ice. Please, when the refrigerator is not in use as a recreational device, turn the
system off and open the door(s).
This manual describes how to install, operate and care for the following refrigerator models: RM2351, RM2354, RM2451,
RM2454, RM2551, RM2554, DM2652/DM2652 (with optional fan), DM2662, DM2663, DM2852/DM2852 (with optional fan),
DM2862/DM2862 (with optional fan), DM3862, NDM1062 and NDR1292.
described. Be aware of possible safety hazards when seeing alert symbols on the refrigerator as well as in this manual.
The manual should be kept and stay with the refrigerator if it is ever moved or change owners. Read it carefully to ensure that you
know how to operate the refrigerator safely and correctly.
coNteNts
installation instructions ___________ 4
certification and code requirements . . . . . . . 4
ventilation requirements ...................4
installation procedure .....................7
door mounting instructions . . . . . . . . . . . . . . 11
refrigerator removal . . . . . . . . . . . . . . . . . . . . . 12
syMbols
The following symbols are used throughout the manual:
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Used without the safety alert symbol indicates, a potentially hazardous situation which, if not avoided
may result in property damage.
Information
Step-by-step instructions
CAUTION
!
WARNING
!
CAUTION
introduction
- 4 -
geNeRal iNfoRMatioN
Ventilation is one of the requirements for proper cooling unit
operation. The installation should be made in such a manner as
to separate the combustion system from the living space of the
mobile home or recreational vehicle. Openings for air supply
or for venting of combustion products should have a minimum
dimension of not less than 1/4 inch.
Proper installation requires one lower fresh air intake and
roof vent and one lower side vent. The ventilation kits shown
.
The ventilation kits must be installed and used without
in the refrigerator compartment has to be provided for
ventilation of heavier-than-air fuel gases. The lower vent
of the recommended kits is provided with proper size
not be obstructed.
an adequate access opening for ready serviceability of the
burner and control manifold of the refrigerator. This should
be centered on the back of the refrigerator.
Model Kit
No. Components Part no.
RM2351
RM2354
Roof Base
Roof Cover
Lower Side Vent
Lower Side Vent
Upper Side Vent
Lower Side Vent
Upper Side Vent
Upper Side Vent
Lower Side Vent
Lower Side Vent
3103633.XXX* or 3310893.XXX*
3103634.XXX* or 3310894.XXX*
3109350.XXX*
RM183
RM183
3108705.751**
3109492.003
RM183
3109492.003
RM2451
RM2454
RM2551
RM2554
Roof Base
Roof Cover
Lower Side Vent
3103633.XXX* or 3310893.XXX*
3103634.XXX* or 3310894.XXX*
3109350.XXX*
DM2652
DM2662
DM2663
DM2852
DM2862
DM3862
NDM1062
Roof Base
Roof Cover
Lower Side Vent
3103633.XXX* or 3310893.XXX*
3103634.XXX* or 3310894.XXX*
3109350.XXX*
NDR1292 Roof Base
Roof Cover
Lower Side Vent
3103633.XXX* or 3310893.XXX*
3103634.XXX* or 3310894.XXX*
3103649.XXX*
3108705.744**
* Replace “XXX” with the color code numbers. For color codes,
contact your supplier.
** Alternate instructions forwarded with the Ventilator Kit.
For further information, contact your dealer or distributor.
(latest edition).
Manufactured Home Construction and Safety Standard, Title
24 CFR, Part 3280.
If an external electrical source is utilized, the refrigerator, when
installed, must be electrically grounded in accordance with
local codes or, in the absence of local codes, the National Elec-
and Mobile Housing.
If an external electrical source is utilized, the refrigerator,
when installed, must be electrically grounded in accordance
with local codes or, in the absence of local codes, the Canadian
certification and code requirements

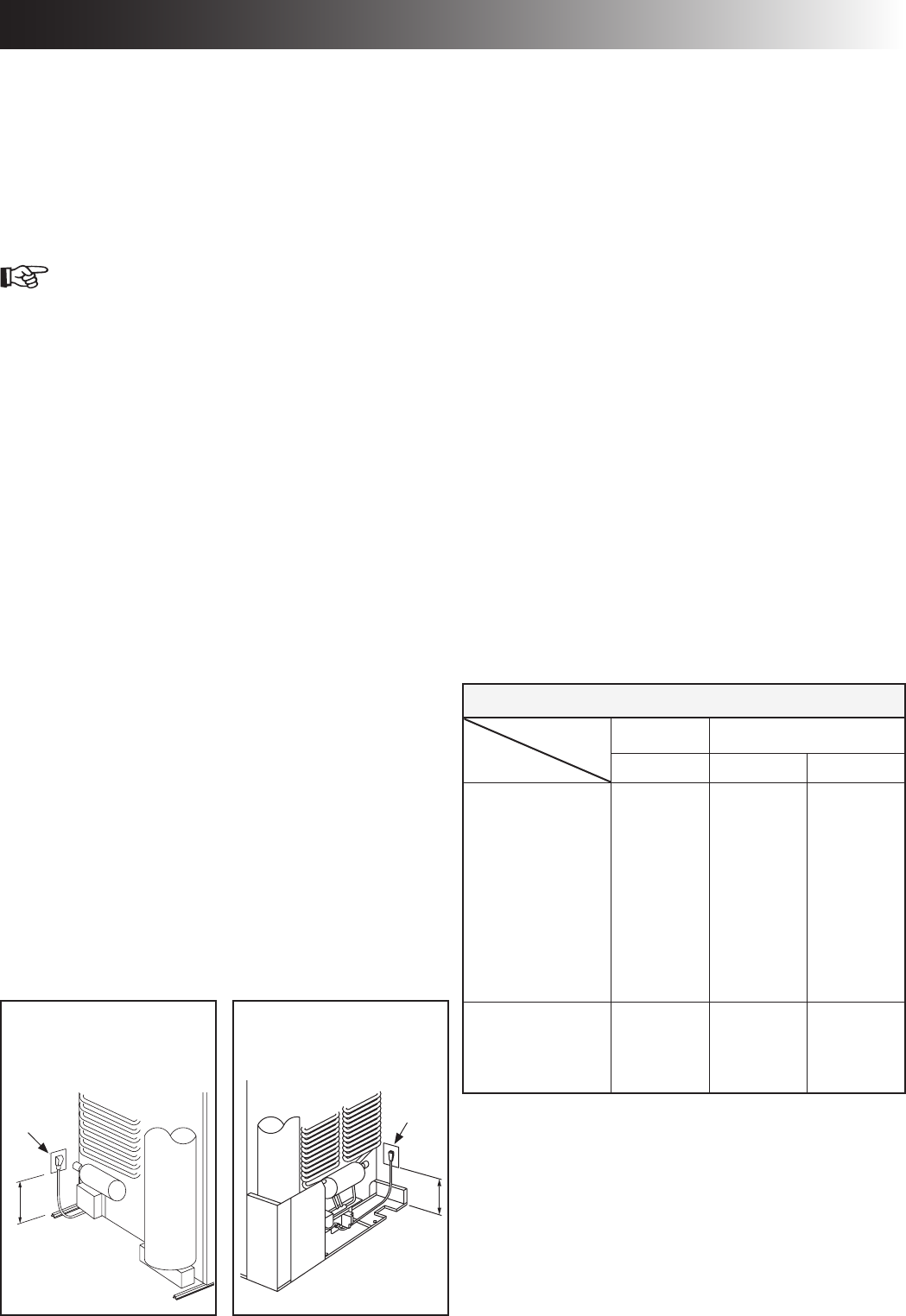

Ventilation requirements
CAUTION
-
installation instructions
- 5 -
cleaRaNces
Minimum clearances (in inches) to combustible materials:
Top (G) 0
Side (K) 0
Bottom (L) 0
Rear (M1) 0 / 1 ()
1 The distance between the rearmost part of the refrigerator and the wall
behind it.
It is essential that all maximum or minimum dimensions
are strictly maintained, as the performance of the refrigerator
the refrigerator.
Roof vent and
lower side vent
Upper and lower
side vent
RM2351
RM2354
inches mm inches mm
31 787 34 864
RM2451
RM2454 37-3/4 960
RM2551
RM2554 44-1/2 1130
DM2652
DM2662
DM2663
57-3/4 1465
DM2852
DM2862
DM3862
NDM1062
63-3/4 1620
NDR1292 65 1651
AB
B
A
M
M
G
KK
L
“
Ventilation requirements
- 6 -

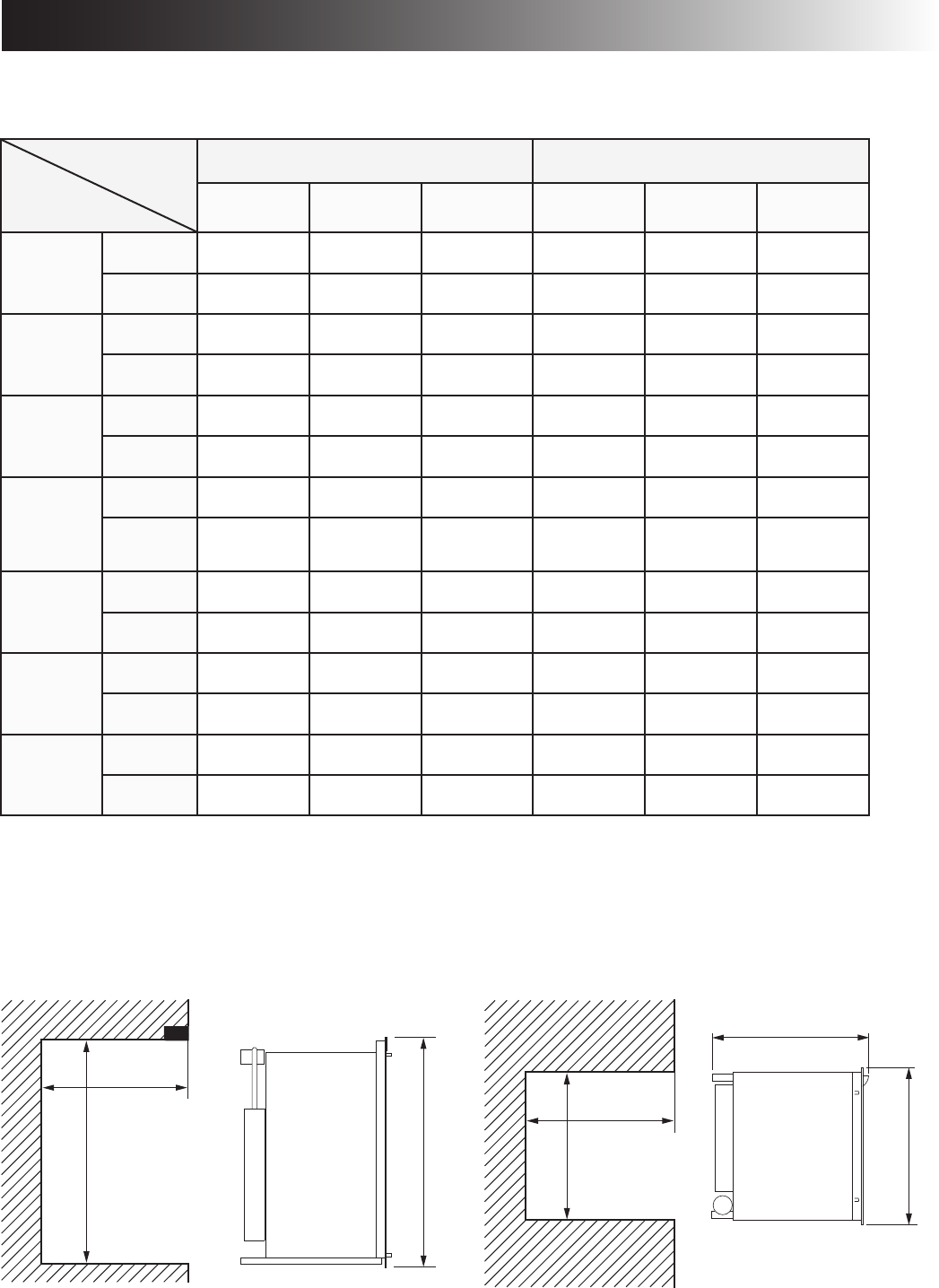

Width B Depth C Height H Width W Depth D
RM2351
RM2354
inches 30-5/32 21-7/8 22-22/32 29-3/4 20-1/2 21-3/8
mm 766 556 577 756 521 542
RM2451
RM2454
inches 37-3/8 24-7/8 24-11/16 39-9/16 23-11/16 24
mm 948 632 627 928 602 610
RM2551
RM2554
inches 43-1/2 24-7/8 24-11/16 42-5/8 23-11/16 24
mm 1104 632 627 1083 602 610
DM2652
DM2662
DM2663
inches 54-21/32 24-7/8 26-1/32 53-3/4 23-11/16 24
mm 1388 632 661 1365 602 610
DM2852
DM2862
DM3862
inches 60-51/64 24-7/8 26-1/32 59-15/16 23-11/16 24
mm 1544 632 661 1522 602 610
NDM1062
inches 60-54/64 24-7/8 26-5/8 59-15/16 23-11/16 24*
mm 1544 632 676 1522 602 610*
NDR1292
inches 59-31/32 33-11/16 26-21/32 59-1/16 32-3/4 24*
mm 1523 855 677 1500 832 610*
$
(!
$
7"
#
General view. Features may vary according to model.
Ventilation requirements
- 7 -
Be careful when installing the refrigerator models
NDM1062 & NDR1292. These are equipped with the
latest vacuum insulated panel technology. The insu-
lating panels are located on the top, back, bottom,
sides and doors. If the surface is punctured, loss of
insulation will occur, resulting in poor refrigerator
performance.
For a proper installation, follow these instructions:
The refrigerator must be level and installed in a substantial
enclosure.
Do not install the appliance directly on carpeting. Carpet-
ing must be removed or protected by a metal or wood panel
beneath the appliance, which extends at least full width and
depth of the appliance.
must be in place across the up-
per opening of the enclosure. The top frame
of the refrigerator will be anchored to the
wood strip with screws.

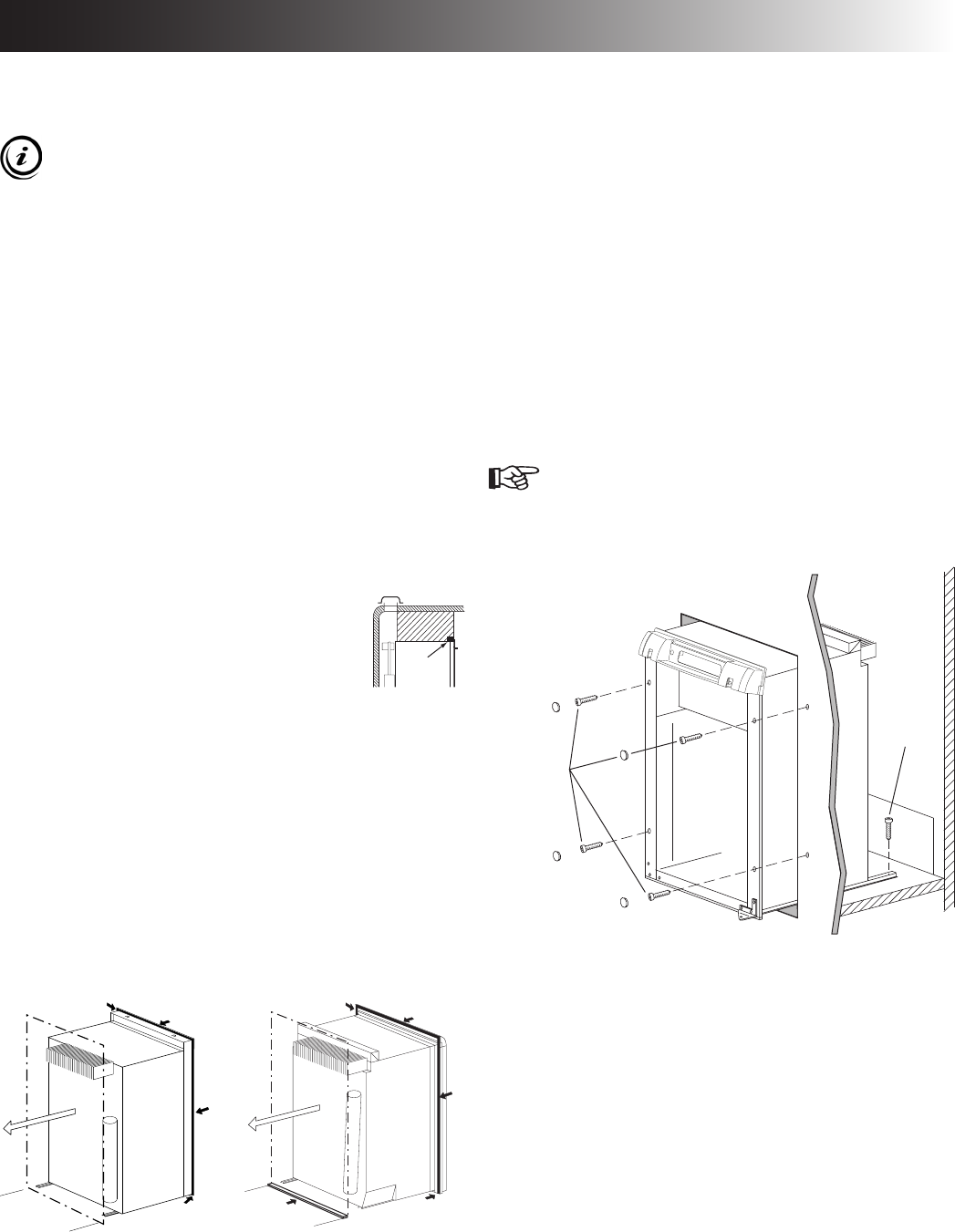

When installing the refrigerator in the enclosure, all areas
within the recess have to be sealed. Verify that there is a
complete seal between the front frame of the refrigerator and
-
ing strip is applied to the rear surface of the front frame for
this purpose. The sealing strip should provide a complete
vehicle interior.
and
It is important to follow the sequence in securing refrigerator
in enclosure since failure in doing so can cause leakage be-
storage area or ceiling and top of the refrigerator greater than
1 1/2 inches should be blocked. The heat produced at the rear
of the refrigerator will become trapped in this space, making
refrigerator.
seal at the front frame), the refrigerator is to be secured in the
enclosure with screws (not included).
RM2351 & RM2354
Four screws installed through the front frame. 1.
(To cover the screw heads, use the plugs in the parts
bag.)
One screw installed in the rear base. 2.
2
1
General view. Features may vary according to model.
7OODSTRIP
installation procedure
- 8 -
3.

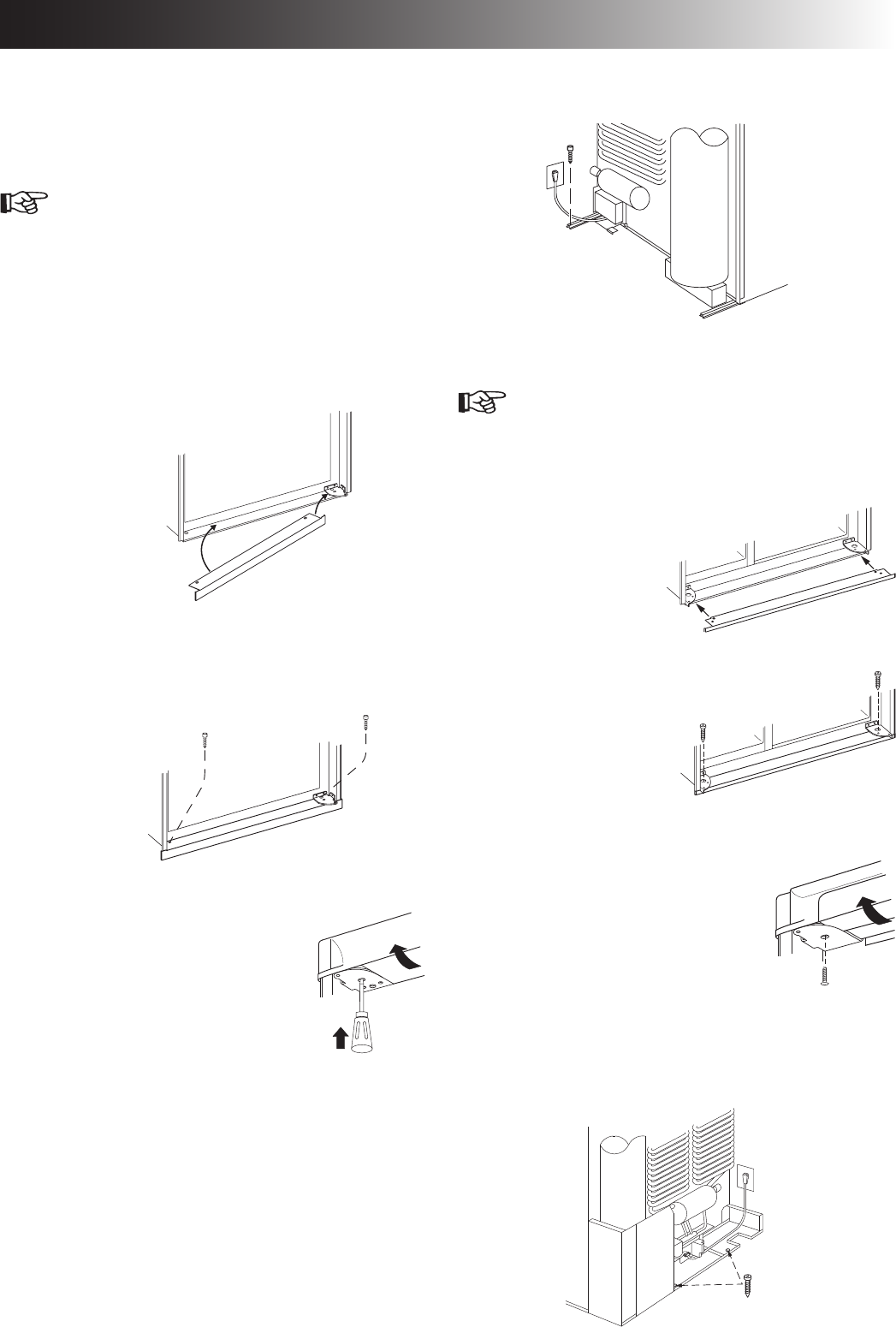

NDR1292
Install the screws in the following order:
1.
The refrigerator is provided with a lower front strip
the refrigerator is set into the cutout opening.
Install the a)
lower front
strip by slid-
ing it under
the bottom
hinge plate.
Secure the b)
refrigerator and
the lower front
strip with two
screws: One
screw through
each hinge.
2.
Open the doors and remove a)
the four screws that secure the
top decoration panel to the
top frame. Two screws are ac-
cessible from underneath and
two are located on each side of
the lock retainer securing the
decoration panel to the front frame. Save screws
for reinstallation of the top decoration panel.
See step 2, b-e in the previous instruction.b)
3.
RM2451, RM2454, RM2551, RM2554, DM2652,
DM2662, DM2663, DM2852, DM2862, DM3862 &
NDM1062
Install the screws in the following order:
1.
The refrigerator is provided with a lower front strip
the refrigerator is set into the cutout opening.
Install the lower front strip by sliding it under the a)
bottom hinge plate. The hinge plate can be on the
right or left side depending on the door swing.
Once the lower front strip is slipped under the
hinge, the part is possible to swing into place.
Secure the refrigerator and the lower front strip b)
with two screws: One screw through the hinge and
on the opposite side and then, one screw through
the lower front strip.
2.
Open the door. Gently push the a)
tabs out of the hole in the hinge
(both sides).
Carefully tilt the top decoration b)
panel and lift to remove from
top frame. Be careful not to
damage the circuit board and wires.
Install the two screws in the top frame, the holes c)
are accessible from underneath.
Seal the opening for the screws with aluminum d)
tape.
Replace the top decoration panel. Be careful not e)
to pinch the wires behind the panel. Make sure the
tabs snap back into the holes in the hinge plate.
installation procedure
2
1
- 9 -

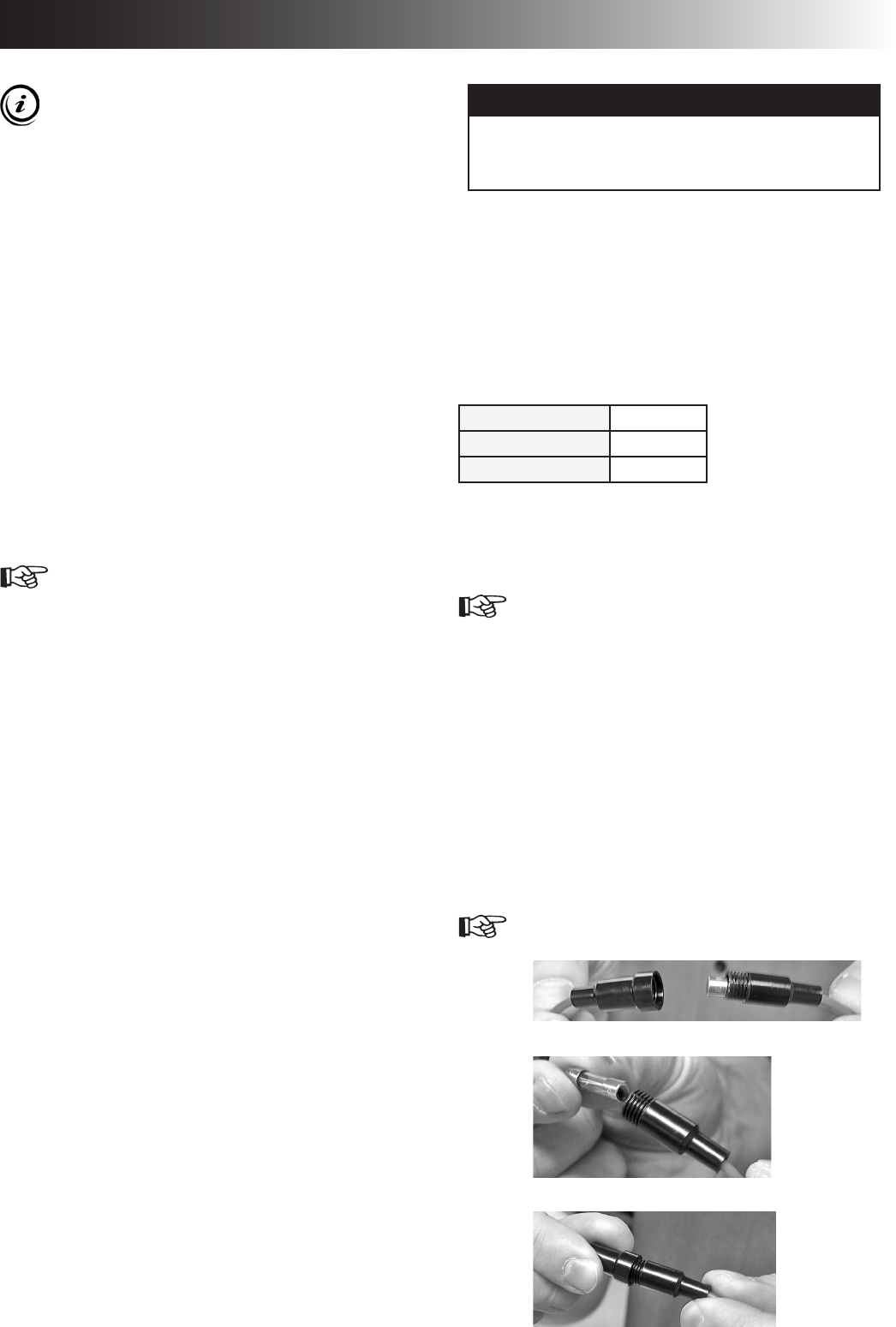

Hole for drain
water hose
Hose
Boiler
casing
coNNectioNs
Hook up to the gas supply line is accomplished at the manual
examined for leaks using a solution of liquid detergent and
water.
The gas supply system must incorporate a pressure regulator
to maintain a supply pressure of not more than 11 inches water
column. When testing the gas supply system at test pressures:
- the refrigerator and its individual shutoff valve
must be disconnected from the gas supply piping system.
- the appliance must be isolated from the gas
supply piping system by closing its individual manual shut-
off valve.
If detailed instructions on the installation and connection to
the gas supply are required, please contact your dealer or
distributor.
The gas safety shut off must be tested after the refrigerator is
connected to LP gas supply.
RM2354, RM2454, RM2554, DM2662, DM2663,
DM2862, DM3862, NDM1062 & NDR1292
To test the gas safety shut off, follow these steps:
1.
2.
indicator lamp is on.
Close the manual gas shutoff valve at the back of the 3.
refrigerator.
4.
should be off.
Remove the protection cover. 5.
Open the manual gas shutoff valve. Do not change 6.
any button positions on the control panel.
7.
bubbles indicates a defective gas safety shutoff, and
service is required.
8.
rinse it with fresh water. Be careful not to damage the
boiler casing. Seal around the hose that goes through the drilled
hole and ensure that it does not kink when run through the
in order for the water to drain outside of the vehicle. If not, the
installer will have to supply the extra length of hose.
Drill the hole in the
cut out opening of
the base plate
Hole for drain
water hose
Boiler
casing
Hose
Hole for drain
water hose
Boiler
casing
Hose
installation procedure
WARNING
6
!
- 10 -
Put back the cover. 9.
Press the ON/OFF button off and then back on. Nor-10.
mal operation of the burner should return.
11.
minutes.
RM2351, RM2451, RM2551, DM2652 & DM2852
To test the gas safety shut off, follow these steps:
Start the refrigerator without connecting to 1.
2.
Follow steps 3-11 in the previous instruction. 3.
The refrigerator is equipped with a grounded three-prong plug
for protection against shock hazards. It should be plugged di-
rectly into a properly grounded three-prong receptacle.
The free length of the cord is 2 feet. It should be routed to
other components that could damage the cord insulation.
To allow easy access through the vent door, it is recommended
that the receptacle is placed like this:
To the left of the refrigerator and above the refrigerator
To the left of the refrigerator and above the refrigerator
To the left of the refrigerator and above the refrigerator
To the right of the refrigerator and above the refrigerator
: These refrigerator
models are not designed for 12V DC operation of the cooling
system. However, 12V DC must be supplied to operate the
controls.
: These refrigerator models require a
continuous 12V DC supply to maintain the automatic energy
system.
The connection is made to the positive (+) and negative (-)
terminals of the terminal block on back of the refrigerator.
Correct polarity must be observed when connecting to the DC
supply. Do not use the chassis or vehicle frame as one of the
conductors. Connect two wires at the refrigerator and route to
the DC supply. Ensure the connections are clean, tight and free
from corrosion.
Ensure that the wires from the battery to the refrigerator are
able to handle the load. The distance the current must travel
to be used. Inadequate wire sizes can result in a voltage drop
which affects the refrigerator performance.
For 3-way models, the voltage drop affects the wattage output
of the 12V cartridge heater and the refrigerator performance.
The 12V DC heater is fused with a 30 amp. in-line blade fuse.
Recommended wire sizes are displayed in the following table:
ft m
RM2351
RM2451
RM2551
DM2652
DM2662
DM2852
DM2862
DM3862
NDM1062
NDR1292
14
12
17
27
5
8
RM2354
RM2454
RM2554
DM2663
10
8
17
27
5
8
120 Volt AC
receptacle
receptacle
3”
4-6”
6”
10”
receptacle
installation procedure
- 11 -

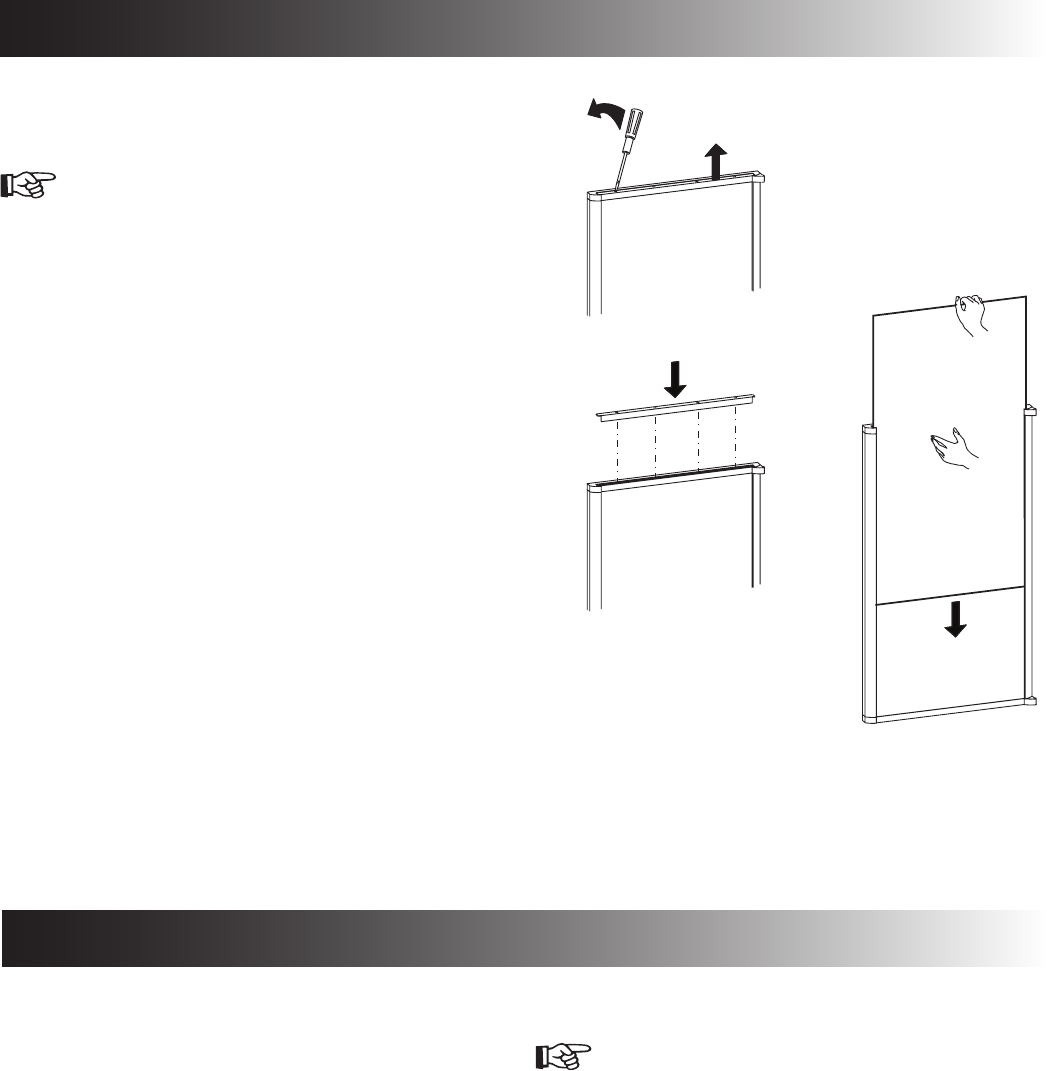

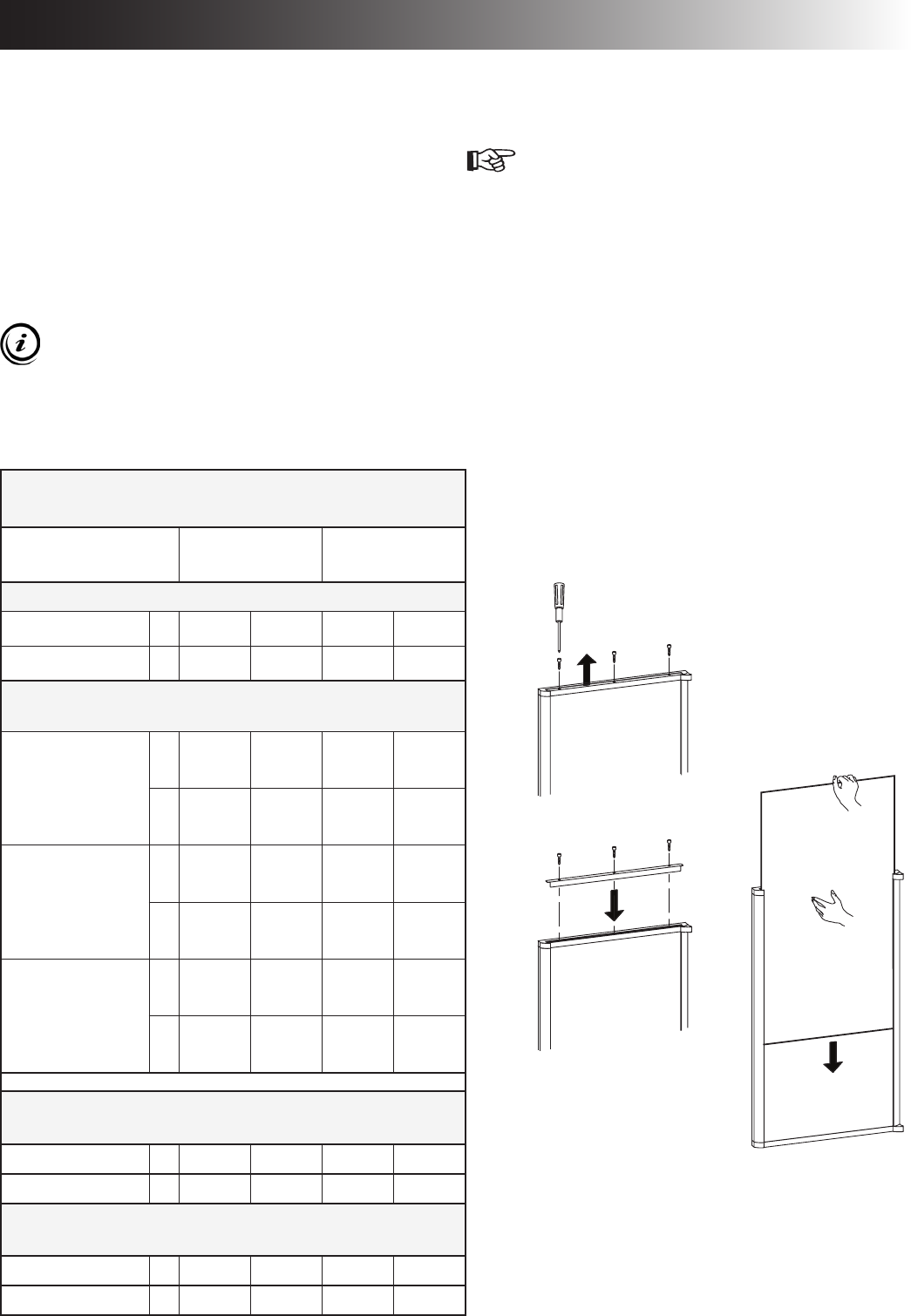

To mount the panel, follow these steps:
Open the door 90 degrees. 1.
On new refrigerators, the decoration strip is taped 2.
inside the door; if installed on the door, remove
the door decoration strip (2) by removing its three
screws (1).
NDR1292:
Fresh food compartment door - remove three screws.
Freezer compartment door - remove two screws.
Insert the vertical edges into the grooves of the door 3.
frame (3).
Push the panel downwards so that the lower 4.
-
tom grove (5).
Put the decoration strip across the door so that the 5.
gap is covered. Secure the decoration strip with the
screws removed in step 2.
For all models, except NDR1292, the refrigerators are equipped
with hinges that makes it possible to change the direction the
hinge kit must be used in order to change the door swing.
For conversion kit number, see .
For additional information, please contact service point or
distributor service dept. for assistance.
Optional door insert panels are available for all
models except NDR1292. The refrigerator is normal-
ly delivered without door panel(s).
Before starting the mounting work, read this instruction thor-
oughly and check that the panel dimensions are in compliance
with those given in the following table:
paNel DiMeNsioNs
UPPER
mm 403 401 527 524
inch 15-27/32 15-25/32 20-3/4 20-5/8
LOWER /SINGLE
DOOR
RM2351
RM2354 mm 667 665 498 496
inch 26-17/64 26-3/16 19-5/8 19-17/32
RM2451
RM2454
DM2652
DM2662
DM2663
mm 827 825 527 524
inch 32-9/16 32-1/2 20-3/4 20-5/8
RM2551
RM2554
DM2852
DM2862
NDM1062
mm 983 981 527 524
inch 38-11/16 38-5/8 20-3/4 20-5/8
NDR1292 mm 1402 1400 288 265
inch 55-3/16 55-1/8 10-9/16 10-7/16
NDR1292 mm 1402 1400 430 427
inch 55-3/16 55-1/8 16-15/16 16-13/16
3
3
4
5
111
2
111
door mounting instructions
- 12 -
To mount the panel, follow these steps:
Open the door 90 degrees. 1.
On new refrigerators, the decoration strip are 2.
taped inside the door; if installed on the door,
remove the door decoration strip (2) by gently
screwdriver (1).
Insert the vertical edges into the grooves of the 3.
door frame (3).
Push the panel downwards so that the lower 4.
bottom grove (5).
Snap in the decoration strip (2). 5.
To remove the refrigerator, follow these steps:
Cap the gas supply line.1.
Loosen the screws anchoring the refrigerator to the 2.
enclosure.
Slide the refrigerator out of the compartment.3.
Replacement is the reverse of removal. When reinstalling the
refrigerator, make sure the sealing strips are properly posi-
tioned. Check all connections for gas leaks.
Before removing the refrigerator:
Shut off the gas supply.
Disconnect the gas supply line at the rear of the refrigerator.
-
ing connections.
1
2
2
3
3
4
5
door mounting instructions
refrigerator remoVal
- 13 -
absoRptioN cooliNg systeM
-
gen gas, which causes the ammonia to evaporate, creating a
cold condition in the freezer.
downward by gravity through this section.
Sodium chromate is used for corrosion protection (less than
2 weight % of the coolant).
Leveling is one of the requirements for proper operation with
absorption refrigerators. to ensure proper leveling the vehicle
needs to be leveled only so it is comfortable to live in (no no-
-
erator operating, the vehicle should be leveled to prevent this
loss of cooling.
If the refrigerator is operated when it is not level and the
vehicle is not moving, liquid ammonia will accumulate in sec-
tions of the evaporator tubing. This will slow the circulation
of hydrogen and ammonia gas, or in severe cases, completely
block it, resulting in a loss of cooling.
When the vehicle is moving, the leveling is not critical, as the
rolling and pitching movement of the vehicle will pass to either
side of level, keeping the liquid ammonia from accumulating in
the evaporator tubing.
autoMatic eNeRgy selectoR systeM
The refrigerator is equipped with an automatic energy selector
system. The user turns the refrigerator on and then, the refriger-
ator automatically selects the most suitable energy source avail-
On 3-way models, the control system can manually be set to
DC mode (DC operation). The DC mode overrides all other
operating modes.
The refrigerator controls will work down to 9.6 V DC.
MoDes of opeRatioN
-
-
ON again. The control system activates the ignition system and
makes three attempts to light the burner for a period of approx.
lamp will not turn off until the ON/OFF button is pressed OFF
and then ON again.
indicator lamp will be off.
This mode provides LP gas only. The control system activates
the ignition system and attempts to light the burner for a period
of approx. 45 sec. at two minutes interval. If unsuccessful, the
and then back ON. The control system attempts a new ignition
sequence.
If the refrigerator has not been used for a long time - or -
supply lines. To purge the air from the lines, turn the refrigera-
not lit within 45 seconds, turn the refrigerator off and back on
again. This procedure can be repeated 3 to 4 times. If repeated
attempts fail to start the LP gas operation, check to make sure
that the LP gas supply tanks are not empty and that all manual
shutoff valves in the lines are open.

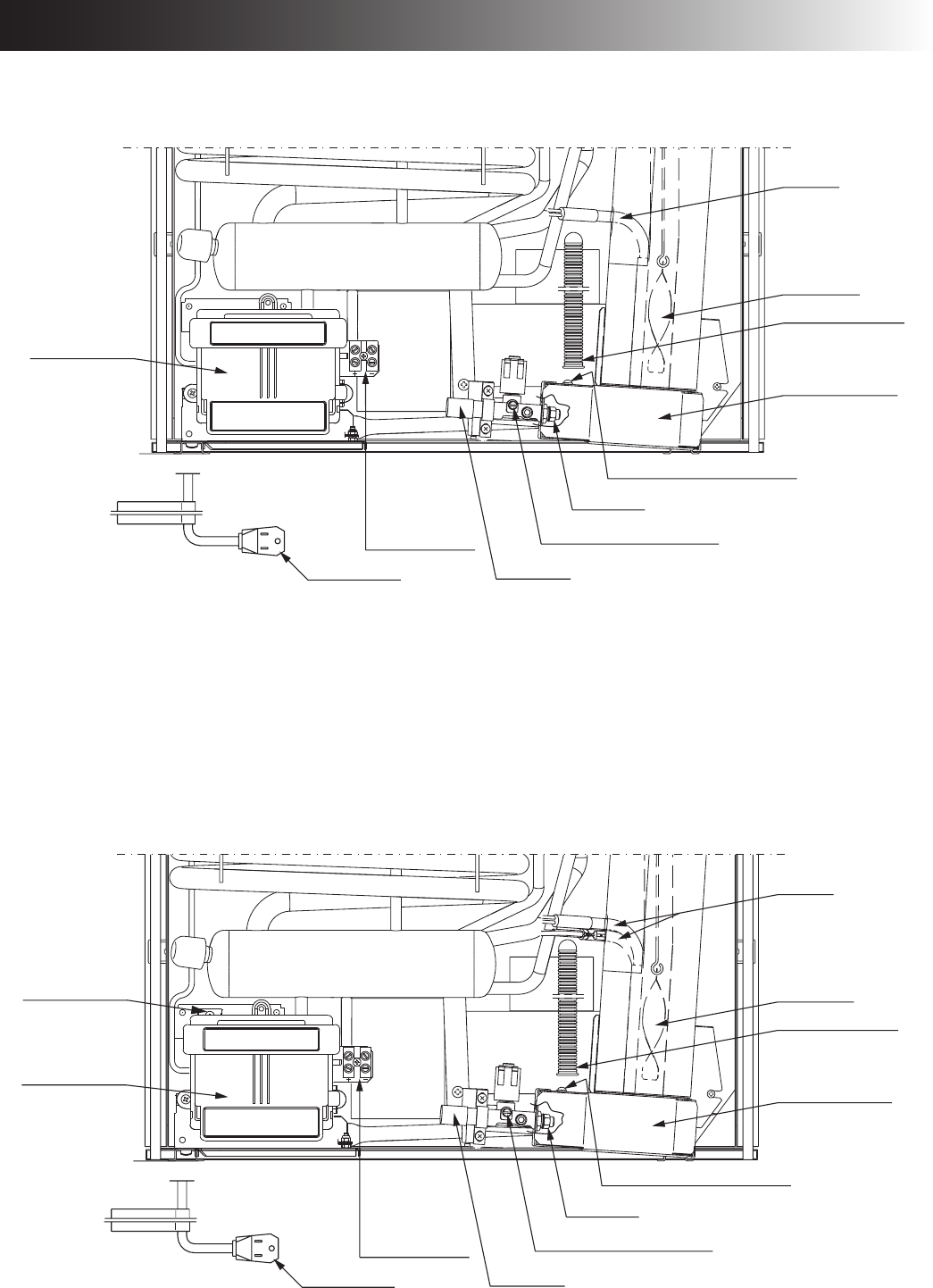

refrigerator oVerView
operating instructions
WARNING
-
6
!
- 14 -
RM2354, RM2454, RM2554 & DM2663
When operating in DC mode (3-way models only), the DC
mode indicator lamp is illuminated and all other lamps are off.
To select another operating mode, turn off the DC mode by
pressing the DC selector button. The DC lamp is turned off.
When there is no charging of the house battery, switch to
12 V DC will quickly drain the battery.
liMp MoDe of opeRatioN
In the event of a failure of a major operating component, the
control system will continue to operate the cooling system.
RM2351, RM2451, RM2551, DM2652 & DM2852
If the control can not read the temperature sensor and control
the preset temperature, the control will run the cooling unit
continuously at the energy source available. The refrigerator
new sensor is installed and the system reset.
RM2354, RM2454, RM2554, DM2662, DM2663, DM2862,
DM3862, NDM1062 & NDR1292
Two modes of operation can occur:
1)
module becomes non functional. The control system reverts
to full automatic operation selecting the best energy source
temperature setting is maintained at the mid position. The
power module will continually attempt to reestablish opera-
tion of the display module.
The second limp mode of operation will execute when 2)
a failure of the temperature sensing device or associated
electronic circuitry occurs. If this should happen, the con-
trol system operates on the energy source selected via the
control panel. The cooling unit runs continuously on the se-
lected energy source. The refrigerator continues to operate
and the system is reset.
cliMate coNtRol systeM
DM2652, DM2662, DM2663, DM2852, DM2862, DM3862,
NDM1062 & NDR1292
During the summer months of high temperatures and humidity,
the metal frame between the freezer and fresh food compart-
ments may have water droplets forming. The number of water
droplets will increase if the vehicle is not air conditioned dur-
ing these months. The refrigerator comes standard with a 12 V
DC climate control that will evaporate the water droplets when
they form. The climate control can be left on continuously or
used only when temperatures require it. Note that when turned
on, the climate control will draw 12 V DC power continuously.
Turn it off when a charging source is not available.
low aMbieNt coNtRol
DM3862, NDM1062 & NDR1292
The refrigerator is equipped with an exclusive feature that
allows for trouble-free operation in low ambient temperature
(like below 50°F) for extended periods of time. Once the out-
door temperature is above 50°F, the low ambient switch should
be turned off.
RM2354, DM2662, DM2663, DM2862, DM3862, NDM1062 &
NDR1292
The thermostat controls both the gas and electric operation,
thereby eliminating the necessity of resetting each time a dif-
the thermostat should be adjusted to the desired temperature
setting.
refrigerator oVerView
- 15 -
refrigerator oVerView
CHECK
GAS
AUTO
ON
OFF
AUTOMATIC REFRIGERATOR TEMPERATURE CONTROL
1 2
A B
button (main power)
mode selector button
mode indicator lamp
indicator lamp
button (main power)
mode selector button
selector button
mode indicator lamp
mode indicator lamp
mode indicator lamp
indicator lamp
indicator lamps
DM2662, DM2862 & NDM1062
button (main power)
mode selector button
mode selector button
selector button
mode indicator lamp
mode indicator lamp
mode indicator lamp
mode indicator lamp
indicator lamp
indicator lamps
ON
OFF AC
DC
GAS
AUTO
CHECK
COLD 1 2 345COLDEST
1 2 3 4
B
A D E
C F
RM2354, RM2454, RM2554 & DM2663
coNtRol paNel
RM2351, RM2451, RM2551, DM2652 & DM2852
ON
OFF AC GAS
AUTO
CHECK
COLD 1 2 345COLDEST
B C
21
E
3
A D
- 16 -
D
B
ON
OFF AC GAS CHECK
AES
AUTO COLD 12345COLDEST CLC LAC
A C GE F
1 2 3 4 5
button (main power)
mode
selector button
selector button
button
button
mode indicator lamp
mode indicator lamp
mode indicator lamp
indicator lamp
indicator lamps
indicator lamp
indicator lamp
DM3862, NDM1062 & NDR1292
AES
AUTO
GAS
AC
OFF CHECK
ON COLD 12 3 45 COLDEST
1
E
3
D
B
2
AC
button (main power)
mode
selector button
selector button
mode indicator lamp
mode indicator lamp
mode indicator lamp
indicator lamp
indicator lamps
NDR1292
refrigerator oVerView
- 17 -
Before starting the refrigerator:
Check that all the manual gas valves are in the ON position.
Make sure that a continuous 12V DC supply is available for
the electronic control to function.
To start the refrigerator:
Press the ON/OFF button. 1.
Select operation mode:2.
•
AC and GAS.
Press the AUTO/GAS - AES/AUTO/GAS mode
selector button (if not already on). The illuminated
lamp indicates the selected mode.
(If the CHECK indicator lamp is illuminated, see
REFRIGERATOR OVERVIEW > MODES OF
OPERATION > AUTO MODE - AES/AUTO MODE for
further information.)
•
GAS operation only.
Press the AUTO/GAS - AES/AUTO/GAS mode
selector button to turn off the AUTO mode (if not
already off).
(Within 45 seconds the burner should be ignited
and operating normally. If not, see REFRIGERATOR
OVERVIEW > MODES OF OPERATION > GAS MODE
for further information.)
• (3-way models only)
Press the DC mode indicator button. The DC lamp
turn off the DC mode by pressing the DC mode se-
lector button. The DC lamp will then be turned off.
If necessary, adjust the thermostat by pressing the 3.
Temperature selector button.
(
The temperature is controlled by a factory
preset temperature setting.)
DM2652, DM2662, DM2663, DM2852, DM2862, NDM1062 &
NDR1292
Turn the Climate control switch to I (ON).
DM3862, NDM1062 & NDR1292
Press the CLC button. The indicator lamp will
illuminate.
NDM1062 & NDR1292
Turn the Low ambient control switch to I (ON).
DM3862, NDM1062 & NDR1292
Press the LAC button. The indicator lamp will
illuminate.
The refrigerator may be shut off while in any mode of opera-
tion by pressing the main power ON/OFF button to the OFF
position. This shuts off all DC power to the refrigerator, includ-
ing the interior light.
If the refrigerator will not be in operation for a period of weeks,
it should be emptied, defrosted, cleaned and the doors left ajar.
The ice trays should also be dried and kept outside the cabinet.
ON
OFF AC GAS CHECK
AES
AUTO COLD 12345COLDEST CLC LAC
ON
OFF AC GAS CHECK
AES
AUTO COLD 12345COLDEST CLC LAC
The Low ambient control
switch is located beneath
the top decoration panel
that houses the control
panel.
The Climate control
switch is located beneath
the top decoration panel
that houses the control
panel.
staRtup
BURNER TUBE .
SPARK ELECTRODE
BURNER JET
BURNER MOUNTING
SCREWS
PRESSURE TEST PORT
MANUAL SHUT OFF VALVE
(Shown in open position)
INLET FITTING
SOLENOID VALVE
instructions for use
WARNING
6
!
- 18 -
MoDel total RefRigeRateD
(cu.ft)
RM2351& RM2354 3
RM2451& RM2454 4
RM2551 & RM2554 5
DM2652, DM2662 & DM2663 6
DM2852, DM2862 & DM3862 8
NDM1062 9.2
NDR1292 12
fooD stoRage coMpaRtMeNt
Cool the refrigerator before placing any food inside. Never
T he food storage compartment is completely closed and
unventilated, which is necessary to maintain the required
low temperature for food storage. Consequently, foods hav-
ing a strong odor or those that absorb odors easily should be
covered.
Vegetables, salads etc. should be covered to retain their
crispness.
The coldest positions in the refrigerator are under the cool-
-
eas are on the upper door shelves. This should be considered
when placing different types of food in the refrigerator.
Do not overpack because a stuffed refrigerator must work
harder and will have higher cabinet temperatures.
of the refrigerator.
fRozeN fooD stoRage coMpaRtMeNt
This compartment is not designed for deep or quick freezing
of food.
To prevent food from drying out, keep it in covered dishes,
containers, plastic bags or wrapped in aluminum foil.
frozen food storage compartment provided they are pre-
three times longer in the frozen food compartment as com-
pared to the fresh food compartment.
Quick frozen soft fruits and ice cream should be placed in
the coldest part of the compartment, which is at the bottom
of the aluminum liner.
Frozen vegetables, may be stored in any part of the compart-
ment.
wipe excess moisture off items being placed in the compart-
ment.
Ice cubes can be made in the freezer compartment. For faster
ice making, the trays should be placed in direct contact with the
bottom of the freezer compartment.
RM2351, RM2454, RM2554, DM2662, DM2663, DM2862,
DM3862, NDM1062 & NDR1292
Ice will be made more rapidly if f the thermostat is set at its
highest position, but be sure to move the thermostat back
to normal setting when the ice is formed; the refrigerator might
otherwise become too cold.
storage compartments
WARNING
6
!
- 19 -
5
Slide the shelf into the holes on the right-
hand side.
Put a screwdriver into the slot of the shelf
lock. Turn the screwdriver counter clockwise.
Remove the shelf locks from the wire shelf.
12
Slide the wire shelf to the left.
The right-hand side of the shelf will come
loose.
3
Lower the right-hand side of the wire shelf
and let the left-hand side slide out of the holes
in the wall.
Insert the ends of the wire shelf on the
left-hand side at the desired position.
4
Slide the plastic plugs into the holes of the
wall. Snap the shelf locks onto the wire shelf.
6
storage compartments
- 20 -
cleaNiNg
usually done after it is defrosted or put into storage. Use luke-
warm weak soda solution to clean the interior liner of the re-
gasket, ice tray and shelves. Do not spray liquids near electrical
outlets, connections or the refrigerator components.
-
odic inspection and cleaning of several components once or
twice a year is recommended:
Check the lower vent, upper vent and area between these
openings for any obstructions such as bird/insect nests,
spider webs, etc.
Make sure the refrigerator area is free from combustible
Clean the coils on the back of the refrigerator. Use a soft
bristled brush to dust off the coils.
DefRostiNg
Shut off the refrigerator by pressing the main power 1.
ON/OFF button (OFF position).
Empty the refrigerator.2.
Leave the cabinet and freezer doors open and place 3.
trays with hot water and placing them in the freezer
compartment.
When all the frost has melted, dry the interior with a 4.
clean cloth.
Turn the refrigerator back on. 5.
DM3862 & NDM1062
The lamp is located at the top of the refrigerator compartment.
To replace the lamp, follow these steps:
Remove the lamp cover. 1.
Wearing gloves, pull out the lamp from socket. Re-2.
place it with a new 12V, 10W halogen lamp base G4.
Put back the lamp cover.3.
product care
CAUTION
Do not use:
-
CAUTION
Before replacing the lamp, turn off the refrig-
erator. Wear gloves as protection against hot
lamp, broken glass as protection of the new
lamp.
6
!
CAUTION
- 21 -
DM2652, DM2662, DM2663, DM2852 & DM2862
1
2
5
4
3

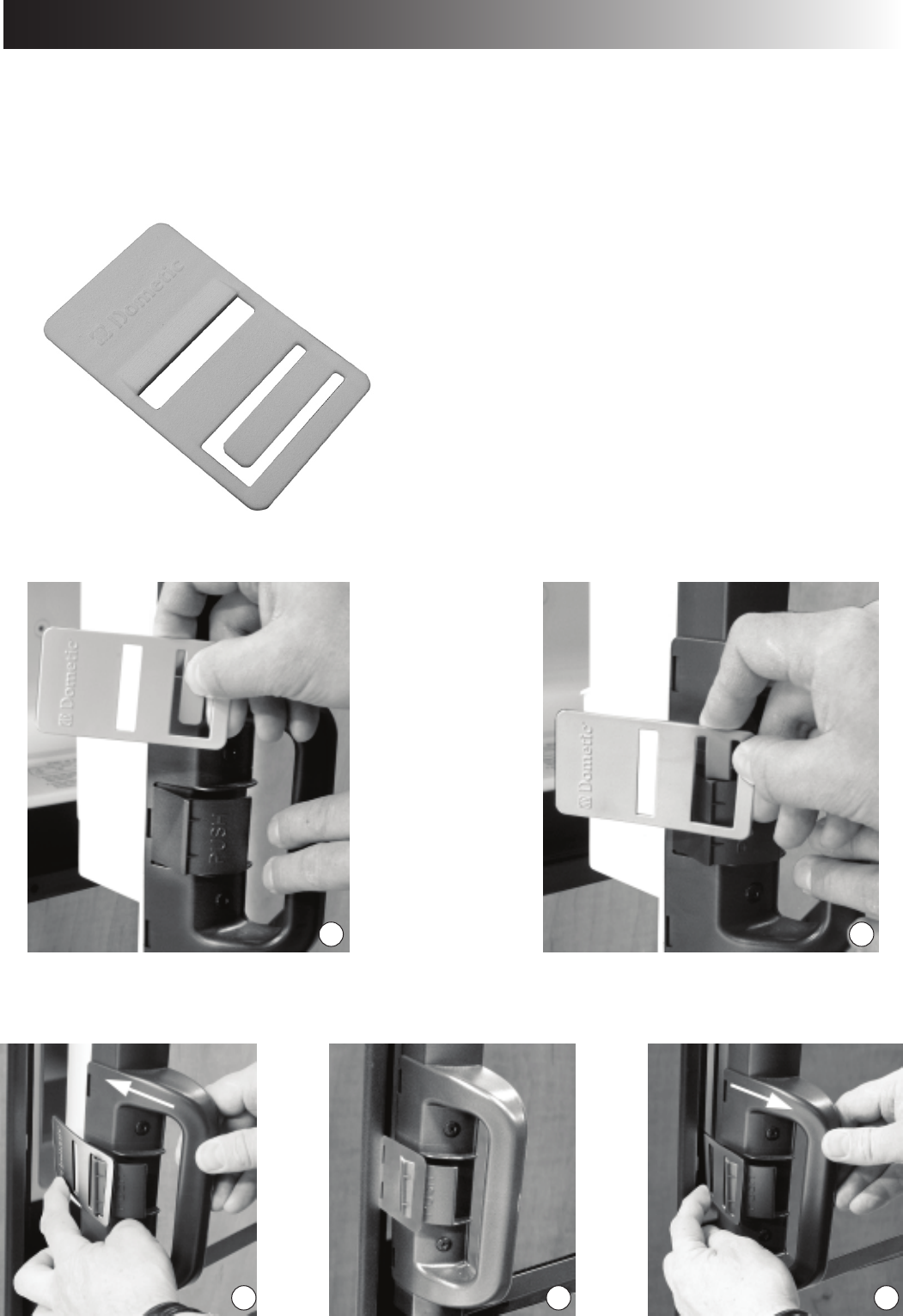

Use the to keep the doors ajar
if the refrigerator will not be in use for an extended
period of time or put in storage.
aiRiNg positioN caRD
product care
- 22 -
maintenance & serVice
To keep the refrigerator working properly,
a qualified service technician should, at least
once a year, inspect the connections, the control
system, the LP gas pressure and flue baffle.
The service and maintenance described in this
section is to be performed by service personnel
only!
electRic equipMeNt
The heat necessary for the operation of an absorption cooling
unit is supplied by an electric heater mounted in a pocket of the
boiler system.
2-way models are equipped with one electrical heater for
3-way models are equipped with two electrical heaters - one for
To replace the heater, follow these steps:
Turn off the refrigerator. 1.
Unplug the power cord and disconnect the 2.
12V DC power.
Remove the power module cover.3.
Disconnect the heater leads.4.
With a pair of pliers, unfold the lug holding the lid 5.
of the boiler casing. Open the lid.
Remove some insulation wool for the heater to be 6.
accessible.
Turn and lift the heater out of its pocket.7.
Fit the new heater into the pocket.8.
9.
Put back the insulation wool.10.
Close the lid of the boiler. 11.
2-way models are equipped with 2 fuses - one for the refrig-
3-way models are equipped with 3 fuses - two fuses in the
power module and one in-line blade fuse.
Control system
12 V DC heater
To replace the fuses, follow these steps:
Turn off the refrigerator.1.
Unplug the power cord and disconnect the 2.
12V wires.
Remove the power module cover.3.
Snap the fuse out of the fuse holder.4.
Fit the new fuse in to the fuse holder.5.
Put back the power module cover.6.
,
optioNal faN
12V DC socket. To replace the inline fuse, follow these steps:
Disconnect 121. V DC power.
Open the fuse holder. 2.
Replace the fuse. 3.
Put the holder back together. 4.
CAUTION
6
!
- 23 -
peRioDic MaiNteNaNce
Check the control system by connecting/disconnecting the
Check all connections in the LP gas system (at the 1.
back of the refrigerator) for gas leaks. The LP gas
supply must be turned on.
2.
connections. The appearance of bubbles indicates a
leak and should be repaired immediately
The LP gas pressure should be checked and the main regulator
readjusted if pressure is incorrect. The correct operating pres-
sure is 11 inches of water column. Measure the LP gas pressure
at the test port, just ahead of the burner jet.
of soot. Heavy soot formation indicates improper functioning
of the burner.
Turn off the refrigerator. 1.
2.
Disconnect the wires or shut off the 12V DC power
supply to the refrigerator.
Turn off the manual shut off valve.3.
Remove cover from burner housing. Remove the 4.
burner mounting screws and then, the burner as-
sembly.
5.
-6.
not properly
7.
Clean the burner tube with a brush. Blow out the 8.
burner with compressed air.
9.
Remove the burner jet. 10.
Soak the jet in wood alcohol and blow it out with 11.
compressed air.
R12. einstall and tighten the burner jet.
13.
into the slot on the burner bracket. Verify that the
-
couple is positioned properly (tip of thermocouple
extends over two slots of burner).
Check the electrode for proper location and gap. 14.
Turn on the manual gas shut off valve. 15.
16.
non-corrosive bubble solution.)
Connect the 120V power cord. Reconnect/turn on 17.
the 12V DC power.
Check the LP gas safety shut off. 18.
BURNER TUBE .
SPARK ELECTRODE
BURNER JET
BURNER MOUNTING
SCREWS
PRESSURE TEST PORT
MANUAL SHUT OFF VALVE
(Shown in open position)
INLET FITTING
SOLENOID VALVE
Electrode
Burner tube
1/8” to 3/16”
(3-5 mm)
4HEFLAMESHOULDBE
CLEARBLUEOVERTHE
SLOTSOFTHEBURNER
maintenance & serVice
WARNING
-
6
!
WARNING
-
6
!
- 24 -
Symptom Check/Remedial action
The refrigerator has stopped
cooling.
Immediately turn the refrigerator off and see a Dometic dealer.
Refrigerator or freezer is not
cold enough
Check the socket by plugging in another appliance.
Fit a new fuse.
For refrigerators equipped with thermostat - check if it is properly set.
absorption refrigerator level.
service technician.)
air circulation.
Set the main regulator to regulate the pressure so it does not drop below 11 inches water
column at pressure tap.
Odors from fumes: Dislocated burner
Damaged burner
The refrigerator does not work in
gas operation mode
Change the gas bottle
Remove the air by switching the refrigerator on and off 3-4 times.
If the problem persists and the refrigerator is still not working properly, contact your nearest Service Center. State the problem,
model, product- and serial-number. These details are stated on the data label inside the refrigerator compartment.
If you run into a problem, refer to the troubleshooting table below.
troubleshooting
- 25 -
The following table displays commonly used parts which should be available from your Dometic Service Center.
MoDel
spaRe paRts
RM2351 RM2354 RM2451 RM2454 RM2551 RM2554 DM2652
Airing position card N.A. N.A. N.A. N.A. N.A. N.A. 3850781-01
Baffle 2007172-02/2 2007172-02/2 2932667-01/3 2932667-01/3 2932667-02/1 2932667-02/1 2932667-03/9
Bottle holder, 2 pieces N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Box 2932636-01/8 2932636-01/8 N.A. N.A. N.A. N.A. N.A.
Box vegetable N.A. N.A. N.A. N.A. 2932621-01/0 2932621-01/0 2932621-01/0
Box vegetable (crisper) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Box vegetable (crisper) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Box vegetable
(crisper), 2 pieces N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Box vegetable
(meat locker) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Burner
(with conductor) 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9
Door reversing kit,
(light brown) 3850304-01/9 3850304-01/9 N.A. N.A. N.A. N.A. N.A.
Door reversing kit,
(black) 3850304-02/7 3850304-02/7 N.A. N.A. N.A. N.A. N.A.
Door reversing kit,
right-left (light brown) N.A. N.A. 2932750-02/5 2932750-02/5 2932750-02/5 2932750-02/5 2932750-08/2
Door reversing kit,
left-right (light brown) N.A. N.A. 2932750-03/3 2932750-03/3 2932750-03/3 2932750-03/3 2932750-09/0
Door reversing kit,
right-left (black) N.A. N.A. 2932750-13/2 2932750-13/2 2932750-13/2 2932750-13/2 2932750-11/6
Door reversing kit,
left-right (black) N.A. N.A. 2932750-14/0 2932750-14/0 2932750-14/0 2932750-14/0 2932750-12/4
Door shelf, lower N.A. N.A. 2932575-01/8 2932575-01/8 2932575-01/8 2932575-01/8 2932575-01/8
Door shelf, 2 pieces N.A. N.A. 2932576-01/6 2932576-01/6 N.A. N.A. 2932576-01/6
Door shelf, 3 pieces 2002261-24/2 2002261-24/2 N.A. N.A. 2932576-01/6 2932576-01/6 N.A.
Door shelf, freezer N.A. N.A. N.A. N.A. N.A. N.A. 2932577-01/4
Door shelf, 6 pieces N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Electrode 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2
Halogen lamp
(12V, 10W base G4) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Handle (light brown) N.A. N.A. 2932670-01/7 2932670-01/7 2932670-01/7 2932670-01/7 2932093-01/2
Handle (black) N.A. N.A. 2932670-02/5 2932670-02/5 2932670-02/5 2932670-02/5 2932093-03/8
Heater 175W, 12V N.A. 3850646-10/4 N.A. 3850646-10/4 N.A. 3850646-10/4 N.A.
Heater 175W, 120V 3850644-45/5 3850644-45/5 3850644-45/5 3850644-45/5 3850644-45/5 3850644-45/5 N.A.
Heater 275W, 12V N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Heater 325W, 120V N.A. N.A. N.A. N.A. N.A. N.A. 3850644-42/2
Heater 420W, 120V
(2 x 60V, 201W) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Jet, No. 39 2007419-15/9 2007419-15/9 N.A. N.A. N.A. N.A. N.A.
Jet, No. 43 N.A. N.A. 2007419-16/7 2007419-16/7 2007419-16/7 2007419-16/7 N.A.
Jet, No. 58 N.A. N.A. N.A. N.A. N.A. N.A. 2007419-21/7
Jet, No. 76 N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Lamp cover N.A. N.A. N.A. N.A. N.A. N.A. 2932106-01/2
appendix a - spare parts
- 26 -
MoDel
spaRe paRts
DM2662 DM2663 DM2852 DM2862 DM3862 NDM1062 NDR1292
Airing position card 3850781-01 3850781-01 3850781-01 3850781-01 N.A. N.A. N.A.
Baffle 2932667-03/9 2932667-03/9 2932667-04/7 2932667-04/7 2932667-04/7 2932667-04/7 2932667-05/4
Bottle holder, 2 pieces N.A. N.A. N.A. N.A. N.A. N.A. 2932658-01/2
Box N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Box vegetable 2932621-07/7 2932621-07/7 2932621-01/0 2932621-07/7 2932621-09/3 N.A. N.A.
Box vegetable (crisper) N.A. N.A. N.A. N.A. N.A. N.A. 2002726-12/9
Box vegetable (crisper) N.A. N.A. N.A. N.A. N.A. N.A. 2002726-13/7
Box vegetable
(crisper), 2 pieces N.A. N.A. N.A. N.A. N.A. 2002726-17/8 N.A.
Box vegetable
(meat locker) N.A. N.A. N.A. N.A. N.A. 2932621-08/5 2002726-14/5
Burner
(with conductor) 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9 2930697-07/9
Door reversing kit,
(light brown) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Door reversing kit,
(black) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Door reversing kit,
right-left (light brown) N.A. N.A. 2932750-08/2 N.A. N.A. N.A. N.A.
Door reversing kit,
left-right (light brown) N.A. N.A. 2932750-09/0 N.A. N.A. N.A. N.A.
Door reversing kit,
right-left (black) 2932750-11/6 2932750-11/6 2932750-11/6 2932750-11/6 N.A. 2932750-11/6 N.A.
Door reversing kit,
left-right (black) 2932750-12/4 2932750-12/4 2932750-12/4 2932750-12/4 N.A. 2932750-12/4 N.A.
Door shelf, lower 2932575-05/9 2932575-05/9 2932575-01/8 2932575-05/9 2932575-06/7 2932575-07/5 N.A.
Door shelf, 2 pieces 2932576-06/5 2932576-06/5 N.A. N.A. N.A. N.A. N.A.
Door shelf, 3 pieces N.A. N.A. 2932576-01/6 2932576-06/5 2932576-07/3 2932576-08/1 N.A.
Door shelf, freezer N.A. N.A. 2932577-01/4 N.A. N.A. N.A. 2932577-02/2
Door shelf, 6 pieces N.A. N.A. N.A. N.A. N.A. N.A. 2932583-03/8
Electrode 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-01/2 2932781-02/0
Halogen lamp
(12V, 10W base G4) N.A. N.A. N.A. N.A. 3850455-01/9 3850455-01/9 N.A.
Handle (light brown) N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Handle (black) 2932093-03/8 2932093-03/8 2932093-03/8 2932093-03/8 N.A. 2932094-04/4 N.A.
Heater 175W, 12V N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Heater 175W, 120V N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Heater 275W, 12V N.A. 3850646-09/6 N.A. N.A. N.A. N.A. N.A.
Heater 325W, 120V 3850644-42/2 3850644-42/2 3850644-42/2 3850644-42/2 3850644-42/2 3850644-42/2 N.A.
Heater 420W, 120V
(2 x 60V, 210W) N.A. N.A. N.A. N.A. N.A. N.A. 3850644-46/3
Jet, No. 39 N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Jet, No. 43 N.A. N.A. N.A. N.A. N.A. N.A. N.A.
Jet, No. 58 2007419-21/7 2007419-21/7 2007419-21/7 2007419-21/7 2007419-21/7 2007419-21/7 N.A.
Jet, No. 76 N.A. N.A. N.A. N.A. N.A. N.A. 2007419-33/2
Lamp cover 2932106-01/2 2932106-01/2 2932106-01/2 2932106-01/2 3850532-01/5 3850532-01/5 2932106-01/2
appendix a - spare parts
- 27 -
Please visit the website for information and news about Dometic products. You can obtain information about how to get in contact,
the location of the nearest Dometic Service Center.
Commonly used spare parts are listed in this manual, see . These should be available from your
Dometic Service Center.
For contact information, please see the frontpage of this manual - or - visit the Dometic website.
Timely registration will allow for enhanced communication and service under the terms of the warranty, see
website www.edometic.com.
To register on-line, follow these steps:
1. .
Click 2. .
Complete the information and then, click the 3. button.
Service and spare parts
Dometic website www.dometicusa.com
Contact us
Register the appliance www.edometic.com
The model number (e.g. RM3762) and
serial number ( e.g. 012 34567) are
stated on the data label in the refrigerator
compartment.
appendix b - consumer support
- 28 -
iMpoRtaNt!
&
best built and best backed RV Refrigerator. Enclosed you
moments and familiarize yourself with the program. We at
will have many years of trouble-free RV enjoyment.
appendix c - dometic warranty &
maintenance schedule
- 29 -
THE SELLER NAMED BELOW MAKES THE FOLLOWING WARRANTY WITH
RESPECT TO THE DOMETIC PRODUCT:
1.
for his own use and is installed and operated within the continental United States and Canada.
This warranty will be in effect for three years on parts and freight and two years on labor from the date of purchase by the 2.
Original Purchaser. It is suggested that the original purchaser retain a copy of the dated bill of sale as evidence of the date of
purchase.
3.
This warranty does not cover conditions unrelated to the material and workmanship of the product. Such unrelated conditions
damage resulting from the failure to provide such maintenance; (d) failure to follow Sellers instructions for use of product; (e)
any accident to or misuse of any part of this product and any alteration by anyone other than the Seller or its authorized repre-
sentative; (f) any non-Dometic parts that are installed as replacement parts will void any warranty (implied or written);
(g) blow out conditions; (h) radio frequency interference and electromagnetic interference; (i) 12V system chassis ground decay
-
tion which damages unit or inhibits performance; (l) abuse or misuse of electrical components.
-4.
compressor, second absorption loop, display escutcheon, lower toe plate, humidity switch, frame heater mullion, icemaker mul-
5.
The Original Purchaser must keep a record of the preventative maintenance to keep the
warranty in effect. Failure of the Original Purchaser in providing this annual maintenance may void the warranty. The preventa-
an inspection, cleaning and full diagnostics performed on the entire electronic system, burner assembly, wiring and cooling unit.
6.
please call 1-800-544-4881 or in Canada call 1-519-720-9578.
7.
The Seller does not authorize any person or company to create any warranty obligations or liability on their behalf. This war-8.
ranty is not extended by the length of time which you are deprived of the use of the product. Repairs and replacement parts
provided under the terms of this warranty shall carry only the non-expired portion of this warranty.
In no event shall either seller be liable for incidental or consequential damages. This includes any damage to another product or 9.
products resulting from such a defect. Some states do not allow the exclusion or limitation of incidental or consequential dam-
ages, so the above limitations may not apply.
10.
of this limited warranty. Some states do not allow limitations on how long an implied warranty can last, so the above limitation
may not apply.
11.
the warranty period. Claims must be submitted in writing to the Dometic Warranty Department for arbitration.
12.
The Seller reserves the right to change the design of any product without notice and with no obligation to make corresponding 13.
changes in products previously manufactured.
Warranty Department
2320 Industrial Parkway
Elkhart, IN 46516
Phone: 574-294-2511
Fax: 574-293-9686
DoMetic RefRigeRatoRs
- 30 -
RefRigeRatoR owNeR MaiNteNaNce yeaRly RecoRD
#USTOMER .AME -ODEL .O $ATEOF0URCHASE
!DDRESS 3ERIAL.O
3TATE#ITY :IP#ODE
0HONE
&)2349%!2
Date:
Dealership:
Address:
City:
State: Zip:
Phone:
Technician:
Cleaned Burner Assembly: Yes / No
Cleaned/Check All Terminals Connections: Yes / No
Cleaned/Inspect All Ground Connections: Yes / No
Inspect and Test Door Seals: Yes / No
Inspect and Tighten LP Lines: Yes / No
Power Ventilator Installed: Yes / No
*Gas Safety Shutdown in 45 seconds: Yes / No
!#45!, 30%#2!.'%
Electrode Gap 3/16"
ThermisterReading 7-10,000 ohms @ 32°
*D/C Voltage 9.5 to 15 volts D/C
*A/C Voltage 120 Volts ± 10%
Thermocouple Reading 25-35 Millivolts
*Delay Between Modes Approx. 5 seconds
* Use PAL RV Diagnostic Tool for these tests.
)#%-!+%2-/$%,3
Inspect Water ValveandAllConnections: Yes / No
Inspect Heat Tape Switch for Proper
Operation: Yes / No
3%#/.$9%!2
Date:
Dealership:
Address:
City:
State: Zip:
Phone:
Technician:
Cleaned Burner Assembly: Yes / No
Cleaned/Check All Terminals Connections: Yes / No
Cleaned/Inspect All Ground Connections: Yes / No
Inspect and Test Door Seals: Yes / No
Inspect and Tighten LP Lines: Yes / No
Power Ventilator Installed: Yes / No
*Gas Safety Shutdown in 45 seconds: Yes / No
!#45!, 30%#2!.'%
Electrode Gap 3/16"
ThermisterReading 7-10,000 ohms @ 32°
*D/C Voltage 9.5 to 15 volts D/C
*A/C Voltage 120 Volts ± 10%
Thermocouple Reading 25-35 Millivolts
*Delay Between Modes Approx. 5 seconds
* Use PAL RV Diagnostic Tool for these tests.
)#%-!+%2-/$%,3
Inspect Water ValveandAllConnections: Yes / No
Inspect Heat Tape Switch for Proper
Operation: Yes / No
- 31 -
RM2351
RM2354
Power module
cover
Flexible cord
12 V DC
Terminal block
Inlet fitting
Manual gas shutoff valve
Burner jet
Screw for protection cover
Protection cover
Drain water hose
Flue baffle
Heater
Power module
cover
Flexible cord
12 V DC
Terminal block
Inlet fitting
Manual gas shutoff valve
Burner jet
Screw for protection cover
Protection cover
Drain water hose
Flue baffle
Heaters
Relay
appendix d - rearView equipment
- 32 -
12V DC
Relay,
3-Way only
Power module
cover
Flexible cord
12 volt DC
Terminal block
Drain water hose
Inlet fitting
Manual gas
shutoff valve
Burner jet
Screw for protection cover
Protection
cover
Flue baffle
Heater(s)
Thermofuse
Flexible cord
Power module
cover
Relay,
3-way only
12 volt
Terminal block
Drain water hose
Inlet fitting
Manual gas shutoff valve
Burner jet
Screw for protection cover
Heater
Flue baffle
Protection cover
12V DC
RM2451, RM2454, RM2551 & RM2554
DM2652, DM2662, DM2663, DM2852, DM2862, DM3862 & NDM1062
appendix d - rearView equipment
- 33 -
NDR1292
12V DC
Heaters
Power module
cover
Flue baffle
Protection
cover
Thermofuse
Burner jet
Manual gas
shutoff valve
Inlet fitting
12 volt
Terminal block Flexible cord
Drain water hose
appendix d - rearView equipment
- 34 -
RM2351, RM2451 & RM2551
RM2354, RM2454 & RM2554
appendix e - wiring diagrams
- 35 -
DM2652, DM2852 & DM2862
DM2652, DM2662, DM2852 & DM2862
385 13 98
12V DC
J
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
LAMP
M
N
RETAINER
SWITCH
SOLENOID VALVE
THERMISTOR
CIRCUIT BOARD POWER R
HEATING CABLE
PROTECTIVE EARTH
S
H
FUSE 3A
ELECTRODE
TERMINAL BLOCK
YELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
JHEATER 120V AC
GREEN
GREEN/YELLOW
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
M
P 3
J10
P 1 P 2
T
5 A
D
J 2
J10
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 4
J 5
J 8
J 7
J 6
P3−2
T
P1−5
P1−2
P1−6
P1−3
M
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
L N
1
9
5L
1
E
6 O
P S
G
H
1
8
N
K
R
3
1
T
CHASSIS GROUND
3
1
K
GH
R
N
E
TEST POINT
P
3
4
9
J
1
1
F
3
F
O
THERMOFUSE
THERMAL FUSEU
U
U
12V DC
J
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
LAMP
M
N
RETAINER
SOLENOID VALVE
THERMISTOR
CIRCUIT BOARD POWER
HEATING CABLE
H
FUSE 3A
ELECTRODE
TERMINAL BLOCKYELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
JHEATER 120V AC
GREEN
GREEN/YELLOW
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
M
P 3
J10
P 1 P 2
T
5 A
D
J 2
J10
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 4
J 5
J 8
J 7
J 6
P3−2
T
P1−5
P1−2
P1−6
P1−3
M
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
L N
1
9
5L
1
E
6 O
P S
G
H
1
8
N
K
R
3
1
3
1
K
GH
R
N
E
3
4
9
J
1
1
F
F
O
THERMOFUSE
U
3
3
1
U
V
PROTECTIVE EARTHP
V
X
3 A
385 14 00
FUSE 3AX
TEST POINTT
R
THERMOFUSE
FAN
U
V
SWITCH
SCHASSIS GROUND
THERMAL FUSEY
Y
3
Y
appendix e - wiring diagrams
- 36 -
DM2663
12V DC
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
HEATER 12V DC
LAMP
M
N
RETAINER
P
SWITCH
SOLENOID VALVE
THERMISTOR
CIRCUIT BOARD POWER
T
HEATING CABLE
PROTECTIVE EARTH
U
H
FUSE 3A
ELECTRODE
TERMINAL BLOCK
YELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
J
HEATER 120V AC
GREEN
GREEN/YELLOW
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
N
P 3
J10
P 1 P 2
X
5 A
D
J 2
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 4
J 5
P3−2
X
P1−5
P1−2
P1−6
P1−3
N
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
L N
K
1
9
5M
1
E
6 R
S U
4
9
G
H
1
O
L
T
3
1
W
CHASSIS GROUND
O
RELAY
3
1
L
GH
T
P
8 5 8 7
1
7
7
J
O
E
8 5 8 7
P
X
FUSE 30A
3
3
W
TEST POINT
S
3
1
1
J10
J 7
J 6
J 8
F
W
+12V
L
F
3
K
N
J
GROUND
8 6 3 0
8 6 3 0
8
R
THERMOFUSE
3
Y
THERMAL FUSEY
Y
385 13 99
DM3862
U
3
12V DC
H
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
HEATER 120V AC
LAMP
O
P
SOLENOID VALVE
PROTECTIVE EARTH
R
TEST POINT
RETAINER
CIRCUIT BOARD POWER
S
TERMINAL BLOCK
CHASSIS GROUND
T
H
FUSE 3A
ELECTRODE
THERMISTOR
YELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
JHEATING CABLE
GREEN
GREEN/YELLOW
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
L
P 3
J10
P 1 P 2
T
5 A
D
J
CLC
J 2
J10
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 5
J 8
J 7
J 6
P3−2
T
P1−5
P1−2
P1−6
P1−3
L
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
3
L N
H
1
1
1
9
5K
1
O
6 P
R S
4
9
GND
LAC
+12V
FG
1
8
3
3
1
8
1
LAC
+12V
GND
CLC
G
O
J
E
F
UTHERMOFUSE
E
8
J 4
THERMAL FUSEY
Y
U
Y
385 14 03
appendix e - wiring diagrams
- 37 -
NDM1062
NDM1062
U
3
12V DC
H
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
HEATER 120V AC
LAMP
M
N
THERMOFUSE
PROTECTIVE EARTH
R
TEST POINT
FANS
CIRCUIT BOARD POWER
S
TERMINAL BLOCK
CHASSIS GROUND
T
H
FUSE 3A
ELECTRODE
THERMISTOR
JHEATING CABLE
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
L
P 3
J10
P 1 P 2
T
5 A
D
J
CLC
J 2
J10
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 5
J 8
J 7
J 6
P3−2
T
P1−5
P1−2
P1−6
P1−3
L
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
3
L N
H
1
9
5K
1
O
6 P
R S
4
9
GND
LAC
+12V
FG
1
8
3
3
1
8
LAC
+12V
GND
CLC
G
O
J
E
F
UTHERMOFUSE
E
8
J 4
M
3
3
N
1
1
1
1
O
P
SOLENOID VALVE
RETAINER
M
N
3
1 1
3 A
V
FUSE 3AV
U
GREEN/YELLOW
GREEN
7
6
5
4
3
2
1BLACK
BROWN
RED
BLUE
GREY
WHITE
8
9
YELLOW
THERMAL FUSEY
Y
Y
385 14 04
W
3
12V DC
H
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
HEATER 120V AC
LAMP
M
N
THERMOFUSE
FANS
CIRCUIT BOARD POWER
TERMINAL BLOCK
H
FUSE 3A
ELECTRODE
THERMISTORYELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
JHEATING CABLE
GREEN
GREEN/YELLOW
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
L
P 3
J10
P 1 P 2
Z
5 A
D
J 2
P1−1
P1−4P3−4
P3−3
P3−1
A
C
B
J 5
J 8
J 7
J 6
P3−2
Z
P1−5
P1−2
P1−6
P1−3
L
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
3
L N
H
1
9
5K
1
O
6 P
S X
4
9
F
G
8
O
E
J
T
3
U
3
8
OSOLENOID VALVE
31
1
J
U
FG
T
J10
E
8
J 4
3
33
1 1
M N
1
1
1
1
M
N
PRETAINER
3 A
Y
THERMAL FUSER
SPROTECTIVE EARTH
TEST POINTZ
FUSE 3AY
CHASSIS GROUNDX
W
SWITCH L.A.CU
THERMOFUSE
TSWITCH
R
W
R
385 14 05
appendix e - wiring diagrams
- 38 -
NDR1292
NDR1292
385 13 30
U
12V D C
H
A
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
SWITCH LAMP
L
K
HEATER 120V AC
LAMP
M
N
SOLENOID VALVE
PROTECTIVE EARTH
R
TEST POINT
RETAINER
CIRCUIT BOARD POWER
S
TERMINAL BLOCK
CHASSIS GROUND
T
H
FUSE 3A
ELECTRODE
THERMISTOR
YELLOW
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
JHEATING CABLE
GREEN
GREEN/YELLOW
N
GROUND+12V
L
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
3 A
J 4
J 5
J 2
J 6
J 7
J 8
L
P 3
J10
P 1 P 2
T
5 A
D
J
CLC
J 2
P1−1
P1−4
A
C
B
J 5
J 8
J 7
J 6
T
P1−5
P1−2
P1−6
P1−3
L
P2−1
P2−2
9
9
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
3
L N
1
9
5K
GND
LAC
+12V
FG
1
8
3
3
1
8
LAC
+12V
GND
CLC
G
M
J
E
F
UTHERMOFUSE
U
J 4
4
R
M
9
E
8
6 N
FANFAN
P
P3−4
P3−3
P3−1
P3−2
J10
F A N
F A N
S
H
1
1
1
3
THERMOFUSEP
P
33
3
3
1
1
V
V
3 A
FUSE 3A
1
+
4
X
H
385 13 26
S
1 2 3 4 1 2 3 4 5 6 1 2
DISPLAY
BOARD
J 6
J 8
K
E
P 3
3
P3−4
P3−3
P3−1
P3−2
9
M
1 2 V DC
1
1
J 1 0
T
1
J 7
H
O
P
G
F
N
83
3
1
P1−1
P1−4
T
P1−5
P1−2
P1−6
P1−3
K
P2−1
P2−2
9
9
D
GREEN
ORANGE
BLUE
RED
BROWN
BLACK
G
S
N
L
+12V
3 A
5 A
N
GROUND
L
J 4
J 5
J 2 L
W
1
1
1
3
3
CIRCUIT BOARD POWERA
B
C
D
E
F
G
CIRCUIT BOARD DISPLAY
FUSE 5A
HEATING CABLE
L
K
HEATER 120V AC
SWITCH
M
N
O
T
S
LAMP
RETAINERU
PROTECTIVE EARTH
SWITCH L.A.C
SOLENOID VALVE
TERMINAL BLOCK
W
THERMISTOR
CHASSIS GROUND
X
H
FUSE 3A
ELECTRODE
THERMOFUSE
9
8
WHITE
GREY
BLUE
RED
BROWN
BLACK1
2
3
4
5
6
7
GREEN
GREEN/YELLOW
YELLOW
PSWITCH LAMP
TEST POINT
J 2
J10
A
C
B
J 4
J 5
J 8
J 7
J 6
E
8
6 U
FANFAN
L N
1
9
5
120 VAC
JTHERMOFUSE
J
F A N
F A N
O
J
3
3
33
1
1
Y
Y
3 A
FUSE 3A
1
appendix e - wiring diagrams
Dometic Processing Center
2320 Industrial Parkway
Elkhart, IN 46516
FIRST
REQUIRED
We truly appreciate that you have chosen to purchase a Dometic product for your
recreational vehicle and we want to help you protect this wise investment.
We at Dometic back our products with one of the most comprehensive warranties
in the industry. Complete the registration card below and mail to us or register your
Product on-line at www.edometic.com.
Tape
here
W ■ARRANTY VERIFICATION
Your prompt registration records your right to protection
under the terms and conditions of your warranty.
OWNER CONFIRMATION ■
damage or theft.
FACTORY COMMUNICATION ■
Returning your card of registering on-line guarantees
you will receive product information and specials.
Leaving your email address below will allow us to
3 PLUS 3 SERVICE CONTRACT ■
Returning the card below or registering on-line assures
you of an invitation to take advantage of an Optional 3
Plus 3 Full Service Contract which allows you to add
up to 3 years of additional warranty coverage.
TO THE INSTALLER
PLEASE AFFIX THESE INSTRUCTIONS
TO THE REFRIGERATOR
—
TO THE CONSUMER
PLEASE RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Return the card within 10 days to ensure your:
WARRANTY VERIFICATION ■
FACTORY COMMUNICATION ■
OWNER CONFIRMATION ■
3 PLUS 3 SERVICE CONTRACT ■
Fold here. Close with tape.
MO
entitled to as a DOMETIC customer. Complete the information below and mail to us or register
on-line at www.edometic.com.
.
Owner’s Registration Card
IMPORTANT:
Return Within
10 days
