Refrigeration solutions
for marine connoisseurs
Refrigeration Solutions
for boating enthusiasts
L-0191B
2
Contents, specifications and availability subject to change without notice. Not responsible for any typographical errors.
PICTURE CREDITS
Boston Whaler • www.bostonwhaler.com
Island Packet Yachts • www.ipy.com
JC Pontoon • www.jcpontoon.com
Sea Ray Boats • www.searay.com
Contents, specifications and availability subject to change without notice. Not responsible for any typographical errors.
3
www.DometicEnviro.com
Dometic – Cruise In Comfort
Dometic is a world-leading supplier of dedicated
systems and equipment for pleasure boats.
A partnership of innovative design and the highest standard of quality ensures
that Dometic products satisfy and surpass the expectations of the most
discriminating boat owner.
Index: n Front Loading, CR Series 4 – 9
n Front Loading, TJ Series 10 – 13
n Retrofit Applications: Refrigerators 14
n At-A-Glance Chart: Refrigerators 15
n Top Loading, CB Series 16

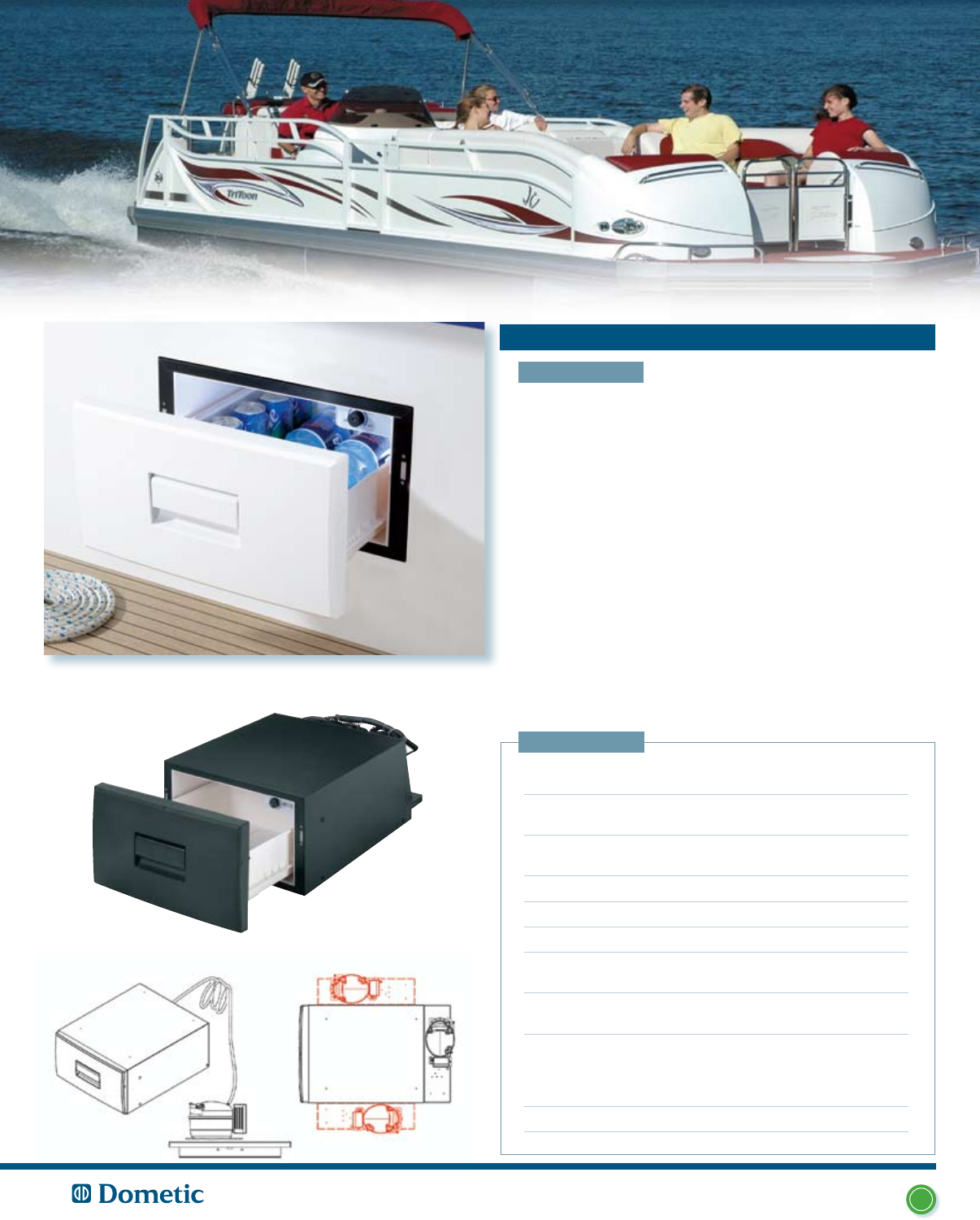

n Drawer Fridges, CD Series 17
n Portable, CF Series 18 – 19

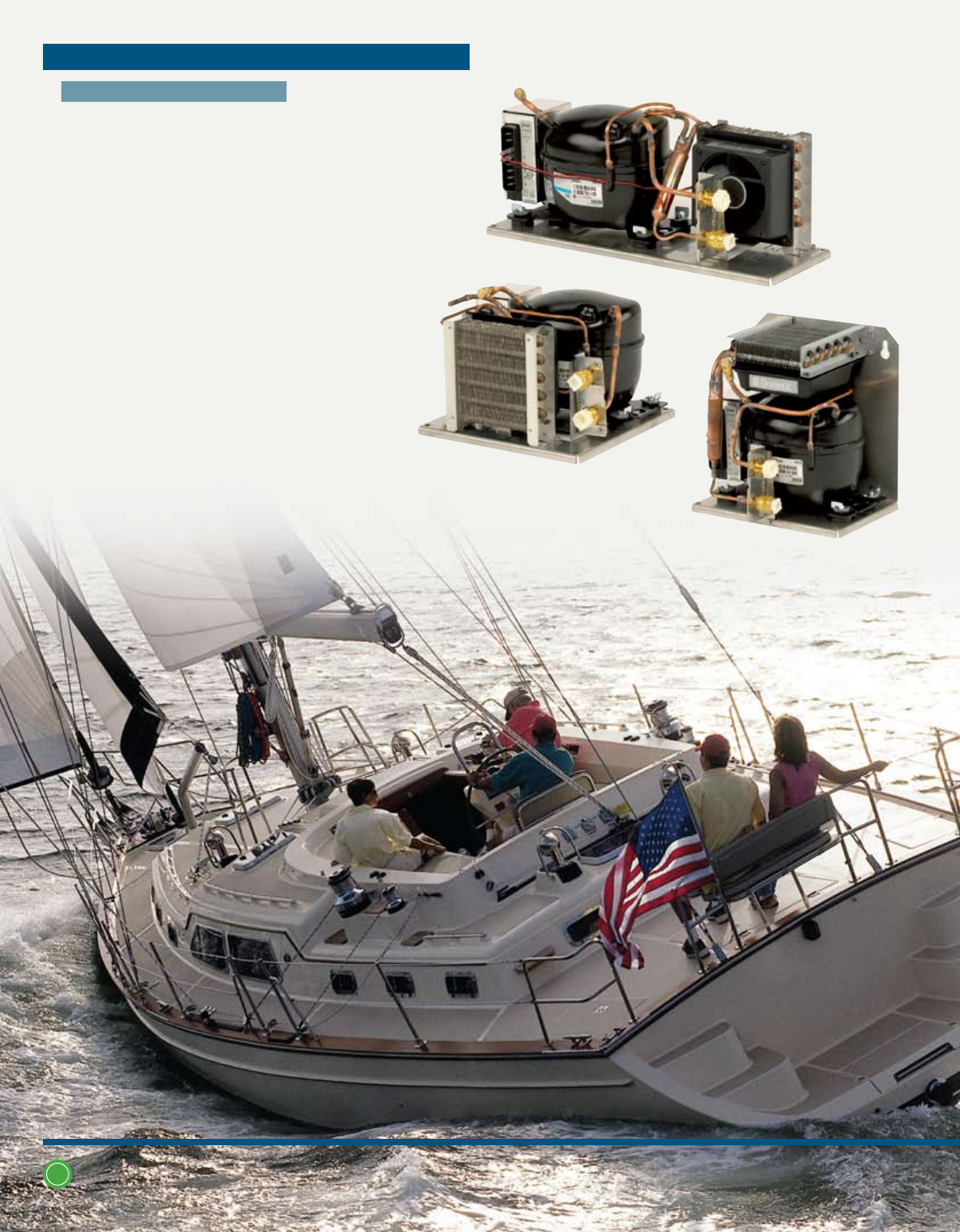

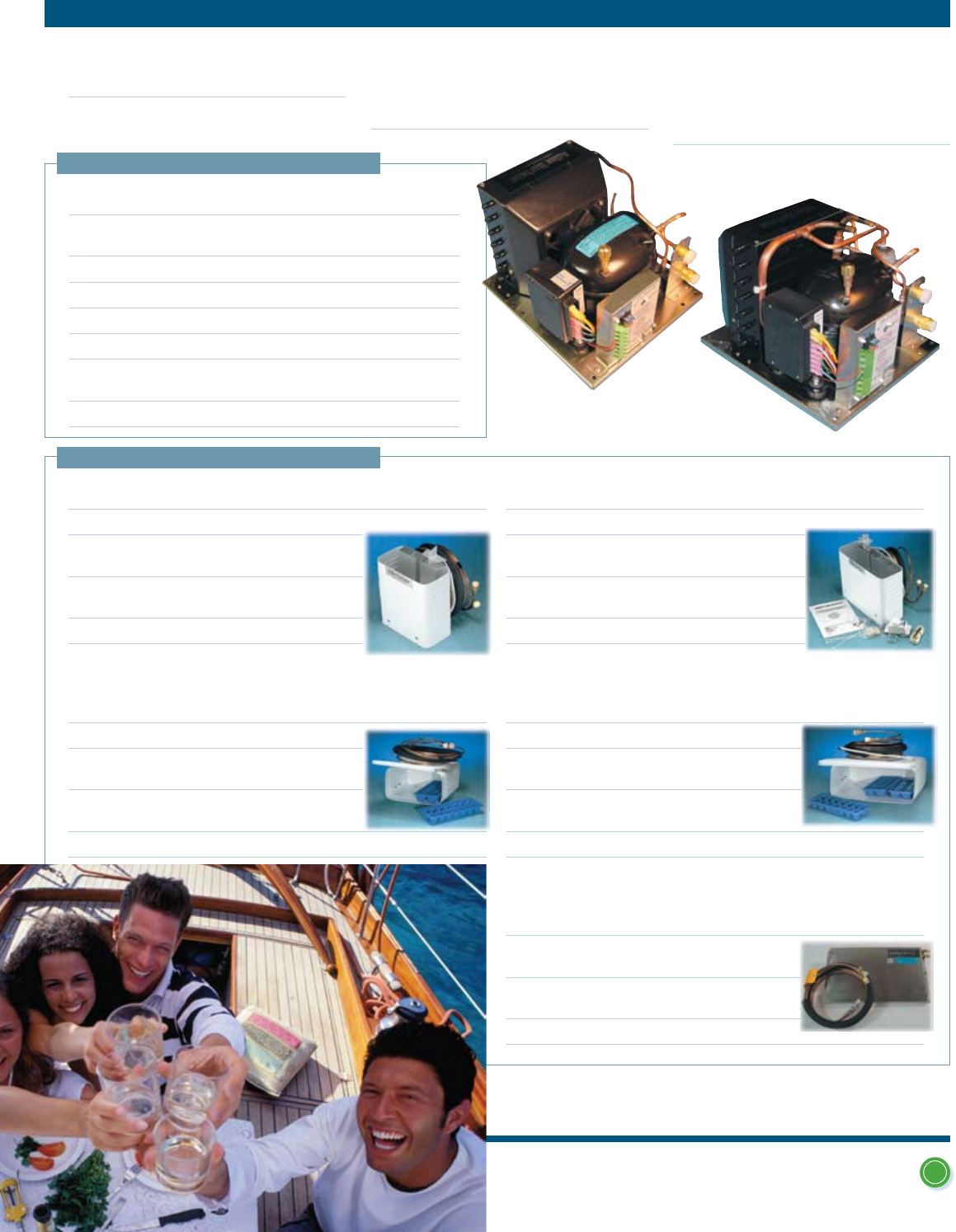

n Cooling Kits, Adler/Barbour Series 20 – 21
n Cooling Kits, 80 Series 22
n Cooling Kit, CS-NC-15 23

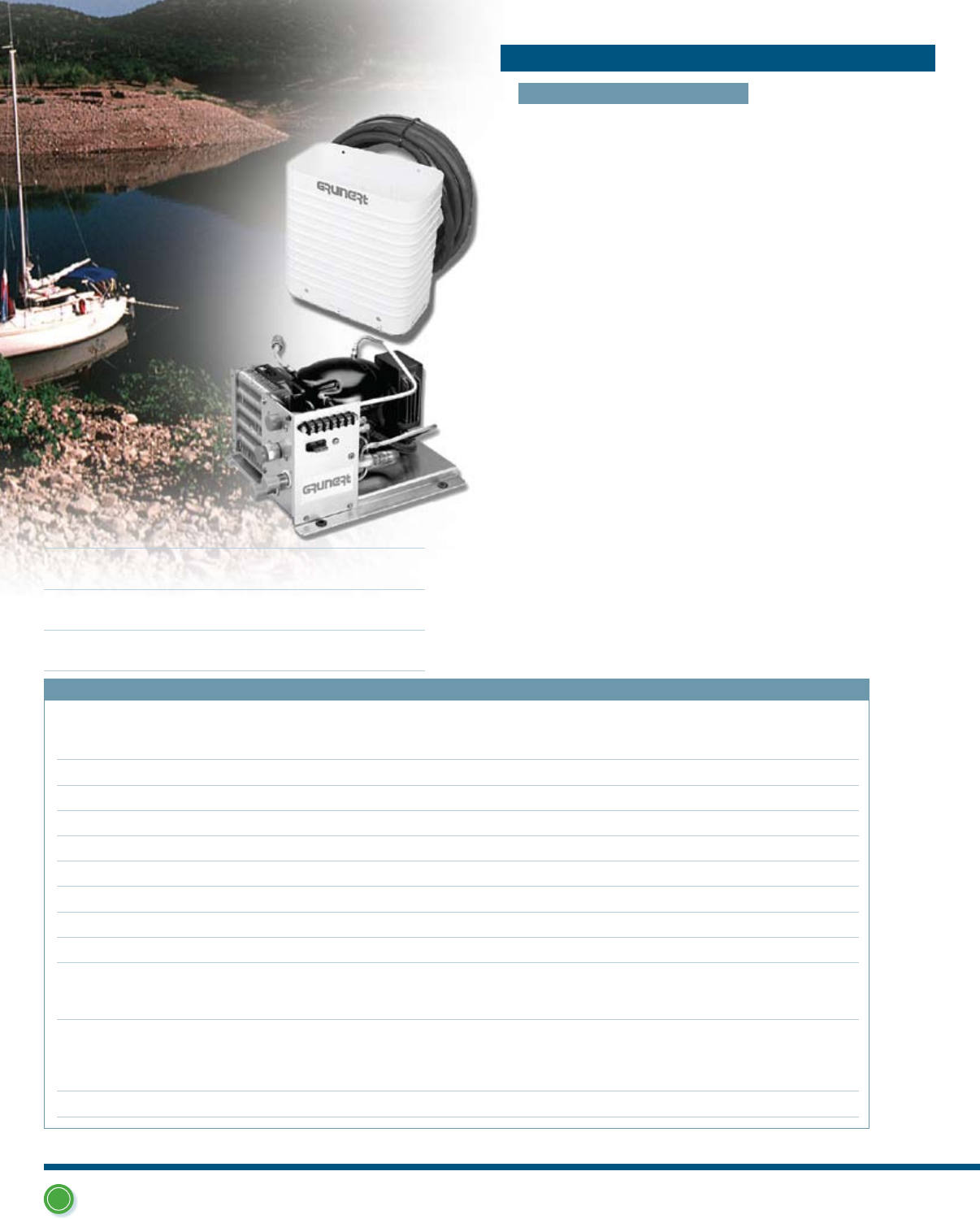

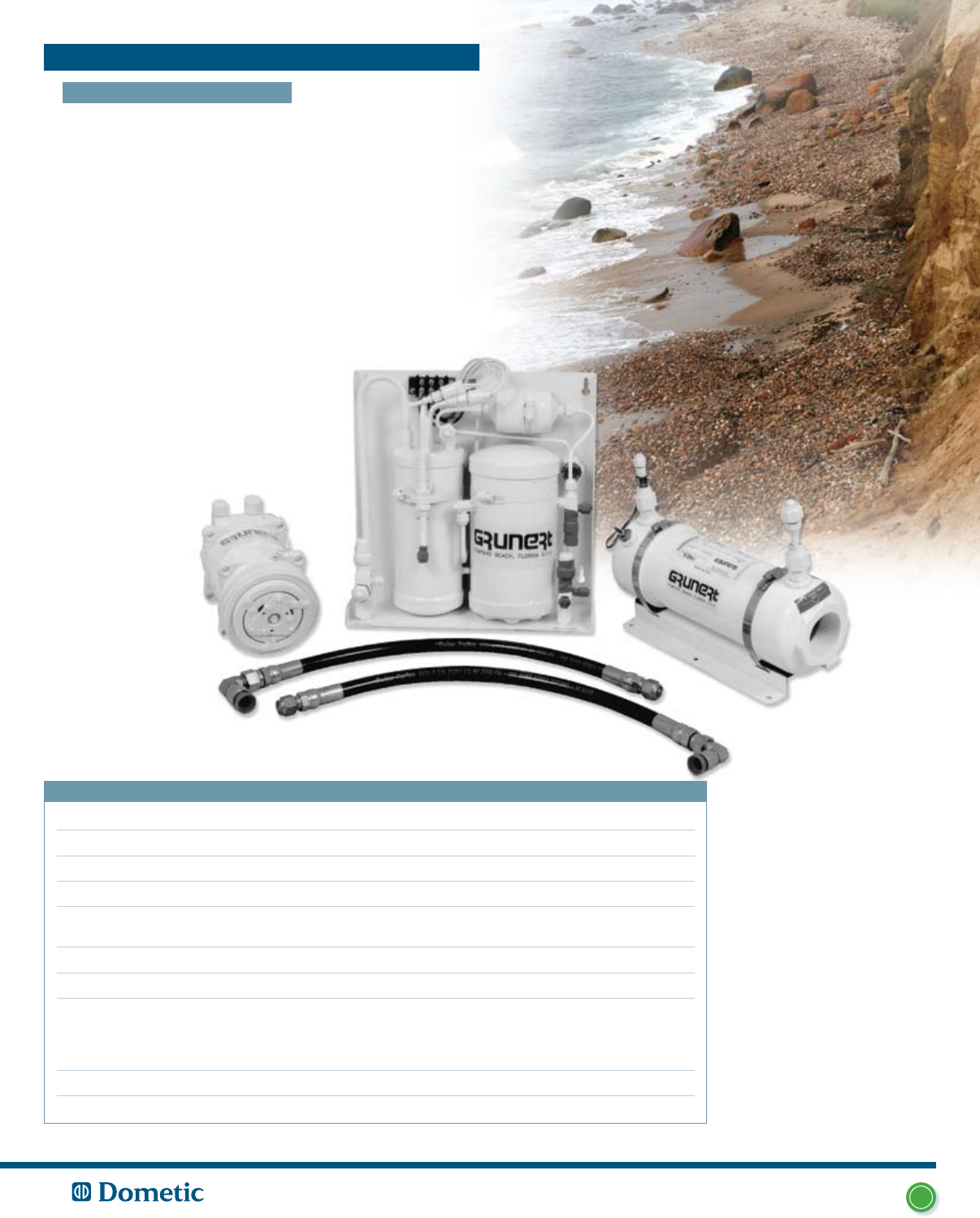

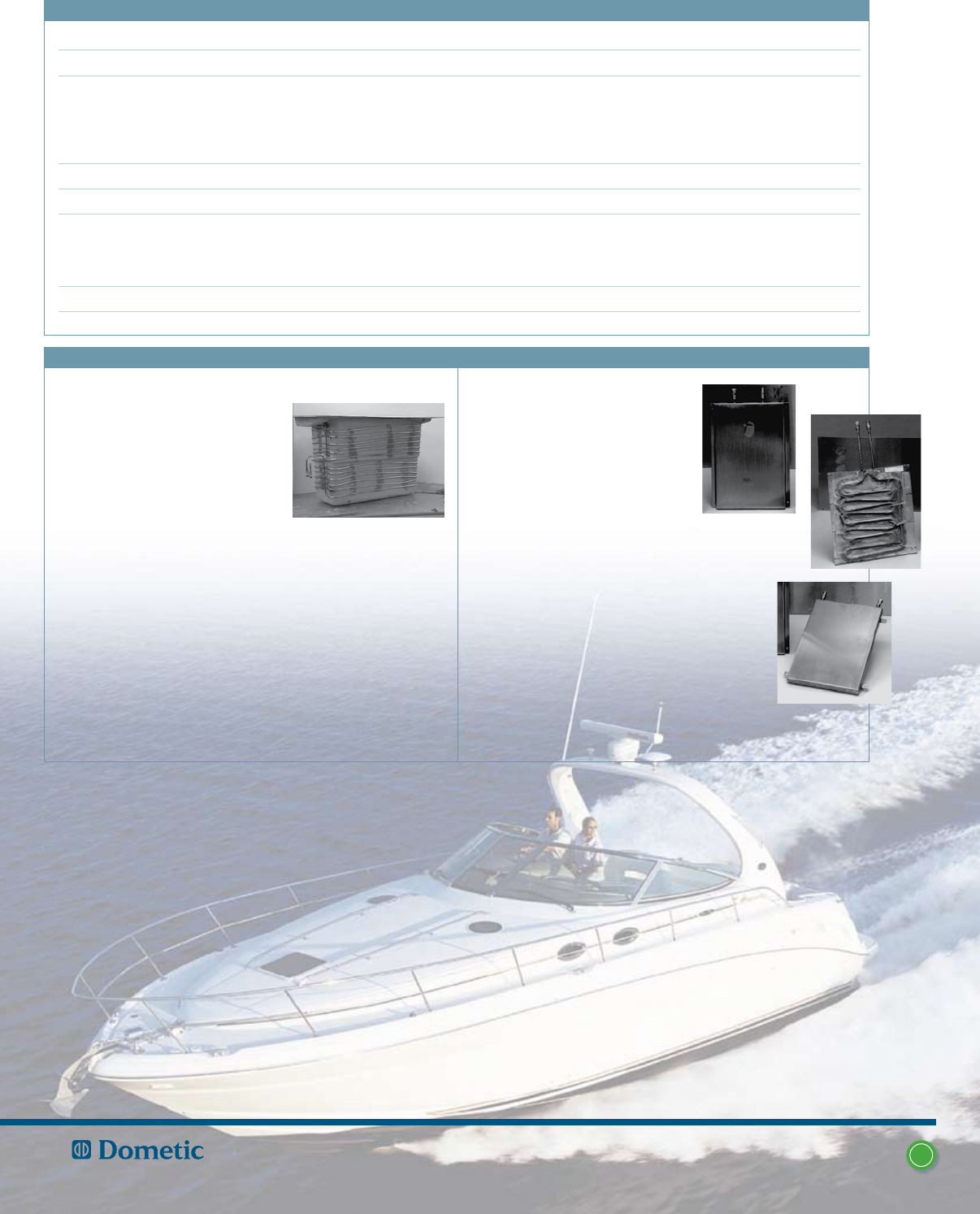

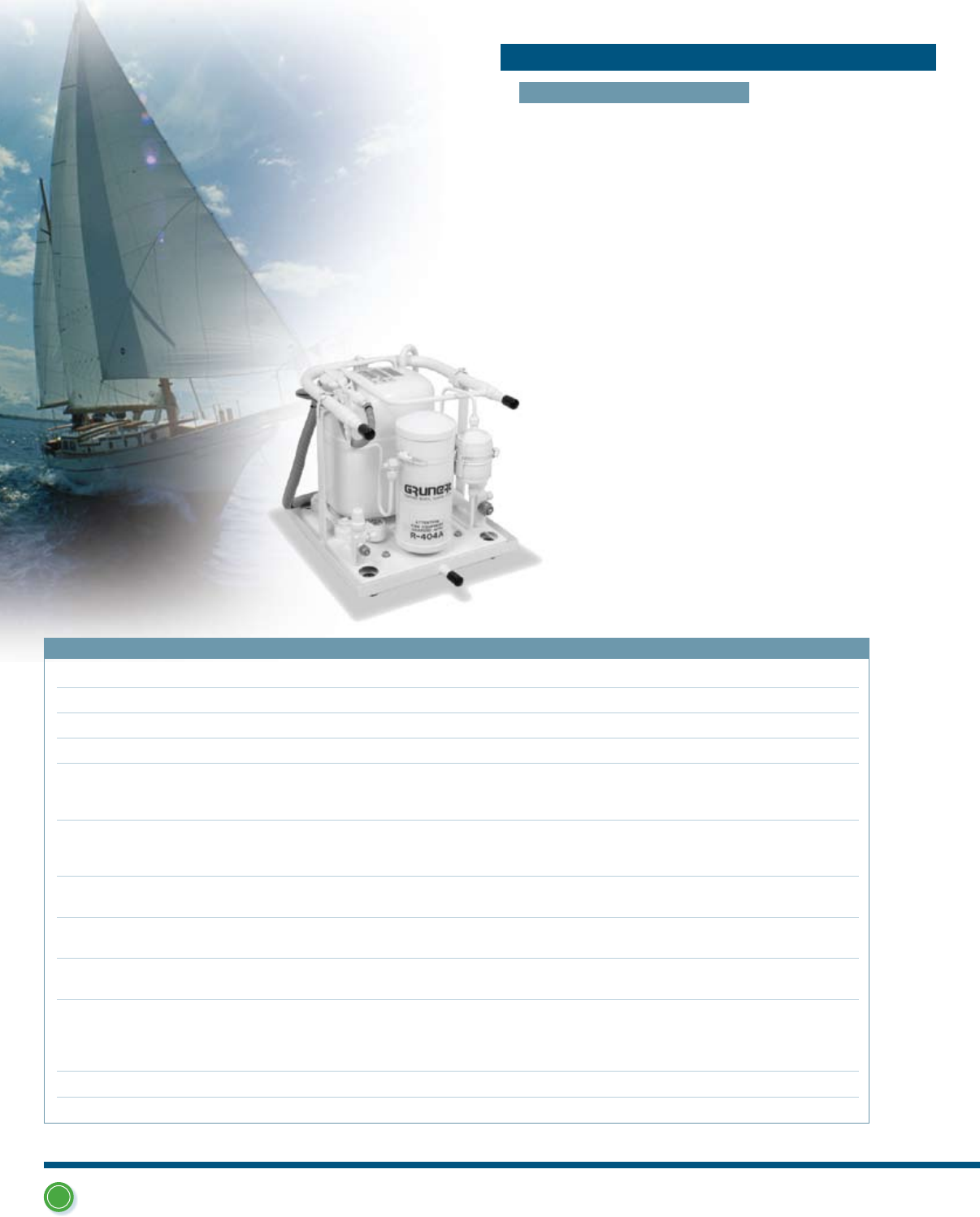

n Cooling Kits, Grunert Series 24 – 27
n Cooling Kits, KRA Series 28 – 29

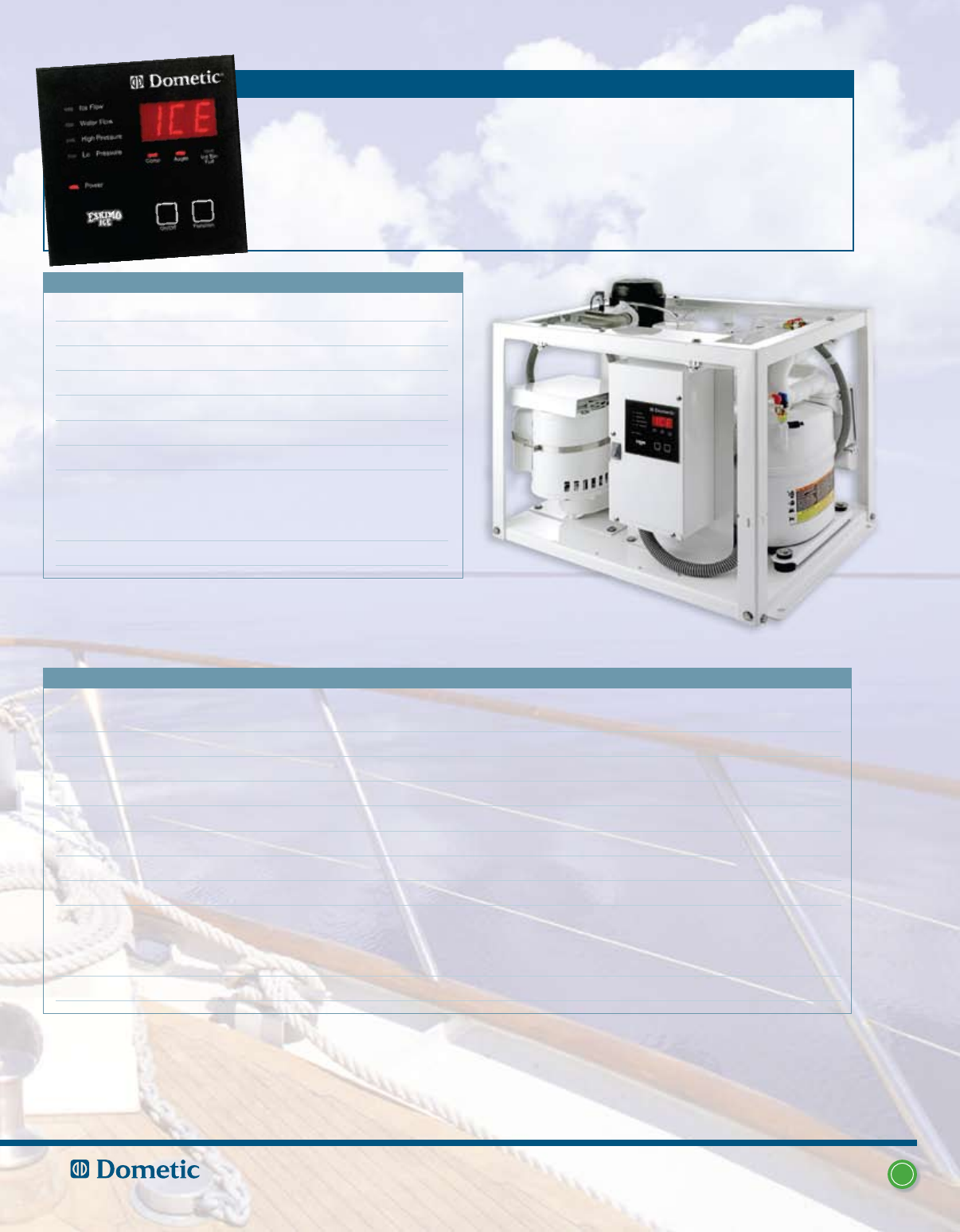

n Ice Crushing Systems, Eskimo Ice Series 30 – 31
AWARD WINNING DESIGN
“Beyond pleasing aesthetics, the new CR
Series compressor refrigerators offer several
clever design touches, including a lock to
allow the cabinet to ventilate when not in use
and a very positive latching mechanism.”
D

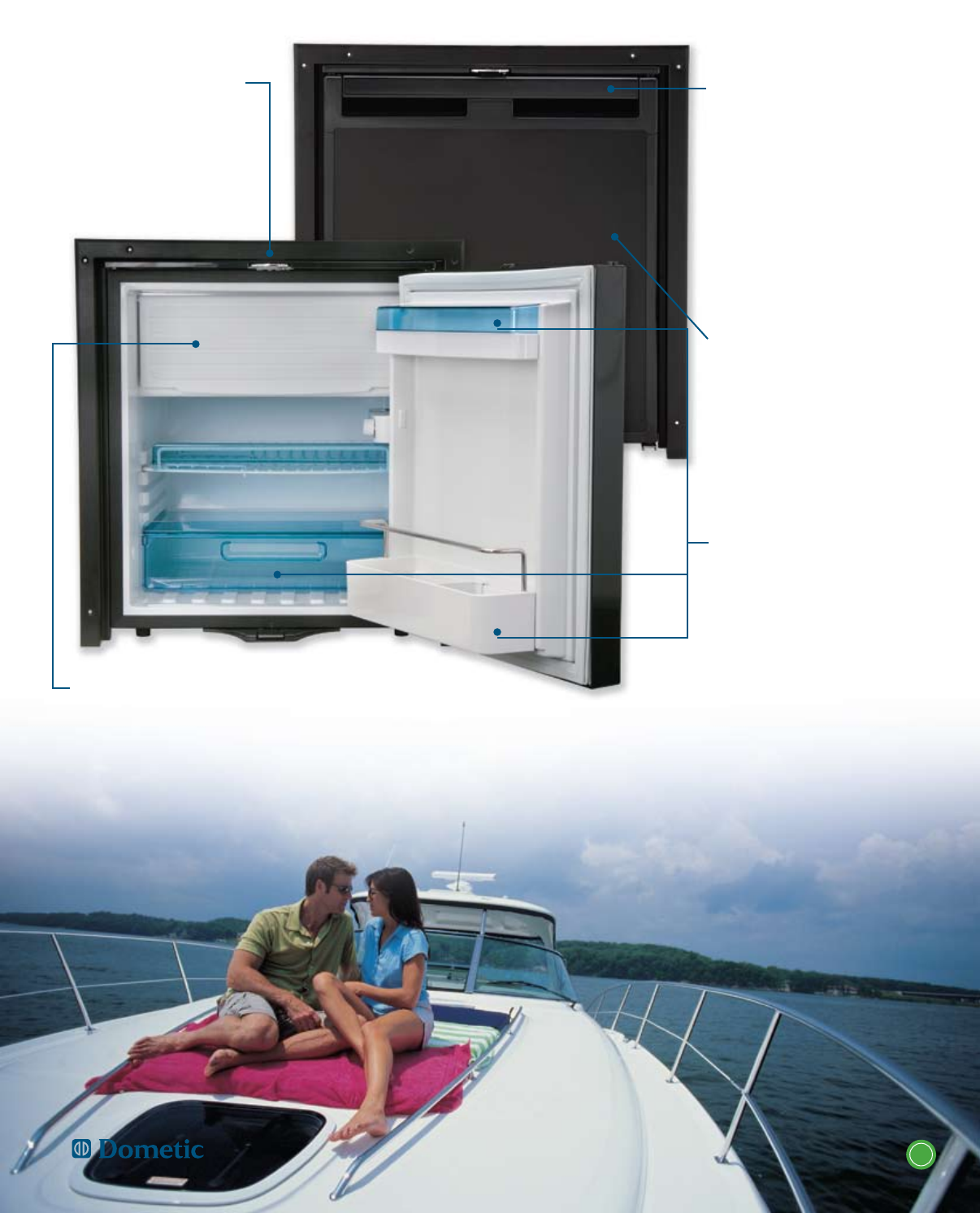

Front Loading Refrigerators
CR SERIES
QUALITY FEATURES
4
Light Handle Frame
As commented by the awards jury at METS Amsterdam—the
world’s leading trade show for marine equipment.
esigned for the rigors of marine use, the
CR Series provides built-in refrigerators
for every application. Each unit includes
a flush-mount frame that will compliment
any on-board galley or cockpit.
High-tech design: Each CR Series appliance is equipped with a
premium Danfoss DC compressor, providing excellent cooling
performance, minimal power consumption when operating on
either DC or AC power, and superbly quiet operation.
Patented Double-Lock
Door Mechanism:
During rough sea conditions, the
refrigerator door remains securely
closed, at the top and bottom, as a
result of the patented double-lock door
mechanism. It also incorporates the
“vent" position, which holds the door
slightly open when the refrigerator is not
in use for easy defrosting and to prevent
mildew.
Luxury Meets Performance and
Top-of-the-Line Technology
Premium front loading refrigerators with freezer compartments
z
Totally encapsulated freezer compartment eliminates the
risk of ice-pick damage.
z
Diagnostic troubleshooting indicator lights.
z
Separate insulated freezer compartment with door.
z
Door with double-lock (top/bottom) and
dual function (locking/ventilation).
z
Full-length recessed door handle provides
comfortable opening and closing.
z
Door with magnetic sealing gasket.
z
Cool-blue interior light.
z
Door hinge and locks (right/left) allows for reversible
door opening. Left or right — the choice is yours.
z
Interchangeable face panel to match decor.
z
Flush mount flange provides a pleasing cosmetic
appearance and eliminates protruding handle or locks.
Space-saving flange is available as an option, when
cabinet depth is limited.
www.DometicEnviro.com 5

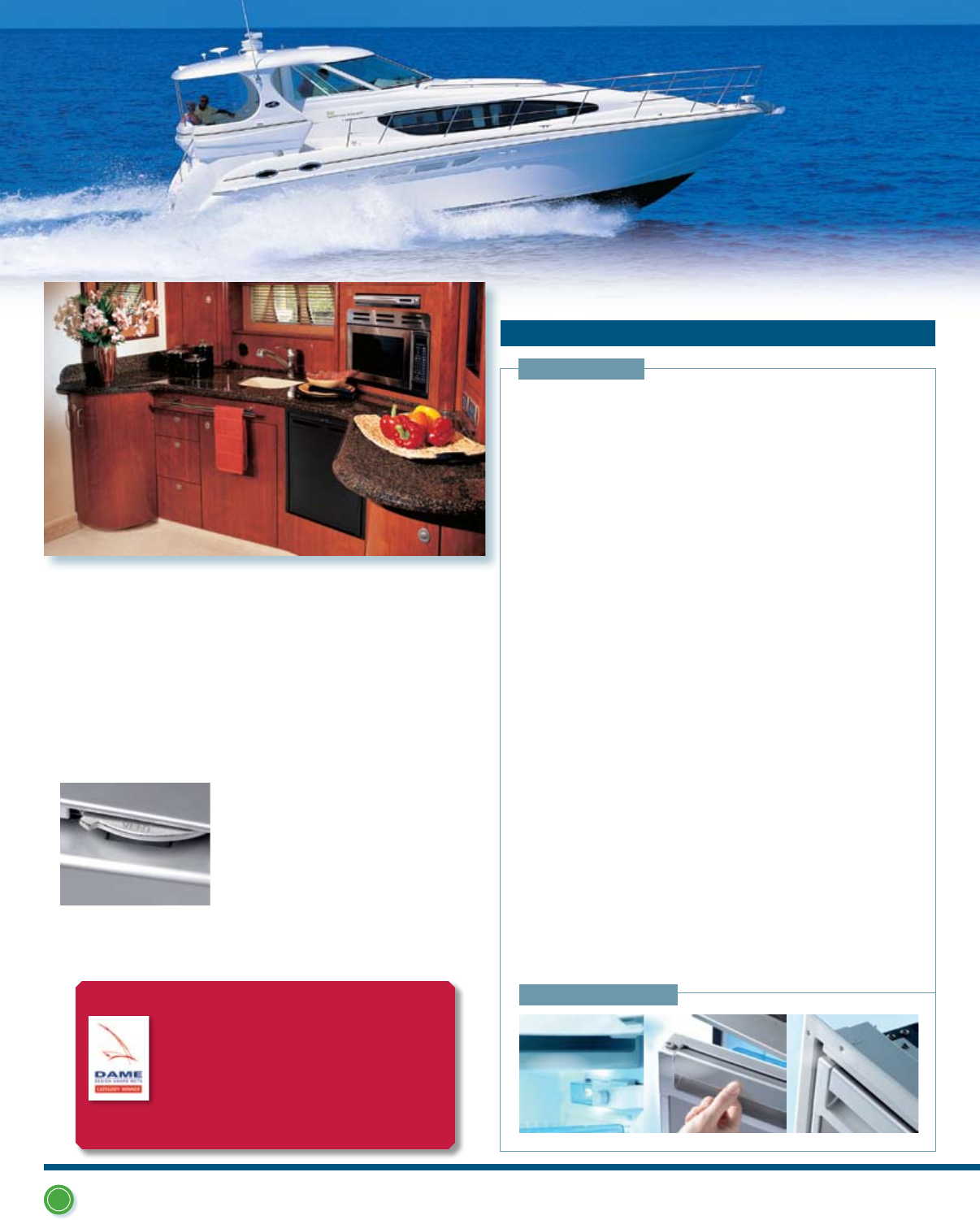

ELEGANT DESIGN
> Inside: Refreshing white
interior with “Cool-Blue" light
> Outside: Choice of
face panels: black,
white*, stainless-steel,
brushed stainless-steel
> Secure self-locking door
> Smooth face: The handle is
recessed into the fridge door
> Flexible installation with flush
mount flange (accessory:
space-saver flange available)
HIGH-GRADE
WORKMANSHIP
> Metal frame construction
> Stainless-steel hardware
> Door with double lock
(top/bottom) and dual
functions (locking/ventilation)
> Reversible door mount
(left or right-side opening)
HOME-LIKE CONVENIENCE
> Similar to quality household
refrigerators, standard features
include: egg tray, bottle holder,
extra-large vegetable bin, versatile
repositionable shelves and racks.
LUXURY EQUIPMENT
> Unique:
All CR Series models feature
a separate full-width freezer
compartment.
*on select models only.
PREMIUM COOLING
TECHNOLOGY
> Danfoss BDF compressor
from the market leader
PREMIUM FREEZING
> Separate freezer compartment
with insulated door
> Protected evaporator eliminates
risk of ice-pick damage
> Collection tray to capture
defrost water or unit can be
set up to drain to the bilge
6

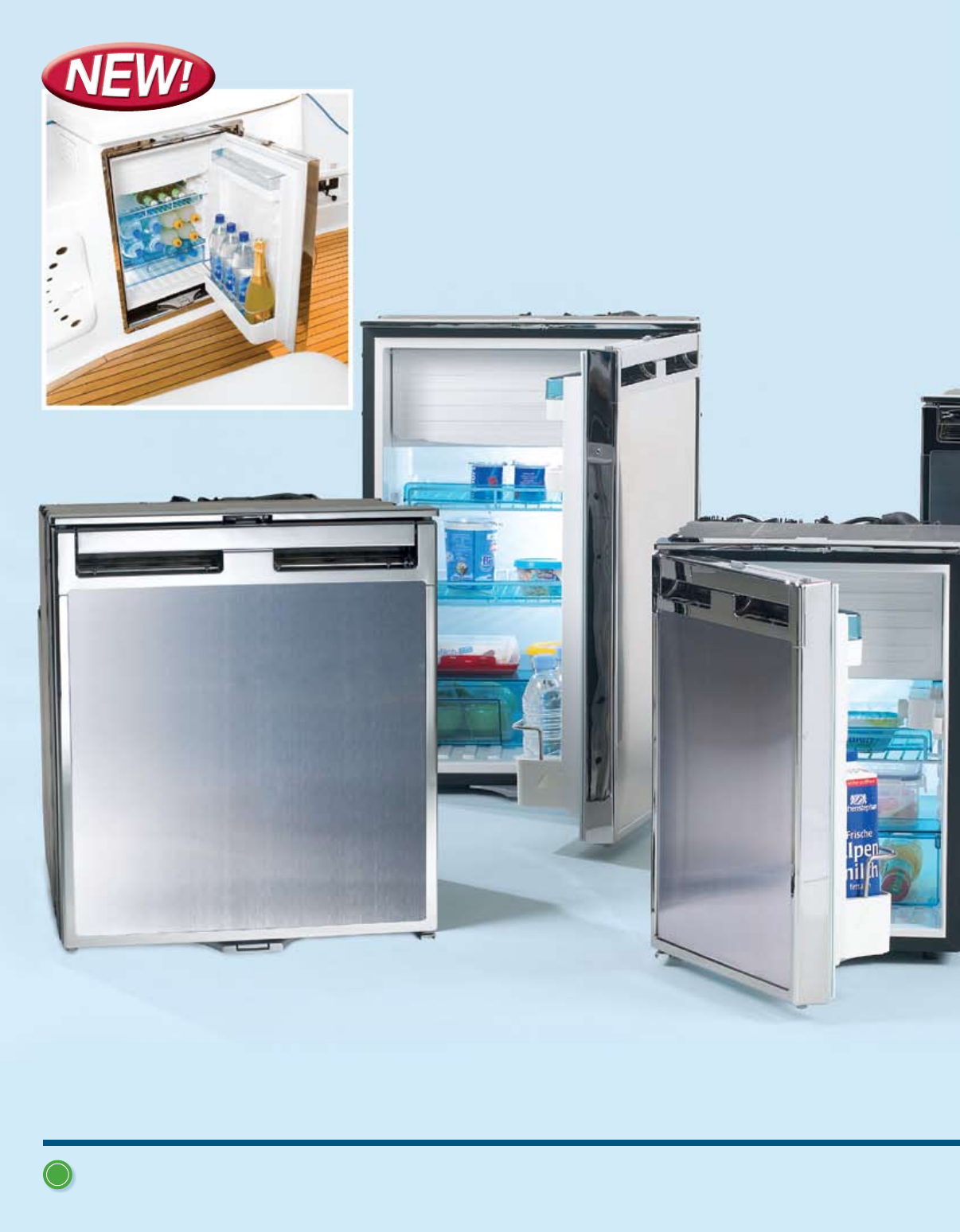

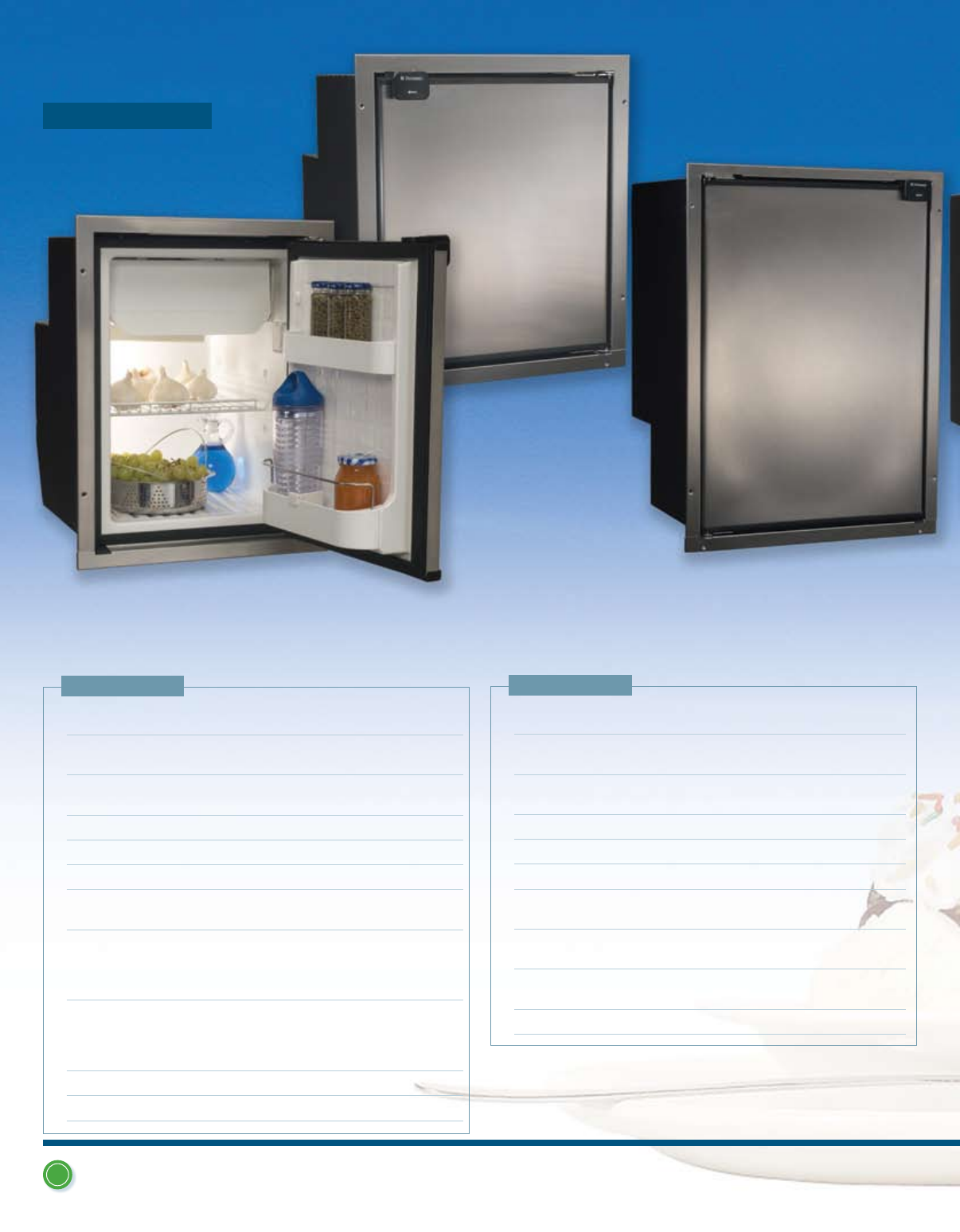

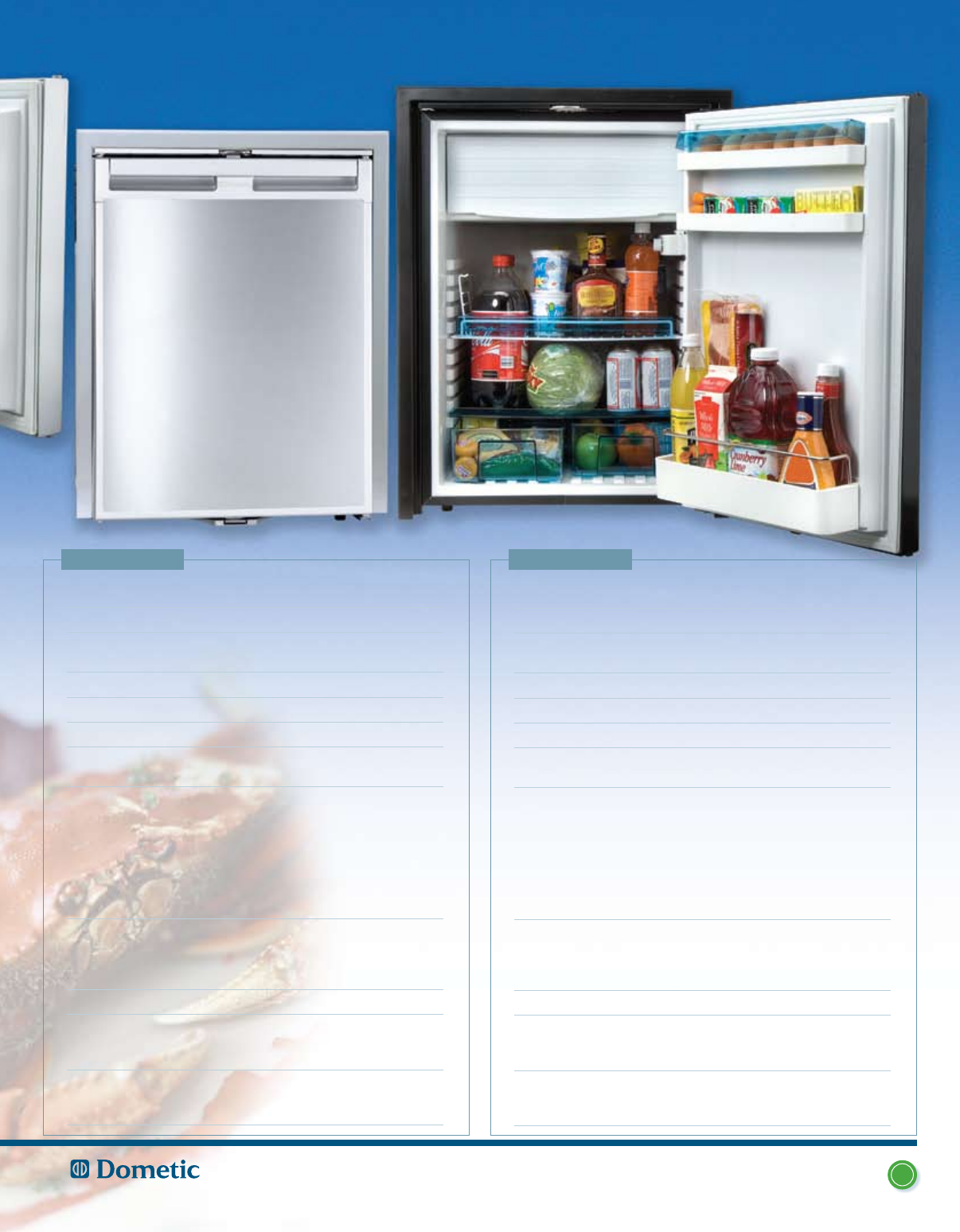

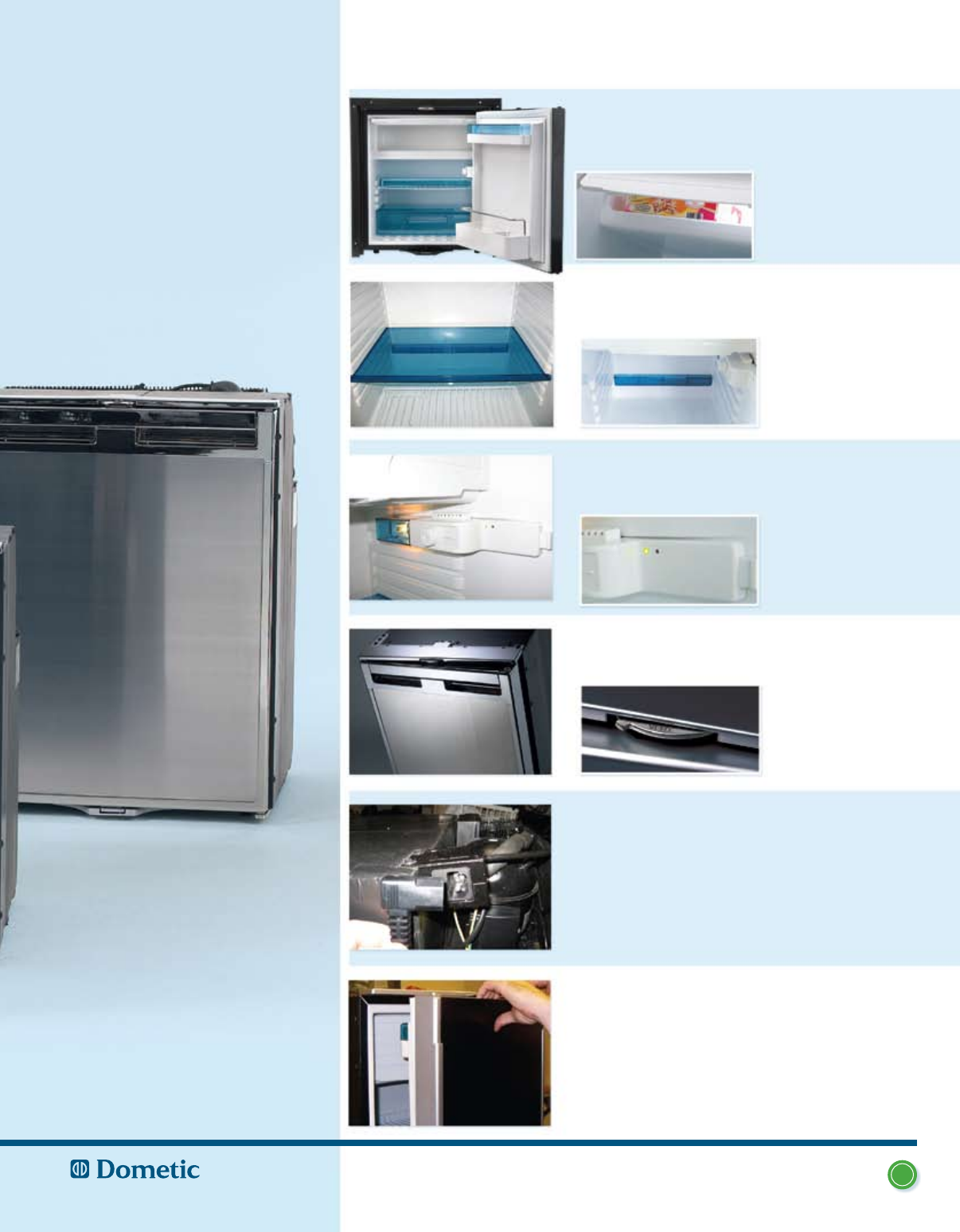

CR Series
Bright Stainless-Steel Finish
CR-1065ST-SS
Shown without ange.
CR-1110ST-SS
Shown without ange.
CR-1050ST-SS
Shown without ange.
www.DometicEnviro.com 7
CR Series
Bright Stainless-Steel Finish
z
Exclusive, protected evaporator eliminates
the risk of ice-pick damage.
z
Collection tray captures defrost water or
can be configured to drain to the bilge.
z
Cool-blue contemporary interior light.
Diagnostic circuitry installed with green
and red LED indicator lights.
z
Patented double-lock door mechanism
securely closes door at the top and bottom.
z
"Computer style" AC socket enables
easy-to-change-to-overseas cord and plugs.
z
Face panel is interchangeable—even while
installed in the boat.
Quality Features
CR-1080ST-SS
Shown without ange.
CR SERIES

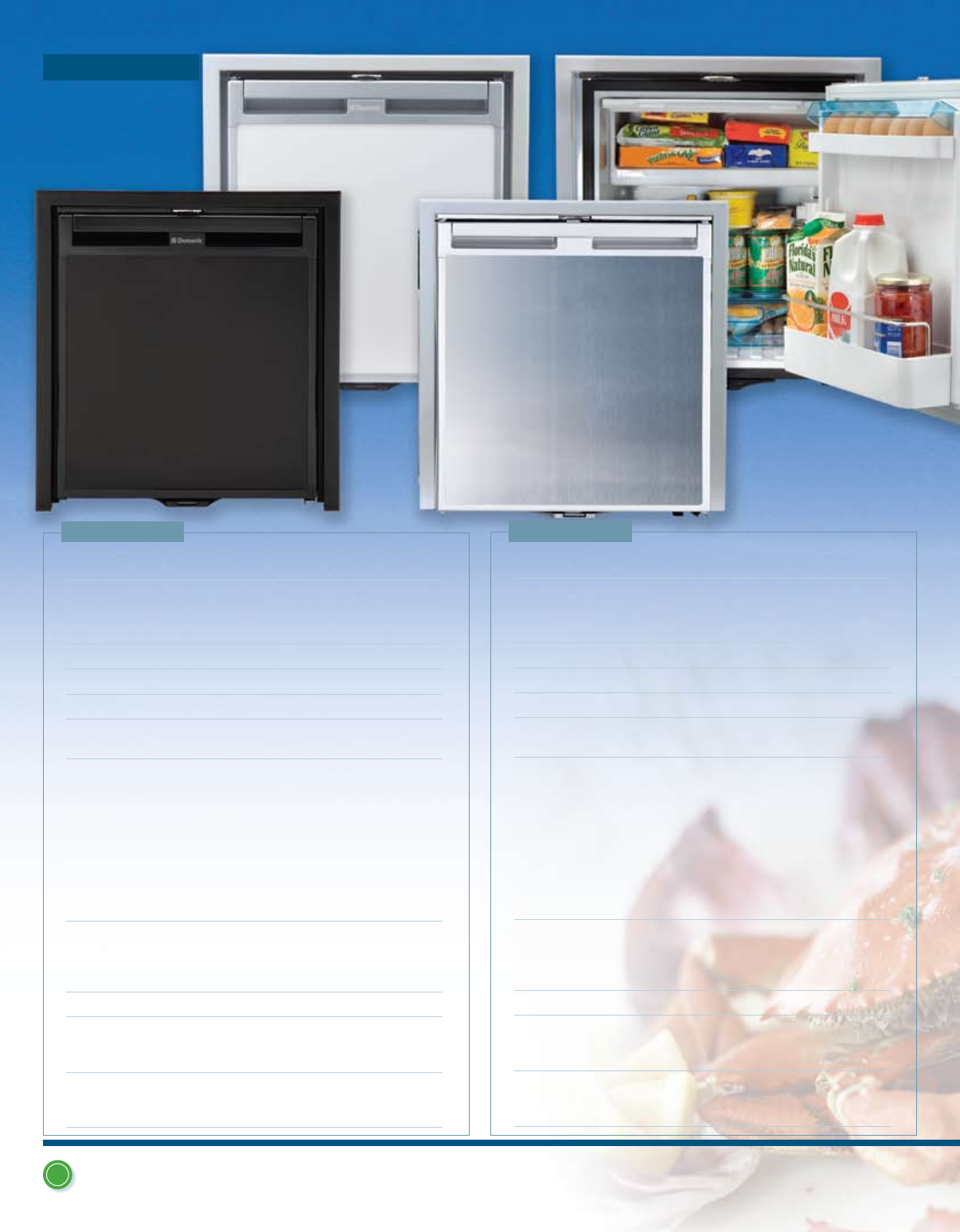

CR-1050 CR-1065
8
CR-1065E/F-W
Gross Capacity: 1.7 cubic feet (48.1 liters), 4.8 quarts
(4.5 liters) in the freezer compartment
Voltage: 12/24 volts DC, 110/220 volts AC
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: CR-1050U/F: black face panel, black door
surround, black ush mount ange;
CR-1050E/F-W: white face panel, silver
door surround, silver ush mount ange;
CR-1050E/F-SS: stainless-steel face
panel, silver door surround, silver ush
mount ange
CR-1050ST/F-SS: brushed stainless-
steel face panel, bright silver door surround,
bright stainless-steel ush mount ange
Cut-Out 16"W x 21"H x 19.4"D (ush mount ange)
Dimensions: 406mm x 533mm x 492mm
15"W x 21"H x 17.6"D (space-saver ange)
381mm x 533mm x 447mm
Net Weight: 42 lbs. / 19 kg.
Flange Options: EST-0050U: black space-saver
EST-0050E: silver space-saver
EST-0050ST: stainless-steel space-saver
Replacement EFM-0050U: black ush mount
Flange: EFM-0050E: silver ush mount
EFM-0050ST: stainless-steel ush mount
Gross Capacity: 2.3 cubic feet, (65.1 liters), 4.8 quarts
(4.5 liters) in the freezer compartment
Voltage: 12/24 volts DC, 110/220 volts AC
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: CR-1065U/F: black face panel, black door
surround, black ush mount ange;
CR-1065E/F-W: white face panel, silver
door surround, silver ush mount ange;
CR-1065E/F-SS: stainless-steel face
panel, silver door surround, silver ush
mount ange
CR-1065ST/F-SS: brushed stainless-
steel face panel, bright silver door surround,
bright stainless-steel ush mount ange
Cut-Out 18.6"W x 20.7"H x 21"D (ush mount ange)
Dimensions: 472mm x 525mm x 533mm
17.8"W x 20.7"H 19.1"D (space-saver ange)
452mm x 525mm x 485mm
Net Weight: 46 lbs. / 20 kg.
Flange Options: EST-0065U: black space-saver
EST-0065E: silver space-saver
EST-0065ST: stainless-steel space-saver
Replacement EFM-0065U: black ush mount
Flange: EFM-0065E: silver ush mount
EFM-0065ST: stainless-steel ush mount
CR-1065E/F-W. Freezer door shown open.
CR-1050U/F
CR-1065ST/F-SS
CR-1080 CR-1110
9
www.DometicEnviro.com
Gross Capacity: 2.8 cubic feet, (79.1 liters), 4.8 quarts
(4.5 liters) in the freezer compartment
Voltage: 12/24 volts DC, 110/220 volts AC
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: CR-1080U/F: black face panel, black door
surround, black ush mount ange;
CR-1080E/F-SS: stainless-steel face
panel, silver door surround, silver ush
mount ange
CR-1080ST/F-SS: brushed stainless-
steel face panel, bright silver door surround,
bright stainless-steel ush mount ange
Cut-Out 19.7 W x 25"H x 20.6"D (ush mount ange)
Dimensions: 500mm x 635mm x 523mm
18.8"W x 25"H x 18.7"D (space-saver ange)
477mm x 635mm x 474mm
Net Weight: 52 lbs. / 23 kg.
Flange Options: EST-0080U: black space-saver
EST-0080E: silver space-saver
EST-0080ST: stainless-steel space-saver
Replacement EFM-0080U: black ush mount
Flange: EFM-0080E: silver ush mount
EFM-0080ST: stainless-steel ush mount
Gross Capacity: 3.8 cubic feet, (79.1 liters), 8.9 quarts
(8.4 liters) in the freezer compartment
Voltage: 12/24 volts DC, 110/220 volts AC
Average Power
Consumption: 45 watts / 3.75 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: CR-1110U/F: black face panel, black door
surround, black ush mount ange;
CR-1110E/F-SS: stainless-steel face
panel, silver door surround, silver ush
mount ange
CR-1110ST/F-SS: brushed stainless-
steel face panel, bright silver door surround,
bright stainless-steel ush mount ange
Cut-Out 21.5"W x 29"H x 21.7"D (ush mount ange)
Dimensions: 546mm x 736mm x 551mm
20.6"W x 29"H x 19.9"D (space-saver ange)
523mm x 739mm x 505mm
Net Weight: 62 lbs. / 28 kg.
Flange Options: EST-0110U: black space-saver
EST-0110E: silver space-saver
EST-0110ST: stainless-steel space-saver
Replacement EFM-0110U: black ush mount
Flange: EFM-0110E: silver ush mount
EFM-0110ST: stainless-steel ush mount
CR-1080E/F-SS
CR-1110U/F
D
Front Loading Refrigerators
QUALITY FEATURES
10
Light
Handle
APPROVED
All models are UL, CSA,
and CE Approved.
TJ42RE-SS Refrigerator
TJF42-SS Full Size Freezer
Wrapped
door
TJ SERIES
ometic’s TJ Series of refrigerators and
freezers are now available with a stain-
less-steel finish. These state-of-the-art
units are designed to replace existing
refrigerators and give your galley a more
modern look.
Rugged Door Latch and
Shelving Systems:
All models offer a number of refinements
and improvements in the door and
latch assembly. The doors and shelving
systems are exceptionally strong. The latch
system has been designed to withstand
extraordinary rough treatment and to resist
accidental opening. When heavily-weighted
with beverages, the latch keeps the door
securely closed, even in severe conditions.
The moveable shelves are locked in place
and will not budge under rough seaways.
Unparalleled Reputation for
Long-Lasting Performance
Premium front loading refrigerators with
freezer compartments
z
Freezer compartment with door.
z
Adjustable locking shelves for efficient use of
interior space and safety underway.
z
New, stronger refrigerator latch system.
z
Door with magnetic sealing gasket.
z
Bright interior light.
z
Stainless-steel available on all models.
z
Flush mount flange provides a pleasing cosmetic
appearance and eliminates protruding handle or
locks. TJ18S has a non-flush flange.
z
All models are UL / CSA / and CE approved.
www.DometicEnviro.com 11
PREMIUM FREEZING
> Separate freezer compartment with insulated door
HIGH-GRADE WORKMANSHIP
> Rigid external metal chassis
> Stainless-steel hardware
> Magnetic door seal
> New, stronger latch system
BETTER THAN HOME CONVENIENCES
> Adjustable and locking shelves for efficient
use of interior space and safety underway
APPROVED!
> Unique:
All TJ Series models are UL, CSA, and CE Approved
PREMIUM COOLING
TECHNOLOGY
> Danfoss BDF compressor
from the market leader
EXCEPTIONAL QUALITY
AND STYLE
> All stainless-steel models
feature a “wrapped door"
ELEGANT DESIGN
> Inside: Refreshing white interior with light
> Outside: black or stainless-steel
> Secure self-locking door
PREMIUM FREEZING
> Separate freezer compartment with insulated door
HIGH-GRADE WORKMANSHIP
> Rigid external metal chassis
> Stainless-steel hardware
> Magnetic door seal
> New, stronger latch system
BETTER THAN HOME CONVENIENCES
> Adjustable and locking shelves for efficient
use of interior space and safety underway
APPROVED!
> Unique:
All TJ Series models are UL, CSA, and CE Approved
12

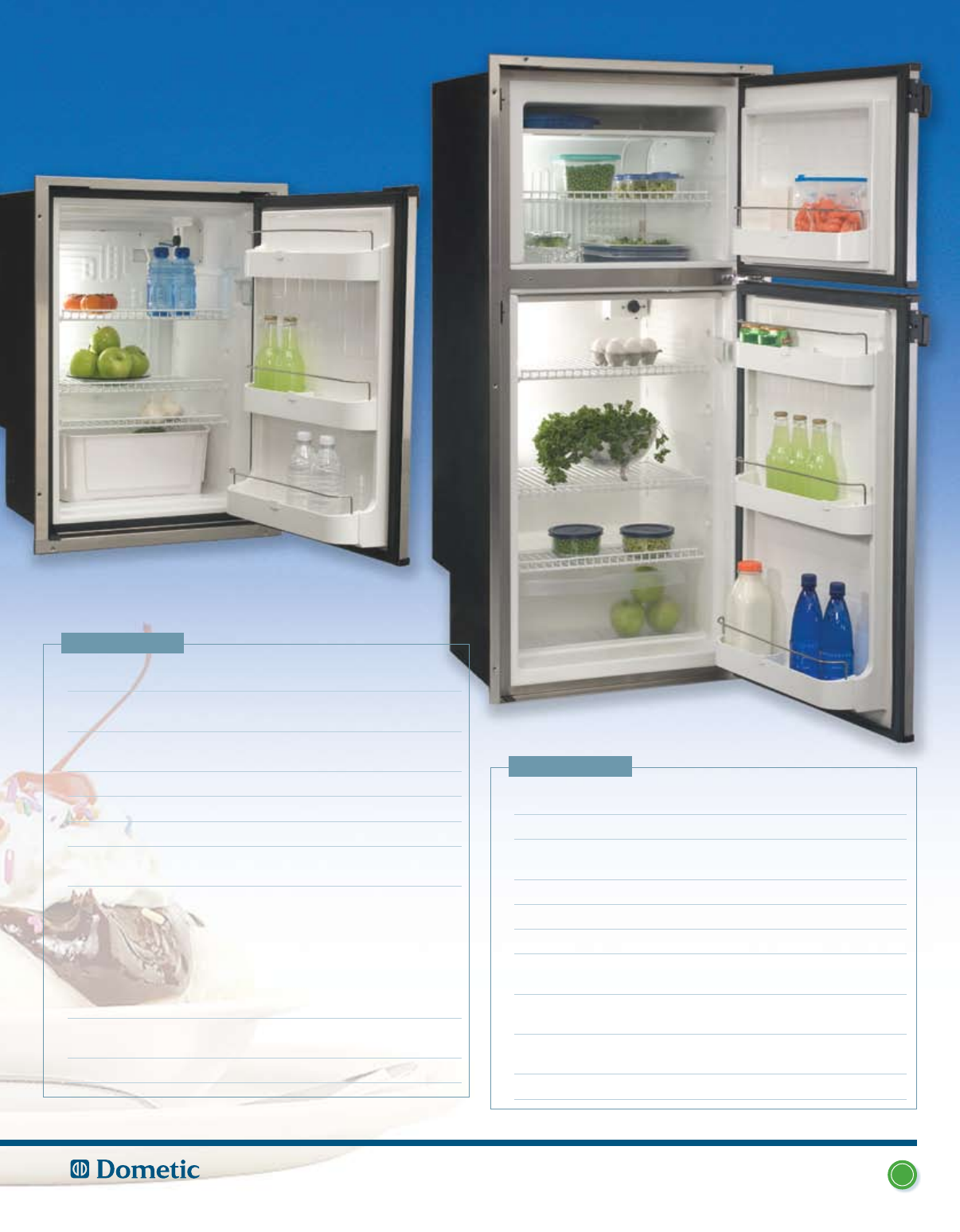

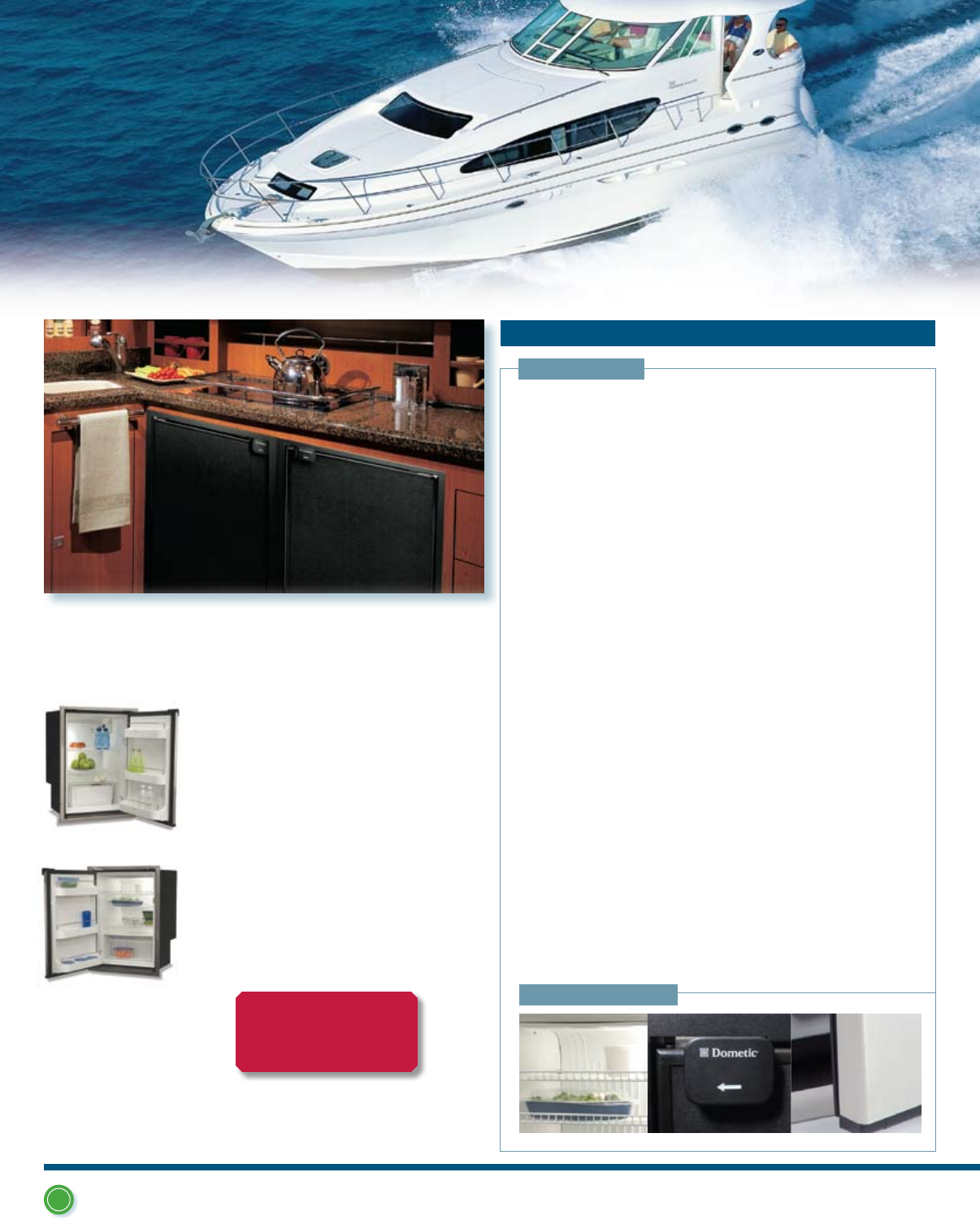

TJ18, TJ18S TJ22
TJ SERIES
Gross Capacity: 1.8 cubic feet (51 liters), 4.8 quarts
(4.5 liters) in the freezer compartment
Voltage: 12/24 volts DC
Optional 115/230 volts AC, add “AC" to part #
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: TJ18-SS: stainless-steel (ush mount ange)
TJ18S-SS: stainless-steel (non-ush ange)
TJ18: black (ush mount ange)
TJ18S: black (non-ush ange)
Cut-Out 15.75"W x 21.06"H x 19.75"D (ush mount ange)
400mm x 535mm x 502mm
Dimensions: 15.625”W x 20.563”H x 18.25”D (non-ush)
397mm x 523mm x 464mm
Net Weight: 40 lbs. / 18.14 kg.
Option: Space-saving ange: #TJ18S-SS
Gross Capacity: 2.2 cubic feet (63 liters), 4.8 quarts
(4.5 liters) in the freezer compartment
Voltage: 12/24 volts DC
Optional 115/230 volts, add “AC" to part #
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: TJ22-SS: stainless-steel
TJ22: black
Cut-Out 18.31"W x 21.06"H x 21"D (ush mount ange)
Dimensions: 466mm x 535mm x 534mm
Net Weight: 46 lbs. / 20.87 kg.
TJ18-SS
TJ22-SS
TJF42-SS. Full size freezer.
TJ42
TJ85AC
13
www.DometicEnviro.com
Gross Capacity: 4.2 cubic feet (119 liters), 8.9 quarts
(8.4 liters) in the freezer compartment
Voltage: 12/24 volts DC
Optional 115/230 volts, add “AC" to part #
Average Power
Consumption: 45 watts / 3.75 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: TJ42-SS: stainless-steel refrigerator with
freezer
TJ42: black refrigerator with freezer
TJ42RE-SS: stainless-steel refrigerator
only
TJ42RE: black refrigerator only
TJF42-SS: stainless-steel freezer only
TJF42: black freezer only
Cut-Out 21.37"W x 30.625"H x 21.5"D (ush mount ange)
Dimensions: 543mm x 778mm x 548mm
Net Weight: 69 lbs. / 31.30 kg.
Gross Capacity: 8.5 cubic feet (241 liters), 1.6 cubic feet
(45 liters) in the freezer compartment
Voltage: 12/24 volts DC, 115/230 volts
Average Power
Consumption: 65 watts / 5.4 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel ttings, plastic interior, door
frame in plastic body with coated metal frame
Color Options: TJ85AC: black
TJ85AC-SS: stainless-steel
Cut-Out 23.5"W x 53"H x 23.81"D (ush mount ange)
Dimensions: 599mm x 1347mm x 605mm
Net Weight: 112 lbs. / 50.80 kg
TJ42RE-SS. Full size refrigerator.
TJ85AC-SS
Available as a right hand opening door as an AC/DC model. Specify "RT".
Example: TJ42AC-RT. "RE" is refrigerator only. Use TJ42RE side-by-side with TJF42. Available as a right hand opening door. Specify "RT". Example: TJ85AC-RT.
Light in freezer is photographer's effect only. Equipped with light in refrigerator.
14
Marine Refrigerators
Retrofit Applications
Front Loading
CURRENT CURRENT DOMETIC
BRAND MODEL REPLACEMENT MODELS)
Indel CR 42 CR-1050 or TJ18-SS
Indel CR 49 CR-1050 or TJ18-SS
Indel CR 65 CR-1065 or TJ22-SS
Indel CR 85 CR-1080 or TJ22-SS
Indel CR 90 TJF42RE-SS
Indel CR 130D TJ42RE-SS
Indel CR 130 CR-1110 or TJ42-SS
Indel CR 195 TJ85AC, TJ85AC-SS
NovaKool R1600 CR-1050 or TJ18-SS
NovaKool R2600 CR-1065, CR-1080 or TJ22-SS
NovaKool R3800 CR-1110 or TJ42-SS
Norcold DE-0040 CR-1050 or TJ18-SS
Norcold DE-0051 CR-1065 or TJ22-SS
Norcold DE-490 CR-1080
Norcold DE-0041 CR-1110 or TJ42-SS
Norcold DE-461 TJ85AC, TJ85AC-SS
Dometic TJ18 CR-1050
Dometic TJ22 CR-1065
Dometic TJ42 CR-1110
WAECO RPD-50 CR-1050 or TJ18-SS
WAECO RPD-65 CR-1065 or TJ22-SS
WAECO RPD-80 CR-1080
WAECO RPD-110 CR-1110 or TJ42-SS
WAECO RPD-1190 TJ85AC, TJ85AC-SS
15
www.DometicEnviro.com
Marine Refrigerators
At-A-Glance
Specialty Appliances
Choice of: Choice of:
Front Loading
PART # DESCRIPTION CAPACITY COMPRESSOR VOLTAGE CUT-OUT MATERIAL
CUBIC FEET DIMENSIONS
CD-030 Drawer 31 quarts Danfoss 12/24V DC 17"W x 9.8"H x 28.7"D Metal Housing,
Refrigerator Plastic Interior
CB-036 Refrigerator or 1.3 Danfoss 12/24V DC 23"D x 16"H x 16"W Stainless-Steel
Freezer Interior
CB-040 Refrigerator or 1.4 Danfoss 12/24V DC 19.7"D x 26"H x 13.3"W Stainless-Steel
Freezer Interior
CF-035 Portable Danfoss 12/24V DC 22.8"L x 15.1"H x 14"W High Impact
Refrigerator or Freezer 1.1 110/220V AC Polypropylene
CF-040 Portable Danfoss 12/24V DC 22.8"L x 17.5"H x 14"W High Impact
Refrigerator or Freezer 1.3 110/220V AC Polypropylene
CF-050 Portable Danfoss 12/24V DC 24.8"L x 19.4"H x 14"W High Impact
Refrigerator or Freezer 1.7 110/220V AC Polypropylene
CF-080 Portable Danfoss 12/24V DC 31"L x 18"H x 19.6"W Coated
Refrigerator or Freezer 2.8 110/220V AC Sheet Steel
CF-110 Portable Danfoss 12/24V DC 31"L x 22"H x 19.6"W Coated
Refrigerator or Freezer 3.7 110/220V AC Sheet Steel
PART # DESCRIPTION CAPACITY COMPRESSOR VOLTAGE CUT-OUT FACE PANEL FLANGE
CUBIC FEET DIMENSIONS COLOR COLOR
CR-1050 Refrigerator with 1.7 Danfoss 12/24V DC, 16"W x 21"H x 19.4"D Black, Black,
Freezer Compartment 110/220V AC White, Stainless, Silver,
Br. Stainless Br. Stainless
CR-1065 Refrigerator with 2.3 Danfoss 12/24V DC, 18.6"W x 20.7"H x 21"D Black, Black,
Freezer Compartment 110/220V AC White, Stainless, Silver,
Br. Stainless Br. Stainless
CR-1080 Refrigerator with 2.8 Danfoss 12/24V DC, 19.7"W x 25"H x 20.6"D Black, Black,
Freezer Compartment 110/220V AC Stainless, Silver,
Br. Stainless Br. Stainless
CR-1110 Refrigerator with 3.8 Danfoss 12/24V DC, 21.5"W x 29.1"H x 21.7"D Black, Black,
Freezer Compartment 110/220V AC Stainless, Silver,
Br. Stainless Br. Stainless
TJ18-SS Refrigerator with 1.8 Danfoss 12/24V DC 15.75"W x 21."H x 19.75"D Black, Black,
Freezer Compartment (option: 110/220V AC) Stainless Stainless
TJ22-SS Refrigerator with 2.2 Danfoss 12/24V DC 18.3"W x 21."H x 21"D Stainless Stainless
Freezer Compartment (option: 110/220V AC)
TJ42-SS Refrigerator with 4.2 Danfoss 12/24V DC 21.3"W x 30.6"H x 21.5"D Stainless Stainless
Freezer Compartment (option: 110/220V AC)
TJ42RE-SS All Refrigerator 4.2 Danfoss 12/24V DC 21.3"W x 30.6"H x 21.5"D Stainless Stainless
(option: 110/220V AC)
TJF42-SS All Freezer 4.2 Danfoss 12/24V DC 21.3"W x 30.6"H x 21.5"D Stainless Stainless
(option: 110/220V AC)
TJ85AC Refrigerator with 8.5 Danfoss 12/24V DC, 23.5"W x 53"H x 23.8"D Black, Black,
Freezer Compartment 110/220V AC Stainless Stainless
Flush Mount Flange:
Top Loading Refrigerators / Freezers

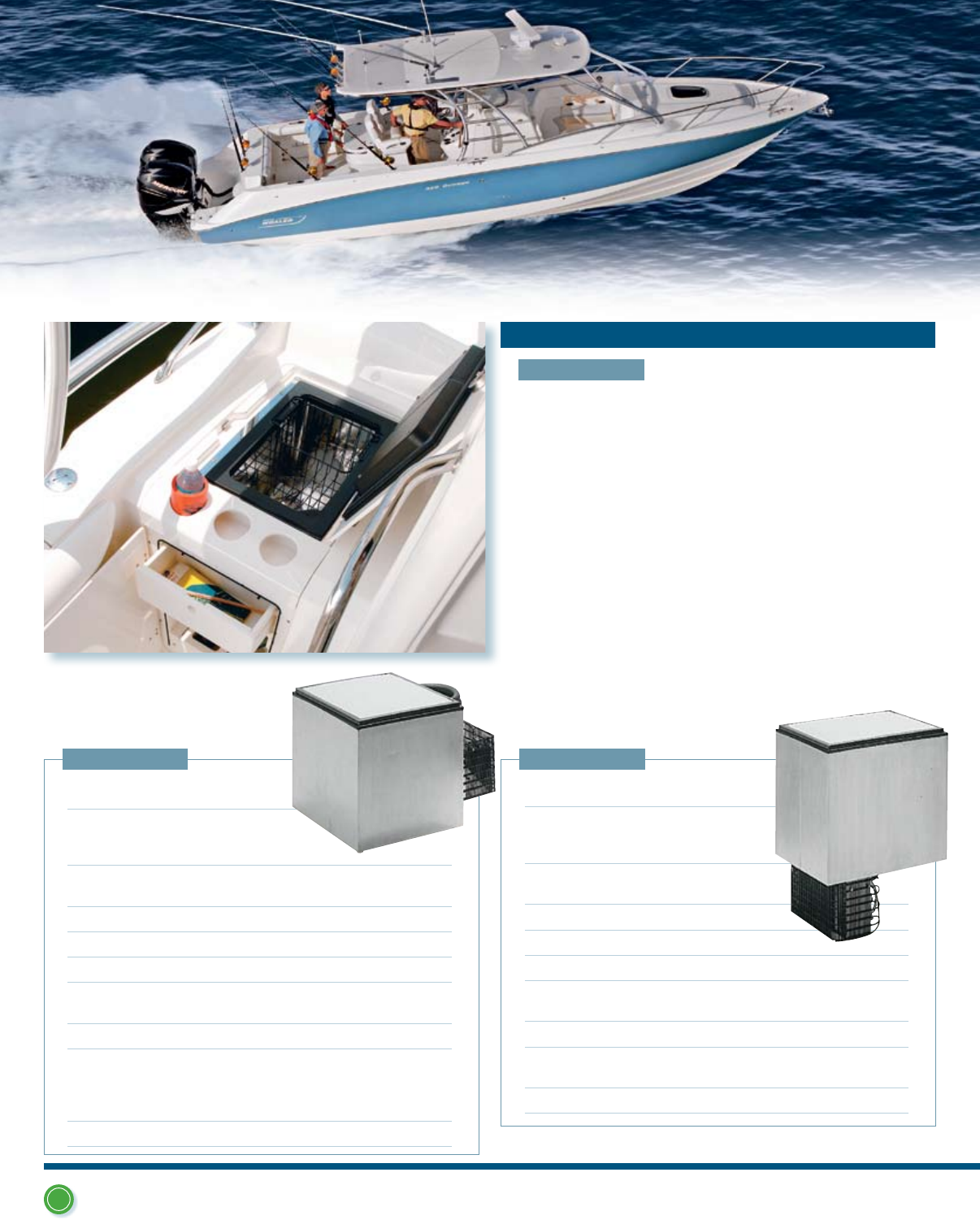

CB SERIES
CB-036 CB-040
16
Space Saving Built-Ins
Can be set to operate as either a refrigerator or freezer
z
Permanent installation in cupboard space.
z
Lid can accommodate laminate to match
countertops.
z
Ideal for use as a bait freezer or refrigerator.
z
Stainless-steel interior housing.
z
Impeccable operation in inclined positions.
z
Lift-off lid with superior seal and insulation.
z
Top loading for improved
efficiency and better performance.
Gross Capacity: 1.3 cubic feet
(36 liters)
Voltage: 12/24 volts DC
Optional accessory
for 110/220 volts AC
Average Power
Consumption: 45 watts / 3.75 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Zinc coated sheet steel with stainless-steel
interior; shock resistant plastic base
Color: CB-036: gray body with dark gray lid
Cut-Out 23"D* x 16"H x 16"W
Dimensions: (584mm x 406mm x 406mm)
*of which, 7"D (177mm) compressor
can be remote mounted up to 5’ away
Net Weight: 41 lbs. / 18.59 kg.
Gross Capacity: 1.4 cubic feet
(39 liters)
Voltage: 12/24 volts DC
Optional accessory
for 110/220 volts AC
Average Power
Consumption: 45 watts / 3.75 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Zinc coated sheet steel with stainless-steel
interior; shock resistant plastic base
Color: CB-040: gray body with dark gray lid
Cut-Out 19.7"D x 26"H x 13.3"W
Dimensions: (500mm x 660mm x 337mm)
Net Weight: 44 lbs. / 19.95 kg.
17
www.DometicEnviro.com
Drawer Refrigerators
CD SERIES
CD-030DC
Cooling Comfort for
Confined Spaces
Smart compressor appliance turns any unused nook
into a practical 31 quart cooler
z
Permanent installation in cupboard space.
z
Continually variable thermostat will not accidentally
freeze items.
z
Cooling unit can be mounted on the rear,
left or right side, or up to 5’ away.
z
Very energy efficient.
Gross Capacity: 31 quarts (29 liters)
Voltage: 12/24 volts DC
Optional accessory for 110/220 volts AC
Average Power
Consumption: 40 watts / 3.3 amps
Insulation: CFC-free polyurethane
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: Sturdy metal housing with
injection molded parts
Color Options: CD-030DC: black drawer
CD-030DCW: white drawer
Cut-Out 17"W x 9.8"H x 28.7"D**
(431mm x 248mm x 728mm)
Dimensions: **of which, 8.7"D (220mm) compressor
can be remote mounted up to 5’ away
Net Weight: 44 lbs. / 19.95 kg.
Portable Refrigerators / Freezers
CF SERIES
CF SERIES
18
Refrigerate or Freeze — to 0°F (-17°C)
Can be set to operate as a refrigerator or freezer
z
High impact polypropylene (CF-35, 40, 50) cabinet,
or polymer coated metal (CF-80, 110) cabinet,
with weather-resistant polyethylene lid.
z
Quick chill / turbo function runs the compressor
at maximum performance until the desired
temperature has been reached.
z
Memory feature will maintain preset settings
if the system if turned off.
z
Perfect operation in inclined positions.
z
Three stage battery monitor with low voltage
shut-off to protect against a dead battery.
z
Removable coated wire basket or grid divider
eases loading of contents and keeps foods
from adhering to interior walls.
z
Quickly find contents in the dark with interior light.
z
Convenient carrying handles aid in transport
and can be easily removed.
Gross Capacity: CF-035AC110: 33 qts, 1.1 cubic feet (31 liters) Holds 41 cans
IC-CF-35: Insulated cover for the CF-35
CF-040AC110: 39 qts, 1.3 cubic feet (36 liters) Holds 48 cans
IC-CF-40: Insulated cover for the CF-40
CF-050AC110: 52 qts, 1.7 cubic feet (48 liters) Holds 68 cans
IC-CF-50: Insulated cover for the CF-50
Voltage: 12/24 volts DC, 110 volts AC
Average Power
Consumption: 45 watts / 3.75 amps
Insulation: CFC-free polyurethane foam
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: high impact polypropylene cabinet
weather resistant polyethylene lid
Color: dark gray / pale gray
Dimensions: CF-035AC110: 22.8"L x 15.1"H x 14"W (579mm x 383mm x 355mm)
CF-040AC110: 22.8"L x 17.5"H x 14"W (579mm x 444mm x 355mm)
CF-050AC110: 24.8"L x 19.4"H x 14"W (629mm x 492mm x 355mm)
Lid: Removable
Net Weight: CF-035AC110: 33 lbs. / 14.96 kg.
CF-040AC110: 37 lbs. / 16.78 kg.
CF-050AC110: 44 lbs. / 19.95 kg.
Features: CF-035AC110: Removable coated wire grid divider
CF-040AC110 & CF-050AC110: Removable coated wire basket
Easily transport foods from
grocery store to galley.
CF-40
CF-80
CF-35
CF-50
CF-110
19
www.DometicEnviro.com
CF SERIES
Gross Capacity: CF-080AC110: 85 qts, 2.8 cubic feet (79 liters) Holds 103 cans
IC-CF-80: Insulated cover for the CF-80
CF-110AC110: 113 qts, 3.77 cubic feet (106 liters) Holds 144 cans
IC-CF-110: Insulated cover for the CF-110
Voltage: 12/24 volts DC, 110 volts AC
Average Power
Consumption: 55 watts / 4.5 amps
Insulation: CFC-free polyurethane foam
Compressor: Danfoss BD35F
Refrigerant: Environmentally-safe R134a
Material: coated sheet steel cabinet
weather resistant polyethylene lid
Color: dark gray / pale gray
Dimensions: CF-080AC110: 31"L x 18.1"H x 19.6"W (787mm x 459mm x 497mm)
CF-110AC110: 31"L x 22"H x 19.6"W (787mm x 558mm x 497mm)
Net Weight: CF-080AC110: 62 lbs. / 28.12 kg.
CF-110AC110: 73 lbs. / 33.11 kg
Features: Removable coated wire basket and coated wire grid
CF-50 fits in most
marine slide drawers.
Insulating and Protective Covers
Available For All CF Series Models.
Do-It-Yourself Cooling Kits
ADLER / BARBOUR SERIES
20
Performance, Efficiency
and Quality ...
... all hallmarks of dependable marine refrigeration by the
Adler / Barbour Series. The versatility provides for all-
freezer or combination refrigerator/ freezer systems.
Your appreciation of 12/24 volt DC refrigeration on-board
will be determined by its ability to develop and maintain
freezing temperatures quickly without running your
batteries down.
Adler / Barbour’s popularity today has grown from its
proven and extraordinary ability to perform efficiently in
a wide variety of installations. Its uncompromised quality
has become the standard by which other systems are
measured.
Specifically designed to survive the rigors of
harsh marine environment: heat and humidity,
erratic or low voltage, continuous use. Unmatched
in performance and efficiency. Designed and
manufactured in the USA. Join the 50,000 owners
who won’t settle for less.
z
Oversized air condensers.
z
Accommodates large refrigerators — up to
15 cubic feet (424 liters) with 3" (76mm) of
polyurethethane.
z
Danfoss BD50F compressor — resulting in 25%
more cooling performance (as compared to the BD35F).
z
Stainless-steel construction.
z
Shrouded forced air condensers.
z
Modular phone-jack connection for thermostat.
z
Quick connect couplings.
z
High CFM fan.
z
Built-in trouble-shooting diagnostics.
z
Can be installed up to
15’ (457cm) from evaporator.
z
Precharged and ready to install!
ADLER / BARBOUR COOLING UNITS
21
CU-100
CU-200
Simple Installation
ADLER / BARBOUR EVAPORATORS
Application: General Boating: CU-100, CU-103
Tropical Water Boating: CU-200
Voltage: CU-100, CU-200 12 volts DC
CU-103, 12/24 volts DC
BTU Rating: 650 / hr. maximum @ +25F evaporator
Compressor: Danfoss BD50F
Refrigerant: Environmentally-safe R134a
Material: Stainless-steel
Dimensions: 11.1"D x 10"W x 7.5"H
(281mm x 254mm x 190mm)
Net Weight: 18 lbs. / 8.64 kg.
1. Choose a cooling unit.
The CU-100 for general boating
The CU-200 for tropical water boating
2. Select an evaporator.
Consider the size and orientation.
Any Adler / Barbour evaporator can
be installed up to 15’ (457cm) from
the cooling unit.
3. Easy installation.
Needed tools: Electric drill with assorted
small bits, stubby Phillips screwdriver,
hole saw 1.5" in diameter, open end 5/8"
wrench, open end 13/16" wrench,
and electrical wire.
Application: Medium sized refrigerator to small freezer,
closed evaporator: VD-150
Orientation: Top loading
Cooling Capacity: 9 cubic foot (254 liters)
refrigerator
Dimensions: 10.5"L x 11"H x 6"D
266mm x 279mm x 152mm)
Net Weight: 12 lbs. / 5.44 kg.
Application: Medium sized refrigerator to small freezer,
closed evaporator with door: VD-151
Orientation: Front loading
Cooling Capacity: 9 cubic foot (254 liters)
refrigerator
Dimensions: 10.75"L x 7"H x 11.25"D
273mm x 177mm x 285mm)
Net Weight: 10 lbs. / 4.53 kg.
Application: Large sized refrigerator to medium freezer,
closed evaporator: VD-152
Orientation: Top loading
Cooling Capacity: 15 cubic foot (424 liters)
refrigerator
Dimensions: 15"L x 12"H x 6"D
381mm x 304mm x 152mm)
Net Weight: 13 lbs. / 5.89 kg.
Application: Large sized refrigerator to medium freezer,
closed evaporator with door: VD-153
Orientation: Front loading
Cooling Capacity: 15 cubic foot (424 liters)
refrigerator
Dimensions: 15.5"L x 7.5"H x 12"D
393mm x 190mm x 304mm)
Weight: 14 lbs. / 6.35 kg.
Application: Medium to small sized freezer, power plate
evaporator with holdover capabilities: VD-160
Cooling Capacity: 4 cubic foot (113 liters)
freezer
Dimensions: 19"L x 11.25"H x 1.25"D
482mm x 285mm x 31mm)
Weight: 4 lbs. / 1.8 kg.
Do-It-Yourself Cooling Kits
COOLMATIC SERIES
22
CU-84
CU-86
Custom-Made Cooling Solutions
For All Applications
80 SERIES
Professional Cooling Units
z
Designed for small and medium refrigerator
capacities and for use in warmer water.
z
Applications up to 8.8 cubic feet maximum
for normal refrigeration or 2.5 cubic feet
for deep-freezing.
z
Equipped with a power-regulated
Danfoss BD35F compressor.
z
3 air-cooled units of different body shapes.
z
6 evaporator types designed to exactly
match the performance of the compressor.
CU-85
80 SERIES COOLING UNITS
23

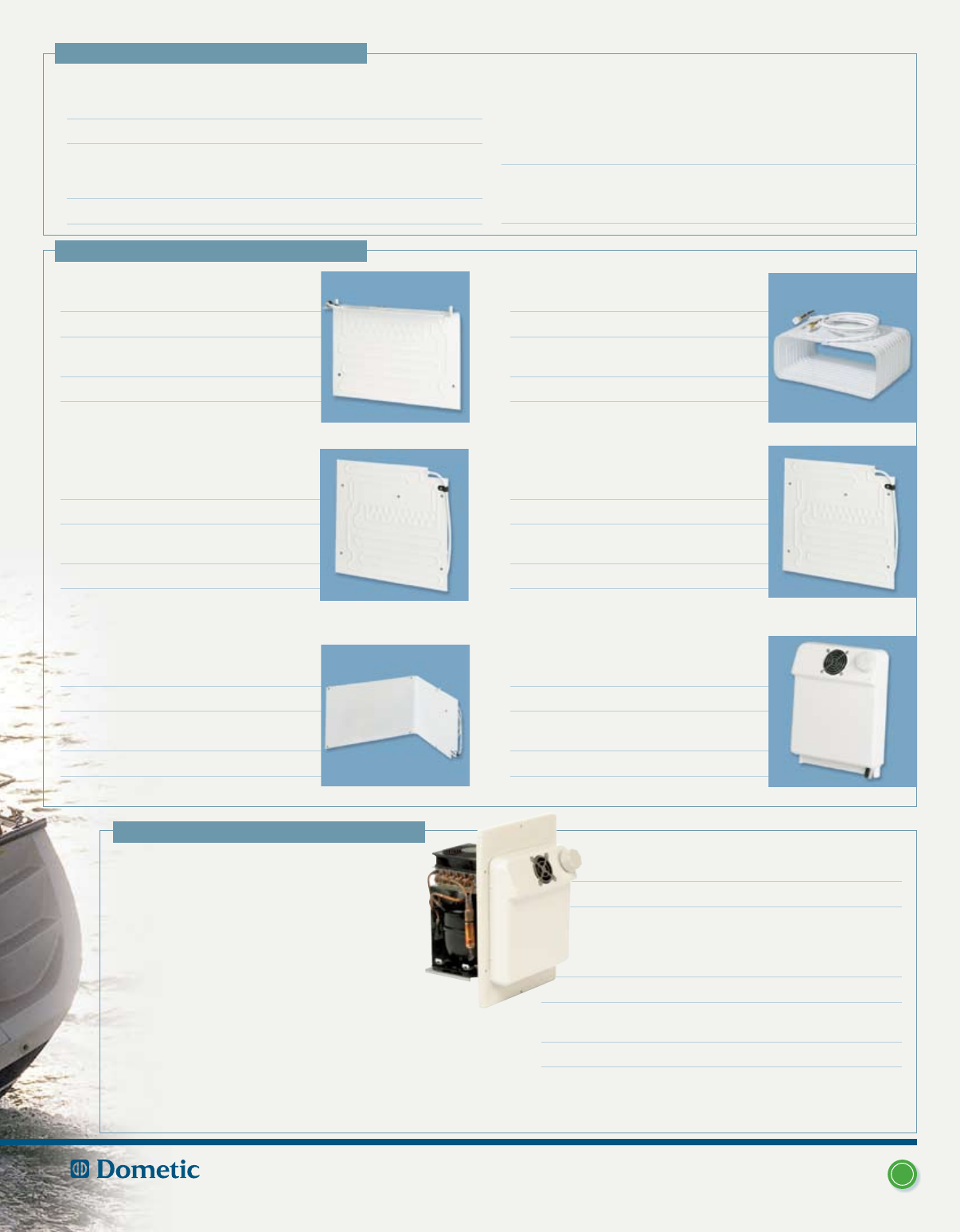

80 SERIES EVAPORATORS
Application: Horizontal, Layout: CU-84
Square Layout: CU-85
Vertical Layout or Wall Mount: CU-86
Voltage: 12/24 volts DC
Cooling Volumes: Up to 8.8 cubic feet max. for normal
refrigeration or 2.5 cubic feet for
deep-freezing applications
Refrigerant: Environmentally-safe R134a
Dimensions: CU-84: 5.1"D x 15.2"W x 6.1"H
(129mm x 386mm x 155mm)
CU-85: 8.7"D x 8.7"W x 6.1"H
(220mm x 220mm x 155mm)
CU-86: 7.6"D x 8.7"W x 9"H
(193mm x 220mm x 228mm)
Net Weight: CU-84: 13.2 lbs. / 5.98 kg.
CU-85: 13.2 lbs. / 5.98 kg.
CU-86: 14.3 lbs. / 6.4 kg.
Application: L evaporator for medium
refrigerator: VD-04
Cooling Capacity: 4.5 cubic feet (127 liters)
Dimensions: 14.8"W x 10"H x 3.9"D
(375mm x 254mm x 99mm)
Net Weight: 3.3 lbs. / 1.49 kg.
Application: Plate evaporator for
medium refrigerator: VD-05
Cooling Capacity: 4.5 cubic feet (127 liters)
Dimensions: 14.8"W x 13.7"H x 1"D
(375mm x 348mm x 25.4mm)
Net Weight: 3.3 lbs. / 1.49 kg.
Application: Angle evaporator for
medium refrigerator: VD-08
Cooling Capacity: 5.6 cubic feet (158 liters)
Dimensions: 13.4"W x 17.7"H x 10.6"D
(340mm x 449mm x 269mm)
Net Weight: 4.4 lbs. / 1.99 kg.
Application: O evaporator for medium
refrigerator: VD-09
Cooling Capacity: 5.6 cubic feet (158 liters)
Dimensions: 14.4"W x 5.5"H x 10.6"D
(365mm x 139mm x 269mm)
Net Weight: 4.4 lbs. / 1.99 kg.
Application: Plate evaporator for
medium refrigerator: VD-18
Cooling Capacity: 4.5 cubic feet (127 liters)
Dimensions: 9.8"W x 13.7"H x 1"D
(248mm x 347mm x 25.4mm)
Net Weight: 3.1 lbs. / 1.4 kg.
Application: Circulating air evaporator for
medium refrigerator: VD-15
Cooling Capacity: 7 cubic feet (198 liters)
Dimensions: 8.6"W x 10.8"H x 2.6"D
(218mm x 274mm x 66mm)
Net Weight: 4.4 lbs. / 1.99 kg.
CS-NC-15 COOLING KIT
Application: Vertical Layout or Wall Mount:
CS-NC-15
Voltage: 12/24 volts DC
Cooling Volumes: Up to 8.8 cubic feet max. for
normal refrigeration or 2.5
cubic feet for deep-freezing
applications
Refrigerant: Environmentally-safe R134a
Dimensions: 9"D x 10"W x 14"H
(228mm x 254mm x 355mm)
Net Weight: 14 lbs. / 6.35 kg.
From Passive Cooler to Active
Compressor Refrigerator
z
Ideal for converting an existing,
passive, insulated cooling area
into a full, compressor-powered refrigerator.
z
Cut an opening in the side of the coolbox and push
the unit into the adjoining section. Fasten it from the
inside to the evaporator housing using the pre-cut
assembly holes.
z
Integrated rubber seal ensures that the coolbox is
securely sealed. Coolant lines are fully assembled
and connected at the factory.
www.DometicEnviro.com
Compact Refrigeration Systems
POLARMATE SERIES
24
2 Air cooled capacities at 20°F evaporator temperature and 120°F condensing temperature. Water cooled capacities at 20°F evaporator temperature 100°F condensing temperature.
3 Air cooled capacities at 0°F evaporator temperature and 120°F condensing temperature. Water cooled capacities at 0°F evaporator temperature 100°F condensing temperature.
Ideal for Small Boxes or
Day Sailing Applications
Grunert PolarMate models are offered in air, or air/water-
cooled condensers for maximum versatility. Water-cooled
models provide increased efficiencies and superior
operation in high ambient temperatures. Two sizes of
evaporators can be configured for custom applications.
Due to its small size, PolarMate models can easily be
applied to many small applications.
The standard model features an enclosed ductable
air-cooled condenser as well as a water-cooled
condenser for maximum versatility. Warm condenser
air can be ducted away from the unit and discharged into
a more desirable area.
z
LeakView Protection: An ultraviolet dye system
which enables small leaks to be located visually
with a UV light.
z
Danfoss compressor.
z
Self-sealing quick connect fittings.
z
Can be installed up to 15’ from evaporator.
z
Precharged and ready to install!
POLARMATE MODELS
MODEL No. ARCTIC ANTARCTIC ANTARCTIC-AC EVAP I EVAP II
Air Cooled Air/Water Cooled Air/Water Cooled
PMEA08/12V DC PMEAW08/12V DC PMEAW05
Voltage: 12/24 volts DC 12/24 volts DC 115 /60/ 1 volts AC
Refrigerant Charge (oz./g): 26 / 737 50 / 1420 50 / 1420 76 / 2152 76 / 2151
Capacity2: 433 538 582
Capacity3: 246 325 336
Max. Watts2: 65.4 68.5 212.8
Max. Watts3: 47.6 55.0 196.7
Max. Amps2: 5.45 / 2.7 5.71 / 2.9 1.85
Max. Amps3: 3.97 / 2 4.58 / 2.3 1.71
COMPRESSOR
Capacity (hp): 1 / 12 1 / 12 1 / 20
Power (watts): 63 54 37.3
Dimensions (in./cm)
Length: 10.25 / 26 10.25 / 26 11 / 28 10.5 / 26.7 15.5 / 39.4
Depth: 11 / 28 11 / 28 12.5 / 31.8 6 / 15.2 6 / 15.2
Height: 6.75 / 17.1 6.7/ 17.1 7.5 / 19 11 / 27.9 11 / 27.7
Net Weight (lbs./kg): 14.8 / 6.7 15.6 / 7.4 22 / 10 6 / 2.7 7 / 3.2
Compressor Evaporating Air/Water Air Cooled
Type Pressure Cooled Only
12/24V DC 6 psi 325 246
18 psi 538 433
115V AC 6 psi 336 213
18 psi 582 460
25
www.DometicEnviro.com
DC Operation, Belt-Driven Systems
MARINER SERIES
MARINER MODELS
Grunert
Holdover Refrigeration Systems
Designed for use with 12 or 24 volt DC power supplies,
the Mariner Series has been proven to be the ideal system
for seafaring vessels with or without on-board AC power.
Its unique design allows for automatic operation by either
the alternator or energized battery charger. An electrical
interlock prevents accidental battery drain.
z
Unique compact base fits any application.
z
Standard equipped with cupronickel seawater
condenser for improved efficiency and lower
operating pressure.
z
Effectively cools one or multiple boxes of virtually
any configuration.
z
Remote electrical box is completely enclosed
to protect all components.
z
Condensing units can be installed in any
convenient location.
z
Continuous duty cycle rating,
and replaceable brushes
on all DC motors.
MODEL No. DC425BD DC450BD DC475BD DC4100BD
Refrigerant Charge: 26 oz. 26 oz. 55 oz. 55 oz.
Capacity BTU/H • 26°F1: 1800 3400 5000 6500
Capacity BTU/H • 0°F1: 1600 2800 4200 5500
Electrical
Motor Voltage (DC): 12 12 / 24 12 / 24 12 / 24
Amperage: 21 40 / 20 58 / 29 80 / 39
Max. Circ. Breaker2: 30 50 / 30 70 / 40 100 / 50
Dimensions
Depth: 18" 18" 18" 18"
Width: 14.5" 14.5" 16.5" 16.5"
Height: 11" 11" 12" 12"
Weight: 86 lbs. 90 lbs. 95 lbs. 98 lbs.
1 BTU/H ratings are the average rate of heat extraction from holdover plates and are not the capacity of the compressor or condensing unit. These gures are to be used to determine
run times to maintain box design temperatures. 2 For wire size, ampacity, etc., refer to ABYC Standards, section E-9. (DC Voltage)
26

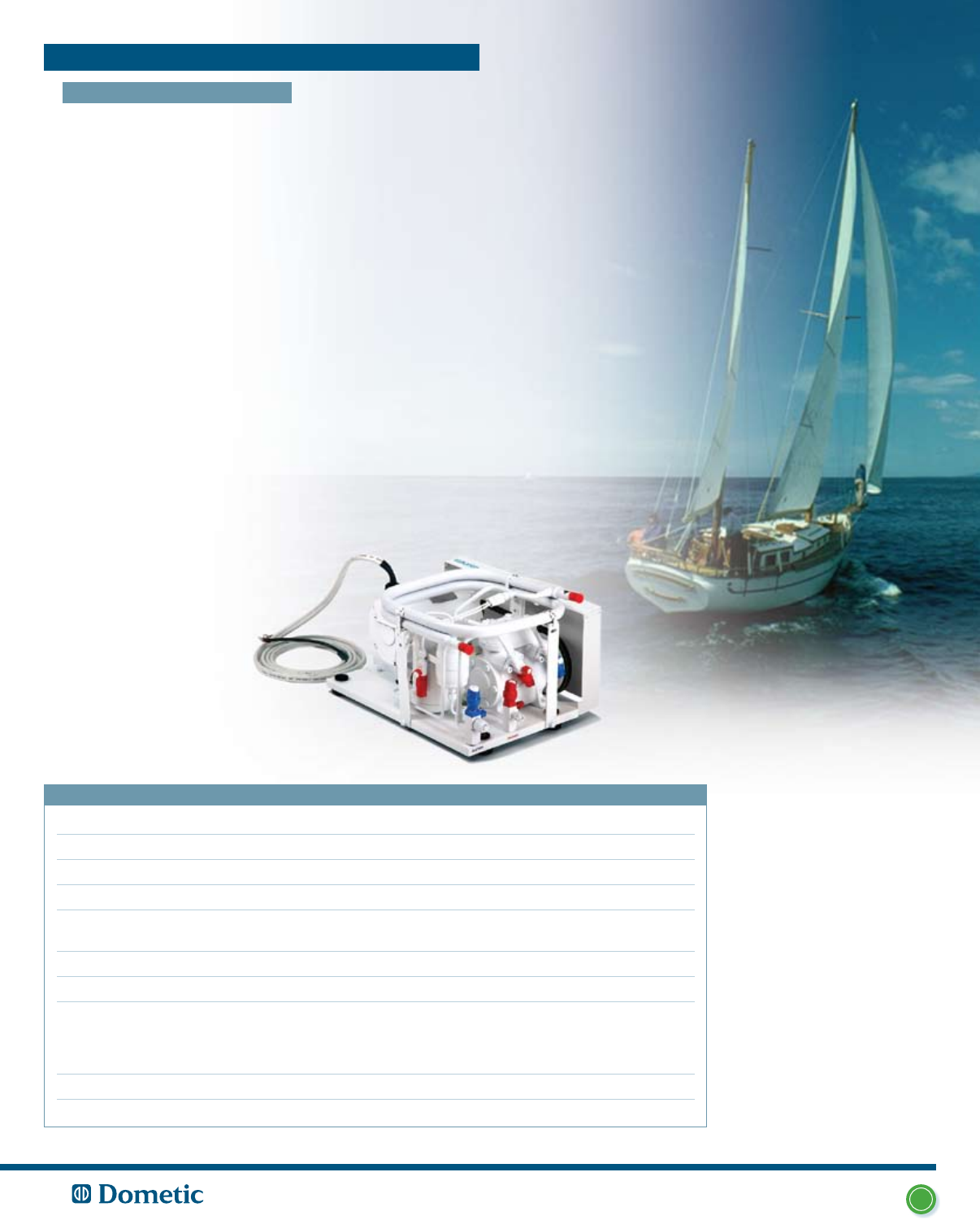

AC Operation Refrigeration Systems
PASSAGEMAKER SERIES
PASSAGEMAKER MODELS
2 BTU/H ratings are the average rate of heat extraction from holdover plates and are not the capacity of the compressor or condensing unit. These gures are to be used to determine
run times to maintain box design temperatures.
115 and 230 Volt AC Models
Grunert Passagemaker compressors are hermetically
sealed for quiet, efficient operation. Vibration isolators
are incorporated in all mounting platforms to provide
additional noise reduction.
z
Filter/drier is replaceable without
refrigerant charge loss.
z
Effectively cools one or multiple boxes of
virtually any configuration.
z
Sight glass / moisture indicator assembly
to monitor system refrigerant charge.
z
Remote electrical box is completely
enclosed to protect all components.
z
5’ harness allows for a dry,
accessible mounting location.
z
Low 12 voltage controls provide an extra
margin of safety.
Electrical Box Dimensions:
10.875"D x 10.625"W x 4"H
MODEL No. AC425 AC450 AC475 AC4100Z AC4150Z AC4200Z
Refrigerant Charge: 26 oz. 50 oz. 50 oz. 50 oz. 76 oz. 76 oz.
Capacity BTU/H • 26°F2: 1850 3400 5000 6500 9000 15000
Capacity BTU/H • 0°F2: 1650 2800 4200 5500 7000 11900
Electrical
RLA = 115 V / 230V
Water Cooled: 5.9 / 2.9 6.7 / 3.0 15.2 / 7.7 / 10.9 / 10.9 / 18.6
Electrical
RLA = 115 V / 230V
Air/Water Cooled: 6.9 / 3.4 7.7 / 3.5 16.2 / 8.2 / 11.4 / 11.4
Electrical
LRA = 115 V / 230V: 40 / 20.5 68 / 34 59 / 37 / 56 / 56 / 107
Max. Circ. Breaker
115 V / 230V: 15 / 10 20 / 10 35 / 15 / 25 / 30 / 40
Min. Circ. Breaker
115 V / 230V: 10 / 5 16 / 7 27 / 14 / 20 / 20 / 30
Dimensions
Depth: 14.1" 14.1" 14.1" 20" 20" 20"
Width: 13.1" 13.1" 13.1" 17" 17" 17"
Height: 10.5" 13.6" 14.8" 15.3" 15.3" 16"
Weight: 47 lbs. 78 lbs. 74 lbs. 75 lbs. 77 lbs. 92 lbs.
27
www.DometicEnviro.com
Engine Driven Systems
CARIBBEAN SERIES
CARIBBEAN MODELS
Powered by the Main Engine
Designed for boats that utilize power from their main
engine. Typical requirements are compressed into one or
two engine run-times per 24 hour period.
z
Effectively cools one or multiple boxes of
virtually any configuration.
z
Receiver, accumulator, drier, pressure switch
and valves are on one convenient pallet.
z
Components can be remote mounted.
z
Equipped with a PVC and cupronickel
raw water condenser for improved
efficiency and lower operating pressure.
(Air-cooled model is not available.)
MODEL No. ED75/12 ED75/24 ED150/12 ED150/24
Refrigerant Charge: 6.1 oz. 6.1 oz. 16 oz. 16 oz.
Capacity BTU/H • 26°F1: 5000 5000 9000 9000
Capacity BTU/H • 0°F1: 4200 4200 7000 7000
Electrical
Motor Voltage (DC): 12 24 12 24
Watts (coil): 48 48 48 48
Amperage: 4 2 4 2
Dimensions
Depth: 5.5" 5.5" 7.5" 7.5"
Width: 9" 9" 9" 9"
Height: 5.75" 5.75" 11.25" 11.25"
Weight: 17 lbs. 17 lbs. 25 lbs. 25 lbs.
1 BTU/H ratings are the average rate of heat extraction from holdover plates and are not the capacity of the compressor or condensing unit.
These gures are to be used to determine run times to maintain box design temperatures.

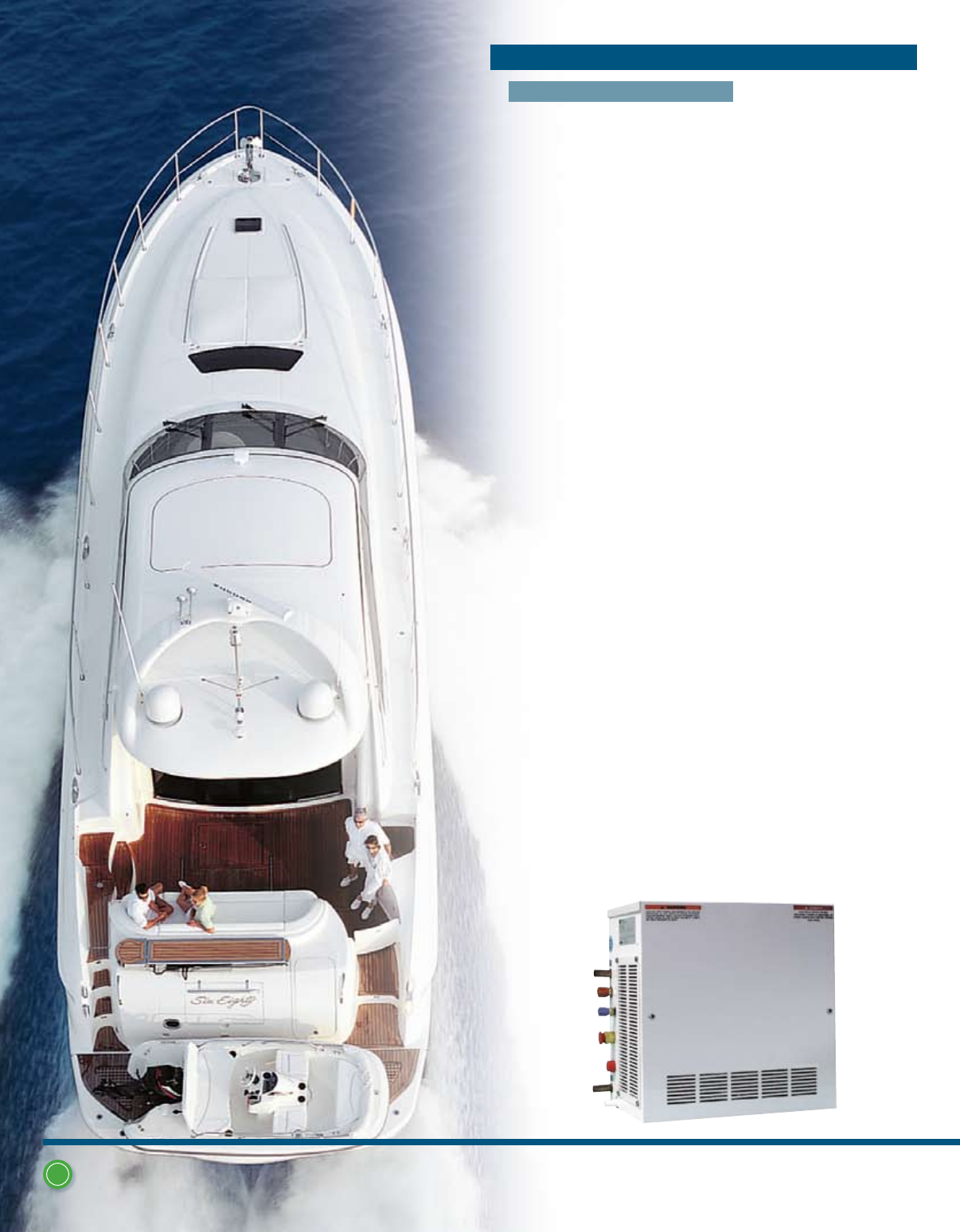

Cabinet Condensing Units
KRA SERIES
28
For Use In Refrigeration
and Freezer Systems
... such as cockpit refrigerators / freezers or catch-box chillers
(not hold-over plate systems), built-in galley refrigerators /
freezers, or small walk-in coolers.
The condensing unit works in conjunction with evaporator
plates installed in an insulated box, or a box wrapped with
evaporator tubing. Box temperatures between -5°F and 40°F
can be achieved with proper application.
z
Refrigerating / freezing condensing unit is housed in an
attractive white aluminum enclosure.
z
Both air and water condensers. The air-cooled
condenser is supplemented by a durable cupronickel
water condenser. This double condenser configuration
will ensure that the unit performs efficiently in hot engine
rooms, while also allowing full air-cooled operation when
no cooling water is available.
z
Can be mounted on a vertical bulkhead or a horizontal
shelf.
z
Drain pan allows any condensate to be routed to the
bilge or sump.
z
1/4, 3/8, and 1/2 HP compressors available.
z
115 volts 50 / 60 Hz, and 230 volts 50 Hz models.
z
Self-sealing, quick connect fittings.
z
Charged with leak detector dye.
z
Available options:
— Pre-charged refrigerant lines, in copper or flexible
hose, are available in lengths up to 25 feet.
— Dual box system: Two different boxes at two different
temperatures on one condensing unit.
— Digital thermostats.
29
KRA SERIES MODELS
CUSTOM EVAPORATORS
www.DometicEnviro.com
MODEL No. KRA025 KRA025CK KRA038 KRA038CK KRA050
Voltage: 115 volts AC 220 volts AC 115 volts AC 220 volts AC 115 volts AC
COMPRESSOR
Horsepower: 1/4 1/4 3/8 3/8 1/2
Evaporating Pressure: 2 psi / 12 psi 2 psi / 12 psi 2 psi / 12 psi 2 psi / 12 psi 2 psi / 12 psi
Air-Cooled Only: 1170 /1880 1170 / 1880 1545 / 2485 1545 / 2485 1860 / 3425
Air / Water-Cooled: 1495 / 2440 1495 / 2440 1980 / 3230 1980 / 3230 2405 / 4165
Frequency (Hz): 50 / 60 50 50 / 60 50 50 / 60
Run Amps: 6.2 2.7 6.6 3.7 8.9
Dimensions
Width: 14.25" 14.25" 14.25" 14.25" 16.1"
Depth: 8.75" 8.75" 8.75" 8.75" 10.3"
Height: 14.75" 14.75" 14.75" 14.75" 17.5"
Weight: 50 lbs. 50 lbs. 51 lbs. 51 lbs. 65 lbs.
CUSTOM WRAPPED BOXES
z
Excellent performance
as a freezer or refrigerator.
z
Contents include fiberglass box,
tubing wrap and insulation.
z
Inside of freezer box is free of
all refrigeration equipment, and
has a clean look.
z
Factory sealed refrigerant connections
of evaporator tubing.
z
Fewer holes through box equals
less chance of content leakage.
z
Quick and easy clean-up of interior.
Contact Dometic’s applications department for
assistance is designing your refrigeration system.
CUSTOM FLAT PLATES
z
Excellent performance
as a freezer or refrigerator.
z
Plate can be built to the exact
dimensions of your particular
custom box requirements.
z
Plate and tubing is constructed of durable
18 gauge 304 stainless-steel which will resist
corrosion from harsh environments and
damage from objects in the box.
z
Total thickness of plate is .625"
which allows for total use of box interior.
z
Refrigerant tubing is spot welded to
the underside of the plate.
Contact Dometic’s applications department for
assistance is designing your refrigeration system.
C

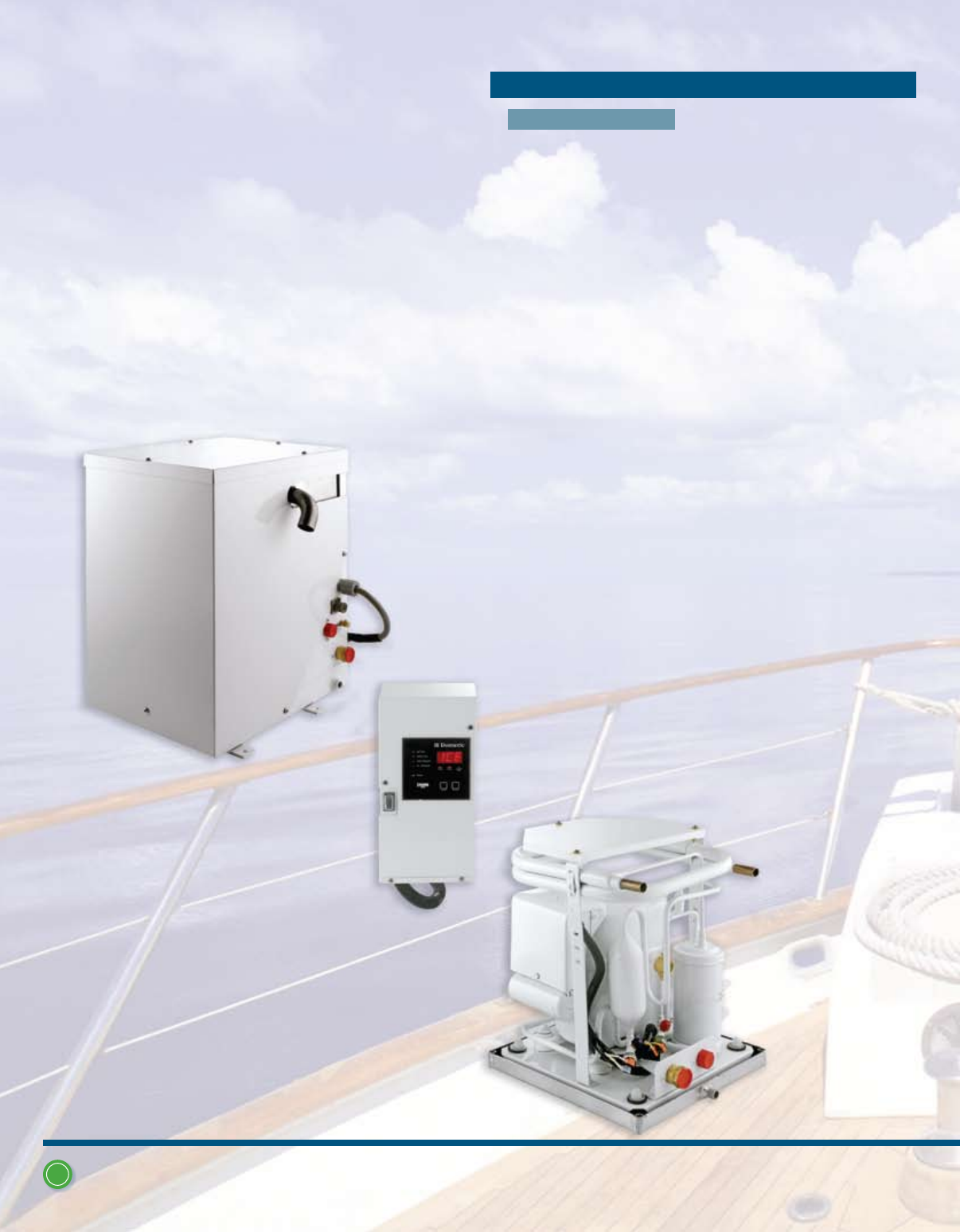

Ice Crushing Systems
ESKIMO ICE SERIES
30
Auger Unit
rushed ice—preferred by fishermen, cools
more quickly and packs better. Ice is
produced and pumped from a remote
location such as an engine compartment or
storage area to nearly any desired location,
such as a fish box, drink box or cooler.
Easy to install units were designed to be
remote mounted, such as below deck—
protected from salt spray.
Can produce up to 600 pounds of ice a day
to hose lengths of 35 feet. Generates ice in
minutes, from the time unit is turned on.
A Catch—A Treasure That
Should Be Kept Ice Cold Fresh
State-of-the-art ice crushing systems
Self-Contained and Remote Models
with Digital Controls:
z
Up to 2 remote mounted digital user interface panels.
z
Pre-charged system.
z
Ice level control.
z
Start time delay.
z
Sensors monitor all functions of system.
z
Improved fresh-water float switch.
z
Includes water filter.
z
Manual reset to restart system from lock-out.
z
Photo-electric ice level sensor.
z
Redesigned refrigerant meter for improved
performance in cold water.
z
Optional covers for self-contained models.
Protects sides/top and improves appearance.
z
User modifiable programming.
Electrical
Box
Condensing
Unit
Remote model EI600CD for use
when space is a premium.
31
www.DometicEnviro.com
ESKIMO ICE SERIES SELF-CONTAINED MODELS
ESKIMO ICE SERIES REMOTE MODELS
Now Available with Smart Logic Digital Displays
SELF-CONTAINED SELF-CONTAINED
Voltage: 115 volts AC 230 volts AC
Frequency: 60 60
Running Amps: 16 8
Capacity1: 600 lbs. / day* 600 lbs. / day*
Charge: 16 oz. 16 oz.
Water Consumption: 72 g / day 72 g / day
Dimensions
Width: 17.5" 17.5"
Depth: 23.5" 23.5"
Height: 22" 22"
Weight: 135 lbs. 135 lbs.
REMOTE REMOTE REMOTE REMOTE REMOTE
Condensing Unit Auger Unit Condensing Unit Auger Unit Control Box
Voltage: 100 / 115 volts AC 100 / 115 volts AC 200 / 230 volts AC 200 / 230 volts AC
Frequency: 50 / 60 50 / 60 50 / 60 50 / 60
Running Amps: 7.5 3.2 5.3 1.2
Max. Amps: 60 3.2 46 1.2
Capacity1: 600 lbs. / day 600 lbs. / day
Charge: 26 oz. 12 oz. 26 oz. 12 oz.
Water Consumption: 72 g / day 72 g / day
Dimensions
Width: 12.88" 14.25" 12.88" 14.25" 9.25"
Depth: 12.88" 16.38" 12.88" 16.38" 5.38"
Height: 15" 20.88" 15" 20.88" 6.38"
Weight: 67 lbs. 83 lbs. 67 lbs. 83 lbs. 4 lbs.
Self-contained model EI600D-115.
All parts
on a single chassis for easy installation.
Automatic reset with key functions without going to machine space.
Full menu of sensor and status light monitors:
• Gas Pressures • Ice Levels
• Water Level • Auger Motor
• Ice Clogs
*Depends on hose length and climate conditions.
1At 75°F (24°C) feed water temperature and 80°F (27°C) seawater temperature, using fresh water for the feed water.
*Depends on hose length and climate conditions.
1At 75°F (24°C) feed water temperature and 80°F (27°C)
seawater temperature, using fresh water for the feed water.
Dometic is a customer-driven, world-leading provider of
innovative leisure products for the caravan, motorhome, and marine
markets. Dometic offers a complete range of air conditioners,
refrigerators, awnings, cookers, sanitations systems, lighting, windows,
doors and other equipment that makes leisure life more comfortable
away from home.
Dometic also provides refrigerators for specific use in hotel rooms,
offices and for storage of medical products and wine. Dometic’s
products are sold in almost 100 countries and are produced mainly
in Dometic’s own production facilities around the world. Dometic has
more than 4,400 employees.
www.DometicEnviro.com
Dealer/Distributor:
DOMETIC CORPORATION, ENVIRONMENTAL DIVISION
2000 N. Andrews Ave. Ext. l Pompano Beach, FL 33069 USA l 954-973-2477 l FAX 954-979-4414
P.O. Box 15299 l Richmond, VA 23227 USA l 804-746-1313 l Facsimile: 804-746-7248
www.DometicEnviro.com l sales@DometicEnviro.com
United States & Canada Service Only:
8:00 AM to 5:00 PM Eastern Time
International Sales & Service:
Europe & the Middle East: Call +44(0)870-330-6101
For all other areas visit our website to find your nearest distributor.
L-0191B Rev. 20080820

Navigation menu
