SOLO4 - Bodywire Transmitter
COFDM – Video, Audio Telemetry and IP Products
April 2009 Data Sheet
The most important thing we build is trust

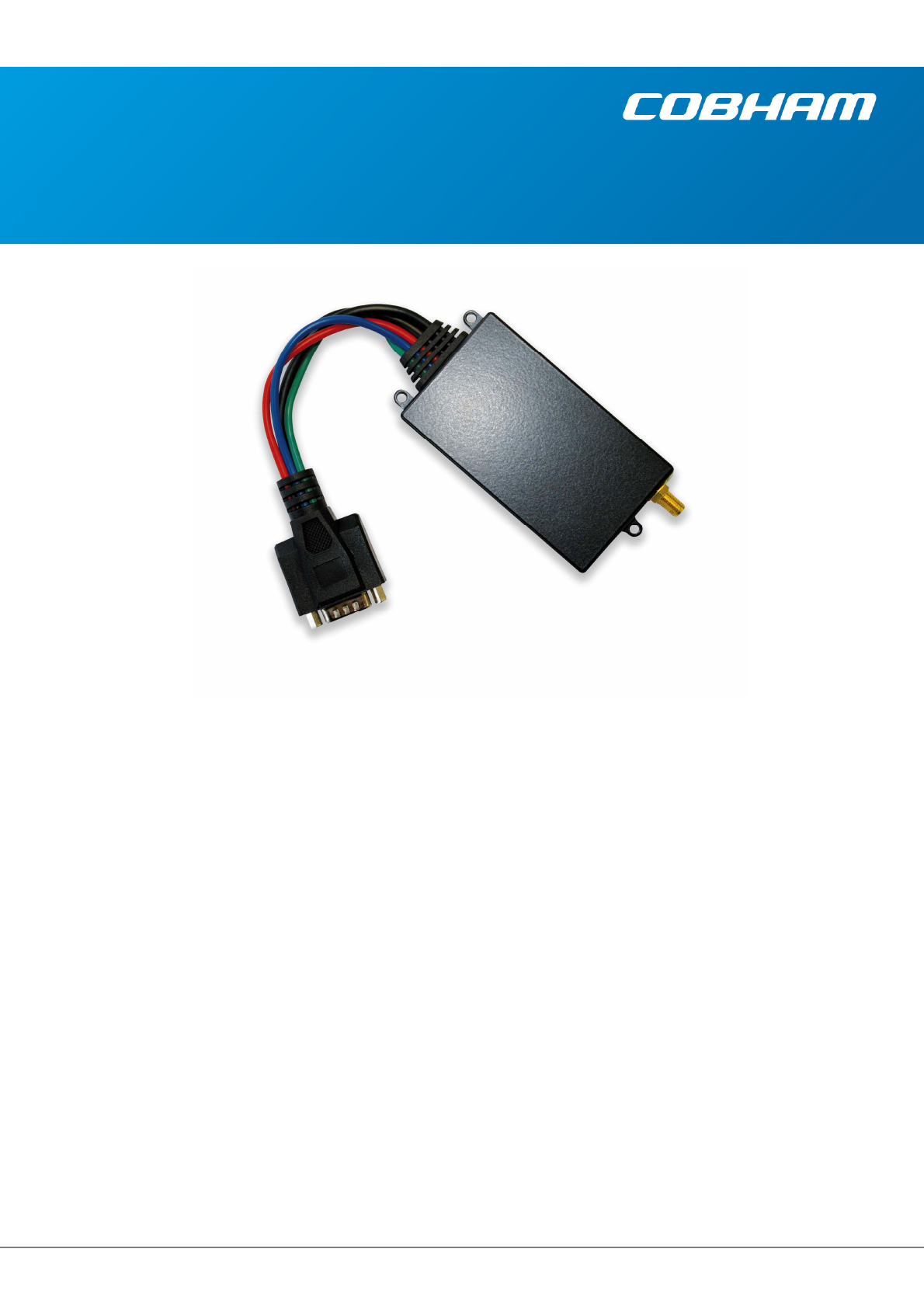

The SOLO4 Bodywire Transmitter is a COFDM digital
video transmitter from Cobham Surveillance, designed
specifically for covert video installations and body-worn
applications.
With domo technology at its core, the small size and low
power consumption (typically 4W or less) of the SOLO4
Bodywire make it the product of choice for covert video
hides, or applications requiring long term battery power
deployments, small unmanned aerial vehicles, and body-
worn or bodywire use.
The SOLO4 Bodywire transmitter employs MPEG2
encoding (MPEG4 is also available) for excellent image
quality retention. Equipped with integral COFDM
modulation, the SOLO4 transmitter is ideal for
establishing rugged wireless video links in all
environments, including mobile and urban environments.
Offering several user-selectable modes that trade off
image quality against range, the SOLO4 transmitter is
ideal for all mission types. The SOLO4 Bodywire includes
RF up-conversion and PA circuitry to make a complete
single board transmitter. SOLO4 Bodywire is supplied in
a simple lightweight case with attached Lemo cable
connectors.
Security is ensured with optional AES128/256 Encryption.
The SOLO4 Bodywire transmitter will transmit images in
a non-line of sight environment up to 750m, depending
on mode and frequency; further range can be achieved
with the booster PA.
www.cobham.com/domo
Specification:
Inputs
Composite Video BNC (break out cable)
SDI (optional) BNC (break out cable)
Audio 1 Phono (break out cable)
Audio 2 Phono (break out cable)
RS232 Control Dtype (break out cable)
RS232 Data Dtype (break out cable)
Power Lemo 4 pin (break out cable)
Output
RF Out SMA
RF
Power 100mW (14dBm low power mode)
Tuning Range 5.5 to 6GHz
4.5 to 5GHz
2.0 to 2.5GHz
1.0 to 1.5GHz (model dependant)
300 – 450MHz
Tuning Steps 250KHz
Modulation
Transmit Modes Narrowband:
Bandwidth 2.5MHz
FEC 2/3, 1/3
Modulation QPSK or 16QAM
Upgradable to 1.25MHz narrow bandwidth
Transmit Modes Wideband:
DVB-T Bandwidth 8/7/6MHz
FEC 1/2, 2/3, 3/4 , 5/6, 7/8
Modulation QPSK, 16QAM and 64QAM
Video
Input Format PAL, NTSC (with or without pedestal)
RS170 and SDI (optional)
Encoding Narrowband MPEG2 (or MPEG4 option)
Encoding Wideband MPEG2 Only
MPEG2 Frame Rate Full Frame Rate
MPEG4 Frame Rate Full or 1/2, 1/4, 1/8, 1/24
Delay 500ms to 43ms (mode dependant)
Audio
Input Line Level or Microphone switchable
-2dBu Max input level
Audio Encoding MPEG Layer 1:
Sample Rate 32KHz 384Kb/s to 64kb/s
Audio Encoding NICAM Style:
Sample Rate 32KHz, 16KHz, 8KHz switchable
Bits per sample 12 or 8 bit switchable
Data Interface
RS232 Data Input 1k2 to 115K2 baud switchable
Encryption
Format ABS Encryption 32 bit
AES128/256 (optional)
Control
Control Interface RS232 Control from PC GUI Application
Front Panel None supplied, future external plug in
RS232 controller (field gun)
Physical
Dimension L 86mm, W 49mm, H 11mm (main
chassis)
Weight 70g
Power
DC Input 5.9V to 16V Reverse Polarity Protected
Power Consumption Normal consumption 4.1W
for 100mW out
Low power mode 3.7W for 25mW out
Environment
Temperature Range -15 to +60 °C
Vibration Tested with 15g shock and Random with
sine vibration 3g
Results will depend on chassis installation
Product Code:
SOL4MTX-550600
SOL4MTX-450500
SOL4MTX-200250
SOL4MTX-165250
SOL4MTX-100150
SOL4MTX-030045
For further information please contact:
Cobham Surveillance
Domo Products
11 Manor Court, Barnes Wallis Road,
Segensworth, Hampshire,
PO15 5TH, England
T: +44 (0)1489 566 750
F: +44 (0)1489 880 538
Domo.sales@cobham.com
Products are available to security users only, in licensed frequency bands.
These products are
not approved for use by unlicensed users.
Commercial products are available to unlicensed users - contact Cobham
Surveillance direct for details.
All product specifications are subject to change without notice. Cobham
Surveillance will not be liable for technical or editorial errors or omissions.
