DongGuan Mae Tay Electronic ARFMR RF 2.4G RX PCBA Module User Manual ARFMR UserMan 0917 new
Mae Tay Precision Co.,Ltd. RF 2.4G RX PCBA Module ARFMR UserMan 0917 new
(ARFMR) UserMan_20130917-new
1
T
T3
30
00
0L
LA
A
R
RF
F
K
Ke
ey
yb
bo
oa
ar
rd
d
P
PC
CB
BA
A
M
Mo
od
du
ul
le
e
User’s Manual
Company: Maetay Precision Co., LTD
Model: ARFMR
2

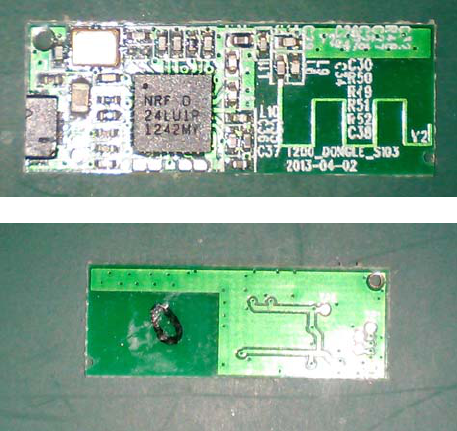

RX Board Photo:
1. Preface
The Keyboard Module utilizing 2.4GHz RF cordless technology, it is a slim design for
Tablet.
2. Features
2.4GHz ISM band radio frequency
77 channels hopping channel from 2.402 ~ 2.478 GHz.
65536 ID number identify
Operating distance up to 40 feet (12 meters)
Advanced power saving management
Error detection ability
Compatible with Windows XP/Vista/ Win 7/ Win 8.
FCC,CE, WHQL, R&TTE, approvals
3. Power rating and temperature
Keyboard power Rating: 5V, 22mA
Operation Temperature: 0 ~ 70 ℃
4. Establishing the communication link
I. Plug RX Dongle to a USB port of the computer.
II. Open Power and TX will auto pairing with RX Dongle.
5. Sleep Mode
To save power consumption, this keyboard will enter into sleep mode automatically
after 30 second left unused. LED light of the power will go off and mouse cursor will
have no movement temporarily.
3
6. CE and FCC Approved
This device complies with the part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
7. Caution
To avoid the risk of batteries explosion, Please do not use alkaline batteries to charge
them.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
4
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20cm may be maintained between the antenna and users. The final end product must be labeled in
a visible area with the following: "Contains FCC ID: 2AAIL-ARFMR ” and "Contains 11188A-ARFMR “
Information for the OEMs and Integrators
The following statement must be included with all versions of this document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas causer d'interférence et
(2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son
fonctionnement.
5
Hosted Information
The “T300L” is a test-hosted board for Mae Tay’s “ARFMR” RF module.
The hosted board manufacture and model name is ASUS / T300L.
Hardware Setup
1.The RF module need to connected on the test-hosted board.
2. The test-hosted board power by USB (DC 5V).
RF module
(
USB interface
)
6
The module is only approved for us when installed in device produced by a specific
manufacturer.
Since module does not have shielding case, is defined as the limiting module.
Installation to the end product will be maintained, host manufacture or combiner must
contact us to make sure that the RF behavior meets the certification requirements when
the module is installed in the end product.
