DongGuan Mae Tay Electronic MM8032 Wireless Mouse User Manual QSG 101 6x101 6mm 20180531
DongGuan Mae Tay Electronic Co.,Ltd Wireless Mouse QSG 101 6x101 6mm 20180531
Manual
B07BMX18JN-Silver
B07BMXDJFX-Black
2
Quick Setup Guideline • English

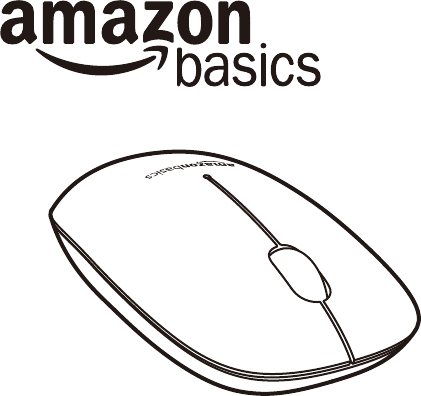

AmazonBasics Slim Bluetooth Mouse
Contents
• Bluetooth Mouse
• 2 AA batteries
• The Quick Setup Guideline
it with your computer.
1. Turn on the computer.
2. Ensure that your computer has Bluetooth turned on.
3. Start the Bluetooth pairing wizard on your computer.
4. Hold down the middle key + right key for 3 seconds.
2
3

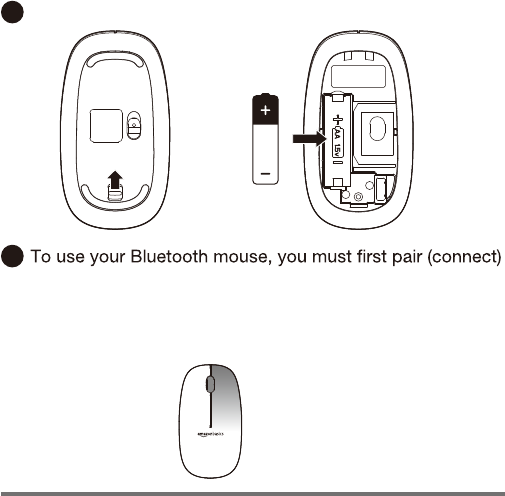

To put one AA battery into your Bluetooth mouse.
1
Left Button Right Button
Scroll Wheel
LED Indicator
Key Functions & LED Behavior
4
Items Specification
Pairing Mode
Low Battery Alarm
Cut off
1. Hold down the middle key + right key for 3 seconds.
2. Red LED, 250 ms on and 250 ms off.
3. Pairing time: 1 minute.
1. Red LED, 500ms on and 500ms off for 10 times then turn off
LED when moving mouse.
2. Low battery alert < = 1.1V @ 1 AA battery.
1. Cut off voltage < = 1.0V @ 1 AA battery.
5
Items Specification
CPI Selection
Power on/off
Wake up Mode
1. Hold down left key and right key for 3 seconds.
2. 1000 cpi: Blinking 1 time, 1 s on/1 s off
3. 1200 cpi(default): Blinking 2 time, 1 s on/1 s off
4. 1600 cpi: Blinking 3 time, 1 s on/1 s off
1. Hold down the left Key + middle Key for 3 seconds.
2. Red LED, 250ms on, 250ms OFF, 5 times.
1. Standby 1/standby 2 mode: Support moving, Key and roller
wake up.
2. Sleep mode: Only Key & roller wake up.
6
FCC – Federal Communication Commission (USA)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
· Reorient or relocated the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation
Post addre ss of lmporterin EU and Manufacturer
7
1. IC statemant:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.
2. Europe importer & manufacturer information
3. product spe: Input: 1.5 V, 6 mA
operation frequency: 2.4G(2.402GHz--2.48GHz)
power level: BLE Class2 -6dBm-+4dBm)
4. simplified EU declaration of conformity:
Hereby, [Name of manufacturer] declares that the radio equipment type [designation of type of
radio equipment] is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
www.amazon.com
V1 180313
