DongGuan Mae Tay Electronic RG1102 USB Dongle User Manual NS PNK5011 13 1098 QSG V1 ai

Mae Tay Precision Co.,Ltd. USB Dongle NS PNK5011 13 1098 QSG V1 ai

Users Manual

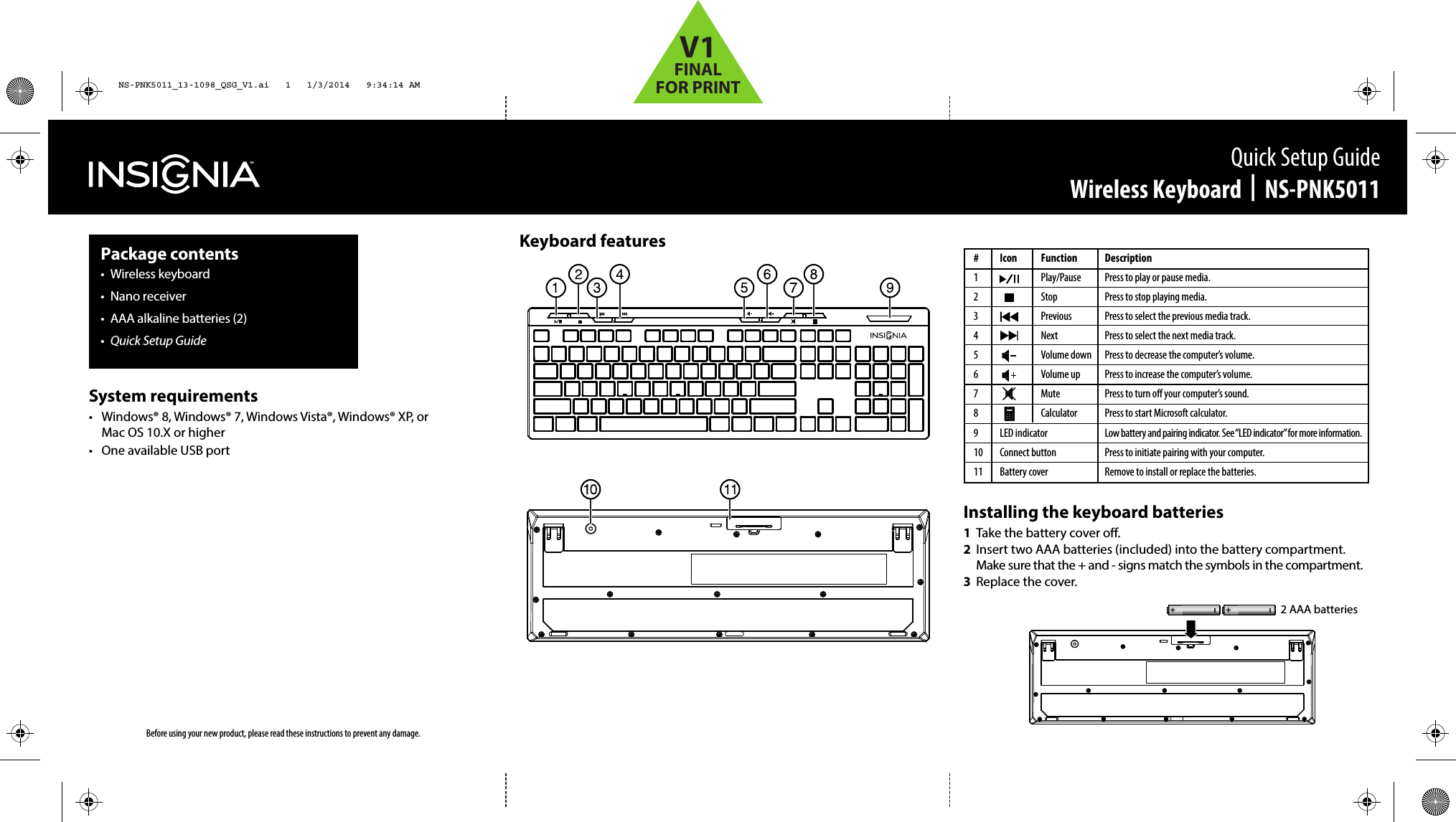

Keyboard featuresInstalling the keyboard batteries1 Take the battery cover o.2 Insert two AAA batteries (included) into the battery compartment. Make sure that the + and - signs match the symbols in the compartment.3 Replace the cover.Before using your new product, please read these instructions to prevent any damage.Quick Setup GuideWireless Keyboard | NS-PNK5011Package contents• Wireless keyboard• Nano receiver• AAA alkaline batteries (2)• Quick Setup GuideSystem requirements• Windows® 8, Windows® 7, Windows Vista®, Windows® XP, or Mac OS 10.X or higher• One available USB port# Icon Function1 Play/Pause2 Stop3 Previous4 Next5 Volume down6 Volume up7 Mute8 Calculator9 LED indicator10 Connect button11 Battery coverDescriptionPress to play or pause media.Press to stop playing media.Press to select the previous media track.Press to select the next media track.Press to decrease the computer’s volume.Press to increase the computer’s volume.Press to turn o your computer’s sound.Press to start Microsoft calculator.Low battery and pairing indicator. See “LED indicator” for more information.Press to initiate pairing with your computer.Remove to install or replace the batteries. 2 AAA batteriesNS-PNK5011_13-1098_QSG_V1.ai 1 1/3/2014 9:34:14 AMNS-PNK5011_13-1098_QSG_V1.ai 1 1/3/2014 9:34:14 AMV1FINALFOR PRINT

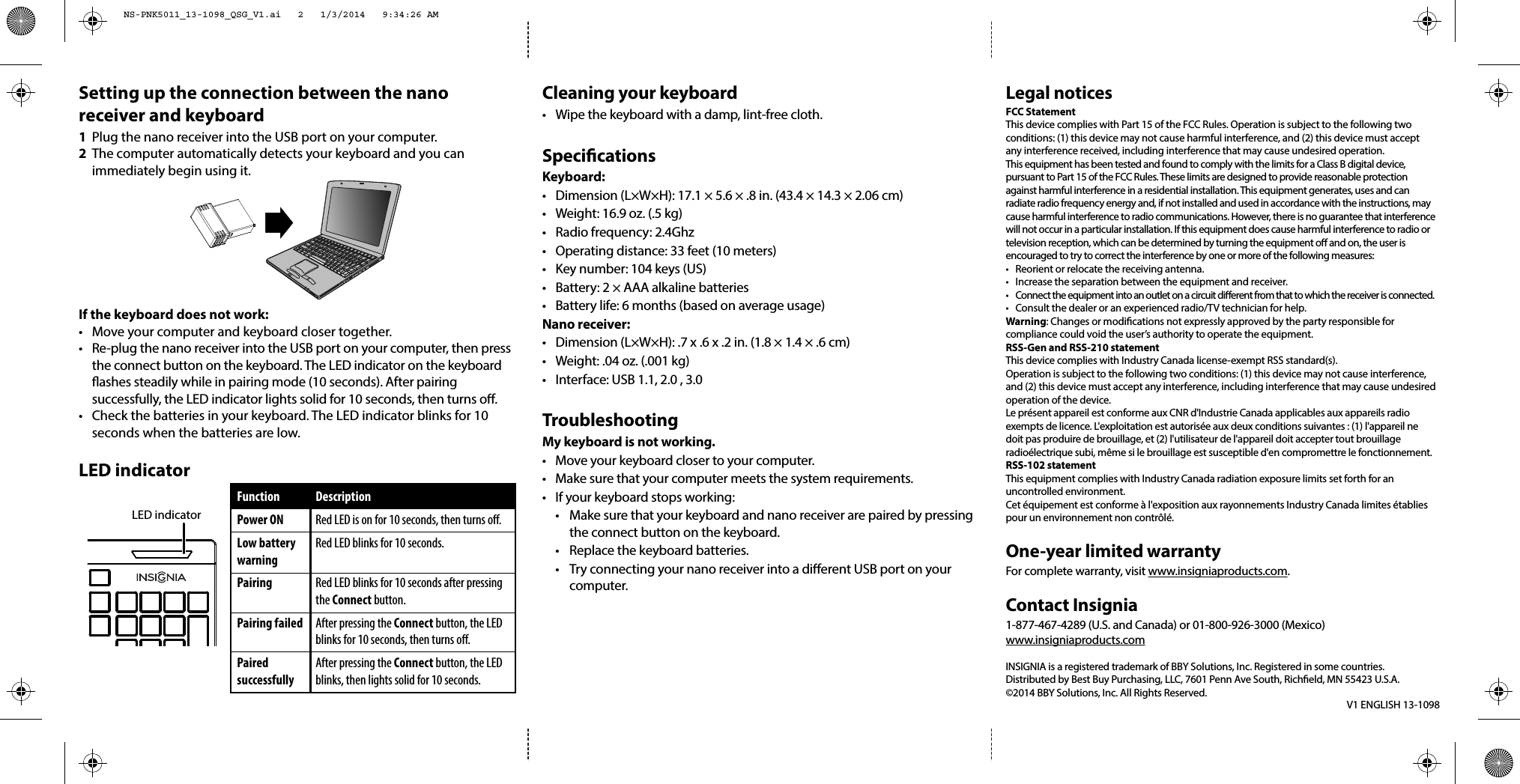

Setting up the connection between the nano receiver and keyboard1 Plug the nano receiver into the USB port on your computer.2 The computer automatically detects your keyboard and you can immediately begin using it.If the keyboard does not work:• Move your computer and keyboard closer together.• Re-plug the nano receiver into the USB port on your computer, then press the connect button on the keyboard. The LED indicator on the keyboard ashes steadily while in pairing mode (10 seconds). After pairing successfully, the LED indicator lights solid for 10 seconds, then turns o.• Check the batteries in your keyboard. The LED indicator blinks for 10 seconds when the batteries are low.LED indicatorLegal noticesFCC StatementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.RSS-Gen and RSS-210 statementThis device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.RSS-102 statementThis equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé.One-year limited warrantyFor complete warranty, visit www.insigniaproducts.com.Contact Insignia1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)www.insigniaproducts.comINSIGNIA is a registered trademark of BBY Solutions, Inc. Registered in some countries.Distributed by Best Buy Purchasing, LLC, 7601 Penn Ave South, Richeld, MN 55423 U.S.A.©2014 BBY Solutions, Inc. All Rights Reserved.LED indicatorCleaning your keyboard• Wipe the keyboard with a damp, lint-free cloth.SpecicationsKeyboard:• Dimension (L×W×H): 17.1 × 5.6 × .8 in. (43.4 × 14.3 × 2.06 cm)• Weight: 16.9 oz. (.5 kg)• Radio frequency: 2.4Ghz• Operating distance: 33 feet (10 meters)• Key number: 104 keys (US)• Battery: 2 × AAA alkaline batteries• Battery life: 6 months (based on average usage)Nano receiver:• Dimension (L×W×H): .7 x .6 x .2 in. (1.8 × 1.4 × .6 cm)• Weight: .04 oz. (.001 kg)• Interface: USB 1.1, 2.0 , 3.0TroubleshootingMy keyboard is not working.• Move your keyboard closer to your computer.• Make sure that your computer meets the system requirements.• If your keyboard stops working: • Make sure that your keyboard and nano receiver are paired by pressing the connect button on the keyboard. • Replace the keyboard batteries. • Try connecting your nano receiver into a dierent USB port on your computer.FunctionPower ONLow battery warningPairing Pairing failedPaired successfullyDescriptionRed LED is on for 10 seconds, then turns o.Red LED blinks for 10 seconds.Red LED blinks for 10 seconds after pressing the Connect button.After pressing the Connect button, the LED blinks for 10 seconds, then turns o.After pressing the Connect button, the LED blinks, then lights solid for 10 seconds.V1 ENGLISH 13-1098NS-PNK5011_13-1098_QSG_V1.ai 2 1/3/2014 9:34:26 AMNS-PNK5011_13-1098_QSG_V1.ai 2 1/3/2014 9:34:26 AM
