Dongguan Digital AV Technology WUS13 WiFi/BT Combo Module User Manual 10
Dongguan Digital AV Technology Corp., Ltd. WiFi/BT Combo Module 10
10 user manual
1
WUS-AC13
U
SER
M
ANUAL
2
C
ONTENTS
Introduction ......................................................................................................................................... 3
Specifications ....................................................................................................................................... 3
Wi-Fi driver installation – Linux OS ...................................................................................................... 4
Regulatory Warning Statements ......................................................................................................... 5
Integrator Instructions ........................................................................................................................ 8
3

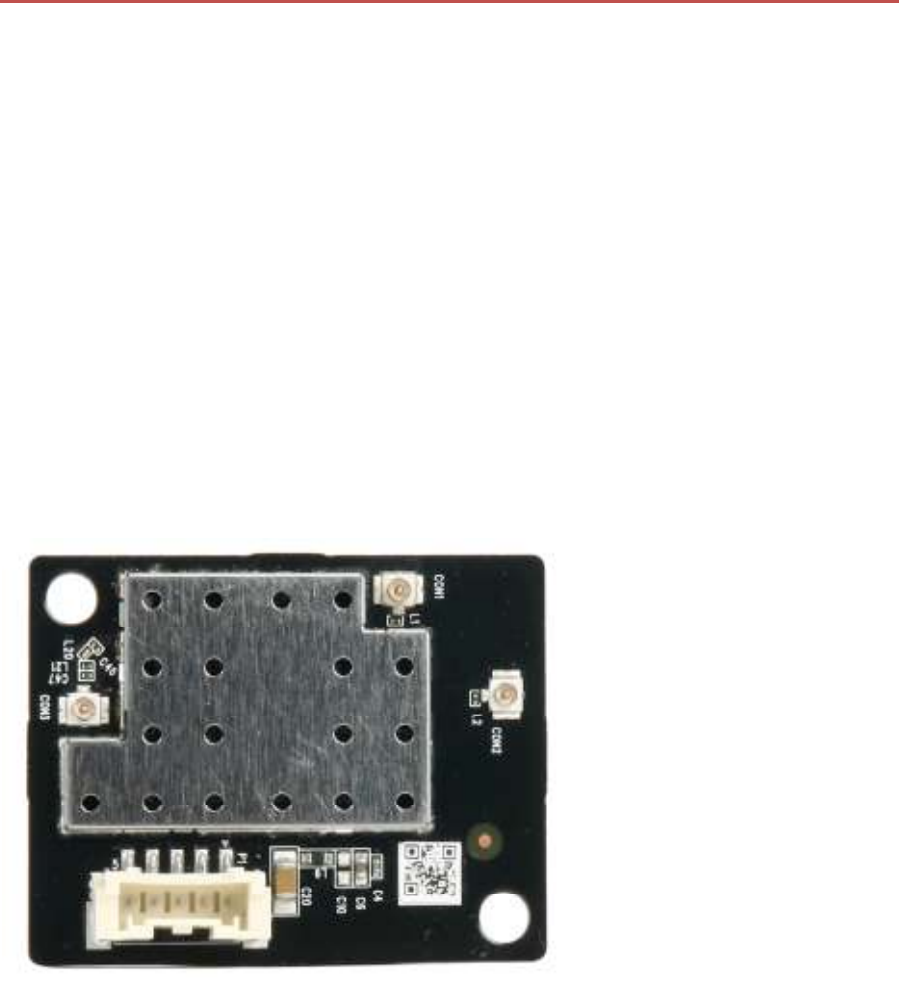

• INTRODUCTION
The wireless dual-band WUS-AC13 USB interface adapter delivers powerful wireless AC technology to your
host devices. Simply plug the adapter into an available USB interface, throught the wafer connector, and then
connect to a 2.4GHz or a 5GHz wireless network to access a secure, high-speed Internet connection at up to
300Mbps or up to 433Mbps respectively. With the integrated dual-band technology, Wi-Fi interference will
be reduced to maximize throughput for a faster data connection.
• SPECIFICATIONS
Item Descriptions
External
Interfaces
Wi-Fi:
IEEE 802.11a/b/g/n/ac standards
Supports 2.4GHz or 5GHz for dual-band wireless operation
2x2 MIMO with two spatial streams with a data rate of up to 866Mbps (AC900)
Antenna: U.FL connectors
Bluetooth:
Bluetooth v2.1 with EDR and v4.1 with BLE
Anetnna: U.FL connector
Connectors and
Buttons
1 x USB interface connector (JST BM05B-PASS)
2 x U.FL connectors for Wi-Fi
1 x U.FL connector for Bluetooth
Power Supply 3.3 VDC from USB connector
Dimensions Module Size: 33.25mm x 42.25mm
Environmental Operating Temperature: 0°C to 50 °C
4
Regulatory
Certification
FCC ,CE and IC
• WI-FI DRIVER INSTALLATION – LINUX OS
In the terminal and navigate to the folder where the driver file is located.
For example, cd CE_MT7662U_CFG80211.

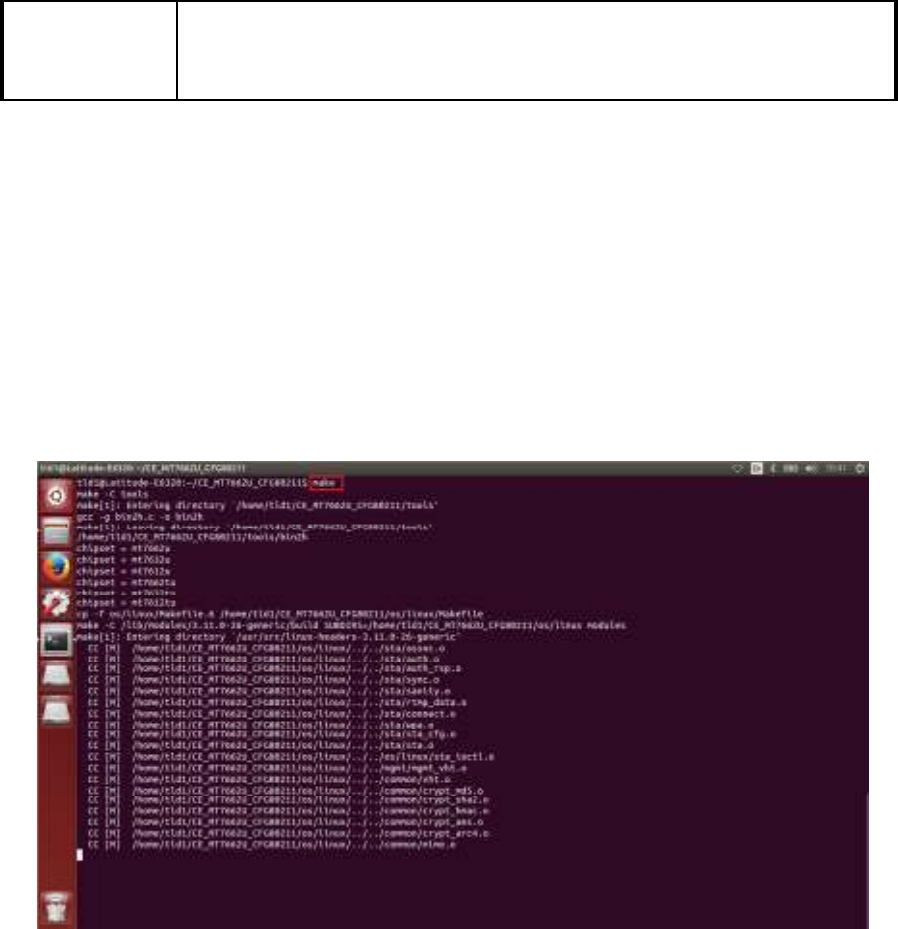

Build driver: make
5
1.

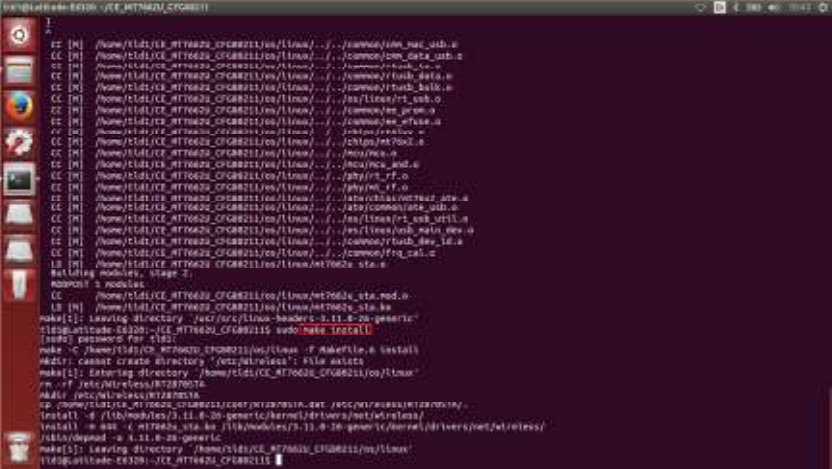

Install the driver on the OS with administrator permission: sudo make install
2.
Remove the USB adapter and then re-insert the USB adapter to activate the newly installed driver.
• REGULATORY WARNING STATEMENTS
Federal Communication Commission Interference Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
6
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For operation within the 5.15 ~ 5.25GHz and 5.47 ~5.725GHz frequency range, it is restricted to indoor
environment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC
Rules.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction can
be achieved if the product can be kept as far as possible from the user body or set the device to lower
output power if such function is available.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Ce dispositif est conforme a la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de
licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
brouillage prejudiciable, et (2) ce dispositif doit accepter tout brouillage recuy compris un brouillage
susceptible de provoquer un fonctionnement indesirable.
7
Caution:
The device operating in the wireless radio frequency of 5150-5250 MHz is only for indoor use to reduce
potential harmful interference to co-channeled mobile satellite systems. The maximum antenna gain
permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit;
and the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the EIRP
limits specified for point-to-point and non point-to-point operation as appropriate.
Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to
LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour reseaux locaux doit inclure des instructions precises sur les
restrictions susmentionnees, notamment :
l es dispositifs fonctionnant dans la bande 5150-5250 MHz sont reserves uniquement pour une utilisation a
l’interieur afin de reduire les risques de brouillage prejudiciable aux systemes de satellites mobiles utilisant
les memes canaux; le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz
et 5 470-5 725 MHz doit se conformer a la limite de p.i.r.e.; le gain maximal d’antenne permis (pour les
dispositifs utilisant la bande 5725-5825 MHz) doit se conformer a la limite de p.i.r.e. specifiee pour
l’exploitation point a point et non point a point, selon le cas.
De plus, les utilisateurs devraient aussi etre avises que les utilisateurs de radars de haute puissance sont
designes utilisateurs principaux (c.-a-d., qu’ils ont la priorite) pour les bandes 5250-5350 MHz et 5650-5850
MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body or set the device to lower output
power if such function is available.
Declaration d’exposition aux radiations:
8
Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-Unis et le
Canada etablies pour un environnement non controle.
Le produit est sur pour un fonctionnement tel que decrit dans ce manuel. La reduction aux expositions RF
peut etre augmentee si l’appareil peut etre conserve aussi loin que possible du corps de l’utilisateur ou que le
dispositif est regle sur la puissance de sortie la plus faible si une telle function est disponible.
• INTEGRATOR INSTRUCTIONS
Part Number: WUS-AC13
FCC ID: 2AGM4-WUS13
IC: 20960-WUS13
1. Additional Regulatory Conformance Testing and/or Submissions
Required by the Integrator
The global modular certifications apply to radio conformance for the Module only.
The OEM integrator is responsible for additional system-level EMI/EMC and Product
Safety testing and certification that applies in the U.S. and other countries to the host
system containing the Module. This includes, but is not limited to, Federal
Communications Commission (“FCC”) Part 15 Class B Digital Emissions, and ETSI EN
301 489-17.
These system-level EMC tests are to be done with the Module installed and
included in the scope of the submission.
Some of the countries for which modular certifications are provided require
additional submissions, authorizations or import permission by the system-vendor or
importer. The integrator is responsible for these additional actions.
By way of example, the OEM integrator must take additional action for radio
certification in these countries:
9
Malaysia
Each importer/distributor needs to file for import permission
Singapore
Recommend use of importer’s own local radio dealer number
Israel
Additional approval certificate required for importer
Indonesia
Certificate B is required for each importer
China
Modular approval not accepted. Requires system approval
Brazil
Tablets require system level SAR evaluation and submission to Anatel.
Philippines
Modular approval not accepted. Requires system approval
Vietnam
Modular approval not accepted. Requires system approval
Indonesia
Modular approval not acceped. Requires system approval
Modular radio certification is not possible in some countries. For such countries, OEM integrators
must ensure radio certification for the end system is obtained, before placing the product on the
market.
2. A
LLOWABLE
A
NTENNAS TO
U
SE WITH THE
R
ADIO
M
ODULE

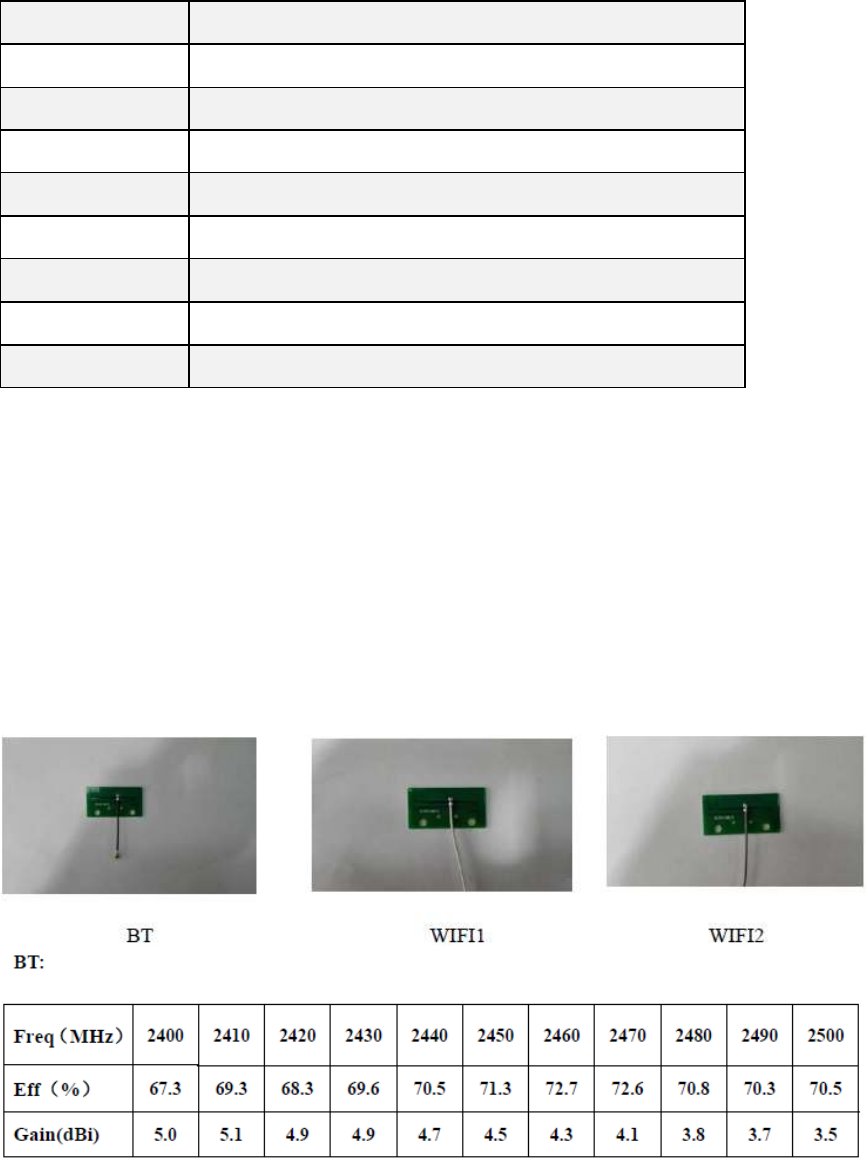

The module is certified to support following external PCB antennas with IPEX connector.

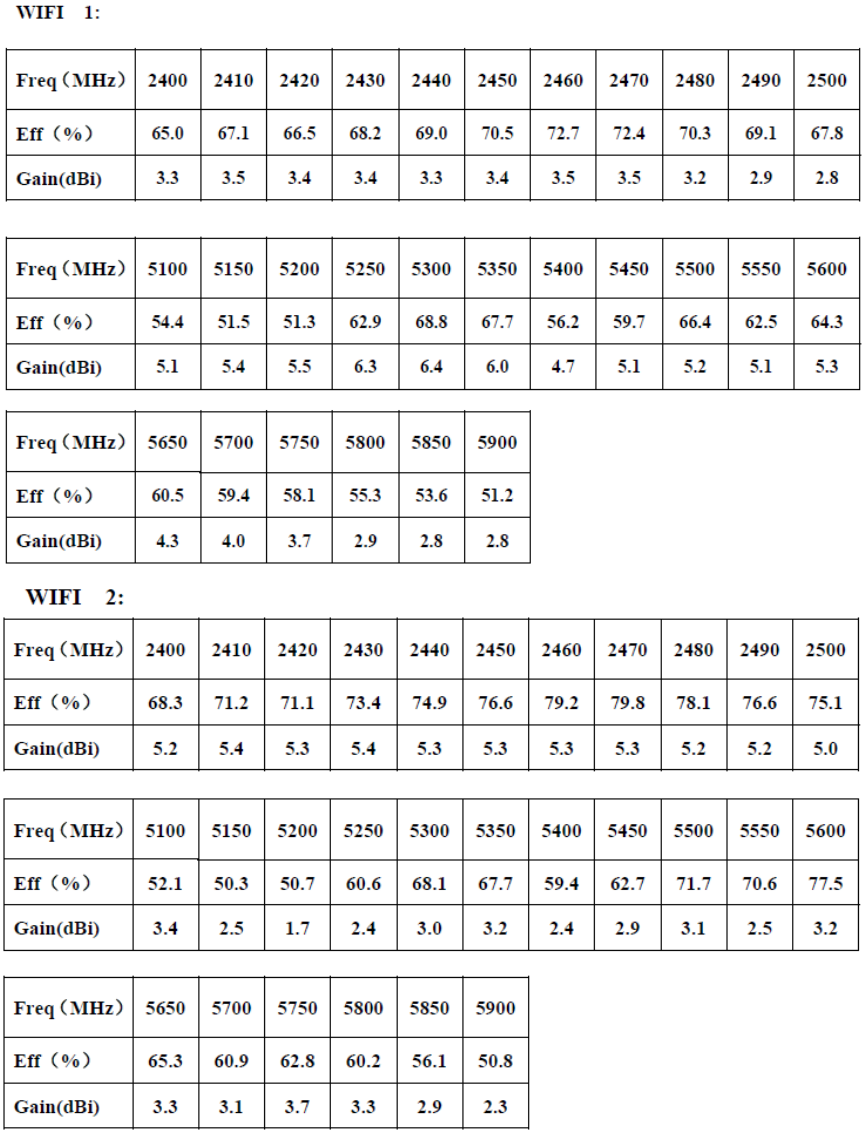

Table 1 Allowed Maximum Gain (dBi), Including Antenna Cable Loss
10
WARNING: Use of other antenna types or the same type of external antenna with higher gain
is not allowed without additional testing and appropriate FCC approval.
11
3. A
NTENNA
P
LACEMENT INSIDE THE
H
OST
S
YSTEM AND
RF
S
AFETY
The FCC and other countries’ regulatory bodies impose strict conditions and limitations on
the RF exposure levels of end products. Acceptable RF exposure levels for this Module
depend on transmit power, the location of the transmitting antenna(s) inside the host
system, the expected separation of the transmitting antennas to the end user, as well as if
there is/are collocated RF transmitter(s) in the same host system. OEM integrators must
take great care to ensure each host system complies with the applicable RF exposure
requirements.
4. S
IMULTANEOUS
T
RANSMISSION WITH
O
THER
I
NTEGRATED OR
P
LUG
-I
N
R
ADIOS
The FCC imposes conditions and limitations when additional radio(s) are co-located in the
same host system as the Module with capability to transmit simultaneously. The detailed
rules from the FCC are described in various Knowledge Database publications that may be
found using the instructions below. Co-locating other radios such as an integrated or plug
in Wireless WAN/cellular radio with the module requires additional evaluation and
possibly submission for authorization from the FCC.
Because the rules are highly dependent on the characteristics of the particular radios that
are co-located and simultaneously transmitting, the OEM integrator should seek guidance
from a knowledgeable test lab or consultant to determine if additional testing and FCC
certification is required. In this case, failure to evaluate and follow the required FCC
procedures will invalidate the FCC certification of the Module and end system.
To download the FCC rules for collocated radios:
1. https://apps.fcc.gov/oetcf/kdb/index.cfm
2. Enter 616217 in the ‘publication number’ search box
3. Download latest applicable version of KDB 616217 document.
12
For expert advice regarding collocation rules, we recommend you contact an
FCC-approved
Telecommunication Certification Body (“TCB”)::
4. https://apps.fcc.gov/oetcf/kdb/index.cfm.
5. Choose your country and or state from the pull-down list.
6. Scroll through the search results and choose a TCB contact from which to seek advice.
5. M
ODULE
M
AY
N
OT
B
E
I
NSTALLED BY
E
ND
U
SERS
FCC rules require this Module to be installed in host systems at the factory by the OEM
integrator. Thus, end users of the system may not install the Module. Therefore, the host
product user instructions must not advise the end user on how to access or remove the
Module. Additional FCC authorization/filing is needed to allow end user installation of radio
modules.
6. R
EQUIRED
L
ABELING ON THE
O
UTSIDE OF THE
H
OST
NOTE:
Explanatory text in red font must not be included in the final label.
5.1 FCC
The FCC requires a label on the outside of the host system visible to the end
user. Example wording is:
Contains:
FCC ID: XXX-XXXXXXX
13
IC: XXXXX-XXXXXX
(Replace X’s with actual IDs found in section 2).
The FCC requires a logo signifying emissions compliance on the outside of the host system.
Additional options are available for placement of the FCC label on the host. Please refer
to the FCC Knowledge Database KDB784748 found at
https://apps.fcc.gov/oetcf/kdb/index.cfm.
NOTE:
The Integrator is responsible to perform FCC Part 15 Class B digital emissions
testing on the end system with the radio Module installed. The FCC logo below should not
be affixed unless the OEM integrator has obtained the necessary Part 15 approval, e.g.,
self-declaration of conformity.
If the host system is approved to FCC Class B digital emissions limits under a grant of
certification issued by a TCB, the FCC ID number shown on the grant should be used on the
label instead of the FCC logo below.
5.2 European Community R&TTE
The European Community R&TTE Directive requires the CE Marking shown below on the
outside of the host AND on the outside of the shipping container/packaging:
The European Community R&TTE Directive also requires the following note to consumers
on the outside of the shipping container/packaging:
14
Important Notice: This product is a Radio LAN
device operating in 2.4 & 5 GHz bands for
Home and Office use in the E.E.A. States with
restrictive use are highlighted in grey. Refer to
user documentation for details.
AT
BE
CH
CY
CZ
DE
DK
ES
FI
FR
GB
GR
EE
HU
IT
IE
IS
LI
LT
LU
LV
MT
NL
NO
PL
PT
SE
SI
SK
NOTE:
The Integrator is expected to translate the text in this Section into the appropriate
local languages for the European countries in which the product will be marketed or sold.
5.3 FCC labeling on the Module
The Integrator must ensure that the FCC ID (as indicated in section 2) is affixed on the
Module along with other country certification numbers and logos as described herein.
NOTE:
The Module ODM may affix regulatory labeling at time of Module manufacturing.
However, the OEM Integrator must ensure the Module label is complete, correct and
applicable for all countries to which the host system is to be imported, marketed, or sold.
RF Exposure Information and Statement
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
RF exposure assessment has been performed below to prove that this unit will not generate the
harmful EM emission above the reference level as specified in EC Council Recommendation
(1999/519/EC). The Maximum Permissible Exposure (MPE) level has been calculated based on a
distance of d=20 cm between the device and the human body. To maintain compliance with RF
exposure requirement, use product that maintain a 20cm distance between the device and human
body.
The FCC and other countries’ regulatory bodies impose strict conditions and limitations on the RF
exposure levels of end products. Acceptable RF exposure levels for this Module depend on transmit
power, the location of the transmitting antenna(s) inside the host system, the expected separation
of the transmitting antennas to the end user, as well as if there is/are collocated RF transmitter(s)
in the same host system. OEM integrators must take great care to ensure each host system
complies with the applicable RF exposure requirements.
15
