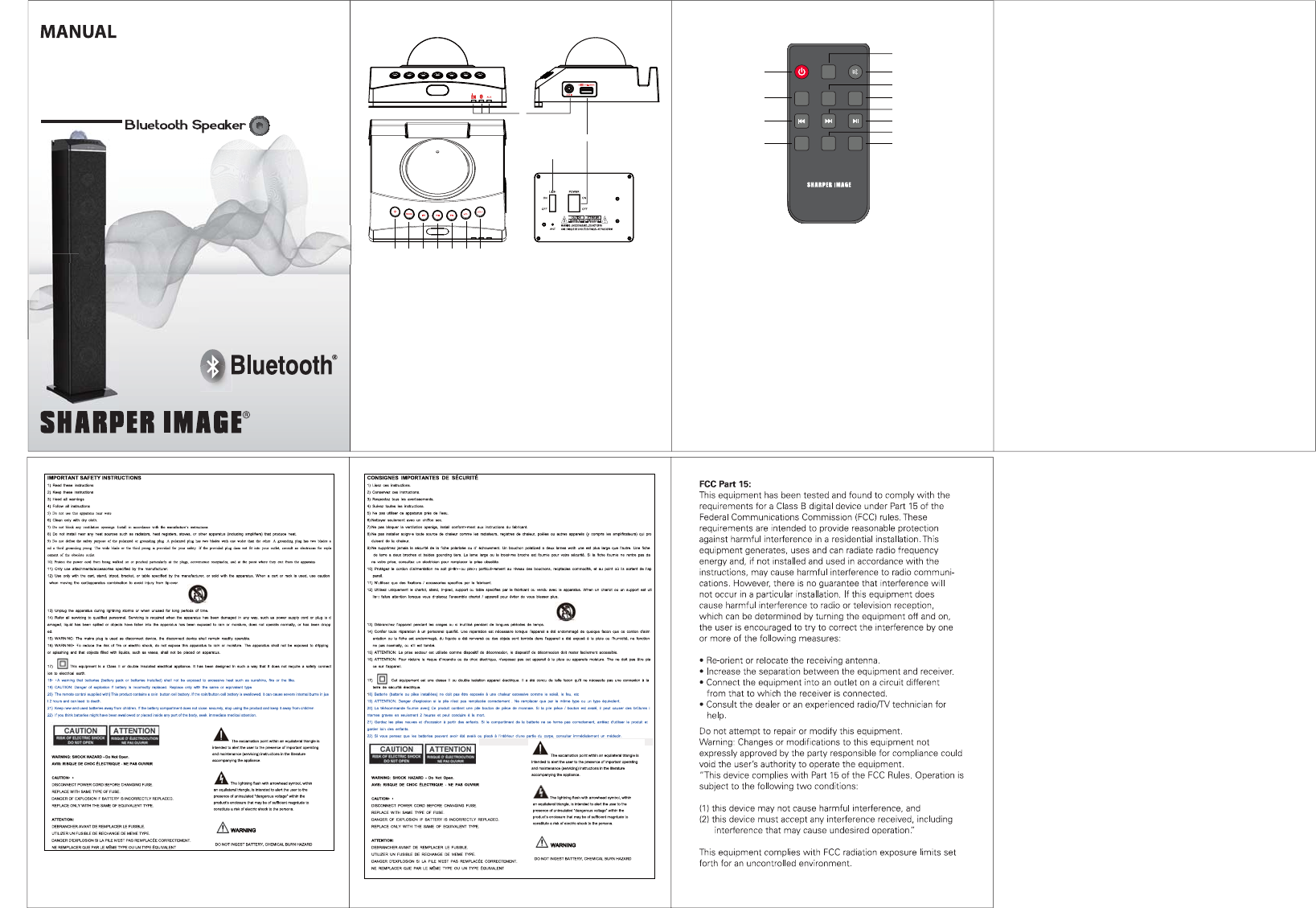

Dongguan Earson Audio Technology SBT1010 TOWER SPEAKER User Manual Usermanual
Dongguan Earson Audio Technology Co., Ltd TOWER SPEAKER Usermanual
User manual
SBT1010BK
SPEAKER
1
4
7
10
2
3
5
6
8
11
9
12
BUTTON ON REMOTE CONTROL
1. “STANDBY”KEY: Press to turn ON/OFF.
2. “MODE”KEY: Press to change the playing mode ( FM—BT—Aux in)
3. “MUTE”: Press to mute.
4. “FM SCAN: Under the playing mode of FM, press to AUTO scan.
5. “CH-”KEY: Press to FM preset.
6. “CH+”KEY : Press to FM preset.
7. “SKIP-”: Quickpress for previous track. Press and HOLD for FM scan.
8. “SKIP+”: Quickpress for next track. Press and HOLD for FM scan.
9. “PLAY/PAUSE”: Under the playing mode of Bluetooth, press for
play/pause. Under the playing mode of FM and Aux
in, press for mute.
10. “PAIR”: Under the playing mode of Bluetooth, press for Bluetooth
pair.
11. “VOL- ”: Press to decrease volume.
12. “VOL-+”: Press to increase volume.
MODE
CH-
VOL-VOL+
CH+
FM
SCAN
PAIR
OPERATION
1.Bluetooth paring：Change the playing mode of speaker to be
Bluetooth. When the Bluetooth enabled device finds the speaker, select
SBT1001 from the list of found device. If required, enter the password
0000. Select OK or Yes to pair the two units. After a successful
registration, a tone will sound and the buttons will stop blinking.
2. It has three LED indicator light (FM, Bluetooth, Aux-in).
Under FM playing mode, FM indicator is bright. When searching, the FM
indicator will be blinking.
Under Bluetooth playing mode, Bluetooth indicator is bright. When
paring or Mute, the indicator will be blinking.
Under Aux in playing mode, Aux in indicator is bright. When MUTE, the
indicator will be blinking.
3. FM can save 20 stations
1. FUNCTION：FM Radio、Bluetooth、AUX IN. When you turn on the
speaker, the default playing mode is FM Radio.
2. When turn on the speaker, the button will be with light, and the USB
slot can charging to mobile phone/ iPad.
3. It has separate ON/OFF button for Disco light control.
4. “STANDBY”： Turn on/off speaker.
5. “MODE”： Press to change playing model -- FM Radio、Bluetooth、
6. “SKIP-/TUNE-”: Quickpress to skip to previous track / FM preset;
press and HOLD to scan FM stations.
7. “SKIP+/TUNE+”: Quickpress to skip to next track / FM preset; press
and HOLD to scan FM stations.
8. “VOL-”: Decrease volume.
9. “VOL+”: Increase volume.
10. “PLAY/PAUSE” ：In FM redio mode, quickpress to mute; press and
HOLD to scan FM stationsIn Bluetooth mode, quickpress to
play/pause; press and HOLD to enter Bluetooth pairing.In AUX IN
mode, quickpress to mute.
1
2
3
45 6 710 8 9
WARNING
WARNING
