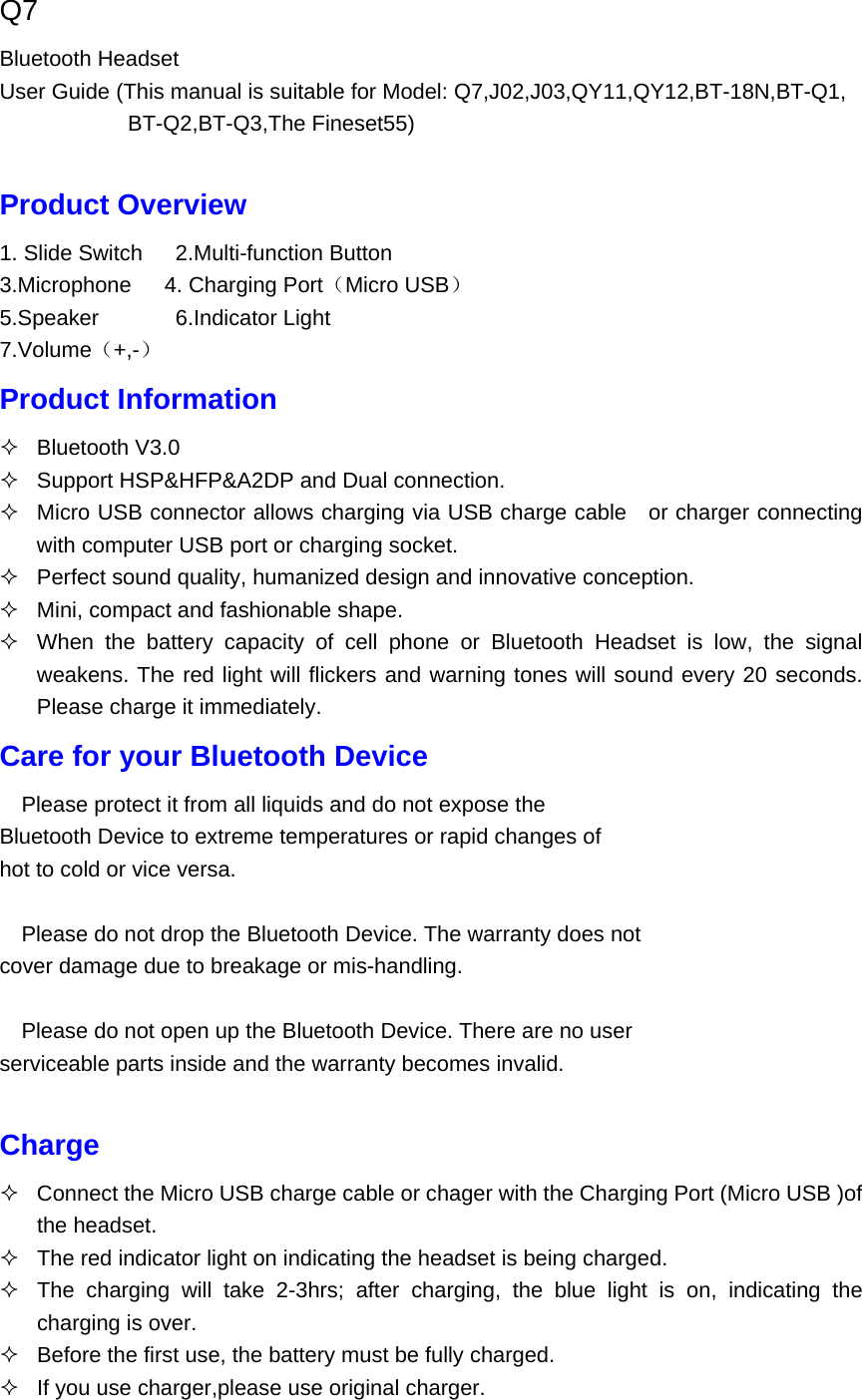

Q7 Bluetooth Headset User Guide (This manual is suitable for Model: Q7,J02,J03,QY11,QY12,BT-18N,BT-Q1, BT-Q2,BT-Q3,The Fineset55) Product Overview 1. Slide Switch 2.Multi-function Button 3.Microphone 4. Charging Port（Micro USB） 5.Speaker 6.Indicator Light 7.Volume（+,-） Product Information  Bluetooth V3.0  Support HSP&HFP&A2DP and Dual connection.  Micro USB connector allows charging via USB charge cable or charger connecting with computer USB port or charging socket.  Perfect sound quality, humanized design and innovative conception.  Mini, compact and fashionable shape.  When the battery capacity of cell phone or Bluetooth Headset is low, the signal weakens. The red light will flickers and warning tones will sound every 20 seconds. Please charge it immediately. Care for your Bluetooth Device 　Please protect it from all liquids and do not expose the Bluetooth Device to extreme temperatures or rapid changes of hot to cold or vice versa. 　Please do not drop the Bluetooth Device. The warranty does not cover damage due to breakage or mis-handling. 　Please do not open up the Bluetooth Device. There are no user serviceable parts inside and the warranty becomes invalid. Charge  Connect the Micro USB charge cable or chager with the Charging Port (Micro USB )of the headset.  The red indicator light on indicating the headset is being charged.  The charging will take 2-3hrs; after charging, the blue light is on, indicating the charging is over.  Before the first use, the battery must be fully charged.  If you use charger,please use original charger.

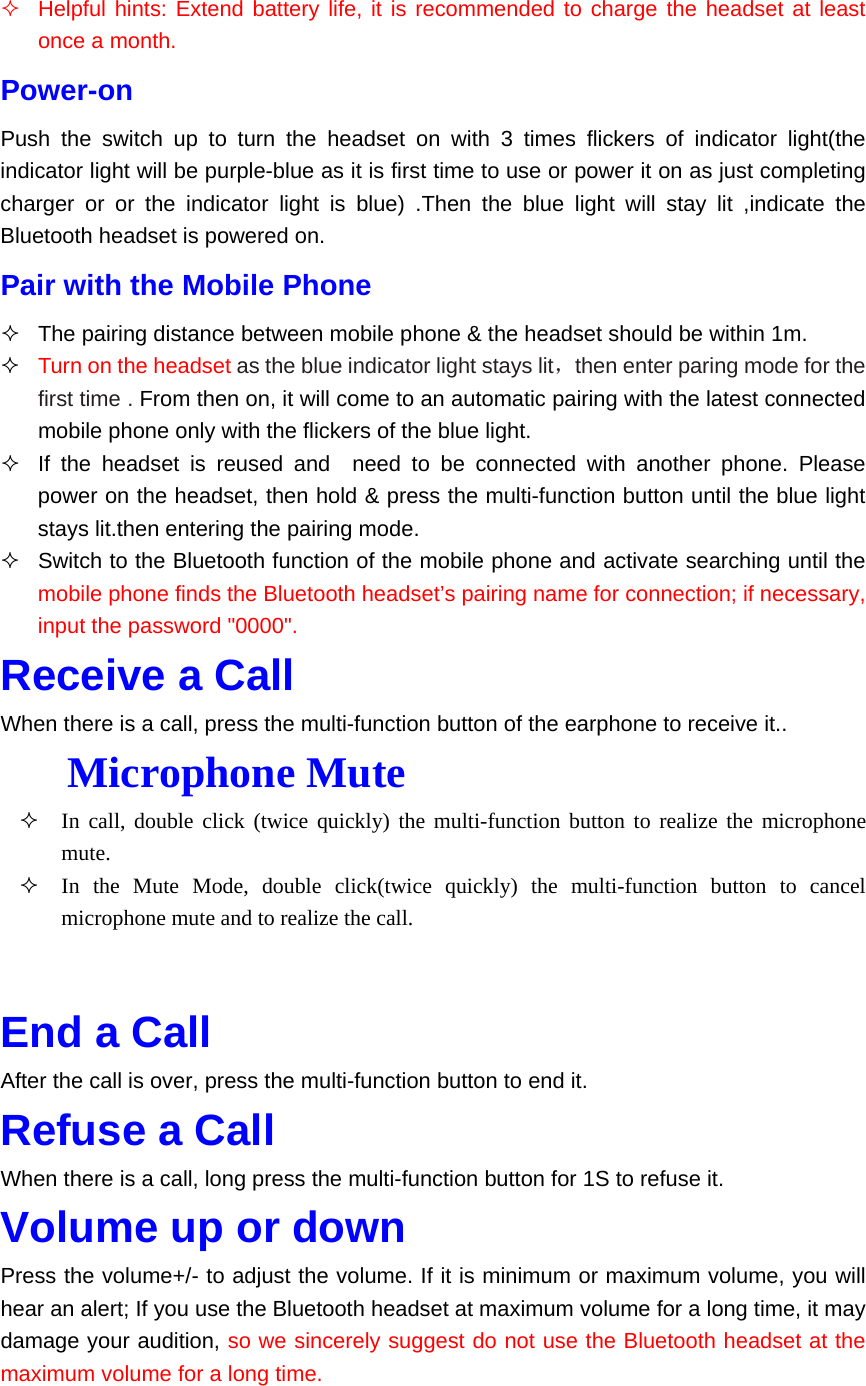

 Helpful hints: Extend battery life, it is recommended to charge the headset at least once a month. Power-on Push the switch up to turn the headset on with 3 times flickers of indicator light(the indicator light will be purple-blue as it is first time to use or power it on as just completing charger or or the indicator light is blue) .Then the blue light will stay lit ,indicate the Bluetooth headset is powered on. Pair with the Mobile Phone  The pairing distance between mobile phone & the headset should be within 1m.  Turn on the headset as the blue indicator light stays lit，then enter paring mode for the first time . From then on, it will come to an automatic pairing with the latest connected mobile phone only with the flickers of the blue light.  If the headset is reused and need to be connected with another phone. Please power on the headset, then hold & press the multi-function button until the blue light stays lit.then entering the pairing mode.  Switch to the Bluetooth function of the mobile phone and activate searching until the mobile phone finds the Bluetooth headset’s pairing name for connection; if necessary, input the password "0000". Receive a Call When there is a call, press the multi-function button of the earphone to receive it.. Aga Microphone Mute  In call, double click (twice quickly) the multi-function button to realize the microphone mute.  In the Mute Mode, double click(twice quickly) the multi-function button to cancel microphone mute and to realize the call. in double click (twice quickly) to cancel microphone mute. End a Call After the call is over, press the multi-function button to end it. Refuse a Call When there is a call, long press the multi-function button for 1S to refuse it. Volume up or down Press the volume+/- to adjust the volume. If it is minimum or maximum volume, you will hear an alert; If you use the Bluetooth headset at maximum volume for a long time, it may damage your audition, so we sincerely suggest do not use the Bluetooth headset at the maximum volume for a long time.

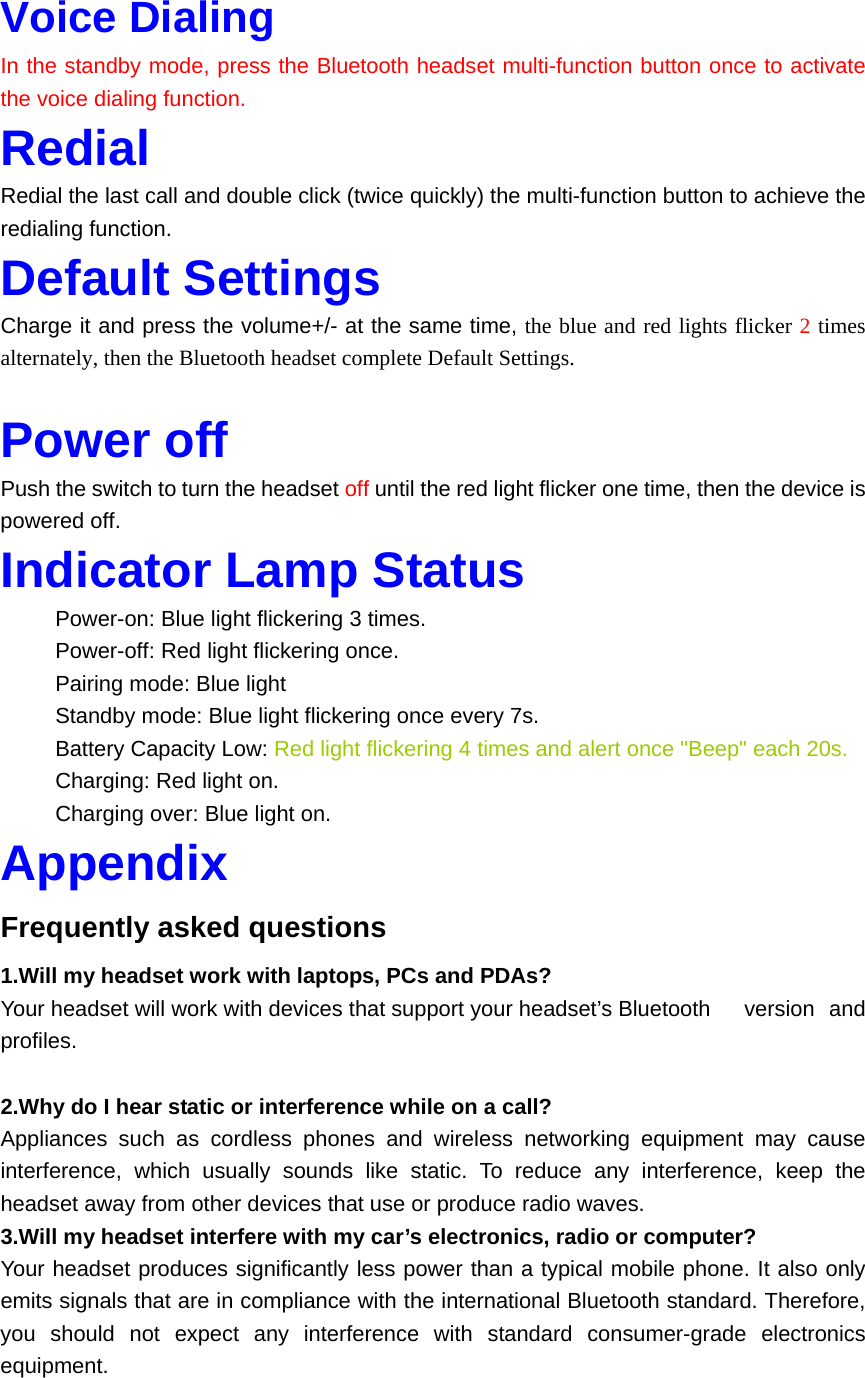

Voice Dialing In the standby mode, press the Bluetooth headset multi-function button once to activate the voice dialing function. Redial Redial the last call and double click (twice quickly) the multi-function button to achieve the redialing function. Default Settings Charge it and press the volume+/- at the same time, the blue and red lights flicker 2 times alternately, then the Bluetooth headset complete Default Settings. Power off Push the switch to turn the headset off until the red light flicker one time, then the device is powered off. Indicator Lamp Status 　 Power-on: Blue light flickering 3 times. 　 Power-off: Red light flickering once. 　 Pairing mode: Blue light 　 Standby mode: Blue light flickering once every 7s. 　 Battery Capacity Low: Red light flickering 4 times and alert once "Beep" each 20s. 　 Charging: Red light on. 　 Charging over: Blue light on. Appendix Frequently asked questions 1.Will my headset work with laptops, PCs and PDAs? Your headset will work with devices that support your headset’s Bluetooth version and profiles. 2.Why do I hear static or interference while on a call? Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves. 3.Will my headset interfere with my car’s electronics, radio or computer? Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment.

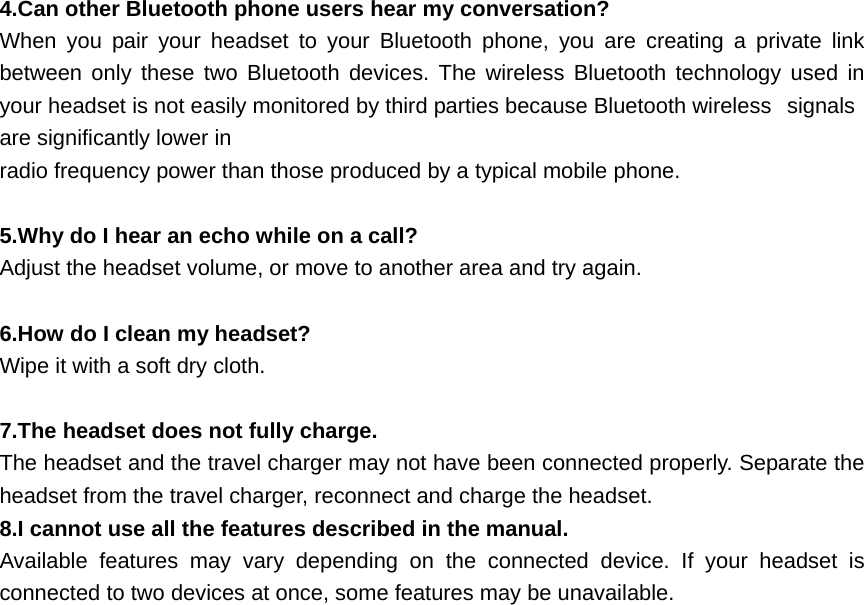

4.Can other Bluetooth phone users hear my conversation? When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone. 5.Why do I hear an echo while on a call? Adjust the headset volume, or move to another area and try again. 6.How do I clean my headset? Wipe it with a soft dry cloth. 7.The headset does not fully charge. The headset and the travel charger may not have been connected properly. Separate the headset from the travel charger, reconnect and charge the headset. 8.I cannot use all the features described in the manual. Available features may vary depending on the connected device. If your headset is connected to two devices at once, some features may be unavailable.
FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
