Dongguan Hele Electronics HLQ8 Bluetooth Headset User Manual

Dongguan Hele Electronics Co., Ltd. Bluetooth Headset Users Manual

Users Manual

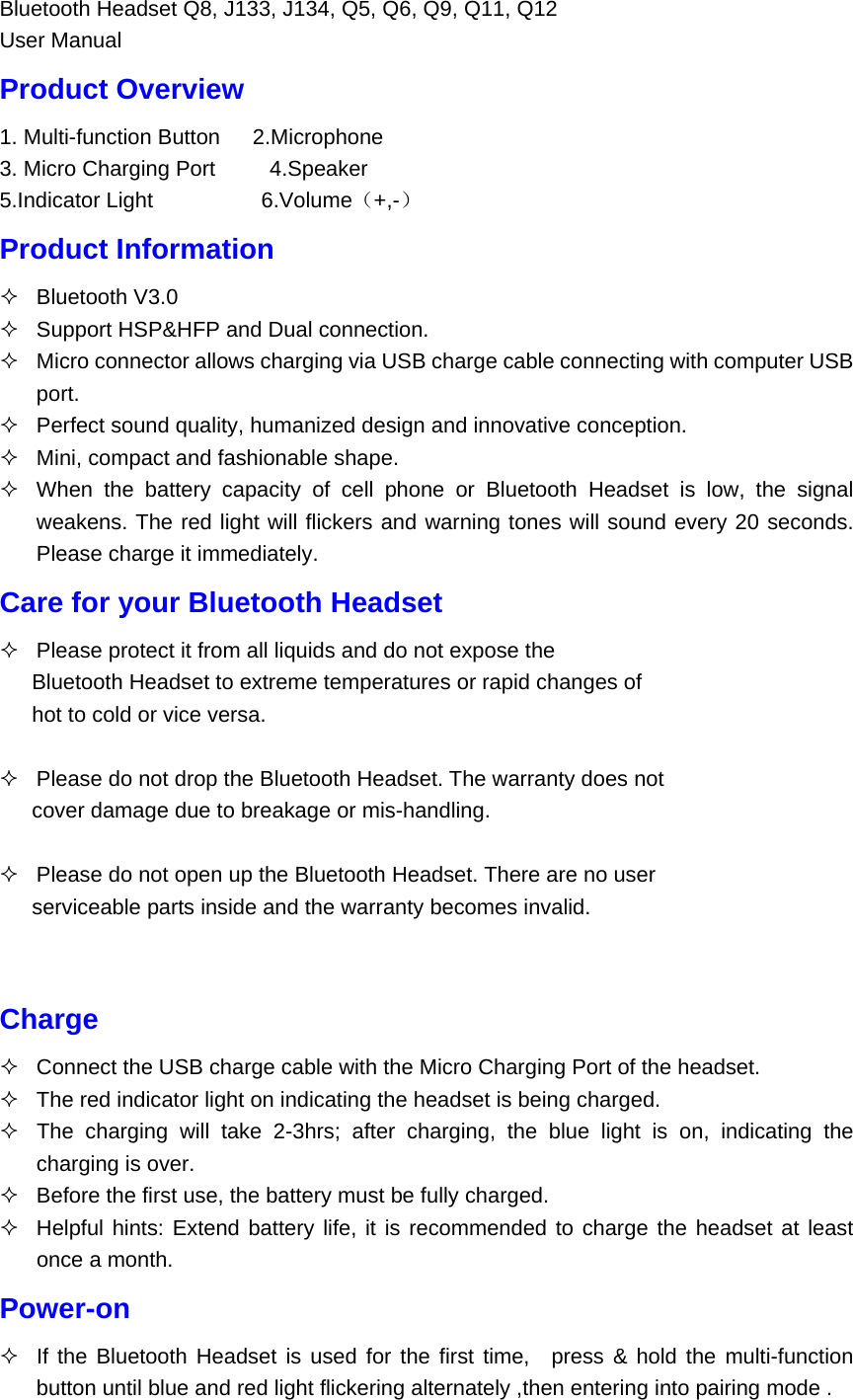

Bluetooth Headset Q8, J133, J134, Q5, Q6, Q9, Q11, Q12 User Manual Product Overview 1. Multi-function Button 2.Microphone 3. Micro Charging Port 4.Speaker 5.Indicator Light 6.Volume（+,-） Product Information  Bluetooth V3.0  Support HSP&HFP and Dual connection.  Micro connector allows charging via USB charge cable connecting with computer USB port.  Perfect sound quality, humanized design and innovative conception.  Mini, compact and fashionable shape.  When the battery capacity of cell phone or Bluetooth Headset is low, the signal weakens. The red light will flickers and warning tones will sound every 20 seconds. Please charge it immediately. Care for your Bluetooth Headset  Please protect it from all liquids and do not expose the Bluetooth Headset to extreme temperatures or rapid changes of hot to cold or vice versa.  Please do not drop the Bluetooth Headset. The warranty does not cover damage due to breakage or mis-handling.  Please do not open up the Bluetooth Headset. There are no user serviceable parts inside and the warranty becomes invalid. Charge  Connect the USB charge cable with the Micro Charging Port of the headset.  The red indicator light on indicating the headset is being charged.  The charging will take 2-3hrs; after charging, the blue light is on, indicating the charging is over.  Before the first use, the battery must be fully charged.  Helpful hints: Extend battery life, it is recommended to charge the headset at least once a month. Power-on  If the Bluetooth Headset is used for the first time, press & hold the multi-function button until blue and red light flickering alternately ,then entering into pairing mode .

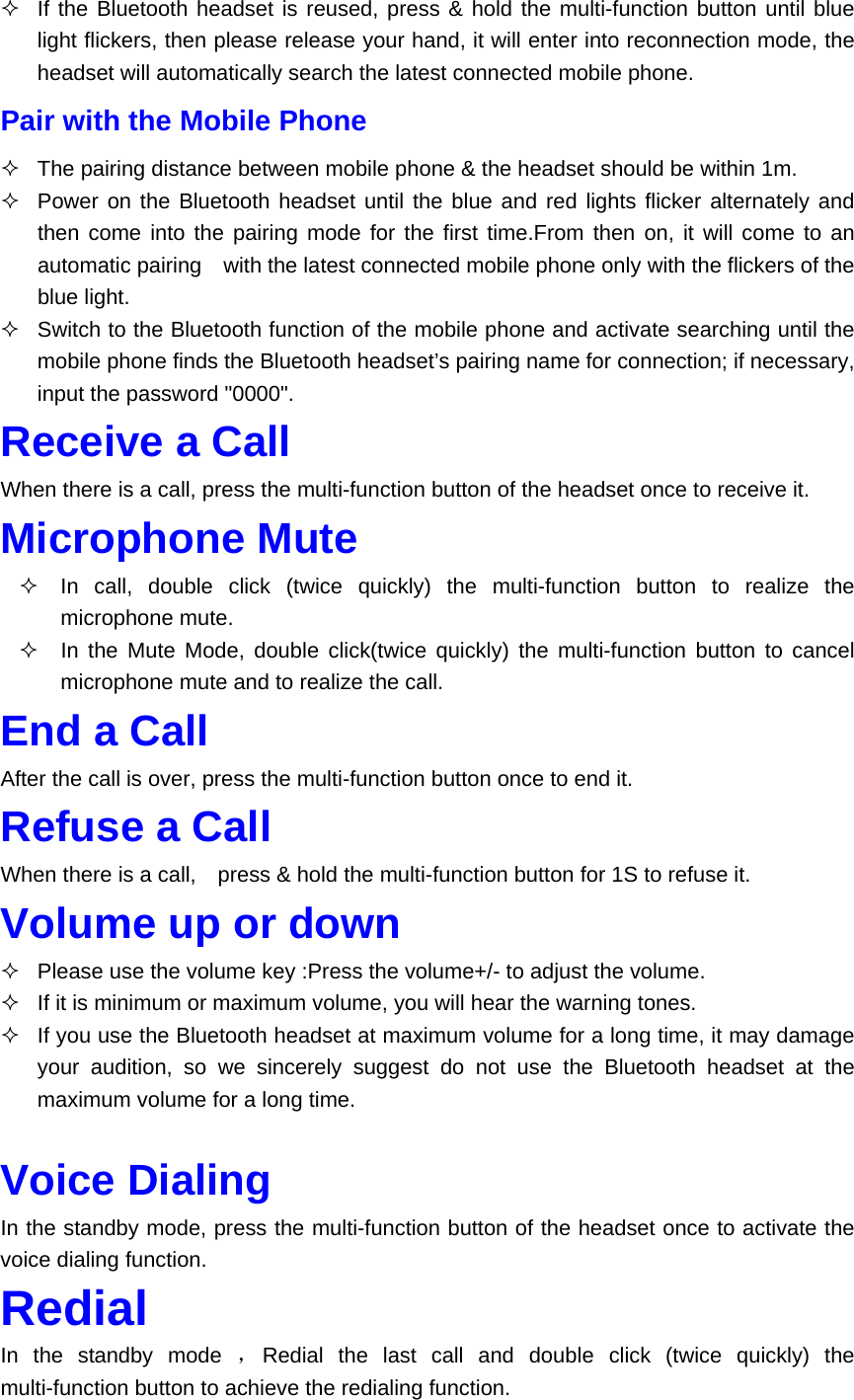

 If the Bluetooth headset is reused, press & hold the multi-function button until blue light flickers, then please release your hand, it will enter into reconnection mode, the headset will automatically search the latest connected mobile phone. Pair with the Mobile Phone  The pairing distance between mobile phone & the headset should be within 1m.  Power on the Bluetooth headset until the blue and red lights flicker alternately and then come into the pairing mode for the first time.From then on, it will come to an automatic pairing with the latest connected mobile phone only with the flickers of the blue light.  Switch to the Bluetooth function of the mobile phone and activate searching until the mobile phone finds the Bluetooth headset’s pairing name for connection; if necessary, input the password "0000". Receive a Call When there is a call, press the multi-function button of the headset once to receive it. Microphone Mute  In call, double click (twice quickly) the multi-function button to realize the microphone mute.  In the Mute Mode, double click(twice quickly) the multi-function button to cancel microphone mute and to realize the call. End a Call After the call is over, press the multi-function button once to end it. Refuse a Call When there is a call, press & hold the multi-function button for 1S to refuse it. Volume up or down  Please use the volume key :Press the volume+/- to adjust the volume.  If it is minimum or maximum volume, you will hear the warning tones.  If you use the Bluetooth headset at maximum volume for a long time, it may damage your audition, so we sincerely suggest do not use the Bluetooth headset at the maximum volume for a long time. Voice Dialing In the standby mode, press the multi-function button of the headset once to activate the voice dialing function. Redial In the standby mode ，Redial the last call and double click (twice quickly) the multi-function button to achieve the redialing function.

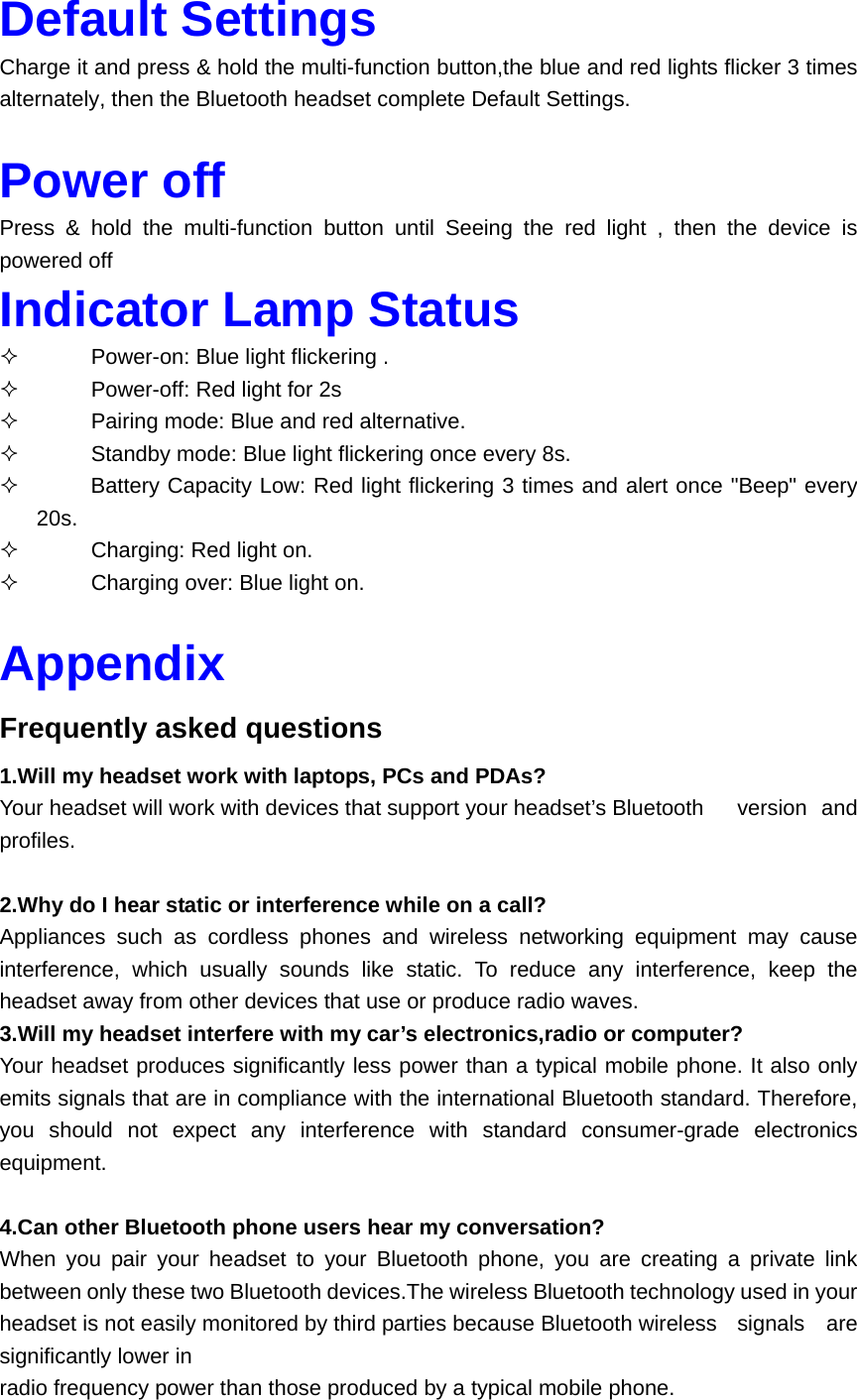

Default Settings Charge it and press & hold the multi-function button,the blue and red lights flicker 3 times alternately, then the Bluetooth headset complete Default Settings. Power off Press & hold the multi-function button until Seeing the red light , then the device is powered off Indicator Lamp Status  　 Power-on: Blue light flickering .  　 Power-off: Red light for 2s  　 Pairing mode: Blue and red alternative.  　 Standby mode: Blue light flickering once every 8s.  　 Battery Capacity Low: Red light flickering 3 times and alert once "Beep" every 20s.  　 Charging: Red light on.  　 Charging over: Blue light on. Appendix Frequently asked questions 1.Will my headset work with laptops, PCs and PDAs? Your headset will work with devices that support your headset’s Bluetooth version and profiles. 2.Why do I hear static or interference while on a call? Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the headset away from other devices that use or produce radio waves. 3.Will my headset interfere with my car’s electronics,radio or computer? Your headset produces significantly less power than a typical mobile phone. It also only emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard consumer-grade electronics equipment. 4.Can other Bluetooth phone users hear my conversation? When you pair your headset to your Bluetooth phone, you are creating a private link between only these two Bluetooth devices.The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.

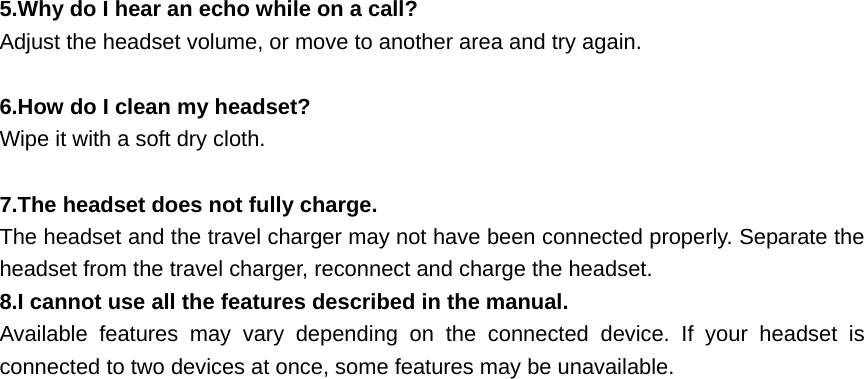

5.Why do I hear an echo while on a call? Adjust the headset volume, or move to another area and try again. 6.How do I clean my headset? Wipe it with a soft dry cloth. 7.The headset does not fully charge. The headset and the travel charger may not have been connected properly. Separate the headset from the travel charger, reconnect and charge the headset. 8.I cannot use all the features described in the manual. Available features may vary depending on the connected device. If your headset is connected to two devices at once, some features may be unavailable.

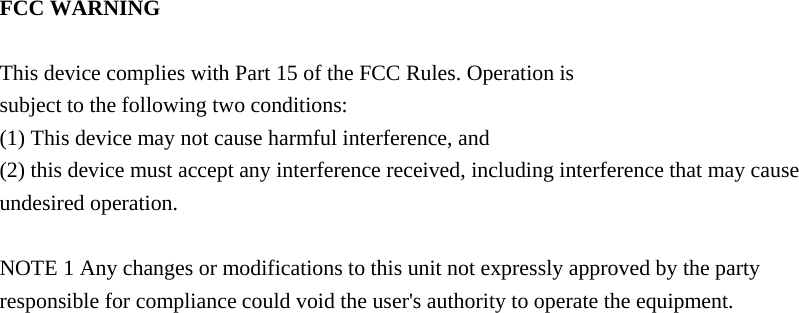

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1 Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
