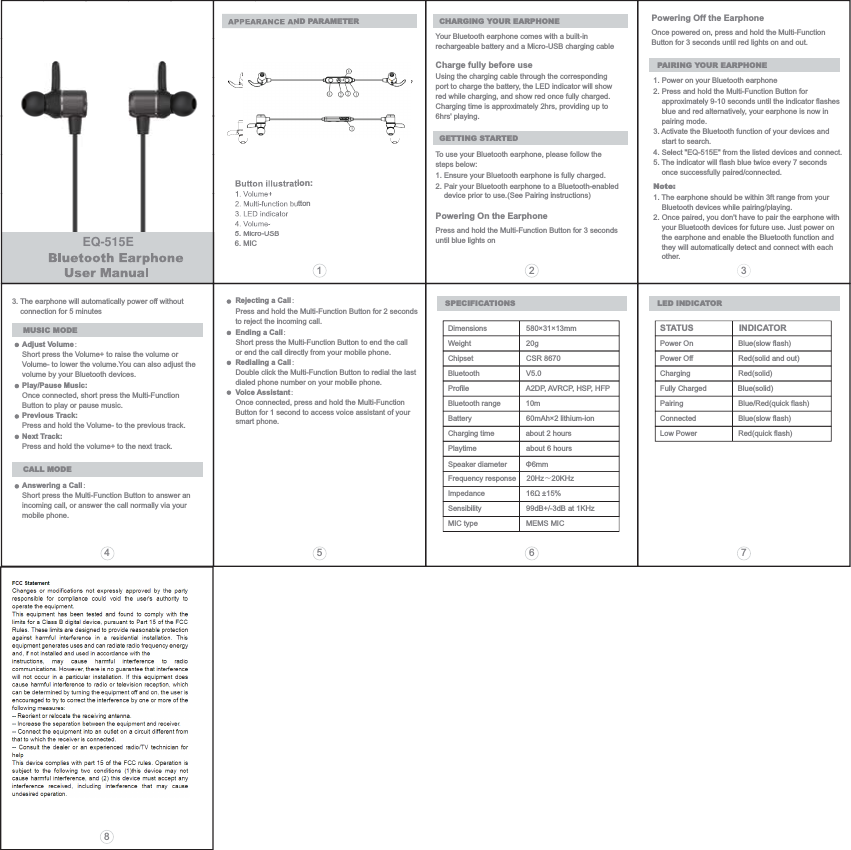

Dongguan Koppo Electronics EQ-515E Bluetooth Earphone User Manual

Dongguan Koppo Electronics Co.,Ltd Bluetooth Earphone

User Manual

CHARGING YOUR EARPHONEAPPEARANCE AND PARAMETERYour Bluetooth earphone comes with a built-in rechargeable battery and a Micro-USB charging cableCharge fully before useUsing the charging cable through the corresponding port to charge the battery, the LED indicator will show red while charging, and show red once fully charged.Charging time is approximately 2hrs, providing up to 6hrs' playing.GETTING STARTEDTo use your Bluetooth earphone, please follow the steps below:1. Ensure your Bluetooth earphone is fully charged.2. Pair your Bluetooth earphone to a Bluetooth-enabled device prior to use.(See Pairing instructions)Powering On the EarphonePress and hold the Multi-Function Button for 3 seconds until blue lights onPowering Off the EarphoneSPECIFICATIONSOnce powered on, press and hold the Multi-Function Button for 3 seconds until red lights on and out.PAIRING YOUR EARPHONE1. Power on your Bluetooth earphone2. Press and hold the Multi-Function Button for approximately 9-10 seconds until the indicator flashes blue and red alternatively, your earphone is now in pairing mode.3. Activate the Bluetooth function of your devices and start to search.4. Select "EQ-515E" from the listed devices and connect.5. The indicator will flash blue twice every 7 seconds once successfully paired/connected.Note: 1. The earphone should be within 3ft range from your Bluetooth devices while pairing/playing.2. Once paired, you don't have to pair the earphone with your Bluetooth devices for future use. Just power on the earphone and enable the Bluetooth function and they will automatically detect and connect with eachother.3. The earphone will automatically power off without connection for 5 minutesMUSIC MODEAdjust Volume：Short press the Volume+ to raise the volume or Volume- to lower the volume.You can also adjust the volume by your Bluetooth devices.Play/Pause Music:Once connected, short press the Multi-Function Button to play or pause music.Previous Track:Press and hold the Volume- to the previous track.Next Track:Press and hold the volume+ to the next track.CALL MODEAnswering a Call：Short press the Multi-Function Button to answer an incoming call, or answer the call normally via your mobile phone.Rejecting a Call： Press and hold the Multi-Function Button for 2 seconds to reject the incoming call.Ending a Call： Short press the Multi-Function Button to end the call or end the call directly from your mobile phone. Redialing a Call： Double click the Multi-Function Button to redial the last dialed phone number on your mobile phone. Voice Assistant： Once connected, press and hold the Multi-Function Button for 1 second to access voice assistant of your smart phone.Dimensions 580×31×13mmWeight 20gFrequency response 20Hz～20KHzChipset CSR 8670Bluetooth V5.0Profile A2DP, AVRCP, HSP, HFPBluetooth range 10mBattery 60mAh×2 lithium-ionCharging time about 2 hoursPlaytime about 6 hours6SHDNHUGLDPHWHUĭPP,PSHGDQFH ȍSensibility 99dB+/-3dB at 1KHzMIC type MEMS MICLED INDICATORSTATUS INDICATORPower On Blue(slow flash)Power Off Red(solid and out)Charging Red(solid)Fully Charged Blue(solid)Pairing Blue/Red(quick flash)Connected Blue(slow flash)Low Power Red(quick flash)15 6 742 3Button illustration:1. Volume+2. Multi-function button3. LED indicator4. Volume-5. Micro-USB6. MICEQ-515E8
