Dongguan Newmen Electronics Technology KB882RF Wireless 2.4G Keyboard User Manual Ezkey RF keyboard
Dongguan Newmen Electronics Technology Co.,LTD Wireless 2.4G Keyboard Ezkey RF keyboard
Users Manual
1
2
2.
.4
4G
GH
Hz
zC
Co
or
rd
dl
le
es
ss
sK
Ke
ey
yb
bo
oa
ar
rd
d
KB-882RF keyboard
User’s Manual
1. Preface
The Keyboard utilizing 2.4GHz RF cordless technology, it is a slim design and Mouse
combination. The keyboard built in hotkeys for Sleep and Multimedia functions, it has
working range of 12 meters from the receiver.
2. Features
2.4GHz ISM band radio frequency
16 channels hopping channel from 2.402 ~ 2.480 GHz.
65536 ID number identify
Operating distance up to 40 feet (12 meters)
Advanced power saving management
Error detection ability
4 Hotkeys for multimedia and Sleep
Windows Me/2000/XP/Vista compatible
FCC,CE, R&TTE, approvals
3. Power rating and temperature
Keyboard Input power: 3V (2 PCs of 1.5V Battery)
Operation Temperature: 0 ~ 70 ℃
4. Establishing the communication link
Connect the receiver to a USB port of the computer. LED light on the receiver will turn on
automatically.

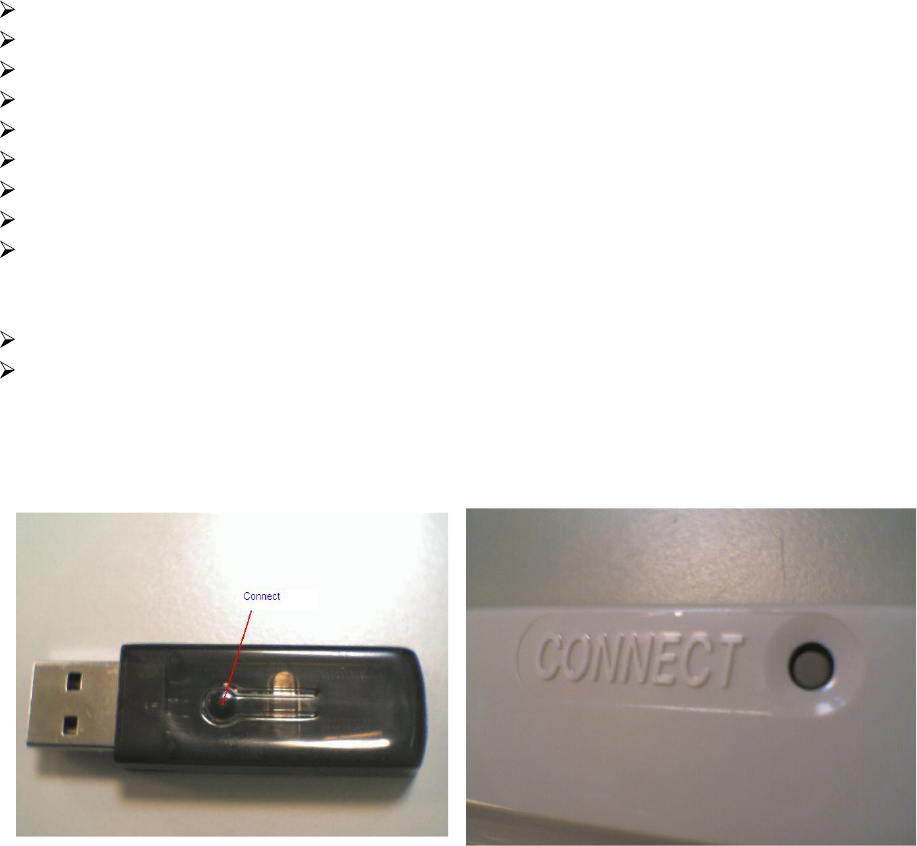

Fig 1 Dongle Receiver Fig. 2 Keyboard backside
2
Press and release the Setup button on the receiver to turn off the LED light. (Fig. 1)
Press the Connect button at the bottom of keyboard (Fig. 2). The LED light on receiver
illuminates, indicating that the setup process has been completed.
5. Sleep Mode
To save power consumption, this keyboard will enter into sleep mode automatically after
two minutes left unused. LED light of the Mouse will go off and mouse cursor will have no
movement temporarily.
Sleep mode of Mouse does not affect input function of other standard keys. Press any
key to wake up Mouse and to recover the Mouse function.
6.
FCC Approved
This device complies with the part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
7. Caution
To avoid the risk of batteries explosion, Please do not use alkaline batteries to charge
them.
Federal Communications Commission (FCC) Statement
15.21
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
