User Manual
2
To provide quality customer service and technical support, it is suggested that you keep the
following information as well as your store receipt and this user manual.
Date of Purchase:
________________________________
Product Rev.
Number (located below
the UPC on the package):
____________________
FCC RADIATION NORM
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Compliance Statement
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION!
The Federal Communications Commission warns the user that changes or modifications to the unit not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
3
PACKAGE CONTENTS
Your new mouse will ship with the following items:
- 2.4GHz Wireless Optical Nano Mouse
- Nano Receiver
- 2 AAA Batteries
- User Manual
- Warranty Information
SYSTEM REQUIREMENTS
Please be sure that you meet all of the system requirements below to avoid difficulties during installation
Compatible with: PCs, Mac® computers, and Chromebook™ notebook computers
Works with:
- Windows® XP, Windows® Vista ,Windows® 7 and Windows® 8 operating systems
- Mac OS X® 10.3 and above (Tilt-Wheel function is compatible with PCs only)
- An available USB port
SPECIFICATIONS
Your new mouse complies with the following specifications:
- USB Interface
Note: In order for the tilt-wheel function to work on your mouse you MUST download the
setup software from the Gear Head website.
4
INSTALLING BATTERIES
To properly install batteries into your mouse, please follow the instructions below:
1. Remove the battery compartment cover from your mouse.
2. Install two AAA batteries into the battery compartment following the orientation guide in the
battery bay.
3. Replace the battery compartment cover back onto your mouse until it locks securely.
5
INSTALLATION
For All Operating Systems
1. Make sure you have successfully installed the batteries into your mouse. Refer to the Installing
Batteries section in this manual if necessary.

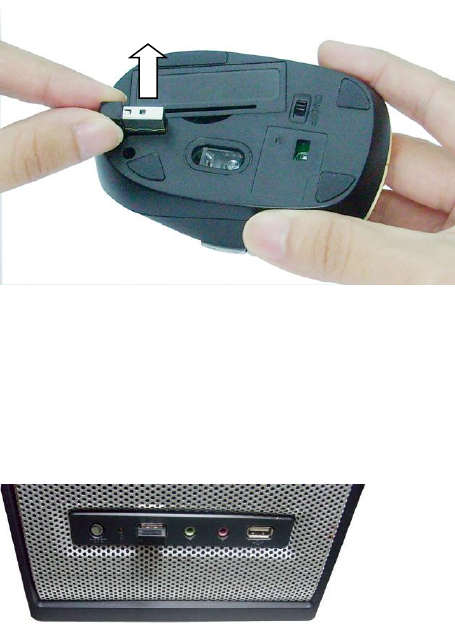

2. Pull out the Nano Receiver stowed in the bottom of your mouse.
3. Turn on your computer and plug the Nano Receiver into an available USB port on your computer. (If
you are not able to find a USB port on your computer, please refer to the user manual of your
computer for more detail.) Your wireless optical mouse is now ready!
6
DOWNLOADING TILT-WHEEL SETUP SOFTWARE
In order for the tilt-wheel function to work on your mouse you MUST download the setup software from
the Gear Head website.

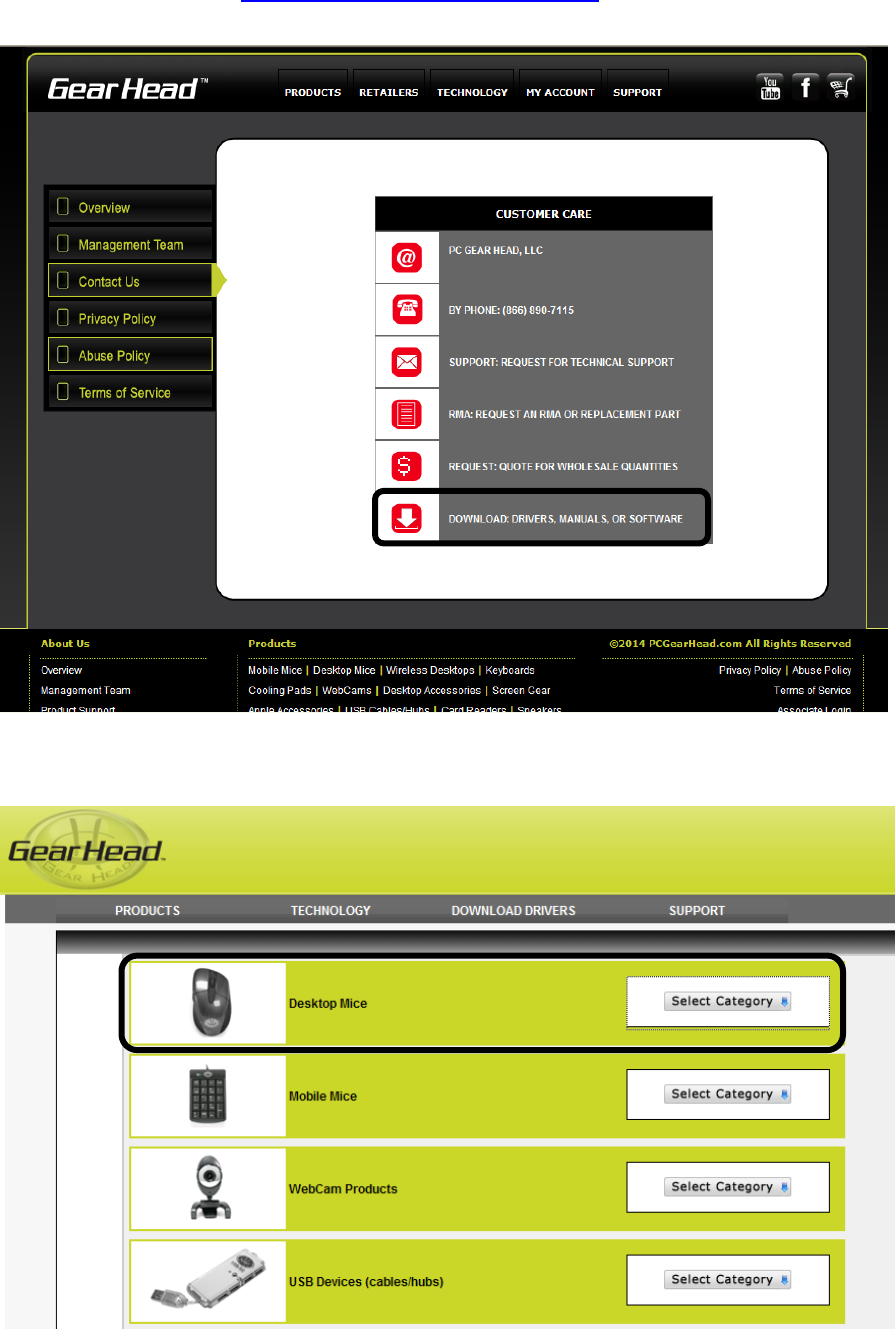

1. Go to the Support page (http://pcgearhead.com/support.php) on the Gear Head website and click
the DOWNLOAD: DRIVERS, MANUALS, OR SOFTWARE button.
2. Find Desktop Mice and click Select Category.
7

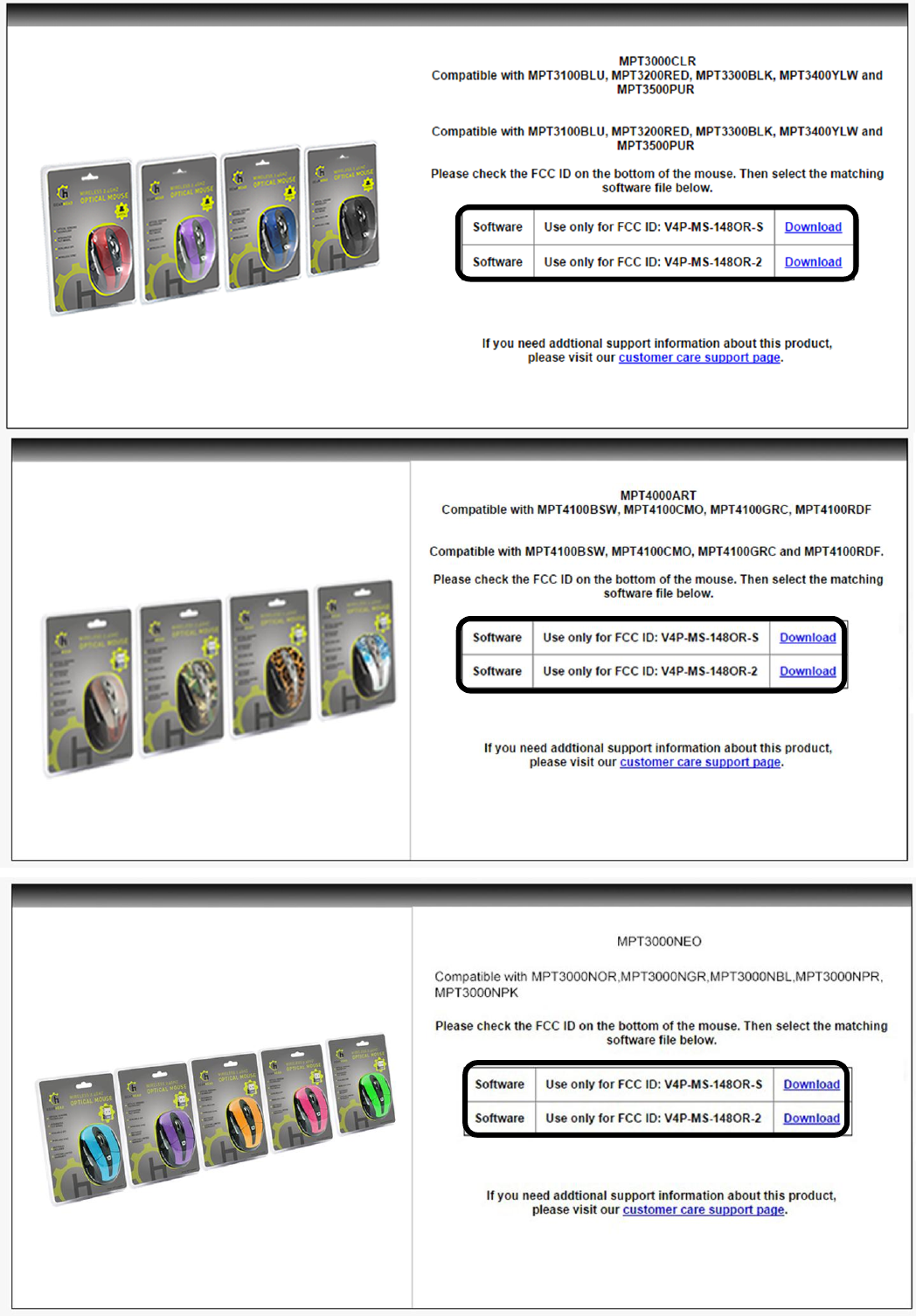

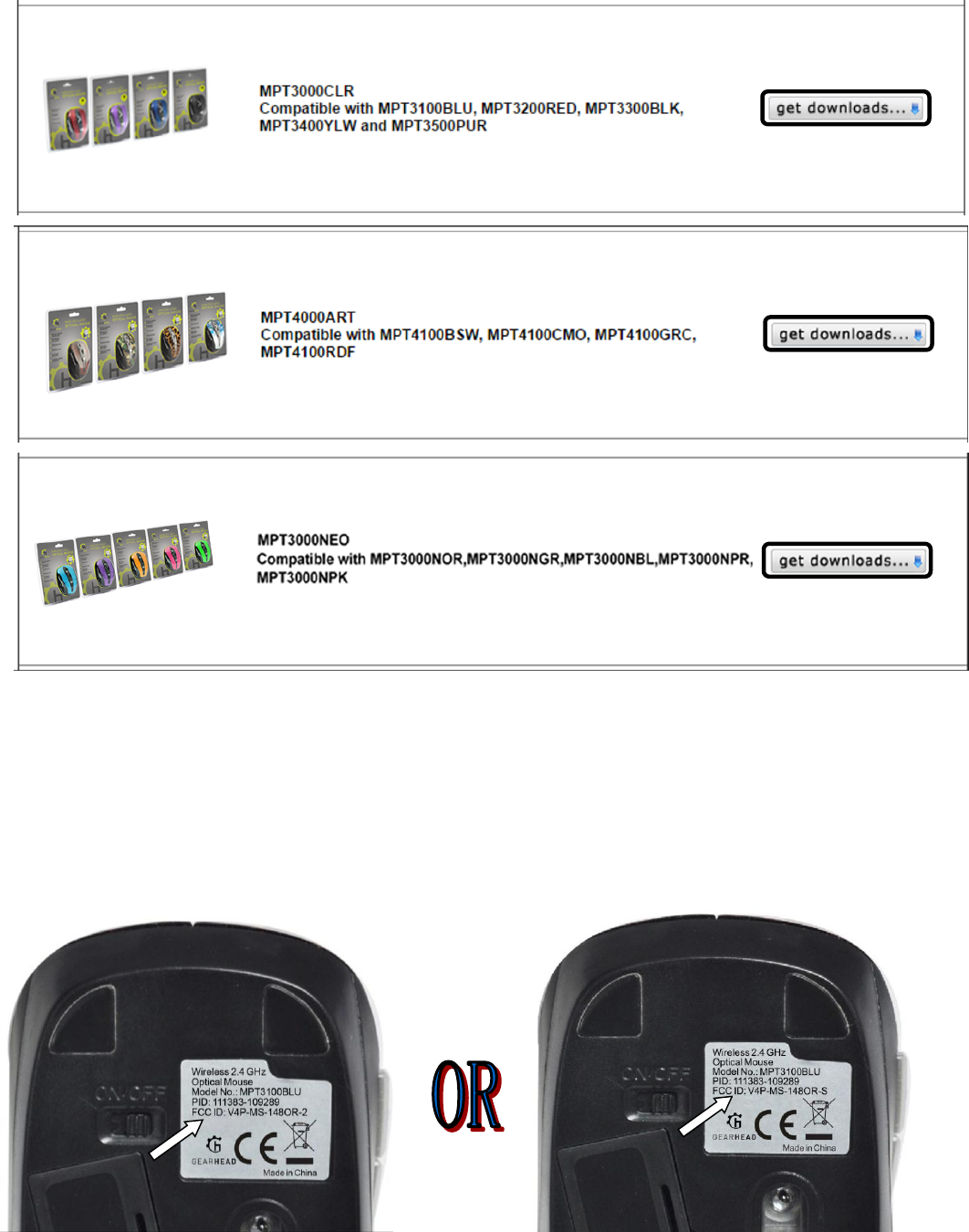

3. Find Model MPT3000CLR or MPT4000ART or MPT3000NEOand click get downloads….
4. A pop-up window will appear to initiate the download; click Download to start downloading.
(Note: Check the FCC ID number on the rating label which is located under the mouse. Then follow
FCC ID number to download relevant software.)
FCC ID （A） FCC ID （B）
FCC ID# V4P-MS-148OR-2 FCC ID# V4P-MS-148OR-S
8
9
5. Follow the onscreen instructions to download the setup software.
INSTALLING THE SETUP SOFTWARE
1. Decompress the downloaded software and click the Set Up icon to begin installation.

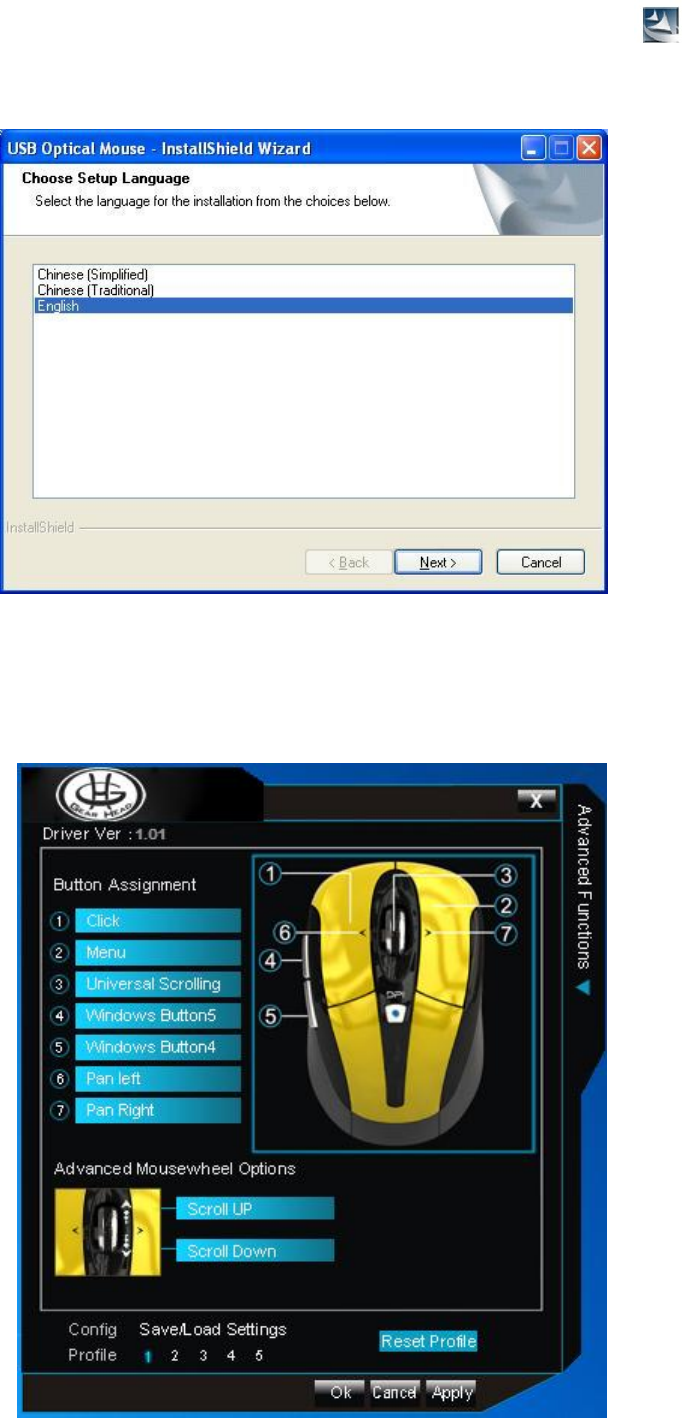

2. The USB Optical Mouse - InstallShield Wizard will appear on the desktop. Choose your installation
language on the following screen and click Next to continue.
3. Follow the onscreen instructions to finish the software installation. Please restart your computer
after the installation is finished.
USING THE SOFTWARE
10
Button Assignment
You can assign a function to
any button of your mouse by
selecting from the functions
stored in the drop-down
menu of each button. These
are the 12 options:
- Click
- Menu,
- Universal Scrolling,
- Double-click
- Advanced Functions
(see right for details)
- Button 4
- Button 5
- Switch Profile
- Cycle of Switch
Profile
- Pan Left
- Pan Right
- Button Off
Advanced Functions
Single/Macro
You can assign any key
function or key combination
to a single button on your
mouse.
Basic
Commands
The drop-down menu
provides 9 basic word
document software
operations.
Additional
Commands
The drop-down menu
provides 7 basic system
operations.
Media
Functions
The drop-down menu
provides 7 basic media
operation modes.
Tip: Press and hold the DPI
button on your mouse for 5
seconds and then it can be
used to play/pause your
media, while the horizontal
tilt-wheel function can be
used as volume up/down. To
return to the normal mode,
press the DPI button for 5
seconds again.
Switch
Profile
You can set the functions of your mouse
buttons to go to a specified mouse
configuration profile, every time that mouse
button is clicked.
Cycle of Switch Profile
You can rotate between the 5 profiles you
have set by clicking the assigned mouse
button. The 5 configurations can be set and
stored using the software.
Advanced Mousewheel
Options
You can assign a function to the vertical (up or down) operation of your
tilt-wheel by selecting from the functions stored in the drop-down menu:
Click, Menu, Double-click, Advanced Functions, Scroll Up, and Scroll Down
are available.
Config Save/Load Settings
Click Save/Load Settings to
enter the following screen
and perform one of four
functions.
Load Config
Retrieve a configuration previously
saved to your computer.
Save Config
After assigning custom functions to
your mouse buttons, you can save
up to 5 different configurations.
Reset to Default Configuration
Revert all settings back to the
default configuration.
11
Reset Current Profile
Change the current settings shown
on the software screen back to the
default settings.
You can store up to 5 different configurations with this software. Select a
number then change the configuration in the Button Assignment and
Advanced Mousewheel Options menu. Next click Ok under the Advance
Config Options menu to save your settings to that profile.
CHANGING THE SPEED OF YOUR MOUSE
To adjust the speed of the cursor or the scroll button features on your computer, follow the instructions
below:
NOTE: The screenshots show in this section are for demonstration only and your screen may look slightly
different but with similar options.
For Windows® Operating Systems
Open the Control Panel. Double-click the Mouse icon to open the Mouse Properties screen and then
select Pointer Options. Adjust the settings to your liking and select Apply then OK.
For Mac OS X® 10.3 and Above
Open System Preferences. At the System Preferences screen, click the Keyboard & Mouse icon. Select the
Mouse tab and make your changes.
Windows® Operating Systems Mac OS X® 10.3 and Above
12
WARRANTY INFORMATION
Limited Lifetime Warranty
Gear Head, LLC warrants that this product shall be free from defects in materials and workmanship for the
reasonable lifetime of the product. If the product is defective, Gear Head, LLC’s sole obligation under this
warranty shall be at its election, subject to the terms of this warranty, to repair or replace any parts
deemed defective. This warranty is for the exclusive benefit of the original purchaser and is not assignable
or transferable. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TERMS OF THIS WARRANTY, UNLESS OTHERWISE
PROHIBITED BY LAW.
Exclusions
To the fullest extent permitted by law, Gear Head, LLC expressly disclaims and excludes from this warranty
any liability for damages, including but not limited to general, special, indirect, incidental, consequential,
aggravated, punitive or exemplary damages, and economic loss (even if Gear Head is informed of their
possibility), third party claims against you, including for any loss or damages, and claims or damages
related to loss of, or, damage to, your records or data. This warranty does not apply to any product the
exterior of which has been damaged or defaced. This warranty will be voided by misuse, improper physical
environment, improper repair, acts of God, war or terror, commercial use, and improper service, operation
or handling.
Technical Support
Please access Technical Support on the web at www.pcgearhead.com or contact our technicians at
info@pcgearhead.com for help.
Gear Head provides phone support, 866-890-7115, Monday-Friday from 9:00am-5:30pm Eastern Time.
Before calling, please make sure you have the Model # (located on the front page of your User Manual)
and information regarding your computer’s operating system.
Return Merchandise for Service
Any claim under this warranty must be made in writing to Gear Head, LLC, within 30 days after the owner
discovers the circumstances giving rise to any such claim, and must include a copy of this warranty
document, a receipt or copy of your invoice marked with the date of purchase, and the original packaging.
You may contact us on the web at www.pcgearhead.com or by emailing us at info@pcgearhead.com to
receive service or request a return service authorization.
