users Manual

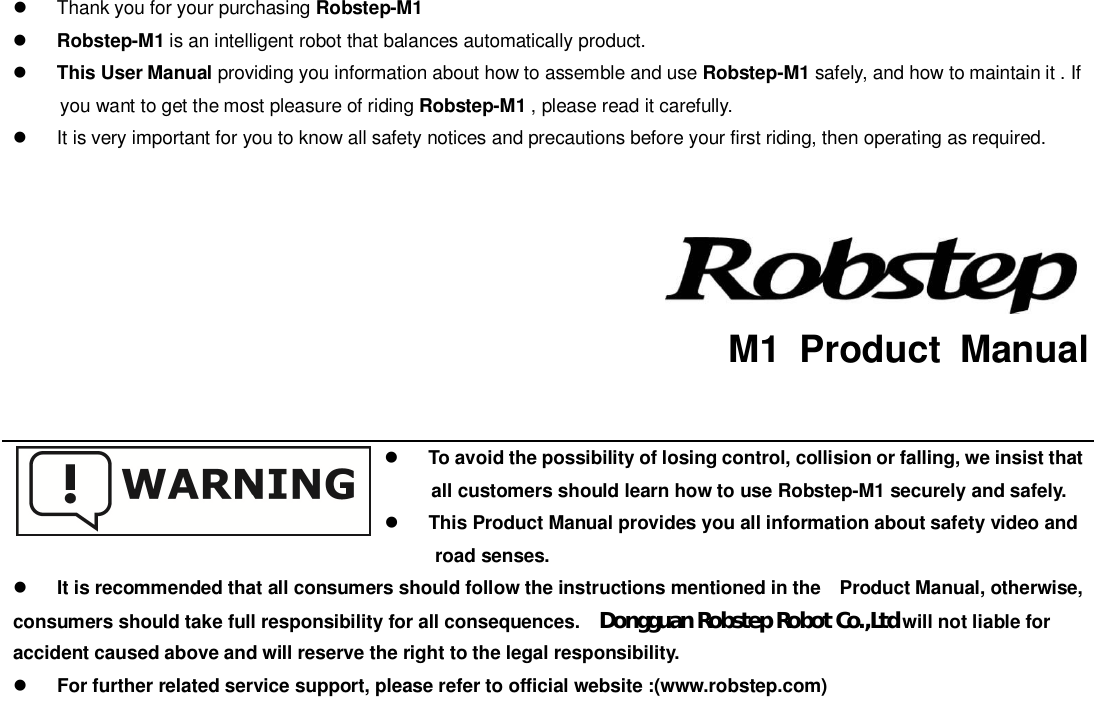

 Thank you for your purchasing Robstep-M1Robstep-M1 is an intelligent robot that balances automatically product.This User Manual providing you information about how to assemble and use Robstep-M1 safely, and how to maintain it . Ifyou want to get the most pleasure of riding Robstep-M1 , please read it carefully. It is very important for you to know all safety notices and precautions before your first riding, then operating as required. M1 Product ManualTo avoid the possibility of losing control, collision or falling, we insist thatall customers should learn how to use Robstep-M1 securely and safely.This Product Manual provides you all information about safety video androad senses.It is recommended that all consumers should follow the instructions mentioned in the Product Manual, otherwise,consumers should take full responsibility for all consequences. Dongguan Robstep Robot Co.,Ltdwill not liable foraccident caused above and will reserve the right to the legal responsibility.For further related service support, please refer to official website :(www.robstep.com)

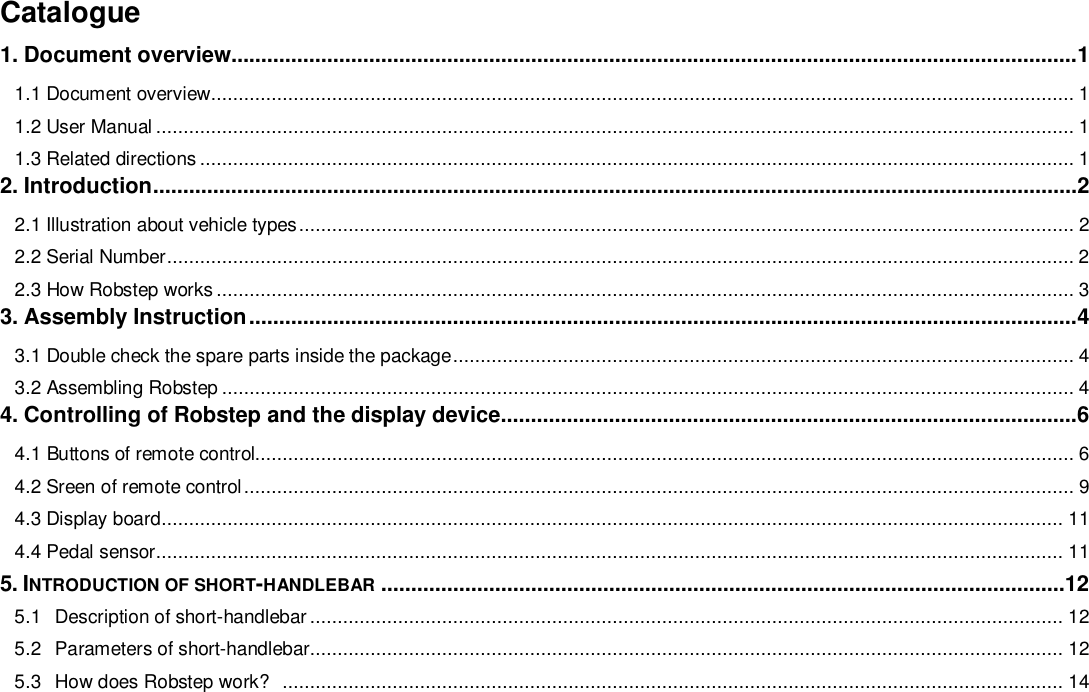

Catalogue1. Document overview............................................................................................................................................. 11.1 Document overview ............................................................................................................................................................. 11.2 User Manual ....................................................................................................................................................................... 11.3 Related directions ............................................................................................................................................................... 12. Introduction .......................................................................................................................................................... 22.1 Illustration about vehicle types ............................................................................................................................................. 22.2 Serial Number ..................................................................................................................................................................... 22.3 How Robstep works ............................................................................................................................................................ 33. Assembly Instruction .......................................................................................................................................... 43.1 Double check the spare parts inside the package ................................................................................................................. 43.2 Assembling Robstep ........................................................................................................................................................... 44. Controlling of Robstep and the display device ................................................................................................ 64.1 Buttons of remote control..................................................................................................................................................... 64.2 Sreen of remote control ....................................................................................................................................................... 94.3 Display board .................................................................................................................................................................... 114.4 Pedal sensor ..................................................................................................................................................................... 115. INTRODUCTION OF SHORT-HANDLEBAR ..................................................................................................................125.1 Description of short-handlebar ......................................................................................................................................... 125.2 Parameters of short-handlebar ......................................................................................................................................... 125.3 How does Robstep work? .............................................................................................................................................. 14

5.4 Check the package .......................................................................................................................................................... 155.5 Assemble the short-handlebar ......................................................................................................................................... 156. Instructions of battery.......................................................................................................................................176.1 Low power ........................................................................................................................................................................ 186.2 Charging steps .................................................................................................................................................................. 186.3 Temperature too high or too low ........................................................................................................................................ 196.4 Precautions of battery transportation .................................................................................................................................. 196.5 Specification of battery ...................................................................................................................................................... 207. Safety precautions ............................................................................................................................................217.1 The weight limit of users .................................................................................................................................................... 217.2 The maximum driving distance .......................................................................................................................................... 227.3 Speed limit ........................................................................................................................................................................ 227.4 Vibration warning .............................................................................................................................................................. 237.5 Abnormal condition ........................................................................................................................................................... 238. How to use Robstep ..........................................................................................................................................248.1 Start up Robstep ............................................................................................................................................................... 248.2 Safe Parking ..................................................................................................................................................................... 248.3 Driving steps ..................................................................................................................................................................... 258.4 Driving practice ................................................................................................................................................................. 269. Driving safety instruction .................................................................................................................................2610. Repair and maintenance .................................................................................................................................2810.1 Carrying Robstep ............................................................................................................................................................ 29

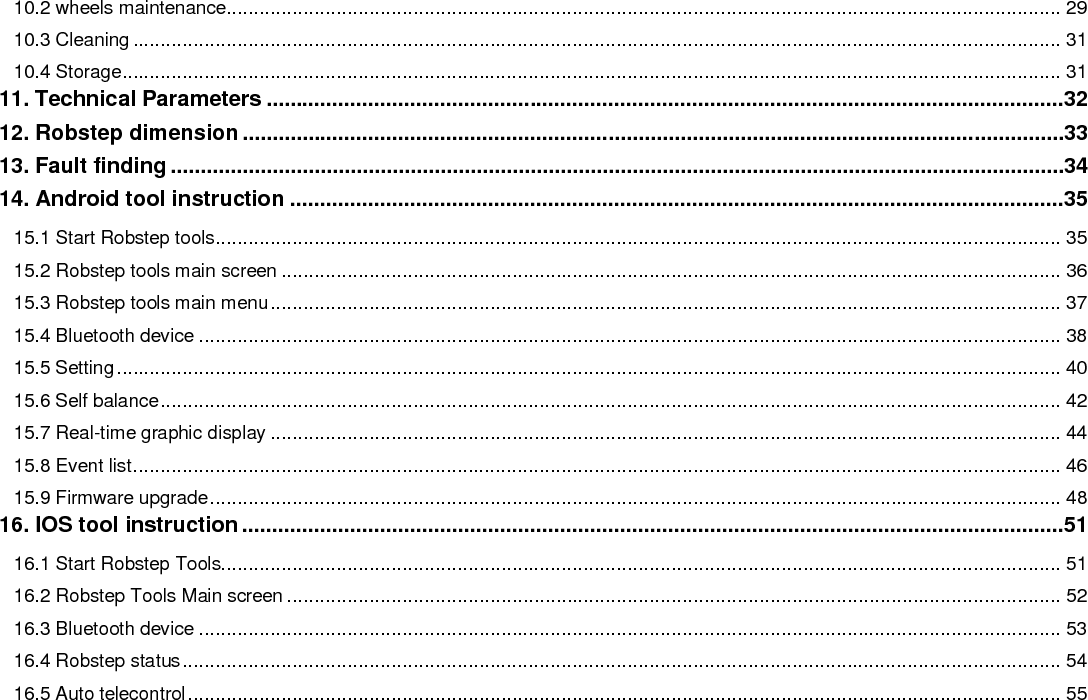

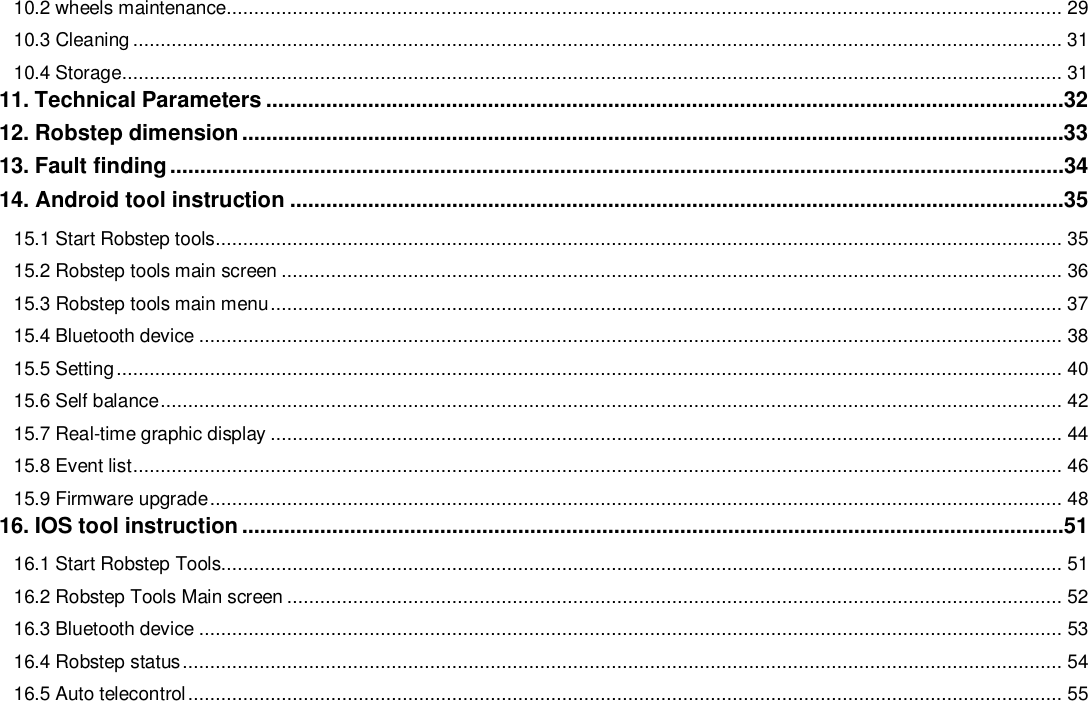

10.2 wheels maintenance ........................................................................................................................................................ 2910.3 Cleaning ......................................................................................................................................................................... 3110.4 Storage ........................................................................................................................................................................... 3111. Technical Parameters .....................................................................................................................................3212. Robstep dimension .........................................................................................................................................3313. Fault finding .....................................................................................................................................................3414. Android tool instruction .................................................................................................................................3515.1 Start Robstep tools .......................................................................................................................................................... 3515.2 Robstep tools main screen .............................................................................................................................................. 3615.3 Robstep tools main menu ................................................................................................................................................ 3715.4 Bluetooth device ............................................................................................................................................................. 3815.5 Setting ............................................................................................................................................................................ 4015.6 Self balance .................................................................................................................................................................... 4215.7 Real-time graphic display ................................................................................................................................................ 4415.8 Event list ......................................................................................................................................................................... 4615.9 Firmware upgrade ........................................................................................................................................................... 4816. IOS tool instruction .........................................................................................................................................5116.1 Start Robstep Tools......................................................................................................................................................... 5116.2 Robstep Tools Main screen ............................................................................................................................................. 5216.3 Bluetooth device ............................................................................................................................................................. 5316.4 Robstep status ................................................................................................................................................................ 5416.5 Auto telecontrol ............................................................................................................................................................... 55

16.6 Manual telecontrol ........................................................................................................................................................... 5616.7 Firmware upgrade ........................................................................................................................................................... 5716.8 Setting ............................................................................................................................................................................ 60Hope you enjoy the fun of Robstep ..................................................................................................................61

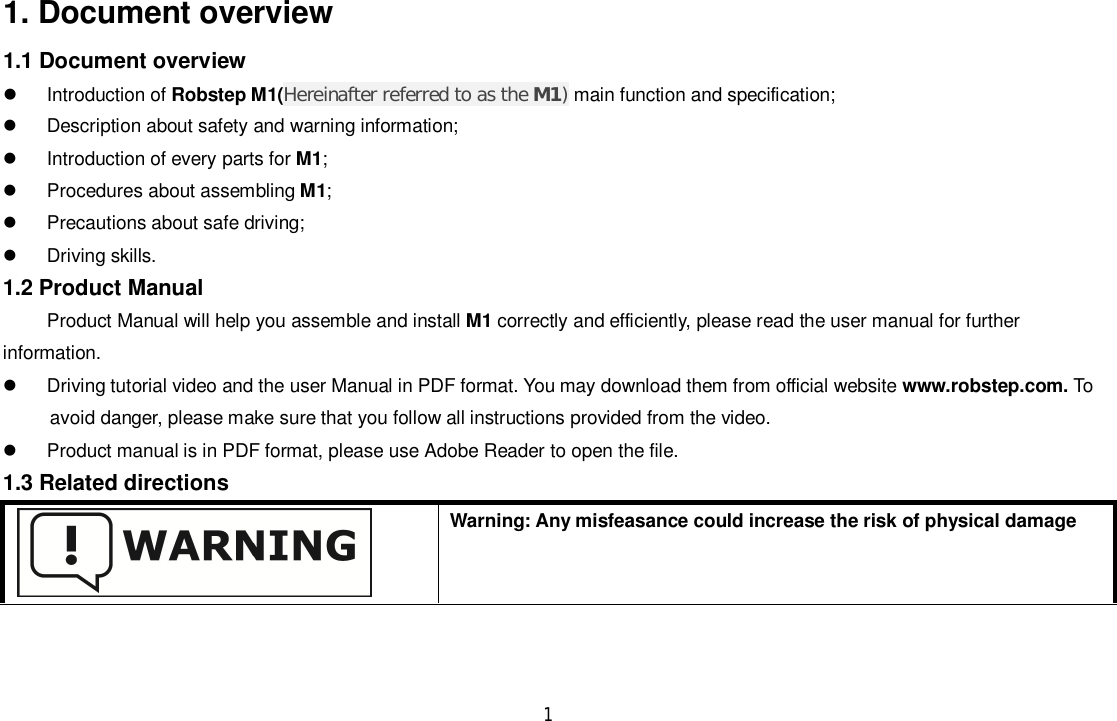

11. Document overview1.1 Document overview Introduction of Robstep M1(Hereinafter referred to as the M1)main function and specification; Description about safety and warning information; Introduction of every parts for M1; Procedures about assembling M1; Precautions about safe driving; Driving skills.1.2 Product ManualProduct Manual will help you assemble and install M1 correctly and efficiently, please read the user manual for furtherinformation. Driving tutorial video and the user Manual in PDF format. You may download them from official website www.robstep.com. Toavoid danger, please make sure that you follow all instructions provided from the video. Product manual is in PDF format, please use Adobe Reader to open the file.1.3 Related directionsWarning: Any misfeasance could increase the risk of physical damage

2Note : Precautions and use-method that should be noticed by all users.2. Introduction2.1 Illustration about vehicle typesM1 is an intelligent robot researched anddeveloped by M1, which made the usage ofprinciple of mobile equilibrium for controlling ofmoving forward, backward and stop. With thetilting of your body, you can control its speed anddirection freely.M1 is very flexible, safe andportable. Broaden your horizon and give youan incredible driving experience.M1has been widely used in various aspects ofwork and live , such as personal transportation,working patrol, indoor venues, tourismentertainment and car carrying and so on.2.2 Serial Number The serial number of M1 is unique and exclusive.

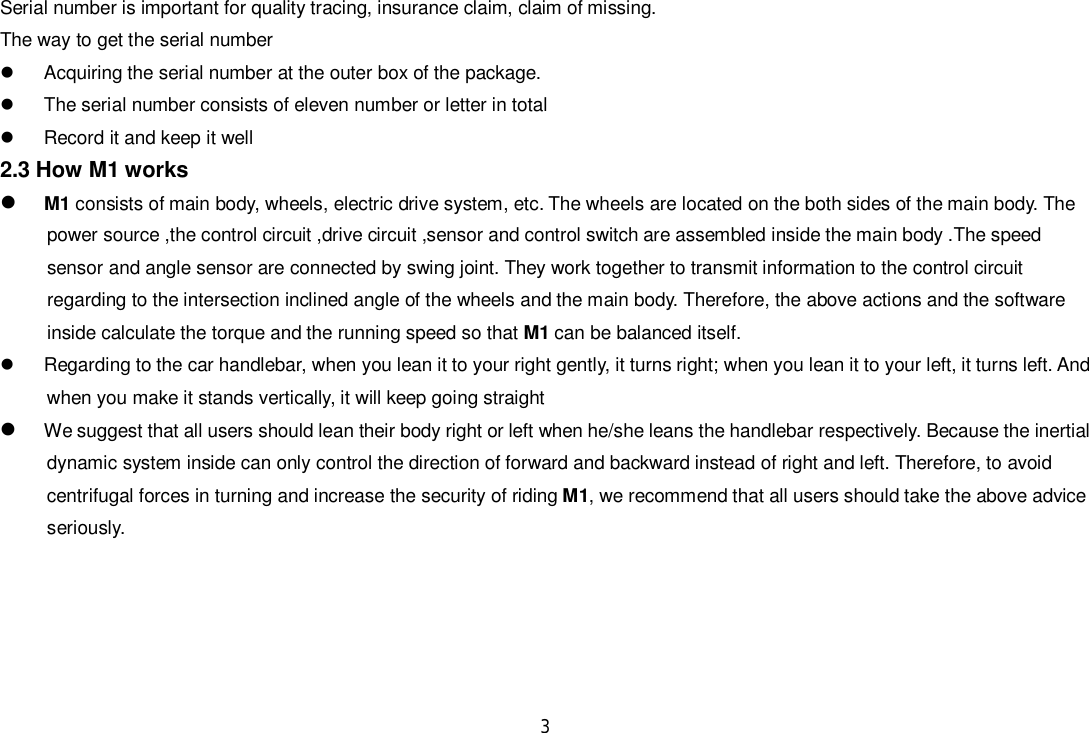

3Serial number is important for quality tracing, insurance claim, claim of missing.The way to get the serial number Acquiring the serial number at the outer box of the package. The serial number consists of eleven number or letter in total Record it and keep it well2.3 How M1 worksM1 consists of main body, wheels, electric drive system, etc. The wheels are located on the both sides of the main body. Thepower source ,the control circuit ,drive circuit ,sensor and control switch are assembled inside the main body .The speedsensor and angle sensor are connected by swing joint. They work together to transmit information to the control circuitregarding to the intersection inclined angle of the wheels and the main body. Therefore, the above actions and the softwareinside calculate the torque and the running speed so that M1 can be balanced itself. Regarding to the car handlebar, when you lean it to your right gently, it turns right; when you lean it to your left, it turns left. Andwhen you make it stands vertically, it will keep going straightWe suggest that all users should lean their body right or left when he/she leans the handlebar respectively. Because the inertialdynamic system inside can only control the direction of forward and backward instead of right and left. Therefore, to avoidcentrifugal forces in turning and increase the security of riding M1, we recommend that all users should take the above adviceseriously.

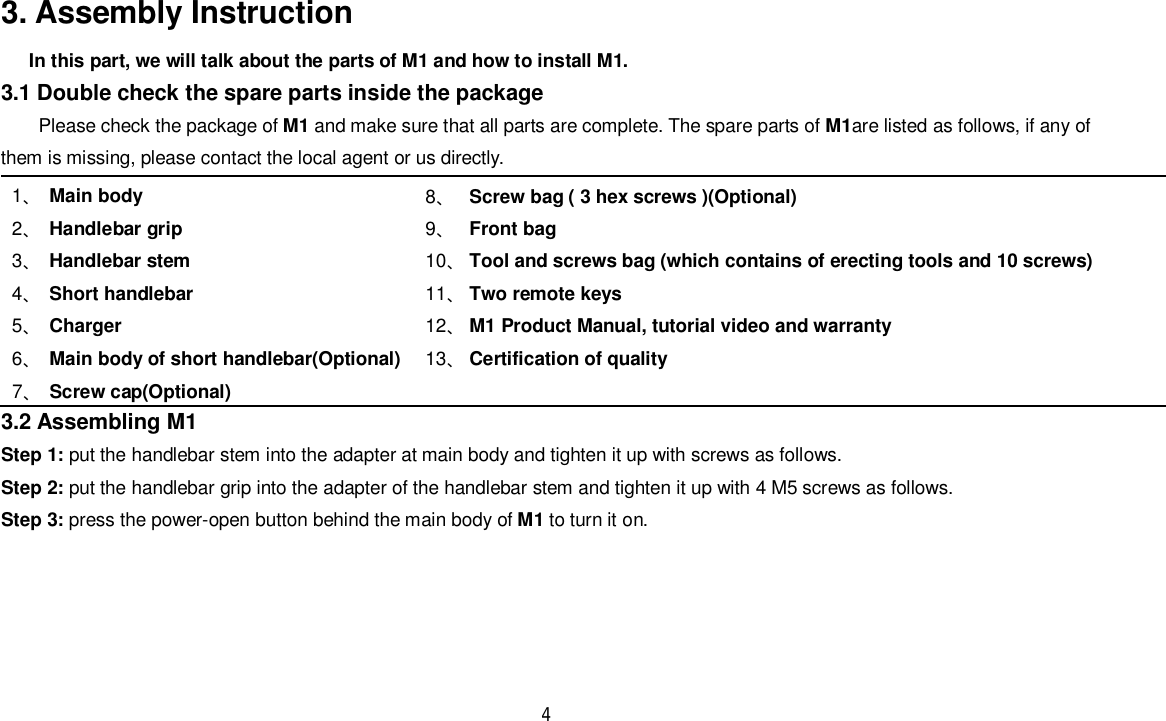

43. Assembly InstructionIn this part, we will talk about the parts of M1 and how to install M1.3.1 Double check the spare parts inside the packagePlease check the package of M1 and make sure that all parts are complete. The spare parts of M1are listed as follows, if any ofthem is missing, please contact the local agent or us directly.1󵚞Main body2󵚞Handlebar grip3󵚞Handlebar stem4󵚞Short handlebar5󵚞Charger6󵚞Main body of short handlebar(Optional)7󵚞Screw cap(Optional)8󵚞Screw bag ( 3 hex screws )(Optional)9󵚞Front bag10󵚞Tool and screws bag (which contains of erecting tools and 10 screws)11󵚞Two remote keys12󵚞M1 Product Manual, tutorial video and warranty13󵚞Certification of quality3.2 Assembling M1Step 1: put the handlebar stem into the adapter at main body and tighten it up with screws as follows.Step 2: put the handlebar grip into the adapter of the handlebar stem and tighten it up with 4 M5 screws as follows.Step 3: press the power-open button behind the main body of M1 to turn it on.

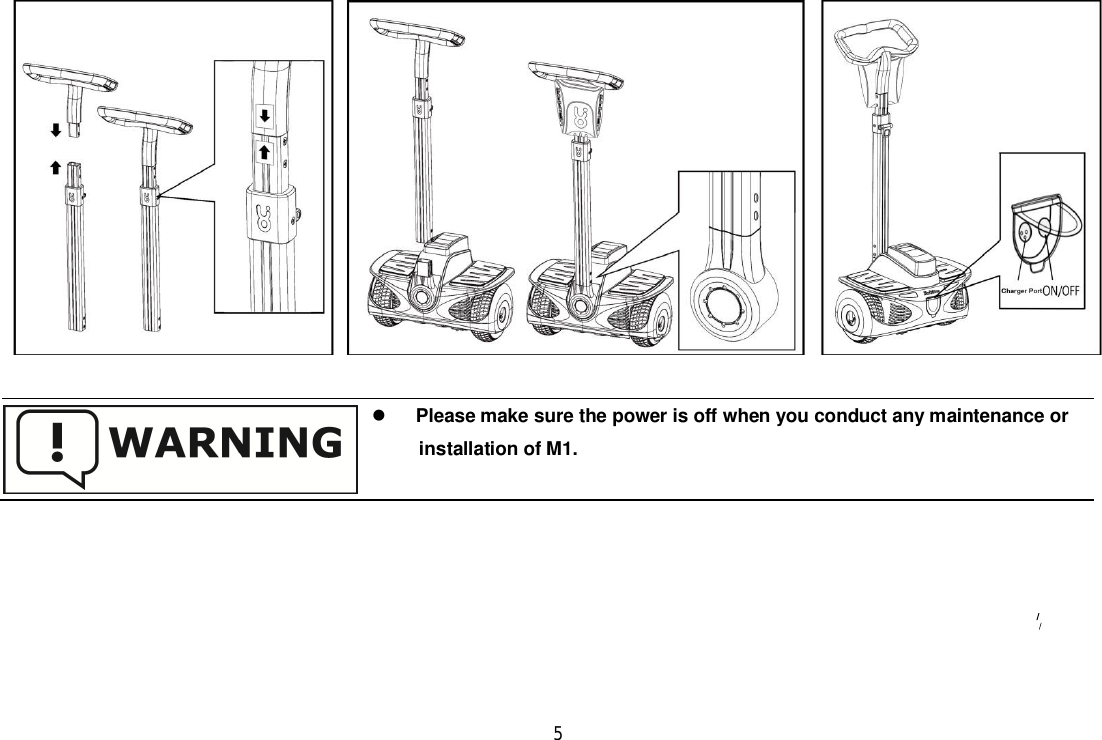

5Please make sure the power is off when you conduct any maintenance orinstallation of M1.

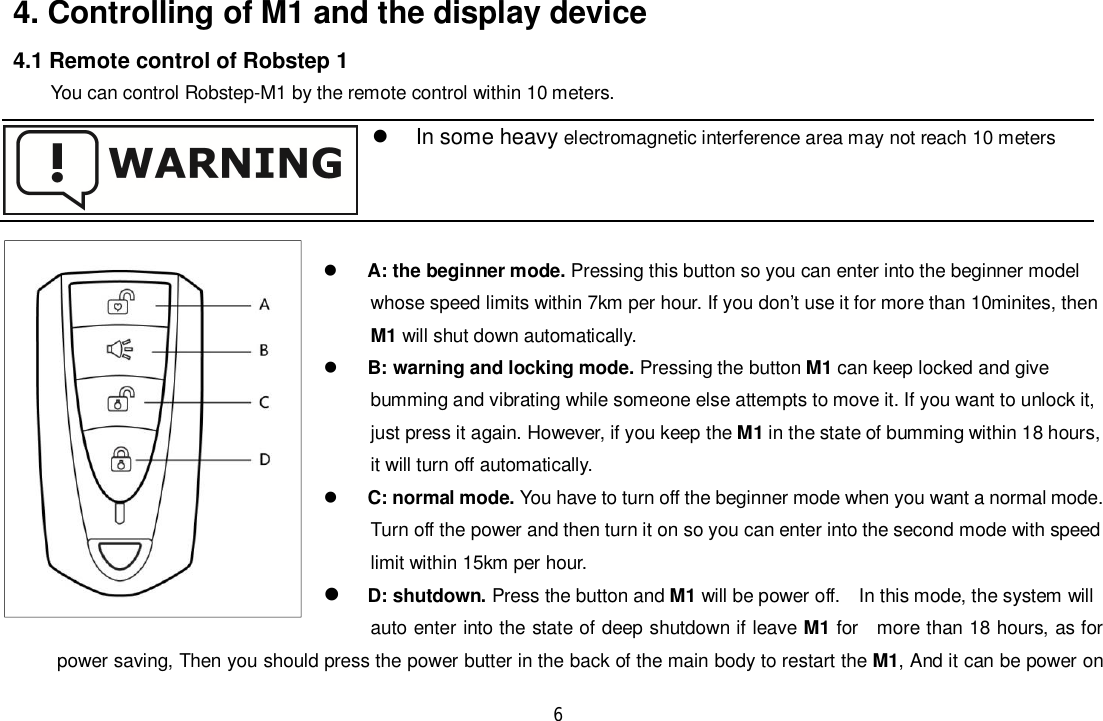

64. Controlling of M1 and the display device4.1 Remote control of Robstep 1You can control Robstep-M1 by the remote control within 10 meters.A: the beginner mode. Pressing this button so you can enter into the beginner modelwhose speed limits within 7km per hour. If you don’t use it for more than 10minites, thenM1 will shut down automatically.B: warning and locking mode. Pressing the button M1 can keep locked and givebumming and vibrating while someone else attempts to move it. If you want to unlock it,just press it again. However, if you keep the M1 in the state of bumming within 18 hours,it will turn off automatically.C: normal mode. You have to turn off the beginner mode when you want a normal mode.Turn off the power and then turn it on so you can enter into the second mode with speedlimit within 15km per hour.D: shutdown. Press the button and M1 will be power off. In this mode, the system willauto enter into the state of deep shutdown if leave M1 for more than 18 hours, as forpower saving, Then you should press the power butter in the back of the main body to restart the M1, And it can be power on In some heavy electromagnetic interference area may not reach 10 meters

7again by the remote key. If you long press the off button under the state of shutdown, the system will cut down the main powerautomaticlly, and also enter into the state of deep shutdown. Press D” shutdown” button again during power off mode,systemwill cut down the main power automatically. In order to save more power. Press the button beyond charging gate will power M1on.A + C : under unmanned mode. press button A for 3 seconds(the buzzer will make a sound of tick) ,then press button C in the following 3 seconds, M1 can enter into self-checking system. Before the start of self-checking, thebody of Robstep shall be hung up. In the state of self-checking, you will hear the bumming sound and all five lights keepflickering. The system of Robstep itself will conduct a series of self-checking, in the meanwhile, the wheels will turn onautomatically in a slow speed. If there is no problem after self-checking, the system will shut down normally. Otherwise, warningsound of beeping will come from the buzzer and it will turn off automatically. Under this condition, we insist that you should sendthe M1 to your local agent or contact with us directly.4.2.1 Buttons of remote control 2You can control Robstep-M1 by the remote control within 10 meters. In some heavy electromagnetic interference area may not reach 10 meters

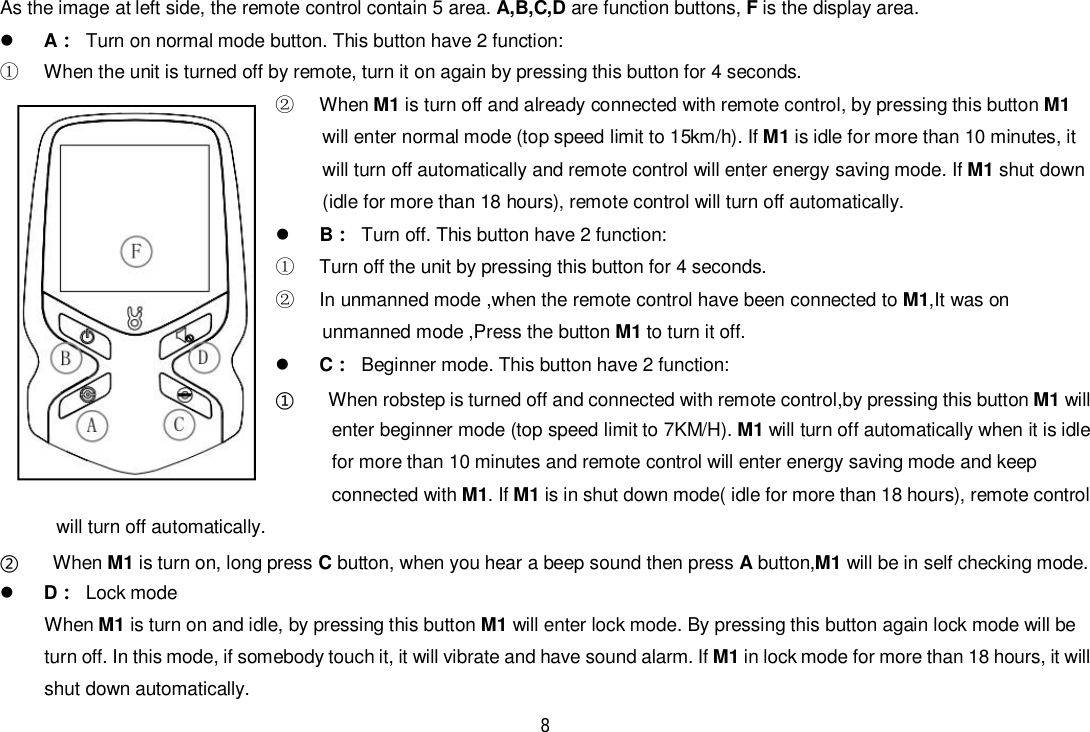

8As the image at left side, the remote control contain 5 area. A,B,C,D are function buttons, F is the display area.A Turn on normal mode button. This button have 2 function: When the unit is turned off by remote, turn it on again by pressing this button for 4 seconds. When M1 is turn off and already connected with remote control, by pressing this button M1will enter normal mode (top speed limit to 15km/h). If M1 is idle for more than 10 minutes, itwill turn off automatically and remote control will enter energy saving mode. If M1 shut down(idle for more than 18 hours), remote control will turn off automatically.B Turn off. This button have 2 function: Turn off the unit by pressing this button for 4 seconds. In unmanned mode ,when the remote control have been connected to M1,It was onunmanned mode ,Press the button M1 to turn it off.C Beginner mode. This button have 2 function: When robstep is turned off and connected with remote control,by pressing this button M1 willenter beginner mode (top speed limit to 7KM/H). M1 will turn off automatically when it is idlefor more than 10 minutes and remote control will enter energy saving mode and keepconnected with M1. If M1 is in shut down mode( idle for more than 18 hours), remote controlwill turn off automatically. When M1 is turn on, long press C button, when you hear a beep sound then press A button,M1 will be in self checking mode.D Lock modeWhen M1 is turn on and idle, by pressing this button M1 will enter lock mode. By pressing this button again lock mode will beturn off. In this mode, if somebody touch it, it will vibrate and have sound alarm. If M1 in lock mode for more than 18 hours, it willshut down automatically.

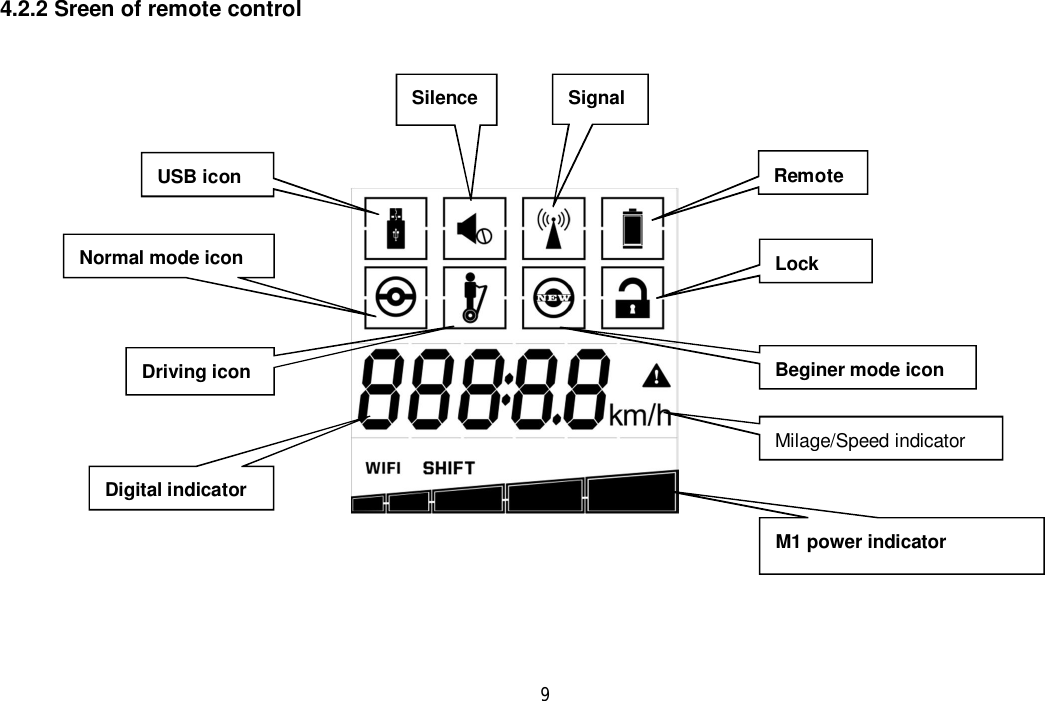

9Silence SignalRemoteUSB iconNormal mode iconLockM1 power indicatorDigital indicatorDriving iconBeginer mode iconMilage/Speed indicator4.2.2 Sreen of remote control

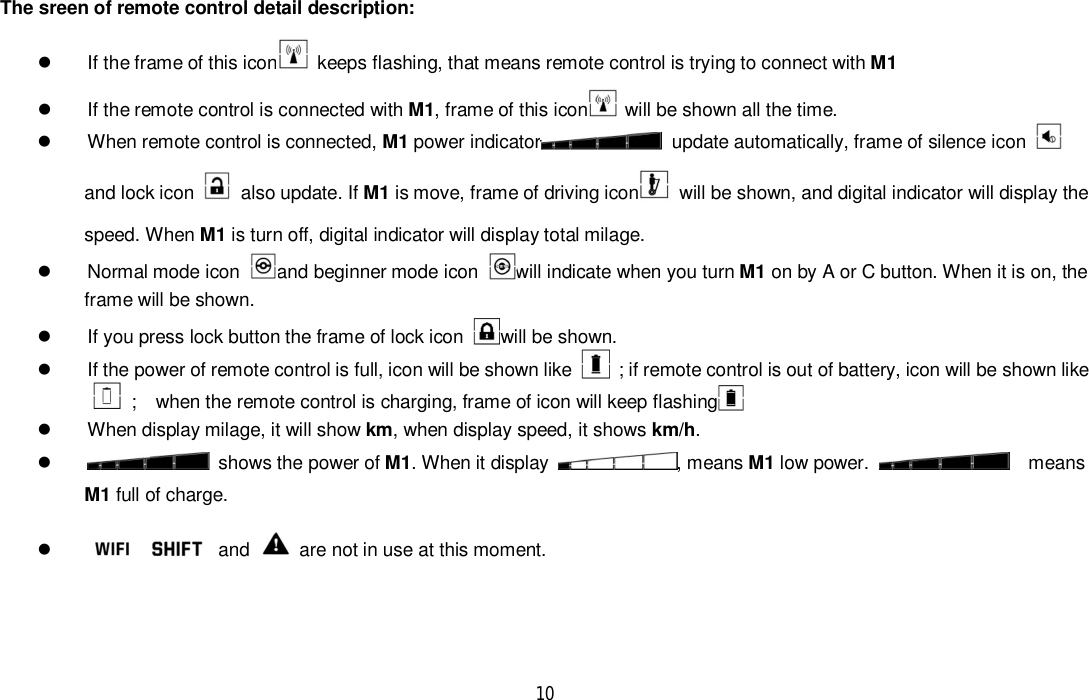

10The sreen of remote control detail description: If the frame of this icon keeps flashing, that means remote control is trying to connect with M1 If the remote control is connected with M1, frame of this icon will be shown all the time. When remote control is connected, M1 power indicator update automatically, frame of silence iconand lock icon also update. If M1 is move, frame of driving icon will be shown, and digital indicator will display thespeed. When M1 is turn off, digital indicator will display total milage. Normal mode icon and beginner mode icon will indicate when you turn M1 on by A or C button. When it is on, theframe will be shown. If you press lock button the frame of lock icon will be shown. If the power of remote control is full, icon will be shown like ; if remote control is out of battery, icon will be shown like ; when the remote control is charging, frame of icon will keep flashing When display milage, it will show km, when display speed, it shows km/h. shows the power of M1. When it display , means M1 low power. meansM1 full of charge. and are not in use at this moment.

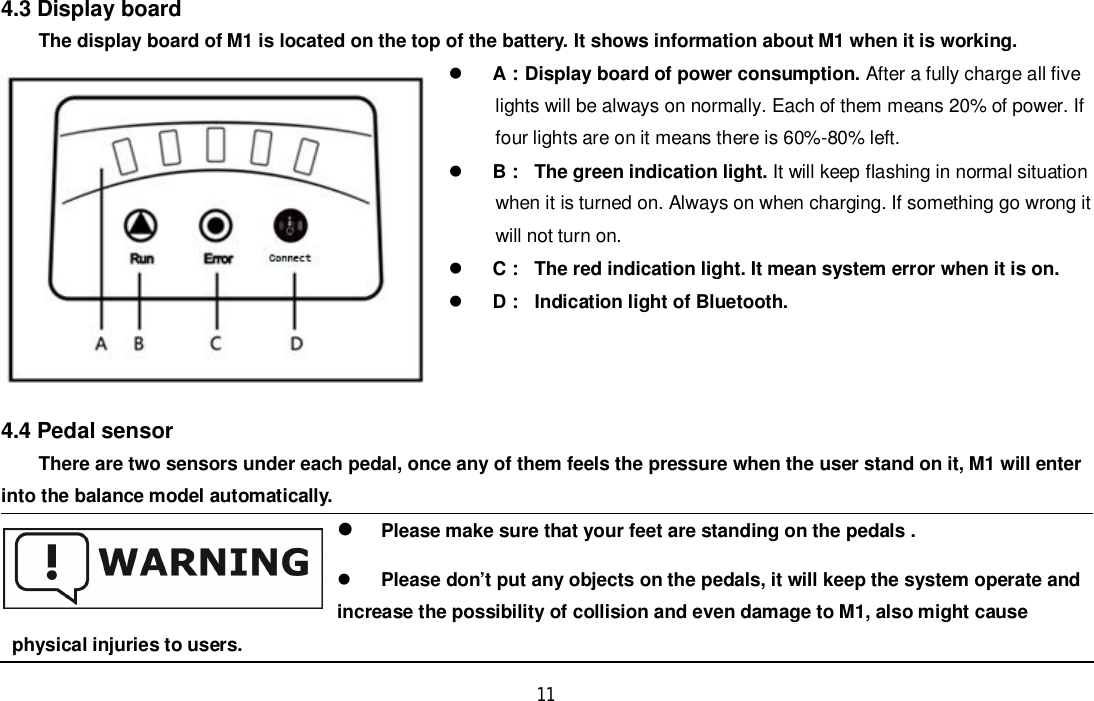

114.3 Display boardThe display board of M1 is located on the top of the battery. It shows information about M1 when it is working.ADisplay board of power consumption. After a fully charge all fivelights will be always on normally. Each of them means 20% of power. Iffour lights are on it means there is 60%-80% left.BThe green indication light. It will keep flashing in normal situationwhen it is turned on. Always on when charging. If something go wrong itwill not turn on.C The red indication light. It mean system error when it is on.DIndication light of Bluetooth.4.4 Pedal sensorThere are two sensors under each pedal, once any of them feels the pressure when the user stand on it, M1 will enterinto the balance model automatically.Please make sure that your feet are standing on the pedals .Please don’t put any objects on the pedals, it will keep the system operate andincrease the possibility of collision and even damage to M1, also might causephysical injuries to users.

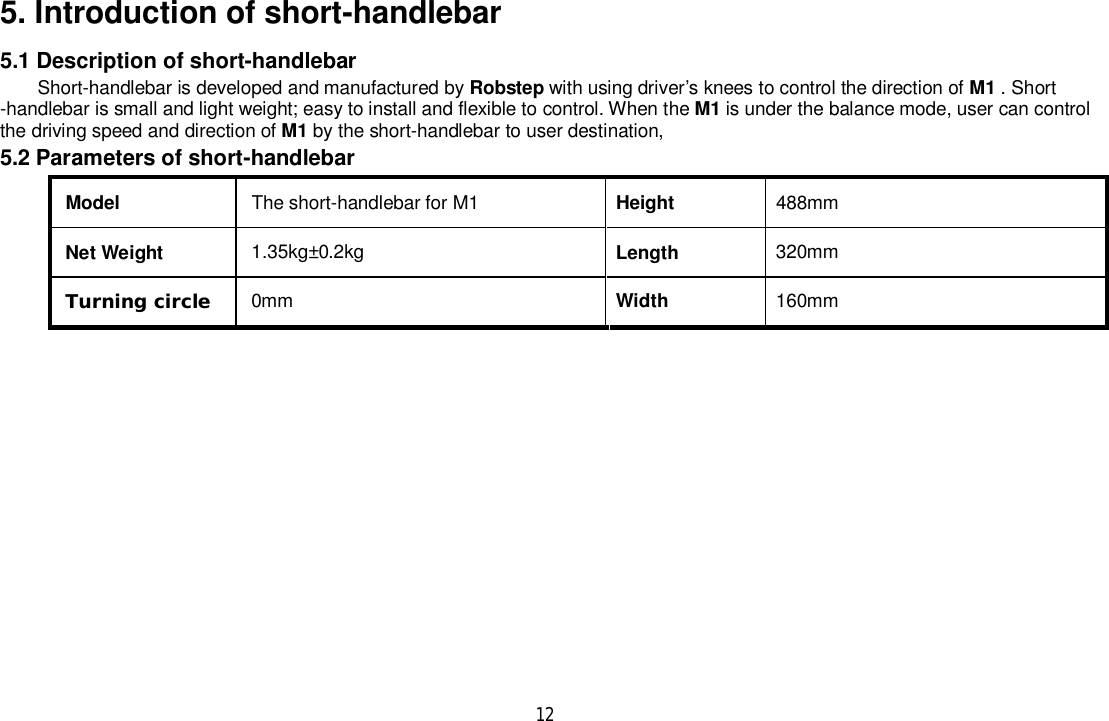

125. Introduction of short-handlebar5.1 Description of short-handlebarShort-handlebar is developed and manufactured by Robstep with using driver’s knees to control the direction of M1 . Short-handlebar is small and light weight; easy to install and flexible to control. When the M1 is under the balance mode, user can controlthe driving speed and direction of M1 by the short-handlebar to user destination,5.2 Parameters of short-handlebarModel The short-handlebar for M1 Height 488mmNet Weight 1.35kg±0.2kg Length 320mmTurning circle 0mm Width 160mm

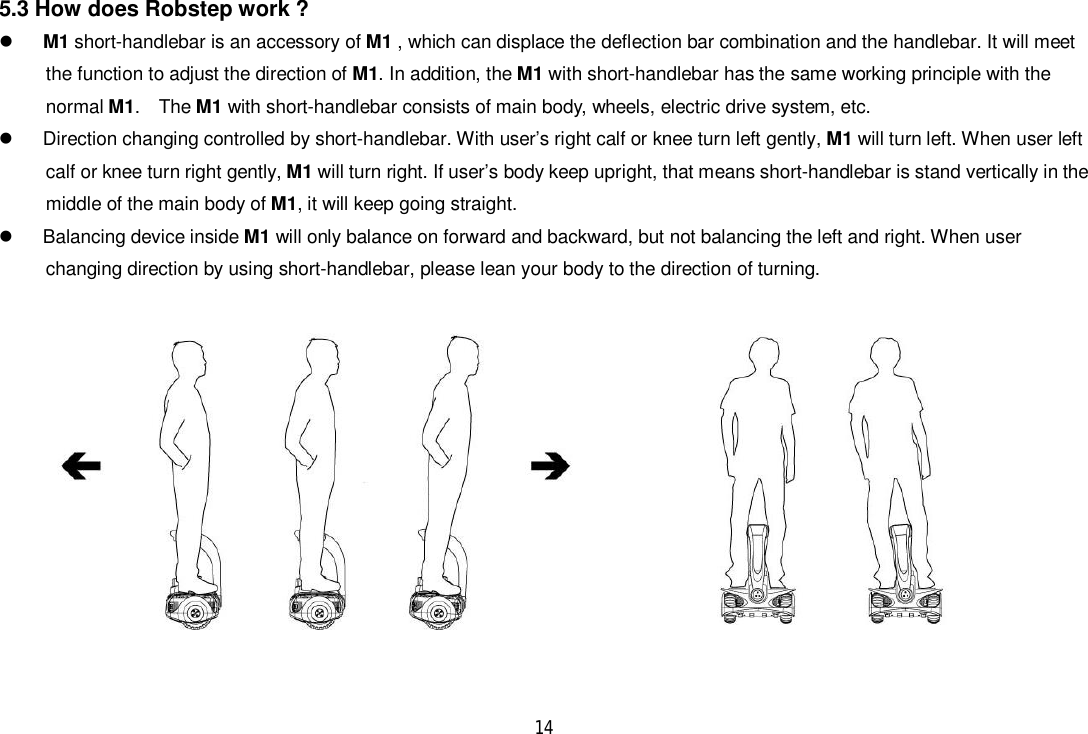

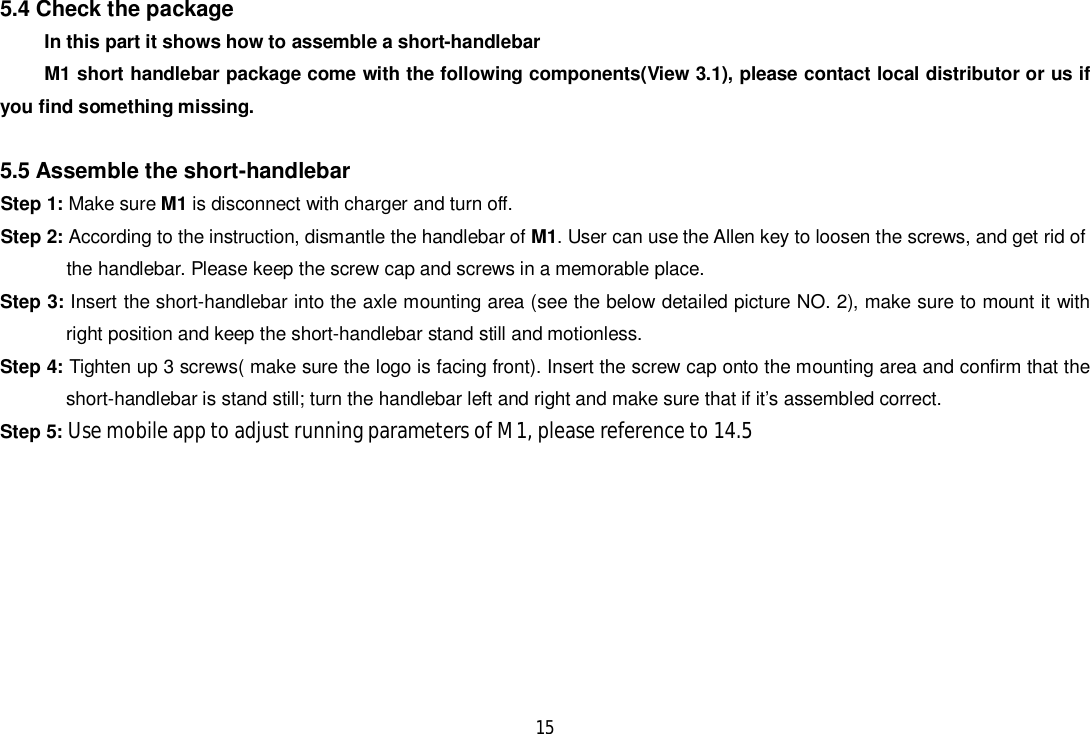

145.3 How does Robstep work ?M1 short-handlebar is an accessory of M1 , which can displace the deflection bar combination and the handlebar. It will meetthe function to adjust the direction of M1. In addition, the M1 with short-handlebar has the same working principle with thenormal M1. TheM1 with short-handlebar consists of main body, wheels, electric drive system, etc. Direction changing controlled by short-handlebar. With user’s right calf or knee turn left gently, M1 will turn left. When user leftcalf or knee turn right gently, M1 will turn right. If user’s body keep upright, that means short-handlebar is stand vertically in themiddle of the main body of M1, it will keep going straight. Balancing device inside M1 will only balance on forward and backward, but not balancing the left and right. When userchanging direction by using short-handlebar, please lean your body to the direction of turning.

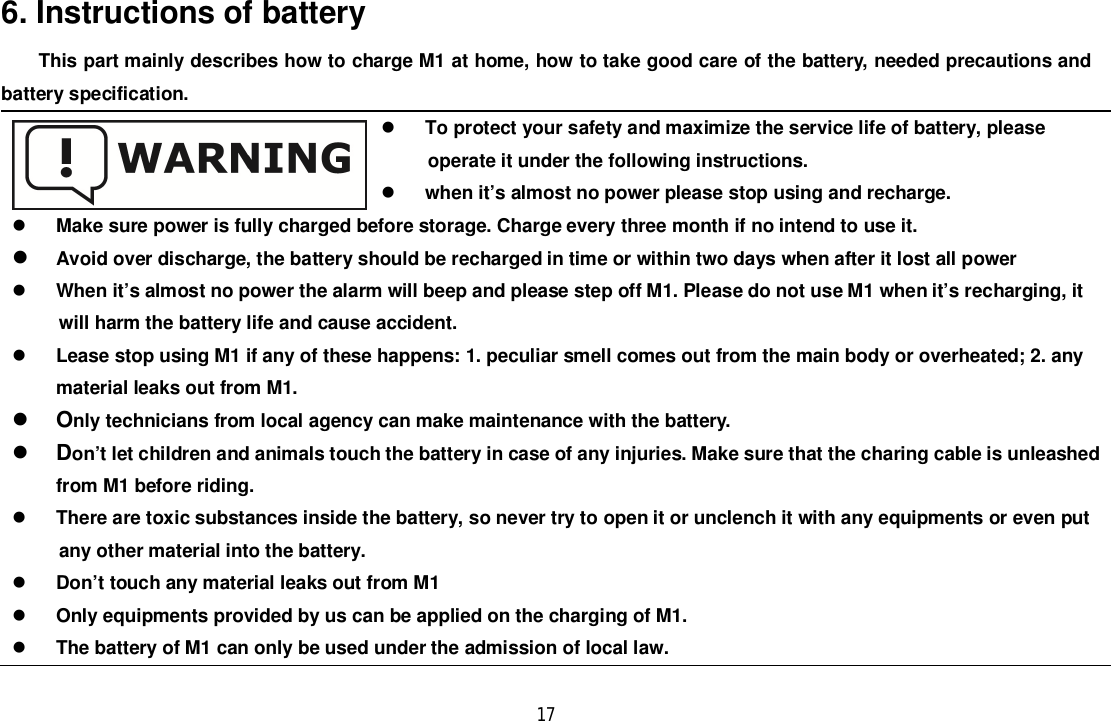

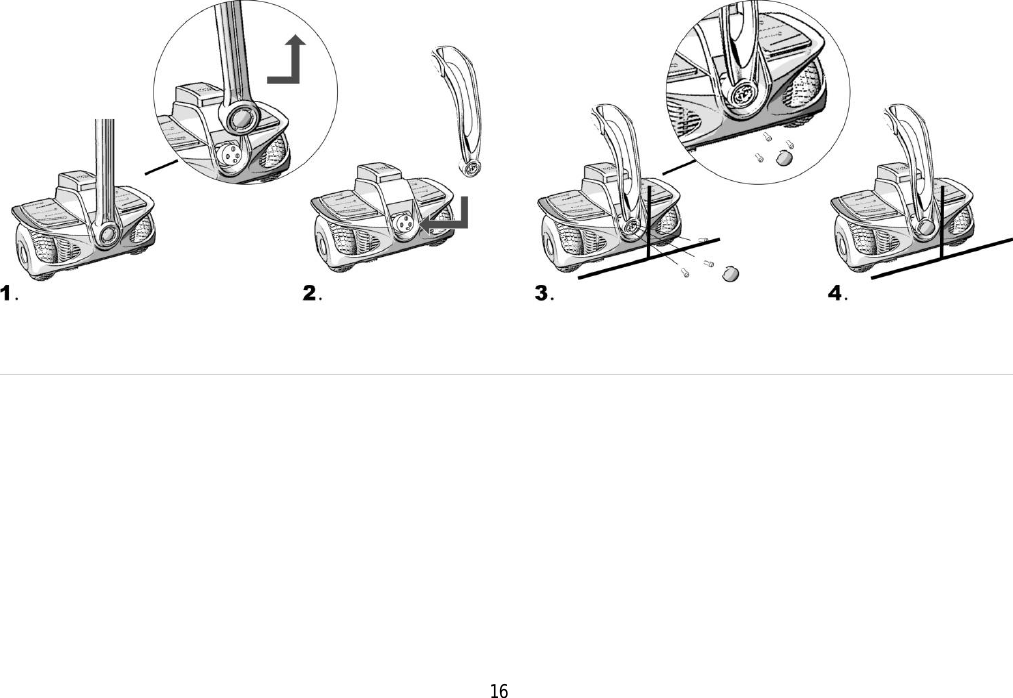

176. Instructions of batteryThis part mainly describes how to charge M1 at home, how to take good care of the battery, needed precautions andbattery specification.To protect your safety and maximize the service life of battery, pleaseoperate it under the following instructions.when it’s almost no power please stop using and recharge.Make sure power is fully charged before storage. Charge every three month if no intend to use it.Avoid over discharge, the battery should be recharged in time or within two days when after it lost all powerWhen it’s almost no power the alarm will beep and please step off M1. Please do not use M1 when it’s recharging, itwill harm the battery life and cause accident.Lease stop using M1 if any of these happens: 1. peculiar smell comes out from the main body or overheated; 2. anymaterial leaks out from M1.Only technicians from local agency can make maintenance with the battery.Don’t let children and animals touch the battery in case of any injuries. Make sure that the charing cable is unleashedfrom M1 before riding.There are toxic substances inside the battery, so never try to open it or unclench it with any equipments or even putany other material into the battery.Don’t touch any material leaks out from M1Only equipments provided by us can be applied on the charging of M1.The battery of M1 can only be used under the admission of local law.

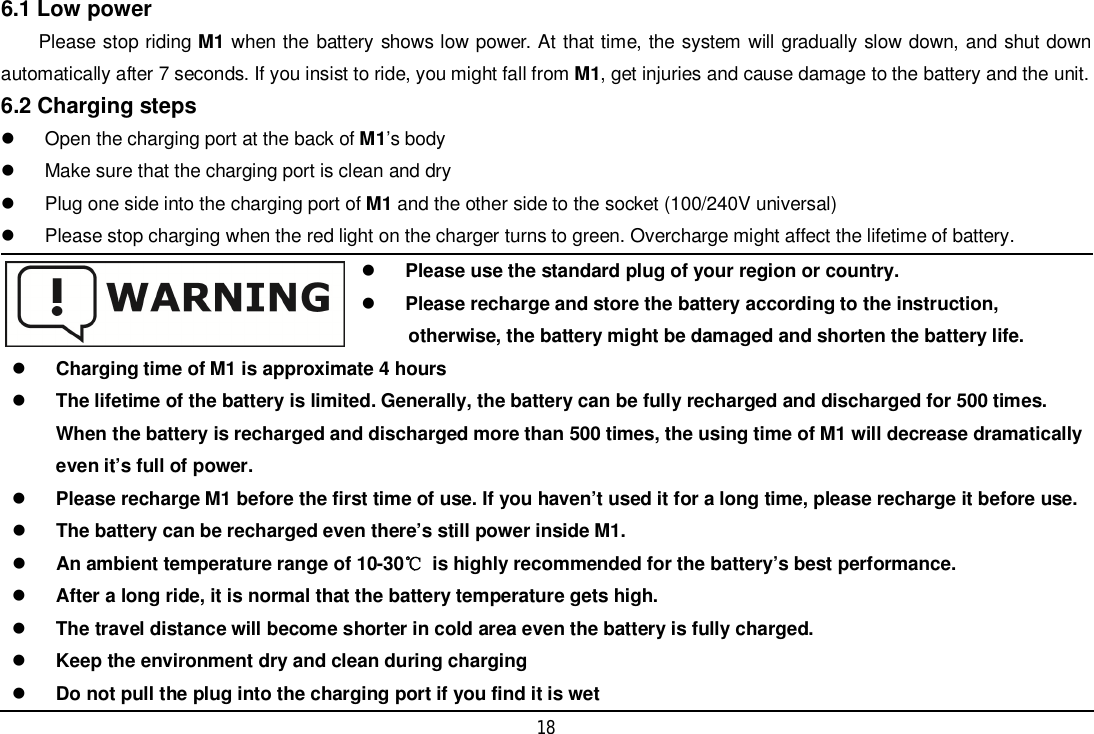

186.1 Low powerPlease stop riding M1 when the battery shows low power. At that time, the system will gradually slow down, and shut downautomatically after 7 seconds. If you insist to ride, you might fall from M1, get injuries and cause damage to the battery and the unit.6.2 Charging steps Open the charging port at the back of M1’s body Make sure that the charging port is clean and dry Plug one side into the charging port of M1 and the other side to the socket (100/240V universal) Please stop charging when the red light on the charger turns to green. Overcharge might affect the lifetime of battery.Please use the standard plug of your region or country.Please recharge and store the battery according to the instruction,otherwise, the battery might be damaged and shorten the battery life.Charging time of M1 is approximate 4 hoursThe lifetime of the battery is limited. Generally, the battery can be fully recharged and discharged for 500 times.When the battery is recharged and discharged more than 500 times, the using time of M1 will decrease dramaticallyeven it’s full of power.Please recharge M1 before the first time of use. If you haven’t used it for a long time, please recharge it before use.The battery can be recharged even there’s still power inside M1.An ambient temperature range of 10-30 is highly recommended for the battery’s best performance.After a long ride, it is normal that the battery temperature gets high.The travel distance will become shorter in cold area even the battery is fully charged.Keep the environment dry and clean during chargingDo not pull the plug into the charging port if you find it is wet

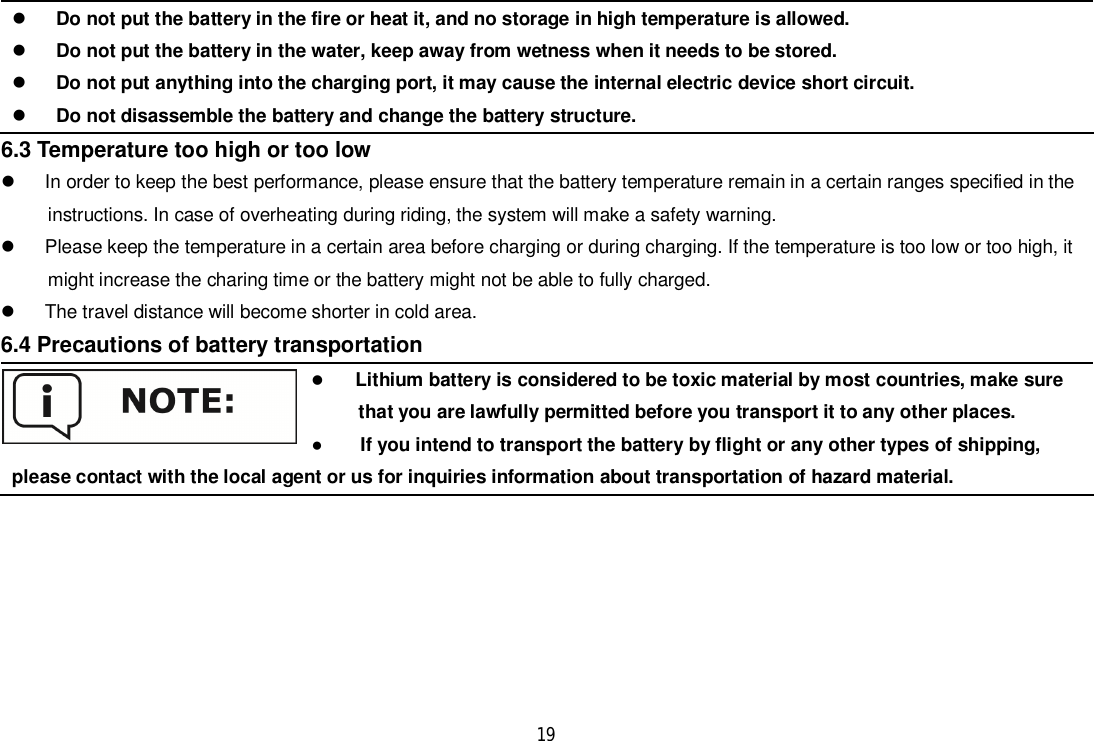

19Do not put the battery in the fire or heat it, and no storage in high temperature is allowed.Do not put the battery in the water, keep away from wetness when it needs to be stored.Do not put anything into the charging port, it may cause the internal electric device short circuit.Do not disassemble the battery and change the battery structure.6.3 Temperature too high or too low In order to keep the best performance, please ensure that the battery temperature remain in a certain ranges specified in theinstructions. In case of overheating during riding, the system will make a safety warning. Please keep the temperature in a certain area before charging or during charging. If the temperature is too low or too high, itmight increase the charing time or the battery might not be able to fully charged. The travel distance will become shorter in cold area.6.4 Precautions of battery transportationLithium battery is considered to be toxic material by most countries, make surethat you are lawfully permitted before you transport it to any other places. If you intend to transport the battery by flight or any other types of shipping,please contact with the local agent or us for inquiries information about transportation of hazard material.

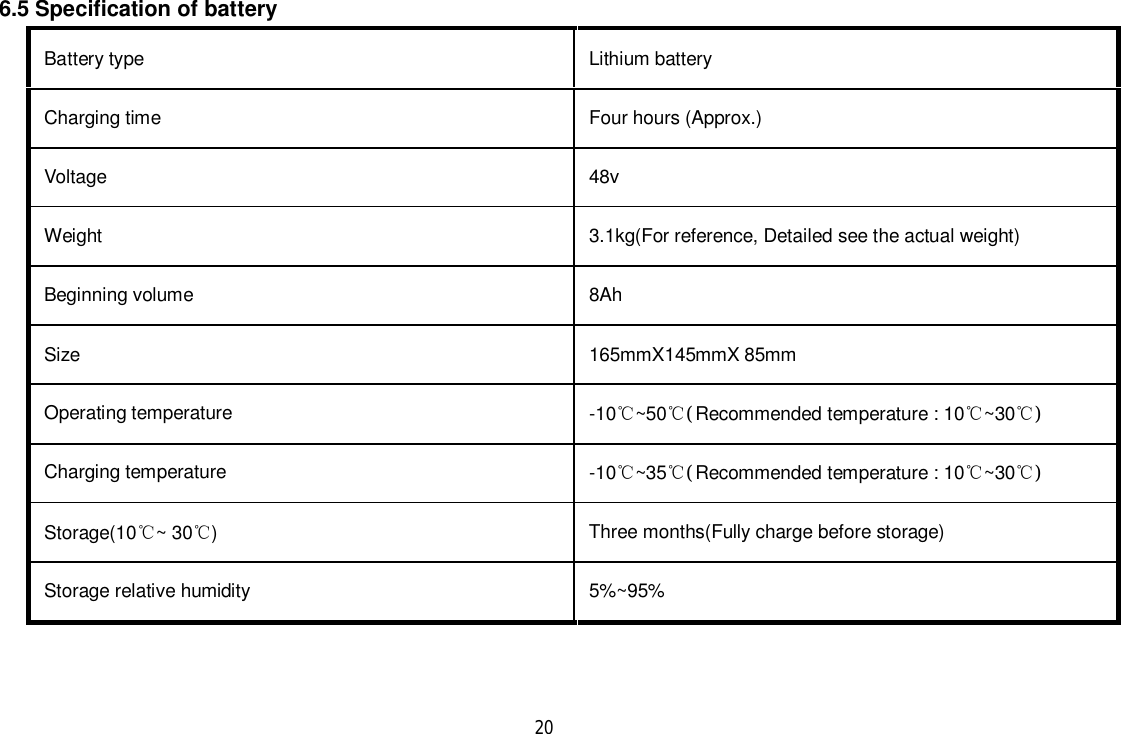

206.5 Specification of batteryBattery type Lithium batteryCharging time Four hours (Approx.)Voltage 48vWeight 3.1kg(For reference, Detailed see the actual weight)Beginning volume 8AhSize 165mmX145mmX 85mmOperating temperature -10~50(Recommended temperature : 10~30)Charging temperature -10~35(Recommended temperature : 10~30)Storage(10~ 30)Three months(Fully charge before storage)Storage relative humidity 5%~95%

217. Safety precautionsDongguan Robstep Robot Co., LTD hopes all users can drive M1 safely and enjoy it. Remembering that how you learn biking, driving a car, skiing or using other similar traffic tools , all these experience can be applied to our products. Please follow all instructions from the "User Manual" and “tutorial videos" so that you can drive M1 safely. Please check thetires if there is any damage, check the unit make sure everything is tighten up every time before you use it. If you find Anyunusual condition, please contact the local agents for help immediately.Please read "User Manual" and watch "tutorial videos" carefully, you canget a lot of important safety information, including speed limit, vibration warning and safe shutdown, etc.You must install every component reasonably before using M1, to avoid product damage.Please don’t use M1 to do anything might endanger personal safety and property safety.Please don’t modify M1’s components, which may affect the performance of M1, even damage M1. Meanwhile it maycause other serious damage.7.1 The weight limit of users The reasons for weight limit are as follows:Ensure users’ safety.Reduce the damage caused by overweight. The maximum weight limit for driver: 100kg.The minimum weight limit for driver: 35kg.

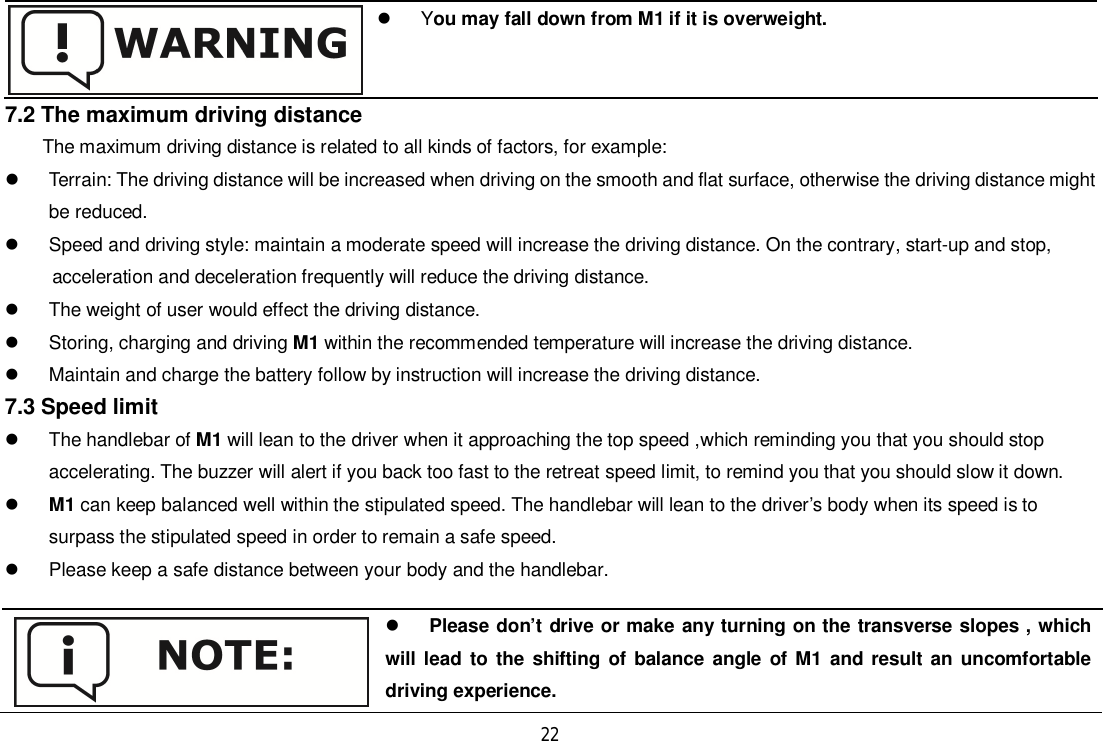

22 You may fall down from M1 if it is overweight.7.2 The maximum driving distanceThe maximum driving distance is related to all kinds of factors, for example: Terrain: The driving distance will be increased when driving on the smooth and flat surface, otherwise the driving distance mightbe reduced. Speed and driving style: maintain a moderate speed will increase the driving distance. On the contrary, start-up and stop, acceleration and deceleration frequently will reduce the driving distance. The weight of user would effect the driving distance. Storing, charging and driving M1 within the recommended temperature will increase the driving distance. Maintain and charge the battery follow by instruction will increase the driving distance.7.3 Speed limit The handlebar of M1 will lean to the driver when it approaching the top speed ,which reminding you that you should stopaccelerating. The buzzer will alert if you back too fast to the retreat speed limit, to remind you that you should slow it down.M1 can keep balanced well within the stipulated speed. The handlebar will lean to the driver’s body when its speed is tosurpass the stipulated speed in order to remain a safe speed. Please keep a safe distance between your body and the handlebar.Please don’t drive or make any turning on the transverse slopes , whichwill lead to the shifting of balance angle of M1 and result an uncomfortabledriving experience.

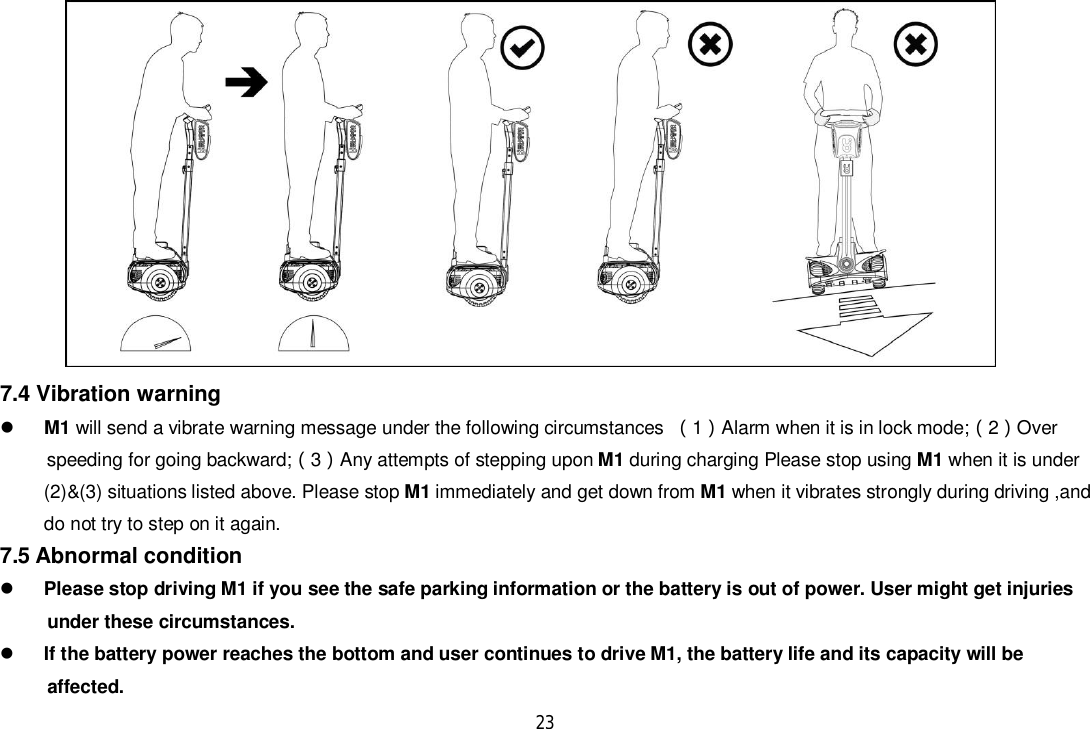

237.4 Vibration warningM1 will send a vibrate warning message under the following circumstances 1Alarm when it is in lock mode;2Over speeding for going backward;3Any attempts of stepping upon M1 during charging Please stop using M1 when it is under(2)&(3) situations listed above. Please stop M1 immediately and get down from M1 when it vibrates strongly during driving ,anddo not try to step on it again.7.5 Abnormal conditionPlease stop driving M1 if you see the safe parking information or the battery is out of power. User might get injuries under these circumstances.If the battery power reaches the bottom and user continues to drive M1, the battery life and its capacity will be affected.

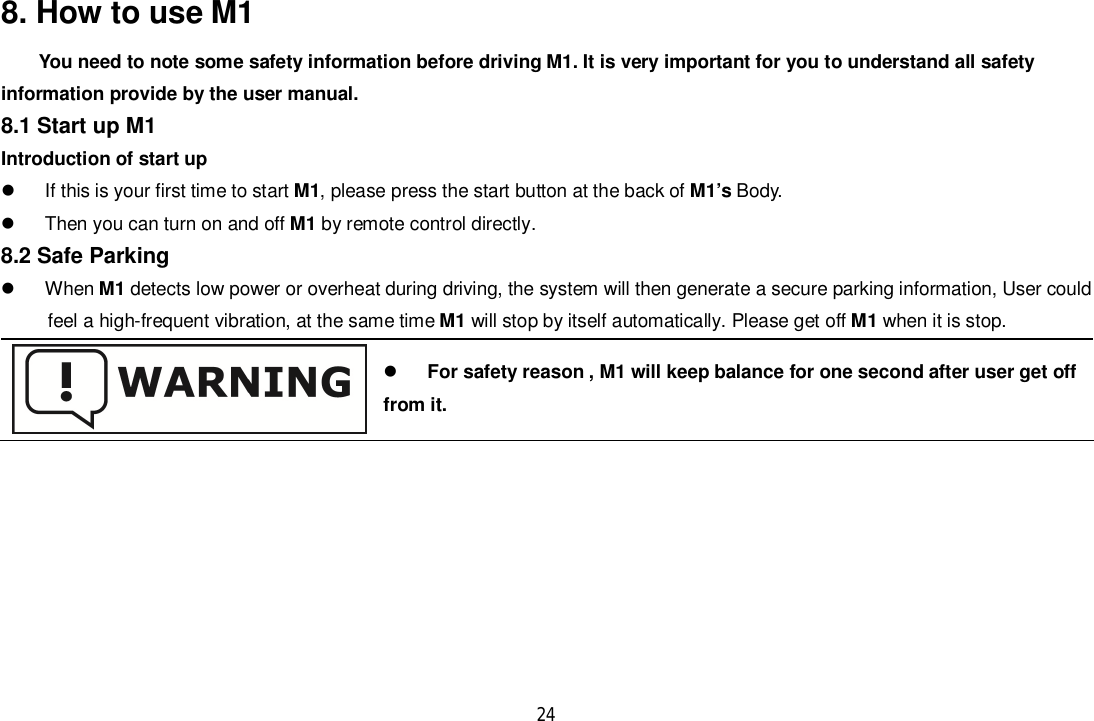

248. How to use M1You need to note some safety information before driving M1. It is very important for you to understand all safetyinformation provide by the user manual.8.1 Start up M1Introduction of start up If this is your first time to start M1, please press the start button at the back of M1’s Body. Then you can turn on and off M1 by remote control directly.8.2 Safe Parking When M1 detects low power or overheat during driving, the system will then generate a secure parking information, User could feel a high-frequent vibration, at the same time M1 will stop by itself automatically. Please get off M1 when it is stop.For safety reason , M1 will keep balance for one second after user get offfrom it.

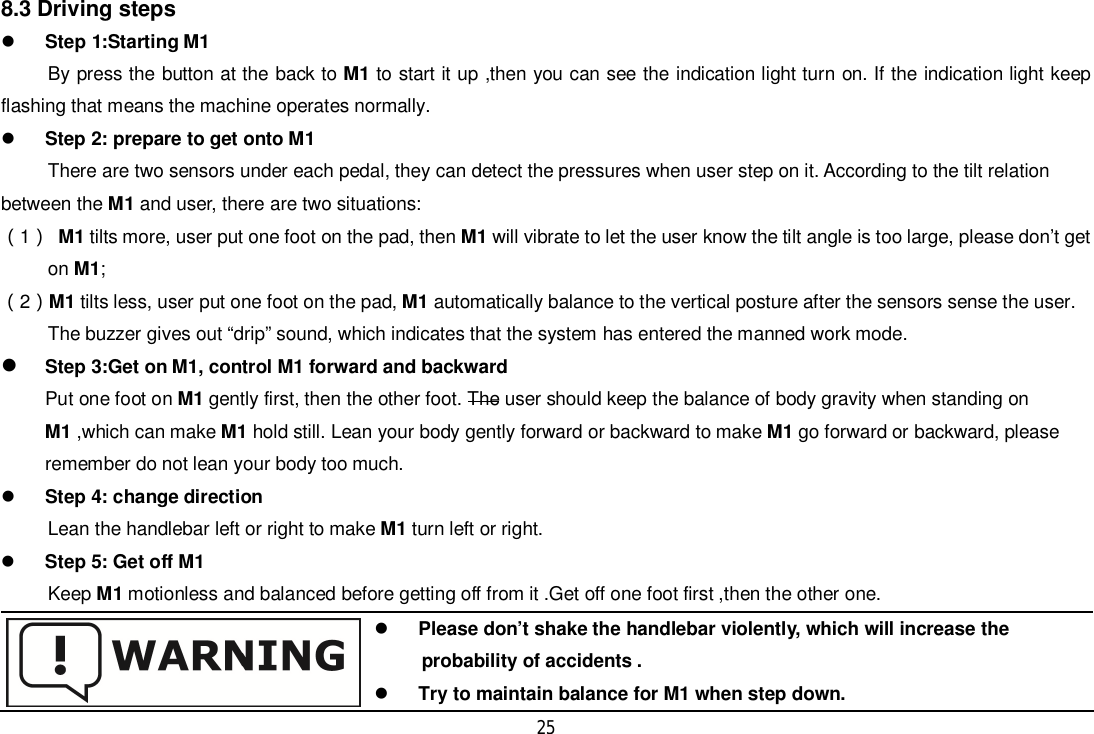

258.3 Driving stepsStep 1:Starting M1By press the button at the back to M1 to start it up ,then you can see the indication light turn on. If the indication light keepflashing that means the machine operates normally.Step 2: prepare to get onto M1There are two sensors under each pedal, they can detect the pressures when user step on it. According to the tilt relationbetween the M1 and user, there are two situations:1M1 tilts more, user put one foot on the pad, then M1 will vibrate to let the user know the tilt angle is too large, please don’t geton M1;2M1 tilts less, user put one foot on the pad, M1 automatically balance to the vertical posture after the sensors sense the user.The buzzer gives out “drip” sound, which indicates that the system has entered the manned work mode.Step 3:Get on M1, control M1 forward and backwardPut one foot on M1 gently first, then the other foot. The user should keep the balance of body gravity when standing onM1 ,which can make M1 hold still. Lean your body gently forward or backward to make M1 go forward or backward, pleaseremember do not lean your body too much.Step 4: change directionLean the handlebar left or right to make M1 turn left or right.Step 5: Get off M1Keep M1 motionless and balanced before getting off from it .Get off one foot first ,then the other one.Please don’t shake the handlebar violently, which will increase the probability of accidents .Try to maintain balance for M1 when step down.

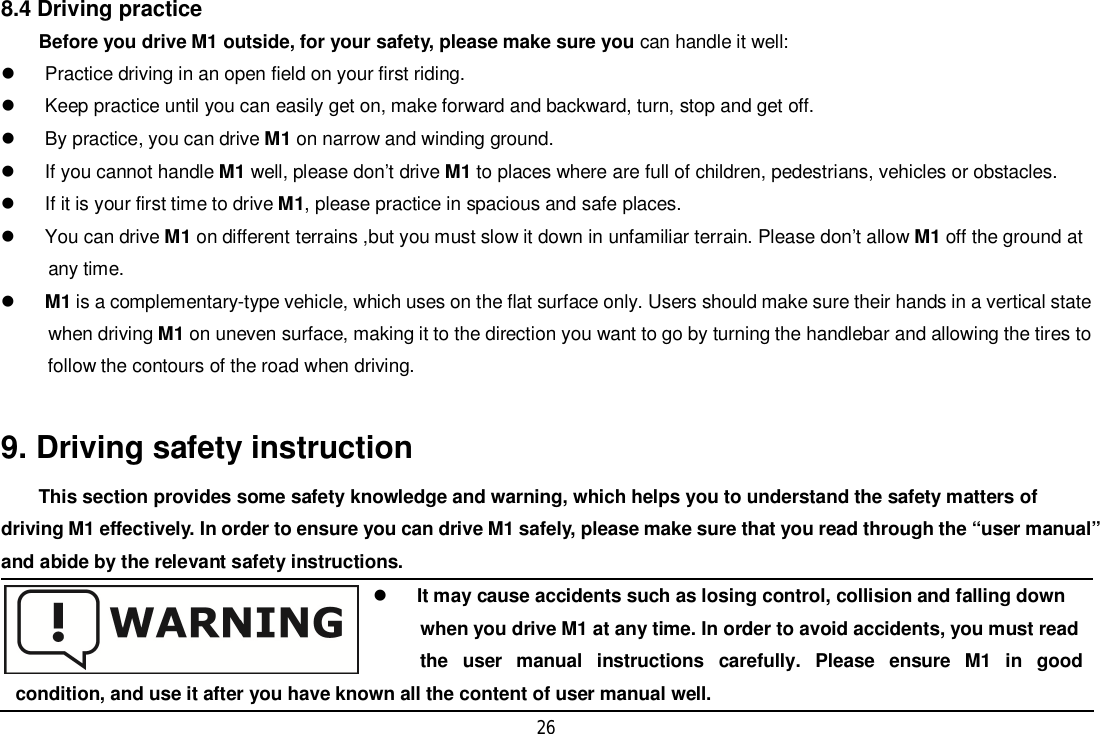

268.4 Driving practiceBefore you drive M1 outside, for your safety, please make sure you can handle it well: Practice driving in an open field on your first riding. Keep practice until you can easily get on, make forward and backward, turn, stop and get off. By practice, you can drive M1 on narrow and winding ground. If you cannot handle M1 well, please don’t drive M1 to places where are full of children, pedestrians, vehicles or obstacles. If it is your first time to drive M1, please practice in spacious and safe places. You can drive M1 on different terrains ,but you must slow it down in unfamiliar terrain. Please don’t allow M1 off the ground at any time.M1 is a complementary-type vehicle, which uses on the flat surface only. Users should make sure their hands in a vertical state when drivingM1 on uneven surface, making it to the direction you want to go by turning the handlebar and allowing the tires to follow the contours of the road when driving.9. Driving safety instructionThis section provides some safety knowledge and warning, which helps you to understand the safety matters ofdriving M1 effectively. In order to ensure you can drive M1 safely, please make sure that you read through the “user manual”and abide by the relevant safety instructions.It may cause accidents such as losing control, collision and falling down when you drive M1 at any time. In order to avoid accidents, you must read the user manual instructions carefully. Please ensure M1 in goodcondition, and use it after you have known all the content of user manual well.

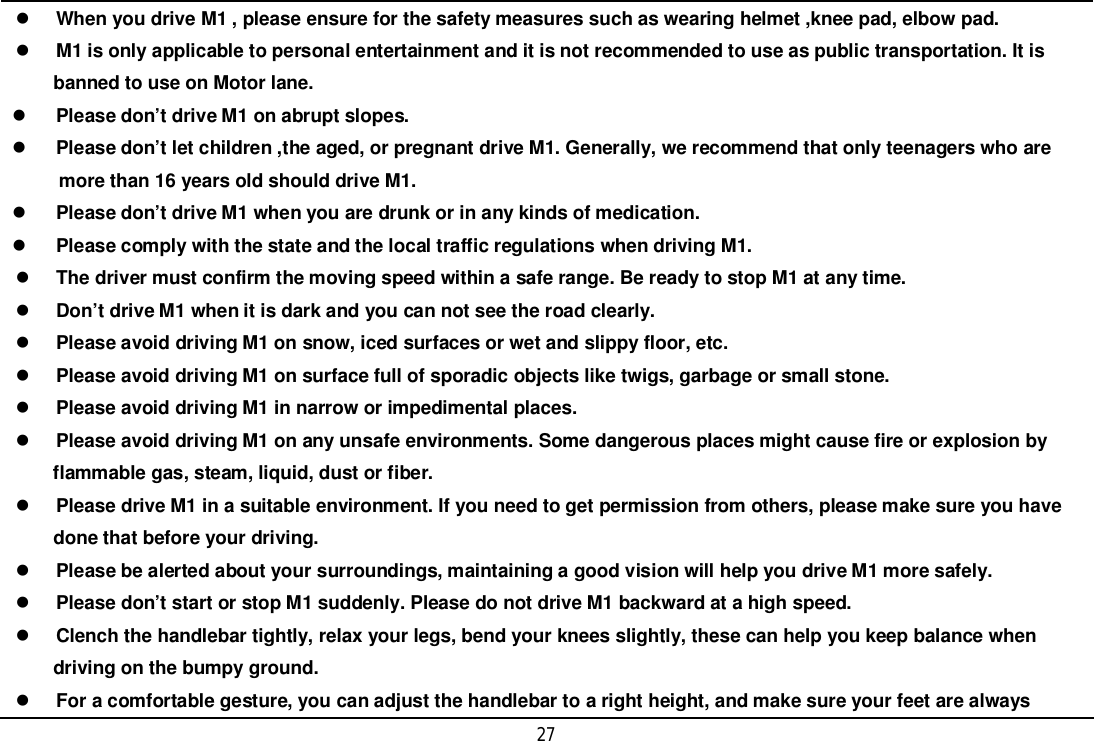

27When you drive M1 , please ensure for the safety measures such as wearing helmet ,knee pad, elbow pad.M1 is only applicable to personal entertainment and it is not recommended to use as public transportation. It is banned to use on Motor lane.Please don’t drive M1 on abrupt slopes.Please don’t let children ,the aged, or pregnant drive M1. Generally, we recommend that only teenagers who are more than 16 years old should drive M1.Please don’t drive M1 when you are drunk or in any kinds of medication.Please comply with the state and the local traffic regulations when driving M1.The driver must confirm the moving speed within a safe range. Be ready to stop M1 at any time.Don’t drive M1 when it is dark and you can not see the road clearly.Please avoid driving M1 on snow, iced surfaces or wet and slippy floor, etc.Please avoid driving M1 on surface full of sporadic objects like twigs, garbage or small stone.Please avoid driving M1 in narrow or impedimental places.Please avoid driving M1 on any unsafe environments. Some dangerous places might cause fire or explosion by flammable gas, steam, liquid, dust or fiber.Please drive M1 in a suitable environment. If you need to get permission from others, please make sure you have done that before your driving.Please be alerted about your surroundings, maintaining a good vision will help you drive M1 more safely.Please don’t start or stop M1 suddenly. Please do not drive M1 backward at a high speed.Clench the handlebar tightly, relax your legs, bend your knees slightly, these can help you keep balance when driving on the bumpy ground.For a comfortable gesture, you can adjust the handlebar to a right height, and make sure your feet are always

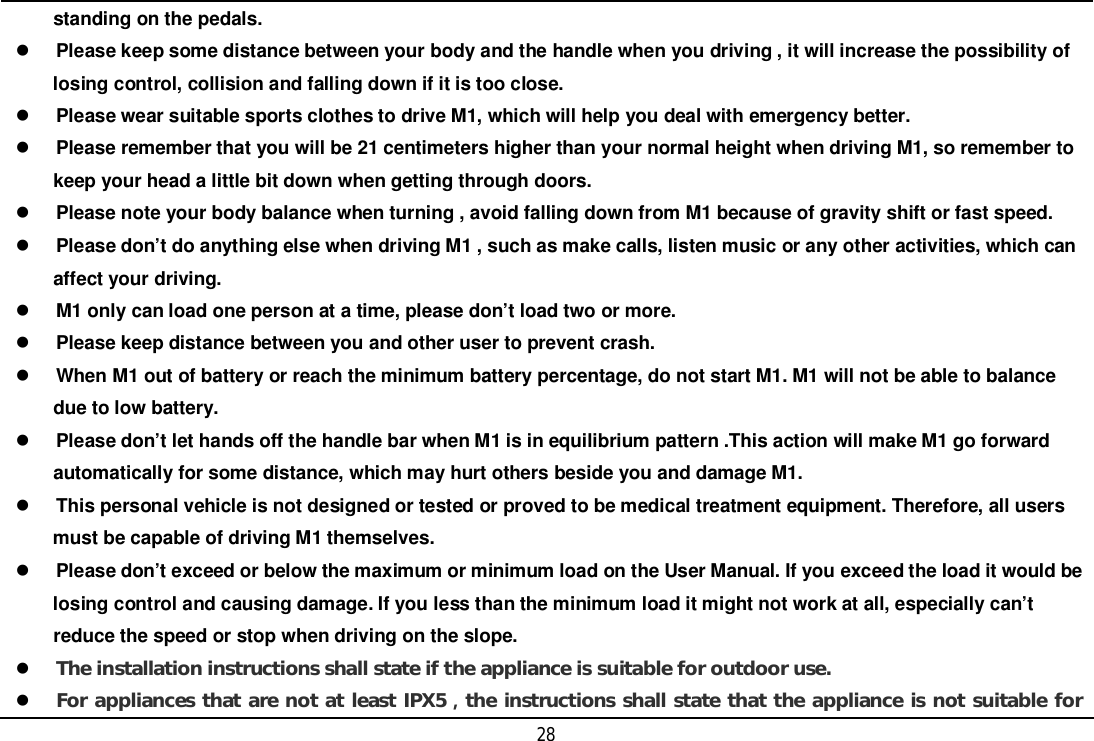

28 standing on the pedals.Please keep some distance between your body and the handle when you driving , it will increase the possibility of losing control, collision and falling down if it is too close.Please wear suitable sports clothes to drive M1, which will help you deal with emergency better.Please remember that you will be 21 centimeters higher than your normal height when driving M1, so remember to keep your head a little bit down when getting through doors.Please note your body balance when turning , avoid falling down from M1 because of gravity shift or fast speed.Please don’t do anything else when driving M1 , such as make calls, listen music or any other activities, which can affect your driving.M1 only can load one person at a time, please don’t load two or more.Please keep distance between you and other user to prevent crash.When M1 out of battery or reach the minimum battery percentage, do not start M1. M1 will not be able to balance due to low battery.Please don’t let hands off the handle bar when M1 is in equilibrium pattern .This action will make M1 go forward automatically for some distance, which may hurt others beside you and damage M1.This personal vehicle is not designed or tested or proved to be medical treatment equipment. Therefore, all users must be capable of driving M1 themselves.Please don’t exceed or below the maximum or minimum load on the User Manual. If you exceed the load it would be losing control and causing damage. If you less than the minimum load it might not work at all, especially can’t reduce the speed or stop when driving on the slope.The installation instructions shall state if the appliance is suitable for outdoor use.For appliances that are not at least IPX5the instructions shall state that the appliance is not suitable for

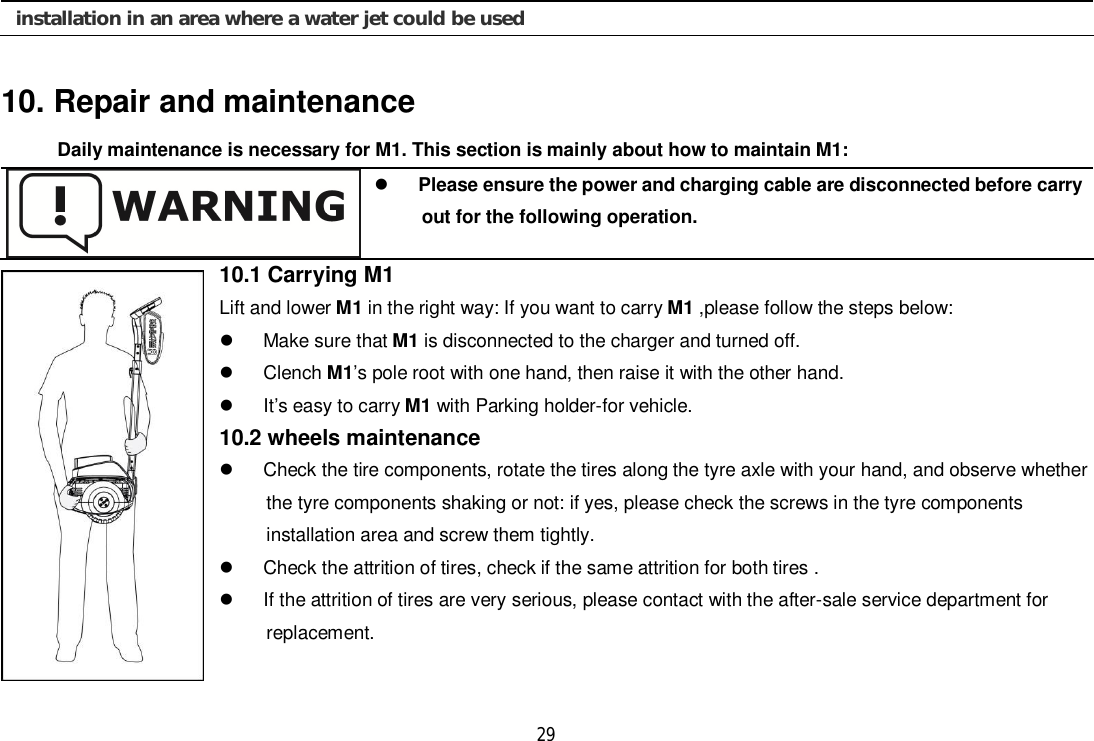

29installation in an area where a water jet could be used10. Repair and maintenanceDaily maintenance is necessary for M1. This section is mainly about how to maintain M1:Please ensure the power and charging cable are disconnected before carry out for the following operation.10.1 Carrying M1Lift and lower M1 in the right way: If you want to carry M1 ,please follow the steps below: Make sure that M1 is disconnected to the charger and turned off. Clench M1’s pole root with one hand, then raise it with the other hand. It’s easy to carry M1 with Parking holder-for vehicle.10.2 wheels maintenance Check the tire components, rotate the tires along the tyre axle with your hand, and observe whether the tyre components shaking or not: if yes, please check the screws in the tyre components installation area and screw them tightly. Check the attrition of tires, check if the same attrition for both tires . If the attrition of tires are very serious, please contact with the after-sale service department for replacement.

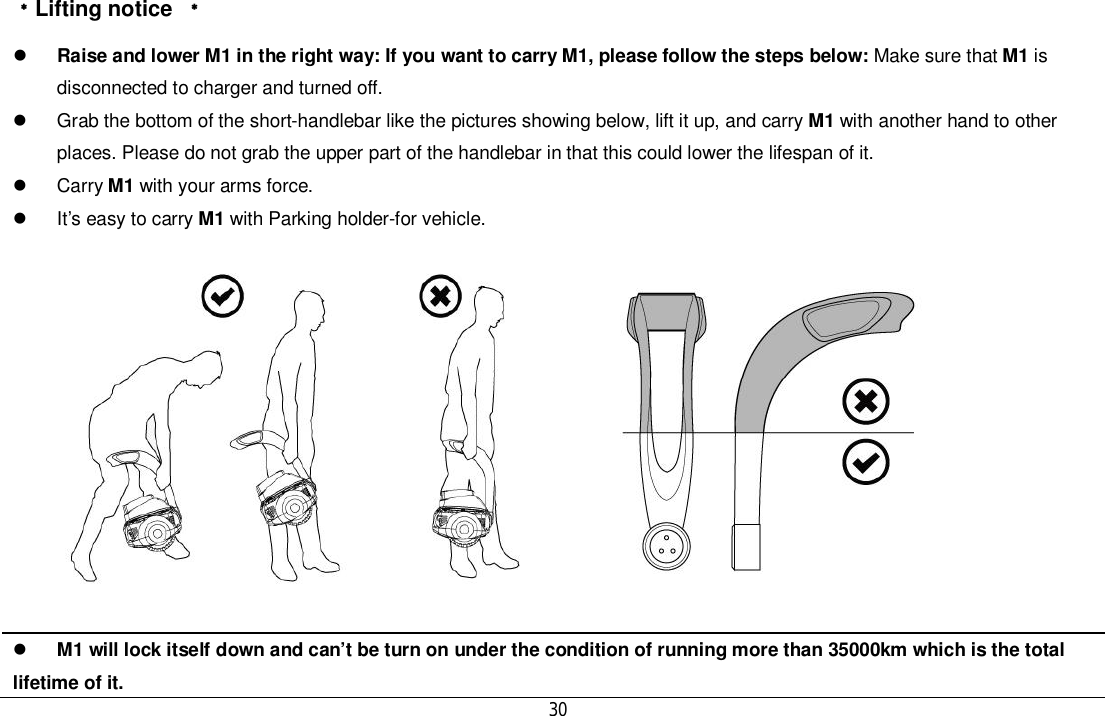

30󵠜Lifting notice 󵠜Raise and lower M1 in the right way: If you want to carry M1, please follow the steps below: Make sure that M1 isdisconnected to charger and turned off. Grab the bottom of the short-handlebar like the pictures showing below, lift it up, and carry M1 with another hand to otherplaces. Please do not grab the upper part of the handlebar in that this could lower the lifespan of it. Carry M1 with your arms force. It’s easy to carry M1 with Parking holder-for vehicle.M1 will lock itself down and can’t be turn on under the condition of running more than 35000km which is the totallifetime of it.

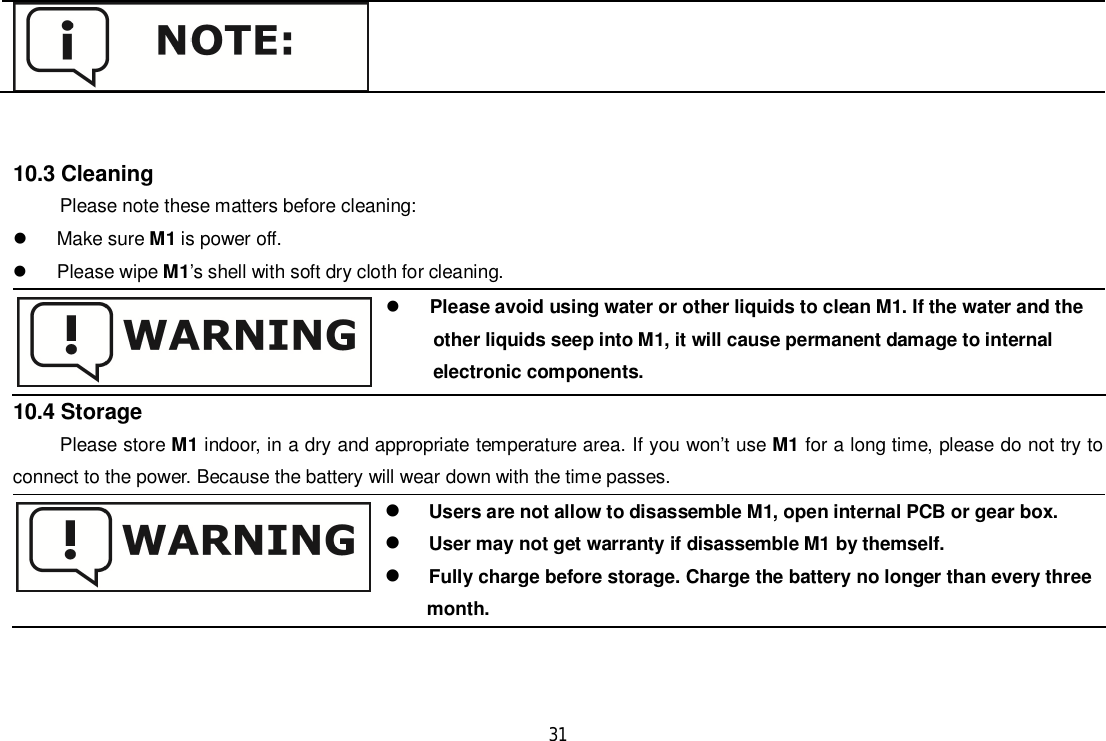

3110.3 CleaningPlease note these matters before cleaning: Make sure M1 is power off. Please wipe M1’s shell with soft dry cloth for cleaning.Please avoid using water or other liquids to clean M1. If the water and the other liquids seep into M1, it will cause permanent damage to internal electronic components.10.4 StoragePlease store M1 indoor, in a dry and appropriate temperature area. If you won’t use M1 for a long time, please do not try toconnect to the power. Because the battery will wear down with the time passes.Users are not allow to disassemble M1, open internal PCB or gear box.User may not get warranty if disassemble M1 by themself.Fully charge before storage. Charge the battery no longer than every three month.

3211. Technical ParametersModel NO M1 remarksMaximum speed 15km/h *The running distance of 20kmafter single charging is testedunder thecondition of the environment for25 degrees Celsius, 70 kg weightandflat road.* The actual values will bedifferent according to the differentcircumstances.* These data are for referenceDistance(after single charging)20km*Max climb capability 15 degreeTotal Weight 18.5 kgMin-Max load 35~100kgMin turning radius 0mDimension 467(length)/464(width)/1000~1400(height)(mm)(scalable)Battery lithium, 8AH 48voltPower requirement 110/240volt 50or60HZ,universal

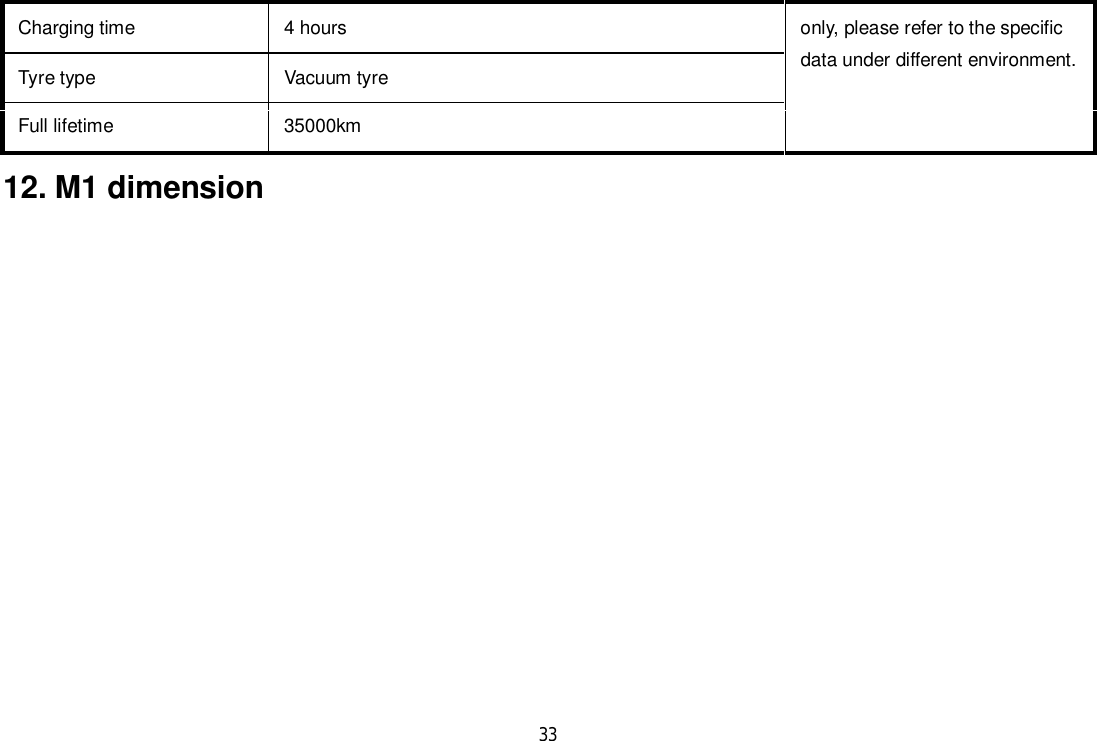

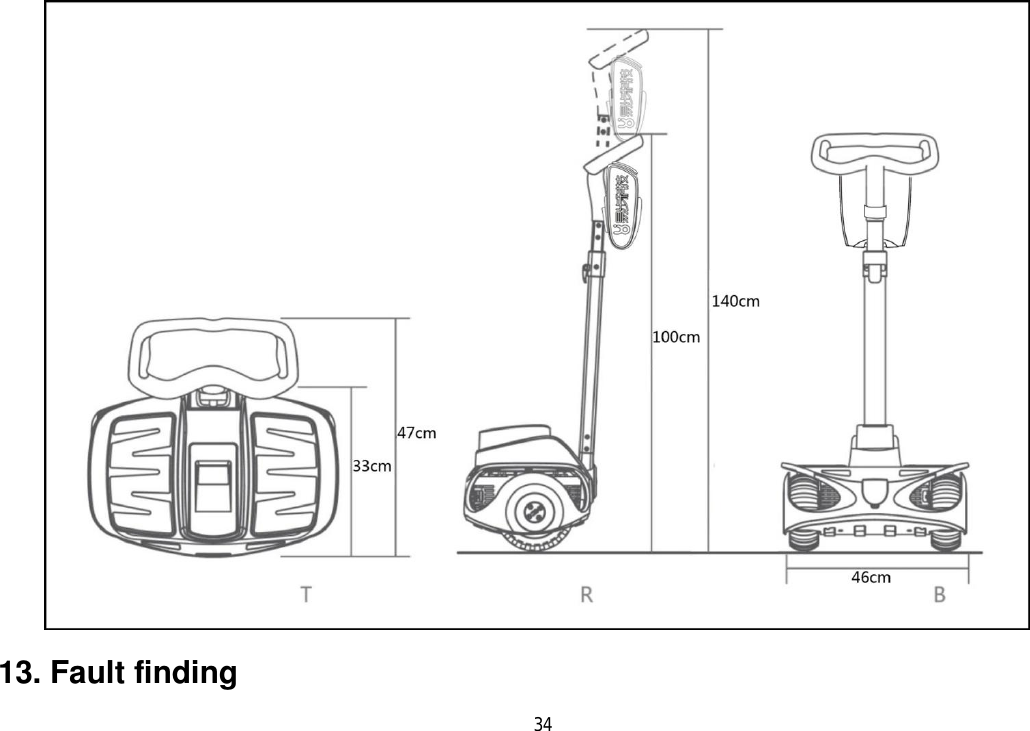

33Charging time 4 hours only, please refer to the specificdata under different environment.Tyre type Vacuum tyreFull lifetime 35000km12. M1 dimension

3413. Fault finding

35 Self-checking projects of M1 include : the sensors, system static electricity, system dynamic electricity, motor speed fluctuation etc. If there is something wrong with M1 , please contact the local agents or us directly.About all the information, please visit official website :www.robstep.comProduct liability insurance covered by PICC14. Android tool instructionThis Android tool is for the control of M1. For Android system version 2.3 or above only. You may connect you android device

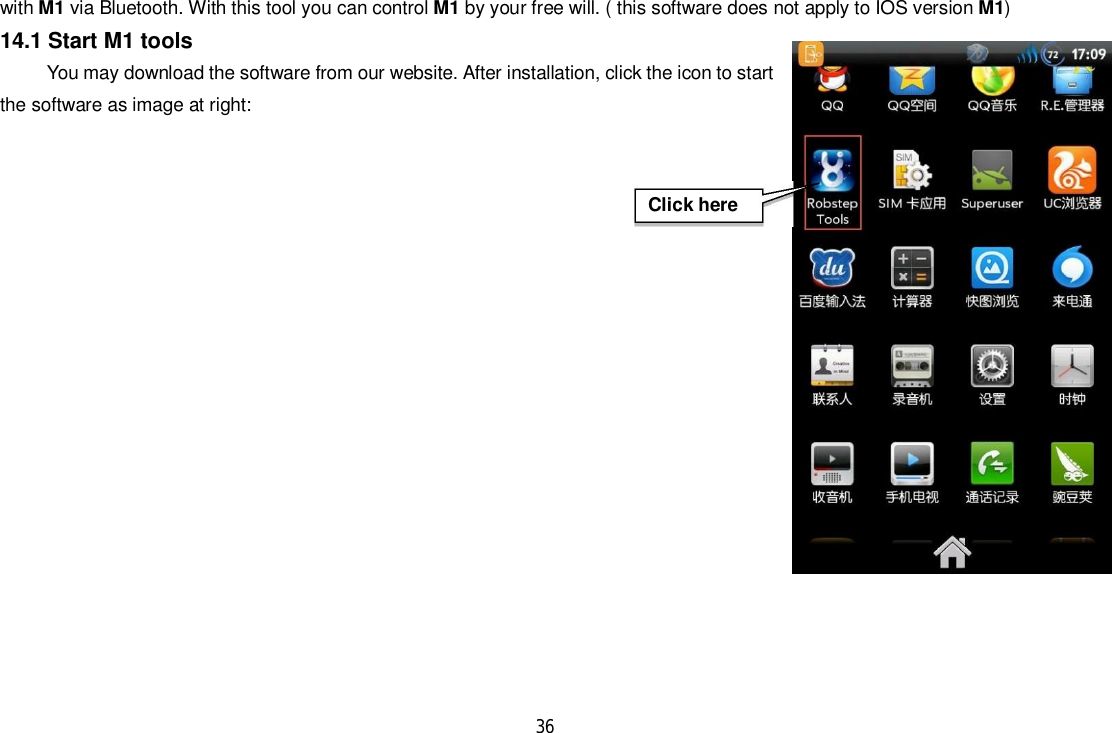

36with M1 via Bluetooth. With this tool you can control M1 by your free will. ( this software does not apply to IOS version M1)14.1 Start M1 toolsYou may download the software from our website. After installation, click the icon to startthe software as image at right:Click here

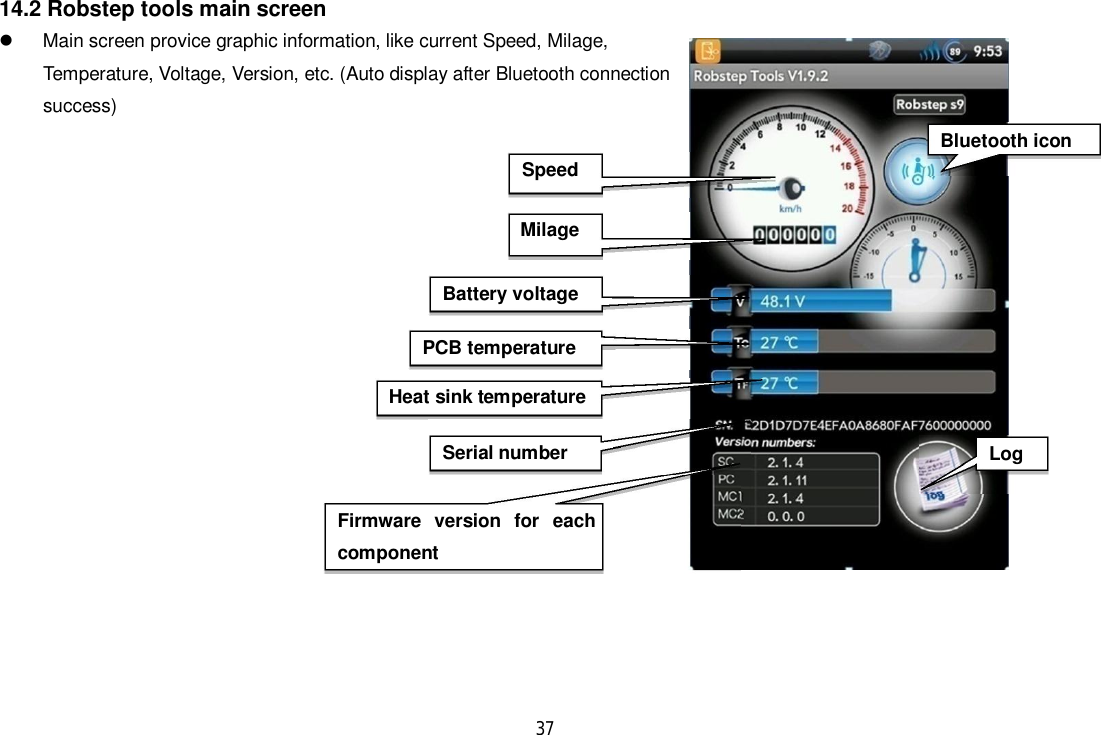

3714.2 Robstep tools main screen Main screen provice graphic information, like current Speed, Milage,Temperature, Voltage, Version, etc. (Auto display after Bluetooth connectionsuccess)SpeedMilageBattery voltagePCB temperatureHeat sink temperatureFirmware version for eachcomponentSerial number LogBluetooth icon

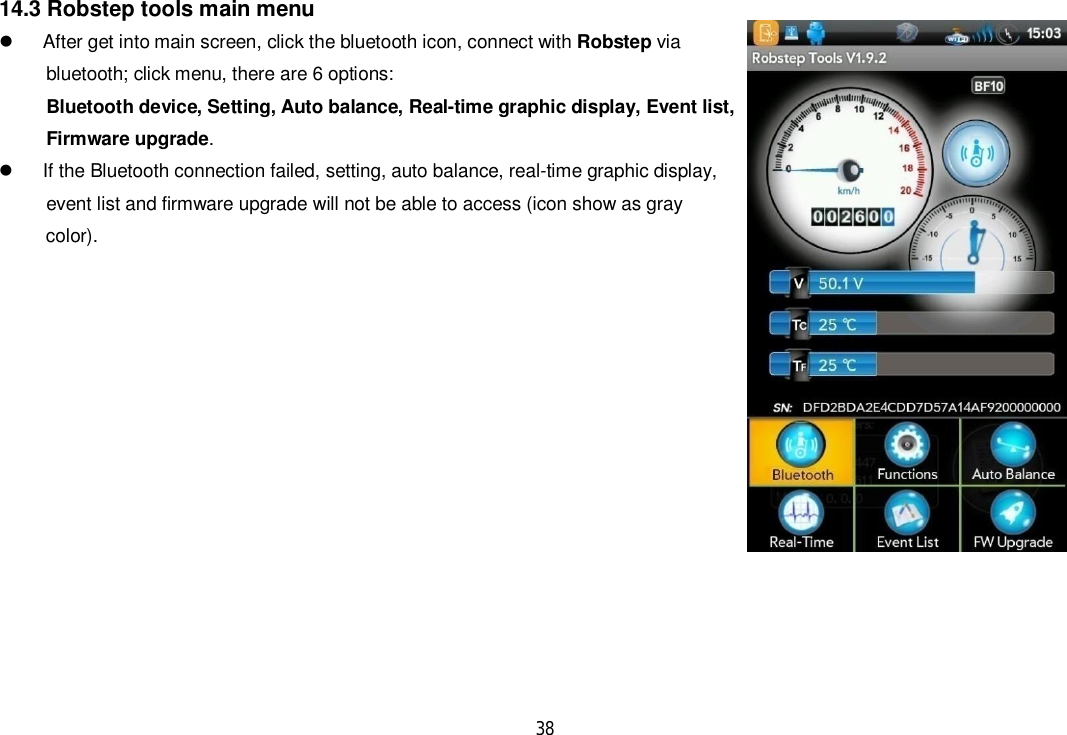

3814.3 Robstep tools main menu After get into main screen, click the bluetooth icon, connect with Robstep via bluetooth; click menu, there are 6 options:Bluetooth device, Setting, Auto balance, Real-time graphic display, Event list, Firmware upgrade. If the Bluetooth connection failed, setting, auto balance, real-time graphic display, event list and firmware upgrade will not be able to access (icon show as gray color).

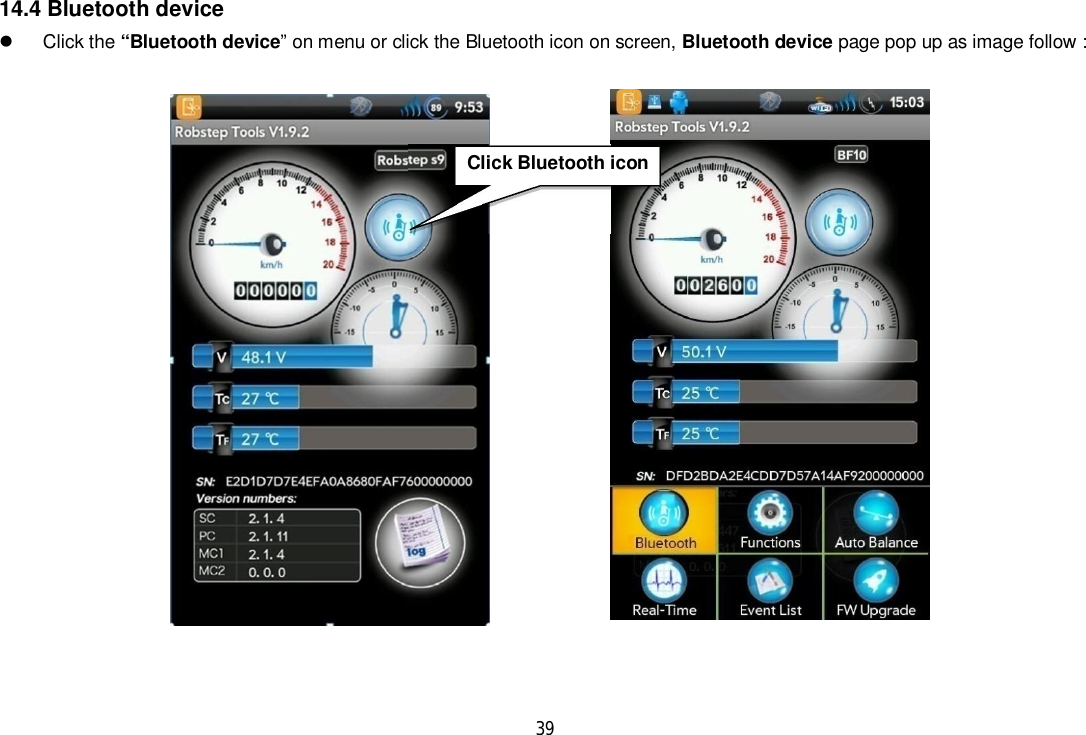

3914.4 Bluetooth device Click the “Bluetooth device” on menu or click the Bluetooth icon on screen, Bluetooth device page pop up as image follow :Click Bluetooth icon

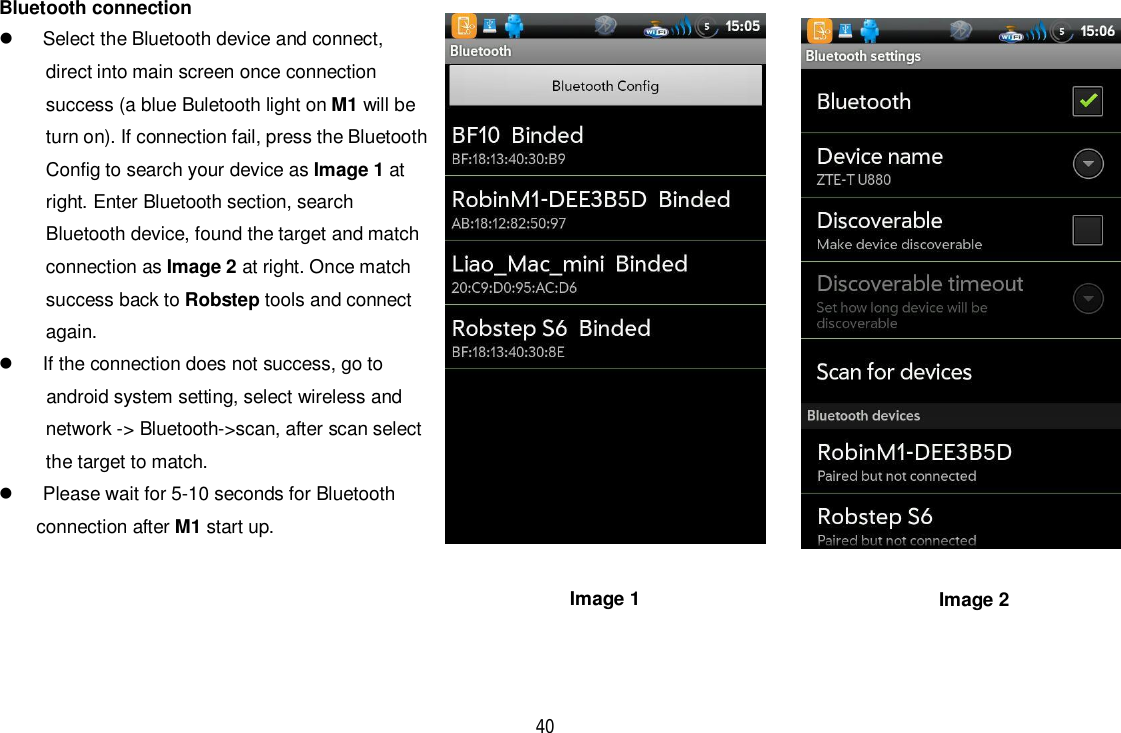

40Bluetooth connection Select the Bluetooth device and connect,direct into main screen once connectionsuccess (a blue Buletooth light on M1 will beturn on). If connection fail, press the BluetoothConfig to search your device as Image 1 atright. Enter Bluetooth section, searchBluetooth device, found the target and matchconnection as Image 2 at right. Once matchsuccess back to Robstep tools and connectagain. If the connection does not success, go to android system setting, select wireless andnetwork -> Bluetooth->scan, after scan selectthe target to match. Please wait for 5-10 seconds for Bluetoothconnection after M1 start up.Image 1 Image 2

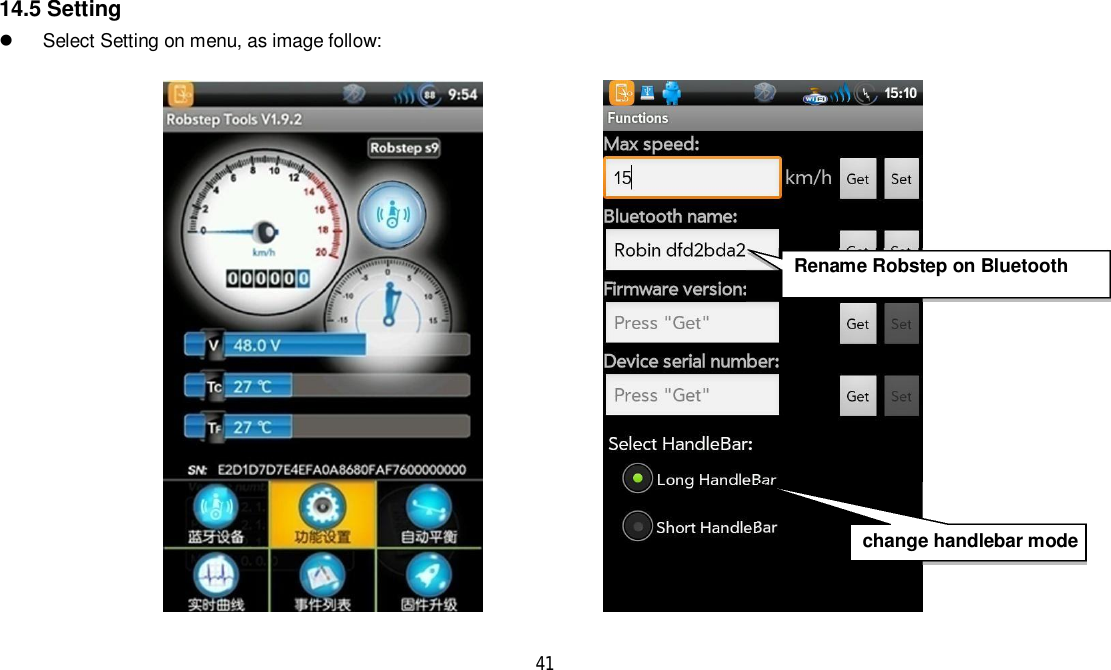

4114.5 Setting Select Setting on menu, as image follow:Rename Robstep on Bluetoothchange handlebar mode

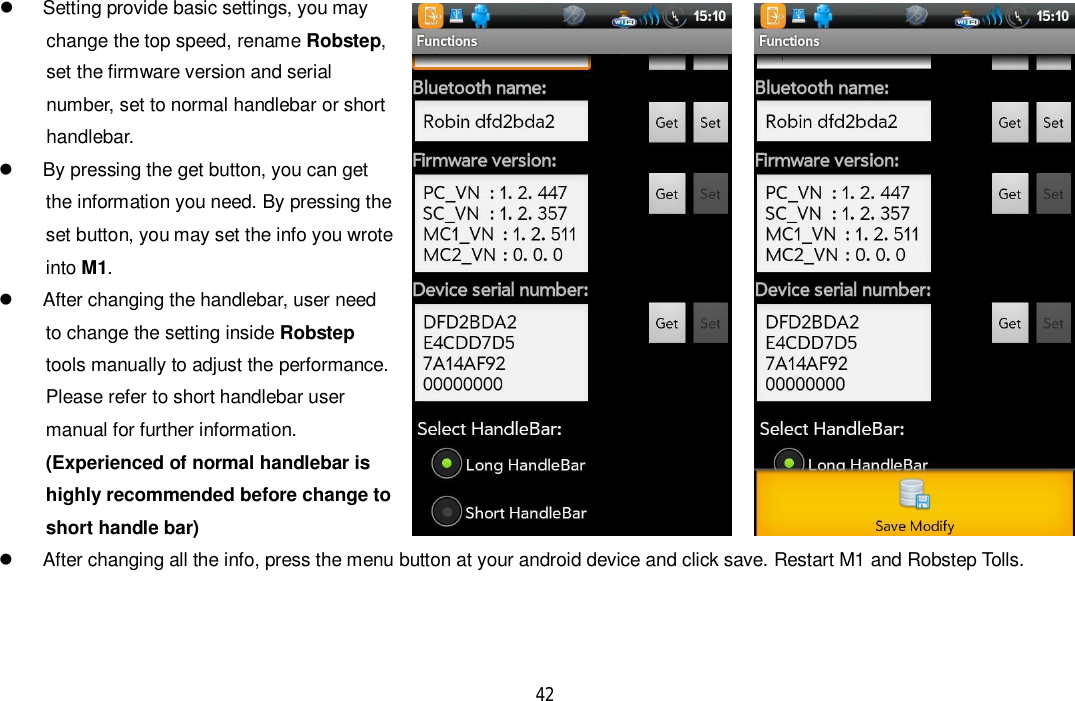

42 Setting provide basic settings, you maychange the top speed, rename Robstep,set the firmware version and serialnumber, set to normal handlebar or shorthandlebar. By pressing the get button, you can getthe information you need. By pressing theset button, you may set the info you wroteinto M1. After changing the handlebar, user needto change the setting inside Robsteptools manually to adjust the performance.Please refer to short handlebar usermanual for further information.(Experienced of normal handlebar ishighly recommended before change toshort handle bar) After changing all the info, press the menu button at your android device and click save. Restart M1 and Robstep Tolls.

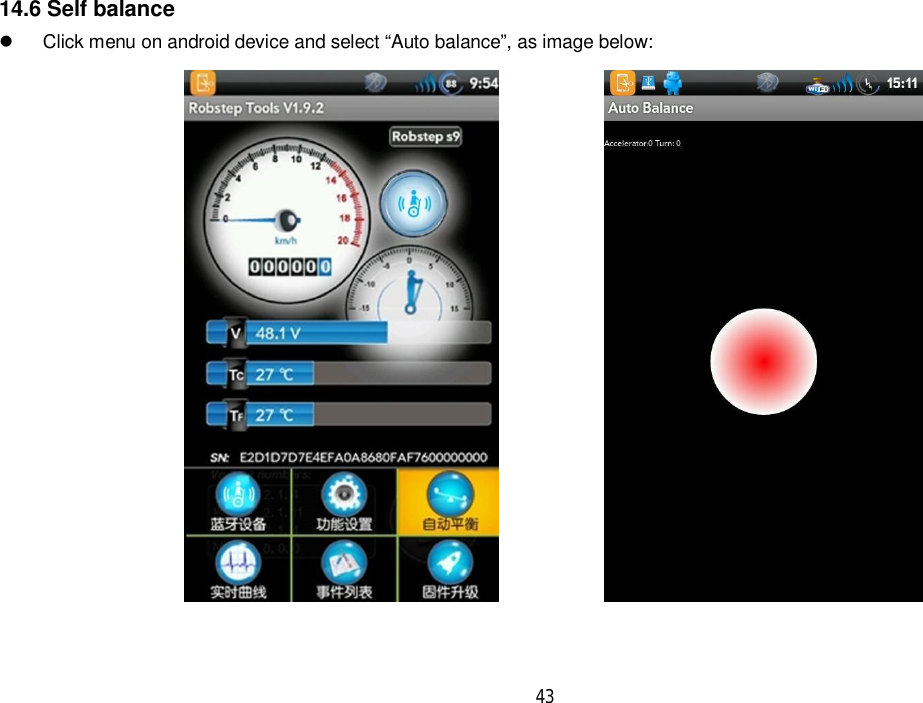

4314.6 Self balance Click menu on android device and select “Auto balance”, as image below:

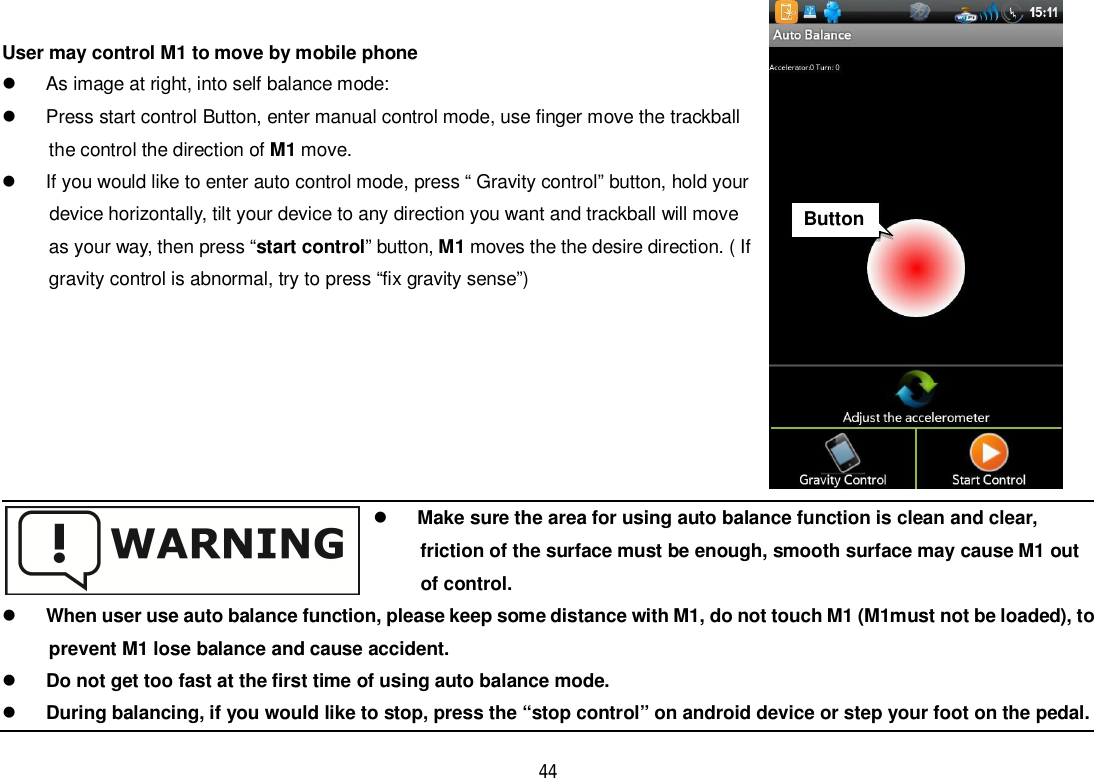

44User may control M1 to move by mobile phone As image at right, into self balance mode: Press start control Button, enter manual control mode, use finger move the trackball the control the direction of M1 move. If you would like to enter auto control mode, press “ Gravity control” button, hold your device horizontally, tilt your device to any direction you want and trackball will moveas your way, then press “start control” button, M1 moves the the desire direction. ( Ifgravity control is abnormal, try to press “fix gravity sense”)Make sure the area for using auto balance function is clean and clear,friction of the surface must be enough, smooth surface may cause M1 outof control.When user use auto balance function, please keep some distance with M1, do not touch M1 (M1must not be loaded), toprevent M1 lose balance and cause accident.Do not get too fast at the first time of using auto balance mode.During balancing, if you would like to stop, press the “stop control” on android device or step your foot on the pedal.Button

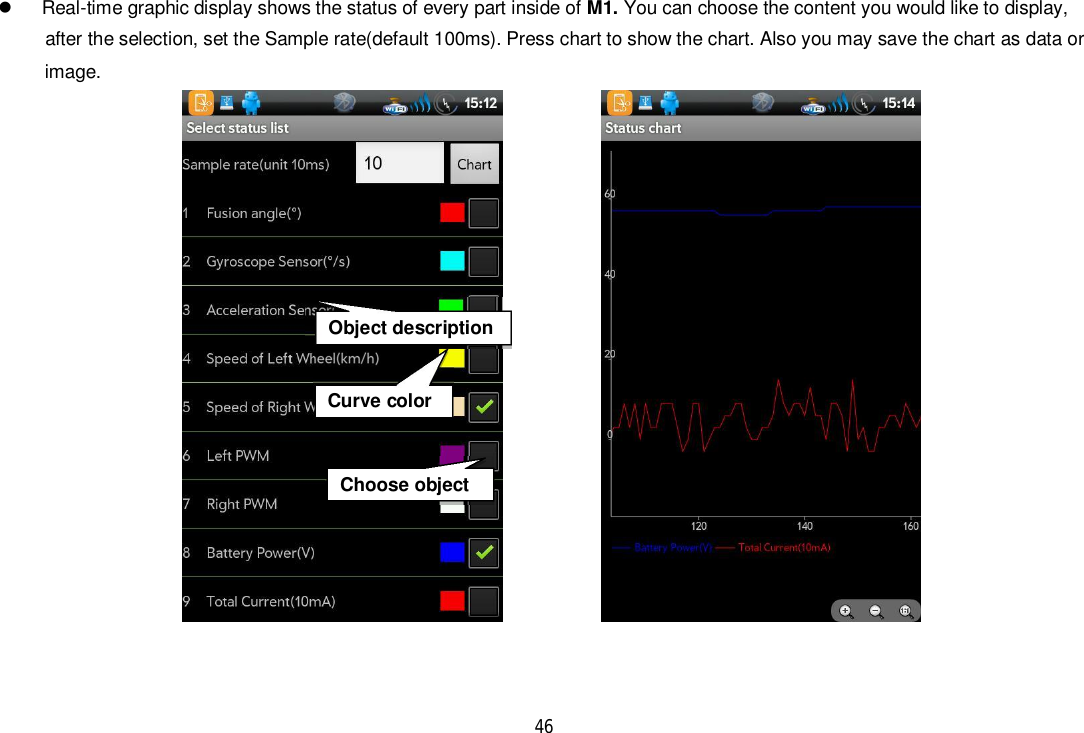

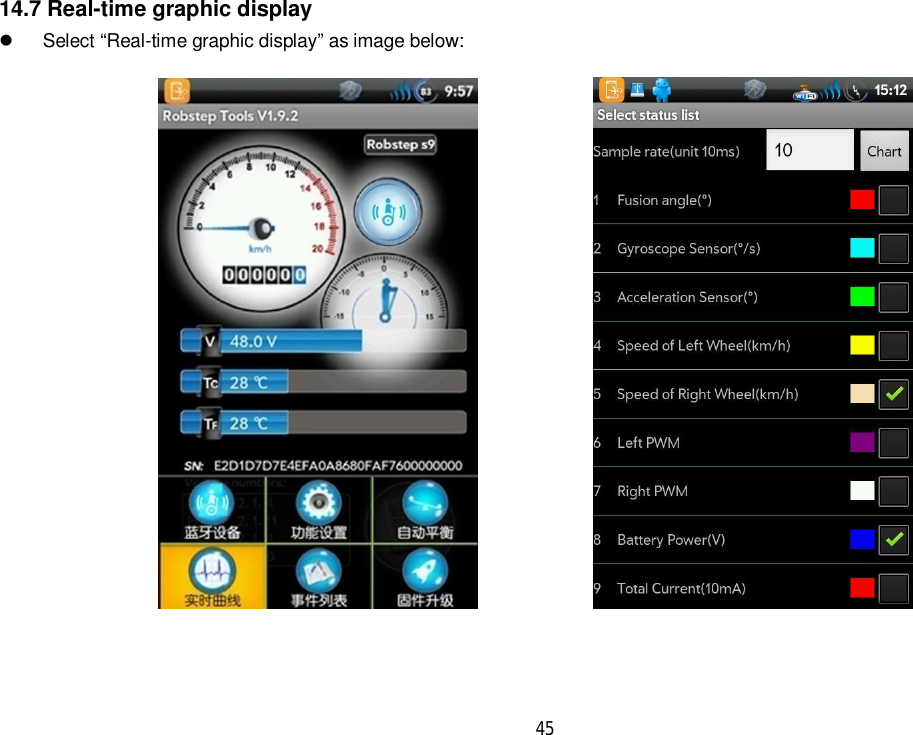

4514.7 Real-time graphic display Select “Real-time graphic display” as image below:

46 Real-time graphic display shows the status of every part inside of M1. You can choose the content you would like to display, after the selection, set the Sample rate(default 100ms). Press chart to show the chart. Also you may save the chart as data or image.Curve colorObject descriptionChoose object

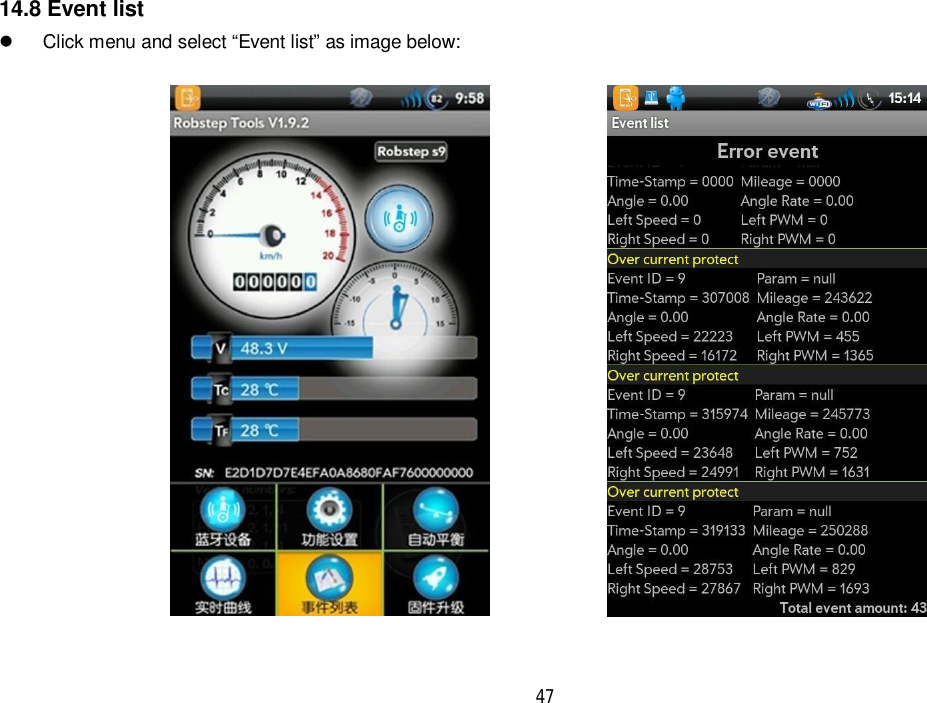

4714.8 Event list Click menu and select “Event list” as image below:

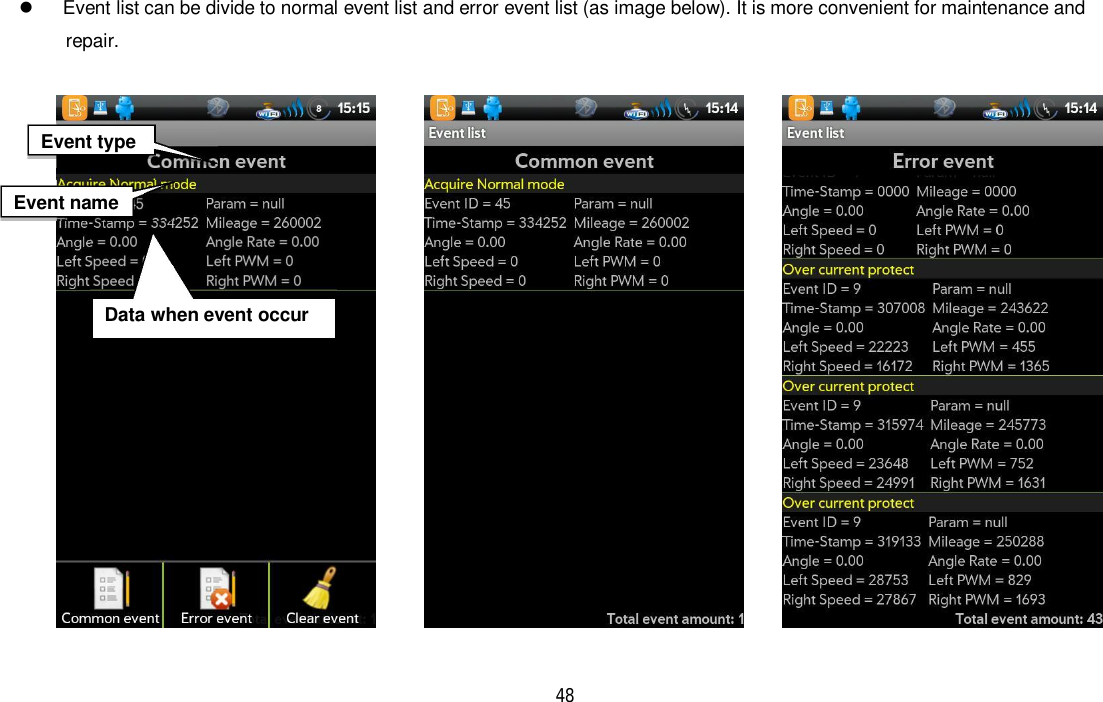

48 Event list can be divide to normal event list and error event list (as image below). It is more convenient for maintenance and repair.Data when event occurEvent typeEvent name

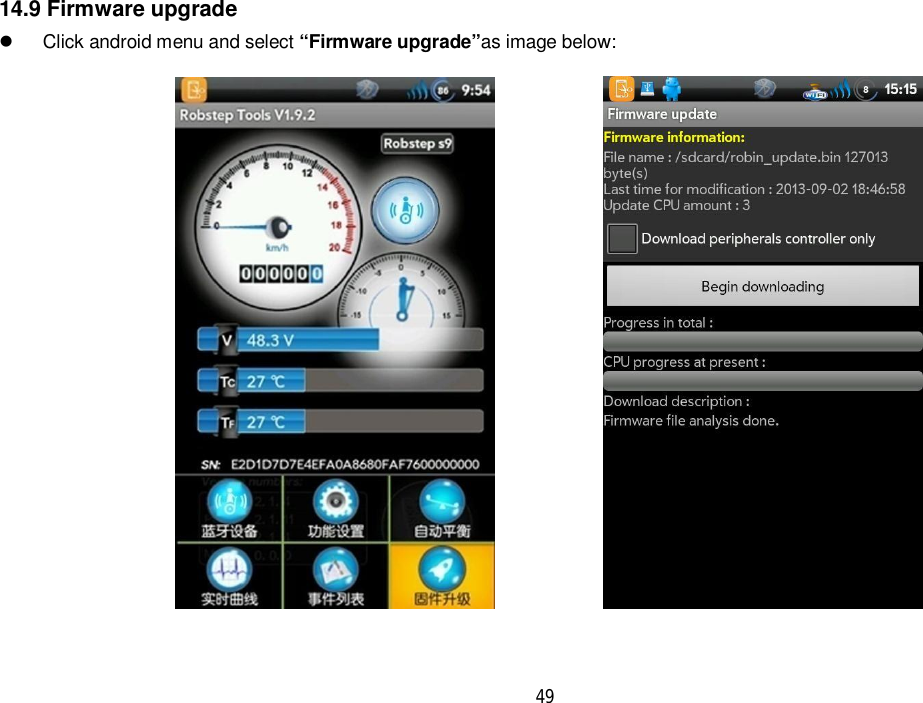

4914.9 Firmware upgrade Click android menu and select “Firmware upgrade”as image below:

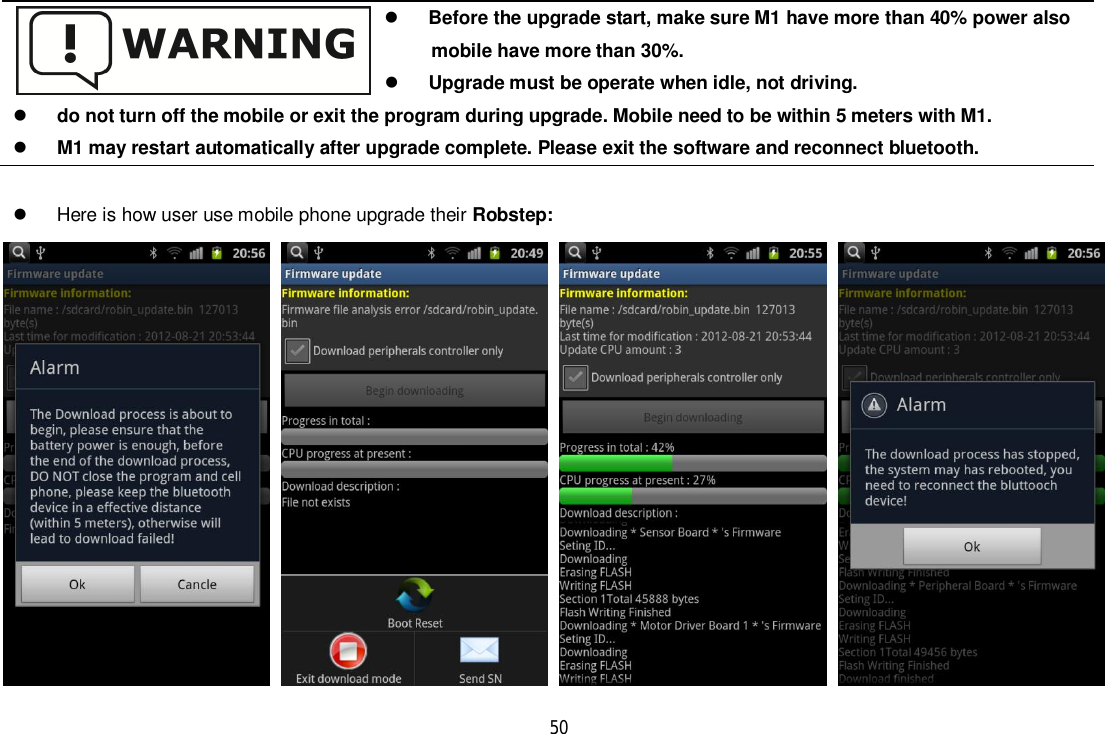

50 Here is how user use mobile phone upgrade their Robstep:Before the upgrade start, make sure M1 have more than 40% power also mobile have more than 30%.Upgrade must be operate when idle, not driving.do not turn off the mobile or exit the program during upgrade. Mobile need to be within 5 meters with M1.M1 may restart automatically after upgrade complete. Please exit the software and reconnect bluetooth.

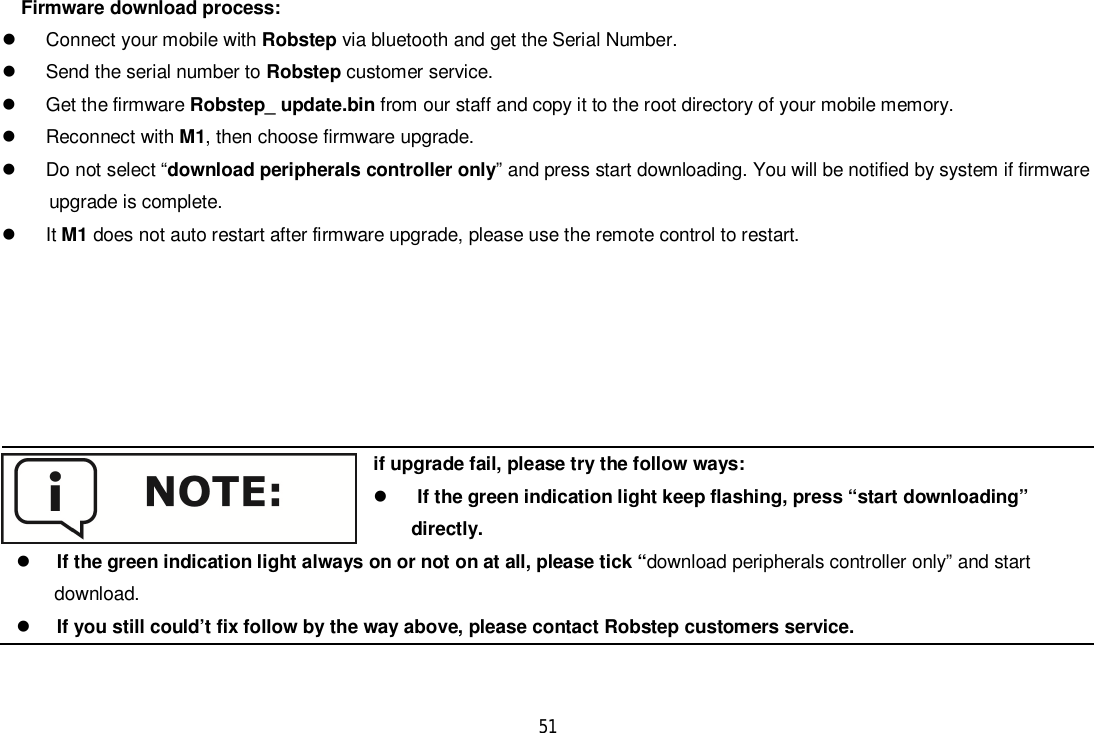

51Firmware download process: Connect your mobile with Robstep via bluetooth and get the Serial Number. Send the serial number to Robstep customer service. Get the firmware Robstep_ update.bin from our staff and copy it to the root directory of your mobile memory. Reconnect with M1, then choose firmware upgrade. Do not select “download peripherals controller only” and press start downloading. You will be notified by system if firmware upgrade is complete. It M1 does not auto restart after firmware upgrade, please use the remote control to restart.if upgrade fail, please try the follow ways:If the green indication light keep flashing, press “start downloading” directly.If the green indication light always on or not on at all, please tick “download peripherals controller only” and start download.If you still could’t fix follow by the way above, please contact Robstep customers service.

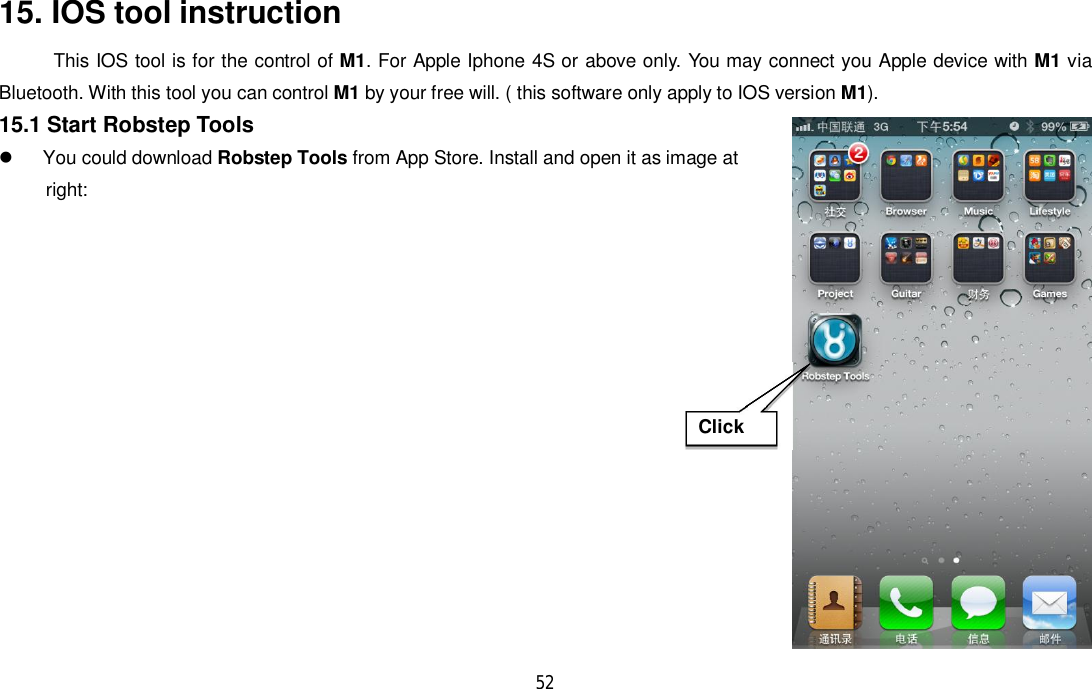

5215. IOS tool instructionThis IOS tool is for the control of M1. For Apple Iphone 4S or above only. You may connect you Apple device with M1 viaBluetooth. With this tool you can control M1 by your free will. ( this software only apply to IOS version M1).15.1 Start Robstep Tools You could download Robstep Tools from App Store. Install and open it as image at right:Click

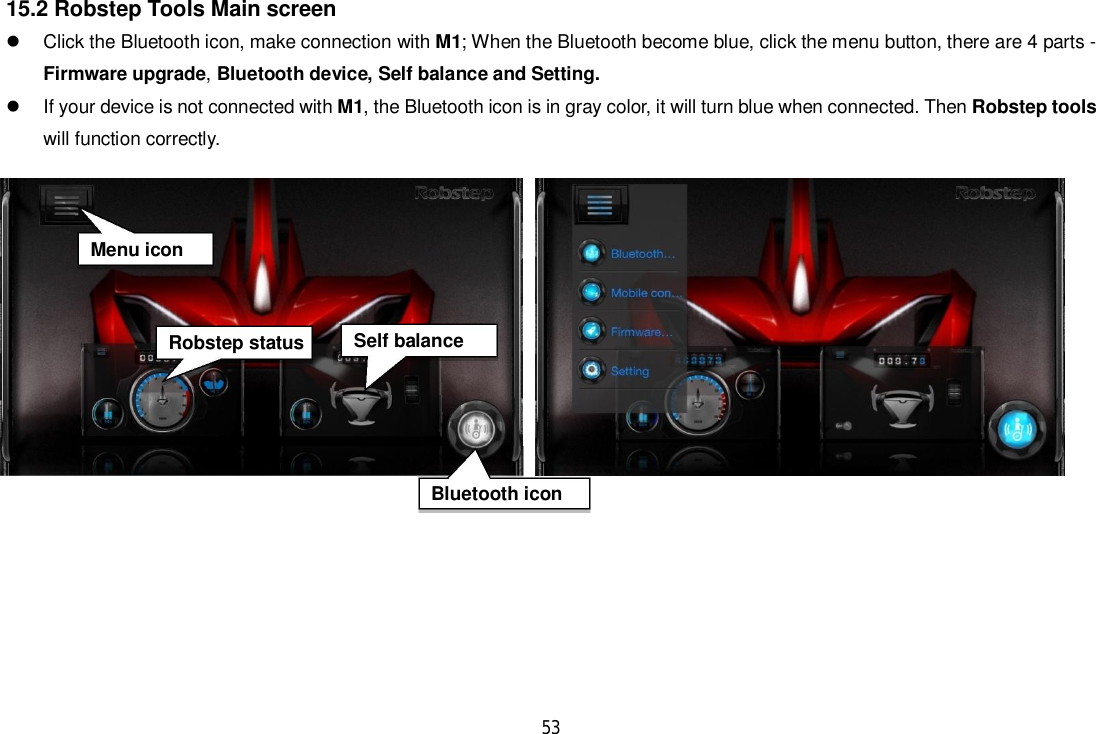

5315.2 Robstep Tools Main screen Click the Bluetooth icon, make connection with M1; When the Bluetooth become blue, click the menu button, there are 4 parts -Firmware upgrade, Bluetooth device, Self balance and Setting. If your device is not connected with M1, the Bluetooth icon is in gray color, it will turn blue when connected. Then Robstep toolswill function correctly.Robstep statusBluetooth iconMenu iconSelf balance

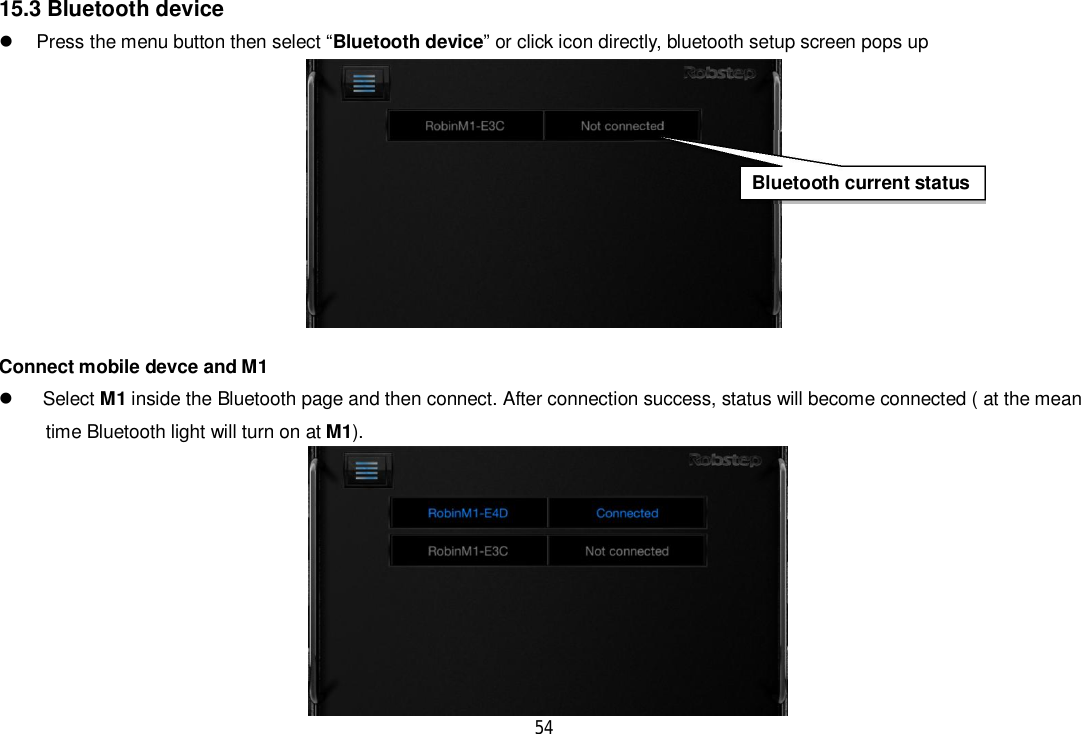

5415.3 Bluetooth device Press the menu button then select “Bluetooth device” or click icon directly, bluetooth setup screen pops upConnect mobile devce and M1 Select M1 inside the Bluetooth page and then connect. After connection success, status will become connected ( at the mean time Bluetooth light will turn on at M1).Bluetooth current status

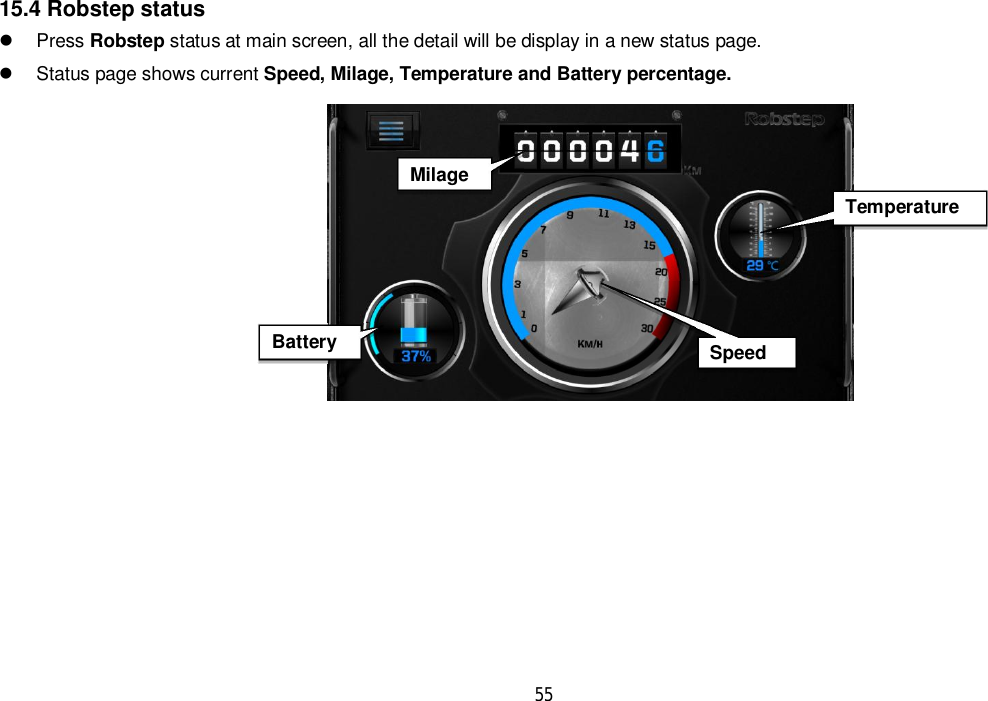

5515.4 Robstep status Press Robstep status at main screen, all the detail will be display in a new status page. Status page shows current Speed, Milage, Temperature and Battery percentage.SpeedMilageBatteryTemperature

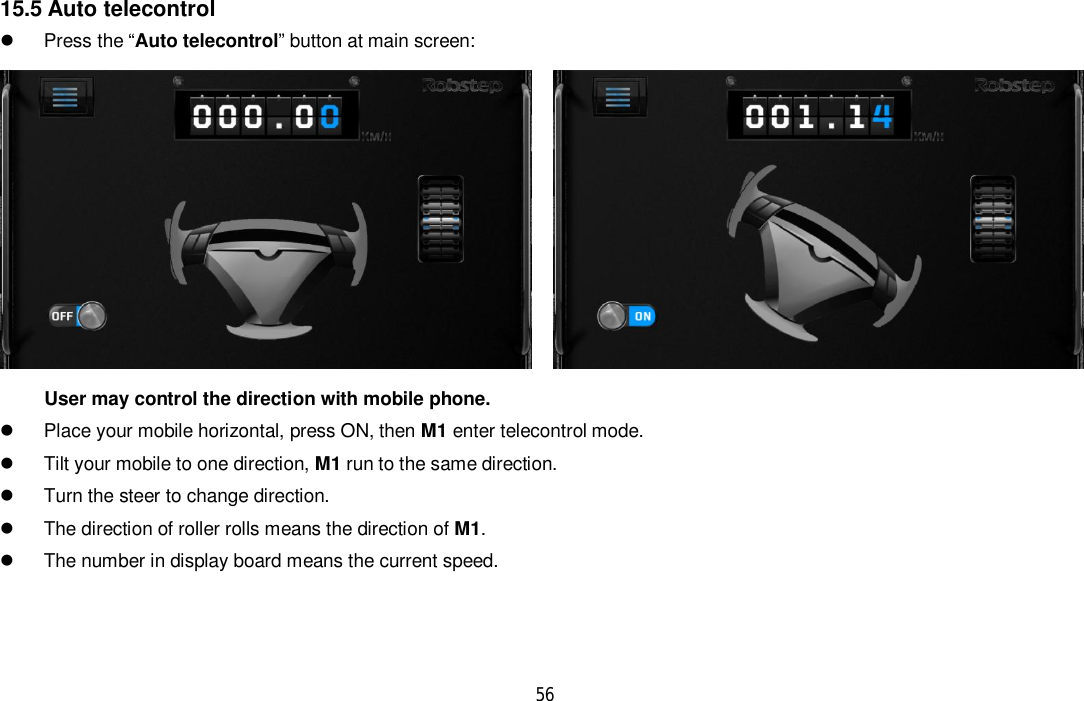

5615.5 Auto telecontrol Press the “Auto telecontrol” button at main screen:User may control the direction with mobile phone. Place your mobile horizontal, press ON, then M1 enter telecontrol mode. Tilt your mobile to one direction, M1 run to the same direction. Turn the steer to change direction. The direction of roller rolls means the direction of M1. The number in display board means the current speed.

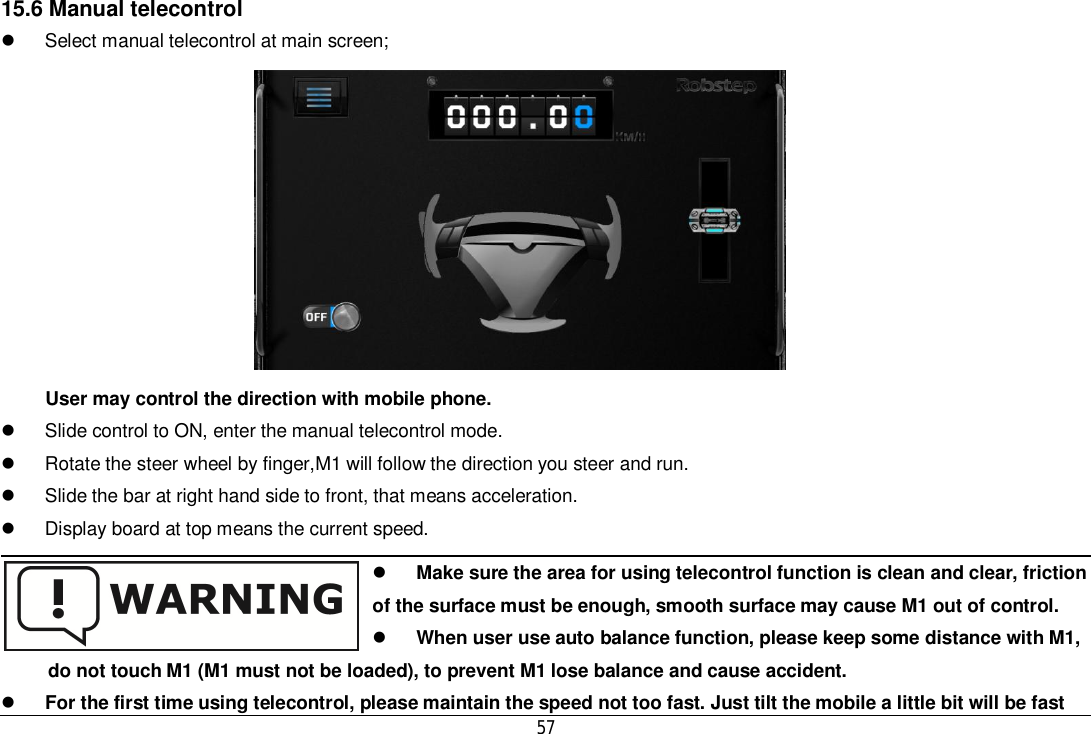

5715.6 Manual telecontrol Select manual telecontrol at main screen;User may control the direction with mobile phone. Slide control to ON, enter the manual telecontrol mode. Rotate the steer wheel by finger,M1 will follow the direction you steer and run. Slide the bar at right hand side to front, that means acceleration. Display board at top means the current speed.Make sure the area for using telecontrol function is clean and clear, frictionof the surface must be enough, smooth surface may cause M1 out of control.When user use auto balance function, please keep some distance with M1,do not touch M1 (M1 must not be loaded), to prevent M1 lose balance and cause accident.For the first time using telecontrol, please maintain the speed not too fast. Just tilt the mobile a little bit will be fast

5815.7 Firmware upgrade Press the “Firmware upgrade”button at main screen: enough.If you would like to quite the program, just slide the bar to OFF or step you foot on the pedal.Before upgrade the system, make sure M1 have more than 40% power and you mobile phone have more than 30%.Upgrade must be operate when idle, not driving.Do not turn off the mobile or exit the program during upgrade. Mobile need to be within 5 meters with M1.M1 may restart automatically after upgrade complete. Please exit the software and reconnect bluetooth.

59 Here is how user use mobile phone upgrade their M1:Firmware download process: Connect your mobile with Robstep via bluetooth and get the Serial Number. Send the serial number to M1 customer service. Get the firmware Robstep update bin from our staff and copy it to your mobile . Reconnect with M1, then choose firmware upgrade. Select “start downloading”and click next. Click normal update, then upgrade start. Software will tell once upgrade complete.

60 If M1 does not restart after upgrade, please restart it by remote control.Instruction of transfer firmware Robstep_update.bin from PC to IOS devices:Connect iPhone with PC, turn on i Tunes, select your device, click “program” at top menu.Find “file share” function, select Robstep Tools, “add” Robstep_update.bin file you receive from after sales service department.if upgrade fail, please try the follow ways:If the green indication light keep flashing, press “start downloading” directly.If the green indication light always on or not on at all, please tick “download peripherals controller only” and startdownload.If you still could’t fix follow by the way above, please contact Robstep customers service.

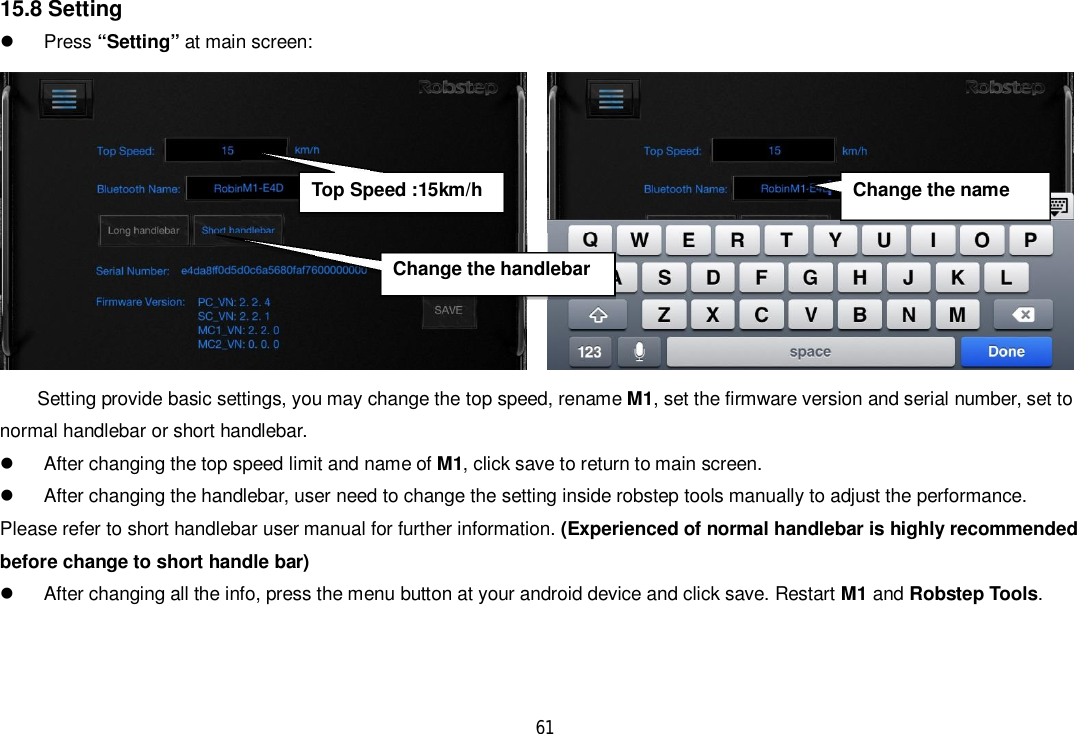

6115.8 Setting Press “Setting” at main screen:Setting provide basic settings, you may change the top speed, rename M1, set the firmware version and serial number, set tonormal handlebar or short handlebar. After changing the top speed limit and name of M1, click save to return to main screen. After changing the handlebar, user need to change the setting inside robstep tools manually to adjust the performance.Please refer to short handlebar user manual for further information. (Experienced of normal handlebar is highly recommendedbefore change to short handle bar) After changing all the info, press the menu button at your android device and click save. Restart M1 and Robstep Tools.Change the nameChange the handlebarTop Speed :15km/h

62Hope you enjoy the fun of M1If there is any problem occur, please read through <M1 Product manual>. If the Product manual is not able to help you, please login to www.robstep.com or call the hotline:(0086)0769-26620928 contact our customer service.Current document version is: V1.1

Dongguan Robstep Robot Co.,Ltd. Address: Songhuhuake No.2 Building, Songhuhuake Industrial Park, Songshan Lake, Dongguan, ChinaTel: (0086)0769-26620928 .Website:www.robstep.com
