User Manual

 Thank you for your purchasing Robstep.

 Robstep is an intelligent robot that balances automatically.

 This User’s Manual providing you information about how to assemble and safely use the Robstep, and

how to maintain it . If you want to get the most pleasure out of your Robstep , please read it carefully.

 It is critical that you know of all safety notices and precautions before your first ride.

This User’s manual applies on all smart balanced robots named Robstep which are produced by Robstep

3. Assembly Instruction

In this part, we will talk about the parts of Robstep and how to install Robstep.

3.1 Double check the spare parts inside the packing

Please check the package of Robstep and make sure that all spare parts are complete. The spare parts of

Robstep are listed as follows, if any of them missing, please contact with the local agent or us directly.

1) Main body

2) Handlebar grip

3) Handlebar stem

4) Charger

5) Tool and screws bag (which contains of erecting tools and 10 screws)

6) User’s Manual, and warranty card

7) Product quality certificate

3.2 Installing Robstep

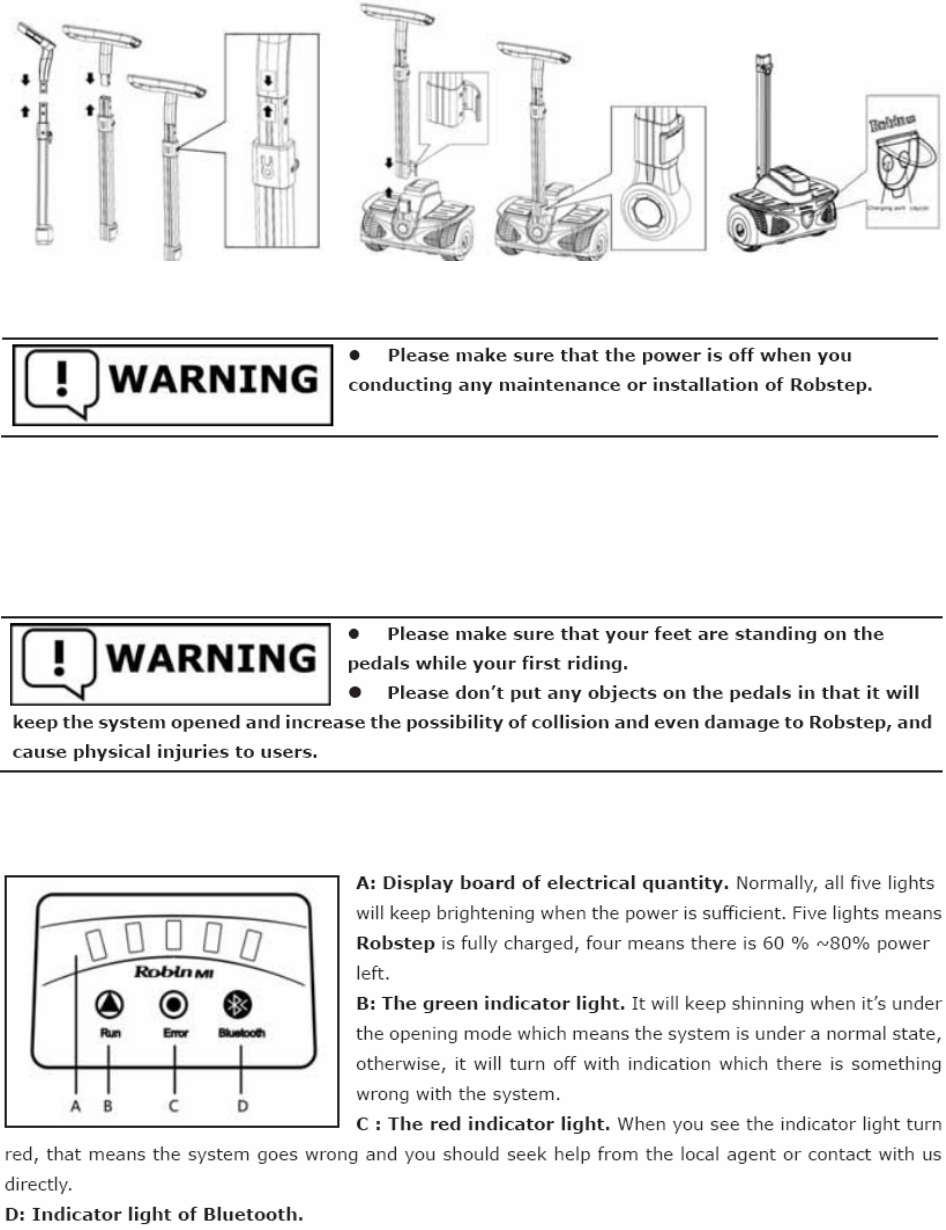

Stepone:Inserttherubberofhandlebarintothehandlebaraccordingtotheinstructionofthefollowingpictures,

tightenupthefourscrewswithtools(screwsandtoolsareallgiven,pleasepayattentiontotheanterio‐posterior

oftherubberofthehandlebar,andinstallitaccordingtotheinstructionbythearrowswithsamecolor).Thispart

ishandlebarcomponentsanditcanbequick‐releasedbythelockingwrench.



Steptwo:Undertheloosenedstateofthelockingwrench,pleaseinsertthehandlebarcomponentsontothe

rotaryjointofRobstep.Thentightenthelockingwrenchbyyourhand,whenthehandlebarcomponentsinsert

thebottom.

MakesurethestabilityofthehandlebarcomponentsbeforeyouridetheRobin.Youcangentlytrytoliftupthe

handlebarwhentheRobinispoweroff,ifthehandlebarisloosened,youshouldtightenthetwoscrewsofthe

lockingwrench.(Ifitneedtodisassemble,pleaseholdhandlebarfirst,thenreleasetheQuick‐releasepart.



Stepthree:PressthepoweronbuttonatrearsidetouseRobstep.



4. Controlling of Robstep and the display board

4.1 Pedal sensor

There are four sensors under the pedal, any of them stepped upon by users, Robstep will enter

into the balance model automatically.

4.2 Display board

The display board of Robstep is fixed on the top of the battery. It shows information about

Robstep during riding.

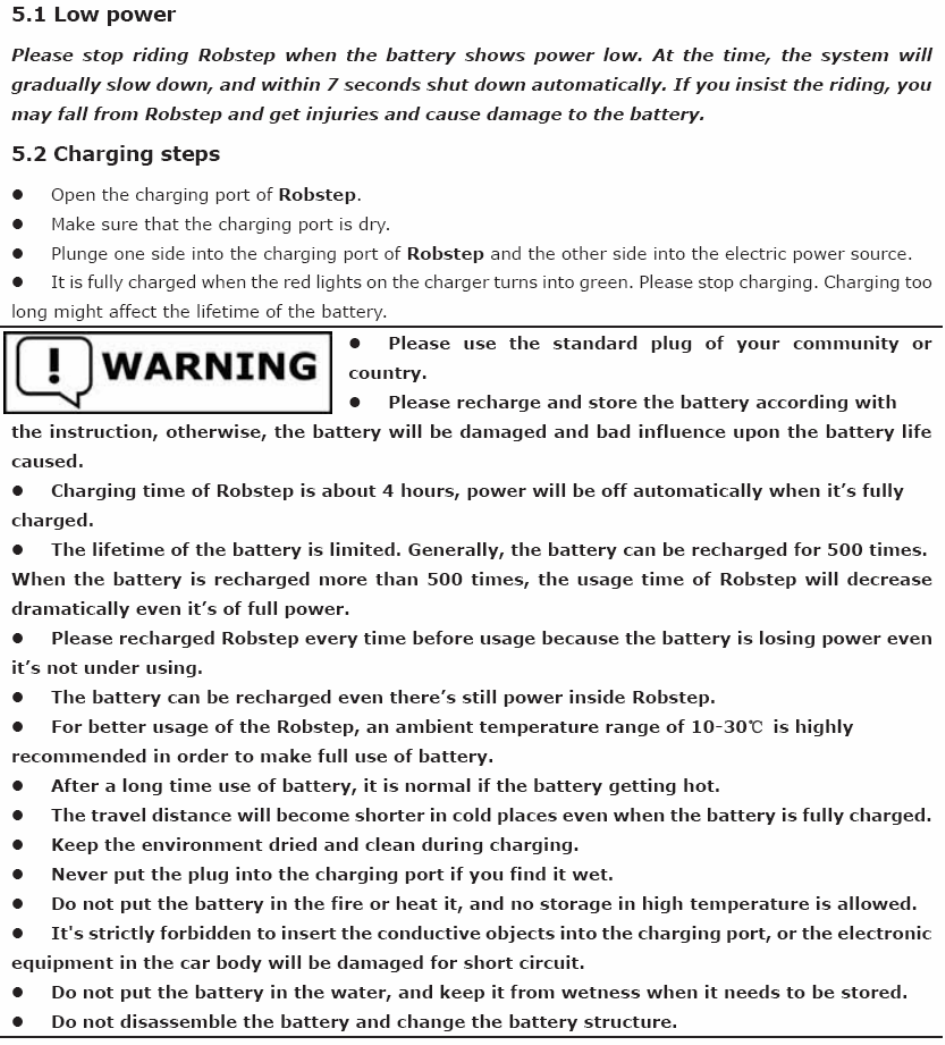

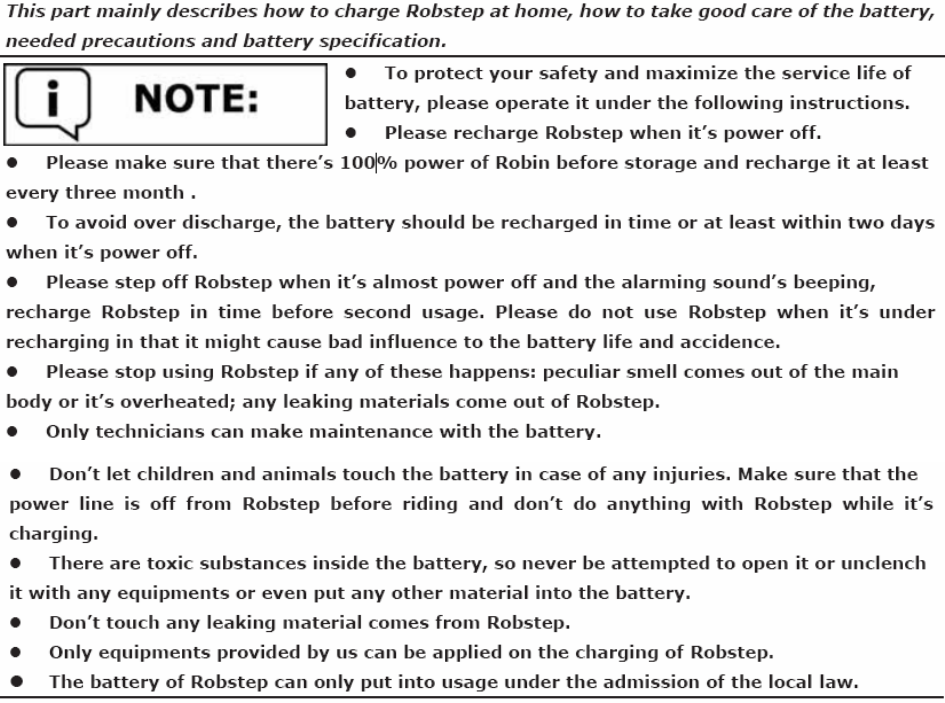

5. Instructions of battery of Robstep

7. How to use Robstep

You need to note some related safety matters before driving Robstep. It is very important for you

to understand all safety matters mentioned inside the user’s manual.

7.1 Start Robstep

 If it is your first time to start Robstep, please press the button on the back cover of Robstep Body.

7.2 Safe Parking

 When there is an incorrect operation or the power consumption reaches the minimum quantity within

normal driving, the system will then generate a secure parking information, meanwhile Robstep will have

a high-frequency vibration, then Robstep can automatically slow to a stop.
