Dongguan Taide BT020A Bluetooth Speaker User Manual
Dongguan Taide Industrial Co., Ltd. Bluetooth Speaker
User manual
PID #021372/73/74/75-109281
Rev. 130607
Portable Bluetooth Speaker
for iPad, iPhone and iPod
Model #:BT3000RED, BT3000BLU,
BT3000SLV, BT3000BLK,BT020A
User’s Manual
2
All brand name and trademarks are the property of their respective companies
USER’S RECORD:
To provide quality customer service and technical support, it is suggested that you keep the
following information as well as your store receipt and this user’s manual.
Date of Purchase: ________________________________
Model Number: ________________________________
Product Rev Number (located below the UPC on the package): ____________________
FCC RADIATION NORM:
FCC
This equipment has been tested and found to comply with limits for Class B digital device pursuant
to Part 15 of Federal Communications Commission (FCC) rules.
FCC Compliance Statement
These limits are designed to provide reasonable protection against frequency interference in
residential installation. This equipment generates, uses, and can radiate radio frequency energy,
and if not installed or used in accordance with the instructions, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur in television
reception, which can be determined by turning the equipment off and on. The user is encouraged
to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
CAUTION!
The Federal Communications Commission warns the user that changes or modifications to the
unit not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
Consult the dealer or an experienced radio/TV technician for help.
3
PACKAGE CONTENTS:
Your new Bluetooth Speaker will ship with the following items:
- Portable Bluetooth Speaker for iPad, iPhone, iPod
- USB to Micro USB Cord
- 3.5mm Audio Cable
- User Manual
- Warranty info
SYSTEM REQUIREMENTS:
Please be sure that you meet all of the system requirements below to avoid difficulties during
installation:
- An Available 3.5mm Jack (For iPod nano, iPod Classic etc.)
- An Available USB Port (For Charging)
- Bluetooth® Connectivity
4

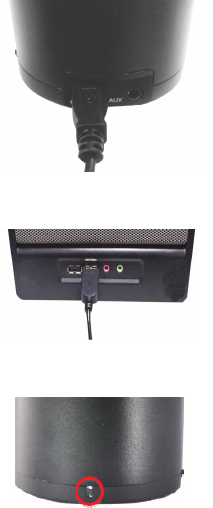

CHARGING:
1. Connect Micro USB Cord to the speaker.
2. Connect USB power cord to the USB port of your computer or notebook.
3. Power indicator LED will turn red while charging, when charging is completed, the LED will turn
off. Unplug the USB Cord from the speaker and the computer.
5
INSTALLATION:
For All Operating Systems
NOTE: The pictures shown in this User’s Manual are for demonstration purposes only. Your
computer or product may look slightly different.

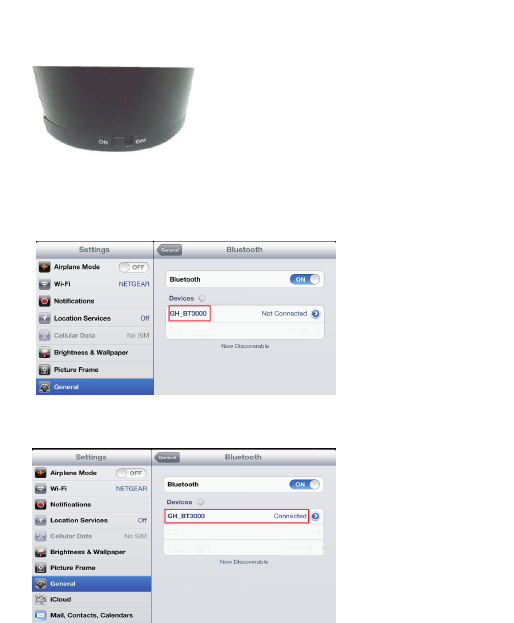

1. Enable Bluetooth on your device and search for available devices.
2. Turn on the speaker. The speaker will make a sound. The LED indicator will turn on and
blink rapidly it if is not already paired with a device.
(Note: The speaker will be turned off if it is not already paired with a device after 5 minutes.)
3. “GH_BT3000” will show on your iPad, iPhone, or iPod touch. Select it to start connecting.
Depending on the device you are using, you may need type the code “0000” to pair with the
speaker. (Note: Pairing shall be completed within one minute from the time your iPhone,
iPad, or iPod touch’s Bluetooth is enabled.)
4. Your Bluetooth Speaker is now connected with your device. Play music from your device to
test the speaker.
6

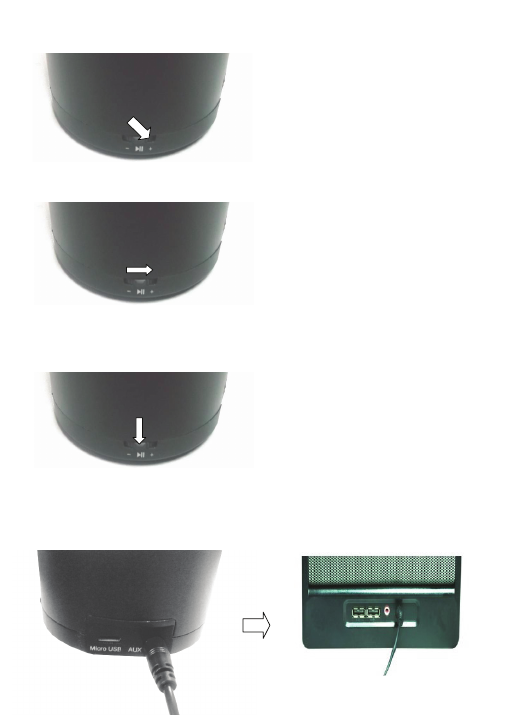

5. Increase the volume of the speaker to a desired level, by pressing on the right of the volume
control for 5 seconds. Your speaker can continuously play 4-7 hours of music.
6. Switch to next music, by pressing the volume control to the right slightly.
7. Pause or resume the music, by pressing the center of the volume control slightly.
(Note: The bluetooth speaker will re-pair the device if you press the center of the volume
control for 3 seconds.)
8. Please turn off the speaker if not in use.
9. The speaker can also be used with any other audio device with an available 3.5mm audio
output. Simply connect the included cable to the speaker and your audio device.
7
Note: The Volume/ Pause/ Resume control on the speaker is only available when using the
speaker via Bluetooth interface.
