Dongguan Taide BT020AP Bluetooth speaker User Manual
Dongguan Taide Industrial Co., Ltd. Bluetooth speaker
User Manual
TAIDE ELECTRONICS

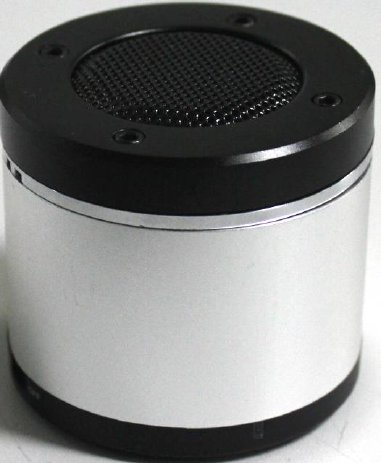

User’s Manual for BT020AP
Brand name：IKANOO
FCC ID:OYCBT020AP
Distinguished Customers,
Thank you for purchasing this Speaker BT020AP. Before getting started, please read the user's manual carefully so as to
ensure proper operation and optimized performance of this product. With stylish outer appearance, compact structure,
high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced
electric and sound technology in the industry, ultimately making itself the best choice to hook up with your devices such
as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either you are at
home, on vacation or at work.
I. Precautions
Please store and use this product at the ambient temperature;
Do not expose this product to the rain or damp surroundings;
Prevent this product from falling that could result in serious damage;
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in
lithium battery.
II. Considerate Hints
1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or
impair your hearing;
2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to
prevent further damage to the speaker or other components;
3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please
recharge immediately.
III． Outer Appearance and Function Buttons
IV. Product Parameters
Product Model：BT020AP
Bluetooth Specifications：Bluetooth V2.1+EDR
Transmission Distance：≤10M (depending upon operation environment and devices to which it connects)
USB Recharge Voltage: DC 5V
Built-in Battery: Lithium battery
Output Power: 3W
Frequency Response: 90Hz-20KHz
Sensitivity: 80db±2db
Signal to Noise Ratio (SNR):≥80dB
Product Dimensions: φ62×D58MM
V. System Composition
1) Speaker 1set
2) 3.5mm Audio 1piece
3) USB Power Cable 1piece
3) User's Manual/Warranty Card 1copy
VI. Common Function Description
Power-on Status: Press the Power Button to turn the speaker on and it beeps simultaneously with the blue indicator
flashing.
Micro USB and AUX
Sling hole
On and OFF Indicator light
Bluetooth function button
Bluetooth Connection: Once switched on, the speaker starts searching for other Bluetooth devices automatically and at
the same time, the blue indicator goes on and off. When found a Bluetooth device, the speaker
prompts whether to pair up or not. If selected Yes, it pairs up with the device and meanwhile, the
blue indicator flashes slowly and a beep is also generated by the speaker. If failed to detect any
other Bluetooth device within 5minutes, the speaker will shut itself down. Turn it back on again
to start search. All the paired devices will engage in automatic connection when the speaker is
turned on.
Music Playback: When connected, the speaker plays music immediately. Press + and — to select
tracks upwards or downwards. Long press and hold + and — to adjust the volume. While
playing music, press to pause and to resume.
Hints: 1. Please recharge when the battery loses its power considerably or the connection is
failed.
2. This Bluetooth speaker is required to carry out manual connection when switched
on every time.
AUX Playback: Use the supplied audio cable to connect the speaker to another music player such as computer by
plugging one end to the speaker's AUX port and the other end to the music player's audio port. When the
music player starts playing music, the speaker sounds right away. Tracks can be selected and volume
adjusted only by the music player.
Hints: 3 buttons of, +, and — are functionless in the AUX mode and the volume is controlled by the
music player.
Intelligent Quick Recharge: Recharge can be performed in the standby mode or power-off situation. Before
recharging, plug the mini-USB end of the supplied USB cable to the speaker's USB port
and the other end to the USB port of the computer or the USB recharger. When fully
recharged, the red indicator goes off.
VII. Trouble shooting
Faults Phenomena Solutions
Unable to pair up with other
devices
1. Check whether the speaker is still in the process of search or switch it off and then
on.
2. There are too many Bluetooth devices in the proximity that cause difficulty in
connection. Please turn them off.
The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then adjust it to a proper level.
2. Recharge the battery
The music stops from time to time 1. Check whether the speaker’s effective transmission range is exceeded or there is
an obstacle standing between the speaker and other Bluetooth devices.
The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged.
2. Turn it on again.
Hints: Another trouble, please consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
