Users Manual

User’s Manual for the Bluetooth Speaker
BT058
Distinguished Customers,
Thank you for purchasing this Bluetooth speaker BT058. Before getting started, please read the user's manual carefully so
as to ensure proper operation and optimized performance of this product. With stylish outer appearance, compact
structure, high fidelity sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted
advanced electric and sound technology in the industry, ultimately making itself the best choice to hook up with your
devices such as tablet, cellphone and digital music player etc. perfectly by presenting you exceptional stereo effect either
you are at home, on vacation or at work.
1. Precautions
Please store and use this product at the ambient temperature;
Do not expose this product to the rain or damp surroundings;
Prevent this product from falling that could result in serious damage;
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in
lithium battery.
2. Considerate Hints
1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or
impair your hearing;
2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to
prevent further damage to the speaker or other components;
3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please
recharge immediately.
3. Outer Appearance and Function Buttons
1) //: switching by keeping pressing it for 2s, BLUETOOTH, AUX, selection of working mode
Click “pause” during playing and click “play” when it is paused.
Click “mute” at AUX state point and click it again to open it
Function keys

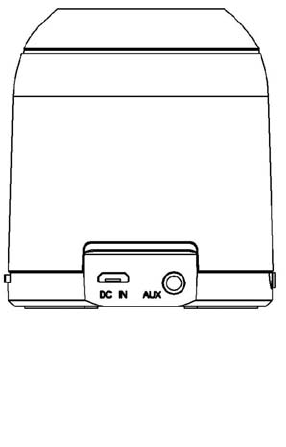

USB Charging interface
3.5 Audio input
Power switch
Click to answer the phone when there is a Bluetooth call, click it again to hang up and keep pressing it to refuse the
call
2) “ “ : up selection key. Keep pressing it during the playing to volume down and keep pressing it for a short period
to select the previous song;
3) “ ”: down selection key. Keep pressing it during the playing to volume up and keep pressing it for a short period to
select the next song.
4. Function features of this product
1) Dual-mode power supply: the product is provided with lithium battery and supplied by USB interface or DC5V USB.
The dual power supply mode can be selected freely.
2) Power failure memory playing: the precise position of last playing interruption can be memorized automatically.
3) AUX audio output: 3.5MM audio line input and computer can be connected easily. It can connect broad range of
audio-visual products such as MP3/MP4/IPOD/IPHONE.
4) Bluetooth wireless music transmission: high-quality Bluetooth module is built in to realize wireless music transmission
and hand-free connection.
5. Product Parameters
Product Model：BT058
Bluetooth Specifications：Bluetooth V3.0+EDR
Transmission Distance：≤10M (depending upon operation environment and devices to which it connects)
USB Recharge Voltage: DC 5V
Built-in Battery: Lithium battery
Output Power: 3W×1
Frequency Response: 90Hz-20KHz
Sensitivity: 80db±2db
Signal to Noise Ratio (SNR): ≥76dB
Product Dimensions: φ61.5×D71.5 mm
6. System Composition
1） Speaker 1set
2） USB Power Cable 1piece
3） User's Manual 1copy
7. Descriptions of common functions
AUX audio playing: insert audio line to audio input interface of the speaker, computer and the socket of other music
players. AUX plug and play is supported. The working mode can be switched by pressing mode key.
Adjust the volume by keeping pressing “ ” or “ ” for 3s. Click “ ” under AUX state to silence
and click “ ” again to open it. The corresponding operations are provided with voice prompt.
Bluetooth connection: start this product to enter Bluetooth working mode. The speaker will enter Bluetooth exploring
state automatically; when blue indicator lamp flashes very quickly: it will match automatically and the
Bluetooth device will prompt if matching or not. The blue indicator lamp will flash very slowly after
successful connection by clicking match. The device Bluetooth will be off automatically if the Bluetooth
speaker fails to find any equipment within 5m after power-on and electrify the power again for reconnection.
This product is provided with re-connection function and the device which is connected successfully will be
connected automatically when opening the Bluetooth again. The corresponding operations are provided with
voice prompt.
Prompt: please restart this product in case of connection failure or recharge it if the electric quantity of the
battery is insufficient.
Bluetooth music playing: music is played by Bluetooth and keep pressing “ 、” during the playing process to
adjust the volume.
Keep pressing “ 、” to select the previous or next song.
Intelligent automatic fast charging: charge this product after power-off. Insert MICRO USB end of USB power line of
the accessory to USB power socket of the speaker and the other end to computer USB port or USB
charger to charge this product. The red indicator lamp will be off after this product is fully charged.
8. Compatibility
Wireless：Devices configured with Bluetooth 2.1+EDR or higher version such as IPAD, IPHONE (at least the second
generation IPHONE installed the IPHONE software 3.1), IPOD TOCH and MAC as well as a majority of
intelligent phones or computers that support Bluetooth.
Bluetooth V3.0+EDR consists of protocols like A2DP, AVRCP and HFP and so on.
9. Troubleshooting
Faults Phenomena Solutions
Unable to pair up with other
devices
1. Check whether the speaker is still in the process of search or switch it off and then
on.
2. There are too many Bluetooth devices in the proximity that cause difficulty in
connection. Please turn them off.
The sound is rather low or distorted 1. Check the Bluetooth device’s volume and then adjust it to a proper level.
2. Recharge the battery
The music stops from time to time 1. Check whether the speaker’s effective transmission range is exceeded or there is
an obstacle standing between the speaker and other Bluetooth devices.
The Bluetooth indicator remains off 1. It suggests the battery power drops quite low and retry once being recharged.
2. Turn it on again.
10. FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority
to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure
condition without restriction.
