Dongguan Taide H004 Bluetooth Headset User Manual
Dongguan Taide Industrial Co., Ltd. Bluetooth Headset Users Manual
15_H004 UserMan
H004
FCC ID : OYCH004
Thank you for using our company’s Bluetooth Headset. Please read this user manual carefully in order
to operate this product correctly.
I. NOTICE
Please store and use this product at a normal temperature
DO NOT expose this product to rain or damp areas
DO NOT throw or drop this product
DO NOT disassemble, repair, or modify this product
This product has a lithium battery, to avoid danger DO NOT place it near or in a fire
II. KIND REMINDER
1. To prolong the headset life span and to avoid hearing damage, please do not listen to
music under high volume for long periods of time.
2. When an error occurs with the headset, please turn off the product and restart to
troubleshoot.
3. When the headphone power is low, the Bluetooth range may be affected. Please charge
the headset to avoid disruptions during use.

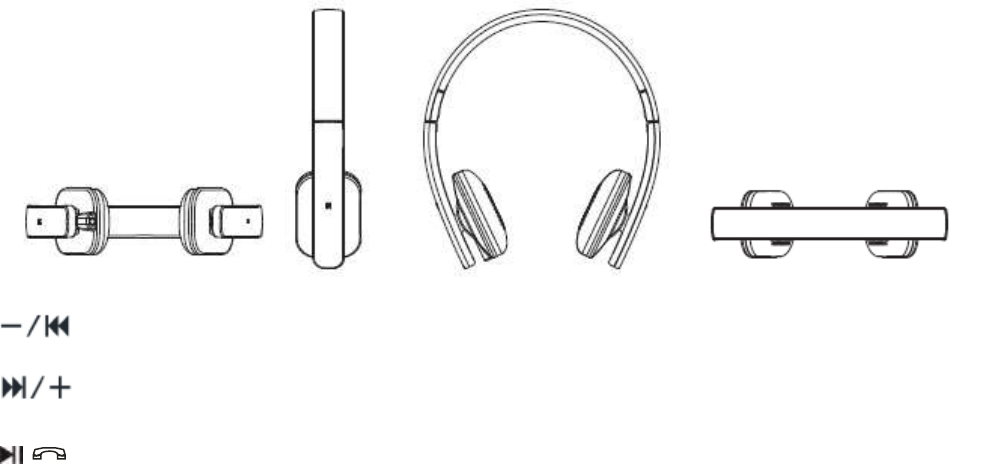

III. OVERVIEW
: Volume Down / Previous Song
: Next Song /Volume Up
/: Play & Pause / Call pick-up & hang-up
“ ”：Press and hold for 2.5 seconds to turn the headphone ON or OFF
IV. SPECIFICATION
Bluetooth specification: Bluetooth V2.1 + EDR
Transmission distance : ≦ 10M ( It varied when the environmental factors and the
connected Bluetooth devices are different )
USB charging voltage: DC 5V/500mAh
Frequency response: 20Hz-20KHz
Sensitivity: 105db（AT 1KHZ+3db）
V. PACKING LIST
1. Headphone * 1
2. USB cable * 1
3. AUX cable * 1
4. User manual * 1
BLUETOOTH OPERATION
1. Press and hold power button to turn on the headset. The blue indicator light will flash
to detect Bluetooth enabled devices near you. The blue indicator light will go out if no
Bluetooth device is detected within 5 minutes.
2. Pair the headphone with the desired Bluetooth device.
3. Play/Pause as desired by pressing / .
4. To answer an incoming phone call while using the headset, press the / button
once. To end the phone call, re-press the / button. Press the / twice to
dial the last number dialed.
AUX PLAYBACK OPERATION
1. Turn on the headphone
2. Insert a 3.5mm audio cable into the AUX jack on the back of the headphone. Connect
the 3.5mm cable to any audio device with a port.
3. Press the / button to play or pause music.
CHARGING THE SPEAKER
1. The headphone has a built-in Lithium battery. The battery is rechargeable and provides
approximately 4 hours of continuous use at 80% volume when fully charged.
2. Use the micro-USB cable to charge the headphone. The red indicator light will
illuminate when the battery is low. The red indicator light will go out when the
headphone is fully charged.
VII. COMPATIBILITY
Devices equipped with Bluetooth 3.0 or higher (for details please refer to the user manual
of that device). Bluetooth 3.0 including agreements as：A2DP, AVRCP, HFP.
VIII. TROUBLESHOOTING
PROBLEM
TROUBLESHOOTING
Failure to connect or
pair the headset to an
audio device
1. Confirm the device you wish to pair with the headphone has
Bluetooth capabilities
2. Check battery life, headset may need to be charged
3. Inspect whether the headphone is in the status of searching for
Bluetooth device.
4. There may be too many Bluetooth enabled devices in the area,
please turn off Bluetooth function on devices you do not want
to pair with the headset.
The sound is too low
or distorted
1. Inspect the volume of the Bluetooth equipment and
adjust the volume.
2. The battery life is low, please charge the headset.
Discontinuous music
1. Move the paired Bluetooth device closer to the
headset.
2. Make sure there are no obstacles between the
Bluetooth device and the headpones.
The indicator light for
1. The battery life is too low. Please charge the headset
Bluetooth mode is not
on
and try again.
2. Restart the headset by powering off and turning back
on.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
