users manual
Bluetooth Headset
金屬便攜藍牙耳机用戶手冊
非常感謝您選用 Bluetooth Headset H-023 藍牙耳机，請在使用前，詳細閱讀本說明書，正
確操作使用，更好的發揮產品優越性能。本產品外觀設計時尚絢麗.小巧便攜.音質純美.多功能一
體化設計，全系列擁有外觀專利系統上採用行業領先電聲技術，使你在居家使用.戶外旅行.商務工
作中隨時隨地享受到卓越的音響效果，為你的平板電腦、手機、數碼音樂播放機等廣泛視聽產品提
供超值完美的音質，炫彩隨身聽炫彩精靈 驚豔之美 ！
一，注意事項
請在常溫環境中存放以及使用本產品；
請勿將本產品暴露在雨中或潮濕環境中；
請勿丟擲，避免因跌落造成產品損壞；
請勿丟擲，避免因跌落造成產品損壞；
請勿丟擲，避免因跌落造成產品損壞；
請勿自行拆解.修理和改造本產品；
產品內置鋰電池，請勿隨意丟棄或置於火中，以免引起危險！
二， 溫馨提示
1、 為有利於延長音箱使用壽命和您的身心健康，請不要在長時間大音量的環境下聽音，
以免損害您的聽力。
2、出現故障時，請立即關斷電源開關，拔掉 USB 插頭，防止揚聲器及其它元件損壞。
3、電量不足會影響藍牙距離或藍牙容易斷開，請及時充電。
三、功能按键
產品型號: H-023
產品類型：藍牙耳機
佩帶方式：頭戴式
功能特點：藍牙、AUX 輸入。
藍牙規格：V4.2
藍牙協議：AVRCP、HSP、HFP、A2DP
傳輸距離：≤10M （因環境因素及連接的藍牙設備不同而不同）
充電規格：USB / DC5V-500mA
內置電池：鋰電池 300MAH
輸出功率：15mW*2 (iPhone4s 1KHz 0dB in & volume max.)
失真度： 0.5% （AT 1KHz & 15Mｗ）
頻率回應：20Hz-20KHz
靈 敏 度：105db（AT 1KHZ+3db）
產品阻抗：32 歐姆

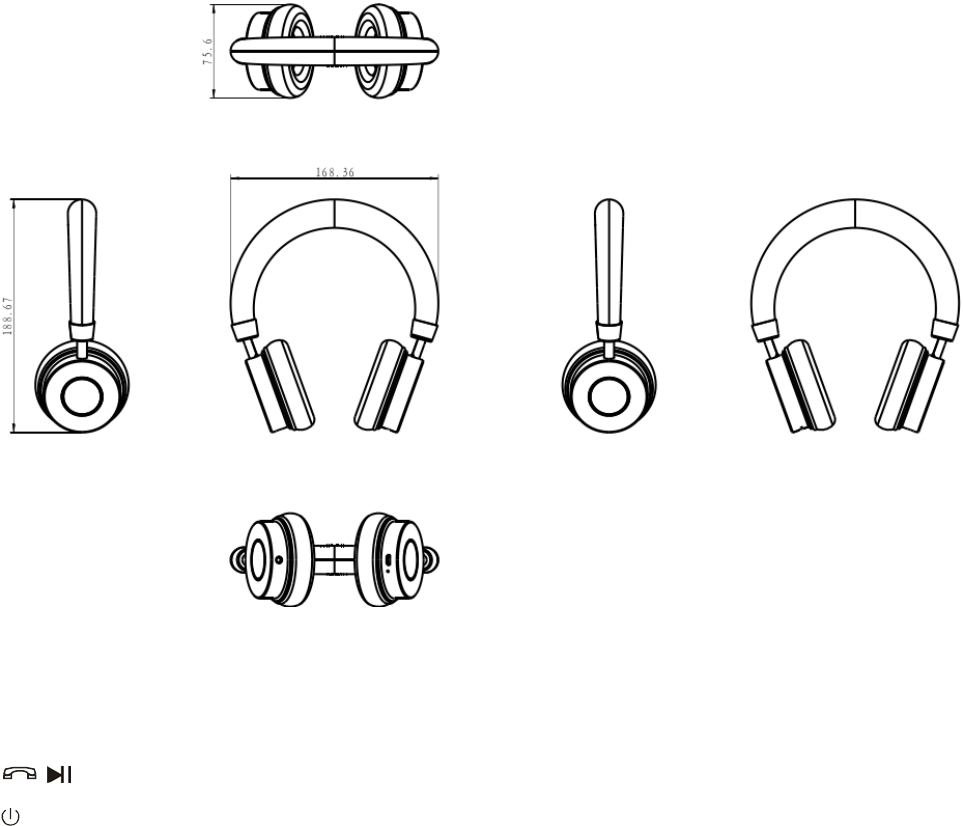

產品尺寸規格：158.2*62.12*182.38mm
五.系統組成
1. 耳机 1 台
2．USB 電源線 1 條
3. 說明書 1 份
六.常用功能說明
開機後，紅藍燈交替閃，藍牙耳機自動進入藍牙搜索狀態；藍牙配對連接成功後，藍燈長亮；在開
機5分鐘內，找不到任何設備藍牙將自動關閉。本機具有回聯功能，成功連接後的設備再次打開藍
牙時會自動連接。
溫馨提示：如果連接失敗請關機重啟或有可能電池電量不足，請充電。
藍牙音樂播放：藍牙連接成功後，打開藍牙設備播放音樂。
免提通話：藍牙耳機與手機藍牙連接成功後，當有來電時，藍牙耳機會發出“嘟嘟”提示音；
AUX 音源播放:將3.5MM 音訊線分別插入藍牙耳機 AUX 音訊輸入接口和電腦等音樂播放機音訊插口，
用AUX 隨插即用。在 AUX 狀態藍牙關閉，所有功能按鍵，不支援音量加減，上下曲選曲，操作由藍
牙設備完成。
智慧自動快充：待機或關機狀態下充電,將附件提供的 USB 電源線 Micro USB 端插入音箱 USB 電源
插口，另一端連接電腦 USB 埠或 USB 充電器，開始充電，充滿後紅色光源滅。
七，常见问题解决方法
问题 现象
解 决 方 法
多次連接配對不成功
1、 检查蓝牙耳机是否处于搜索状态，或重新开机。
2、 周边蓝牙设备太多，造成搜索困难，关闭其他蓝牙设备。
聲音小或失真
1、檢測藍牙設備音量，調節其音量至合適位置。
2、電池電壓低請充電。
音樂出現斷音
1、是否超出音響有效連接距離，或音箱與藍牙設備有障礙物。
藍牙狀態指示等不亮
1、表示電池電量不足，請充滿再試。
2、重新開機
Bluetooth Headset
H-023 User Manual
Thank you for choosing Bluetooth Headset Wireless Headset H-023. Please read this manual
carefully before use for correct operation and better performance. The product,
fashionable and colorful, features a patent appearance, an excellent sound quality and
its lightweight and portable design. Leading electroacoustic technology brings you an
excellent sound effect when you are at home, on travel or at work and offers you a perfect
sound quality for your tablets, cellphones, digital music players, etc.
一，CAUTIONS
Please store and use this product at room temperature.
Do not expose this product to the rain or humid environments.
Do not throw it to avoid the damage caused by dropping.
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into
the fire as there
is a built-in lithium battery.
二，Tips
1，To prolong its service life and protect your health, please do not listen to music at
high
volume for a long time, so as not to impair your hearing.
2，If malfunction occurs, please immediately shut off the power and unplug it to prevent
damage
to the speaker and other components.
3，Please charge it in time when electricity shortage occurs to avoid influenceto the
transmission distance and connection of BT.
四，Product Parameters
Product Model： H-023
Product type: Bluetooth Headset
Wearing manner: on head
Functions: Answering calls, listening to music
Features: BT, AUX input
BT Specifications：BT V4.2
BT protocol: AVRCP, HSP, HFP, A2DP
Transmission Distance：≤10M (depending upon operation environment and devices to which it connects)
Charging method: USB/DC 5V-500mA
Built-in Battery: Lithium battery 500mAH
Output Power: 15mW*2 (iPhone4s 1KHz 0dB in & volume max.)
Distortion: 0.5%( AT 1Khz & 15MW)
Frequency Response: 20Hz-20KHz
Sensitivity: 105db（AT 1KHZ+3db）
Output Impedance: 32Ω
Product Size: 158.2*62.12*182.38mm
五，Package Contents
Headset* 1
Micro USB Cable * 1
User Manual *1
六. Common function instructions
After switching on, the red and blue lights alternately flash, and the Bluetooth headset
automatically enters the Bluetooth search state. After the Bluetooth pairing has been
successfully completed, the blue light is longer; no device can be found within 5 minutes
of the boot, and the Bluetooth will automatically turn off. This machine has the function
of back connection. After successful connection, the device will automatically connect
when Bluetooth is turned on again.
Warm prompt: if the connection fails, please switch off, restart or possible battery
shortage, please charge.
Bluetooth music playback: after Bluetooth connection is successful, turn on Bluetooth
device and play music.
Hands-free headset: Bluetooth headset and mobile phone Bluetooth connection is successful,
when there is an incoming call, Bluetooth headset will issue "beep" prompt tone;
AUX sound source broadcast: 3.5MM audio lines are inserted into Bluetooth headset, AUX
audio input interface and computer and other music player audio socket, with AUX plug and
play. Close in AUX Bluetooth, all the function keys, the volume does not support the addition
and subtraction, on the song selections, operated by Bluetooth devices.
Intelligent automatic fast charge: standby or shutdown state charging, annex provides USB
power line Micro USB terminal insertedinto the USB socket on the other end is connected
to the computer USB port or USB charger, start charging, full of red light after death.
七，Common Problems & Solutions
Problems
Solutions
Failed to connect for many times
1.Check if the speaker is in searching status, or just restart it.
2.It is difficult to search when there are too many devices. Please turn off other BT
devices.
Low sound or sound distortion
occurs
1.Check the volume of BT device and adjust it to a suitable volume.
2.Low voltage, please recharge it.
Staccato
1.Check if it is beyond the operating Range or there are any obstacles between the speaker
and BT devices.
Indicator light is not on when the
speaker is on BT status
1.It means the battery power is low, please charge it and try again.
2.Restart it.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1)this device may not cause interference, and(2) this device
must accept any interference, includinginterference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit
pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radio
électrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
