Thanks for purchasing the Babyhawk. Please follow the instruction manual to install and
configure your Babyhawk.
After completing the instruction manual, use the configurator GUI to configure flight
controller settings for the Babyhawk. Please refer to this link to learn more:
https://www.emaxmodel.com/babyhawk-85mm-brushless-drone-pnp.html
Babyhawk User Manual
Disclaimer
Please read the disclaimer carefully before using this product. By using this product, you
hereby agree to this disclaimer and signify that you have read them carefully and
completely. This product is not suitable for people under the age of 18. Adult supervision
is highly recommended for kids under the age of 18.
Our Babyhawk features open-source flight controller and Electronic Speed Controllers
to satisfy the FPV enthusiasts' need to update/upgrade their software and hardware.
Please read the instruction manual and warnings carefully. Before every flight, make
sure the battery is fully charged and power connections are secure. DO NOT fly around
crowds, children, animals or objects. EMAX ACCEPTS NO LIABILITY FOR
DAMAGE(S) OR INJURIES INCURRED DIRECTLY OR INDIRECTLY FROM THE USE
OF THIS PRODUCT.
Precautions
1. Please follow the instructions to correctly guide the assembly and operation of this
product.
2. Pilots: Do not use this product if you have physical or mental illness, dizziness,
fatigue, or are under influence of alcohol or drugs.
3. Please fly in a safe location away from people and animals.
4. Do not modify or use parts and accessories not approved by EMAX.
5. Do not use this product in harsh environments (such as winds, rain, lightning, snow,
etc.).
6. Do not use this product in a strong electromagnetic environment.

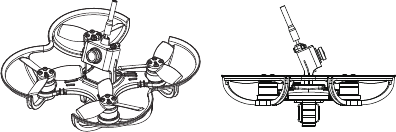

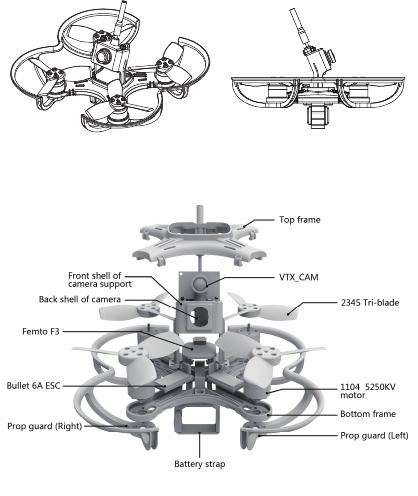

Product specification
Instruction Manual for FrSky XM Plus
Specifications

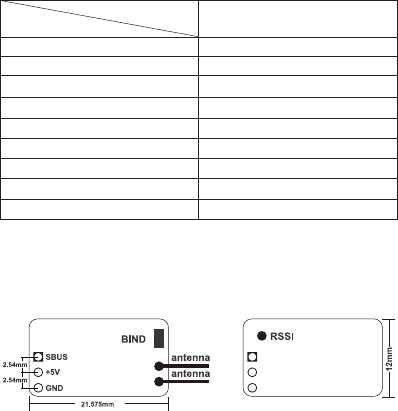

Dimension：21.5*12*3.5mm (L × W × H)
Weight：1.6g
Number of Channels：Up to 16CH from SBUS (CH1~CH5 for PWM, CH16 RSSI for FC)
With RSSI output on board：PWM voltage output (0~3.3V)
Operating Voltage Range：3.7~10V
Operating Current：30mA@5V
Operating Range：full range
Firmware Upgradable
Compatibility：FrSky D16 mode
Version
Size and Weight
Diagonal Wheelbase (without propeller)
Package Size
Maximum Size of Aircraft (without
antenna, cable)
Camera Integrated with VTX
Propeller
Flight Control
Motor
ESC
Weight of Aircraft (without batteries)
PNP
87mm
225mm x 145mm x 69mm
132mm x 132mm x 48mm
CMOS 800TVL _25-200MW
adjustable frequency 40CH
2345 Tri-blade Propeller
F3 Femto
1104 5250KV
Bullet 6A (BLHeli_S)
68.5g
Binding Procedure
Binding is the process of uniquely associating a particular receiver to a transmitter
module. A transmitter module can be bound to multiple receivers (not to be used
simultaneously). A receiver can only be bound to one transmitter module.
Follow the steps below to finish the binding procedure.
1. Turn on the transmitter while holding the F/S button on the module (please refer to the
module instruction manual for switch positions). Release the button. The RED LED on
the Module will flash, indicating the transmitter is ready to bind to the receiver.
2. Connect battery to the XM Plus receiver while holding the F/S button on the receiver.
The LED on the receiver will flash, indicating the binding process is completed.
3. Turn off both the transmitter and the receiver.
4. Turn on the transmitter and connect the battery. The GREEN LED on the receiver
indicates the receiver is receiving commands from the transmitter. The receiver/trans-
mitter module binding will not have to be repeated, unless one of the two is replaced.
Failsafe
Failsafe is a useful feature in which all controls move to a preset position whenever the
control signal is lost for a period of time. XM Plus supports failsafe function for all
channels. Follow the steps below to set failsafe positions for each channel:
1. Bind the receiver first and turn on both the transmitter and the receiver;
2. Move the controls to the desired failsafe position for all channels;
3. Press briefly the F/S button on the receiver (less than 1 second). The Green LED will
flash twice, indicating the failsafe position has been set in the receiver.
To disable the failsafe function, re-bind the receiver.
Failsafe is recommended to set when system is firstly used, or receiver has been
re-bound.
Note: If failsafe is not set, failsafe default will hold last position
before signal is lost. In this case, there exists risk that your
model will fly away or cause injury.
FrSky is continuously adding features and improvements to our products. To get the
most from your product, please check the download section of the FrSky website
www.frsky-rc.com for the latest update firmware and manuals
Product List
1. Babyhawk quadcopter * 1set
2. 2345 Tri-blade Propeller CW and CCW * 4pcs each
3. Battery*2pcs
4. FrSky receiver
5. Remote control * 1pcs (optional package)
6. Manual * 1set
VTX frequency chart
Channel selection button is located on the back of the camera housing
(1) Long press 2 seconds into the Band selection mode
(2) Short press in this frequency group to select F, R, A or B Bands, long press 2
seconds exit frequency selection
(3) Short press in the current band to select the 1-8 channels.
(4) Long press 10 seconds for the size of power selection (high-power digital tube
decimal point ON, low-power digital tube decimal point OFF)
(5) Camera support P / N standard switch (the toggle switch on VTX_CAM)
Instructions for using ESC
This product uses EMAX Bullet 6A BLHeli_S ESC integrated hardware
For more information, go to "https://www.emaxmodel.com/babyhawk-85mm-brush-
less-drone-pnp.html" to download and check.
Thank you for using EMAX products!
For EMAX Babyhawk accessories, please visit the official EMAX website (www.emax-
model.com).
BAND/CH CH
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
BAND
FR1(F) 5740 5760 5780 5800 5820 5840 —— ——
FR2(R) —— —— 5732 5769 5806 5843 —— ——
FR3(A) —— 5845 5825 5805 5785 5765 5745 5725
FR4(B) 5733 5752 5771 5790 5809 5828 5847 ——
Warning:
REMINDER! Please pay attention to safety of your surrounding.
Not recommended for persons under 18 years of age!
We wish you happy flying!
