1837-Surface-C-2-15
ILLUSTRATED PARTS BREAKDOWN - IPB
Bill of Materials - BOM 1837 Surface Mount
1837-080 Stainless Steel, 1837-081 Gold Plated
10 1817-004 1 EA Cover Plastic 8 Line
15 1817-006 1 EA Cover Plastic Lights
25 1804-023 1 EA Decal FCC
30 1804-044 1 EA 1837-081 only Hole Plug - Gold
35 1804-042 1 EA Hole Plug
40 1400-009 1 EA Decal Identification
45 1804-039 2 EA Retaining Strip Keypad
50 1895-016 1 EA Keypad 10 Pin Alph/Num Header
50 1895-018 1 EA 1837-081 only Keypad Alph/Num Header Gold
51 1804-038 1 EA Wire Ribbon Cable Assy 10 Cond
55 2599-008 1 EA Label Patent
57 1998-010 1 EA PCB Microphone Short, SMT
58 1897-053 1 EA Gasket, Microphone
60 2356-010 2 EA PCB LED Light Straight
65 2900-905 2 EA Standoff Aluminum 7/16” 6-32
70 4001-035 2 EA Lock N16058BDxSFx2K Key 16120
70 4001-036 2 EA 1837-081 only Lock Gold N16058BDxSFx2K
73 1702-501 2 EA Cam 7/8”
75 2900-907 4 EA Standoff Aluminum 9/16” 6-32
80 2902-006 2 EA Nut Nylon Lock 10-32
85 2902-002 6 EA Nut Nylon Lock 4-40
90 2902-003 27 EA Nut Nylon Lock 6-32
92 2802-040 2 EA Washer Push on Clamp
95 1837-010 1 EA PCB Modem Prog/Elctr Dir Phone
100 1896-012 1 EA Display LCD Assy 8 Line
103 1860-029 4 EA Washer Nylon #6 16FN006062
105 1817-190 1 EA Speaker Assembly Oval
107 1804-012 1 EA Screw Nylon Pan Head 6-32x3/16
109 1817-197 1 EA Speaker Gasket Oval
110 1817-191 1 EA Speaker Gasket Oval
111 2616-006 2 EA Screw Phillips Head 6-32x3/16
115 2905-001 4 EA Screw Round Head 6-32 x 1/4”
120 2905-003 2 EA Screw Round Head 6-32 x 1/2”
130 1804-016 6 EA Screw Truss Head 6-32 x 3/16”
145 3002-004 10 EA Spacer Nylon 6 x 7/16”
150 1810-101 1 EA Box Phone Slant
155 1837-050 1 EA Faceplate Surface 8 Line
155 1837-053 1 EA 1837-081 only Faceplate Surface 8 Line Gold
156 1837-025 1 EA Subplate Surface 8 Line
158 2600-734 1 EA Nameplate Plastic DKS Small
159 1897-050 2 EA Gasket Support Thick 1/16”
160 1804-024 1 EA Switch Micro No NC C
165 1814-032 1 EA Plate - Switch 3 Button
170 1814-049 1 EA Terminal 20 Pin
175 1804-060 1 EA Transformer 16.5 VAC 20VA plug
177 1508-060 1 EA Transformer 16.5 VAC 40 VA
179 1860-029 10 EA Washer Nylon #6 16FN006062
180 1800-018 2.91 FT Weather Strip .125”x .187”
195 7082-059 1 EA Wire 8.5” Green 18 AWG Strd
200 1816-042 1 EA Wire-20 Con Ribbon Long
215 1804-040 1 EA Wire Telephone Line Cord
220 1804-028 3 EA Mount Wire Clip
231 1814-140 1 EA Button Assembly Chrome A
231 1814-143 1 EA 1837-081 only Button Assembly Gold A
232 1814-141 1 EA Button Assembly Chrome Z
232 1814-144 1 EA 1837-081 only Button Assembly Gold Z
233 1814-142 1 EA Button Assembly Chrome Call
233 1814-145 1 EA 1837-081 only Button Assembly Gold Call
235 1815-025 1 EA Remote Program Pac Windows
240 1835-065 1 EA Manual - Owner’s
1835-066 1 EA Manual - User’s
245 3002-021 10 EA Spacer Nylon 6 x 3/8”
255 2600-884 1 EA Label E.T.L. Separable
270 1876-025 2 EA Ferrite Snap-on Filter Steward
280 1835-147 1 EA Memory 3000 Phone Card APB
281 1 EA Wire Harness 1837 Front Panel
Item Part Number Quantity DescriptionUM
1837-Surface-C-2-15
DOORKING
Inglewood, Ca 90301
Model # 1800 Series
Serial #
Complies F.C.C. Part 68
F.C.C. Registration #
DUF6VT-12874-OT-T
Ringer Equiv. 0.0A
Jack USOC RJ11C or W
ACCESS CONTROL
SYSTEM UNITS
CONFORMS TO UL STD 294
OUTDOOR USE / WET
DOO
RKI
N
G
®
,
I
NC
.
MADE
IN
USA
PART NUMBER REV SERIAL NO.
DOO
RKI
N
G
®
,
I
NC
.
Mfg. in U.S.A.
Access Control Solutions
Since 1948
This product is manufactured under one
or more of the following U. S. Patents.
OTHER PATENTS PENDING
DOORKING INC., INGLEWOOD CA
Patent No.D
ate Patent No.Date
16AC
16ACBAT1NO1NC
1C
2RY2C
A
Z
IMC5VDC
IMD
SPKR
COM
MICPSW
CGNDPHONE
Input:
120 V 60 Hz
Output:
16.5 VAC 20 VA
Input:
120 V 60 Hz
Output:
16.5 VAC 20 VA
Input:
120 V 60 Hz
Output:
16.5 VAC 40 VA
Input:
120 V 60 Hz
Output:
16.5 VAC 20 VA
DOORKING
1491-010
BACKLITE
CUTOFF
CONTRAST
8 LINE
DISPLAY
DOORKING 1892-010
SINGLE
LINE
DISPLA
Y
Attached to 6 Threaded
Studs on Subplate

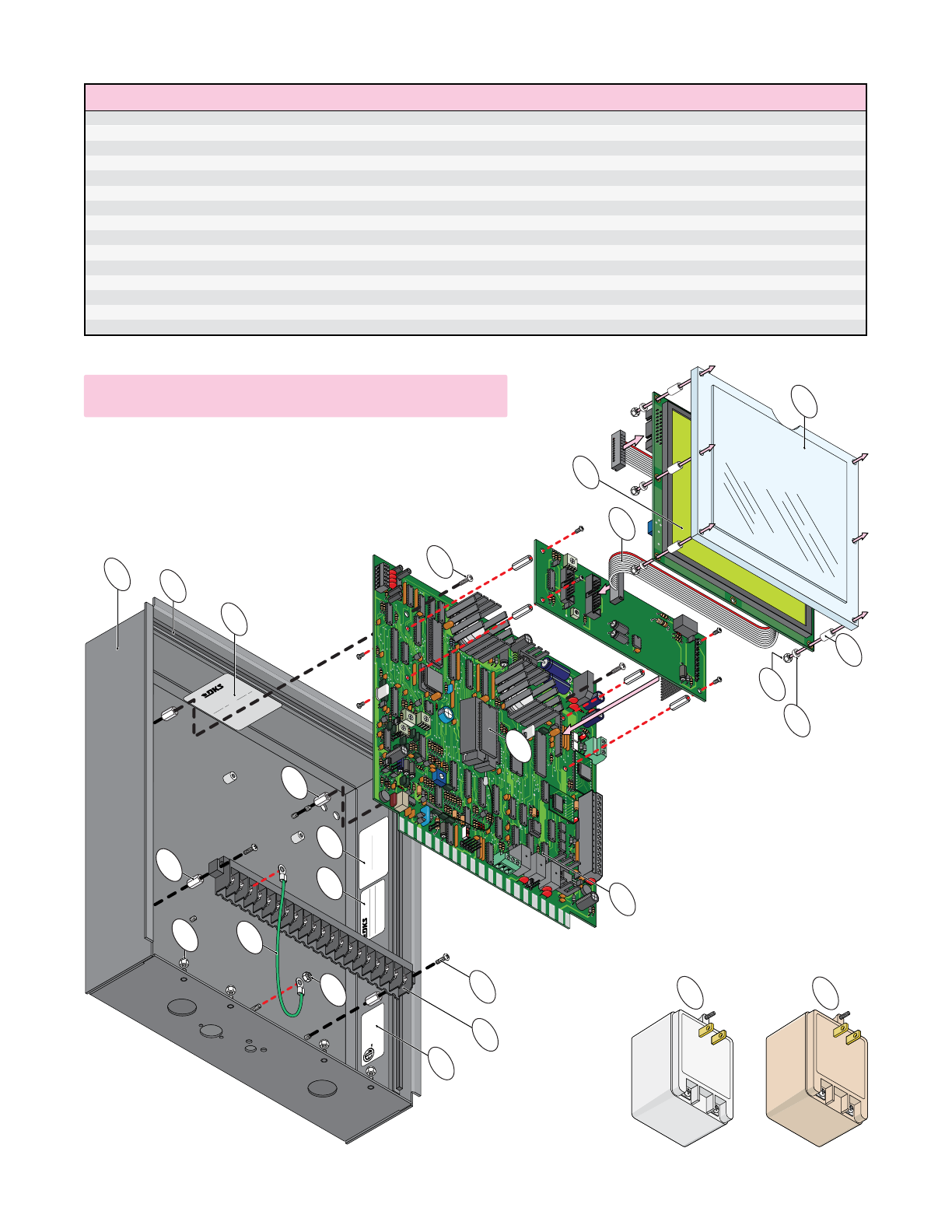

1837 Surface Mount - Enclosure
120
2x
195
170
255
90
4x
75
2x
75
2x
Item Part Number Quantity DescriptionUM
177
175
200
95
10
150
280
115
2x
245
6x
90
6x 179
6x
1837-010
1896-012
1892-010
100
90
18055
25
40
1837-Surface-C-2-15
CALL
70
2x
1837-080 and 1837-081
1837-081 Gold Plated Only
155
233
“CALL”
232
“Z”
231
“A”

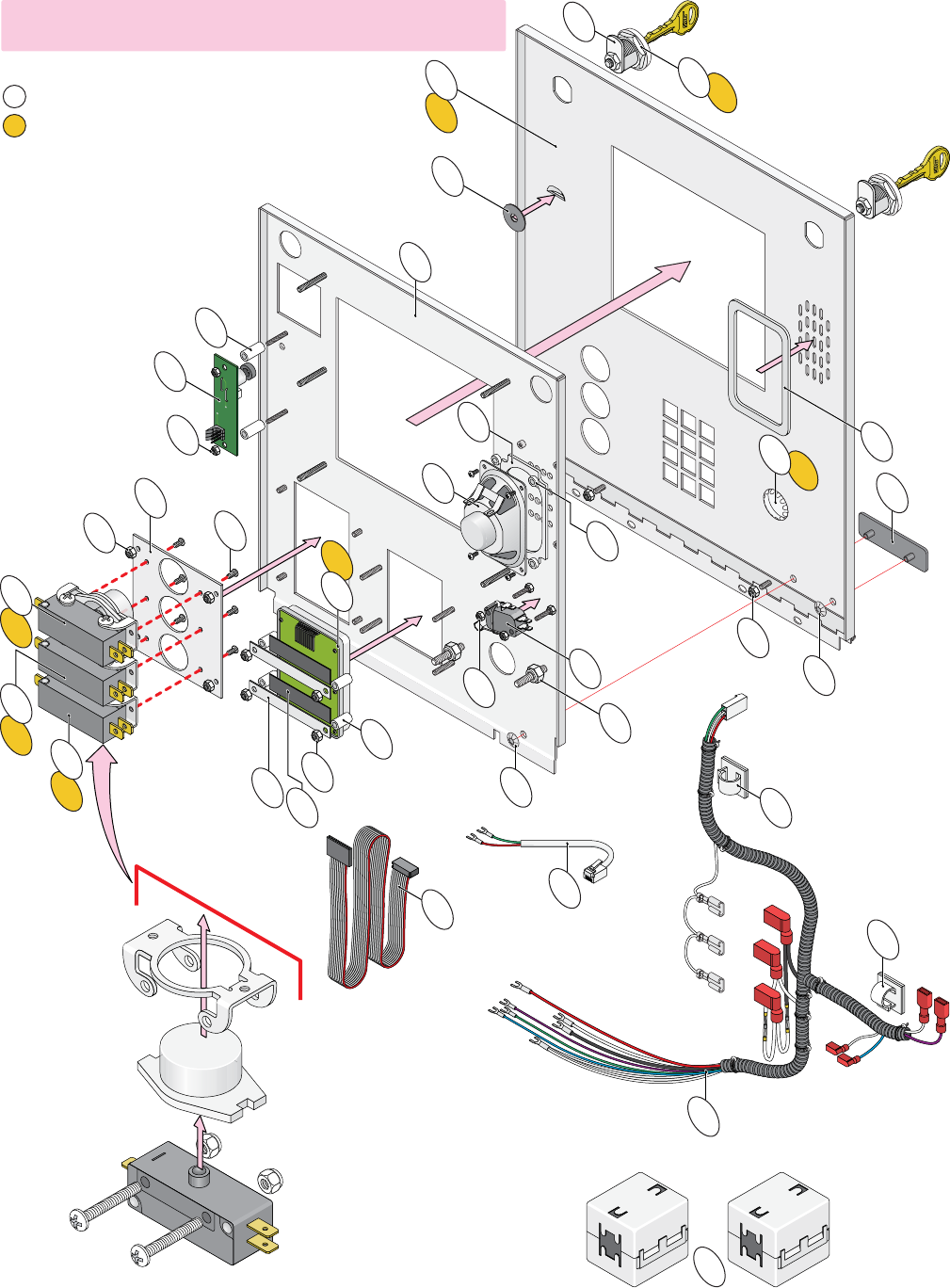

1837 Surface Mount - Faceplate
165
90
4x
130
6x
51
270
2x
215
281
57
105
179
4x
90
2x
145
2x
85
2x
70
2x
159
2x
90
4x
Nut Nylon Lock 6-32
233
“CALL”
50
155
30
Button
Assembly
Detail
Complete
Button
Assemblies
Subplate
Screw Round Head 6-32 - 1”
Aluminum
Button
Bracket
Button
Switch
Button, Chrome or Gold, “A”, “Z” or “CALL”
58
156
45
2x
85
4x
245
4x
80
2x
73
2x
232
“Z”
231
“A”
158
109
92
2x
160
110
15
65
2x
115
2x
90
2x
60
2x
220
220
50
35
1837-Flush-C-2-15
ILLUSTRATED PARTS BREAKDOWN - IPB
Bill of Materials - BOM 1837 Flush Mount
1837-084 Stainless Steel, 1837-085 Gold Plated
Item Part Number Quantity DescriptionUM
10 1895-016 1 EA Keypad 10 Pin Alph/Num Header
11 1804-038 1 EA Wire Ribbon Cable Assy 10 Cond
15 1817-004 1 EA Cover Plastic 8 Line
20 1804-023 1 EA Decal FCC
25 1804-044 1 EA 1837-085 only Hole Plug - Gold
30 1804-042 1 EA Hole Plug
30 1895-018 1 EA 1837-085 only Keypad Alph/Num Header Gold
40 1400-009 1 EA Decal Identification
45 1804-039 2 EA Retaining Strip Keypad
55 2599-008 1 EA Label Patent
57 1998-010 1 EA PCB Microphone Short, SMT
58 1897-053 1 EA Gasket, Microphone
60 4001-035 2 EA Lock N16058BDxSFx2K Key 16120
60 4001-036 2 EA 1837-085 only Lock Gold N16058BDxSFx2K
61 1800-018 2.91 FT Weather Strip .125”x .187”
63 1702-501 2 EA Cam 7/8”
70 2902-006 2 EA Nut Nylon Lock 10-32
75 2902-002 6 EA Nut Nylon Lock 4-40
80 2902-003 22 EA Nut Nylon Lock 6-32
85 1837-026 1 EA Subplate Flush 8 Line
90 1837-051 1 EA Faceplate Flush 8 Line
90 1837-054 1 EA 1837-085 only Faceplate Flush 8 Line Gold
91 2600-734 1 EA Nameplate Plastic DKS Small
92 2802-040 2 EA Washer Push on Clamp
93 1814-101 1 EA Box Phone Flush
94 1897-050 2 EA Gasket Support Thick 1/16”
95 1814-032 1 EA Plate - Switch 3 Button
100 1896-012 1 EA Display LCD Assy 8 Line
105 1837-010 1 EA PCB Modem Prog/Elctr Dir Phone
110 2905-001 2 EA Screw Round Head 6-32 x 1/4”
115 2905-003 2 EA Screw Round Head 6-32 x 1/2”
125 1804-016 6 EA Screw Truss Head 6-32 x 3/16”
135 2900-905 4 EA Standoff Aluminum 7/16” 6-32
140 3002-004 10 EA Spacer Nylon 6 x 7/16”
145 1817-190 1 EA Speaker Assembly Oval
150 1817-191 1 EA Speaker Gasket Oval
151 1817-197 1 EA Speaker Gasket Oval
153 1860-029 10 EA Washer Nylon #6 16FN006062
155 1804-024 1 EA Switch Micro No NC C
165 1814-049 1 EA Terminal 20 Pin
170 1804-060 1 EA Transformer 16.5 VAC 20VA plug
173 1508-060 1 EA Transformer 16.5 VAC 40 VA
190 7082-059 1 EA Wire 8.5” Green 18 AWG Strd
195 1816-042 1 EA Wire-20 Con Ribbon Long
210 1804-040 1 EA Wire Telephone Line Cord
215 1804-028 3 EA Mount Wire Clip
230 1814-140 1 EA Button Assembly Chrome A
230 1814-143 1 EA 1837-085 only Button Assembly Gold A
231 1814-141 1 EA Button Assembly Chrome Z
232 1814-142 1 EA Button Assembly Chrome Call
233 1814-144 1 EA 1837-085 only Button Assembly Gold Z
234 1814-145 1 EA 1837-085 only Button Assembly Gold Call
235 1835-065 1 EA Manual - Owner’s
1835-066 1 EA Manual - User’s
240 1815-025 1 EA Remote Program Pac Windows
245 3002-021 4 EA Spacer Nylon 6 x 3/8”
247 2600-884 1 EA Label E.T.L. Separable
255 1876-025 2 EA Ferrite Snap-on Filter Steward
265 1835-147 1 EA Memory 3000 Phone Card APB
266 1 EA Wire Harness 1837 Front Panel
1837-Flush-C-2-15
DOORKING
Inglewood, Ca 90301
Model # 1800 Series
Serial #
Complies F.C.C. Part 68
F.C.C. Registration #
DUF6VT-12874-OT-T
Ringer Equiv. 0.0A
Jack USOC RJ11C or W
ACCESS CONTROL
SYSTEM UNITS
CONFORMS TO UL STD 294
OUTDOOR USE / WET
DOO
RKI
N
G
®
,
I
NC
.
MADE
IN
USA
PART NUMBER REV SERIAL NO.
DOO
RKI
N
G
®
,
I
NC
.
Mfg. in U.S.A.
Access Control Solutions
Since 1948
This product is manufactured under one
or more of the following U. S. Patents.
OTHER PATENTS PENDING
DOORKING INC., INGLEWOOD CA
Patent No.D
atePatent No.Date
16AC16AC
BAT
1NO
1NC
1C2RY2CAZ
IMC
5VDC
IMDSPKR
COM
MIC
PSW
CGNDPHONE
DOORKING
1491-010
BACKLITE
CUTOFF
CONTRAST
8 LINE
DISPLA
Y
DOORKING 1892-010
SINGLE
LINE
DISPLAY
Attached to 6 Threaded
Studs on Subplate
Input:
120 V 60 Hz
Output:
16.5 VAC 40 VA
Input:
120 V 60 Hz
Output:
16.5 VAC 20 VA

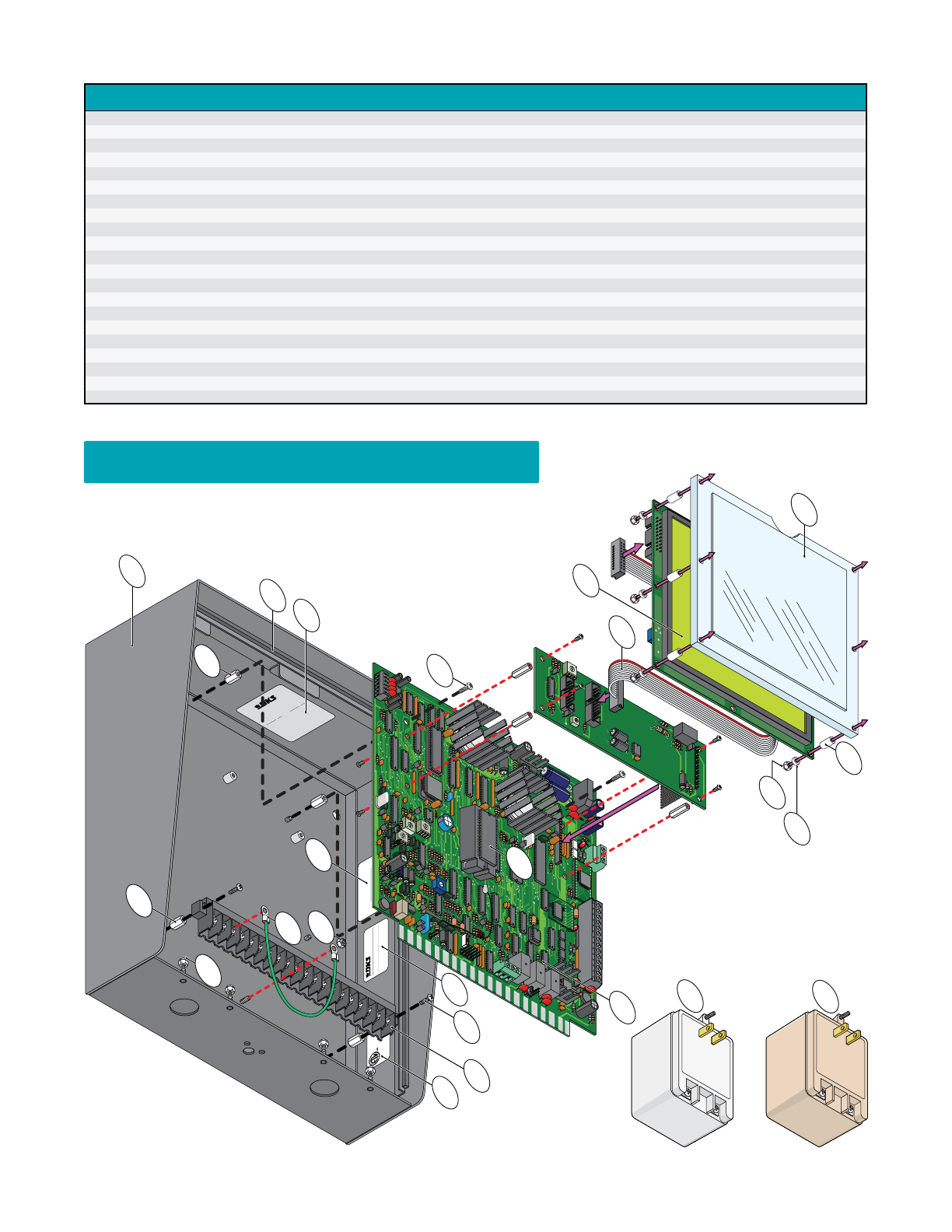

1837 Flush Mount - Enclosure
115
2x
80
190
165
247
135
2x
135
2x
Item Part Number Quantity DescriptionUM
173
170
195
105
15
61 55
265
110
2x
153
6x
80
6x
80
4x
153
6x
1837-010
1896-012
1892-010
100
93
40
20
1837-Flush-C-2-15
CALL
90
25

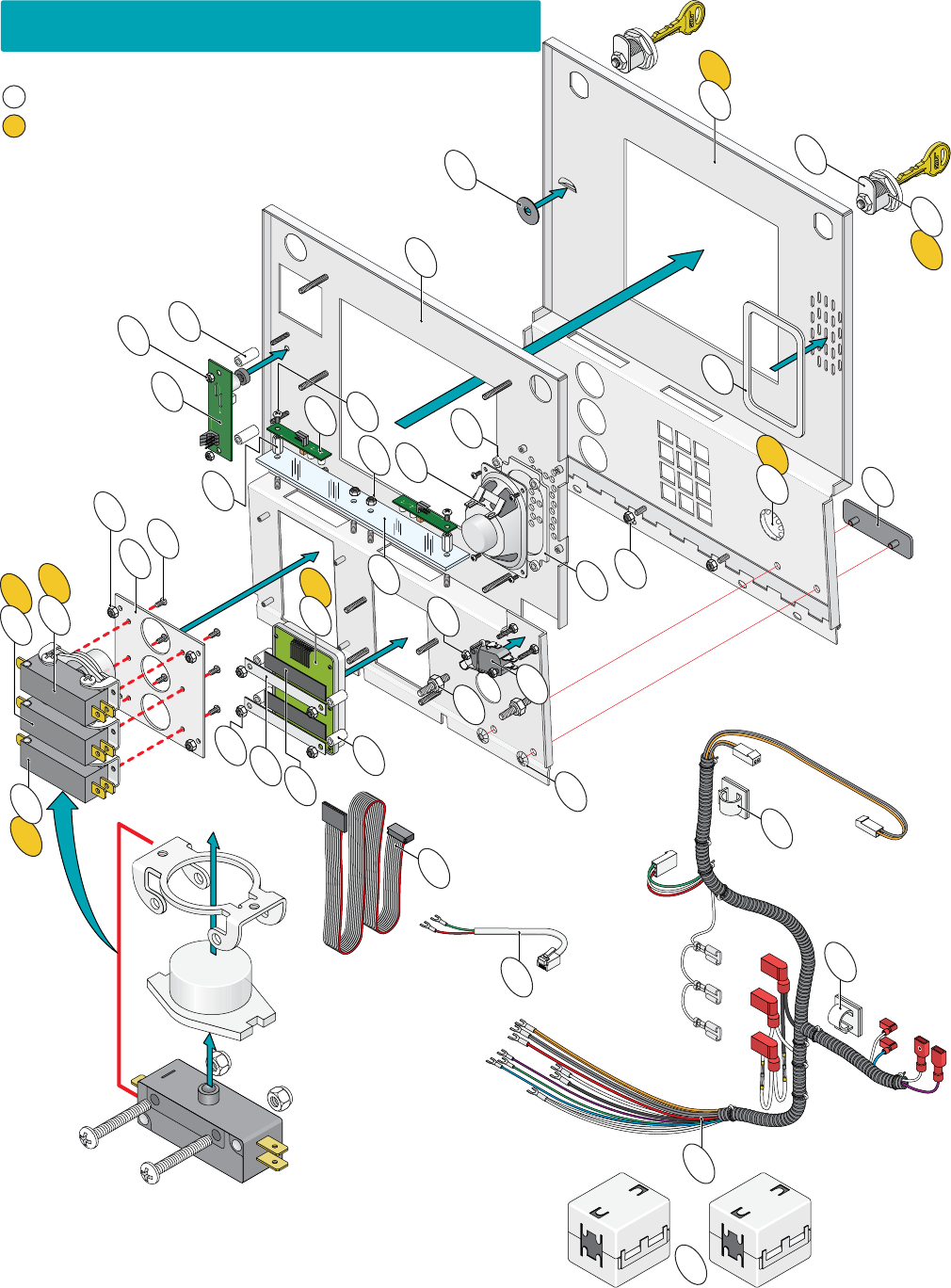

1837 Flush Mount - Faceplate
215
11
255
2x
215
210
266
90
145
92
92
75
4x
60
2x
155
30
91
1837-084 and 1837-085
1837-085 Gold Plated Only
151
58
60
2x
63
2x
231
“A”
233
“Z”
234
“CALL”
95
85
125
6x
Nut Nylon Lock 6-32
232
“CALL”
231
“Z”
231
“A”
Button Assembly Detail
Complete
Button
Assemblies
Screw Round Head 6-32 - 1”
Aluminum Button
Bracket
Button
Switch
Button, Chrome or Gold,
“A”, “Z” or “CALL”
80
4x
75
2x
140
2x
30?
80
4x
80
2x
70
2x
245
4x
94
2x
10
45
2x
153
4x
57
150

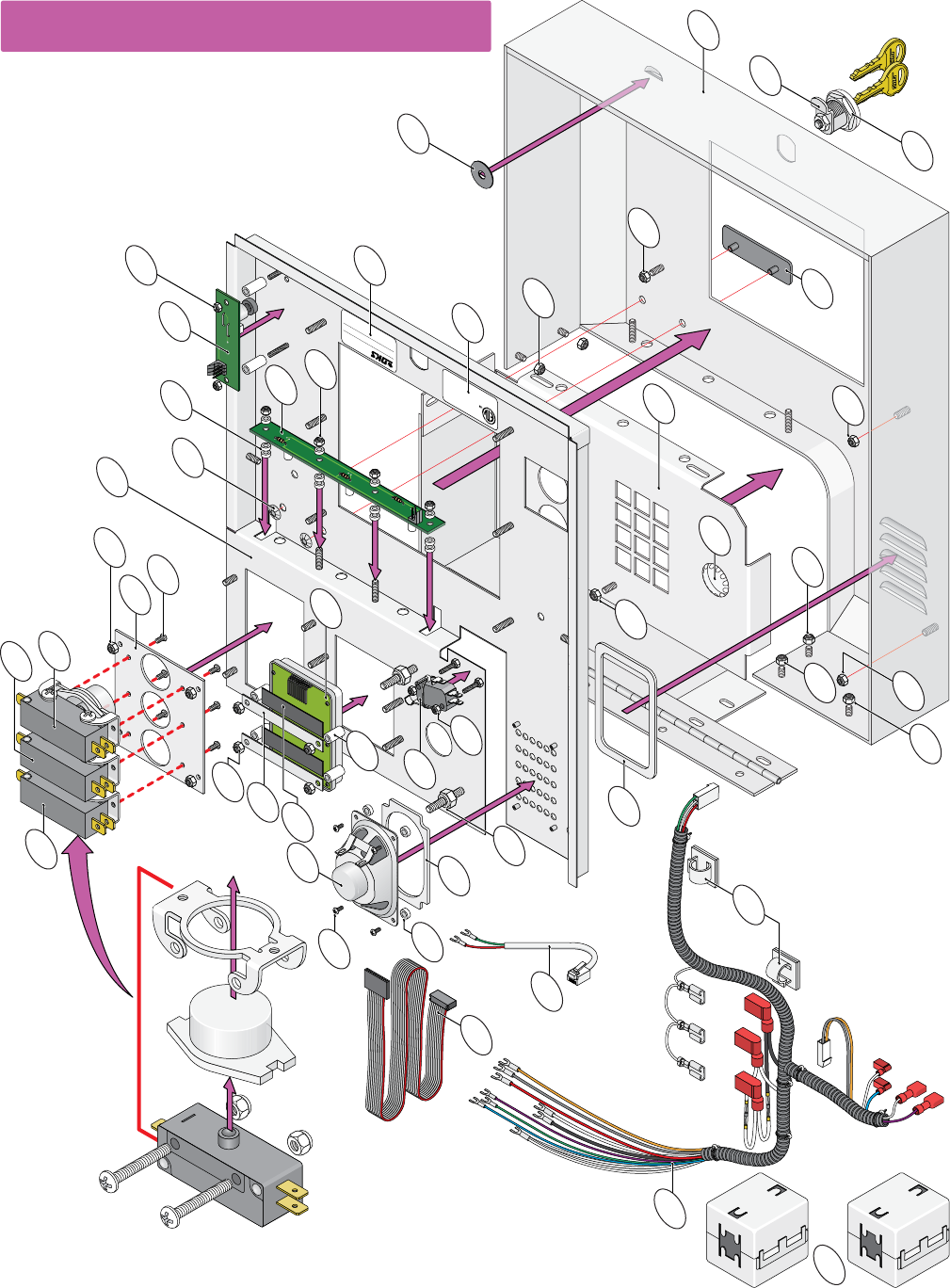

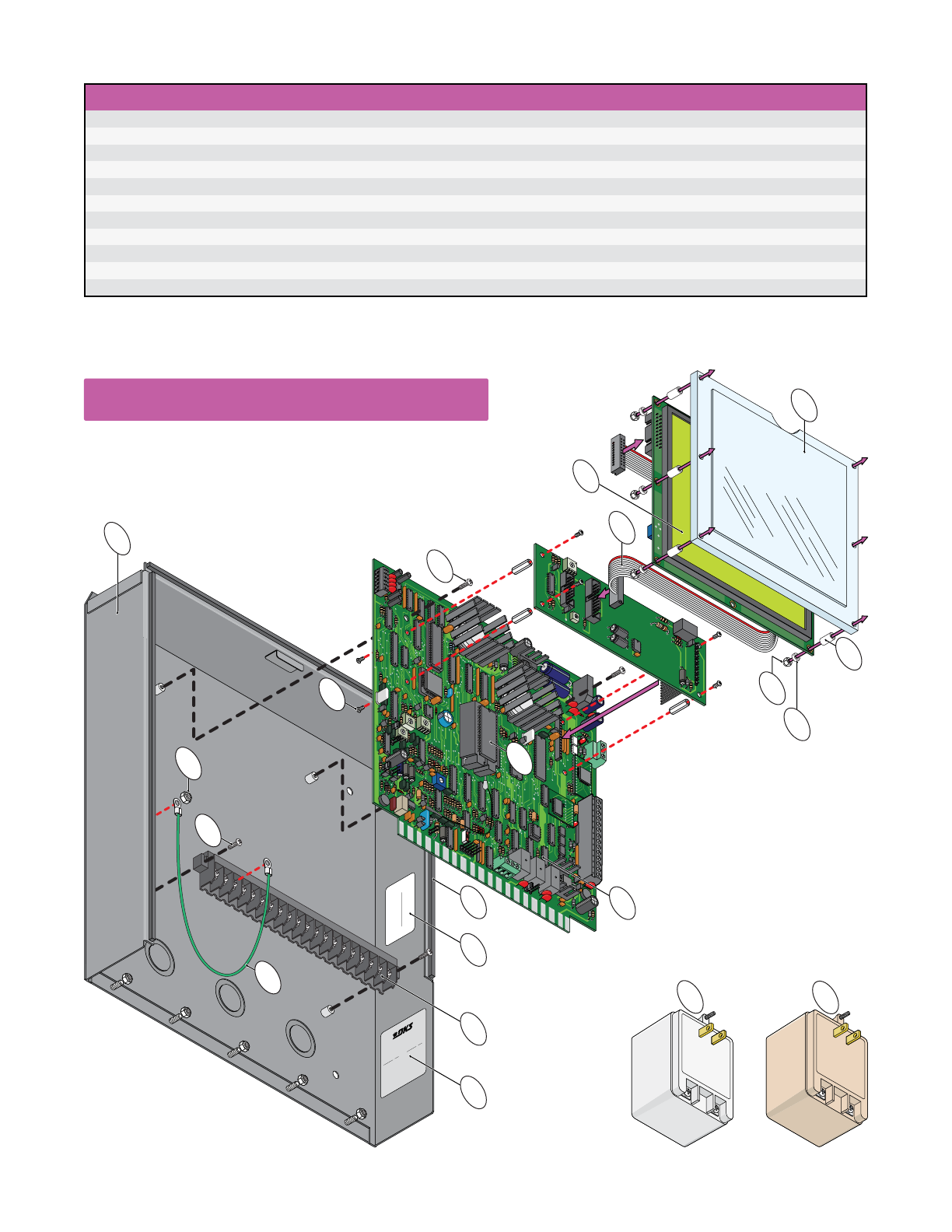

1837-Wall-C-2-15
ILLUSTRATED PARTS BREAKDOWN - IPB
Bill of Materials - BOM 1837 Wall Mount
1837-089 Stainless Steel
Item Part Number Quantity DescriptionUM
15 1817-004 1 EA Cover Plastic 8 Line
20 1804-023 1 EA Decal FCC
30 1804-042 1 EA Hole Plug
40 1400-009 1 EA Decal Identification
45 1804-039 2 EA Retaining Strip Keypad
50 1895-016 1 EA Keypad 10 Pin Alph/Num Header
51 1804-038 1 EA Wire Ribbon Cable Assy 10 Cond
55 2599-008 1 EA Label Patent
57 1998-010 1 EA PCB Microphone Short, SMT
60 1702-514 1 EA Cam Wall Mnt. Offset
64 4001-035 1 EA Lock N16058BDxSFx2K Key 16120
70 2902-006 3 EA Nut Nylon Lock 10-32
75 2902-002 6 EA Nut Nylon Lock 4-40
80 2902-003 27 EA Nut Nylon Lock 6-32
85 1835-057 1 EA Faceplate Wall Mnt. Keypad
89 1837-057 1 EA Faceplate Wall Mnt 8 Line Dsp
90 1837-027 1 EA Subplate Wall Mnt. 8 Line
91 2600-734 1 EA Nameplate Plastic DKS Small
92 2802-040 2 EA Washer Push on Clamp
93 1835-100 1 EA Box Wall Mnt.
94 1897-050 2 EA Gasket Support Thick 1/16”
95 1814-032 1 EA Plate - Switch 3 Button
100 1896-012 1 EA Display LCD Assy 8 Line
102 1860-029 22 EA Washer Nylon #6 16FN006062
103 2342-010 1 EA PCB LED Front Panel Light
105 1837-010 1 EA PCB Modem Prog/Elctr Dir Phone
107 1804-012 6 EA Screw Nylon Pan Head 6-32x3/16
109 2904-001 8 EA Screw Round Head 4-40 x 1/4”
115 2905-003 4 EA Screw Round Head 6-32 x 1/2”
145 1817-190 1 EA Speaker Assembly Oval
150 1817-191 1 EA Speaker Gasket Oval
151 1817-197 1 EA Speaker Gasket Oval
155 1804-024 1 EA Switch Micro No NC C
165 1814-049 1 EA Terminal 20 Pin
170 1804-060 1 EA Transformer 16.5 VAC 20VA plug
173 1508-060 1 EA Transformer 16.5 VAC 40 VA
190 7082-059 1 EA Wire 8.5” Green 18 AWG Strd
195 1816-042 1 EA Wire-20 Con Ribbon Long
208 1800-018 2.91 FT Weather Strip .125”x .187”
210 1804-040 1 EA Wire Telephone Line Cord
215 1804-028 3 EA Mount Wire Clip
230 1814-140 1 EA Button Assembly Chrome A
231 1814-141 1 EA Button Assembly Chrome Z
233 1814-142 1 EA Button Assembly Chrome Call
235 1835-065 1 EA Manual - Owner’s
1835-066 1 EA Manual - User’s
245 1815-025 1 EA Remote Program Pac Windows
250 3002-021 10 EA Spacer Nylon 6 x 3/8”
260 1897-053 1 EA Gasket, Microphone
263 2600-884 1 EA Label E.T.L. Separable
270 1876-025 2 EA Ferrite Snap-on Filter Steward
280 1835-147 1 EA Memory 3000 Phone Card APB
281 1 EA Wire Harness 1837 Front Panel
1837-Wall-C-2-15
DOORKING
Inglewood, Ca 90301
Model # 1800 Series
Serial #
Complies F.C.C. Part 68
F.C.C. Registration #
DUF6VT-12874-OT-T
Ringer Equiv. 0.0A
Jack USOC RJ11C or W
DOO
RKI
N
G
®
,
I
NC
.
Mfg. in U.S.A.
Access Control Solutions
Since 1948
This product is manufactured under one
or more of the following U. S. Patents.
OTHER PATENTS PENDING
DOORKING INC., INGLEWOOD CA
Patent No.DatePatent No. Date
Input:
120 V 60 Hz
Output:
16.5 VAC 40 VA
Input:
120 V 60 Hz
Output:
16.5 VAC 20 VA
16AC
16AC
BAT1NO
1NC
1C2RY2CA
Z
IMC5VDCIMDSPKR
COMMIC
PSW
CGND
PHONE
DOORKING
1491-010
BACKLITE
CUTOFF
CONTRAST
8 LINE
DISPLAY
DOORKING 1892-010
SINGLE
LINE
DISPLA
Y
Attached to 6 Threaded
Studs on Subplate
1837 Wall Mount - Enclosure
173
170
195
105
15
55
20
208
165
190
70
93
280
115
2x
250
6x
115
2x
80
6x 102
6x
109
4x
1837-010
1896-012
1892-010
Item Part Number Quantity DescriptionUM
100
1837-Wall-C-2-15
CALL
ACCESS CONTROL
SYSTEM UNITS
CONFORMS TO UL STD 294
OUTDOOR USE / WET
DOO
RKI
N
G
®
,
I
NC
.
MADE
IN
USA
PART NUMBERREV SERIAL NO.
1837 Wall Mount - Faceplate
95
80
4x
107
6x
80
4x
80
2x
100
40 263
51
270
2x
210
281
57
90
145
109
4x
102
4x
151
215
2x
92
2x
75
2x
64
94
2x
80
4x
Nut Nylon Lock 6-32
233
“CALL”
50
30
89
80
85
80
Button
Assembly
Detail
Complete
Button
Assemblies
Subplate
Screw Round Head 6-32 - 1”
Aluminum
Button
Bracket
Button
Switch
Button, Chrome, “A”, “Z” or “CALL”
250
4x
150
155
260
45
2x
75
4x
60
232
“Z”
231
“A”
80
80
80
80
80
91
70
2x
102
12x

Navigation menu
