PLEASE READ THE FOLLOWING WARNINGS AND ALL ASSEMBLY
INSTRUCTIONS CAREFULLY BEFORE USING THE 900 MHZ SITE AND
SOUND ASSURANCE MONITOR. KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
• The Sight and Sound Assurance Monitor is not intended to replace
responsible and proper parental supervision.
• Check your child’s activity at regular intervals as this monitor will not alert
parents to the silent activities of a child.
•
Before using your Safety 1st Sight and Sound Assurance Monitor:
• Read and follow all instructions carefully.
• Read and observe all warnings on the product and in this
instruction booklet.
•
To prevent entanglement with the adapter cord, NEVER place the
Camera in or near a crib or playpen. DO NOT place the Camera on
any surface or mount it on any wall where the Camera or its AC
adapter cord are within reach of children.
•
ALWAYS KEEP THE CAMERA, MONITOR, RECEIVER AND AC
ADAPTERS OUT OF REACH OF CHILDREN.
•
This product is not intended to be used as a medical monitor and its
use should not replace adult supervision. It is important that an adult
stay within the viewing range of the Sight and Sound Assurance
Monitor at all times during use.
•
It is essential to check reception regularly. Please see the Testing
Reception section for complete instructions.
•
The Camera and Monitor are intended for indoor use only.
•
NEVER use the Camera, Monitor or Receiver near water. For
example, do not use near a bathtub, bathroom sink, laundry tub,
kitchen sink, in a wet basement, etc.
•
Always unplug the AC adapters from wall outlets during long periods
of non-use.
•
Position the Camera, Monitor and AC adapters to allow adequate
ventilation and prevent these components from overheating.
•
To prevent overheating, keep the Camera, Monitor and AC adapters
away from heat sources such as radiators, heat registers, stoves or
other appliances (including amplifiers) which produce heat. Also keep
these components out of direct sunlight.
•
Use only the AC adapters provided. Use of any other adapters may
damage the Camera, Monitor and/or Receiver. Plug the AC adapters
into standard household current only (120V AC outlet)! To prevent
entanglement and overheating, DO NOT use extension cords.
•
The AC adapters may become slightly warm to the touch during
operation. This is normal.
•
Position the AC adapter cords so that they are not walked on or
pinched by items placed upon or against them, paying particular
attention to cords at AC adapter plugs, wall plugs, and the point at
which the cords attach to the Camera, Monitor and Receiver.
WARNING
2
08037_inst_video_072203 7/29/03 11:26 AM Page 2
3
•
This product should be serviced only by qualified service personnel
at Safety 1st when:
-An AC adapter or its plug is damaged,
-The Camera, Monitor or Receiver have fallen,
-Liquid has spilled into the Camera, Monitor or Receiver or
-The Camera, Monitor or Receiver do not appear to operate normally
or exhibit a marked change in performance
•
DO NOT attempt to service this product beyond that described in the
Troubleshooting section at the end of these instructions. All other
servicing should be referred to qualified personnel at Safety 1st.
NOTE: The LEDs emit IR (infra-red) light that is not harmful.
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE
COVER OR BACK OF MONITOR OR CAMERA. NO SERVICEABLE
PARTS INSIDE. REFER SERVICING TO DOREL JUVENILE GROUP
CONSUMER RELATIONS (800) 544-1108.
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO WATER OR MOISTURE. NEVER
ATTEMPT TO OPEN THE CASE OF EITHER THE MONITOR OR
CAMERA. THIS IS DANGEROUS AND WILL VOID THE WARRANTY.
FCC Compliance Information
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used according to the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Re-orient or relocate the receiving antenna,
• Increase the separation between the equipment and receiver,
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected,
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Changes or modifications to this unit not expressly approved by Dorel
Juvenile Group could void the user’s authority to use the equipment.
CAUTION
WARNING
08037_inst_video_072203 7/29/03 11:26 AM Page 3
4

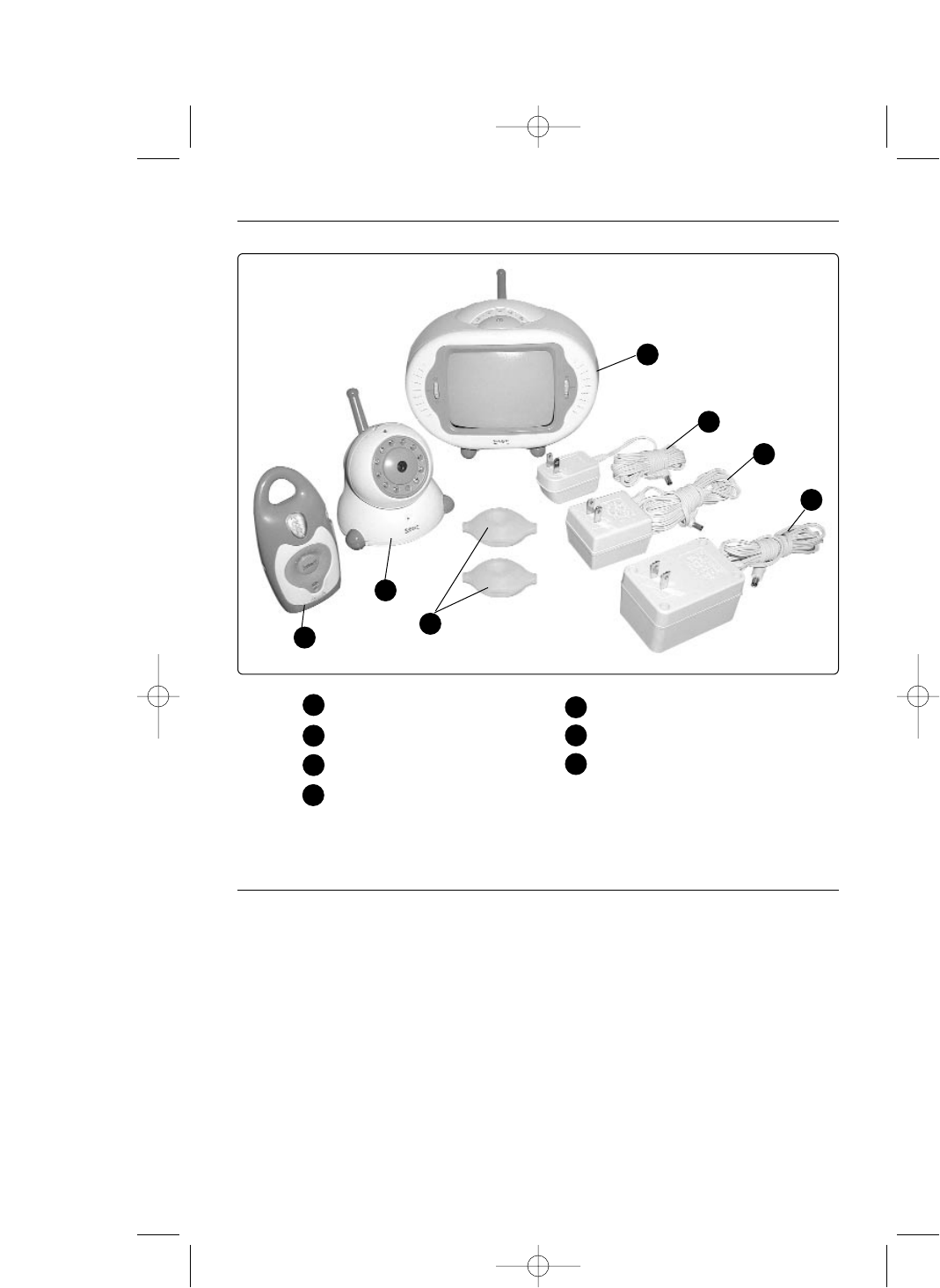

Monitor (video receiver)
Camera
Receiver (audio receiver)
Cord Shorteners (2)
AC adapter (for Monitor)
AC adapter (for Camera)
AC adapter (for Receiver)
A
A
B
C
B
E
F
C
G
D
Parts List
• Do not return this product to the place of purchase. If any parts are missing, or if you
are having difficulty using product call Consumer Relations at (800) 544-1108. Or visit
our web site at www.safety1st.com.
• Lay out and identify all parts.
• Include the model number and a brief description of the part.
• We will ship replacement parts within two working days (in the United States).
Keep these instructions for future use
D
F
G
E
08037_inst_video_072203 7/29/03 11:26 AM Page 4
5
Installing Your Sight and Sound Assurance Monitor
Choosing a Location
1

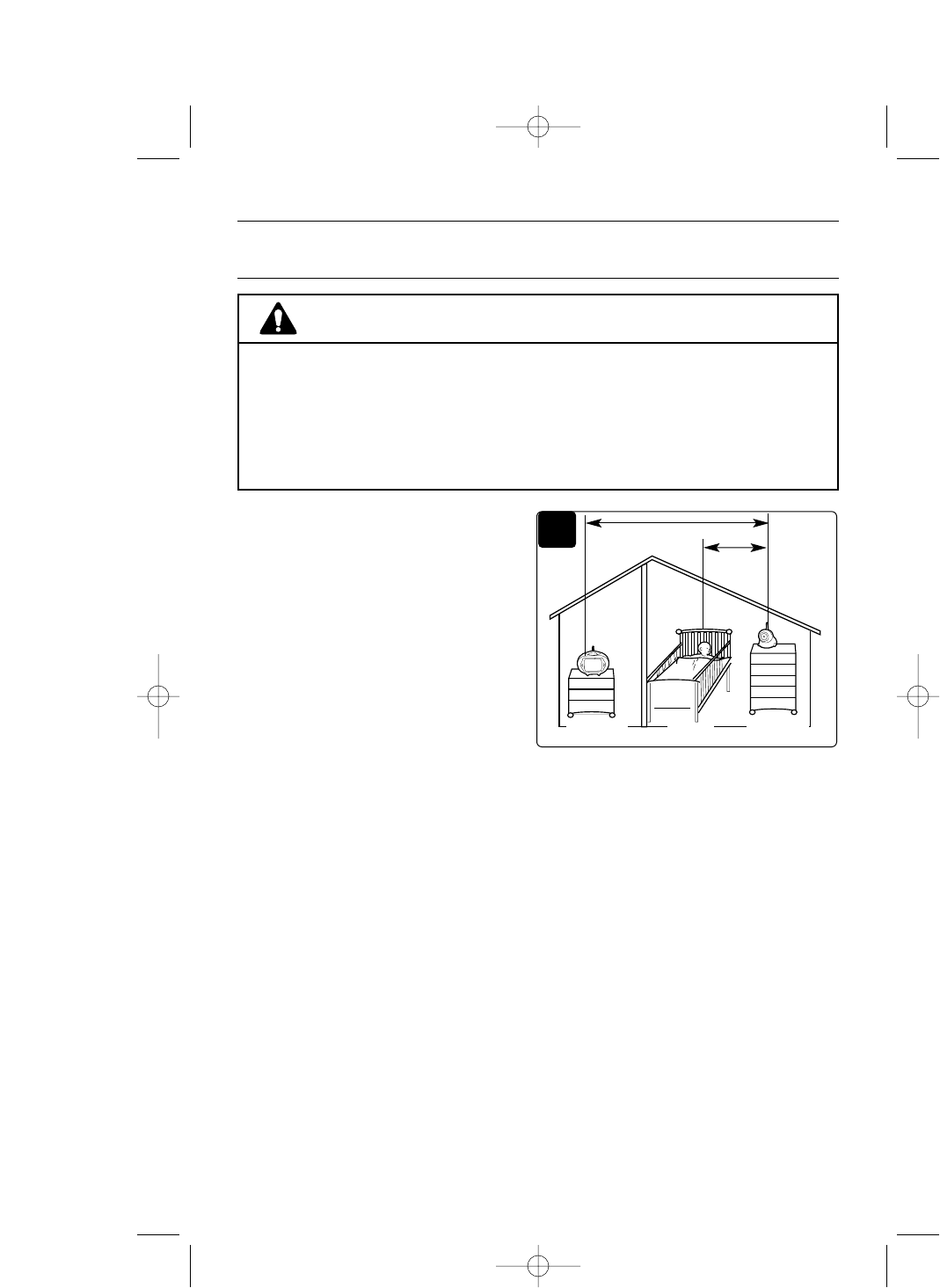

1. IMPORTANT: When choosing a
location to set up your Monitor and
Camera follow these guidelines:
• For best viewing place your Camera
4-6’ (1.5-2m) away from the child.
•
Mount the Camera in a location
where the camera lens will have an
unobstructed view.
•
Make certain that the Camera will
be mounted so that the AC
adapter cord will reach an outlet.
•
The Camera can be easily mounted on a wall, or it can be placed on a stable,
flat surface, such as a dresser or table top
.
•
Use the tilt and swivel adjustments to properly aim the Camera.
• Two adults are needed to properly install and test this equipment.
•
TEST the reception of the Monitor BEFORE INSTALLING any wall mount screws.
•
Place the Monitor far enough away from the Camera so as not to get feedback.
• DO NOT place
the Monitor more than 300’ (10cm) away from the Camera.
•
To prevent entanglement, only mount the Camera in a location where
it and its AC adapter cord are OUT OF REACH OF CHILDREN.
•
Allow adequate ventilation of the Camera when mounted on a wall.
DO NOT mount the Camera directly above heating vents, other heat
producing sources or in direct sunlight.
•
To prevent entanglement and overheating, NEVER use an extension
cord.
WARNING
CameraMonitor Baby
4-6’
up to
300’
08037_inst_video_072203 7/29/03 11:26 AM Page 5
6
Installing Your Sight and Sound Assurance Monitor

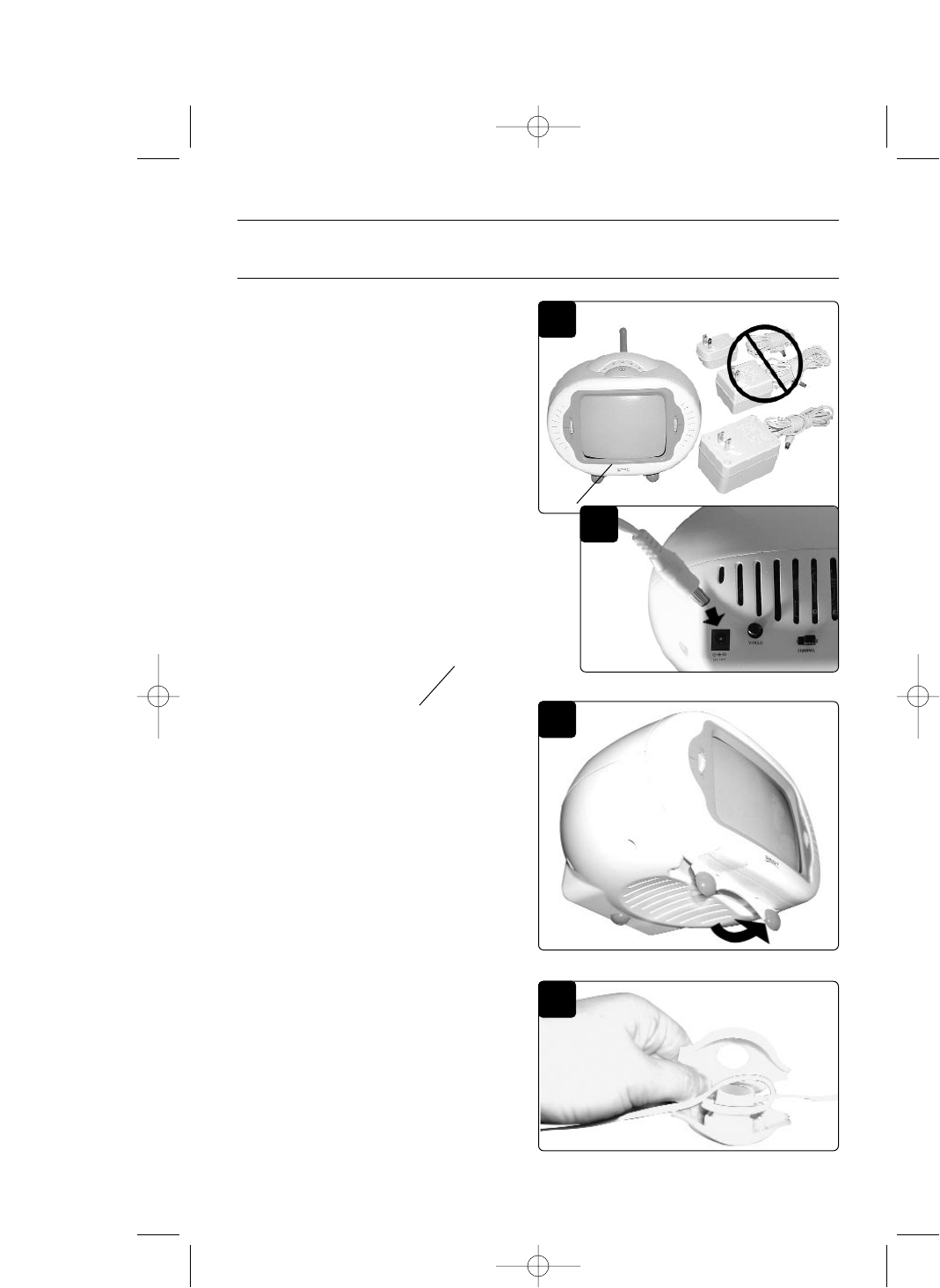

Set up your Monitor
1
1.

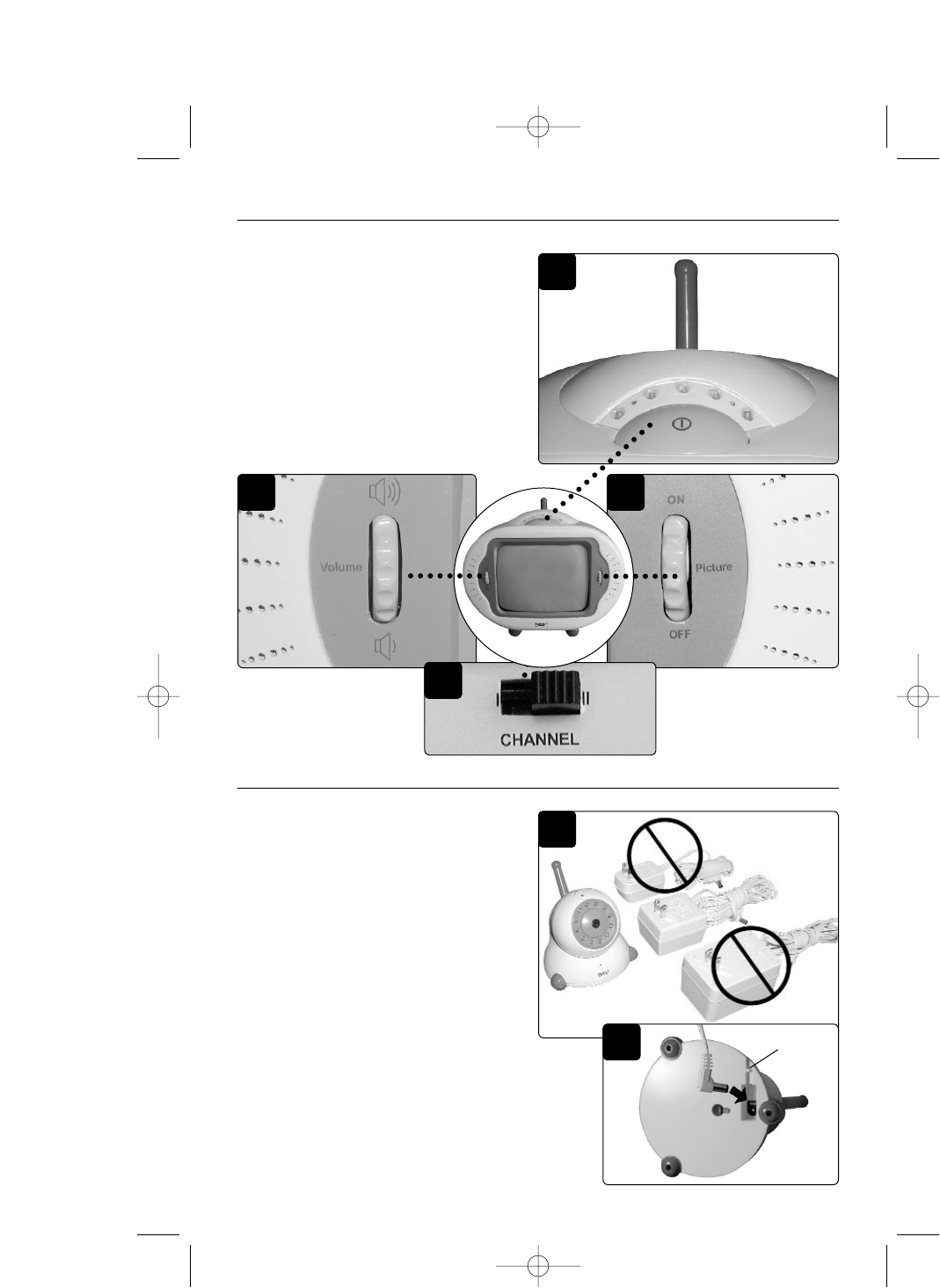

Locate the Monitor and its AC
adapter (largest adapter shown in
Figure 1). Connect the AC
adapter into the back of the
Monitor (Figure 1b). Connect the
AC adapter into a power outlet.
CAUTION: Ensure that you use the
largest AC adapter with the
Monitor. DO NOT use an adapter
that did not come with this product.
2
2.
Pivot up the feet on the bottom
of the Monitor (if desired) and
place Monitor on a level surface.
3
3.
Wrap the excess cord in a cord
shortener and snap it closed.
1b
08037_inst_video_072203 7/29/03 11:26 AM Page 6
4b
4a
4c
7
Installing Your Sight and Sound Assurance Monitor

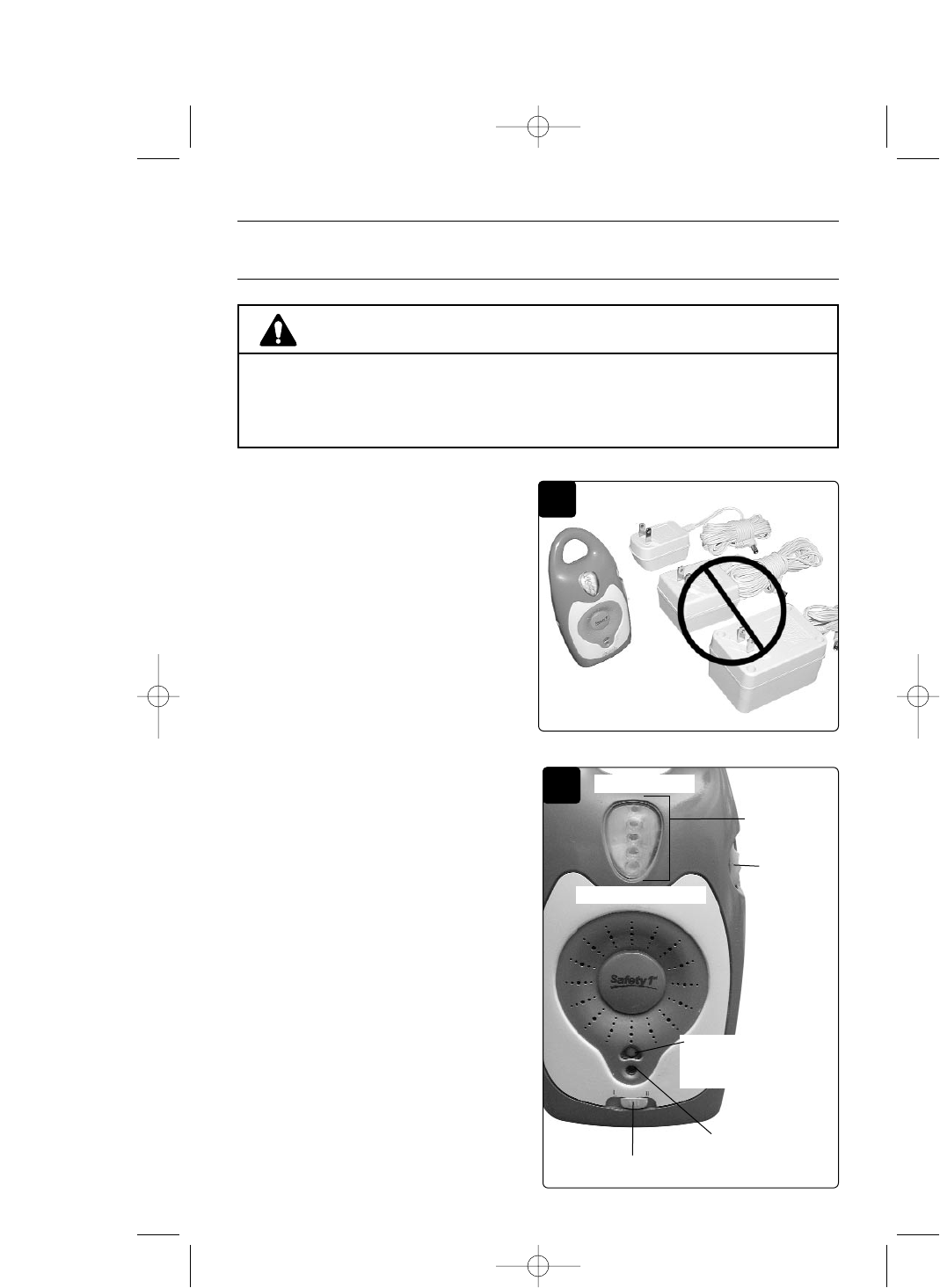

Set up your Camera
1
1.
Locate the Camera and its AC
adapter (medium sized adapter
shown in Figure 1). Connect the AC
adapter into the bottom of the
Camera and route the cable in the
slot (Figure 1b). Connect the AC
adapter into a power outlet.
CAUTION: Ensure that you use the
medium sized AC adapter with the
Camera. DO NOT use an adapter that
did not come with this product.
CAUTION: To protect your privacy,
always turn the Camera off when not
in use. Always remember that you are
using public airwaves. Sound and video
may be broadcast to other receiving
devices. Conversations, even from rooms
near the Camera, may be broadcast.
1b
4
4.
Turn the Monitor on by pressing
the button at the top (Figure 4).
Adjust the volume to a medium
level (Figure 4a). Ensure that the
picture is on (Figure 4b). Choose
channel I or II on the back of the
Monitor (Figure 4c).
NOTE: The picture can be turned off
with the sound left on if preferred.
Slot
08037_inst_video_072203 7/29/03 11:26 AM Page 7
8
Operating Your Sight and Sound Assurance Monitor
Installing Your Sight and Sound Assurance Monitor
•
It is essential to check reception regularly.
WARNING
Set up your Camera (continued)
2
2.
Turn the Camera on by moving the
button at the top off the center
position and choosing channel I or
II to match channel that you
selected on the Monitor (Figure 2).
The LED will light up.
NOTE: Before mounting the
camera to a wall or using a cord
shortener it is best to test the
reception.
LED

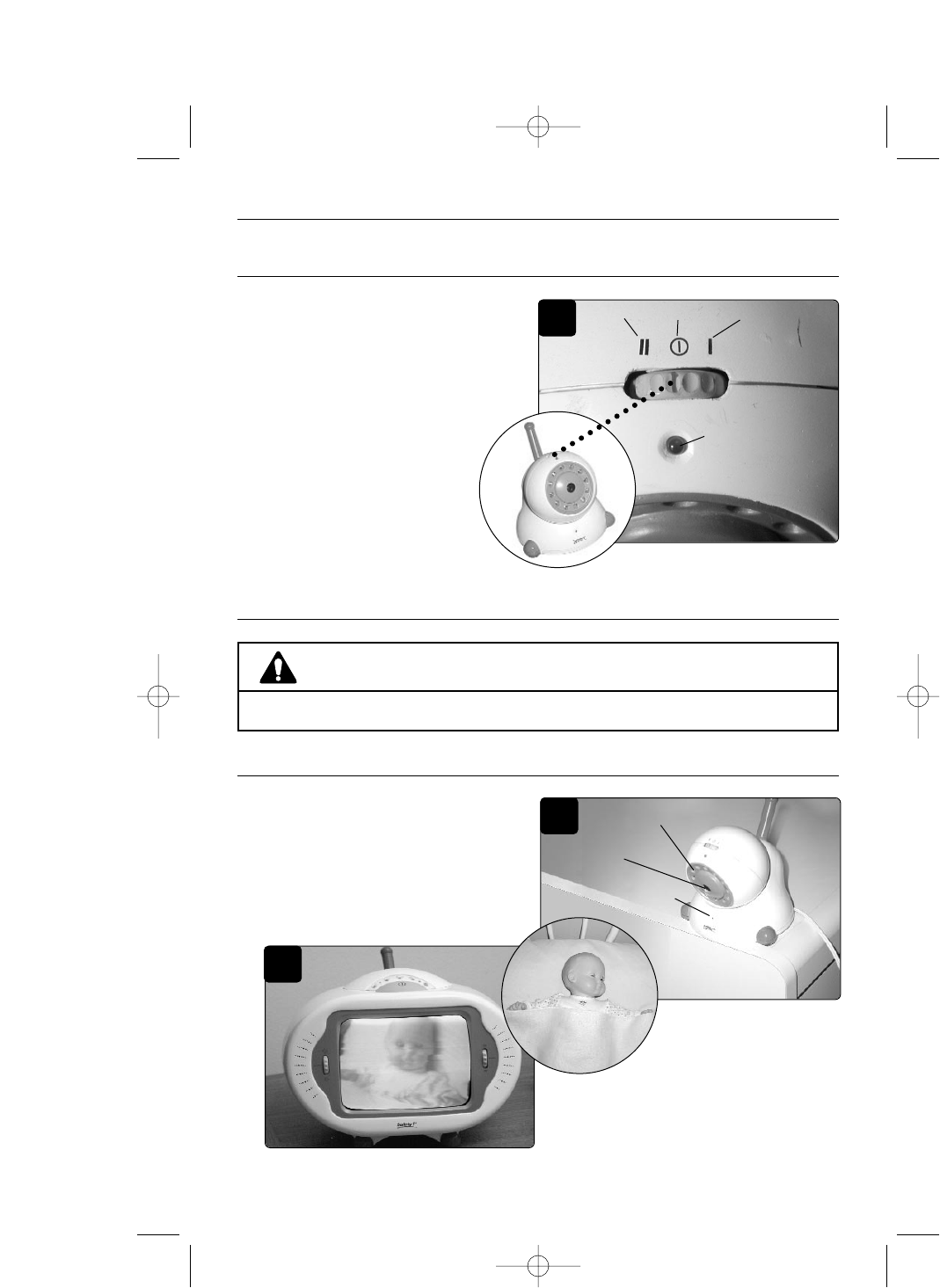

Testing the Reception
1
1.
Have one adult hold the Camera
at the desired location while
another adult checks the Monitor
for the proper sound and
reception. It is best to follow
these guidelines for good
reception:
1b
Microphone
Lens
Night vision sensors
Red = interference
Green = clear connection
Channel 2 On/off Channel 1
08037_inst_video_072203 7/29/03 11:26 AM Page 8
Operating Your Sight and Sound Assurance Monitor
Guidelines for good reception:
•
Use a stuffed animal or doll to focus
the Camera on while testing.
• Place your Camera 4-6’ (1.5-2m) away
from the area of focus.
•

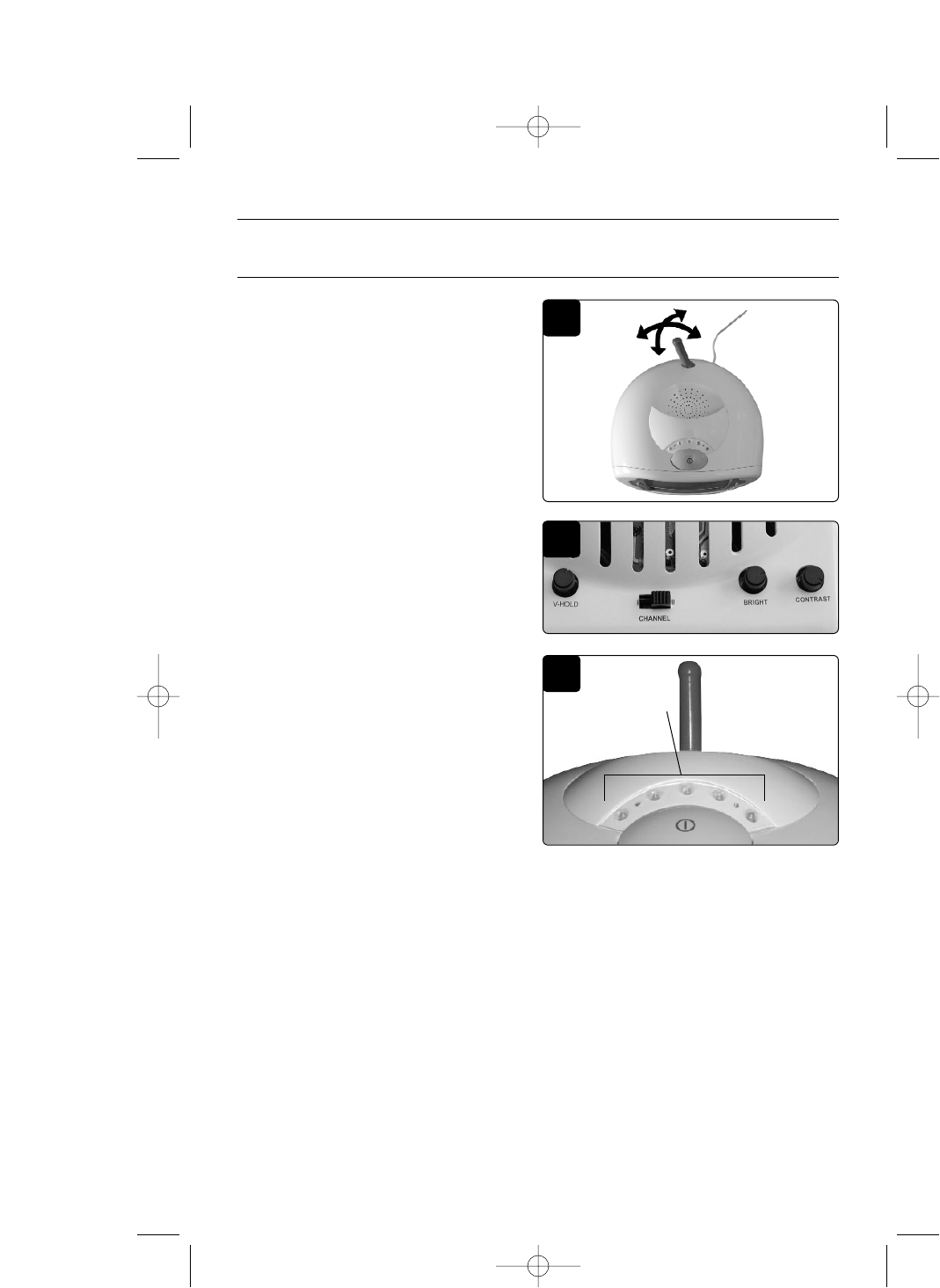

Be certain the channels on the
Monitor and Camera match.
•
Use tilt and swivel adjustments to
properly aim the Monitor antenna
(Figure 2).
•
Use the tilt and swivel adjustments to
properly aim the Camera.
•
Use the controls on the back of the
Monitor to adjust vertical hold,
brightness and contrast as needed
(Figure 2b).
• Have one adult speak (from a whisper
to a yell) into the microphone on the
front of the Camera while another
checks the volume and the sound LEDs
on the top of the Monitor. The louder
the volume the more LEDs light up
(Figure 2c).
•
Place the Monitor far enough away
from the Camera so as not to get
feedback.
Testing the Reception (continued)
2
• Do not place
the Monitor more than 300’ (10cm) away from the Camera.
• If one channel has poor reception try the other channel
.
• Test the Automatic Night Vision (infra-red sensors around in the lens) by darkening the
room where the Camera is located. The Night Vision LEDs on the Camera will light up.
NOTE: It is possible for the Monitor to pick up sounds or display interference from
other signal producing devices including other audio or video monitors which
broadcast in the 900 MHZ range. To minimize this potential problem, two
independent channels have been provided.
If you experience interference while using one channel setting, simply switch the
Camera and Monitor to another channel. Selecting a channel is usually a one-time
adjustment. If interference persists on both channels, please refer to the
Troubleshooting section at the end of these instructions.
CAUTION: To protect your privacy, always turn the Camera off when not in use.
2b
2c
5 LEDs
From soft noise To loud noise
9
08037_inst_video_072203 7/29/03 11:26 AM Page 9
10
Operating Your Sight and Sound Assurance Monitor
Using the Receiver
2
1
NOTE:
Once the Monitor and
Camera
are working properly you can use the
Receiver for distances up to 15’
(4.5m) from the Camera.
For AC Power Use:
1.
Locate the Receiver and its AC
adapter (the smallest adapter).
Connect the AC adapter into the
front of the Receiver. Connect the
AC adapter into a power outlet.
CAUTION: Ensure that you use the
smallest AC adapter with the Receiver.
DO NOT use an adapter that did not
come with this product.
2.Adjust
the volume by turning the
knob on the side of the Receiver.
CAUTION: Test the Receiver before
each use.
NOTE:
The Receiver may use either the
AC adapter, batteries or both may be
used as a back-up device incase of power
failure.
LED
Amber = low batteries
Green = power on
•
It is essential to check reception regularly.
• When using batteries, check batteries regularly. Amber LED indicates the
batteries are low. DO NOT rely on Receiver when batteries are low.
• DO NOT use Receiver over 15’ (4.5m) away from the Camera.
WARNING
5 LEDs
From soft noise
To loud noise
2 channels
AC adapter port
(optional)
Volume
control
08037_inst_video_072203 7/29/03 11:26 AM Page 10
11
5

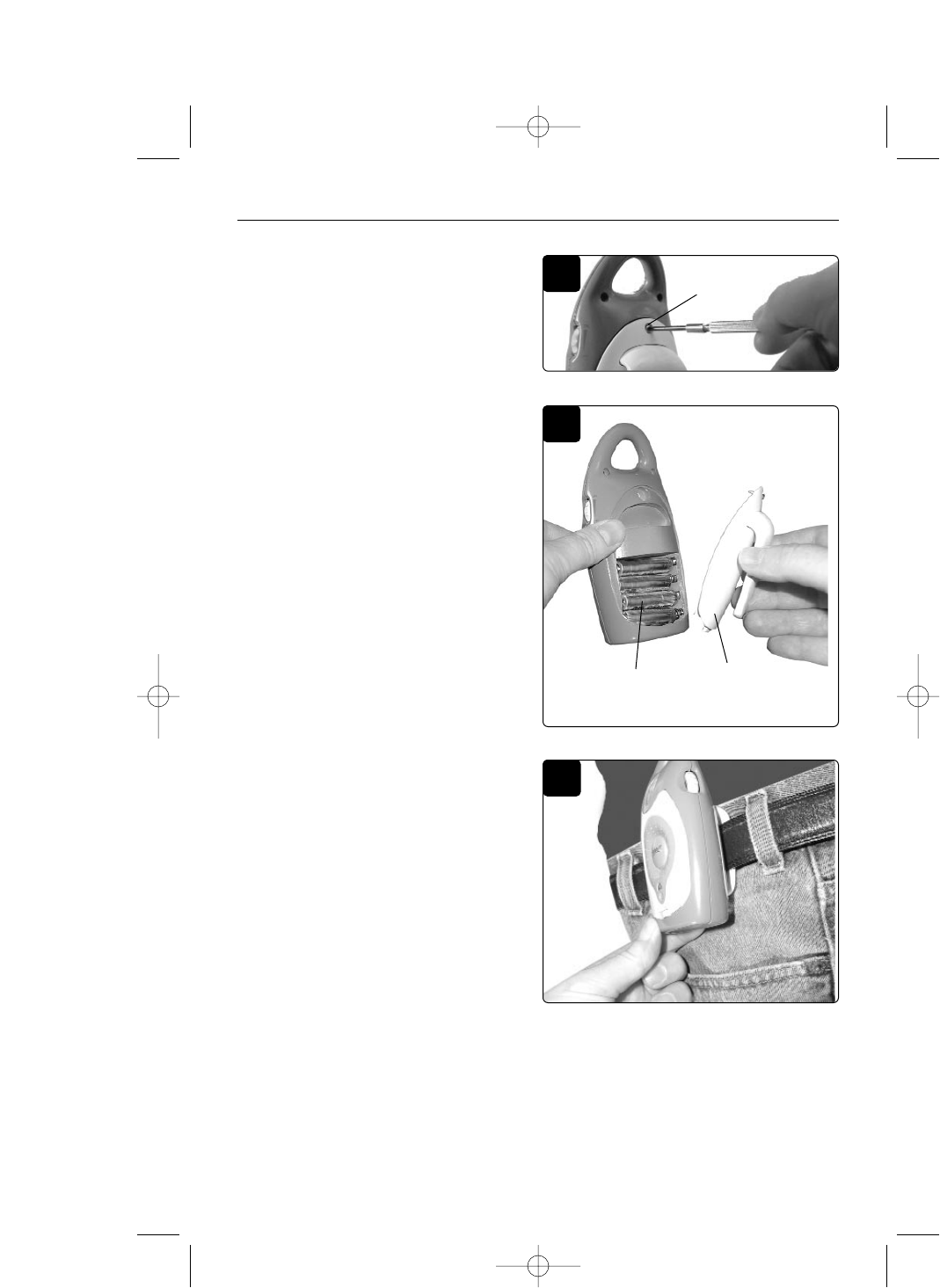

For Battery Use:
3.
Locate the center screw at the back
of the Receiver. Unscrew the screw.
4.
Pull off the battery door and insert
4 AAA batteries (see positive and
negative diagram on the Receiver).
Secure the door with the screw.
CAUTION: Amber LED means the
batteries are low. DO NOT rely on the
receiver when batteries are low.
To Use Belt Clip:
5.Slide the belt clip over your belt (only
for use without AC power).
Operating Your Sight and Sound Assurance Monitor
3
4
4 AAA batteries
Screw
Battery
door
08037_inst_video_072203 7/29/03 11:26 AM Page 11
12
Troubleshooting
Problem
Camera’s power indicator light
does not light
Possible Cause
Camera is not turned on
Power is turned off
AC Adapter not properly
connected
Solution
Slide the button on the Camera top
and choose a channel
Make certain that any light switches
that control the power flow to the
wall outlet are on
Make certain that house fuses and
circuit breakers are on
Check AC Adapter jack-to-socket
and plug-to-outlet connections
Monitor screen does not
illuminate and no sound Monitor is not turned on
Power is turned off
Wrong AC Adapter used
AC Adapter not properly
connected
Press the Monitor’s on/off button at
the top of the Monitor
Slide Monitor picture switch on
Make certain house fuses and circuit
breakers are on
Make certain that any light switches
that control the power flow to the
wall outlet are on
Check AC Adapter jack-to-socket
and plug-to-outlet connections. Be
certain it is plugged into the AC jack
(DC 12V IN)
No sound or picture Channel switches are not on the
same setting (I or II)
Signal interference due to other
monitors, cellular or cordless
telephones, etc.
Check the channel switches on
the Camera and the Monitor to
confirm they are on the same
channel (I or II)
Try the other channel
Turn the Monitor and Camera
off, wait a moment then turn
them back on
Sound, but no picture
(continued) Video adjustment knobs not
properly adjusted
Monitor’s picture switch is set off
Out of range
Camera or Monitor near metal
concentration
Use the V-Hold, Contrast and
Brightness adjustment controls
on the Monitor to adjust the
Slide Monitor picture switch on
Bring Camera unit closer to
Monitor
Test reception by moving the
Camera and/or Monitor to
different locations throughout the
house. Relocate the Camera
and/or Monitor
Picture, but no sound Volume not turned up Adjust the volume control on the
Monitor
08037_inst_video_072203 7/29/03 11:26 AM Page 12
13
Problem
Picture flickers in low light
Possible Cause
Object too close to Camera
Camera or Monitor near metal
concentration
Signal interference due to other
monitors, cellular or cordless
telephones, etc.
Solution
Remove objects that are too close
to the Camera or move the
Camera/Monitor
Test reception by moving the
Camera and/or Monitor to
different locations throughout
the house.
Try the other channel
Identify and eliminate the source
of interference
Audio feedback (squealing) Monitor is too close to the
Camera
Volume is set too high
Move the Monitor further away
from the Camera
Lower the volume on the
Monitor
Dark picture at night Night Vision LEDs are not
functioning properly With room lights off, check
Camera to be certain that all
Night Vision LEDs are glowing
red. If not, contact the
Consumer Relations
Department at Safety 1st
Receiver has no sound Volume not turned up Adjust the volume control on
the Receiver
Troubleshooting
Receiver not functioning Batteries are low
Wrong AC adapter used
Not within 15’ (4.5m) range
If amber LED lights or no LED
at all, change the batteries
If you are not using batteries, be
certain that you are using the
correct AC adapter
Move closer to the Camera
NOTE:
Do not return this product to the place of purchase. If you are having difficulty
using product call Consumer Relations at (800) 544-1108. Or visit our web site
at www.safety1st.com.
08037_inst_video_072203 7/29/03 11:26 AM Page 13
