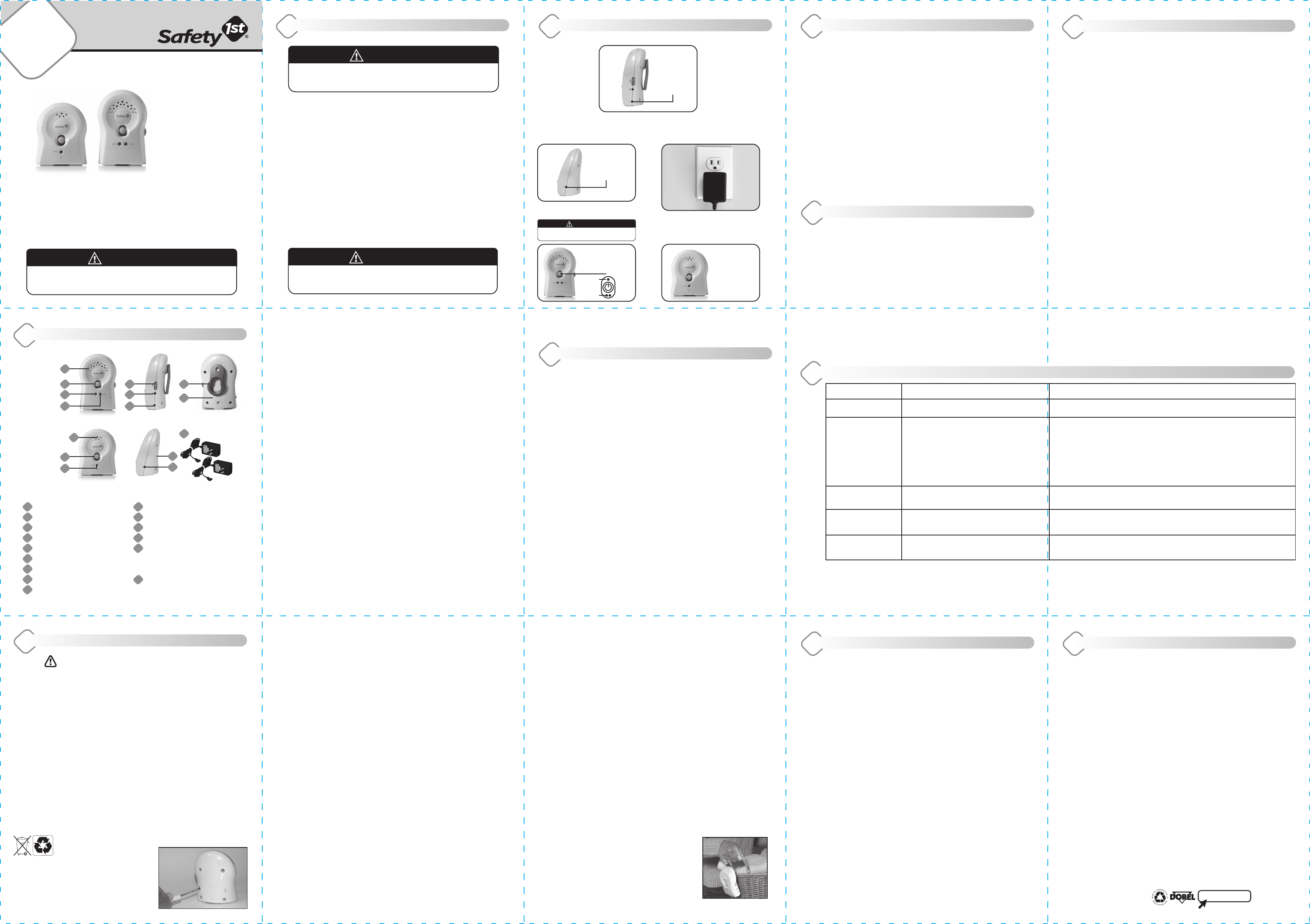

User manual
MO065
MO096
User Guide
Birth & Up
Please read the following instructions and warnings carefully.
Keep these instructions for future reference.
Tool needed: Flat Head Screwdriver (not included)
Thank you for purchasing a Safety 1st product. We are not only about safety,
we're also about your satisfaction. If you have any questions or comments,
please call our Consumer Relations department at 1-800-544-1108 or
e-mail us at consumer@safety1st.com
STRANGULATION HAZARD! Children have STRANGLED in cords.
NEVER place cords within 6 feet of the crib. Do not use with
extension cord. Only use the AC adapters provided.
WARNING!
BATTERY INSTALLATION:
1. Move belt clip out of way. Unscrew battery
compartment cover as shown.
2. Insert 3 AAA batteries.
3. Replace the battery compartment cover
and tighten screw. To obtain maximum performance,
ALWAYS use alkaline type batteries in this monitor.
BATTERY WARNING
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon zinc), or rechargeable (nickel-cadmium) batteries.
• Non rechargeable batteries are not to be recharged.
• Only batteries of the same or equivalent type as recommended are to be used.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the unit.
• The supply terminals are not to be short-circuited.
• Check that all contact surfaces are clean and bright before installing batteries.
• Keep batteries out of child’s reach. Swallowing a battery could be fatal. Batteries should
not be placed into extreme heat as they may explode.
• Used batteries should be disposed of properly. Do not dispose of batteries in
fire - they may explode or leak and cause injury.
• CAUTION: Replace only with AAA alkaline batteries. Use of other types of batteries
may present a risk of fire or rupture.
• Remove batteries when stored for long periods of non-use.
• DO NOT use audio monitor system in portable mode when batteries are low.
• Use care when changing batteries. Keep batteries out of child’ reach. Ensure that the
battery compartment is completely secure after replacing batteries.
• Discontinue use of the product if battery compartment cannot be completely secured.
IMPORTANT:
Please read all warnings and assembly instructions carefully
before using the audio monitor.
• Parent Unit is a Receiver. Baby Unit is a Transmitter.
• To prevent entanglement with the adapter cord, NEVER PLACE
THE CORD IN OR NEAR A CRIB OR PLAYPEN. DO NOT place the
Receiver anywhere its AC adapter cord is near children.
• Check the reception regularly.
• Certain electronic devices are sensitive to magnetic fields
and may be damaged permanently or temporarily disabled if
exposed to a magnetic field that is too strong. Video screen will
become distorted and/or discolored if exposed to a strong
magnetic field.
• To remove AC adapter from the outlet, firmly grasp the adapter
"brick." DO NOT pull on the cord, as this could damage it.
• The LEDs emit IR (infra red) light that is not harmful.
To prevent electric shock, NEVER use the Transmitter
or Receiver near water, such as a bathtub, sink, laundry tub,
in a wet basement, etc.
DANGER!
TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS
PRODUCT TO WATER OR MOISTURE. NEVER ATTEMPT TO DISASSEMBLE THE
PRODUCT. THIS IS DANGEROUS AND WILL VOID THE WARRANTY.
WARNING!
CAUTION: THIS MONITOR IS NOT INTENDED TO BE USED AS A
MEDICAL MONITOR AND ITS USE SHOULD NOT REPLACE PROPER
ADULT SUPERVISION. YOU SHOULD CHECK YOUR CHILD’S ACTIVITY AT
REGULAR INTERVALS AS THIS MONITOR WILL NOT ALERT PARENTS TO
THE SILENT ACTIVITIES OF A CHILD.
HEED WARNINGS: All warnings on the Monitor and operating instructions
should be adhered to. ALWAYS KEEP THE PARENT UNIT, BABY UNIT AND
AC ADAPTERS OUT OF REACH OF CHILDREN. This Monitor is intended for
indoor use only.
FOLLOW INSTRUCTIONS: All operating instructions should be followed.
WATER AND MOISTURE: The Monitor should not be used near water; for
example, near a bath tub, wash bowl, kitchen sink, laundry tub in a wet
basement, or near a swimming pool, etc.
VENTILATION: The Monitor should not be situated on a bed, sofa, rug, or
similar surface that may block the ventilation openings, or placed in an
enclosed installation, such as a book case or cabinet that may impede the
flow of air through the ventilation openings.
• Position the Transmitter, Receiver and AC adapters to allow adequate
ventilation and prevent these components from overheating.
• To prevent overheating, keep the Transmitter, Receiver and AC adapters
away from heat sources such as radiators, heat registers, stoves or other
appliances (including amplifiers) that produce heat. Also keep these
components out of direct sunlight.
HEAT: The Monitor should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances that produce heat.
POWER SOURCE: The Monitor should be connected to a power supply only
of the type described in these operating instructions.
POWER CORD PROTECTION: The power supply cord should be routed so
that it is not likely to be walked on or pinched by items placed upon or
against it. Pay particular attention to the cord at the plug, convenience
receptacle, and at the point it exits from the Monitor. NOTE: Do not
place adapter under a window where a child might use it to step
on and reach something that might be dangerous. Do not use with
extension cord.
• Check to make sure outlet plates are not unusually hot to the touch.
If they are, immediately unplug cords from these outlets. Check that all
outlet connections are in good condition so that adapter is not loose or
that no wiring is exposed. Have a qualified, licensed electrician check the
wiring as soon as possible.
CLEANING: Use a dry cotton cloth to keep the Monitor free of dust.
Do Not Use Water.
NON-USE PERIODS: The power cord of the Monitor should be unplugged
from the outlet when unused for a long period of time. Battery should be
removed from Parent Unit.
OBJECT AND LIQUID ENTRY: Care should be taken so that objects do not
fall onto, and liquids are not spilled into the enclosure through the openings.
DAMAGE REQUIRING SERVICE: The Monitor should be serviced by qualified
service personnel when:
A. The power supply cord has been damaged; or
B. Objects have fallen or liquid has been spilled into the product; or
C. The Monitor has been exposed to rain; or
D. The Monitor does not appear to operate normally or exhibits
a marked change in its performance; or
E. The Monitor has been dropped or the enclosure damaged.
THE USER SHOULD NOT ATTEMPT TO SERVICE OR REPAIR THE MONITOR.
ALL SERVICING SHOULD BE REFERRED TO SAFETY 1ST CUSTOMER
SERVICE DEPARTMENT: (800) 544-1108. KEEP ALL PARTS OF THIS
MONITOR OUT OF REACH OF CHILDREN! DO NOT MOUNT IN OR ON CRIB!
DO NOT PLACE UNIT IN CRIB OR MOUNT ON CRIB.
KEEP OUT OF REACH OF CHILDREN.
AC ADAPTER
The Parent Unit operates on household electricity with the AC Adapter or
with 3 AAA batteries (not included). The Baby Unit operates on household electricity
with the AC Adapter only. The Parent Unit will automatically convert to AC operation
when used with the AC Adapter. It is not necessary to remove the battery during AC
operation. The Parent Unit will automatically switch back to battery power when
disconnected from the AC Adapter.
The AC Adapter should be used whenever possible on the Parent Unit to save battery
life. This is done by inserting the AC Adapter into the AC Adapter Jack. Then simply
plug the AC Adapter into a nearby standard household outlet (120V AC outlet). The AC
Adapters may become slightly warm to the touch during operation. This is normal.
This AC Adapter is a low voltage power source which allows you to use your house-
hold electricity to run the Baby and Parent Units when it connects to the AC Adapter
Jack in the Parent Unit and in the Baby Unit, and plugs into any standard electrical
outlet in your home.
To remove AC adapter from the outlet, firmly grasp the adapter "brick."
DO NOT pull on the cord, as this could damage it.
CAUTION: This AC Adapter was made with a specific design for the Safety 1st
Monitor. It cannot be used with any other appliance, and never use a different type
of adapter with this Monitor.
Parent Unit (Receiver):
CHANNEL SELECTION
The Monitor can broadcast over two preset factory frequencies or channels. Use
setting “1” making sure that both units are set to “1”. If you experience static or noise
interference, simply switch both units to channel “2”.
POWER INDICATOR
The power indicator is a green LED that indicates that the unit is on and functioning.
Low battery power is indicated by the red LED, which signals when the battery needs
to be replaced.
VOLUME DIAL
Volume can be easily adjusted to any desired listening level by rotating the Volume
Dial, so you can be sure to hear your baby at all times. The sounds are transmitted
through the wide range speaker. It is essential to check reception regularly. Refer to
Use and Care section.
LOW BATTERY INDICATOR
Low battery power is indicated by the red LED, which signals when the battery needs
to be replaced.
EARPHONE JACK
Earphones (not included) can be plugged into earphone jack on side of Parent Unit.
When earphones are in place, it will mute the speaker.
LINK INDICATOR - OUT OF RANGE
Static noise will be heard if both units are not set
to the same channels or if they are too far apart.
BELT CLIP
The Belt Clip is convenient for portability.
You can clip the Parent Unit to your belt or
waistband after a battery has been installed.
The Belt Clip also easily converts to a carry loop.
Plug in here
1 Connect AC adapter to the side of
Parent Unit.
2 Connect AC adapter to the side of Baby Unit.
Plug in to AC outlet. 3 Plug Parent Unit and plug Baby Unit
into wall to operate AC power.
4 Turn Parent Unit on. Slide Power/Channel
switch to desired channel selection.
Power On Indicator will illuminate. Make sure
volume is turned down to avoid squealing.
5 Turn Baby Unit on. Slide Power/Channel
switch to same channel selection as Parent
Unit. Refer to Channel Selection section.
Power On Indicator will illuminate.
STRANGULATION HAZARD! Children have STRANGLED in cords.
NEVER place cords within 6 feet of the crib. Do not use with
extension cord. Only use the AC adapters provided.
WARNING!
Plug in here
Power On &
Channel Select
here
Channel A
Channel B
Baby Unit (Transmitter):
PROPER POSITIONING
IMPORTANT: When choosing locations to set up the Baby Unit and Parent Unit, follow
these guidelines:
• For best sound quality, place Baby Unit 4 - 6 feet (1.5 - 2 meters)
away from the baby.
• Adjust volume dial on Parent Unit to appropriate level to minimize feedback.
• During use of the monitor, sound quality deteriorates as you reach the
limits of the monitor's range. If this happens, you will need to move the
Parent Unit in closer proximity to the Baby Unit.
• Adjust the volume to a comfortable level for your environment.
FREQUENCY RANGE
Channel 1 Frequency: 49.850
Channel 2 Frequency: 49.870
Carrier Frequency: 49.850 to 49.870
Field Strength is 80 dB Micro-volts per meter at 3 meters.
Use household electricity whenever possible. When the AC Adapter is used with your
household electricity, you will find that the power is stronger and more consistent than
when you rely solely on the battery. Range and sound quality also depends on the
construction of your house. Steel reinforced wall, for example, reduces the effective
range of the monitor. Conserve the battery so you will have power when you don’t
have easy access to AC outlets.
Make sure that both Units are on the same channel.
Even though you may hear you baby’s sounds, proper use of this system requires that
both Units must be on the same channel. If the Units are on different channels, the
signals from the Baby Unit may still be strong enough to be picked up by the Parent
Unit, but there will be a lot of static.
When not using the Unit, remove AC Adapter
and be sure the power button is “OFF”.
When you are not using the AC Adapter, remove it from the Unit and store it in a safe,
dry place until you need it again. If the AC Adapter is plugged into the Parent Unit but
not being used in an electrical outlet, the AC Adapter will prevent battery operation
of the Unit.
When using the AC Adapter with household electricity,
make sure the outlet is “ON”.
Some electrical outlets are powered through a switch in the room. If the Baby Unit is
plugged in and turned “ON”, the power indicator light should be lit. If it is not, try
turning the light switch in the room “ON”.
PROBLEM
Power indicator light
not working
Static or interference in the
signal transmission
Parent Unit is making
loud noises
Parent Unit is picking up
noises from outside
your home
Weak sound coming
from Parent Unit
POSSIBLE CAUSE
Power is not getting to the Unit
Baby and Parent Units may be
on different channels
Appliances with loud fans near Units
may be blocking transmission
Unit may be under fluorescent lights
Local interference from electrical or radio frequency
appliance near your location
Units are too close together
Volume dial on Parent Unit may be too high
Neighbors may have a baby monitor or cordless phone
Battery may be weak
Units may be too far away from each other
SOLUTION
Make sure wall outlet is working; may possibly need to be turned on by a switch
Make sure AC adapter is plugged into wall and the Unit
Make sure both Units are on the same channel (2 channel options: 1 or 2)
Turn off the appliances that may be causing interference
Reduce the distance between the two Units or turn off lights
Switch channel setting on both Parent and Baby Units
Parent Unit needs to be at least 10 feet / 3 meters away from the Baby Unit
Turn down volume on the Parent Unit
Change both Units to the alternative channel (4 channel option: 1A, 1B, 2A, 2B)
Check battery; replace if necessary
Move the Units closer to each other
Dorel Juvenile Group, Inc. warrants to the original purchaser that this Crystal Clear™
Audio Monitor, is free from material and workmanship defects when used under
normal conditions for a period of one (1) year from the date of purchase. Should the
product contain defects in material or workmanship Dorel Juvenile Group, Inc., will
repair or replace the product, at our option, free of charge. Purchaser will be respon-
sible for all costs associated with packaging and shipping the product to Dorel
Juvenile Group Consumer Relations Department at the address noted below and all
other freight or insurance costs associated with the return. Dorel Juvenile group will
bear the cost of shipping the repaired or replaced product to the purchaser. Product
should be returned in its original package accompanied by a proof of purchase, either
a sales receipt or other proof that the product is within the warranty period. This
warranty is void if the owner repairs or modifies the product or the product has been
damaged as a result of misuse.
This warranty excludes any liability other than that express stated previously,
including but not limited to, and incidental or inconsequential damages.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS THAT MAY VARY FROM STATE TO STATE.
Thank you again for purchasing a Safety 1st product. We are not only about safety,
we’re also about your satisfaction. If you have any questions or comments, please
call our Consumer Relations department at 1-800-544-1108 or e-mail us
at consumer@safety1st.com
©2011 Dorel Juvenile Group. All Rights Reserved. Todos derechos reservados.
www.djgusa.com (800) 544-1108 www.safety1st.com Made in CHINA.
Hecho en CHINA. Styles and colors may vary. Los estilos y los colores pueden variar.
Distributed by (distribuido por) Dorel Juvenile Group, Inc., 2525 State St., Columbus,
IN 47201-7494 Dorel Distribution Canada, 873 Hodge, St. Laurent, QC H4N 2B1
08/17/11
4358-4795D
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does not cause harmful
interference to radio or television reception, which can be determined by turning this
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressively approved by Dorel Juvenile
Group can void your authority to operate this equipment.
Register for our eNewsletter and
watch our experts on Safety 1
st
TV
safety1st.com
Features & Components
Battery Installation & Use
Safety Instructions Quick Start Guide Using Your Monitor (continued)
The first time you use your monitoring system, two adults
should test it in the following way:
• Place Parent Unit at least 20 ft. (6m) away from Baby Unit.
• Have an adult speak into Baby Unit at various levels (soft to loud)
while another adult checks Parent Unit for the proper sound reception.
Try Parent Unit in every location that it will be used.
Care and Cleaning:
Use a soft, dry cloth to keep your monitor free from dust.
DO NOT immerse product in water.
IMPORTANT:
Use and Care
Helpful Hints
Using Your Monitor
FCC StatementOne (1) Year Limited Warranty
Troubleshooting
IF YOU ARE STILL HAVING PROBLEMS, PLEASE CALL TOLL FREE FOR HELP! (800) 544-1108.
Crystal Clear™
Audio Monitor
Parent Unit/
Receiver
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Baby Unit/
Transmitter
AC Adapters (2)
Parent Unit (Receiver)
Speaker
Power/Channel Switch
Low Battery Indicator
Power On Indicator
Volume Dial
External Earphone Jack
AC Adapter Jack
Belt Clip & Carry Loop
Battery Compartment (3 AAA batteries)
Baby Unit (Transmitter)
Microphone
Power/Channel Switch
Power On Indicator
Battery Compartment (1 AAA battery)
AC Adapter Jack
AC Adapter
AC Adapter (2)
A
B
C
D
J
K
L
E
F
G
H
I
N
M
O
