User manual
User Guide
08180
(MO080)
TrustView™
Handheld Digital
Color Video Monitor
Birth & Up
4/10/12
4358-5930
Register for our eNewsletter and
watch our experts on Safety 1
st
TV
safety1st.com
Dorel Juvenile Group, Inc. warrants to the original purchaser that this TrustView™
Handheld Digital Color Video Monitor, is free from material and workmanship defects
when used under normal conditions for a period of one (1) year from the date of
purchase. Should the product contain defects in material or workmanship Dorel
Juvenile Group, Inc., will repair or replace the product, at our option, free of charge.
Purchaser will be responsible for all costs associated with packaging and shipping the
product to Dorel Juvenile Group Consumer Relations Department at the address noted
below and all other freight or insurance costs associated with the return. Dorel Juvenile
Group will bear the cost of shipping the repaired or replaced product to the purchaser.
Product should be returned in its original package accompanied by a proof of purchase,
either a sales receipt or other proof that the product is within the warranty period. This
warranty is void if the owner repairs or modifies the product or the product has been
damaged as a result of misuse.
This warranty excludes any liability other than that express stated previously, including
but not limited to, and incidental or inconsequential damages.
SOME STATES OR PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLU-
SION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS THAT MAY VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Thank you again for purchasing a Safety 1st product. We are not only about safety,
we’re also about your satisfaction. If you have any questions or comments, please
call our Consumer Relations department at 1-800-544-1108 or e-mail us at
consumer@safety1st.com.
One (1) Year Limited Warranty
16
Please read the following instructions and warnings carefully.
Keep these instructions for future reference.
Tool needed: Flathead Screwdriver (not included)
Thank you for purchasing a Safety 1st product. We are not only about safety,
we're also about your satisfaction. If you have any questions or comments,
please call our Consumer Relations department at 1-800-544-1108 or
e-mail us at consumer@safety1st.com
Strangulation Hazard - Children have STRANGLED
in cords. Keep cords out of reach of children more
than 3 feet (0.9 m) away.
WARNING!
©2012 Cosco Management, Inc. All Rights Reserved. Tous droits réservés.
www.djgusa.com (800) 544-1108 www.safety1st.com Fabriqué en CHINE.
Hecho en CHINA. Styles and colors may vary. Les styles et les couleurs peuvent varier.
Distributed by (distribué par) Dorel Juvenile Group, Inc., 2525 State St., Columbus,
IN 47201-7494 Dorel Distribution
Canada, 873 Hodge, St. Laurent,
QC H4N 2B1
model: MO072R/ MO080VR
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 32
This monitor is not intended to be used as a medical monitor and
its use should not replace proper adult supervision. You should
check your child’s activity at regular intervals as this monitor will
not alert parents to the silent activities of a child.
CAUTION!
For indoor use only. To reduce the risk of fire or electrical shock,
do not expose this product to water or moisture. NEVER attempt
to disassemble the product. This is dangerous and will void
the warranty.
WARNING!
Important!
• Please read all warnings and assembly instructions carefully before using the video monitor.
Parent Unit is a Receiver. Baby Unit is a Transmitter.
• Do not place units in crib or mount on crib. Keep out of reach of children.
• Check your child’s activity at regular intervals, as this monitor will not alert parents to the silent activities of a child.
• To prevent entanglement with the adapter cord, NEVER PLACE THE CORD IN OR NEAR A CRIB OR PLAYPEN.
DO NOT place the Receiver anywhere its AC adapter cord is near children.
• ALWAYS KEEP TRANSMITTER, RECEIVER AND AC ADAPTERS OUT OF REACH OF CHILDREN
• This product is not a medical monitor and its use should not replace adult supervision.
• Check the reception regularly.
• NEVER use the Transmitter or Receiver near water. For example, do not use near a bath tub, bathroom sink, laundry tub,
kitchen sink, in a wet basement, etc.
• Always unplug the AC adapters from wall outlets during long periods of non-use.
• Check to make sure outlet plates are not unusually hot to the touch. If they are, immediately unplug cords from these outlets.
Check that all outlet connections are in good condition so that adapter is not loose or that no wiring is exposed.
Have a qualified, licensed electrician check the wiring as soon as possible.
• Position the Transmitter, Receiver and AC adapters to allow adequate ventilation and prevent these
components from overheating.
• To prevent overheating, keep the Transmitter, Receiver and AC adapters away from heat sources such as radiators, heat
registers, stoves or other appliances (including amplifiers) that produce heat. Also keep these components out of
direct sunlight.
• Certain electronic devices are sensitive to magnetic fields and may be damaged permanently or temporarily disabled if
exposed to a magnetic field that is too strong. Video screen will become distorted and/or discolored if exposed to a strong
magnetic field.
• Use only the AC adapters provided. Use of any other adapters may damage the Transmitter and/or Receiver. Plug AC adapters
into standard household current only! (120V AC) To prevent entanglement and overheating, DO NOT use extension cords.
• The AC adapters may become slightly warm to the touch during operation. This is normal.
• Position the AC adapter cords so that they are not walked on or pinched by items placed upon or against them, paying
particular attention to cords at AC adapter plugs, wall plugs and the point where the cords attach to the Transmitter
and Receiver.
• To remove AC adapter from the outlet, firmly grasp the adapter "brick." DO NOT pull on the cord, as this could damage it.
• The LEDs emit IR (infra red) light that is not harmful.
• This product should be serviced only by qualified service personnel at Dorel Juvenile Group when:
- An AC Adapter or its plug is damaged
- The Transmitter or Receiver has fallen
- Liquid has spilled into the Transmitter or Receiver, or
- The Transmitter or Receiver do not appear to operate normally or exhibit a marked change in performance.
• DO NOT attempt to service this product beyond that described in the Troubleshooting section.
All other servicing should be referred to qualified personnel at Dorel Juvenile Group.
Important Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features & Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing & Charging Batteries. . . . . . . . . . . . . . . . . . . . . . . . . 5
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 & 7
Using Your Monitor:
AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Parent Unit/Receiver
• Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Sound Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Zoom Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Brightness Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Day/Night Auto Viewing. . . . . . . . . . . . . . . . . . . . . . . . . 9
• Video On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Link Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Additional Parent Unit/Receiver - Audio Only
• Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Sound Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Link Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Belt Clip & Carry Loop. . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Low Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Baby Unit/Transmitter
• Proper Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Use & Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 & 15
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Important Warnings
Table of Contents
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 54
Parent Unit/Receiver Baby Unit/Transmitter
Parent Unit/Receiver (Audio Only)
DD
AC Adapters (3)
CC
Rechargeable
Battery Pack
A
B
C
D
E
F
G
H
I
J
K
T
S
U
V
W
X
Y
Z
AA
BB
CC
DD
N
M
O
P
Q
R
L
Parent Unit (Receiver)
Zoom Control Button
3.5 inch Video Screen
Link Indicator
Sound Lights (5 LEDs)
Video On/Off Button
Brightness Control Button
Volume Control Button
Speaker
Power On Indicator
Power On/Off Button
AC Adapter Jack
Baby Unit (Transmitter)
Camera Lens
Power On Indicator
Power On/Off Button
Nighttime Viewing Lights
Microphone
AC Adapter Jack
(on back of unit)
Battery Compartment
(4 AA batteries,
not included)
Parent Unit (Audio only)
Sound Lights (5 LEDs)
Link Indicator
Power On/Off Button
Speaker
Antenna
Volume Control Button
Power On/Low Battery Indicator
AC Adapter Jack
Belt Clip & Carry Loop
Battery Compartment
(for rechargeable battery)
Rechargeable
Battery Pack
AC Adapter (3)
B
A
C
D
L
M
N
P
O
Q
S
T
U
V
W
X
Y
Z
AA
BB
Features & Components
Installing & Charging Batteries
CAUTION!
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon zinc), or rechargeable (nickel-cadmium) batteries.
• Only batteries of the same or equivalent type as recommended are to be used.
• Exhausted batteries are to be removed from the unit.
• Keep batteries out of child’s reach. Swallowing a battery could be fatal.
• Used batteries should be disposed of properly.
Do not dispose of batteries in fire - they may explode or leak and cause injury.
• Remove batteries when stored for long periods of non-use.
• DO NOT use monitor system in portable mode when batteries are low.
• Ensure that the battery compartment is completely secure after replacing batteries.
R
G
H
I
J
K
F
E
Battery Installation & Use:
(Rechargeable Battery for Parent Unit)
IMPORTANT:
Parent Unit will not operate unless rechargeable battery pack is installed first.
To maximize battery life, charge a new rechargeable battery pack in Parent Unit for 12+ hours
before first use. You may operate Parent Unit with an AC adapter while charging batteries.
BATTERY INSTALLATION:
• Move belt clip out of way. Unscrew battery cover and remove from Parent Unit (Figure 1).
• Align connectors of the Parent Unit and rechargeable battery pack ((Figure 2).
• Plug together until you feel a click (Figure 3).
• Place rechargeable battery pack inside Parent Unit and tuck in the connected wires (Figure 4).
• Secure battery cover with its screw; ensure that no wires are pinched.
To order a new rechargeable battery pack, contact Consumer Relations at 1-800-544-1108.
Use reference code number 08180.
Tool Required:
Flathead Screwdriver
Figure 1
Component Required:
Rechargeable
Battery Pack
Figure 2 Figure 3 Figure 4
• Place Baby Unit at least 3 feet (0.9 m) away from your baby.
• To reduce audio feedback, position both Parent and Baby Unit far enough away
from each other to avoid interference. Turning the volume down will help.
• This monitor has indoor/outdoor range. During use of the monitor, if the sound
quality deteriorates, you may be reaching the limits of the monitor’s range.
If this happens, you will need to move Parent Unit closer to Baby Unit.
You can verify by checking the Link Indicator icon displayed in the data display,
(See page 10.)
• Adjust the volume to a comfortable level for your environment.
• Day/Night Auto Viewing lets you see the baby in a darkened room. The video
display during this time is in black and white. For best view of your baby in a
dark room, increase brightness control until desired brightness is achieved.
• Baby Unit can also be wall mounted. (See page 12.)
More Features, More Functions
Once you’ve set up your monitor and powered On, it’s time to learn about the
innovative parent convenience features your monitor has to offer. Keep reading to
explore these many features:
• Zoom • Video On/Off (to conserve battery life)
• Brightness Control • Day/Night Auto Viewing
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 76
Quick Start Guide
Quick Start Guide
Plug in here
(back of unit)
Plug in here
Plug in
here
IMPORTANT:
Audio Parent Unit will not operate unless rechargeable battery pack is
installed first.
To maximize battery life, charge a new rechargeable battery pack in Parent
Unit for 12+ hours before first use. You may operate Parent Unit with an AC
adapter while charging batteries.
Power On/Off
Button
Power On/Off
Button
1 Remove protective clings from
both Parent Unit and Baby Unit.
2 Connect AC adapter to the
back of Baby Unit.
4 Plug Parent Unit and plug Baby
Unit into wall to operate AC power.
3 Connect AC adapter to the
Parent Units (Video and Audio).
6 Hold down Power On/Off Button
to turn Baby Unit on.
To turn off Baby Unit, hold down
Power On/Off Button again.
5 Hold down Power On/Off Button
to turn Parent Units on (Video and
Audio). To turn off Parent Units, hold
down Power On/Off Button again.
Strangulation Hazard - Children have STRANGLED
in cords. Keep cords out of reach of children more
than 3 feet (0.9 m) away.
WARNING!
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 98
Using Your Monitor
Using Your Monitor
Parent Unit (Video/Receiver):
VOLUME CONTROL BUTTON
Volume Control Button
is on the right side of
Parent Unit. To adjust
volume, press up (+) or
down (-). Volume bars
will display on screen.
No bars means Parent
Unit is on mute.
SOUND LIGHTS (5 LEDs)
As baby’s voice gets louder, the sound lights will illuminate from 1 light up to
5 lights. Low sound is one LED illuminated and rises incrementally as baby’s
noise level increases until all 5 LEDs are illuminated.
ZOOM CONTROL BUTTON (1x, 2x, 4x)
Zoom Control Button is the upper left button on the side of Parent Unit. There are 3 levels:
Zoom 1x (normal view), 2x and 4x. To adjust zoom view , press up (+) or down (-). Zoom
status will display on screen. If no zoom icon appears on screen, press once to check current
zoom status and press twice to change zoom status.
BRIGHTNESS CONTROL BUTTON
Brightness Control Button is the upper right button
on the side of Parent Unit. To adjust brightness level,
press up (+) or down (-). Brightness level icons will
display on screen. If no brightness icon appears on
screen, press once to check current brightness status
and press again to change brightness status.
DAY/NIGHT AUTO VIEWING
Day/Night Auto Viewing lets you see your baby in a darkened room. The video display
during this time is in black and white. For best view of your baby in a dark room, increase
brightness control until desired brightness is achieved. For best visibility, Camera should
be 3 feet away from your baby.
DO NOT PLACE UNITS IN CRIB OR MOUNT ON CRIB.
KEEP OUT OF REACH OF CHILDREN.
AC ADAPTER
The Parent Unit operates on household electricity with the AC Adapter and
the Audio Parent Unit will operate on household electricity with the AC Adapter
or with rechargeable battery pack (included). The Baby Unit operates on
household electricity with the AC Adapter or with 4 AA batteries (not included).
The Parent Unit will automatically convert to AC operation when used with the
AC Adapter. It is not necessary to remove the battery during AC operation.
The Audio Parent Unit will automatically switch back to battery power when
plug is disconnected from the AC Adapter.
The AC Adapter should be used whenever possible on the Audio Parent Unit to
save battery life. This is done by inserting the AC Adapter into the AC Adapter
Jack. Then simply plug the AC Adapter into a nearby standard household outlet
(120V AC outlet). The AC Adapters may become slightly warm to the touch
during operation. This is normal.
This AC Adapter is a low voltage power source which allows you to use your
household electricity to run the Baby and Parent Units when it connects to the
AC Adapter Jack in the Parent Unit and in the Baby Unit, and plugs into any
standard electrical outlet in your home.
To remove AC adapter from the outlet, firmly grasp the adapter "brick." DO NOT
pull on the cord, as this could damage it.
CAUTION: This AC Adapter was made with a specific design for the Safety 1st Monitor. It cannot
be used with any other appliance, and never use a different type of adapter with this Monitor.
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 1110
Belt Clip
(down)
Carry Loop
(up)
Using Your Monitor
Using Your Monitor
VIDEO ON/OFF BUTTON
Video ON/Off Button is on the top of Parent Unit. Press the Video On/Off
Button to shut-off the video screen. The Video Off icon will appear. Press again
to bring back full video.
POWER INDICATOR
The power indicator is a green LED that indicates
that the unit is on and functioning.
LINK INDICATOR - OUT OF RANGE
If the unit is working and goes out of range, the no-link
icon will appear and the link indicator LED will illuminate
red. If product is detected as close to losing link, where
signal quality is losing over 50% of it's information,
monitor will keep giving image, but link indicator LED
will flash red indicating that loss of link is possible.
Additional Parent Unit - Audio Only (Receiver):
VOLUME CONTROL BUTTON
Volume can be easily adjusted to any desired listening level by pressing the
Volume Control Button, so you can be sure to hear your baby at all times.
Volume Control Button is on the top right side of Parent Unit. To adjust
volume, press up (+) or down (-). The sounds are transmitted through the
wide range speaker. It is essential to check reception regularly. Refer to
Use and Care section.
SOUND LIGHTS (5 LEDs)
As baby’s voice gets louder, the sound lights will illuminate from 1 light up to
5 lights. Low sound is one LED illuminated and rises incrementally as baby’s
noise level increases until all 5 LEDs are illuminated.
POWER INDICATOR
The power indicator is a green LED that indicates that the unit is on and
functioning. If LED turns red, this is a low battery indication.
LINK INDICATOR - OUT OF RANGE
If the unit is working and goes out of range, the link indicator red LED
will illuminate.
BELT CLIP & CARRY LOOP
The Belt Clip is convenient for
portability. You can clip the
Parent Unit to your belt
or waistband. The Belt Clip
also easily converts to
a carry loop.
Additional Parent Unit - Audio Only (Receiver):
BATTERY CHARGING
IMPORTANT: Parent Unit will not operate unless rechargeable battery
pack is installed first. To maximize battery life, charge a new rechargeable
battery pack in Parent Unit for 12+ hours before first use. You may operate
Parent Unit with an AC adapter while charging batteries.
LOW BATTERY
With power on and unit operating on battery power, a green LED will be lit.
When the LED turns to red, it indicates that the battery is dying. You need to
plug in the Audio Parent Unit within 5 to 10 minutes after red battery LED
appears or battery power will fail.
WHAT TO EXPECT FROM BATTERY LIFE
A Fully charged battery being used with both video and audio typically lasts approximately
6 hours. During the last 5 minutes, the large flashing red battery will start flashing. You need
to plug in the Parent Unit within 5 to 10 minutes after red battery starts to flash or battery
power will fail.
Rechargeable batteries are prone to what is referred to as the "memory effect". What this
means is that if a battery is repeatedly only partially discharged before recharging, the
battery "forgets" that it has the capacity to further discharge all the way down. To illustrate:
If on a regular basis you fully charge your battery and then use only 50% of its capacity
before the next recharge, eventually the battery will become unaware of its extra 50%
capacity which has remained unused. The battery will remain functional, but only at
50% of its original capacity.
The way to avoid the "memory effect" is to fully cycle (fully charge and then
fully discharge) the battery at least once every two to three months. Simply leaving the
device in the ON position and letting it run can discharge batteries completely. This will help
insure your battery remains healthy. Once discharged, recharge the battery completely
according to the manufacturer's instructions.
Baby Unit (Transmitter):
PROPER POSITIONING
IMPORTANT: When choosing locations to set up the Baby Unit and Parent Unit,
follow these guidelines:
• For best sound quality, place Baby Unit 3 feet (0.9 m) away from the baby.
• Adjust volume dial on Parent Unit to appropriate level to minimize feedback.
• During use of the monitor, sound quality deteriorates as you reach the limits of
the monitor's range. If this happens, you will need to move the Parent Unit in
closer proximity to the Baby Unit.
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 1312
It is essential to check reception regularly.
Please see Using Your Monitor section.
VENTILATION: The Monitor should not be situated on a bed, sofa, rug, or similar surface that may
block the ventilation openings, or placed in an enclosed installation, such as a book case or cabinet
that may impede the flow of air through the ventilation openings.
• Position the Transmitter, Receiver and AC adapters to allow adequate ventilation and prevent
these components from overheating.
HEAT: The Monitor should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances that produce heat. Also keep these components out of direct sunlight.
POWER SOURCE: The Monitor should be connected to a power supply only of the type described
in these operating instructions.
POWER CORD PROTECTION: The power supply cord should be routed so that it is not likely to be walked on
or pinched by items placed upon or against it. Pay particular attention to the cord at the plug, convenience
receptacle, and at the point it exits from the Monitor. NOTE: Do not place adapter under a window where
a child might use it to step on and reach something that might be dangerous.
• Check to make sure outlet plates are not unusually hot to the touch. If they are, immediately unplug cords from
these outlets. Check that all outlet connections are in good condition so that adapter is not loose or that no
wiring is exposed. Have a qualified, licensed electrician check the wiring as soon as possible.
OBJECT AND LIQUID ENTRY: Care should be taken so that objects do not fall onto, and liquids are not spilled into
the enclosure through the openings.
DAMAGE REQUIRING SERVICE: The Monitor should be serviced by qualified service personnel when:
A. The power supply cord has been damaged; or
B. Objects have fallen or liquid has been spilled into the product; or
C. The Monitor has been exposed to rain; or
D. The Monitor does not appear to operate normally or exhibits a marked change in its performance; or
E. The Monitor has been dropped or the enclosure damaged.
Use for
Wall Mount
THE USER SHOULD NOT ATTEMPT TO SERVICE OR REPAIR THE MONITOR. ALL SERVICING SHOULD BE
REFERRED TO SAFETY 1ST CUSTOMER SERVICE DEPARTMENT: (800) 544-1108.
Use and Care
Safety Instructions
IMPORTANT – CHECK RECEPTION:
The first time you use your monitoring system, two adults
should test it in the following way:
• Place Parent Unit at least 20' (6m) away from Baby Unit.
• Have an adult speak into Baby Unit at various levels (soft to loud) while
another adult checks Parent Unit for the proper sound and picture reception.
Try Parent Unit in every location that it will be used.

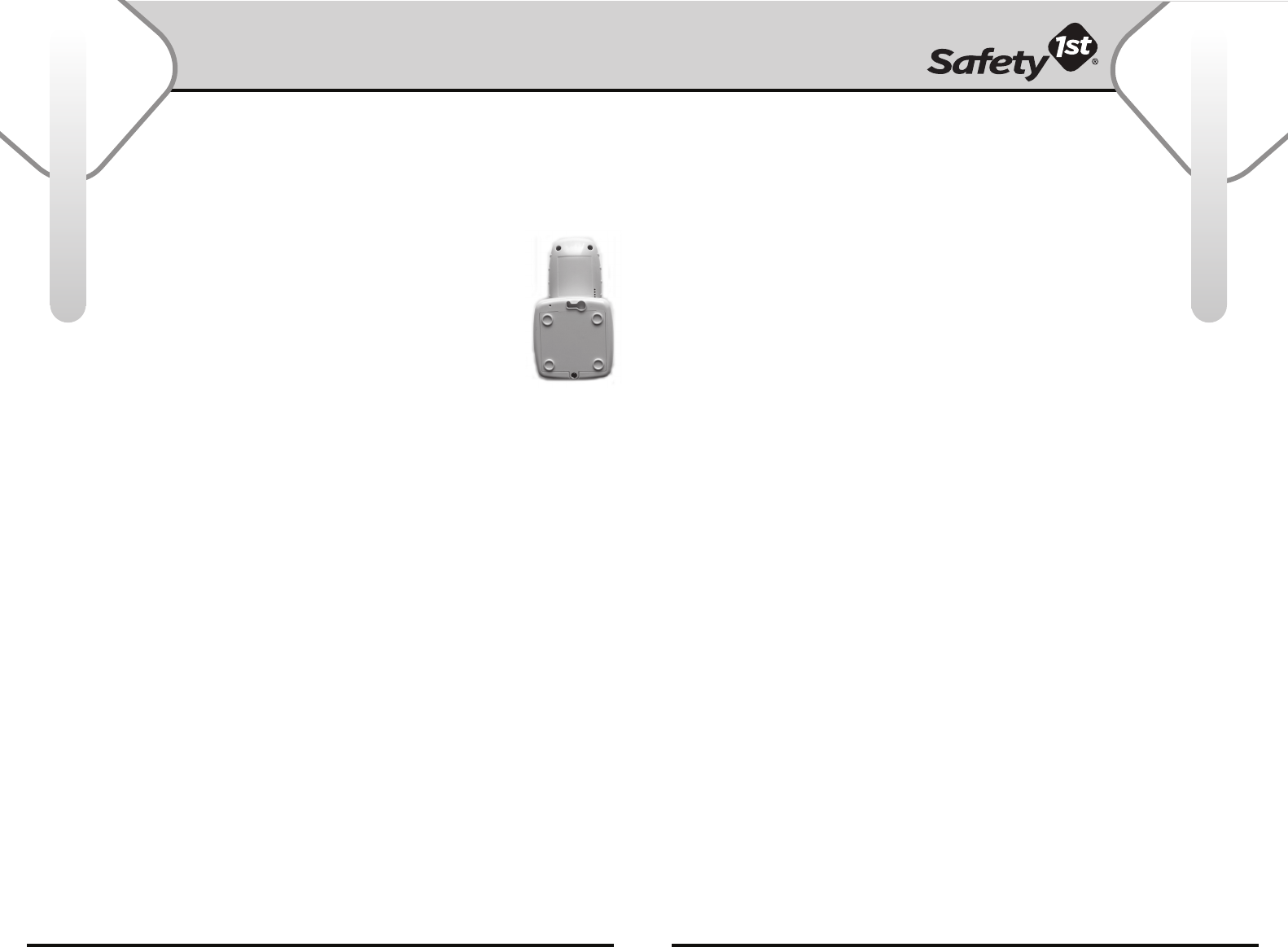

Wall Mounting the Camera
Mounting the Baby Unit on a wall is similar to mounting a picture.
1. Make 1 mark in your desired location on the wall. Make certain location
is close to power source and any wiring is not accessible by children.
2. Install 1 screw (5/16" head) in the wall where you made the mark.
3. Carefully place base of Baby Unit on screw and gently slide to the
left until Baby Unit is securely in place. Confirm attachment to wall
before letting go of Baby Unit.
4. Plug in AC adapter. Ensure all wiring is properly positioned to avoid
all contact and/or accessibility by children. Recommend battery
power use if cable poses possible hazard.
Care and Cleaning
Use a soft, dry cloth to keep your monitor free from dust.
DO NOT immerse product in water.
Cleaning Camera Lens:
1. With a soft brush, such as a clean makeup brush, carefully brush away any dust and
dirt particles that may be on your Camera lens. Do not skip this step as a small bit
of sand or dirt left behind could scratch your lens in the next steps.
2. Take a cotton swab and lightly moisten it with clean water. Carefully swab around
the inside edges of your lens.
3. With a dry portion of a lens cloth or soft non-abrasive tissue, buff the lens in a
circular motion to dry.
Helpful Hints
Use household electricity whenever possible. When the AC Adapter is used with your
household electricity, you will find that the power is stronger and more consistent
than when you rely solely on the battery. Range and sound quality also depends on
the construction of your house. Steel reinforced wall, for example, reduces the
effective range of the monitor. Conserve the battery so you will have power when
you don’t have easy access to AC outlets.
When not using the Unit, remove AC Adapter and be sure the power
button is “OFF”.
When you are not using the AC Adapter, remove it from the Unit and store it in a
safe, dry place until you need it again. If the AC Adapter is plugged into the Parent
Unit but not being used in an electrical outlet, the AC Adapter will prevent battery
operation of the Unit.
When using the AC Adapter with household electricity, make sure the
outlet is “ON”.
Some electrical outlets are powered through a switch in the room. If the Baby Unit is
plugged in and turned “ON”, the power indicator light should be lit. If it is not, try
turning the light switch in the room “ON”.
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 1514
Troubleshooting
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Power LED does not
illuminate
- Parent or Baby Unit is not turned On
- Battery pack is dead
- Turn Parent or Baby Unit on. Hold down Power On/Off Button until
all LEDs come on
- Charge or replace batteries
No power is getting
to my Parent/
Baby Unit
- Adapter is not receiving
electrical power
- Electrical power is not getting to
Parent/Baby Unit
- Make certain any light switches that control power to the wall outlet are on when
using AC adapter
- Check AC adapter jack-to-socket and plug-to-outlet connections
- Check for pinched wire
Parent Unit has
no sound
- Volume is too low
- Sound is Off
- Out of range
- Something is blocking microphone
- Adjust the volume
- Bring Parent Unit closer to Baby Unit
- Remove obstruction from front of Camera
My Parent Unit shows
a black screen/no
video
- Video Time Out is activated
- Baby Unit may be turned off
- Something is blocking camera lens
- Press Video On/Off Button to turn back ON
- Turn Baby Unit ON
- Video Monitor will time out after 2 minutes when not plugged into AC outlet
- Remove obstruction from front of Camera
Video is not in color
- Room is too dark which has activated
Day/Night Auto Viewing. This may happen
during the twilight hours of the day or if room
is darkened for example with shades down.
- Baby is being monitored at night
in a dark nursery
- Add more light to the room
- Day/Night Auto Viewing is activated in the dark allowing you to view baby
in black & white only
Picture is not clear - Picture is blurry or not centered
- Make sure protective cling is removed from front of Baby Unit and Parent Unit
- Move Camera location
- Make sure video is not in Zoom mode
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 1716
Troubleshooting
Troubleshooting
Parent Unit is
continuously beeping
- Baby Unit is not turned On
- Parent Unit is too far away from Baby Unit
- Verify that Baby Unit is On
-
Verify that Parent Unit is within range of Baby Unit (See Link Indicator on page 10)
Fully charge battery
Audio feedback
(squealing) - Parent Unit is too close to Baby Unit - Move Parent Unit further away from Baby Unit
- Turn down volume on Parent Unit to mute to get minimum feedback
Weak sound coming
from Parent Unit
- Volume too low
- Battery may be low
- Protective cling is still on
Parent Unit or Baby Unit
- Speaker or microphone could be blocked
- Adjust volume
- Recharge batteries
- Make certain nothing is blocking camera microphone
- Remove protective cling
Low Battery LED
turns on red - Batteries are low - For Parent Unit, recharge battery using AC adapter
- For Camera Baby Unit, change batteries or plug into AC adapter
There is a delay in my
audio/video signal
- To properly protect the user from - This delay is normal as the monitor encodes and decode the information
to protect your privacy
interference, you may perceive a slight delay
in sound and video if you are next to the
user while looking at the image. - Normal operation
Product battery life
seems shorter than
expected
- Parent Unit was not charged properly
- Parent Unit was not fully charged
- Refer to battery charging instructions on pages 5 & 6
- Use Video On/Off Button feature (See page 10) to extend battery life
-
I’m hearing strange
noises on my Parent
Unit
- The microphone can pick up ambient noise in
the room like air conditioning, heating
systems and low volume electrical equipment.
This could interfere with the quality of the
sound output
- Look for any noise source in the baby’s room. Remove noise source or move
Baby Unit away from the source
For more help and resources, call 1-800-544-1108 or visit www.safety1st.com 1918
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada
Apparatus
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec
une autre antenne ou transmetteur.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
Use and Care
Safety Instructions
FCC Statement
Radio and Television Interference
Note: This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules and applicable Industry Canada specifications. These Limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
not cause harmful interference to radio or television reception, which can be determined by turning this
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressively approved by Dorel Juvenile Group can void your
authority to operate this equipment under the Federal Communications Commission rules..
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna
or transmitter.
