ED900

Low Energy Swing Door Operator

(Fine cover)

Owner's Manual

08125360 – 02-2020

| EN |

2ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Table of Contents

Table of contents 

 General information 

 To our customers 

 What you should know 

. Distributor information 

. Knowing act 

. Program switches 

. Optional key switch panels 

 AAADM Safety information labels 

. Safety information labels, low energy power

operated doors 

 Daily safety check procedures 

. Low energy power operated swing doors 

 ED door signage 

. Low energy operator 

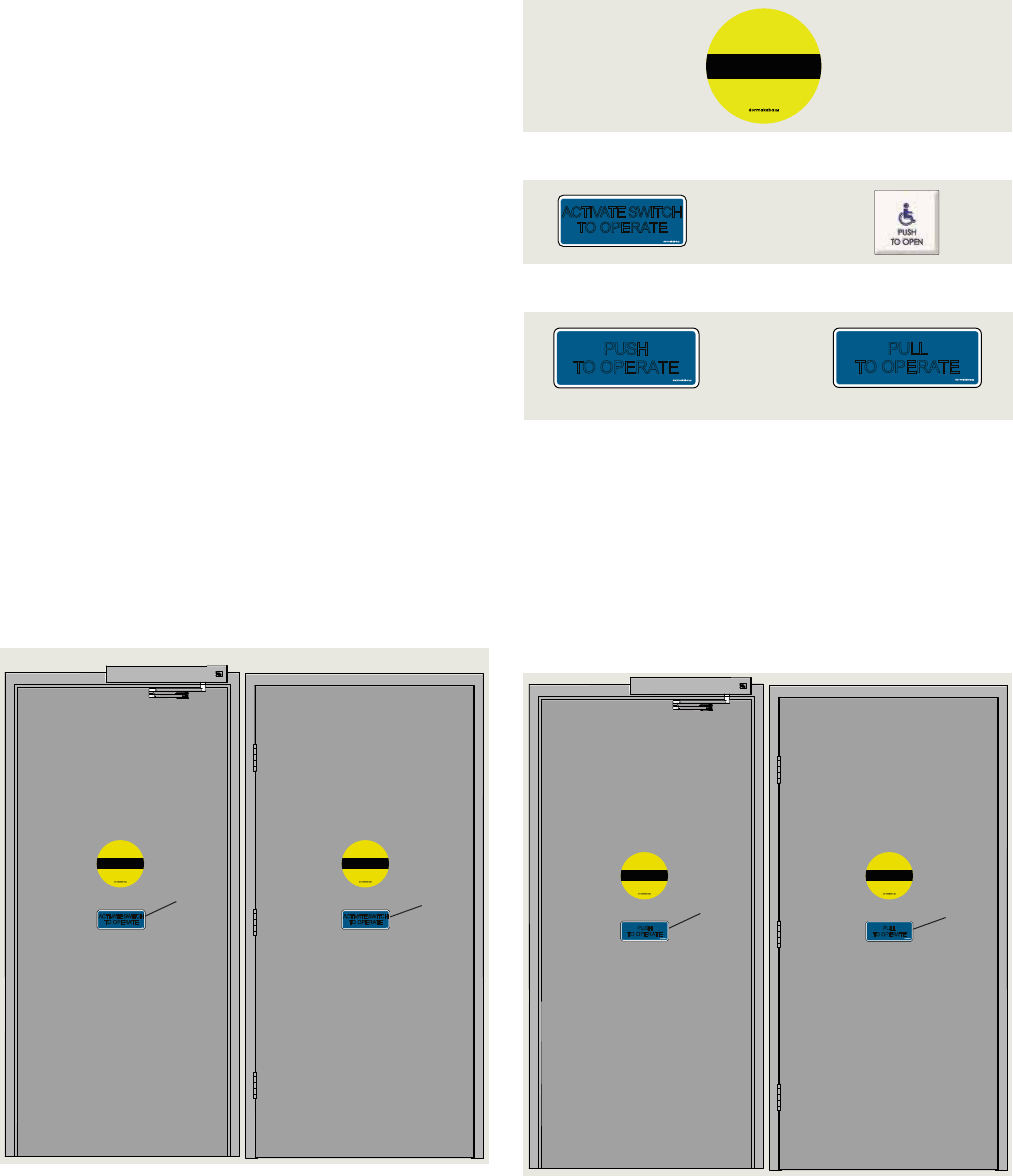

. Door signage, low energy single swing door 

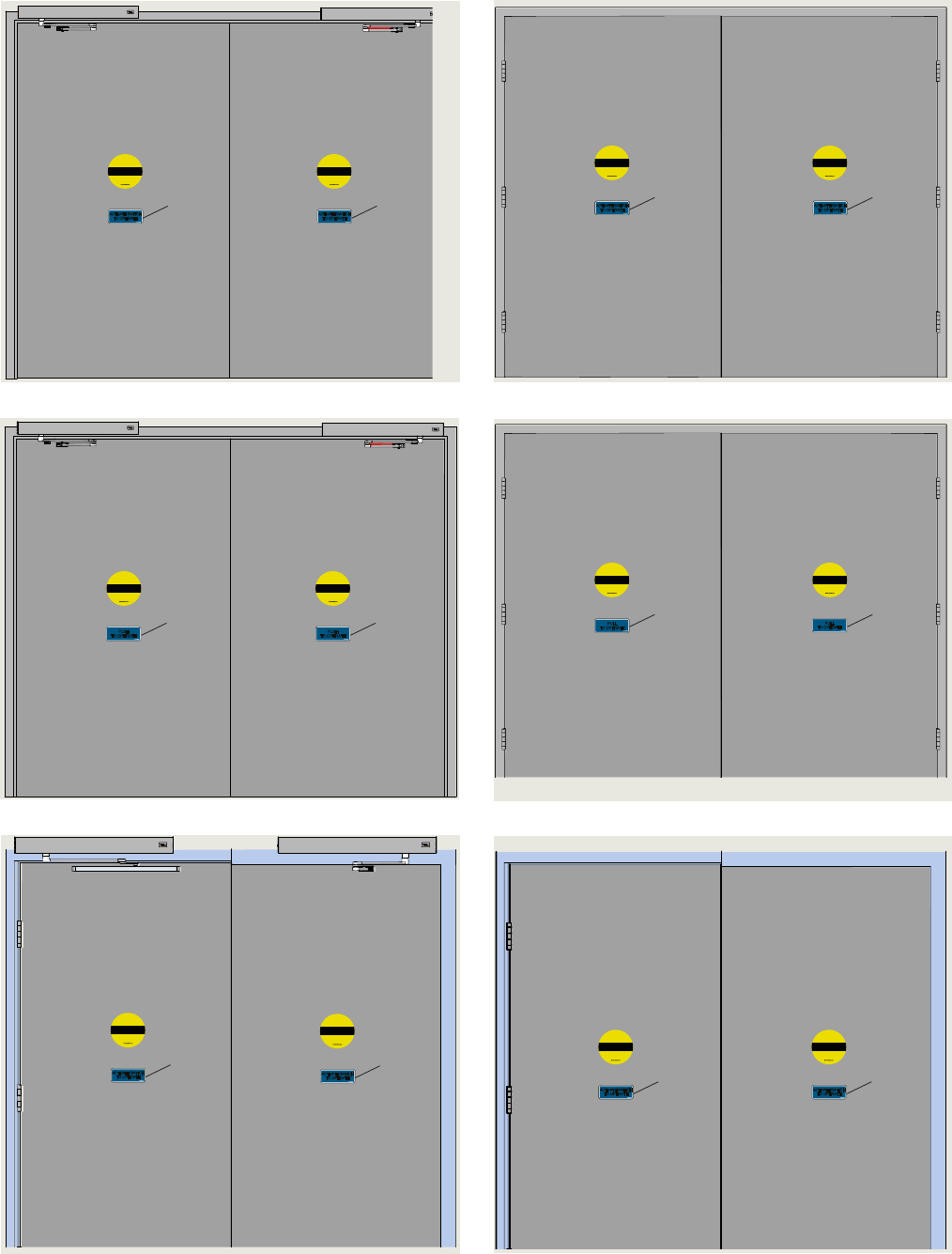

. Door signage, low energy double swing doors 

 ED cleaning 

. ED environment and cleaning 

Table of contents

3

ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 1

. Owner's Manual

This Owner's Manual applies to the dormakaba

ED low energy swing door system.

. Manual storage

This document must be kept in a secure place, and

accessible for reference as required.

If the door system should be transferred to another

facility, insure that this document is transferred as well.

. dormakaba.com website

Manuals are available for review, download, and printing

on dormakaba.com website.

. Dimensions

Unless otherwise specified, all dimensions are given in

inches (“).

. Symbols used in this manual.

WARNING

This symbol warns of hazards which could result

in personal injury or threat to health.

 General

information

Fig.1.1 ED900 fine cover

Fig.1.2 ED900 fine cover removed from operator

. ED operator with fine cover.

. ANSI/BHMA A., American National

Standard for Power Assist and Low Energy Power

Operated Doors.

.. Low energy power operated door definition.

A manual door with a power mechanism that opens the

door upon receipt of a knowing act activating signal

(Para. .), does not generate more kinetic energy than

specified in this standard, and is closed by a power

mechanism or other means.

4ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 2 and 3

 What you should

know

. dormakaba ED Owner's Manual content.

. Daily Safety information checklist (Chapter ).

. Instructions on how to conduct the daily Safety

Information checklist by walk through example

(Chapter ).

. Annual compliance inspection label completion

(Chapter ).

. Circuit breaker or disconnect location for  Vac

power to the ED.

. Program and Exit switch location and instructions in

their use. (Para. .).

. Discussion of problems that could result from

operator being allowed to operate after a

malfunction observed.

. Call Technical Services --- for service or

questions about your system if you are uncertain of

any condition or situation.

WARNING

If there are any problems, discontinue door

operation immediately and secure the door in

a safe manner.

.. Knowing act:

ANSI/BHMA standard A. definition.

Any conscious action with the expected result of

opening a door. This includes but is not limited to::

• Wall or jamb mounted contact or non contact

switches such as push plates.

• The action of manually opening (pushing or pulling)

a door.

• Controlled access devices such as keypads, card

readers, and key switches.

. Knowing act

 To our customers

We are pleased that a dormakaba ED low energy

swing door system has been selected for this

installation.

dormakaba designed, tested and built the system to

provide many years of service.

The purpose of this manual is to familiarize you with

your ED low energy swing door system.

It is essential that you "know your system" and that you

recognize the importance of maintaining your door

system in compliance with industry standards for safety.

It is your responsibility as owner and caretaker of the

equipment, to inspect the operation of your door

system on a daily basis as outlined in Chapter , Daily

Safety Check Procedures to insure that it is safe for use

by your customers and employees.

WARNING

Should the door fail to operate as prescribed

in the Safety information checklist or at any

other time for any reason, do not attempt to

repair or adjust the ED low energy swing

door system!

Call your local authorized dormakaba USA, Inc.

distributor for repair. The distributor's AAADM certified

technicians are trained to service the ED swing door

system using the dormakaba USA, Inc. Installation

Manual, and in accordance with applicable industry

standards.

. Service availability.

dormakaba USA, Inc. has a nationwide network of

authorized distributors for sales, installation and service

of its products.

. Compliance with industry standards for safety.

Your ED low energy swing door system was

designed to the latest operating and safety standards.

In order to insure the continued safe operation of the

door, it is important that:

• Proper decals and labels be applied and maintained

on your doors (Chapter ).

• If decals and labels have been removed, or cannot be

read, contact your local authorized dormakaba USA,

Inc. distributor for replacement decals or labels.

5

ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 3

1 Program switch,

three position

2 Exit only switch,

two position

3 Service connector

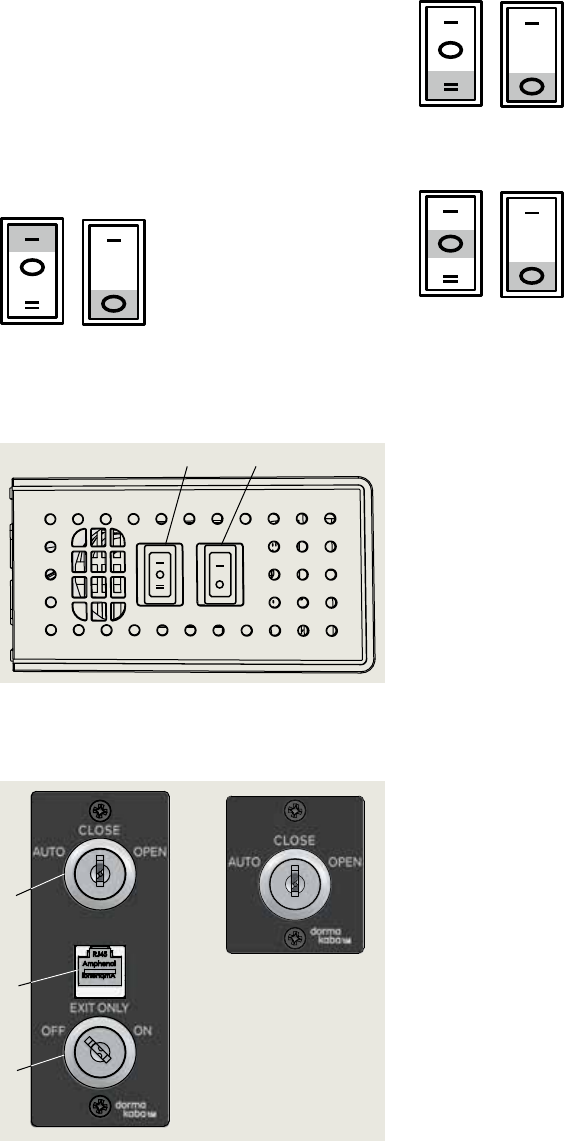

. Program and Exit Only switches

. Optional key switch panels

Fig. 3.4.1 Optional key switch panels

Fig. 3.3.1 Program and Exit Only switches

1 Exit Only switch,

2 position

2 Program switch,

3 position

12

1

2

3

.. Program switch control modes.

• Auto, door opens following pulse

generation by a knowing act device or

push/pull.

• Door will close after hold open time

(adjustable) has expired.

• Knowing act device, Para. ..

Door will remain at full open position for

not less than five seconds.

• Push/pull actuation of door, Para. ..

Door will remain at full open position for

not less than three seconds.

•

Close

Auto

• Open, door opens automatically and

remains open.

• Close, door closes automatically, or

remains closed.

.. Exit only switch.

• Disables exterior switch only.

Open

6ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 4

SAFETY INFORMATION

Low Energy Swinging

Doors

1

. Activate the door. Door

should open at a slow

smooth pace (4 or more

seconds), and stop withou

t

impact.

2

. Door must remain fully open

for a minimum of 5 seconds

before beginning to close.

3

. Door should close at a slow,

smooth pace (4 or more

seconds), and stop without

impact.

4

. Inspect the floor area. It

should be clean with no

loose parts that might cause

user to trip or fall. Keep

traffic path clear.

5

. Inspect door‘s overall

condition. The appropriate

signage should be present

and the hardware should

be in good condition.

6

. Have door inspected by an

AAADM certified inspector

at least annually.

AAADM

American Association of Automatic

Door Manufacturers

ANNUAL COMPLIANCE

INSPECTION

INSPECT FOR AND

COMPLIES WITH ANSI

A156.19 ON:

DATE:______________

by AAADM Certified

Inspector

Number:___________

AAADM-3044

DO NOT USE DOOR if it fails

any of these safety checks of if

it malfunctions in any way. Call

a qualified automatic door

service company to have door

repaired or serviced.

See Owner’s manual or

instructions for details on

each of these and other

safety items. If you need

a copy of the manual,

contact the manufacturer.

These minimum safety checks,

in addition to those in the

Owner’s Manual, should be

made each day and after any

loss of electrical power.

Fig. 4.1.1 Safety Information and Annual Compliance

Inspection labels

. Safety information labels, low energy power operated doors

.. Low energy swing door safety information label.

This AAADM label outlines safety checks that should be

performed daily on swing door controlled by an ED

low energy operator.

.. Safety information label location.

Place label in a protected, visible location on door frame,

near program switch panel if possible.

.. Annual compliance section of label.

This section of label is only completed on low energy

swing doors that comply with ANSI/BHMA A.

standard and pass inspection by a AAADM certified

dormakaba USA, Inc. technician.

.. Additional annual compliance inspection labels.

Place additional labels over annual compliance

inspection section of safety information label.

ANNUAL COMPLIANCE

INSPECTION

INSPECT FOR AND

COMPLIES WITH ANSI

A156.19 ON:

DATE: ______________

by AAADM Certified

Inspector

Number: ___________

 AAADM Safety information labels

7

ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 5

. Low energy power operated swing doors

.. Performing daily safety checks.

Perform safety checks daily on your low energy swing

door to insure your customer and employee safety.

These daily safety checks are also listed in Chapter ,

Safety Information labels, low energy swinging doors.

. Activate the door by a knowing act (Para..).

• Door should open at a slow smooth pace

( seconds or more) and stop without impact.

. Door must remain fully open for a minimum of

 seconds before beginning to close.

• Door should close at a slow smooth pace

( seconds or more) and stop without impact.

. Inspect the floor area, it should be kept clean with no

loose parts that might cause user to trip or fall. Keep

traffic path clear.

. Inspect door's overall condition. The appropriate

signage should be present and all hardware should

be in good condition.

. Have door inspected by a dormakaba USA Inc.

AAADM certified technician annually, at a minimum.

WARNING

If there are any problems, discontinue door

operation immediately and secure the door in

a safe manner.

Call your local dormakaba USA, Inc. distributor

for repair.

 Daily safety check procedures

.. Review safety related items and perform checks

periodically as noted.

TIPS AND RECOMMENDATIONS

Perform these checks while traffic is restricted.

. Housekeeping

• Check door area for tripping or slipping hazards.

• Make sure all hardware and overhead covers are

properly secured.

• There should be no bulletin boards, literature racks,

merchandise displays, or other attractions in the

door area that would interfere with the use of the

door or encourage people to stop and stand in the

door area.

. Check all doors for damage.

. Force

• Force to prevent the door from closing should not

exceed  pounds measured with a force gauge.

. Door safety signage

• Refer to Chapter  for door safety signage

requirements.

. Lock stile

• With door open, grasp lock stile of door and attempt

to move horizontally and vertically.

• There should be no looseness in the door pivots or in

connections between door and operator.

. Breakout stop

• Center pivoted in swinging doors may be supplied

with an emergency breakout stop or switch that will

allow the door to open in the direction of emergency

egress.

• When the door is pushed into the breakout mode,

check that the door will not activate.

WARNING

If there are any problems, discontinue door

operation immediately and secure the door in

a safe manner.

Call your local dormakaba USA, Inc. distributor

for repair.

8ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 6

 ED door signage

. Door signage, low energy single swing door

. Low energy operator

.. Overview

Signage and warnings are specified in ANSI /BHMA

A., American National Standard for Power Assist

and Low Energy Power Operated Doors.

.. All low energy doors.

. AUTOMATIC CAUTION DOOR decal.

• All low energy doors shall be marked with signage

visible from both side of door with the words

"AUTOMATIC CAUTION DOOR".

• Signs shall be mounted " ± " from floor to

centerline of sign.

.. Knowing act device.

. ACTIVATE SWITCH TO OPERATE decal.

• When a knowing act device is used to initiate operation

of door operator, door shall be provided with sign on

each side of door where switch is operated with

message "ACTIVATE SWITCH TO OPERATE"

.. Push/Pull to operate door.

. PUSH TO OPERATE, PULL TO OPERATE decals.

• When push/pull is used to initiate operation of door

operator, doors shall be provided with the message

"PUSH TO OPERATE" on push side of door and

"PULL TO OPERATE" on pull side of door.

Fig. 6.2.1 Knowing act device initiation of door operation

Fig. 6.2.2 Push/Pull

Push to Operate

CAUTION

DOOR

AUTOMATIC

DD0586-010

DD0762-020

PULL

TO OPERATE

3

CAUTION

DOOR

AUTOMATIC

DD0586-010

2

DD0762-010

PUSH

TO OPERATE

Pull to Operate

2 Push to Operate

DD0762-010

3 Pull to Operate

DD0762-020

CAUTION

DOOR

AUTOMATIC

DD0586-010

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

1

DD0758-010

ACTIVATE SWITCH

TO OPERATE

dormakaba

DD0758-010

DD0758-010

ACTIVATE SWITCH

TO OPERATE

dormakaba

DD0758-010

1 Activate Switch to

Operate DD0758-010

Fig. 6.2.2 Push / Pull initiation of door operation

Fig. 6.1.1 AUTOMATIC CAUTION DOOR decal

CAUTION

DOOR

AUTOMATIC

DD0586-010

DD-

Fig. 6.1.2 ACTIVATE SWITCH TO OPERATE decal

DD-

DD0758-010

ACTIVATE SWITCH

TO OPERATE

DD0758-010

Fig. 6.1.3 PUSH  PULL TO OPERATE decals

DD0762-010

PUSH

TO OPERATE

DD-

DD0762-020

PULL

TO OPERATE

DD-

9

ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 6

. Door signage, low energy double swing doors

CAUTION

DOOR

AUTOMATIC

DD0586-010

3

CAUTION

DOOR

AUTOMATIC

DD0586-010

3

DD0762-020

PULL

TO OPERATE

DD0762-020

PULL

TO OPERATE

Fig. 6.3.5 Push / Pull, pull to operate

CAUTION

DOOR

AUTOMATIC

DD0586-010

2

CAUTION

DOOR

AUTOMATIC

DD0586-010

2

DD0762-010

PUSH

TO OPERATE

DD0762-010

PUSH

TO OPERATE

Fig. 6.3.2 Push / Pull, push to operate

Fig. 6.3.1 Knowing act, non-hinge side

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

Fig. 6.3.4 Knowing act, non-hinge side

Fig. 6.3.3 Double egress, knowing act

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

1

Fig. 6.3.6 Double egress, knowing act

10 ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Chapter 7

 ED cleaning

. ED environment and cleaning

.. ED environmental requirements.

ED with fine cover is designed to operate on an

interior building application under the specifications

shown in Table ...

.. Areas around door(s) and door swing radius.

Areas around doors and door swing radius must be kept

clear of all obstacles.

.. Cleaning

WARNING

Cleaning of fine cover surfaces must be done

with program switch (Para. 3.3) in Close

position!

Fine cover surface can be cleaned with a damp cloth

and commercial cleaning agents.

TIPS AND RECOMMENDATIONS

Abrasive (scouring) agents should not be used

as they may damage external surfaces.

.. Water and other liquids.

CAUTION

No water or other liquids must be sprayed or

spilled on ED900 fine cover!

Table 7.1.1 Operator environmental requirements.

Fig. 7.1.1 ED900 with fine cover

Ambient temperature  to  °F

CAUTION

DOOR

AUTOMATIC

DD0586-010

ACTIVATE SWITCH

TO OPERATE

11

ED900 02-202008125360

dormakaba ED900 (Fine Cover) Owner's Manual Blank page

This page left intentionally blank.

www.dormakaba.com

dormakaba USA, Inc.

1 Dorma Drive, Drawer AC

Reamstown, PA 17567

USA

T: 717-336-3881

F: 717-336-2106
