Dorma 76019028 D800 WD Rev1108 Shee 1 1/2 Bored Wood/Metal Door Technical Drawing 2 Bore Md
User Manual: Dorma D800 1-1/2 Bored Wood/Metal Door Technical Drawing Architectural Specs
Open the PDF directly: View PDF
.
Page Count: 2
102
4"
1 1/2"
38
+1/32,-0
11/08
DORMA Architectural Hardware
Reamstown, PA 17567
TMP No. Page Rev.
76019028 1 of 1 Always consult DORMA's web site for latest template at www.dorma-usa.com or call 1-800-523-8483.
C
L
BEVELED EDGE DETAIL
BACKSET

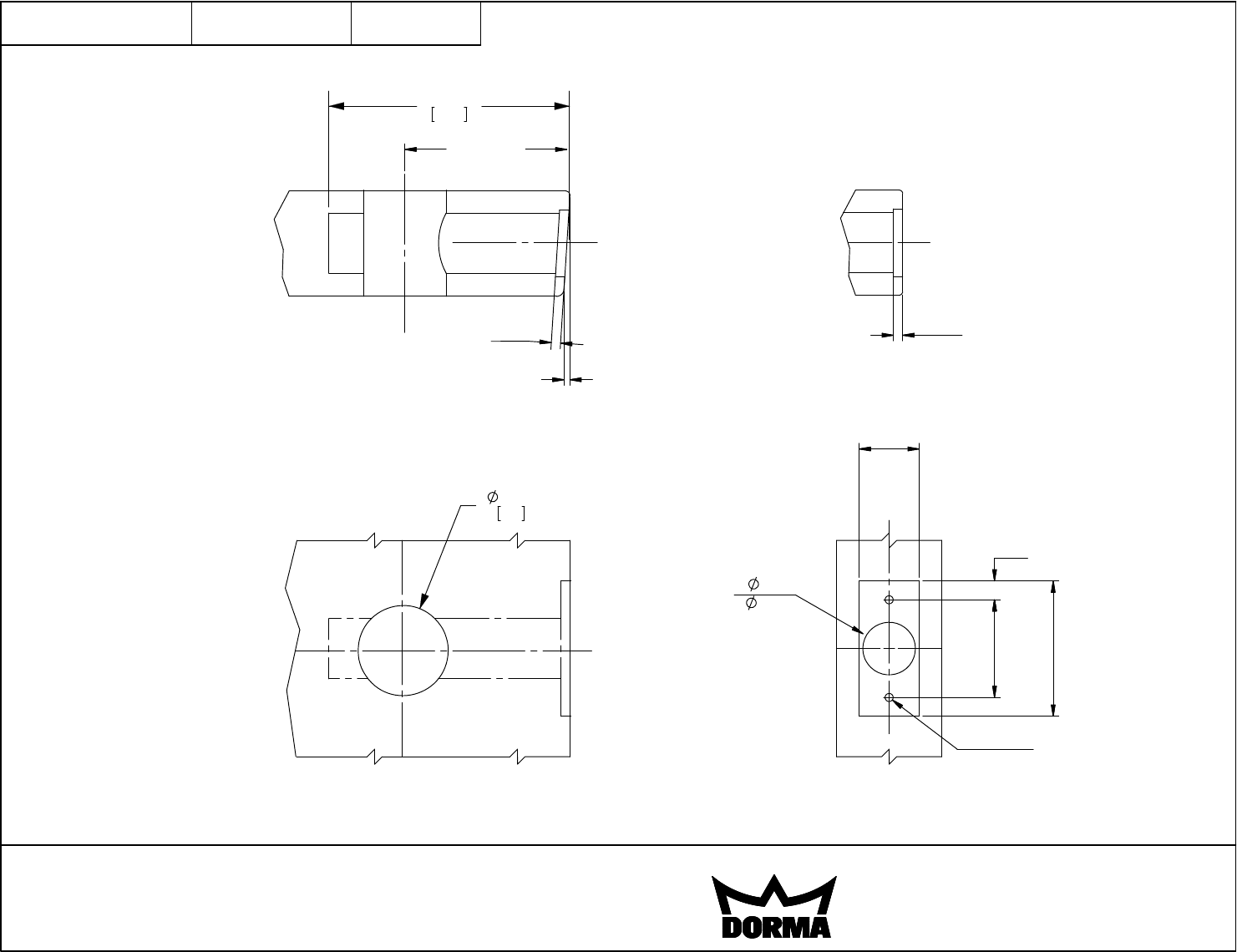

NOTES:
1. DIMENSIONS ARE IN INCHES/ [MM]
D800 Series (Bored Hole 1-1/2" Diameter)
+1/32,-0
2. DO NOT SCALE DRAWING.
Face Plate 1-1/8" Flat or Beveled
1-1/8
[29]
5/16
[8]
1 5/8
[41]
+1/32,-0
2 PLCS
+1/64,-0
DOOR EDGE DETAIL
#8 SCREW
L
+1/64,-0
Wood Doors For:
25]
C
2 1/4
[57]
FLAT EDGE DETAIL (OPTIONAL)
5/32
[4]
[3 IN 51]
DOOR FACE DETAIL
5/32
[4]
L
L
C
C
1
[
1/8 IN 2 BEVEL
+0,-1/32
1.50
38
11/08
DORMA Architectural Hardware
Reamstown, PA 17567
TMP No. Page Rev.
76019029 1 of 1 Always consult DORMA's web site for latest template at www.dorma-usa.com or call 1-800-523-8483.

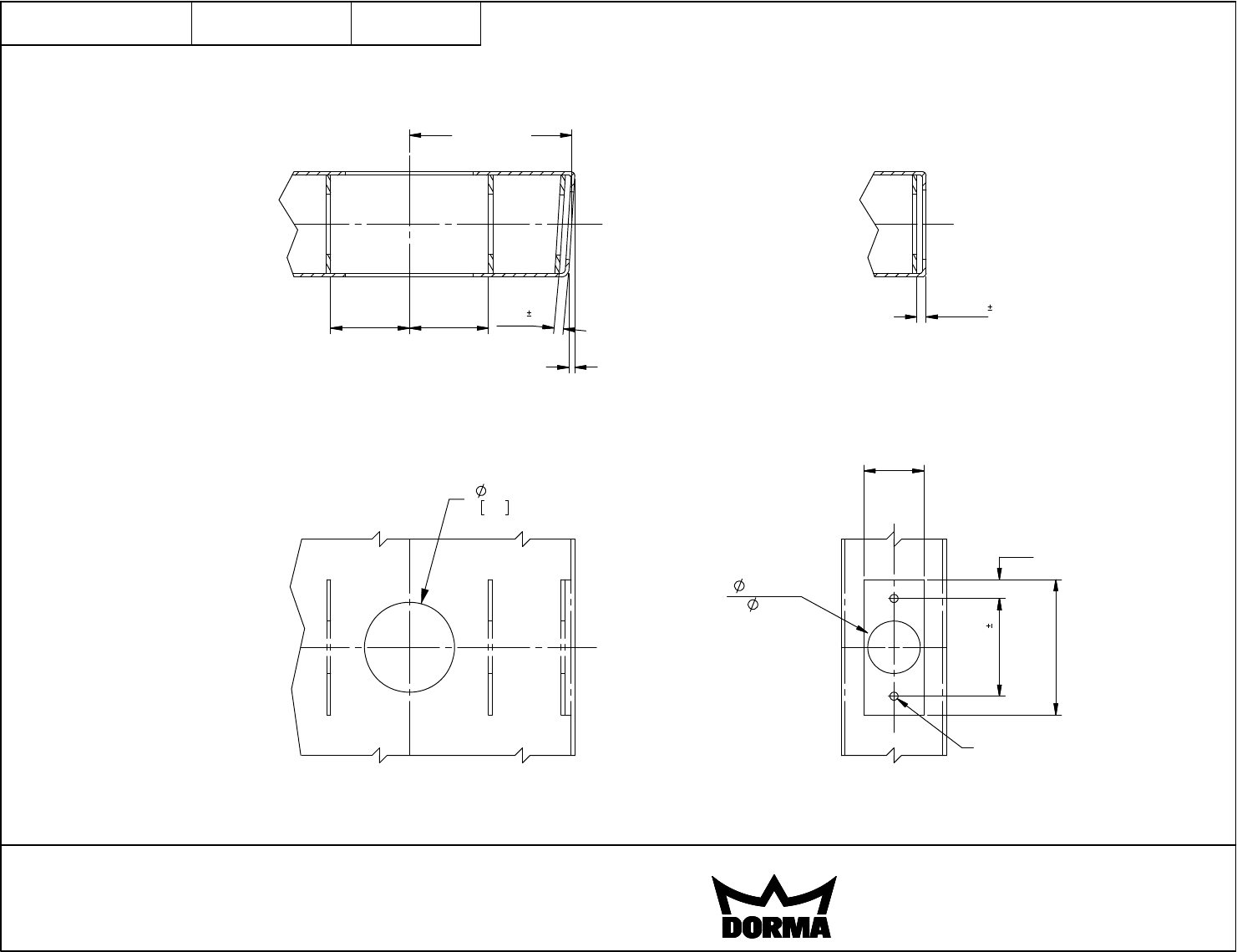

NOTES:
DOOR FACE DETAIL
BACKSET
BEVELED EDGE DETAIL
1. DIMENSIONS ARE IN INCHES/ [MM]
.005
2. DO NOT SCALE DRAWING.
D800 Series (Bored Hole 1-1/2" Diameter)
Metal Doors For:
Face Plate 1-1/8" Flat or Beveled
1.313
[33]
1.313
[33]
1.125
[29]
.313
[8]
1.625
[41]
+.03,-0
2 PLCS
.005
DOOR EDGE DETAIL
#8-32 FHMS [M4]
.005
DRILL & TAP FOR
25]
L
C
2.250
[57]
FLAT EDGE DETAIL (OPTIONAL)
.156
[4]
L
C
[3 IN 51]
.156
[4]
L
C
C
1/8 IN 2 BEVEL
L
1.000
[
+.03,-0
