9000 Series

Premium

Exit Devices

Equia nestotatus enis 2015

Lecest

Suntur

Orem fuga

Equia nestotatus

Disciisi nisquissus

Nequisi

Voloreptatae

Consecumque soloribus

Iminveria volorum

dormakaba 9000 Series Premium Exit Devices

9000 Series Premium

Exit Devices

 Overview

 Certification/Specifications

 Data & Features

 Options

 ANSI Functions

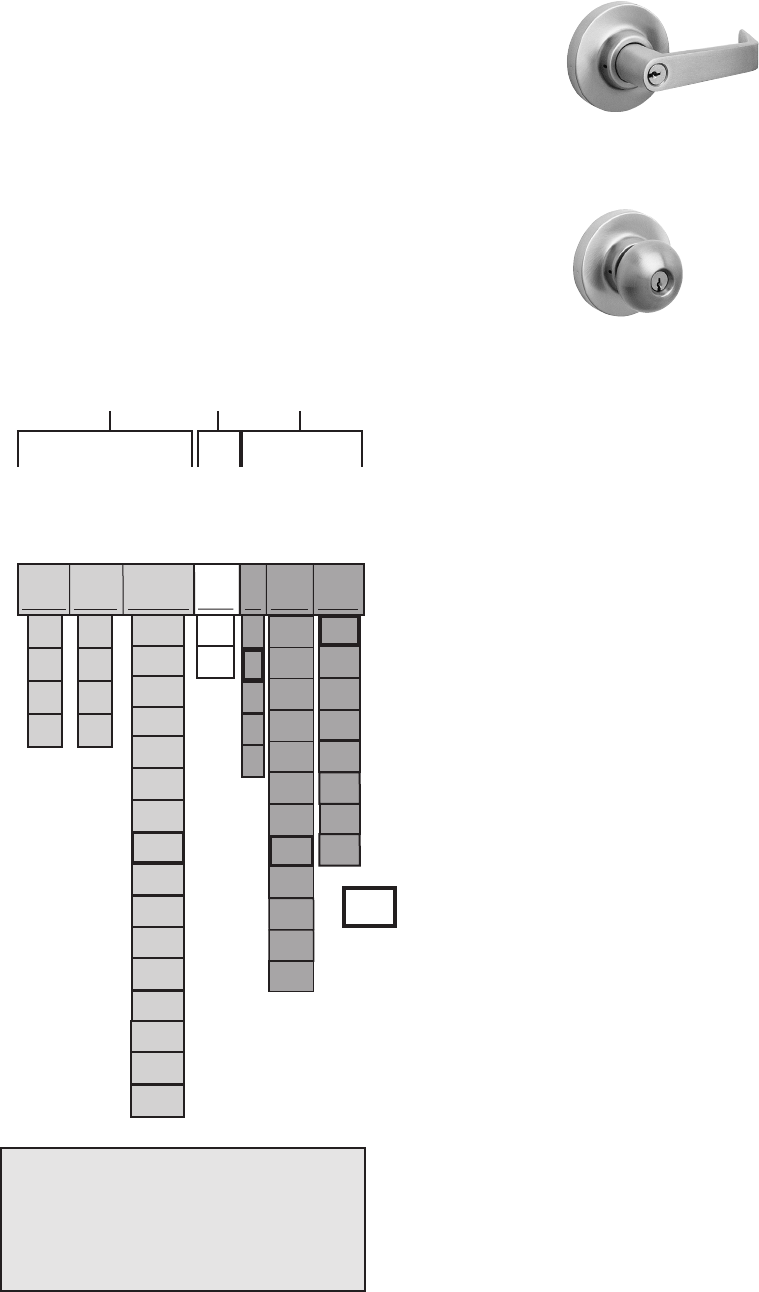

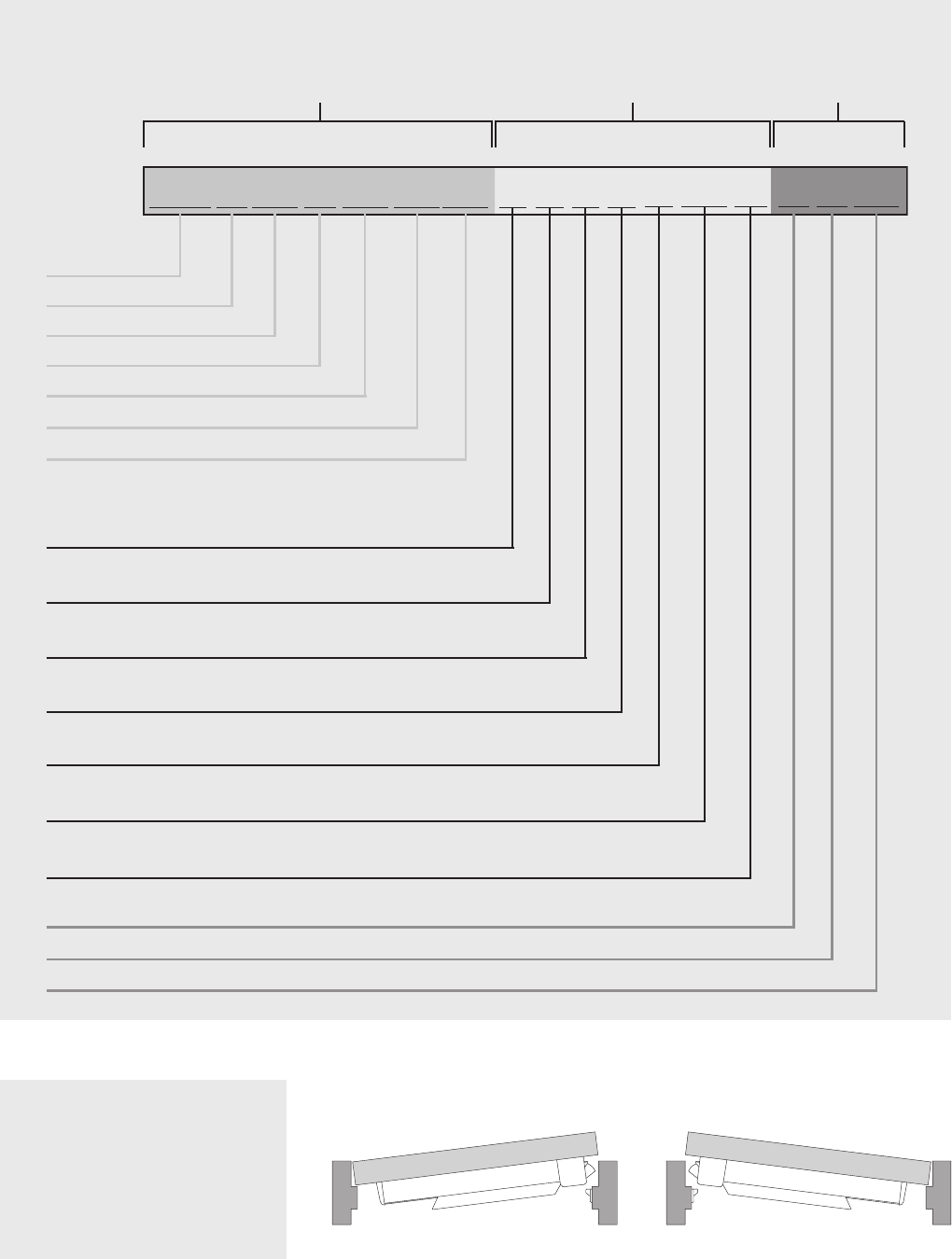

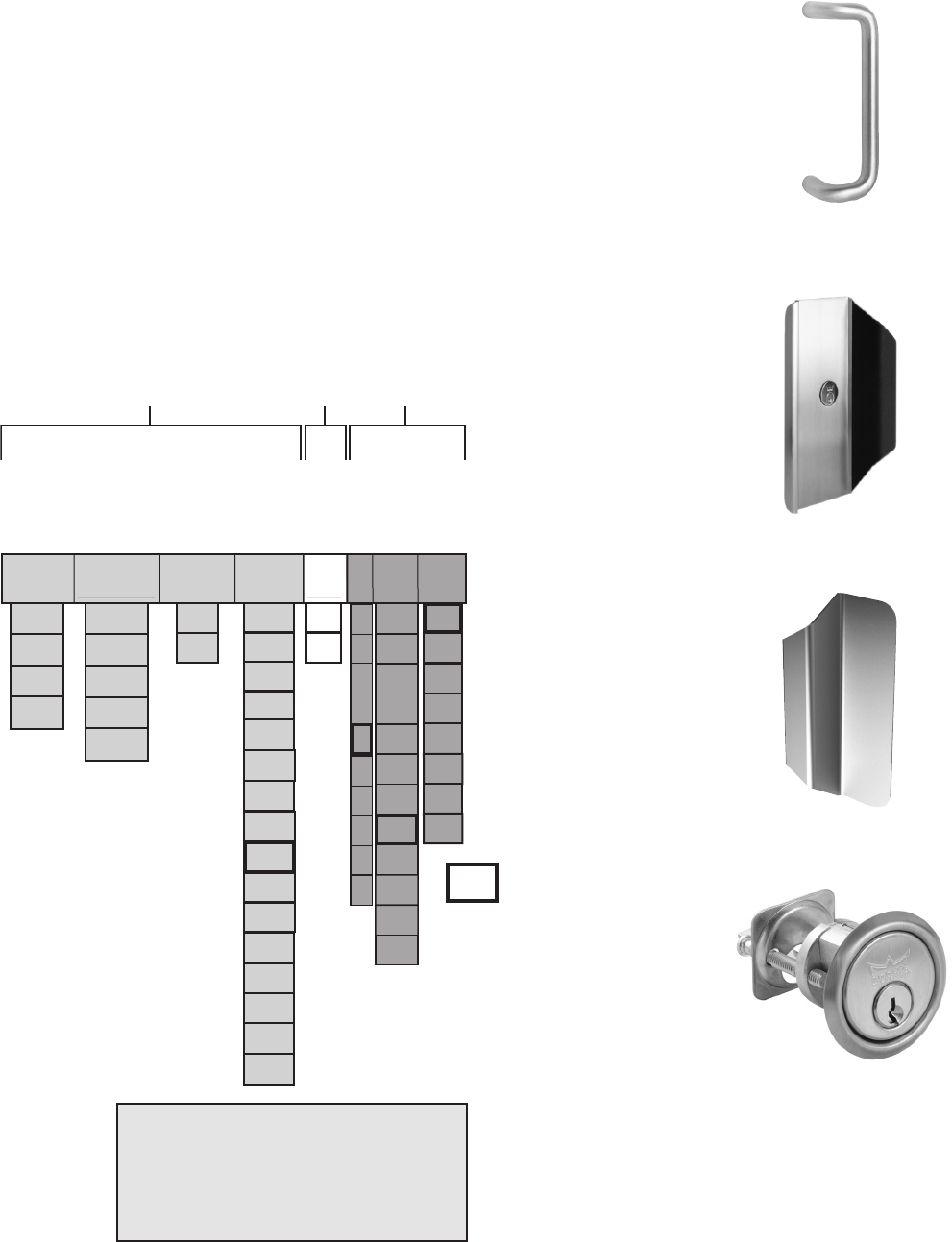

 Ordering Guide

 Handing

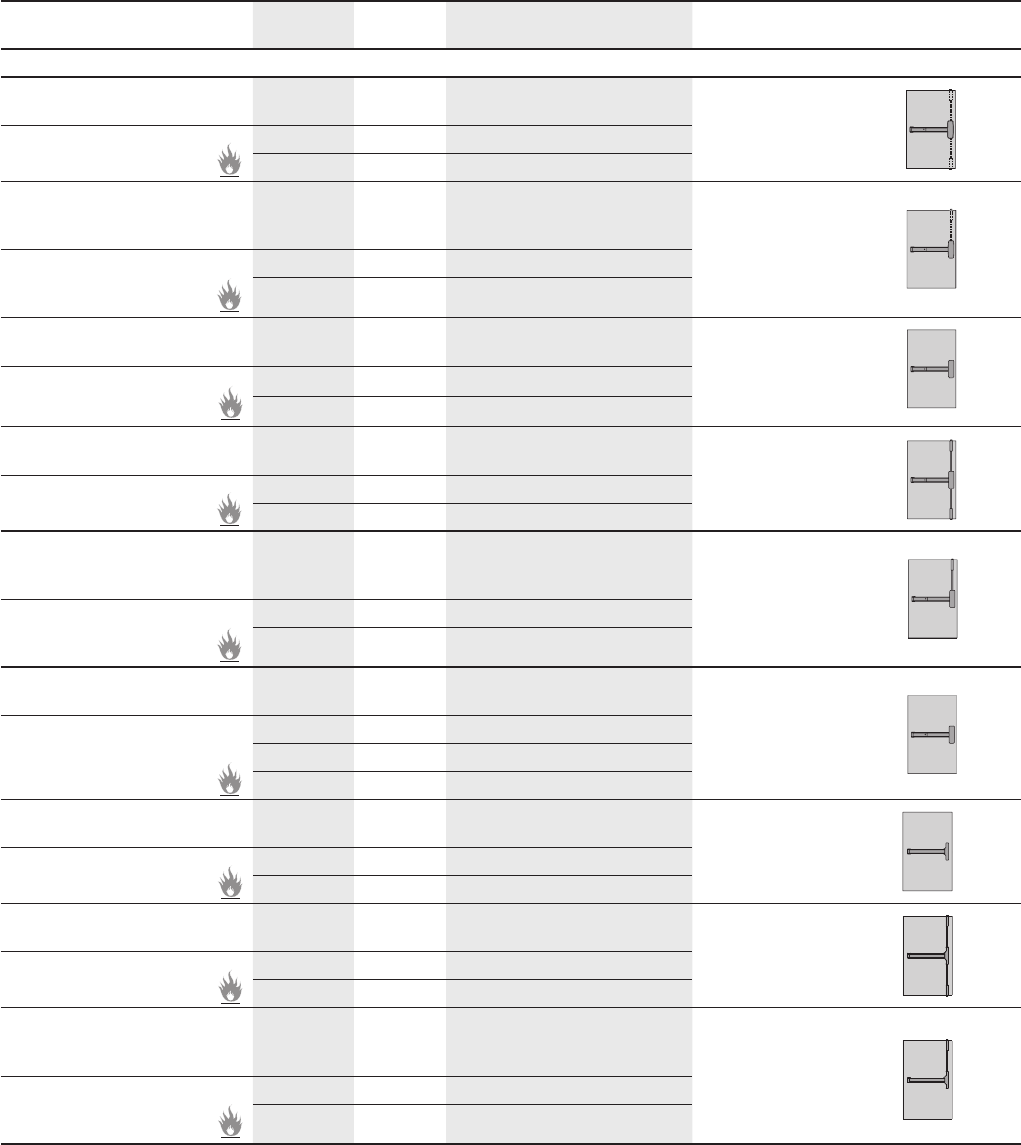

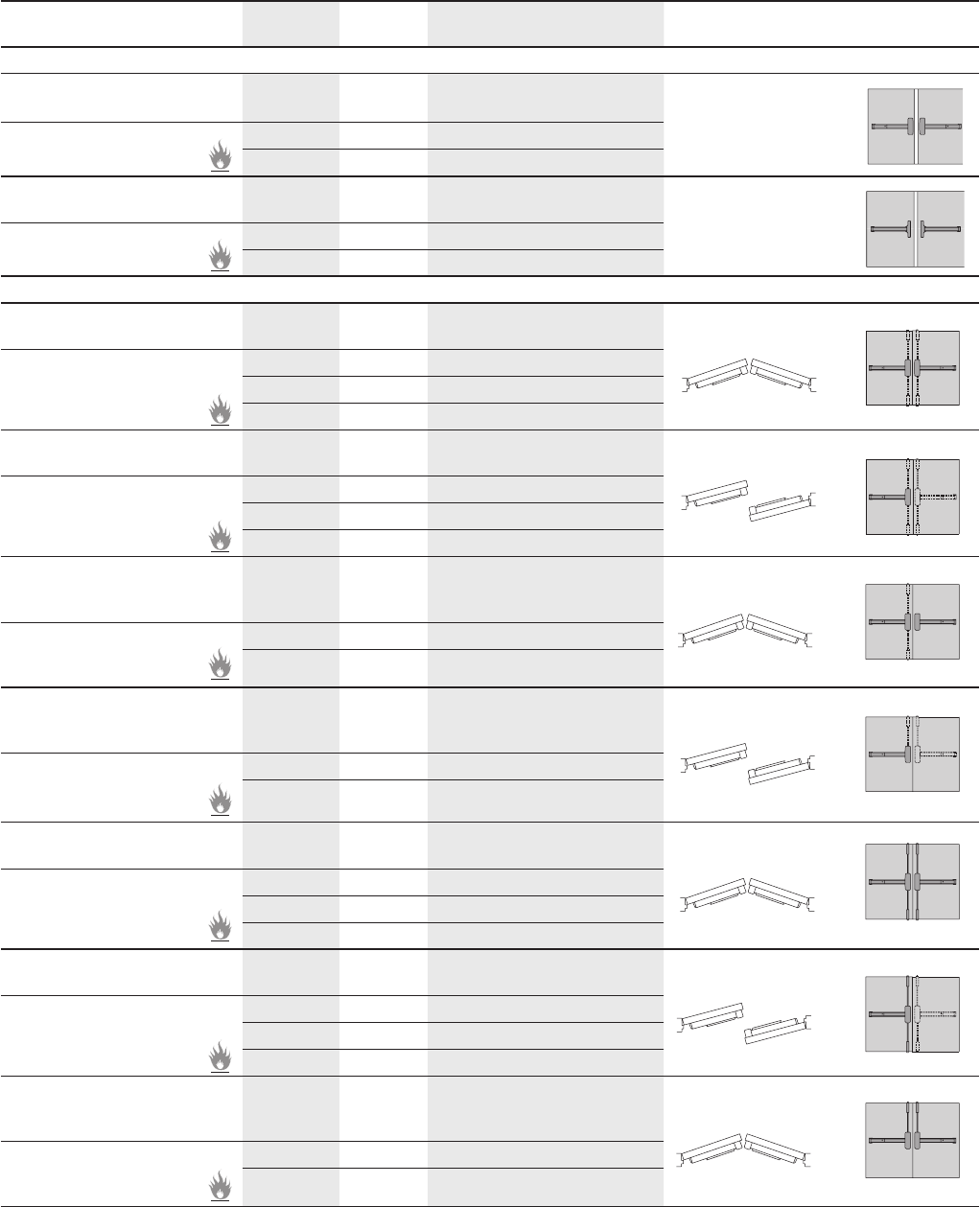

Applications & Listings

 Single Doors

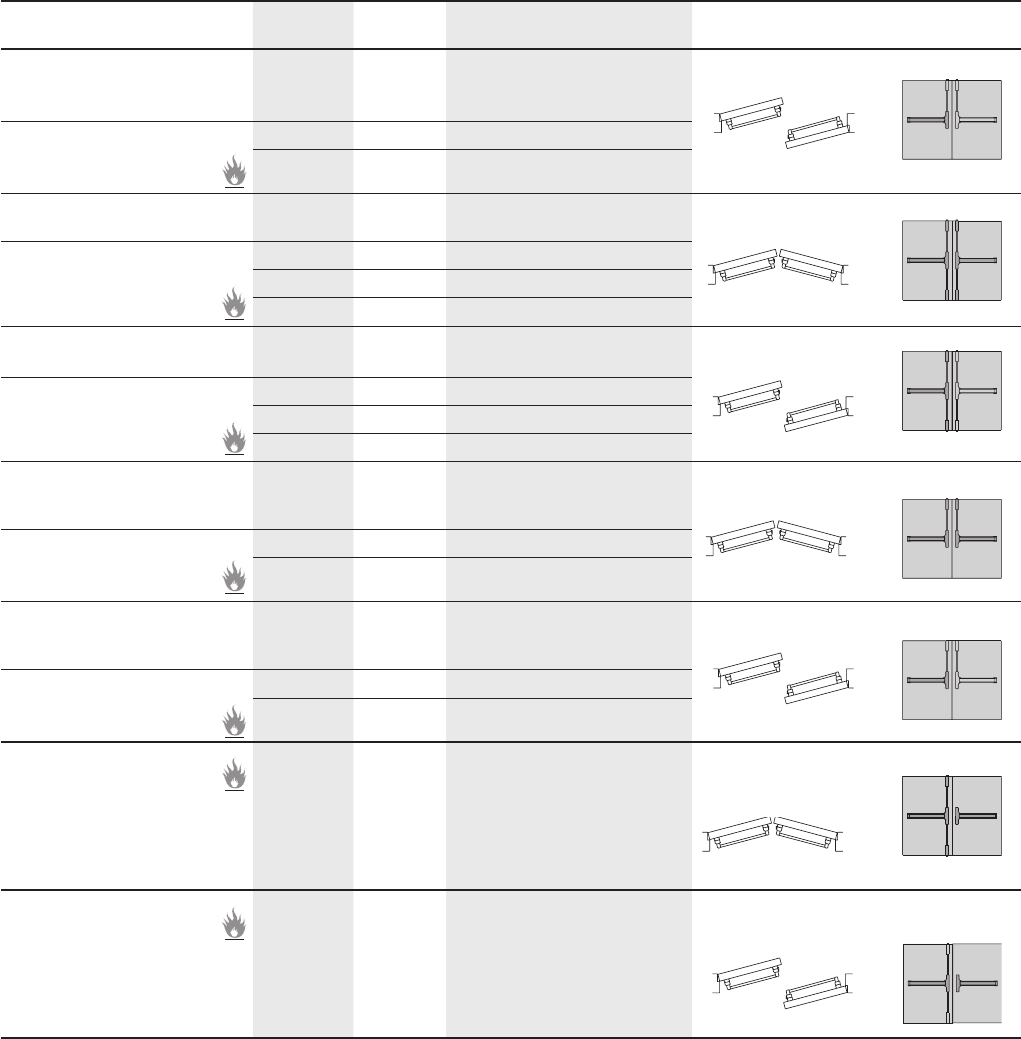

 Pair of Doors with Removable Mullions

 Pair of Doors

Wide Stile Exit Devices

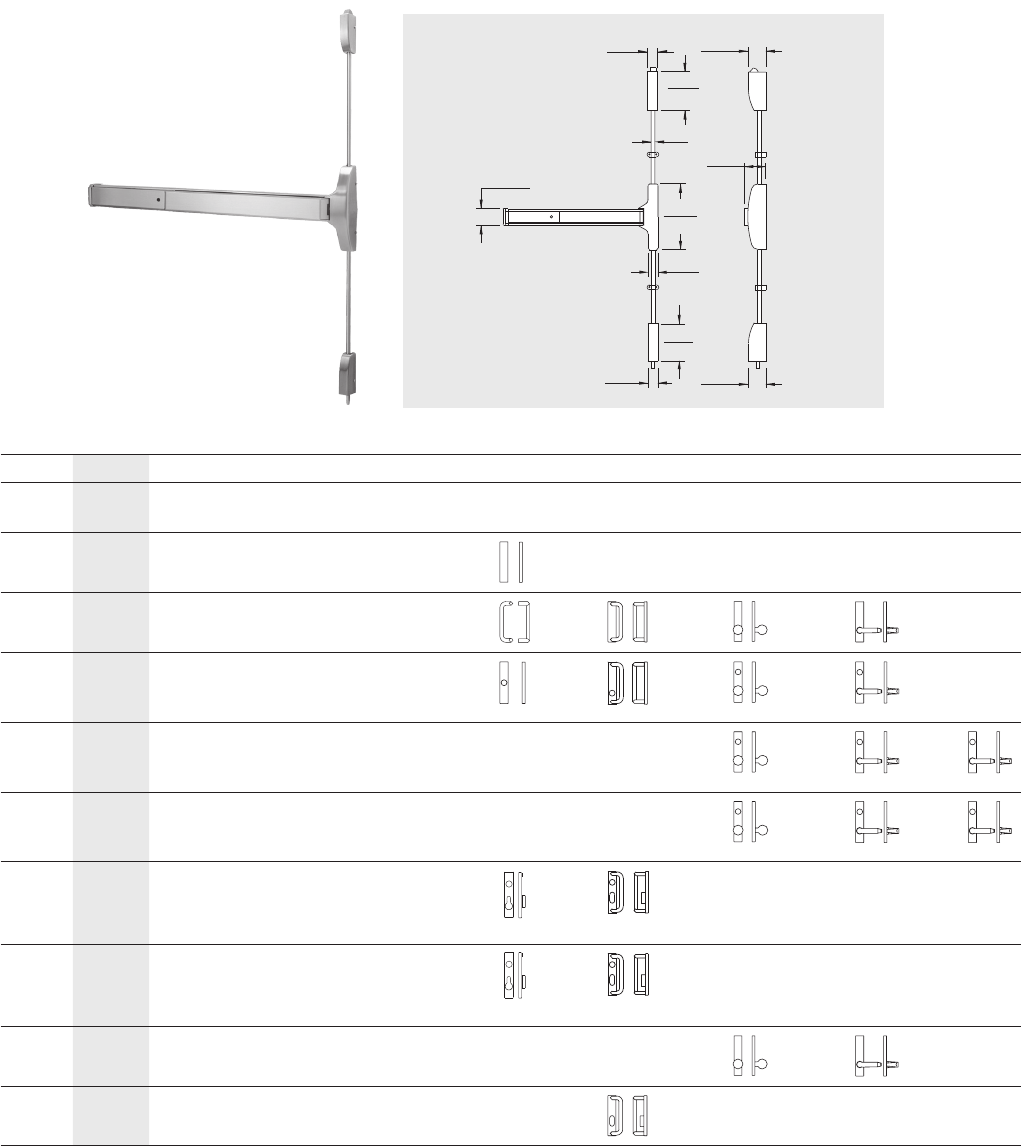

 /F Concealed Vertical Rod

 /F Wide Stile Rim

 /F Surface Vertical Rod

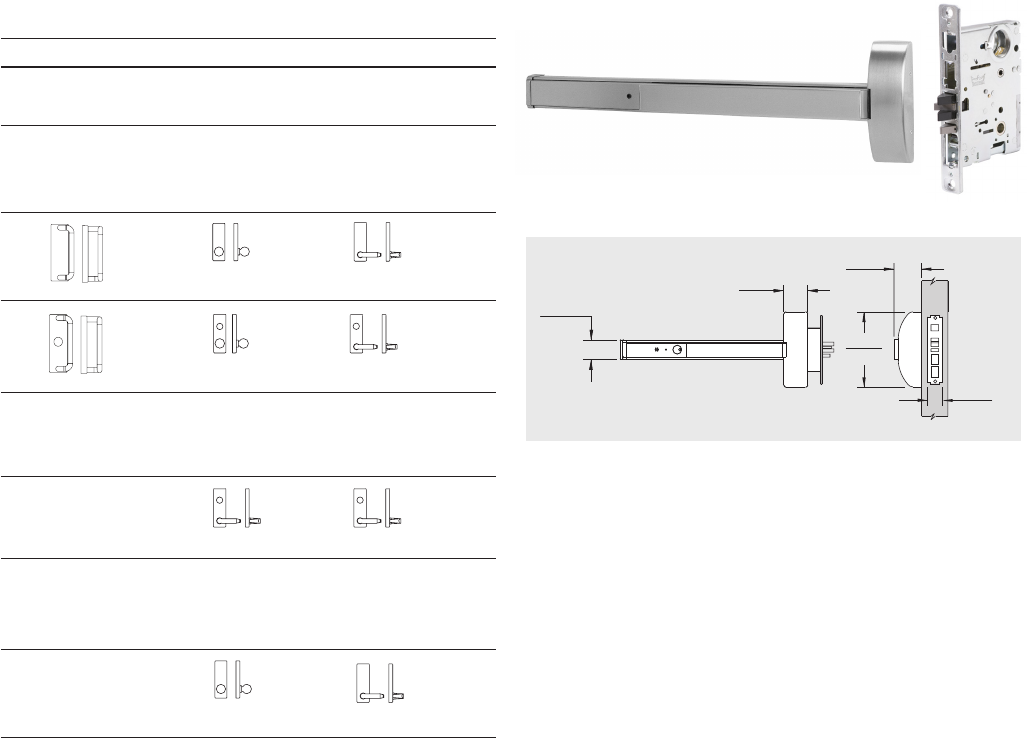

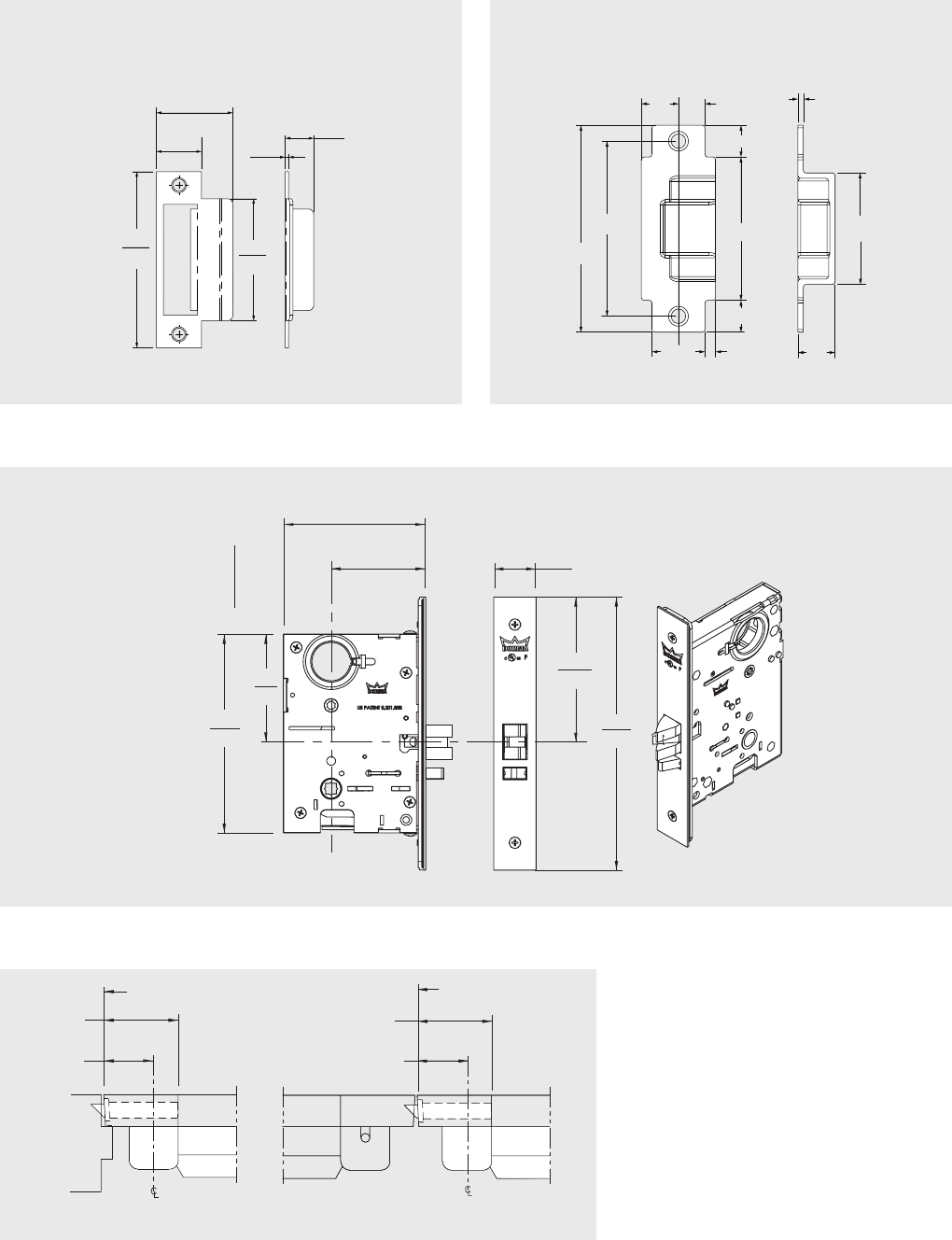

 /F Mortise Lock

 Accessories

 Optional Electronic Functions

 DE Certification & Specifications

 DE Delayed Egress Features

 Auxiliary Equipment

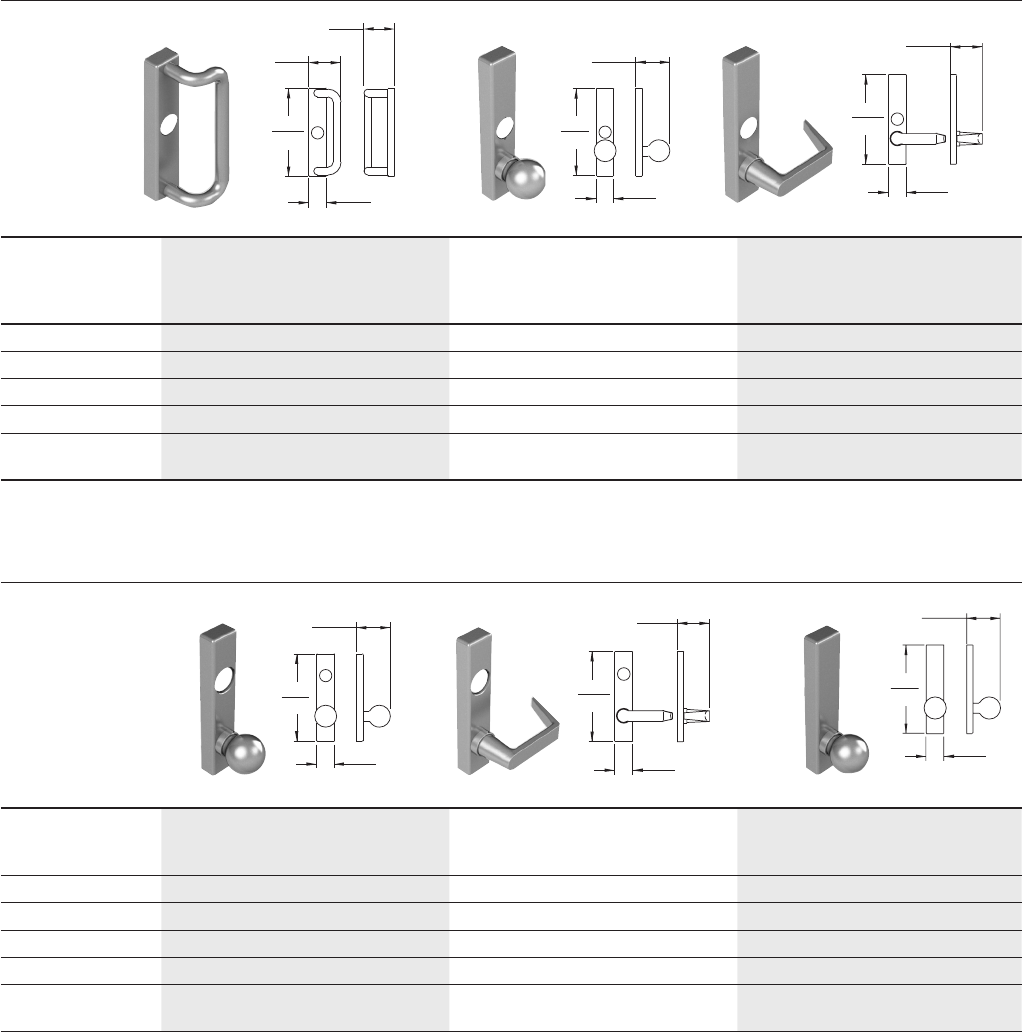

 Trim Options

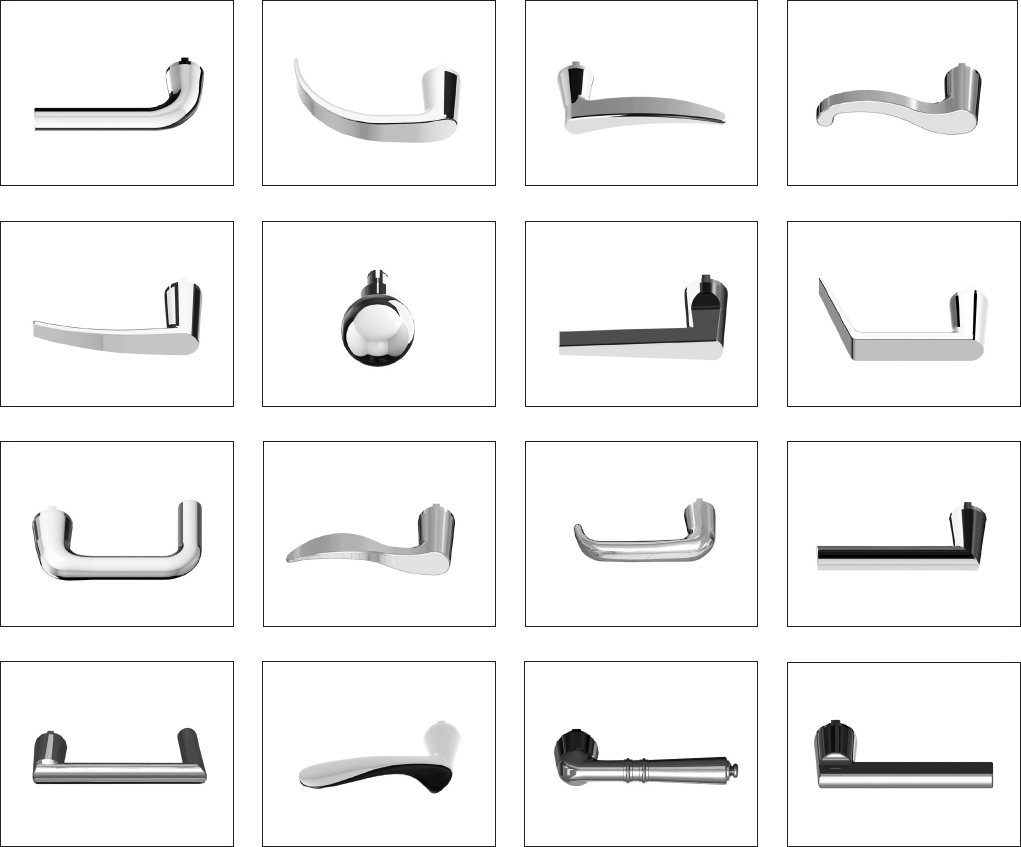

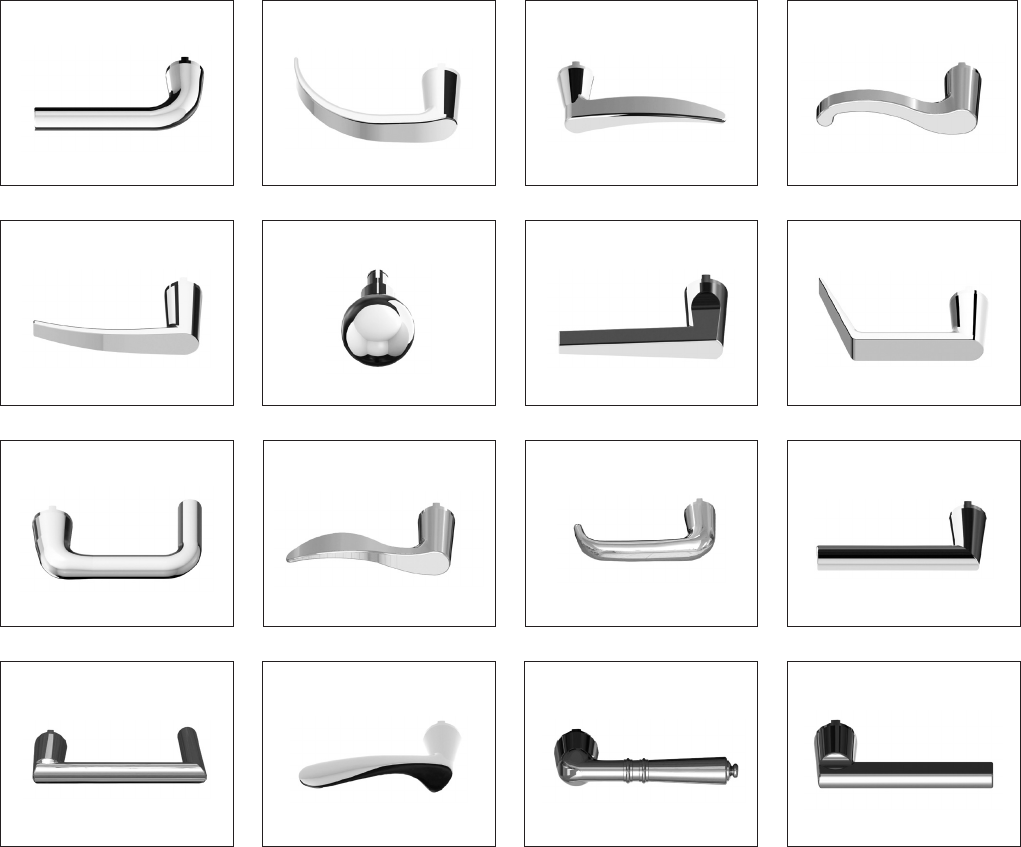

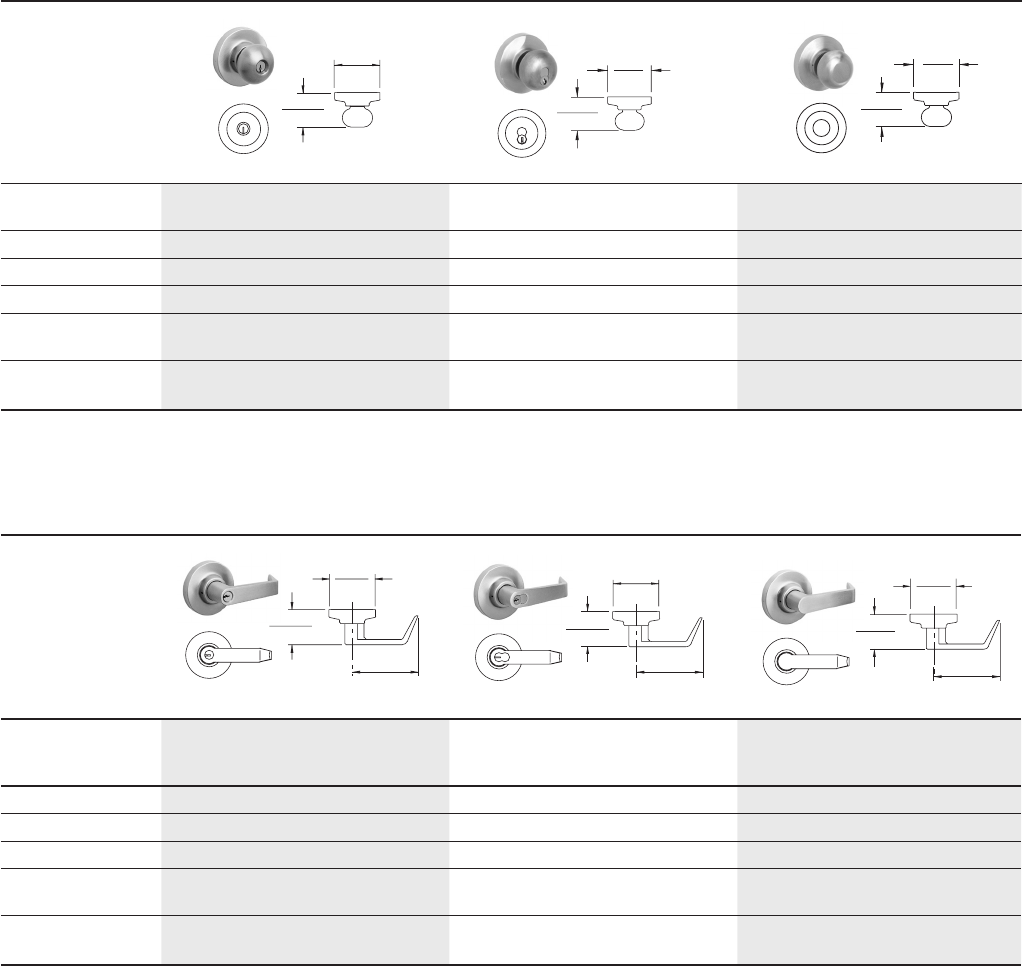

 Lever & Knob Styles

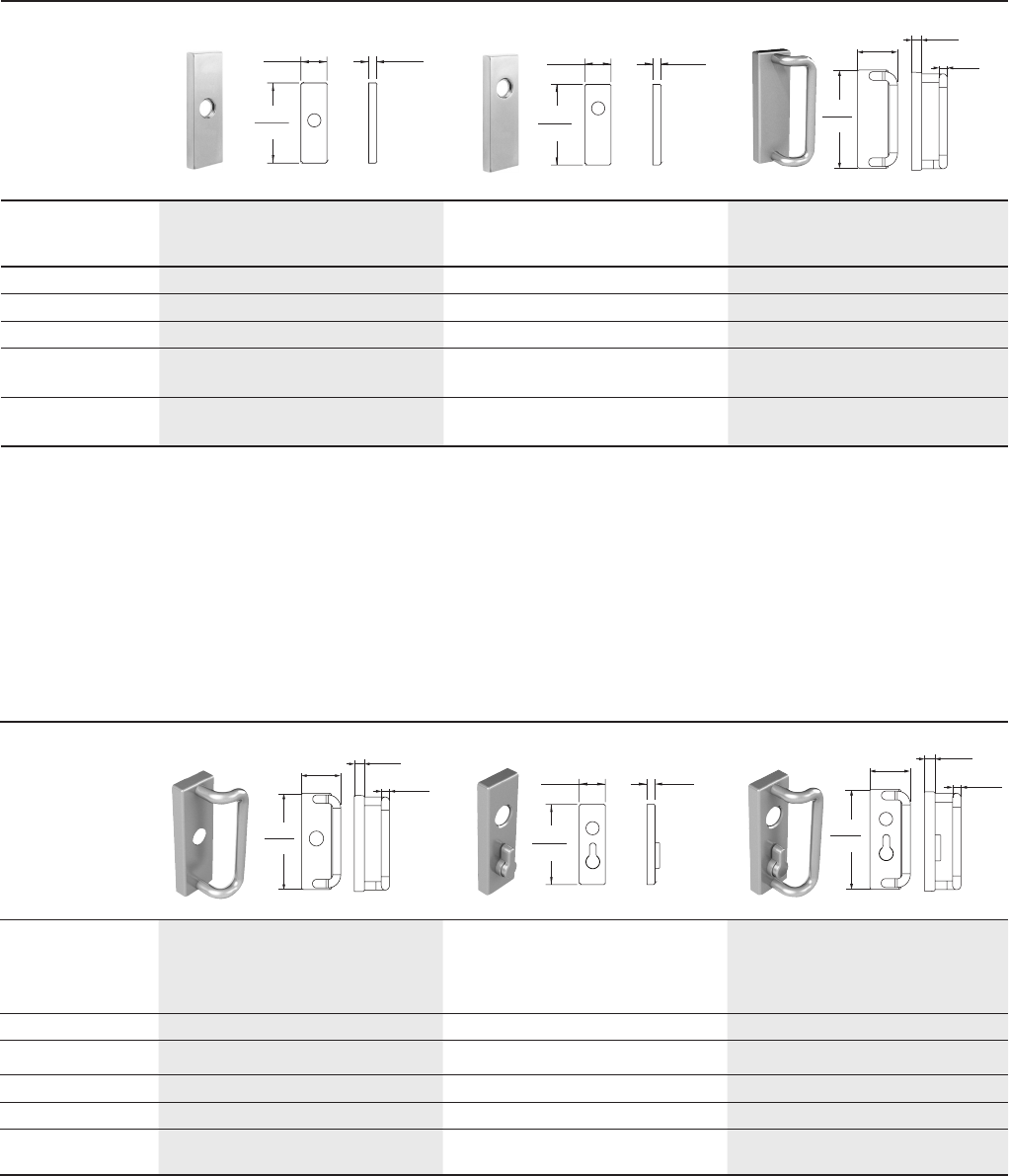

 Wide Stile Y Escutcheon Trim

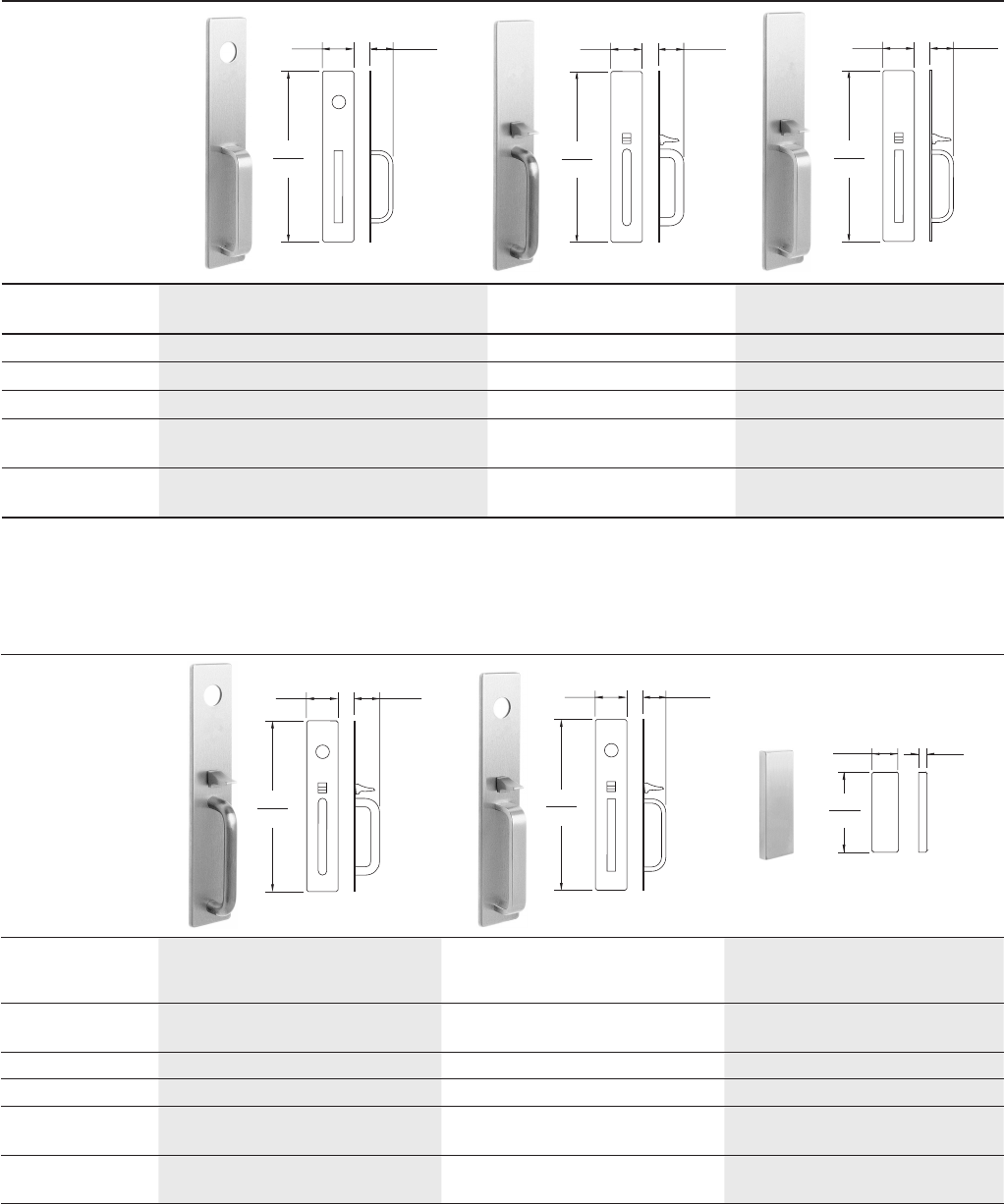

 Sectional Trim

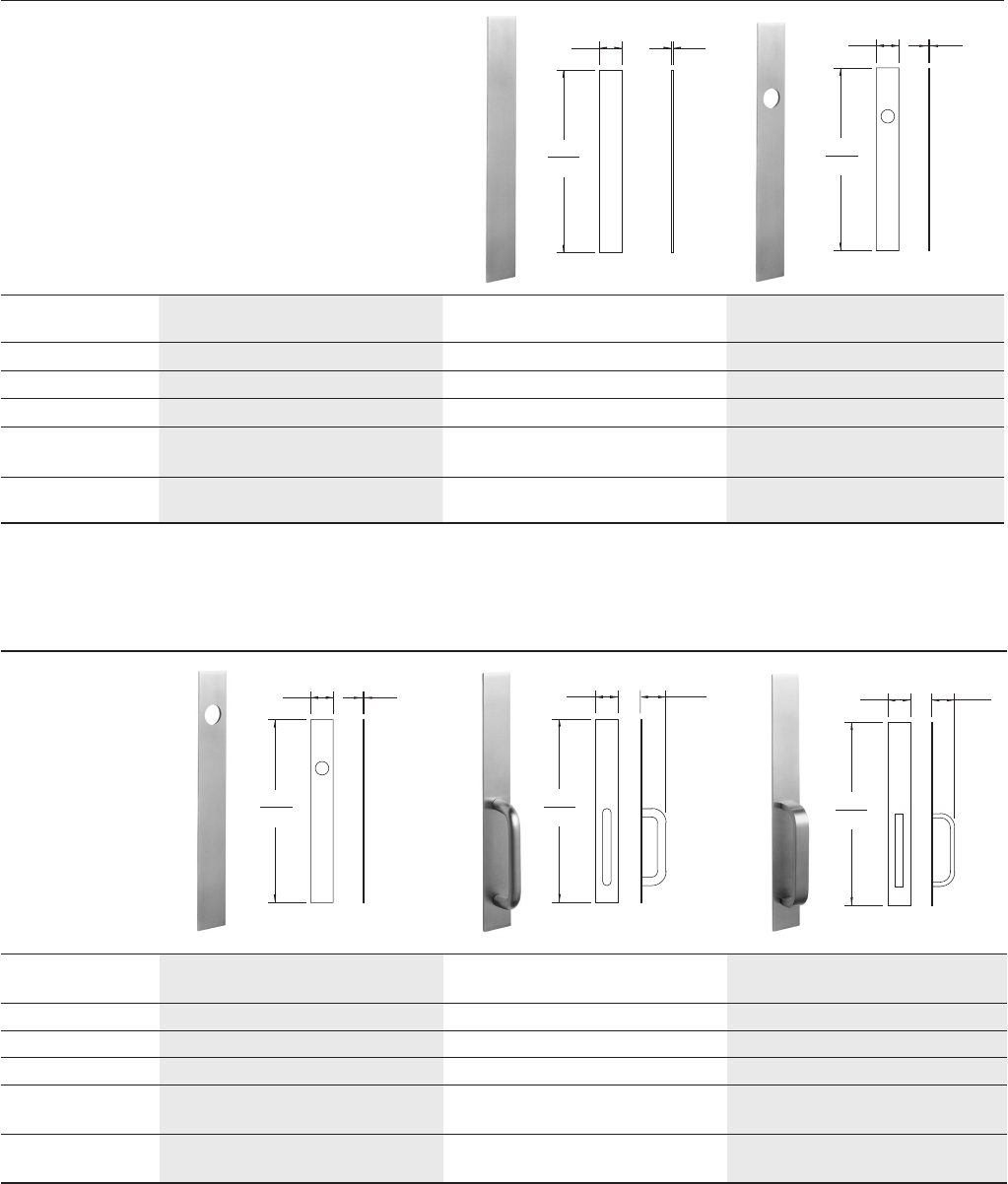

 " Wide Plate Trim

 " Wide Stile Plate Trim

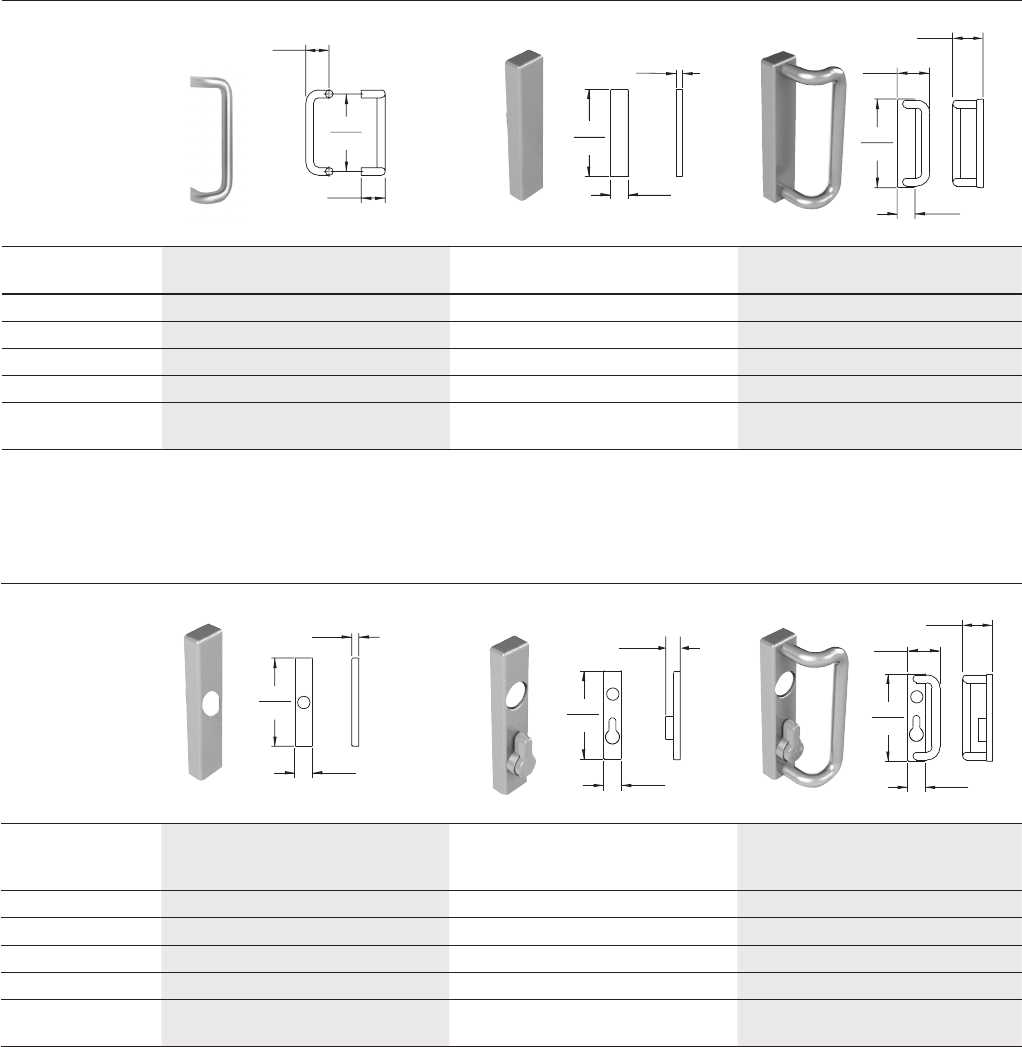

 Wide Stile Pull Trim

 Wide Stile Trim

 Cylinder Specifications

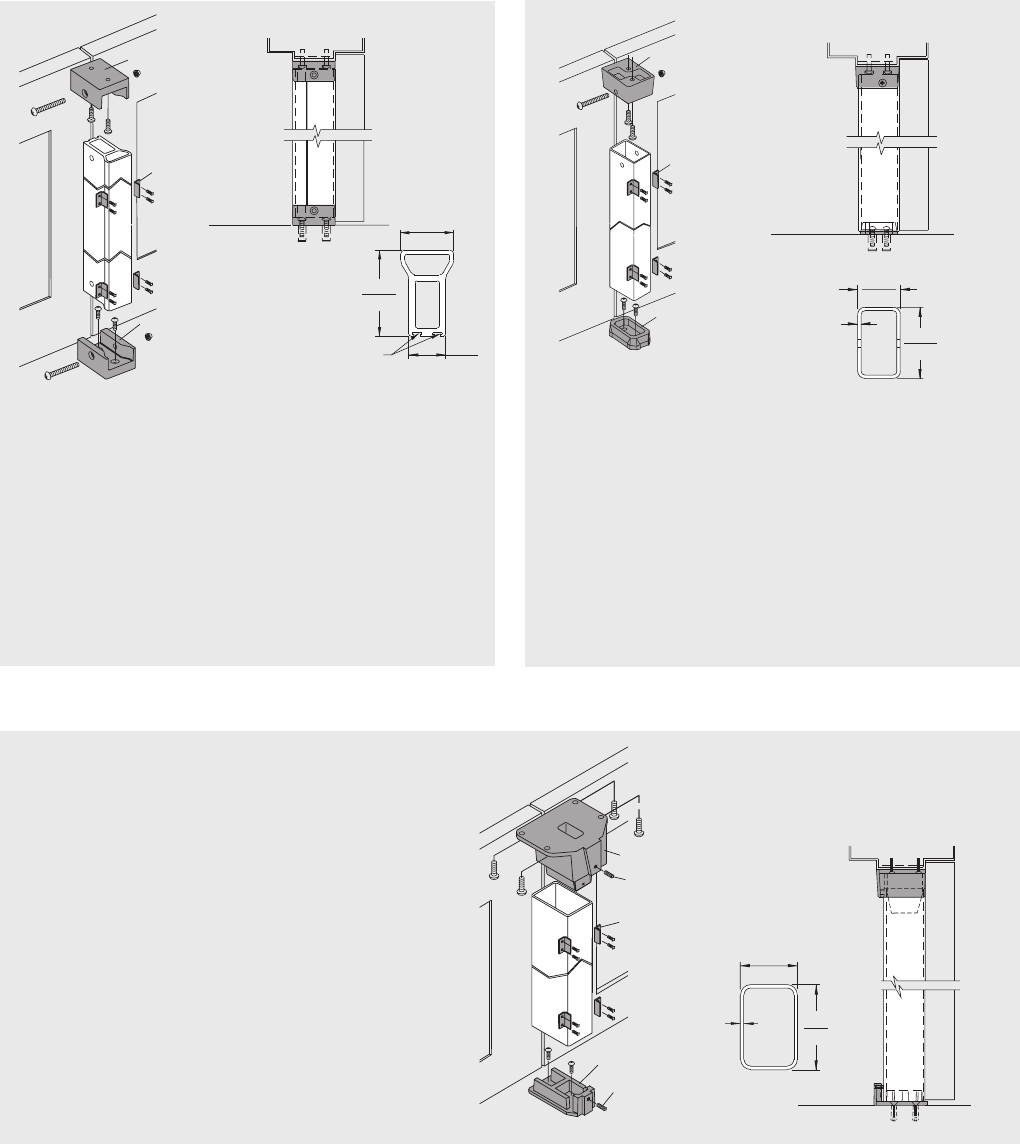

 Mullions

Narrow Stile Exit Devices

 /F Concealed Vertical Rod

 /F Narrow Stile Rim

 /F Surface Vertical Rod

 Accessories

 Optional Electronic Functions

 DE Certification & Specifications

 DE Delayed Egress Features

 Auxiliary Equipment

 Trim Options

 Lever & Knob Styles

 Narrow Stile Z Trim

 Narrow Stile Pull Trim

 Narrow Stile Trim

 Cylinder Specifications

 Mullions

dormakaba USA quality and environmental

management systems in Reamstown, PA and

Steeleville, IL are certified to

ISO 9001:2015 and ISO 14001:2015.

dormakaba

9000 Series Premium Exit Devices Overview

Premium exit devices

available in wide or narrow

stile for high impact

applications such as schools,

universities, and other

institutional or commercial

buildings.

9000 Series exit devices

reliably secure egress doors in

compliance with all

applicable fire/life safety

code requirements. Wide and

narrow stile exit devices for

high-impact applications are

available in rim, mortise, and

surface or concealed rod

configurations in both fire

and panic-rated versions.

The DE9000 Series delayed

egress exit device is available

when security and safety are

a concern.

9000 Series exit devices

offer the specifier a selection

of true architectural finishes

and a full complement of

electrified options, including

alarmed exit, delayed egress

exit, electric latch retraction,

and device monitoring.

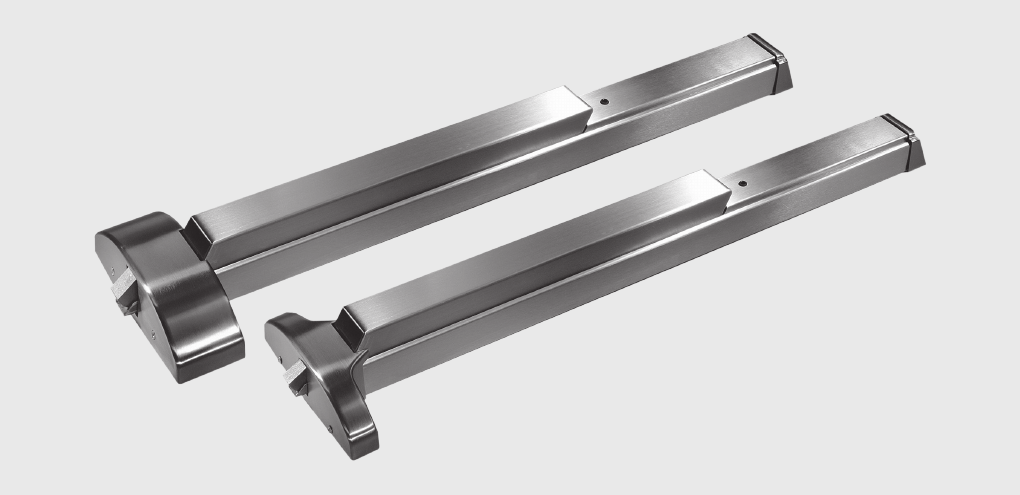

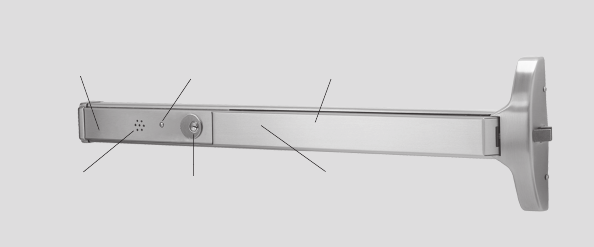

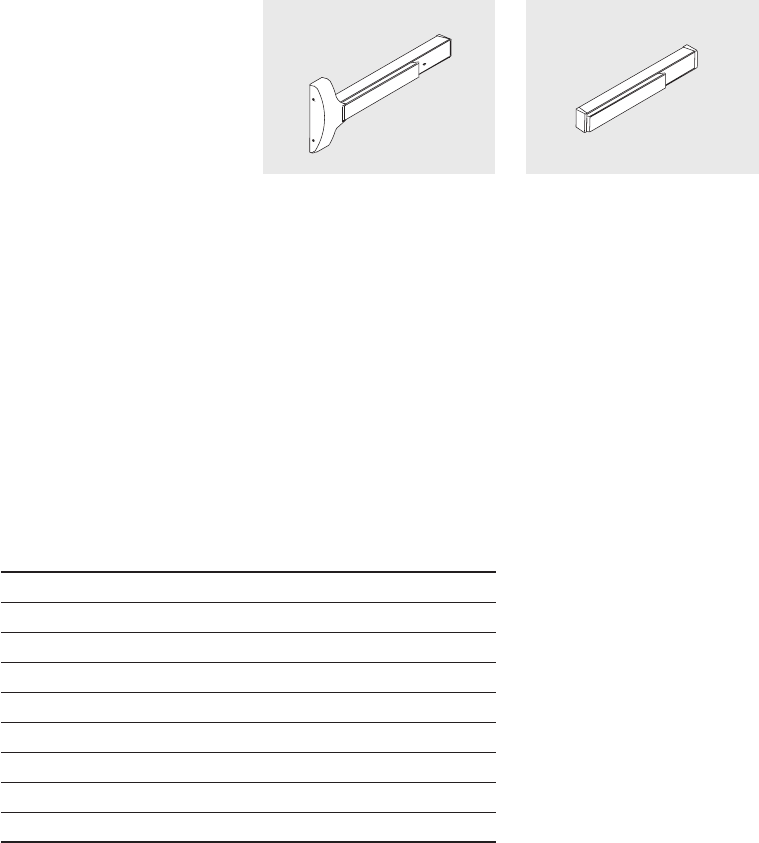

Wide Stile

The 9000 Series wide stile

exit device features a

heavy-duty cast chassis for

superior durability, while the

smooth reduced projection

touchbar assembly minimizes

catch hazards. The partial

length touchpad permits

field installation of options

such as cylinder dogging and

exit alarm. A full complement

of free wheeling lever trim is

available in a wide range of

architectural finishes.

Narrow Stile

The 9000 Series narrow stile

exit device with a shortened

touchbar is the ultimate

solution when narrow stile

doors require an exit device.

The heavy-duty cast chassis

design permits installation on

narrow stile doors where a

standard device may not fit.

The smooth projection

touchbar assembly minimizes

catch hazards. The partial

length touchpad permits

field installation of options

such as cylinder dogging and

exit alarm.

9000 Series narrow stile exit

devices are available in a

wide range of models and

offer a full complement of

free wheeling lever trim to

meet most narrow stile door

applications.

Delayed Egress

The DE9000 Series delayed

egress exit device maximizes

features for uncompromising

security and safety and offers

ease of installation, job site

function flexibility, and years

of trouble free service.

The DE9000 is intended for

low level egress security

applications such as

healthcare facilities, assisted

living centers, hospitals, or

retail. For applications

requiring higher levels of

egress security such as

juvenile detention centers,

developmentally challenged

adult incarceration facilities,

or other types of more

challenging environments, it is

recommended that a

standard exit device be used

in conjunction with EMDE

Series delayed egress

magnetic door locks.

• Wide stile touchbar and

rail, chassis, latch bolt

covers, and end cap are

fabricated and finished in

true base metal. Narrow

stile is the same except

chassis cover is always

brass and finished to

match device.

• End cap for touchbar

assembly furnished in

complementary finish.

• Some models handed

depending on outside

operating trim and function.

• Most devices easily

field-reversible.

• Fasteners provided for

metal and wood door

applications.

• Free wheeling, vandal-

resistant trim standard.

9000 Series Premium Exit Devices

dormakaba 9000 Series Premium Exit Devices

Certification/Specifiactions

9000 Series Wide & Narrow Stile Exit Devices

Certification

• Certified/listed

to ANSI/BHMA

156.3, Grade 1 for exit devices.

• U.L. and C.U.L.

listed under their

continuing

reinspection programs and

conforms to standard U.L.

10C positive pressure testing.

• Complies with NFPA 101

life safety code. Fire rated

devices comply with NFPA

80 fire doors and windows.

• Devices, trim, pulls,

and levers comply

with the Americans

for Disabilities Act,

1994, and ICC A117.1 for

accessible and usable

buildings and facilities.

• Contributes to U.S. Green

Building Council, LEED MR

Credits 2.1, 4.1, 4.2 and 5.1.

• Listed with the California

Department of Forestry

and Fire Protection, Office

of the State Fire Marshal

(wide stile devices only).

• Hurricane-code approved

to Miami-Dade County

Florida and Florida State

Building Code acceptance

(9300, 9400, 9500, 9700).

• Meets the requirements of

the California Building

Code (2013) Sec. 11B-309.4

(9300BF, 9500BF, 9700BF).

Specifications

• All devices to have heavy-

duty cast chassis.

• All device touchbar, rail,

and cover assemblies shall

be constructed of heavy

gauge solid wrought materials

for true architectural finishes

or color coated finishes.

• The partial-length touchpad

assembly accommodates

field installation of options

such as cylinder dogging

and exit alarm.

• Non-labeled units to have

hex-key dogging standard.

Fire rated versions available

for labeled applications.

• Surface vertical rod devices

shall have pullman type top

latch bolts and round

slidebolt bottom latches.

• All devices to have deadlocking

latch bolts with 3/4" throw.

• All units shall offer a full

range of free wheeling

operational trim, except

mortise devices.

• All units shall offer optional

rigid and clutch-style trim,

where applicable.

• All devices to be furnished

with appropriate mounting

harDAre including both

wood and machine screws,

as well as sex nuts where

required.

Optional Specifications

• Non-labeled devices to

have cylinder dogging.

Mortise cylinder included.

Specify CD.

• All surface/concealed

vertical rod devices to have

pullman type bottom latch

bolt. Specify P.

• All surface/concealed

vertical rod devices to have

extended top rod up to 10'.

Specify ETR for 8’, 9’, or 10’.

• All surface/concealed vertical

rod devices to be furnished

less bottom rod. Specify LB.

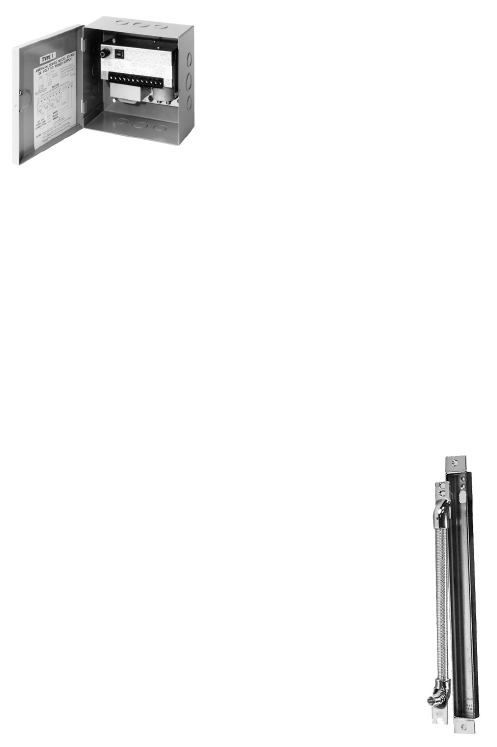

• Devices to have motorized

latch bolt retraction to

provide remote access

from the secure side of

door. Can also be used to

electrically dog/hold the

exit push bar in a retracted

position during non-secure

hours (latch bolt is retracted).

Specify MLR. (MLR is

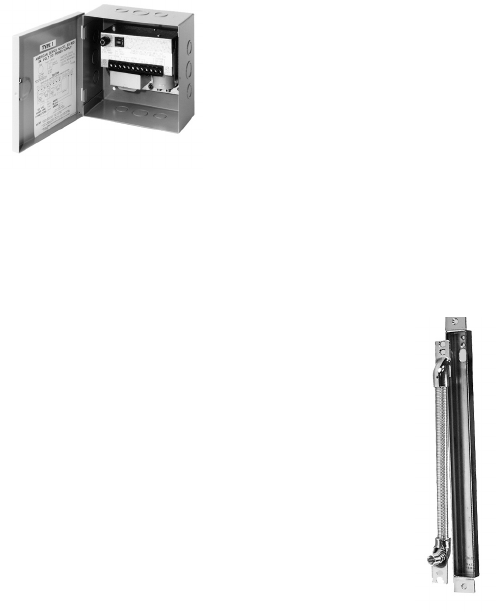

PS532 power supply)

• Devices to have electric

latch bolt retraction to

provide remote access

from the secure side of

door. Can also be used in

conjunction with low

energy/automatic door

operator. Specify ES. (ES

must be powered by PS-

501 power supply and use

ES-105 power transfer)

• Devices to have electric

latch retraction option for

battery back-up power

supply (requires PS406BB

or PS-BB power supply

and ES105 power transfer).

Specify E-.

• Devices to have a controlled

delayed egress while

simultaneously sounding a

local and remote audible

alarm. After the delay time

has elapsed, unrestricted

emergency egress is available.

Specify DE. (Not available

with 9400 or 9800, requires

ES100 power supply, ES105

power transfer, and FL)

• Devices to have a latch

monitor to report the latch

bolt status. Specify LM.

• Devices to be furnished

with two switches in the

touchbar to provide

notification when touchbar

is depressed. Specify MS.

• Devices to have latch

monitor with monitor

switches in touchbar.

Specify LM/MS.

Devices to have latch

monitor with monitor

switches and a bypass to

permit authorized exit.

Specify LM/MS BP.

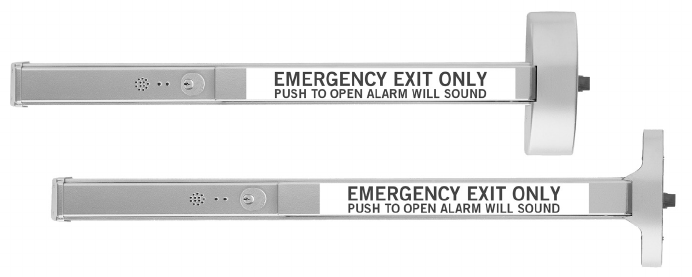

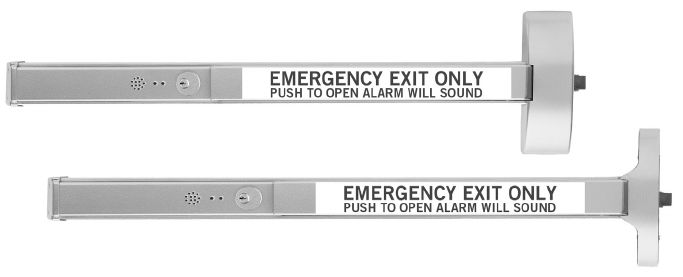

• Devices to have one of the

following exit alarm options:

battery-powered exit

alarm (BA), battery-

powered exit alarm with a

4-minute reset (BAR), or

direct hard-wired exit

alarm (DA).

• Devices to use a vision lite

shim kit to raise the device

from the door surface to

accommodate glass light

molding. Specify GK9000

(wide stile) or GK9200

(narrow stile).

• All devices for labeled wood

or composite doors to be

furnished with sex bolts.

Specify SNB.

• All concealed vertical rod

devices installed in aluminum

doors to be furnished with

appropriate brackets for

aluminum door applications.

See page 6 (A).

• All devices to use tamper-

resistant security screws.

Specify T.

• All devices to be furnished

with rigid trim. Specify R

after trim.

• All devices to be furnished

with clutch-style lever trim.

Specify C after lever trim.

Finishes

Architectural Finishes

• Brass: 605 (Bright) or

606 (Satin)

• Bronze: 611 (Bright), 612

(Satin), or 613 (Oxidized

Satin)

• Nickel: 619 (Satin)

• Black: 693

• Chrome: 625 (Bright)

or 626 (Satin)

• Stainless: 629 (Bright) or

630 (Satin)

Powder Coated Finishes

• Aluminum: 689

• Bronze: 691 (Dull) or 695

(Dark Duranodic)

• Black: 693

• Gold: 696

• Clear Powder Coat

available over 630 –

Stainless Steel

Specify PC

• Anti-Microbial: Specify AM

Warranty

For details, refer to Limited

Warranty on our website at

go.dormakaba.com/

Terms-DA

NOTE:

* No dogging available.

** The 9000 Series narrow stile bar

lengths are designed for use on

narrow stile aluminum entrance

doors with a 1/2” blade stop

frame. Other applications may

require field cutting the bar.

dormakaba

9000 Series Premium Exit Devices Data & Features

9000 Series Data & Features Model

9100

Model

9300

Model

9400

Model

9500

Model

9600

Model

9700

Model

9800

Wide Stile Exit Device ● ● ● ● N/A N/A N/ A

Narrow Stile Exit Device N/A N/A N/A N/A ● ● ●

U.L. Listed for Hazard ● ● ● ● ● ● ●

U.L. Listed for Labeled Fire Doors (prefix F) * ○ ● ● ● ● ● ●

Extended Life Cycle Testing ● ● ● ● ● ● ●

Latch Bolt Load Rated N/A ●N/A N/A N/A ●N/A

Size A Doors (34"–48") (touchpad 24-5/8") ● ● ● ● N/A N/A N/A

Size B Doors (28"–36") (touchpad 18-5/8") Default Wide ● ● ● ● N/A N/A N/A

Size C Doors (25"–30") (touchpad 15-5/8") ● ● ● ● N/A N/A N/A

Size D* Doors (25"–30", can be field cut 24") (touchpad 15-7/8") ● ● ● ● N/A N/A N/A

Size AA Doors (32-1/2"–48")** (touchpad 24-5/8") N/A N/A NA N/A ● ● ●

Size BB Doors (27"–36")** (touchpad 18-5/8") Default Narrow N/A N/A NA N/A ● ● ●

Size CC Doors (23-1/2"–36")** (touchpad 15-5/8") N/A N/A NA N/A ● ● ●

Door Height up to 7' Default Vertical Rod ● N/A ●N/A ●N/A ●

Door Height up to 8' (Specify 8') ●N/A ●N/A ●N/A ●

Door Height up to 10' (over 8', specify actual door height and ETR) ●N/A ●N/A ●N/A ●

Door Thickness 1-3/4" to 2-1/4" ● ● ● ● ● ● ●

Door Thickness 2-1/4" to 3-1/2" N/A N/A N/A N/A ● ● ●

Device Non-Handed N/A ●N/A N/A N/A N/A N/A

Device Handed but Field Reversible ●N/A ●N/A ●N/A ●

Device Handed, Not Reversible N/A N/A N/A ●N/A ●N/A

Hex Key Dogging (non-listed units only) ● ● ● ● ● ● ●

Cylinder Dogging (non-listed units only) ● ● ● ● ● ● ●

Round Bottom Slide Bolt (-) Default ● N/A ●NA ●N/A ●

Deadlocking Pullman Type Bottom Latch Bolt (specify P) ●N/A ●N/A ●N/A ●

Less Bottom Rod (specify LB) ●N/A ●N/A ●N/A ●

Full Length Touch Bar (Not Available DE) (Specify FL) ● ● ● ● ● ● ●

Motorized Latch Bolt Retraction (specify MLR) ● ● ● ● ● ● ●

Electric Latch Bolt Retraction (specify ES) ● ● ● N/A ● ● ●

Monitor Switch in Touchbar (specify MS) ● ● ● ● ● ● ●

Latch Bolt Monitor (specify LM) ● ● ● ● ● ● ●

Latch Monitor/Monitor Switch (specify LM/MS) ● ● ● ● ● ● ●

Latch Monitor/Monitor Switch with Bypass (specify LM/MS BP) ● ● ● ● ● ● ●

Exit Alarm (specify BA, BAR or DA) ● ● ● ● ● ● ●

Delayed Egress 15 sec (specify DE) ● ● N/A ● ● ● N/A

Clutch Style Lever Trim (specify C)

Note: Clutch option available to C, R, G & T lever styles only ● ● ● ● ● ● ●

Rigid Lever Trim (specify R) ● ● ● ● ● ● ●

Motorized Dogging (specify MLR) ● ● ● ● ● ● ●

Glass Lite Shim Kit (wide stile, specify GK9000) ● ● ● ● N/A N/A N/A

Glass Lite Shim Kit (narrow stile, specify GK9200) N/A N/A N/A N/A ● ● ●

Security Screws (specify T) ● ● ● ● ● ● ●

Sex Nuts (Specify SNB/Quantity) ● ● ● ● ● ● ●

Aluminum Door Latch Brackets. Specify A (9100/9600) or NS (9600) ●N/A N/A N/A ●N/A N/A

Hurricane Code Rated (specify HC) N/A ● ● ● N/A ● ●

California Building Code compliant for maximum 5 lb operating force (specify BF) N/A ●N/A ●N/A ●N/A

● – Standard Feature ● – Optional Feature N/A – Not Applicable */** See NOTES on previous page.

dormakaba 9000 Series Premium Exit Devices

Options/ANSI Functions

BA Battery Powered Exit Alarm LM/MS Latch Monitor/Monitor Switch

BAR Battery Powered Exit Alarm, (4) minute reset LM/MS BP Latch Monitor/Monitor Switch with Bypass

DA Direct Wired Exit Alarm DE Delayed Egress, 15 sec (9100, 9300, 9500, 9600, 9700)

CD Cylinder Dogging D3 Delayed Egress, 30 sec (9100, 9300, 9500, 9600, 9700)

requires special approval from authority having jurisdiction)

MLR Motorized Latch Retraction / Electric Dogging DECBC Delayed Egress, CBC compliant

ES Latch Retraction (9100, 9300, 9400, 9600, 9700, 9800) -Slide Bolt (9100, 9400, 9600, 9800)

ETR Top Rod Extension (9100, 9400, 9600, 9800) P Pullman Bottom Latch, vertical rod only

(9100, 9400, 9600, 9800)

GK9000 Vision Lite Shim Kit (Wide Stile) SNB Sex Nuts, specify quantity

GK9200 Vision Lite Shim Kit (Narrow Stile) AWide Stile Aluminum Door Brackets (9100, 9600)

LB Less Bottom Rod (9100, 9400, 9600, 9800) NS 2-1/8" Narrow Stile Aluminum Door Bracket (9600 only)

LM Latch Monitor WD Narrow Stile Wood or Hollow Steel Door Bracket (9600 only)

MS Monitor Switch FL Full Length Touch Bar

HC Hurricane Code Rated (9300, 9400, 9500, 9700, 9800) BF Barrier Free, CBC compliant (9300, 9500, 9700)

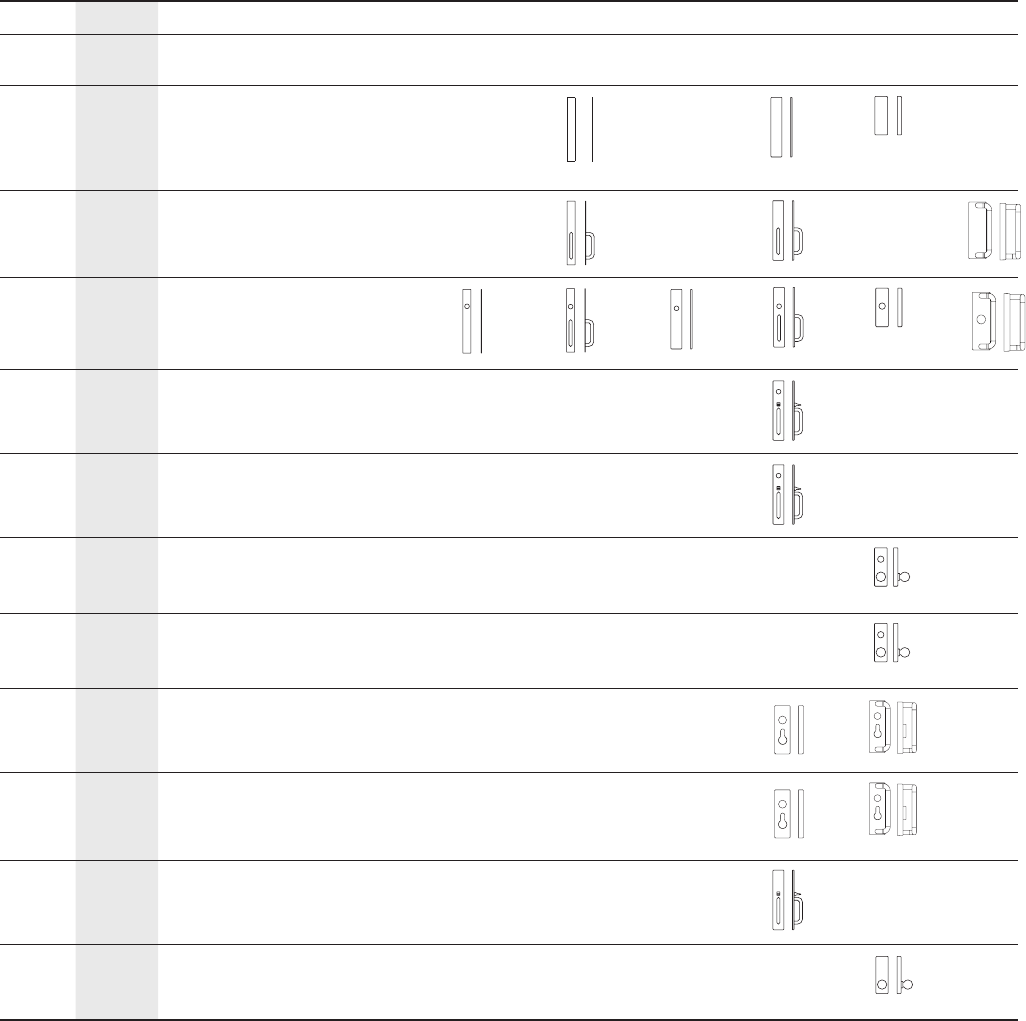

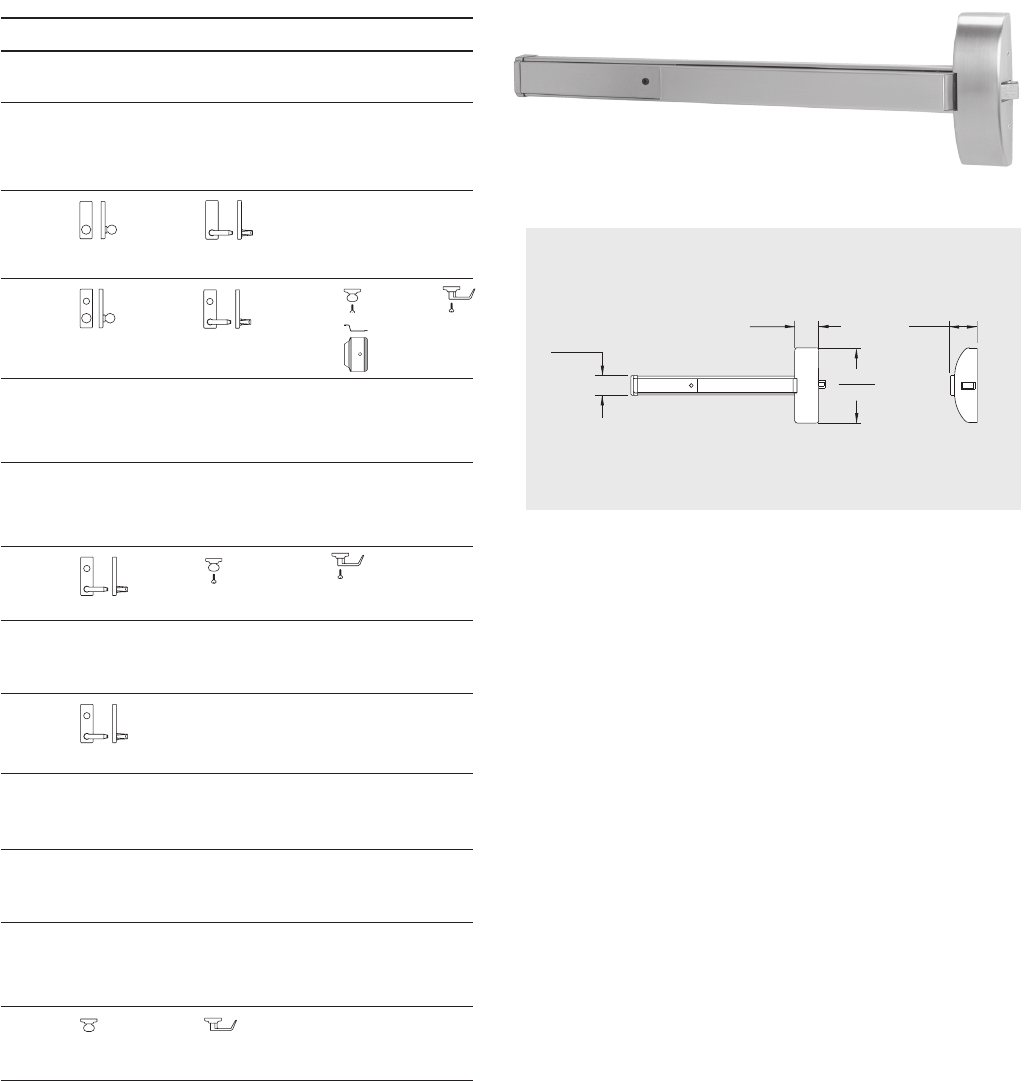

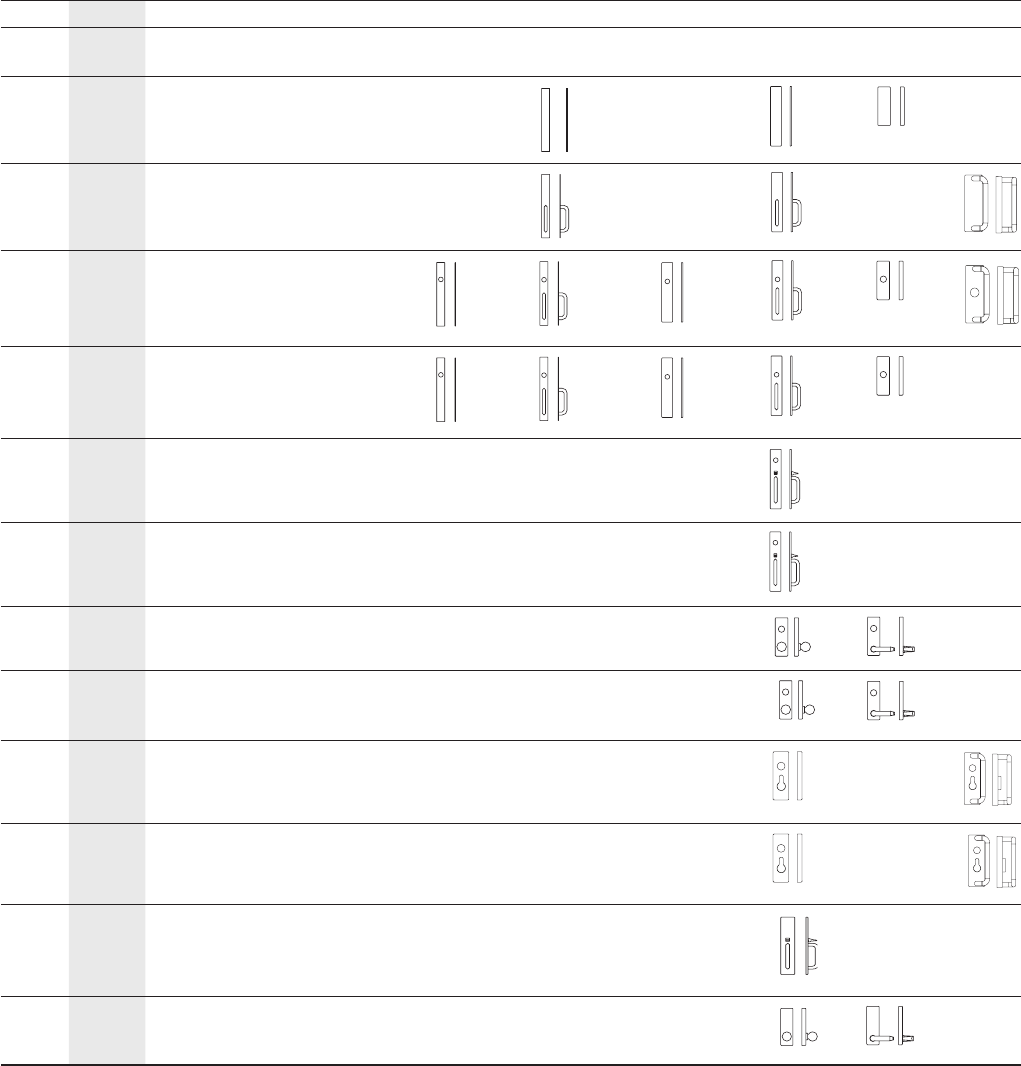

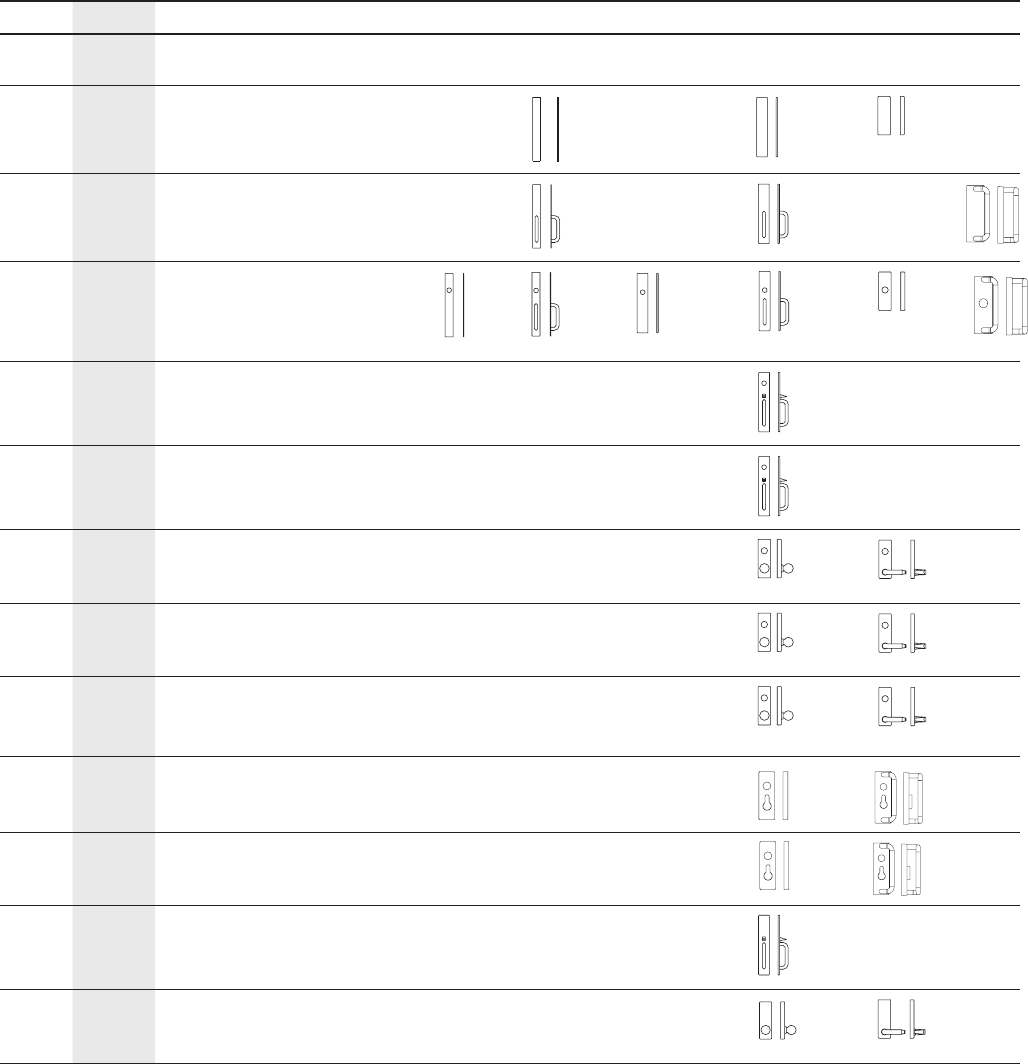

ANSI

Function

Description

Type 1

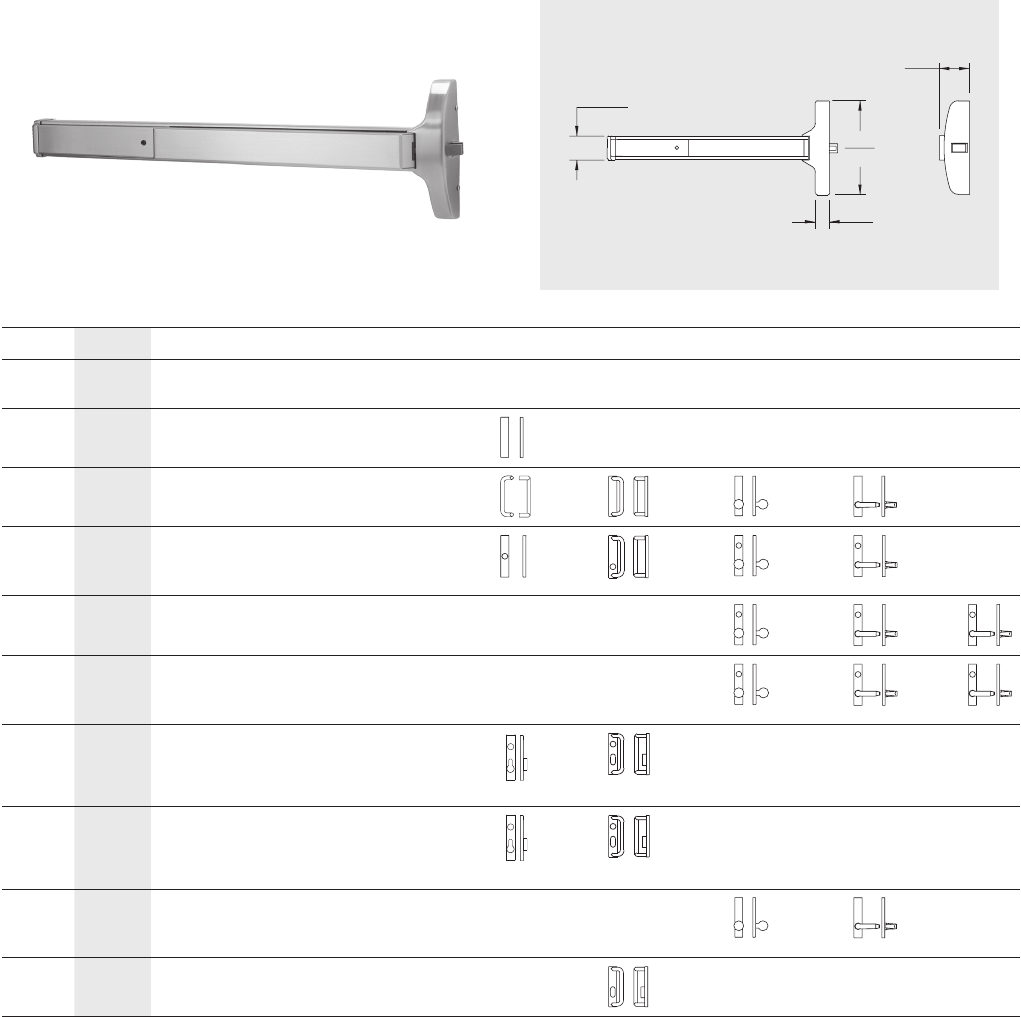

Rim Exit Device

Type 2

Surface Vertical Rod Exit Device

01 Exit Only – No Trim 9300 or F9300 9400 or F9400

02 Entrance by trim when actuating

bar is locked down.

9300 × (trim)

V102 / V302

PTT02 / PRT02

Yx02R / YK02R

9400 × (trim)

V102 / V302

PTT02 / PRT02

Yx02R / YK02R

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

9300 or F9300 × (trim)

VO03 / V103 / V303, YO03

NPT03 / PTT03 / PRT03

Yx02R / YK02R

9x03J / 9x03 / 9K03 / 9K03J

POF03HDA

9400 or F9400 × (trim)

VO03 / V103 / V303, YO03

NPT03 / PTT03 / PRT03

Yx03R / YK03R

9x03 / 9x03J / 9K03 / 9K03J

05 Entrance by thumbpiece. Key locks

or unlocks thumbpiece.

9300 or F9300 × (trim)

HTT05/HRT05

9400 or F9400 × (trim)

HTT05/HRT05

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

9300 or F9300 × (trim)

HTT06/HRT06

9400 or F9400 × (trim)

HTT06/HRT06

Options

ANSI Functions

dormakaba

9000 Series Premium Exit Devices ANSI Functions

ANSI

Function

Description

Type 3

Mortise Exit Device

Type 7/8 Wood/Metal Door

Concealed Vertical Rod Exit Device

01 Exit Only – No Trim 9500 or F9500 9100 or F9100

02 Entrance by trim when actuating

bar is locked down.

9500 × (trim)

V102M / V302M

PTT02M / PRT02M

Yx02R / YK02R

9100 × (trim)

V102CV / V302CV

PTT02CV / PRT02CV

Yx02R / YK02R

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

9500 or F9500 × (trim)

VO03M / V103M / V303M, YO03M

NPT03M / PTT03M / PRT03M

Yx03MR / YK03MR

9100 or F9100 × (trim)

VO03CV / V103CV / V303CV, YO03

NPT03CV / PTT03CV / PRT03CV

Yx03R / YK03R

9x03 / 9x03J / 9K03 / 9K03J

05 Entrance by thumbpiece. Key locks

or unlocks thumbpiece.

9500 or F9500 × (trim)

HTT05M / HRT05M

9100 or F9100 × (trim)

HTT05CV / HRT05CV

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

9100 or F9100 × (trim)

HTT06CV / HRT06CV

08 Entrance by knob or lever. Key

locks or unlocks knob or lever.

9500 or F9500 × (trim)

Yx08M / YK08M

Yx08MC

9100 or F9100 × (trim)

Yx08 / YK08

Yx08C

9x08 / 9R08J / 9K08 / 9K08J

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

9100 or F9100 × (trim)

Yx09 / YK09

Yx09C

22 Entrance by thumbpiece

(no cylinder). Trim always active.

9500 or F9500 × (trim)

HRT22M / HTT22M

9100 or F9100 × (trim)

HRT22CV / HTT22CV

23 Entrance by knob or lever

(no cylinder). Trim always active.

9500 or F9500 × (trim)

Yx23M / YK23M

9100 or F9100 × (trim)

Yx23 / YK23

NOTE: When a trim designation includes an x (such as Yx23), replace x with the letter or number assigned to the chosen lever style.

For example, YR23 specifies lever style R. See page 34 for details.

ANSI

Function

Description

Type 1

Rim Exit Device

Type 2

Surface Vertical Rod Exit Device

08 Entrance by knob or lever. Key

locks or unlocks knob or lever.

9300 or F9300 × (trim)

Yx08 / YK08

Yx08C

9x08 / 9x08J / 9K08 / 9K08J

9400 or F9400 × (trim)

Yx08 / YK08

Yx08C

9x08 / 9x08J / 9K08 / 9K08J

08x08 Entrance by lever. OS or IS key

locks or unlocks lever.

F9300 × (trim)

Yx08x08 / YK08x08

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

9300 or F9300 × (trim)

Yx09 / YK09

Yx09C

9400 or F9400 × (trim)

Yx09 / YK09

Yx0C

22 Entrance by thumbpiece

(no cylinder). Trim always active.

9300 or F9300 × (trim)

HRT22/HTT22

9400 or F9400 × (trim)

HRT22/HTT22

23 Entrance by knob or lever

(no cylinder). Trim always active.

9300 or F9300 × (trim)

Yx23 / YK23

9x23 / 9K23

9400 or F9400 × (trim)

Yx23 / YK23

9x23 / 9K23

dormakaba 9000 Series Premium Exit Devices

ANSI Functions

ANSI

Function

Description

Type 4

Rim Exit Device

Type 5 Surface Vertical

Rod Exit Device

Type 6 Wood/Metal Door

Concealed Vertical Rod Device

01 Exit Only – No Trim 9700 or F9700 9800 or F9800 9600 or F9600

02 Entrance by trim when

actuating bar is locked

down.

9700 × (trim)

OP02

ZP02

Zx02R / ZK02R

9800 × (trim)

OP02

ZP02

ZxR02R / ZK02R

9600 × (trim)

OP02

ZP02

Zx02R / ZK02R

03 Entrance by trim when

latch bolt is retracted by

key. Key removable only

when locked.

9700 or F9700 × (trim)

ZO03

ZP03

Zx03R / ZK03R

9800 or F9800 × (trim)

ZO03

ZP03

Zx03R / ZK03R

9600 or F9600 × (trim)

ZO03

ZP03

Zx03R / ZK03R

08 Entrance by knob or

lever. Key locks or

unlocks knob or lever.

9700 or F9700 × (trim)

Zx08 / Zx08C / ZK08

9800 or F9800 × (trim)

Zx08 / Zx08C / ZK08

9600 or F9600 × (trim)

Zx08 / Zx08C / ZK08

09 Entrance by knob or

lever only when released

by key. Key removable

only when locked.

9700 or F9700 × (trim)

Zx09 / Zx09C / ZK09

9800 or F9800 × (trim)

Zx09 / Zx09C / ZK09

9600 or F9600 × (trim)

Zx09 / Zx09C / ZK09

11 Entrance by thumbturn.

Key locks or unlocks

thumbturn.

9700 or F9700 × (trim)

ZP11

9800 or F9800 × (trim)

ZP11

9600 or F9600 × (trim)

ZP11

12 Entrance by thumbturn

when unlocked by key.

Key removable only

when trim is locked.

9700 or F9700 × (trim)

ZP12

9800 or F9800 × (trim)

ZP12

9600 or F9600 × (trim)

ZP12

23 Entrance by knob or

lever (no cylinder). Trim

always active.

9700 or F9700 × (trim)

Zx23 / ZK23

9800 or F9800 × (trim)

Zx23 / ZK23

9600 or F9600 × (trim)

Zx23 / ZK23

25 Entrance by thumbturn

and pull (no cylinder).

Thumbturn always active.

9700 or F9700 × (trim)

ZP25

9800 or F9800 × (trim)

ZP25

9600 or F9600 × (trim)

ZP25

NOTE: When a trim designation includes an x (such as Zx23), replace x with the letter or number assigned to the chosen lever style.

For example, ZR23 specifies lever style R. See page 63 for details.

dormakaba

9000 Series Premium Exit Devices Ordering Guide/Handling

XX XX XX XX XX XXX XX

Special Finishes and C

oatings

Custom, Designer

, Antimicrobial Protected Coating,

and Clear

Powder Coat Note: Antimicrobial available to

626 and 630 finishes only

Special

Applications

Includes Hurricane

Package, Barrier Free & Full Length Touch Bar

stener Package

Shim Kits, Securit

y Screws, and Sex Nuts

ntrols

Delay

ed Egress, Electric Latch Retraction and Motorized Latch Retraction

larm

Batte

ry Powered and Direct Wired

Monitoring

Latch and

Touch Bar Monitoring

ogging

ylinder and Electric Dogging

Series Device Options

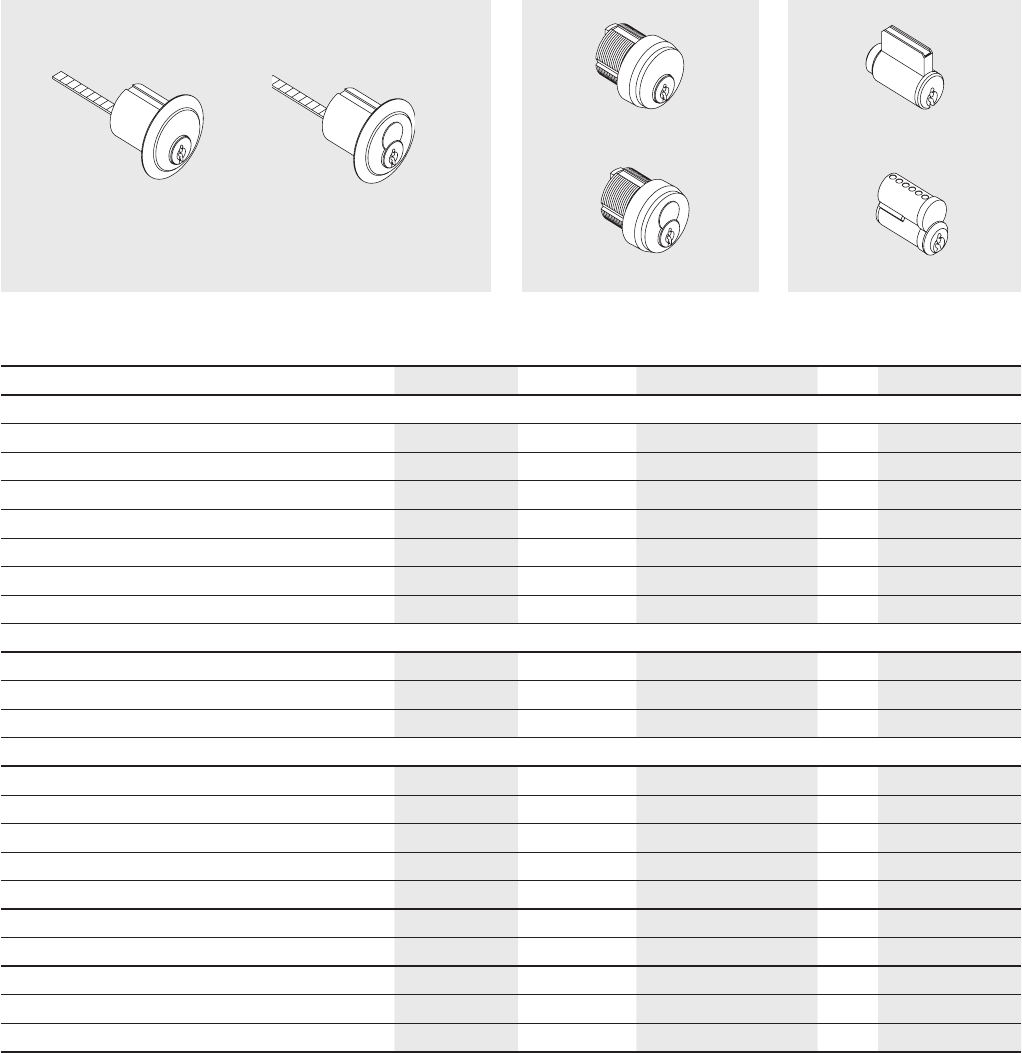

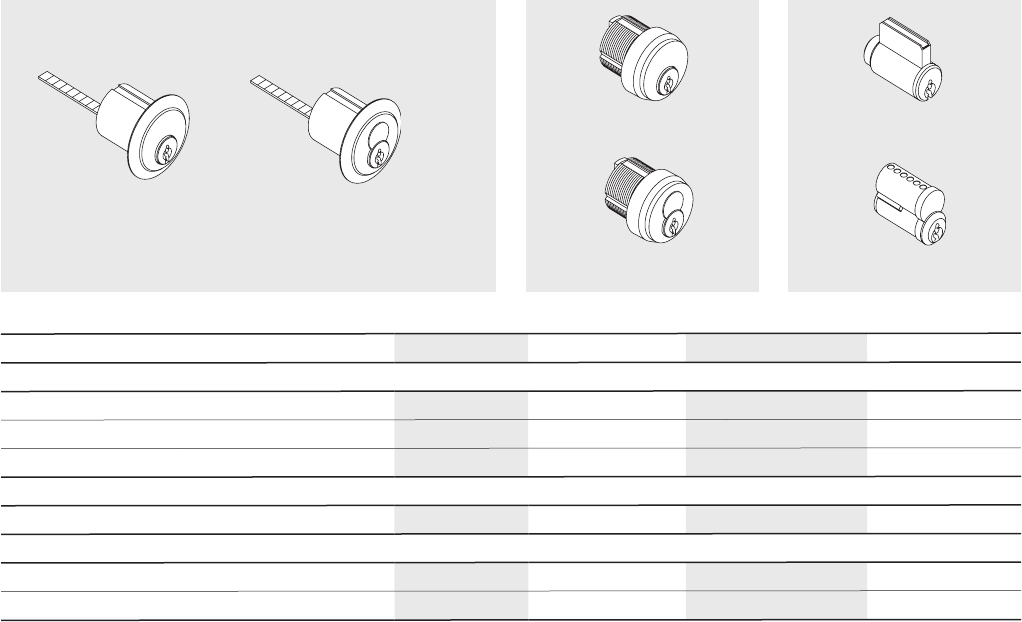

Cylinders

and Keying

Model

Length (Door

Width)

Handing

Door Heigh

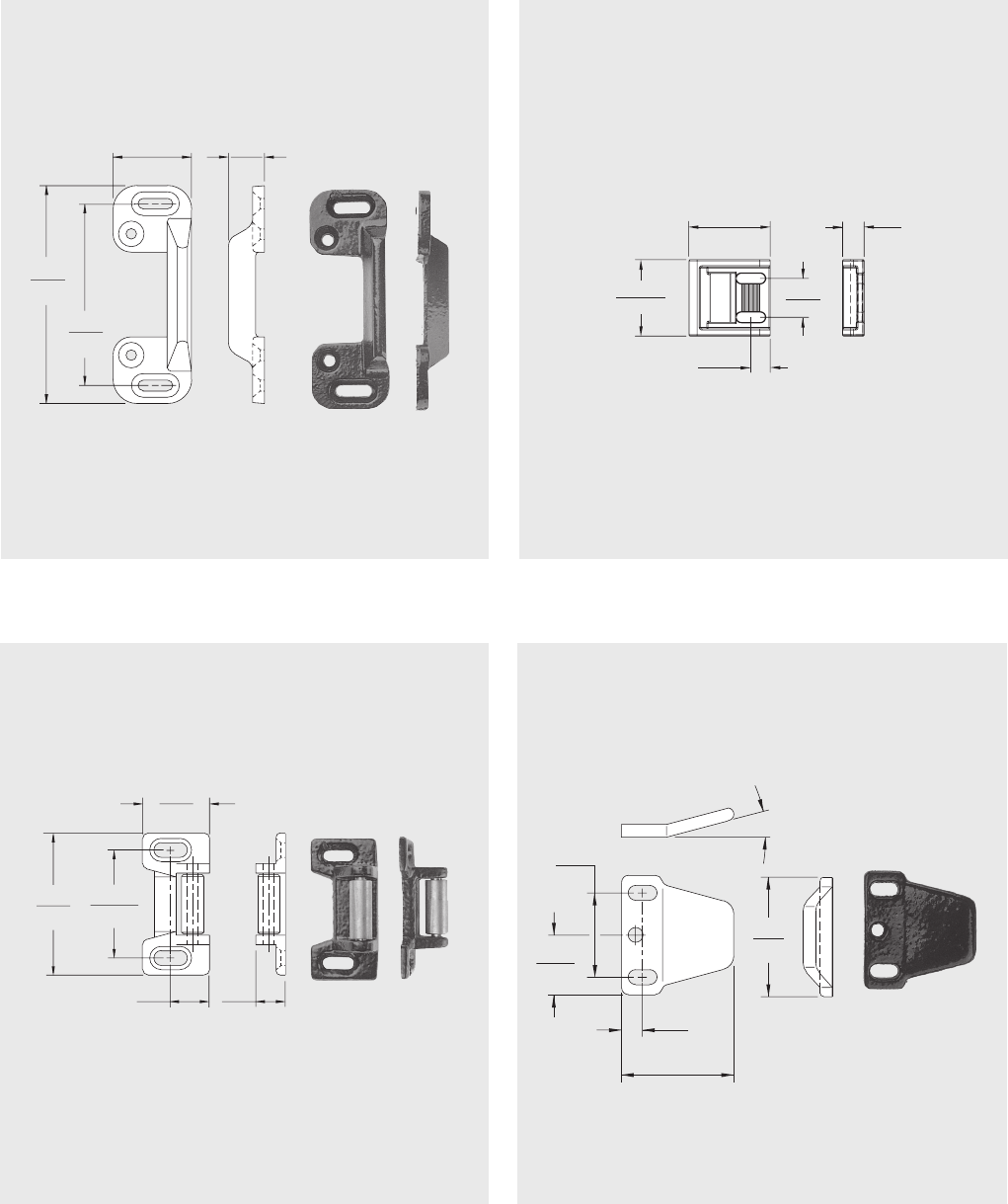

Stri

kes

Finish

Cylinder

Type

yway

ying

XXXX

XX XXX XXXXXXXX XXX

Door Br

ackets

XX XX XXX

Right-Hand Reverse Bevel (RHR)

Outside

Left-Hand Reverse Bevel (LHR)

Outside

Push Side Push Side

Patented Key control

D100 is the keyway for our patented

SC serialized key control system. SC

is internet based and provides

added layers of security. For more

information, contact your local sales

representative or Technical Service

at 800-523-8488.

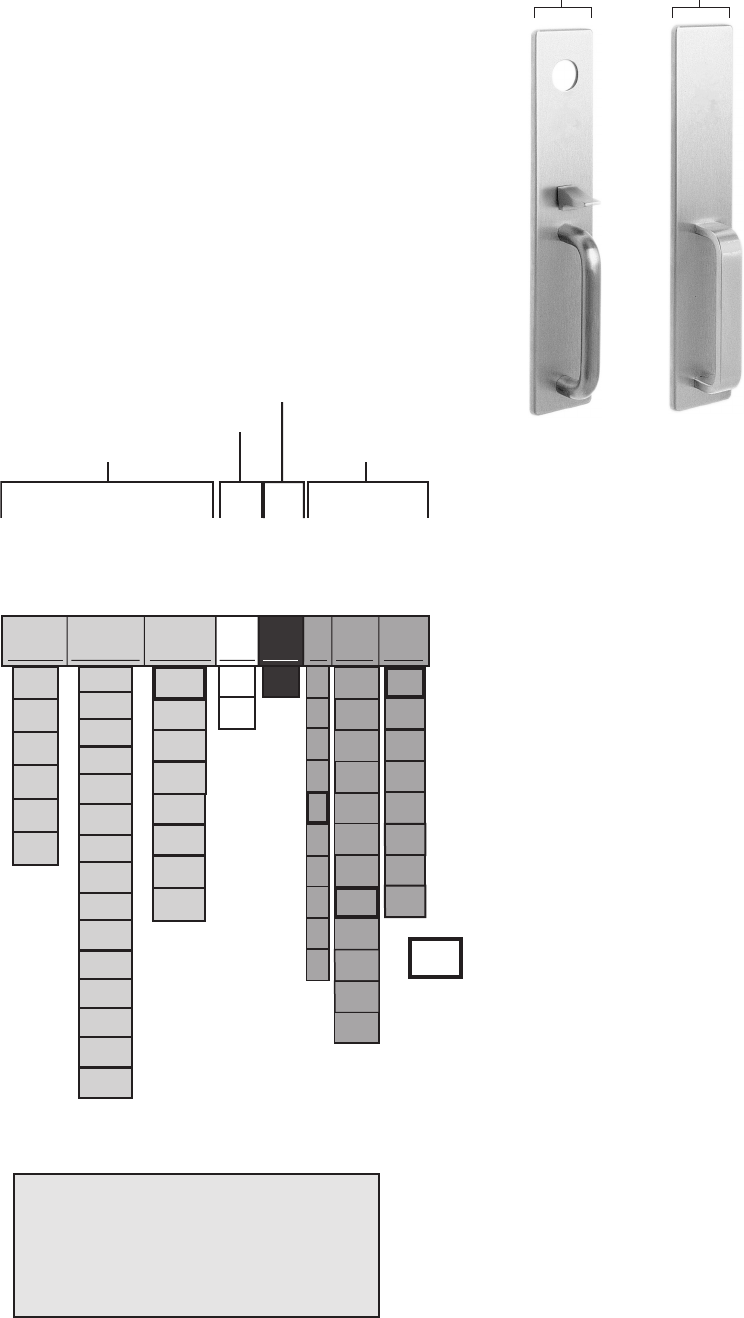

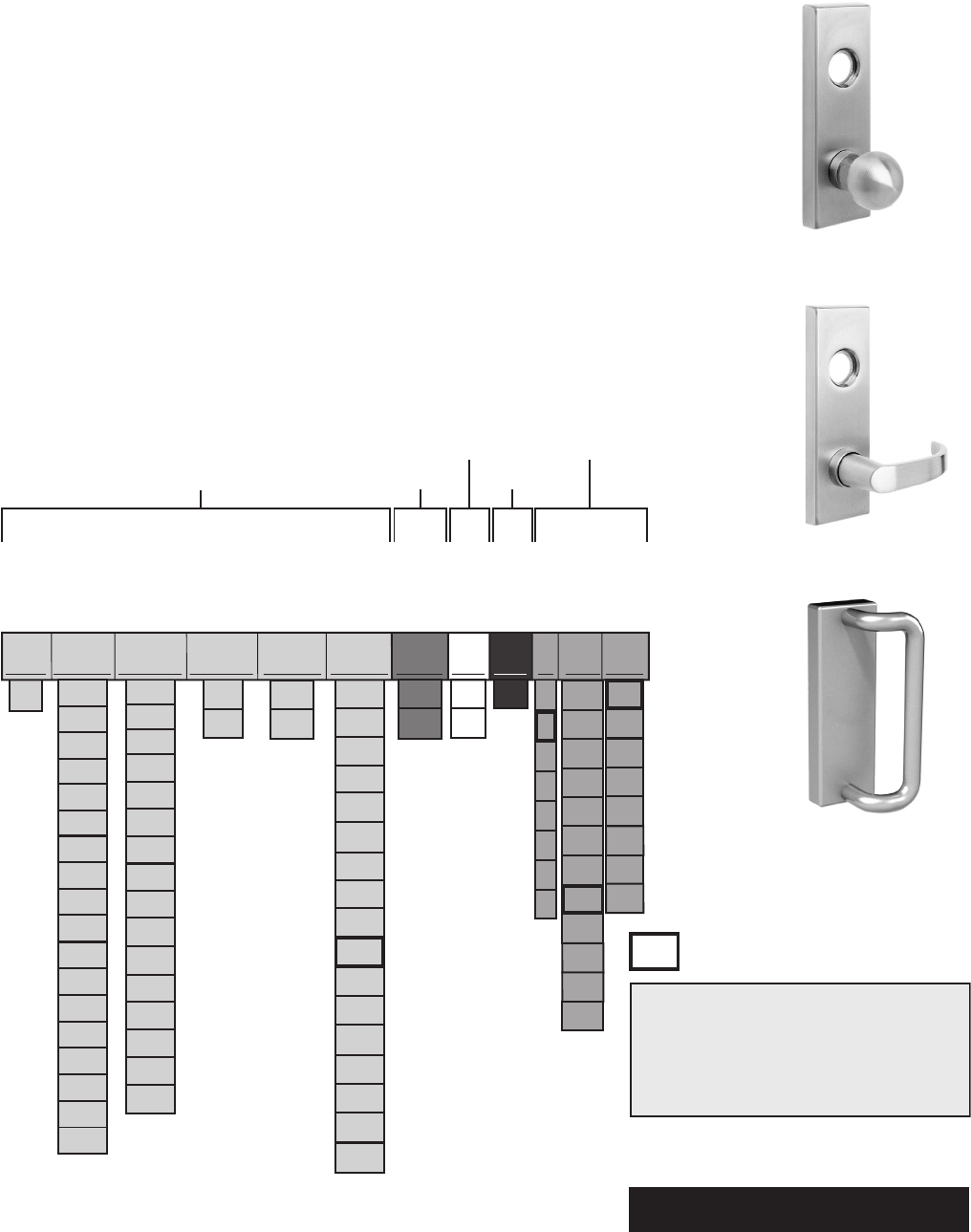

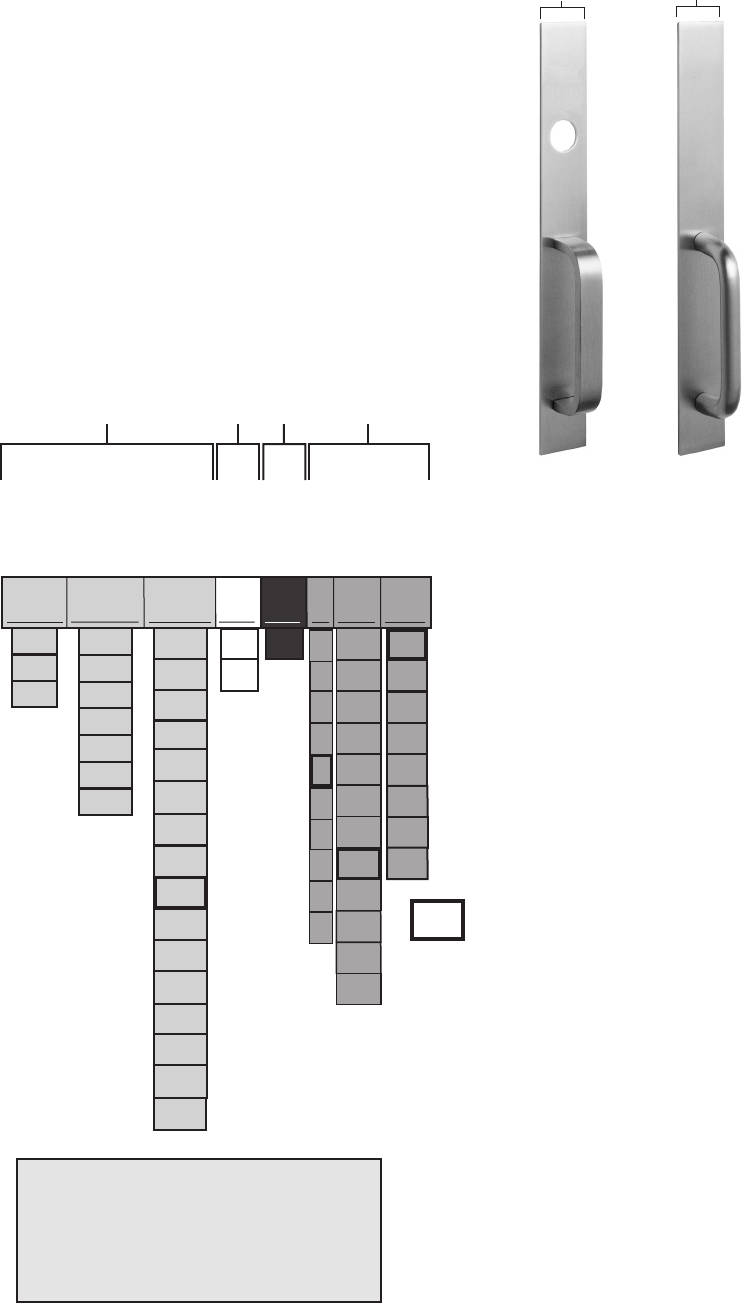

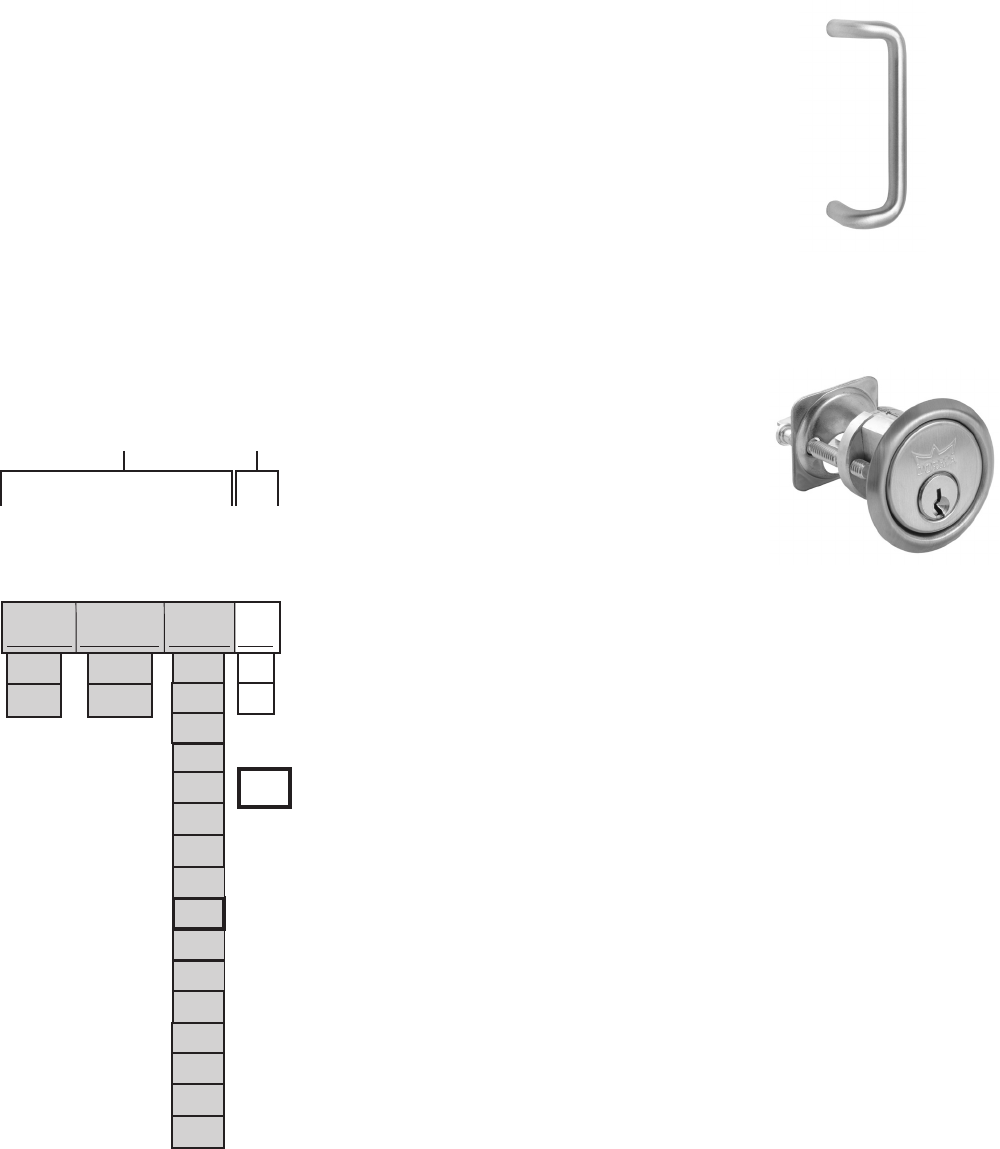

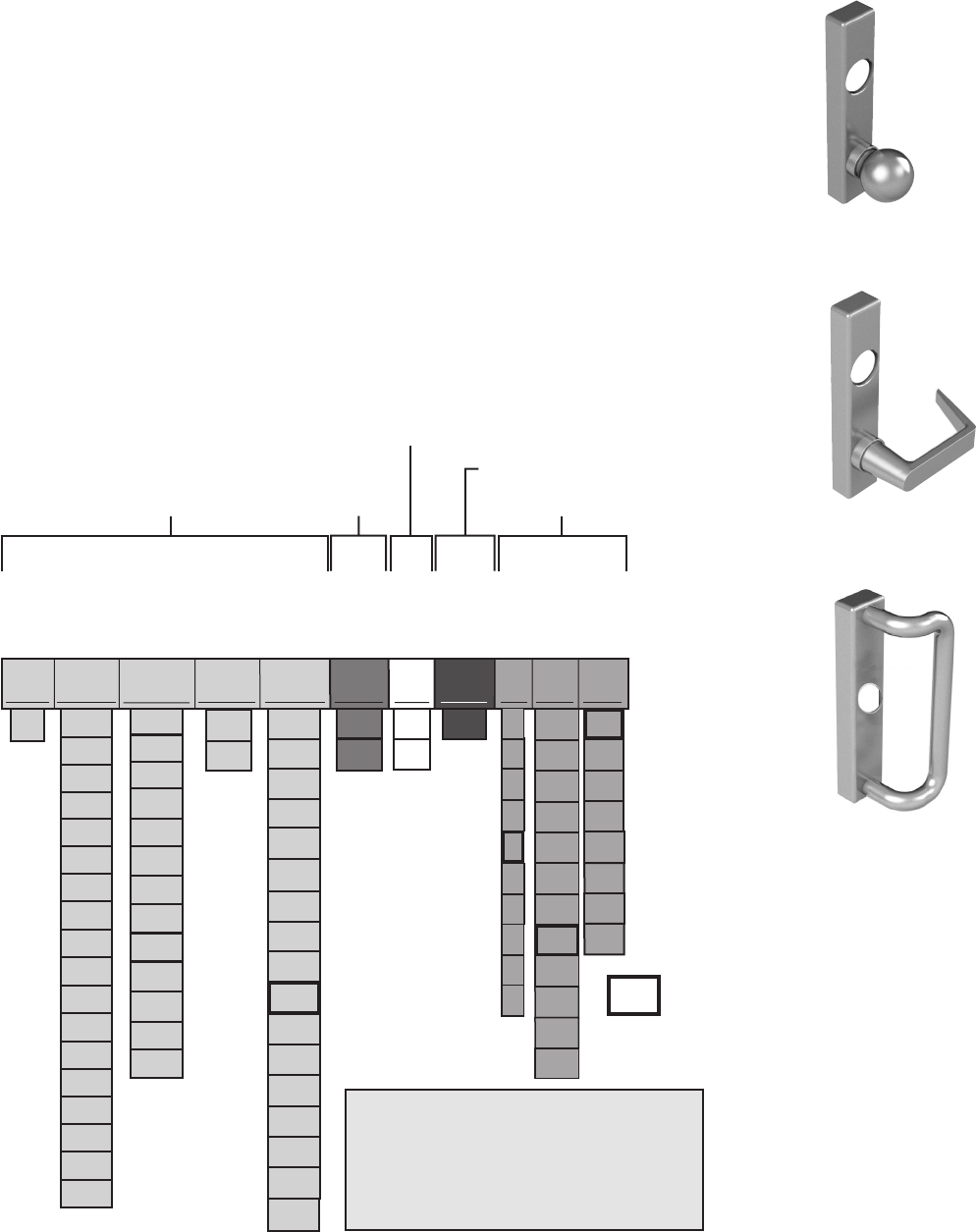

How to order 9000 Series exit devices

Handing

dormakaba Wide Stile

9000 Series Premium Exit Devices

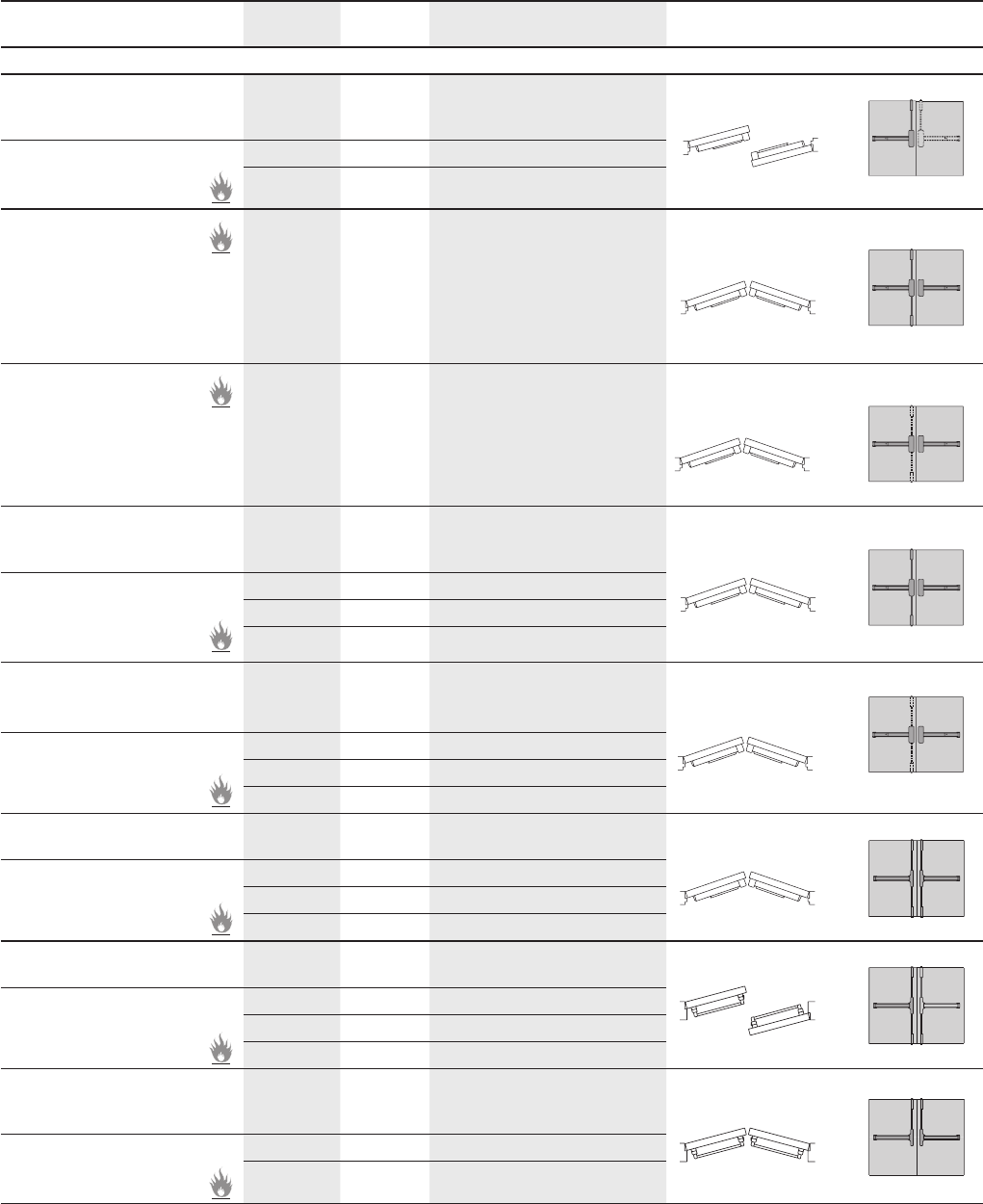

Applications & Listings

Model Door

Material

Max. Door

Opening

Door Ratings Applications

Single Doors

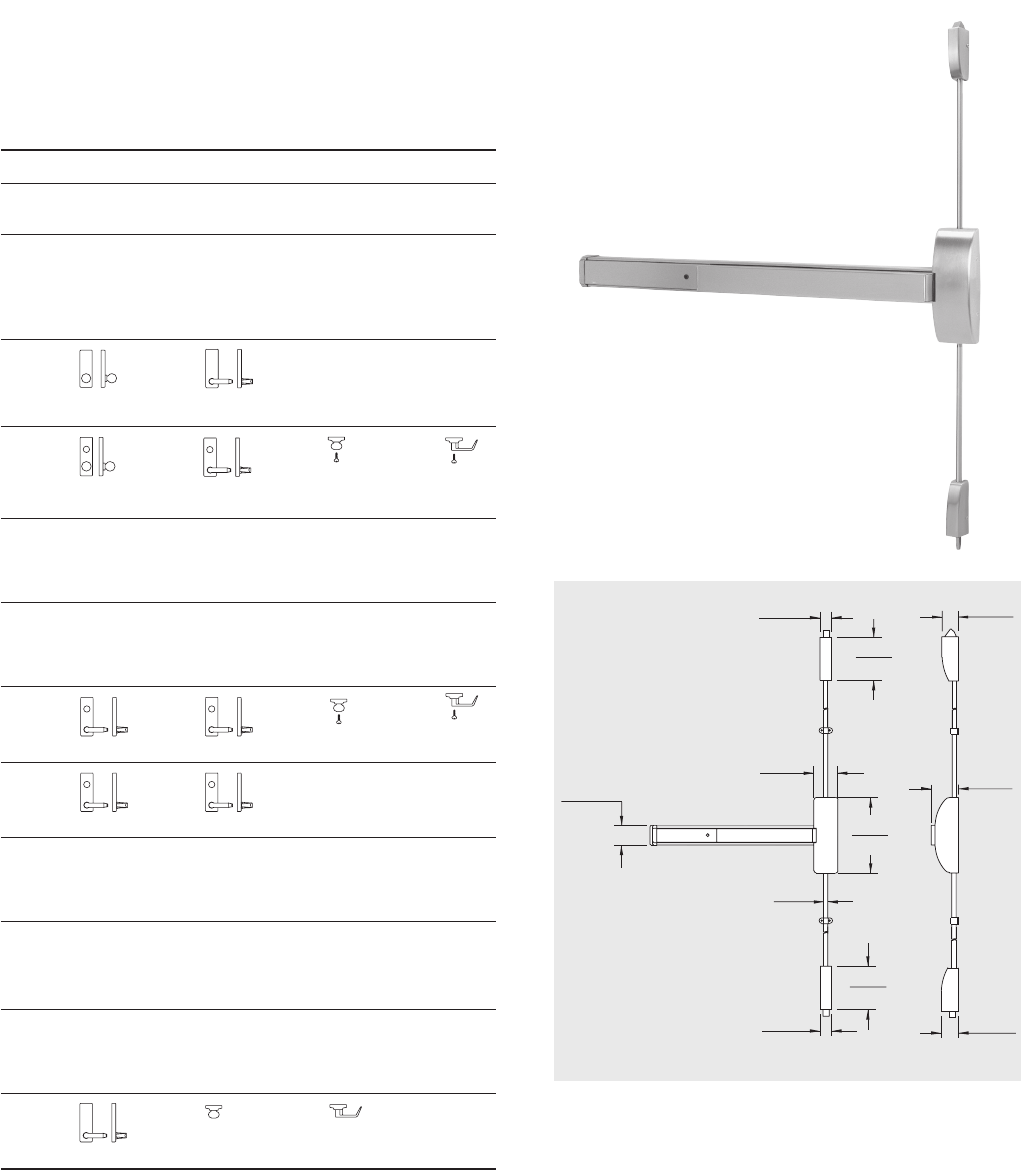

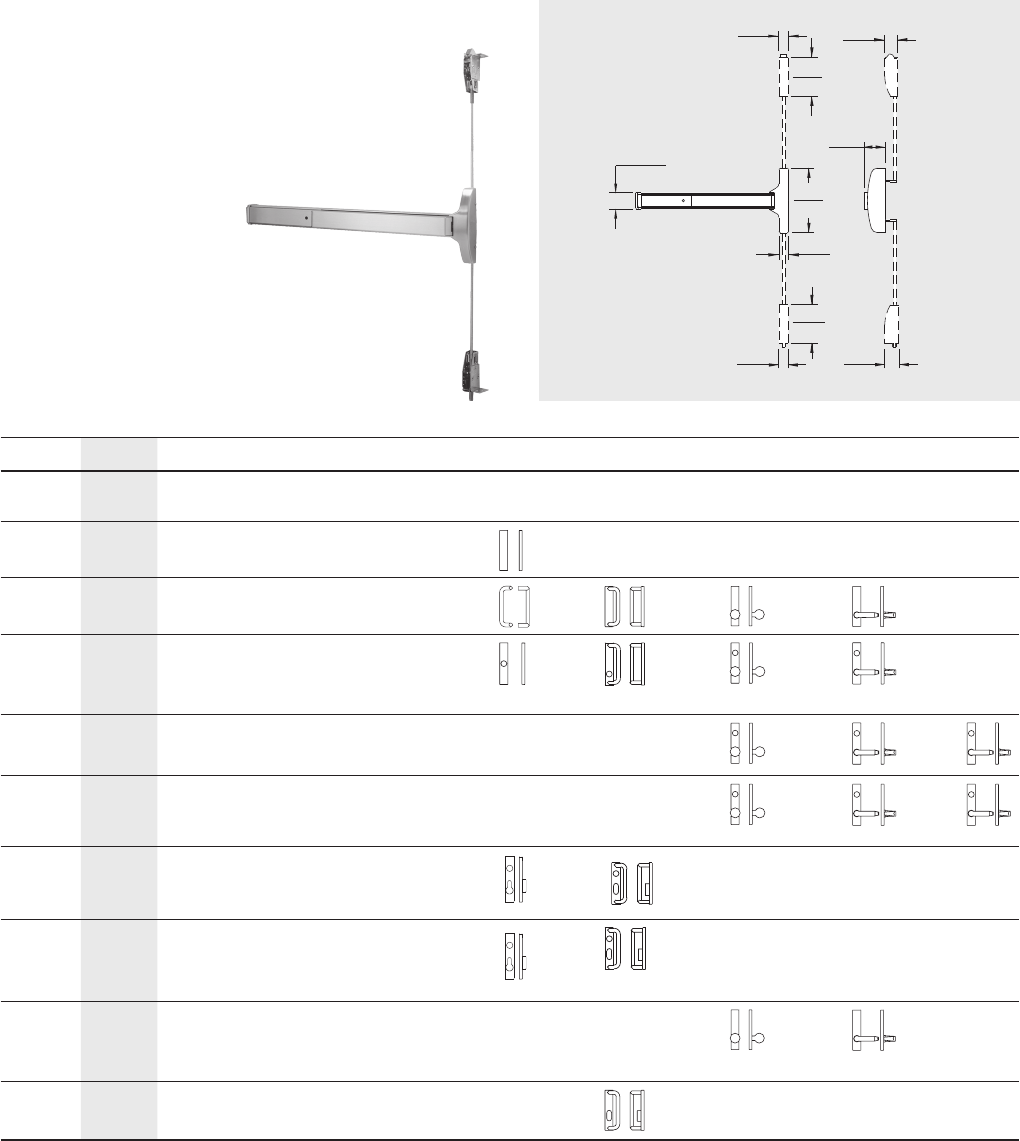

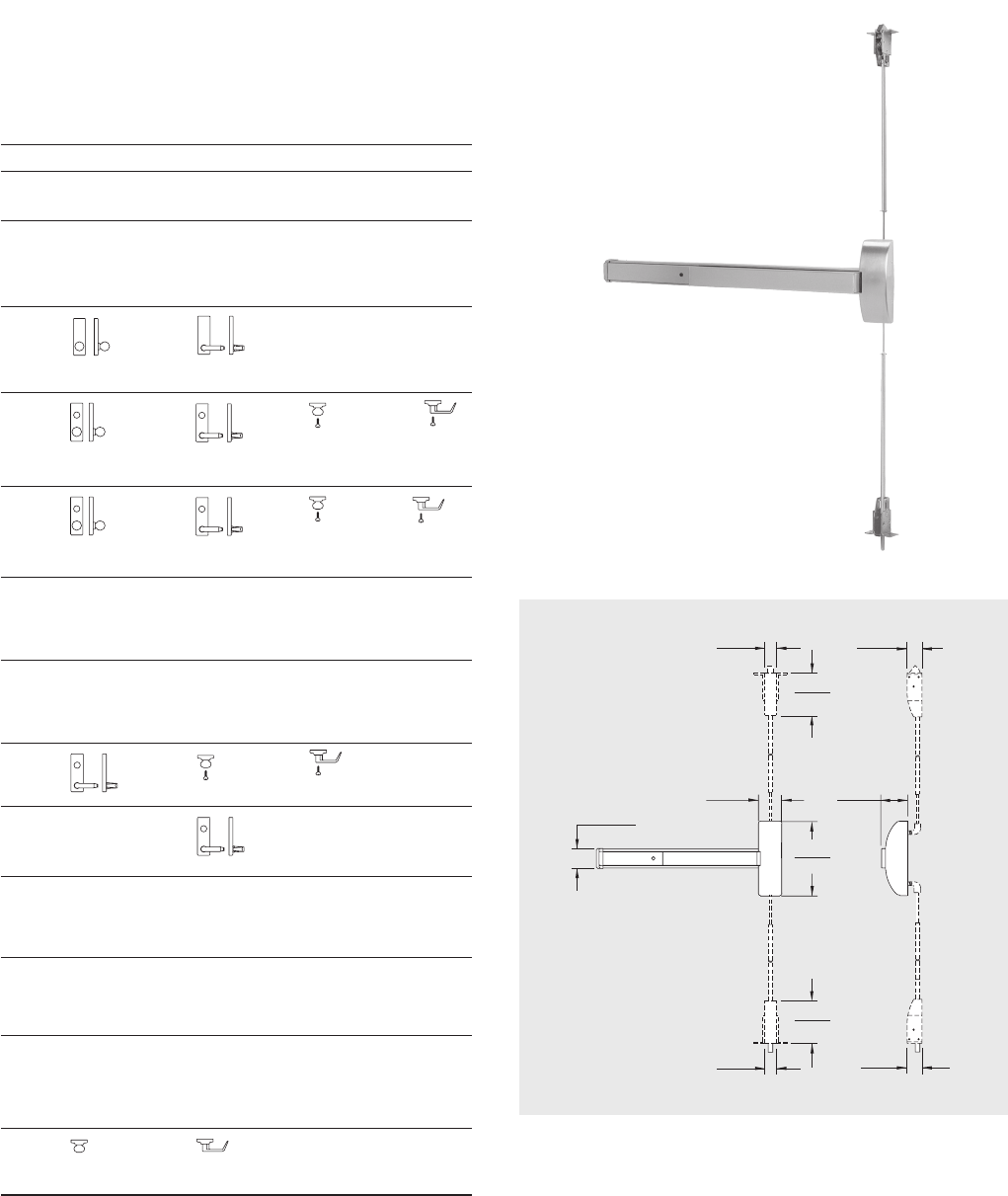

Concealed Vertical Rod

9100

Wood/Steel 4' × 10' Devices are panic listed only Concealed

(2) point latching

Concealed Vertical Rod

F9100

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

Concealed Vertical Rod

(Less Bottom Rod)

9100 LB

Wood/Steel 4' × 10' Devices are panic listed only Concealed

(1) point latching

Concealed Vertical Rod

(Less Bottom Rod)

F9100 LB

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

Rim

9300

Wood/Steel 4' × 8' Devices are panic listed only Surface applied

(1) point latching

Rim

F9300

Steel 4' × 8' 3 Hour

Wood 4' × 8' 1-1/2 Hour

Surface Vertical Rod

9400

Wood/Steel 4' × 10' Devices are panic listed only Surface applied

(2) point latching

Surface Vertical Rod

F9400

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

Surface Vertical Rod

(Less Bottom Rod)

9400 LB

Wood/Steel 4' × 10' Devices are panic listed only Surface applied

(1) point latching

Surface Vertical Rod

(Less Bottom Rod)

F9400 LB

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

Mortise

9500

Wood/Steel 4' × 10' Devices are panic listed only Mortised

(1) point latching

Mortise

F9500

Steel 4' × 10' 3 Hour

Wood 4' × 8' 1-1/2 Hour

Wood 4' × 10' *1/3 Hour

Rim

9700

Wood/Steel 4' × 8' Devices are panic listed only Surface applied

(1) point latching

Rim

F9700

Steel 4' × 8' 3 Hour

Wood 4' × 8' 1-1/2 Hour

Surface Vertical Rod

9800

Wood/Steel 4' × 10' Devices are panic listed only Surface applied

(2) point latching

Surface Vertical Rod

F9800

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

Surface Vertical Rod

(Less Bottom Rod)

9800 LB

Wood/Steel 4' × 10' Devices are panic listed only Surface applied

(1) point latching

Surface Vertical Rod

(Less Bottom Rod)

F9800 LB

Steel 4' × 10' 3 Hour

Wood 4' × 10' 1-1/2 Hour

* Designates minimum U.L. listing for wood doors over 8' in height. Listings for 90 minutes or greater may be applicable through other listing agencies dependent

upon the wood door manufacturer's current listing. Contact wood door manufacturer for details.

Wide Stile dormakaba

9000 Series Premium Exit Devices

Model Door

Material

Max. Door

Opening

Door Ratings Applications

Pair of Doors with Removable Mullion

Rim × Rim

9300 × 9300

Wood/Steel 8' × 8' Devices are panic listed only (2) independent

active doors with

removable mullion

(1) point latching

Rim × Rim

F9300 × F9300

Steel 8' × 8' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Rim × Rim

9700 × 9700

Wood/Steel 8' × 8' Devices are panic listed only (2) independent

active doors with

removable mullion

(1) point latching

Rim × Rim

F9700 × F9700

Steel 8' × 8' 1-1/2 Hour

Wood 8' × 8' 1-1/2 Hour

Pair of Doors

Concealed Vertical Rod

9100 × 9100

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing same direction)

Concealed Vertical Rod

F9100 × F9100

Steel 8' × 10' 1-1/2 Hour2

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour

Concealed Vertical Rod

9100 × 9100

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing opposite direction)

Concealed Vertical Rod

F9100 × F9100

Steel 8' × 10' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour

Concealed Vertical Rod

(Less Bottom Rod)

9100 LB × 9100 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing same direction)

Concealed Vertical Rod

(Less Bottom Rod)

F9100 LB × F9100 LB

Steel 8' × 10' 1-1/2 Hour1,2

Wood 8' × 10' 1-1/2 Hour1

Concealed Vertical Rod

(Less Bottom Rod)

9100 LB × 9100 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing opposite direction)

Concealed Vertical Rod

(Less Bottom Rod)

F9100 LB × F9100 LB

Steel 8' × 10' 3 Hour1

Wood 8' × 10' 1-1/2 Hour1

Surface Vertical Rod

9400 × 9400

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing same direction)

Surface Vertical Rod

F9400 × F9400

Steel 8' × 10' 1-1/2 Hour2

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour

Surface Vertical Rod

9400 × 9400

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing opposite direction)

Surface Vertical Rod

F9400 × F9400

Steel 8' × 10' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour

Surface Vertical Rod

(Less Bottom Rod)

9400 LB × 9400 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing same direction)

Surface Vertical Rod

(Less Bottom Rod)

F9400 LB × F9400 LB

Steel 8' × 10' 1-1/2 Hour1,2

Wood 8' × 10' 1-1/2 Hour1

dormakaba Wide Stile

9000 Series Premium Exit Devices

Model Door

Material

Max. Door

Opening

Door Ratings Applications

Pair of Doors (Continued)

Surface Vertical Rod

(Less Bottom Rod)

9400 LB × 9400 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing opposite direction)

Surface Vertical Rod

(Less Bottom Rod)

F9400 LB × F9400 LB

Steel 8' × 10' 3 Hour1

Wood 8' × 10' 1-1/2 Hour1

Rim × Surface

Vertical Rod

9300 × 9400

Wood/Steel 8' × 8' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing same direction)

Rim × Concealed

Vertical Rod

9300 × 9100

Wood/Steel 8' × 8' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing same direction)

Mortise × Surface

Vertical Rod

9500 × 9400

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing same direction)

Mortise × Surface

Vertical Rod

F9500 × F9400

Steel 8' × 10' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour

Mortise × Concealed

Vertical Rod

9500 × 9100

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing same direction)

Mortise × Concealed

Vertical Rod

F9500 × F9100

Steel 8' × 10' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2Hour

Concealed Vertical Rod

9600 × 9600

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing same direction)

Concealed Vertical Rod

F9600 × F9600

Steel 8' × 10' 1-1/2 Hour2

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour3

Concealed Vertical Rod

9600 × 9600

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing opposite direction)

Concealed Vertical Rod

F9600 × F9600

Steel 8' × 10' 1-1/2 Hour

Steel 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour3

Concealed Vertical Rod

(Less Bottom Rod)

9600 LB × 9600 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing same direction)

Concealed Vertical Rod

(Less Bottom Rod)

F9600 LB × F9600 LB

Steel 8' × 10' 1-1/2 Hour1,2

Wood 8' × 10' 1-1/2 Hour1,3

Wide Stile dormakaba

9000 Series Premium Exit Devices

Model Door

Material

Max. Door

Opening

Door Ratings Applications

Concealed Vertical Rod

(Less Bottom Rod)

9600 LB × 9600 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing opposite direction)

Concealed Vertical Rod

(Less Bottom Rod)

F9600 LB × F9600 LB

Steel 8' × 10' 3 Hour1

Wood 8' × 10' 1-1/2 Hour1,3

Surface Vertical Rod

9800 × 9800

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing same direction)

Surface Vertical Rod

F9800 × F9800

Steel 8' × 10' 1-1/2 Hour2

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour3

Surface Vertical Rod

9800 × 9800

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (2) point latching

(swing opposite direction)

Surface Vertical Rod

F9800 × F9800

Steel 8' × 10' 3 Hour

Wood 8' × 8' 1-1/2 Hour

Wood 8' × 10' 1-1/2 Hour3

Surface Vertical Rod

(Less Bottom Rod)

9800 LB × 9800 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing same direction)

Surface Vertical Rod

(Less Bottom Rod)

F9800 LB × F9800 LB

Steel 8' × 10' 1-1/2 Hour1,2

Wood 8' × 10' 1-1/2 Hour3

Surface Vertical Rod

(Less Bottom Rod)

9800 LB × 9800 LB

Wood/Steel 8' × 10' Devices are panic listed only (2) independent doors

with (1) point latching

(swing opposite direction)

Surface Vertical Rod

(Less Bottom Rod)

F9800 LB × F9800 LB

Steel 8' × 10' 3 Hour1

Wood 8' × 10' 1-1/2 Hour1,3

Rim × Surface

Vertical Rod

9700 × 9800

Wood/Steel 8' × 8' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing same direction)

Rim × Concealed

Vertical Rod

9700 × 9600

Wood/Steel 8' × 8' Devices are panic listed only (2) independent doors

with (1) and (2) point

latching

(swing opposite direction)

dormakaba Wide Stile

9000 Series Premium Exit Devices

9100/F9100 Wide Stile Concealed

Vertical Rod Exit Devices

The 9100 Concealed Vertical

Rod and the F9100 Series

Concealed Vertical Rod Fire

Exit Devices are excellent

choices

where barrier-free codes,

aesthetics, or the potential

for vandalism require

concealment of the vertical

rod. They are panic

and fire-listed (three-hour

steel fire door applications)

and feature a simplified

adjustment mechanism that

provides ease of

installation and reduced

service requirements.

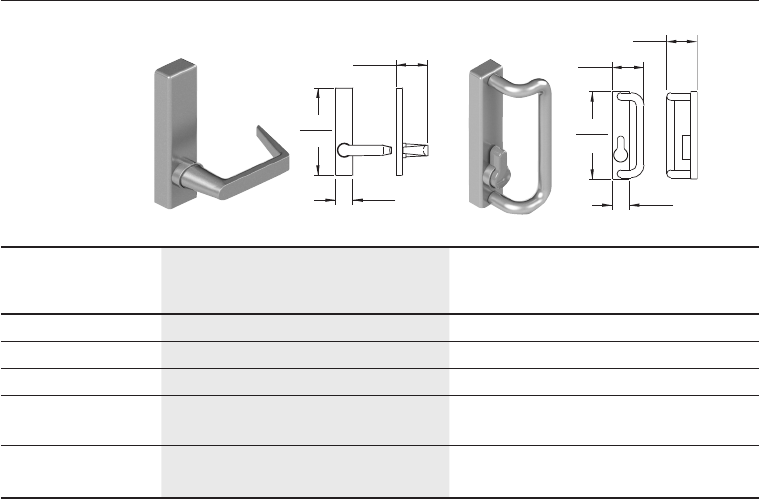

Specify Door Brackets

A – Wide stile aluminum

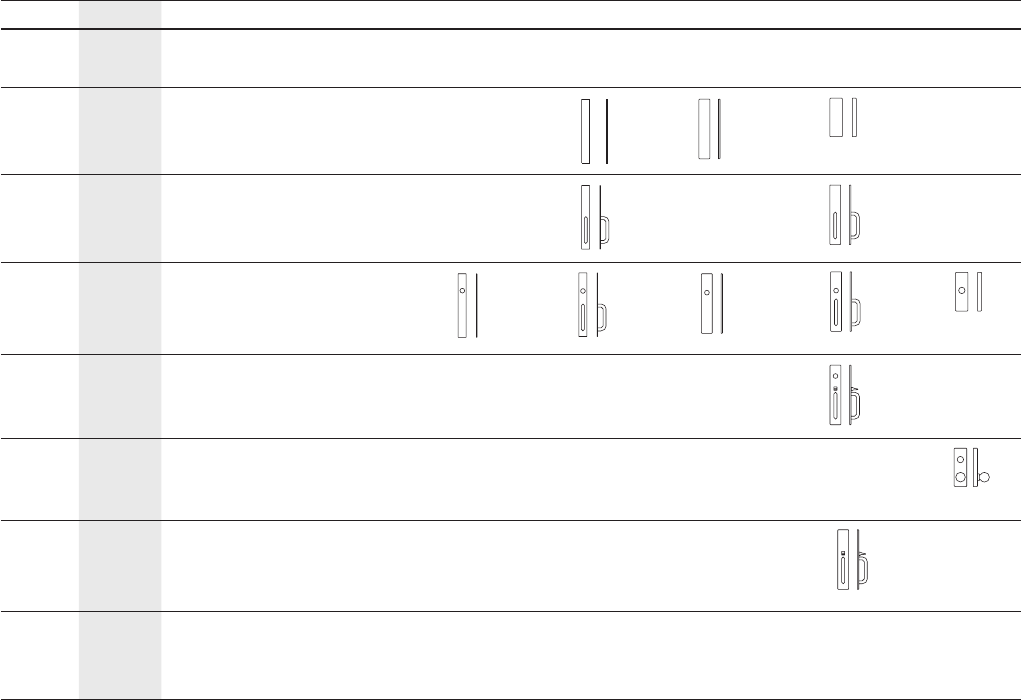

Model Function Operation Trim Model

9100

F9100

01 Exit Only (no trim)

9100

F9100

DT Dummy Trim VODTCV NPTDTCV YODT

9100 02 Entrance by trim when

actuating bar is locked down.

V102CV

V302CV

PTT02CV

PRT02CV

YP02

9100

F9100

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03CV V103CV

V303CV

NPT03CV PTT03CV

PRT03CV

YO03 YP03

CD9100 04 Entrance by trim when latch

bolt is retracted by key or set

in a retracted position by key.

VO03CV V103CV

V303CV

NPT03CV PTT03CV

PRT03CV

YO03

9100

F9100

05 Entrance by thumbpiece. Key

locks or unlocks thumbpiece.

HTT05CV

HRT05CV

9100

F9100

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

HTT06CV

HRT06CV

9100

F9100

08 Entrance by knob or lever. Key

locks or unlocks knob or lever.

YK08 Yx08

9100

F9100

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

YK09 Yx09

9100

F9100

11 Entrance by thumbturn and

pull. Key locks or unlocks

thumbturn.

Y011 YP11

9100

F9100

12 Entrance by thumbturn and pull

only when released by key. Key

removable only when locked.

Y012 YP12

9100 22 Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22CV

HRT22CV

9100

F9100

23 Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23 Yx23

Wide Stile dormakaba

9000 Series Premium Exit Devices

1-1/8

(29)

2-3/4

(70)

2-11/16

(68)

8-1/2

(216)

3-7/8

(98)

1-3/8

(35)

1-1/8

(29)

3-7/8

(98)

1-3/8

(35)

2-3/4

(70)

NOTE: When a trim designation includes an x (such as Yx23), replace x with the

letter or number assigned to the chosen lever style. For example, YR23

specifies lever style R. See page 34 for details.

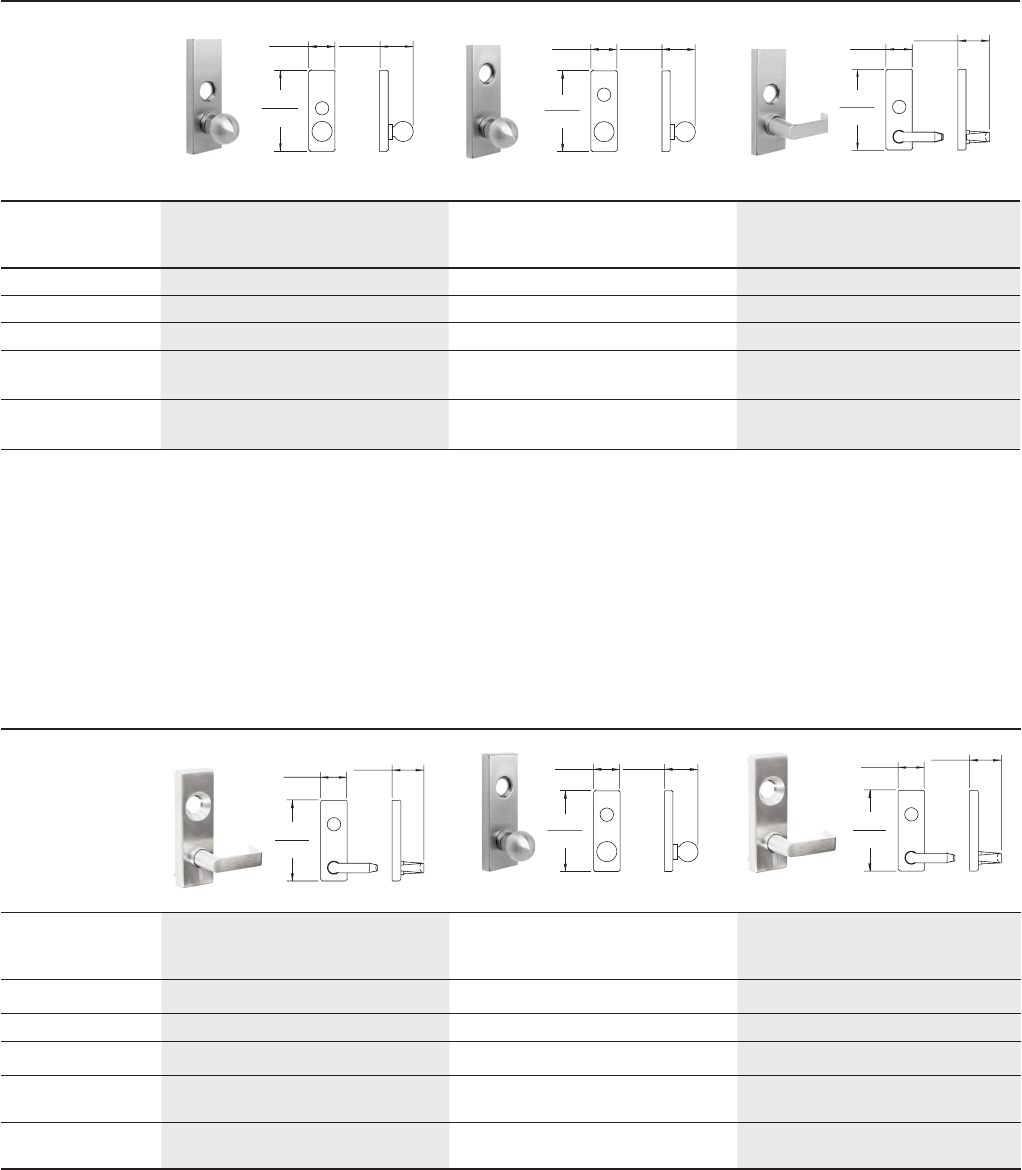

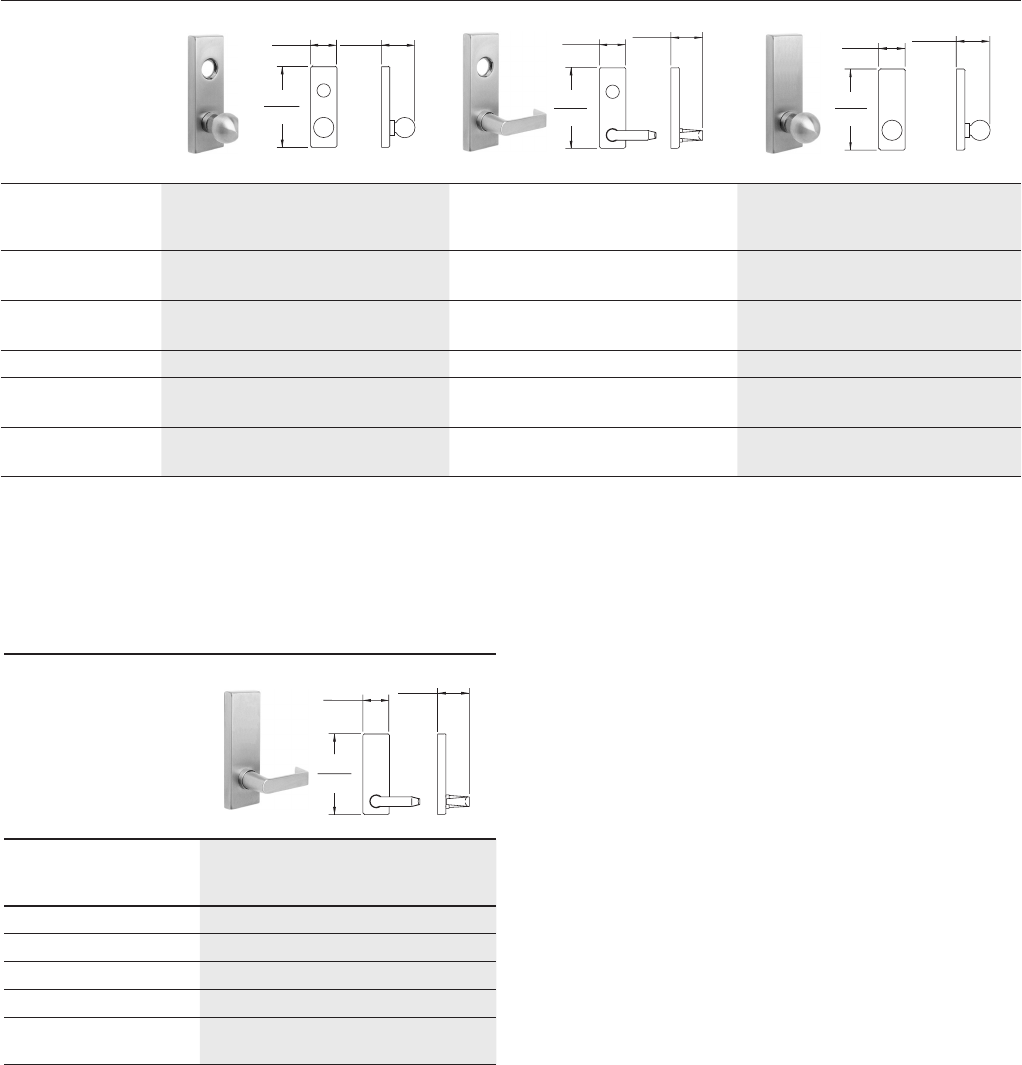

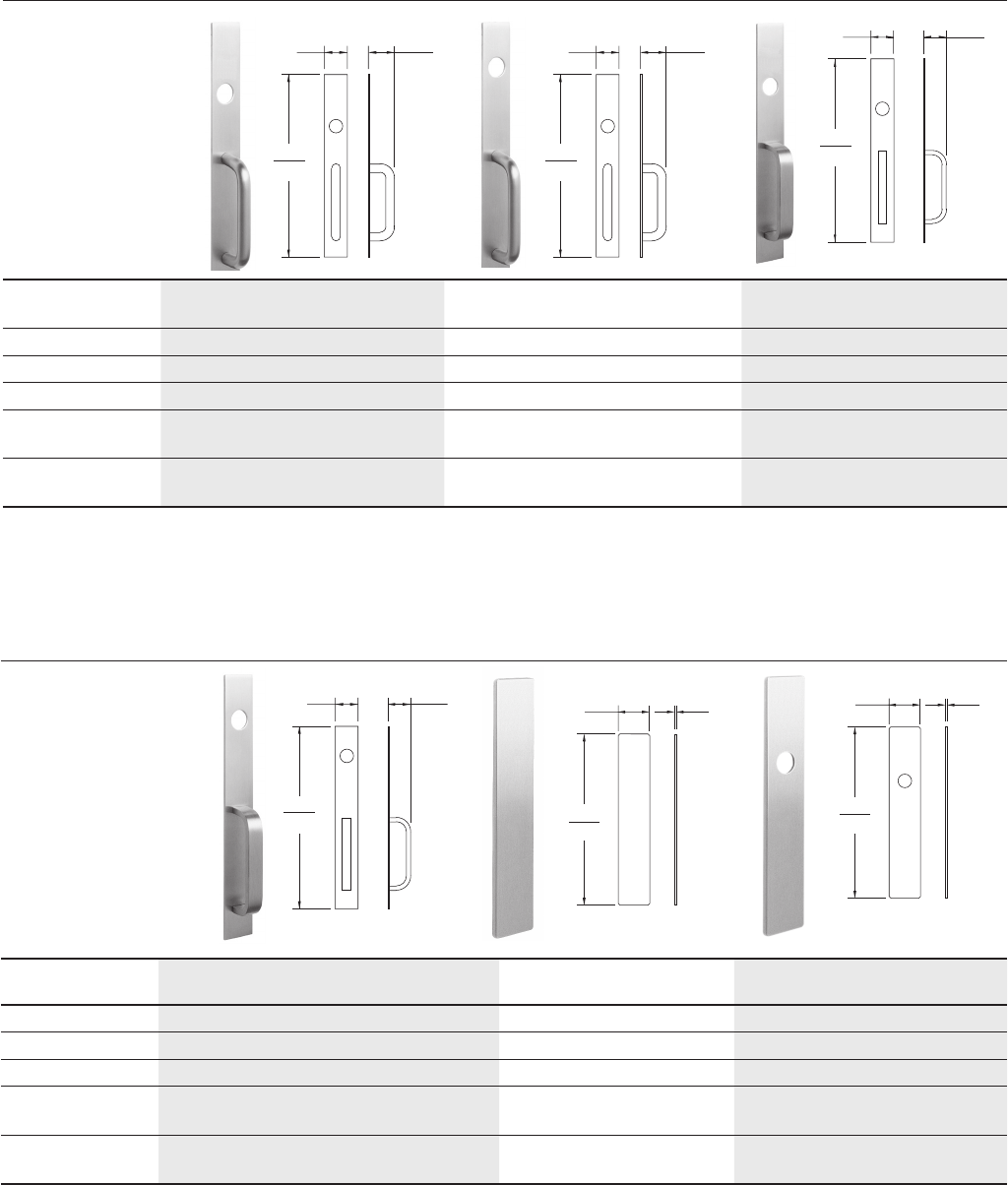

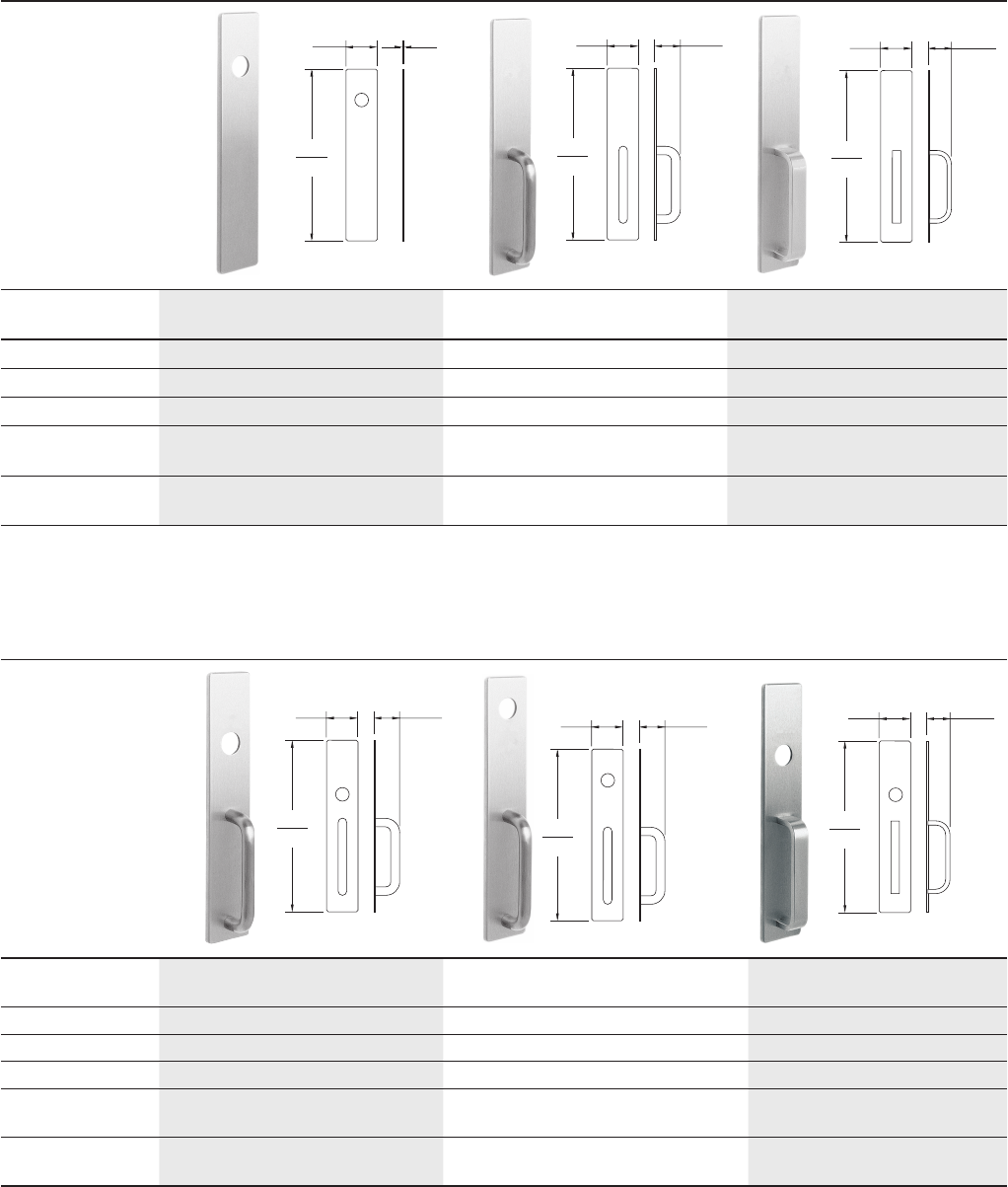

Trim Model

YK02R Yx02R

YK03R Yx03R 9K03

9K03J

9x03

9x03J

YK03R Yx03R 9K03

9K03J

9x03

9x03J

Yx08C 9K08

9K08J

9x08

9x08J

Yx09C

9K23 9x23

dormakaba Wide Stile

9000 Series Premium Exit Devices

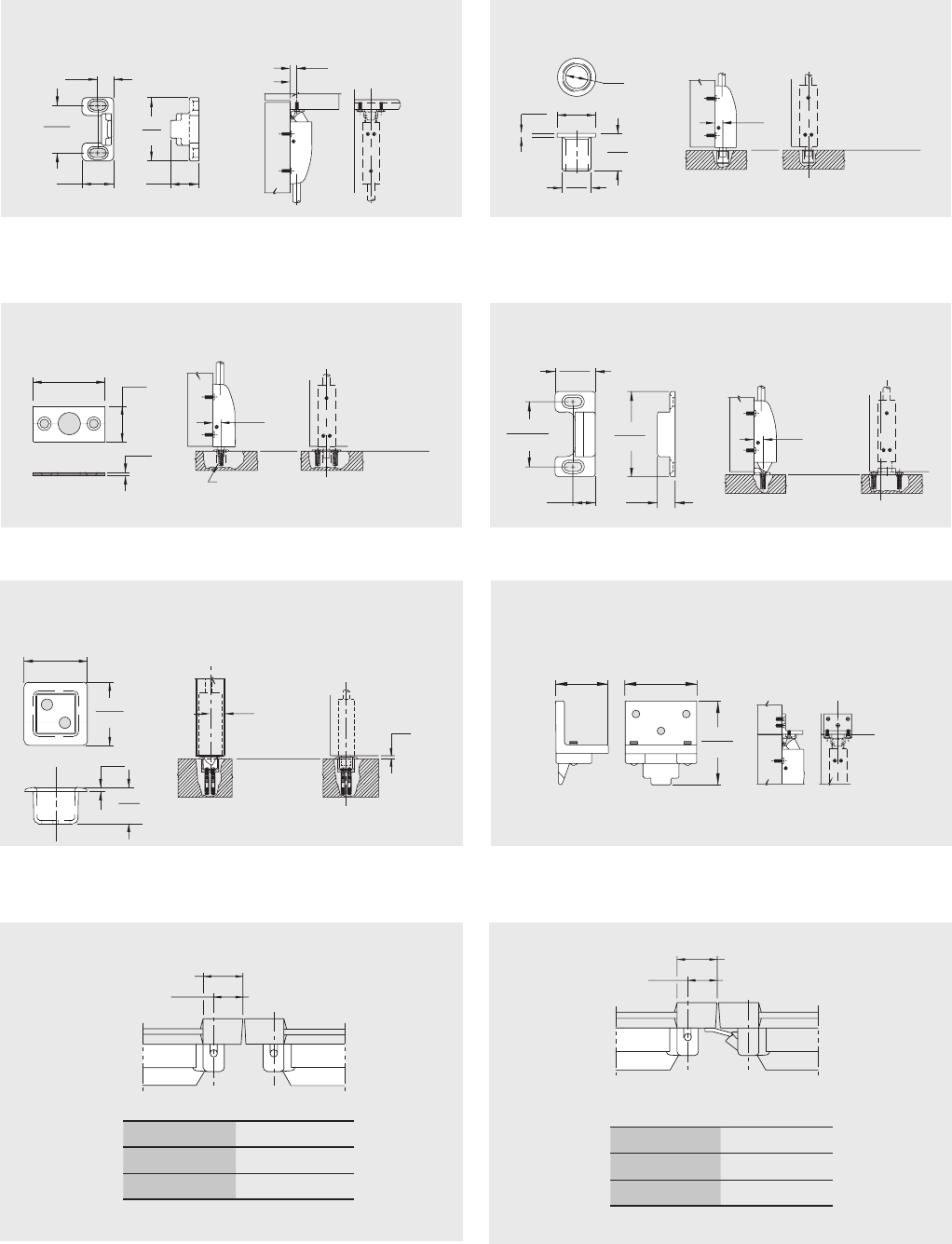

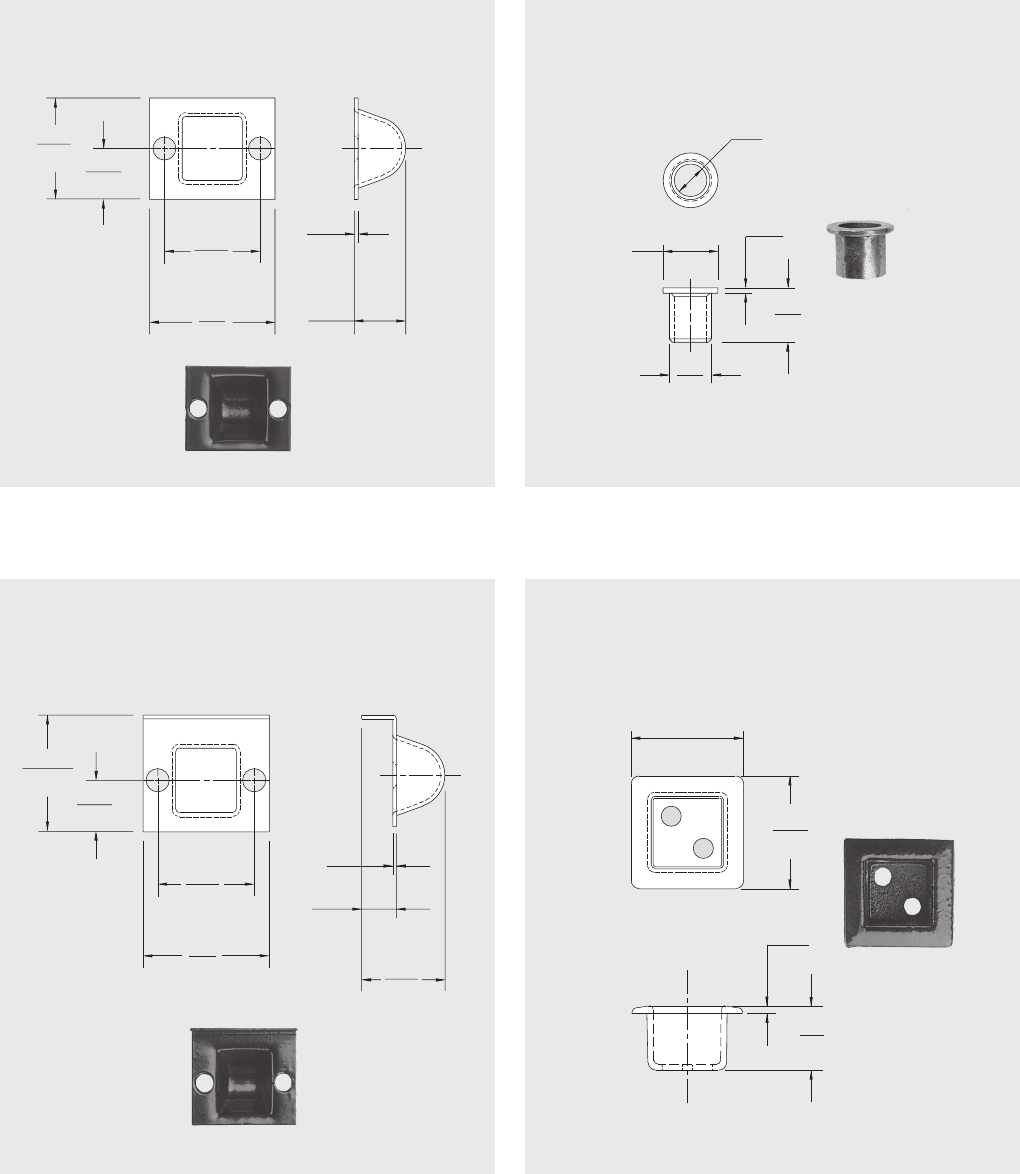

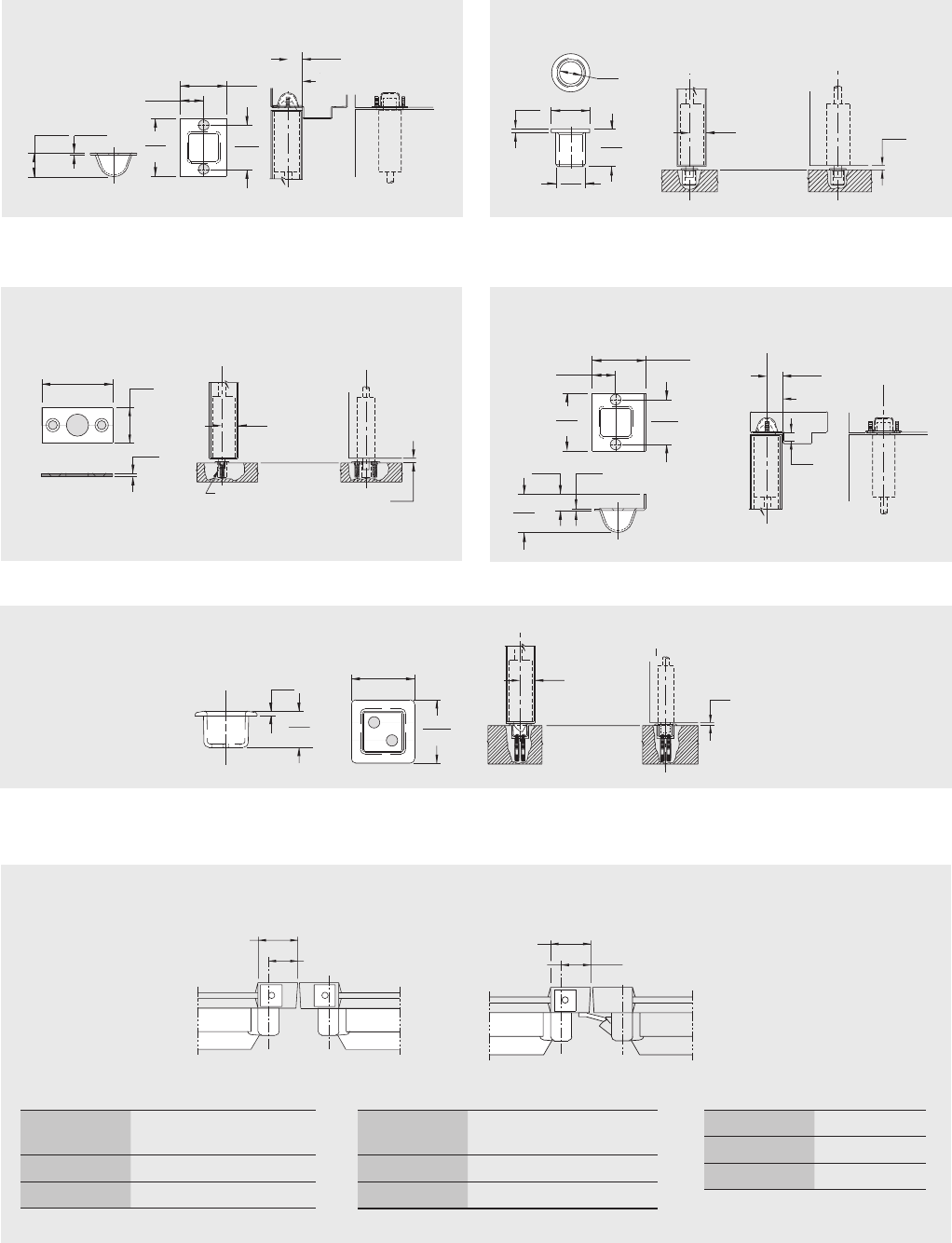

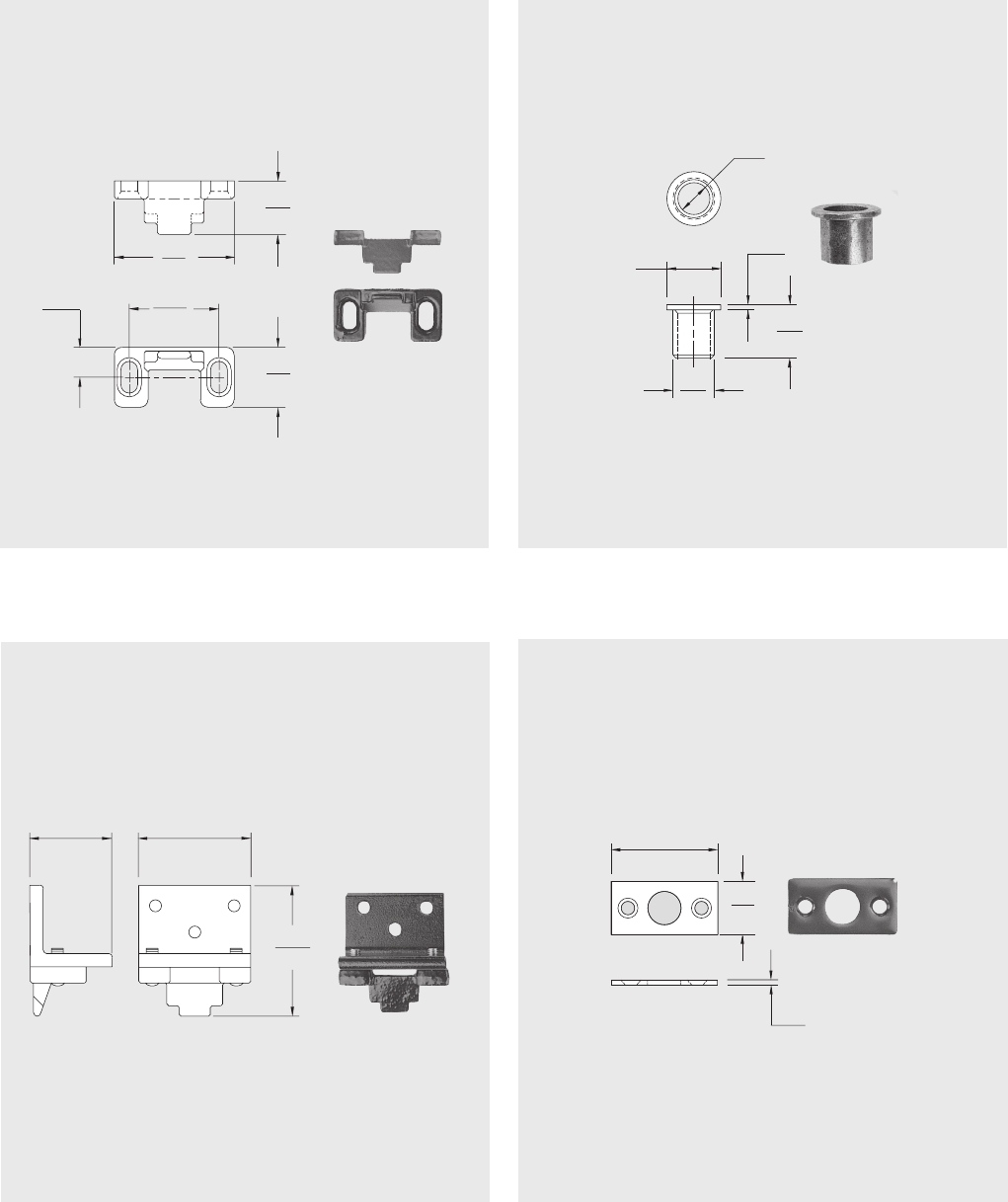

Standard Strikes

No. -

Top Strike 9100/F9100, 9100 LB/F9100 LB

No. -

Bottom Strike 9100/F9100

No. W

Top Strike for use with wood frames

No. P

Recessed Bottom Strike for use with optional pullman

bottom latch bolt

1-5/8

(41)

13/16

(21)

13/16

(20)

(51)

3/32

(2)

1-1/2

(38)

(25)

3/32

(2)

5/8

(16) I.D.

3/4

(19)

3/4

(19)

1-13/16

(46)

13/16

(21)

(51)

9/16

(14)

1-3/8

(35)

3/32

(2)

1-1/2

(38)

1-3/4

(44)

1-3/4

(44)

5/32

(4)

(25)

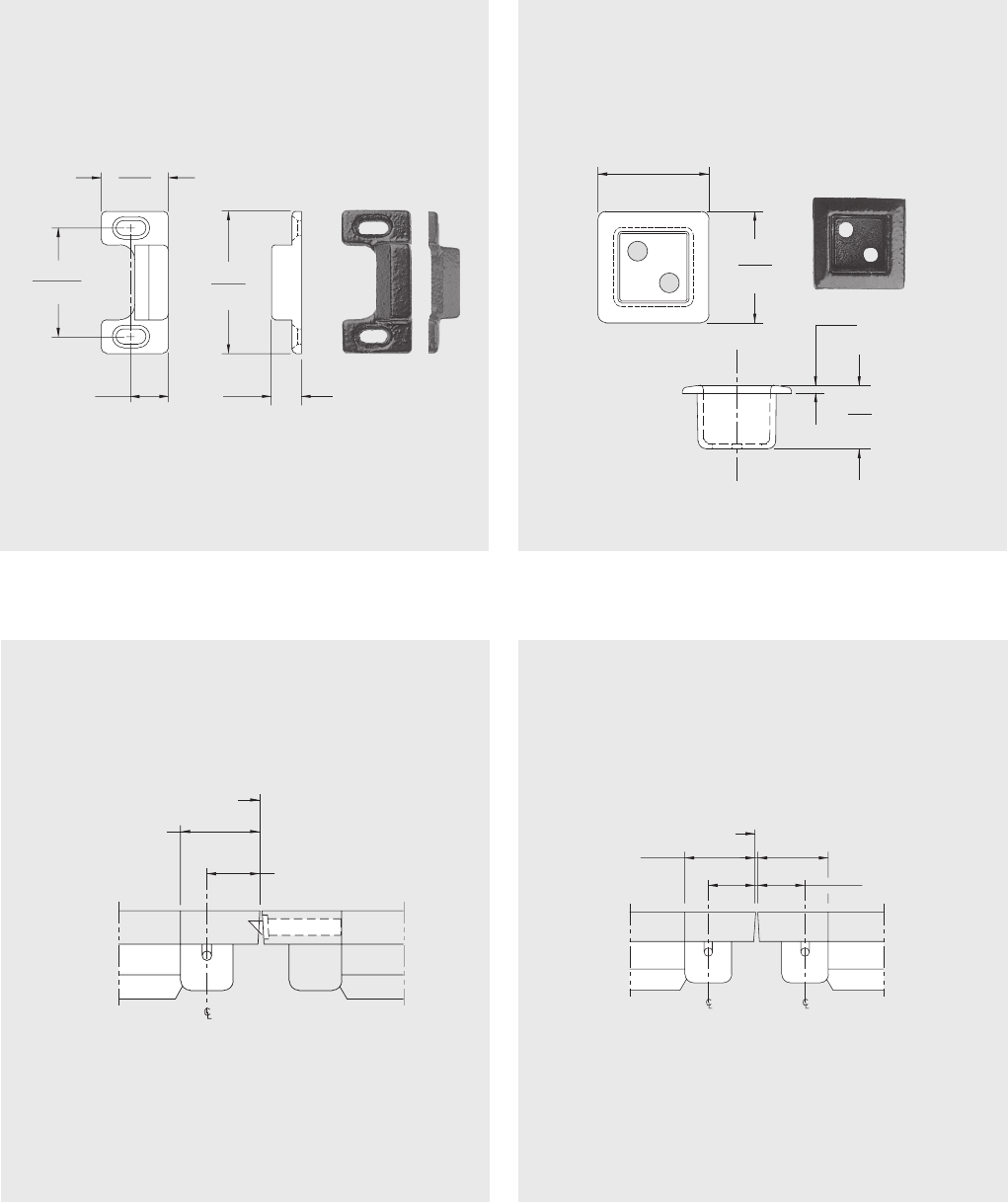

Optional Strikes

Wide Stile dormakaba

9000 Series Premium Exit Devices

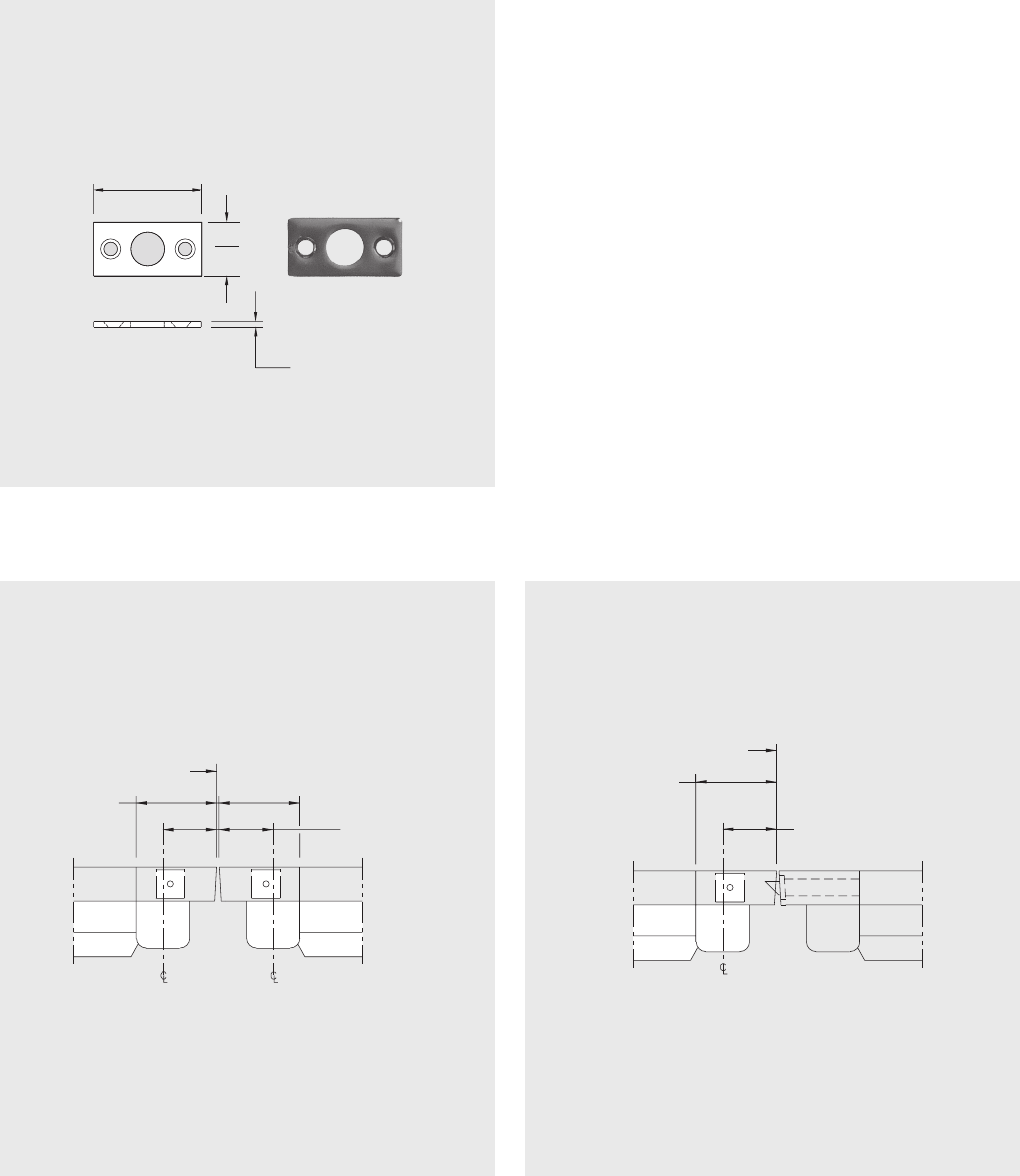

No. F

Flat Bottom Strike;

optional for use with standard bottom slidebolt

Pair Concealed Vertical Rod Concealed Vertical Rod × Mortise

(51)

(25)

3/32

(2)

Edge of Door

Minimum Stile

Vertical Reference

2-3/4

(70)

4-3/16

(106)

4-3/16

(106)

2-3/4

(70)

Edge of Door

Minimum Stile

Vertical Reference

Minimum Stile & Vertical Reference

Optional Strikes

dormakaba Wide Stile

9000 Series Premium Exit Devices

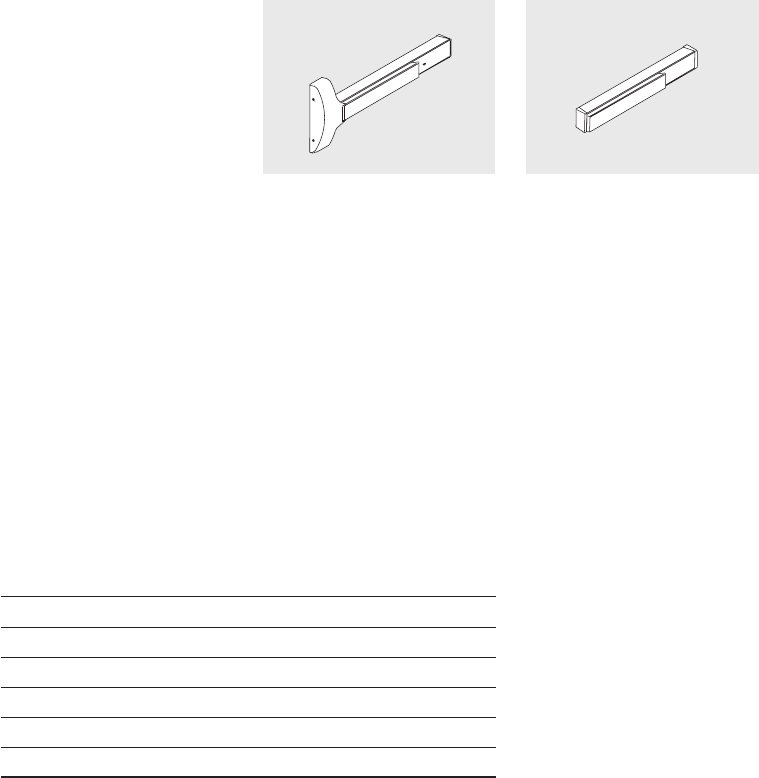

9300/F9300 Wide Stile Rim Exit Devices

The 9300 and F9300 present

a simple, heavy-duty, easily

installed solution where high

quality panic and fire-listed

harDAre is needed. The

patented exit devices in the

9300 and F9300 Series are

available in a full range of

finishes and trim options. The

F9300 Series devices carry an

“A” label for three-hour steel

fire door applications.

Model Function Operation Trim Model Trim Model

9300

F9300

01 Exit Only

(no trim)

9300

F9300

DT Dummy Trim VODT NPTDT YODT

9300 02 Entrance by trim when

actuating bar is locked down.

V102

V302

PTT02

PRT02

YP02 YK02R Yx02R

9300

F9300

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03 V103

V303

NPT03 PTT03

PRT03

YO03 YP03 YK03R Yx03R 9K03

9K03J

9x03

9x03J

9300

F9300

05 Entrance by thumbpiece. Key

locks or unlocks thumbpiece.

HTT05

HRT05

9300

F9300

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

HTT06

HRT06

9300

F9300

08 Entrance by knob or lever. Key

locks or unlocks knob or lever.

YK08 Yx08 Yx08C 9K08

9K08J

9x08

9x08J

9300

F9300

08×08 Entrance by lever. Outside or

inside key locks or unlocks

lever.

YK08×08 Yx08×08

9300

F9300

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

YK09 Yx09 Yx09C

9300

F9300

11 Entrance by thumbturn and

pull. Key locks or unlocks

thumbturn.

Y011 YP11

9300

F9300

12 Entrance by thumbturn and pull

only when released by key. Key

removable only when locked.

Y012 YP12

9300 22 Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22

HRT22

9300

F9300

23 Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23 Yx23 9K23 9x23

Wide Stile dormakaba

9000 Series Premium Exit Devices

Model Function Operation Trim Model Trim Model

9300

F9300

01 Exit Only

(no trim)

9300

F9300

DT Dummy Trim VODT NPTDT YODT

9300 02 Entrance by trim when

actuating bar is locked down.

V102

V302

PTT02

PRT02

YP02 YK02R Yx02R

9300

F9300

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03 V103

V303

NPT03 PTT03

PRT03

YO03 YP03 YK03R Yx03R 9K03

9K03J

9x03

9x03J

9300

F9300

05 Entrance by thumbpiece. Key

locks or unlocks thumbpiece.

HTT05

HRT05

9300

F9300

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

HTT06

HRT06

9300

F9300

08 Entrance by knob or lever. Key

locks or unlocks knob or lever.

YK08 Yx08 Yx08C 9K08

9K08J

9x08

9x08J

9300

F9300

08×08 Entrance by lever. Outside or

inside key locks or unlocks

lever.

YK08×08 Yx08×08

9300

F9300

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

YK09 Yx09 Yx09C

9300

F9300

11 Entrance by thumbturn and

pull. Key locks or unlocks

thumbturn.

Y011 YP11

9300

F9300

12 Entrance by thumbturn and pull

only when released by key. Key

removable only when locked.

Y012 YP12

9300 22 Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22

HRT22

9300

F9300

23 Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23 Yx23 9K23 9x23

2-11/16

(68)

2-3/4

(70)

8-1/2

(216)

2-3/4

(70)

POF03HDA

NOTE: When a trim designation includes an x (such as Yx 23), replace x with

the letter or number assigned to the chosen lever style. For example,

YR23 specifies lever style R. See page 34 for details.

dormakaba Wide Stile

9000 Series Premium Exit Devices

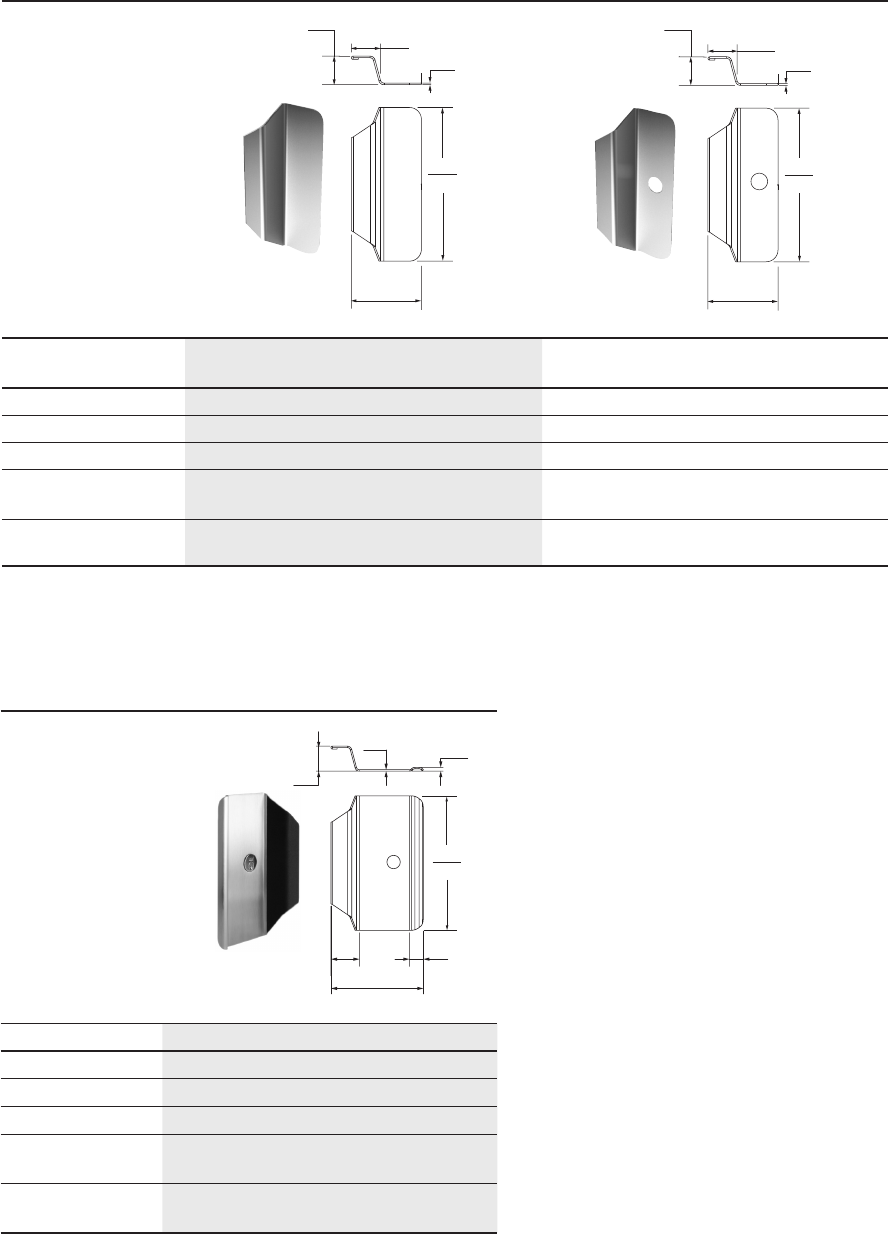

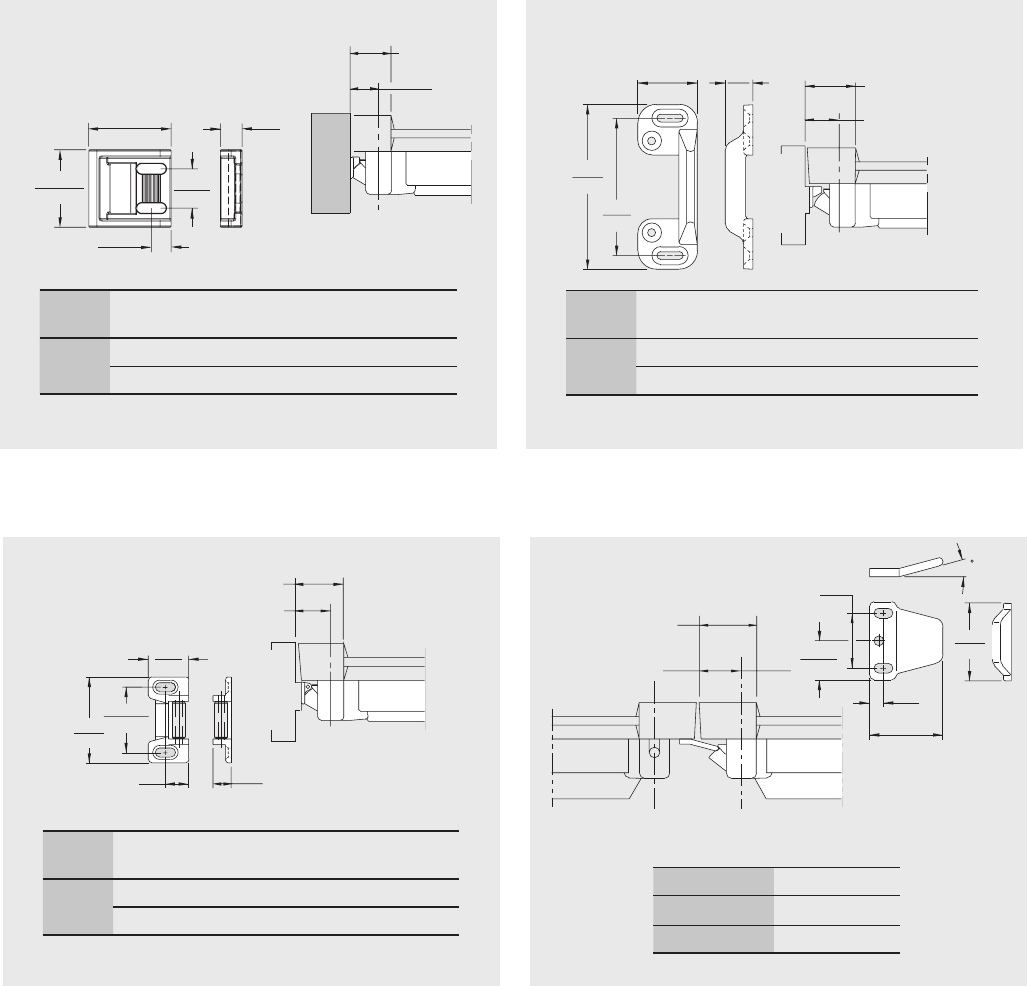

No. B

Box Strike with 9300

No. R

Roller Strike for use with 9300

No. V

Overlap Strike for use with 9300, not fire rated

29/32

(23)

1-57/64

(48)

1/2

(13)

1-25/32

(45)

29/64

(12)

1-1/8

(29)

1-13/16

(46)

3/8

(60)

5/8

(16)

3/4

(19)

1-1/2

(38)

3/8

(10)

(51)

2-1/8

(54)

15º

1/16

(27)

No. -

Standard Strike with 9300 and F9300

1-5/8

(41)

1/2

(114)

3-3/4

(95)

3/4

(19)

Standard Strike

Optional Strikes

Optional Strike

Wide Stile dormakaba

9000 Series Premium Exit Devices

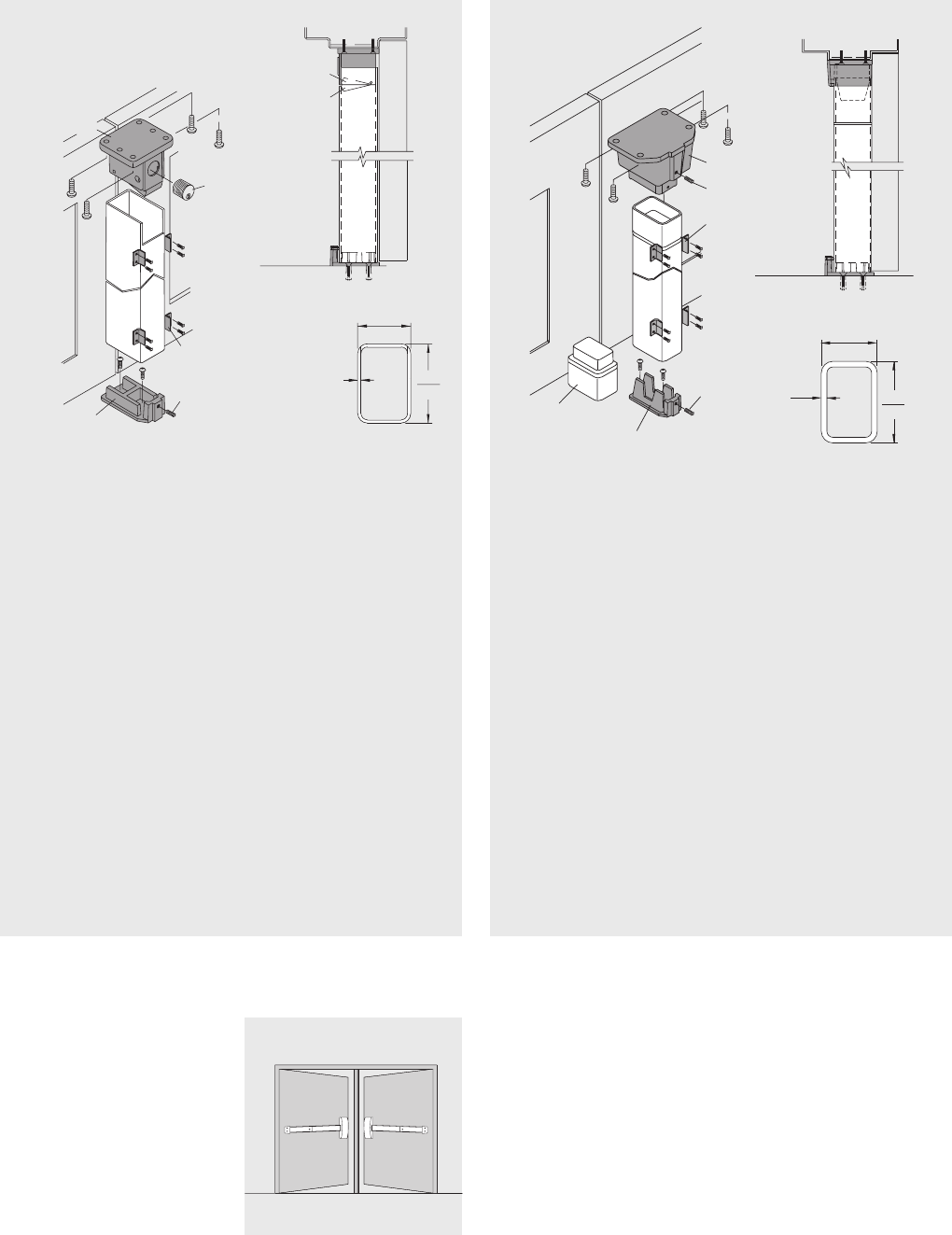

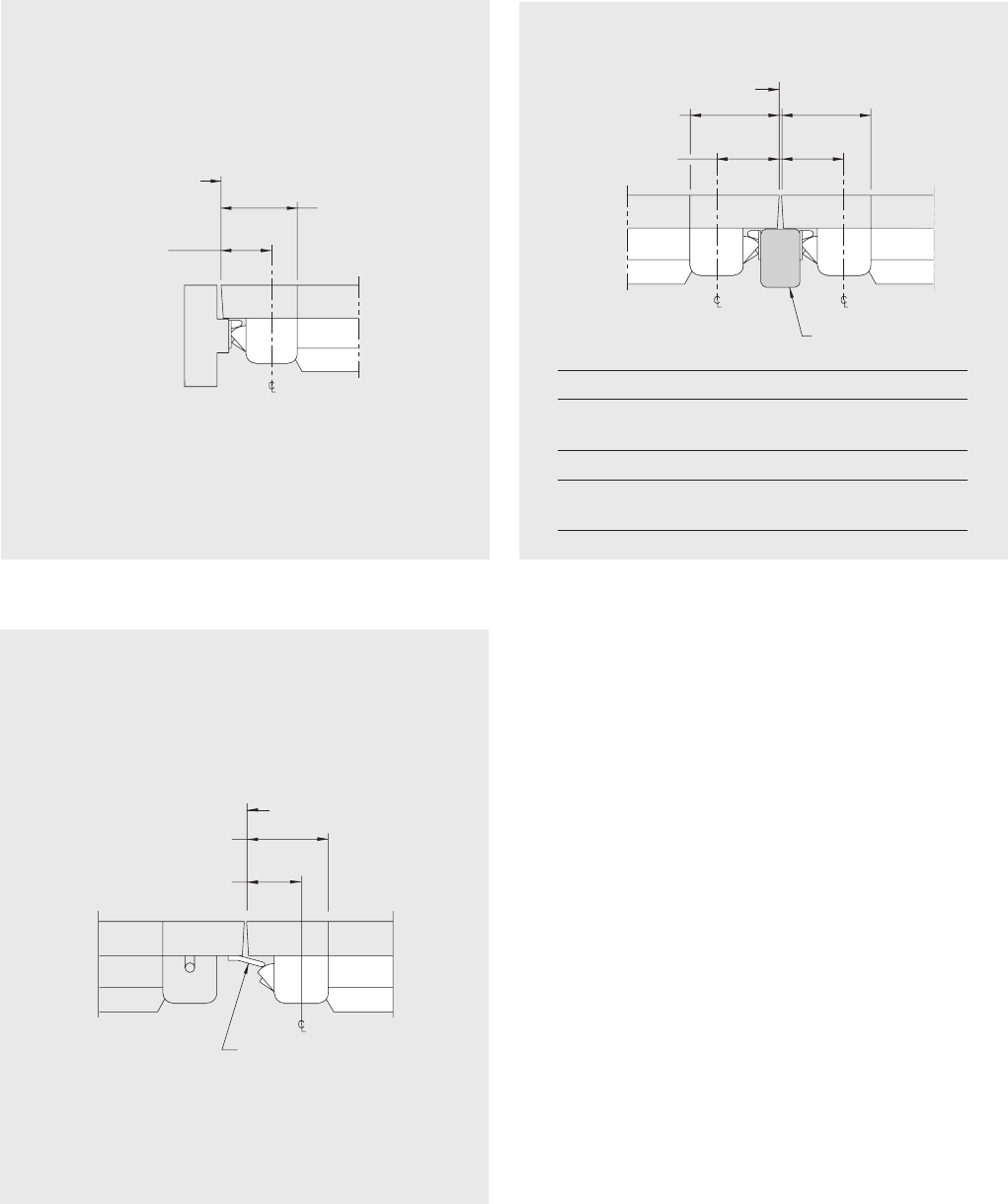

Single Door Pair Doors with Mullion

Rim and Vertical Rod

Pair Doors with No Mullion

Edge of Door

Minimum Stile

2-13/16

(71)

4-1/4

(108)

rtical Reference

Overlap Strike

Edge of Door

(102)

2-1/2

(64)

Vertical Reference

Minimum Stile

Edge of Door

Minimum Stile

Mullion

Vertical Reference

Mullion Strike Vert. Ref. Min. Stile

1310 All 2-3/4"

(70)

4-3/16" (106)

1330 All 3" (76) 4-7/16" (113)

(F)1300

(F)1F(KR)

All 3-1/4"

(83)

4-11/16" (119)

Minimum Stile & Vertical Reference

dormakaba Wide Stile

9000 Series Premium Exit Devices

9400/F9400 Wide Stile Surface

Vertical Rod Exit Devices

The 9400 and F9400 provide

heavy-duty, secure, two-point

latching at the top and bottom

of the opening. Both the 9400

and F9400 Series feature

a patented latch design for

reliable, secure operation. The

F9400 devices are U.L.-listed

for three-hour steel fire door

applications.

Model Function Operation Trim Model Trim Model

9400

F9400

01 Exit Only

(no trim)

9400

F9400

DT Dummy Trim VODT NPTDT YODT

9400 02 Entrance by trim when

actuating bar is locked down.

V102

V302

PTT02

PRT02

YP02 YK02R Yx02R

9400

F9400

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03 V103

V303

NPT03 PTT03

PRT03

YO03 YP03 YK03R Yx03R 9K03

9K03J

9x03

9x03J

9400

F9400

05 Entrance by thumbpiece. Key

locks or unlocks thumbpiece.

HTT05

HRT05

9400

F9400

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

HTT06

HRT06

9400

F9400

08 Entrance by knob or lever.

Key locks or unlocks knob or

lever.

YK08 Yx08 Yx08C 9K08

9K08J

9x08

9x08J

9400

F9400

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

YK09 Yx09 Yx09C

9400

F9100

11 Entrance by thumbturn and

pull. Key locks or unlocks

thumbturn.

Y011 YP11

9400

F9100

12 Entrance by thumbturn and pull

only when released by key. Key

removable only when locked.

Y012 YP12

9400 22 Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22

HRT22

9400

F9400

23 Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23 Yx23 9K23 9x23

Wide Stile dormakaba

9000 Series Premium Exit Devices

1-1/4

(32)

2-3/4

(70)

8-1/2

(216)

1-9/16

(40)

2-3/4

(70)

4-3/8

(111)

1-1/4

(32)

1-9/16

(40)

2-11/16

(68)

1/2

(13)

4-3/8

(111)

Model Function Operation Trim Model Trim Model

9400

F9400

01 Exit Only

(no trim)

9400

F9400

DT Dummy Trim VODT NPTDT YODT

9400 02 Entrance by trim when

actuating bar is locked down.

V102

V302

PTT02

PRT02

YP02 YK02R Yx02R

9400

F9400

03 Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03 V103

V303

NPT03 PTT03

PRT03

YO03 YP03 YK03R Yx03R 9K03

9K03J

9x03

9x03J

9400

F9400

05 Entrance by thumbpiece. Key

locks or unlocks thumbpiece.

HTT05

HRT05

9400

F9400

06 Entrance by thumbpiece only

when released by key. Key

removable only when locked.

HTT06

HRT06

9400

F9400

08 Entrance by knob or lever.

Key locks or unlocks knob or

lever.

YK08 Yx08 Yx08C 9K08

9K08J

9x08

9x08J

9400

F9400

09 Entrance by knob or lever only

when released by key. Key

removable only when locked.

YK09 Yx09 Yx09C

9400

F9100

11 Entrance by thumbturn and

pull. Key locks or unlocks

thumbturn.

Y011 YP11

9400

F9100

12 Entrance by thumbturn and pull

only when released by key. Key

removable only when locked.

Y012 YP12

9400 22 Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22

HRT22

9400

F9400

23 Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23 Yx23 9K23 9x23 NOTE: When a trim designation includes an x (such as Yx23), replace x

with the letter or number assigned to the chosen lever style. For

example, YR23 specifies lever style R. See page 34 for details.

dormakaba Wide Stile

9000 Series Premium Exit Devices

No. -

Top Strike 9400/F9400, 9400 LB/F9400 LB

No. -

Bottom Strike 9400/F9400

No. -A

Top strike with angle bracket for use with flush door and frame

No. F

Flat bottom strike for use with standard bottom slidebolt

1/2

(13)

(51)

3/4

(19)

1-1/2

(38

(25)

(25

)

3/32

(2)

5/8

(16) I.D.

3/4

(19)

3/4

(19)

1-1/2

(38)

(51)

2-1/4

(57)

(51)

(25)

3/32

(2)

Standard Strikes

Optional Strikes

Wide Stile dormakaba

9000 Series Premium Exit Devices

No. R

Surface mount bottom strike for use with optional

pullman bottom latch

No. P

Recessed bottom strike for use with optional pullman

bottom latch bolt

Vertical Rod × Mortise Pair Vertical Rod

1-1/8

(29)

2-3/8

(60)

1/2

(13)

1-13/16

(46)

5/8

(16)

Edge of Door

Minimum Stile

Vertical Reference

4-3/16

(106)

2-3/4

(70)

1-3/4

(44)

1-3/4

(44)

5/32

(4)

(25)

1-3/4

(44)

1-3/4

(44)

5/32

(4)

(25)

Edge of Door

Vertical Referenc

4-3/16

(106) 2-3/4

(70)

Minimum Stile

Optional Strikes

Minimum Stile & Vertical Reference

dormakaba Wide Stile

9000 Series Premium Exit Devices

9500/F9500 Wide Stile Mortise Lock Exit Devices

The 9500 and F9500 include

a heavy-duty, high quality

deadlocking mortise lock that

provides a high level of security

and exceptional durability. The

F9500 Series devices are

U.L.-listed for three-hour steel

fire door applications.

New mortise lock chassis with

several new benefits including

easier and faster to field

reverse.

¹ Uses 08 function lock case

² Uses 03 function lock case—

Uses 08 Lock case with #13

cam to achieve 03 function.

³ Uses 05 function lock case

Model Function Operation Trim Model Trim Model

9500

F9500

011Exit Only

(no trim)

9500

F9500

DT1Dummy Trim VODT NPTDT YODT

9500 021Entrance by trim when

actuating bar is locked down.

V102M

V302M

PTT02M

PRT02M

YP02 YK02R Yx02R

9500

F9500

032Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03M V103M

V303M

NPT03M PTT03M

PRT03M

YO03M YP03 YK08M Yx03MR

9500

F9500

053Entrance by thumbpiece.

Key locks or unlocks

thumbpiece.

HTT05M

HRT05M

9500

F9500

081Entrance by knob or lever.

Key locks or unlocks knob

or lever.

YK08M Yx08M Yx08MC

9500 223Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22M

HRT22M

9500

F9500

231Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23M Yx23M

NOTES:

• When a trim designation includes an x (such as Yx23), replace x with

the letter or number assigned to the chosen lever style. For example,

YR23 specifies lever style R. See pages 34-35 for details.

• When ordering a 9500 device without trim, specify the handing and de

vice function so the correct mortise lock can be supplied.

Wide Stile dormakaba

9000 Series Premium Exit Devices

Model Function Operation Trim Model Trim Model

9500

F9500

011Exit Only

(no trim)

9500

F9500

DT1Dummy Trim VODT NPTDT YODT

9500 021Entrance by trim when

actuating bar is locked down.

V102M

V302M

PTT02M

PRT02M

YP02 YK02R Yx02R

9500

F9500

032Entrance by trim when latch

bolt is retracted by key. Key

removable only when locked.

VO03M V103M

V303M

NPT03M PTT03M

PRT03M

YO03M YP03 YK08M Yx03MR

9500

F9500

053Entrance by thumbpiece.

Key locks or unlocks

thumbpiece.

HTT05M

HRT05M

9500

F9500

081Entrance by knob or lever.

Key locks or unlocks knob

or lever.

YK08M Yx08M Yx08MC

9500 223Entrance by thumbpiece (no

cylinder). Trim always active.

HTT22M

HRT22M

9500

F9500

231Entrance by knob or lever

(no cylinder). Knob or lever

always active.

YK23M Yx23M

2-11/16

(68)

2-3/4

(70)

2-3/4

(70)

8-1/2

(216)

1-1/4

(32)

dormakaba Wide Stile

9000 Series Premium Exit Devices

(Handed)

Edge of Door

Lock Depth

Vertical

Reference (70)

2-3/4

(see lock above)

Single Doors

Vertical Reference 2-3/4

(70)

Edge of Door

Lock Depth(see lock above)

Mortise & Vertical Rod Pair Doors

Available Functions – 03, 05, 08

Mortise Lock

Vertical Reference

1-1/4

(32)

4-1/4

(108)

(203)

(152

)

4-3/6

(107)

2-3/4

(70)

(76)

Lorem ipsum

No. 565 Strike Standard

4-7/8

(124)

1-1/4

(32)

1-7/8

(48)

3-3/8

(86)

3/32

(2)

3/4

(19)

No. -

Standard strike with

9500/F9500

No. O

Non-handed open back strike (Double door

applications)

Standard Strike Optional Strike

1-1/4"

3/4"

3-3/8"

-7/8"

4-1/8"

1/4"

5/8"

7/8"

3/4" REF

7/8"

1/8"

2-5/

Wide Stile dormakaba

9000 Series Premium Exit Devices

Non-functioning Exit Devices

The non-functioning exit

device looks exactly like the

9000 Series, but has no

latching mechanism. Units

can be furnished in standard

A, B, or C width or cut to

special size when door width

is specified. Order any

applicable trim for push/pull

function. Choose the type of

operation required.

Rigid Touchbar Device

Touchpad is permanently

fixed and immobile.

9035 – Wide Stile.

Moveable Touchbar Device

Same as rigid touchbar

device, but touchbar is

moveable. Similar to

standard 9000 Series device.

9036 – Wide Stile.

Moveable Touchbar Device

with Microswitch

Same as moveable touchbar

device, but includes

microswitch that can be used

to control electromagnetic

locks, electric strikes, or other

electronic appliances.

9036MS – Wide Stile.

Sex Nuts

The chart above serves as a simple reference when

specifying 9000 Series exit devices and trim.

Dummy Bar

The dummy bar is designed

as a companion to 9000

Series devices. Units consist

of the touchbar assembly

only and do not include the

device chassis or chassis

cover. Door width must be

specified.

Rigid Dummy Bar

Touchbar only. Touchpad is

permanently fixed and

immobile.

9030 – Wide Stile.

Dummy Bar with

Microswitch

Touchbar is moveable and

activates included

microswitch. Can be used to

control electromagnetic locks,

electric strikes, or other

electronic appliances.

9030MS – Wide Stile.

Vision Lite Shim Kit

Contains two 1/8" thick

shims. Permits shimming of

the exit device maximum 1/4"

off door face without

affecting U.L. listing.

Designed to accommodate

glass lite installed in door.

Furnished Bright Zinc Plated

(BZP). Optional finishes

available, consult factory.

GK9000 – Wide Stile.

Conversion Kits

The following conversion kits

are the same as options

detailed elsewhere in this

brochure, but in kit form with

required components and

installation instructions for

field installation/retrofit.

MS Kit – Monitor Switch in

Touchbar Kit

BA Kit – Battery Powered

Exit Alarm Kit

BAR Kit – Battery Powered

Exit Alarm, 4 Minute Reset Kit

DA Kit – Direct Wired Alarm

Kit

CD Kit – Cylinder Dogging Kit

(less cylinder)

Security Screws

For applications where tam-

per-resistant security screws

are required, specify T.

NOTE: Special screw bits are required.

9100/F9100 3 packs

9100/F9100 w/trim 1 pack

9300 3 packs

F9300 4 packs

9300/F9300 w/trim 1 pack

9400/F9400 6 packs

9400/F9400 w/trim 4 packs

9500/F9500 3 packs

9500/F9500 w/trim 1 pack

Accessories

dormakaba Wide Stile

9000 Series Premium Exit Devices

Motorized Latch Bolt Retraction

Specify MLR. A motor

concealed in the touchbar

assembly provides retraction

of the latch bolt by drawing

in the touch bar to allow

access from the secure side

of the door. MLR can also be

used to electrically dog/hold

the exit push bar in a retracted

position during non-secure

hours (latch bolt is retracted).

Remote control can be

accomplished with switching

devices such as key switches

and card readers that provide

a normally open electrical

contact. The motor is rated

at 24 VDC, .88 AMP.

The motor draws approximately

400 milliamp during continuous

operation. Use of either

PS610RF or PS532RF is

recommended to power one

or two MLR devices respectively.

The 9000 MLR can also be

powered with ED900 Low

Energy ADA Operator.

Electric Latch Bolt Retraction

Specify ES. A solenoid concealed

in the touchbar assembly

provides instantaneous

retraction of the latch bolt to

allow access from the secure

side of the door. Remote control

can be accomplished with

switching devices such as key

switches and card readers

that provide a normally open

electrical contact. The solenoid

is rated for 24 VDC, 14–18 AMP

continuous duty, 24 VDC, 14–18

AMP inrush for 200 millisec-

onds, 1 AMP holding current.

Requires PS501 power supply.

Battery Back-up

Battery Back-up power supply

options are available when

using either the PS406BB or

PS462BB power supplies.

Specify E- when ordering

Electric Latch Bolt Retraction

exit device.

Requires PS501 power supply

& ES105 power transfer.

Not available with C or CC

size devices, or 9500 mortise

exit devices.

Monitor Switch

Specify MS. Two micro

switches in the touchbar

assembly functioning as form

C contacts provide local and/

or remote notification of two

separate appliances when

the touchbar is depressed.

Each switch is rated for .5

AMP @ 28 VDC maximum.

Latch Monitor

Specify LM. A microswitch

attached to the device chassis

provides local and/or remote

notification of the exit device

rods without depressing the

touchbar. The single-pole,

double-throw switch is rated

at .50 AMP @ 28 VDC

maximum.

Latch Monitor

with Monitor Switch

Specify LM/MS. A combination

of Latch Monitor and Monitor

Switch functions in one device.

Latch Monitor with Monitor

Switch & Bypass

Specify LM/MS BP. Same as

LM/MS above, but an

additional single-pole, double-

throw switch is triggered by a

mortise cylinder for alarm

bypass. Cylinder furnished.

Motorized Dogging

Specify MLR. This feature

can be used to electrically

dog/hold the exit push bar in

a retracted position during

non-secure hours. (Latch bolt

is retracted.)

PS Series Power Supplies

The ES100 Power Supply is

capable of powering and

controlling (1) DE9000 Series

Exit Device.

• Input: 120 V

• Input Circuit Protection:

1.3 A fuse

• Output: 24 VDC, 6 A surge

for 0.5 seconds, .65 A

continuous, per zone

• Output Circuit Protection:

3 A push to reset circuit

breaker

• Enclosure: 8" H × 8" W ×

4" D NEMA 1 Type

enclosure for indoor use

with hinged cover and

knock-outs

The PS501 Power Supply is

capable of powering and

controlling (2) 9000 Series

Exit Devices with the ES Electric

Latch Bolt Retraction feature.

Also has the capability of

powering (2) additional 9000

Series Exit Devices with an

optional card. Specify option

ES2 CARD.

• Input: 120 volts

• Input circuit protection:

1 AMP circuit breaker

• Output: 36 VDC, 14–18 AMP

surge, 2 AMP @ 5 volt

continuous, per zone,

unregulated, unfiltered

• Output circuit protection:

4 AMP fuse

• Enclosure: 8" H × 8" W × 4"

D NEMA 1 Type enclosure

for indoor use with hinged

cover and knock-outs.

The PS532RF Power Supply is

capable of powering and

controlling (2) or PS610RF

can power and control (1)

9000 Series Exit Device with

the MLR Motorized Latch Bolt

Retraction feature.

NOTE: The PS5352RF or

PS610RF can be used with

the ES105 power transfer

cable, 75200 electric

intermediate, or electric

through wire hinges when

rated to carry a minimum of

1 AMP continuous power.

Power transfer device wires

may require doubling or

tripling depending on wire

gage supplied.

• Input: 115VAC/60hz

• Output: PS532RF –

2.0A @ 24VDC, Class 2

PS610RF – 1.0A @ 24VDC,

Class 2

• Enclosure: PS532 – 14"H ×

16" W × 6.5" D PS610 –

12.5" H × 12.5" W × 4" D

The ES105 is a

power transfer

with stainless steel

housing and flexible

tube. Secure and

inconspicuous

channel to bring

power from the

frame to the door.

Narrow, shallow

channel easily

mortises into door

edges. Accepts up

to 5/16" diameter

wire bundle. Accommodates

doors that swing open 120°.

Unit is concealed when the

door is closed. Suitable for

wood, aluminum, or steel

applications.

Finish

Stainless: 630 (Satin)

Optional Electric Functions

Wide Stile dormakaba

9000 Series Premium Exit Devices

Certification

• Certified/listed

to ANSI/BHMA

156.3, Grade 1 for

exit devices.

• U.L. and C.U.L.

listed under their

continuing

reinspection

programs and conforms to

standard U.L. 10C positive

pressure testing.

• Complies with NFPA 101

life safety code. Fire rated

devices comply with NFPA

80 fire doors and windows.

Field selectable to comply

with IBC 2012

• Devices, trim, pulls,

and levers comply

with the Americans

for Disabilities Act,

1994, and ICC A117.1 for

accessible and usable

buildings and facilities.

• Contributes to U.S. Green

Building Council, LEED MR

Credits 2.1, 4.1, 4.2 and 5.1.

• Listed with the California

Department of Forestry

and Fire Protection, Office

of the State Fire Marshal

(wide stile devices only).

• Hurricane-code approved

to Miami-Dade County

Florida and Florida State

Building Code acceptance

(9300, 9400, 9500, 9700).

Specifications

• All devices shall be DE9000

Series delayed exit devices

with ES105 power transfer

and ES100 powersupply.

• Devices shall be rim, mortise,

or concealed vertical rod.

• Devices to have a nuisance

alarm with a steady tone to

limit inadvertent activation.

Depressing and holding the

touchbar beyond the

nuisance alarm period must

initiate a 15 second delay

with an intermittent tone.

• Following the irreversible 15

second delay alarm period,

the device must release and

continue an indefinite

steady tone alarm until reset.

• All devices must be capable

of rearming by turning the

key switch on the device to

rearm or by using the

alternate remote rearm

capability. The same key

switch must disarm the

device for authorized

egress.

• All devices must provide two

sets of relay contacts that

activate when the device is

in an irreversible alarm to

control remote

audible/visual alarms

included in control consoles.

• All devices must have an

LED indicator light for

conveying the status of the

device.

• Internal locking feature is

required to further enhance

security when subjected to

forced opening.

• Devices must provide an

input for use with an

external door position

switch to prohibit doors

from being held open while

the device is armed.

• The device must alarm

simultaneously with the

activation of the door

position switch.

• When power is cut to the

devices, they must release

and function as typical exit

devices in the event of a fire

or emergency situation.

• All devices to have heavy-

duty cast chassis.

• All device touchbar, rail, and

cover assemblies shall be

constructed of heavy gauge

solid wrought materials for

true architectural finishes

or color coated finishes

where applicable.

• Fire rated versions shall be

available for labeled

applications.

• All concealed vertical rod

devices shall have pullman

type top latch bolts and

round slidebolt bottom latches.

• All devices to have

deadlocking latch bolts

with 3/4" throw where

applicable.

• All units shall offer a full

range of free wheeling

operational trim, except

mortise devices.

• All units shall offer optional

rigid and clutch style trim,

where applicable.

• All devices to be furnished

with appropriate mounting

harDAre including both

wood and machine screws,

as well as sex nuts where

required. An adhesive sign

with an operation directive

must be supplied.

Optional Specifications

• All devices to be furnished

with a 30 second irreversible

delay alarm. Written

approval from the authority

having jurisdiction required.

Specify 30.

• All devices for CBC

compliant applications to

include special CBC door

label. Specify CBC.

• All concealed vertical rod

devices to have pullman

type bottom latch bolt.

Specify P.

• All surface/concealed

vertical rod devices to have

extended top rod up to 10’.

Specify ETR for 8’, 9’, or 10’.

• All devices to use a glass

lite shim kit to raise the

device from the door

surface to accommodate

glass light molding. Specify

GK9000.

• All devices for labeled wood

or composite doors to be

furnished with sex bolts.

Specify SNB.

• All devices to be furnished

with rigid trim. Specify R

after trim number.

• All devices to be furnished

with clutch style lever trim.

Specify C after lever trim

number.

• All concealed vertical rod

devices installed in

aluminum doors to be

furnished with appropriate

brackets for aluminum door

applications. Specify A

(DE9100 only).

• All devices to use tamper-

resistant security screws for

attaching the end cap,

chassis cover, and strikes.

Specify T.

Finishes

Architectural Finishes

• Brass: 605 (Bright) or 606

(Satin)

• Bronze: 611 (Bright), 612

(Satin), or 613 (Oxidized

Satin)

• Nickel: 619 (Satin)

• Black: 693

• Chrome: 625 (Bright) or 626

(Satin)

• Stainless: 629 (Bright) or

630 (Satin)

Powder Coated Finishes

• Aluminum: 689

• Bronze: 691 (Dull) or 695

(Dark Duranodic)

• Black: 693

• Gold: 696

• Clear Powder Coat

available over 630 –

Stainless Steel

Specify PC

• Anti-Microbial: Specify AM

DE9000 Series Delayed Egress Exit Devices

dormakaba Wide Stile

9000 Series Premium Exit Devices

Delayed Egress

The DE9000 is alarmed and

the touchbar will not activate

the latch bolt for 15 seconds

(30 second factory option

available). This provides a

controlled delayed egress

while simultaneously sounding

a local and remote audible

alarm. After the delay time,

unrestricted emergency

egress is available.

Nuisance Alarm

The nuisance alarm, with a

steady warning tone, deters

inadvertent activation of the

device when the touchbar is

depressed. Releasing the

touchbar before the

predefined nuisance alarm

time of 1 or 3 seconds

terminates the alarm, and the

device returns to the armed

mode. Depressing the

touchbar longer than the

predefined time will initiate

the 15 second irreversible

delay cycle. The 1 or 3 second

nuisance alarm time is

included in the 15 second

irreversible delay time. The

nuisance alarm time is field-

selectable for three seconds

or one second by a dip switch.

A 30 second delay option is

available set at the factory.

Written approval is required

from the authority having

jurisdiction.

Local or Remote Alarm

Device has an internal 85 dB

alarm which will sound

indefinitely in the alarm state

until the device is reset.

Additionally, a form C relay is

provided for activating

remote audible/visual

signaling of control console or

third party console, security

panel, or other audible/visual

signaling device.

Indicator LED

Status for the DE9000 can

be determined by the

indicator LED which is visible

in varied lighting conditions.

When the device is disarmed

for an extended time in the

bypass mode, the LED will

maintain a slow green flash.

When activated for

authorized egress, the LED

displays a rapid green flash

until the device automatically

rearms. In the armed state,

the LED maintains a solid

green. When the touchbar is

depressed for exit, the

nuisance alarm will sound

while the LED remains solid

green. In the 15 second

irreversible delay cycle, the

LED turns solid yellow. In the

alarm state, the LED is solid red.

Key Switch Control

This integral key switch

provides the means to locally

rearm the device from the

alarm state, disarm for

authorized egress, and set

the device for the bypass

feature. A mortise cylinder is

supplied with the device.

Remote Authorized Egress

This function allows override

of the device in the armed

state. The device will unlock

for egress and automatically

rearm to the delayed egress

mode in 10 seconds. The field-

selectable reset time allows

up to a 20 second reset.

Typical activation devices

include remote consoles, key

switches, or card readers. This

input is controlled with a

momentary action normally

open switch.

Remote Rearm

Remote rearming of the

device is allowed from the

alarm state. Typical

activation devices include

remote consoles or key

switches. This input is

controlled with a momentary

action normally open switch.

Consult local authority having

jurisdiction when using this

feature.

Door Position Input

An input for use with an

external door position switch

is provided. This input switch

is a maintained action

normally closed contact. The

device alarms simultaneously

with the contact opening. The

door is prohibited from being

forced or held open

unauthorized while the device

is armed. The field-selectable

authorized egress and bypass

functions ignore the door

position input for authorized

exit or entrance.

Electrical Specifications

Input Power

24 VDC @ .5 A continuous

(5 A inrush for 350 ms).

Power must be provided by

an ES100 power supply.

Door Position Input

Requires a normally closed

contact.

Pigtail provided for the

following:

Input power, remote

authorization egress, remote

bypass/rearm, relay contacts

for audible/visual console,

door position switch input,

fire alarm contacts, and pairs

of doors.

DE9000 Exit Device

Terminal Block Indicator Lamp Internal Locking

Alarm Nuisance Alarm Switch

Key Switch Control

DE9000 Delayed Egress Features

Wide Stile dormakaba

9000 Series Premium Exit Devices

Alarms

The 9000 Series exit devices

are available with an integral

battery powered alarm. The

102 decibel alarm contained

in the panic device touchbar

and rail assembly activates

when the touchbar is

depressed and sounds contin-

uously until the device is reset

or the battery is completely

discharged. Alternatively, a

factory-furnished option

allows the alarm to sound for

four (4) minutes, then auto-

matically rearm.

Furnished with and controlled

by a lock cylinder and key, the

unit allows ten (10) seconds to

exit through the door after

arming the alarm, indicated by

an intermittently flashing red

LED light in the touchbar. A

yellow LED in the touchbar will

flash until manually reset by

key to indicate an unauthor-

ized exit even if the alarm has

automatically reset.

The unit is furnished with a 9

volt, industrial-grade battery

concealed in the end cap

assembly for easy replace-

ment. A tamper-proof switch

will activate the alarm if unau-

thorized removal of the bat-

tery is attempted. Option is

available for 12 or 24 volt direct

power wiring.

• Specify BA for battery

alarm device.

• Specify BAR for 4 minute

auto reset battery alarm

device.

• Specify DA for direct

hard-wired option.

• Size A device fits 48" wide

door and can be cut to fit

39" wide doors.

• Size B device fits 36" wide

door and can be cut to fit

33" wide doors.

• Size C device fits 30"

wide door.

Clutch Lever Trim

Free wheeling, vandal-

resistant lever standard,

except on 9500 mortise

devices. Although mandated

to meet ADA requirements,

lever handles are especially

subject to vandalism and

damage. The clutch option

for lever trim includes an

internal slip clutch

mechanism which allows the

lever handle to break away

without damage or violating

security when excessive force

is applied. The lever can be

lifted back to horizontal to

reset it.

Note: Clutch option available

to C, R, G & T lever styles only

An internal dead stop limits

the break away to 55° of

lever handle rotation. Specify

C to trim designation.

Specify hand.

Rigid Trim – Rigid lever and

knob option. Specify R to

trim designation.

Retrofit – For Von Duprin

98/99 Series Rim Devices.

Specify R1 (narrow and wide

plate trim only).

Electrified Trim – Electrified

Y style trim with integral

locking/unlocking option.

Trim can be used with models

9100/F9100, 9300/F9300

and 9400/F9400. Available

as fail-secure or fail-safe.

Specify EU (fail-secure) or EL

(fail-safe) following trim

designation. Available for the

09 function only. Electrified

trim options must use an

ES100 power supply to

prevent permanent damage

to the electronics. Two

devices can be powered by an

ES100 device.

Electrified option also

available with the 9500/

F9500 mortise device which

utilizes an electrified mortise

lock design to unlock hub of

chassis. Specify following exit

device designation, i.e.

9500EL (FAIL-SAFE) or

9500EU (FAIL-SECURE).

Available for all styles of trim

with an 08 function. This

option is not field

interchangeable between

fail-secure and fail-safe.

Electrified mortise locks must

use a PS610RF power supply

to prevent permanent

damage to the electronics.

Two devices can be powered

by a PS610RF device.

Auxiliary Equipment

Trim Options

dormakaba Wide Stile

9000 Series Premium Exit Devices

Finishes

Architectural Finishes

• Brass: 605 (Bright) or

606 (Satin)

• Bronze: 611 (Bright), 612

(Satin), or 613 (Oxidized

Satin Oil Rubbed)

• Nickel: 619 (Satin)

• Chrome: 625 (Bright) or

626 (Satin)

• Stainless: 629 (Bright) or

630 (Satin)

Powder Coated Finishes

• Aluminum: 689

• Bronze: 691 (Dull) or 695

(Dark Duranodic)

• Black: 693

• Gold: 696

Clear Powder Coating

Clear Powder Coat available over

630 – Stainless Steel

Specify PC

Antimicrobial Protected Coating

Specify AM

Note: Antimicrobial available to

626 and 630 finishes only

ACD

Handed Handed

Handed

GKNR

TVL109 L110

L112 L114 L117 L118

Lever & Knob Styles for Y Wide Stile Trim

Wide Stile dormakaba

9000 Series Premium Exit Devices

• Heavy-duty, vandal-

resistant escutcheon.

• Corrosion-resistant,

stainless steel offered

standard.

• Hundreds of lever and pull

styles and finish

combinations to satisfy the

most demanding interior

design requirement.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of our Custom

RAL colors, or, for those

unique interior designs,

our Designer Color special

color matching system.

• Antimicrobial protected

coating when ultra clean

environments are specified

Note: Antimicrobial

available to 626 and 630

finishes only

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.

• Conventional rim or mortise

cylinders included standard.

• Configurable with SFIC to

accommodate the

patented SC key control

system.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", select door

thickness option.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL

manufacturing facility

certified to ISO 9000 and

ISO 14001.

630

Escutcheon

605

606

625

630

689

613

612

611

691

693

695

Knob, Pull, or Lever

Handing

Electric Locking *

Finish

DSCKD

Keying

Keyway

Cylinder Type

*PC

Y Series Trim (Specify)

Cylinders &

Keying

KA2

KA4

MKD

CMK

NSK

SKD

0Bit

LHR LFSF

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based

and provides added layers of security. For more

information, contact your local sales representative

or Technical Service at 800-523-8483.

626

629

— Default

696

RHR

Function

— Double Cylinder

LFSC

Special

Finish

Coating

Suffix M required for 9500 mortise

Suffix C and LHR/RHR required

for clutch

Note: Clutch option available to

C, R, G & T lever styles only

Suffix R required for rigid lever

Custom

Designer

619

L110

L117

L118

R11

Retrofit

L109

Ext3

Ext4

Door Thickness

L112

L114

03R

08M

02R

08C

08MC

0808

03MR

09C

— Handed

Handed —

* EU/ EL on 09/ 09C Only

9000 Series Wide Stile Y Escutcheon Trim

. R available for  series devices only.

*Clear Powder Coat over 630 Stainless Steel

dormakaba Wide Stile

9000 Series Premium Exit Devices

*Clear Powder Coat over 630 Stainless Steel

• Hundreds of lever and knob

styles and finish

combinations to satisfy the

most demanding interior

design requirement.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of Custom

RAL colors, or, for those

unique interior designs, our

Designer Color special color

matching system.

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial available

to 626 and 630 finishes only

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.Conventional

key-in-lever/knob cylinder

included standard.

• Configurable with SFIC to

accommodate patented

SC key control system

• All standard devices and

trim are designed for 1-3/4"–

2-1/4" thick doors. For door

thickness greater than

2-1/4", consult Technical

Service.Under U.S. law,

qualifies for Made in U.S.A.

of U.S. and imported parts.

• Steeleville, IL manufacturing

facility certified to ISO

9000 and ISO 14001.

9000 Series Sectional Trim

626

Knob or Lever

Finish

DSC KD

Keying

Keyway

Cylinder Type

*PC

Sectional Trim

(Specify)

Cylinders

and Keying

DKA2

KA4

MKD

CMK

NSK

SKD

0Bit

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based and

provides added layers of security. For more information,

contact your local sales representative or

Technical Service at 800-387-4938.

— Default

Function

Special

Finish

Coating

605

606

625

630

689

613

612

611

691

693

695

626

696

Custom

Designer

619

Wide Stile dormakaba

9000 Series Premium Exit Devices

*Clear Powder Coat over 630 Stainless Steel

• Heavy-duty, 3" × 16"

stainless steel plate and pull

offered standard.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of Custom RAL

colors, or, for those unique

interior designs, our

Designer Color special color

matching system.

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial

available to 626 and 630

finishes only

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.

• Conventional rim or mortise

cylinders included standard

• Configurable with SFIC to

accommodate the patented

SC key control system.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", consult

Technical Service.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL manufacturing

facility certified to ISO

9000 and ISO 14001.

3" 3"

9000 Series 3" Wide Plate Trim

HTT PRT

630

HRT

Plate Type

630

689

691

693

695

Finish

DSC KD

Keying

Keyway

Cylinder Type

*PC

Plate Trim (Specify)

Cylinders

and Keying

KA2

KA4

MKD

CMK

NSK

SKD

0Bit

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based and

provides added layers of security. For more information,

contact your local sales representative or

Technical Service at 800-387-4938.

— Default

696

Function

Special

Finish

Coating

HTT

NPT

PRT

PTT

02CV

DTCV

05M

06CV

03CV

22CV

05CV

03M

22M

Custom

Designer

R11

Retrofit

Suffix CV required for 9100 CVR

Suffix M required for 9500 mortise

. R available for  series devices only.

dormakaba Wide Stile

9000 Series Premium Exit Devices

9000 Series 2" Wide Stile Plate Trim

• Heavy-duty, 2" × 16"

stainless steel plate and pull

offered standard.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of Custom RAL

colors, or, for those unique

interior designs, our

Designer Color special color

matching system.

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial

available to 626 and 630

finishes only.

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.

• Conventional rim or mortise

cylinders included standard.

• Configurable with SFIC to

accommodate the patented

SC key control system.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", consult

Technical Service.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL

manufacturing facility

certified to ISO 9000 and

ISO 14001.

2" 2"

V3 V1

*PC

KA2

KA4

MKD

CMK

NSK

SKD

0Bit

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based and

provides added layers of security. For more information,

contact your local sales representative or

Technical Service at 800-387-4938.

— Default

02CV

DTCV

03CV

03M

630

Plate Type

Finish

DSC KD

Keying

Keyway

Cylinder Type

Plate

Trim (Specify)

Cylinders

and

Keying

Function

Special

Finish

Coating Retrofit

R11

605

606

625

630

689

613

612

611

691

693

695

626

696

Custom

Designer

619

Suffix CV required for 9100 CVR

Suffix M required for 9500 mortise

. R available for  series devices only.

*Clear Powder Coat over 630 Stainless Steel

Wide Stile dormakaba

9000 Series Premium Exit Devices

9000 Series Wide Stile Pull Trim

• Heavy-duty stainless steel

offered standard.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of Custom RAL

colors, or, for those unique

interior designs, our

Designer Color special color

matching system.

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial

available to 626 and 630

finishes only.

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.

• Conventional rim or

mortise cylinder included

standard.

• Configurable with SFIC to

accommodate the

patented SC key control

system.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", consult

Technical Service.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL

manufacturing facility

certified to ISO 9000 and

ISO 14001.

630

Pull Type

Handing

Finish

DSC KD

Keying

Keyway

Cylinder Type

*PC

Pulls

(Specify)

Cylinders

and Keying

KA2

KA4

MKD

CMK

NSK

SKD

0Bit

LHR

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based and

provides added layers of security. For more information,

contact your local sales representative or

Technical Service at 800-387-4938.

— Default

RHR

Function

Special

Finish

Coating

POF

VRF

03HDA

02SPM

03SPM

9PBO1

605

606

625

630

689

613

612

611

691

693

695

626

696

Custom

Designer

619

. PO not applicable on  Device.  Function only. Not available in  finish.

VRF

POF

9PO

*Clear Powder Coat over 630 Stainless Steel *Clear Powder Coat over 630 Stainless Steel

dormakaba Wide Stile

9000 Series Premium Exit Devices

Trim Descriptions Exit Only 2" Wide Flat Plate

Dummy Trim

2" Wide Flat Plate

with Cylinder Hole

Trim Designation No Trim VODT, VODTCV VO03, VO03CV

Handing ———

Function 01 DT 03

Cylinder (default) — — 80R40SC – Rim

Cylinder

(optional SFIC)

— — 87R40BA – 7-pin

(51)

1/8

(3)

(406)

(51)

1/8

(3)

Trim Descriptions 2" Wide Flat Plate

with Cylinder Hole (mortise)

2" Wide Flat Plate

Tubular Pull

2" Wide Flat Plate

Rectangular Pull

Trim Designation VO03M V102, V102CV V302, V302CV

Handing ———

Function 03 02 02

Cylinder (default) 90A10SC118 – Mortise *

90A13SC118 – Mortise **

— —

Cylinder

(optional SFIC)

97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

— —

(406)

(51)

1/8

(3)

(51)

2-1/2

(64)

(

406)

(406)

(51)

1-7/8

(48)

Wide Stile Plate/Pull Trim

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

Wide Stile dormakaba

9000 Series Premium Exit Devices

Trim Descriptions 2" Wide Flat Plate

Tubular Pull with Cylinder Hole

2" Wide Flat Plate

Tubular Pull with Cylinder Hole (mortise)

2" WideFlat Plate

Rectangular Pull with Cylinder Hole

Trim Designation V103, V103CV V103M V303, V303CV

Handing — — —

Function 03 03 03

Cylinder (default) 80R40SC − Rim 90A10SC118 – Mortise *

90A13SC118 – Mortise **

80R40SC – Rim

Cylinder

(optional SFIC)

87R40BA − 7-pin 97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

87R40BA – 7-pin

(

406)

(51)

2-1/2

(64)

(406)

(51)

2-1/2

(64)

(51)

(

406)

1-7/8

(48)

Trim Descriptions 2" Wide Flat Plate

Rectangular Pull with Cylinder Hole (mortise)

3" Wide Flat Plate

Dummy Trim

3" Wide Flat Plate

with Cylinder Hole

Trim Designation V303M NPTDT, NPTDTCV NPT03, NPT03CV

Handing — — —

Function 03 DT 03

Cylinder (default) 90A10SC118 – Mortise *

90A13SC118 – Mortise **

— 80R40SC – Rim

Cylinder

(optional SFIC)

97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

— 87R40BA – 7-pin

(51)

(

406)

1-7/8

(48) 3

(76)

(406)

1/8

(3)

(76)

(406)

1/8

(3)

Wide Stile Plate/Pull Trim

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

dormakaba Wide Stile

9000 Series Premium Exit Devices

Wide Stile Plate/Pull Trim

Trim Descriptions 3" Wide Flat Plate

with Cylinder Hole (mortise)

3" Wide Flat Plate

Tubular Pull

3" Wide Flat Plate

Rectangular Pull

Trim Designation NPT03M PTT02, PTT02CV PRT02, PRT02CV

Handing ———

Function 03 02 02

Cylinder (default) 90A10SC118 – Mortise *

90A13SC118 – Mortise **

— —

Cylinder

(optional SFIC)

97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

— —

(

406)

(76)

2-1/2

(64)

(

406)

(76)

1-7/8

(48)

(76)

(

406)

1/8

(3)

Trim Descriptions 3" Wide Flat Plate

Tubular Pull with Cylinder Hole

3" Wide Flat Plate

Tubular Pull with Cylinder Hole (mortise)

3" Wide Flat Plate Rectangular Pull

with Cylinder Hole

Trim Designation PTT03, PTT03CV PTT03M PRT03, PRT03CV

Handing — — —

Function 03 03 03

Cylinder (default) 80R40SC – Rim 90A10SC118 – Mortise *

90A13SC118 – Mortise **

80R40SC – Rim

Cylinder

(optional SFIC)

87R40BA – 7-pin 97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

87R40BA – 7-pin

(

406)

(76)

1-7/8

(48)

(

406)

(76)

2-1/2

(64)

(

406)

(76)

2-1/2

(64)

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

Wide Stile dormakaba

9000 Series Premium Exit Devices

Wide Stile Plate/Pull Trim

Trim Descriptions 3" Wide Flat Plate

Rectangular Pull with Cylinder Hole (mortise)

3" Wide Flat Plate

Tubular Pull with Thumbpiece

3" Wide Flat Plate

Rectangular Pull with Thumbpiece

Trim Designation PRT03M HTT22, HTT22CV, HTT22M HRT22, HRT22CV, HRT22M

Handing — — —

Function 03 22 22

Cylinder (default) 90A10SC118 – Mortise *

90A13SC118 – Mortise **

— —

Cylinder

(optional SFIC)

97B10BA138 – 7-pin *

97B13BA138 – 7-pin **

— —

(

406)

(76)

2-1/2

(64)

(

406)

(76)

1-7/8

(48)

(

406)

(76)

1-7/8

(48)

Trim Descriptions 3" Wide Flat Plate

Tubular Pull with Thumbpiece and

Cylinder Hole

3" Wide Flat Plate

Rectangular Pull with Thumbpiece and

Cylinder Hole

Raised Escutcheon Plate

Dummy Trim

Trim Designation HTT05, HTT05CV, HTT05M,

HTT06, HTT06CV

HRT05, HRT05CV, HRT05M,

HRT06, HRT06CV

YODT

Handing ———

Function 05 or 06 (HTT06, HTT06CV) 05 or 06 (HRT06, HRT06CV) DT

Cylinder (default) 90A10SC118 – Mortise 90A10SC118 – Mortise —

Cylinder

(optional SFIC)

97A10BA138 – 7-pin 97A10BA138 – 7-pin —

2-3/4

(70)

1/2

(216

)

15/16

(24)

(

406)

(76)

2-1/2

(64)

(

406)

(76)

1-7/8

(48)

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

dormakaba Wide Stile

9000 Series Premium Exit Devices

Trim Descriptions Raised Escutcheon Plate

with Cylinder Hole

Raised Escutcheon Plate

with Cylinder Hole

(mortise)

Raised Escutcheon Plate

Tubular Pull

Trim Designation YO03 YO03M YP02

Handing ———

Function 03 03 02

Cylinder (default) 80R40SC – Rim 90X10SC158 – Mortise *

90A13SC118 – Mortise **

—

Cylinder

(optional SFIC)

87R40BA – 7-pin 97D10BA134 – 7-pin *

97B13BA138 – 7-pin **

—

2-3/4

(70)

1/2

(216)

15/16

(24)

2-3/4

(70)

1/2

(216)

15/16

(24)

8-1/2

(216)

15/16

(24)

ø 3/4

(ø 19)

3-5/8

(92)

Trim Descriptions Raised Escutcheon Plate

Tubular Pull

with Cylinder Hole

Raised Escutcheon Plate

with Cylinder Hole

and Thumbturn

Raised Escutcheon Plate

Tubular Pull

with Cylinder Hole and Thumbturn

Trim Designation YP03 YO11, YO12 YP11, YP12

Handing ———

Function 03 11 or 12 11 or 12

Cylinder (default) 80R40SC – Rim 90X13SC118 – Mortise 90X13SC118 – Mortise

Cylinder

(optional SFIC)

87R40BA – 7-pin 97X09BA138 – 7-pin 97X09BA138 – 7-pin

8-1/2

(216)

15/16

(24)

3-5/8

(92) ø 3/4

(ø 19)

2-3/4

(70)

8-1/2

(216)

15/16

(24)

8-1/2

(216)

15/16

(24)

3-5/8

(92) ø 3/4

(ø 19)

Wide Stile Escutcheon Trim

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

Wide Stile dormakaba

9000 Series Premium Exit Devices

Trim Descriptions Raised Escutcheon Plate

Rectangular Lever with Cylinder Hole

(mortise × rigid trim) (R trim shown)

Raised Escutcheon Plate

Knob with

Cylinder Hole

Raised Escutcheon Plate

Rectangular Lever with

Cylinder Hole (R trim shown)

Trim Designation Yx03MR YK08M Yx08M, Yx08MC

Handing ——Specify Hand YR08MC

Function 03 08 08

Cylinder (default) 90X10SC158 – Mortise *

90A13SC118 – Mortise **

90X10SC158 – Mortise *

90A12SC118 – Mortise **

90X10SC158 – Mortise *

90A12SC118 – Mortise **

Cylinder

(optional SFIC)

97D10BA134 – 7-pin *

97B13BA138 – 7-pin **

97D10BA134 – 7-pin *

97B12BA138 – 7-pin **

97D10BA134 – 7-pin *

97B12BA138 – 7-pin **

Trim Descriptions Raised Escutcheon Plate

Knob with Cylinder Hole

(rigid trim)

Raised Escutcheon

Plate Knob with Cylinder Hole

(mortise × rigid trim)

Raised Escutcheon Plate

Rectangular Lever with Cylinder Hole

(rigid trim) (R trim shown)

Trim Designation YK03R YK03MR Yx03R

Handing ———

Function 03 03 03

Cylinder (default) 80R40SC – Rim 90X10SC158 – Mortise *

90A13SC118 – Mortise **

80R40SC – Rim

Cylinder

(optional SFIC)

87R40BA – 7-pin 97D10BA134 – 7-pin *

97B13BA138 – 7-pin **

87R40BA – 7-pin

2-3/4

(70)

1/2

(216)

3-9/16

(90)

2-3/4

(70)

1/2

(216)

3-9/16

(90)

2-3/4

(70)

1/2

(216

)

3-1/2

(89)

3-1/2

(89)

2-3/4

(70)

1/2

(216)

2-3/4

(70)

1/2

(216

)

3-9/16

(90)

3-1/2

(89)

2-3/4

(70)

1/2

(216

)

Wide Stile Escutcheon Trim

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

NOTES:

* Devices shipped before November 2014

** Devices shipped after November 2014

See chart on page 49 for more information

When a trim designation includes an x (such as Yx03R), replace x

with the letter or number assigned to the chosen lever style.

For example, YR03R specifies lever style R. See page 34 for details.

dormakaba Wide Stile

9000 Series Premium Exit Devices

Wide Stile Escutcheon Trim

Trim Descriptions Raised Escutcheon Plate

Knob with

Cylinder Hole

Raised Escutcheon Plate

Rectangular Lever with

Cylinder Hole (R trim shown)

Raised Escutcheon Plate Knob

Trim Designation YK08, YK09, YK08×08* Yx08, Yx08C, Yx08×08*, YxR09, Yx09C YK02R, YK23, YK23M

Handing — Specify Hand

YR08C, YR08×08, YR09C

—

Function 08 or 09 08 or 09 02 or 23

Cylinder

(default)

90X10SC118 – Mortise 90X10SC118 – Mortise —

Cylinder

(optional SFIC)

97X10BA138 – 7-pin 97X10BA138 – 7-pin —

2-3/4

(70)

1/2

(216

)

3-9/16

(90)

3-1/2

(89)

2-3/4

(70)

1/2

(216

)

3-9/16

(90)

2-3/4

(70)

1/2

(216)

Trim Descriptions Raised Escutcheon Plate

Rectangular Lever

(R trim shown)

Trim Designation Yx02R, Yx23, Yx23M

Handing —

Function 02 or 23

Cylinder (default) —

Cylinder

(optional SFIC)

—

2-3/4

(70)

1/2

(216

)

3-1/2

(89)

*Yx08x08 *trim requires push-side rim cylinder (ordered separately).

Cylinder: 80R20SC - Rim

87R20BA - 7-pin IC

NOTE: When a trim designation includes an x (such as Yx23), replace x

with the letter or number assigned to the chosen lever style. For

example, YR23 specifies lever style R. See page 34 for details.

Wide Stile dormakaba

9000 Series Premium Exit Devices

Wide Stile Sectional Trim

Trim Descriptions Key-in-Knob Key-in-Knob

Interchangeable Core

Knob

Interchangeable Core

Trim Designation 9K03, 9K08 9K03J, 9K08J 9K23

Handing ———

Function 03 or 08 03 or 08 23

Cylinder (default) Includes key-in-lever/

knob cylinder 7013SC KD

Accepts SFIC —

Cylinder

(optional SFIC)

— 77BAxxx – 7-pin —

3-3/8

(86)

2-9/16

(65)

3-3/8

(86)

2-9/16

(65)

3-3/8

(86)

9/16

(65)

3-3/8

(86)

2-9/16

(65)

3-3/8

(86)

9/16

(65)

3-3/8

(86)

2-9/16

(65)

Trim Descriptions Key-in-Rectangular Lever*

(R trim shown)

Key-in-Rectangular Lever

Interchangeable Core*

(R trim shown)

Rectangular Lever*

(R trim shown)

Trim Designation 9x03, 9x08 9x03J, 9x08J 9x23

Handing ———

Function 03 or 08 03 or 08 23

Cylinder (default) Includes key-in-lever/

knob cylinder 7013SC KD

Accepts SFIC —

Cylinder

(optional SFIC)

— 77BAxxx – 7-pin —

* Sectional Trim is available with R, C, or G Levers only; See page 36 for ordering.

3-3/8

(86)

4-7/8

(124)

9/16

(65)

3-3/8

(86)

4-7/8

(124)

2-9/16

(65)

3-3/8

(86)

9/16

(65)

4-7/8

(124)

3-3/8

(86)

2-9/16

(65)

4-7/8

(124)

3-3/8

(86)

9/16

(65)

4-7/8

(124)

3-3/8

(86)

2-9/16

(65)

4-7/8

(124)

NOTES:

• Key-in-knob and key-in-lever trim are field-reversible for handing.

• When a trim designation includes an x (such as 9x08),

replace x with the letter or number assigned to the chosen lever style.

For example, 9R08 specifies lever style R. See page 34 and 36 for details.

dormakaba Wide Stile

9000 Series Premium Exit Devices

Wide Stile Vandal Resistant Pull Trim

Trim Descriptions Heavy-Duty Offset Pull

Trim Designation POF03HDAJ

Handing Specify Hand

Function 03

Cylinder (default) 80R40SC – Rim

Cylinder

(optional SFIC)

—

(279)

7-1/2

(191)

(51)

1/8

(3) 3/8

(10)

(51)

(25)

Trim Descriptions Heavy-Duty Offset Pull Heavy-Duty Offset Pull

with Cylinder Hole

Trim Designation VRF02SPM VRF03SPM

Handing Specify Hand Specify Hand

Function 02 03

Cylinder (default) — 80R40SC – Rim

Cylinder

(optional SFIC)

— —

(127)

(279)

(51)

(279)

(51) 2

(51) 1/8

(3)

1/8

(3)

(51)

(127)

(279)

(51)

(279)

(51) 2

(51) 1/8

(3)

1/8

(3)

(51)

Wide Stile dormakaba

9000 Series Premium Exit Devices

Cylinder Specification

Application ANSI Function Cylinder Type Conventional (Default) Cam SFIC 7-Pin

Cylinders for 9100/F9100 Concealed Vertical Rod, 9300/F9300 Rim, and 9400/F9400 Surface Vertical Rod Wide Stile Devices

Sectional Trim (Key-in-Lever) 03, 08 Key-in-lever 7013SC NA 77BA

Wide Plate Trim 03 Rim 80R40SC NA 87R40BA

Wide Plate Trim 05, 06 Mortise 90A10BA118 #10 97A10BA138

Narrow Plate Trim 03 Rim 80R40SC NA 87R40BA

Y Escutcheon Trim 03 Rim 80R40SC NA 87R40BA

Y Escutcheon Trim 08 Mortise 90X10SC118 #10 97C10BA138

Y Escutcheon Trim 09 Mortise 90X10SC118 #9 97C10BA138

Cylinders for 9500/F9500 Mortise Devices shipped prior to 11/14

Wide Plate Trim 03, 05 Mortise 90A10SC118 #10 97B10BA138

Wide Plate Trim 03 Mortise 90A10SC118 #10 97B10BA138

Y Escutcheon Trim 03, 08 Mortise 90X10SC158 #10 97D10BA134

Cylinders for 9500/F9500 Mortise Devices shipped 11/14 or after

Wide Plate Trim 03 Mortise 90A13SC118 #13 97B13BA138

Wide Plate Trim 05 Mortise 90A12SC118 #12 97B12BA138

Narrow Plate Trim 03 Mortise 90A13SC118 #13 97B13BA138

Y Escutcheon Trim 03 Mortise 90X13SC118 #13 97C13BA138

Y Escutcheon Trim 05, 08 Mortise 90X12SC118 #12 97C12BA138

Cylinders for Device Options

CD, BA, BAR, DE, D3, DECBC, DA, LMM-P — Mortise 90X10SC118 #10 97D10BA138

Cylinders for Mullions

1FKR Key Removable Mullion — Mortise 90X01SC118 #1 97D01BA138

1FS Mullion Storage Kit — Mortise 90X01SC118 #1 97D01BA138

Rim Cylinders

Conventional SFIC

Mortise Cylinders

Conventional

SFIC

Key-in-Lever Cylinders

Conventional

SFIC

dormakaba Wide Stile

9000 Series Premium Exit Devices

Mullions

Removable mullions are used

with paired doors where a full-

width opening is only occa-

sionally required.

Doors are fitted with rim exit

devices and normally function

as single doors. Available in 8'

or 10' lengths.

• Meets demands of

heaviest use areas.

• Durable extrusion.

• Supplied with wood/

machine screws and

anchors.

1310–8 —

8' mullion

1310–10 —

10' mullion

WS1310–8 —

8' mullion with weatherstrip

WS1310–10 —

10' mullion with weatherstrip

Finish

Aluminum: 628 (Satin)

Bronze: 695 (Dark)

• Ideal for high-abuse

areas such as schools.

• Meets demands of

heaviest use areas.

• Heavy-gauge, smooth-

surface steel construction.

• Attractive tube shape

with rounded corners.

• Supplied with wood/

machine screws and

anchors.

1330–8 —

8' mullion

1330–10 —

10' mullion

Finish

Prime: 600

Bottom Fitting

Top Fitting

Stabilizers

(Installed on door)

Top Fitting

Bottom Fitting

Stabilizers

(Installed on door)

1-1/2

(38)

1/2

(64)

.120

(

11 Gage)

Finished Floor

1-5/8

(41)

2-5/8

(67)

1/8

(29)

eatherstrip Slots

Bottom Fitting

Set Screw

Top Fitting

Set Screw

Stabilizers

(Installed on door

)

Finished Floor

(51)

.120

(

11 Gage)

• For use with U.L. listed

fire exit devices.

• Meets demands of

heaviest use areas.

• Large top and bottom

fittings for extra strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with wood/

machine screws and

anchors.

F1300–8 —

8' fire rated mullion

1300–8 —

8' non-fire rated mullion

1300–10 —

10' non-fire rated mullion

Finish

Prime: 600

F1300 Steel Mullion

1330 Steel Mullion1310 Aluminum Mullion

Wide Stile dormakaba

9000 Series Premium Exit Devices

• Easily removable with key.

• Keying is standard 1-1/8"

mortise cylinder with

01 (AR) cam.

• For use with U.L. listed

fire exit devices.

• Meets demands of

heaviest use areas.

• Large top and bottom

fittings for extra strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with wood/

machine screws and

anchors.

• Includes conventional

default mortise cylinder:

90X01SC118 626.

F1FKR–8 —

8' fire-rated key

removable mullion

1FKR–8 —

8' non fire-rated key

removable mullion

1FKR–10 —

10' non fire-rated key

removable mullion

1FKR–EL–8 —

8' non-fire rated wired key

removable mullion

1FKR–EL–10 —

10' non-fire rated wired

keyed removable mullion

Finish

Prime: 600

Optional SFIC:

97D01BA138 — 7-pin

op Fitting

Mortise Cylinder

90X01SC118 626

(Supplied)

Stabilizers

(Installed on door)

Set Screw

Bottom Fitting

(51)

.120

(

11 Gage)

(76)

Unlocked

Locked

Finished Floor

F1FKR Key Removable Steel Mullion HC1300 Steel HC Mullion

• For use with pairs of

hurricane-rated rim

devices on openings up

to 8'0" × 8'0".

• 80 psf design pressure

rating positive/

negative deflection

with HC9300 rim device.

• Tested to Miami-Dade

TAS 201, 202, 203.

• Large top and bottom

fittings for extra

strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with appropri

ate screws and anchors.

HC1300–8 —

Heavy-duty 5/16" wall

HC mullion*

Finish

Prime: 600

*For other HC mullions, consult

factory.

Top Fitting

Set Screw

Stabilizers

(Installed on door

)

Set Screw

Bottom Fitting

Mullion

Adaptor

(51)

.312

(8) 3

Finished Floor

1FS Mullion Storage Kit

• For use with 1F key

removable steel mullion.

• Locking cylinder can be

keyed into master key

system.

• Includes conventional

default mortise cylinder:

90X01SC118 626.

Optional SFIC:

97D01BA138 — 7-pin

dormakaba Narrow Stile

9000 Series Premium Exit Devices

9600/F9600 Narrow Stile Concealed Vertical

Rod Exit Devices

3-7/8

(98)

1-1/8

(29)

1-3/8

(35)

3-7/8

(98)

2-3/4

(70)

8-1/8

(206)

2-11/16

(68)

1-1/4

(32)

1-1/8

(29)

1-3/8

(35)

Specify Door Brackets

NS – 2-1/8" narrow stile aluminum (default)

WD – Narrow stile wood or hollow steel

Model Function Operation Trim Model

9600

F9600

01 Exit Only

(no trim)

9600

F9600

DT Dummy Trim ZODT

9600 02 Entrance by trim when

actuating bar is locked down.

OP02 ZP02 ZK02R Zx02R

9600

F9600

03 Entrance by trim when latch bolt is

retracted by key. Key removable only

when locked.

ZO03* ZP03 ZK03R Zx03R

9600

F9600

08 Entrance by knob or lever.

Key locks or unlocks knob or lever.

ZK08 Zx08 Zx08C

9600

F9600

09 Entrance by knob or lever only when

released by key. Key removable only

when locked.

ZK09 Zx09 Zx09C

9600

F9600

11 Entrance by thumbturn and pull. Key

locks or unlocks thumbturn.

Z011 ZP11

9600

F9600

12 Entrance by thumbturn and pull only

when released by key. Key removable

only when locked.

Z012 ZP12

9600

F9600

23 Entrance by knob or lever

(no cylinder). Knob or lever always

active.

ZK23 Zx23

9600

F9600

25 Entrance by thumbturn and pull (no

cylinder). Thumbturn always active.

ZP25

NOTE: When a trim designation includes an x (such as Zx23), replace x with the letter or number assigned to the chosen lever style.

For example, ZR23 specifies lever style R. See page 63 for details.

* Pull by others.

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Minimum Stile

rtical Reference 1-5/8

(41)

Vertical Rod × Rim

(51) 1

(25)

3/32

(2)

Strike

rtical

(25)

Inside Face

Finished Floor

5/8" Dia. Hole in Floor

1/2" Deep Minimum

1/4

(6)

Ref.

1-3/4

(44)

1-3/4

(44)

5/32

(4)

(25)

Square Cutout

1" Deep

Finished Floor

LStrike Vertical

7/8

(22)

Inside

Face 1/4

(6)Re

13/16

(21)

(51)

9/16

(14)

3/32

(2)

3/8

(35)

1-1/2

(38)

1-13/16

(46)

Strike

rtical

15/16

(24)

1/2

(13)

Edge of Stop

13/16

(21)

(51)

13/16

(20)

3/32

(2) 1-1/2

(38)

1-5/8

(41)

Strike

15/16

(24)

Edge of

Stop

rtical

No. -

Top Strike 9600/F9600,

9600 LB/F9600 LB

3/32

(2)

(25)

5/8

(16) I.D.

3/4

(19)

3/4

(19)

LStrike C

LVertical

(25)Inside Face

Finished Floor

1/4

(6)Ref.

No. -

Bottom Strike 9600/F9600

Minimum Stile

Vertical Referenc

Vertical Rod × Vertical Rod

No. W

For wood frame installations

No. F

For bottom slidebolt

No. P

For use with optional pullman

bottom latch bolt

Not Fire Rated

9600 Vertical

Reference

Minimum

Stile

No Trim/OP02 1-1/4 (32) 1-7/8 (48)

Z Trim 1-1/4 (32) 2-1/16 (52)

F9600 Vertical

Reference

Minimum

Stile

No Trim/OP02 2-3/4 (70) 3-3/16 (81)

Z Trim 2-3/4 (70) 3-3/16 (81)

9600 Minimum Stile

No Trim/OP02 2-3/16 (56)

Z Trim 2-7/16 (62)

Standard Strikes

Optional Strikes

Minimum Stile & Vertical Reference

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Model Function Operation Trim Model

9700

F9700

01 Exit Only

(no trim)

9700

F9700

DT Dummy Trim ZODT

9700 02 Entrance by trim when

actuating bar is locked down.

OP02 ZP02 ZK02R Zx02R

9700

F9700

03 Entrance by trim when latch bolt is

retracted by key. Key removable only

when locked.

ZO03* ZP03 ZK03R Zx03R

9700

F9700

08 Entrance by knob or lever.

Key locks or unlocks knob or lever.

ZK08 Zx08 Zx08C

9700

F9700

09 Entrance by knob or lever only when

released by key. Key removable only

when locked.

ZK09 Zx09 Zx09C

9700

F9700

11 Entrance by thumbturn and pull. Key

locks or unlocks thumbturn.

Z011 ZP11

9600

F9600

12 Entrance by thumbturn and pull only

when released by key. Key removable

only when locked.

Z012 ZP12

9700

F9700

23 Entrance by knob or lever

(no cylinder). Knob or lever always

active.

ZK23 Zx23

9700

F9700

25 Entrance by thumbturn and pull (no

cylinder). Thumbturn always active.

ZP25

2-11/16

(68)

1-1/4

(32)

8-1/8

(206)

2-3/4

(70)

9700/F9700 Narrow Stile Rim Exit Devices

NOTE: When a trim designation includes an x (such as Zx23), replace x with the letter or number assigned to the chosen lever style.

For example, ZR23 specifies lever style R. See page 63 for details.

* Pull by others.

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Minimum Stile

rtical Reference 1-3/8

(35)

29/32

(23)

1-57/64

(48)

1/2

(13)

1-25/32

(45)

29/64

(12)

1-5/8

(41)

3/4

(19)

4-1/2

(114)

3-3/4

(95)

Minimum Stile

Vertical Referenc

No. B

Standard strike with 9700

No. -

Standard strike with F9700

No. R

Roller strike

No. V

Overlap strike 1-1/2

(38)

1/16

(27)

3/8

(10)

(51)

2-1/8

(54)

Minimum Stile

rtical Reference 1-5/8

(41)

All dimensions based on 1/2" (13) stop height All dimensions based on 1/2" (13) stop height

Not Fire Rated

Strike Vertical Ref./

Min. Stile

No Trim/

OP02

Trim

B Vertical Ref. 1-3/8 (35) 1-3/8 (35)

Min. Stile 2-7/16 (62) 2-9/16 (65)

Strike Vertical Ref./

Min. Stile

No Trim/

OP02

Trim

- Vertical Ref. 1-1/2 (38) 1-1/2 (38)

Min. Stile 2-9/16 (65) 2-11/16 (68)

All dimensions based on 1/2" (13) stop height

Strike Vertical Ref./

Min. Stile

No Trim/

OP02

Trim

R Vertical Ref. 1-1/2 (38) 1-1/2 (38)

Min. Stile 2-9/16 (65) 2-11/16 (68)

9700 Minimum Stile

No Trim/OP02 2-3/16 (56)

Z Trim 2-7/16 (62)

Standard Strikes

Optional Strikes

1-1/8

(29)

3/8

(60)

1-13/16

(46)

5/8

(16)

3/4

(19)

Minimum Stile

rtical Reference

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Model Function Operation Trim Model

9800

F9800

01 Exit Only

(no trim)

9800

F9800

DT Dummy Trim ZODT

9800 02 Entrance by trim when

actuating bar is locked down.

OP02 ZP02 ZK02R Zx02R

9800

F9800

03 Entrance by trim when latch bolt is

retracted by key. Key removable only

when locked.

ZO03* ZP03 ZK03R Zx03R

9800

F9800

08 Entrance by knob or lever.

Key locks or unlocks knob

or lever.

ZK08 Zx08 Zx08C

9800

F9800

09 Entrance by knob or lever only when

released by key. Key removable only

when locked.

ZK09 Zx09 Zx09C

9800

F9800

11 Entrance by thumbturn and pull.

Key locks or unlocks thumbturn.

Z011 ZP11

9800

F9800

12 Entrance by thumbturn and pull only

when released by key. Key removable

only when locked.

Z012 ZP12

9800

F9800

23 Entrance by knob or lever (no cylin-

der). Knob or lever always active.

ZK23 Zx23

9800

F9800

25 Entrance by thumbturn and pull (no

cylinder). Thumbturn always active.

ZP25

2-11/16

(68)

1-1/4

(32)

4-3/8

(111)

1/2

(13)

8-1/8

(206)

1-1/4

(32)

4-3/8

(111)

1-1/4

(32)

1-9/16

(40)

2-3/4

(70)

1-9/16

(40)

NOTE: When a trim designation includes an x (such as Zx23), replace x with the letter or number assigned to the chosen lever style.

For example, ZR23 specifies lever style R. See page 63 for details.

* Pull by others.

9800/F9800 Narrow Stile Surface Vertical Rod

Exit Devices

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Minimum Stile

1-3/8

(35) Vertical Referenc

Minimum Stile

1-5/8

(41) Vertical Referenc

Vertical Rod × Rim

(51)

(25)

3/32

(2)

9/16

(14)

Vertical

Finished Floor

5/8" Dia. Hole in Floor

1/2" Deep Minimum

1-3/4

(44)

1-3/4

(44)

5/32

(4)

(25)

Square Cutout 1" Deep

Finished Floor

LStrike Vertical

7/8

(22)Inside Face 1/4

(6)Re

1-1/8

(29)

13/16

(46)

5/8

(16)

2-3/8

(60)

1/2

(13)

5/8

(16)

Finished Floor

LVe

rtical

1-1/2

(38)

(51)

2-1/4

(57)

LVe

rtical

(25)

3/4

(19)

(51)

1/2

(13)

1/2

(38

)

Edge of Stop

1/2

(13)

rtical

No. -

Top strike 9800/F9800, 9800 LB/F9800 LB

3/32

(2)

5/8

(16) I.D.

(25)

3/4

(19)

3/4

(19)

9/16

(14) Finished Floor

Vertical

No. -

Bottom strike 9800/F9800

Vertical Rod × Vertical Rod

No. R

For use with optional pullman type latch bolt

No. F

For bottom slide bolt

No. P

For use with optional pullman type latch bolt

No. -A

Flush door and frame conditions

Not Fire Rated

9800 Minimum Stile

No Trim/OP02 2-3/16 (56)

Z Trim 2-7/16 (62)

9800/F9800 Minimum Stile

No Trim/OP02 2 (51)

Z Trim 2-3/16 (56)

Standard Strikes

Optional Strikes

Minimum Stile & Vertical Reference

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Non-functioning Exit Devices

The non-functioning exit

device looks exactly like the

9000 Series, but has no

latching mechanism. Units

can be furnished in standard

AA, BB, or CC width or cut to

special size when door width

is specified. Order any

applicable trim for push/pull

function. Choose the type of

operation required.

Rigid Touchbar Device

Touchpad is permanently

fixed and immobile.

9235 – Narrow Stile

Moveable Touchbar Device

Same as rigid touchbar

device, but touchbar is

moveable. Similar to

standard 9000 Series device.

9236 – Narrow Stile

Moveable Touchbar Device

with Microswitch

Same as moveable touchbar

device, but includes

microswitch that can be used

to control electromagnetic

locks, electric strikes, or other

electronic appliances.

9236MS – Narrow Stile

Sex Nuts

The chart above serves as a

simple reference when

specifying 9000 Series exit

devices and trim.

Dummy Bar

The dummy bar is designed

as a companion to 9000

Series devices. Units consist

of the touchbar assembly

only and do not include the

device chassis or chassis

cover. Door width must be

specified.

Rigid Dummy Bar

Touchbar only. Touchpad is

permanently fixed and

immobile.

9230 – Narrow Stile

Dummy Bar with Microswitch

Touchbar is moveable and

activates included

microswitch. Can be used to

control electromagnetic

locks, electric strikes, or other

electronic appliances.

9230MS – Narrow Stile

Vision Lite Shim Kit

Contains two 1/8" thick

shims. Permits shimming of

the exit device maximum 1/4"

off door face without

affecting U.L. listing.

Designed to accommodate

glass lite installed in door.

Furnished Bright Zinc Plated

(BZP). Optional finishes

available, consult factory.

GK9200 – Narrow Stile

Conversion Kits

The following conversion kits

are the same as options

detailed elsewhere in this

brochure, but in kit form with

required components and

installation instructions for

field installation/retrofit.

MS Kit – Monitor Switch in

Touchbar Kit

BA Kit – Battery Powered

Exit Alarm Kit

BAR Kit – Battery Powered

Exit Alarm, 4 Minute Reset Kit

DA Kit – Direct Wired Alarm

Kit

CD Kit – Cylinder Dogging Kit

(less cylinder)

Security Screws

For applications where

tamper-resistant security

screws are required, specify T.

9600/F9600 2 packs

9600/F9600 w/trim 1 pack

9700/F9700 2 packs

9700/F9700 w/trim 1 pack

9800/F9800 5 packs

9800/F9800 w/trim 4 packs

Accessories

NOTE: Special screw bits are required.

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Motorized Latch Retraction

Specify MLR. A motor concealed

in the touchbar assembly

provides retraction of the

latch by driving in the touch

bar to allow access from the

secure side of the door. MLR

can also be used to electrically

dog/hold the exit push bar in

a retracted position during

non-secure hours (latch is

retracted). Remote control

can be accomplished with

switching devices such as key

switches and card readers

that provide a normally open

electrical contact. The motor

is rated at 24 VDC, .88 AMP.

The motor draws approximately

400 milliamp during continuous

operation. Use of either

PS610RF or PS532RF is

recommended to power one

or two MLR devices

respectively. The 9000 MLR

can also be powered with the

ED900 Low Energy ADA

Operator.

Electric Latch Retraction

Specify ES. A solenoid

concealed in the touchbar

assembly provides instantaneous

retraction of the latch to

allow access from the secure

side of the door. Remote

control can be accomplished

with switching devices such

as key switches and card

readers that provide a normally

open electrical contact. The

solenoid is rated for 24 VDC,

14–18 AMP continuous duty,

24 VDC, 14–18 AMP inrush for

200 milliseconds, 1 AMP

holding current.

Requires PS501 power supply.

Battery Back-up

Battery Back-up power supply

options are available when

using either the PS406BB or

PS462BB power supplies.

Specify E- when ordering

Electric Latch Retraction exit

device.

Requires PS501 power supply

and ES105 power transfer.

Not available with C or CC

size devices, or 9500 mortise

exit devices.

Monitor Switch

Specify MS. Two micro switches

in the touchbar assembly

functioning as form C

contacts provide local and/or

remote notification of two

separate appliances when

the touchbar is depressed.

Each switch is rated for .5

AMP @ 28 VDC maximum.

Latch Monitor

Specify LM. A microswitch

attached to the device chassis

provides local and/or remote

notification of the exit device

rods without depressing the

touchbar. The single-pole,

double-throw switch is rated

at .50 AMP @ 28 VDC maximum.

Latch Monitor with Monitor

Switch

Specify LM/MS. A combination

of Latch Monitor and Monitor

Switch functions in one device.

Latch Monitor with Monitor

Switch and Bypass

Specify LM/MS BP. Same as

LM/MS above, but an additional

single-pole, double-throw

switch is triggered by a mortise

cylinder for alarm bypass.

Cylinder furnished.

Motorized Dogging

Specify MLR. This feature

can be used to electrically

dog/hold the exit push bar in

a retracted position during

non-secure hours.

(Latch is retracted.)

PS Series Power Supplies

The ES100 Power Supply is

capable of powering and

controlling (1) DE9000 Series

Exit Device.

• Input: 120 V

• Input Circuit Protection:

1.3 A fuse

• Output: 24 VDC, 6 A surge

for 0.5 seconds, .65 A

continuous, per zone

• Output Circuit Protection:

3 A push to reset circuit

breaker

• Enclosure: 8" H × 8" W × 4"

D NEMA 1 Type enclosure

for indoor use with hinged

cover and knock-outs

The PS501 Power Supply is

capable of powering and

controlling (2) 9000 Series

Exit Devices with the ES

Electric Latch Retraction

feature. Also has the capability

of powering (2) additional

9000 Series Exit Devices with

an optional card. Specify

option ES2 CARD.

• Input: 120 volts

• Input circuit protection:

1 AMP circuit breaker

• Output: 36 VDC, 14–18 AMP

surge, 2 AMP @ 5 volt

continuous, per zone,

unregulated, unfiltered

• Output circuit protection:

4 AMP fuse

• Enclosure: 8" H × 8" W × 4"

D NEMA 1 Type enclosure

for indoor use with hinged

cover and knock-outs

The PS532RF Power Supply is

capable of powering and

controlling (2) or PS610RF

can power and control (1)

9000 Series Exit Device with

the MLR Motorized Latch

Retraction feature.

NOTE: The PS5352RF or PS610RF

can be used with the ES105 power

transfer cable, 75200 electric

intermediate, or electric through

wire hinges when rated to carry a

minimum of 1 AMP continuous

power. Power transfer device wires

may require doubling or tripling

depending on wire gage supplied.

• Input: 115VAC/60hz

• Output: PS532RF – 2.0A @

24VDC, Class 2 PS610RF –

1.0A @ 24VDC, Class 2

• Enclosure: PS532 – 14"H ×

16" W × 6.5" D PS610 –

12.5" H × 12.5" W × 4" D

The ES105 is a

power transfer

with stainless steel

housing and flexible

tube. Secure and

inconspicuous

channel to bring

power from the

frame to the door.

Narrow, shallow

channel easily mor-

tises into door

edges. Accepts up

to 5/16" diameter

wire bundle. Accommodates

doors that swing open 120°.

Unit is concealed when the

door is closed. Suitable for

wood, aluminum, or steel

applications.

Finish

Stainless: 630 (Satin)

Optional Electric Functions

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Certification

• Certified/listed

to ANSI/BHMA

156.3, Grade 1

for exit devices.

• U.L. and C.U.L.

listed under their

continuing

reinspection

programs and conforms to

standard U.L. 10C positive

pressure testing.

• Complies with NFPA 101

life safety code. Fire rated

devices comply with NFPA

80 fire doors and windows.

Field selectable to comply

with IBC2012

• Devices, trim, pulls,

and levers comply

with the Americans

for Disabilities Act, 1994,

and ICC A117.1 for accessible

and usable buildings and

facilities.

• Contributes to U.S. Green

Building Council, LEED MR

Credits 2.1, 4.1, 4.2 and 5.1.

• Listed with the California

Department of Forestry

and Fire Protection, Office

of the State Fire Marshal

(wide stile devices only).

• Hurricane-code approved

to Miami-Dade County

Florida and Florida State

Building Code acceptance

(9300, 9400, 9500, 9700).

Specifications

• All devices shall be DE9000

Series delayed exit devices

with ES105 power transfer

and ES100 power supply.

• Devices shall be rim,

mortise, or concealed

vertical rod.

• Devices to have a nuisance

alarm with a steady tone to

limit inadvertent activation.

Depressing and holding the

touchbar beyond the

nuisance alarm period must

initiate a 15 second delay

with an intermittent tone.

• Following the irreversible 15

second delay alarm period,

the device must release and

continue an indefinite

steady tone alarm until reset.

• All devices must be capable

of rearming by turning the

key switch on the device to

rearm or by using the

alternate remote rearm

capability. The same key

switch must disarm the

device for authorized egress.

• All devices must provide

two sets of relay contacts

that activate when the

device is in an irreversible

alarm to control remote

audible/visual alarms

included in control consoles.

• All devices must have an

LED indicator light for

conveying the status of the

device.

• Internal locking feature is

required to further enhance

security when subjected to

forced opening.

• Devices must provide an

input for use with an

external door position

switch to prohibit doors

from being held open while

the device is armed.

• The device must alarm

simultaneously with the

activation of the door

position switch.

• When power is cut to the

devices, they must release

and function as typical exit

devices in the event of a fire

or emergency situation.

• All devices to have heavy-

duty cast chassis.

• All device touchbar, rail, and

cover assemblies shall be

constructed of heavy

gauge solid wrought

materials for true

architectural finishes or

color coated finishes where

applicable.

• Fire rated versions shall be

available for labeled

applications.

• All concealed vertical rod

devices shall have pullman

type top latch bolts and

round slidebolt bottom

latches.

• All devices to have

deadlocking latch bolts

with 3/4" throw where

applicable.

• All units shall offer a full

range of free wheeling

operational trim, except

mortise devices.

• All units shall offer optional

rigid and clutch style trim,

where applicable.

• All devices to be furnished

with appropriate mounting

harDAre including both

wood and machine screws,

as well as sex nuts where

required. An adhesive sign

with an operation directive

must be supplied.

Optional Specifications

• All devices to be furnished

with a 30 second irreversible

delay alarm. Written approval

from the authority having

jurisdiction required.

Specify 30.

• All devices for CBC

compliant applications to

include special CBC door

label. Specify CBC.

• All concealed vertical rod

devices to have pullman

type bottom latch bolt.

Specify P.

• All surface/concealed

vertical rod devices to have

extended top rod up to 10’.

Specify ETR for 8’, 9’, or 10’.

• All devices to use a glass

lite shim kit to raise the

device from the door surface

to accommodate glass light

molding. Specify GK9000.

• All devices for labeled wood

or composite doors to be

furnished with sex bolts.

Specify SNB.

• All devices to be furnished

with rigid trim. Specify R

after trim number.

• All devices to be furnished

with clutch style lever trim.

Specify C after lever trim

number.

• All concealed vertical rod

devices installed in

aluminum doors to be

furnished with appropriate

brackets for aluminum door

applications. Specify A

(DE9100 only).

• All devices to use tamper-

resistant security screws for

attaching the end cap,

chassis cover, and strikes.

Specify T.

Finishes

Architectural Finishes

• Brass: 605 (Bright) or 606

(Satin)

• Bronze: 611 (Bright), 612

(Satin), or 613 (Oxidized

Satin)

• Nickel: 619 (Satin)

• Black: 693

• Chrome: 625 (Bright)

or 626 (Satin)

• Stainless: 629 (Bright) or

630 (Satin)

Powder Coated Finishes

• Aluminum: 689

• Bronze: 691 (Dull) or 695

(Dark Duranodic)

• Black: 693

• Gold: 696

• Clear Powder Coating:

Specify P

• Anti-Microbial: Specify AM

Warranty

For details, refer to Limited

Warranty on our website at

go.dormakaba.com/Terms-DA

DE9000 Series Delayed Egress Exit Devices

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Delayed Egress

The DE9000 is alarmed and

the touchbar will not activate

the latch bolt for 15 seconds

(30 second factory option

available). This provides a

controlled delayed egress

while simultaneously sounding

a local and remote audible

alarm. After the delay time,

unrestricted emergency

egress is available.

Nuisance Alarm

The nuisance alarm, with a

steady warning tone, deters

inadvertent activation of the

device when the touchbar is

depressed. Releasing the

touchbar before the

predefined nuisance alarm

time of 1 or 3 seconds

terminates the alarm, and the

device returns to the armed

mode. Depressing the touchbar

longer than the predefined

time will initiate the 15 second

irreversible delay cycle. The 1

or 3 second nuisance alarm

time is included in the 15

second irreversible delay time.

The nuisance alarm time is

field-selectable for three

seconds or one second by a

dip switch. A 30 second delay

option is available set at the

factory. Written approval is

required from the authority

having jurisdiction.

Local or Remote Alarm

Device has an internal 85 dB

alarm which will sound

indefinitely in the alarm state

until the device is reset.

Additionally, a form C relay is

provided for activating remote

audible/visual signaling of the

control console, security panel,

or other audible/visual

signaling device.

Indicator LED

Status for the DE9000 can

be determined by the

indicator LED which is visible

in varied lighting conditions.

When the device is disarmed

for an extended time in the

bypass mode, the LED will

maintain a slow green flash.

When activated for

authorized egress, the LED

displays a rapid green flash

until the device automatically

rearms. In the armed state,

the LED maintains a solid

green. When the touchbar is

depressed for exit, the

nuisance alarm will sound

while the LED remains solid

green. In the 15 second

irreversible delay cycle, the

LED turns solid yellow. In the

alarm state, the LED is solid red.

Key Switch Control

This integral key switch

provides the means to locally

rearm the device from the

alarm state, disarm for

authorized egress, and set the

device for the bypass feature.

A mortise cylinder is supplied

with the device.

Remote Authorized Egress

This function allows override

of the device in the armed

state. The device will unlock

for egress and automatically

rearm to the delayed egress

mode in 10 seconds. The field-

selectable reset time allows

up to a 20 second reset.

Typical activation devices

include remote consoles, key

switches, or card readers. This

input is controlled with a

momentary action normally

open switch.

Remote Rearm

Remote rearming of the

device is allowed from the

alarm state. Typical activation

devices include remote

consoles or key switches. This

input is controlled with a

momentary action normally

open switch. Consult local

authority having jurisdiction

when using this feature.

Door Position Input

An input for use with an

external door position switch

is provided. This input switch

is a maintained action

normally closed contact. The

device alarms simultaneously

with the contact opening. The

door is prohibited from being

forced or held open

unauthorized while the device

is armed. The field-selectable

authorized egress and bypass

functions ignore the door

position input for authorized

exit or entrance.

Electrical Specifications

Input Power

24 VDC @ .5 A continuous

(5 A inrush for 350 ms).

Power must be provided by

an ES100 power supply.

Door Position Input

Requires a normally closed

contact.

Pigtail provided for the

following:

Input power, remote

authorization egress, remote

bypass/rearm, relay contacts

for audible/visual console,

door position switch input,

fire alarm contacts, and pairs

of doors.

DE9000 Exit Device

Terminal Block Indicator Lamp Internal Locking

Alarm Nuisance Alarm Switch

Key Switch Control

DE9000 Delayed Egress Features

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Clutch Lever Trim – Free

wheeling, vandal-resistant

lever standard, except on

9500 mortise devices.

Although mandated to meet

ADA requirements, lever

handles are especially subject

to vandalism and damage.

The clutch option for lever

trim includes an internal slip

clutch mechanism which

allows the lever handle to

break away without damage

or violating security when

excessive force is applied. The

lever can be lifted back to

horizontal to reset it.

An internal dead stop limits

the break away to 55° of

lever handle rotation. Specify

C to trim designation.

Specify hand.

Rigid Trim – Rigid lever and

knob option. Specify R to

trim designation.

Retrofit – For Von Duprin

98/99 Series Rim Devices.

Specify R1 (narrow and wide

plate trim only).

The 9000 Series exit devices

are available with an integral

battery powered alarm. The

102 decibel alarm contained

in the panic device touchbar

and rail assembly activates

when the touchbar is

depressed and sounds

continuously until the device is

reset or the battery is

completely discharged. Alter-

natively, a factory-furnished

option allows the alarm to

sound for four (4) minutes,

then automatically rearm.

Furnished with and controlled

by a lock cylinder and key, the

unit allows ten (10) seconds to

exit through the door after

arming the alarm, indicated by

an intermittently flashing red

LED light in the touchbar. A

yellow LED in the touchbar will

flash until manually reset by

key to indicate an unauthor-

ized exit even if the alarm has

automatically reset.

The unit is furnished with a 9

volt, industrial-grade battery

concealed in the end cap

assembly for easy

replacement. A tamper-proof

switch will activate the alarm

if unauthorized removal of the

battery is attempted. Option

is available for 12 or 24 volt

direct power wiring.

•Specify BA for battery

alarm device.

• Specify BAR for 4 minute

auto reset battery alarm

device.

• Specify DA for direct

hard-wired option.

• Size AA device fits 48" wide

door and can be cut to fit

37-1/2" wide doors.

• Size BB device fits 36" wide

door and can be cut to fit

31-1/2" wide doors.

• Size CC device fits 36" wide

door and can be cut to fit

28-1/2" wide doors.

Alarms

Auxiliary Equipment

Trim Options

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Finishes

Architectural Finishes

• Brass: 605 (Bright) or 606

(Satin)

• Bronze: 611 (Bright), 612

(Satin), or 613 (Oxidized

Satin Oil Rubbed)

• Nickel: 619 (Satin)

• Chrome: 625 (Bright) or

626 (Satin)

• Stainless: 629 (Bright) or

630 (Satin)

Powder Coated Finishes

• Aluminum: 689

Bronze: 691 (Dull) or 695

(Dark Duranodic)

• Black: 693

• Gold: 696

Clear Powder Coating

Specify *PC

Antimicrobial Protected

Coating

Specify AM

Note: Antimicrobial available

to 626 and 630 finishes only

ACD

Handed Handed

Handed

GKNR

TVL109 L110

L112 L114 L117 L118

Lever & Knob Styles for Z Narrow Stile Trim

Handed

*Clear Powder Coat over 630 Stainless Steel

dormakaba Narrow Stile

9000 Series Premium Exit Devices

• Heavy-duty, vandal-

resistant escutcheon.

• Corrosion-resistant, stain-

less steel offered standard

• Hundreds of lever and pull

styles and finish combinations

to satisfy the most de

manding interior design '

requirement.

• Choose from 14 ANSI/

BHMA standard architectural

finishes, or dozens of

Custom RAL colors, or, for

those unique interior de

signs, our Designer Color

special color matching

system.

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial

available to 626 and 630

finishes only.

• Clear powder coating for

outdoor or highly cor

rosive environments that

need added protection. Also

minimizes the appearance

of fingerprints.

• Conventional rim or mortise

cylinders included standard.

• Configurable with SFIC to

accommodate the patented

SC key control system.

• EP European profile cylinder

available with functions 08

and 09.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", select door

thickness option.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL manufacturing

facility certified to ISO

9000 and ISO 14001.

9000 Series Narrow Stile Z Trim

630

Escutcheon

605

606

625

630

689

613

612

611

691

693

695

Knob, Pull, or Lever

Handing

Finish

DSC KD

Keying

Keyway

Cylinder Type

*PC

Z Series Trim

(Specify)

Cylinders and Keying

KA2

KA4

MKD

CMK

NSK

SKD

0Bit

LHR

*Patented Key Control

D100 is the keyway for our patented SKC

serialized key control system. SKC is internet based and

provides added layers of security. For more information,

contact your local sales representative or

Technical Service at 800-387-4938.

626

629

— Default

696

DT RHR

Function

Special Finish Coating

Suffix C and LH/RH

required for clutch

Suffix R required for

rigid lever

Custom

Designer

619

03R

08C

09C

02R

TGD

Special Application Pack

age

L110

L112

L114

L117

L118

L109

Ext3

Ext4

Door

Thickness

— Handed

Handed —

*Clear Powder Coat over 630 Stainless Steel

Narrow Stile dormakaba

9000 Series Premium Exit Devices

• Heavy-duty stainless steel

offered standard.

• Choose from 14 ANSI/

BHMA standard

architectural finishes, or

dozens of Custom RAL

colors, or, for those unique

interior designs, our

Designer Color special color

matching system

• Antimicrobial protected

coating when ultra clean

environments are specified.

Note: Antimicrobial

available to 626 and 630

finishes only.

• Clear powder coating for

outdoor or highly corrosive

environments that need

added protection. Also

minimizes the appearance

of fingerprints.

• All standard devices and

trim are designed for

1-3/4"–2-1/4" thick doors.

For door thickness greater

than 2-1/4", consult

Technical Service.

• Under U.S. law, qualifies for

Made in U.S.A. of U.S. and

imported parts.

• Steeleville, IL manufacturing

facility certified to ISO

9000 and ISO 14001.

9000 Series Narrow Stile Pull Trim

9PO

630

9BPO

Pull Type

605

606

625

630

689

613

612

611

691

693

695

Finish

*PC

Pull

(Specify)

626

— Default

696

Function

Special

Finish

Coating

Custom

Designer

619

. PO not applicable on  Device.  Function only. Not available in  finish

*Clear Powder Coat over 630 Stainless Steel

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Trim Descriptions Tubular Pull Raised Escutcheon Plate

Dummy Trim

Raised Escutcheon Plate

Tubular Pull

Trim Designation OP02 ZODT ZP02

Handing ———

Function 02 DT 02

Cylinder (default) ———

Cylinder

(optional SFIC)

———

3-1/4

(79)

3-1/8

(79)

1/2

(216)

1-5/8

(41)

1/2

(216

)

15/16

(24)

1-5/8

(41)

2-1/4

(57)

7-1/2

(191)

2-1/4

(57)

Trim Descriptions Raised Escutcheon Plate with

Cylinder Hole

(pull by others)

Raised Escutcheon Plate

with Cylinder Hole

and Thumbturn

Raised Escutcheon Plate

Tubular Pull with Cylinder Hole

and Thumbturn

Trim Designation ZO03 ZO11, ZO12 ZP11, ZP12

Handing — — Specify Hand

Function 03 11 or 12 11 or 12

Cylinder (default) 80R40SC – Rim 90X13SC118 – Mortise 90 × 13 SC118 – Mortise

Cylinder

(optional SFIC)

87R40BA – 7-pin 97X09BA138 – 7-pin 97 × 09 BA138 – 7-pin

15/16

(24)

1/2

(216

)

1-5/8

(41)

3-1/4

(83)

1/8

(79)

1/2

(216

)

1-5/8

(41)

1-3/4

(44)

1/2

(216)

1-5/8

(41)

Narrow Stile Trim

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Trim Descriptions Raised Escutcheon Plate

Knob with

Cylinder Hole

Raised Escutcheon Plate

Rectangular Lever with

Cylinder Hole (R trim shown)

Raised Escutcheon Plate

Knob (ZK02R rigid trim)

Trim Designation ZK08, ZK09 Zx08, Zx08C, Zx09, Zx09C ZK02R, ZK23

Handing ———

Function 08 or 09 08 or 09 02 or 23

Cylinder (default) 90X13SC118 – Mortise 90X13SC118 – Mortise —

Cylinder

(optional SFIC)

97X09BA138 – 7-pin 97X09BA138 – 7-pin —

3-1/2

(89)

1/2

(216)

1-5/8

(41)

3-5/8

(92)

1/2

(216

)

1-5/8

(41)

3-1/2

(89)

1/2

(216)

1-5/8

(41)

NOTE: When a trim designation includes an x (such as, Zx08), replace x with

the letter or number assigned to the chosen lever style. For example,

ZR08 specifies lever style R. See pages 63 for details.

Trim Descriptions Raised Escutcheon Plate

Tubular Pull with

Cylinder Hole

Raised Escutcheon Plate

Knob with Cylinder Hole

(rigid trim)

Raised Escutcheon Plate

Rectangular Lever with

Cylinder Hole (rigid trim)

(R trim shown)

Trim Designation ZP03 ZK03R Zx03R

Handing Specify Hand — —

Function 03 03 03

Cylinder (default) 80R40SC – Rim 80R40SC – Rim 80R40SC – Rim

Cylinder

(optional SFIC)

87R40BA – 7-pin 87R40BA – 7-pin 87R40BA – 7-pin

3-1/4

(83)

1/8

(79)

1/2

(216

)

1-5/8

(41)

3-5/8

(92)

1/2

(216

)

1-5/8

(41)

3-1/2

(89)

1/2

(216

)

1-5/8

(41)

Narrow Stile Trim

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Trim Descriptions Raised Escutcheon Plate

Rectangular Lever

(Zx02R rigid trim) (R trim shown)

Raised Escutcheon Plate

Tubular Pull with

Thumbturn

Trim Designation Zx02R, Zx23 ZP25

Handing — —

Function 02 or 23 25

Cylinder (default) — —

Cylinder

(optional SFIC)

— —

3-5/8

(92)

8-1/2

(216)

1-5/8

(41)

3-1/8

(79)

3-1/4

(83)

8-1/2

(216)

1-5/8

(41)

NOTE: When a trim designation includes an x (such as, Zx23), replace x with

the letter or number assigned to the chosen lever style. For example,

ZR23 specifies lever style R. See page 63 for details.

Narrow Stile Trim

Narrow Stile dormakaba

9000 Series Premium Exit Devices

Application ANSI Function Cylinder Type Conventional (Default) SFIC 7-Pin

Cylinders for 9600/F9600 Concealed Vertical Rod, 9700/F9700 Rim, and 9800/F9800 Surface Vertical Rod Devices

Z Escutcheon Trim 03, 04 Rim 80R40SC 87R40BA

Z Escutcheon Trim 08, 11 Mortise 90X13SC118 97C13BA138

Z Escutcheon Trim 09, 12 Mortise 90X09SC118 97C09BA138

Cylinders for Device Options

CD, BA, BAR, DE, D3, DECBC, DA, LMM-P Mortise 90X10SC118 97D10BA138

Cylinders for Mullions

1FKR Key Removable Mullion Mortise 90X01SC118 97D01BA138

1FS Mullion Storage Kit Mortise 90X01SC118 97D01BA138

Rim Cylinders

Conventional SFIC

Mortise Cylinders

Conventional

SFIC

Key-in-Lever Cylinders

Conventional

SFIC

Cylinder Specifications

dormakaba Narrow Stile

9000 Series Premium Exit Devices

Mullions

Removable mullions are used

with paired doors where a full-

width opening is only occa-

sionally required.

Doors are fitted with rim exit

devices and normally function

as single doors. Available in 8'

or 10' lengths.

• Meets demands of

heaviest use areas.

• Durable extrusion.

• Supplied with wood/

machine screws and

anchors.

1310–8 —

8' mullion

1310–10 —

10' mullion

WS1310–8 —

8' mullion with weatherstrip

WS1310–10 —

10' mullion with weatherstrip

Finish

Aluminum: 628 (Satin)

Bronze: 695 (Dark)

• Ideal for high-abuse

areas such as schools.

• Meets demands of

heaviest use areas.

• Heavy-gauge, smooth-

surface steel construction.

• Attractive tube shape

with rounded corners.

• Supplied with wood/

machine screws and

anchors.

1330–8 —

8' mullion

1330–10 —

10' mullion

Finish

Prime: 600

Bottom Fitting

Top Fitting

Stabilizers

(Installed on door)

Top Fitting

Bottom Fitting

Stabilizers

(Installed on door)

1-1/2

(38)

1/2

(64)

.120

(

11 Gage)

Finished Floor

1-5/8

(41)

2-5/8

(67)

1/8

(29)

eatherstrip Slots

Bottom Fitting

Set Screw

Top Fitting

Set Screw

Stabilizers

(Installed on door

)

Finished Floor

(51)

.120

(

11 Gage)

• For use with U.L. listed

fire exit devices.

• Meets demands of

heaviest use areas.

• Large top and bottom

fittings for extra strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with wood/

machine screws and

anchors.

F1300–8 —

8' fire rated mullion

1300–8 —

8' non-fire rated mullion

1300–10 —

10' non-fire rated mullion

Finish

Prime: 600

F1300 Steel Mullion

1330 Steel Mullion1310 Aluminum Mullion

Narrow Stile dormakaba

9000 Series Premium Exit Devices

• Easily removable with key.

• Keying is standard 1-1/8"

mortise cylinder with

01 (AR) cam.

• For use with U.L. listed

fire exit devices.

• Meets demands of

heaviest use areas.

• Large top and bottom

fittings for extra strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with wood/

machine screws and

anchors.

• Includes conventional

default mortise cylinder:

90X01SC118 626.

F1FKR–8 —

8' fire-rated key

removable mullion

1FKR–8 —

8' non fire-rated key

removable mullion

1FKR–10 —

10' non fire-rated key

removable mullion

1FKR–EL–8 —

8' non-fire rated wired key

removable mullion

1FKR–EL–10 —

10' non-fire rated wired

keyed removable mullion

Finish

Prime: 600

Optional SFIC:

97D01BA138 — 7-pin

op Fitting

Mortise Cylinder

90X01SC118 626

(Supplied)

Stabilizers

(Installed on door)

Set Screw

Bottom Fitting

(51)

.120

(

11 Gage)

(76)

Unlocked

Locked

Finished Floor

F1FKR Key Removable Steel Mullion HC1300 Steel HC Mullion

• For use with pairs of

hurricane-rated rim

devices on openings up

to 8'0" × 8'0".

• 80 psf design pressure

rating positive/

negative deflection

with HC9300 rim device.

• Tested to Miami-Dade

TAS 201, 202, 203.

• Large top and bottom

fittings for extra

strength.

• Heavy-duty tube with

rounded corners.

• Standard 8' length.

• Supplied with appropri

ate screws and anchors.

HC1300–8 —

Heavy-duty 5/16" wall

HC mullion*

Finish

Prime: 600

*For other HC mullions, consult

factory.

Top Fitting

Set Screw

Stabilizers

(Installed on door

)

Set Screw

Bottom Fitting

Mullion

Adaptor

(51)

.312

(8) 3

Finished Floor

1FS Mullion Storage Kit

• For use with 1F key

removable steel mullion.

• Locking cylinder can be

keyed into master key

system.

• Includes conventional

default mortise cylinder:

90X01SC118 626.

Optional SFIC:

97D01BA138 — 7-pin

dormakaba USA Inc.

Dorma Drive, Drawer AC

Reamstown, PA 17567

Tel: 800-523-8483

Fax: 800-274-9724

archdw.us@dormakaba.com

dormakaba Canada Inc.

1680 Courtney Park Drive, Unit 13

Mississauga, Ontario L5T 1R4

Tel: 800-387-4938

Fax: 905-670-5850

orders.canada@dormakaba.com

dormakaba México, S. de R.L. de C.V.

Calle Sur 110 no. 63, Col. Tolteca

01150 Mexico, D.F.

Tel: + 52 55 5272 6937 ext. 102

ventasdhw.mx@dormakaba.com

KAA1431 11-2020

www.dormakaba.us

Dorma 9000 Series Technical Brochure Kaa1431 11 20

Navigation menu

Versions of this User Manual:

Views

Navigation
