User manual
English

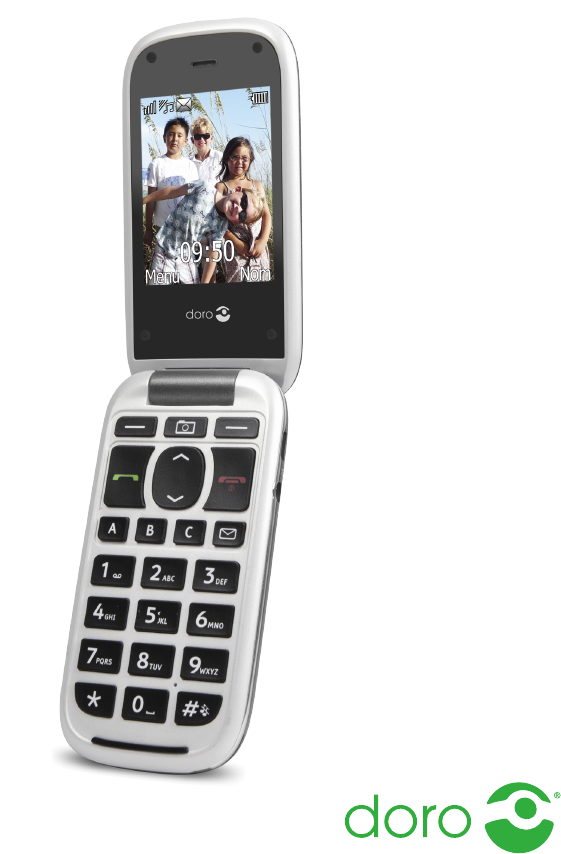

Doro PhoneEasy®613
1
2
3
4
5
6
12
11
10
9
8
7
19
18
17
16
14
15
13
English

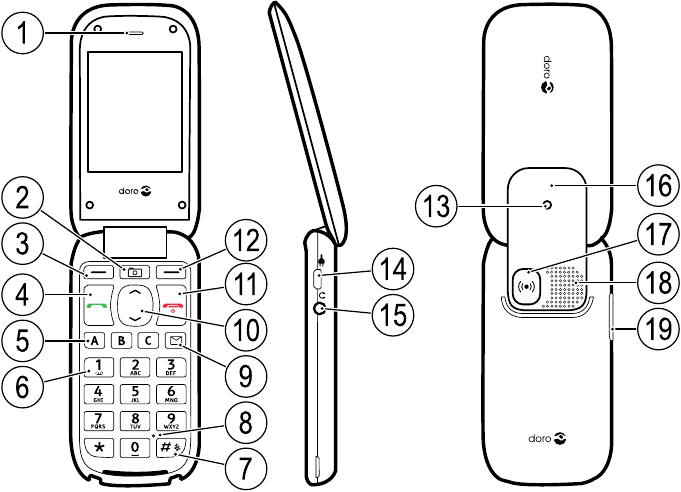

1. Earpiece
2. Camera shortcut
3. Left selection button
4. Call button
5. Speed dial
6. Voice mail
7. Silent/Input method
8. Microphone
9. SMS shortcut
10. Arrow buttons
11. End call/Power on/off
12. Right selection button
13. Camera lens
14. Charging socket
15. Headset socket
16. LED light (Red=Battery level
low / charging,
Green=New message /
Missed call)
17. Assistance button
18. Loudspeaker
19. Volume control

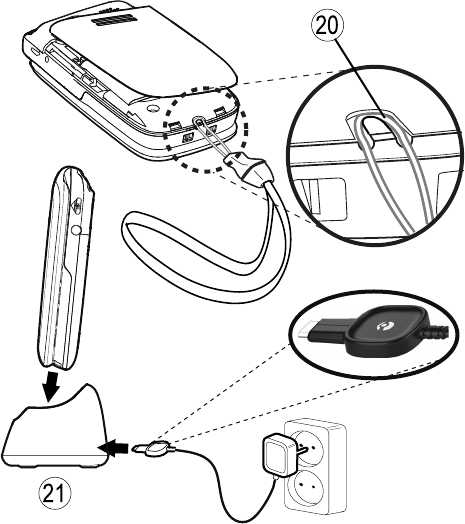

20. Lanyard
21. Charging stand
21
20
English
Contents
Installation ..................................................................................................... 1
Installing the SIM card, memory card and the battery ....................... 1
Charging......................................................................................................... 2
Symbols.......................................................................................................... 4
Assistive functions................................................................................. 4
Phone indicators ................................................................................... 4
Display status symbols ......................................................................... 4
Display main symbols ........................................................................... 5
Operation ....................................................................................................... 6
Activating the phone ............................................................................. 6
Making a call ......................................................................................... 7
Making a call from the Phonebook ...................................................... 7
Receiving a call...................................................................................... 7
Volume control....................................................................................... 7
Entering text ..................................................................................... 8
Call options ............................................................................................ 9
Call waiting............................................................................................. 9
Call information ...................................................................................10
Speed dial ......................................................................................10
Silent ....................................................................................................10
Headset................................................................................................ 10
SOS calls ..............................................................................................10
Assistance button ...........................................................................10
Phonebook...................................................................................................12
Creating a phonebook entry ...............................................................12
Creating ICE entry (In Case of Emergency) ...................................13
Managing phonebook entries.............................................................13
ICE (In Case of Emergency) .................................................................... 14
Messages.....................................................................................................15
Creating and sending SMS .................................................................15
Creating and sending voice message ................................................ 16
Creating and sending MMS ................................................................16
Inbox, Sent, Outbox .............................................................................18
Call log..........................................................................................................19
Retrieving and dialling ........................................................................19
English
Camera (take photos) .................................................................................20
Camera, options ..................................................................................20
Camera adjustments........................................................................... 21
Image viewer................................................................................................ 21
Image viewer, options .........................................................................21
Connecting the phone to a computer ........................................................22
Drag and drop content between phone and a computer .................23
Disconnect the USB cable safely........................................................23
Settings ........................................................................................................23
General.................................................................................................23
Sound ................................................................................................... 27
Display..................................................................................................29
Calls......................................................................................................30
Messages.............................................................................................35
Camera.................................................................................................39
Assistance .......................................................................................39
Bluetooth®............................................................................................ 41
Security ................................................................................................42
File manager........................................................................................45
Additional functions ....................................................................................46
Alarm ....................................................................................................46
Organiser.............................................................................................. 47
Calculator.............................................................................................48
FM radio...............................................................................................48
Games..................................................................................................50
Instructions for the REMOTE USER ....................................................50
Troubleshooting ...........................................................................................54
Safety instructions.......................................................................................56
Network services and costs................................................................56
Operating environment .......................................................................56
Medical units .......................................................................................56
Areas with explosion risk .................................................................... 57
Li-ion battery ........................................................................................ 57
Protect your hearing............................................................................ 57
Emergency calls...................................................................................58
Vehicles................................................................................................58
English
Care and maintenance ...............................................................................58
Warranty.......................................................................................................59
Specifications ..............................................................................................59
Hearing aid ..........................................................................................59
Specific Absorption Rate (SAR) ..........................................................60
Declaration of Conformity ...................................................................60
FCC/IC ..........................................................................................................60
FCC/Industry Canada notice ..............................................................60
RF exposure information (SAR) ..........................................................60
English
Installation
IMPORTANT!
Turn off the phone and disconnect the charger before removing the
battery cover.
Installing the SIM card, memory card and the battery
The SIM and memory card holders are located inside the battery
compartment.
1 2
3 4
1. Remove the battery cover and the battery if it is already installed.
2. Insert the SIM card by gently sliding it into the holder. Make sure
that the SIM card’s contacts are facing inwards and that the cut off
corner is pointing downwards. Take care not to scratch or bend the
contacts on the SIM card.
1
English
3. To insert a memory card by gently sliding it into the holder. Make
sure that the memory card’s contacts are facing inwards and that
the cut off corner is pointing upwards. Take care not to scratch or
bend the contacts on the memory card.
To remove the memory card: find the small ridge on the exposed
end of the memory card. Put your fingernail into the ridge and gently
pull the memory card out.
4. Insert the battery by sliding it into the battery compartment with the
contacts facing upwards to the left. Replace the battery cover.
IMPORTANT!
Use only compatible memory cards for use with this device. Compatible
card type: microSD, microSDHC.
Incompatible cards may damage the card itself, the device and corrupt
data stored on the card. Depending on the market some phones may
have a pre-installed memory card.
Charging
CAUTION
Only use batteries, charger and accessories that have been approved
for use with this particular model. Connecting other accessories may
be dangerous and may invalidate the phones type approval and
guarantee.
When the battery is running low, is displayed and a warning signal is
heard. To charge the battery, connect the mains adapter to a wall socket
and to the charging socket y.
is displayed briefly when the charger is connected to the phone, and
when it is disconnected. The battery charge indicator will be ani-
mated while charging. It takes approximately 3 hours to fully charge the
battery.
is displayed on the screen when charging is completed. If the phone
is turned off when the charger is connected to the phone only the battery
charge indicator will be shown on the display.
2
English
Note! To save power the LCD backlight goes off after a while. Press any
button to illuminate the display. Full battery capacity will not be reached
until the battery has been charged 3–4 times. Batteries degrade over
time, which means that call time and standby time will normally
decrease with regular use.
Save energy
When you have fully charged the battery and disconnected the charger
from the device, unplug the charger from the wall outlet.
3
English
Symbols
Assistive functions
The following symbols indicate information in the manual about assistive
functions for:
Seeing Handling
Hearing Safety
Phone indicators
LED light on the phone will:
•flash green when you have a new message or a missed call. After
reading the new message/missed call, the flashing will stop.
•flash red when the battery is running low and during charging.
Display status symbols
Signal strength No network coverage
Ring only 5Unread message in Inbox
Ring + vibration Alarm active
Vibration only Battery level
Silent Call forward activated
Roaming (in other network) Bluetooth on, visible to
others
Missed call Bluetooth on, invisible to
others
Headset connected Bluetooth connected
Voice mail message
received Data transmission
4
English
Display main symbols
Mute Charger connected
Message sending
successful Charger removed
Message sending failed Headset in
Error Headset out
Warning Speaker on
Query Speaker off
Done (confirmed) Incoming call
New message Outgoing call
Battery level low Call ended
Searching Missed call. Press Read to
see the missed calls.
Assistance call Call on-hold
Volume control SOS calls only
vCard message Processing, please wait
5
English
Operation
Activating the phone
Press and hold the red button on the phone to turn it on/off. Con-
firm with Yes to power off.
If the SIM card is valid but protected with a PIN code (Personal Identifica-
tion Number), PIN is displayed. Enter the PIN code and press OK (
upper left corner of keypad). Delete with Clear ( upper right corner of
keypad).
Note! If PIN and PUK codes were not provided with your SIM card, please
contact your service provider.
Attempts: #shows the number of PIN attempts left. When no more at-
tempts remain, PIN blocked is displayed. The SIM card must now be un-
locked with the PUK code (Personal Unblocking Key).
1. Enter the PUK code and confirm with OK.
2. Enter a new PIN code and confirm with OK.
3. Re-enter new PIN code and confirm with OK.
Start-up wizard
When starting the phone for the first time, you can use the Start-up wiz-
ard to set some basic settings.
•Press Yes to change or No if you do not want to change.
The default language is determined by the SIM card. See General, p.23
on how to change language, time and date.
Tip: You can run the Start-up wizard later if you want, see Start-up wizard,
p.25.
Standby (Idle mode)
When the phone is ready to use, and you have not keyed in any charac-
ters, the phone is in standby.
Left selection button in standby is Menu.
Right selection button in standby is Name.
Tip: You can always press to return to standby.
6
English
Changing the language, time and date
The default language is determined by the SIM card. See General, p.23
on how to change language, time and date.
Making a call
1. Enter the phone number including the area code. Delete with Clear.
2. Press to dial. Press Abort to cancel dialling.
3. Press to end the call.
Tip: For international calls, always use +before the country code for best
operation. Press *twice for the international prefix +.
Making a call from the Phonebook
1. Press Name to open the phonebook.
2. Use the arrow buttons / to scroll through the phonebook or
quick search by pressing the key corresponding to the first letter of
the entry, see Entering text , p.8.
3. Press Call to dial the selected entry, or press Back.
Receiving a call
To answer an incoming call when the flip is closed, open the flip.
To answer an incoming call when you have set Open to answer to Off,
see Answer mode, p.32.
1. Open the flip and press to answer, or press Silent to switch off
the ring signal and then Reject to reject the call (busy signal).
Alternatively, press to reject the call directly.
2. Press to end the call.
Tip: Press and hold +or –to temporarily switch off the ring signal without
opening the flip.
Volume control
Use the side buttons +/–to adjust the sound volume during a call. The
volume level is indicated on the display. If you use hearing aid or have
hearing difficulties when using the telephone in noisy environment, you
can customise the phones audio settings, see Audio setup , p.27.
7
English
Entering text
Press a numerical key repeatedly until the desired character is shown.
Wait a few seconds before entering the next character.
Press *for a list of special characters. Select the desired character with
/ and press OK to enter it.
Use the side keys +/–or / to move the cursor within the text.
Press #to cycle upper case, lower case and numerals.
Press and hold #to change input language.
Entering text with predictive text
In some languages you can use the Smart ABC (eZiType™) input method
which uses a dictionary to suggest words. See Predictive text , p.35 on
how to activate predictive text.
Press each key once, even if the displayed character is not the one you
want. The dictionary will suggest words based on the keys you have
pressed.
1. To write the word “Fred”, press 3,7,3,3. Complete the word
before looking at the suggestions.
2. Use / to view the suggested words.
3. Press Select and continue with the next word.
Alternatively, press 0to continue with the next word.
If none of the suggested words are correct, use manual input mode.
The icon on the top left of the display indicates the input mode:
Abc Sentence case with predictive text
ABC UPPER CASE with predictive text
abc lower case with predictive text
Abc Sentence case
ABC UPPER CASE
abc lower case
123 Numerals
8
English
Call options
During a call the selection buttons1( ) give access to additional
functions:
Options (left selection button)
A menu with the following options is displayed:
Hold single
call/Retrieve
single
Hold/retrieve the current call.
End single
call
End the current call (same as ).
New call Call another number (Conference).
Phonebook Search the phonebook.
Messages Write or read SMS messages.
Mute Disable the microphone.
SPK on (right selection button)
Activates handsfree mode, which allows you to speak without holding the
phone. Speak clearly into the microphone at a maximum distance of 1 m.
Use the side keys +/–to adjust the loudspeaker volume. Press SPK off
to return to normal mode.
Note! The handsfree function allows only one person at a time to talk.
Switching between talk/listen is triggered by the sound of the person
talking. Loud noises (music, etc.) in the background may interfere with
the function.
Call waiting
An alert tone will be heard if there is an incoming call while talking. To
put the current call on hold and answer the incoming call, press Options,
select Answer and then OK.
Tip: Call waiting must be activated, see Call setup, p.33.
9
1. selection buttons have multiple functions. The current key function is
shown above the selection button on the display.
English
Call information
During a call, the outgoing or incoming phone number and the elapsed
call time is displayed. If the identity of the caller is withheld, Unknown is
displayed.
Speed dial
You can use keys A,Band Cand you can also use the numerical keys
0and 2–9. To speed dial an entry from standby, press and hold the
corresponding key. See Speed dial , p.31.
Silent
Silent is a fixed profile with Keypad tone, Message tone and Ringtone dis-
abled, while Vibration, Tasks and Alarm are unchanged.
Tip: Press and hold shortcut button #to activate/deactivate Silent.
Headset
When a headset is connected, the internal microphone in the phone is
automatically disconnected.
When receiving a call you can use the answer key on the headset cable
(if it has one) to answer and end calls.
CAUTION
Using a headset at high volume may damage your hearing. Adjust the
volume level carefully when using a headset.
SOS calls
As long as the phone is switched on, it is always possible to make an
emergency call by entering the main local emergency number for your
present location followed by .
Some networks accept calls to emergency numbers without a valid SIM
card. Contact your service provider for more information.
Assistance button
IMPORTANT!
Always inform recipients in the Number list that they are listed as your
assistance contacts.
10
English
CAUTION
When an assistance call is activated the phone is pre-set to handsfree/
speakerphone mode. Do not hold the device near your ear when the
handsfree mode is in use, because the volume may be extremely loud.
The Assistance button allows easy access to contact your predefined help
numbers (Number list) should you need help. The Assistance function
may need to be activated before use. See Assistance , p.39 on how to
activate as described or with 3 button presses, how to enter recipients in
the numbers list, and how to edit the text message.
•Press and hold the Assistance button for 3 seconds, or press it twice
within 1 second. The assistance call begins after a delay of 5 sec-
onds. In this time you can prevent a possible false alarm by pressing
.
•An assistance SMS is sent to all recipients.
•The first recipients in the list is dialled. If the call is not answered
within 25 seconds, the next number is dialled. Dialling is repeated 3
times or until the call is answered, or until is pressed.
•The assistance function may be configured so that the receiver of
the call must press "0" (zero) to confirm, in order to stop the alarm
sequence. If there is a risk that the assistance call will be answered
by a voice mail/answering service, please activate the function Con-
firm with "0". See Confirm with "0", p.40.
Note! Some private security companies can accept automatic calls from
their clients. Always contact the security company before using their
phone number.
11
English
IMPORTANT!
Information to the receiver of an assistance call, when Confirm with "0"
is activated:
•After receiving the assistance message, each number in the
Number list will be called sequentially.
•To confirm the assistance call, the receiver needs to press 0.
•If the receiver doesn’t press 0within 60 seconds (after
answering) the call will be disconnected and the next number in
sequence will be called.
•If the receiver presses 0within 60 seconds, the call is confirmed
and no further call attempts will be made (assistance sequence
interrupted).
Phonebook
The phonebook can store 300 entries with 3 phone numbers to each
entry.
Creating a phonebook entry
1. Press Menu, scroll to and press OK.
2. Select -New contact- and press Add.
3. Enter a Name for the contact, see Entering text , p.8. Delete
with Clear.
4. Use / to select Mobile,Home or Office, and enter
the phone number(s) including the area code.
5. Select Picture and press Edit to associate a picture to the
contact.
This picture will be displayed when you call the corresponding con-
tact or when they are calling you, see Phonebook picture, p.27.
•Select Take picture and press OK to use the camera to take a
picture.
•Select My pictures and press OK to select an existing picture.
6. Press Save.
Tip: For international calls, always use +before the country code for best
operation. Press *twice for the international prefix +.
12
English
Creating ICE entry (In Case of Emergency)
With this additional information and medical information, first responders
can access this information from the victim's phone in case of emergency.
In the event of a trauma, it is critical to have this information as early as
possible which can increase the chances of survival. All fields are option-
al, but the more information provided the better. See ICE (In Case of
Emergency) , p.14 on how to configure your ICE information.
Managing phonebook entries
1. Press Menu, scroll to and press OK.
2. Select a contact and press Options.
3. Select one of the following options and press OK.
View
Show details for the selected contact.
Edit
1. Use / to move the cursor. Delete with Clear.
2. Press Save.
Add
See Creating a phonebook entry, p.12.
Call
Press OK to call the contact.
Send SMS
Press OK to write a SMS message, see Creating and sending SMS, p.15.
Send MMS
Press OK to write a MMS message, see Creating and sending MMS, p.16.
Delete
Press OK to delete the selected phonebook entry. Press Yes to confirm or
No to abort.
13
English
Delete all
Select From SIM or From phone and press OK to delete all phonebook
entries from the SIM card or phone memory.
Enter the phone code and press OK to confirm. The default phone code
is 1234.
Copy all
Select From SIM and press OK to copy all phonebook entries from the
SIM card to the phone memory. Press Yes to confirm or No to abort.
Select From phone and press OK to copy all phonebook entries from the
phone memory to the SIM card. Press Yes to confirm or No to abort.
Send vCard
Select Send by SMS and press OK to send the selected phonebook entry
as a vCard via SMS. Enter the phone number of the recipient.
Alternatively use the arrow keys / to scroll through the phone-
book, or quick search by pressing the key corresponding to the first letter
of the entry, see Entering text , p.8. Press OK to send.
Select Send by MMS and press OK to send the selected phonebook entry
as a vCard via MMS. Type your message, then press Options. Add items
to your message from the options Add subject,Add picture,Add sound
and Add video. Add recipients with To and Send when ready.
Select Send by Bluetooth and press OK to send the selected phonebook
entry as a vCard via Bluetooth®. See Bluetooth®, p.41 on how to connect
with Bluetooth.
ICE (In Case of Emergency)
First responders can access important information such as medical infor-
mation from the victim's phone in case of emergency. In the event of a
trauma, it is critical to have this information as early as possible to in-
crease the chances of survival. All fields are optional, but the more infor-
mation provided the better.
1. Press Menu, scroll to and press OK.
14
English
2. Select and press OK, then use / to scroll the list of
entries.
3. Press Edit to add or edit information in each entry, see Entering text
, p.8. Delete with Clear. Press Save when done.
Name: Your own name.
Birth: Your date of birth.
Height: Your height.
Weight: Your weight.
Language: Your language.
Insurance: Your insurance provider and policy number.
Contact 1:
Contact 2:
Doctor:
Press Options and then OK to Add or Delete a con-
tact from the phonebook, or Save to accept the cur-
rent entry. If possible, add your relationship to your
ICE contacts in the phonebook, such as “ICE Wife
Mary Smith”.
Condition: Any medical conditions/medical devices (e.g. dia-
betic, pacemaker).
Allergies: Any known allergies (e.g. penicillin, bee stings).
Blood type: Your blood type.
Vaccination: Any relevant vaccinations.
Medication: Any medication that you are treated with.
Other info: Other information (e.g. organ donor, living will, con-
sent to treat).
Messages
Creating and sending SMS
Note! Before you can send any SMS, you need to save your message
centre number. The number to your service centre is supplied by your
service provider and is usually set on the SIM card. If not, you can enter
the number yourself. See SMS centre, p.35.
1. Press shortcut button or press Menu, scroll to and press OK.
2. Select SMS and press OK.
3. Type your message, see Entering text , p.8, then press To.
4. Select a recipient from the Phonebook and press Add.
15
English
Alternatively, select Enter number and press Select to add recipient
manually and press Done.
5. Select Add to add more recipients or select Send to send and then
press OK.
6. You can also modify the recipients by selecting one and press Op-
tions to Edit,Delete or Delete all.
Note! If you choose to add multiple recipients, you will be charged for
each recipient (maximum 10). For international calls, always use +
before the country code for best operation. Press *twice for the
international prefix +.
Creating and sending voice message
A voice message use the same technology as an MMS. Both you and the
recipient must have subscriptions that support MMS. The settings for
MMS is supplied by your service provider and can be sent to you auto-
matically via SMS. If not, see MMS settings, p.36 on how to set your
MMS profile.
1. Press Menu, scroll to and press OK.
2. Select Voice message and press OK.
3. Recording will start immediately. Press Stop when done and press
Yes to save.
4. Select a recipient from the Phonebook and press Add.
Alternatively, select Enter number and press Select to add recipient
manually and press Done.
5. Select Add to add more recipients or select Send to send and then
press OK.
6. You can also modify the recipients by selecting one and press Op-
tions to Edit,Delete or Delete all.
Note! If you choose to add multiple recipients, you will be charged for
each recipient (maximum 10). For international calls, always use +
before the country code for best operation. Press *twice for the
international prefix +.
Creating and sending MMS
A MMS message can contain text and media objects such as pictures,
sound recordings and video. Both you and the recipient must have
16
English
subscriptions that support MMS. The settings for MMS is supplied by
your service provider and can be sent to you automatically via SMS. If
not, see MMS settings, p.36 on how to set your MMS profile.
1. Press Menu, scroll to and press OK.
2. Select MMS and press OK.
3. Type your message, see Entering text , p.8, then press Options.
4. Add items to your message from the options Add subject,Add pic-
ture,Add sound and Add video.
5. Add recipients with To and Send when ready.
Add subject
1. Select Add subject and press OK.
2. Type your subject, then press Done.
Add picture
1. Select Add picture and press OK.
2. Select My pictures and press OK
Alternatively, select Take picture and press OK for using the camera
to take a picture.
3. Select Phone/Memory card and press Open.
4. Select a folder, eg Photos and press Open.
5. Select a file and press OK.
Add sound
1. Select Add sound and press OK.
2. Select My sounds and press OK.
Alternatively, select Record sound and press OK for using the micro-
phone to record sound. Recording will start immediately. Press Stop
when done and press Yes to save.
3. Select Phone/Memory card and press Open.
4. Select a folder, eg Audio and press Open.
5. Select a file and press OK.
Add video
1. Select Add video and press OK.
2. Select My videos and press OK.
3. Select Phone/Memory card and press Open.
17
English
4. Select a folder, eg Received and press Open.
5. Select a file and press OK.
Add recipients (To)
1. Select To and press OK to select recipient from Phonebook and
press Add.
Alternatively, select Enter number and press Select to add recipient
manually and press Done.
2. Select Add to add more recipients or select Send to send and then
press OK.
3. You can also modify the recipients by selecting one and press Op-
tions to Edit,Delete or Delete all.
Inbox, Sent, Outbox
/SMS/MMS unread /SMS/MMS sent
/SMS/MMS read /SMS/MMS unsent
1. Press Menu, scroll to and press OK.
2. Select Inbox/Sent/Outbox and press OK.
3. Select a message and press Read.
Use / to scroll the message up/down.
4. Press Options for the following options:
View (MMS only)
To view the message.
Call
Press OK to call the contact.
Resend
Send again to the same receiver.
Reply
Type your reply, then press Done. The message will be sent immediately.
18
English
Delete
Press Yes to delete the message, or No to return.
Download/Cancel download
If the message has not downloaded yet, press Download.
Edit
Edit the message, then press Send.
Forward
Forward a message. Edit the message (if desired), then press Send.
Use number
Displays all phone numbers contained in the message as well as the
sender's number.
Call Call the selected number.
Save Save the number in the Phonebook.
Send SMS Write a new SMS message.
Send MMS Write a new MMS message.
Save objects (MMS only)
To save text and media objects such as pictures, sound recordings and
video.
Details (MMS only)
To view details of the message.
Call log
Received, missed and dialled calls are saved in a combined call log. 20
calls of each type can be stored in the log. For multiple calls relating to
the same number, only the most recent call is saved.
Retrieving and dialling
1. Press .
Alternatively, press Menu, scroll to and press OK.
2. Use / to scroll through the Call log.
19
English
Received call
Dialled call
Missed call
3. Press to dial the number or press Options for the following
settings:
View Show details for the selected call.
Delete Delete the call.
Delete all Delete all calls in the Call log.
Save Save the number in the Phonebook.
Camera (take photos)
To get sharp photos, wipe the lens clean with a dry cloth.
1. Press shortcut or press Menu, scroll to and press OK.
2. Press to take photo.
3. Press Options or Back (if you do not make any selection the picture
is saved).
Camera, options
Send
Select an option, then press OK:
Send by MMS Send as MMS. Press OK to create a message, see Creating
and sending MMS, p.16.
Send by
Bluetooth
Send to other Bluetooth devices, see Bluetooth®, p.41.
Delete
Press OK to delete selected image. Press Yes to confirm or No to return.
Use
Select an option from the list, then press OK.
20
English
Wallpaper Save as display background. Press OK
Phonebook
Save as phonebook contact. Press OK.
Camera adjustments
•Use / to zoom in and out.
•Use the side buttons +/–to adjust EV/Light sensitivity.
Note! Zoom may reduce image quality.
For more camera settings, see Camera, p.39.
Image viewer
View your saved images.
1. Press Menu, scroll to and press OK.
2. Select an image, then press Options.
3. Select one of the following options and press OK.
Image viewer, options
View
Single view. Press Back when done.
Send
Select an option, then press OK:
Send by MMS Send image as MMS. Press OK to create a message, see
Creating and sending MMS, p.16.
Send by
Bluetooth
Send image to other Bluetooth devices, see Bluetooth®, p.41.
Delete
Press OK to delete selected image. Press Yes to confirm or No to return.
Use
Select an option from the list, then press OK to confirm.
21
English
Wallpaper Save as display background. Press OK.
Phonebook
Save as phonebook contact. Press OK.
Details
View detailed information about the file, e.g. date, size, copyright.
Rename
Rename image. Delete with Clear and press Done to confirm.
Browse style
You can change image view. Default is Large, you can also select List or
Medium.
In List the file name, the date and the size of the image is shown.
Sort by
Select if you want to sort your images by Name or Time.
Storage
Select where the phone should save files if you have memory card
installed.
Delete all
Press OK to delete all images. Press Yes to confirm or No to return.
Connecting the phone to a computer
22
English
Connect the phone to a computer and start transferring pictures, music
and other file types. All you have to do is connect a USB cable between
the phone and computer. From your computer's file explorer, you can
drag and drop content between your phone and the computer.
Note! You might not be able to transfer some copyright-protected
material.
Drag and drop content between phone and a computer
1. Connect your phone to a computer using a USB cable.
2. Wait until the phone/memory card appears as external disks in the
file explorer.
3. Drag and drop selected files between the phone and the computer.
Note! When the phone/memory card is mounted to the computer, the
phone cannot access the memory card. Some functionality and
applications in the phone, such as the camera, may not be accessible.
You can transfer files by using a USB cable on most devices and
operating systems supporting a USB Mass Storage interface.
Disconnect the USB cable safely
1. Make sure to enable the hardware to be safely removed.
2. Disconnect the USB cable.
Note! Do not disconnect the USB cable when transferring content as this
may corrupt the content.
Computer instructions may vary depending on your operating system.
See the documentation of your computer's operating system for more
information.
Settings
Note! The settings described in this chapter are carried out in standby
mode. Press to return to standby mode.
General
Time & date
Setting the time and date
23
English
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Time & date and press OK.
4. Select Set time and press OK.
5. Enter the time (HH:MM), then press OK.
6. Select Set date and press OK.
7. Enter the date (DD/MM/YYYY), then press OK.
Setting the time/date format
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Time & date and press OK.
4. Select Set format and press OK.
5. Select Time format and press OK.
6. Select 12 hours or 24 hours and press OK.
7. Select Date format and press OK.
8. Select the desired date format and press OK.
Setting Auto time on/off
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Time & date and press OK.
4. Select Auto time and press OK.
5. Select On/Off and press OK.
To set the phone to automatically update the time and date according to
the current time zone, select On. Automatic update of date and time does
not change the time you have set for the alarm clock or the calendar.
They are in local time. Updating may cause some alarms you have set to
expire. Depending on network support and subscription.
Language
The default language for the phone menus, messages etc. is determined
by the SIM card. You can change this to any other language supported by
the phone.
1. Press Menu, scroll to and press OK.
24
English
2. Select General and press OK.
3. Select Language and press OK.
4. Scroll / to select a language, then press OK.
Start-up wizard
Use the Start-up wizard to set some basic settings.
Press Yes to change Language, Time & date, Ringtone, Volume, Text size
or Themes. Press No if you do not want to change.
Owner number
The phone numbers assigned to your SIM card are saved if this is allowed
by the card.
To view/edit the numbers:
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Owner number and press OK.
See Phonebook, p.12 on how to add names/numbers.
To edit or delete an existing entry, select it and press Options, then select
Edit or Delete and press OK.
Block function
You can disable functions to simplify the use of the phone.
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Block function and press OK.
4. Select each function you want to disable and press Off.
5. Press Done to confirm.
Network setup
Your phone automatically selects your (service providers) home network
if this is within range. If not within range, you may use another network,
provided your network operator has an agreement that allows you to do
so. This is called roaming. Contact your service provider for more
information.
25
English
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Network setup and press OK.
4. Select one of the following options and press OK to confirm.
New search
Perform new search if connection is lost.
Select network
To view available networks, press Select network. A list of available net-
work operators is displayed (after a short delay). Select desired operator
and press OK.
Network mode
To select another network, select Network mode and then select one of
the following options.
Automatic Network is selected automatically.
Manual Network is selected manually. Use Select network to select
desired operator.
Services
This menu may contain pre-programmed services from your network pro-
vider. Depending on network support and subscription.
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Services and press OK.
Phonebook storage
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Phonebook storage and press OK.
4. Select one of the following options and press OK.
SIM 1 phone number per contact. Number and length of the
phone numbers/contacts that can be stored will vary de-
pending on SIM card/service provider preferences.
Phone 300 contacts with 3 phone numbers each Mobile,Home or
Office.
26
English
Phonebook picture
You can change the phonebook view mode. Select On to see the contacts
associate picture (Picture), or select Off to display only the names of
contacts.
1. Press Menu, scroll to and press OK.
2. Select General and press OK.
3. Select Phonebook picture and press OK.
4. Select On or Off and press OK.
Sound
Note! Silent needs to be set to Off to access Tone setup, Volume, Alert
type and Extra tone. See Silent, p.28.
Audio setup
If you use a hearing aid or have hearing difficulties when using the tele-
phone in a noisy environment, you can customise the phones audio
settings.
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Audio setup and press OK.
4. Select one of the following options and press OK.
Normal For normal hearing in normal conditions.
Medium For mild hearing impairment or usage in noisy environment.
High For moderate hearing impairment or usage in very noisy
environment.
Tone setup
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Tone setup and press OK.
4. Select Ringtone and press OK.
5. Scroll / to select one of the available melodies, the melody
will be played. Press OK to confirm or Back to discard changes.
6. Set up the other features tones in the same way.
27
English
Ringtone volume
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Volume and press OK.
4. Scroll / to change the ring volume, then press OK.
Silent
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Silent and press OK.
4. Select On or Off and press OK.
Tip: Press and hold shortcut button #to activate/deactivate Silent
mode.
Alert type
Incoming calls can be signalled by a ring tone and/or vibration.
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Alert type and press OK.
4. Scroll / to select signalling mode, then press OK.
Ring only Ring tone only.
Vib. only Vibration only.
Vib. and ring Vibration and ring tone.
Vib. then ring Starts with vibration and adds ring tone after a short while.
Silent No sound or vibration, the display light is lit.
Extra tone
Warning and error tones are used to alert you of low battery power,
phone and SIM card errors etc.
1. Press Menu, scroll to and press OK.
2. Select Sound and press OK.
3. Select Extra tone and press OK.
4. Select Warning and press On/Off to enable/disable.
28
English
5. Select Error and press On/Off to enable/disable.
6. Press Done to save.
Display
Main menu
You can select different styles for the main menu.
1. Press Menu Settings Display.
2. Select Main menu Large/List.
3. Press OK to confirm.
Wallpaper
You can select different display backgrounds.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select Wallpaper and press OK.
4. Scroll / to display available wallpapers.
5. Press OK to confirm or Back to discard changes.
Text size
You can customise the text size for messages and the phonebook.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select Text size and press OK.
4. Select Normal or Large and press OK.
Idle display
In standby mode the display can show clock only, clock and the service
provider or all information.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select Idle display and press OK.
4. Select Clock only,Clock & Operator or All info and press OK.
29
English
Themes
You can select different themes to personalise the phones display text
and background.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select Themes and press OK.
4. Scroll / to select a theme.
5. Press OK to confirm or Back to discard changes.
LCD backlight
Select the delay time for the display backlight.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select LCD backlight and press OK.
4. Select 15 sec.,30 sec. or 1 min and press OK.
Brightness
You can customise the phones brightness settings.
1. Press Menu, scroll to and press OK.
2. Select Display and press OK.
3. Select Brightness and press OK.
4. Select Level 1–Level 3 and press OK.
Calls
Voice mail
If your subscription includes an answering service, callers can leave a
voice mail message when you cannot answer a call. Voice mail is a net-
work service and you may need to subscribe to it first. For more informa-
tion and for the voice mail number, contact your service provider.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Voice mail and press OK.
4. Select Empty and press Add.
5. Select Phonebook to add a contact from the Phonebook.
30
English
Alternatively, press Manual. See Phonebook, p.12 on how to add
names/numbers.
6. Press OK.
To edit or delete an existing entry, select it and press Options, then select
Edit or Delete and press OK.
Call voice mail
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Voice mail and press OK.
4. Select Options and press OK.
5. Select Call voice mail and press OK to call the voice mailbox.
Tip: Press and hold shortcut button 1to call your voice mail.
Speed dial
A,B,Cand the numerical keys 0and 2–9can be used for speed
dialling.
Adding speed dial numbers
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Speed dial and press OK.
4. Select Aand press Add.
5. Select an entry from the phonebook and press OK.
6. Repeat to add speed dial entries for buttons B,C,0,2–9.
To change contact, select an existing entry and press Options, then se-
lect Edit or Delete and press OK.
To speed dial an entry from standby, press and hold the corresponding
button.
You can edit the contact information for the dedicated speed dial buttons
A,Band C.
1. Press the corresponding button. Use / to highlight the name
or the number, then press Edit.
2. Press OK to confirm. Delete with Clear.
31
English
Top 10
Set the entry as one of the first 10 contacts listed in the phonebook.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Top 10 and press OK.
4. Select one of the empty entries and press Add.
5. Use / to scroll through the phonebook or quick search by
pressing the key corresponding to the first letter of the entry.
6. Press OK to save the selected entry, or press Back to discard
changes.
To delete a Top 10 entry, select the entry in the Top 10 list and press Op-
tions, then Delete.
Call time
During a call, the duration of the call is shown. You can check the dura-
tion of your calls.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Call time and press OK.
4. Select one of the following options and press OK.
Last call Show the elapsed time of the most recent call.
Outgoing
calls
Show the elapsed time of all dialled calls.
Received
calls
Show the elapsed time of all received calls.
Reset all Press Yes to reset the timer, or No to discard changes.
Answer mode
Select Open to answer and press OK, select On and press OK to answer
incoming calls by opening the flip.
Select Any key and press OK, select On and press OK to be able to an-
swer incoming calls by pressing any button (exemption ).
32
English
Call setup
Depending on network support and subscription. Contact your service
provider for more information.
Caller ID
Display or hide your phone number on the recipients phone when you call.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Call setup and press OK.
4. Select Caller ID and press OK.
5. Select one of the following options and press OK.
Set by
network
Use default setting by the network.
Hide ID Never show your number.
Send ID Always show your number.
Call waiting
You can handle more than one call at a time. An alert tone will be heard
if there is an incoming call while talking. To put the current call on hold
and answer the incoming call, press Options, select Answer and then OK.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Call setup and press OK.
4. Select Call waiting and press OK.
5. Select one of the following options and press OK.
Activate Enables call waiting.
Deactivate Disables call waiting.
Query status Displays if call waiting is active or not.
Call divert
You can divert calls to an answering service or to another phone number.
Set up which calls should be diverted. Select a condition and press OK,
then select Activate,Deactivate or Query status (see Call waiting, p.33)
for each.
1. Press Menu, scroll to and press OK.
33
English
2. Select Calls and press OK.
3. Select Call setup and press OK.
4. Select Call divert and press OK.
5. Select one of the following options and press OK.
Voice calls Diverts all voice calls.
Unreachable Diverts incoming calls if the phone is turned off or out of
range.
No reply Diverts incoming calls if unanswered.
If busy Diverts incoming calls if the line is busy.
Cancel
diverts
Do not divert calls.
Call barring
Your phone can be restricted to disallow certain types of calls.
Note! A password is needed to apply Call barring. Contact your service
provider to get the password.
1. Press Menu, scroll to and press OK.
2. Select Calls and press OK.
3. Select Call setup and press OK.
4. Select Call barring and press OK.
5. Select one of the following options and press OK.
Outgoing
calls
Press OK then select:
All calls User can answer incoming calls but not dial out.
Internat.calls User can not call international numbers.
Int. except
home
User can not call international numbers except to the coun-
try associated with the SIM card.
Incoming
calls
Press OK then select:
All calls User can dial out but not receive incoming calls.
When
roaming
User can not receive incoming calls while roaming (operat-
ing in other networks).
Cancel all Cancel all call barring (password needed).
34
English
Messages
1. Press Menu, scroll to and press OK.
2. Select Messages and press OK.
3. Select one of the following options and press OK.
Predictive text
Select On and press OK to enable Predictive text/eZiType™, see Entering
text , p.8.
Write speed
You can change the speed at which keypad characters repeat (before the
cursor moves onto the next character).
Select Fast,Normal or Slow and press OK.
SMS settings
Memory status
Displays the percentage of memory space used on the SIM card and in
the phone memory. Phone memory can store up to 200 messages.
Storage
1. Select SIM (default) to store messages on the SIM card, or Phone to
store messages in the phone memory.
2. Press OK.
SMS centre
This number is needed to use the message function. The number to your
service centre is supplied by your service provider and is usually set on
the SIM card. If the service centre number is saved on the SIM card it is
shown. If not, you can enter the number yourself. Contact your service
provider for more information.
1. Press Edit and enter the service centre number. Press Clear to
delete.
2. Press Save to save the new number.
Cell broadcast
You can receive messages on various topics from your service provider,
such as weather or traffic conditions in a particular region. For available
35
English
channels and relevant channel settings, contact your service provider.
Cell broadcast messages cannot be received when the device is roaming.
Select Cell broadcast and press OK for the following settings:
Function on/
off
To turn information On or Off.
Read
messages
Press OK to read the message.
Languages Select language On/Off and press Done.
Channel
settings
Select from which channels you want to receive/subscribe
messages. Use the options Subscribe,Cancel subscription,
Add,Edit and Delete to define your channels.
MMS settings
Memory status
Displays the percentage of memory space used in the phone memory.
Storage
Picture messages / MMS are saved by default in the phone memory.
When the memory becomes full you will need to either delete a picture
message (see Delete, p.19) or select to save your picture messages on
the memory card (you will need to buy and insert a memory card of your
own*). When the memory is full you will see a message saying No memo-
ry when you try to send or receive a picture message.
Note! Make sure to insert a compatible memory card before saving on it
(see Installation, p.1).
1. Select Memory card (memory card only appears if you have inserted
a card) to store Picture Messages on the memory card, or Phone to
store in the phone memory.
2. Press OK.
MMS profile
These settings are needed to use the MMS function. The settings for
MMS is supplied by your service provider and can be sent to you
automatically.
36
English
For some service providers the MMS profile has to be selected manually.
Follow the instructions below to Activate the correct profile to suit your
SIM/network used.
1. Select MMS profile and press OK.
2. Select your service provider and press Options.
3. Select Activate and press OK.
If your service provider is not in the list, do the following:
1. Select MMS profile and press OK.
2. Select Add and press OK for the following settings:
Enter the settings for your service provider. The correct settings can
be obtained from the service provider.
Account
name
Add account name.
APN Add APN (Access Point Name).
User name Add user name.
Password Add password.
Homepage Add homepage.
Connection
type
Use the side buttons +/-to select connection type HTTP
or WAP.
Proxy
address
Add proxy address.
Proxy port Add proxy port.
User name Add proxy user name.
Password Add proxy password.
3. Press OK and press Yes to save or No to exit without saving.
4. Select your new profile and press Options.
5. Select Activate and press OK.
You can also activate/modify a MMS profile by selecting one and press
Options to Activate/Edit/Delete the account.
37
English
Note! Some service providers require you to send an MMS message
before you will be able to receive one. Send a MMS with text only to
activate the service. Some service providers require that you contact
them before enabling MMS for your account. Contact your service
provider’ Customer Services. Press during set up to exit without
saving.
Reminder
The SMS reminder alerts you once if you haven't checked your text mes-
sage within 10 minutes from receipt. If notification envelope is removed
by pressing , no reminder will be heard.
Select Reminder and press On/Off to enable/disable.
Vibration
The SMS vibration alert is several short vibrations that continues for ei-
ther Short (4 seconds) or Long (12 seconds).
Note! If Alert type is set to Ring only the phone will not vibrate.
Delivery report
You can select if you want the phone to notify you when your SMS has
reached the receiver.
Select Delivery report and press OK. Select On or Off to enable/disable.
Press OK to save.
Note! If you choose Delivery report=On, some operators will charge you
for that message.
Delete
Select Inbox to delete all messages in the Inbox. Press Yes confirm or No
to discard changes.
Select Outbox to delete all messages in the Outbox. Press Yes confirm or
No to discard changes.
Select Sent to delete all messages in Sent. Press Yes confirm or No to
discard changes.
38
English
Select Delete all to delete all messages at the same time. Press Yes con-
firm or No to discard changes.
Camera
1. Press Menu, scroll to and press OK.
2. Select Camera and press OK.
3. Select one of the following options and press OK.
EV information
EV/Light sensitivity can be adjusted by pushing volume keys up & down
when in camera mode.
Image size
Select one of the following options Wallpaper (lowest quality), 1 MP or
(highest quality).
Note! With higher quality (more megapixels), less pictures can be stored
in memory.
Shutter sound
Select one of the following options Off,Low or High.
Assistance
Settings for the Assistance button function.
1. Press Menu, scroll to and press OK.
2. Select Assistance and press OK for the following settings:
Activation
Select one of the following options and press OK.
On Normal To activate, press and hold button for approximately 3 sec-
onds, or press twice within 1 second.
On (3) To activate, press button 3 times within 1 second.
Off Assistance button disabled.
Number list
The list of numbers that will be called when the Assistance button is
pressed.
39
English
1. Select Empty and press Add.
2. Select Phonebook to add a contact from the phonebook.
Alternatively, press Manual. See Phonebook, p.12 on how to add
names/numbers.
3. Press OK.
Repeat until you have 5 contacts (maximum).
To edit or delete an existing entry, select it and press Options, then select
Edit or Delete and press OK.
SMS
The message to be sent to the contacts in numbers list when the Assis-
tance button is pressed.
Activation
Select one of the following options and press OK.
On The phone sends a text message before dialling.
Off The phone dials without sending a message first.
Message
Press Edit and enter the message and then press OK to confirm.
Note! You must write a message if you activate the SMS function.
Confirm with "0"
Select one of the following options and press OK.
On The function will work as above AND: If the receiver doesn’t
press 0within 60 seconds the call will be disconnected
and the next number in the sequence will be called. If the
receiver presses 0within 60 seconds, the call is confirmed
and no further call attempts will be made (assistance se-
quence interrupted).
Off The phone will dial the first number on the list. If the call is
not answered within 25 seconds, the next number is dialled.
Dialling is repeated 3 times or until the call is answered, or
until is pressed.
40
English
Signal type
Adjustment of the signal type for notification of the assistance sequence.
Select one of the following options and press OK.
High Loud signals (default).
Low One low signal.
Silent No sound indication, like a normal call.
Alarm info
Please read this important safety information before enabling the assis-
tance function:
Be careful about including numbers with automatic answering in the call
list, as the alarm sequence stops once the call is answered.
Note! This information is not applicable if Confirm with "0" is set to On.
Bluetooth®
IMPORTANT!
When you are not using Bluetooth connectivity, select Function on/off
Off or select Visibility Off. Do not pair with an unknown device.
You can connect wirelessly to other Bluetooth compatible devices such
as headsets.
1. Press Menu, scroll to and press OK.
2. Select Bluetooth and press OK for the following settings:
Function on/off
Select On/Off and press OK to enable/disable Bluetooth.
Visibility
Select On/Off to make your phone visible/invisible to other devices.
Note! To prevent other devices from finding your device, select Off. Even
if you select Off, paired devices can still detect your device.
41
English
Device name
Enter the name your phone should appear as for other Bluetooth devices
and press OK.
Search device
Search for available Bluetooth audio devices. If Bluetooth is not enabled
you can enable it now by pressing Yes.
1. Select from the list of devices and press Bond to connect.
2. When connecting to another Bluetooth device you need a shared
password. Enter the password and press OK.
My device
Lists saved devices and enables you to add new devices. Select device
from the list and press Options.
Connect/
Disconnect
Connect/disconnect selected device. Select required profile,
usually a headset.
Set default Select the connected device as default.
Rename Change the name of the device.
Delete Delete the device from the list.
Delete all Delete all devices from the list.
Audio path
Select one of the following options and press OK.
Phone Incoming calls are answered with the phone.
Forward BT Incoming calls are forwarded to Bluetooth device.
Security
1. Press Menu, scroll to and press OK.
2. Select Security and press OK.
SIM lock
The SIM card is protected with a PIN code (Personal Identification Num-
ber). The phone can be set to ask for the PIN code on startup.
Select one of the following options and press OK.
42
English
On PIN code activated, you need to enter the PIN code every
time the phone is started.
Off PIN code deactivated. Warning, if SIM card is lost/stolen it
is unprotected.
Automatic You do not need to enter the PIN code when the phone is
started, the phone remembers it automatically. If SIM card
is moved to another phone (lost/stolen), the PIN code needs
to be entered to unlock.
Note! You need to input the current PIN code to disable/enable SIM lock.
Phone lock
Select On/Off and press OK to enable/disable.
Note! You need to input the current Phone code to disable/enable Phone
lock. The default Phone code is 1234.
Remote configuration
Allow persons that you trust, usually a family member or friend, to send
information to your Doro PhoneEasy®613. You can receive phonebook
contacts and contacts for speed dial keys, calendar tasks and settings
for the assistance button. When activated, you don’t have to do anything,
it’s the other person that sends information to you.
Select Remote config and press OK for the following settings:
Activation
Select On to activate remote configuration and press OK.
On Remote configuration enabled.
Off Remote configuration disabled.
Number list
You need to add the name and number of the people who are allowed to
send information from their phone to your Doro PhoneEasy®613.
1. Select Number list and press OK.
2. Select Empty and press Add.
3. Select Phonebook to add a contact from the Phonebook.
Alternatively, press Manual.
43
English
4. Press .
5. Enter the number and press OK.
Repeat until you have 5 contacts (maximum).
To edit or delete an existing entry, select it and press Options, then select
View,Edit or Delete and press OK.
Fixed dial (FDN)
You can limit calls to certain numbers saved on the SIM card. The list of
allowed numbers is protected by your PIN2-code.
Mode Select On/Off and press OK. Enter PIN2. Press OK to
confirm.
Fixed
numbers
Press Add to enter the first allowed number. Alternatively,
select an entry and press Options for the following settings:
Add,Edit or Delete and press OK. Enter PIN2. Press OK to
confirm.
Note! You can save parts of phone numbers. For example, if you save
01234, allows calls to all numbers starting with 01234. It is possible to
place an SOS call by entering the main local emergency number followed
by even when fixed dial is activated. When fixed dial is activated you
are not allowed to view or manage any phone numbers saved on the SIM
card. You are not able to send any SMS either.
Passwords (change your passwords)
To change the PIN,PIN2 or the Phone code passwords:
1. Enter the current code and confirm with OK.
2. Enter a new code and confirm with OK.
3. Enter the new code again and confirm with OK.
Reset settings
If you select Reset settings, the changes that you have made to the
phone settings will be reset to default settings. Input the phone password
and press OK to reset.
44
English
Reset all
If you select Reset all, your phones settings and content, such as con-
tacts, number lists and messages, will be deleted from the phone memo-
ry (SIM memory is not affected). Input the phone password and press OK
to reset.
Note! The default Phone code is 1234.
File manager
Manage the contents and properties of files. You can open, delete, move,
copy and rename files.
Supported image format: BMP/GIF/JPG/PNG. Photos taken with the built
in camera are saved as JPG.
Supported audio format: WAV/AMR/MIDI/MP3/AAC/AAC+. Recordings
made with the built in sound recorder are saved as AMR.
Supported video format: MP4/3GPP. Only playback is possible.
1. Press Menu, scroll to and press OK.
2. Select File manager, then press OK.
3. Select Phone/Memory card and press Open.
4. Select a folder, eg Photos and press Open.
5. Select a file and press Options for the following options:
Play (audio/video/music)
Play file. Use to Play, use to Stop playback. Press Back when
done.
View (photos/images)
Single view. Press Back when done.
Send
Select an option, then press OK:
Send by MMS Send by MMS. Press OK to create a message, see Creating
and sending MMS, p.16.
Send by
Bluetooth
Send to other Bluetooth devices, see Bluetooth®, p.41.
45
English
Details
View detailed information about the file, e.g. date, size, copyright-
protection.
Use
Select an option from the list, then press OK.
Wallpaper Save as display background. Press OK.
Phonebook
Send to a phonebook contact. Press OK.
Rename
Rename the file. Delete with Clear and press Done to confirm.
Delete
Press OK to delete selected file. Press Yes to confirm or No to return.
Delete all
Press OK to delete all files in selected folder. Press Yes to confirm or No
to return.
Sort by
Select if you want to sort your files by Name or Time.
Copy/Move
To copy or move a file to another folder:
1. Select Copy/Move and press OK.
2. Select Phone/Memory card and press Options.
3. Select Open and press OK.
4. Select a folder, eg Photos and press Options.
5. Select Paste and press OK.
Additional functions
Alarm
1. Press Menu, scroll to and press OK.
46
English
2. Select On and press OK.
3. Enter the alarm time using the keypad, then press OK.
4. For a single occurrence, select Single and press OK.
5. For a repeated alarm, select Repeated and press OK. Scroll through
the list of weekdays and press On/Off to enable/disable the alarm
for each weekday, then press Done.
6. To edit an alarm, press Edit, then press OK.
7. To stop the alarm, press Off. The alarm is now deleted.
Note! The alarm will work even when the phone is switched off. Do not
press Yes to power on if wireless phone use is prohibited or when it may
cause interference or danger.
When the alarm goes off a signal will sound. Press Stop to turn off the
alarm or press Snooze to repeat the alarm after 9 minutes.
Organiser
1. Press Menu, scroll to and press OK.
2. Select one of the following options and press OK.
Calendar
View
Show tasks for the selected date.
Add task
1. Enter date for the task, then press .
2. Enter time for the task, then press .
3. Enter subject.
4. Press OK.
Jump to date
Enter the date and press OK.
View all
Select a task and press Options for the following options:
Edit Edit selected task.
Delete Delete selected task.
Delete all Delete all tasks.
47
English
Note! The calendar will work even when the phone is switched off. Do not
press Yes to power on if mobile phone use is prohibited or when it may
cause interference or danger.
Daily reminder
1. Enter time for the task, then press .
2. Enter subject.
3. Press OK to save the task.
Note! Works even when the phone is switched off. Do not press Yes to
power on if mobile phone use is prohibited or when it may cause
interference or danger.
When the alarm goes off a signal will sound. Press Stop to turn off the
alarm or press Snooze to repeat the alarm after 9 minutes.
Calculator
The calculator can perform basic mathematical operations.
1. Press Menu, scroll to and press OK.
2. Enter the first number. Use #to enter decimal points.
3. Use the arrow buttons to select an operation (+, -, x, ÷) and press OK.
4. Enter the next number and press OK.
5. Repeat steps 2–4 as necessary.
Select =and press OK to calculate the result.
FM radio
The FM radio has a frequency range from 87.5 to 108.0 MHz and 9 pre-
set channels.
Turning the radio on
1. Connect the headset to the headset socket .
2. Press Menu, scroll to and press OK. The radio is turned on. The
tuned frequency is displayed. Select channel using or . Use
the side keys +/-to adjust the volume.
3. Press to return to standby mode. The radio will continue to play.
48
English
Save frequency
1. Press Menu, scroll to and press OK.
2. Select channel using or .
3. When a station has been found, select Options.
4. Select Save frequency and press OK.
5. Enter a name for the new channel, see Entering text , p.8.
6. Press Save.
Switch off
1. Press Menu, scroll to and press OK.
2. Press Options, then press Switch off.
Tip: Disconnecting the headset will also turn off the radio.
Channel list (editing the channel list)
1. Press Menu, scroll to and press OK.
2. Select Options.
3. Select Channel list and press OK.
4. Select the channel you wish to edit and press Options or Add.
5. Select one of the following options and press OK.
Play Play the selected channel.
Delete Delete the channel. Press Yes to confirm or No to return to
the channel list.
Edit Edit the channel name, then press to edit the fre-
quency, use #to enter the decimal point. Press Save.
Selecting channels
Press keys 1-9to quick-select a preset channel while the radio is
playing.
Manual input (changing search mode)
1. Press Menu, scroll to and press OK.
2. Select Options.
49
English
3. Select Manual input and press OK.
4. Select one of the following options and press OK.
Fine tune Manual tuning with or .
Auto search Automatic station search with or .
Auto save
Note! This will overwrite all previously saved channels!
1. Press Menu, scroll to and press OK.
2. Select Options.
3. Select Auto save and press OK to automatically install available ra-
dio stations in channels 1-9.
Games
1. Press Menu, scroll to and press OK.
2. Select Tetris or Boxman then press OK for the following options:
Continue Press OK to continue game.
Restart level Press OK to restart game at the same level as before.
Start game Press OK to start a new game.
Game level Select difficulty level and press OK.
Best grades Shows your best results. Press Back to return or Reset to re-
set the scores.
Help Shows instructions for the game. Press Back to return.
Settings
Sound effect Use side buttons +/-to select On or Off, then press OK.
Volume Use the side buttons +/–to adjust the sound volume, then
press OK.
Instructions for the REMOTE USER
Sending remote control commands by text message.
Activation must be set to On and the remote user must be entered in
Number list on the Doro PhoneEasy®613.
50
English
Menu Security Remote config.
All contacts sent to Doro PhoneEasy®613 by remote configuration are
stored in the Phone (even if storage is set to SIM).
3 phone numbers for each contact Mobile, Home or Office.
Note! SMS format must be *#Command#, otherwise the SMS cannot be
identified as a remote control command.
Parameters are the content you want to send and you must use # sign to
separate two parameters. In tables P = Parameters.
Setting a contact in the phonebook
Command P 1 P 2 P 3 P 4
phonebook name
max. length=
30
mobile
max. length=
40
home office
Example:
You want to send Jeff Jackson’s mobile number, home number and his
office number to Doro PhoneEasy®613. The mobile number is: 0700-
393939. Home number: 046-280 50 11. Office number: 046-280 50 83.
*#phonebook#Jeff
Jackson#0700393939#0462805011#0462805083#
The number will be saved in the 613 Phonebook as:
Jeff Jackson
0700393939
0462805011
0462805083
Note! Only use numerals for parameters 2, 3 and 4. If you use letters in
these parameters it will be stored as empty/blank in the Phonebook.
Contacts already saved in the Phonebook, will not be replaced. They will
be duplicated. This is to avoid unintentional removal of contacts from the
Phonebook.
51
English
Tip: When storing international numbers, always use +before the country
code for best operation. Enter the phone number including the area code.
Setting the assistance function
Command P 1 P 2 P 3 P 4
alert a
activation
0/1/2
0=Off
1=On
Normal
2=On (3)
alert n
number
1–5
location in
Number list
Name
max. length=
30
number
max. length=
40
alert m
message
0/1
0=Off
1=On
Text
max. length=
70
alert c
confirm with
“0”
0/1
0=Off
1=On
alert s
signal type
0/1/2
0=High
1=Low
2=Silent
Example:
You want to activate the assistance function.
*#alert#a#1#
You want Jeff Jackson to be stored in Number list in position one (1) with
phone number: 0700-393939.
*#alert#n#1#Jeff Jackson#0700393939#
You want the SMS message to be sent out when the assistance button is
pressed. Example of content in text message: This is an assistance mes-
sage. Please take appropriate actions.
*#alert#m#1#This is an assistance message. Please take appropriate
actions.#
You want to turn on the function Confirm with "0".
52
English
*#alert#c#1#
You want to set the Signal type to low.
*#alert#s#1#
Tip: Remember to write down the positions you send. This way it is easier
for you to send changes later.
Setting the one touch memories
Command P 1 P 2 P 3
memorykey a
A key
Name
max length =
30
number
max length = 40
memorykey b
B key
Name
max length =
30
number
max length = 40
memorykey c
C key
Name
max length =
30
number
max length = 40
Example:
You want to set Jeff Jackson’s mobile number in memory key Ain Doro
PhoneEasy®613.
Martha Thomson in memory key Band Steve Lewis in memory key C.
*#memorykey#a#Jeff Jackson#0700393939#
*#memorykey#b#Martha Thomson#0768991014#
*#memorykey#c#Steve Lewis#0709441819#
Add task to calendar
Command P 1 P 2 P 3
task yyyymmdd
Date
hhmm
Time
note
description of task.
max. length = 35
Example 1:
53
English
You want to send a new calendar task to Doro PhoneEasy®613. It is for a
dentist appointment on December 1, 2010 at 10:30.
*#task#20101201#1030#dentist appointment#
Troubleshooting
Phone cannot be switched on
Battery charge low Connect the power adapter and charge the bat-
tery for 3 hours. Full battery capacity is reached
after the battery has been charged 3–4 times.
Battery incorrectly
installed
Check the installation of the battery.
Failure to charge the battery
Battery or charger
damaged
Check the battery and charger.
Battery should only be
charged in temperatures
between 0 °C and 40 °C
Improve the charging environment.
Charger incorrectly con-
nected to phone or
power socket
Check the charger connections.
Standby time decreases
Battery charge capacity
too low
Install a new battery.
Too far from base sta-
tion, phone is constantly
searching for signal
Searching the network consumes battery power.
Find a place with a stronger signal, or tempora-
rily turn off the phone.
Failure to place or receive calls
Call barring activated Deactivate call barring. If this does not solve the
problem, contact your service provider.
PIN code not accepted
Wrong PIN code entered
too many times
Enter the PUK code to change the PIN code, or
contact your service provider.
54
English
SIM card error
SIM card damaged Check the condition of the SIM card. If it is dam-
aged, contact your service provider.
SIM card incorrectly
installed
Check the installation of the SIM card. Remove
the card and reinstall it.
SIM card dirty or damp Wipe the contact surfaces of the SIM card with a
clean cloth.
Failure to connect to network
SIM card invalid Contact your service provider.
No coverage of GSM
service
Contact your service provider.
Weak signal
Too far from base
station
Try again from another location.
Network congestion Try calling at a later time.
Echo or noise
Regional problem from
bad network relay
Hang up and redial. This may switch to another
network relay.
Failure to add a contact
Phonebook memory full Delete contacts to free up memory.
Failure to set a function
Function not supported
or subscribed from
network
Contact your service provider.
Unable to send or receive Picture Messages / MMS with the SIM card
The MMS profile is not
set automatically and it
is not possible to send
or receive MMS
For some operators the MMS profile has to be
selected manually. Activate the correct profile to
suit your SIM card or network used.
55
English
Failure to send or download MMS
Phone memory is full
and it is not possible to
send or download MMS
Delete received MMS or select to set the default
storage for MMS to be saved on a memory card
(not included).
Incorrect MMS profile
selected.
For some service providers the MMS profile has
to be selected manually.
Safety instructions
CAUTION
The unit and the accessories can contain small parts. Keep all of the equipment out
of the reach of small children.
The mains adapter is the disconnect device between the product and mains power.
The mains socket outlet must be close to the equipment and easily accessible.
Network services and costs
Your device is approved for use on the GSM 900/1800/1900 MHz networks. To use the
device, you need a subscription with a service provider.
Using network services may result in traffic costs. Some product features require sup-
port from the network, and you may need to subscribe to them.
Operating environment
Follow the rules and laws that apply wherever you are, and always turn off the unit
whenever its use is prohibited or can cause interference or hazards. Only use the unit in
its normal user position.
This unit complies with guidelines for radiation when it is used either in a normal posi-
tion against your ear, or when it is at least 1.5 cm from your body. If the unit is carried
close to your body in a case, belt holder or other holder, these holders should not con-
tain any metal, and the product should be placed at the distance from your body speci-
fied above. Make sure that the distance instructions above are followed until the
transfer is complete.
Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit
cards or other magnetic media near the unit. There is a risk that information stored on
them can be erased.
Medical units
The use of equipment that transmits radio signals, for example, mobile phones, can in-
terfere with insufficiently protected medical equipment. Consult a doctor or the manu-
facturer of the equipment to determine if it has adequate protection against external
radio signals, or if you have any questions. If notices have been put up at health care fa-
cilities instructing you to turn off the unit while you are there, you should comply.
56
English
Hospitals and other health care facilities sometimes use equipment that can be sensi-
tive to external radio signals.
Implanted medical devices
To avoid potential interference, manufacturers of implanted medical devices recom-
mend a minimum separation of 15.3 cm between a wireless device and the medical de-
vice. Persons who have such devices should:
•Always keep the wireless device more than 15.3 cm from the medical device.
•Should not carry the phone in a breast pocket.
•Hold the wireless device to the ear opposite the medical device
If you have any reason to suspect that interference is taking place, turn the phone off
immediately If you have any questions about using your wireless device with an im-
planted medical device, consult your health care provider.
Areas with explosion risk
Always turn off the unit when you are in an area where there is a risk of explosion. Fol-
low all signs and instructions. There is a risk of explosion in places that include areas
where you are normally requested to turn off your car engine. In these areas, sparks
can cause explosion or fire which can lead to personal injury or even death.
Turn off the unit at filling stations, and any other place that has fuel pumps and auto re-
pair facilities.
Follow the restrictions that apply to the use of radio equipment near places where fuel
is stored and sold, chemical factories and places where blasting is in progress.
Areas with risk for explosion are often – but not always – clearly marked. This also ap-
plies to below decks on ships; the transport or storage of chemicals; vehicles that use
liquid fuel (such as propane or butane); areas where the air contains chemicals or par-
ticles, such as grain, dust or metal powder.
Li-ion battery
This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack
is handled improperly.
WARNING
Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns,
do not disassemble, crush, puncture, short external contacts, expose to temperature
above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used
batteries according to the local regulations or reference guide supplied with your
product.
Protect your hearing
This device has been tested to comply with the Sound Pressure Level requirement laid
down in the applicable EN 50332-1 and/or EN 50332-2 standards.
57
English
WARNING
Excessive exposure to loud sounds can cause hearing damage. Exposure
to loud sounds while driving may distract your attention and cause an
accident. Listen to a headset at a moderate level, and do not hold the
device near your ear when the loudspeaker is in use.
Emergency calls
IMPORTANT!
Mobile phones use radio signals, the mobile phone network, the terrestrial network
and user-programmed functions. This means that connection cannot be guaranteed
in all circumstances. Therefore, never rely only on a mobile phone for very important
calls such as medical emergencies.
Vehicles
Radio signals can affect electronic systems in motor vehicles (for example, electronic
fuel injection, ABS brakes, automatic cruise control, air bag systems) that have been in-
correctly installed or are inadequately protected. Contact the manufacturer or its repre-
sentative for more information about your vehicle or any additional equipment.
Do not keep or transport flammable liquids, gases or explosives together with the unit
or its accessories. For vehicles equipped with air bags: Remember that air bags fill with
air with considerable force.
Do not place objects, including fixed or portable radio equipment in the area above the
airbag or the area where it might expand. Serious injuries may be caused if the mobile
phone equipment is incorrectly installed and the airbag fills with air.
It is prohibited to use the unit in flight. Turn off the unit before you board a plane. Using
wireless telecom units inside a plane can pose risks to air safety and interfere with tele-
communications. It may also be illegal.
Care and maintenance
Your unit is a technically advanced product and should be treated with the greatest care.
Negligence may void the warranty.
•Protect the unit from moisture. Rain/snowfall, moisture and all types of liquid can
contain substances that corrode the electronic circuits. If the unit gets wet, you
should remove the battery and allow the unit to dry completely before you replace
it.
•Do not use or keep the unit in dusty, dirty environments. The unit’s moving parts
and electronic components can be damaged.
•Do not keep the unit in warm places. High temperatures can reduce the lifespan
for electronic equipment, damage batteries and distort or melt certain plastics.
•Do not keep the unit in cold places. When the unit warms up to normal tempera-
ture, condensation can form on the inside which can damage the electronic circuits.
58
English
•Do not try to open the unit in any other way than that which is indicated here.
•Do not drop the unit. Do not knock or shake it either. If it is treated roughly the cir-
cuits and precision mechanics can be broken.
•Do not use strong chemicals to clean the unit.
The advice applies to the unit, battery, mains adapter and other accessories. If the
phone is not working as it should, please contact the place of purchase for service.
Don’t forget the receipt or a copy of the invoice.
Warranty
This product is guaranteed for a period of 12 months from the date of purchase. In the
unlikely event of a fault occurring during this period, please contact the place of pur-
chase. Proof of purchase is required for any service or support needed during the guar-
antee period.
This guarantee will not apply to a fault caused by an accident or a similar incident or
damage, liquid ingress, negligence, abnormal usage, non-maintenance or any other cir-
cumstances on the user’s part. Furthermore, this guarantee will not apply to any fault
caused by a thunderstorm or any other voltage fluctuations. As a matter of precaution,
we recommend disconnecting the charger during a thunderstorm.
Batteries are consumables and are not included in any guarantee.
This guarantee does not apply if batteries other than DORO original batteries are used.
Specifications
Network: GSM 900/1800/1900 MHz
Dimensions: 102 mm x 52 mm x 21 mm
Weight: 105 g (including battery)
Battery: 3.7 V / 800 mAh Li-ion battery
Operating ambient
temperature
Min: 0°C (32°F)
Max: 40°C (104°F)
Charging ambient
temperature
Min: 0°C (32°F)
Max: 40°C (104°F)
Storage temperature Min:–20°C (–4°F)
Max: 60°C (140°F)
eZiType™is a trademark of Zi Corporation.
vCard is a trademark of the Internet Mail Consortium.
Hearing aid
This device should work with most hearing aid equipment in the market. However, full
compatibility with all equipment can not be promised.
59
English
Specific Absorption Rate (SAR)
This device meets applicable international safety requirements for exposure to radio
waves. The highest SAR value under the ICNIRP guidelines for use of the device at the
ear is 0.539 W/kg measured over 10 g tissue.
The maximum limit according to ICNIRP is 2.0 W/kg measured over 10 g tissue.
Declaration of Conformity
Doro hereby declares that Doro PhoneEasy®613 conforms to the essential require-
ments and other relevant regulations contained in the Directives 1999/5/EC (R&TTE)
and 2011/65/EC (RoHS). A copy of the Declaration of Conformity is available at www.
doro.com/dofc.
FCC/IC
FCC/Industry Canada notice
This device complies with part 15 of the FCC Rules and Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules/Canadian ICES-003. These limits are de-
signed to provide reasonable protection against harmful interference in a residential in-
stallation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit different from that to which the re-
ceiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The FCC or Industry Canada can require you to stop using your unit if such interference
cannot be eliminated.
Doro has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment.
RF exposure information (SAR)
This model phone meets the government’s requirements for exposure to radio waves.
60
English
This phone is designed and manufactured not to exceed the emission limits for expo-
sure to radio frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government and by the Canadian regulatory authorities.
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the
Canadian regulatory authorities is 1.6W/kg. *Tests for SAR are conducted using stand-
ard operating positions accepted by the FCC and Industry Canada with the phone trans-
mitting at its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is because the phone is de-
signed to operate at multiple power levels so as to use only the poser required to reach
the network. In general, the closer you are to a wireless base station antenna, the lower
the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use
at the ear is 0.43 W/kg and when worn on the body, as described in this user guide, is
0.24 W/kg (Body-worn measurements differ among phone models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various phones and at vari-
ous positions, they all meet the government requirement. The FCC has granted an
Equipment Authorization for this model phone with all reported SAR levels evaluated as
in compliance with the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on FCC ID: WS5DORO613
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions the hand-
set a minimum of 5/8 inch (1.5 cm) from the body. Use of other enhancements may not
ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn ac-
cessory and are not holding the phone at the ear, position the handset a minimum of 5/
8 inch (1.5 cm) from your body when the phone is switched on.
*In the United States and Canada, the SAR limit for mobile phones used by the public is
1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates
a substantial margin of safety to give additional protection for the public and to account
for any variations in measurements. SAR values may vary depending on national report-
ing requirements and the network band.
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
IC RSS-102 and had been tested in accordance with the measurement methods and
procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed
and operated with minimum distance 1.5 cm between the radiator and your body. This
device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
61
