Doro DSB0010 GSM/WCDMA/LTE Mobile Telephone User Manual
Doro AB GSM/WCDMA/LTE Mobile Telephone
Doro >
User manual

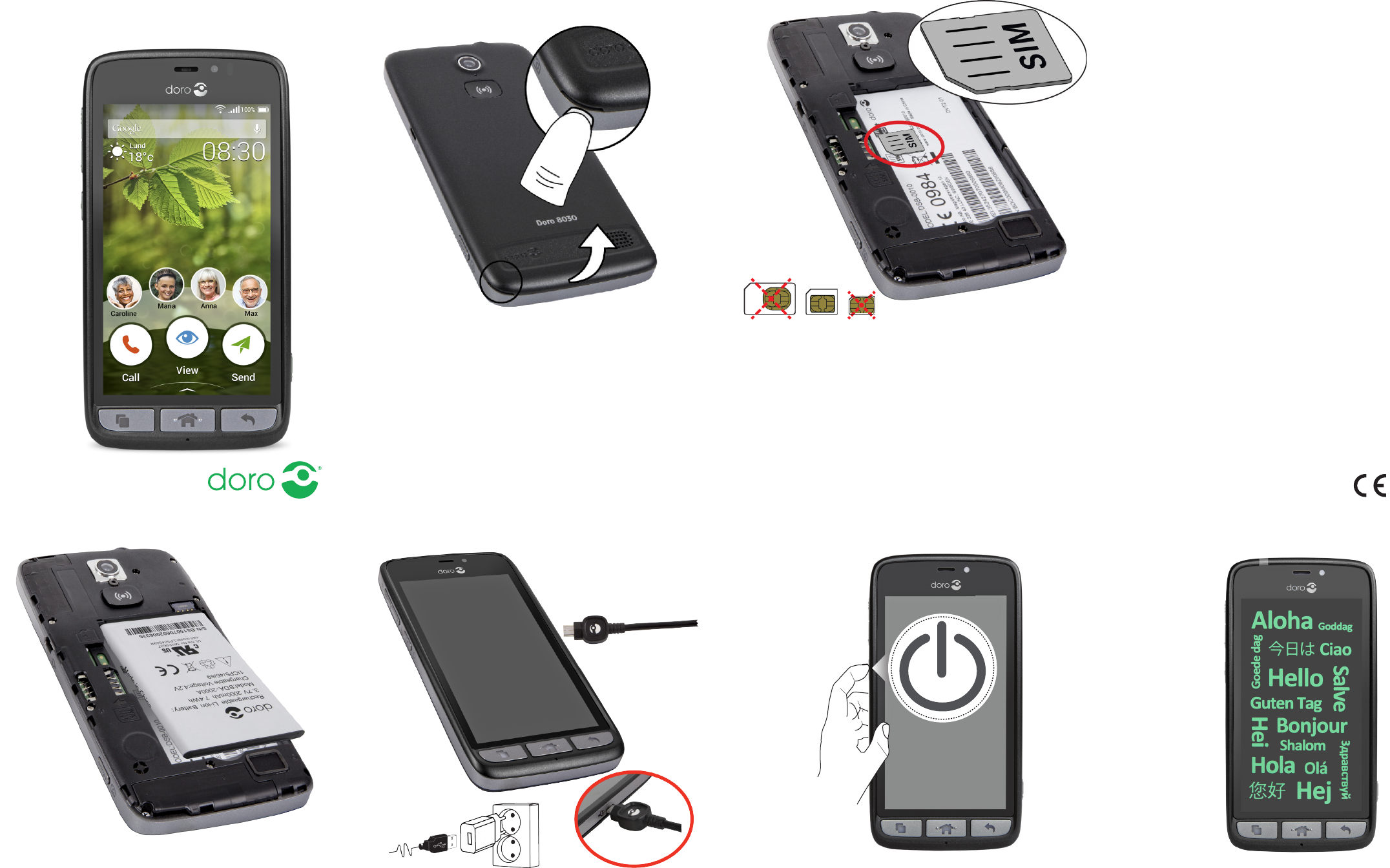

EN: Insert SIM card (not included)EN: Remove battery cover
QSG_Doro_8028-8030-8031_A6(A3)_v30_en(+FCC)_20160810
Model: DSB-0010
Doro 8028 (2041)
Doro 8030 (2041)
Doro 8031 (2041)
English (EN)
Version 3.0
EN: For the full manual please visit
www.doro.se/support/search/ or contact our Helpline.
0984
English
21
mini micro nano
2FF 3FF 4FF
Doro 8028/8030/8031
EN: Turn on the phone and enter your SIM card PIN,
if requested
46
EN: Follow the instructions in the setup assistant to
activate your device and set it up.
5
EN: Insert the battery and replace the battery cover EN: Charge the phone
3
SAFETY INSTRUCTIONS
CAUTION
The unit and the accessories can contain small parts. Keep all of the equipment out of the reach of
small children. The mains adapter is the disconnect device between the product and mains power.
The mains socket outlet must be close to the equipment and easily accessible.
Network services and costs
Your device is approved for use on the 4G LTE FDD 3 (1800), 7 (2600), 20 (800) MHz / WCDMA 1 (2100),
2 (1900), 5 (850), 8 (900) MHz / GSM 850, 900, 1800, 1900 MHz
networks. To use the device, you need a subscription with a service provider.
Using network services may result in trafc costs. Some product features require support from the
network, and you may need to subscribe to them.
Operating environment
Follow the rules and laws that apply wherever you are, and always turn off the unit whenever its use is
prohibited or can cause interference or hazards. Only use the unit in its normal user position.
Parts of the unit are magnetic. The unit can attract metal objects. Do not keep credit cards or other
magnetic media near the unit. There is a risk that information stored on them can be erased.
Medical units
The use of equipment that transmits radio signals, for example, mobile phones, can interfere
with insufciently protected medical equipment. Consult a doctor or the manufacturer of the equipment
to determine if it has adequate protection against external radio signals, or if you have any questions. If
notices have been put up at health care facilities instructing you to turn off the unit while you are there,
you should comply. Hospitals and other health care facilities sometimes use equipment that can be
sensitive to external radio signals.
Implanted medical devices
To avoid potential interference, manufacturers of implanted medical devices recommend a minimum
separation of 15 cm between a wireless device and the medical device.
Persons who have such devices should:
• Always keep the wireless device more than 15 cm from the medical device.
• Should not carry the phone in a breast pocket.
• Hold the wireless device to the ear opposite the medical device.
If you have any reason to suspect that interference is taking place, turn the phone off immediately If
you have any questions about using your wireless device with an implanted medical device, consult your
health care provider.
Areas with explosion risk
Always turn off the unit when you are in an area where there is a risk of explosion. Follow all signs and
instructions. There is a risk of explosion in places that include areas where you are normally requested
to turn off your car engine. In these areas, sparks can cause explosion or re which can lead to personal
injury or even death.
Turn off the unit at lling stations, and any other place that has fuel pumps and auto repair facilities.
Follow the restrictions that apply to the use of radio equipment near places where fuel is stored and sold,
chemical factories and places where blasting is in progress.
Areas with risk for explosion are often – but not always – clearly marked. This also applies to below decks
on ships; the transport or storage of chemicals; vehicles that use liquid fuel (such as propane or butane);
areas where the air contains chemicals or particles, such as grain, dust or metal powder.
Li-ion battery
This product contains a Li-ion battery. There is a risk of re and burns if the battery pack is handled
improperly.
WARNING
Danger of explosion if battery is incorrectly replaced. To reduce risk of re or burns, do not
disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F),
or dispose of in re or water. Recycle or dispose of used batteries according to the local regulations or
reference guide supplied with your product.
Protect your hearing
This device has been tested to comply with the Sound Pressure Level requirement laid down in the
applicable EN 50332-1 and/or EN 50332-2 standards.
WARNING
Excessive exposure to loud sounds can cause hearing damage. Exposure to loud sounds
while driving may distract your attention and cause an accident. Listen to a headset at a
moderate level, and do not hold the device near your ear when the loudspeaker is in use.
Emergency calls
IMPORTANT!
Mobile phones use radio signals, the mobile phone network, the terrestrial network and user-
programmed functions. This means that connection cannot be guaranteed in all circumstances.
Therefore, never rely only on a mobile phone for very important calls such as medical emergencies.
GPS/Location based functions
Some products provide GPS/Location based functions. Location determining functionality is provided
“As is”. No representation or warranty are made as to the accuracy of such location information. Use of
location-based information by the device may not be uninterrupted or error free and may additionally be
dependent on network service availability.
Please note that functionality may be reduced or prevented in certain environments such as building
interiors or areas adjacent to buildings.
WARNING
Do not use GPS functionality in a manner which causes distraction from driving.
Vehicles
Radio signals can affect electronic systems in motor vehicles (for example, electronic fuel injection, ABS
brakes, automatic cruise control, air bag systems) that have been incorrectly installed or are inadequately
protected. Contact the manufacturer or its representative for more information about your vehicle or any
additional equipment.
Do not keep or transport ammable liquids, gases or explosives together with the unit or its accessories.
For vehicles equipped with air bags: Remember that air bags ll with air with considerable force.
Do not place objects, including xed or portable radio equipment in the area above the airbag or the
area where it might expand. Serious injuries may be caused if the mobile phone equipment is incorrectly
installed and the airbag lls with air. It is prohibited to use the unit in ight. Turn off the unit before you
board a plane. Using wireless telecom units inside a plane can pose risks to air safety and interfere with
telecommunications. It may also be illegal.
Protect your personal data
Protect your personal data and prevent leakage or misuse of sensitive information:
• While using your device, be sure to back up important data.
• When disposing of your device, back up all data and then reset your device to prevent misuse of your
personal information.
• Carefully read the permissions screen when downloading applications. Be particularly cautious with
applications that have access to many functions or to a signicant amount of your personal information.
• Check your accounts regularly for unapproved or suspicious use. If you nd any sign of misuse of your
personal information, contact your service provider to delete or change your account information.
• In the event your device is lost or stolen, change the passwords on your accounts to protect your
personal information.
• Avoid using applications from unknown sources and lock your device with a pattern, password, or PIN.
Malware and viruses
To protect your device from malware and viruses, follow these usage tips. Failure to do so may result in
damages or loss of data that may not be covered by the warranty service.
• Do not download unknown applications.
• Do not visit untrusted websites.
• Delete suspicious messages or email from unknown senders.
• Set a password and change it regularly.
• Deactivate wireless features, such as Bluetooth, when not in use.
• If the device behaves abnormally, run an antivirus program to check for infection.
• Run an antivirus program on your device before you launch newly-downloaded applications and les.
• Do not edit registry settings or modify the device’s operating.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules/Canadian ICES-003. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The FCC can require you to stop using your unit if such interference cannot be eliminated.
Doro has not approved any changes or modications to this device by the user. Any changes or
modications could void he user’s authority to operate the equipment.
RF EXPOSURE INFORMATION (SAR)
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The
exposure standard for wireless mobile phones employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone
transmitting at its highest certied power level in all tested frequency bands. Although the SAR is
determined at the highest certied power level, the actual SAR level of the phone while operating can be
well below the maximum value. This is because the phone is designed to operate at multiple power levels
so as to use only the poser required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is
0.48 W/kg and when worn on the body, as described in this user guide, is 1.35 W/kg (Body-worn
measurements differ among phone models, depending upon available enhancements and FCC
requirements.).
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirement. The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on le with the FCC and can be found under the Display Grant section
of http://www.fcc.gov/oet/ea/fccid after searching on FCC ID: WS5DSB0010 .
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the positions the handset a minimum of 3/8 inch (1.0 cm)
from the body. Use of other enhancements may not ensure compliance with FCC RF exposure guidelines.
If you do not use a body-worn accessory and are not holding the phone at the ear, position the handset a
minimum of 3/ 8 inch (1.0 cm) from your body when the phone is switched on.
*In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/
kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in measurements. SAR values may
vary depending on national reporting requirements and the network band.
CARE AND MAINTENANCE
Your unit is a technically advanced product and should be treated with the greatest care. Negligence may
void the warranty.
• Protect the unit from moisture. Rain, snow, humidity, and all types of liquids can contain substances
that corrode the electronic circuits. If the unit gets wet, you should immediately power off the phone,
remove the battery and allow the unit to dry completely before you replace it.
• Do not use or keep the unit in dusty, dirty environments. The unit’s moving parts and electronic
components can be damaged.
• Do not keep the unit in warm places. High temperatures can reduce the lifespan for electronic
equipment, damage batteries and distort or melt certain plastics.
• Do not keep the unit in cold places. When the unit warms up to normal temperature, condensation can
form on the inside and can damage the electronic circuits.
• Do not try to open the unit in any other way than that which is indicated here.
• Do not drop or shake the unit. If it is treated roughly the circuits and precision mechanics can be
broken.
• Do not use strong chemicals to clean the unit.
• Do not disassemble, open, crush, bend, deform, puncture or shred.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to
water or other liquids, expose to re, explosion or other hazard.
• Only use the battery for the system for which it is specied.
• Only use the battery with a charging system that has been qualied with the system per IEEE-Std-1725.
Use of an unqualied battery or charger may present a risk of re, explosion, leakage, or other hazard.
• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
• Replace the battery only with another battery that has been qualied with the system per this standard,
IEEE-Std-1725. Use of an unqualied battery may present a risk of re, explosion, leakage or other
hazard.
• Promptly dispose of used batteries in accordance with local regulations.
• Battery usage by children should be supervised.
• Improper battery use may result in a re, explosion or other hazard.
For devices that utilize a USB port as a charging source, the device’s user manual shall include a
statement that the device shall only be connected to CTIA certied adapters, products that bear the
USB-IF logo or products that have completed the USB-IF compliance program.
The advice applies to the unit, battery, power adapter and other accessories. If the phone is not working
as it should, please contact the place of purchase for service. Don’t forget the receipt or a copy of the
invoice.
COPYRIGHT AND OTHER NOTICES
Copyright© 2016 Doro AB. All rights reserved.
Bluetooth® is a registered trademark of Bluetooth SIG, inc.
vCard is a trademark of the Internet Mail Consortium.
Wi-Fi is a trademark or a registered trademark of the Wi-Fi Alliance.
microSD is a trademark of SD Card Association.
Java, J2ME and all other Java-based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and other countries.
The contents of this document are provided “as is”. Except as required by applicable law, no warranties of
any kind, either express or implied, including, but not limited to, the implied warranties of merchantability
and tness for a particular purpose, are made in relation to the accuracy, reliability or contents of this
document. Doro reserves the right to revise this document or withdraw it at any time without prior notice.
Google, Google Maps™, Gmail, Google Calendar, Google Checkout, Hangouts, YouTube, the YouTube
logo,Picasa and Android are trademarks or registered trademarks of Google, Inc.
This product is licensed under the MPEG-4 visual and AVC patent portfolio licenses for the personal and
noncommercial use of a consumer for (i) encoding video in compliance with the MPEG-4 visual standard
(“MPEG-4 video”) or the AVC standard (“AVC video”) and/or (ii) decoding MPEG- 4 or AVC video that was
encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a
video provider licensed by MPEG LA to provide MPEG-4 and/or AVC video. No license is granted or shall
be implied for any other use. Additional information including that relating to promotional, internal and
commercial uses and licensing may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com.
MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson.
Other product and company names mentioned herein may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved. All other trademarks are property of their respective
owners.
To the maximum extent permitted by applicable law, under no circumstances shall Doro or any of its
licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect
damages howsoever caused.
Doro does not provide a warranty for or take any responsibility for the functionality, content, or end-user
support of third-party apps provided with your device. By using an app, you acknowledge that the app is
provided as is. Doro does not make any representations, provide a warranty, or take any responsibility for
the functionality, content, or end-user support of third-party apps provided with your device.
Content copyright
The unauthorised copying of copyrighted materials is contrary to the provisions of the Copyright Laws of
the United States and other countries. This device is intended solely for copying non-copyrighted materials,
materials in which you own the copyright, or materials which you are authorised or legally permitted to
copy. If you are uncertain about your right to copy any material, please contact your legal advisor.
WARRANTY
This product is guaranteed for a period of 24 months from the date of purchase. In the unlikely event of a
fault occurring during this period, please contact the place of purchase.
Proof of purchase is required for any service or support needed during the guarantee period.
This guarantee will not apply to a fault caused by an accident or a similar incident or damage, liquid
ingress, negligence, abnormal usage, non-maintenance or any other circumstances on the user’s part.
Furthermore, this guarantee will not apply to any fault caused by a thunderstorm or any other voltage
uctuations. As a matter of precaution, we recommend disconnecting the charger during a thunderstorm.
Batteries are consumables and are not included in any guarantee.
SPECIFIC ABSORPTION RATE (SAR)
This device meets applicable international safety requirements for exposure to radio waves. Your
mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure
to radio waves (radio frequency electromagnetic elds) recommended by international guidelines from
the independent scientic organization ICNIRP (International Commission of Non-Ionizing Radiation
Protection).
The radio wave exposure guidelines use a unit of measurement known as the Specic Absorption Rate,
or SAR. The SAR limit for mobile devices is 2 W/kg averaged over 10 grams of tissue and include a
substantial safety margin designed to assure the safety of all persons, regardless of age and health.
Tests for SAR are conducted using standard operating positions with the device transmitting at its highest
certied power level in all tested frequency bands. The highest SAR values under the ICNIRP guidelines for
this device model are:
Head SAR: 0.389 W/kg
Body SAR: 1.660 W/kg
During normal use, the SAR values for this device are usually well below the values stated above. This is
because, for purposes of system efciency and to minimize interference on the network, the output power
of your mobile device is automatically decreased when full power is not needed for the call. The lower the
power output of the device, the lower its SAR value.
This device meets RF exposure guidelines when used against the head or when positioned at least 0.5
cm away from the body. When a carry case, belt clip or other form of device holder is used for body-worn
operation, it should not contain metal and should provide at least the above stated separation distance
from the body.
The World Health Organization (WHO) has stated that current scientic information does not indicate
the need for any special precautions when using mobile devices. If you are interested in reducing your
exposure, they recommend you reduce your usage or use a hands-free accessory to keep the device away
from your head and body.
CORRECT DISPOSAL OF BATTERIES IN THIS PRODUCT
(Applicable in countries with separate collection systems)
The marking on the battery, manual or packaging indicates that the battery in this product should
not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or
Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or
the environment. To protect natural resources and to promote material reuse, please separate batteries
from other types of waste and recycle them through your local, free battery return system.
CORRECT DISPOSAL OF THIS PRODUCT
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or manual indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government ofce, for details of where and how they can take these items for environmentally safe
recycling. Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other commercial
wastes for disposal. This product is RoHS compliant.
DECLARATION OF CONFORMITY
Doro hereby declares that Doro 8028/8028/8030/8031/8031 (DSB-0010) conforms to the essential
requirements and other relevant regulations contained in the Directives 1999/5/EC (R&TTE) and
2011/65/EC (RoHS). A copy of the Declaration of Conformity is available at www.doro.com/dofc.
HEARING AID COMPATIBILITY
Note! For hearing aid compatibility, turn off Bluetooth connectivity.
This phone is hearing aid compatible. Hearing aid compatibility is not a guarantee that a specic hearing
aid will work with a specic phone. Mobile phones contain radio transmitters that may interfere with
hearing aid performance. This phone has been tested for use with hearing aids, for some of the wireless
technologies that it uses, but there may be some newer wireless technologies that have not been tested
yet for use with hearing aids. To ensure that a specic hearing aid works well with this phone, test them
together before making a purchase.
The standard for hearing aid compatibility contains two types of ratings:
• M: To use your hearing aid in this mode, make sure that your hearing aid is set to “M-mode” or acoustic
coupling mode, and position the phones receiver near the hearing aid’s built-in microphone. For the
best results, try using the phone in different positions relative to your hearing aid—for example, placing
the receiver slightly above the ear may result in better performance for hearing aids with microphones
positioned behind the ear.
• T: To use your hearing aid in this mode, make sure that your hearing aid is set to “T-mode” or telecoil
coupling mode (not all hearing aids have this mode). For the best results, try using the phone in
different positions relative to your hearing aid—for example, placing the receiver slightly below or in front
of the ear may result in better performance.
Your device meets the M4/T3 level rating.
SPECIFICATIONS
Network: 2G GSM
3G UMTS
4G LTE FDD
850, 900, 1800, 1900
1 (2100), 2 (1900), 5 (850), 8 (900)
3 (1800), 7 (2600), 20 (800)
Operating system: Android 5.1.1
SIM card size Micro-SIM (3FF)
Wi-Fi: WLAN IEEE 802.11 b/g/n
Bluetooth: 4.1
GPS receiver: Category 3
Dimensions: 138 mm x 71 mm x 11 mm
Weight: 144 g (including battery)
Battery: 3.7 V / 2000 mAh Li-ion battery
Image format: BMP, GIF, JPG, PNG
Video format: AVI, MP4, 3GP, 3GP2
Audio format: WAV, AMR, MIDI, MP3, AAC
Main camera resolution:
Front camera resolution:
5 MP
VGA
Camera digital zoom: 4x
Display: Size
Resolution
Colour Depth
4.5”
480 x 854
16 M
Internal memory:
External memory
8 GB
MicroSD, microSDHC max. 32 GB
Sensors: Accelerometer, light sensor, proximity sensor
Operating ambient temperature: Min: 32°F (0°C)
Max: 104°F (40°C)
Charging ambient temperature: Min: 32°F (0°C)
Max: 104°F (40°C)
Storage temperature: Min: -4°F (-20°C)
Max: 140°F (60°C)
