Quick Start Guide
Version: 1.0
F/W: V1.1.5 _RC3
Date: November 27, 2015
Warranty
We warrant to the original end user (purchaser) that the access point will be free from any defects in workmanship or materials for a period of one
(1) year from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase.
During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials,
we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we
deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally
equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed
software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the
right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any
person of such revision or changes.
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303
Product: VigorAP 902
DrayTek Corp. declares that VigorAP 902 is in compliance with the following essential requirements and other relevant provisions of R&TTE
Directive 1999/5/EEC, ErP 2009/125/EC and RoHS 2011/65/EU.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set
forth in EN55022/Class B and EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1.
This product is designed for 2.4GHz/5GHz WLAN network throughout the EC region.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired operation.
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
The antenna/transmitter should be kept at least 20 cm away from human body.
Warning: To prevent damage from
overheating, keep the machine erect
upright.
Package Content
Take a look at the package content. If there is anything missed or damaged, please
contact DrayTek or dealer immediately.
Access Point
Antenna
RJ-45 Cable (Ethernet)
Quick Start Guide
The type of the power adapter depends on the country that the AP will be
installed:
UK-type power adapter
EU-type power adapter
USA/Taiwan-type power adapter
AU/NZ-type Power Adapter
Note
The antenna/transmitter should be kept at least 20 cm away from
human body.
Descriptions of Components
LED
Status
Explanation
ACT
Off
The system is not ready or is failed.
Blinking
The system is ready and can work normally.
USB
On
A USB device is connected and active.
Blinking
The data is transmitting.
2.4G
On
Wireless function is ready.
Off
Wireless function is not ready.
Blinking
Data is transmitting (sending/receiving).
5G
On
Wireless function is ready.
Off
Wireless function is not ready.
Blinking
Data is transmitting (sending/receiving).
LAN A1 - A4
On
A normal connection (rate with 100M/1000M) is
through its corresponding port.
Off
LAN is disconnected.
Blinking
Data is transmitting (sending/receiving).
LAN B
On
A normal connection (rate with 100M/1000M) is
through its corresponding port.
Off
LAN is disconnected.
Blinking
Data is transmitting (sending/receiving).

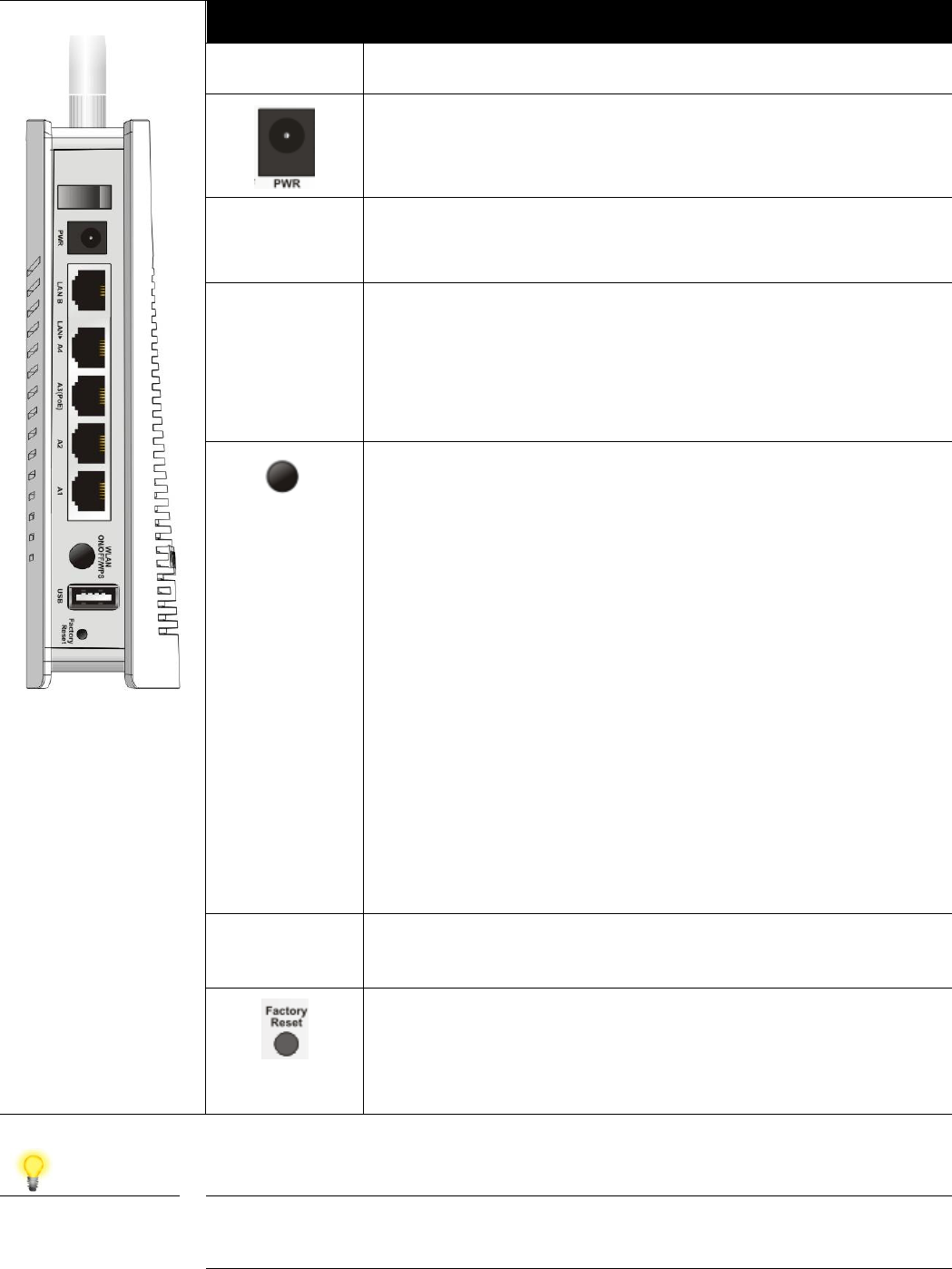

Interface
Description
0/1
Power switch.
PWR: Connecter for a power adapter.
LAN B
Connecter for xDSL / Cable modem (Giga level)
or router.
LAN A4,
A2, A1
A3 (PoE)
Connecter for xDSL / Cable modem (Giga level) /
computer or router.
LAN A3 is used for PoE connection (for indoor
use).
WLAN
ON/OFF
WPS
Wireless band will be switched /changed
according to the button pressed and released. For
example,
2.4G (On) and 5G (On) – in default.
2.4G (Off) and 5G (On) – pressed and released
the button once.
2.4G (On) and 5G (Off) – pressed and released
the button twice.
2.4G (Off) and 5G (Off) – pressed and released
the button three times.
WPS - When WPS function is enabled by web
user interface, press this button for more than 2
seconds. The router will wait for any wireless
client connecting to it through WPS.
USB
Connecter for a USB device (for temperature
sensor).
Restore the default settings. Usage: Turn on the
router. Press the button and keep for more than 10
seconds. Then the router will restart with the
factory default configuration.
Note
For the sake of security, make the accessory kit away from
children.

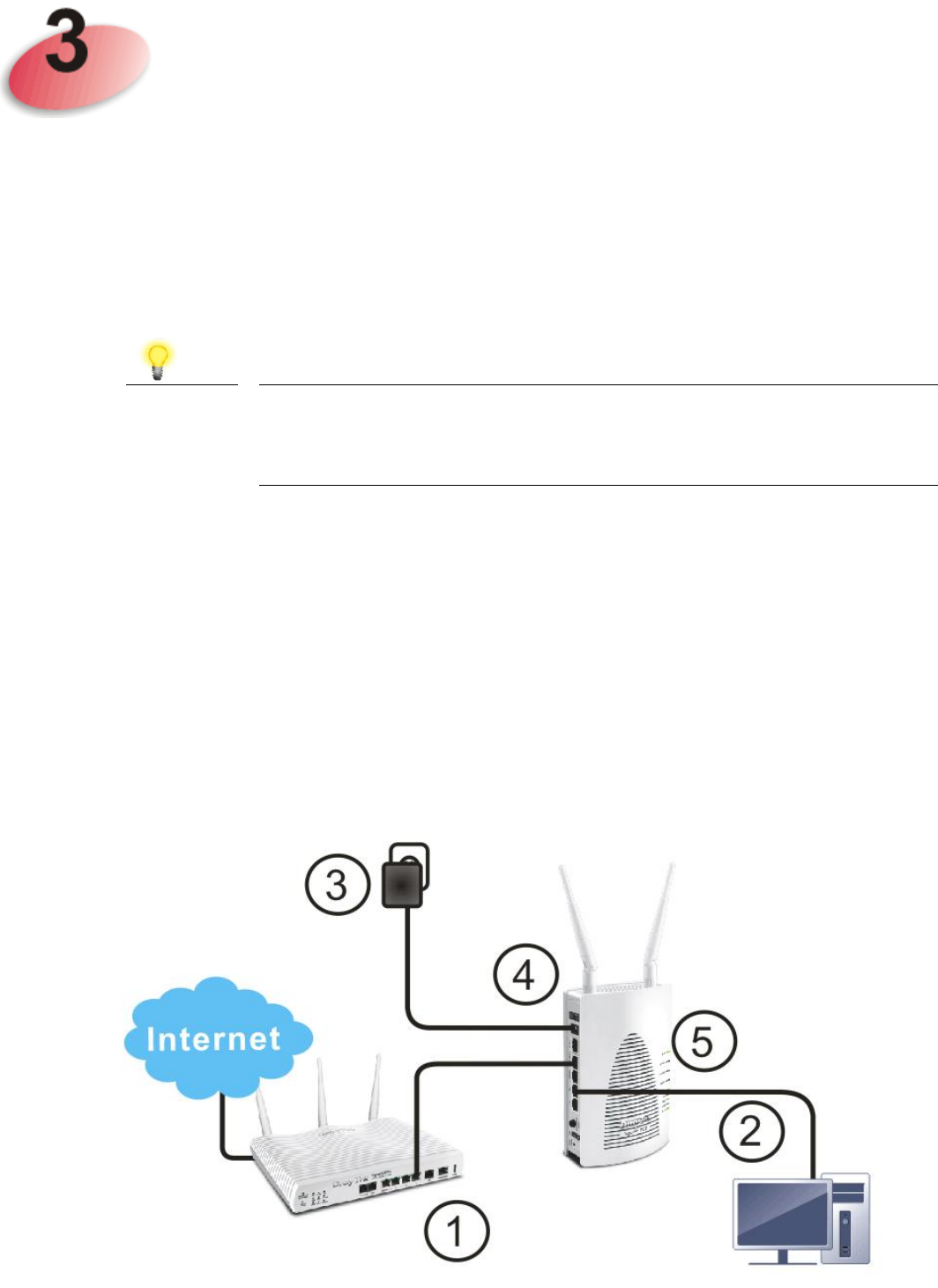

Installation
This section will guide you to install the AP through hardware connection and
configure the settings through web browser.
Before starting to configure the router, you have to connect your devices correctly.
1. Connect VigorAP 902 to xDSL modem, router, or switch/hub in your
network through the LAN A port of the access point by Ethernet cable.
Note
You can also connect VigorAP 902 to a Vigor router via
wireless connection. For detailed information, refer to
VigorAP 902 User’s Guide.
2. Connect a computer to other available LAN A port. Make sure the subnet IP
address of the PC is the same as VigorAP 902 management IP, e.g.,
192.168.1.X.
3. Connect the A/C power adapter to the wall socket, and then connect it to the
PWR connector of the access point.
4. Power on VigorAP 902.
5. Check all LEDs on the front panel. ACT LED should blink, LAN LEDs
should be on if the access point is correctly connected to the xDSL modem,
router or switch/hub.
Configuring Web Pages
1. Make sure your PC connects to the router correctly.
2. Open a web browser on your PC and type http://192.168.1.2. A pop-up
window will open to ask for username and password. Pease type
“admin/admin” on Username/Password and click Login.
3. The Main Screen will pop up. Click Quick Start Wizard.

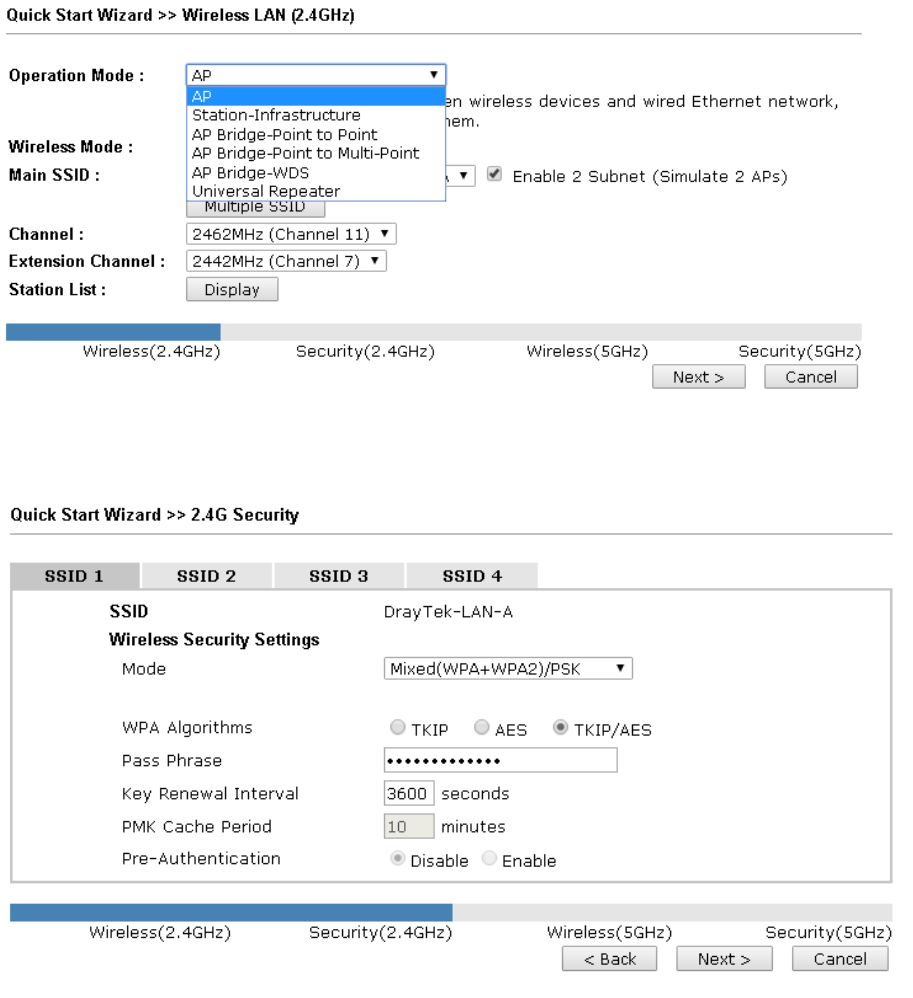

4. The first page is set for 2.4G wireless connection. There are five operation
modes for you to choose. Simply click any one of modes. In this example,
choose AP and click Next.
5. For the SSID configuration, choose the mode you want and type related
information for client authentication. Then, click Next.
6. Next, the following page is set for 5G wireless connection. There are three
wireless modes for you to choose. The default is Mixed(11a+11n+11ac).
Change the information listed in this page according to the data offered by
your ISP. Then click Next.
7. For the SSID configuration, choose the mode you want and type related
information for client authentication. Then, click Next.
Default Pre-Shared Key (PSK) with 13 ASCII characters is provided and
stated on the label pasted on the bottom of VigorAP.
Note
For the communication, all wireless devices must support the
same encryption bit length and share the same key. If WEP
mode is selected, only one of four preset keys can be selected
at one time.
8. In the next page, click Finish. The system will make a connection
automatically. Open Online Status to see the result of network connection.
Note
Under System Maintenance you can change the access point’s
default admin password. You should do this immediately in
order to prevent users from accessing the VigorAP’s
management interface and changing settings.
Contacting DrayTek
If the router still cannot work correctly after trying many efforts, please contact your
dealer for further help right away. For any questions, please feel free to send e-mail to
support@draytek.com.
Safety
Instructions
Read the installation guide thoroughly before you set up the access point.
The access point is a complicated electronic unit that may be repaired only be authorized
and qualified personnel. Do not try to open or repair the modem yourself.
Do not place the access point in a damp or humid place, e.g. a bathroom.
The access point should be used in a sheltered area, within a temperature range of +5 to
+40 Celsius.
Do not expose the access point to direct sunlight or other heat sources. The housing and
electronic components may be damaged by direct sunlight or heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.
Keep the package out of reach of children.
When you want to dispose of the access point, please follow local regulations on
conservation of the environment.
