Draytek V2710NE ADSL2+ WLAN ROUTER User Manual
Draytek Corporation ADSL2+ WLAN ROUTER Users Manual
Draytek >
Users Manual
V
Vi
ig
go
or
r
2
27
71
10
0e
e/
/n
ne
e
A
AD
DS
SL
L2
2/
/2
2+
+
R
Ro
ou
ut
te
er
r
Quick Start Guide
Version: 1.01
Date: 19/03/2010
Warranty
We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of one (1) year
from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the
warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at
our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem
necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent
product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with,
damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other
vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the
manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such
revision or changes.
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303
Product: Vigor2710n/ne
DrayTek Corp. declares that Vigor2710n/ne is in compliance with the following essential requirements and other relevant provisions of R&TTE
Directive 1999/5/EEC.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set
forth in EN55022/Class B and EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired operation.
This product is designed for the DSL and 2.4GHz WLAN network throughout the EC region and Switzerland with restrictions in France.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
FCC RF Radiation Exposure Statement
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
n
Package Content
Quick Start Guide CD
RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable
The type of the power adapter depends on the country that the router will be
installed:
UK-type power adapter EU-type power adapter
USA/Taiwan-type power adapter AU/NZ-type Power Adapter

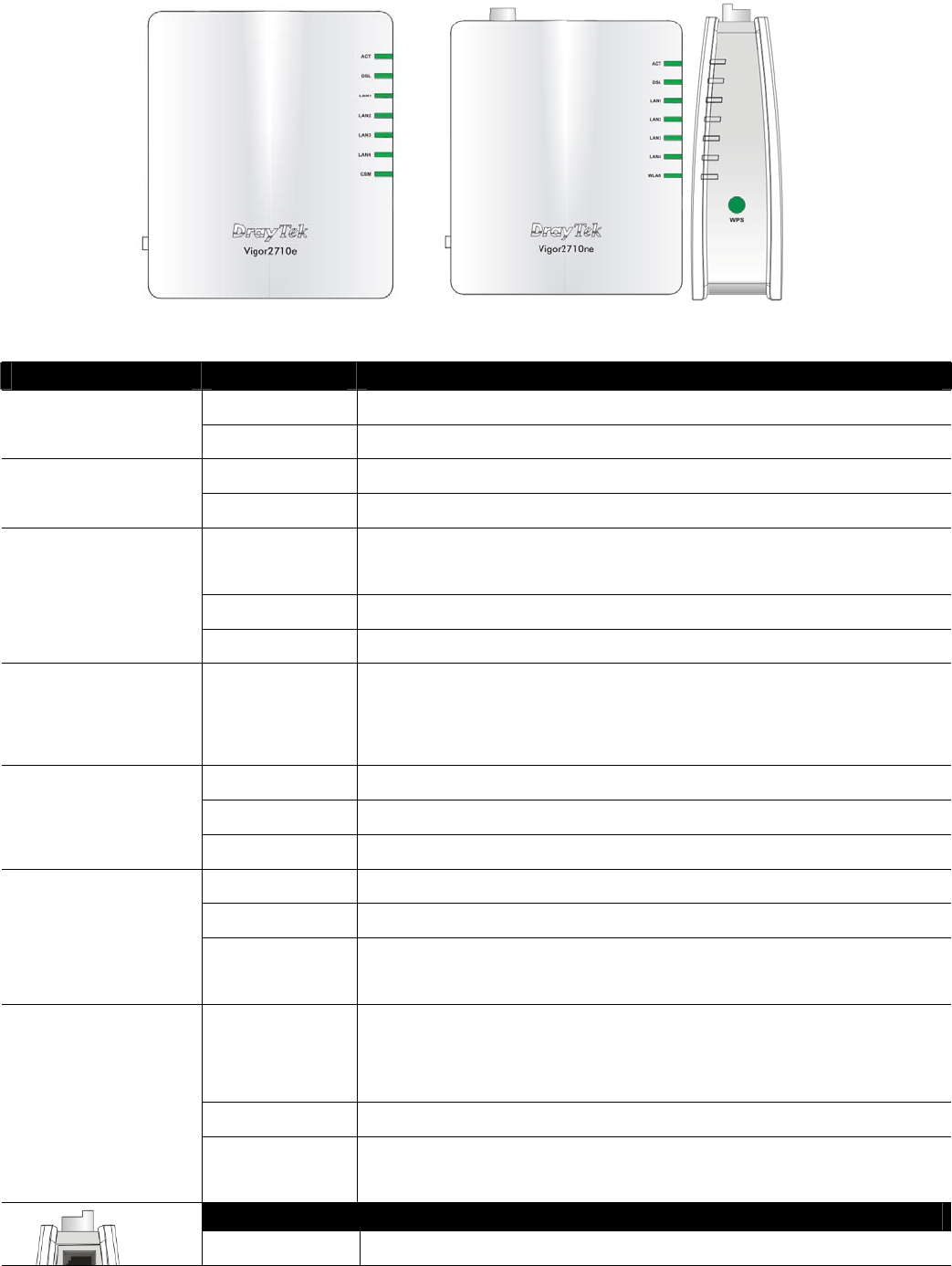

o Descriptions of Components
2710e 2710ne
LED Status Explanation
Off The system is not ready or is failed. ACT
Blinking The system is ready and can work normally.
On DSL connection synchronized. DSL
Blinking DSL connection is synchronizing.
On A normal connection is through its corresponding
port.
Off LAN is disconnected.
LAN 1 - 4
Blinking Data is transmitting (sending/receiving).
CSM
(for 2710e) On The profile(s) of URL/Web Content Filter
application can be enabled from Firewall >>URL
Content Filter.
On Wireless access point is ready.
Off Wireless access point is not ready.
WLAN
(for 2710ne)
Blinking It will blink while wireless traffic goes through.
On The WPS is on.
Off The WPS is off.
WPS
(for 2710ne)
Blinking Waiting for wireless client sending requests for
connection about two minutes.
On Press this button for 2 seconds to wait for client
device making network connection through WPS.
When the LED lights up, the WPS will be on.
Off The WPS is off.
WPS Button
(for 2710ne)
Blinking Waiting for wireless client sending requests for
connection about 2 minutes.
Interface Description
DSL Connecter for accessing the Internet through ADSL
2+.
LAN 1 - 4 Connecter for local network devices.
ON/OFF: Power switch.
PWR: Connecter for a power adapter.
Restore the default settings. Usage: Turn on the router.
Press the button and keep for more than 10 seconds.
Then the router will restart with the factory default
configuration.
p
Installing Your Router
This section will guide you to install the router through hardware
connection and configure the router’s settings through web browser.
Before starting to configure the router, you have to connect your devices
correctly.
1. Connect the DSL interface to the MODEM port of external ADSL splitter with an
ADSL line cable.
2. Connect the LAN port to your computer with a RJ-45 cable.
3. Connect one end of the power adapter to the Power port of this device. Connect the
other end to the wall outlet of electricity.
4. Power on the router.
5. Check the POWER, ACT, LAN, DSL and INTERNET LEDs to assure network
connections.
q
q
Configuring Web Pages
The Quick Start Wizard is designed for you to easily set up your router for
Internet access.
1. Make sure your PC connects to the router correctly.

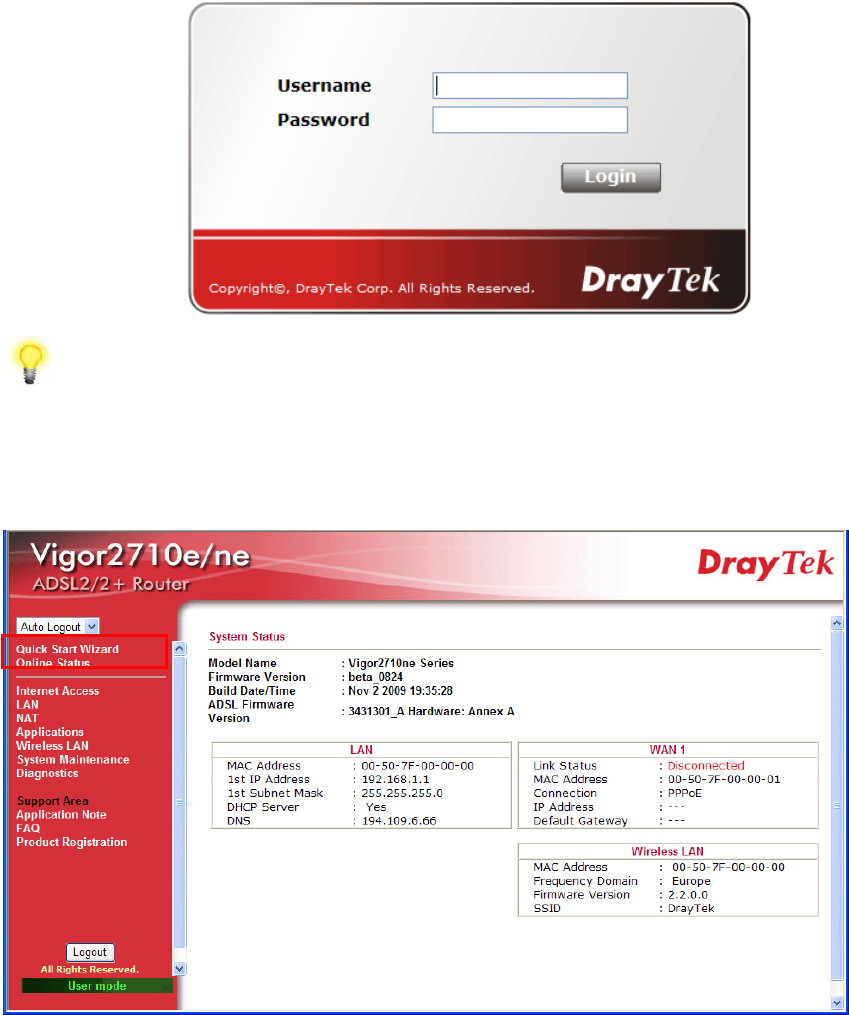

2. Open a web browser on your PC and type http://192.168.1.1. A pop-up
window will open to ask for username and password. For user’s operation, do
not type any word on the window and click Login for the simple web pages
for configuration.
Notice: For administrator’s operation, please type “admin/admin” on
Username/Password and click Login for full configuration. If you fail
to access to the web configuration, please go to “Trouble Shooting” for
detecting and solving your problem in User’s Guide.
3. Now, the Main Screen will pop up. Click Quick Start Wizard.

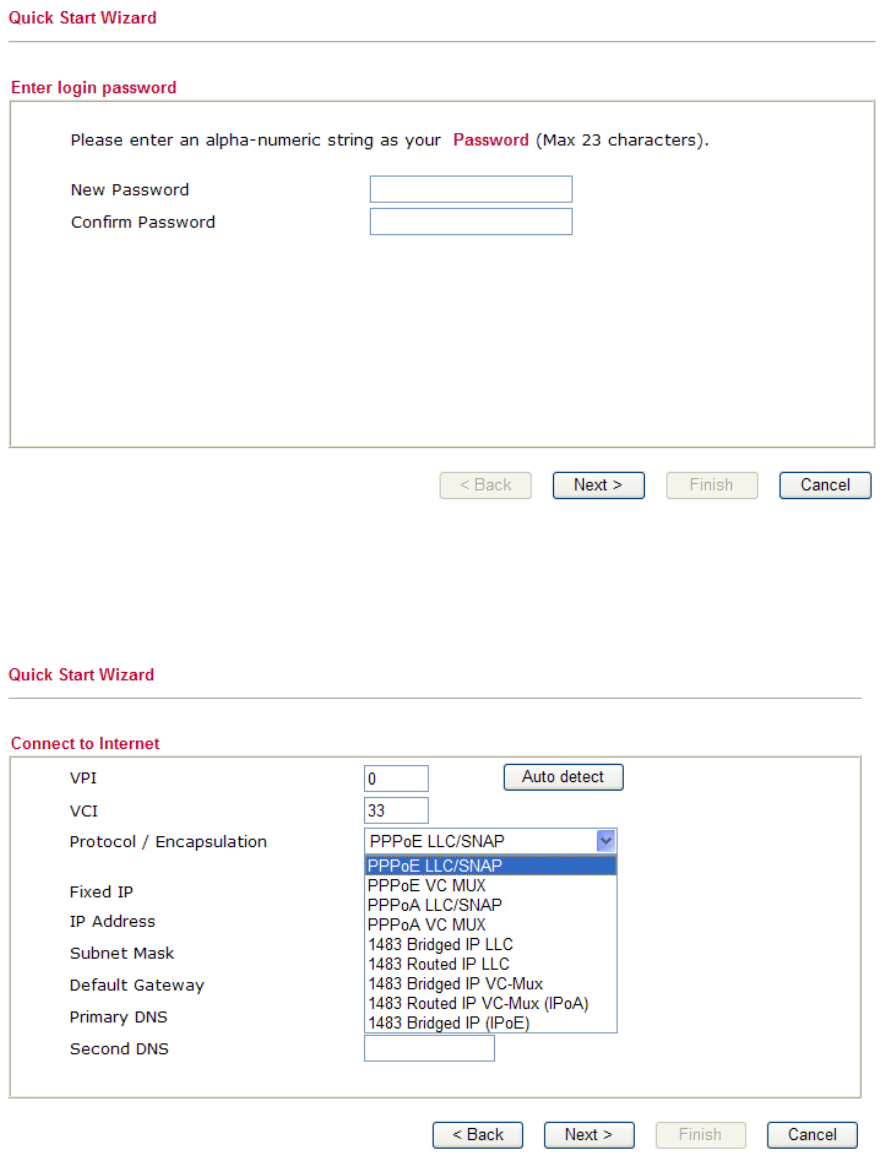

4. Enter the login password on the field of New Password and retype it on the
field of Confirm Password. Then click Next to continue.
5. On the next page as shown below, please select the appropriate Internet
access type according to the information from your ISP. Then click Next for
next step.

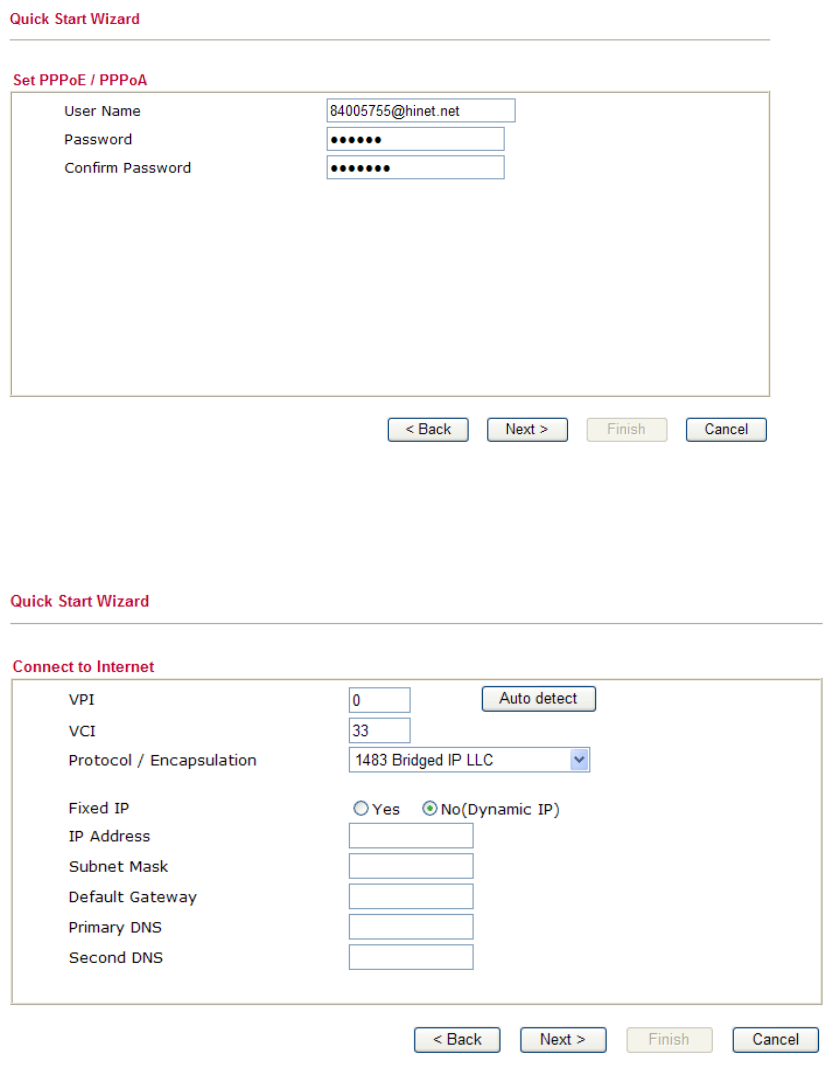

z PPPoE or PPPoA: if you click PPPoE or PPPoA as the protocol, please
manually enter the Username/Password provided by your ISP. Then click
Next.
z 1483 Bridged: if you click 1483 Bridged, you will get the following
page. Please type in all the information originally provided by your ISP.
Then click Next for next step.

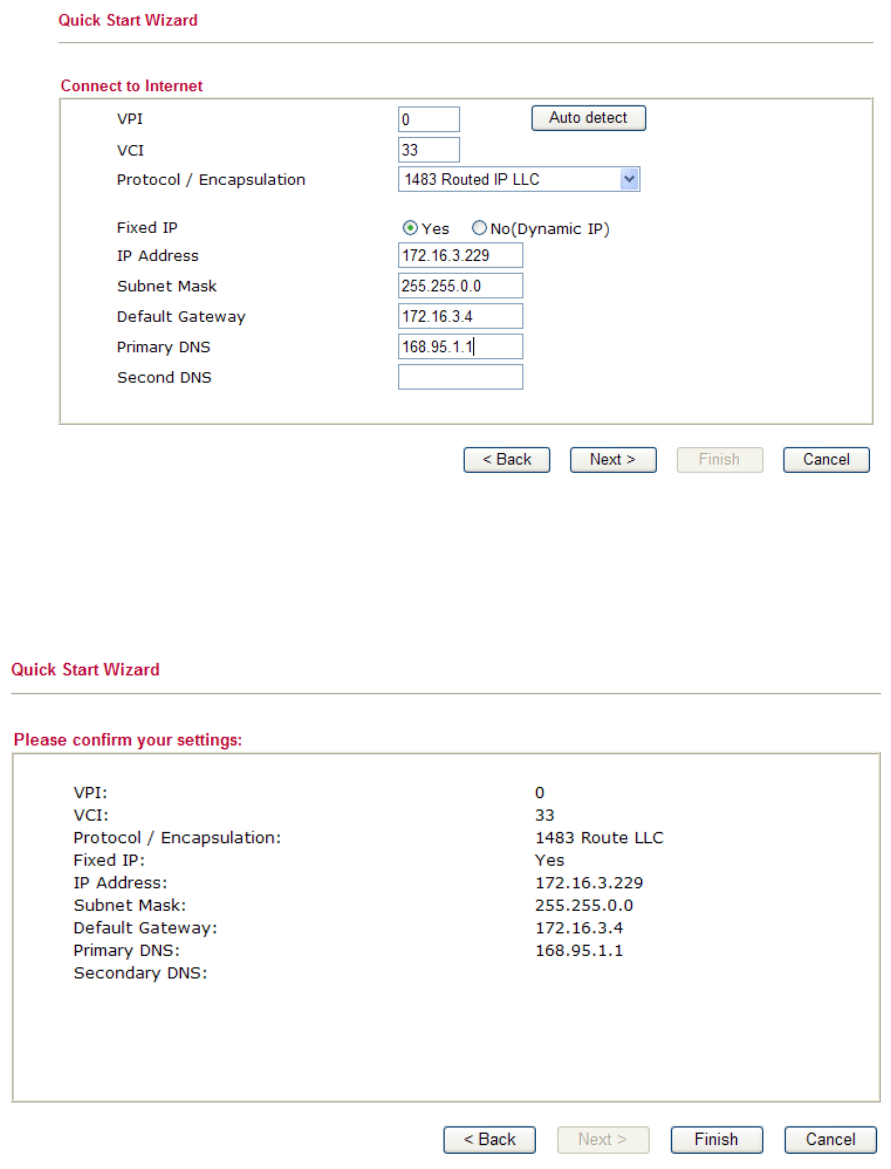

z 1483 Routed IP: if you click 1483 Routed IP, you will get the following
page. Please type in all the information originally provided by your ISP.
Then click Next for next step.
6. Now you can see the following screen. It indicates that the setup is complete.
Different types of connection modes will have different summary. Click
Finish and then restart the router. Afterward, you will enjoy surfing on the
Internet.
Contacting Your Dealer
If the router still cannot work correctly after trying many efforts, please
contact your dealer for further help right away. For any questions, please
feel free to send e-mail to support@draytek.com.
301-2710005-P0
