Draytek V2860VNPLUS VDSL2 Security Firewall User Manual

Draytek Corporation VDSL2 Security Firewall

User manual

Vigor2860 Series Quick Start Guidei
Vigor2860 Series
VDSL2 Security Firewall
Quick Start Guide
Version: 1.0
Firmware Version: V3.7.1_RC3
(For future update, please visit DrayTek web site)
Date: 17/01/2013
Vigor2860 Series Quick Start Guide i
Copyright Information
Copyright
Declarations
Copyright 2013 All rights reserved. This publication contains information that is
protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language without written permission from the
copyright holders.
Trademarks The following trademarks are used in this document:
Microsoft is a registered trademark of Microsoft Corp.
Windows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are trademarks of
Microsoft Corp.
Apple and Mac OS are registered trademarks of Apple Computer Inc.
Other products may be trademarks or registered trademarks of their respective
manufacturers.
Safety Instructions and Approval
Safety Instructions
Read the installation guide thoroughly before you set up the router.
The router is a complicated electronic unit that may be repaired only be authorized
and qualified personnel. Do not try to open or repair the router yourself.
Do not place the router in a damp or humid place, e.g. a bathroom.
Do not stack the routers.
The router should be used in a sheltered area, within a temperature range of +5 to
+40 Celsius.
Do not expose the router to direct sunlight or other heat sources. The housing and
electronic components may be damaged by direct sunlight or heat sources.
Do not deploy the cable for LAN connection outdoor to prevent electronic shock
hazards.
Keep the package out of reach of children.
When you want to dispose of the router, please follow local regulations on
conservation of the environment.
Warranty We warrant to the original end user (purchaser) that the router will be free from any
defects in workmanship or materials for a period of two (2) years from the date of
purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as
proof of date of purchase. During the warranty period, and upon proof of purchase,
should the product have indications of failure due to faulty workmanship and/or
materials, we will, at our discretion, repair or replace the defective products or
components, without charge for either parts or labor, to whatever extent we deem
necessary tore-store the product to proper operating condition. Any replacement will
consist of a new or re-manufactured functionally equivalent product of equal value, and
will be offered solely at our discretion. This warranty will not apply if the product is
modified, misused, tampered with, damaged by an act of God, or subjected to abnormal
working conditions. The warranty does not cover the bundled or licensed software of
other vendors. Defects which do not significantly affect the usability of the product will
not be covered by the warranty. We reserve the right to revise the manual and online
documentation and to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
Be a Registered
Owner
Web registration is preferred. You can register your Vigor router via
http://www.draytek.com.
Firmware & Tools
Updates
Due to the continuous evolution of DrayTek technology, all routers will be regularly
upgraded. Please consult the DrayTek web site for more information on newest firmware,
tools and documents.
http://www.draytek.com
Vigor2860 Series Quick Start Guidei
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County,
Taiwan 303
Product: Vigor2860 Series Router
DrayTek Corp. declares that Vigor2860 Series of routers are in compliance with the following essential
requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU
.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EEC
by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the
requirements set forth in EN60950-1.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications of this equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
This equipment must be installed and operated with a separation distance of at least 20 cm from all persons.
The operation frequency of the device in the 5150-5250 MHz band is for indoor use only.
Please visit http://www.draytek.com/user/SupportDLRTTECE.php
This product is designed for the DSL and 2.4GHz / 5GHz WLAN network throughout the EC region. Please see
the user manual for the applicable networks on your product.
Vigor2860 Series Quick Start Guide i
T
Ta
ab
bl
le
e
o
of
f
C
Co
on
nt
te
en
nt
ts
s
1. Introduction ....................................................................................... 1
1.1 Panel Explanation................................................................................................2
1.1.1 For Vigor2860.....................................................................................................2
1.1.2 For Vigor2860n...................................................................................................4
1.1.3 For Vigor2860Vn-plus.........................................................................................6
1.1.4 For Vigor2862.....................................................................................................9
1.1.5 For Vigor2862n.................................................................................................11
1.1.6 For Vigor2862Vn-plus.......................................................................................13
1.1.7 For Vigor2863...................................................................................................16
1.1.8 For Vigor2863n.................................................................................................18
1.1.9 For Vigor2863Vn ..............................................................................................20
1.1.10 For Vigor2925.................................................................................................22
1.1.11 For Vigor2925n...............................................................................................24
1.1.12 For Vigor2925Vn-plus.....................................................................................26
1.2 Package Content ...............................................................................................29
2. Installing Your Router..................................................................... 31
2.1 Hardware Installation ........................................................................................31
2.2 Printer Installation .............................................................................................34
3. Initial Settings ................................................................................. 42
3.1 Accessing Web Page ........................................................................................42
3.2 Basic Configuration – Quick Start Wizard.......................................................43
3.2.1 For WAN1 (ADSL/VDSL)..................................................................................45
3.2.2 For WAN2 (Ethernet)........................................................................................49
3.2.3 For WAN3 (USB) ..............................................................................................57
3.3 Wireless Configuration .....................................................................................58
3.3.1 Basic Wireless LAN Concept............................................................................58
3.3.2 General Setup ..................................................................................................59
3.3.3 Security Settings...............................................................................................60
4. Trouble Shooting ............................................................................ 62
4.1 Checking If the Hardware Status Is OK or Not................................................62
4.2 Checking If the Network Connection Settings on Your Computer Is OK or
Not ............................................................................................................................63
Vigor2860 Series Quick Start Guide
5
4.3 Pinging the Router from Your Computer.........................................................66
4.4 Checking If the ISP Settings are OK or Not.....................................................67
4.5 Backing to Factory Default Setting If Necessary ............................................67
4.6 Contacting Your Dealer.....................................................................................69
Vigor2860 Series Quick Start Guide
1
Vigor2860 series is a VDSL2 router with multi-subnet for secure and efficient
workgroup management. It integrates IP layer QoS, NAT session/bandwidth
management to help users control works well with large bandwidth.
By adopting hardware-based VPN platform and hardware encryption of
AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases
the performance of VPN greatly and offers several protocols (such as
IPSec/PPTP/L2TP) with up to 32 VPN tunnels.
The object-based design used in SPI (Stateful Packet Inspection) firewall allows
users to set firewall policy with ease. CSM (Content Security Management)
provides users control and management in IM (Instant Messenger) and P2P
(Peer to Peer) more efficiency than before. In addition, DoS/DDoS prevention
and URL/Web content filter strengthen the security outside and control inside.
Vigor2860 series supports USB interface for connecting USB printer to share
printing function, 3G USB modem for network connection, or connectivity for
network FTP service.
Vigor2860 Series Quick Start Guide
2
1
1.
.1
1.
.1
1
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
60
0

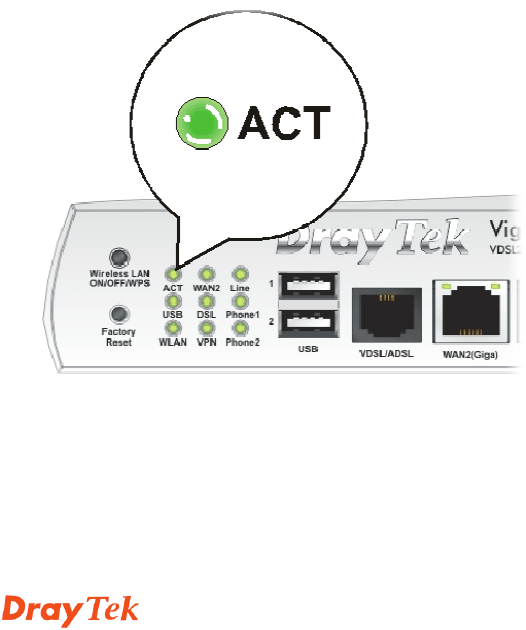

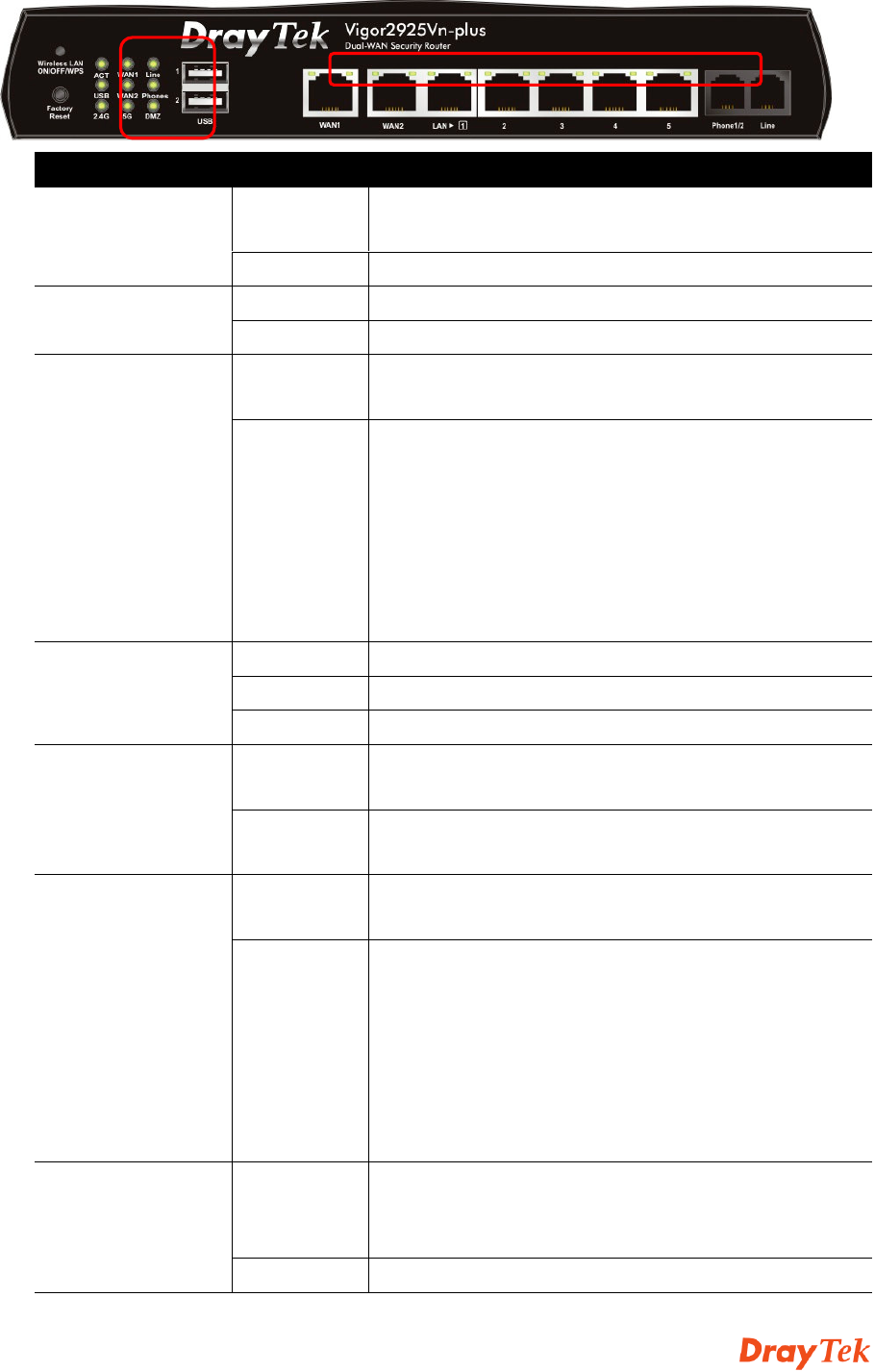

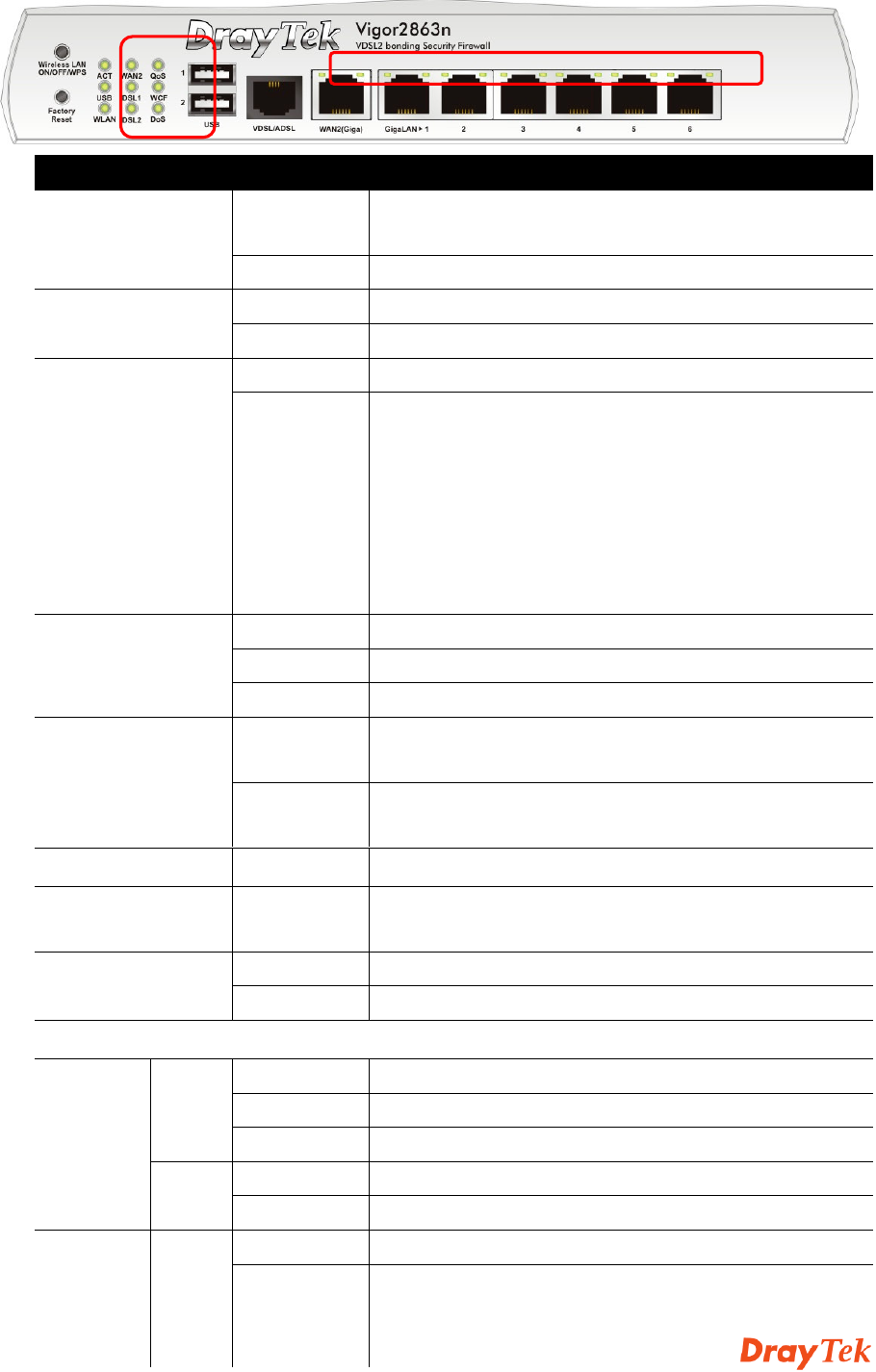

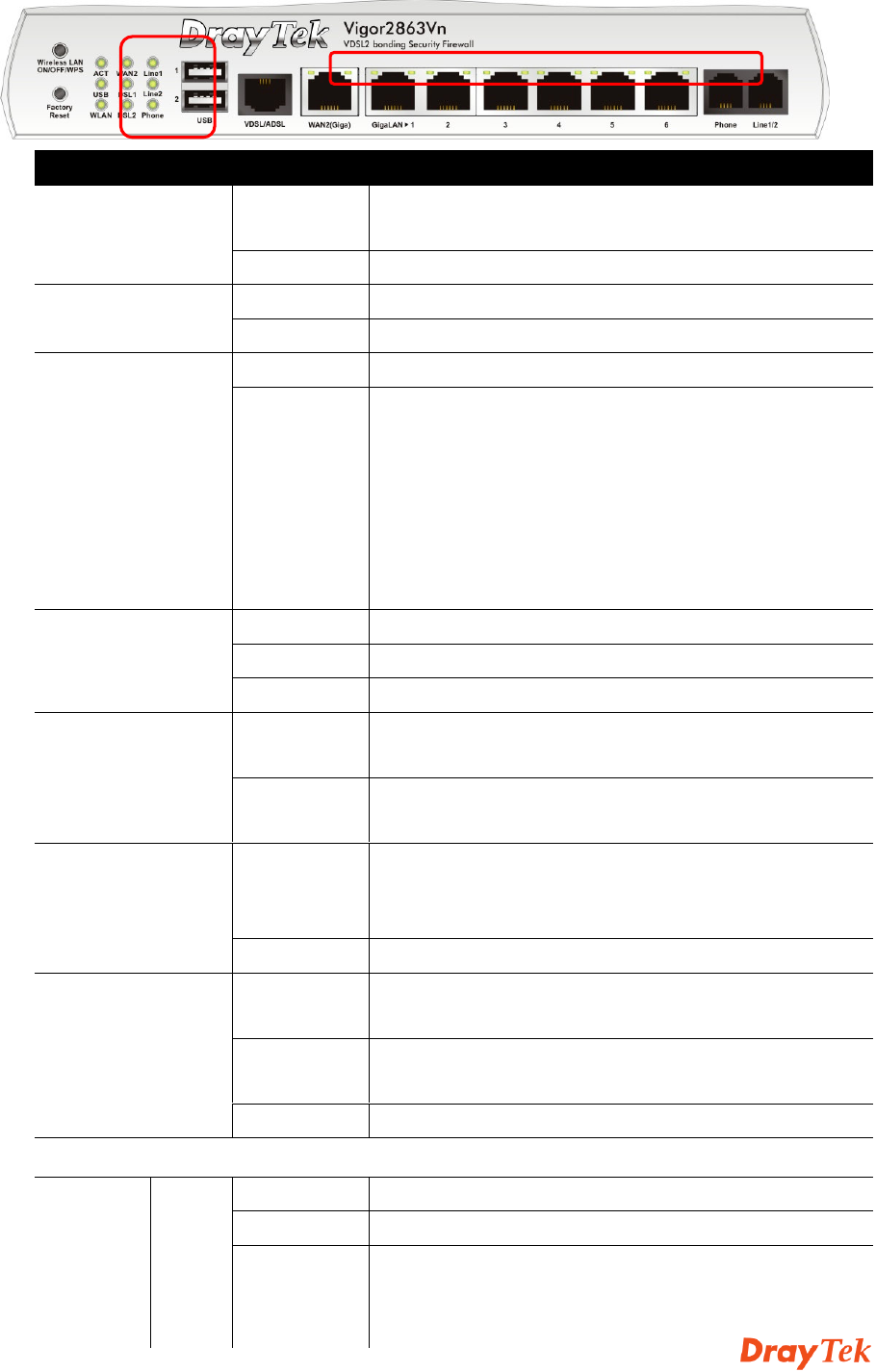

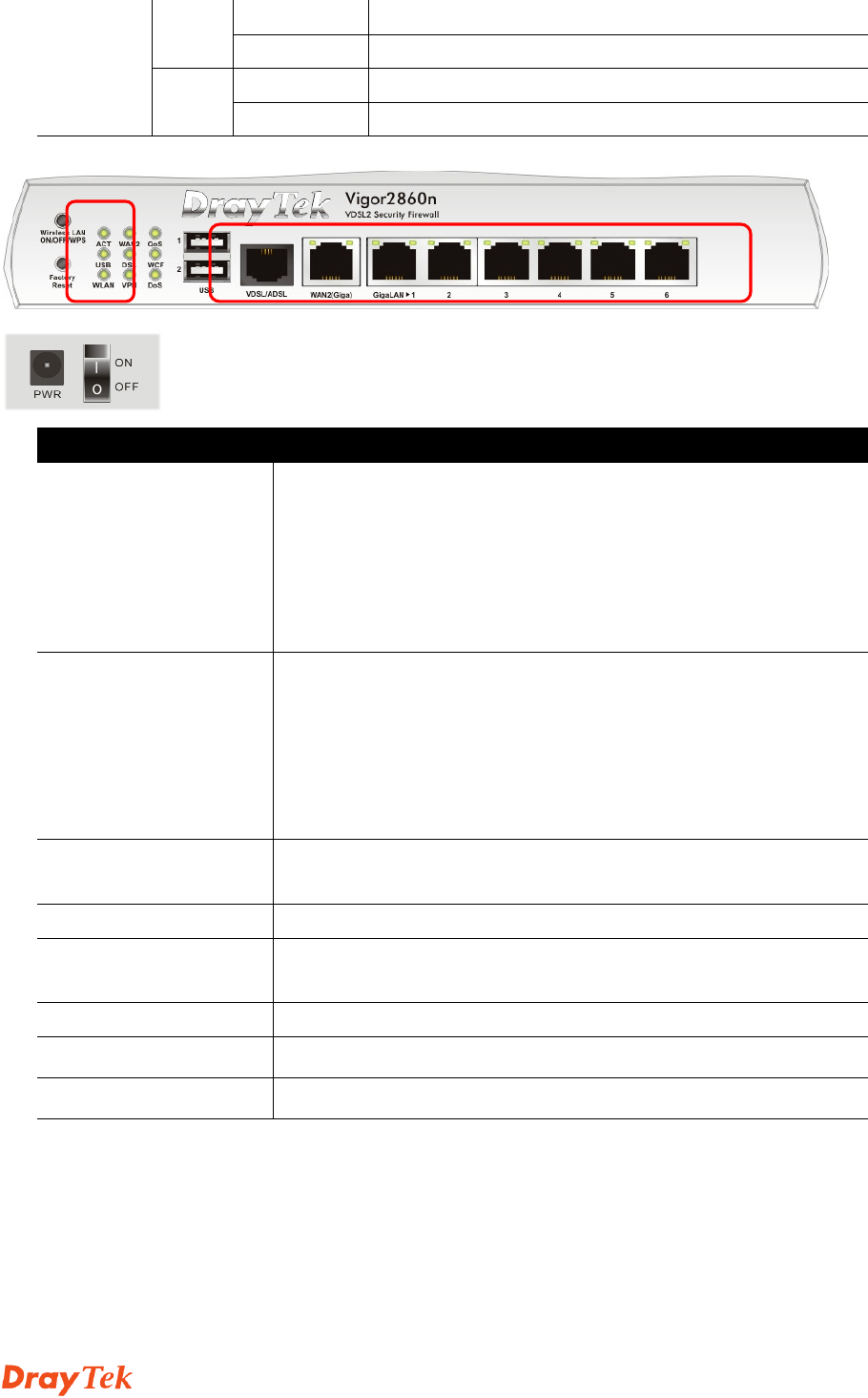

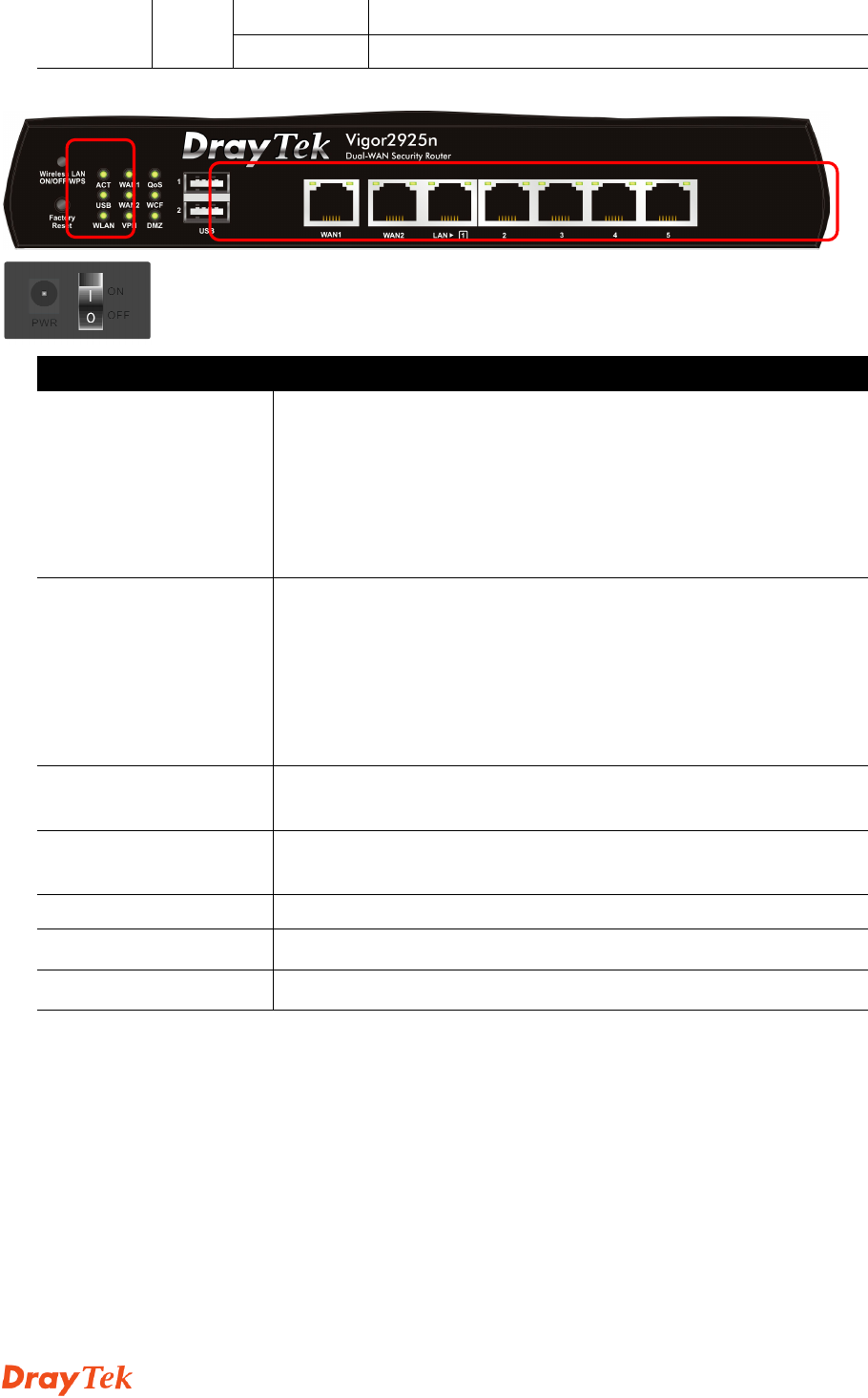

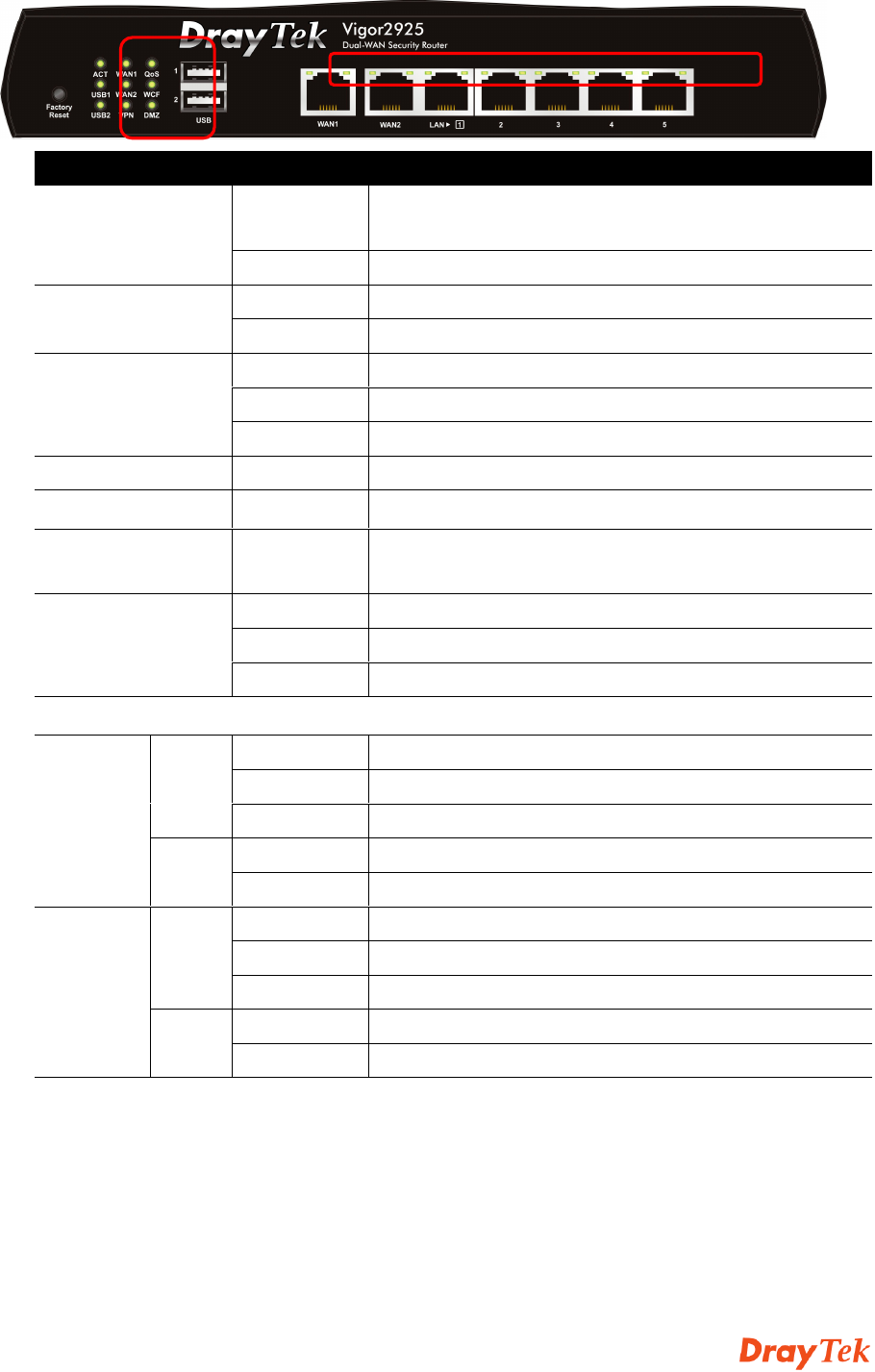

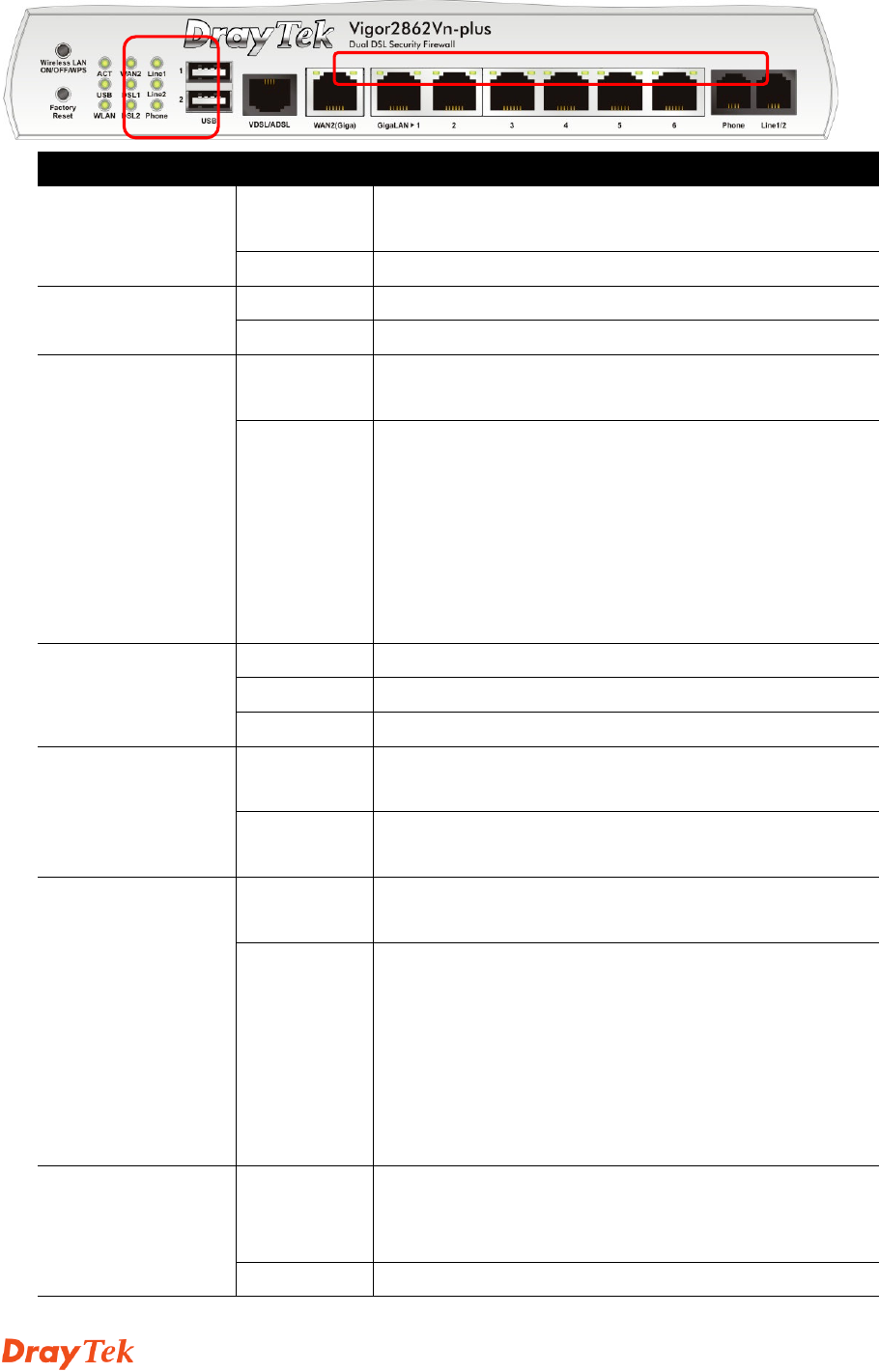

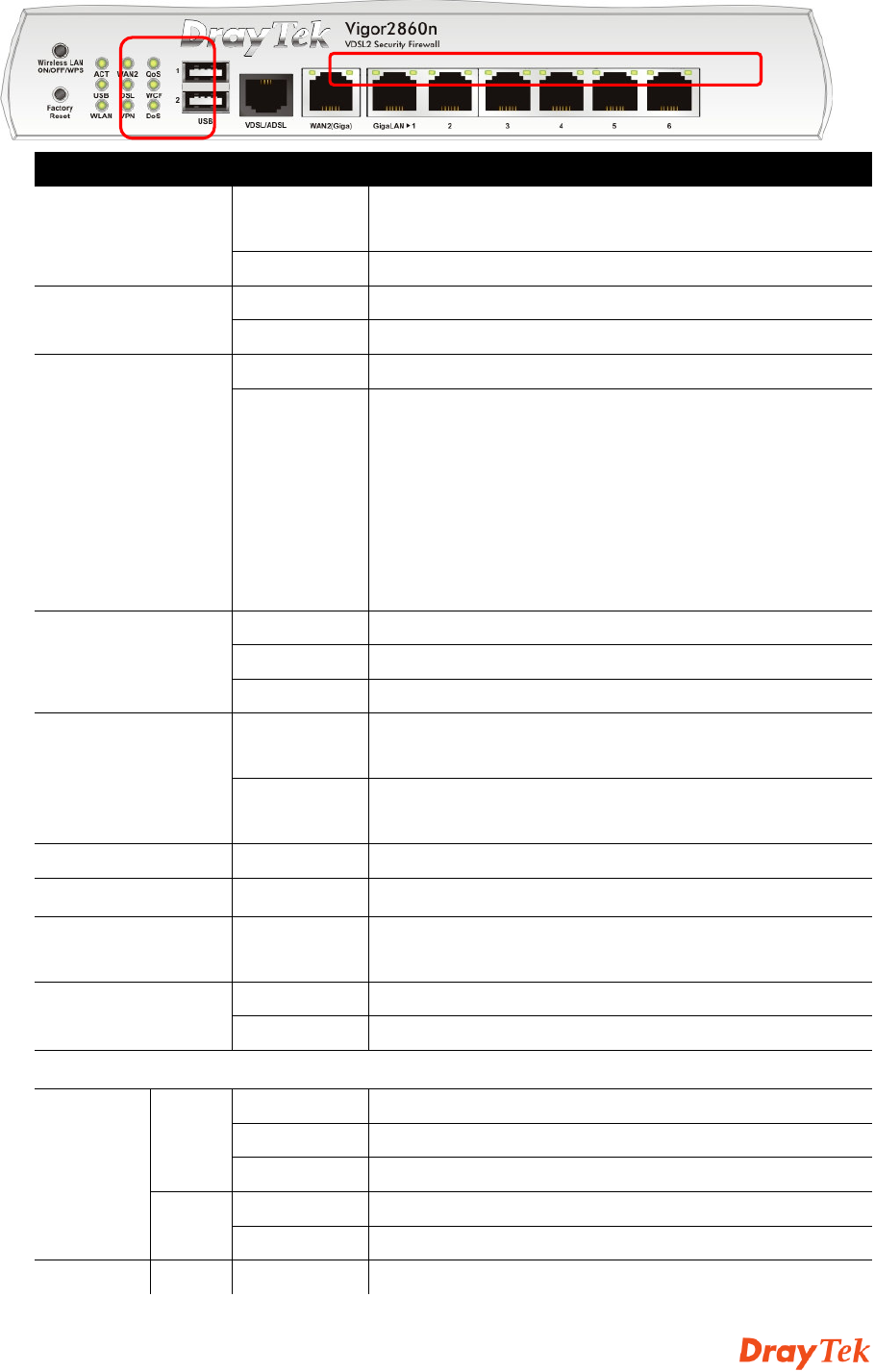

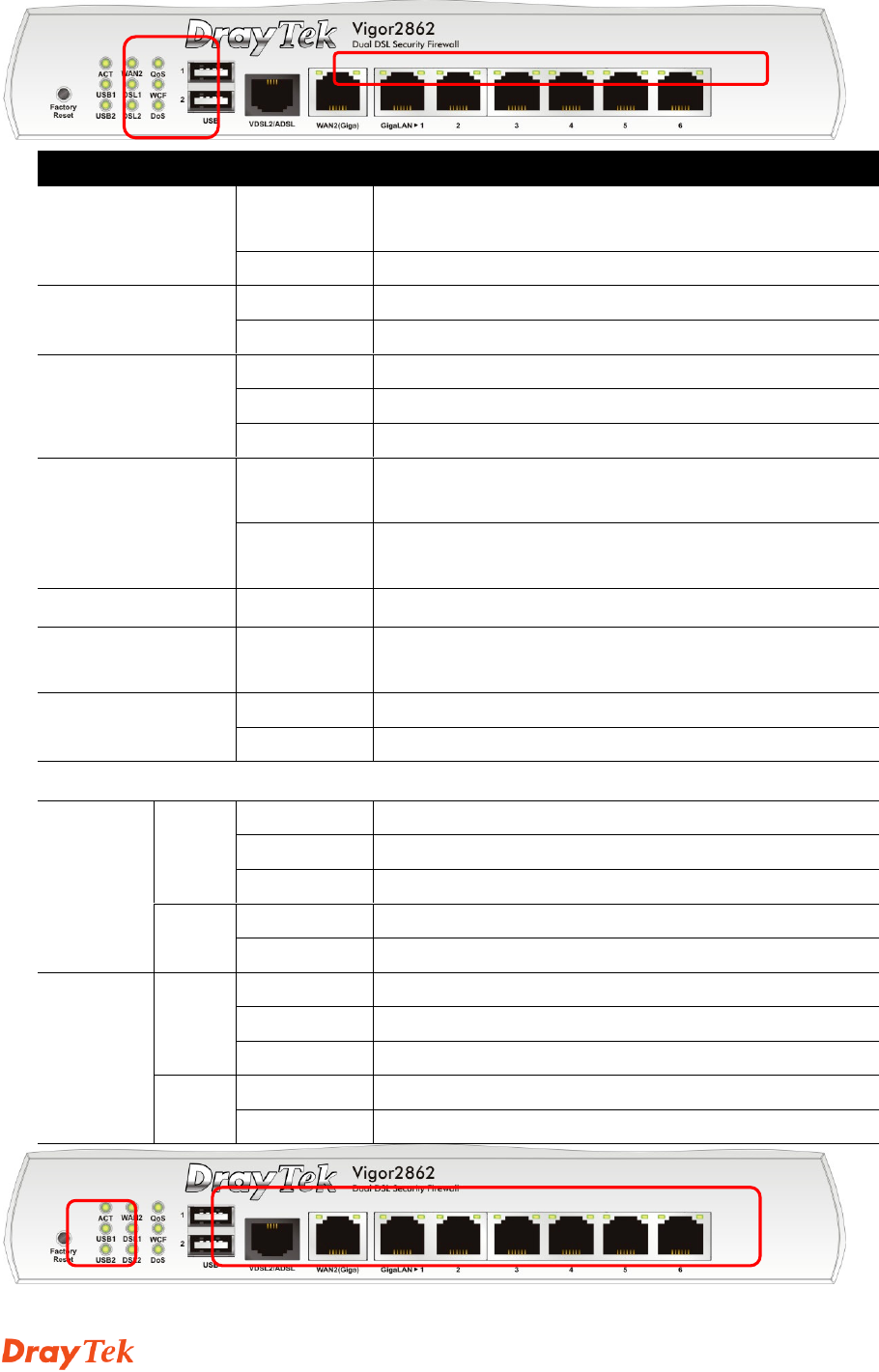

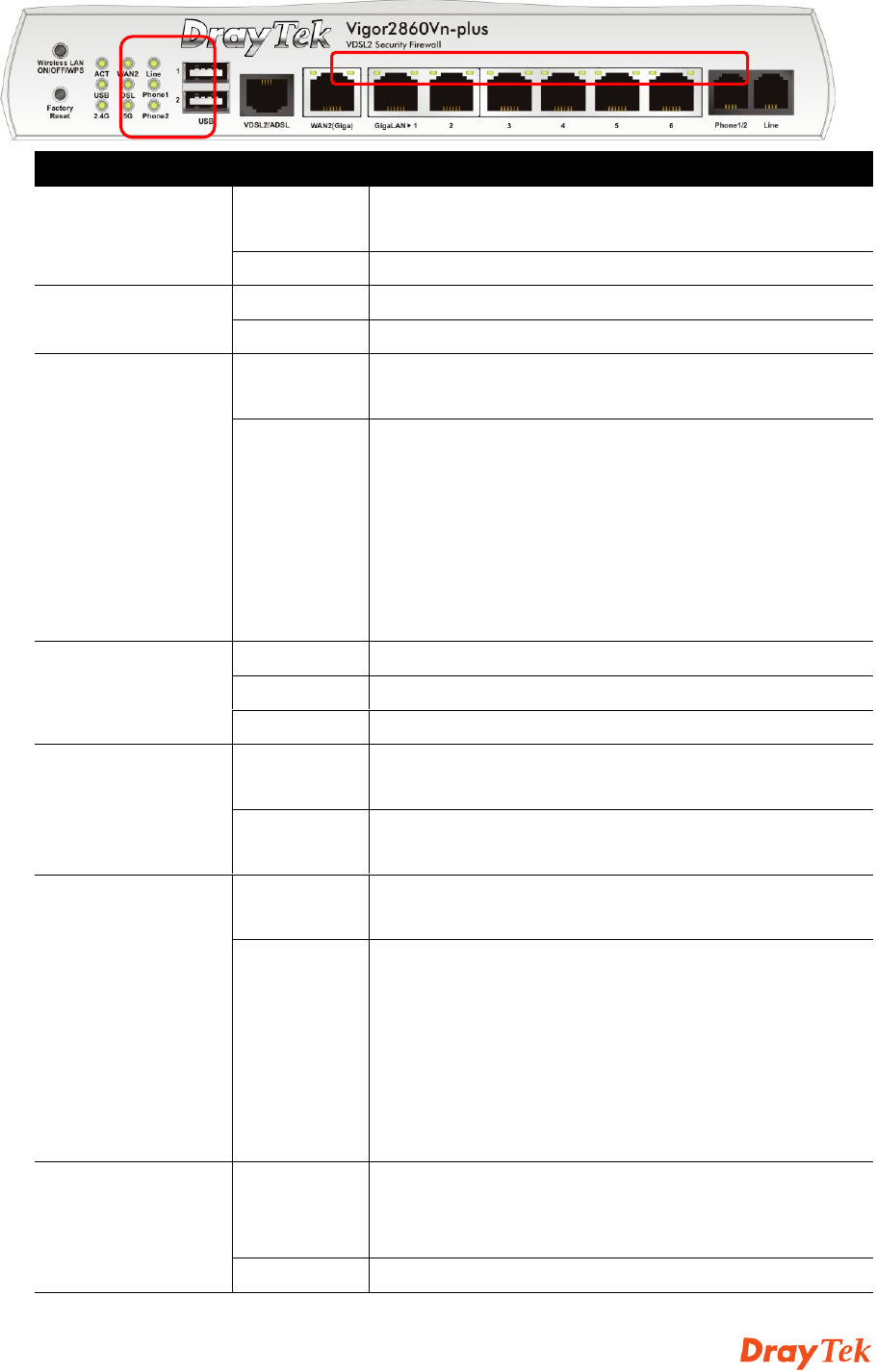

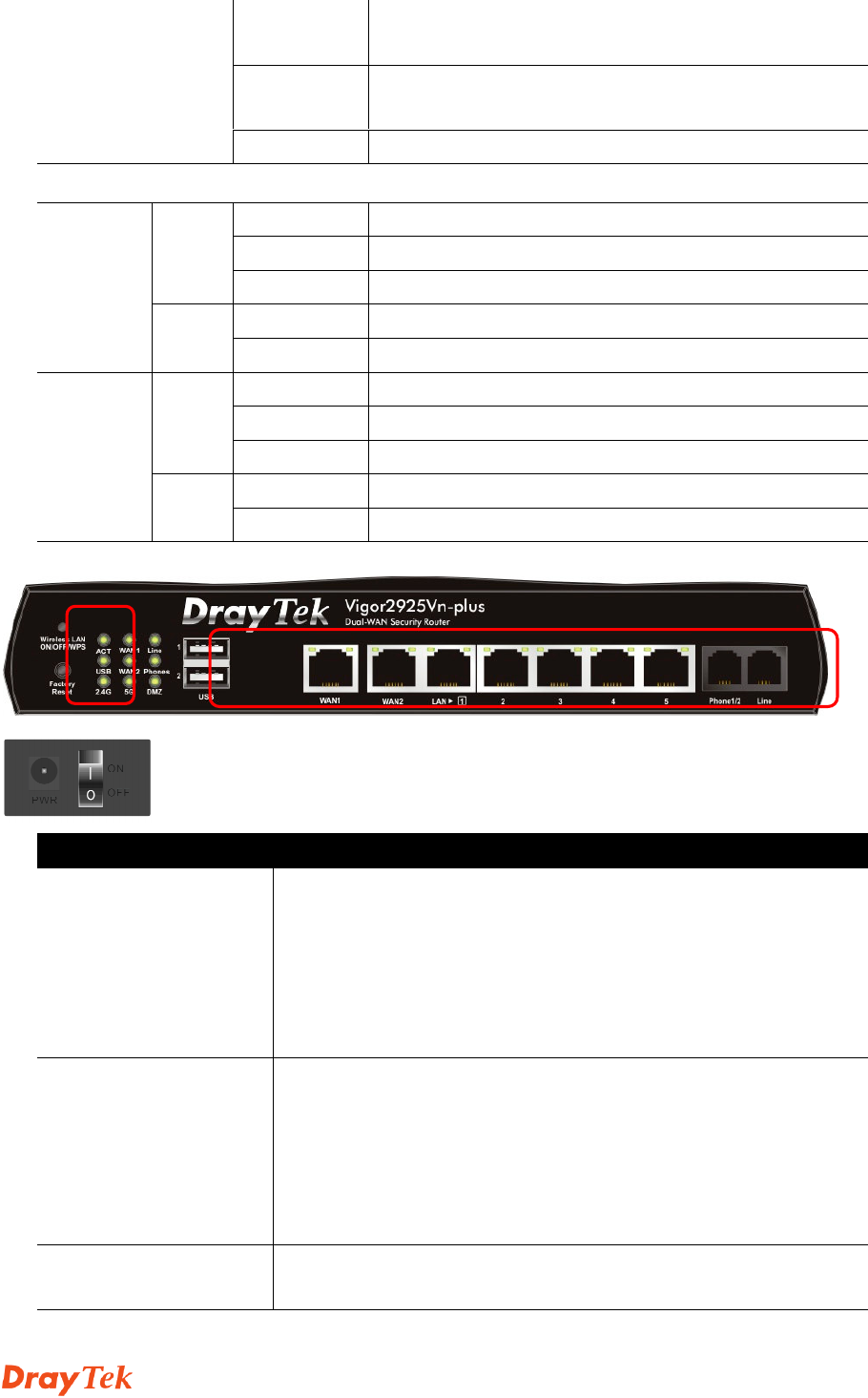

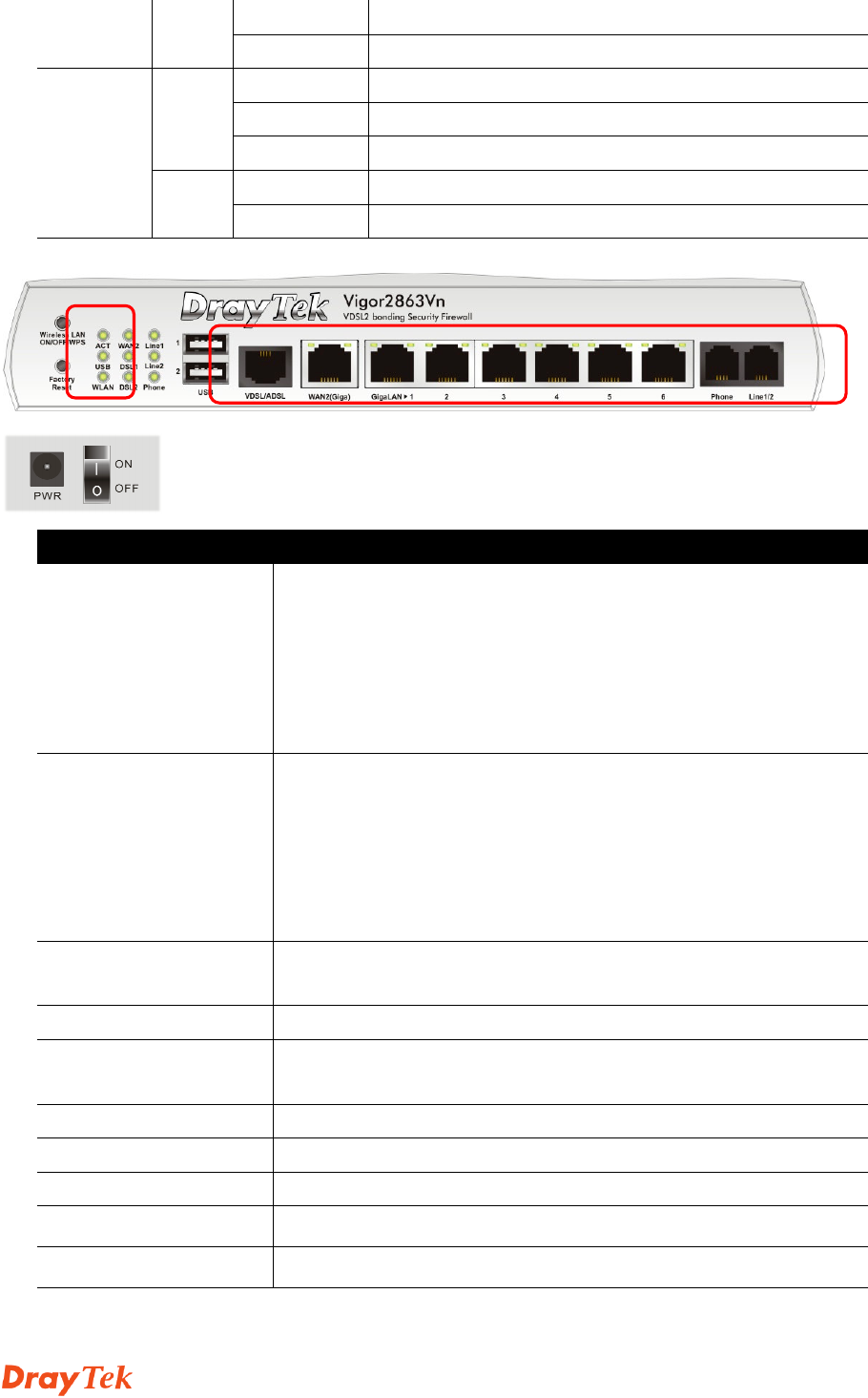

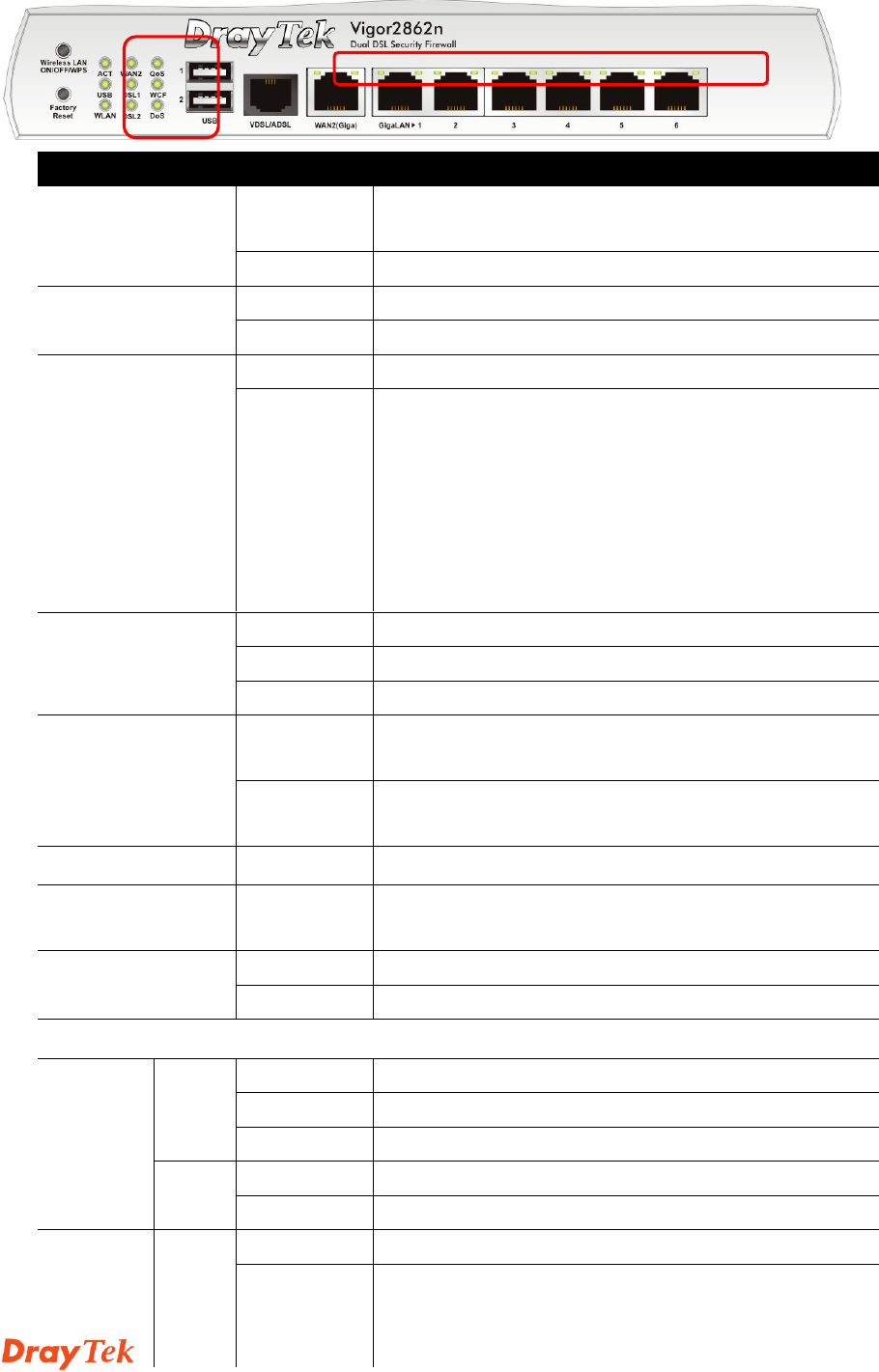

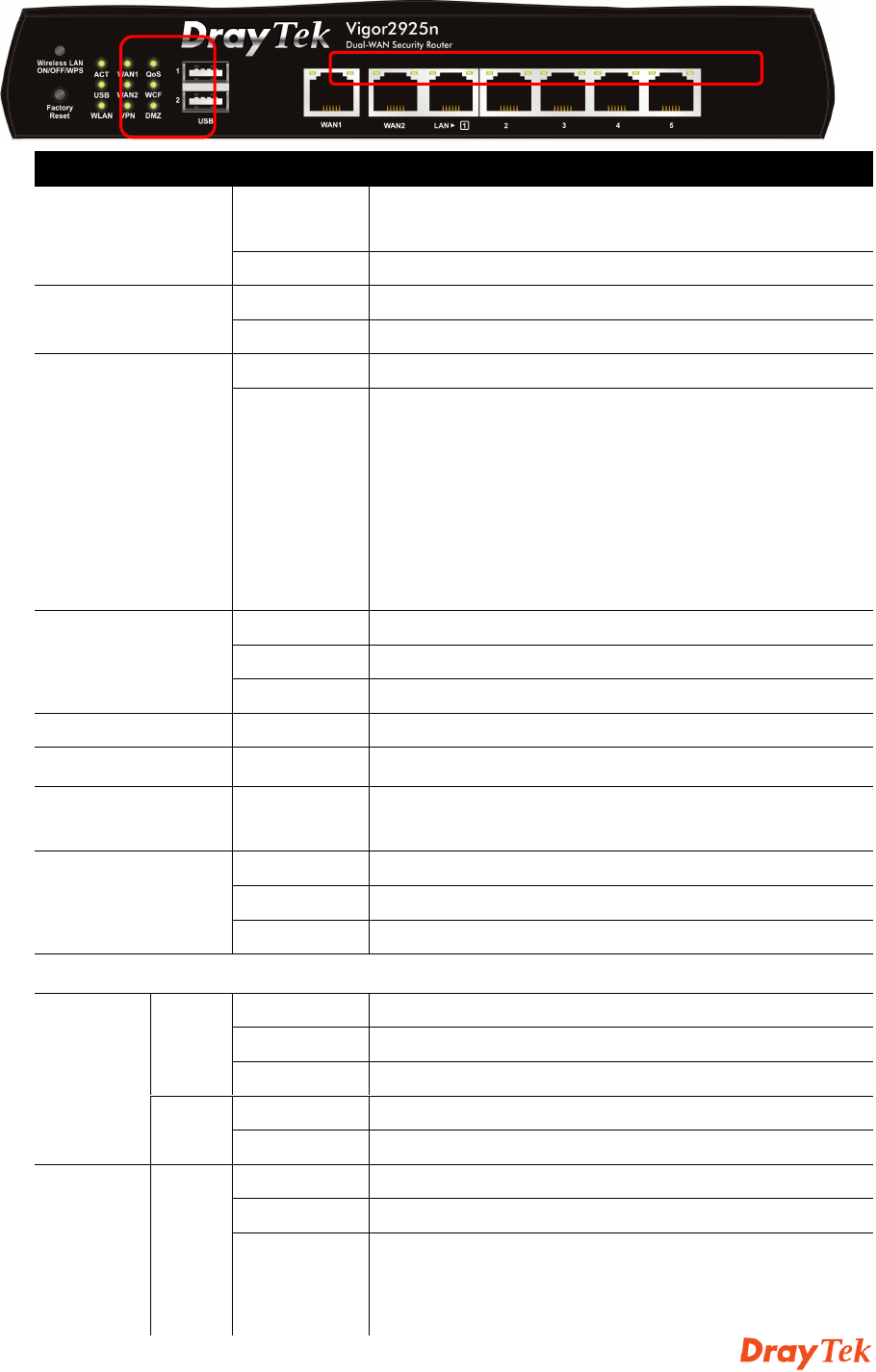

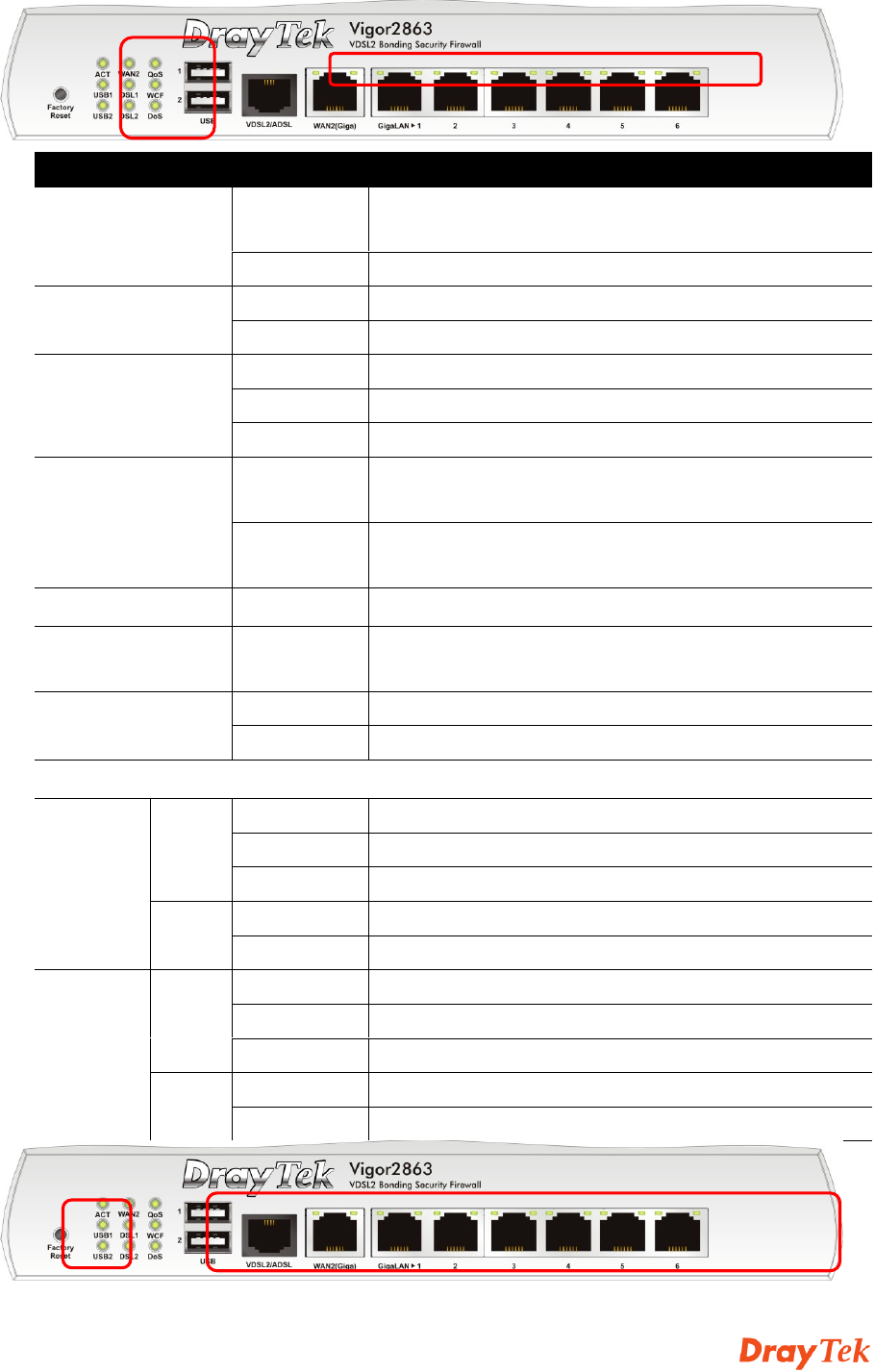

LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB(1-2)
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED Off The port is connected with 10/100Mbps
Vigor2860 Series Quick Start Guide
3

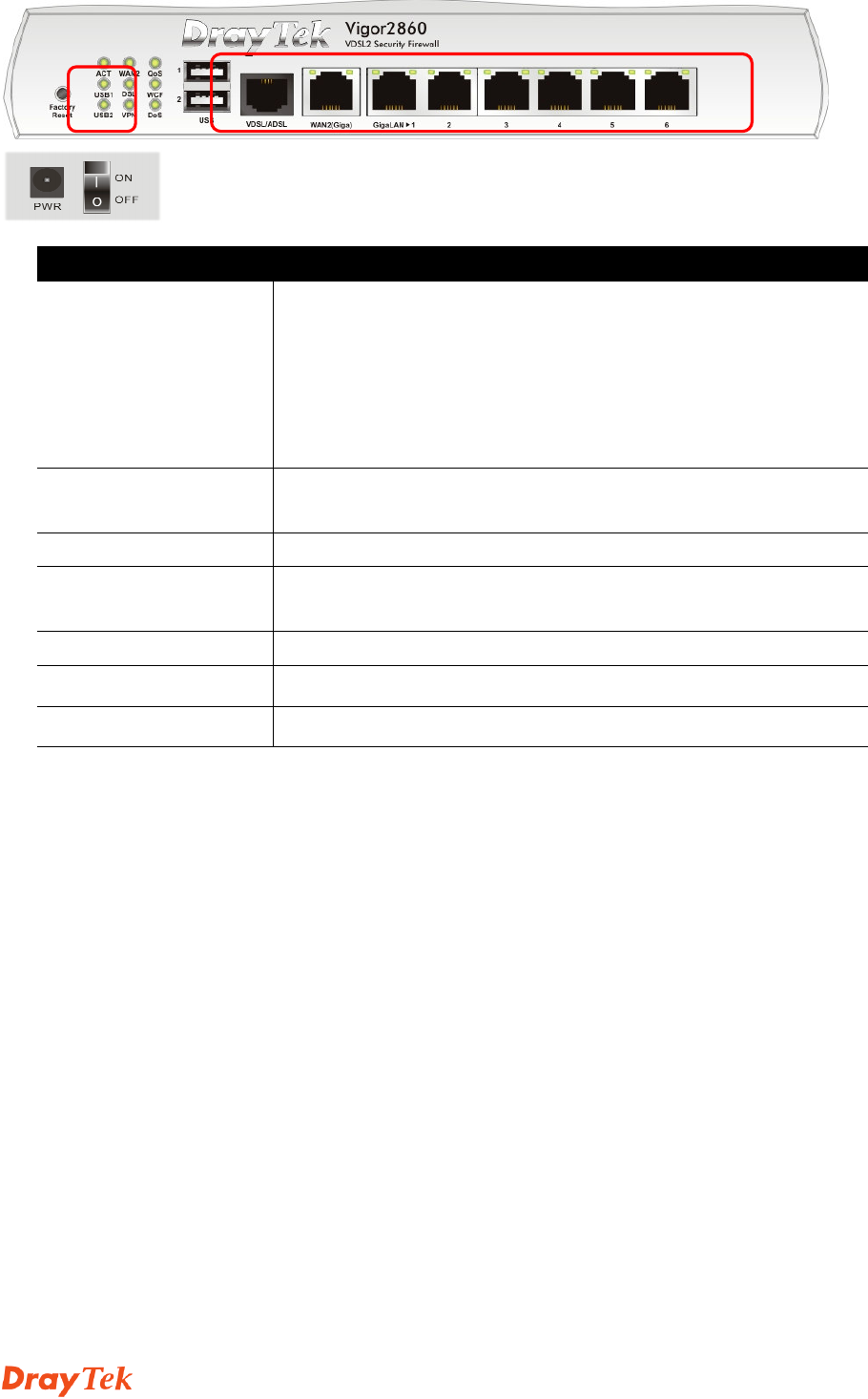

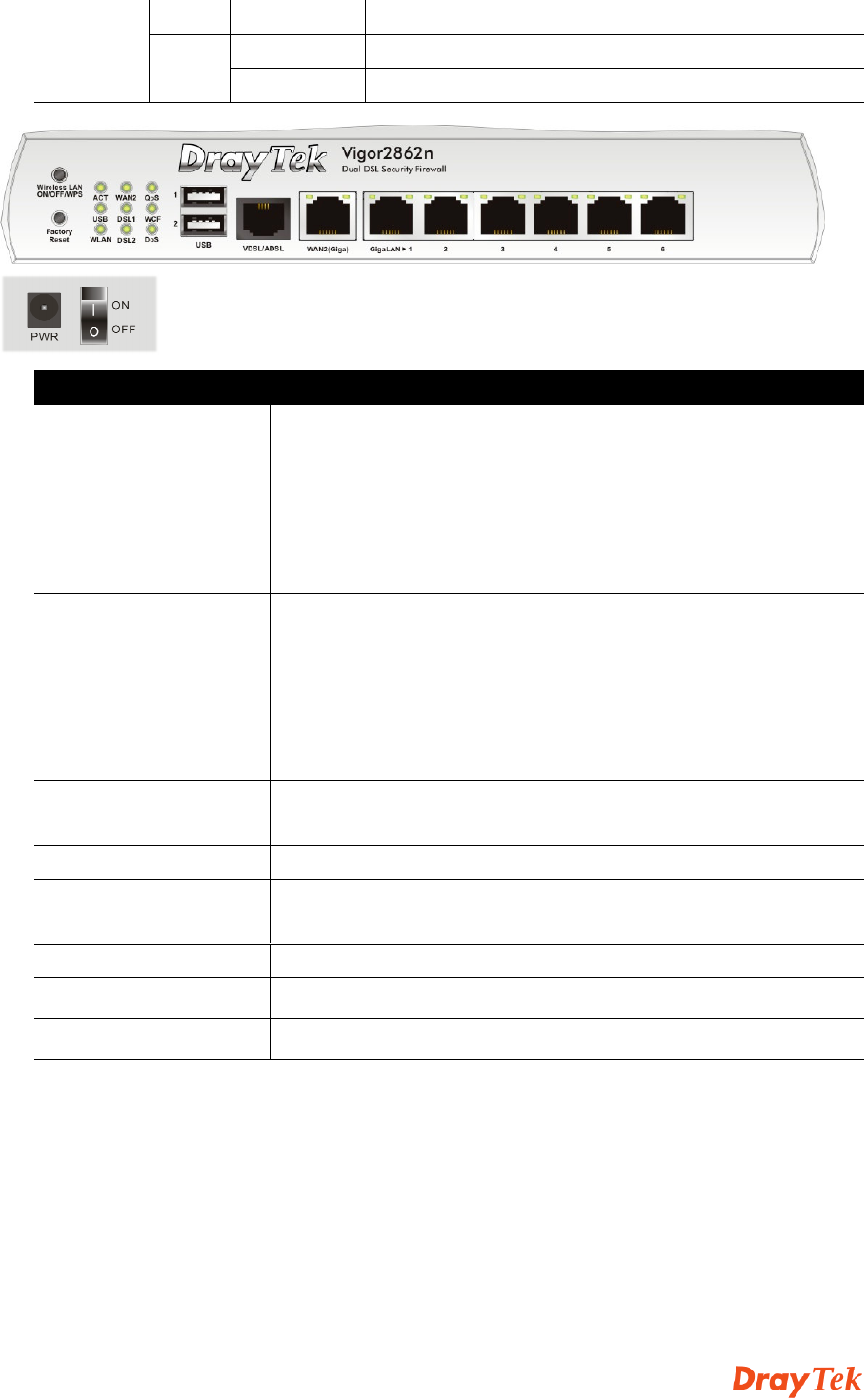

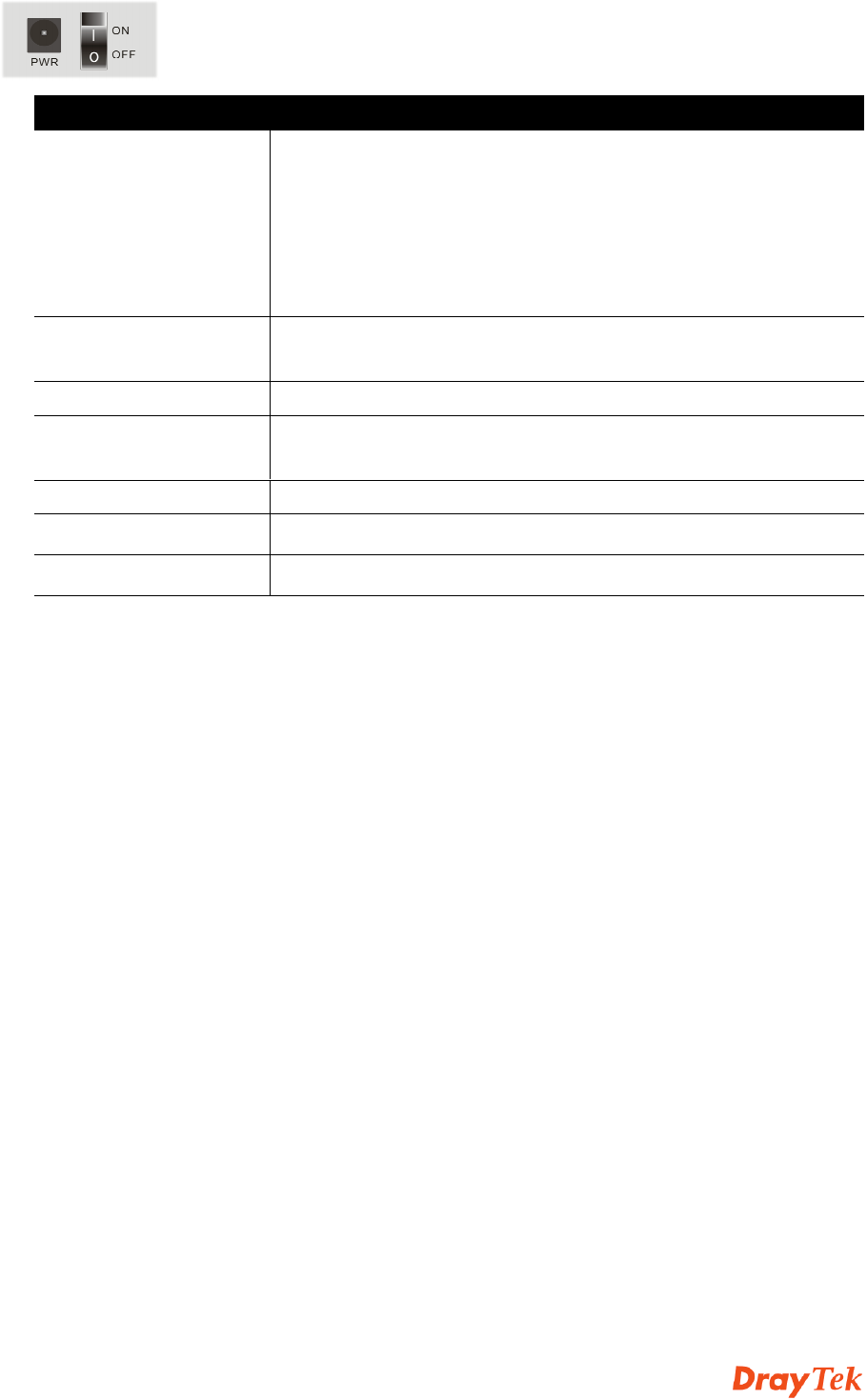

Interface Description

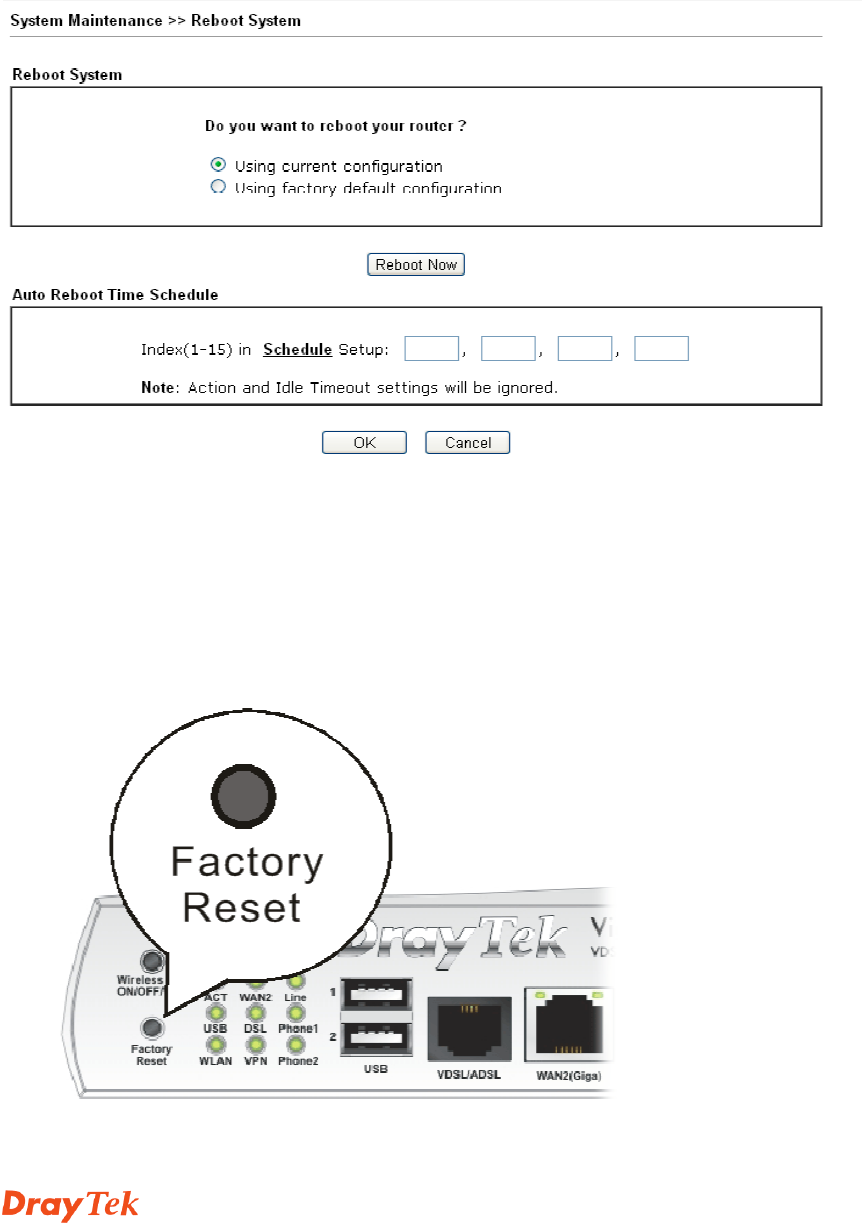

Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
4
1
1.
.1
1.
.2
2
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
60
0n
n
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point is ready.
WLAN
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
GigaLAN
Left On The port is connected.
Vigor2860 Series Quick Start Guide
5
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
6
1
1.
.1
1.
.3
3
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
60
0V
Vn
n-
-p
pl
lu
us
s
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point with transmission rate
of 2.4G is ready.
2.4G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On Wireless access point with transmission rate
of 5G is ready.
5G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
Vigor2860 Series Quick Start Guide
7
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone (1-2)
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
Vigor2860 Series Quick Start Guide
8
VDSL2/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
PWR Connecter for a power adapter.
Vigor2860 Series Quick Start Guide
9
1
1.
.1
1.
.4
4
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
62
2
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB(1-2)
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL(1-2)
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED Off The port is connected with 10/100Mbps
Vigor2860 Series Quick Start Guide
10
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
11
1
1.
.1
1.
.5
5
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
62
2n
n
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point is ready.
WLAN
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL(1-2)
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
GigaLAN
Left
LED Off The port is disconnected.
Vigor2860 Series Quick Start Guide
12
Blinking The data is transmitting.
On The port is connected with 1000Mbps.Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
13
1
1.
.1
1.
.6
6
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
62
2V
Vn
n-
-p
pl
lu
us
s
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point with transmission rate
of 2.4G is ready.
2.4G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On Wireless access point with transmission rate
of 5G is ready.
5G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
Vigor2860 Series Quick Start Guide
14
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone (1-2)
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN
(1~6)
Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
Vigor2860 Series Quick Start Guide
15
VDSL2/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
16
1
1.
.1
1.
.7
7
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
63
3
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB(1-2)
Blinking The data is transmitting.
On
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL(1-2)
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED Off The port is connected with 10/100Mbps
Vigor2860 Series Quick Start Guide
17
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
18
1
1.
.1
1.
.8
8
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
63
3n
n
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point is ready.
WLAN
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL(1-2)
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DoS/DDoS function is active.DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
GigaLAN
(1~6)
Left
LED Off The port is disconnected.
Vigor2860 Series Quick Start Guide
19
Blinking The data is transmitting.
On The port is connected with 1000Mbps.Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
20
1
1.
.1
1.
.9
9
F
Fo
or
r
V
Vi
ig
go
or
r2
28
86
63
3V
Vn
n
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point is ready.
WLAN
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL(1-2)
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone(1-2)
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
WAN2
Left
LED
Blinking The data is transmitting.
Vigor2860 Series Quick Start Guide
21
On The port is connected with 1000Mbps.
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
(1~6)
Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL Connecter for accessing the Internet.
WAN2 (Giga) Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6) Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
22
1
1.
.1
1.
.1
10
0
F
Fo
or
r
V
Vi
ig
go
or
r2
29
92
25
5
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB(1-2)
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN(1-2)
Blinking The data is transmitting.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN
(1-2)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN
(1-5)
Right
LED Off The port is connected with 10/100Mbps
Vigor2860 Series Quick Start Guide
23
Interface Description
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB(1-2) Connecter for a USB device (for 3G USB Modem or
printer).
WAN(1-2) Connecter for local network devices or modem for
accessing Internet.
LAN(1-5) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
24
1
1.
.1
1.
.1
11
1
F
Fo
or
r
V
Vi
ig
go
or
r2
29
92
25
5n
n
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On
USB device is connected and ready for use.
USB
Blinking The data is transmitting.
On Wireless access point is ready.
WLAN
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN(1-2)
Blinking The data is transmitting.
VPN On The VPN tunnel is active.
QoS On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN
(1-2)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
LAN
Left
LED
Blinking The data is transmitting.
Vigor2860 Series Quick Start Guide
25
On The port is connected with 1000Mbps.
Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB(1-2) Connecter for a USB device (for 3G USB Modem or
printer).
WAN(1-2) Connecter for local network devices or modem for
accessing Internet.
LAN(1-5) Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
26
1
1.
.1
1.
.1
12
2
F
Fo
or
r
V
Vi
ig
go
or
r2
29
92
25
5V
Vn
n-
-p
pl
lu
us
s
LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB
Blinking The data is transmitting.
On Wireless access point with transmission rate
of 2.4G is ready.
2.4G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On Internet connection is ready.
Off Internet connection is not ready.
WAN(1-2)
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On Wireless access point with transmission rate
of 5G is ready.
5G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and
will return to normal condition after two
minutes. (You need to setup WPS within 2
minutes.)
On A PSTN phone call comes (in and out).
However, when the phone call is
disconnected, the LED will be off.
Line
Off There is no PSTN phone call.
Vigor2860 Series Quick Start Guide
27
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone 1/2
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN
(1-2)
Right
LED Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN
(1-5)
Right
LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED off)
wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router
(ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button.
Then the router will restart with the factory default
configuration.
USB Connecter for a USB device (for 3G USB Modem or
printer).
Vigor2860 Series Quick Start Guide
28
WAN(1-2) Connecter for local network devices or modem for
accessing Internet.
LAN (1-5) Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Vigor2860 Series Quick Start Guide
29
Vigor2860 Series Quick Start Guide
30

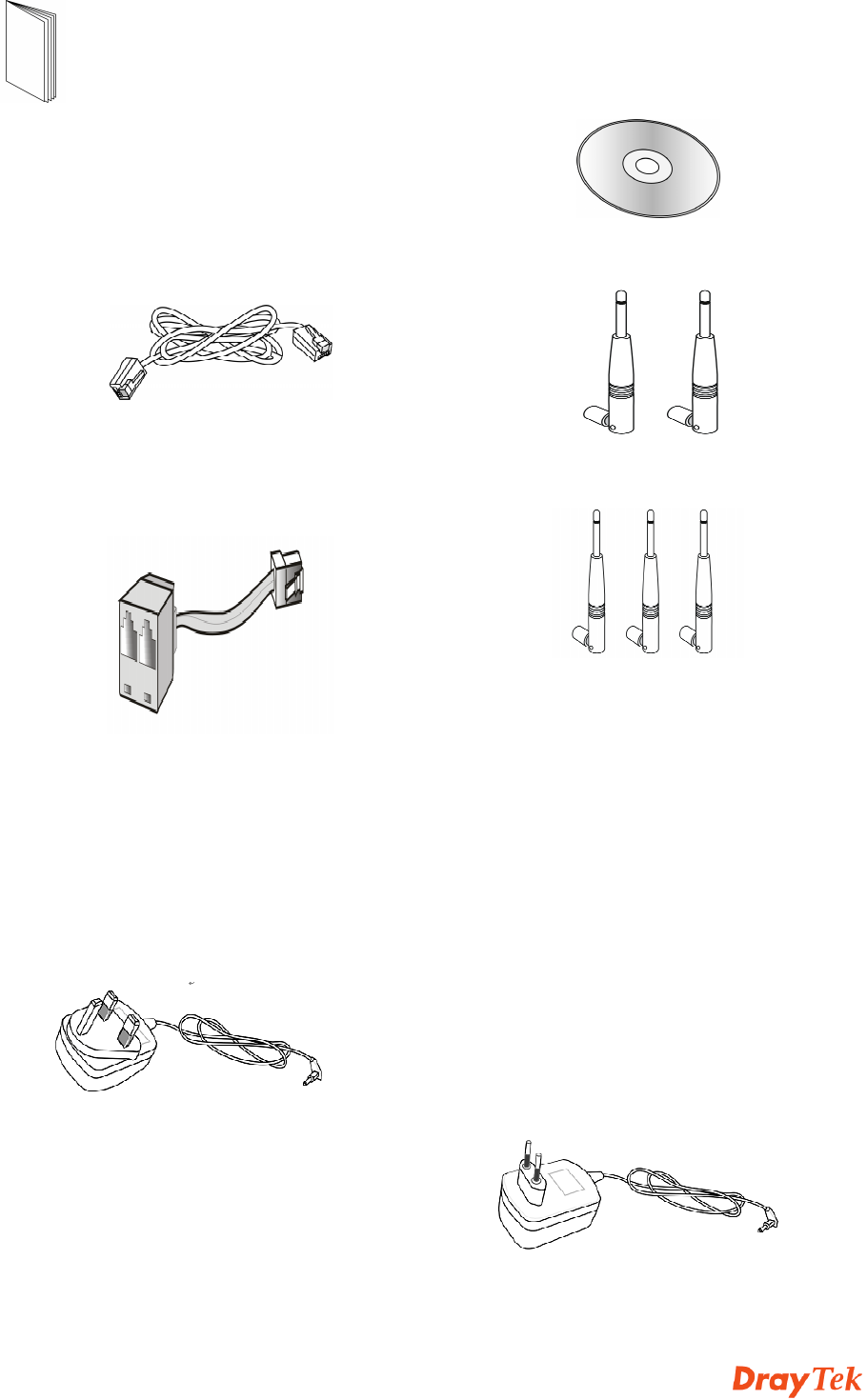

Quick Start Guide
CD
RJ-45 Cable (Ethernet)
Antenna (n models)
Analog phone adapter
(V models & V2862/2863)
Antenna (n-plus models)

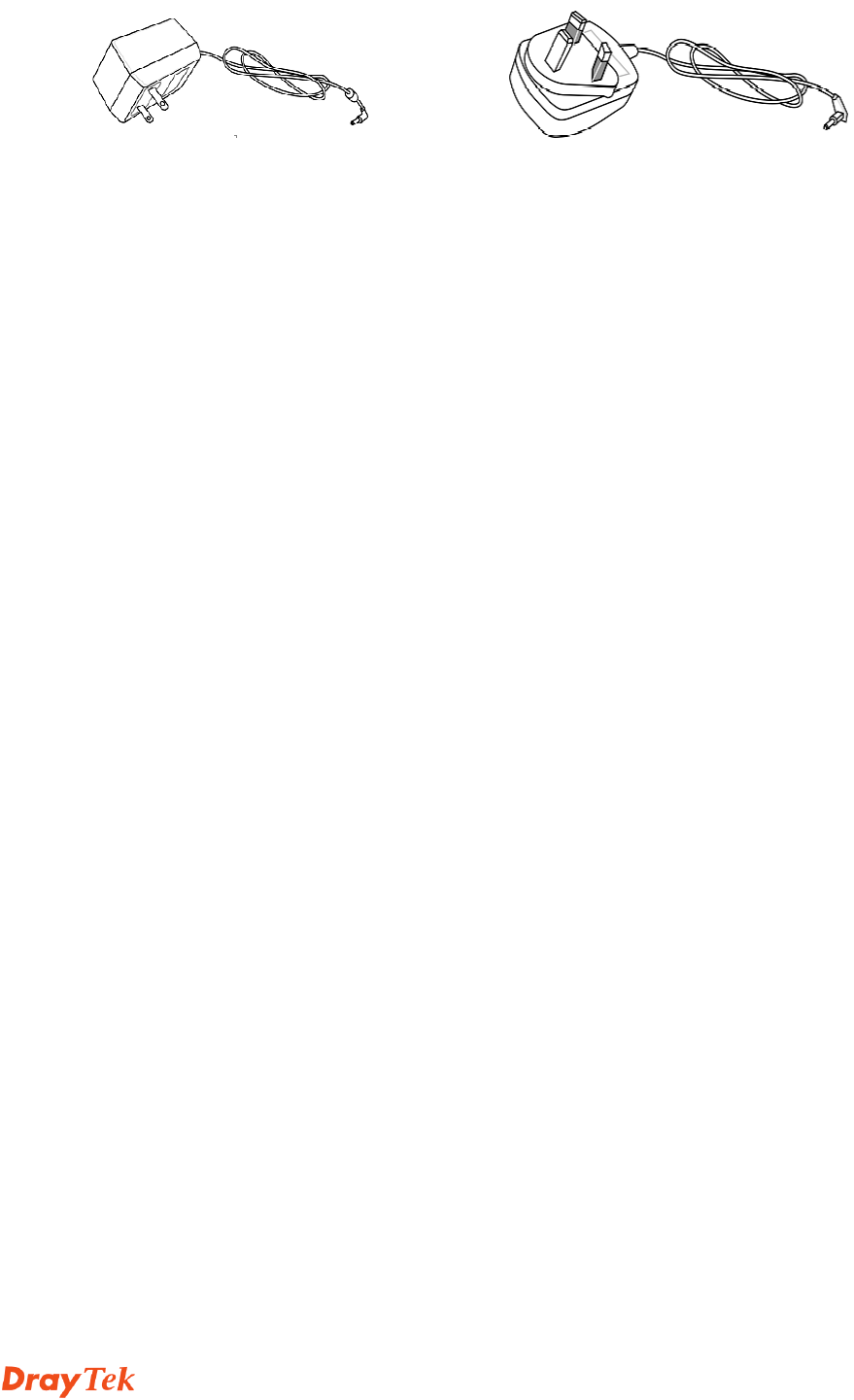

The type of the power adapter depends on the country that the router will be
installed:
UK-type Power Adapter EU-type Power Adapter
Vigor2860 Series Quick Start Guide
31
USA/Taiwan-type Power
Adapter
AU/NZ-type Power Adapter
* The maximum power consumption is 24 Watt.
Vigor2860 Series Quick Start Guide
32
This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
Before starting to configure the router, you have to connect your devices

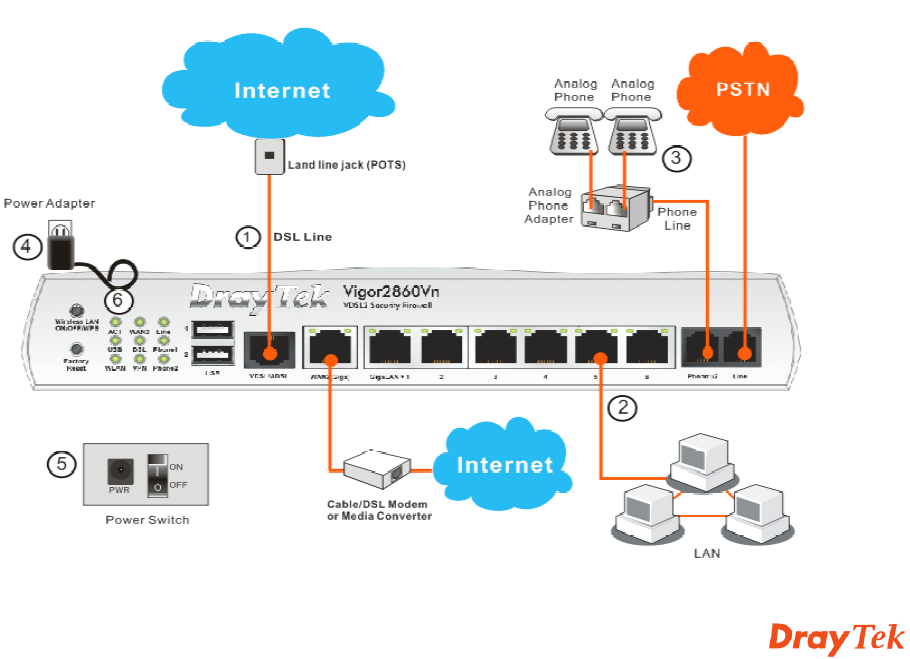

correctly. (Take Vigor2860Vn as an example)
  Use one end of the DSL line cable to VDSL/ADSL port on the router to
the land line jack on the wall.
  Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports
of the router and the other end of the cable (RJ-45) into the Ethernet port on
your computer.
  Connect the telephone set with phone lines (for using VoIP function).
For the model without phone ports, skip this step.
 Connect one end of the power adapter to the router’s power port on the
rear panel, and the other side into a wall outlet.
 Power on the device by pressing down the power switch on the rear
panel.
The system starts to initiate. After completing the system test, the ACT
LED will light up and start blinking.
Vigor2860 Series Quick Start Guide
33
Possible connection for Vigor2862Vn-plus can be seen from the following
illustration.
Possible connection for Vigor2863Vn-plus can be seen from the following
illustration.
Vigor2860 Series Quick Start Guide
34

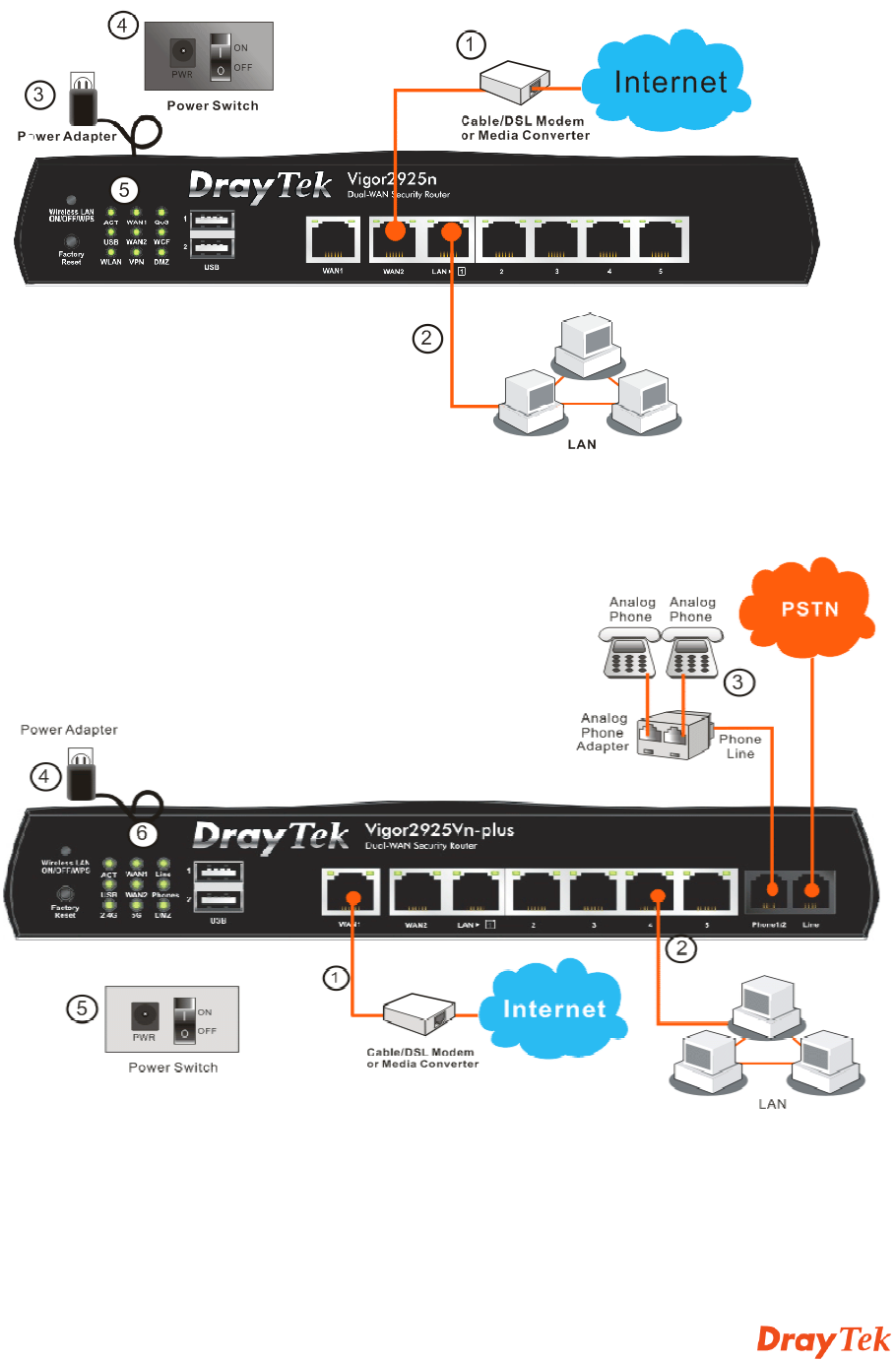

Possible connection for Vigor2925n can be seen from the following illustration.
Possible connection for Vigor2925Vn-plus can be seen from the following
illustration.
Vigor2860 Series Quick Start Guide
35

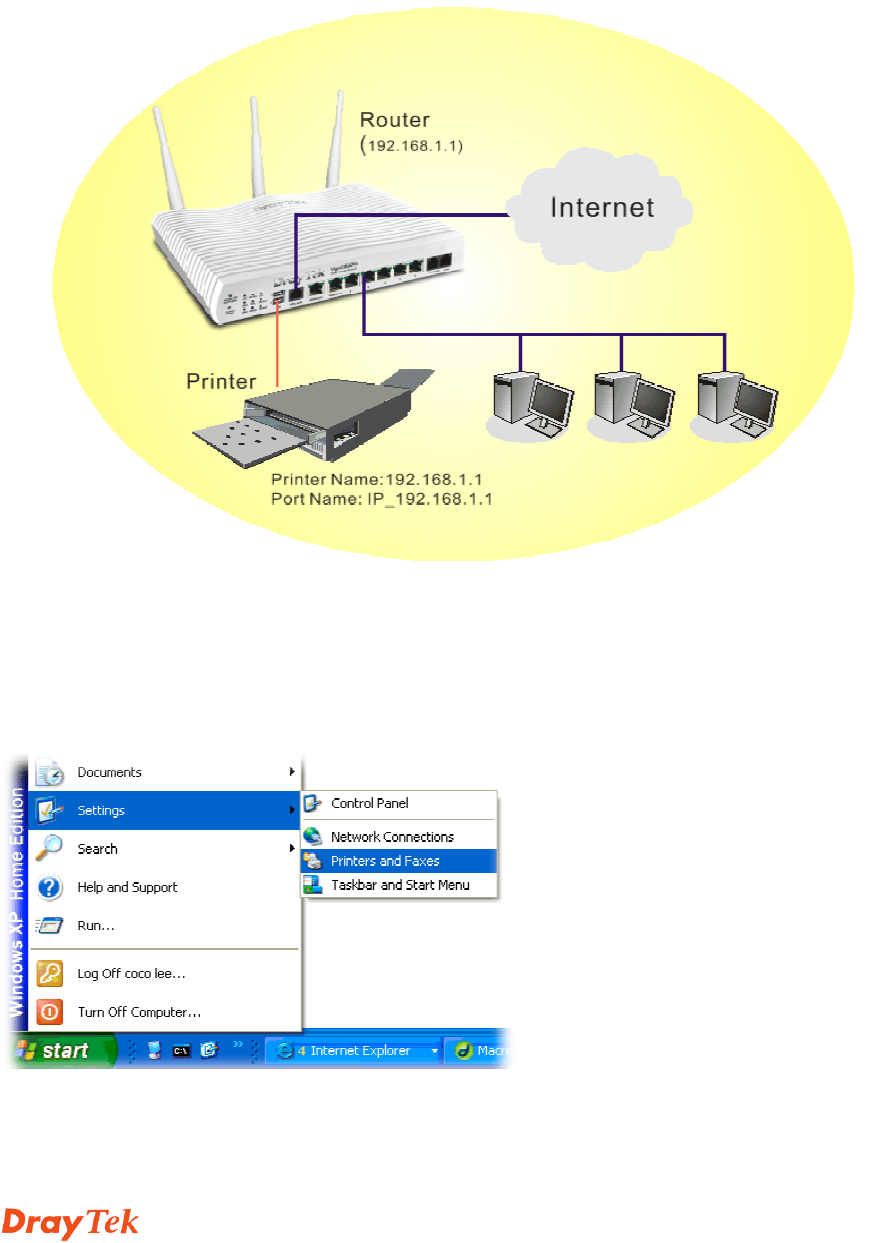

You can install a printer onto the router for sharing printing. All the PCs
connected this router can print documents via the router. The example provided
here is made based on Windows XP/2000. For Windows 98/SE/Vista, please
visit www.draytek.com.
Before using it, please follow the steps below to configure settings for connected
computers (or wireless clients).

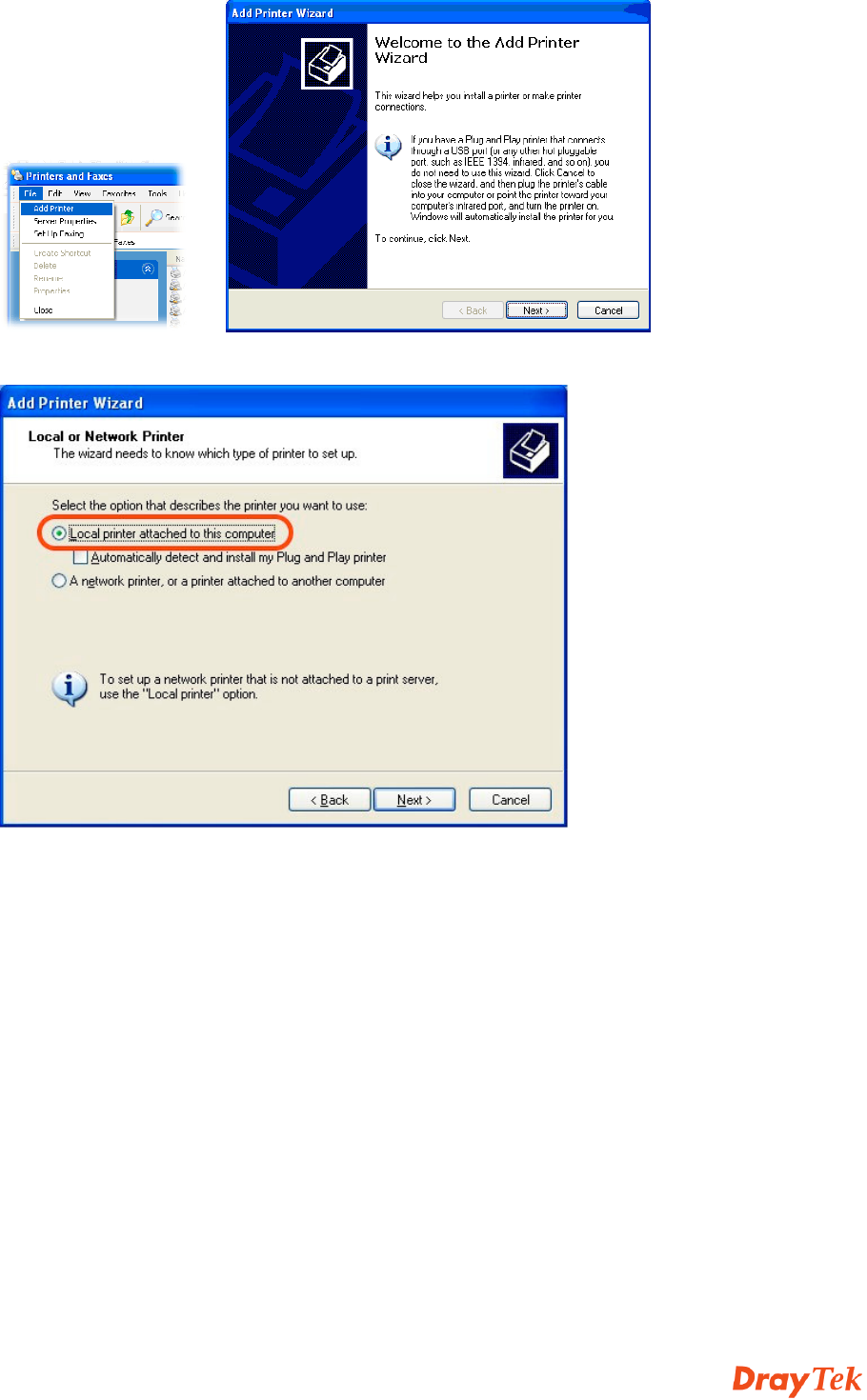

  Connect the printer with the router through USB port.
  Open Start->Settings-> Printers and Faxes.
  Open File->Add a New Computer. A welcome dialog will appear.
Please click Next.
Vigor2860 Series Quick Start Guide
36

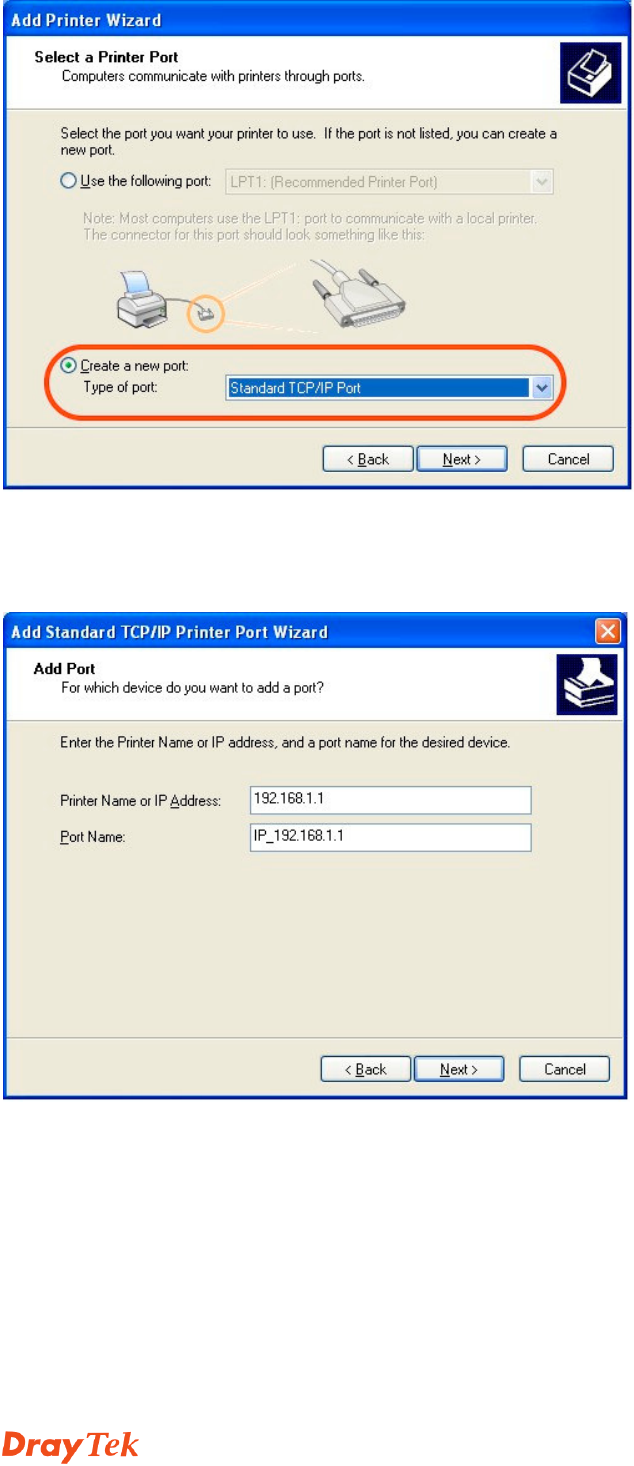

 Click Local printer attached to this computer and click Next.
 In this dialog, choose Create a new port Type of port and use the drop
down list to select Standard TCP/IP Port. Click Next.
Vigor2860 Series Quick Start Guide
37

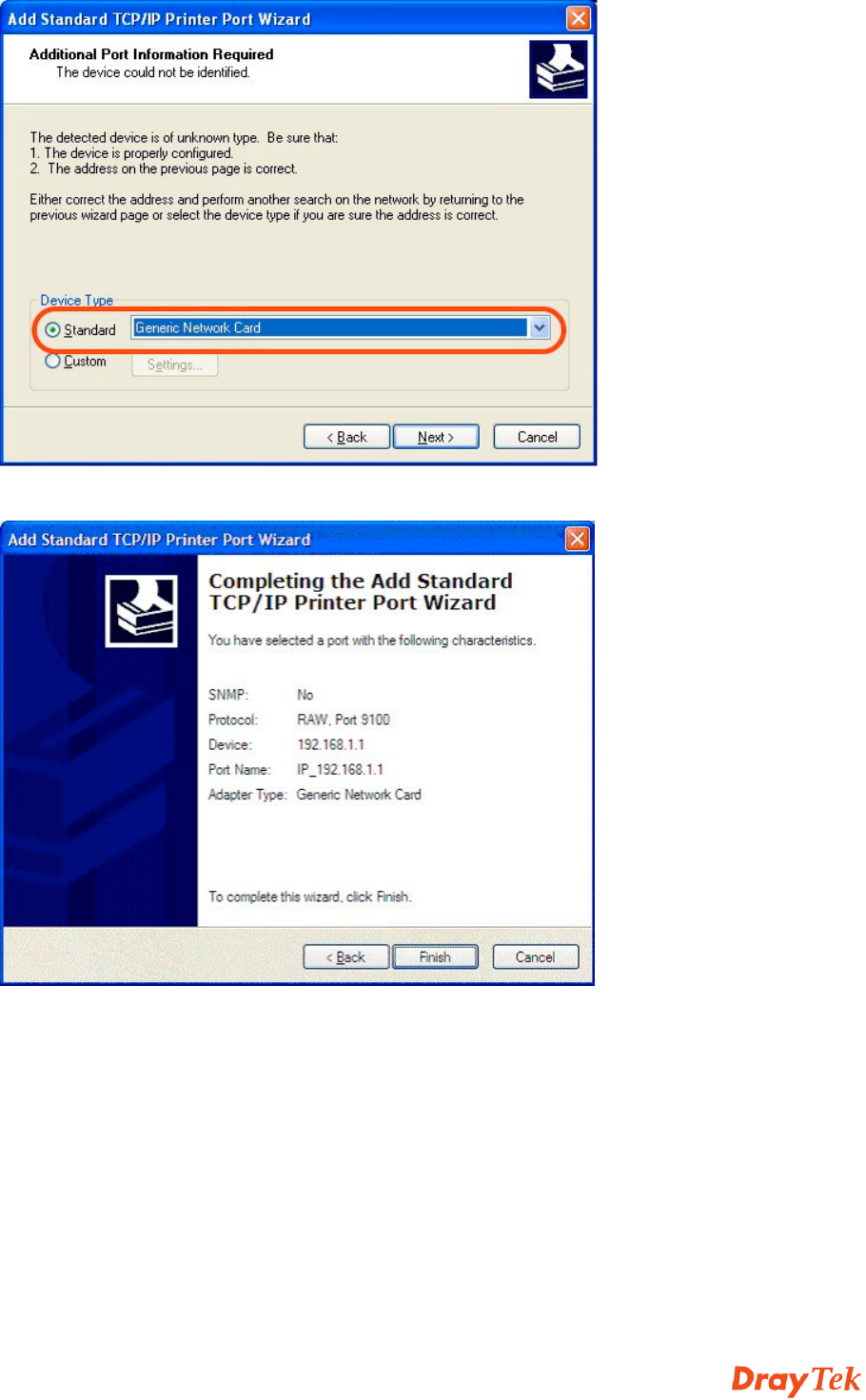

In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field
of Printer Name or IP Address and type IP_192.168.1.1 as the port name.
Then, click Next.
  Click Standard and choose Generic Network Card.
Vigor2860 Series Quick Start Guide
38
  Then, in the following dialog, click Finish.
  Now, your system will ask you to choose right name of the printer that
you installed onto the router. Such step can make correct driver loaded onto your
PC. When you finish the selection, click Next.
Vigor2860 Series Quick Start Guide
39

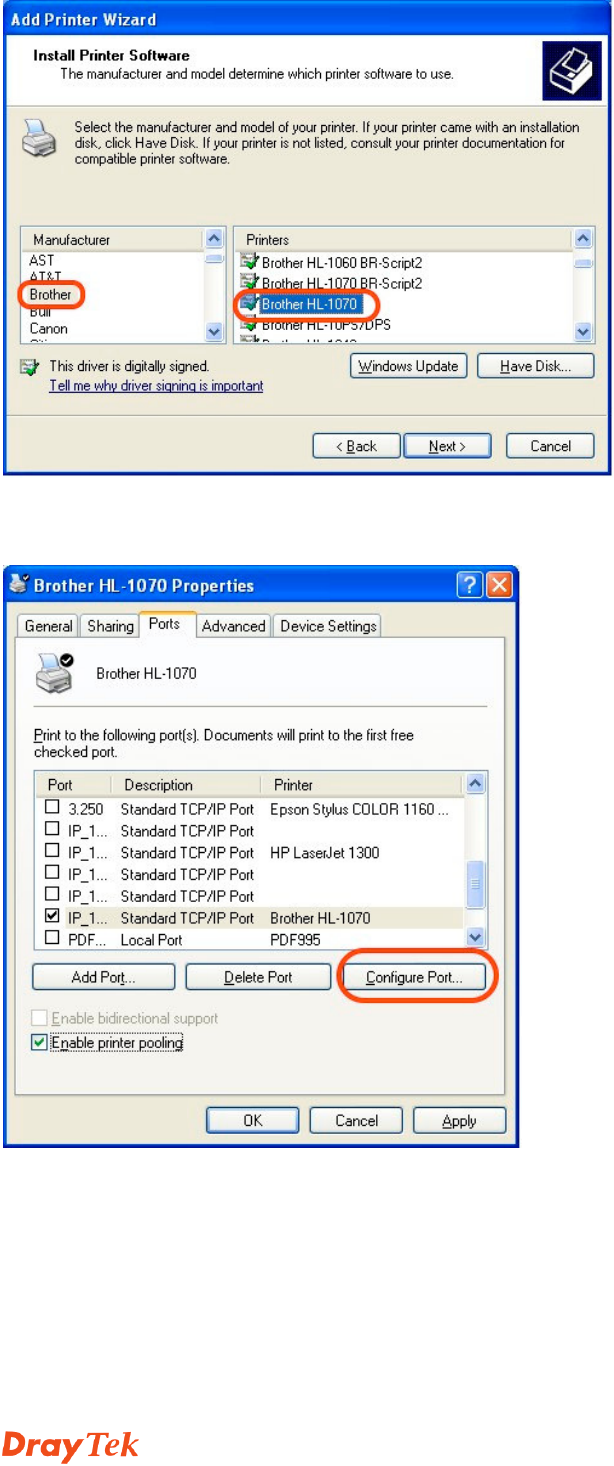

  For the final stage, you need to go back to Control Panel->
Printers and edit the property of the new printer you have added.

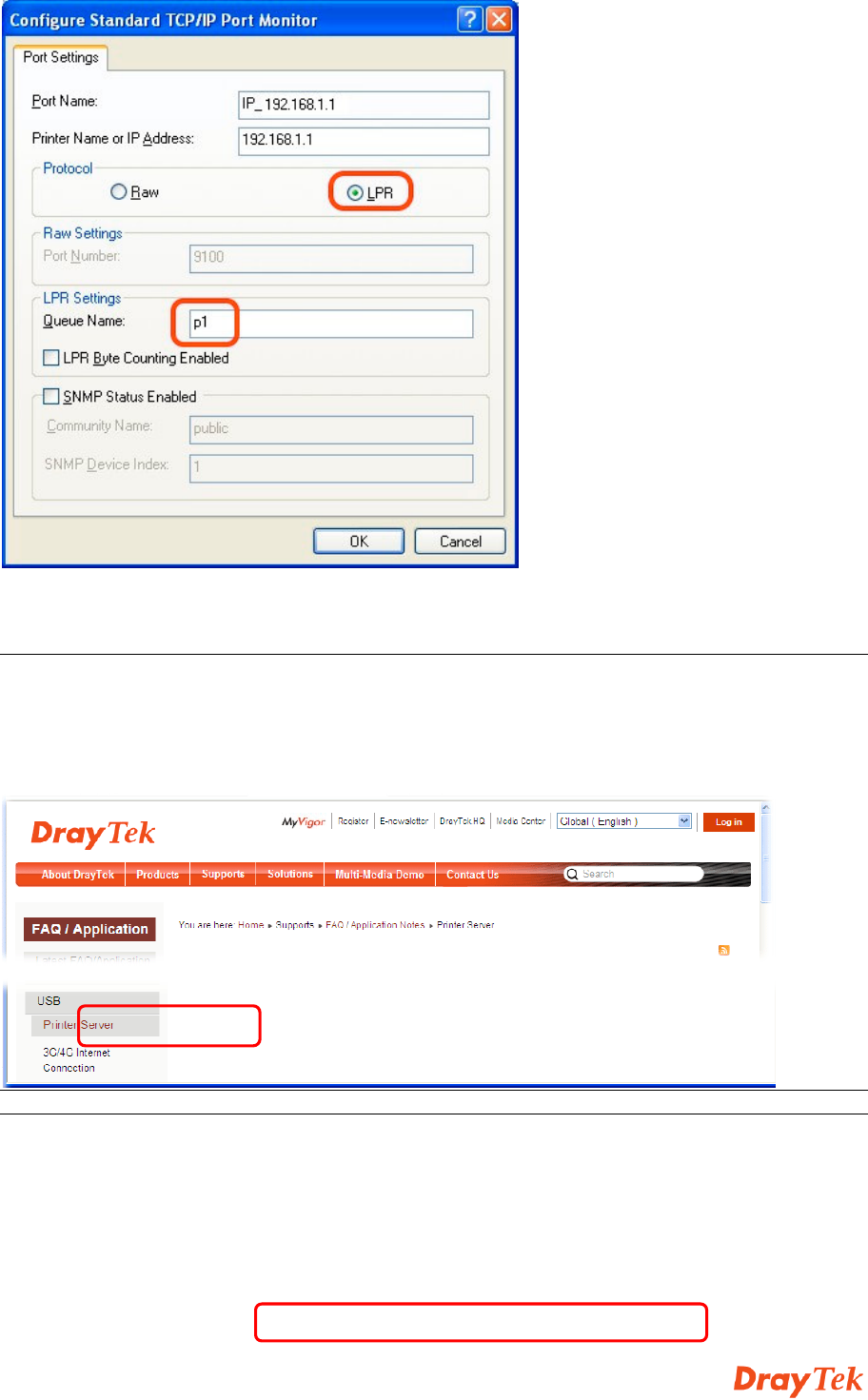

 Select "LPR" on Protocol, type p1 (number 1) as Queue Name.
Then click OK. Next please refer to the red rectangle for choosing the correct
protocol and LPR name.
Vigor2860 Series Quick Start Guide
40
The printer can be used for printing now. Most of the printers with different
manufacturers are compatible with vigor router.
Note 1: Some printers with the fax/scanning or other additional functions are not
supported. If you do not know whether your printer is supported or not, please
visit www.draytek.com to find out the printer list. Open Support >FAQ; find
out the link of Printer Server and click it.

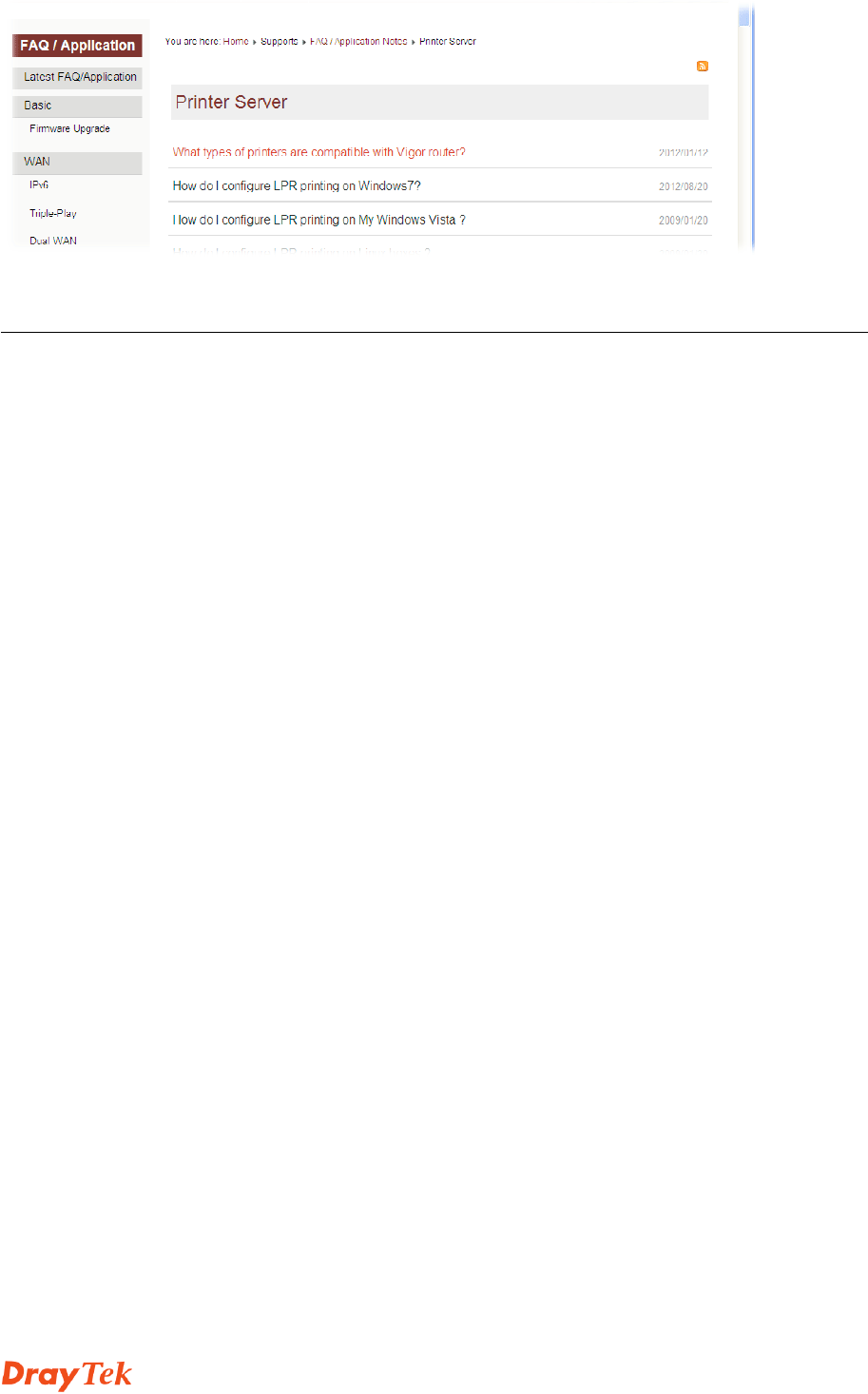

Then, click the What types of printers are compatible with Vigor router?
link.
Vigor2860 Series Quick Start Guide
41
Note 2: Vigor router supports printing request from computers via LAN ports
but not WAN port.
Vigor2860 Series Quick Start Guide
42
This page is left blank.
Vigor2860 Series Quick Start Guide
43

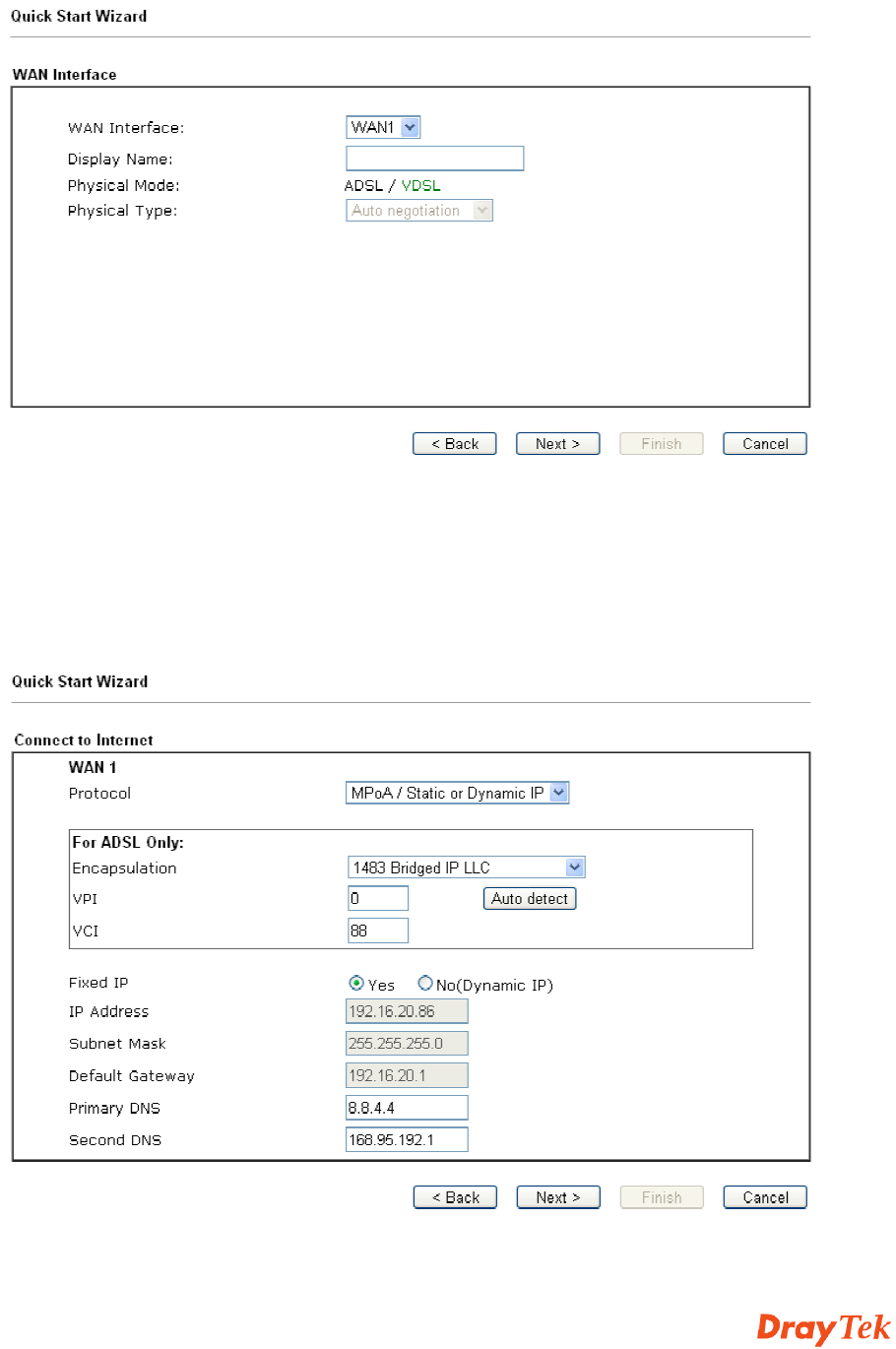

To access Internet, please finish basic configuration after completing the
hardware installation.
!
!
1. Make sure your PC connects to the router correctly.
2.

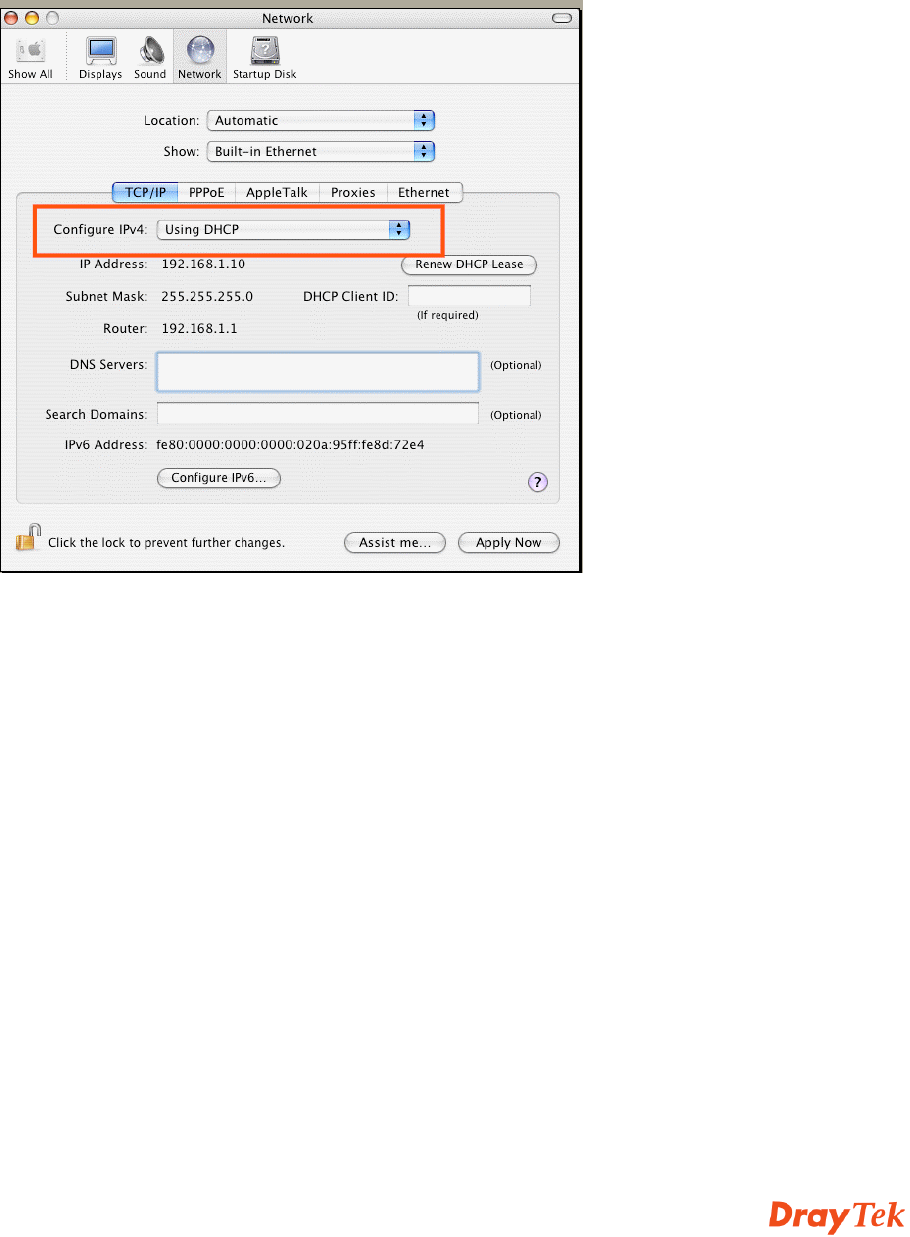

Notice: You may either simply set up your computer to get IP
dynamically from the router or set up the IP address of the
computer to be the same subnet as the default IP address of
Vigor router 192.168.1.1. For the detailed information, please
refer to the later section - Trouble Shooting of the guide.
3. Open a web browser on your PC and type http://192.168.1.1. The
following window will be open to ask for username and password. Please type
“admin/admin” on Username/Password and click Login.
Notice: If you fail to access to the web configuration, please go to
“Trouble Shooting” for detecting and solving your problem.
4. Now, the Main Screen will pop up.

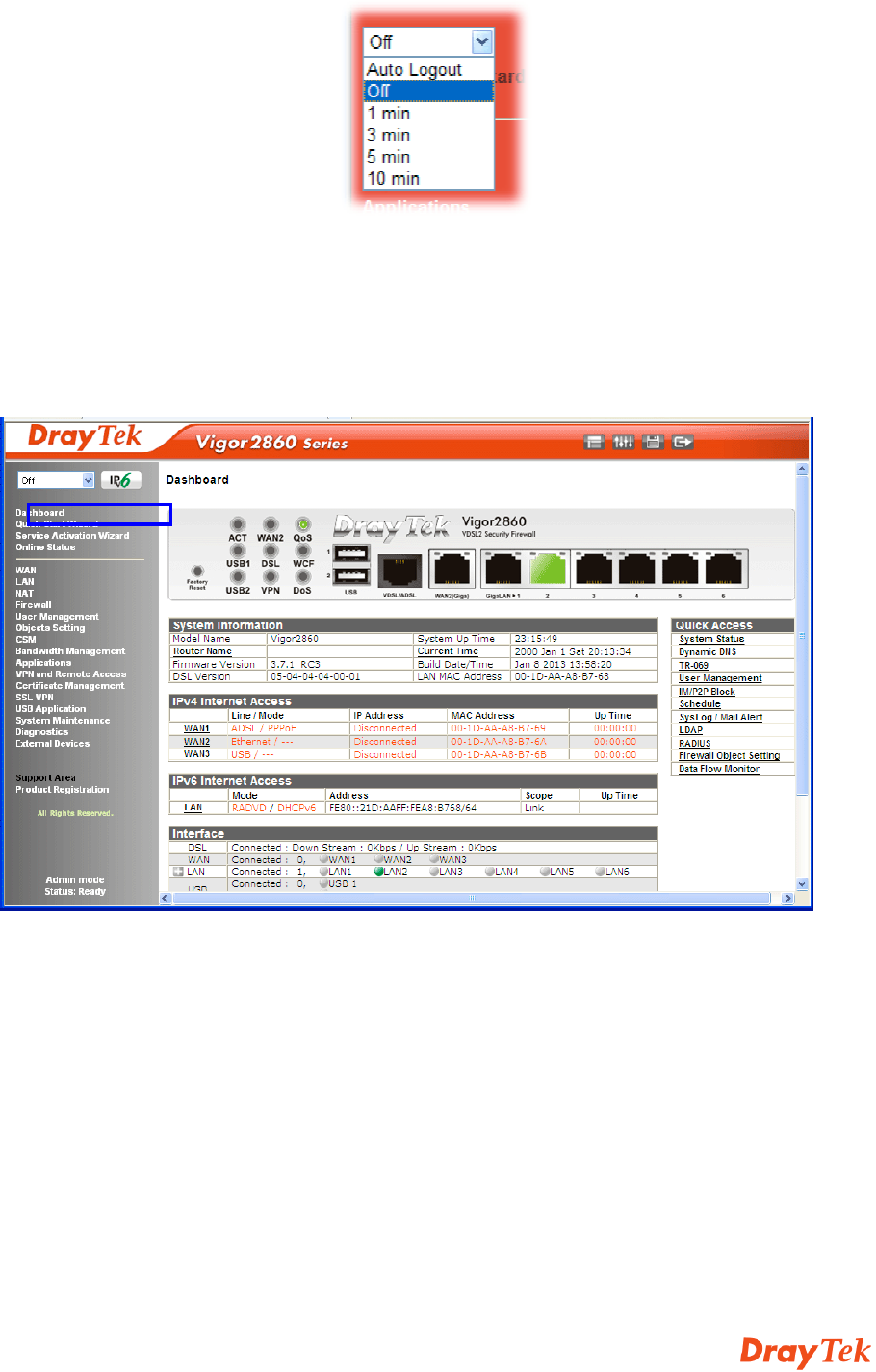

5. The web page can be logged out according to the chosen condition. The
default setting is Auto Logout, which means the web configuration system will
logout after five minutes without any operation. Change the setting for your
Vigor2860 Series Quick Start Guide
44
necessity.
"
"
#
#
$
$
%
%
&
&
The Quick Start Wizard is designed for you to easily set up your router for
Internet access. You can directly access the Quick Start Wizard via Web User
Interface.
The home page will change slightly in accordance with the router model you
have.
Vigor2860 Series Quick Start Guide
45
If your router can be under an environment with high speed NAT, the
configuration provide here can help you to deploy and use the router quickly.

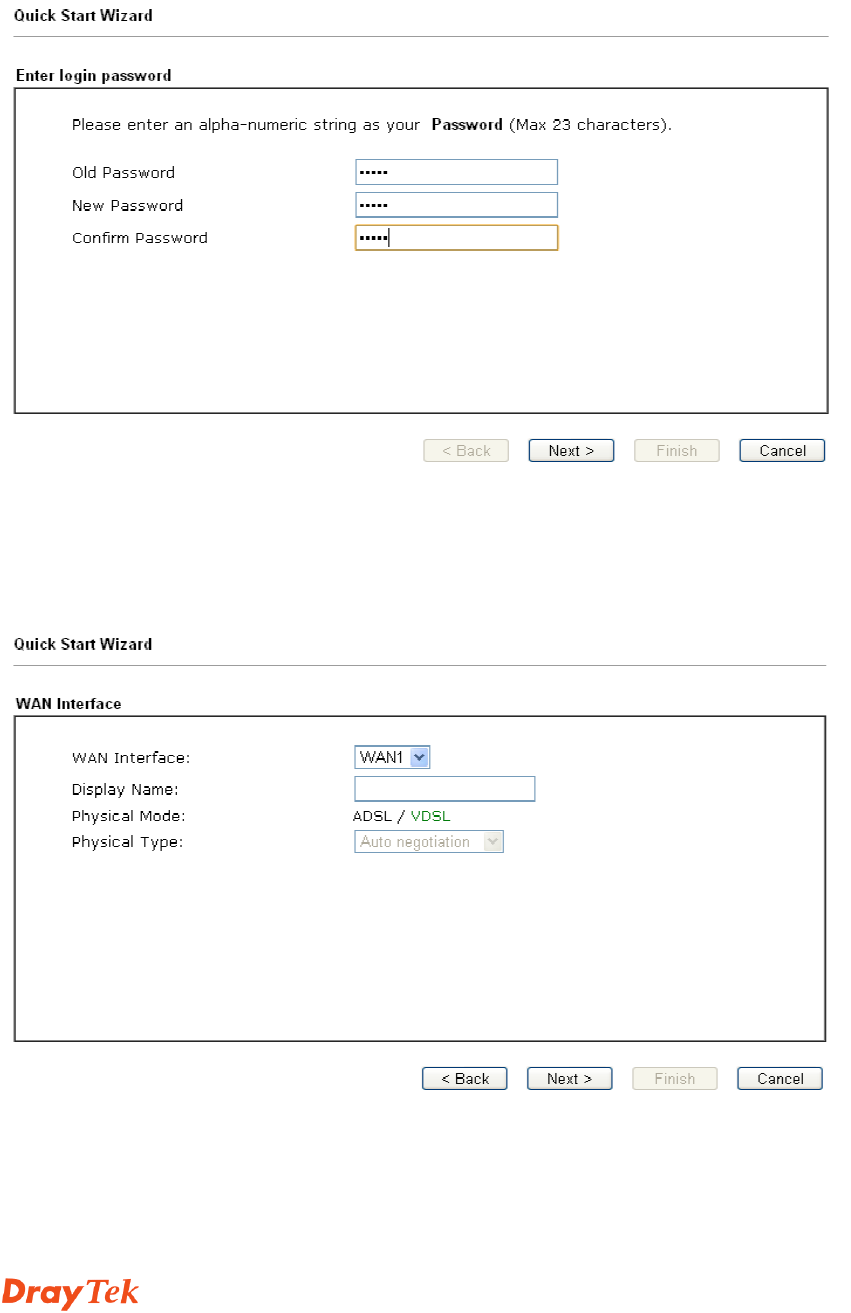

The first screen of Quick Start Wizard is entering login password. After typing
the password, please click Next.
On the next page as shown below, please select the WAN interface that you use.
If DSL interface is used, please choose WAN1; if Ethernet interface is used,
please choose WAN2; if 3G USB modem is used, please choose WAN3. Then
click Next for next step.
WAN1, WAN2 and WAN3 will bring up different configuration page. Refer to
the following for detailed information.
Vigor2860 Series Quick Start Guide
46
3
3.
.2
2.
.1
1
F
Fo
or
r
W
WA
AN
N1
1
(
(A
AD
DS
SL
L/
/V
VD
DS
SL
L)
)
WAN1 is specified for ADSL or VDSL connection.
Click Next to go to the following page. You have to select the appropriate
Internet access type according to the information from your ISP. For example,
you should select PPPoE mode if the ISP provides you PPPoE interface. In
addition, the field of For ADSL Only will be available only when ADSL is
detected. Then click Next for next step.
Vigor2860 Series Quick Start Guide
47
P
PP
PP
Po
oE
E/
/P
PP
PP
Po
oA
A
1. Choose WAN1 as WAN Interface and click the Next button; you will
get the following page.

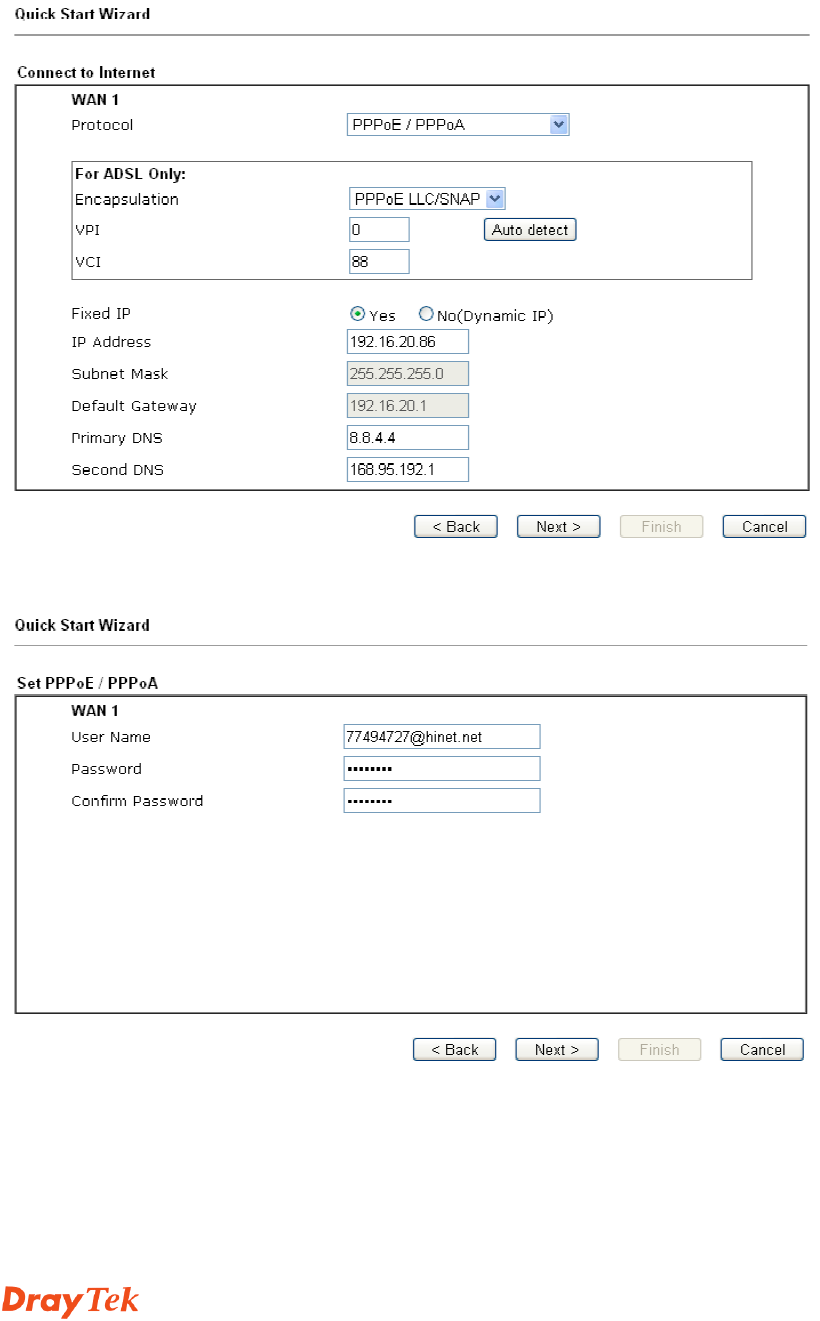

2. After finished the above settings, simply click Next.
Vigor2860 Series Quick Start Guide
48
3. Please manually enter the Username/Password provided by your ISP.
Then click Next for viewing summary of such connection.
4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
5
5.
.
Now, you can enjoy surfing on the Internet.
M
MP
Po
oA
A
/
/
S
St
ta
at
ti
ic
c
o
or
r
D
Dy
yn
na
am
mi
ic
c
I
IP
P

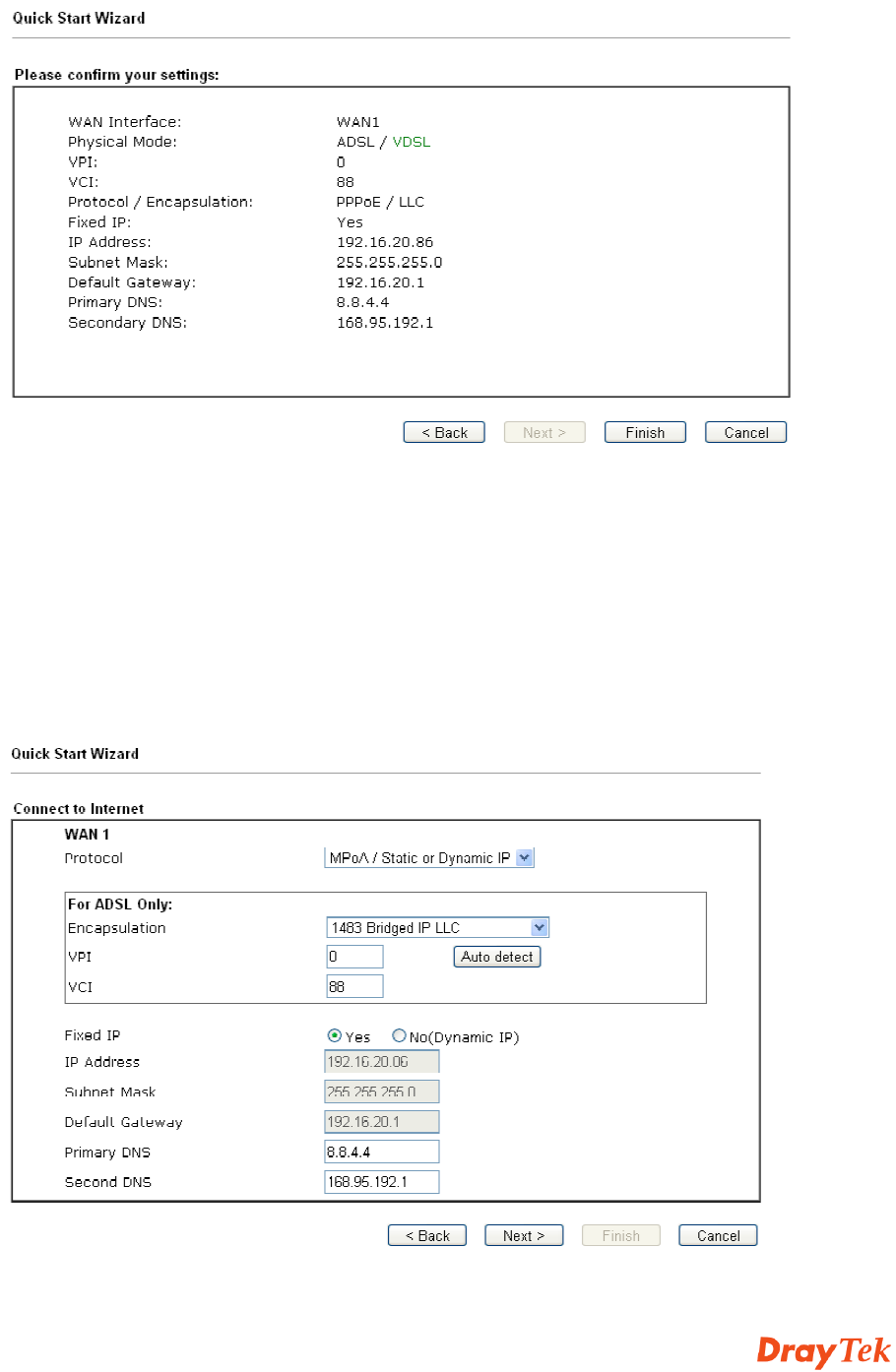

1. Choose WAN1 as WAN Interface and click the Next button; you will
get the following page.
Vigor2860 Series Quick Start Guide
49
2. Please type in the IP address/mask/gateway information originally
provided by your ISP. Then click Next for viewing summary of such
connection.

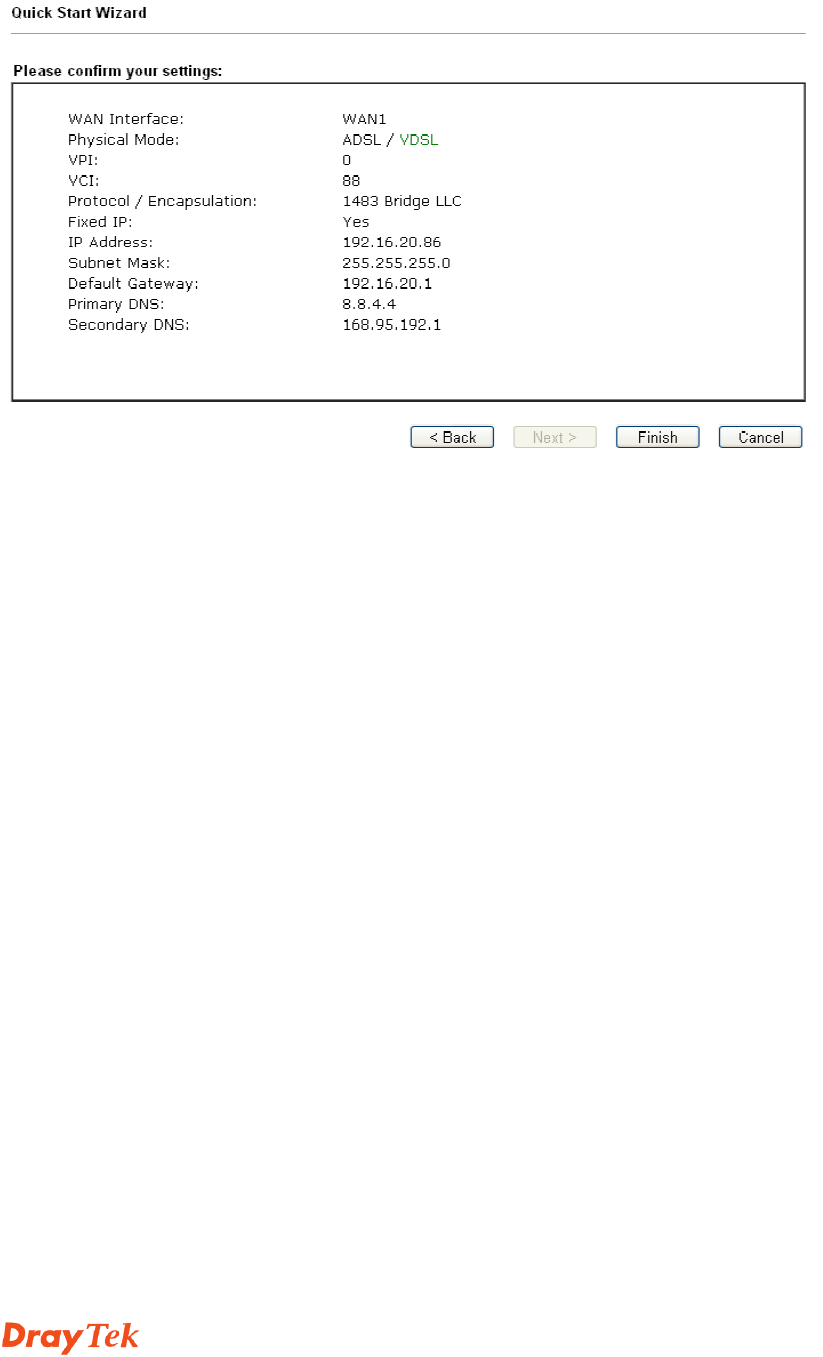

3. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
4. Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
50
3
3.
.2
2.
.2
2
F
Fo
or
r
W
WA
AN
N2
2
(
(E
Et
th
he
er
rn
ne
et
t)
)

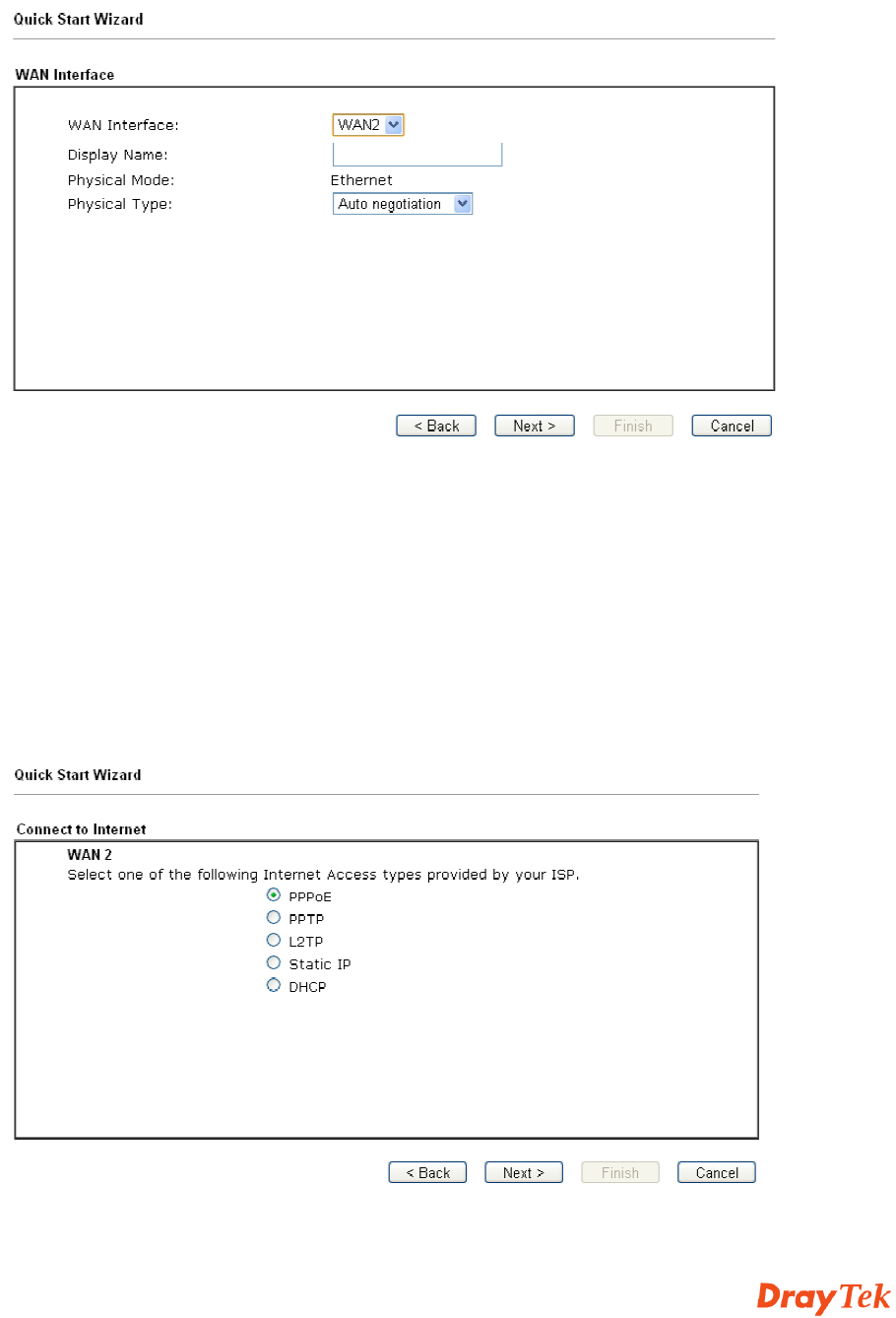

WAN2 is dedicated to physical mode in Ethernet. If you choose WAN2, please
specify physical type. Then, click Next.
On the next page as shown below, please select the appropriate Internet access
type according to the information from your ISP. For example, you should select
PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next
step.
P
PP
PP
Po
oE
E
  Choose WAN2 as the WAN Interface and click the Next button. The
following page will be open for you to specify Internet Access Type.
Vigor2860 Series Quick Start Guide
51
  Click PPPoE as the Internet Access Type. Then click Next to continue.

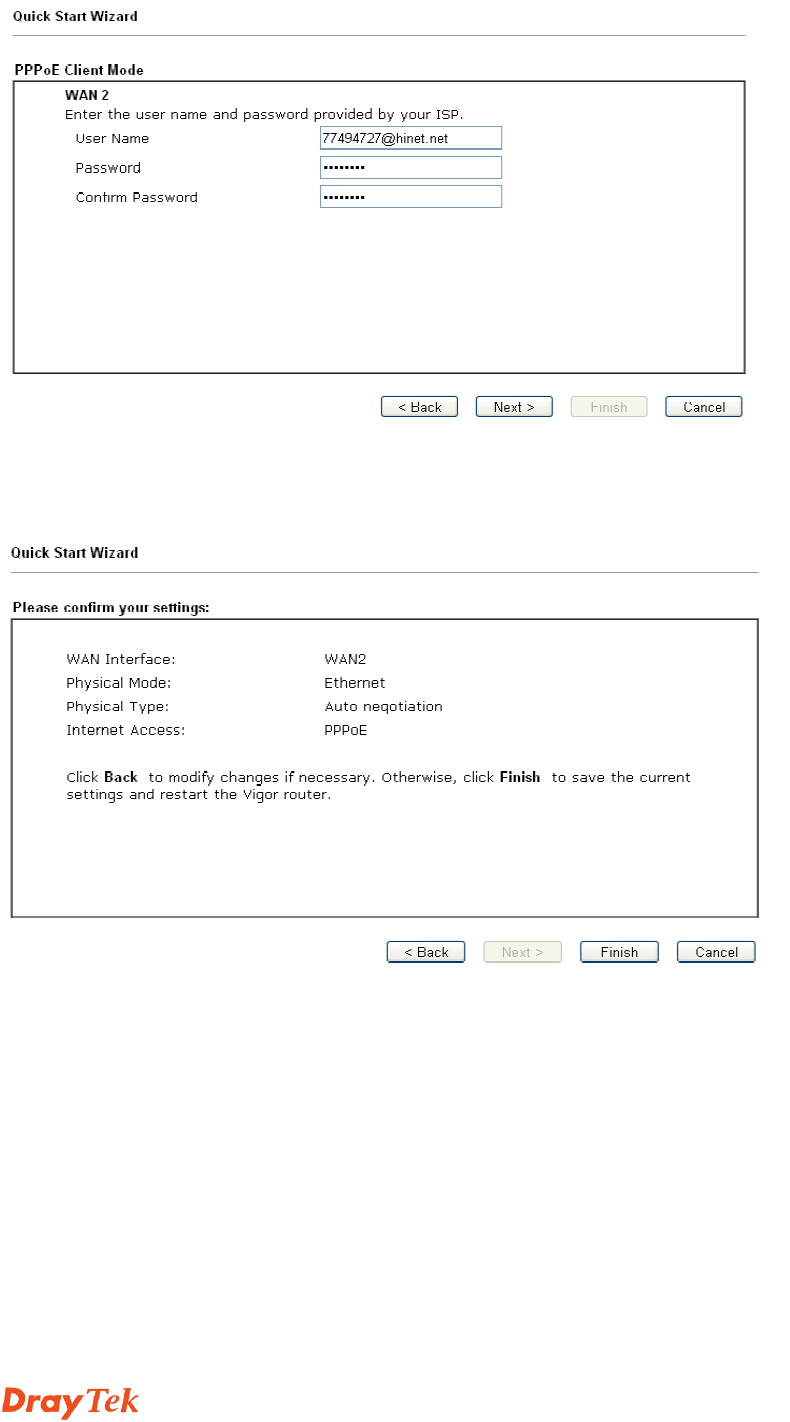

  Please manually enter the Username/Password provided by your ISP.
Click Next for viewing summary of such connection.
 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
52
P
PP
PT
TP
P/
/L
L2
2T
TP
P
  Choose WAN2 as the WAN Interface and click the Next button. The
following page will be open for you to specify Internet Access Type.

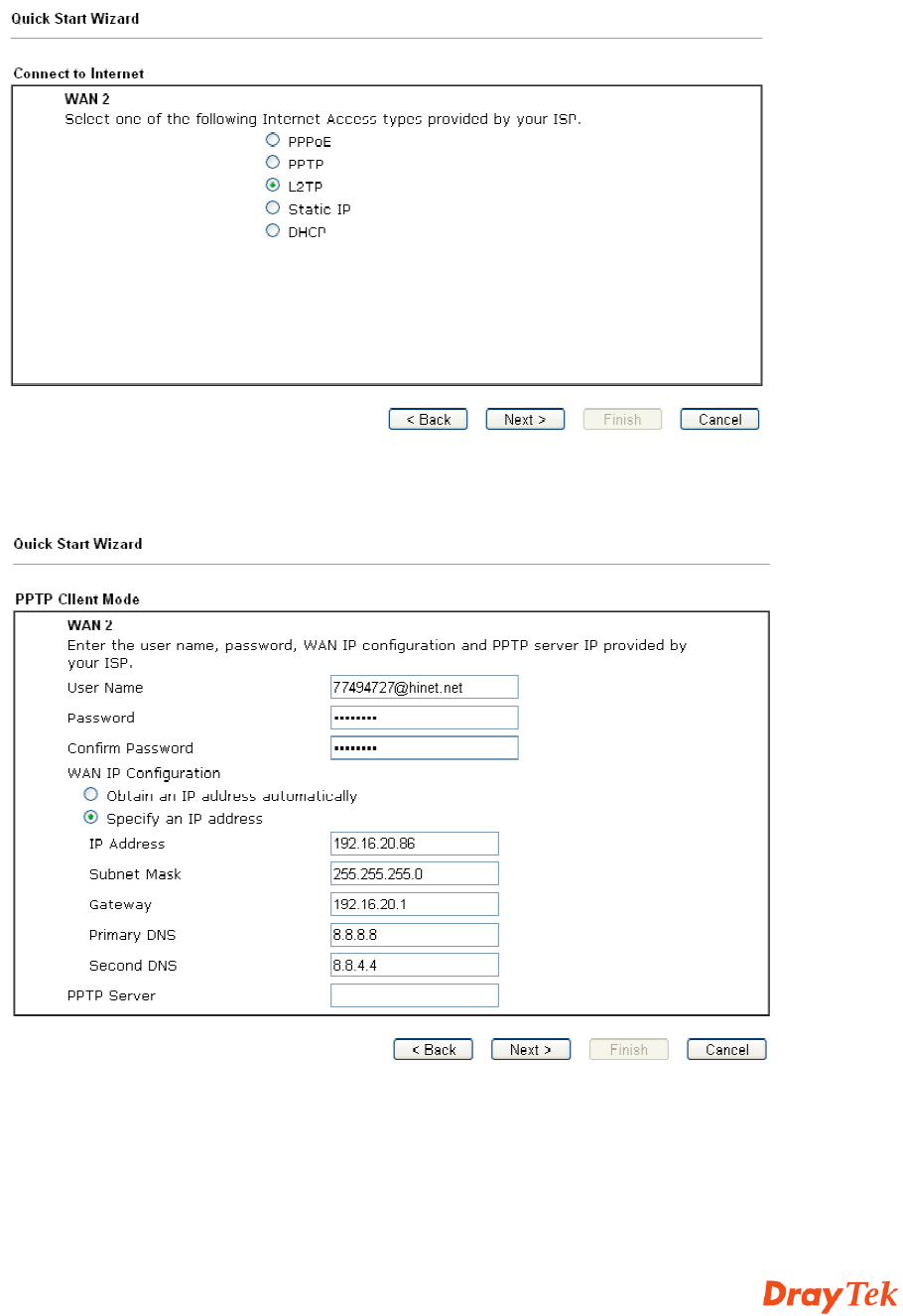

  Click PPTP/L2TP as the Internet Access Type. Then click Next to
continue.
Vigor2860 Series Quick Start Guide
53
  Please type in the IP address/mask/gateway information originally
provided by your ISP. Then click Next for viewing summary of such
connection.

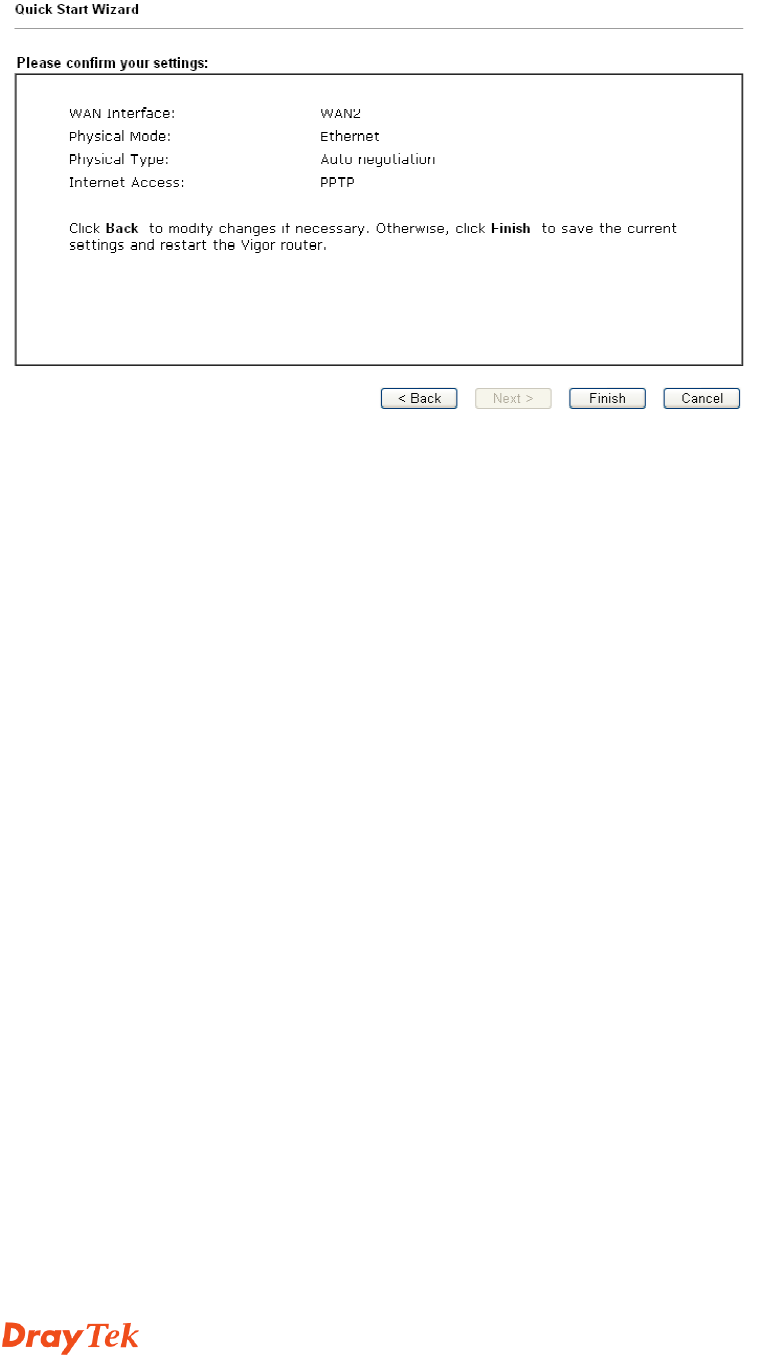

 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
54
S
St
ta
at
ti
ic
c
I
IP
P
  Choose WAN2 as the WAN Interface and click the Next button. The
following page will be open for you to specify Internet Access Type.
  Click Static IP as the Internet Access type. Simply click Next to
continue.
Vigor2860 Series Quick Start Guide
55
  Please type in the IP address information originally provided by your
ISP. Then click Next for next step.

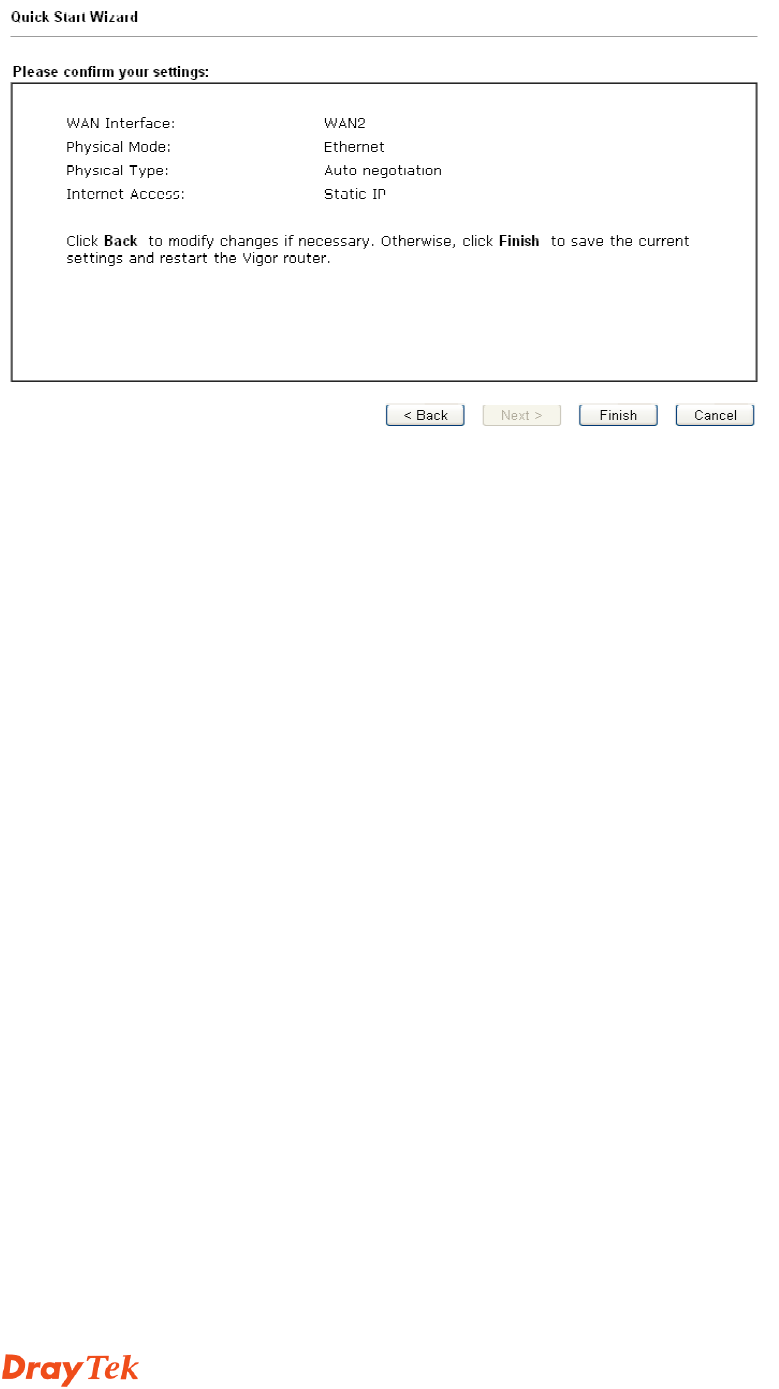

 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
56
D
DH
HC
CP
P
 
Choose WAN2 as WAN Interface and click the Next button. The
following page will be open for you to specify Internet Access Type.
 
Click DHCP as the Internet Access type. Simply click Next to continue.
Vigor2860 Series Quick Start Guide
57
 

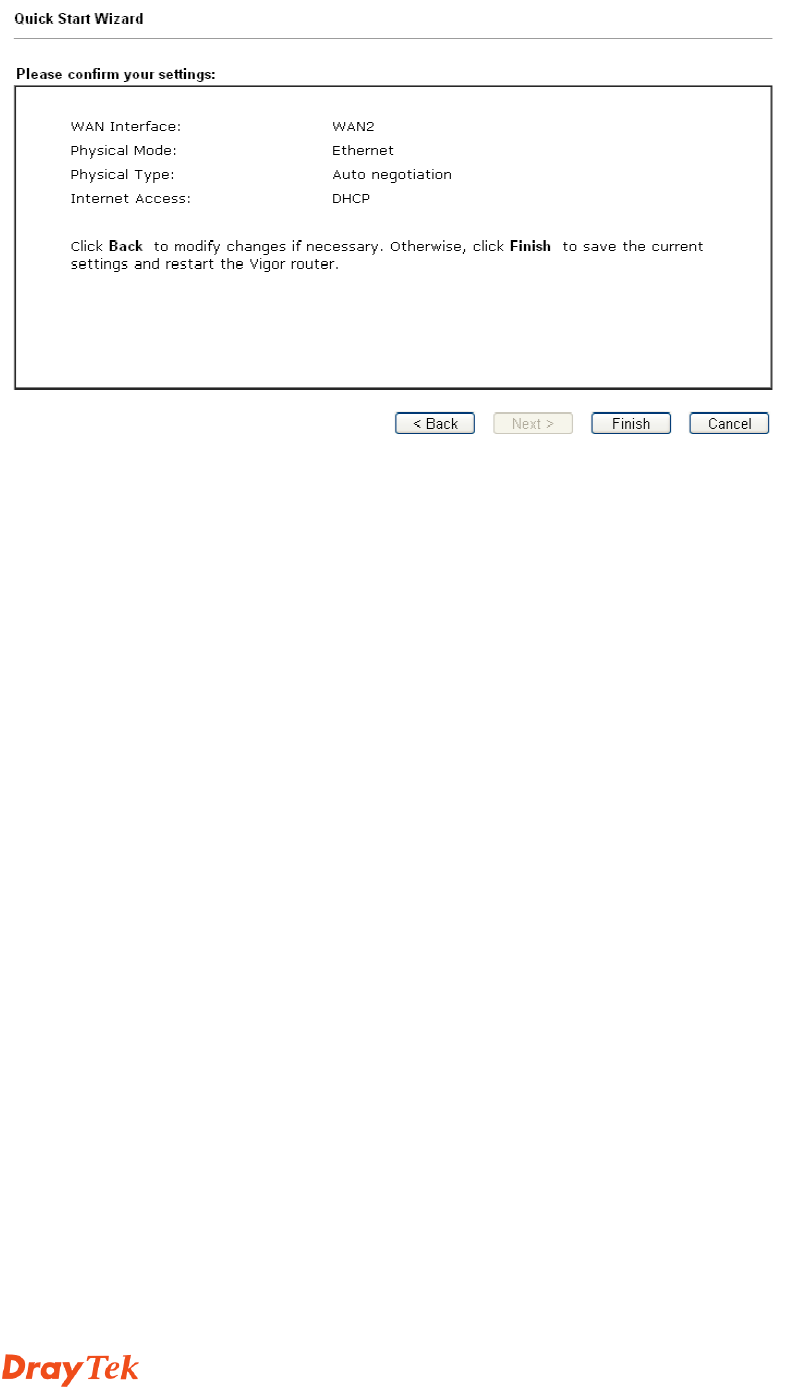

After finished the settings above, click Next for viewing summary of
such connection.

Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
58
3
3.
.2
2.
.3
3
F
Fo
or
r
W
WA
AN
N3
3
(
(U
US
SB
B)
)
1. Choose WAN3 as WAN Interface.
2. Then, click Next for viewing summary of such connection.
3. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear.
Then, the system status of this protocol will be shown.
4
4.
.
Now, you can enjoy surfing on the Internet.
Vigor2860 Series Quick Start Guide
59
#
#
For the user of Vigor2860, please skip this section.
For operating Vigor2860n/Vigor2860Vn well, it is necessary for you to set the
wireless LAN settings for using wireless function. Please read the following
section carefully for configuring the settings for this router.
(The default value of Frequency Domain was set by factory depends on the
reselling region.)
3
3.
.3
3.
.1
1
B
Ba
as
si
ic
c
W
Wi
ir
re
el
le
es
ss
s
L
LA
AN
N
C
Co
on
nc
ce
ep
pt
t

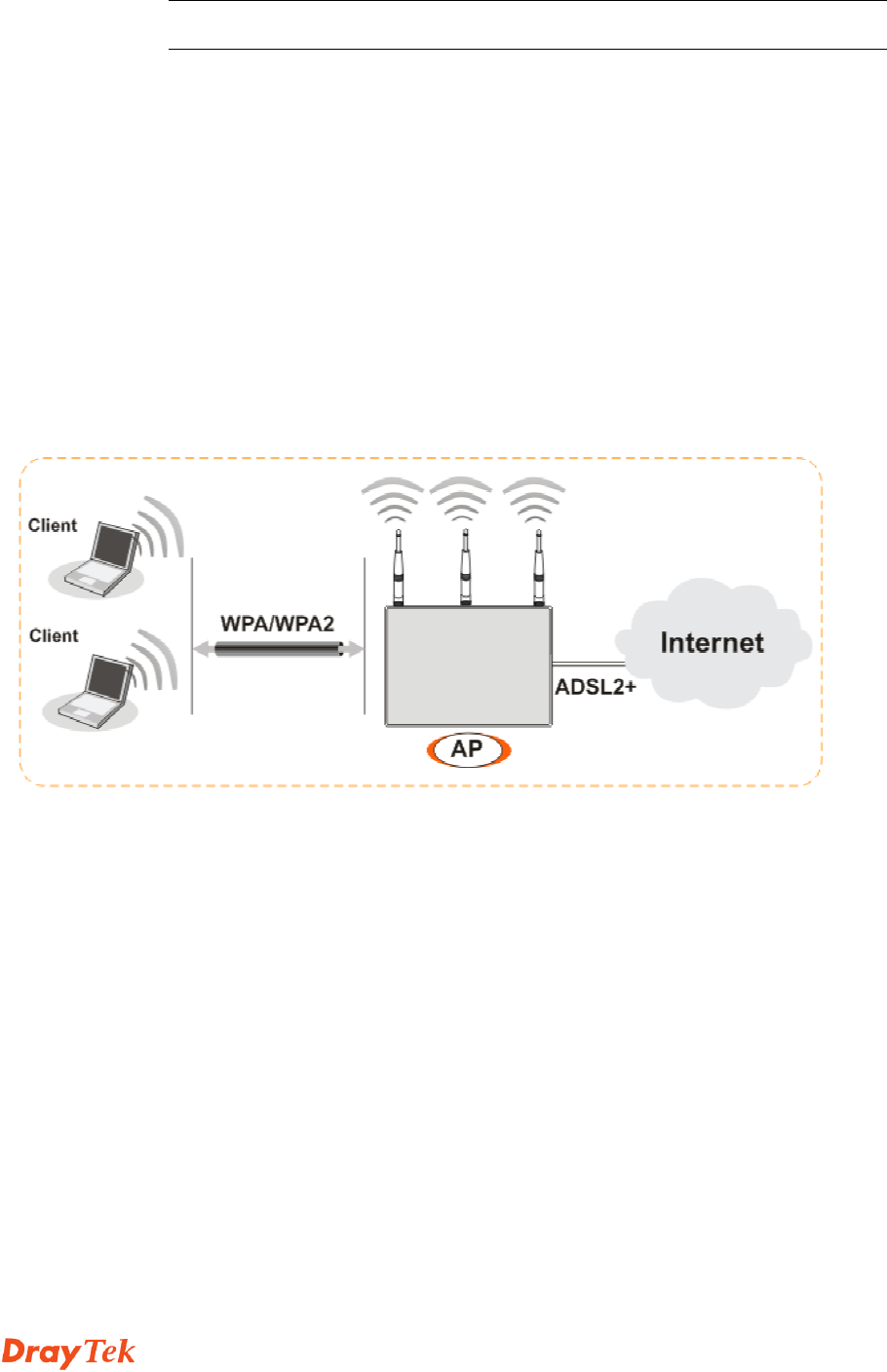

In an Infrastructure Mode of wireless network, Vigor wireless router plays a role
as an Access Point (AP) connecting to lots of wireless clients or Stations (STA).
All the STAs (clients) will share the same Internet connection with other wired
hosts via Vigor wireless router.
Vigor2860 Series Quick Start Guide
60
3
3.
.3
3.
.2
2
G
Ge
en
ne
er
ra
al
l
S
Se
et
tu
up
p

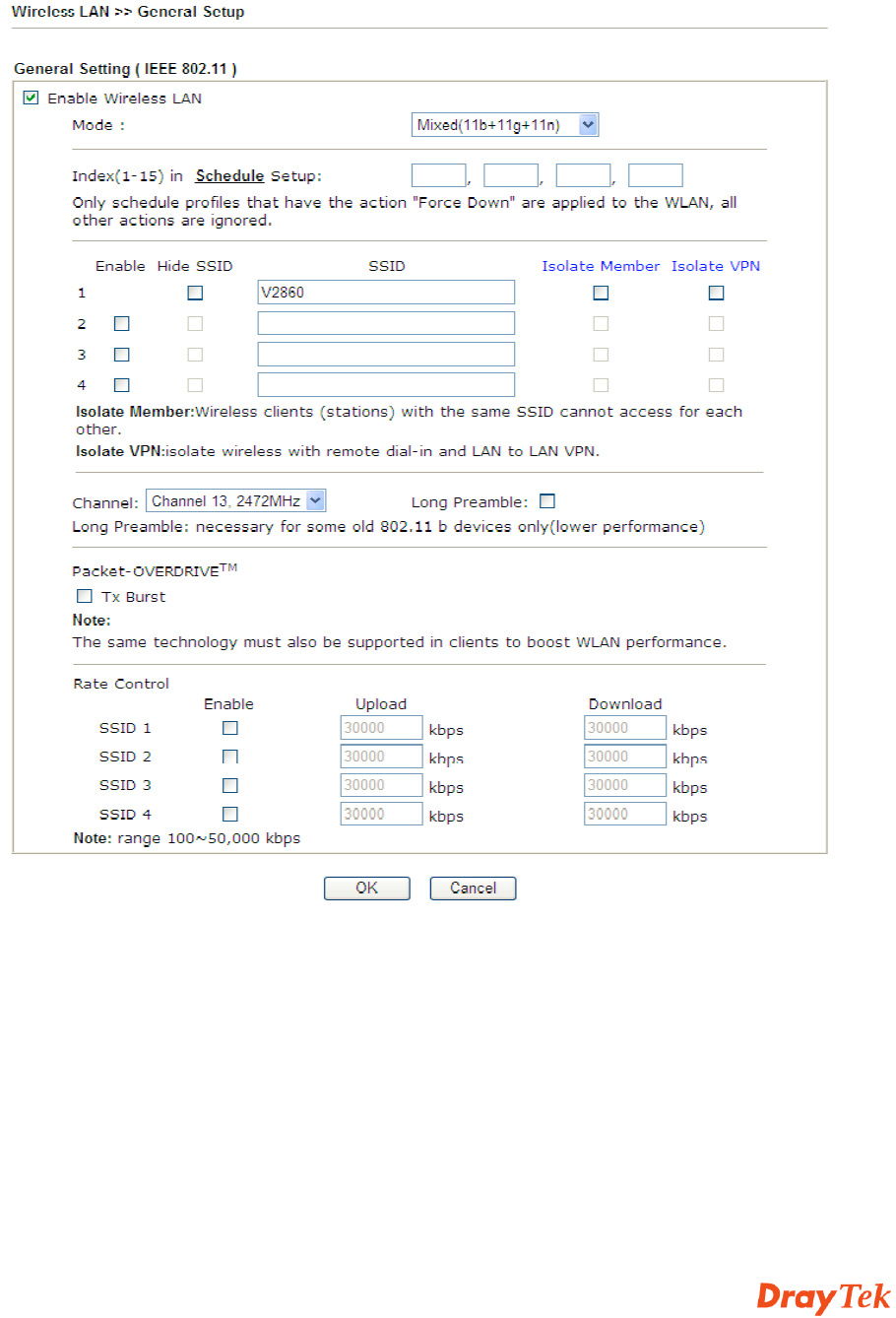

  On the Wireless LAN group, select General Setup. The following page
will be shown.
  Check Enable Wireless LAN to enable the wireless function.
  At present, the router can connect to 11n Only, 11g Only, Mixed
(11b+11g), Mixed (11a+11n), Mixed (11g+11n), and Mixed (11b+11g+11n)
stations simultaneously. Simply choose Mixed (11b+11g+11n) mode.
 Type in the name of the SSID. The default name for SSID is DrayTek.
We suggest you to change it with a particular name.
Click OK to save the configuration.
Vigor2860 Series Quick Start Guide
61
3
3.
.3
3.
.3
3
S
Se
ec
cu
ur
ri
it
ty
y
S
Se
et
tt
ti
in
ng
gs
s

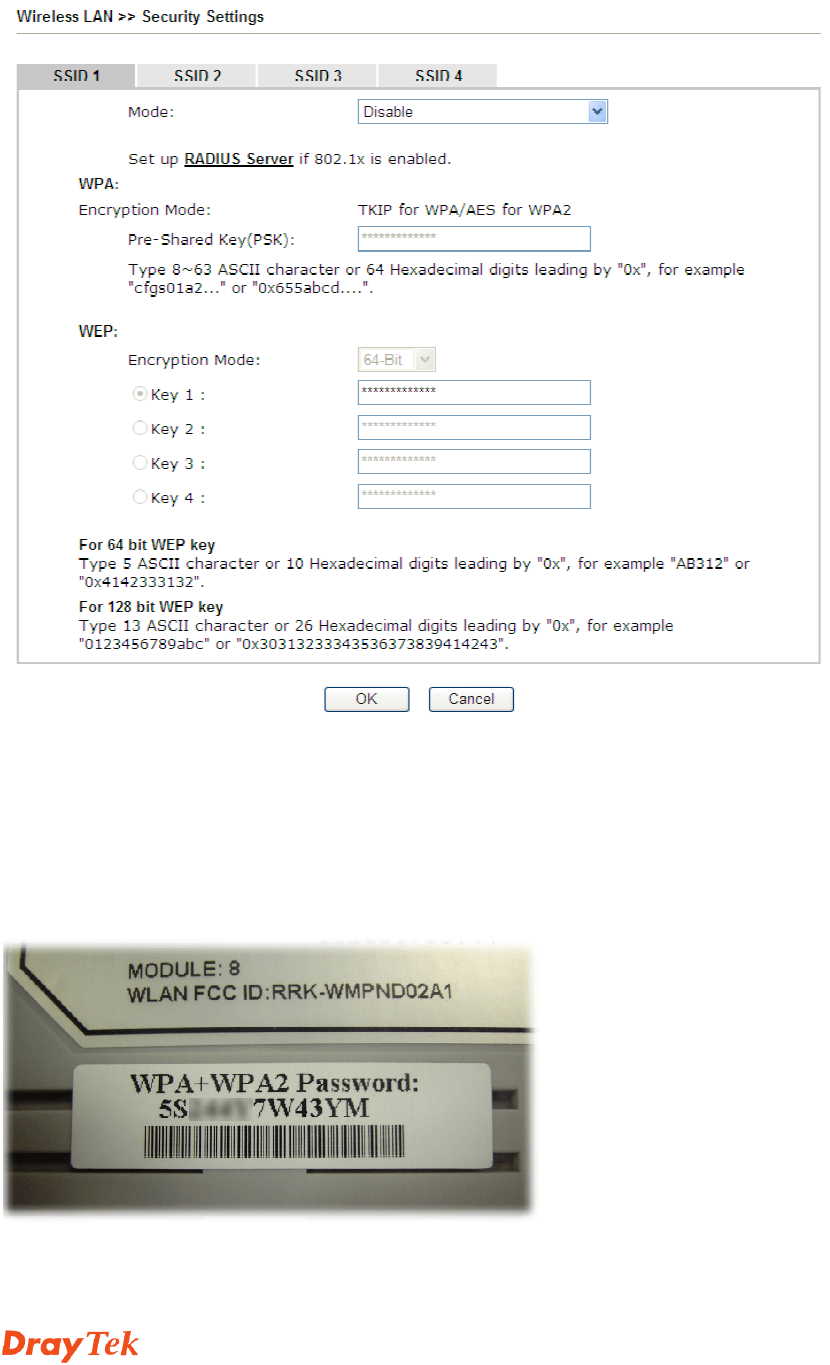

1. On the Wireless LAN group, select Security.
2. The default security mode is Mixed (WPA+WPA2)/PSK. For the
wireless client who wants to access into Internet through such router, please
input the default PSK value for connection.
Default Pre-Shared Key (PSK) with 13 ASCII characters is provided and
stated on the label pasted on the bottom of the router.
Vigor2860 Series Quick Start Guide
62
3. Click OK to save settings.
Be aware that for the communication, all wireless devices must support the same
encryption bit length and share the same key. If WEP mode is selected, only one
of four preset keys can be selected at one time.
Vigor2860 Series Quick Start Guide
63
'
'
(
(
!
!
)
)
This section will guide you to solve abnormal situations if you cannot access
into the Internet after installing the router and finishing the web configuration.
Please follow sections below to check your basic installation status stage by
stage.
Checking if the hardware status is OK or not.
Checking if the network connection settings on your computer are OK
or not.
Pinging the router from your computer.
Checking if the ISP settings are OK or not.
Backing to factory default setting if necessary.
If all above stages are done and the router still cannot run normally, it is the time
for you to contact your dealer for advanced help.
'
'
)
)
#
#
)
)
*
*+
+
,
,
Follow the steps below to verify the hardware status.
1. Check the power line and LAN cable connections. Refer to “2.1
Hardware Installation” for details.
2. Turn on the router. Make sure the ACT LED blink once per second and
the correspondent LAN LED is bright.
3
3.
.
If not, it means that there is something wrong with the hardware status.
Simply back to “2.1 Hardware Installation” to execute the hardware
installation again. And then, try again.
Vigor2860 Series Quick Start Guide
64
'
'
)
)
#
#
)
)
,
,
-
-
*
*+
+
,
,
Sometimes the link failure occurs due to the wrong network connection settings.
After trying the above section, if the link is stilled failed, please do the steps
listed below to make sure the network connection settings is OK.
F
Fo
or
r
W
Wi
in
nd
do
ow
ws
s
The example is based on Windows XP. As to the examples for other
operation systems, please refer to the similar steps or find support
notes in www.draytek.com.
Go to Control Panel and then double-click on Network Connections.

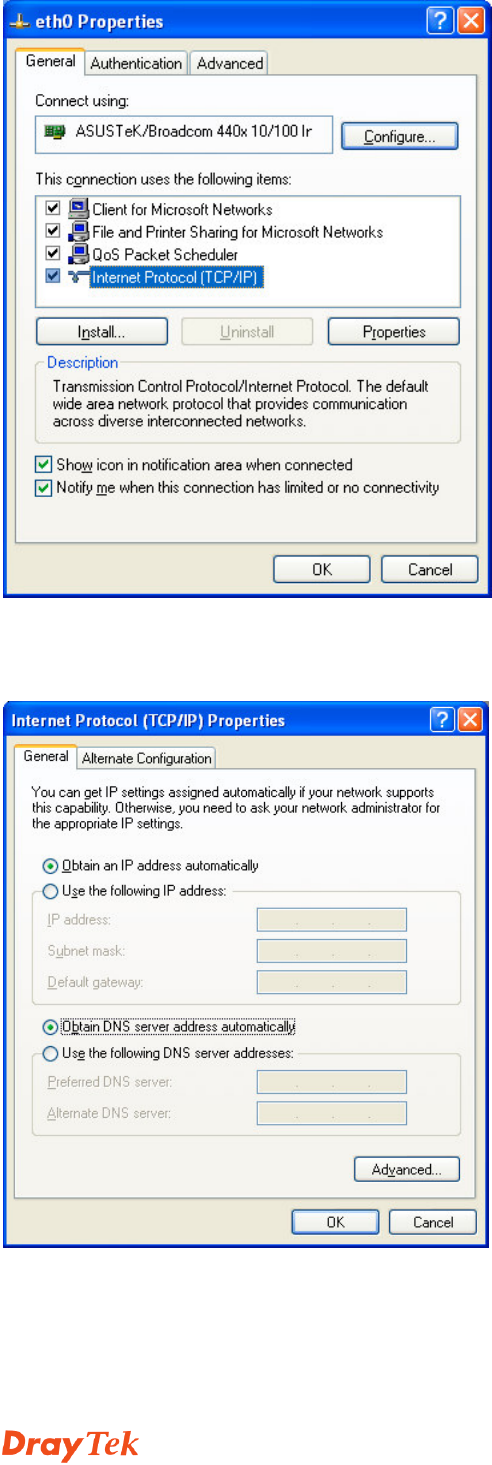

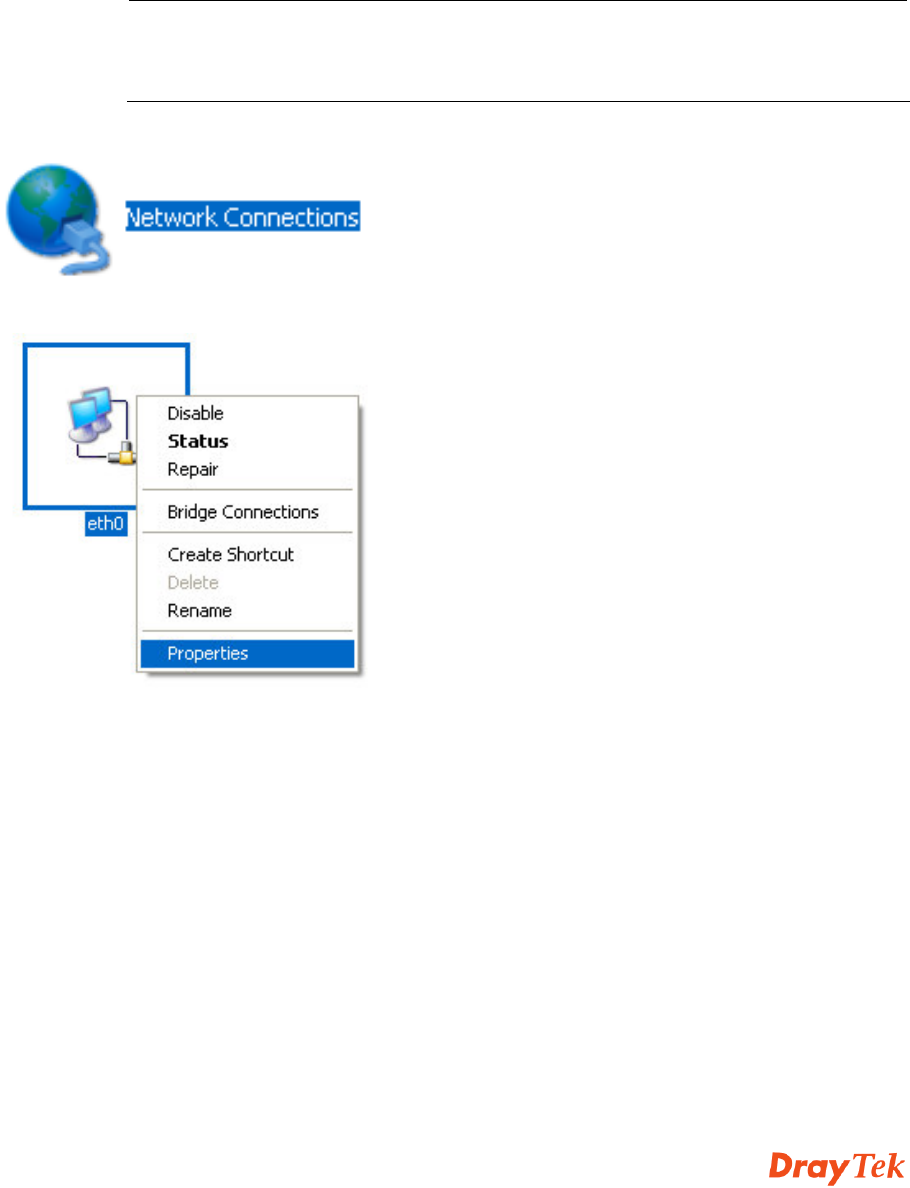

1. Right-click on Local Area Connection and click on Properties.
2. Select Internet Protocol (TCP/IP) and then click Properties.
Vigor2860 Series Quick Start Guide
65
3. Select Obtain an IP address automatically and Obtain DNS server
address automatically.
Vigor2860 Series Quick Start Guide
66
F
Fo
or
r
M
Ma
ac
c
O
OS
S
1. Double click on the current used Mac OS on the desktop.
2. Open the Application folder and get into Network.
3. On the Network screen, select Using DHCP from the drop down list of
Configure IPv4.
Vigor2860 Series Quick Start Guide
67
'
'
)
)
#
#
-
-
-
-
The default gateway IP address of the router is 192.168.1.1. For some reason,
you might need to use “ping” command to check the link status of the router.
The most important thing is that the computer will receive a reply from
192.168.1.1. If not, please check the IP address of your computer. We suggest
you setting the network connection as get IP automatically. (Please refer to the
section 4.2)
Please follow the steps below to ping the router correctly.
F
Fo
or
r
W
Wi
in
nd
do
ow
ws
s
1. Open the Command Prompt window (from Start menu> Run).
2. Type command (for Windows 95/98/ME) or cmd (for Windows NT/
2000/XP/Vista/7). The DOS command dialog will appear.

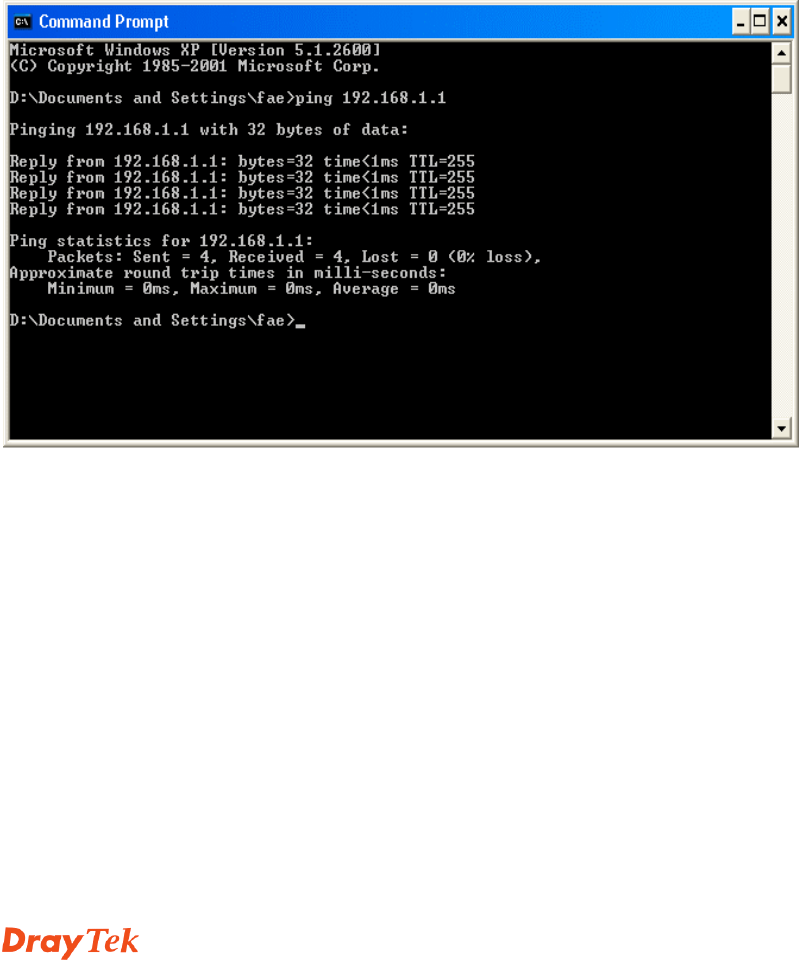

3. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of
“Reply from 192.168.1.1:bytes=32 time<1ms TTL=255” will appear.
4
4.
.
If the line does not appear, please check the IP address setting of your
computer.
F
Fo
or
r
M
Ma
ac
c
O
OS
S
(
(T
Te
er
rm
mi
in
na
al
l)
)
1. Double click on the current used Mac OS on the desktop.
2. Open the Application folder and get into Utilities.
3. Double click Terminal. The Terminal window will appear.
4. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of
“64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear.
Vigor2860 Series Quick Start Guide
68
'
'
'
'
)
)
#
#
)
)
*
*+
+
,
,

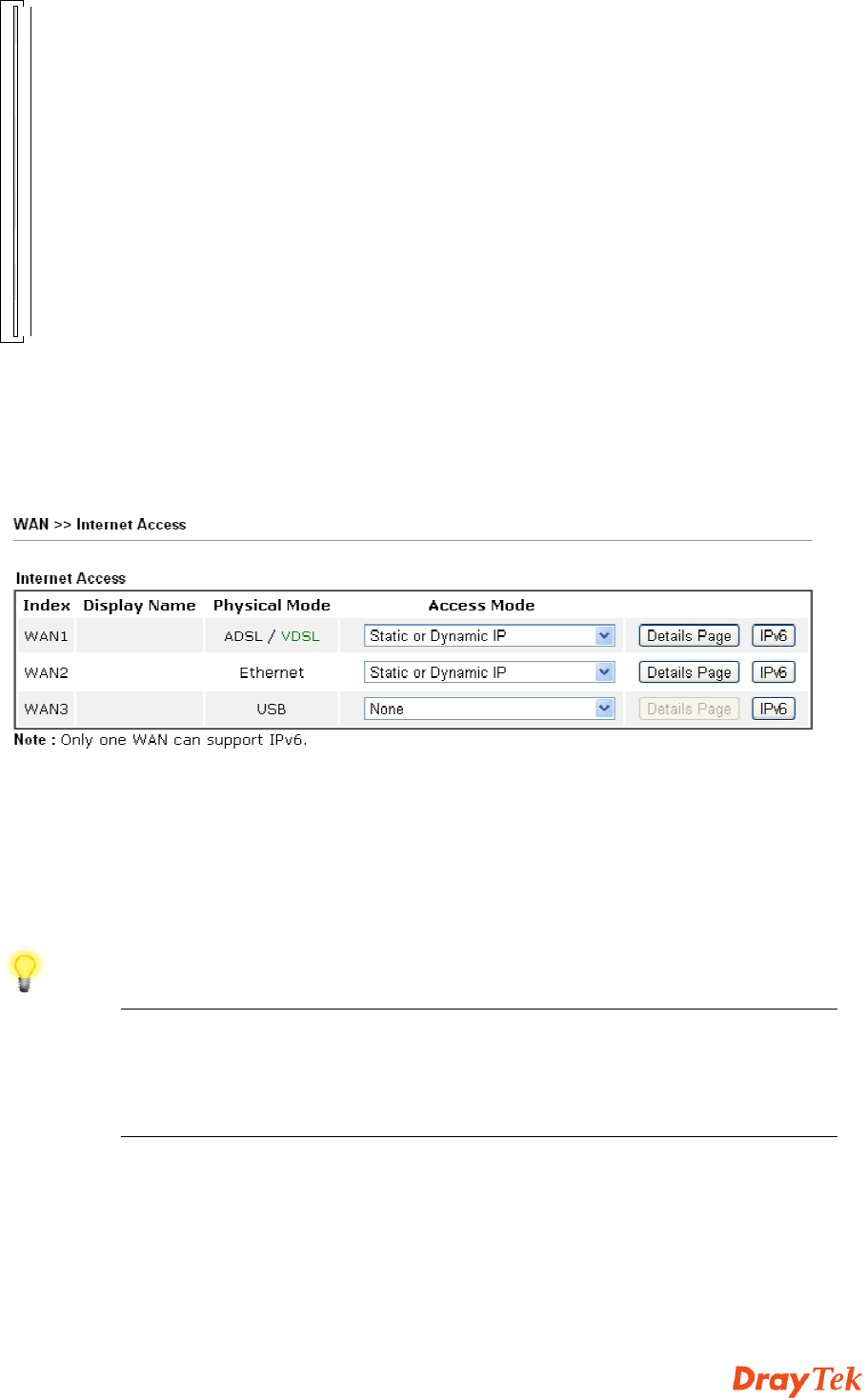

Open WAN >> Internet Access page and then check whether the ISP settings
are set correctly. Click Details Page of WAN1/WAN2/WAN3 to review the
settings that you configured previously.
'
'
.
.
"
"
/
/
0
0
1
1
#
#
#
#
,
,
0
0
Sometimes, a wrong connection can be improved by returning to the default
settings. Try to reset the router by software or hardware..
Warning: After pressing factory default setting, you will loose
all settings you did before. Make sure you have recorded all
useful settings before you pressing. The password of factory
default is null.
Vigor2860 Series Quick Start Guide
69
S
So
of
ft
tw
wa
ar
re
e
R
Re
es
se
et
t
You can reset the router to factory default via Web page. Go to System
Maintenance and choose Reboot System on the web page. The following
screen will appear. Choose Using factory default configuration and click
Reboot Now. After few seconds, the router will return all the settings to the
factory settings.
H
Ha
ar
rd
dw
wa
ar
re
e
R
Re
es
se
et
t
While the router is running (ACT LED blinking), press the RST button and hold
for more than 5 seconds. When you see the ACT LED blinks rapidly, please
release the button. Then, the router will restart with the default configuration.
Vigor2860 Series Quick Start Guide
70
After restore the factory default setting, you can configure the settings for the
router again to fit your personal request.
'
'
2
2
1
1
If the router still cannot work correctly after trying many efforts, please contact
your dealer for further help right away. For any questions, please feel free to
send e-mail to support@draytek.com.

Navigation menu
