Dreamlink E Commerce TM-01 Wireless Bluetooth Optical Transmitter and Receiver User Manual TM 01
Dreamlink E-Commerce Co.,Limited Wireless Bluetooth Optical Transmitter and Receiver TM 01
Users Manual
Wireless Bluetooth Optical
Transmitter and Receiver
User Manual
FCC ID:2AQUATM-01
Model:TM-01

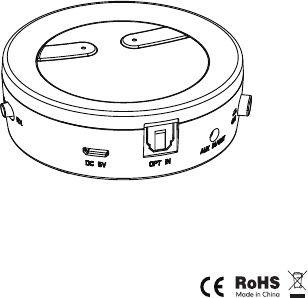

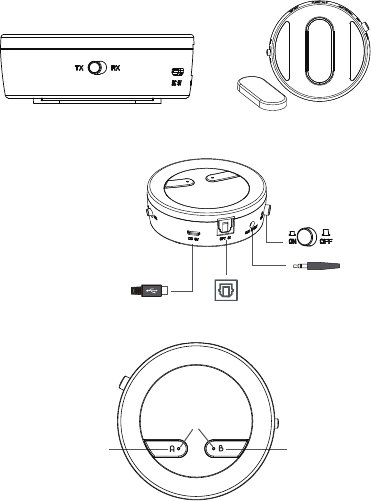

Product Overview & Status Indicators
Button B
Button A
Status Indicators
AUX/3.5mm Input
Optical Input
Transmitter(TX) / Receiver(RX) Mode Switch
Charging Port
Magnetic Wall Mount Base
1
ON/OFF Button
INDICATOR STATUS
Power on - Flashes GREEN once per 2s
Pairing - Flashes RED and BLUE alternately
Connected - Steady BLUE

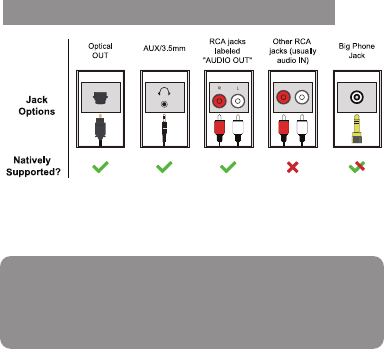

Audio Connection Options
When used with TV:
1)Confirm the TV audio output is functional by plugging
in a pair of wired headphones/earbuds.
2)Ensure your TV audio is set to “External Speaker”.
Note: To achieve low latency (<40ms delay), your
receiving devices (headphones / speakers) must also
support apt-X Low Latency, otherwise you will
experience the lag between sound and picture.
.
Check your TVs output options before the set up
2

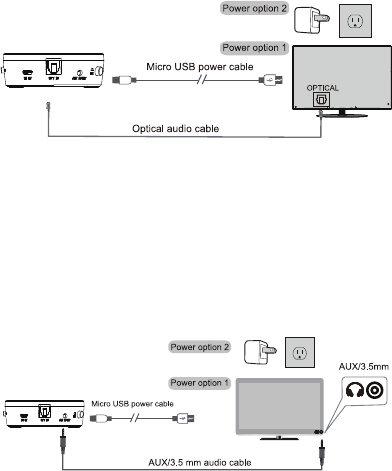

OPTION 1 - OPTICAL
Notes:
1.Make sure your TV audio is set to PCM format as the
TM-01 does not support Dolby/DTS.
2.When using the OPTICAL output please unplug any
devices from the 3.5mm AUX jack.
OPTION 2 - 3.5mm/AUX
Default input audio sourcing: AUX IN
3

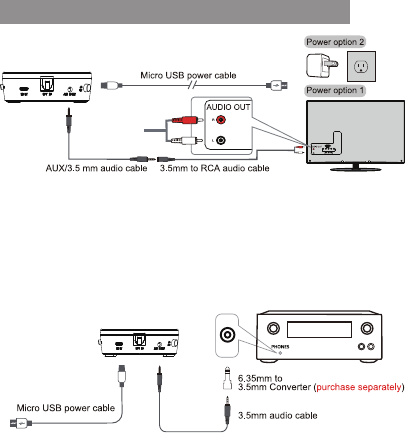

OPTION 3 - RCA
OPTION 4 - 6.35mm (for most audio receiver)
TVs with RCA audio out(Red/White ports labeled “AUDIO OUT”)
4
Phones
Output

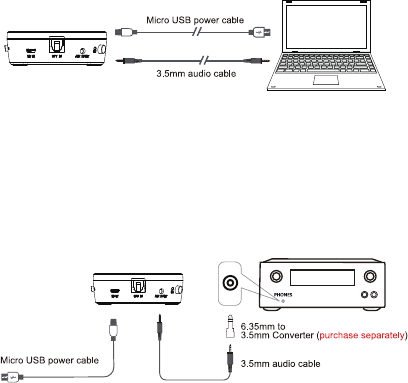

OPTION 5 - USB (on PC / Laptop)
The TM-01 transmitter supports 3.5mm audio input from
your PC/Laptop. Connect the transmitter to PC/laptop
via the included Micro USB charging cable.

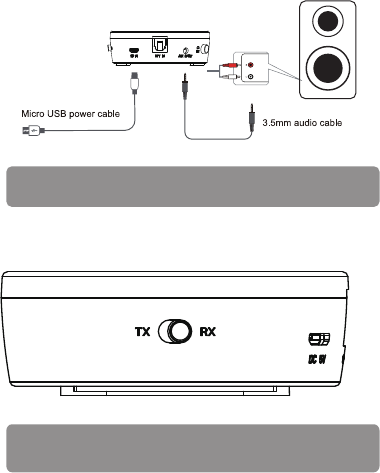

OPTION 6 - Receiver
Connect your device via 3.5mm audio cable/RCA
Audio in (AUX in / RCA in), Speaker, Audio Amplifier
5
Phones
Input
AUDIO IN
Note: There is no OPTICAL audio output under
the receiver option
Transmitter(TX) / Receiver(RX) Mode Switch
Default mode: Transmitter(TX) mode
6
Quick User Guide
Pairing and connecting
Pair and connect to 1st Bluetooth head-
phones/receiver
1) Power up and turn on the TM-01: Connect to USB
charger using included Micro USB data/charging cable,
slide the on/off switch to the“ON” position.
2) Enter the TM-01 into PAIRING MODE: On first use,
the TM-01 will enter pairing mode automatically,
indicator A flashes RED and BLUE alternately.
3) Enter 1st headphones/receiver into PAIRING MODE:
Please refer to relevant user Manual.
4) Connecting: During the pairing process, keep the
devices close to each other and wait. Once connected,
the indicator A will turn BLUE.
Pair and connect to 2nd Bluetooth head-
phones/receiver
1) Pair and connect 1st headphones to the TM-01:
Please refer to above.
7
2) Enter the TM-01 into PAIRING MODE: Press and
hold B for 1 second until indicator B flashed RED and
BLUE alternately.
3) Enter 2nd headphones/receiver into PAIRING
MODE: Please refer to relevant user manual.
4) Connecting: During the pairing process, keep the
devices close to each other and wait. Once connected,
the indicator B will turn BLUE.
2.Connect the TM-01 to your TV or
other audio source
(Five options depends on your TV/other audio source,
refer to “Audio Connection Options”)
8
Frequently Asked Questions
1.My headphones is already connected to the
TM-01, why is there no sound from the
headphones while watching TV?
1)Please ensure your TV audio is set to “External
Speaker”
2)If your select OPTICAL audio input, please ensure:
a)Your TV audio is set to PCM format. TM-01 can
decode PCM (≦16 bit/48 KHz), but cannot decode
Dolby/DTS.
b)Ensure the 3.5mm audio cable is NOT plugged in, or
TM-01 will prioritize the AUX input.
3)If you select AUX audio cable input, please ensure
the TM-01 is connected to the correct analog audio port
on audio source - plug in a pair of wired
headphones/earbuds into your audio source’s audio
output to check if it works.
2.Can I adjust volume from the TM-01?
The TM-01 does NOT have volume control. Please
adjust volume via your audio source or your Bluetooth
headphones/speakers.
3.Why is the range shorter than expected with
frequent cutting in and out of audio?
9
1)There may be interference from other nearby devices
like Wi-Fi routers or a smart TV box, etc. Please try
changing the placement of the transmitter.
2)Physical obstructions between the devices. Please
avoid using the headphones and transmitter with
physical obstructions between them such as walls,
partitions, metal dividers etc.
3)A one-off unstable Bluetooth connection. Clear the
pairing history of BOTH DEVICES and then
pair/connect again.
4)If you are using this set with a PC - please ensure
your computer’s USB driver is up-to-date. You can also
try changing to another USB port.
4.How to power the TM-01?
The TM-01 does not have a built-in battery and requires
USB power. Please plug it into your TV’s USB port or a
compatible USB charger (5V/0.5A)
10
Model
Bluetooth version
Operation frequency
Supported profile
Operation range
Support dual stream
(TX Mode)
Support Multipoint
(RX Mode)
CODEC
Operating temperature
Overall dimensions
Input power
Net weight
TM-01
5.0(Only support BR +EDR)
2.402-2.480GHz
A2DP AVRCP
UP to 100ft
Support (one transmitter connects two
Bluetooth speakers or headphones
simultaneously)
Support connection to two mobile phones
RX： aptX™ low latency、aptX™ 、AAC、
SBC
TX： aptX™ low latency、aptX™ 、SBC
-10~55℃
φ67.2*23.95mm
≦5V/0.5A
≈1.35oz (38.3g)
11
+
Package Contents:
1 x TM-01 Transmitter/Receiver
1 x RCA converter
1 x Optical cable
1 x User manual
1 x USB cable
1 x 3.5mm audio cable
1 x Magnetic Wall Mount Base
12
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
