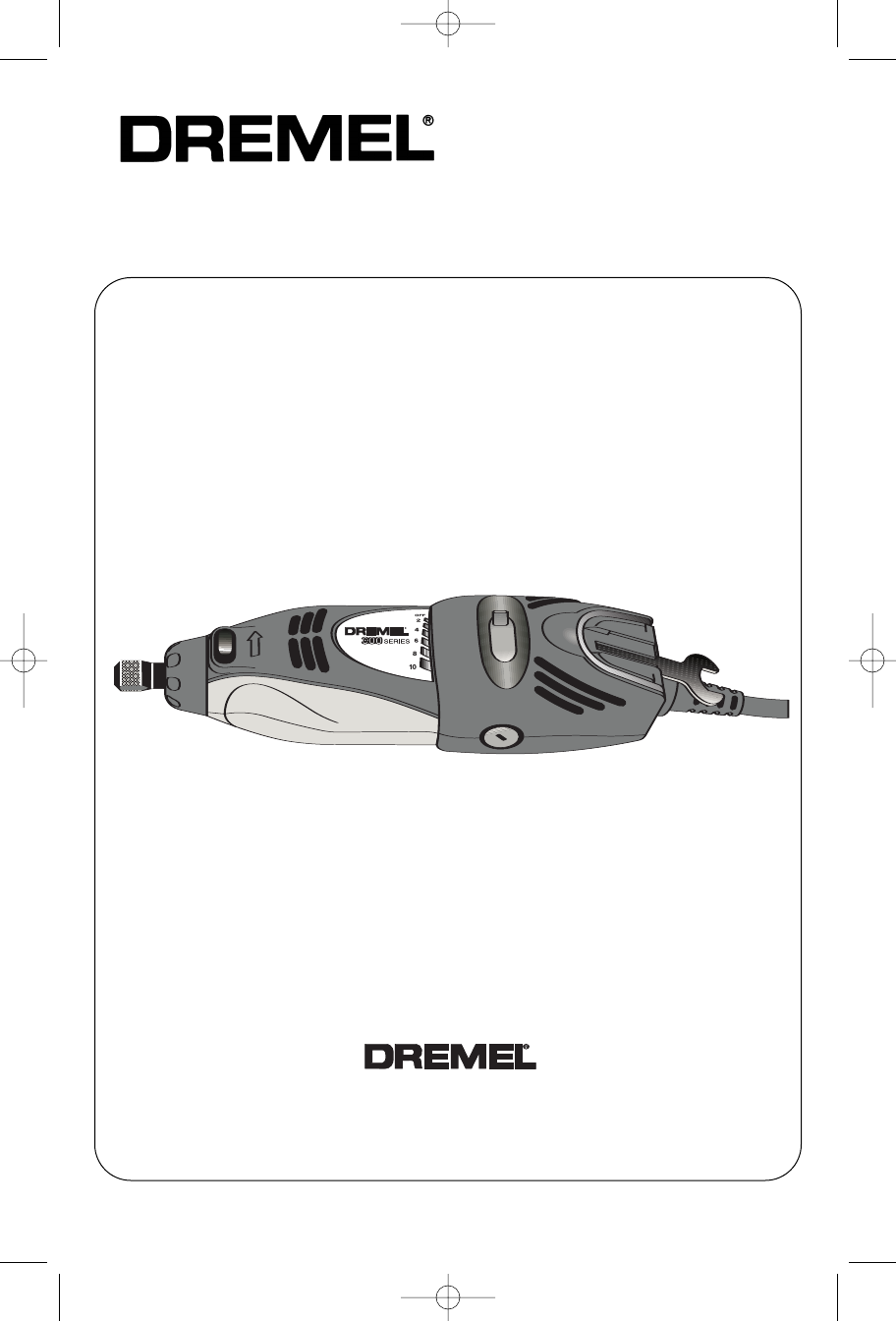

Instructional Safety
Manual
300 Series
High Speed Rotary Tool
Form No. 2610938876 03/06 Robert Bosch Tool Corporation © 2004
All Rights Reserved
03-5415317
http://www.dremel.com
Dremel brand products are manufactured and sold by the
Dremel Division of Robert Bosch Tool Corporation
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 1
![](asset-2.png)
2
Read all instructions. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury. The term “power
tool” in all of the warnings listed below refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
Work area safety
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of elec-
tric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radia-
tors, ranges and refrigerators. There is an
increased risk of electric shock if your body
is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for out-
door use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
Do not use AC only rated tools with a DC
power supply. While the tool may appear
to work, the electrical components of the AC
rated tool are likely to fail and create a haz-
ard to the operator.
If operating the power tool in damp loca-
tions is unavoidable a Ground Fault
Circuit Interrupter (GFCI) must be used
to supply the power to your tool. GFCI
and personal protection devices like electri-
cian’s rubber gloves and footwear will fur-
ther enhance your personal safety.
Personal safety
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool
while you are tired or under the influence
of drugs, alcohol or medication. A
moment of inattention while operating
power tools may result in serious personal
injury.
Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate con-
ditions will reduce personal injuries.
Avoid accidental starting. Ensure the
switch is in the off-position before plug-
ging in. Carrying power tools with your fin-
ger on the switch or plugging in power tools
that have the switch on invites accidents.
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in person-
al injury.
Do not overreach. Keep proper footing
and balance at all times. This enables bet-
ter control of the power tool in unexpected
situations.
Dress properly. Do not wear loose cloth-
ing or jewelry. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair can be
caught in moving parts.
If devices are provided for the connec-
tion of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of these devices
can reduce dust-related hazards.
WARNING
!
GENERAL SAFETY RULES
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 2
![](asset-3.png)
3
Keep handles dry, clean and free from oil
and grease. Slippery hands cannot safely
control the power tool.
Power tool use and care
Do not force the power tool. Use the cor-
rect power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any adjust-
ments, changing accessories, or storing
power tools. Such preventive safety meas-
ures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfa-
miliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for mis-
alignment or binding of moving parts,
breakage of parts and any other condi-
tion that may affect the power tools oper-
ation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
Use the power tool, accessories and tool
bits etc., in accordance with these
instructions and in the manner intended
for the particular type of power tool, tak-
ing into account the working conditions
and the work to be performed. Use of the
power tool for operations different from
those intended could result in a hazardous
situation.
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Service
Have your power tool serviced by a quali-
fied repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
Develop a periodic maintenance sched-
ule for your tool. When cleaning a tool be
careful not to disassemble any portion of
the tool since internal wires may be mis-
placed or pinched or safety guard return
springs may be improperly mounted.
Certain cleaning agents such as gasoline,
carbon tetrachloride, ammonia, etc. may
damage plastic parts.
SAFETY RULES FOR ROTARY TOOL
Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or
its own cord. Contact with a "live" wire will
make exposed metal parts of the tool "live"
and shock the operator.
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Accessories must be rated for at least the
speed recommended on the tool warning
label. Wheels and other accessories run-
ning over rated speed can fly apart and
cause injury.
If cutting into existing walls or other blind
areas where electrical wiring may exist is
unavoidable, disconnect all fuses or circuit
breakers feeding this worksite.

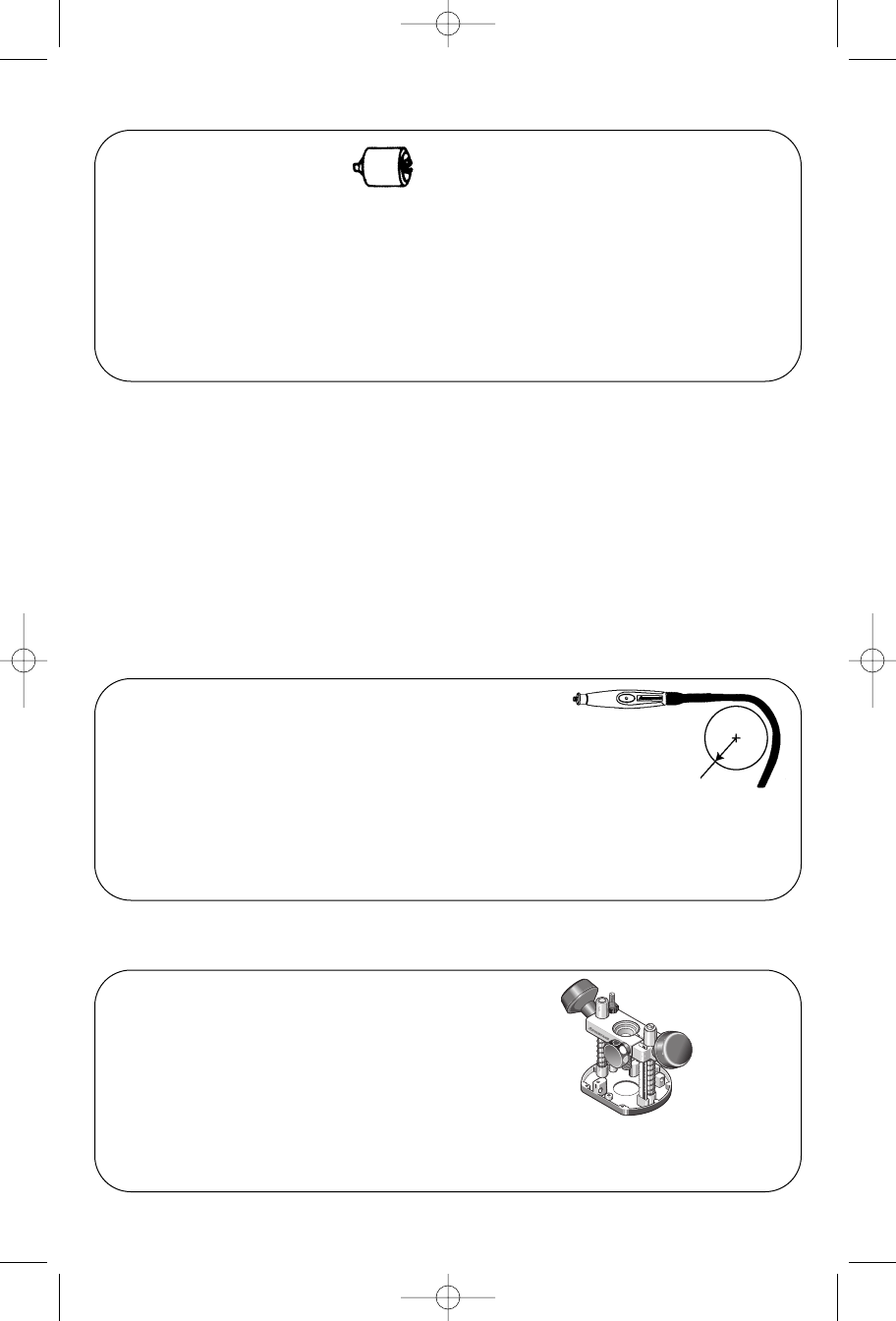

Do not operate the flexible shaft with a
sharp bend. Over bending the shaft can
generate excessive heat on the jacket or
hand piece. The recommended minimum is
6" radius.
Always disconnect the power cord from
the power source before making any
adjustments or attaching any acces-
SAVE THESE INSTRUCTIONS
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 3
![](asset-4.png)
4
SAFETY RULES FOR ROTARY TOOL (CONTINUED)
sories. You may unexpectedly cause the tool
to start leading to serious personal injury.
Be aware of the switch location, when
placing the tool down or when picking the
tool up. You may accidentally activate the
switch.
Always hold the hand piece firmly in your
hands during the start-up. The reaction
torque of the motor, as it accelerates to full
speed, can cause the shaft to twist.
Always wear safety goggles and dust
mask. Use only in well ventilated area.
Using personal safety devices and working in
safe environment reduces risk of injury.
After changing the bits or making any
adjustments, make sure the collet nut and
any other adjustment devices are secure-
ly tightened. Loose adjustment device can
unexpectedly shift, causing loss of control,
loose rotating components will be violently
thrown.
Do not reach in the area of the spinning
bit. The proximity of the spinning bit to your
hand may not always be obvious.
Allow brushes to run at operating speed
for at least one minute before using
wheel. During this time no one is to stand
in front or in line with the brush. Loose
bristles or wires will be discharged during the
run-in time.

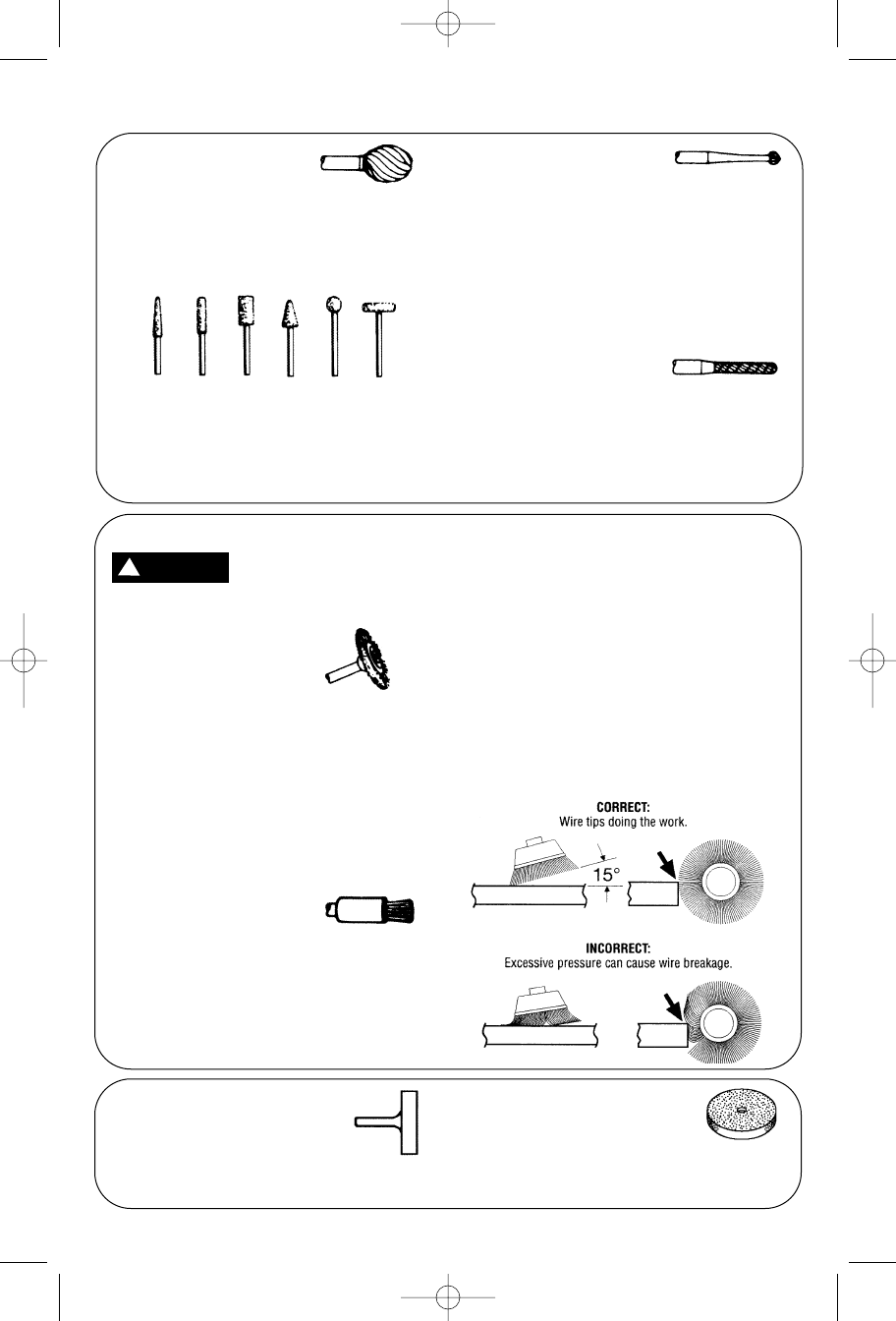

Wire and bristle brushes must never be
operated at speeds greater than
15,000/min. Direct the discharge of the
spinning wire brush away from you.
Small particles and tiny wire fragments may
be discharged at high velocity during the
“cleaning” action with these brushes and may
become imbedded in your skin. Bristles or
wires will be discharged from the brush at
high speeds.
Carefully handle both the tool and individ-
ual grinding wheels to avoid chipping or
cracking. Install a new wheel if tool is
dropped while grinding. Do not use a
wheel that may be damaged. Fragments
from a wheel that bursts during operation will
fly away at great velocity possibly striking you
or bystanders.
Never use dull or damaged bits. Sharp
bits must be handled with care. Damaged
bits can snap during use. Dull bits require
more force to push the tool, possibly causing
the bit to break.
Use clamps to support workpiece when-
ever practical. Never hold a small work-
piece in one hand and the tool in the other
hand while in use. Allow for sufficient
space, at least 6", between your hand and
the spinning bit. Round material such as
dowel rods, pipes or tubing have a tendency
to roll while being cut, and may cause the bit
to “bite” or jump toward you. Clamping a
small workpiece allows you to use both
hands to control the tool.
Inspect your workpiece before cutting.
When cutting irregularly shaped work-
pieces, plan your work so it will not slip
and pinch the bit and be torn from your
hand. For example, if carving wood, make
sure there are no nails or foreign objects in
the workpiece. Nails or foreign objects can
cause the bit to jump.
Never start the tool when the bit is
engaged in the material. The bit cutting
edge may grab the material causing loss of
control of the cutter.
Avoid bouncing and snagging the wheel,
especially when working corners, sharp
edges etc. This can cause loss of control
and kick-back.
The direction of feed with the bit into the
material when carving, routing or cutting
is very important. Always feed the bit into
the material in the same direction as the
cutting edge is exiting from the material
(which is the same direction as the chips
are thrown). Feeding the tool in the wrong
direction, causes the cutting edge of the bit to
climb out of the work and pull the tool in the
direction of this feed.
If the workpiece or bit becomes jammed
or bogged down, turn the tool “OFF” by
the switch. Wait for all moving parts to
stop and unplug the tool, then work to
free the jammed material. If the switch to
the tool is left “ON” the tool could restart
unexpectedly causing serious personal
injury.
Do not leave a running tool unattended,
turn power off. Only when tool comes to a
complete stop it is safe to put it down.
Do not grind or sand near flammable
materials. Sparks from the wheel could
ignite these materials.
Do not touch the bit or collet after use.
After use the bit and collet are too hot to be
touched by bare hands.
Regularly clean the tool's air vents with
compressed air. Excessive accumulation of
powdered metal inside the motor housing
may cause electrical failures.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 4
![](asset-5.png)
Do not allow familiarity gained from fre-
quent use of your rotary tool to become
commonplace. Always remember that a
careless fraction of a second is sufficient to
inflict severe injury.
Do not alter or misuse tool. Any alteration
or modification is a misuse and may result in
serious personal injury.
This product is not intended for use as a
dental drill, in human or veterinary med-
ical applications. Serious injury may result.
When using the steel saws, cutoff wheels,
high speed cutters or tungsten carbide
cutters, always have the work securely
clamped. Never attempt to hold the work
with one hand while using any of these
accessories. The reason is that these
wheels will grab if they become slightly cant-
ed in the groove, and can kickback causing
loss of control resulting in serious injury. Your
second hand should be used to steady and
guide the hand holding the tool. When a cut-
off wheel grabs, the wheel itself usually
5
SAFETY RULES FOR ROTARY TOOL (CONTINUED)
breaks. When the steel saw, high speed cut-
ters or tungsten carbide cutter grab, it may
jump from the groove and you could lose
control of the tool.
Some dust created by
power drilling and other
construction activities, contains chemi-
cals known to cause cancer, birth defects
or other reproductive harm. Some exam-
ples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement
and other masonry products, and
• Arsenic and chromium from chemically
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals, work in a well ventilated area, and
work with approved safety equipment, such
as those dust masks that are specially
designed to filter out microscopic particles.
WARNING
!
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 5
![](asset-6.png)
6

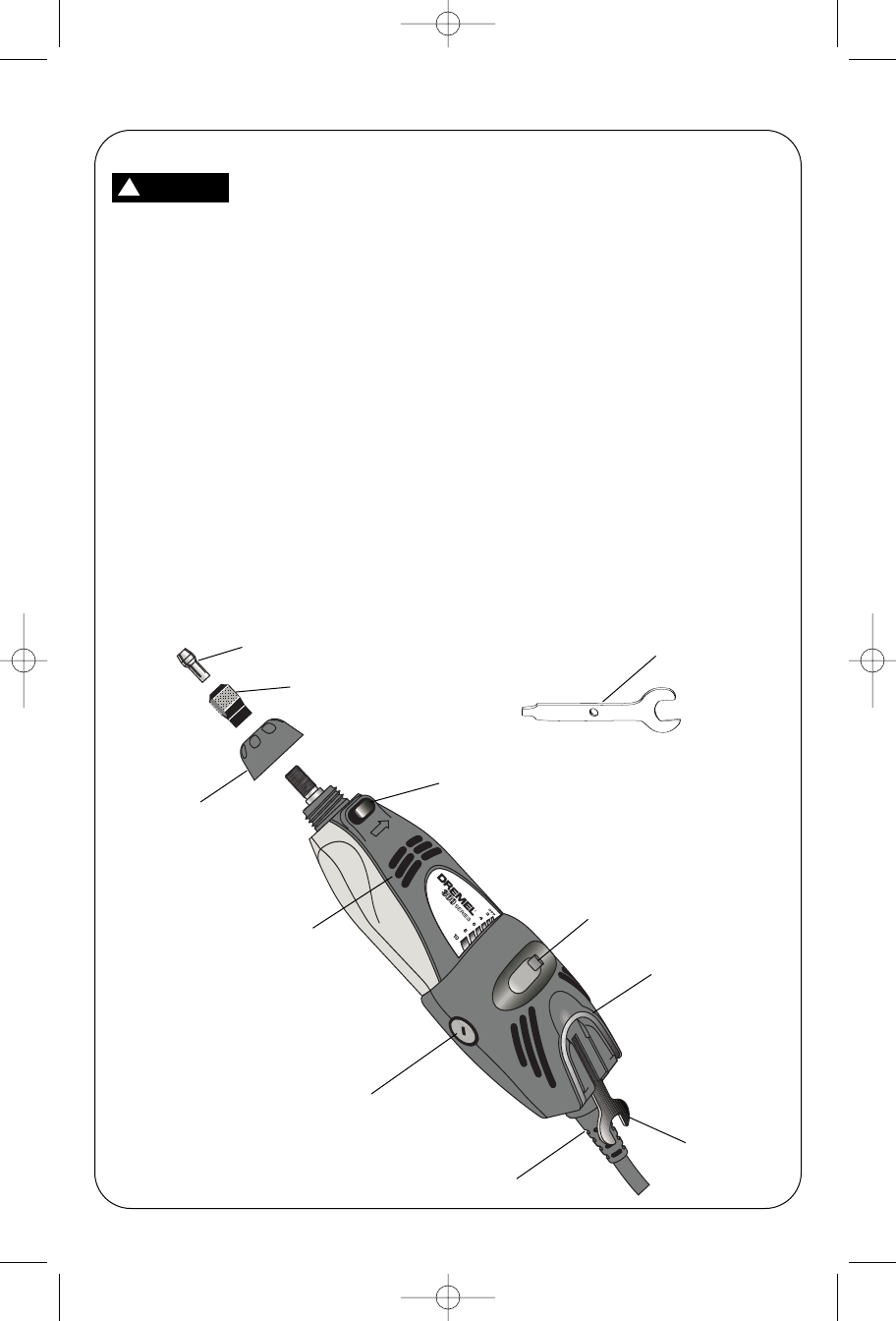

GETTING TO KNOW YOUR ROTARY TOOL
Shaft Lock Button
On/Off Switch
Collet Wrench
Collet Nut
Collet
Brush Cover
(one each side)
Housing Cap
Ventilation Openings
Hanger
Power Cord
Unpacking & Checking Contents
To avoid injury from unex-
pected starting or electri-
cal shock, always remove plug from wall
outlet when tool is not in use.
Separate all loose parts from packing materi-
als and check each item with the contents
listed on the carton to make sure all items are
accounted for before discarding any packing
material.
Description
The 300 Series rotary tool consists of a small,
but effective AC universal motor construction
that incorporates high speed to complete
cutting, drilling, carving, sharpening, etching,
grinding, sanding, shaping, polishing, cleaning
and much more.
The 300 Series rotary tool has high speeds of
10,000 – 37,000 rpms, while a typical drill only
has a top speed of 2,500 rpms. The high
speeds allows your Dremel rotary tool to
perform with high performing results. There is
noneed to apply pressure to your tool, it is the
speed of rotary tool that will complete even
the toughest task.
Your Dremel’s rotary tool performance does
depend upon the accessories that you use.
Due to the high speeds of your rotary tool, we
highly recommend that you always use
Dremel accessories and attachments for the
best results. Dremel’s accessories and
attachments go through very controlled and
extensive testing and must meet very high
standards before being approved. From drill
bits to router bits, felt wheels to wire and nylon
brushes, cut-off wheels to sanding bands,
engravers to cutting bits and more.
Thus, the success you will experience with
your Dremel rotary tool system – rotary tool,
accessories and attachments; unlimited
versatility for you and your projects no matter
where you are.
WARNING
!
Wrench
Storage
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 6
![](asset-7.png)
7
SPECIFICATIONS
General Specifications
Voltage Rating . . . .230-240 V , 50-60 Hz
Amperage Rating . . . . . . . . . . . . . . . .1.15 A
No Load Speed . . . .No10,000-37,000/min
Collet Capacity . . . .1/32", 1/16", 3/32", 1/8"
Motor Specifications
This Rotary Tool utilizes a variable high-
speed RPM motor. It is wired for operation on
230-240 volts, 50-60 Hz. alternating current.
Before connecting the motor cord to wall out-
let, make certain the power switch is in the
OFF position and be sure the electric current
is of the same characteristics as stamped on
the Rotary Tool nameplate.
Connection To A Power Source
To avoid electric shock,
do not touch the metal
prongs on the plug when installing or
removing the plug to or from the outlet.
If power cord is worn, cut
or damaged in any way,
have it replaced immediately to avoid
shock or fire hazard.
DANGER
!
DANGER
!
Extension Cords
If an extension cord is necessary, a cord
with adequate size conductors that is
capable of carrying the current necessary
for your tool must be used. This will pre-
vent excessive voltage drop, loss of power or
overheating.
RECOMMENDED SIZES
OF EXTENSION CORDS
240 VOLT ALTERNATING CURRENT TOOLS
NOTE: The smaller the gauge number, the
heavier the cord.
Tool’s
Ampere
Rating
Cord Size in A.W.G. Wire Sizes in mm2
1-6
6-8
8-10
10-12
12-16
18 16 16 14 .75 .75 1.5 2.5
18 16 14 12 .75 1.0 2.5 4.0
18 16 14 12 .75 1.0 2.5 4.0
16 16 14 12 1.0 2.5 4.0 —
14 12 — — — — — —
25 50 100 150 15 30 60 120
Cord Length in Feet Cord Length in Meters
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 7
![](asset-8.png)
8

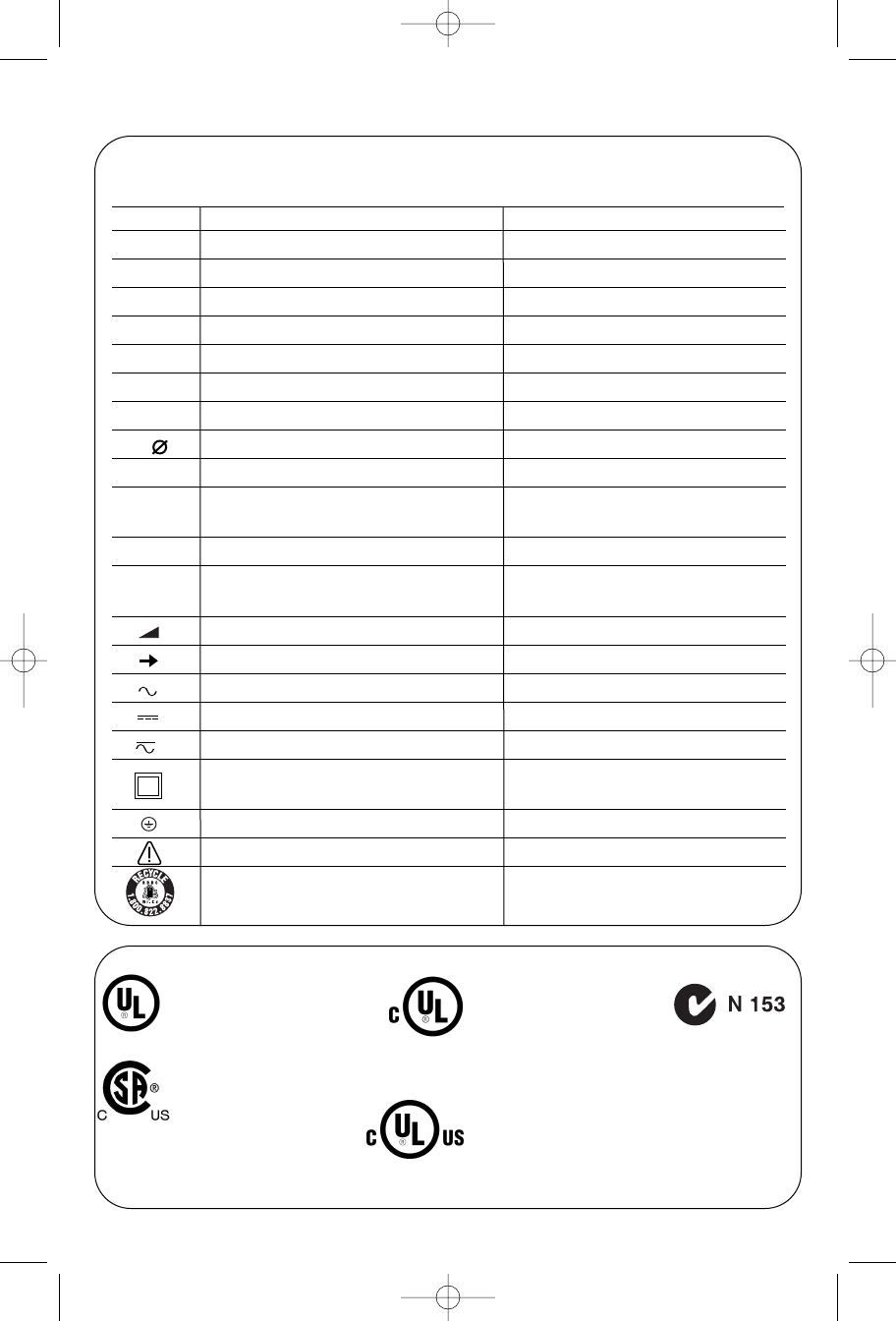

IMPORTANT! Some of the following symbols may be used on your tool. Please study
them and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and safer.
Symbol Name Designation/Explanation
VVolts Voltage (potential)
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
kg Kilograms Weight
min Minutes Time
sSeconds Time
Diameter Size of drill bits, grinding wheels,etc.
n0No load speed Rotational speed, at no load
.../min Revolutions or reciprocation Revolutions, strokes, surface speed,
per minute orbits etc. per minute
0Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
SYMBOLS
0
This symbol designates
that this tool is listed by
Underwriters Laboratories.
This symbol designates
that this tool is listed by
the Canadian Standards
Association, and is listed
to US Standards by CSA.
This symbol designates
that this tool is listed to
Canadian Standards by
Underwriters
Laboratories. This symbol
designates
that
this tool com-
plies
to Australian
Standards.
This symbol designates
that this tool is listed by
Underwriters Laboratories,
and listed to Canadian
Standards by Underwriters
Laboratories.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 8
![](asset-9.png)
9
Always use the collet which matches the shank size of the accessory you
plan to use. Do not force a larger diameter shank into a smaller collet.

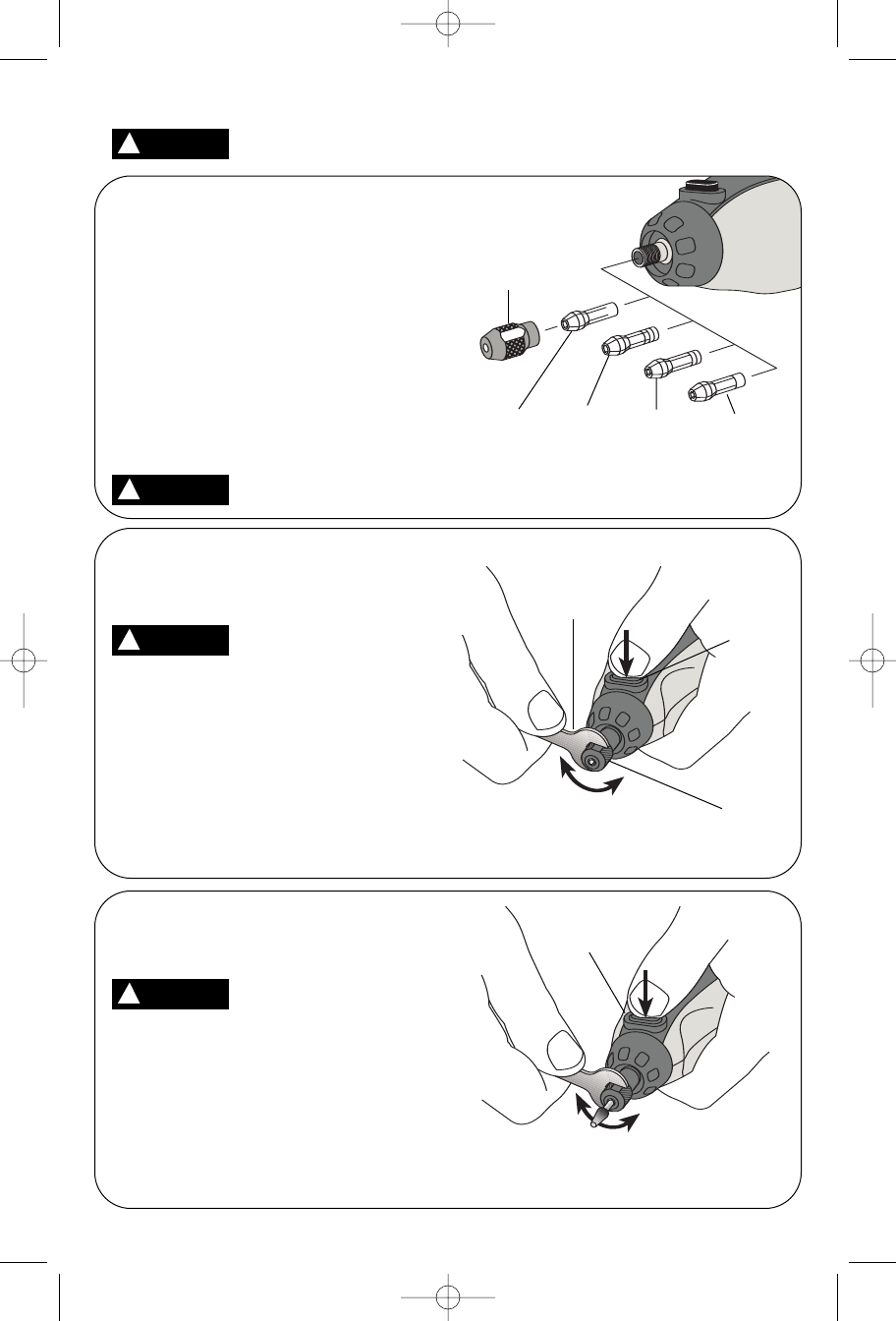

ASSEMBLY
Always unplug rotary tool before changing accessories, changing
collets, or servicing the tool.
WARNING
!
Collets
The Dremel™ accessories available for the
rotary tool come with various shank sizes.
Four size collets are available to accommdate
the different shank sizes. Collet sizes are
identified by the rings on the back of the collet:
• 1/32" collet has 1 ring (No. 483)
• 1/16" collet has 2 rings (No. 482)
• 3/32" collet has 3 rings (No. 481)
• 1/8" collet has no rings (No. 480)
NOTE: Some rotary tool kits may not include
all four collet sizes. Collets are available
separately.
Changing Collets
1. Press the shaft lock button, hold down
and rotate the shaft by hand until it
engages the shaft.
Do not engage the shaft
lock button while rotary
tool is running.
2. With the shaft lock button engaged,
loosen and remove the collet nut. Use
the collet wrench if necessary.
3. Remove the collet by pulling it free from
the shaft.
4. Install the appropriate size collet fully
into the shaft and reinstall the collet nut
finger tight. Do not fully tighten the nut
when there is no bit or accessory
installed.
CAUTION
!
WARNING
!
Changing Accessories
1. Press the shaft lock button and rotate
the shaft by hand until it engages the
shaft lock.
Do not engage the shaft
lock button while rotary
tool is running.
2. With the shaft lock button engaged,
loosen (do not remove) the collet nut.
Use the collet wrench if necessary.
3. Insert the bit or accessory shank fully
into the collet.
4. With the shaft lock button engaged, fin-
ger tighten the collet nut until the bit or
accessory shank is gripped by the collet.
WARNING
!
NOTE: Be sure to read the instructions
supplied with your Dremel™ accessory for
further information on its use.
Shaft Lock
Button
Shaft Lock
Button
To Tighten To Loosen
Collet
Wrench
Collet
Nut
Collet
Nut
480
1/8"
Collet
481
3/32"
Collet
482
1/16"
Collet
483
1/32"
Collet
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 9
![](asset-a.png)
10

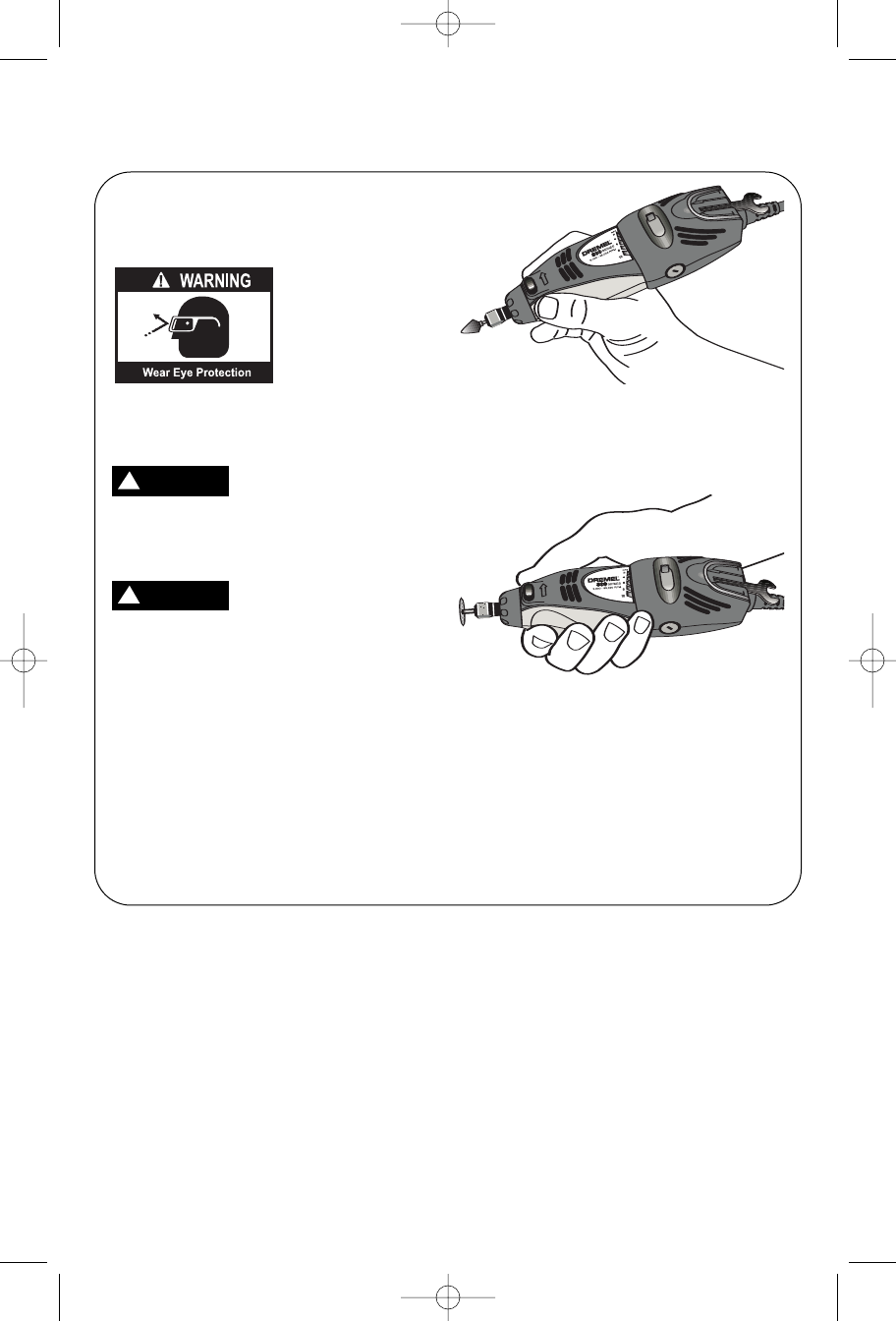

OPERATION
Learning To Use the Rotary Tool
Getting the most out of your rotary tool is a
matter of learning how to let the speed and
the feel of the tool in your hands work for you.
The first step in learn-
ing to use the rotary
tool is to get the “feel”
of it. Hold it in your
hand and feel its
weight and balance.
Feel the taper of the
housing. This taper permits the tool to be
grasped much like a pen or pencil. The
unique comfort grip on the nose allows for
added comfort and control during use.
Always hold the tool
away from your face.
Accessories can be damaged during
handling and can fly apart as they come
up to speed. This is not common, but it
does happen.
When holding tool, do not
cover the air vents with
your hand. Blocking the air vents could
cause the motor to overheat.
IMPORTANT! Practice on scrap material first
to see how the tool’s high-speed action per-
forms. Keep in mind that your rotary tool will
perform best by allowing the speed, along
with the correct Dremel™ accessory and
attachment, to do the work for you. Do not
put pressure on the tool during use, if possible.
Instead, lower the spinning accessory lightly
to the work surface and allow it to touch the
point at which you want to begin.
Concentrate on guiding the tool over the
work using very little pressure from your
hand. Allow the accessory to do the work.
WARNING
!
CAUTION
!
Usually it is better to make a series of pass-
es with the tool rather than to do the entire
job with one pass. A gentle touch gives the
best control and reduces the chance for
error.
For best control in close work, grip the rotary
tool like a pencil between your thumb and
forefinger.
The “golf” grip method is used for more aggres-
sive operations such as grinding or cutting.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 10
![](asset-b.png)
11
OPERATION (CONTINUED)
Operating Speeds
To achieve the best results when working
with different materials, set the variable
speed control to suit the job. To select the
right speed for the accessory in use, practice
with scrap material first.
NOTE: Speed is affected by voltage changes. A
reduced incoming voltage will slow the RPM of the
tool, especially at the lowest setting. If your tool
appears to be running slowly, increase the speed
setting accordingly.The tool may not start at the
lowest switch setting in areas where outlet voltage
is less than 120 volts. Simply move the speed set-
ting to a higher position to begin operation.
The 300 Series Rotary Tool switch settings
are marked “near” the speed control switch
on the front tool label. Refer to the Speed
Settings chart on pages 12 thru 14 to help
determine the proper speed for the material
being worked on and the accessory to use.
Most jobs can be accomplished using the
tool at the highest setting. However, certain
materials (some plastics and metals) can be
damaged by high-speed generated heat and
should be worked on at relatively slow
speeds.
Slow speed operation (15,000 RPM or less)
is usually best for polishing operations
employing the felt polishing accessories, del-
icate wood carving and fragile model parts.
All brushing applications require lower
speeds to avoid wire discharge from the
holder. Let the performance of the tool do the
work for you when using lower speed set-
tings.
Higher speeds are better for drilling, carving,
cutting, routing, shaping, cutting dadoes or
rabbets in wood. Hardwoods, metals and
glass require high speed operation also.
The settings for approximate RPM’s are:
Switch Setting Speed Range RPM
1-2 10,000-14,000
3-4 15,000-19,000
5-6 20,000-24,000
7-8 25,000-29,000
9-10 30,000-37,000
Some guidelines regarding tool speed:
•There is no accessory for the Dremel
Rotary tool that will drill or cut glass.
• Plastic and other materials that melt at low
temperatures should be cut at low speeds.
• Polishing, buffing and cleaning with a wire
brush must be done at speeds not greater
than 15,000 RPM to prevent damage to the
brush and your material.
• Wood should be cut at high speed.
•Iron or steel should be cut at high speed.
•If a high speed steel cutter starts to vibrate,
it usually indicates that it is running too
slow.
• Aluminum, copper alloys, lead alloys, zinc
alloys and tin may be cut at various
speeds, depending on the type of cutting
being done. Use a paraffin (not water) or
other suitable lubricant on the cutter to pre-
vent the cut material from adhering to the
cutter teeth.
NOTE: Increasing pressure on the tool is not
the answer when it is not performing proper-
ly.Try a different accessory or speed setting
to achieve the desired result. Please refer to
the following Speed Setting charts or simply
contact Dremel Consumer Service at:
Phone: 03-5415317
Fax: 03-5415441
or at www.Dremel.com.
Set the Speed Control to the desired setting.
On/Off Switch
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 11
![](asset-c.png)
12
SPEED SETTINGS
Catalog
Number
100, 121, 131
114, 124,
134, 144
190
118, 191, 192,
193, 194
116, 117,
125, 196
115
198
199
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 10 6 6 8 - - -
10 6 4 6 6 - - -
10 10 4 8 10 - - -
10 10 4 6 10 - - -
10 6 4 6 6 - - -
10 10 4 6 6 - - -
10 8 4 6 6 - - -
10 8 4 6 6 - - -
High Speed Cutters
Catalog
Number
105, 108
106, 109
107, 110
111
112
113
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 10 8 8 6 - - -
10 10 6 8 6 - - -
10 10 6 8 6 - - -
10* 10* 8* 8 6 - - -
10* 10* 6* 8 6 - - -
10* 10* 6* 8 6 - - -
Engraving Cutters
Catalog
Number
7103, 7105,
7117, 7120,
7122, 7123,
7134, 7144
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 8 - - - 10 10 10
Diamond Wheel Points
Catalog
Number
9931, 9932,
9933, 9934,
9935, 9936
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
1084- 6---
Structured Tooth Tungsten Carbide Cutters
Catalog
Number
9901, 9902,
9903, 9904,
9905, 9906,
9909, 9910,
9911, 9912
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 8410 68 8-10 8-10
Tungsten Carbide Cutters
Use only Dremel™ tested, high performance accessories.
*Speed for light cuts; Caution - burning on deep grooves.
• Depending on cutting direction relative to grain.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 12
![](asset-d.png)
13
SPEED SETTINGS (CONTINUED)
Catalog
Number
516, 517, 518,
500
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
4-6 4-6 - 8 6 - - -
4-6 4-6 - 8 6 - - -
Abrasive Points
Catalog
Number
903, 911, 921,
932,941, 945,
952, 953, 954,
971, 997,
8153, 8175,
8193, 8215
541
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 10 - 8 4 6 10 -
10 10 - 8 4 6 10 -
Aluminum Oxide Grinding Stones
Catalog
Number
453, 454, 455
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
-- - 10 - -- -
Chain Saw Sharpening Stones
Use only Dremel™ tested, high performance accessories.
*Speed for light cuts; Caution - burning on deep grooves.
• Depending on cutting direction relative to grain.
Catalog
Number
612, 640
615, 617, 618,
650, 652
654
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10* 8• - - - - - -
10* 10• - - - - - -
10* 8• - - - - - -
High Speed Router Bits
Catalog
Number
83142, 83322,
83702, 84922,
85422, 85602,
85622
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
- - 6 10 4 6 10 10
Silicon Carbide Grinding Stones
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 13
![](asset-e.png)
14
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
-- - 8 8 888
- - -6 6666
-- -8 8---
---88888
4 4 1-4 66---
-4 - 4 - - - -
44 2 4 - - - -
4 4 - 4 44--
Catalog
Number
461, 462, 463
414, 422, 429
425, 427
423
403, 404, 405
530, 531, 532
428, 442, 443
535, 536, 537
Polishing Accessories
Catalog
Number
409, 420, 426,
540
542
545
560
561
562
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
-- 1-4 10 10 10 10 -
10 8-10 2-4 10 10 10 10 -
8-10 8 - - - - - -
For use on drywall. For best results, use at 35,000 rpm.
6-10 6-10 2-4 - 10 - - -
-- - - - -10-
Cutting Accessories
Catalog
Number
430, 431, 438
439, 440, 444
407, 408, 432
411, 412, 413
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
1-10 1-10 1-6 10 10 1-10 1-10 -
1-10 1-10 1-6 10 10 1-10 1-10 -
1-10 1-10 1-6 10 10 1-10 1-10 -
8 8 1-4 - 1-4 - - -
Sanding Bands and Discs
Catalog
Number
502, 503, 504,
505
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 8 1 10 8-10 ---
Flapwheels
Catalog
Number
511
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
66 4 6 6 - - -
Finishing Abrasive Buffs
Catalog
Number
150
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
10 10 1-4 - 6 - - -
Drill Bit
Catalog
Number
569, 570
Soft Hard Laminates Steel Aluminum, Shell Ceramic Glass
Wood Wood Plastic Brass, etc. Stone
For use on wall and floor grout. 6-8 -
Grout Removal Bits
SPEED SETTINGS (CONTINUED)
Use only Dremel™ tested, high performance accessories.
*Speed for light cuts; Caution - burning on deep grooves. • Depending on cutting direction relative to grain.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 14
![](asset-f.png)
15
MAINTENANCE
Preventative maintenance
performed by unautho-
rized personnel may result in misplacing
of internal wires and components which
could cause serious hazard. We recom-
mend that all tool service be performed by
aDremel™ Service Facility.
To avoid injury from unex-
pected starting or electri-
cal shock, always remove plug from wall
outlet before performing service or
cleaning.

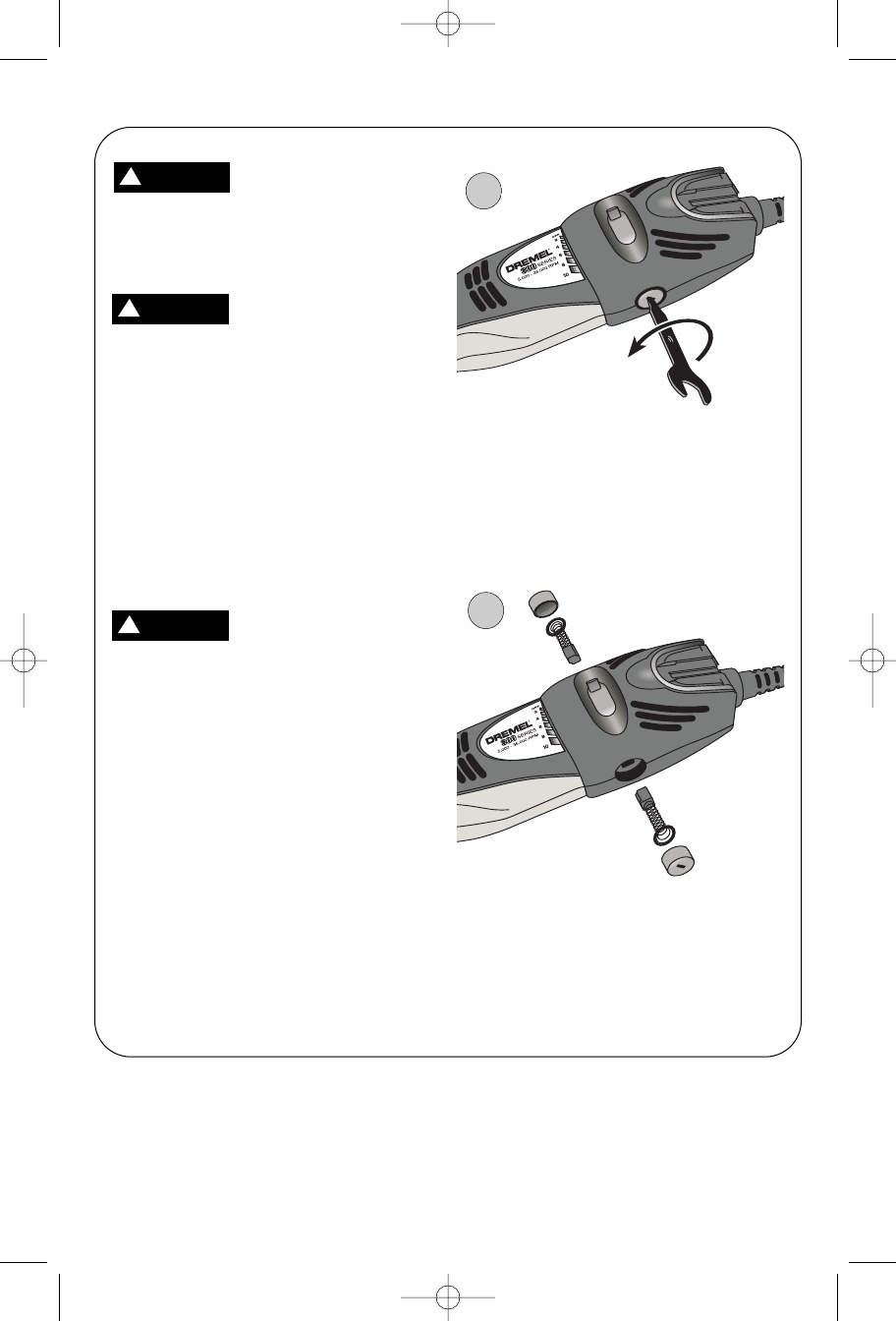

Carbon Brushes
The brushes in your tool have been engi-
neered for many hours of dependable serv-
ice.
To prepare the brushes for use, run the tool
at full speed for 5 minutes under no load.
This will properly “seat” the brushes, and
extend the life of the tool.
To maintain peak efficiency of the motor,
examine the brushes for wear every 40-50
hours.
Using the tool with worn
brushes will permanently
damage the motor.
Use only original Dremel™ replacement
brushes.’
Inspect the rotary tool brushes after 40-50
hours of use. If the rotary tool runs erratical-
ly,loses power,or makes unusual noises
check the brushes for wear and possible
replacement. Remember: brushes in the
rotary tool are similar to oil in a car; the more
you check/service, the better the perform-
ance.
Follow these steps to check/change the rotary
tool brushes:
1 With the power cord unplugged, place
the tool on a clean surface. Use the tool
wrench as a screwdriver to remove the
brush caps in a counter-clockwise
direction (Figure A).
2. Remove the brushes from the tool by
pulling on the spring that is attached to
the carbon brush. If the brush is less
than 1/8” long and the surface of the
brush that touches the commutator is
rough or pitted, the carbon brushes
should be replaced. Be sure to check
both brushes (Figure B).
3. If one brush is worn, you should replace
both brushes for better performance of
your rotary tool. Remove the spring
from the brush, throw away the old
brush and place the spring on a new
brush.
WARNING
!
WARNING
!
Removing/Inspecting Brushes
CAUTION
!
A
B
Removing Brush Cover
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 15
![](asset-10.png)
16
4. Place the carbon brush and spring back
into the tool, there is only one way the
brush will fit back into the tool.
5. Replace the brush caps onto the tool by
turning the cap in a clockwise direction.
To tighten, use the wrench, but DO NOT
OVER TIGHTEN!
After replacing the brushes the tool should
be run at no load; place it on a clean surface
and run it freely at full speed for 5 minutes
before loading (or using) the tool. This will
allow the brushes to “seat” properly and will
give you more hours of life from each set of
brushes. This will also extend the life of your
tool since the commutator surface will also
wear better and longer.
Cleaning The Tool
Ventilation openings and switch levers must
bekept clean and free of foreign matter. Do
not attempt to clean by inserting pointed
objects through openings.
The tool may be
cleaned with com-
pressed air. Always
wear safety goggles
when cleaning tool
with compressed air.
There is no need to lubricate the Dremel™
rotary tool.
Certain cleaning agents
and solvents will damage
plastic parts. Some of these are: gasoline,
carbon tetrachloride, chlorinated clean-
ing solvents, ammonia and household
detergents that contain ammonia.
Clean the “soft grip” areas of the tool using a
damp cloth. Tougher soiled areas may
require more than one wipe application to get
clean.
CAUTION
!
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 16
![](asset-11.png)
17

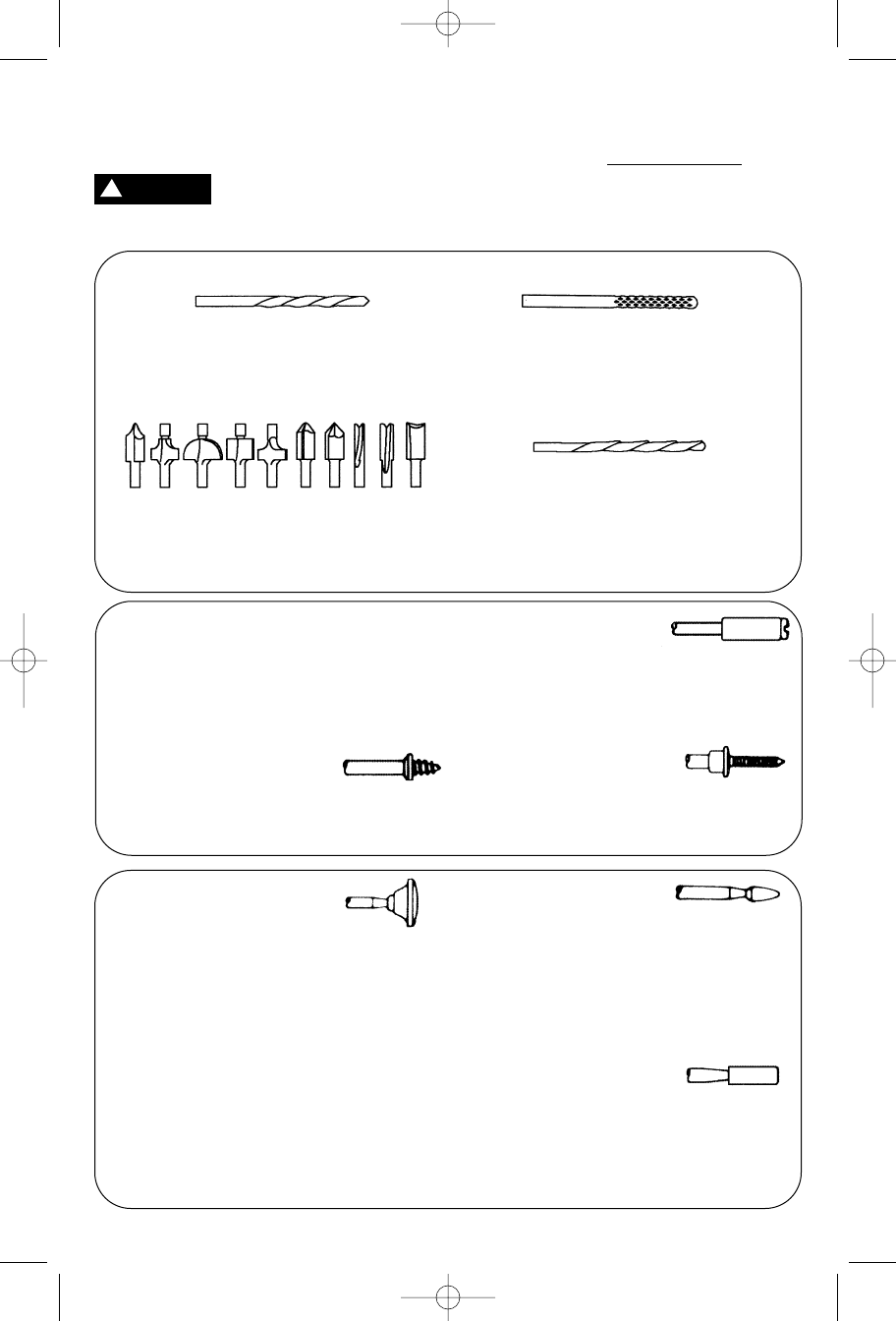

For availability of all accessories and attachments, refer your local hardware, hobby or home
center. Or contact Dremel Consumer Service at: 03-5415317 or at www.Dremel.com.
Use only Dremel™, high-performance accessories. Other accessories are
not designed for this tool and may lead to personal injury or property
damage.
Screw Mandrel
For use with the felt polishing
tip and felt polishing wheels.
Mandrels
A mandrel is a shank with a threaded or
screw head used with polishing accessories,
cutting wheels, sanding discs and polishing
points. The mandrel is a permanent shank,
allowing for replacement of the worn head
when necessary.
Drywall Cutting Bit
When using a template (outlet box) behind
the drywall, cut in a counterclockwise direc-
tion.
ACCESSORIES
Multipurpose Cutting Bit
For use in wood, plastics, drywall, fiberglass,
vinyl or aluminum siding, acoustical tile and
laminates.
Start the bit into the material at a 45° angle
and then slowly bring it to a 90° angle to
begin the cut.
High Speed Router Bits
For routing, inlaying and mortising in wood
and other soft materials. Use only with
Dremel™ Router Attachment #330 or
Shape/Router Table #231.
WARNING
!
Tile Cutting Bit
For use wall tile, cement board and plaster.
Start the bit into the material at a 45° angle
and then slowly bring it to a 90° angle to
begin the cut.
Small Screw Mandrel
Mandrel has a small screw
at the tip and is used with
emery and fiberglass cutting
wheels, sanding discs and
polishing wheels.
Threaded Tip Mandrel
Mandrel has a threaded tip
which threads into the polish-
ing point accessory #427.
Diamond Wheel Points
Used for fine detail work on
wood, jade, ceramic, glass and
other hard material. Bits are
covered with diamond parti-
cles.
Aluminum Oxide Grinding
Stones (red/brown)
These grinding stones
come round, pointed or flat
and are made of aluminum
oxide. Use them for every possible grinding
operation: sharpening lawn mower blades,
screwdriver tips, knives, scissors, chisels and
other cutting tools. Use to remove flash from
metal castings, deburring any kind of metal.
These grinding stones can be resharpened
with a dressing stone. In machine shops,
high speed drills and cutters are normally
ground with aluminum oxide wheels.
Silicon Carbide Grinding
Stones (blue/green)
Tougher than aluminum oxide
points, these are made especially for use on
hard materials such as glass and ceramics.
1/8" shank
1/8" shank
1/8" shank
1/8" shank
1/8" shank
3/32" shank
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 17
![](asset-12.png)
18
Wire Brushes
Never use wire brushes at
speeds greater than
15,000 rpm. Refer to Speed Settings
(pages 10-12) for proper tool and setting.
Three different shapes
of wire brushes are
available in three differ-
ent materials: stainless
steel, brass and carbon
wire. Stainless steel
brushes perform well on pewter,aluminum,
stainless steel and other metals, without
leaving rust. Brass brushes are non-sparking
and softer than steel, making them good for
use on soft metals like gold, copper and
brass. Carbon wire brushes are good for
general purpose cleaning.
Tungsten Carbide Cutters
Tungsten carbide cutters
are long-lived cutters for
use on hardened steel, fired
ceramics and other very hard materials. They
can be used for engraving on tools and gar-
den equipment.
High Speed Cutters
High speed cutters are
used in carving, cutting
and slotting wood, plastics
and soft metals (such as aluminum, copper
and brass). Made of high quality steel.
Engraving Cutters
Engraving cutters come in a
wide variety of sizes and
shapes and are used for intricate work on
ceramics (greenware), wood carvings, jewel-
ry and scrimshaw. They are often used in
making complicated printed circuit boards.
They should not be used on steel and very
hard materials, but are good for use on
wood, plastic and soft metals.
Structured Tooth Tungsten Carbide Cutters
These cutters feature fast cutting needle-
sharp teeth for greater material removal with
minimum loading. Use on fiberglass, wood,
plastic, epoxy and rubber.
Bristle Brushes
Bristle brushes are
used for cleaning tools on
silverware, jewelry and antiques. The three
shapes make it possible to get into tight cor-
ners and other difficult spaces. They can be
used with polishing compound for faster
cleaning or polishing.
CAUTION
!
Brushing Pressure
•. The tips of a wire brush do the work.
Operate the brush with the lightest pres-
sure so only the tips of the wires come in
contact with the work surface.
•. If heavier pressure is used, the wires will
become overstressed, resulting in a wip-
ing action. If this continues, the life of the
brush will be shortened by fatigue.
•. Apply the brush to the work surface so
the majority of the brush face makes full
contact. Applying the edge or side of the
brush to the work surface will result in
wire breakage and shortened brush life.
Aluminum Oxide Abrasive
Wheels
Used to remove paint, deburr
metal, polish stainless steel
and other metals. Available in
medium grit.
Grinding Wheel
Used for deburring, removing
rust, and general purpose grind-
ing. Use with Mandrel #402.
ACCESSORIES (continued)
1/8" shank
1/8" shank
1/8" shank
1/8" shank
1/8" shank
3/32" shank
1/8" shank
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 18
![](asset-13.png)
19
Sanding Accessories
Sanding discs in fine,
medium and coarse
grades are made to fit
mandrel #402. They can be
used for nearly any small sanding job from
model making to fine furniture finishing.
In addition, the drum sander makes it possi-
ble to shape wood, smooth fiberglass, sand
inside curves and other difficult places. Drum
bands are replaceable and come in fine and
coarse grades.
ACCESSORIES (continued)
ATTACHMENTS
The following attachments are part of the Dremel Rotary Tool System; increasing the versatility
of your rotary tool.
Flapwheels grind and polish flat or contoured
surfaces. They are used most effectively as a
finishing sander, after heavier surface sand-
ing and material removal is completed.
Flapwheels come in fine and coarse grades.
Buffs are a great finishing accessory for
cleaning and light sanding. They work effec-
tively on metal, glass, wood, aluminum and
plastics. Buffs are available in medium and
coarse grades.
1/8" shank
Flex Shaft
Ideal for hard-to-reach places and fine detail work.
• Quick connect attach system
• 36" long cable with new 5" bend radius provides more flexibility
•Comfort grip hand piece
• Integrated shaft lock button
• Holds up to 1/8" shank
Use with models: 275, 285, 395, 398, 780, 800, 300 Series, 400 Series XPR.
5" Radius
7 6 5 4 3
3 2 1
Plunge Router
Converts you corded rotary tool into a plunge router.
•Clear base
•Two depth stop
•Includes edge guide and circle guide
•Rout circles, parallel to edge, signs, inlay work, and
lettering template adapters
Use with models: 275, 285, 395, 398, 800, 300 Series, 400 Series XPR.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 19
![](asset-14.png)
20

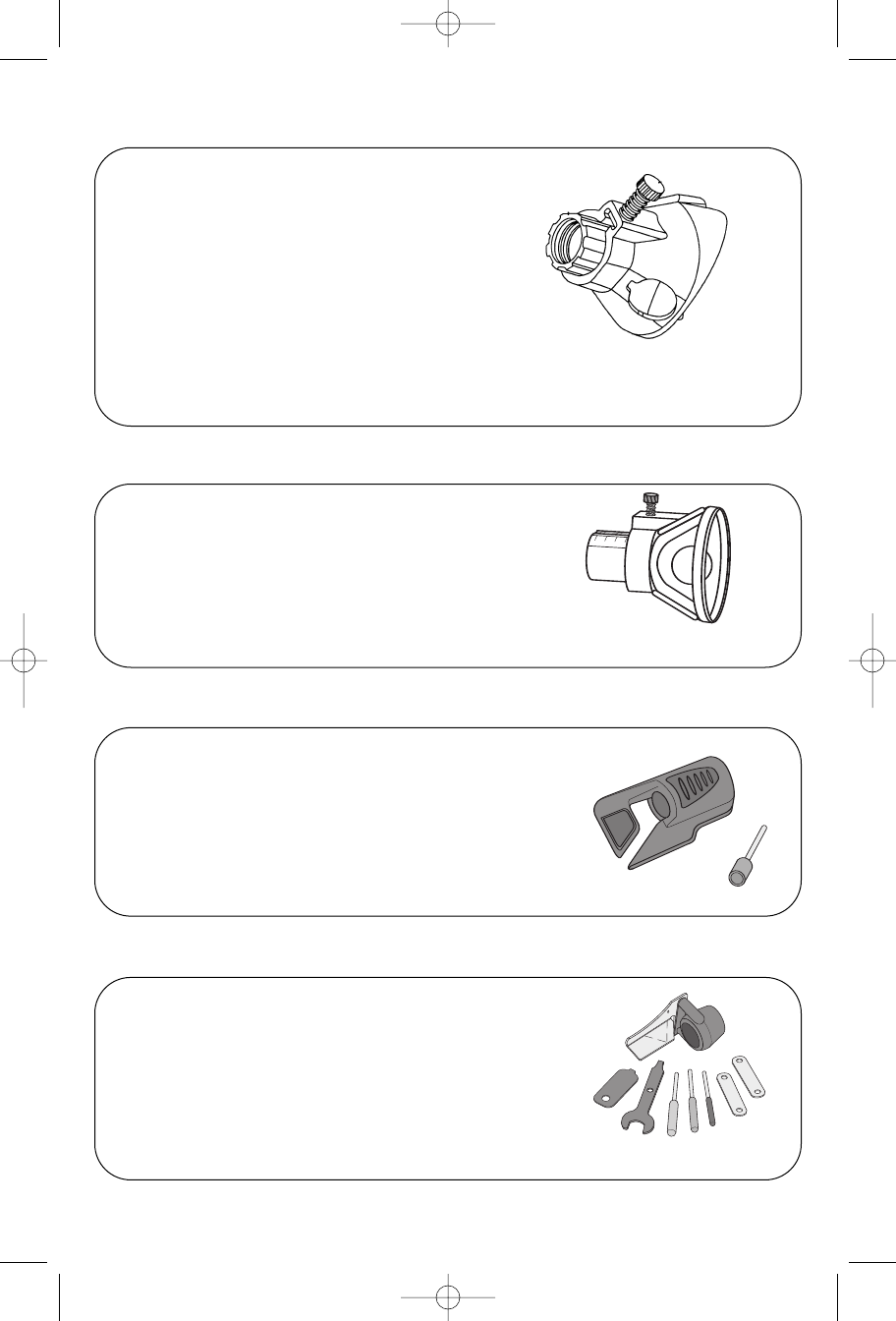

Lawn / Garden Sharpener
The fastest, easiest, safest way to sharpen your lawn mower
blade and other garden tools.
•Guide provides optimum sharpening angle
•Sharpens most rotary lawn mower blades
• Includes sharpening stone
30
o
30
o
GAGE
Chain Saw Sharpener
•Easily sharpen the dullest of chains
• Contains: sharpening attachment, 3 sharpening stones,
gauge, 2 spacers, wrench, instruction manual
Use with models: 275, 285, 395, 398, 770, 780, 800, 300 Series, 400 Series XPR.
Use with models: 275, 285, 395, 398, 770, 780, 800, 300 Series, 400 Series XPR.
ATTACHMENTS (continued)
Use with models: 275, 285, 395, 398, 770, 780, 800, 300 Series, 400 Series XPR.
Grout Removal
Fast and easy way to regrout any room or replace a
broken tile!
• Multiple side depth adjustment
• 30° angle for control cutting
• Guides 180° apart to keep bit centered between
tiles
• Easy screw mounting
• Includes 1/16" grout removal bit
3/4
1/2
1/4
0
Cutting Guide
Provides controlled cutting in a variety of materials
•Allows for sturdy controlled cuts with maximum visi-
bility
• Easy depth adjustment. Set to the correct cutting
depth for the project material.
Use with models: 275, 285, 395, 398, 770, 780, 800, 300 Series, 400 Series XPR.
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 20
![](asset-15.png)
21
ATTACHMENTS (continued)

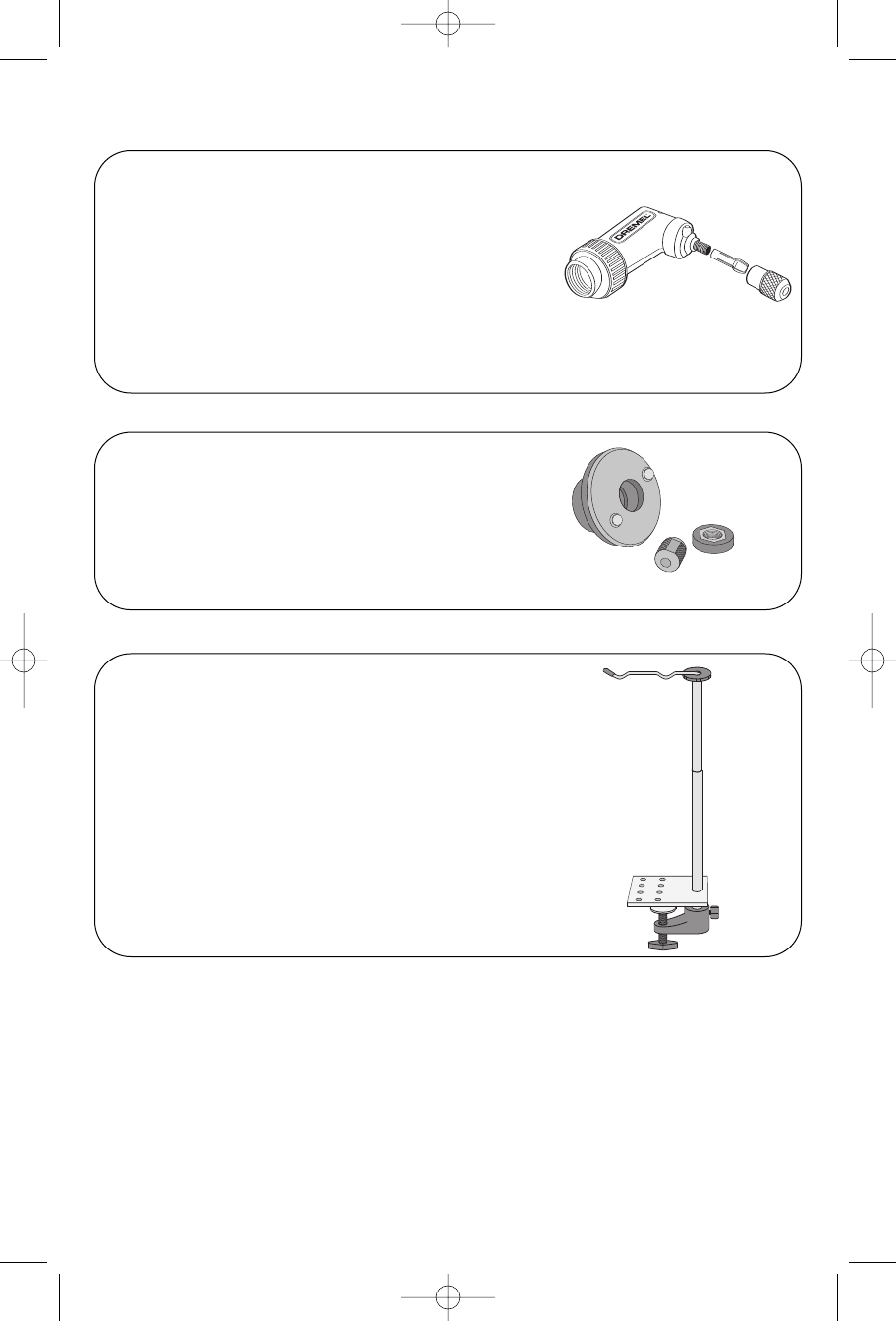

Dremelite
• Provides visibility in dimly lit areas and increases light on
detailed projects
• Two extremely long lasting and durable LED lights
•Uses a magnet threaded onto the tool’s output shaft to pro-
vide a clever and simple power source—no wires!
Right Angle
Enhances the versatility of the rotary tool by allowing you to
get into hard-to-reach places.
• Ball bearings and spiral gears provide smooth and cool
operation
• Coupling system allows you to orient the attachment on
your tool in 12 different directions
• Quick disconnect system easily attaches to your rotary tool
in place of the housing cap, no wrenches required
Use with models: 275, 285, 395, 398, 780, 800, 300 Series, 400 Series XPR.
Use with models: 275, 285, 395, 398, 770, 780, 800, 300 Series, 400 Series XPR.
Use with models: 275, 285, 395, 398, 300 Series, 400 Series XPR.
Flex Shaft Tool Holder
Conveniently suspends any Dremel rotary tool above your work-
bench.
•Perfect for use with the Flex-Shaft attachment
• Clamps to workbenches up to 1-3/4" thick, and adjusts in height
from 12" to 42"
• Store extra bits on base
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 21
![](asset-16.png)
22
14
14
8
234
6
7
5
10
10
11
11
15
13
1
9
8
16

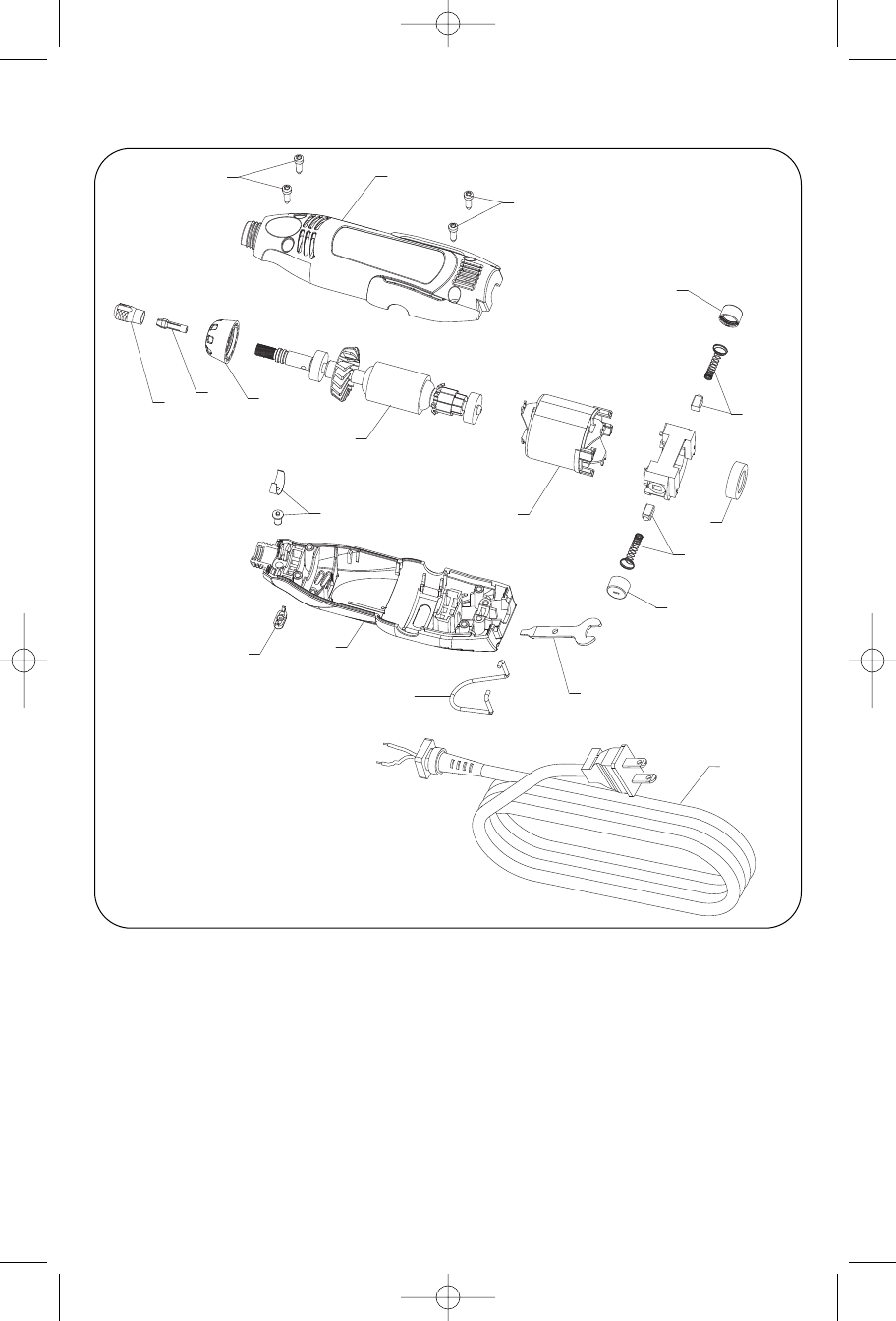

SERVICE PARTS & DIAGRAM
Ref. Part No. Description
1 2615990962 Wrench
2 2615297355 Collet Nut
3 2615110480 1/8" Collet (In Tool)
4 2615919754 Nose Cap
52610912779 Armature and
Bearing Assembly
6 2610907324 Field Assembly
7 2610913818 Shaft Lock Assembly
82610925724 Housing Set
9 2610925720 Hanger
Ref. Part No. Description
10 2610912785 Brush Cap (Pair)
11 2615302695 Brush & Brush Spring
(Pair)
12 2610938877 Switch Assembly
13 2610999103 Cord
14 2615294035 Screws (Individual)
15 2615297373 Rubber Bearing
Sleeve
16 2610925721 Glamour Cap
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 22
![](asset-17.png)
23
NOTES:
DM 2610938876 03-06.qxd 3/17/06 9:21 AM Page 23
![](asset-18.png)
GUARANTEE
This DREMEL product has been carefully inspected before leaving the factory and car-
ries a guarantee of 2 years (“BASIC” : 1 year) from the date of purchase during which
period any defect caused by faulty material or manufacture will be corrected without
charge. Damage due to normal wear and tear, overload or improper handling will be
excluded from the guarantee. In case of a complaint, please, send the tool undismantled
together with proof of purchase to the nearest DREMEL Service Station, postal charges
prepaid. DREMEL reserves the right to decline responsibility in case of repairs made by
persons other than DREMEL service staff. In no event compensation can be claimed in
case of damage to the workpiece or injury to the tool user. This guarantee does not affect
your statutory rights (UK only). Information on guarantee in instruction manual herewith
expires.
