Drift Innovation FD9975 GHOST-X (Sport DV) User Manual

Drift Innovation Ltd GHOST-X (Sport DV)

User Manual

EN IGHOST XQuick GuideGHOST XGHOST 4K

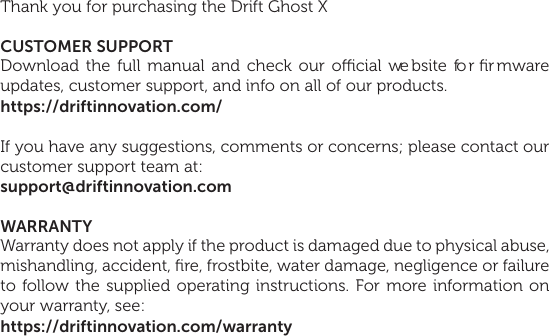

1Thank you for purchasing the Drift Ghost XCUSTOMER SUPPORTDownload the full manual and check our ocial website for fir mware updates, customer support, and info on all of our products.https://driftinnovation.com/If you have any suggestions, comments or concerns; please contact our customer support team at:support@driftinnovation.comWARRANTYWarranty does not apply if the product is damaged due to physical abuse, mishandling, accident, fire, frostbite, water damage, negligence or failure to follow the supplied operating instructions. For more information on your warranty, see:https://driftinnovation.com/warranty

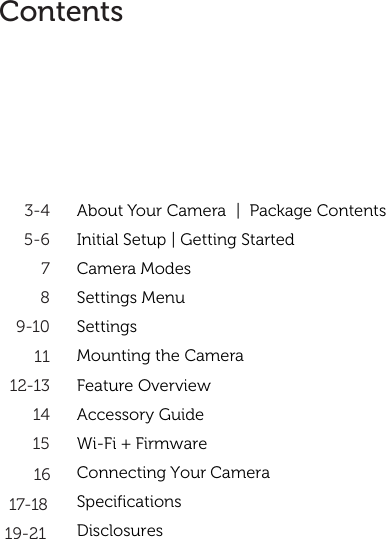

2About Your Camera | Package Contents Initial Setup | Getting StartedCamera ModesSettings MenuSettingsMounting the CameraFeature OverviewAccessory GuideWi-Fi + FirmwareConnecting Your Camera SpecificationsDisclosures3-45-6789-101112-1314151617-1819-21Contents
3Rear ButtonStatus LEDMiddle ButtonRotating LensFront ButtonBattery Module Module LatchWi-Fi LEDRear ScreenMicrophone Reset Button MicroSD Card Slot 10 Pin Mini USB Port Rubber CoverAbout Your CameraADGHILBEJA BIC D EGJFNMCFKNHMK LGHOST 4K

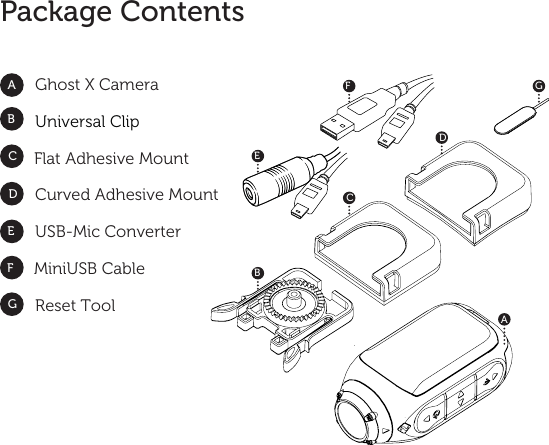

4ABDCEFGPackage ContentsAGhost X CameraUniversal ClipFlat Adhesive MountCurved Adhesive MountUSB-Mic Converter MiniUSB CableReset ToolBECF GD
5GHOST 4KInitial Setup1. Uncover the microSD slot by lifting its rubber cover.2. Insert a Class 10 or higher microSD/HC/XC card (up to 128GB). Format before first usage!3. Uncover the mini USB port by lifting its rubber cover4. Connect the camera via a mini USB cable to a powered USB port, and charge the battery for 2.5 hours before first use.5. Replace the rubber covers securely to cover both the microSD slot and mini USB port. You are ready to go!431 25

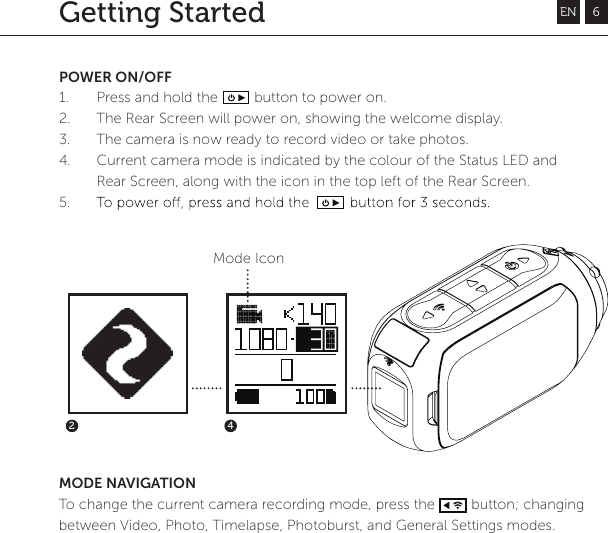

EN 6POWER ON/OFF1. Press and hold the button to power on.2. The Rear Screen will power on, showing the welcome display. 3. The camera is now ready to record video or take photos.4. Current camera mode is indicated by the colour of the Status LED and Rear Screen, along with the icon in the top left of the Rear Screen.5. 2 4Getting Started MODE NAVIGATIONTo change the current camera recording mode, press the button; changing between Video, Photo, Timelapse, Photoburst, and General Settings modes. Mode Icon

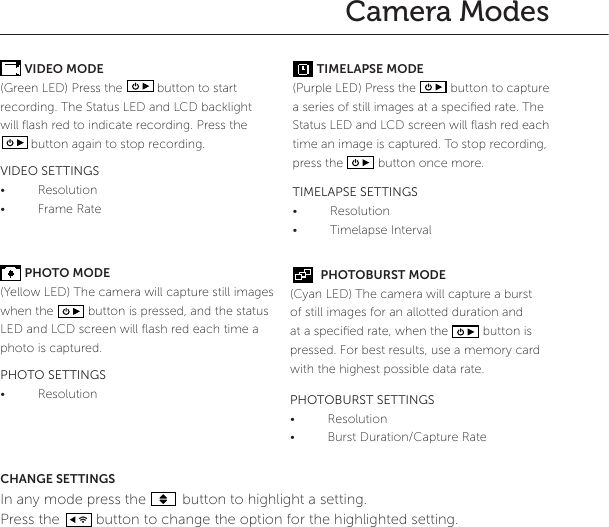

7Camera Modes VIDEO MODE(Green LED) Press the button to start recording. The Status LED and LCD backlight will flash red to indicate recording. Press the button again to stop recording. VIDEO SETTINGS• Resolution • Frame Rate PHOTO MODE(Yellow LED) The camera will capture still images when the button is pressed, and the status LED and LCD screen will flash red each time a photo is captured. PHOTO SETTINGS• ResolutionCHANGE SETTINGSIn any mode press the button to highlight a setting.Press the button to change the option for the highlighted setting. TIMELAPSE MODE(Purple LED) Press the button to capture a series of still images at a specified rate. The Status LED and LCD screen will flash red each time an image is captured. To stop recording, press the button once more. TIMELAPSE SETTINGS• Resolution• Timelapse Interval PHOTOBURST MODE(Cyan LED) The camera will capture a burst of still images for an allotted duration and at a specified rate, when the button is pressed. For best results, use a memory card with the highest possible data rate. PHOTOBURST SETTINGS• Resolution• Burst Duration/Capture Rate

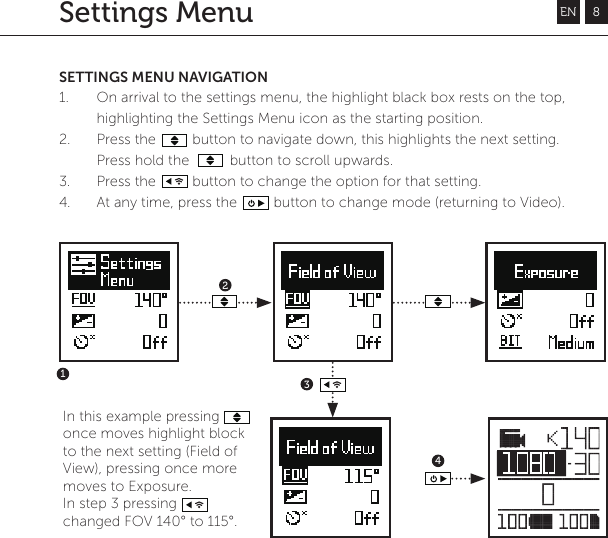

EN 8SETTINGS MENU NAVIGATION1. On arrival to the settings menu, the highlight black box rests on the top, highlighting the Settings Menu icon as the starting position.2. Press the button to navigate down, this highlights the next setting. Press hold the button to scroll upwards.3. Press the button to change the option for that setting.4. At any time, press the button to change mode (returning to Video).4123Settings MenuIn this example pressing once moves highlight block to the next setting (Field of View), pressing once more moves to Exposure.In step 3 pressing changed FOV 140° to 115°.

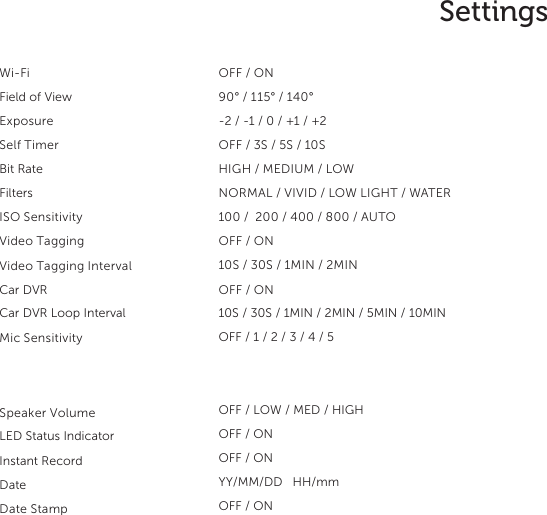

9Wi-FiField of ViewExposureSelf TimerBit RateFiltersISO SensitivityVideo TaggingVideo Tagging IntervalCar DVRCar DVR Loop Interval Mic SensitivityOFF / ON90° / 115° / 140°-2 / -1 / 0 / +1 / +2OFF / 3S / 5S / 10SHIGH / MEDIUM / LOWNORMAL / VIVID / LOW LIGHT / WATER 100 / 200 / 400 / 800 / AUTOOFF / ON10S / 30S / 1MIN / 2MINOFF / ON10S / 30S / 1MIN / 2MIN / 5MIN / 10MIN OFF / 1 / 2 / 3 / 4 / 5OFF / LOW / MED / HIGH OFF / ONOFF / ONYY/MM/DD HH/mmOFF / ONSettingsSpeaker Volume LED Status Indicator Instant RecordDateDate Stamp

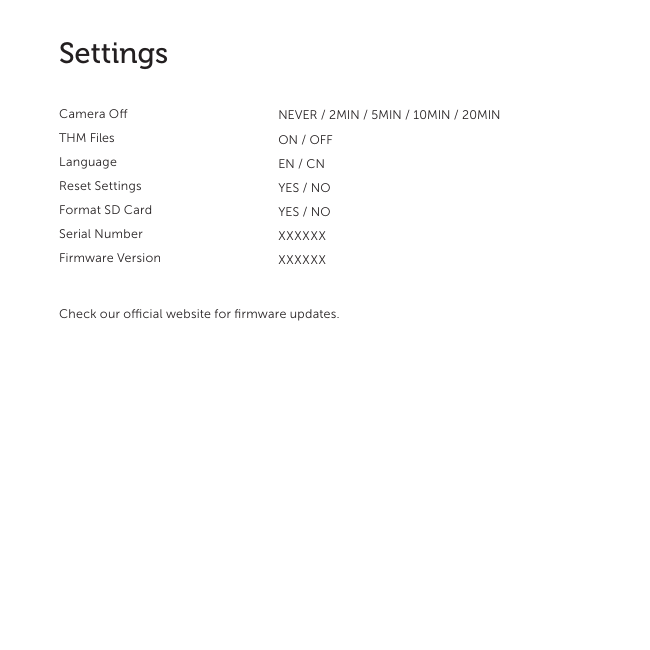

10SettingsCamera OTHM FilesLanguageReset SettingsFormat SD CardSerial NumberFirmware VersionCheck our ocial website for firmware updates.NEVER / 2MIN / 5MIN / 10MIN / 20MIN ON / OFFEN / CNYES / NOYES / NOXXXXXXXXXXXX
11 Mounting the Camera1. Attach the Universal Clip to the camera in any 360° orientation as needed – first position the clip in the desired orientation, then secure by rotating the screw base by hand. 2. Slide the Universal Clip into your chosen mount, ensuring that it ‘clicks’ into place. *Double check it has been fully inserted by pushing out the clips.3. Align your shot. Rotate the lens by hand, using the lens marker as an ‘up’ reference, mantaining it perpendicular to the ground for correct orientation. Lens Marker

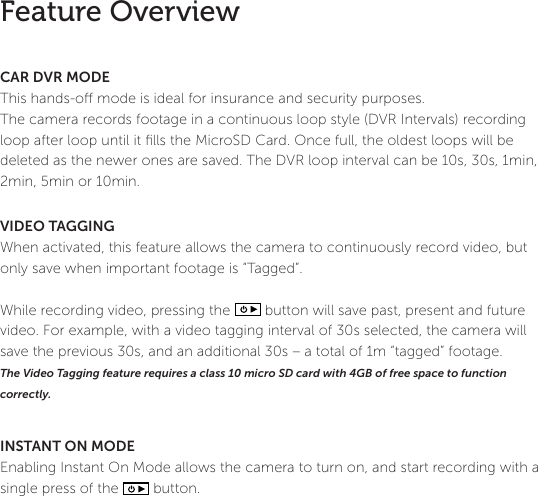

12Feature OverviewCAR DVR MODEThis hands-o mode is ideal for insurance and security purposes. The camera records footage in a continuous loop style (DVR Intervals) recording loop after loop until it fills the MicroSD Card. Once full, the oldest loops will be deleted as the newer ones are saved. The DVR loop interval can be 10s, 30s, 1min, 2min, 5min or 10min. VIDEO TAGGINGWhen activated, this feature allows the camera to continuously record video, but only save when important footage is “Tagged”. While recording video, pressing the button will save past, present and future video. For example, with a video tagging interval of 30s selected, the camera will save the previous 30s, and an additional 30s – a total of 1m “tagged” footage. The Video Tagging feature requires a class 10 micro SD card with 4GB of free space to function correctly. INSTANT ON MODEEnabling Instant On Mode allows the camera to turn on, and start recording with a single press of the button.

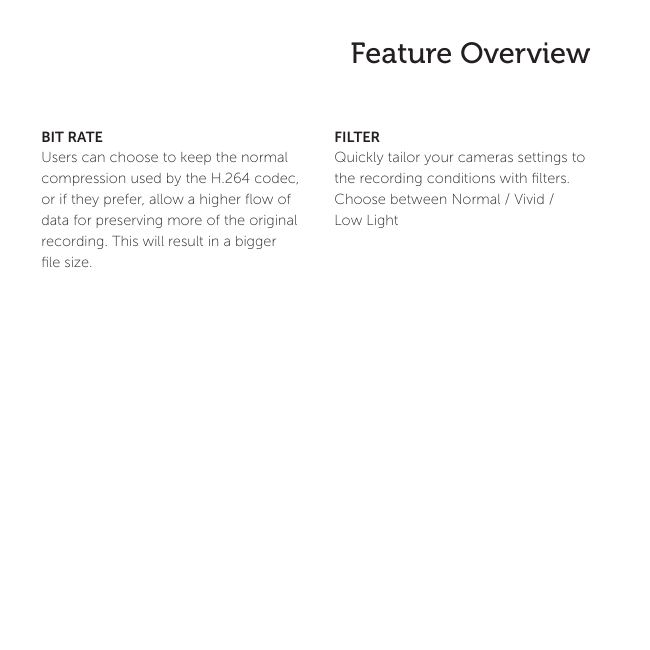

13 Feature OverviewFILTERQuickly tailor your cameras settings to the recording conditions with filters. Choose between Normal / Vivid / Low Light BIT RATEUsers can choose to keep the normal compression used by the H.264 codec, or if they prefer, allow a higher flow of data for preserving more of the original recording. This will result in a bigger file size.

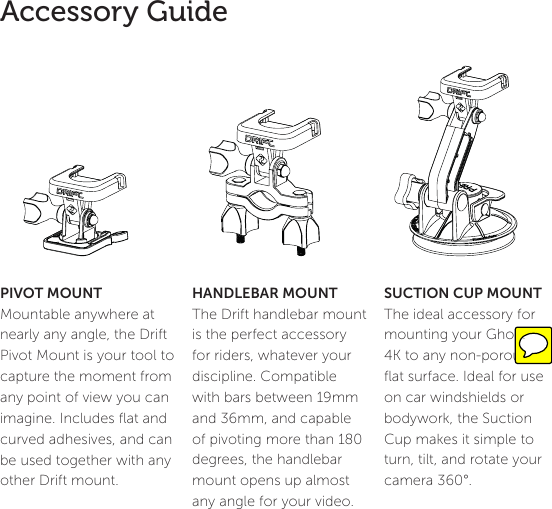

14Accessory GuideSUCTION CUP MOUNT The ideal accessory for mounting your Ghost 4K to any non-porous flat surface. Ideal for use on car windshields or bodywork, the Suction Cup makes it simple to turn, tilt, and rotate your camera 360°. HANDLEBAR MOUNTThe Drift handlebar mount is the perfect accessory for riders, whatever your discipline. Compatible with bars between 19mm and 36mm, and capable of pivoting more than 180 degrees, the handlebar mount opens up almost any angle for your video.PIVOT MOUNTMountable anywhere at nearly any angle, the Drift Pivot Mount is your tool to capture the moment from any point of view you can imagine. Includes flat and curved adhesives, and can be used together with any other Drift mount.

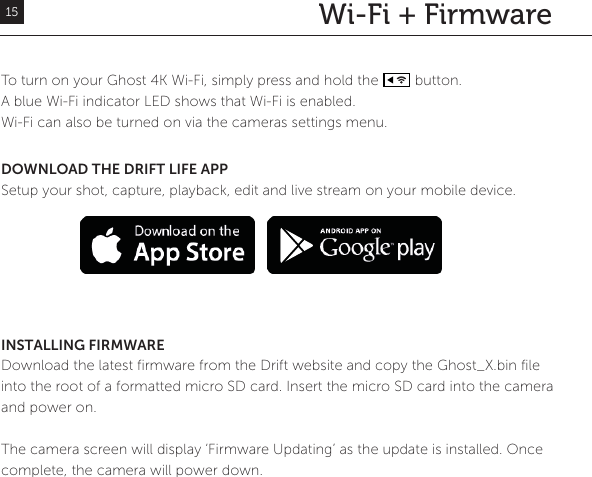

Wi-Fi + FirmwareTo turn on your Ghost 4K Wi-Fi, simply press and hold the button. A blue Wi-Fi indicator LED shows that Wi-Fi is enabled. Wi-Fi can also be turned on via the cameras settings menu.DOWNLOAD THE DRIFT LIFE APPSetup your shot, capture, playback, edit and live stream on your mobile device. INSTALLING FIRMWAREDownload the latest firmware from the Drift website and copy the Ghost_X.bin file into the root of a formatted micro SD card. Insert the micro SD card into the camera and power on. The camera screen will display ‘Firmware Updating’ as the update is installed. Once complete, the camera will power down.15

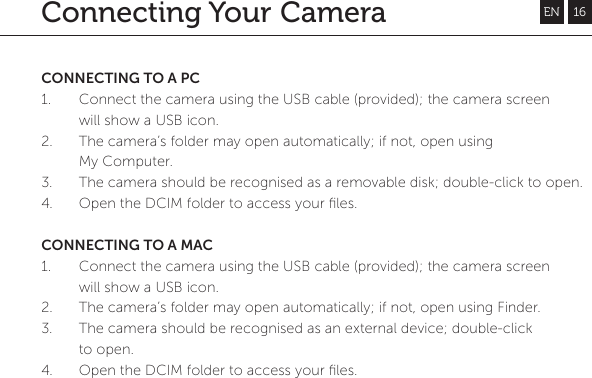

Connecting Your CameraCONNECTING TO A PC1. Connect the camera using the USB cable (provided); the camera screen will show a USB icon.2. The camera’s folder may open automatically; if not, open using My Computer.3. The camera should be recognised as a removable disk; double-click to open.4. Open the DCIM folder to access your files.CONNECTING TO A MAC1. Connect the camera using the USB cable (provided); the camera screen will show a USB icon.2. The camera’s folder may open automatically; if not, open using Finder.3. The camera should be recognised as an external device; double-click to open.4. Open the DCIM folder to access your files.EN 16

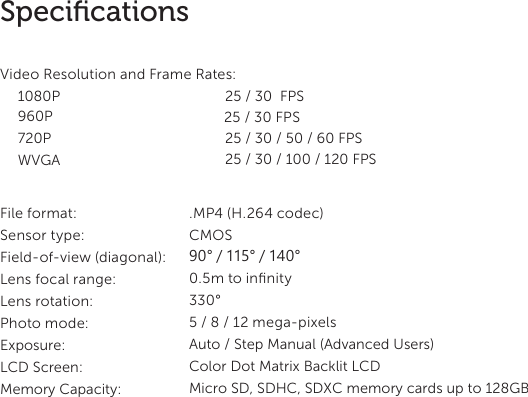

17SpecificationsVideo Resolution and Frame Rates:1080P 25 / 30 FPS 25 / 30 FPS 960P 720P WVGA 25 / 30 / 50 / 60 FPS25 / 30 / 100 / 120 FPS File format: .MP4 (H.264 codec)Sensor type: CMOSField-of-view (diagonal): Lens focal range: Lens rotation: Photo mode: Exposure: LCD Screen: Memory Capacity: 90° / 115° / 140°0.5m to infinity330°5 / 8 / 12 mega-pixelsAuto / Step Manual (Advanced Users)Color Dot Matrix Backlit LCD Micro SD, SDHC, SDXC memory cards up to 128GB

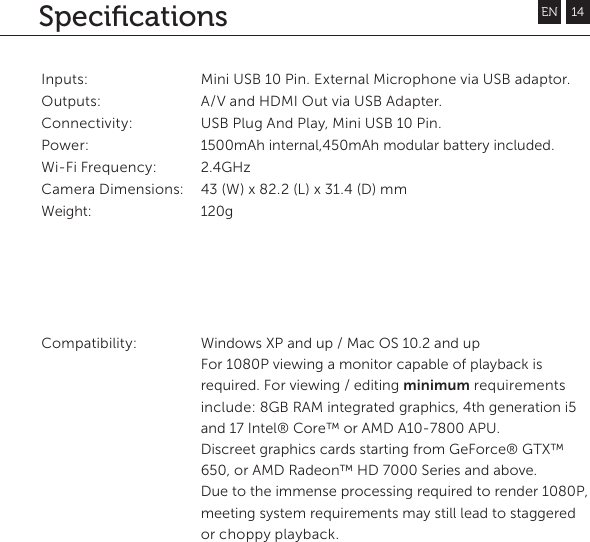

SpecificationsInputs: Outputs: Connectivity: Power:Wi-Fi Frequency: Camera Dimensions: Weight:Compatibility: Mini USB 10 Pin. External Microphone via USB adaptor. A/V and HDMI Out via USB Adapter. USB Plug And Play, Mini USB 10 Pin.1500mAh internal,450mAh modular battery included. 2.4GHz43 (W) x 82.2 (L) x 31.4 (D) mm 120g Windows XP and up / Mac OS 10.2 and upFor 1080P viewing a monitor capable of playback is required. For viewing / editing minimum requirements include: 8GB RAM integrated graphics, 4th generation i5 and 17 Intel® Core™ or AMD A10-7800 APU. Discreet graphics cards starting from GeForce® GTX™ 650, or AMD Radeon™ HD 7000 Series and above.Due to the immense processing required to render 1080P, meeting system requirements may still lead to staggered or choppy playback.EN 14
facebook.com/driftinnovationinstagram.com/drift_innovationtwitter.com/driftinnovationvimeo.com/driftinnovationDRIFTINNOVATION.COMFind out more

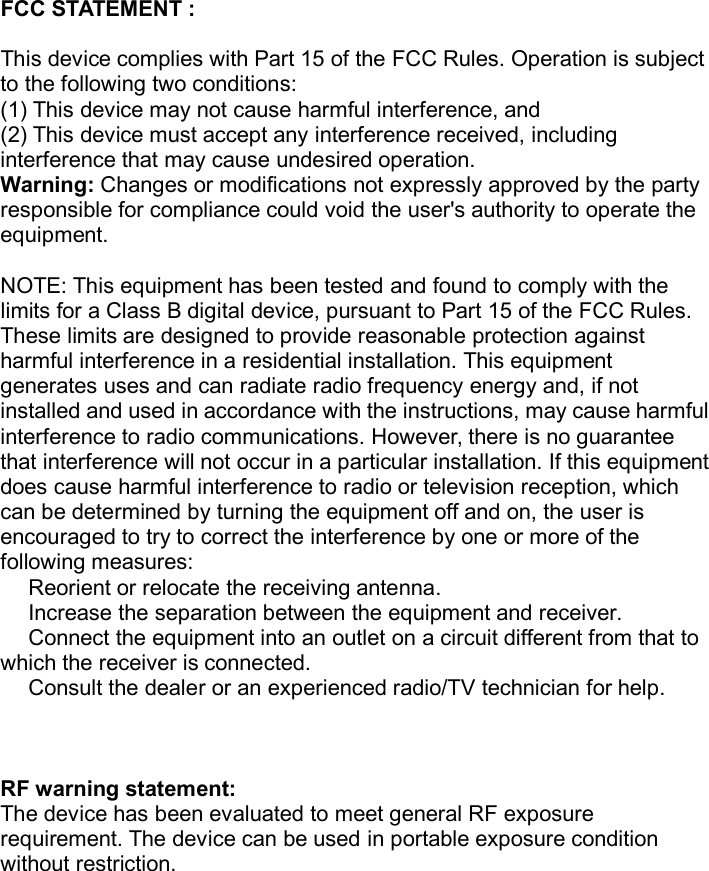

FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate theequipment.NOTE: This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of thefollowing measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure conditionwithout restriction.
