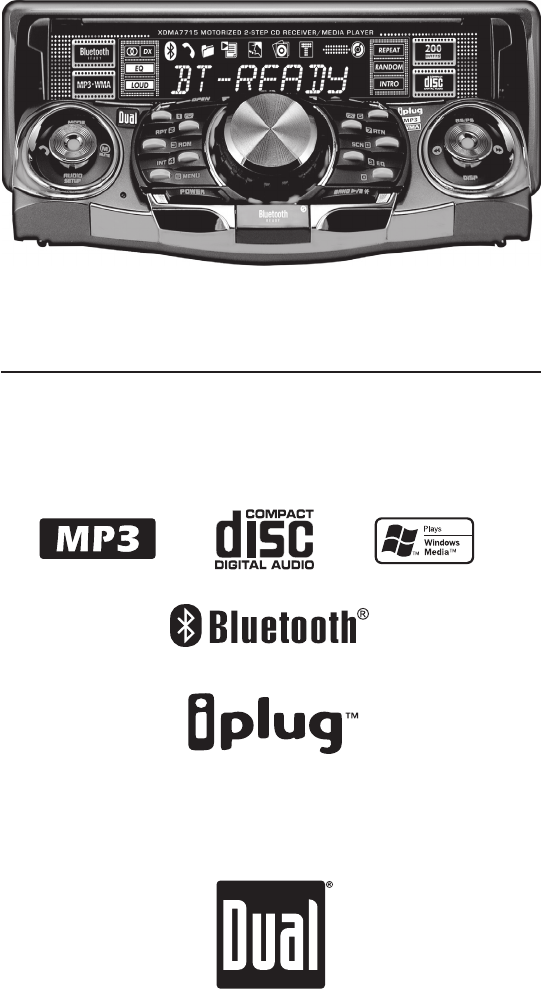

INSTALLATION/OWNER'S MANUAL
AM/FM/CD/MP3/WMA/Bluetooth® Ready Receiver
with 2-Step Motorized Detachable Face
XDMA7715
READY
![](asset-2.png)
2
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
Please read entire manual before installation.
Before You Start
•Disconnectnegativebatteryterminal.Consultaqualifiedtechnicianforinstructions.
•Avoidinstallingtheunitwhereitwouldbesubjecttohightemperatures,suchasfrom
directsunlight,orwhereitwouldbesubjecttodust,dirtorexcessivevibration.
Getting Started
•Removetrimringfromunit,
•Remove2transitscrewslocated
ontopoftheunit.
•Insertthesuppliedkeysintothe
slotsasshown,andslidetheunit
outofthemountingsleeve.
•Installmountingsleeveinto
opening,bendingtabstosecure.
•Connectwiringharnessand
antenna.Consultaqualified
technicianifyouareunsure.
•Certainvehiclesmayrequirean
installationkitand/orwiring
harnessadapter(soldseparately).
•Testforcorrectoperationandslide
intomountingsleevetosecure.
•Snaptrimringintoplace.
•Mounttheiplug™adaptertoany
smoothcleansurfaceusingthe
supplieddouble-sidedtapeor#2x
3/8”Phillipsheadscrews.
XDMA7715 INSTALLATION
Preparation
![](asset-3.png)
3
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheXDMA7715usesone
10ampATMfuselocated
besidethewiringconnector.
XDMA7715 INSTALLATION
Wiring Diagram
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
Antenna Connector
Yellow
Auxiliary Input
Subwoofer Preamp Output
Front Preamp Output
![](asset-4.png)
4
Talk/Redial
Mode/Search
Mute/EndCall
Preset2/Repeat
Preset1/FolderDown
Open
Volume
Eject
Preset6/FolderUp
Return/Key7
Tune/TrackDown
AS/PS/Enter/Key#
Tune/TrackUp
1
2
3
4
5
6
7
8
9
10
Display/Key0
TunerScan/Key8
EQ/Key9
Key0
Band/Play/Pause/Key*
InfraredSensor
Power
Preset5/Menu
Preset4/Intro
Preset3/Random
Reset
Audio/Setup
14
15
16
17
18
19
20
21
22
23 18
125 64
24
Note:Functionkeys7,8,9and0applytoBluetoothandMP3/WMAoperationonly.
XDMA7715 OPERATION
Control Locations - Receiver
16
13
14
15
89 10
7
22 20
21 17
19
11
12
13
311 12
23
24
25
25
![](asset-5.png)
5
XDMA7715 OPERATION
Control Locations - Remote
Mute/EndCall
Scan/Key8
Talk/Redial
Return/Key7
Preset5/Menu
Preset4/Intro
Preset1/FolderDown
Mode/Search
Tune/TrackDown
Band/Play/Pause/Key*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Power
VolumeUp
AS/PS/Enter/Key#
Audio/Setup
Tune/TrackUp
Display/Key0
VolumeDown
Preset3/Random
Preset2/Repeat
Preset6/FolderUp
EQ/Key9
12
4
3
6
5
8
19
9
10
11
12
15
17
18
7
20
21
13
14
16
20
21
![](asset-6.png)
6
The front panel is semi-permanently attached during
assembly. Please refer to the separate yellow instructions
(before installation) to make the front panel removable.
Withtheunitoff,pressEJECTtoallowthefrontpaneltoslide
down.Gentlysqueezethereleasetablocatedonthebottom
centerundersideandpullfrontpaneldownandawayfrom
unittoremove.Toinstall,insertleftsidefirst,thenpushright
sidetosecure.
Press POWERoranyotherbutton(exceptEJECTorOPEN)
toturntheuniton.Insertingadiscwillturntheuniton
automatically.PressPOWERtoturntheunitoff.
Press MODEtoselectbetweenAM/FM,CDplayer,auxiliary
inputandBluetooth(optional).Modesofoperationare
indicatedinthedisplay.
NOTE:CDandBluetoothmodeswillnotappearunlessaCD
isinsertedorBTM60(Bluetoothmodule)isattached.
Adjustvolumeusingrotaryencoder(00-46).
PressandholdPOWERfor3secondstoprogramcurrently
selectedvolumelevel."P-VOL"andthecurrentvolumelevel
willmomentarilyappearinthedisplay.
Press EQ toselectbetweenPOP,JAZZ,CLASSIC,BEAT,
ROCKandOFF(default)equalizationcurves.Anyadjustment
totheBassorTreblesettingsautomaticallycancelsthe
currentEQcurve(ifoneisselected).
WheninAM/FM,CD,orAUXmode:
Press DISPtoselectbetweenclockandradiofrequency
(tunermode),clockandCDelapsedtime/track(CDmodeor
clockandAUX(AUXmode).
Withtheuniton,pressandholdDISPuntiltheclockbeginsto
flash,thenrelease.PressTUNE
nn
toadjustthehoursand
TUNE
ll
toadjusttheminutes.PressDISPmomentarilyto
savetheselectedtime.
Front Panel Note:
Front Panel Removal
Power On/Off
Mode
Volume
Programmable
Turn-On Volume
Preset EQ Curves
Display
Set the Clock
XDMA7715 OPERATION
General Operation
![](asset-7.png)
7
XDMA7715 OPERATION
General Operation - Setup Menu
Menu Function Options Action
Loudness Curve LOUDOFF Disablestheloudnessfunction.
LOUDON Enablestheloudnessfunction.Activatingthisfeature
willenhancethebassandtreblefrequencieswhen
listeningtomusicatlowvolumes.
Tuner Frequency
Spacing
FREQUSA ProgramstheunittoUSAtunerspacing.
(200kHzforFMand10kHzforAM)
FREQEUR ProgramstheunittoEuropeantunerspacing.
(50kHzforFMand9kHzforAM)
Clock Display CLKOFF Programstheunittonotdisplaytheclockwhenthe
powerisoff.
CLKON Programstheunittodisplaytheclockwhenthepower
is off.
Auxiliary Mode AUXON Enablesaccesstoauxiliarymode.
AUXOFF Disablesaccesstoauxiliarymode.
Beep
Confirmation
BEEPOFF Disablestheconfirmationbeep.
BEEPON Enablestheconfirmationbeep.
Local/Distance
Tuning
LOCOFF ActivatesDistancetuning.
LOCON ActivatesLocaltuningforstrongstationreceptiononly.
Subwoofer Mode SB-WOFF DisablesthesubwooferRCAoutput.
SB-WON ActivatesthesubwooferRCAoutput.Subwoofercontrol
willbeavailableintheaudiomenu.
Power on
Message
MSGOFF Disablespoweronmessage.
MSGON Enablespoweronmessagetobedisplayed.
Demonstration
Mode
DEMOON Enablesthe"BTREADY"message.
DEMOOFF Disablesthedemonstrationmode.
12/24-hour Clock
Setup Menu
Theclockwilldisplay12-hourAM/PMtimeinUSAfrequency
spacingmode(PM10:00).InEuropeanfrequencyspacing
mode,theclockwilldisplay24-hourtime(22:00).
PressandholdSETUPformorethan3secondstoaccess
thesetupmenu.PressSETUPmomentarilytoselect
betweenthemenufunctionsandrotatetherotary encoder
left/righttoadjustoractivatethedesiredfunction.
![](asset-8.png)
8
Press AUDIOmomentarilytoselectbetweenVolume
(default),Bass,Treble,Balance,Faderand*Subwoofer.
Press AUDIO until BASappearsthenrotateencoder
left/righttoadjust(-6minimum/+6maximum).
Press AUDIO until TREappearsthenrotateencoder
left/righttoadjust(-6minimum/+6maximum).
Press AUDIO until BALappearsthenrotateencoder
left/righttoadjust(BALL12-BAL00-BALR12).
BAL00representsequalbalance
Press AUDIO until FADappearsthenrotateencoder
left/righttoadjust(FADF12-FAD00-FADR12).
FAD00representsequalfader
Press AUDIO until SUBappearsthenrotateencoder
left/righttoadjust(0minimum/+12maximum).
IndividualBassandTreblesettingsareretainedinmemory
forAM,FM,CD,AUXandBluetoothmodes.Thisallowsyou
tosavetheBassandTreblesettingsseparatelyforeach
mode.
Note:
AnyadjustmenttotheBassorTreblesettingsautomatically
cancelsthecurrentEQcurve(ifoneisselected).
Press RESETuponinitialinstallationorifabnormal
operationoccurs.Theresetbuttonislocatedbehindthe
faceplate.
Subwooferoptionmustbeenabledbeforeitwillappearin
theaudiomenu.Refertopage7fordetails.
Audio
Bass
Treble
Balance
Fader
*Subwoofer
Source Audio Memory
Reset
*Note
XDMA7715 OPERATION
General Operation
BASS VOLUME TREBLE BALANCE FADER
*SUBWOOFER
![](asset-9.png)
9
Seek Tuning
Manual Tuning
Scan Tuning
Band
Storing and Recalling
Station Presets
Automatically Store
Stations
Preset Scan
Press TUNE
nn
or TUNE
ll
momentarilytoseekthe
nextstrongstation.
Press TUNE
nn
or TUNE
ll
formorethan2seconds,
thenrelease."MANUAL"willmomentarilyappearinthe
display.PressTUNE
nn
or TUNE
ll
momentarilyto
moveradiofrequencyupordownonestepatatime.Press
andholdtoadvancequickly.Iftuningisnotadjustedfor5
seconds,theunitwillreturntoseektuningmode(default).
"AUTO"willmomentarilyappearinthedisplay.
Press SCNtopreviewstrongstationsonthecurrentband,
pausingfor5secondsateach.PressSCNagaintocancel.
Press BANDtoselectbetweenFM1,FM2,FM3,AM1and
AM2bands.
Upto18FMstationsand12AMstationscanbestored.To
storeastation,selectthedesiredbandandstation.Press
andholdthedesiredpresetbutton(1-6)formorethan
2seconds.Whenstored,thepresetnumberwillappearin
thedisplay.Thestationcanberecalledanytimebypressing
thecorrespondingpresetbutton.
Note:Functionkeys7,8,9and0applytoBluetoothand
MP3/WMAoperationonly.
Press AS/PSformorethan2secondstoautomaticallystore
thesixstrongeststationsinthecurrentband.Automatic
Localtuningisactivatedduringtheinitialbandscan.
Press AS/PSforlessthan2secondstoscanpresets1-6on
thecurrentband,pausingfor5secondsateach.Press
AS/PSagaintocancel.
XDMA7715 OPERATION
AM/FM Tuner Operation
![](asset-a.png)
10
Insert CD
Eject CD
Track Select
Fast Forward and Reverse
Pause
Scan
Repeat
Random
CD-R/CD-RW Compatibility
Withthelabelfacingup,insertastandardsizeCDintothe
CDslot.TheCDwillautomaticallybeginplayback.
Press EJECTtoejecttheCD.Theunitwillchangeto
previousmodeofoperation(AM,FMorauxiliaryinput).
Ifthediscisnotremovedwithin10seconds,theunitwill
reloadthedisc.Theunitdoesnothavetobeturnedonto
ejectCD.
Press TRACK
ll
toskiptothebeginningofthenext
track.PressTRACK
nn
toreturntothebeginningofthe
currenttrack.PressingTRACK
nn
againskipstothe
beginningoftheprevioustrack.
PressandholdTRACK
ll
or TRACK
nn
tofastforward
orreverseatrack.
Press
l
/
II
totemporarilystopCDplayback.
Press
l
/
II
againtoresumeplayback.
Press INT toplaythefirst10secondsofeachtrack.
Press INTagaintocancel.
Press RPTtocontinuouslyrepeatselectedtrack.
Press RPTagaintocancel.
Press RDMtoplayalltracksinrandomorder.PressRDM
againtocancel.Randommodeisretainedinmemorywhen
selectingbetweenAM/FMtuner,CDplayer,auxiliaryinput
andBluetoothmodesandwhentheunitisturned
off/on.
SomeCD-RsandCD-RWsmaybeincompatiblewiththis
unit,dependingonmediatypeandrecordingmethod.In
addition,thefollowingCDsmaybeincompatiblewiththis
unit:
CDsexposedtoextremetemperaturesordirectsunlight
forextendedperiodsoftime,CDsrecordedinwhicha
recordingsessionfailedorare-recordingwasattempted
and,orencryptedorcopy-protectedCDswhichdonot
conformtotheaudioCD-DAredbookrecordingstandard.
XDMA7715 OPERATION
CD Player Operation
![](asset-b.png)
11
XDMA7715 OPERATION
CD Player Operation - MP3/WMA Files
Playing an MP3/WMA Disc
Displaying Information
Title Icon
Artist Icon
Album Icon
Folder Icon
Character Support
WhenanMP3/WMAencodeddiscisfirstinserted,
“READING”willappearinthedisplay.Dependingonthe
numberoffilesandfolders,thismaytakeseveralseconds.
Press DISPtoselectbetweentracknumber/elapsedtime
(default),clock,trackname,directoryname,title,artistand
album.
“NOID3TAG”willbedisplayediftheMP3filecontainsno
ID3taginformation.
“UNKNOWN”willbedisplayediftheWMAfilecontainsno
WMAtaginformation.
“ROOT”willbedisplayedifthedirectorynameofaroot
folder is not labeled.
Thisiconwillilluminatewhenthesongtitleisdisplayed.
Thisiconwillilluminatewhentheartistnameisdisplayed.
Thisiconwillilluminatewhenthealbumnameisdisplayed.
Thisiconwillilluminatewhenthedirectorynameis
displayed.
Maximumcharacterdisplayinformation
•Trackname–32charactermaximum
•Directoryname–23charactermaximum
•*Songtitle–30charactermaximum
•*Artistname–30charactermaximum
•*Albumname–30charactermaximum
*Songtitle,ArtistName,andAlbumname,willonlybe
displayedifincludedwiththeMP3/WMAfile.
WhenreferringtoMP3/WMAplayback,thefollowingterms
aresynonymous:
•Filenameandtrackname
•Foldernameanddirectoryname
![](asset-c.png)
12
XDMA7715 OPERATION
CD Player Operation - MP3/WMA Files
Press SEARCH formorethan3seconds,toselectbetween
thefollowingmodes:
•DirectFileSelect
•AlphanumericFileorFolderSearch
•FileorFolderNavigate
Press SEARCH formorethan3seconds,thenrelease.
“MP3T*"or“WMAT*”willflashinthedisplay.Usethe
buttonsintheabovetable(3keystrokemaximuminput),
ortherotaryencodertoenterthedesiredfilenumber.
Press toconfirmtheselectedfilenumberorwaitfor
theinputcycletotimeout(approximately5seconds).
Ifthefileisnotavailable,“NOFILE”willbedisplayed
momentarilyandthecurrentfilewillcontinuetoplay.
Direct Select, Search and
Navigate Modes
Direct File Select
Step 1
Step 2
Refertothefollowingbuttonfunctiontablewhenselecting,searchingor
navigatingMP3/WMAfilesandfolders:
MP3/WMA Button Function Table
Button Function
SRCH DirectSelect,SearchandNavigateModes
Enter/Confirm
Preset#1 A,B,C,1
Preset#2 D,E,F,2
Preset#3 G,H,I,3
Preset#4 J,K,L,4
Preset#5 M,N,O,5
Preset#6 P,Q,R,6
Key#7 S,T,U,7
Key#8 V,W,X,8
Key#9 Y,Z,/,9
Key#0 -,_,+,0
AUDIO CharacterShift
RotaryEncoder(rotate) CharacterSelect(A,B,C~8,9,0)
MUTE CharacterBackspace
![](asset-d.png)
13
Press SEARCH formorethan3seconds,thenrelease.
Press SEARCH again,an"*"willflashinthedisplay.
Usethebuttonsinthetableonpage12(32character
maximuminput)ortherotaryencodertoenterthedesired
alphanumericsearchcharacters.PressAUDIOtoadvance
onecharactertotheright.
Press toinitiatetheselectedalphanumericsearch.
Turntherotaryencodertopreviewthesearchresults.
Ifthesearchreturnsafolder,theiconwillilluminate.
Press toselectthedesiredfileorfolder.Ifafolderis
selected,"/ /"willbedisplayed.Turntherotaryencoderto
therighttobeginsearchingfilesinthefolder.
Press toselectthedesiredfilewithinthefolder.
Note:
Ifthefileisnotavailable,“NOFILE”willbedisplayed
momentarilyandthecurrentfilewillcontinuetoplay.
Press SEARCH formorethan3seconds,thenrelease.
Press SEARCH againtwotimestonavigatefiles/folders
onthedisc.Thecurrentfoldernamewillscrollonetime
followedbyavailablefilesandfolders.
Turntherotaryencodertopreviewfiles/foldersinthe
currentfolder.Ifafolderisselected,theiconwill
illuminate.
Press toselectthedesiredfileorfolder.Ifafolderis
selected,"/ / "willbedisplayed.Turntherotaryencoderto
therighttobeginsearchingfilesinthefolder.
Press toselectthedesiredfilewithinthefolder.
Whennavigatingfolders(and“/ /“isdisplayed),press
AUDIOtoaccessthepreviouslevel(uponelevel).
*OnlyavailableonMP3/WMAdiscsrecordedwithmore
thanonefolder.
Alphanumeric File
or Folder Search
Step 1
Step 2
Step 3
Step 4
Step 5
File/Folder Navigate
Step 1
Step 2
Step 3
Step 4
*Folder Access
(Up one level)
CD Player Operation - MP3/WMA Files
XDMA7715 OPERATION
![](asset-e.png)
14
CD Player Operation - MP3/WMA Files
XDMA7715 OPERATION
Navigating Note
*Folder Access
File Repeat
File Repeat
(Current Folder Only)
Disc Random
Folder Random
Disc Intro
Folder Intro
Afternavigatingbydirectselect,alphanumericsearchor
file/foldernavigatemodes,thetracknumberandelapsed
timewillbedisplayedbydefault.PressDISPmomentarily
toselectclock,trackname,directoryname,title,artistand
album.
Presstoselectthepreviousfolder.
Presstoselectthenextfolder.
*FolderaccessisonlyavailableonMP3/WMAdiscsrecorded
withmorethanonefolder.
Press RPTmomentarilytocontinuouslyrepeatselectedfile.
Press RPTagaintocancel.
Press RPTformorethan2secondstoconsecutivelyrepeat
allfilesinthecurrentfolderonly.Theiconwillappearin
thedisplaywheninfolderrepeatmode.
Press RPTagaintocancel.
Press RDMmomentarilytoplayallfilesonentirediscin
random order. Press RDMagaintocancel.
Press RDMformorethan2secondstoplayallfilesin
currentfolderonlyinrandomorder.Theiconwillappear
inthedisplaywheninfolderrandommode.
Press RDMagaintocancel.
Press INTmomentarilytoplaythefirst10secondsofeach
fileontheentireMP3/WMAdisc.PressINTagaintocancel.
Press INTformorethan2secondstoplaythefirst10
secondsofeachfileinthecurrentfolderonly.Theicon
willappearinthedisplaywheninfolderintromode.
Press INTagaintocancel.
Note:
Filerepeat(currentfolderonly),folderrandomandfolder
introisonlyavailableonMP3/WMAdiscsrecordedwith
morethanonefolder.
![](asset-f.png)
15
Thefollowingtypesofdiscs/filesarecompatible:
•CD-ROM(ISO),CD-R,CD-RW
•CD-DA
•MP3data
•WMAdata
Thefollowingtypesofdiscs/filesarenotcompatible:
•WMAfilesthatareprotectedbyDRM(DigitalRights
Management).
•WMAlosslessformat
•DiscsrecordedwithTrackAtOnceorpacketwriting
•MP3PROformat
•MP3playlists
•WAVformat
MP3/WMAplaybacksequenceisbasedonrecordedorder
offilesandbeginsintherootfolderofthedisc.Anyempty
foldersorfoldersthatdonotincludeMP3/WMAfilesare
skipped.Thisunitmaynotplayfilesintheordertheywere
recordedin.Refertoyourrecordingsoftware’suser’smanual
for more information.
•ISO9660level1
•ISO9660level2
•YellowBookMODE1
•YellowBookMODE2FORM1
•Multisession
•Maximumfoldersandfiles-256
•Maximumfolderlevels-8
•MPEG-1/2/2.5AudioLayer-3
ISO9660standards:
•Maximumnestedfolderdepthis8(includingtherootfolder).
•Validcharactersforfolder/filenamesarelettersA-Z
(allcaps),numbers0-9,and“_”(underscore).Some
charactersmaynotbedisplayedcorrectly,dependingon
thecharactertype.
•ThisdevicecanplaybackdiscsinJoliet,Romeo,andother
standardsthatconformtoISO9660.MP3/WMAwritteninthe
formatsotherthantheabovemaynotplayand/ortheirfile
namesorfoldernamesmaynotbedisplayedproperly.
Media Compatibility
Playback Order
Compatible Recording
Formats
CD Player Operation - MP3/WMA Files
XDMA7715 OPERATION
![](asset-10.png)
XDMA7715 OPERATION
16
CD Player Operation - MP3/WMA Files
AninternalbufferprovidesESP(ElectronicSkipProtection)to
virtuallyeliminateskipping.
Whenplayingadiscrecordedwithregularaudiofiles
(CD-DAor.WAV)andMP3/WMAfiles,theunitwillplaythe
MP3/WMAfilesonly.
OnlyMP3fileswithfilenameextension(.mp3)canbeplayed.
OnlyWMAfileswithfilenameextension(.wma)canbeplayed.
Donotattempttoplaydiscswhichcontainnon-MP3/WMA
fileswiththeMP3/WMAextension.
8kHz~48kHz
32kHz~48kHz
8kbps~320kbpsconstant
Variable bit rates
32kbps~192kbpsconstant
Variable bit rates
Note:
Somefilesmaynotplayorbedisplayedcorrectly,
dependingonsamplingratesandbitrates.
ID3tagsVersion1.x
ThismodelwillnotdisplayID3Version2.0orgreatertags.
Forbestresults,usethefollowingsettingswhenburningan
MP3disc:
128kbpsorhigherconstantbitrate
44.1kHzorhighersamplingfrequency
Forbestresults,usethefollowingsettingswhenburninga
WMAdisc:
64kbpsorhigherconstantbitrate
32kHzorhighersamplingfrequency
Additional MP3/WMA
Information
Sampling Frequency Rates
MP3
WMA
Transfer Bit rates
MP3
WMA
MP3 Tag Display
Recommended Settings
![](asset-11.png)
Bluetooth® Operation (Optional)
Overview
ConnectingaBluetoothdevicerequiresfirstconnectingtheDual BTM60module(sold
separately).WhenconnectedtoaDualBluetoothReadyheadunit,theBTM60supports
theHFP(hands-freeprofile),A2DP(advancedaudiodistributionprofile)andAVRCP(audio
videoremotecontrolprofile).
Preparation
Beforeyoucanuseamobiledevicewiththisheadunit,itmustbeconnectedand
authenticated-commonlyreferredtoas"pairing"adevice.Pleasemakesurethat
Bluetoothisactivatedonyourmobiledevicebeforeyoubeginthepairingprocess.Refer
totheowner'smanualofyourmobiledeviceformoredetails.
Bluetooth Pairing
1)TopairaBluetoothenabledmobilephonetoyourheadunit,press ontheheadunit
orBTM60,orpressMODEuntil"DUAL_BTM60"isdisplayed.
2)Pressandhold ontheheadunitortheBTM60for5seconds,until"PAIRING"
isdisplayed,theBluetoothiconwillflasheverysecond.Theheadunitwillbeginto
broadcastasignalfor60seconds.
3)CompletethepairingfromtheBluetoothmenuofyourmobiledevicebysearchingfor
newdevices.Pleaserefertoyourmobiledeviceinstructionsforfurtherinformationon
Bluetoothpairingandconnections.TheBluetoothiconwillilluminatesolid.
The BTM60 device name is "DUAL_BTM60."
The password for the DUAL BTM60 is 1234.
General Notes
•DuetothedifferencesinBluetoothtechnology,somemobiledevicesmaybe
incompatibleorfunctionimproperlywhenusedwiththeBTM60.
•TheBTM60willstorethelasteight(8)devicesthathavebeenpairedinitsmemory.If
morethaneightdevicesarepaired,theheadunitwillremovetheoldestdevicefromits
memoryandthatdevicewillhavetobepairedagain.
Connection Notes
•IfACNT is set to OFF,youmustpress toconnectafterpairing.
•FromBluetoothstandbymode,pressMUTE todisconnectyourmobiledevicefromthe
BTM60.
•FromBluetoothstandbymode,press toreconnectyourmobiledevicetotheBTM60.
•Toconnectadifferentmobiledevice,thecurrentlyconnectedmobiledevicemustbe
disconnected.Ifthisdevicehasbeenpairedpreviously,youmayreconnectusingthe
mobiledevice'sBluetoothmenu,orrepeattheabovepairinginstructions.
XDMA7715 OPERATION
17
![](asset-12.png)
XDMA7715 OPERATION
18
Bluetooth® Operation (Optional)
Function Description
Making a Phone Call
Press once.An"_"willappearonthedisplay.
Inputthedesiredphonenumberusingthe0-9,*,#buttonsonthe
headunitfrontpanel.Press tobegindialing.
Aphonecallmayalsobeplacedfromyourmobiledeviceusing
thekeypad,phonebookorspeeddial.Whenacallisplacedfroma
mobiledevice,“DIALING”willappearontheheadunitdisplay.
Last Number Dialing
Toenterlastnumberdialingmode,press ,thenpress asecond
time.Theheadunitwilldisplay"LastNumberDialing."
Press KEY 0tocyclethroughthereceived,dialedormissedcall
categories.Rotatetherotary encodertocyclethroughthelast5calls
intheselectedcategory.
Press tobegindialingtheselectednumber.“DIALING”willappear
ontheheadunitdisplay.
Receiving a Phone
Call
Ifanincomingcallisdetected,theheadunitwillautomaticallyswitch
toBluetoothmode,mutinganycurrentaudio.
Theincomingphonenumberwillscrollacrossthedisplay,thephone
iconwillflashonthedisplay,andaringtonewillbeaudiblefromthe
vehiclespeakers.SeeBluetoothSettingsforspeakerconfigurations.
NOTE:Theringaudiolevelwilldependthemobiledeviceandhead
unitringvolumeandaudiosettings.Iftheringeronthemobiledevice
isoff,youmaynothearanincomingringtone.
Press ontheheadunitorBTM60toreceiveacall.Thephoneicon
willilluminatesolid.
Refusing a Call Torefuseanincomingphonecall,pressandholdMUTE for 3
seconds.
During a Phone Call
Theheadunitwilldisplaytheelapsedtimeofthephonecall.
Therotary encoderwilladjustthevolumeofthecall.
Press MUTEtoselectbetweenmicrophoneon(MICON)and
microphoneoff(MICOFF).
Audio Transfer
Totransferthephonecallbetweentheheadunitandthemobile
device,pressandholdDISPfor3secondsduringacall.Tip: transfer
audiotoyourmobiledevicebeforeturningtheheadunitoff.
Call Waiting
Whenasecondcallisincoming,press toactivatecallwaiting.The
currentcallwillbeplacedonhold,andthesecondcallwillbeactive.
Press againtoreturntothefirstcall.
Call Hold Press TALKtoplacethecurrentcallonhold.Toresumethephone
call,pressTALK again.
Ending a Phone Call
HoldMUTEfor3ormoresecondstoendacall.
Ifthephonecallwasreceived,theheadunitwillreturntoprevious
modewhencallisended.
![](asset-13.png)
Bluetooth® Settings (Optional)
MenuFunction Options Action
Bluetooth Mode
BTON EnablestheBTM60BluetoothInterfaceModule(sold
separately).TheBluetoothiconwillflashevery10
seconds.
BTOFF DisablesBluetoothsupport.
Auto Connect
ACNTON AllowstheBTM60toautomatically(re)connecttothe
mostrecentlyconnectedmobiledevice.Note:Some
mobiledevicesdonotsupportthisfeature.
ACNTOFF Disablestheautoconnectfeature.Youmustpress
everytimetoconnectamobiledevice.
Auto Answer
AANSOFF Disablestheautoanswerfeature.Press toreceive
anincomingcall.
AANSON Allincomingcallswillbeansweredautomatically
-withoutnotification.
Bluetooth Audio SPK2-CH DirectstheBluetoothaudiotothefrontspeakers.
SPK4-CH DirectstheBluetoothaudiotoall4speakers.
TheBTM60supportsA2DPwirelessstreamingaudiofromyourBluetoothmobiledevice
directlytoyourheadunit.Youcanalsocontrolyourmusicfromthefrontpanelofthehead
unitusingAVRCP.
Tostreammusictoyourheadunit,yourmobiledevicemustsupportthefollowingcriteria:
•A2DPprofiletostreamaudio
•AVRCPprofiletocontrolyourmusic.Checktheowner'smanualormanufacturer
ofyourdeviceforcompatibility.
•Streamingaudiomustbeenabledfromyourmobiledevice.Thisoptionwillvary
dependingonthedevice.Example:"Setaswirelessstereo."
•DisablingAVMODEmustbedonefromyourmobiledevice.
Afterenablingstreamingaudiofromacompatiblemobiledevice,theheadunitwilldisplay
"AVMODE."Thefollowingfunctionscanbeusedtocontrolmusic:
•The
ll
buttonwillskiptothenextavailableaudiotrack.
•The
nn
buttonwillskiptothepreviousaudiotrack.
•The
l
/
II
buttonwilltogglebetweenplayandpauseduringplayback.
•TheMUTEbuttonwillstoptheaudioplayback.
NOTE:Ifyouareexperiencingproblemswiththesefunctions,tryplayingmusicfromthe
mobiledevice.Onsomemobiledevices,itmaybenecessarytocontrolthemusicfromthe
device.
Bluetooth Streaming Audio Operation
(AV MODE)
XDMA7715 OPERATION
19
![](asset-14.png)
XDMA7715 WARRANTY
20
Limited One Year Warranty
Thiswarrantygivesyouspecificlegalrights.
Youmayalsohaveotherrightswhichvary
from state to state.
DualElectronicsCorp.warrantsthisproductto
theoriginalpurchasertobefreefromdefectsin
materialandworkmanshipforaperiodofone
yearfromthedateoftheoriginalpurchase.
DualElectronicsCorp.agrees,atouroption,
duringthewarrantyperiod,torepairanydefect
inmaterialorworkmanshiportofurnishan
equalnew,renewedorcomparableproduct
(whicheverisdeemednecessary)inexchange
withoutcharges,subjecttoverificationofthe
defectormalfunctionandproofofthedateof
purchase.Subsequentreplacementproducts
arewarrantedforthebalanceoftheoriginal
warrantyperiod.
Who is covered?Thiswarrantyisextended
totheoriginalretailpurchaserforproducts
purchasedfromanauthorizedDualdealerand
usedintheU.S.A.
What is covered?Thiswarrantycoversall
defectsinmaterialandworkmanshipin
thisproduct.Thefollowingarenotcovered:
software,installation/removalcosts,damage
resultingfromaccident,misuse,abuse,neglect,
productmodification,improperinstallation,
incorrectlinevoltage,unauthorizedrepairor
failuretofollowinstructionssuppliedwiththe
product,ordamageoccurringduringreturn
shipmentoftheproduct.Specificlicense
conditionsandcopyrightnoticesforthe
softwarecanbefoundviawww.dualav.com.
What to do?
1.Beforeyoucallforservice,checkthe
troubleshootingguideinyourowner’s
manual.Aslightadjustmentofanycustom
controlsmaysaveyouaservicecall.
2.Ifyourequireserviceduringthewarranty
period,youmustcarefullypacktheproduct
(preferablyintheoriginalpackage)andship
itbyprepaidtransportationwithacopyofthe
originalreceiptfromtheretailertoan
authorizedservicecenter.
3.Pleasedescribeyourprobleminwritingand
includeyourname,areturnUPSshipping
address(P.O.Boxnotacceptable),anda
daytimephonenumberwithyourshipment.
4.Formoreinformationandforthelocationof
thenearestauthorizedservicecenterplease
contactusbyoneofthefollowingmethods:
•Callustoll-freeat1-866-382-5476
•E-mailusatcs@dualav.com
ExclusionofCertainDamages:Thiswarranty
isexclusiveandinlieuofanyandallother
warranties,expressedorimplied,including
withoutlimitationtheimpliedwarrantiesof
merchantabilityandfitnessforaparticular
purposeandanyobligation,liability,right,
claimorremedyincontractortort,whether
ornotarisingfromthecompany’snegligence,
actualorimputed.Nopersonorrepresentative
isauthorizedtoassumeforthecompanyany
otherliabilityinconnectionwiththesaleof
thisproduct.Innoeventshallthecompanybe
liableforindirect,incidentalorconsequential
damages.
![](asset-15.png)
Troubleshooting
Problem Cause Action
Unit will not turn on
(no power)
Yellowwirenotconnectedorincorrect
voltageRedwirenotconnectedor
incorrectvoltage
Checkconnectionsforproper
voltage(11~16VDC)
Blackwirenotconnected Checkconnectiontoground
Fuseblown Replacefuse
Unit has power
(but no sound)
Speakerwiresnotconnected Checkconnectionsatspeakers
Oneormorespeakerwirestouchingeach
otherortouchingchassisground
Insulateallbarespeakerwires
fromeachotherandchassis
ground
Unit blows fuses
Yelloworredwiretouchingchassis
ground
Checkforpinchedwire
Speakerwirestouchingchassisground Checkforpinchedwire
Incorrectfuserating Usefusewithcorrectrating
Excessive skipping
Unitisnotmountedcorrectlyorbackstrap
isnotsecure
Checkmountingsleeveand
backstrapsupport
Physicaldefectinmedia(CD,CD-Ror
CD-RW)
Checkmediaforscratches
ERROR-01 appears
on display
Discreaderror PressejectorRESET
ERROR-02 appears
on display
Focuserrorordiscisinupsidedown PressejectorRESET
PROTECT appears
on display
TheWMAfileiscopy-protectedbyDRM
(DigitalRightsManagement)
WritediscusingWMAfilesthat
arenotcopy-protected
NO FILE appears
on display
Selectedfileisnotavailableindirector
alphanumericsearchmodes
Repeatsearchusingvalid
parameters
INVALID appears
on display
Thefileformatisincompatible Writediscusingvalidaudio
fileswith.mp3or.wmafile
extensions
Unit will not accept
a disc
CDmechanismpositionoutofalignment PressandholdEJECT for 3
secondstoresetCDmechanism
position
CDtransitscrewsstillinplace Remove2transitscrewslocated
ontopoftheunit
PAIRING FAILED
appears on the display
Pairingattempthasexceeded60seconds Retrypairingsequence.Pairing
mustcompletewithin60
seconds.
Phoneisnotsetupcorrectlytoconnectto
abluetoothhandsfreedevice.
Checktheowner'smanual
forinstructionsonenabling
Bluetooth.
Bluetoothdeviceisnotcompatiblewith
theBTM60
Contacttechnicalsupportfor
more information.
BTM60 reset
ResettheBTM60toclearthememory
ofpreviouslypairedmobiledevicesand
toclearrecentdialed/missed/received
phonecallsfrommemory
FromBluetoothstandbymode,
pressandholdMODEforBTM60
reset.
XDMA7715 OPERATION
21
![](asset-16.png)
XDMA7715 OPERATION
22
Specifications
Frequencyresponse: 10Hz-20kHz
Channelseparation@1kHz: >65dB
D/Aconverter: 1 Bit
Tuningrange: 87.5MHz-107.9MHz
Usablesensitivity: 8.5dBf
50dBquietingsensitivity: 10dBf
Stereoseparation@1kHz: 40dB
Frequencyresponse: 30Hz-13kHz
Tuningrange:530kHz-1710kHz
Usablesensitivity: 22uV
Frequencyresponse: 30Hz-2.2kHz
Operatingvoltage: 11-16 VDC, negative ground
Speakeroutputimpedance: 4~8 ohms
Lineoutputvoltage:2 Volts
Dimensions: 7" x 7" x 2" (178 x 178 x 51 mm)
Designandspecificationssubjecttochangewithoutnotice.
CD Player
FM Tuner
AM Tuner
General
CEA-2006PowerStandardSpecifications
(reference:14.4VDC+/-0.2V,20Hz~20kHz)
PowerOutput:17WattsRMSx4channelsat4ohmsand<1%THD+N
SignaltoNoiseRatio:80dBA(reference:1wattinto4ohms)
![](asset-17.png)
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
Warning:Changesormodificationstothisunitnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass
Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesigned
toprovidereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgenerates,usesandcanradiateradiofrequency
energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause
harmfulinterferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedetermined
byturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
Reorientorrelocatethereceivingantenna.•
Increasetheseparationbetweentheequipmentandreceiver.•
Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe•
receiverisconnected.
Consultthedealeroranexperiencedradio/TVtechnicianforhelp.•
FCC Compliance
XDMA7715 OPERATION
23
![](asset-18.png)
DualElectronicsCorp.
TollFree:1-866-382-5476
www.dualav.com
©2010DualElectronicsCorp.Allrightsreserved.
WindowsMediaandtheWindowslogoaretrademarks,orregisteredtrademarksofMicrosoftCorporationinthe
UnitedStatesandorothercountries.
TheBluetooth®wordmarkandlogosareownedbytheBluetoothSIG,Inc.andanyuseofsuchmarksbyNamsungisunderlicense.
Othertrademarksandtradenamesarethoseoftheirrespectiveowners.
NSA0210-V03
