INSTALLATION / OWNER'S MANUAL

Mobile Power Amplifiers

PERFORMANCE SERIES

DA304

DA602

DA604

DA904

DA4001

DA6001

DA8001

2

INSTALLATION

Preparation

Please read entire manual before installation. Due to the technical nature of

amplifiers, it is highly recommended that your Dual amplifier is installed by a

professional installer or an authorized dealer.

Before You Start

•Disconnectnegativebatteryterminal.(consultaqualifiedtechnicianfor

instructions)

•Avoidinstallingtheamplifierwhereitwouldbesubjecttohightemperatures,such

asfromdirectsunlight,orwhereitwouldbesubjecttodust,dirtorexcessive

vibration.

•Useextremecautionwhendrillingholestoavoiddamagingfuellinesorexisting

vehiclewiring.

•Allamplifierinstallationsrequirepower,signalandspeakerwires(notincluded).

•Anamplifierinstallationkit(soldseparately)ishighlyrecommendedtofacilitate

the installation. Consult your dealer for recommendations.

Mounting Location

•Chooseamountinglocationfortheamplifier.Suggestedlocationsincludeundera

seatorinthetrunk.

•Theamplifiercanbemountedhorizontal(recommended)orvertical.Foroptimum

performance,makesuretoprovideatleast1"ofspacearoundallsides.Donot

mounttheamplifierundercarpetsorwhereairflowisrestricted.

•Donotinstalltheamplifierwhereitmaybeexposedtomoisture.

•Theoptimummountinglocationvariesbetweenvehicles.Remembertotestall

amplifier functions before completing the final mounting procedure.

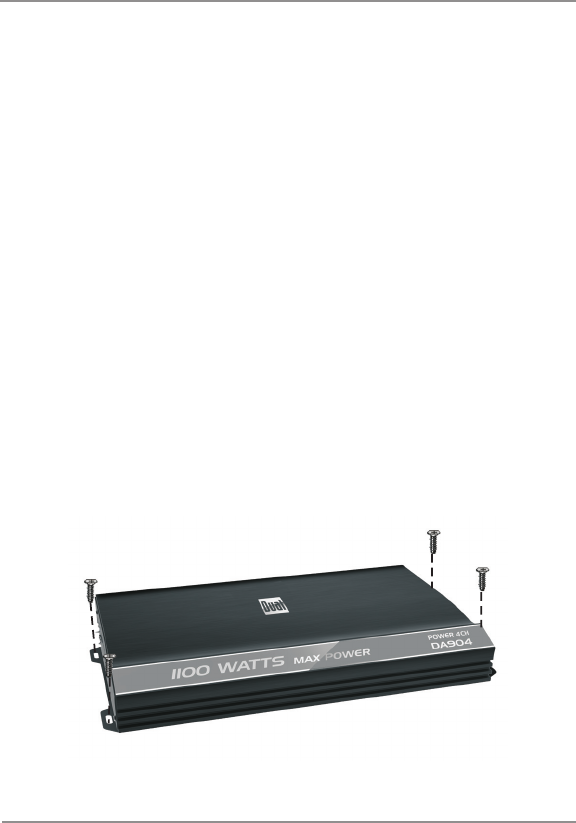

TYPICAL MOUNTING METHOD

NOTE:

Be sure to follow specific instructions included with your amplifier installation kit

(not included with this amplifier). The information below should be used as a general

guideline only.

Power Wire (+12V)

•Disconnectnegativebatteryterminalbeforeproceeding.Consultaqualified

technician for instructions if you are unsure.

•Planwireroutingbeforecuttinganywirestolength.Beginbyroutingthepower

+12Vwirefromthebatterytotheamplifierlocation.Useagrommetwhenrunning

wiresthroughthefirewallormetalopenings.Avoidrunningthepowerwirenear

existingvehiclewiringtopreventinducednoisefromenteringtheaudiosystem.

•Useextremecautionwhendrillingholestoavoiddamagingfuellinesorexisting

vehiclewiring.

•The+12VwireMUSTbefusedwithin18"ofthebatteryforprotectionofthevehicle’s

electrical system.

Ground Wire (GND)

•Theamplifiergroundwireshouldbeasshortaspossible(nomorethan36"or

1meter).Chooseacleanunpaintedsectionofmetalorthevehiclechassiswhen

attachingthegroundconnection.Besuretocleantheareaofanydirtorgrease.

Remote Turn-on Wire (REM)

•Theremoteturn-onwireconnectstotheheadunit'samplifierturn-onleador

powerantennaoutput.

Speaker Wires

•Chooseadequategaugespeakerwiredependingonyourexactamplifier/speaker

combination.Besuretoobservepolaritywhenconnecting.

•Donotgroundanyspeakerwiresorconnectanyspeakerwirestogether.

Input Signal

•Theamplifier'sinputsignalconnectstotheheadunit'slowlevel(RCA)orhighlevel

(speakerwire)outputs.

•Lowlevelinputsignalsdeliverthebestperformance.Ifunavailable,usethehigh

levelinputs-wheninterfacingwithfactoryheadunitforinstance.

CAUTION

•Donotusebothlowandhighlevelinputsatthesametime.Connectonlyoneorthe

other.

•Keeplowlevelinputsawayfromanypowerwirestoavoidenginenoise.

•Neverrunanywiresunderneathoroutsidethevehicle.

3

INSTALLATION

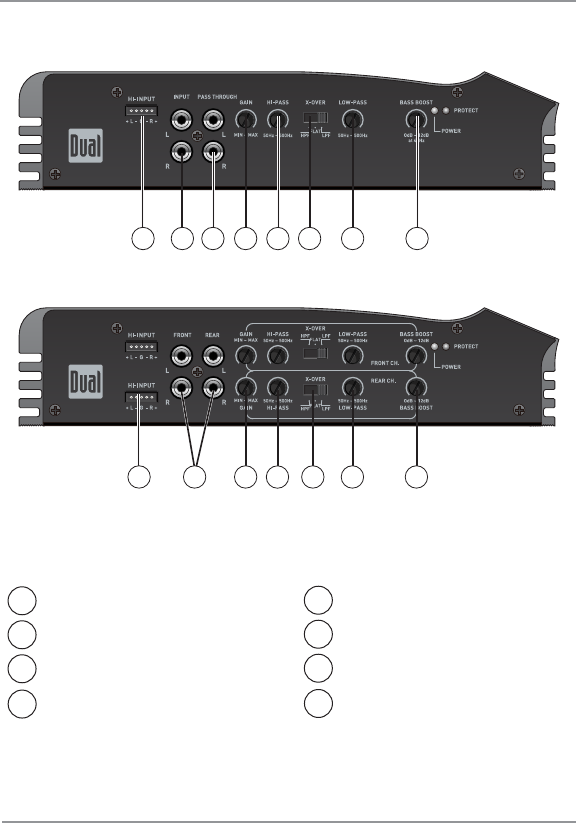

Connection Descriptions

DA602

DA304

DA604

DA904

High Level Inputs

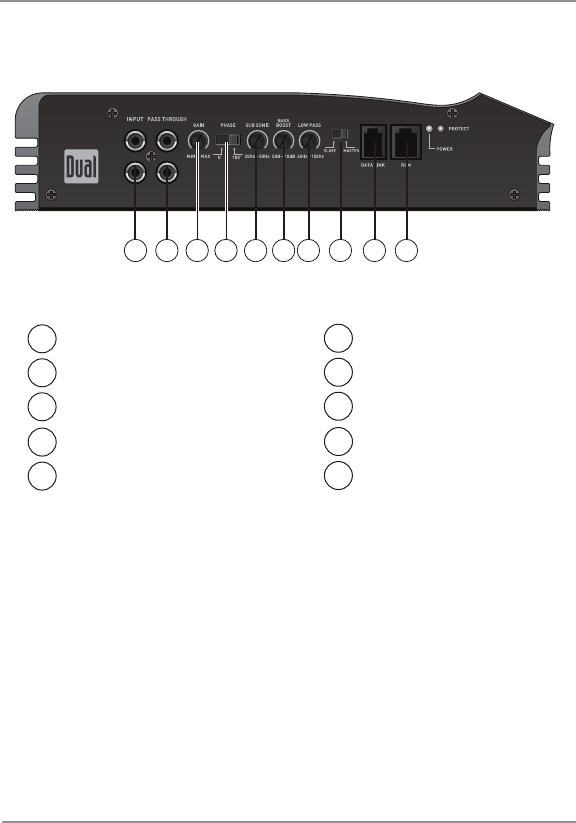

RCA Line Inputs

Pass Through

Gain

1

2

3

Hi-Pass Filter

Crossover Mode

Low-Pass Filter

Bass Boost

4

5

6

7

8

INSTALLATION

Audio Inputs and Controls

4

82 41 3 56 7

2 41 56 7 8

DA602

DA304

DA904

DA604

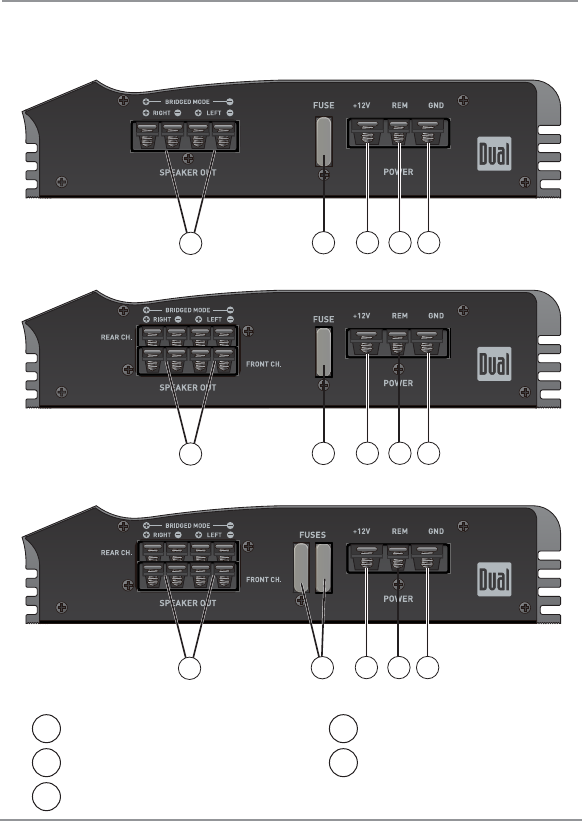

Speaker Connections

Fuse(s)

+12VDC Battery Connection

1

2

3

Remote Turn On

Ground Connection

4

5

INSTALLATION

Power and Speaker Connections

5

54

123

54

123

54

123

DA4001

DA6001

DA8001

RCA Line Inputs

Pass Through

Gain

Phase Control

Subsonic Filter

1

2

3

Bass Boost

Low Pass Filter

Slave/Master Controls

Data Link

Remote

4

5

6

7

8

9

10

INSTALLATION

Audio Inputs and Controls

6

2 41 3 56 7 8 9 10

DA4001

DA8001

DA6001

Speaker Connections

Fuse(s)

+12VDC Battery Connection

1

2

3

Remote Turn On

Ground Connection

4

5

INSTALLATION

Power and Speaker Connections

7

54

13

2

54

13

2

54

13

2

REM (Remote Turn On)

SPEAKERS

RCA CABLES

GROUND

FUSE

12V BATTERY

MAXIMUM

12V DC

(Power)

2-8 ohms

Fuse Rating

Whenreplacingfuses,makesurenewfuse

isthecorrecttypeandamperage.Usingan

incorrect fuse could damage the amplifier.

DA602 20Ax1

DA304 30Ax1

DA604 20Ax2

DA904 30Ax2

DA4001 30Ax3

DA6001 30Ax4

DA8001 30Ax5

Power/Ground Wire Size

Foroptimumperformance,useonlythewire

sizelistedbeloworlarger.Makesuretouse

thesamesizepowerandgroundwire.

DA304 4 Ga.

DA602 4 Ga.

DA604 4 Ga.

DA904 4 Ga.

DA4001 2 Ga.

DA6001 2 Ga.

DA8001 2 Ga.

Main Power Connections

Connect+12V,GNDandREMwiresaccordingly.AsuitablefuseMUSTbeinstalled

onthe+12Vleadwithin18"ofthebatteryforprotectionofthevehicle’selectrical

system.

8

INSTALLATION

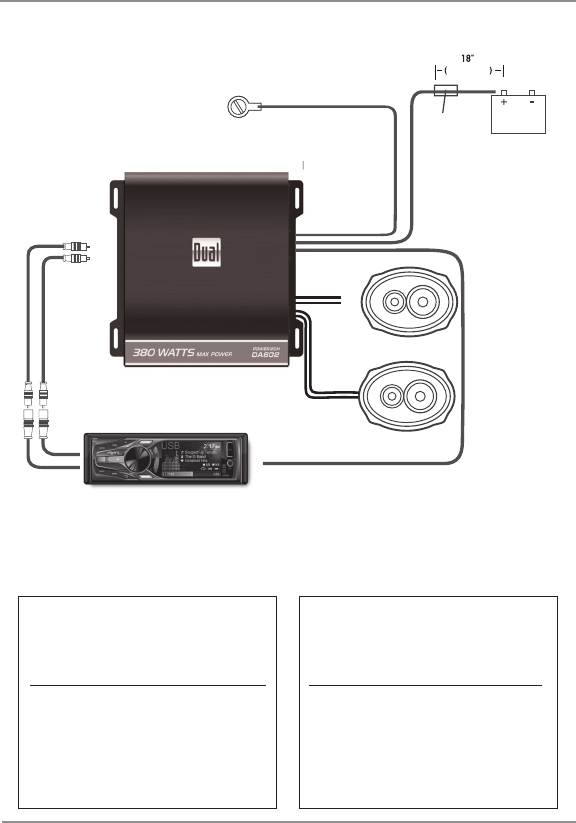

Typical Wire Routing

No more than 36"

(1 meter)

High-Level Input

(speaker cables)

Low-Level Input

(RCA)

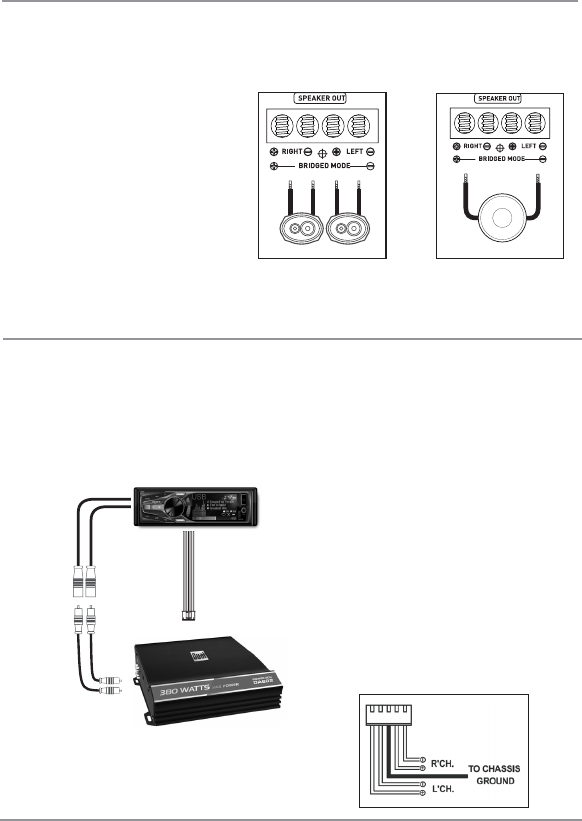

Speaker Connections

Connect speaker wires

observing polarity. The

minimum impedance load

for the DA304, DA602, DA604

and DA904 is 2 ohms stereo

and 4 ohms bridged. Use of

loads lower than these is not

recommended and may cause

amplifier damage. The DA304,

DA602, DA604 and DA904 can

be wired for stereo, bridged or

stereo/bridged simultaneous

operation.

Input Signal Connections

Low Level Input (RCA)

Low level (RCA) input signal is preferred for best performance. Typical trunk-

mount amplifier installations require a 17-20 foot RCA cable. Most trucks

and under-seat applications require a 6-9 foot RCA cable. Using twisted pair

construction RCA cables will minimize noise.

High Level Input

(Speaker Wire)

High level inputs should only

be used when RCA outputs are

not available from the head unit.

Connect the head unit speaker

outputs to the high level input

connector as shown below. The

black wire (signal reference

ground) may or may not require a

connection to chassis ground

- depending on your particular

installation.

1-8 ohms

Subwoofer (mono)

Typical Bridged Wiring

(4 ohms minimum)

2-8 ohms

2 Speakers (stereo)

Typical Stereo Wiring

(2 ohms minimum)

Note: Do not use both low and high level inputs

at the same time - connect only one or the

other. High level inputs not available on DA4001,

DA6001 and DA8001.

DA602 speaker connections shown

9

INSTALLATION

Amplifier Connections

INSTALLATION

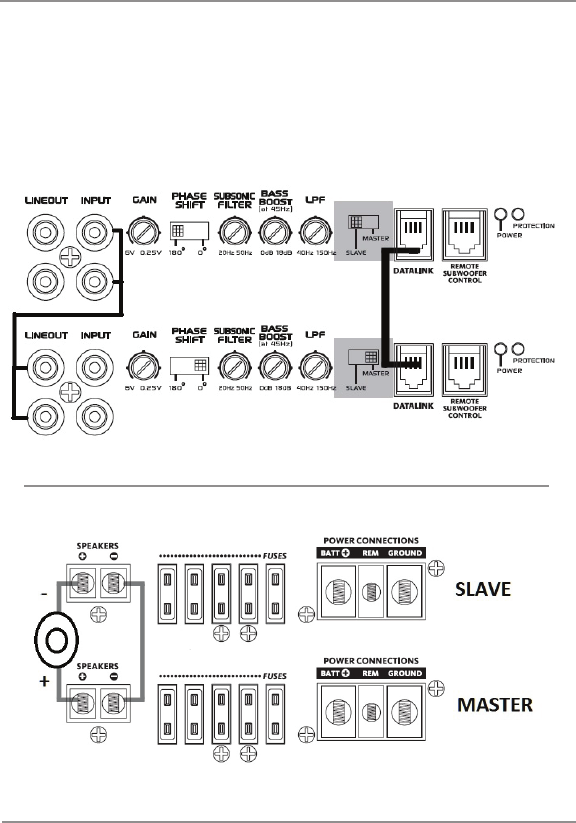

Master/Slave Mode

TheDualmonoampliersfeatureaMaster/Slavemode,wheretwoamplierscanbe

connectedtogether.Whentwomonoampliersareconnectedtogether,thepower

frombothampliersiscombined.

10

11

INSTALLATION

*MASTER

For master amplifier, set the switch to master. This will route the signal through Line-out to

the slave amplifier. Set the phase to 0, all adjustments for gain and sound are done on this

amplifier. The remote subwoofer control should be connected to master amplifier as well.

*SLAVE

For slave amplifier, set the switch to slave and phase to 180. Connect the Line-out of master

amplifier to input on this amplifier. All adjustments should be set to minimum.

Connect Data-Link plug from master to slave amplifier. For speaker connection, the positive

(+) of the speaker connects to positive (+) of master and negative (-) of the speaker connects to

positive (+) of slave amplifier. Connect both negatives (-) of master and slave each other.

NOTE: FOR BEST PERFORMANCE, USE WIRE 12 AWG OR THICKER FOR THE NEGATIVE TO

NEGATIVE CONNECTION.

*MINIMUM IMPEDANCE MUST NOT BE LOWER THAN 2 OHMS

Master/Slave Mode (cont.)

The input level control (gain) is used to obtain the

best possible match between the head unit audio

output and the amplifier input. Begin by turning

the input level control fully counterclockwise. Next,

turn up the head unit volume control around 3/4 of

the way up. Adjust the input level control clockwise

until audible distortion is heard, then slightly

counterclockwise to provide the best match.

Repeat for all input level controls.

The crossover is used to filter out frequencies

above or below a certain point. Choose LPF when

using the amplifier with subwoofers, HPF when

using with midrange/tweeter combinations and

FLAT when using with coaxial-type speakers.

Note: Choose FLAT when using the amplifier in

stereo/bridged simultaneous mode. In this mode,

passive crossovers are required. Failure to use

the correct passive components may damage the

amplifier and/or speakers. Consult a qualified

professional for recommendations.

This control allows precise adjustment of the

crossover frequency.

This control provides additional boost @ 45Hz

when used with subwoofers. Adjust this control

with caution - as improper use can damage

speakers!

Setting this control to the desired frequency will

limit harmful frequencies below the setting from

going to the subwoofer(s), preventing possible

damage from frequencies that subwoofers are not

designed to handle.

The green LED indicator illuminates during normal

operation (POWER) and the red LED indicator

is visible when the amplifier detects a fault

(PROTECT).

Input level Control

Crossover Mode

Crossover Frequency

Control

Bass Boost

Subsonic Filter

(DA4001, DA6001 &

DA8001)

LED Indicators

INSTALLATION

Configuration/Setup

12

Problem Cause Action

Unit will not turn on

(no power LED

indicator)

+12Vwirenotconnectedorincorrect

voltage.REMwirenotconnectedor

incorrectvoltage

Checkconnectionsforpropervoltage

(11~16VDC)

GNDwirenotconnected Checkconnectiontoground

Fuse(s)blown Replacefuse(s)

Unit has power -

LED is green (but

no sound)

Speakerwiresnotconnected Checkconnectionsatspeakers

Volumeturnedallthewaydown Increasevolumelevelatheadunit

Oneormorespeakerwirestouching

each other or touching chassis

ground

Insulateallbarespeakerwiresfrom

each other and chassis ground

Speaker(s)defectiveordamaged Check/replacespeaker(s)

Inputsignalnotconnected Checkhighorlowlevelinputsfor

proper connection

Unit blows fuse(s)

Incorrectfuserating Usefuse(s)withcorrectrating

+12Vwiretouchingchassisground Checkforpinchedwire

Speaker(s)defectiveordamaged Check/replacespeaker(s)

Engine noise

Badgroundconnection Makesureamplifierisgroundedto

clean bare metal

SignalgroundlooporRFI(radio

frequencyinterference)

Re-routeRCAcablesfromexisting

highcurrentwiring

LED illuminates red

(protect mode)

Oneormorespeakerwirestouching

each other or touching chassis

ground

Insulateallbarespeakerwiresfrom

each other and chassis ground

Speaker(s)defectiveor

damagedinternally(shorted) Check/replacespeaker(s)

Speakerloadlessthan2ohms

(stereo).Speakerloadlessthan4

ohms(bridged)

Adjustspeakerload-amplifierwill

not operate at less than 4 ohms

whenbridged

Distorted audio

output

Incorrectinputsignaltypeor

inputleveltoohigh

Checkconnectionsandreduce/

adjustinputlevel

Low audio output Incorrectinputsignaltypeor

inputleveltoolow

Checkconnectionsandincrease/

adjustinputlevel

Weak bass Speaker(s)arewiredoutofphase

Check(+)and(-)speaker

connections

(Observecorrectpolarity)

INSTALLATION

Troubleshooting

13

DA602

Power Output (14.4VDC, 20Hz ~ 20kHz):

•60 Watts RMS x 2 channels @ 4ohms

•100 Watts RMS x 2 channels @ 2ohms

•215 Watts RMS x 1 channel @ 4ohms (bridged)

Peak Music Power Output: 380 Watts

Signal to noise ratio: 90dB (THD< 0.05% @ 4Ω, 14.4V)

Frequency response: 10Hz– 35kHz (-3dB)

Amplifier dimensions: 2” x 9.3” x 7.9” (51 x 236 x 201 mm)

DA304

Power Output (14.4VDC, 20Hz ~ 20kHz):

•40 Watts RMS x 4 channels @ 4ohms

•65 Watts RMS x 4 channels @ 2ohms

•160 Watts RMS x 2 channels @ 4ohms (bridged)

Peak Music Power Output: 500 Watts

Signal to noise ratio: > 90dB (THD < 0.05% @ 4Ω, 14.4V)

Frequency response: 10Hz– 35kHz (-3dB)

Amplifier dimensions: 2” x 9.3” x 13.8” (51 x 236 x 351 mm)

DA604

Power Output (14.4VDC, 20Hz ~ 20kHz):

•60 Watts RMS x 4 channels @ 4ohms

•100 Watts RMS x 4 channels @ 2ohms

•215 Watts RMS x 2 channels @ 4ohms (bridged)

Peak Music Power Output: 650 Watts

Signal to noise ratio: > 90dB (THD < 0.05% @ 4Ω, 14.4V)

Frequency response: 10Hz– 35kHz (-3dB)

Amplifier dimensions: 2” x 9.3” x 15.7” (51 x 236 x 399 mm)

DA904

Power Output (14.4VDC, 20Hz ~ 20kHz):

•90 Watts RMS x 4 channels @ 4ohms

•140 Watts RMS x 4 channels @ 2ohms

•360 Watts RMS x 2 channels @ 4ohms (bridged)

Peak Music Power Output: 110 Watts

Signal to noise ratio: > 90dB (THD < 0.05% @ 4Ω, 14.4V)

Frequency response: 10Hz– 35kHz (-3dB)

Amplifier dimensions: 2” x 9.3” x 11.4” (51 x 236 x 290 mm)

INSTALLATION

Specifications

14

INSTALLATION

Specifications

DA4001

Power Output (14.4VDC, 20Hz ~ 250Hz):

•850 Watts RMS x 1 channel @ 2ohms

•1200 Watts RMS x 1 channel @ 1ohm

Peak Music Power Output: 3200 Watts

Signal to noise ratio: > 80dB (THD < 0.5% @ 4Ω, 14.4V)

Frequency response: 20Hz -150Hz (-3dB)

Amplifier dimensions: 2” x 9.3” x11.8” (51 x 236 x 300 mm)

DA6001

Power Output (14.4VDC, 20Hz ~ 250Hz):

•1200 Watts RMS x 1 channel @ 2ohms

•1800 Watts RMS x 1 channel @ 1ohm

Peak Music Power Output: 4200 Watts

Signal to noise ratio: > 80dB (THD < 0.5% @ 4Ω, 14.4V)

Frequency response: 20Hz -150Hz (-3dB)

Amplifier dimensions: 2” x 9.3” x 14.5” (51 x 236 x 368 mm)

DA8001

Power Output (14.4VDC, 20Hz ~ 250Hz):

•1500 Watts RMS x 1 channel @ 2ohms

•2500 Watts RMS x 1 channel @ 1ohm

Peak Music Power Output: 5200 Watts

Signal to noise ratio: > 80dB (THD < 0.5% @ 4Ω, 14.4V)

Frequency response: 20Hz -150Hz (-3dB)

Amplifier dimensions: 2” x 9.3” x 17.3” (51 x 236 x 439 mm)

15
