Users Manual
DE-600S
(RF CARD READER)
User´s Manual
DUALi INC.
Made in KOREA
Table of Contents
1. Specifications
2. Overview
3. Product Contents
4. Installation
5. Operation
6. Dimension and Characteristic
7. Technical Support
(Document Number : EP13-04-001)
USB 2.0(1.1)Host
Communication
ISO 14443 Type-A (Include
MIFARE) and Type-B, ISO 7816
Contact Card or SIM Type
Compatible
Card
65 ☓ 100 ☓ 40(mm)Size
0ﾟC 〜 50ﾟCOperating
Environment
USB Power (DC 5V), Max 200mAPower
Consumption
13.56MhzFrequency
Inside 10 cmRead Range
AVR Atmega128CPU
1. Specifications 2. Overview
1.1 DE-600S
- Support read / write the ISO14443
Type A & B RF-Card, Mifare Card Protocol.
- Host Communication : USB
1.2 Caution
- Do not expose to the hot temperature,
hot sunny, wet condition.
- Fragile on the shake, outside damage.
- Sensitive to the installed environment,
do not expose in the iron metal around
the reader, it should cause the fatal
defection

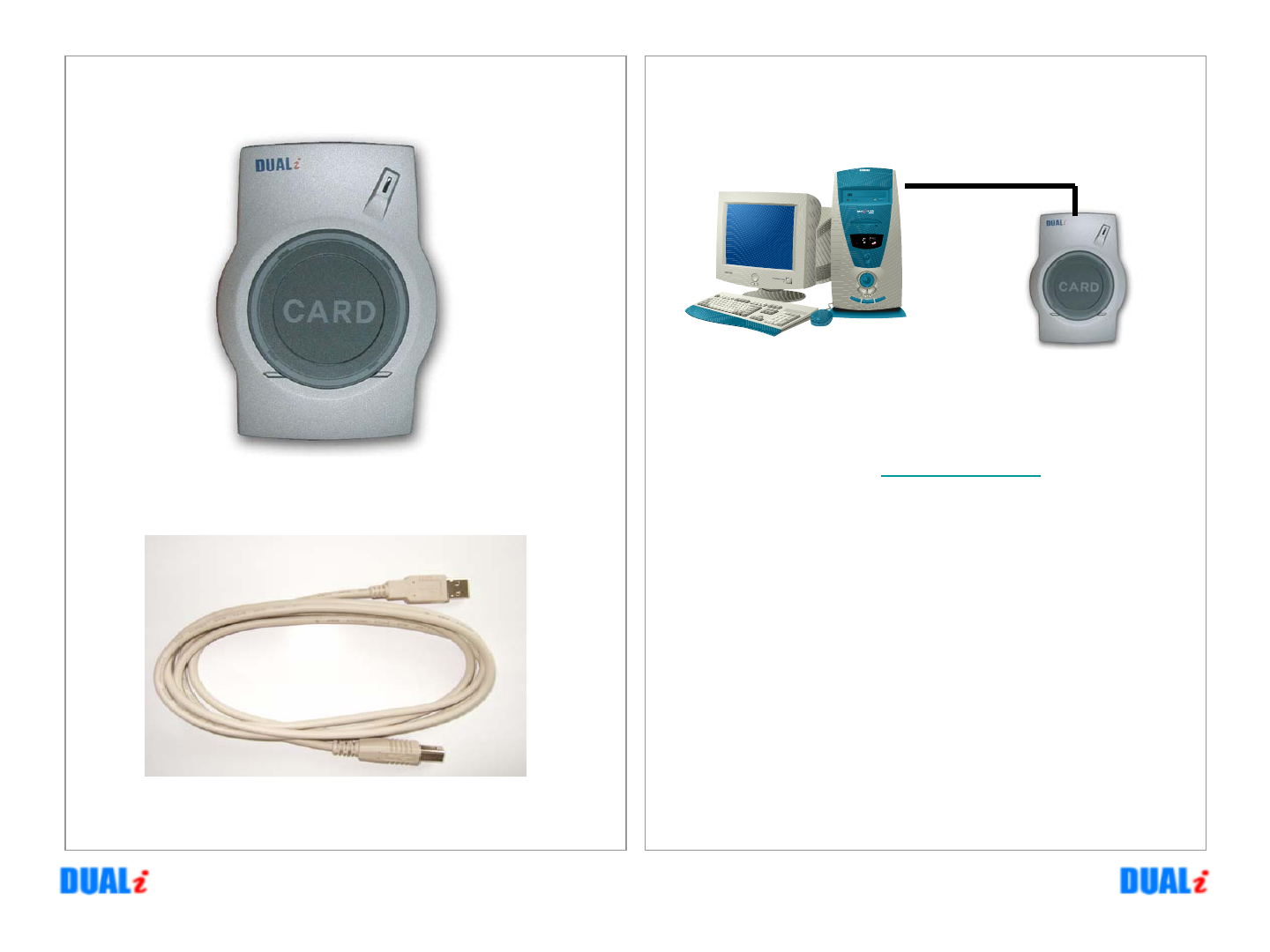

3. Product Contents
READER
USB CABLE
4. Installation
- USB communication : Download USB
Driver from www.duali.com
- Provided communication protocol:
STX(02h) + Length high + Length low +
Command or Response Code + Data + LRC
- Sample working test program
- Ask to the Service provider
( Program provider ) for more command
and function protocol
USB CABLE
PC
5. Operation
- You can test it with Duali test program
to read / write on the specific card.
- You can develop many different program
such as Access, time & attendance,
card issuing, PC security with the
provided Duali DLL and Protocol.
- Functions.
* Mifare card Read/Write
* ISO 14443 A-Type Card Read/Write
* ISO 14443 B-Type Card Read/Write
* ISO 7816 T=0 (Contact or SIM Type)
* Buzzer On/Off
* LED On/Off

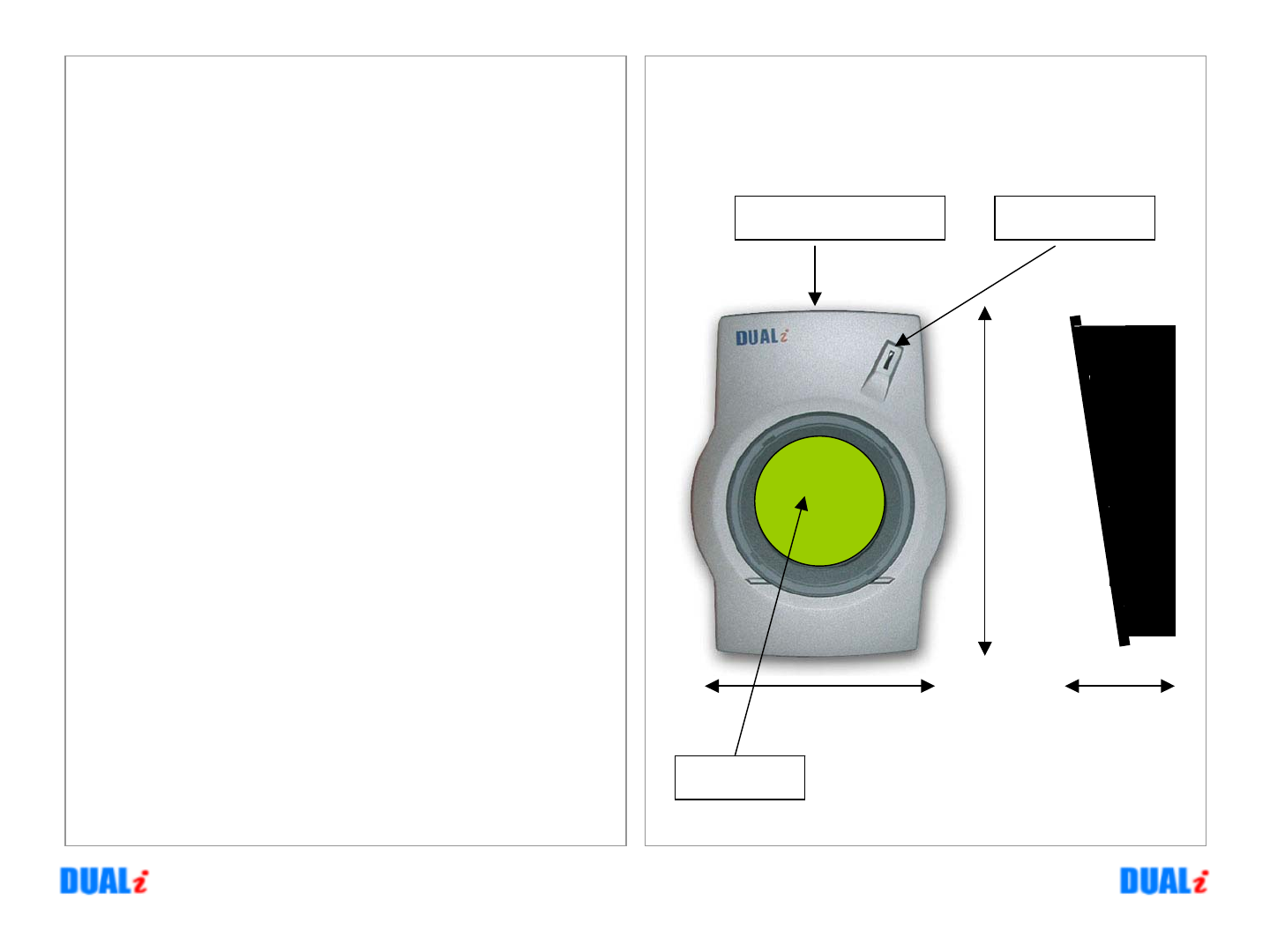

6. Dimension and Characteristic
5.1 Dimension
65mm
100mm
40mm
Antenna
Power LEDUSB connector
5.2 Characteristic
- Operation Temperature : 0℃ 〜 60℃
- Input Volatge : DC 5V (USB)
- Card Reading Range : Inside 10 Cm
7. Technical Support
- Address : Room 505 Samsung Technopark,
#471 Wonchen, Youngtong, Suwon,
Gyeonggi 443380, Korea.
- URL : www.duali.com
- Tel : +82-31-213-0074
!Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
