Users Manual
Copyright ⓒ 2009 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this
document in part or as a whole for any purposes other than those for which this document is disclosed. This document
is copyrighted and contains confidential information and other intellectual property rights of DUALi Inc. Any
unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights.
DUALi Inc.
Document Version: 1.02
Last Revised Date: 8TH August 2011
DE-ABCM User Manual
DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any
application or service at any time without notice. DUALi provides customer assistance in various
technical areas, but does not have full access to data concerning the use and applications of
customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or software
design or performance relating to systems or applications incorporating DUALi products. In addition,
DUALi assumes no liability and is not responsible for infringement of patents and/or any other
intellectual or industrial property rights of third parties, which may result from assistance provided by
DUALi.
Composition of the information in this manual has been done to the best of our knowledge. DUALi
does not guarantee the correctness and completeness of the details given in this manual and may not
be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our
efforts, errors may not be completely avoided, we are always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any technical
assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : duali@duali.com
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
3
Revision History
■ 2009.04.09 : Issued first
■ 2011.07.18 : Add PCB dimension
■ 2011.08.08 : Add SAM card connectors’ specification
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
4
Contents
1 Summary ..........................................................................................................................................5
2 Structure ...........................................................................................................................................5
2.1 The Structure of equipment....................................................................................................5
2.2 The block diagram of main Module, sub board(Epass12) and antenna ................................6
2.3 Description of main Module....................................................................................................6
3 Description of Surface ......................................................................................................................7
3.1 The picture of device surface.................................................................................................7
3.2 The size of equipment surface...............................................................................................7
4 Connector pin assignment................................................................................................................8
4.1 USB Connector ......................................................................................................................8
4.2 RS-232 Connector..................................................오류! 책갈피가 정의되어 있지 않습니다.
4.3 SAM1 Connector....................................................................................................................8
4.4 Header for IC CARD Connector and IC CARD Detection......................................................8
5 Description of electricity....................................................................................................................9
5.1 The Description of power .......................................................................................................9
5.2 The using electric current.......................................................................................................9
5.3 The Description of USB communication ................................................................................9
6 Description of Function.....................................................................................................................9
6.1 Protocol Specification.............................................................................................................9
6.2 Control Code Specification.....................................................................................................9
6.3 Download ...............................................................................................................................9
7 Property ............................................................................................................................................9
7.1 Environment to use ................................................................................................................9
7.2 Environment to keep ..............................................................................................................9
8 Warning and Notice ..........................................................................................................................9
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
5

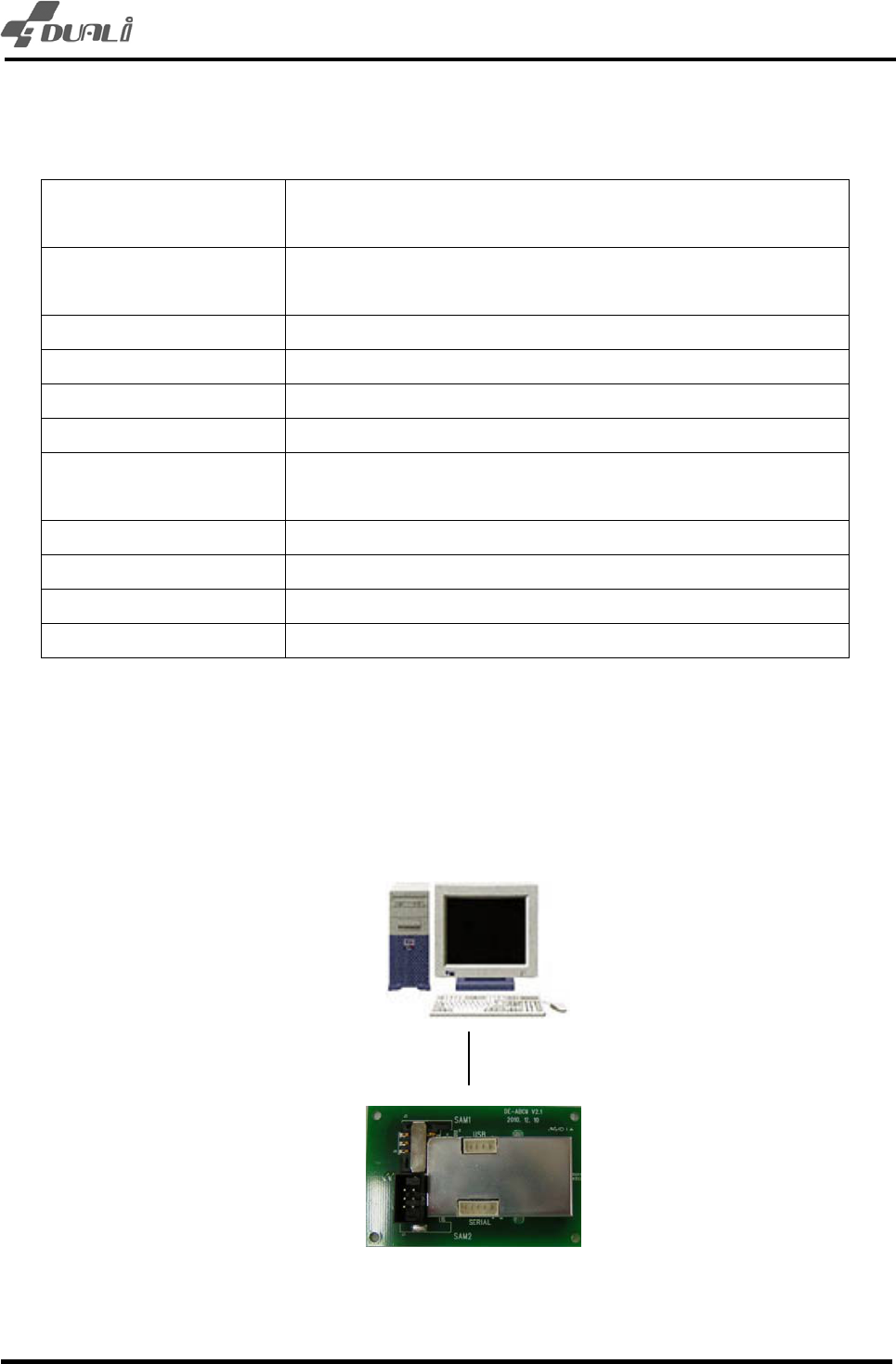

1 Summary
Smart Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa
2 SAM CARD (ISO7816, T=0,T=1)
Host Interface USB 2.0 Full Speed (12Mbps), also support USB 1.1
RS-232, 57600bps
Host Communication PC/SC or Proprietary
CPU ARM 32-bit Cortex-M3(72MHz), 64Kbytes Flash, 20Kbytes SRAM
Power Voltage 5V, USB Bus powered
Current MAX 300mA depend on antenna size
Connection 4pin * 2mm for USB
5pin * 2mm for RS-232
Size 70(W) * 45(L) * 8(H)mm
Antenna Matching Direct matching
Certification CE, FCC, IC Certified / RoHS compliance
Operating Temperature -20~60℃
2 Structure
2.1 The Structure of equipment
- DE-ABCM (RF module) itself contains all circuits include antenna, SAMs and connectors.
(Host PC)
(DE-ABCM)
(USB 2.0)
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
6

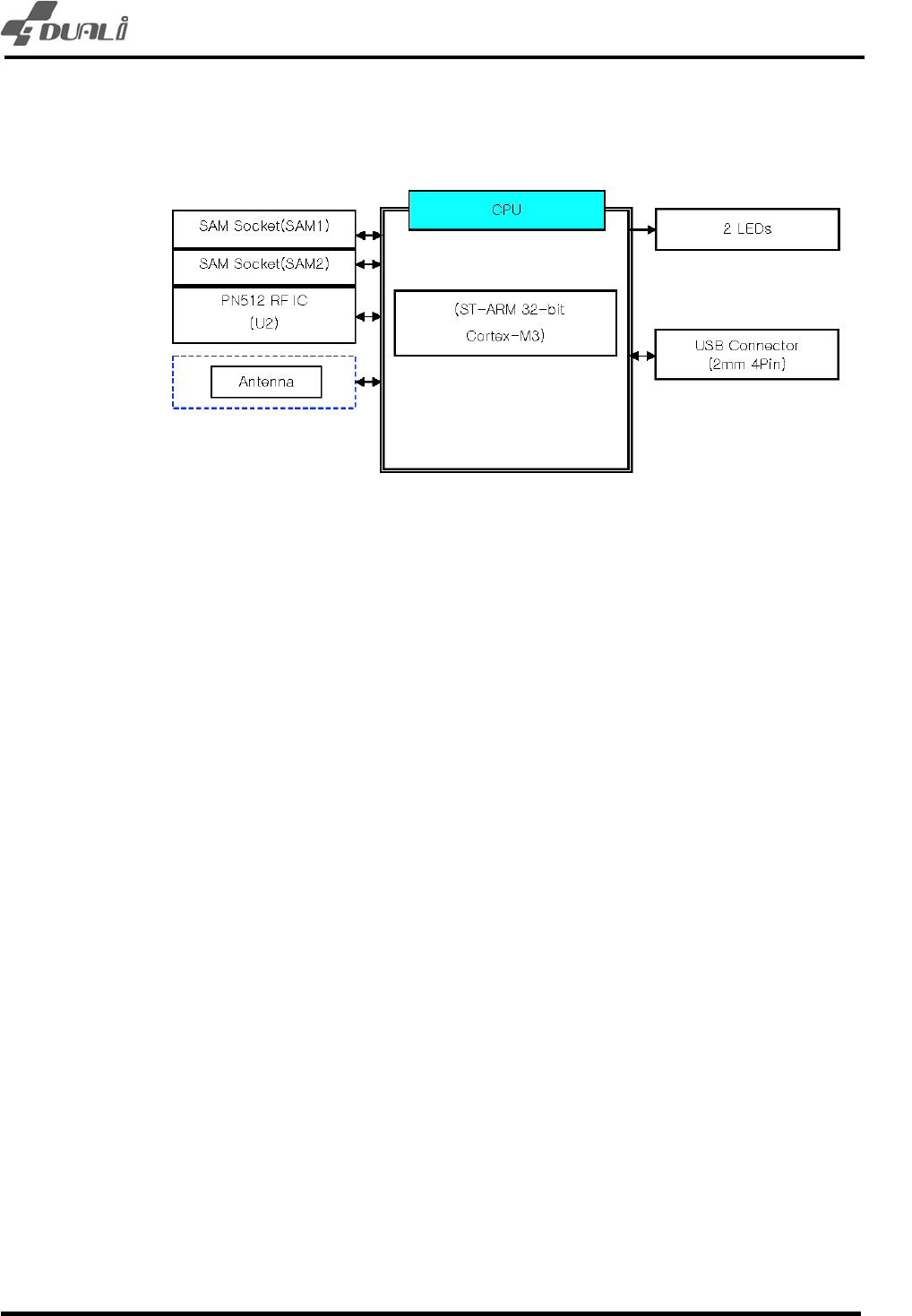

2.2 The block diagram of main Module, sub board(Epass12) and antenna
2.3 Description of main Module
CPU : 32bit RISC CPU, It is stm32f103 which is ARM-based 32-bit MCU with Flash, USB, CAN,
seven 16-bit timers. This CPU has 64Kbyte Flash memory, 20Kbyte SRAM, 2 UART, USB 2.0 interface.
- PN512 RF IC : This Philips IC can control RF card like MIFARE card, type A/B card and FeliCa card
simultaneously.
- USB Connector : It’s a Communication part for USB communication.
- SAM card control part: It can control 2 SAMs. And each slot can be operated independently.
- Status LED : It has 2 LEDs to display status of communication and RF card status.
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
7
3 Description of Surface

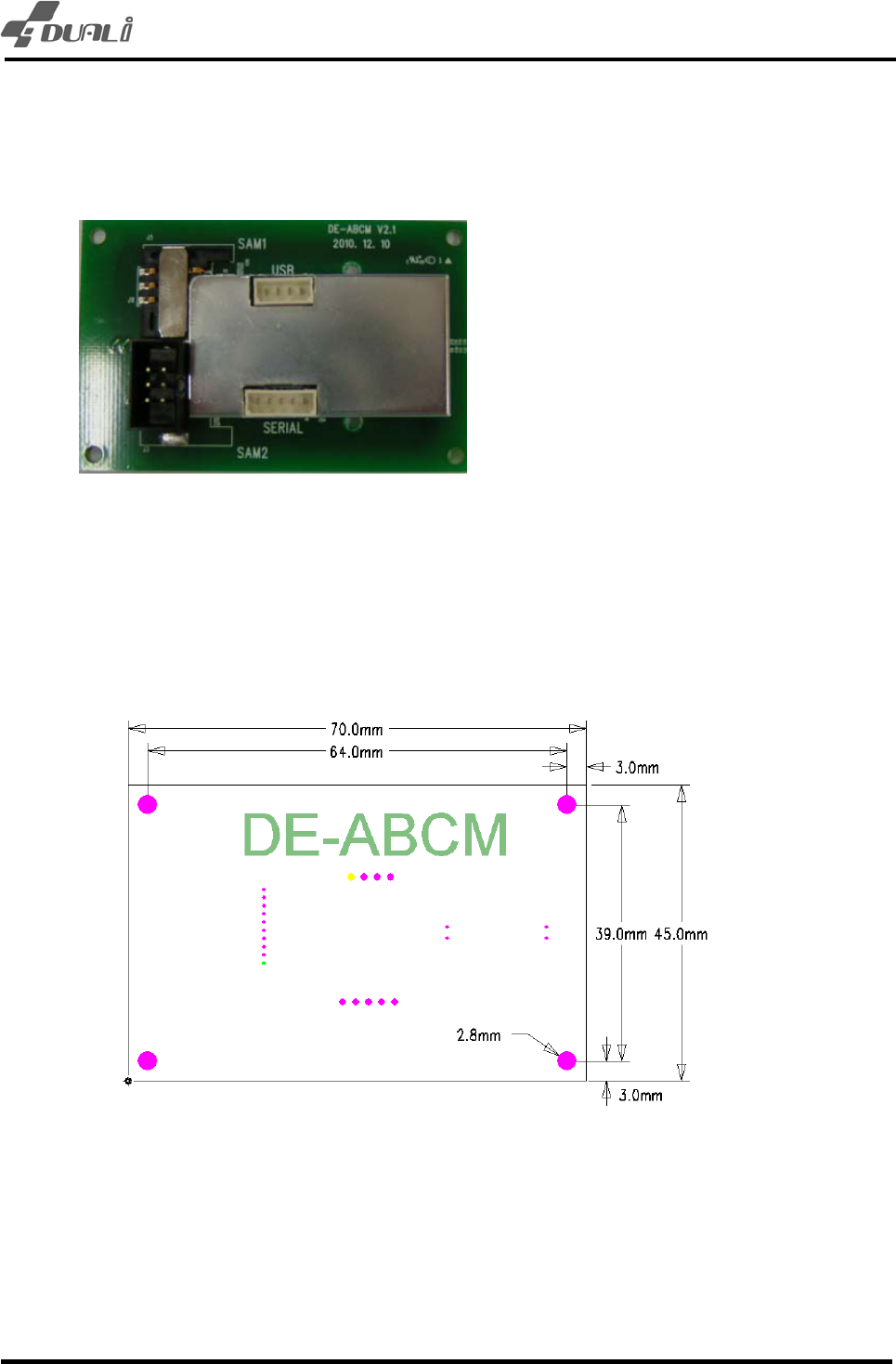

3.1 The picture of device surface
There are no parts at bottom. But there is a space for optional LEDs.
3.2 The size of equipment surface
- DE-ABCM :
70(W) * 45(L) * 8(H)mm
- Thickness (PCB) : 1.6T
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
8
4 Connector pin assignment
4.1 USB Connector
[J2] (4Pin 2.0mm) -> PC USB Port
Pin No. Description
1 VCC(DC5V)
2 USB D+
3 USB D-
4 GND
4.2 SAM1 Connector
[J9] (SAM Socket, TM6090-06-G) -> SAM
Pin No. Description
1 VCC
2 RESET
3 CLOCK
4 GND
5 NC
6 IO
It is for ISO-7816 IC Card(SAM) Communication.
4.3 Header for IC CARD Connector and IC CARD Detection
[J8] (6Pin 2.54mm, Box Header 2*3) -> IC CARD Connector
Pin No. Description Pin No. Description
1 VCC 4 GND
2 RESET 5 NC
3 CLOCK 6 IO
[J4] (5Pin 2.0mm) -> SAM2 Detection (Optional for DataCard Version)
Pin No. Description
1 VCC(DC5V)
2 TxD(RS-232 or TTL)
3 RxD(RS-232 or TTL)
4 GND
5 SAM2 Detection
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
9
5 Description of electricity
5.1 The Description of power
- Input power : 5V (USB Bus Powered)
5.2 The using electric current
- Normal 5V, 150 mA under
- MAX 5V, 200 mA under
5.3 The Description of USB communication
- USB V2.0 FULL SPEED (12Mbps)
6 Description of Function
6.1 Protocol Specification
Refer to protocol specification for detail function.(provide on request)
6.2 Control Code Specification
Refer to control code specification for detail function.(provide on request)
6.3 Download
Refer download manual.(provide on request)
7 Property
7.1 Environment to use
- Temperature to use : -20 ~ 60 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
7.2 Environment to keep
- Temperature to keep : -20 ~ 80 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
8 Warning and Notice
- For indoor use only.
- This product is affected by an element like metal or Magnetism. So one has to take
precautions.
- This device is not waterproof.
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
10
REGULATORY INFORMATION
● Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
. ● Caution
Any changes or modifications NOT explicitly APPROVED by DUALi could cause the DE-ABCM module to cease to comply
with FCC rules part 15 and thus void the user's authority to operate the equipment.
● Information to User
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
● Antenna
This device shall only be used with the tested antenna that is integral PCB antenna.
● Label and manual requirements for the End Product
For an end product using the DE-ABCM there must be a label containing, at least, the following information. FCC ID
certification number for model DE-ABCM.
This device contains FCC ID : SWUDE-ABCM—S
The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance
with the modular approval guidelines developed by the FCC
Where the DE-ABCM will be installed in final products larger than 8cm × 10cm following statements has to be placed ONTO
the device
. "Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation."
DE-ABCM User Manual
Version. 1.02 DUALi Inc.
(http://www.duali.com)
11
Warranty & Service
‣ Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product, DE-ABCM, is free
from defects in materials and workmanship for a period of 1 year from the date of purchase.
※ Note Warranty/non-warranty repair fees do not include any shipping charges.
‣ The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component.
- Fault by the unqualified user’s own intention of repairs.
- Product’s inspection requirement.
- Adding certain functions or extension of system.
- Fault by User’s misuse against the product’s manual.
*Please contact our service team for the technical/ sales supports.
DUALi Inc.
1-309 Innoplex, 552 Wonchoen-dong, Youngtong-gu,
Suwon, Gyeonggi-do, Korea (zip: 443-380)
Tel : +82 31-213-0074
Fax : +82 31-213-0078
E-mail : duali@duali.com
Web-site : http://www.duali.com
