USERS MANUAL
DE-ABCM US ER’S GUIDE
Confidential Notation
The original copy
DE-ABCM USER’S GUIDE
DUALi Inc.
Document Version: 1.01
Last Revised Date: 27 Dec. 2010
DE-ABCM US ER’S GUIDE
Copyright ⓒ 2009 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this
document in part or as a whole for any purposes other than those for which this document is disclosed. This document
is co pyrighted an d c ontains co nfidential i nformation a nd other i ntellectual property ri ghts of D UALi Inc. A ny
unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights.
DUALi Inc. reserves the right to make changes to its applications or services or to discontinue
any application or service at any time without notice. DUALi provides customer assistance in
various technical areas, but does not have full access to data concerning the use and
applications of customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or
software design or performance relating to systems or applications incorporating DUALi
products. In addition, DUALi assumes no liability and is not responsible for infringement of
patents and/or any other intellectual or industrial property rights of third parties, which may
result from assistance provided by DUALi.
Composition of the information in this manual has been done to the best of our knowledge.
DUALi does not guarantee the correctness and completeness of the details given in this manual
and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your
useful tips.
We have our development center in South Korea to provide technical support. For any technical
assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : duali@duali.com
DE-ABCM US ER’S GUIDE
Contents
1 SUMMARY ..................................................................................................................... 4
2 STRUCTURE................................................................................................................... 4
2.1 The Structure of equipment ....................................................................................... 4
2.2 The block diagram of main Module, sub board(Epass12) and antenna .............................. 5
2.3 Description of main Module ...................................................................................... 5
2.4 Description of sub SDK board(Epass12) and SDK antenna .......................................... 5
3 THE DESCRIPTION OF SURFACE.................................................................................... 6
3.1 The picture of device surface..................................................................................... 6
3.2 The size of equipment surface.................................................................................... 6
4 Connector pin assignment................................................................................................... 7
4.1 USB Connector ....................................................................................................... 7
5 The Description of electricity .............................................................................................. 7
5.1 The Description of power.......................................................................................... 7
5.2 The using electric current.......................................................................................... 7
5.3 The Description of USB communication ..................................................................... 7
6 THE DESCRIPTION OF FUNCTION.................................................................................. 7
6.1 Protocol Specification .............................................................................................. 7
6.2 Control Code Specification ....................................................................................... 7
6.3 Download .............................................................................................................. 7
7 PROPERTY..................................................................................................................... 8
7.1 Environment to use.................................................................................................. 8
7.2 Environment to keep ................................................................................................ 8
8 Warning and Notice ........................................................................................................... 8
DE-ABCM US ER’S GUIDE

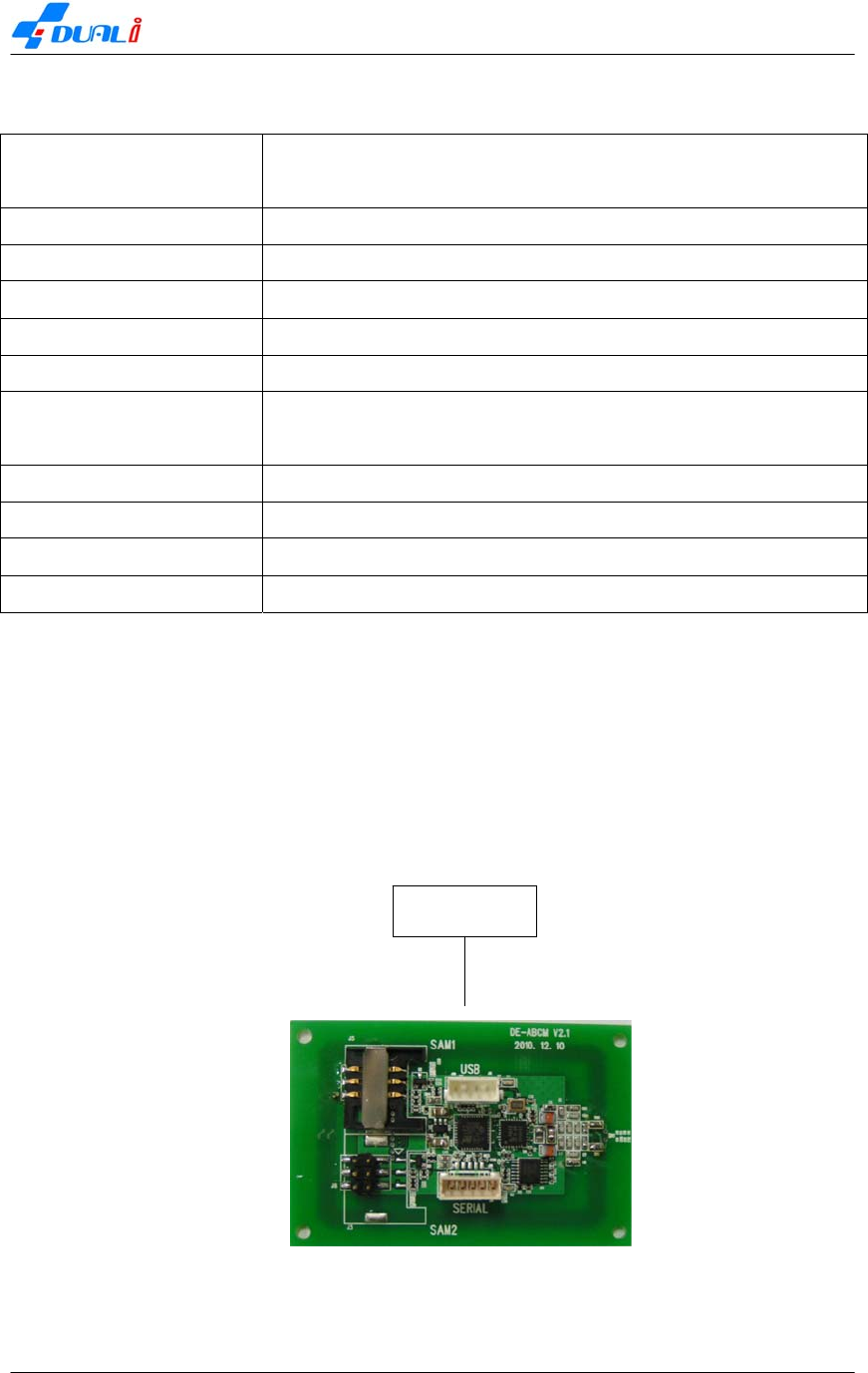

1 SUMMARY
Smart Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa
2 SAM CARD (ISO7816, T=0,T=1)
Host Interface USB 2.0 Full Speed (12Mbps), also support USB 1.1
Host Communication PC/SC or Proprietary
CPU ARM 32-bit Cortex-M3(72MHz), 64Kbytes Flash, 20Kbytes SRAM
Power Voltage 5V, USB Bus powered
Current MAX 250mA depend on antenna size
Connection 4pin * 2mm for USB
5pin * 2mm for RS-232
Size 70(W) * 45(L) * 8(H)mm
Antenna Matching Direct matching
Certification CE, Fcc, RoHS compliance
Operating Temperature -20~60℃
2 STRUCTURE
2.1 The Structure of equipment
- DE-ABCM (RF module) itself contains all circuits include antenna, SAMs and connectors.
(USB 2.0)
Host PC
(DE-ABCM)
DE-ABCM US ER’S GUIDE
2.2 The block diagram of main Module, sub board(Epass12) and antenna
PN512 RF IC
(U2)
SAM Socket(SAM1)
SAM Socket(SAM2)
Antenna
(2mm 4Pin)
USB Connector
2 LEDs
(ST-ARM 32-bit
Cortex-M3)
CPU
2.3 Description of main Module
CPU : 32bit RISC CPU, It is stm32f103 which is ARM-based 32-bit MCU with Flash, USB, CAN,
seven 16-bit timers. This CPU has 64Kbyte Flash memory, 20Kbyte SRAM, 2 UART, USB 2.0 interface.
- PN512 RF IC : This Philips IC can con trol RF card like MIFARE card, type A/B card an d FeliCa card
simultaneously.
2.4 Description of sub SDK board(Epass12) and SDK antenna
- USB Connector : It’s a Communication part for USB communication.
- SAM card control part: It can control 2 SAMs. And each slot can be operated independently.
- LED Connector : It has 2 LEDs to display status of communication and RF card status.
DE-ABCM US ER’S GUIDE
3 THE DESCRIPTION OF SURFACE

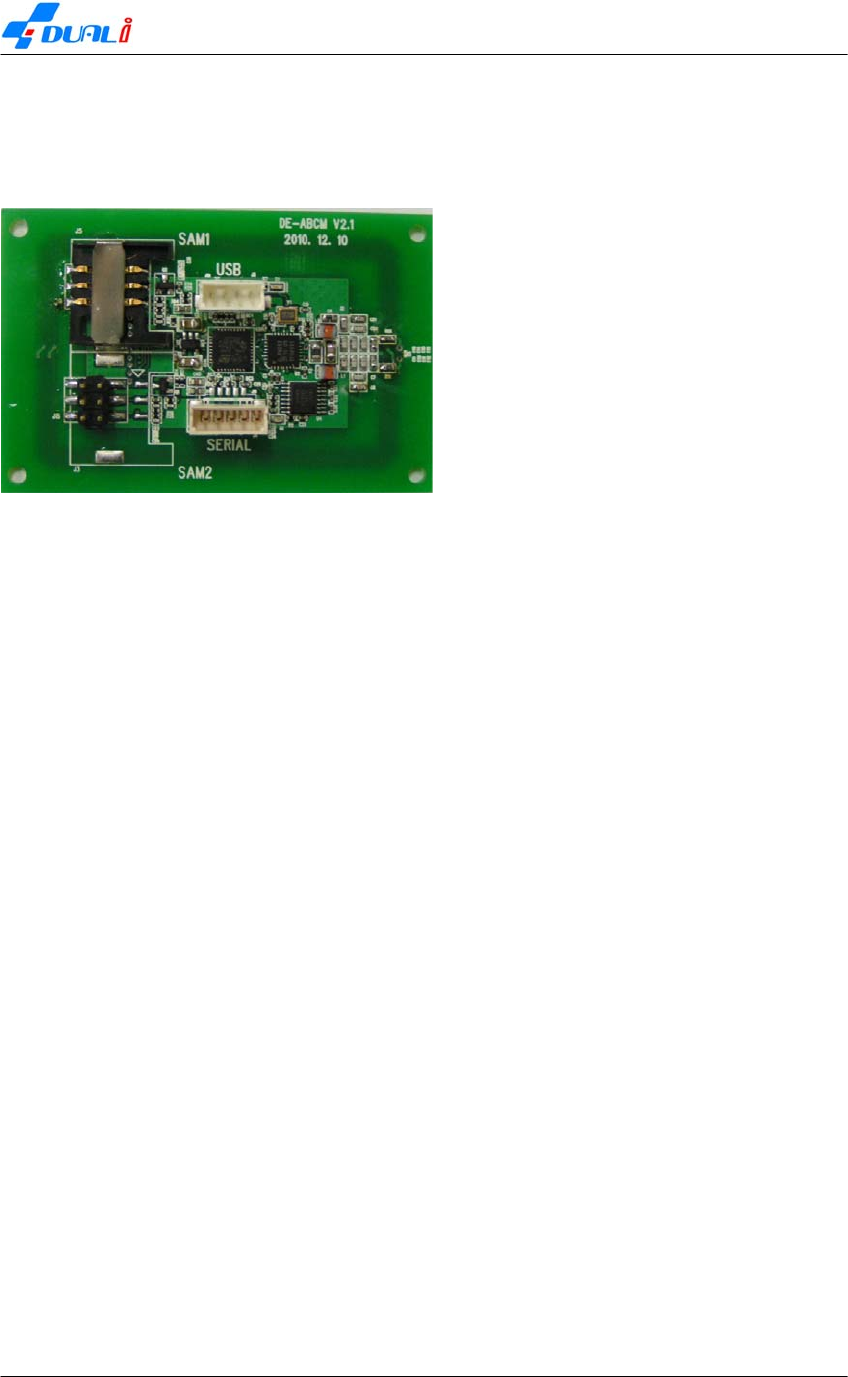

3.1 The picture of device surface
There are no parts at bottom. But there is a space for optional LEDs.
3.2 The size of equipment surface
- DE-ABCM5 : 70(W) * 45(L) * 8(H)mm
DE-ABCM US ER’S GUIDE
4 Connector pin assignment
4.1 USB Connector
[J2] (4Pin 2.0mm) -> PC USB Port
Pin No. Description
1 VCC(DC5V)
2 USB D+
3 USB D-
4 GND
5 The Description of electricity
5.1 The Description of power
- Input power : 5V (USB Bus Powered)
5.2 The using electric current
- Normal 5V , 150 mA under
- MAX 5V , 250 mA under
5.3 The Description of USB communication
- USB V2.0 FULL SPEED (12Mbps)
6 THE DESCRIPTION OF FUNCTION
6.1 Protocol Specification
Refer to protocol specification for detail function.(provide on request)
6.2 Control Code Specification
Refer to control code specification for detail function.(provide on request)
6.3 Download
Refer download manual.(provide on request)
DE-ABCM US ER’S GUIDE
7 PROPERTY
7.1 Environment to use
- Temperature to use : -20 ~ 60 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
7.2 Environment to keep
- Temperature to keep : -20 ~ 80 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
8 Warning and Notice
- For indoor use only.
- This product i s affected by an elem ent like m etal o r M agnetism. So one has to tak e
precautions.
- This device is not waterproof.
DE-ABCM US ER’S GUIDE
REGULATORY INFORMATION
● Compliance Statement
This device complies with Part 15 of the FCC Rules, and Industry Canada RSS-210.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
● Caution
Any changes or modifications NOT explicitly APPROVED by DUALi could cause the DE-ABCM module to cease to
comply with FCC rules part 15 and Industry Canada RSS-210, and thus void the user's authority to operate the
equipment.
● Information to User
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
● Antenna
This device shall only be used with the tested antenna that is integral PCB antenna.
● Label and manual requirements for the End Product
For an end product using the DE-ABCM there must be a label containing, at least, the following information. FCC ID
and IC certification number for model DE-ABCM.
This device contains FCC ID : SWUDE-ABCM
This device contains transmitter module IC : 9445A-DEABCM
The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in
compliance with the modular approval guidelines developed by the FCC and/or Industry Canada.
Where the DE-ABCM will be installed in final products larger than 8cm × 10cm following statements has to be placed
ONTO the device.
"Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation."
DE-ABCM US ER’S GUIDE
Warranty & Service
‣ Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product, DE-ABCM, is
free from defects in materials and workmanship for a period of 1 year from the date of purchase.
※ Note Warranty/non-warranty repair fees do not include any shipping charges.
‣ The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component.
- Fault by the unqualified user’s own intention of repairs.
- Product’s inspection requirement.
- Adding certain functions or extension of system.
- Fault by User’s misuse against the product’s manual.
*Please contact our service team for the technical/ sales supports.
DUALi Inc.
1-308/310 Innoplex, 552 Wonchoen-dong, Youngtong-gu,
Suwon, Gyeonggi-do, Korea (zip: 443-380)
Tel : +82 31-213-0074
Fax : +82 31-213-0078
E-mail : duali@duali.com
Web-site : http://www.duali.com
