Duali DE-EPASS10 PASSPORT READER User Manual DE EPASS10 Manual
Duali Inc. PASSPORT READER DE EPASS10 Manual
Duali >
Users Manual
Copyright ⓒ 2010 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use this
document in part or as a whole for any purposes other than those for which this document is disclosed. This document
is copyrighted and contains confidential information and other intellectual property rights of DUALi Inc. Any
unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property rights.
DUALi Inc.
Document Version: 1.0
Last Revised Date: 07.Dec. 2010
DE-EPASS10 User Manual
DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any
application or service at any time without notice. DUALi provides customer assistance in various
technical areas, but does not have full access to data concerning the use and applications of
customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or software
design or performance relating to systems or applications incorporating DUALi products. In addition,
DUALi assumes no liability and is not responsible for infringement of patents and/or any other
intellectual or industrial property rights of third parties, which may result from assistance provided by
DUALi.
Composition of the information in this manual has been done to the best of our knowledge. DUALi
does not guarantee the correctness and completeness of the details given in this manual and may not
be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our
efforts, errors may not be completely avoided, we are always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any technical
assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : mina@duali.com
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
3
Revision History
n 2010.12.07(Ver. 1.0) : First Release
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
4
CONTENTS
1. Concept .......................................................................................................................................5
2. Configuration ..............................................................................................................................6
2.1 configuration of the DE-EPASS10 .....................................................................................6
2.2 System configuration...........................................................................................................6
2.3 RF Main Block and Description ........................................................................................7
2.4 OCR Reader Module ............................................................................................................7
3. Exterior Specification ..............................................................................................................8
3.1 exterior ................................................................................................................................8
3.2 size .......................................................................................................................................8
4. Electric Specification ...................................................................................................................9
4.1 power ...................................................................................................................................9
4.2 power consumption: ............................................................................................................9
4.3 USB communication ................................................................................................................9
5. Environmental Specification ........................................................................................................9
5.1 operating temperature and humidity ..................................................................................9
5.2 storage temperature and humidity .....................................................................................9
6. Warning and Precaution .............................................................................................................10
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
5
1. Concept
The Passport Reader issued a PC on the ICAO 9303 standard for passport information to be used for
reading as a reader, ISO-14443 A / B-type card reader for reading and writing, and high-precision
image and optical character reading is possible.
Communication with the USB interface to USB 2.0 are supported
Depending on your needs SAM / SIM support is available
OCR Reader Window Size 130 mm x 60 mm
Window Glass 4 mm glass
Image Resolution 350 dpi
Color Depth 24 bits/pixel RGB
Output Image format BMP,JPEG,JPEG2000,PNG
Illuminations White light(default),IR(optional)
OCR Reading Speed Capture 0.1sec,Processing 0.9sec
MRZ processing Supporting(ISO 1073/1 OCR B1)
RF Reader Readable ICs ISO/IEC 14443 Type A &
B(106,212,424,848kbps)
Data structure and read
protocol
Comply to ICAO 9303 Part 1
Access/Authentication BAC,PA supporting,(AA,EAC-Optional)
Auto-detection Doc. Supporting
Environment Host Communication USB 2.0(Full Speed,12M)
Power DC 12V/300mA
Temperature 0~40ºC(Operating),-20~50ºC(Storage)
Humidity 0~95 %
Dimension 179 mm x 172 mm x 94 mm
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
6
2. Configuration
2.1 configuration of the DE-EPASS10
- RF card reader and antenna sub-board module
- ARH OCR reader module (mirror, sensor, light panel included)
- Power and Control Module, USB HUB
- Internal / External Cable

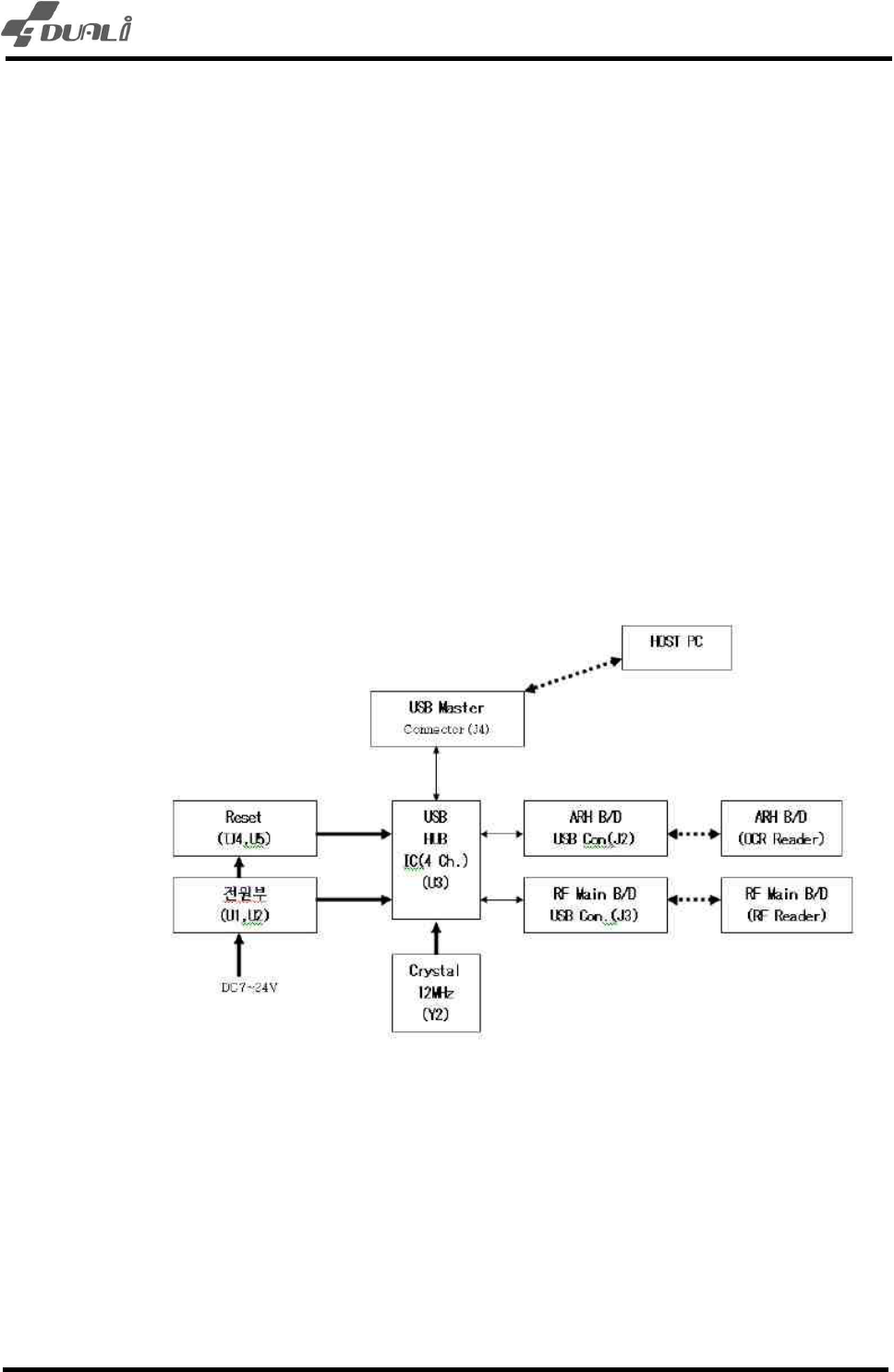

2.2 System configuration
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
7

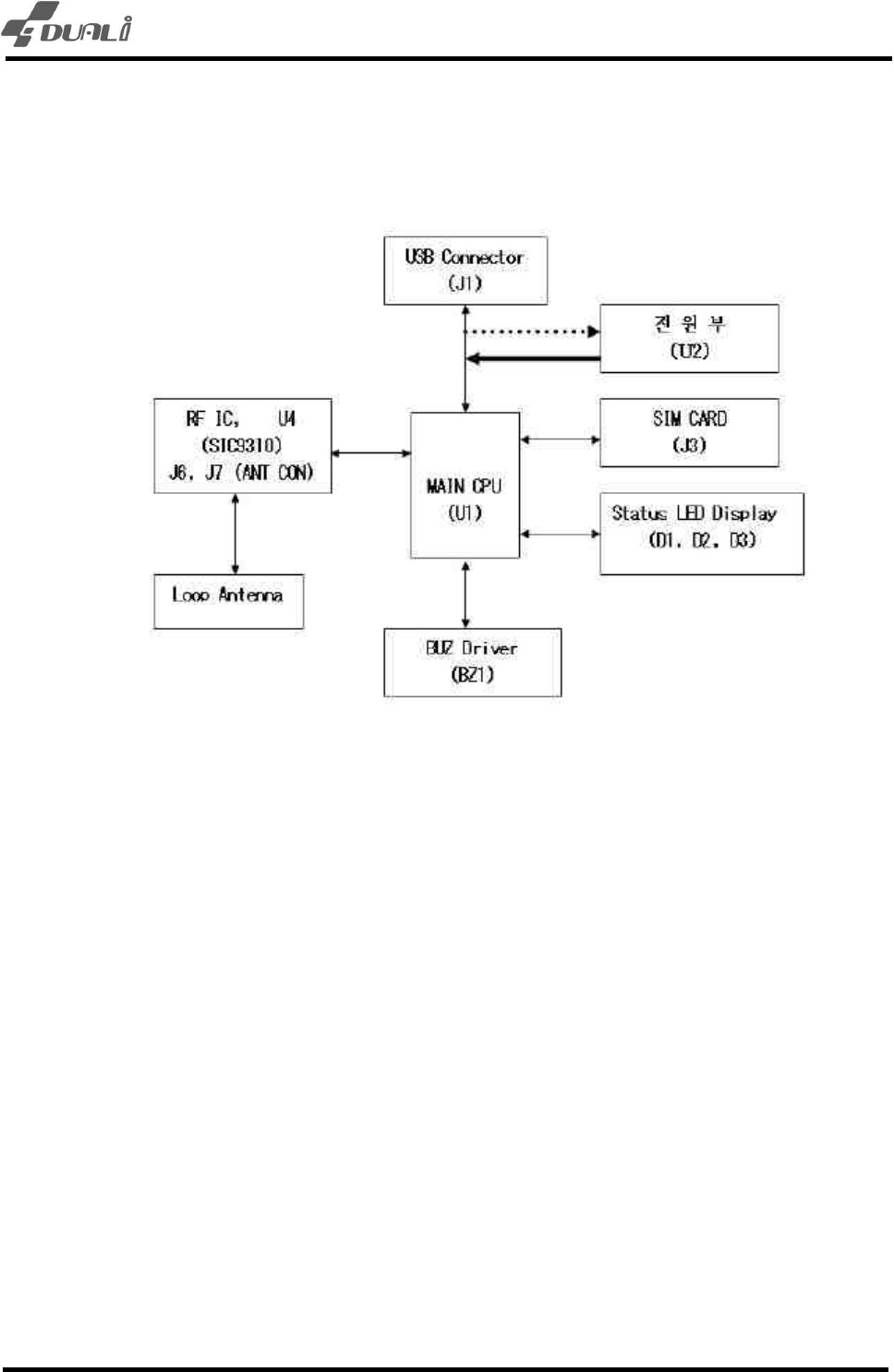

2.3 RF Main Block and Description
- CPU: ARM 32-bit Cortex-M3 (48MHz) and the 128Kbytes Flash, 20Kbytes SRAM data memory has.
- RF IC: 14443 Type A, Type B, and Smartlabel ISO15693 card to support the use Silicon Craft's
SIC9310 SUB PCB has with loop antena.
- SIM CARD: contact card, or SIM TYPE SAM card and communicate.
- USB Communication: to communicate with the host PC and USB to the USB V2.0 supports the parts.
- LED: Displays the status of the module.
- Buzzer: The frequency is controlled by the pitch structure.
-
2.4 OCR Reader Module
350 dpi at least 24bit precision per pixel in the image output types are available
BMP/JPEG/JPEG2000/PNG
.
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
8
3. Exterior Specification

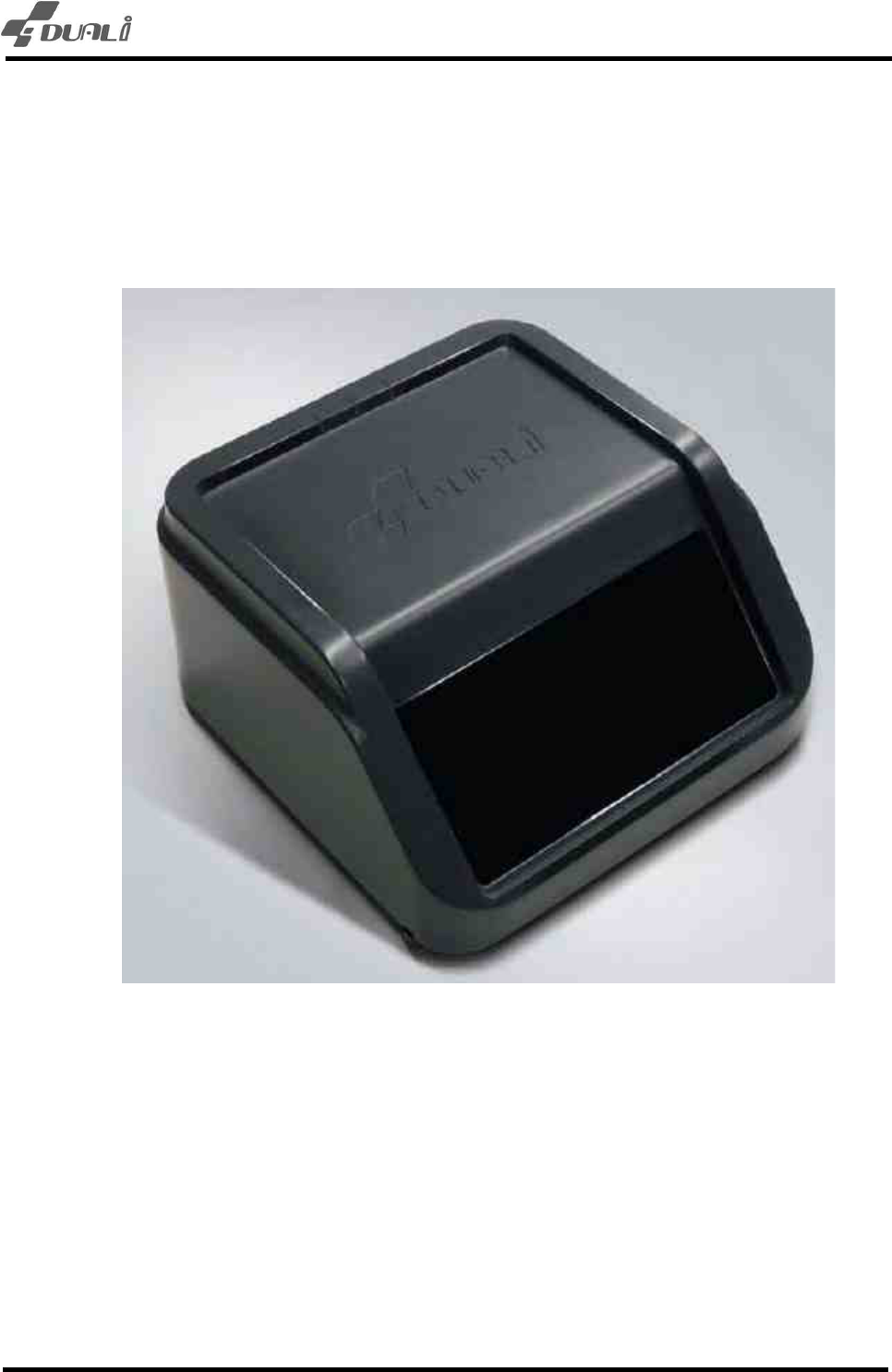

3.1 exterior
3.2 size
- 179 mm *172mm * 94 mm
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
9
4. Electric Specification
4.1 power
- 12V/300mA
4.2 power consumption:
- under 300 mA
4.3 USB communication
- USB V2.0
- high speed : Max. 480Mbps
5. Environmental Specification
5.1 operating temperature and humidity
- Temperature : 0 ~ 40 ℃
- Humidity : 0 ~ 95 %
5.2 storage temperature and humidity
- Temperature: -20 ~ 50 ℃
- Humidity : 0 ~ 95 %
DE-EPASS10
Specification
Version 1.0 DUALi Inc. (http://www.duali.com)
10

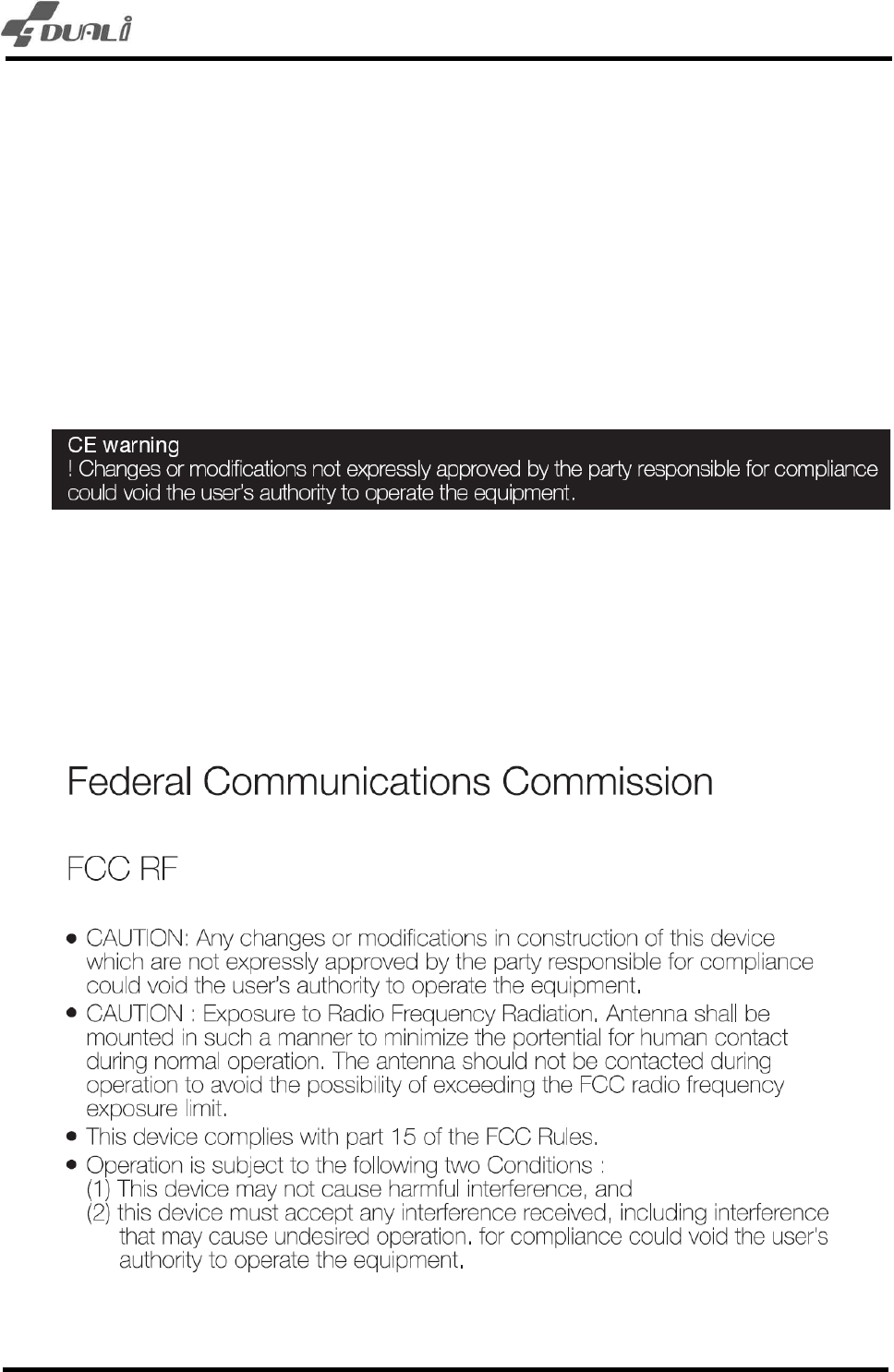

6. Warning and Precaution
- This unit is the instrument designed for use indoors and outdoors in direct sunlight should be avoided
at all costs.
- This unit provides us with an adapter to be used.
- Card reading in order to maximize the distance around the antenna should not metallic and
Enclosures are assembled in the open or antenna outside the card reader may shorten the distance
may be impossible.
EN Test Regulation Version
ETSI EN 300 330-1 V1.5.1
ETSI EN 300 330-2 V1.3.1
ETSI EN 301 489-1 V1.8.1
ETSI EN 301 489-3 V1.4.1
EN 60950-1:2006+A11:2009
