User Manual
Copyright ⓒ 2012 DUALi Inc. All rights reserved. You are strictly prohibited to copy, disclose, distribute, or use
this document in part or as a whole for any purposes other than those for which this document is disclosed. This
document is copyrighted and contains confidential information and other intellectual property rights of DUALi Inc.
Any unauthorized use, copy, disclosure or distribution constitutes infringement of DUALi’s intellectual property
rights.
DUALi Inc.
Document Version: 1.0
Last Revised Date: 3rd May 2012
Dragon
User Manual
DUALi Inc. reserves the right to make changes to its applications or services or to discontinue any
application or service at any time without notice. DUALi provides customer assistance in various
technical areas, but does not have full access to data concerning the use and applications of
customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or software
design or performance relating to systems or applications incorporating DUALi products. In addition,
DUALi assumes no liability and is not responsible for infringement of patents and/or any other
intellectual or industrial property rights of third parties, which may result from assistance provided by
DUALi.
Composition of the information in this manual has been done to the best of our knowledge. DUALi
does not guarantee the correctness and completeness of the details given in this manual and may
not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all
our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any technical
assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : duali@duali.com
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
3
Revision History
2012.05.03(Ver. 1.0) : First Distribution(JMN, HTY)
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
4
Contents
1 Introduction ....................................................................................................................................5
1.1 Hardware Specification .......................................................................................................6
2 Structure ........................................................................................................................................7
2.1 The Structure of equipment.................................................................................................7
2.2 The block diagram of Dragon..............................................................................................7
3 Description of Surface ...................................................................................................................8
3.1 The picture of device surface ..............................................................................................8
3.2 Communication Cable .........................................................................................................8
3.3 The size of terminal .............................................................................................................8
4 Description of Electricity ................................................................................................................9
4.1 The Description of power ....................................................................................................9
4.2 The using electric current....................................................................................................9
4.3 The Description of USB communication .............................................................................9
5 Description of Function..................................................................................................................9
5.1 Protocol Specification..........................................................................................................9
5.2 Control Code Specification (for USB PCSC version only) ..................................................9
5.3 Firmware Download ............................................................................................................9
6 Property .........................................................................................................................................9
6.1 Operating Condition ............................................................................................................9
6.2 Storage Condition................................................................................................................9
7 Warning and Notice .....................................................................................................................11
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
5
1 Introduction
Dragon is contact-less Smartcard reader which supports14443 TYPE-A/B, Mifare series, Felica and NFC
(ISO18092)protocol at the same type. It also supports Contact cards (1 X SIM type slots) which comply with ISO
7816 for secured data transmission. Dragon is available as USB interface.

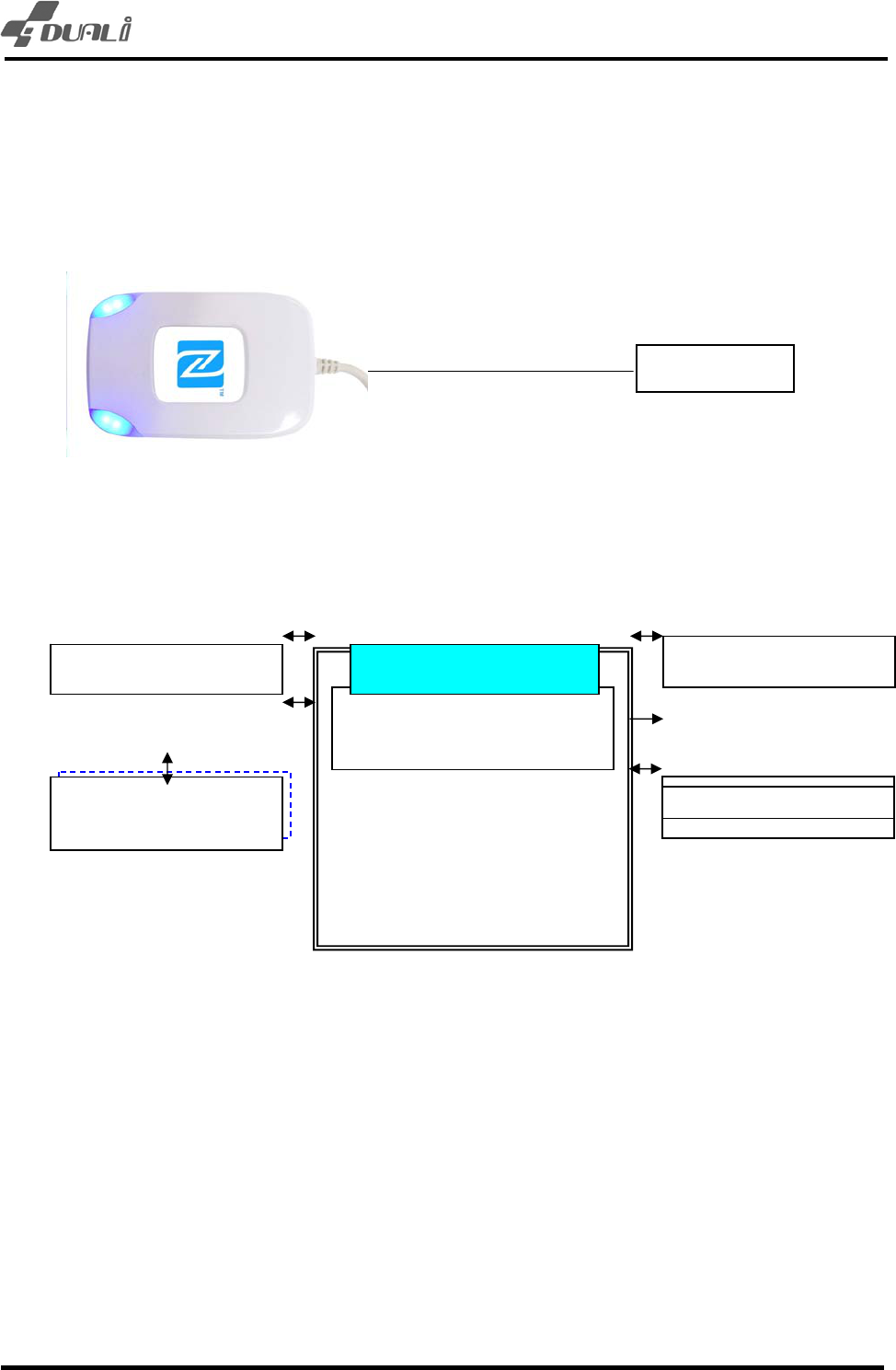

Following items are contents of Dragon
Dragon Device
Serial cable is available as option, plz contact to the sales person of DUALi.
.
RF Field : Place contactless card here
LED : Power supplying & operating status.
SIM type SAM slots (1ea) are backside of the device when you
open the case.
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
6
1.1 Hardware Specification
Smart Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa,
NFC Tag type 1,2,3,4
1 SIM slot for SAM Card (ISO7816, T=0,T=1)
Host Interface USB 2.0 Full Speed (12Mbps) as default /
RS232 (Optional, contact to DUALi for more information)
Host Communication PC/SC or Vendor Protocol (must be decided with order)
CPU ARM 32-bit Cortex-M3(48MHz)
128Kbytes Flash, 20Kbytes SRAM
Baud rate 106/212/424/848kbps
Up to 424kbps for NFC P2P mode
Reading Distance Max 5cm (depends on tag size and performance)
Input Voltage 5V (USB Bus powered)
Current MAX 250mA
Connection Direct USB Cable
Size 62(W) * 95(L) * 13(H)mm
Indicator 4 LEDS
Case ABS
Antenna Matching Direct matching
Operating Temperature -10~60℃
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
7

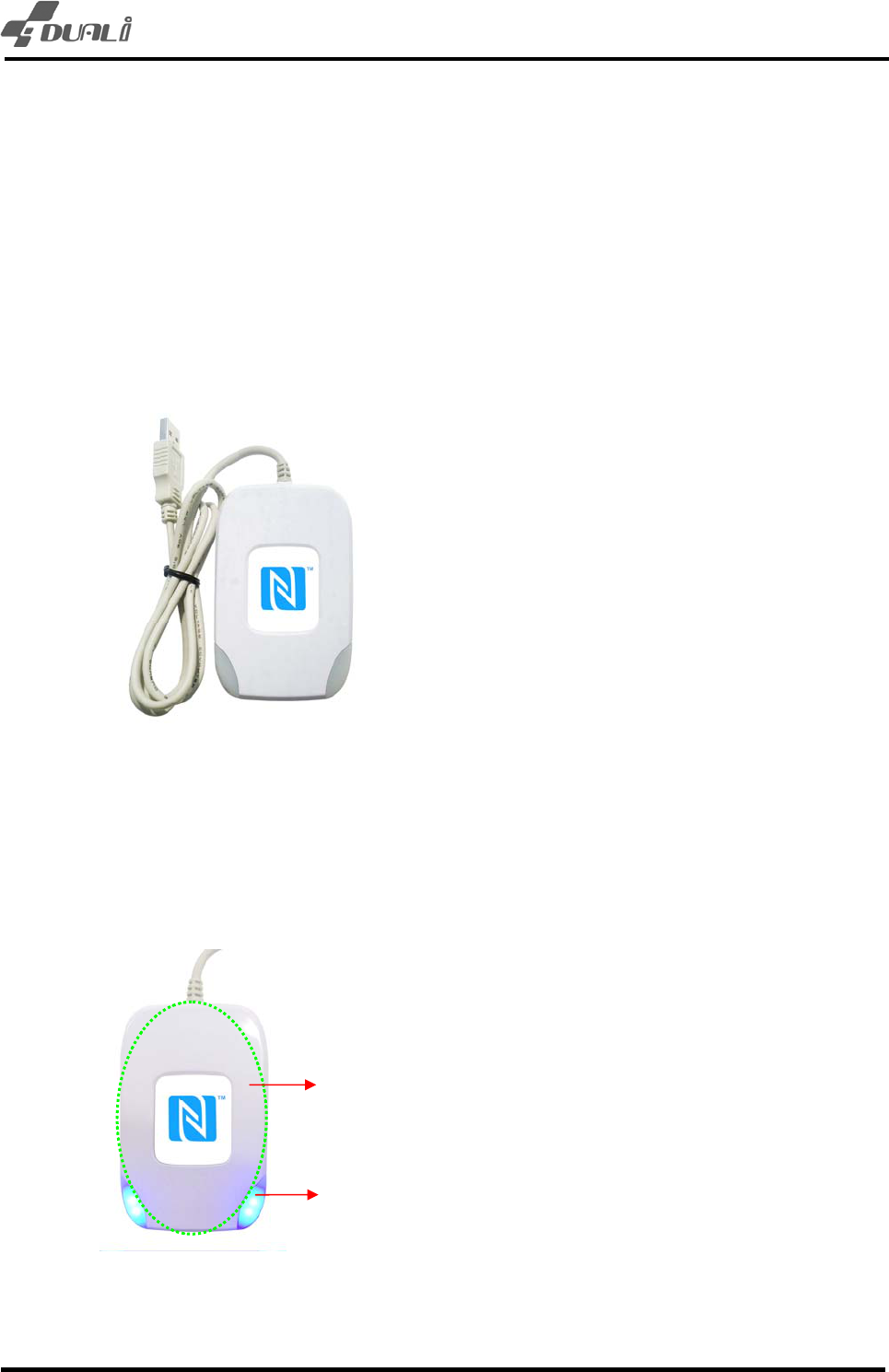

2 Structure
2.1 The Structure of equipment
- Dragon itself contains all circuits include antenna, 1 SAMs and connectors.
2.2 The block diagram of Dragon
Host PC
Dragon
(USB)
4 LEDs
USB Connector
Antenna
PN512 RF IC
SAM Socket (SAM1)
(ST-ARM 32-bit
Cortex-M3)
CPU Smart Card Socket
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
8

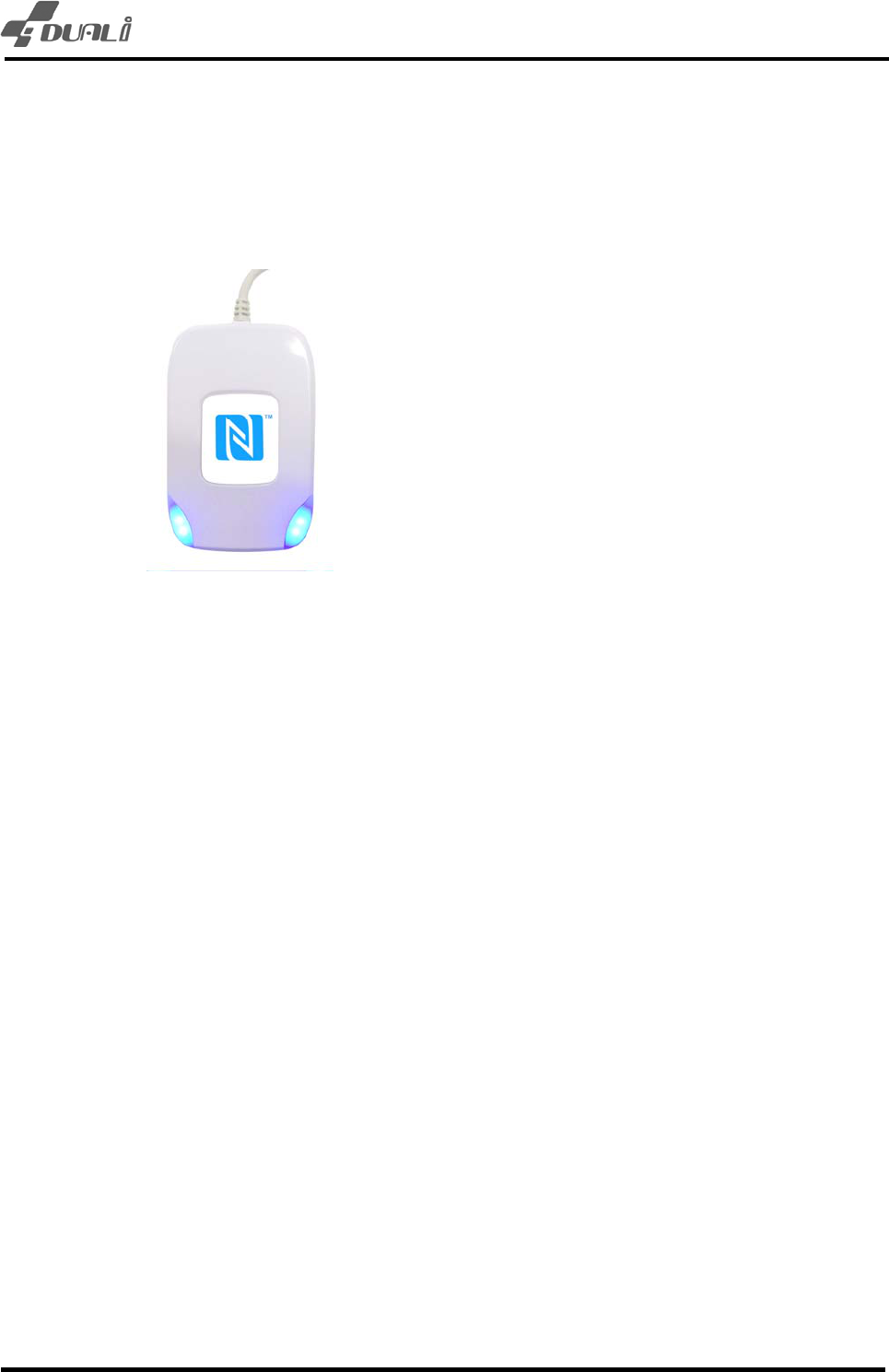

3 Description of Surface
3.1 The picture of device surface
- N mark on top of the surface could be removed or replaced to requested logo for OEM.
3.2 Communication Cable
- Direct USB cable
3.3 The size of terminal
- Dragon :62(W) * 95(L) * 13(H)mm
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
9
4 Description of Electricity
4.1 The Description of power
- Input power : 5V (USB Bus Powered)
4.2 The using electric current
- Normal 5V, 120mA under
- MAX 5V, 250mA under
4.3 The Description of USB communication
- USB V2.0 FULL SPEED (12Mbps)
5 Description of Function
5.1 Protocol Specification
Refer to protocol specification for detail function. ( provide on request)
5.2 Control Code Specification (for USB PCSC version only)
Refer to control code specification for detail function. (provide on request)
5.3 Firmware Download
Refer download manual. (provide on request)
6 Property
6.1 Operating Condition
- Temperature to use : -10 ~ 60 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
6.2 Storage Condition
- Temperature to keep : -20 ~ 80 ℃
- Humidity to use : 30 ~ 90 % (relative humidity)
7 Warning and Notice
- For indoor use only.
- This product is affected by an element like metal or Magnetism. So one has to take
precautions.
- This device is not waterproof.
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
10
EU

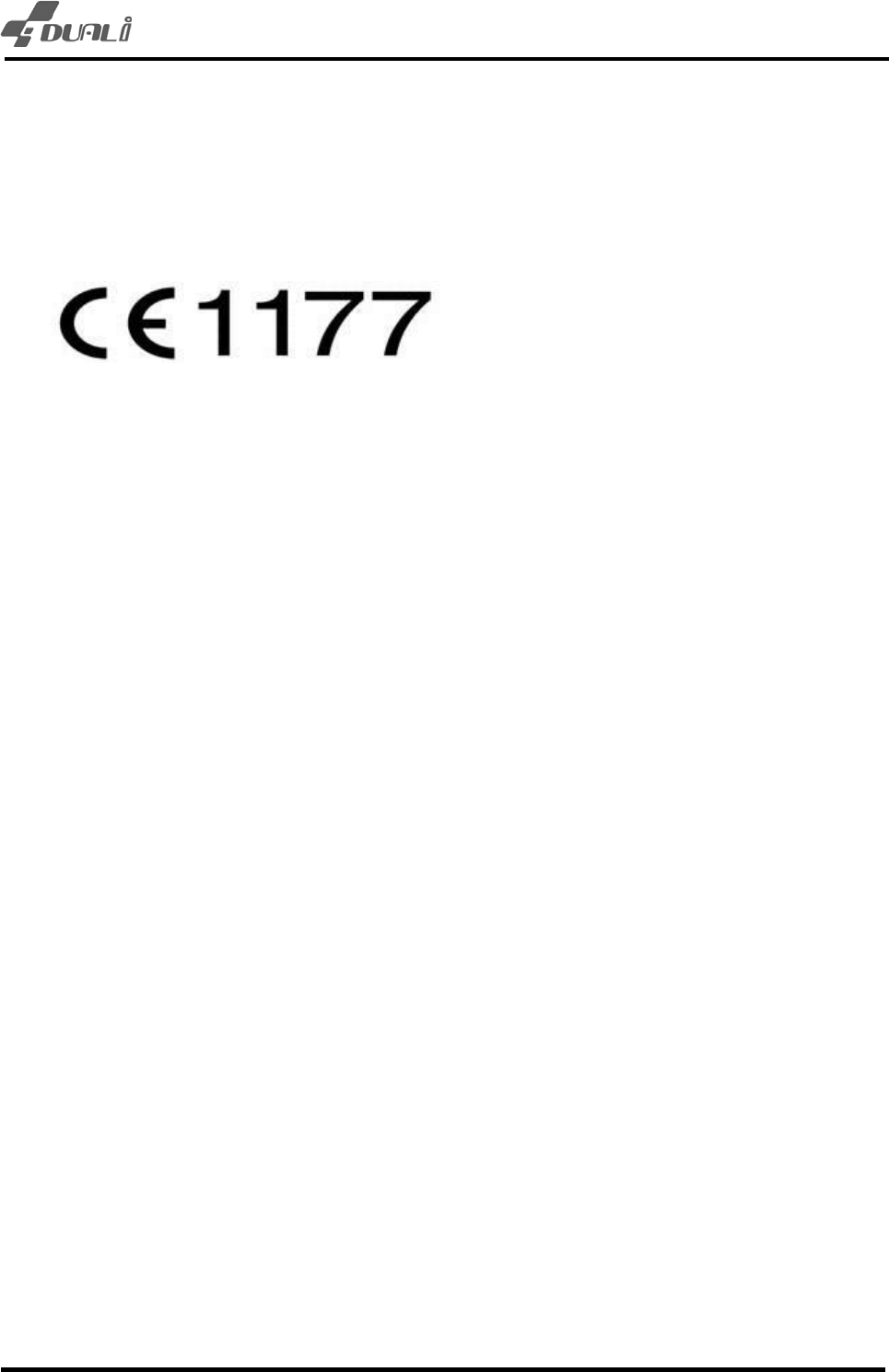

This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).
Here by DUALi Inc. declares that this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
FCC STATEMENT
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Dragon User Manual
Version: 1.0 DUALi Inc.
(http://www.duali.com)
11
Warranty & Service
‣ Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product, Dragon, is free
from defects in materials and workmanship for a period of 1 year from the date of purchase
(shipment date).
※ Note Warranty/non-warranty repair fees do not include any shipping charges.
‣ The damages (defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component.
- Fault by the unqualified user’s own intention of repairs.
- Product’s inspection requirement.
- Adding certain functions or extension of system.
- Fault by User’s misuse against the product’s manual.
*Please contact our service team for the technical/ sales supports.
DUALi Inc.
1-308/310 Innoplex, 552 Wonchoen-dong, Youngtong-gu,
Suwon, Gyeonggi-do, Korea (zip: 443-380)
Tel : +82 31-213-0074
Fax : +82 31-213-0078
E-mail : duali@duali.com
Web-site : http://www.duali.com
