1 Introduction
1.1 Product Overview
DRAGON BT is compact hand held type NFC reader which sends out reading data from NFC tags to Host (Smart
Phone/ Tablet PC). It is ideal for organizations where frequented, but intermittent, use of personal computers,
tablet PCs and Smartphones.
1.2 Basic Specification
ITEM Specification Note
CPU STM32F103TBT6
Cortes-M3(ARMv7),48MHz, 32bit RISC
Program Memory
128KByte FLASH
Data Memory 20KByte SRAM
Card Interface Contactless Smart Card (ISO 14443 A/B), MIFARE, FeliCa,
NFC Tag type 1,2,3,4, ISO 15693
DISPLAY Power LED, Battery Status LED, RF LED, Bluetooth LED
Communication PC-BT, Phone-BT
(USB for charging battery & Update F/W)
BUZZER Magnetic Buzzer
Vibration motor 3.0V Rated Voltage
Voltage USB 5V(Micro USB) – Charging
Battery 3.7V - Usage
Current Spec 3.7V 110mA(RF running)
Bluetooth Bluetooth v.2.1 + EDR class 2 module
Bluegiga's iWRAP Bluetooth stack
Battery DC3.7V, 580mAh, Li-Polymer
Switch 1 switch, POWER and Activation Control
DRAGON BT Specification

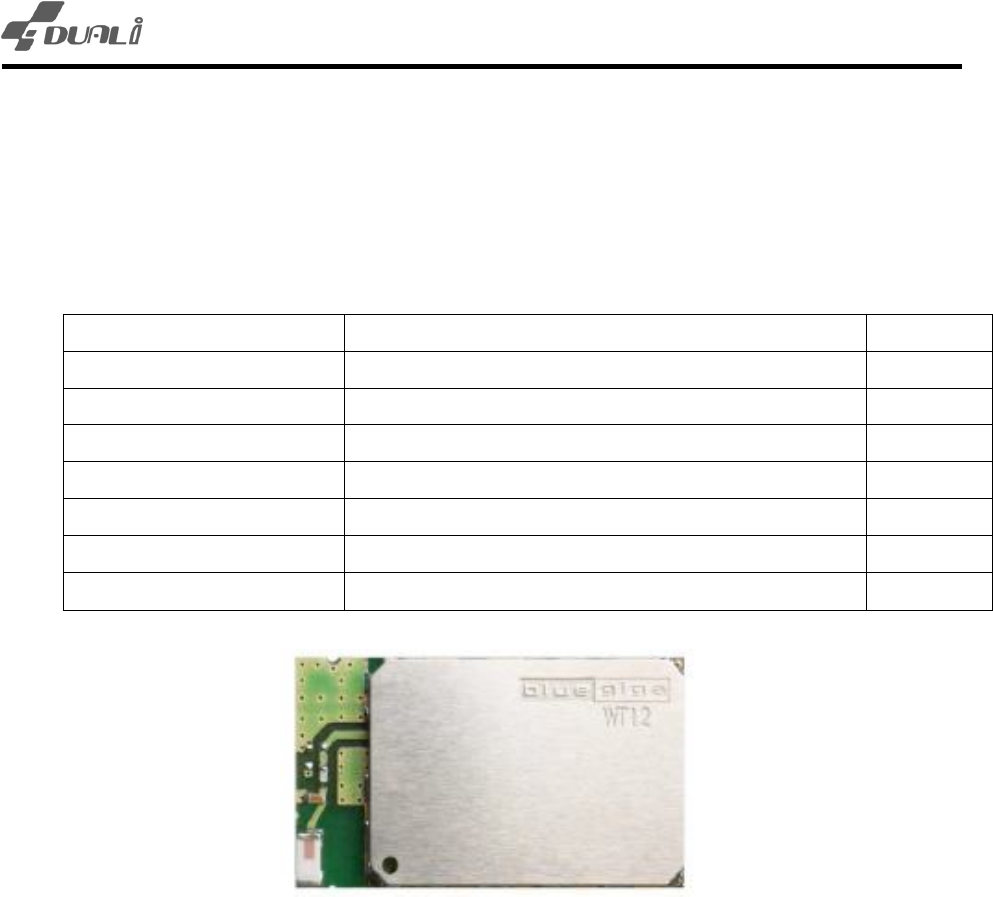

1.3 Bluetooth Specification
ITEM Specification Note
specification Bluetooth v.2.1 + EDR (Enhanced Data Rate)
Class Bluetooth class 2 radio
Transmit Power +3dBm
Receiver Sensitivity -86dBM
Range 30 meters line-of-sight
Antenna Integrated chip antenna (ACX AT3216)
Protocol SPP, HID
DRAGON BT Specification
2 Components Confirmation
2.1 Hardware Specification
- Main Board(CPU + RF + Bluetooth)
- Loop Antenna

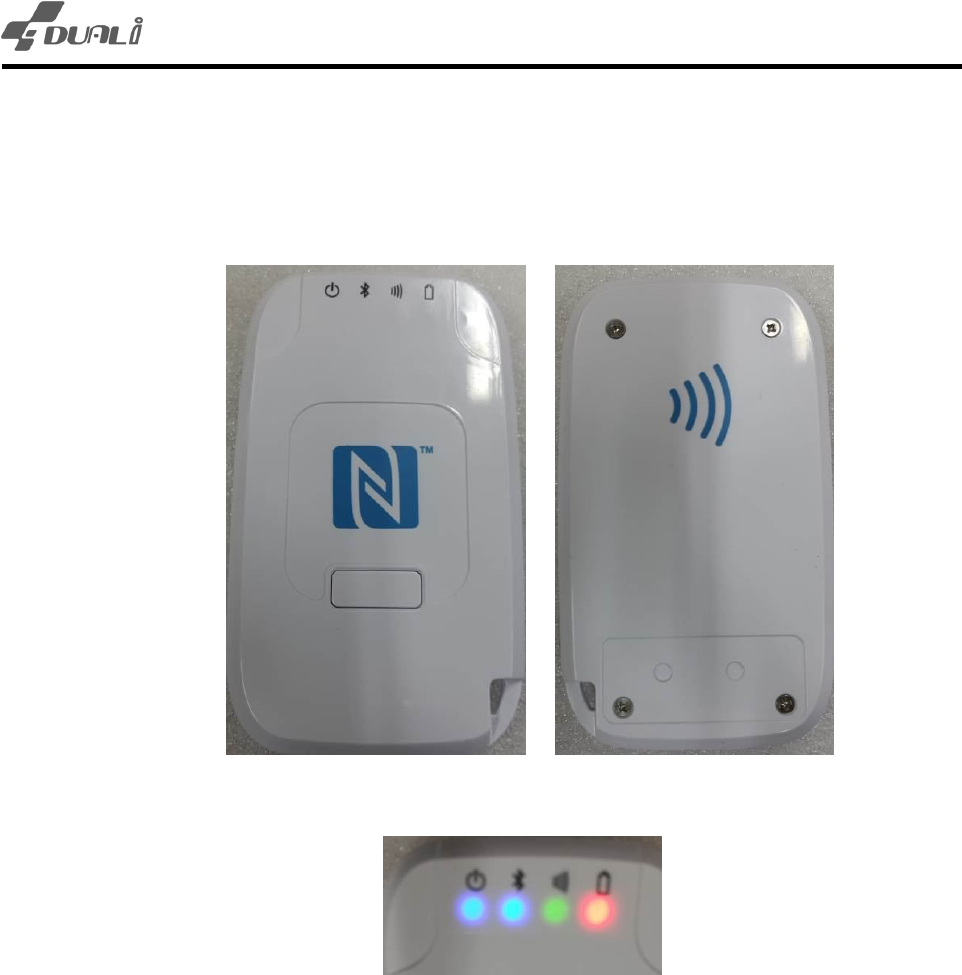

<DRAGON-BT : Front> <DRAGON_BT : Back>
<LED>
2.2 Dimension
- 103mm * 65mm * 12mm
DRAGON BT Specification
3 Power
3.1 Power Specification
- Charging : 5V MICRO USB DC
- Board : 3.7V Battery DC
3.2 Current Consumption (3.7V Battery)
- Basic Current Consumption: 50mA
- Maximum Current Consumption: 110mA (During Vibration or BEEP)

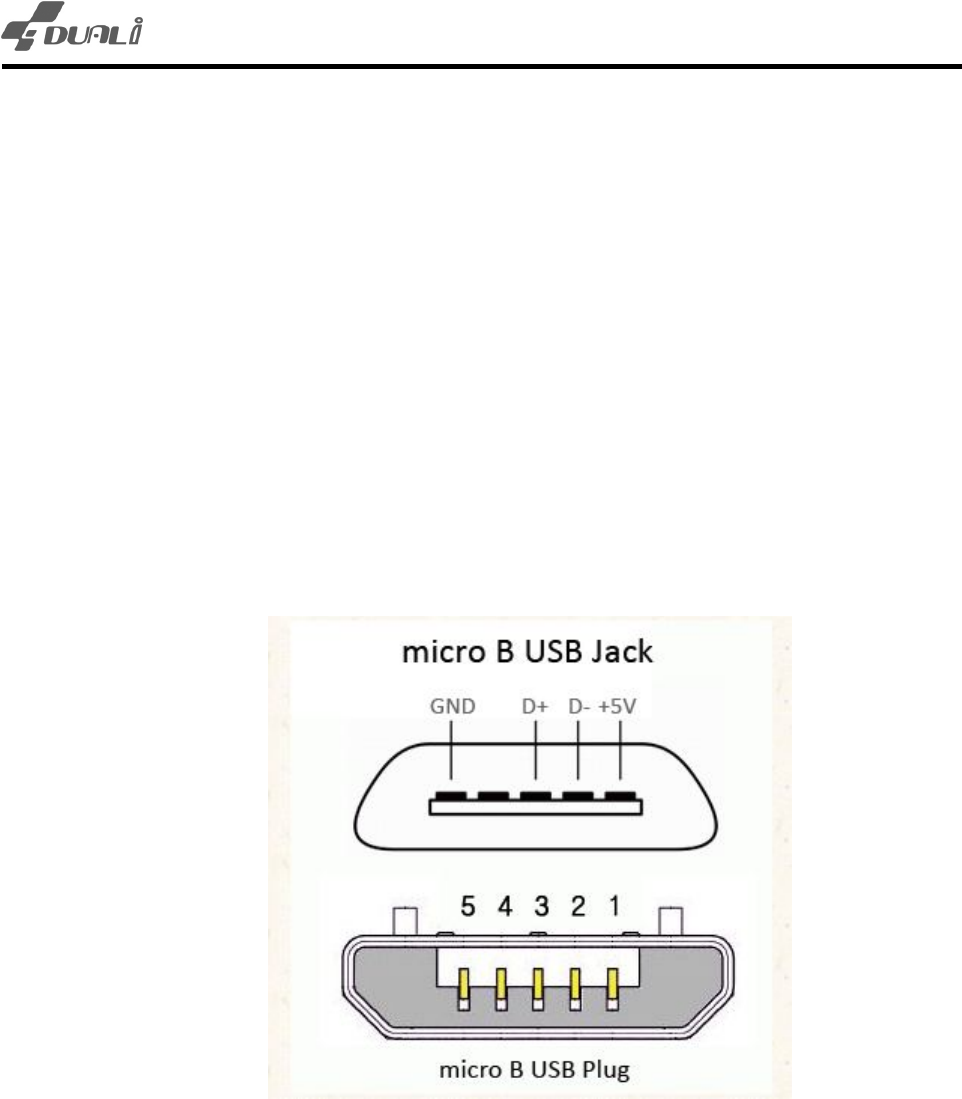

3.3 Cable
- MICRO USB B TYPE cable
DRAGON BT Specification
4 Function
4.1 BUZZER & Vibrator Sensor
- Sending status to user
4.2 LED
- Status of Power & Battery
- RED LED : When connected with USB (Charging)
- BLUE LED : When power ON
- GREEN LED : When RF is running
4.3 Battery
- Normally using USB power(5V) and once it’s charged, using Battery power(3.7V)
- Battery : 3.7V, 580mAh
4.4 Bluetooth
- Sending DATA to HOST
- Basically supports SPP Communication but be able to change to HID mode via using CMD
DRAGON BT Specification
5 Environment
5.1 Usage Environment
- Usage Temperature: -10 ~ 60 ℃
- Usage Humidity: 30 ~ 90 % (Relative Humidity)
5.2 Storage Environment
- Storage Environment: -20 ~ 70 ℃
- Storage Humidity: 30 ~ 90 % (Relative Humidity)
5.3 Warning
- It’s not water-proof
- To maximize the reading distance, you need to get rid of metal around the reader. And if housing is
open or antenna is not good condition of matching, reading distance will be shorter.
DRAGON BT Specification
6 Certification
- DRAGON BT is wireless communication card reader based on 13.56MHz so CE, FCC, TELEC are
needed
- It should conform to environment regulation and need to get RoHS as occasion demands
EU
This product is CE marked according to the provision of the R&TTE Directive (99/5/EC).
Here by DUALi Inc. declares that this product is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
FCC STATEMENT
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
