Users Manual
DUALEYE-600
(RF CARD READER)
User’s Manual
DUALi INC.
Made in KOREA
Table of Contents
1. Overview
2. Product Contents
3. Installation
4. Operation
5. Dimension and Characteristic
6. Technical Support
(Document Number : EP13-04-001)

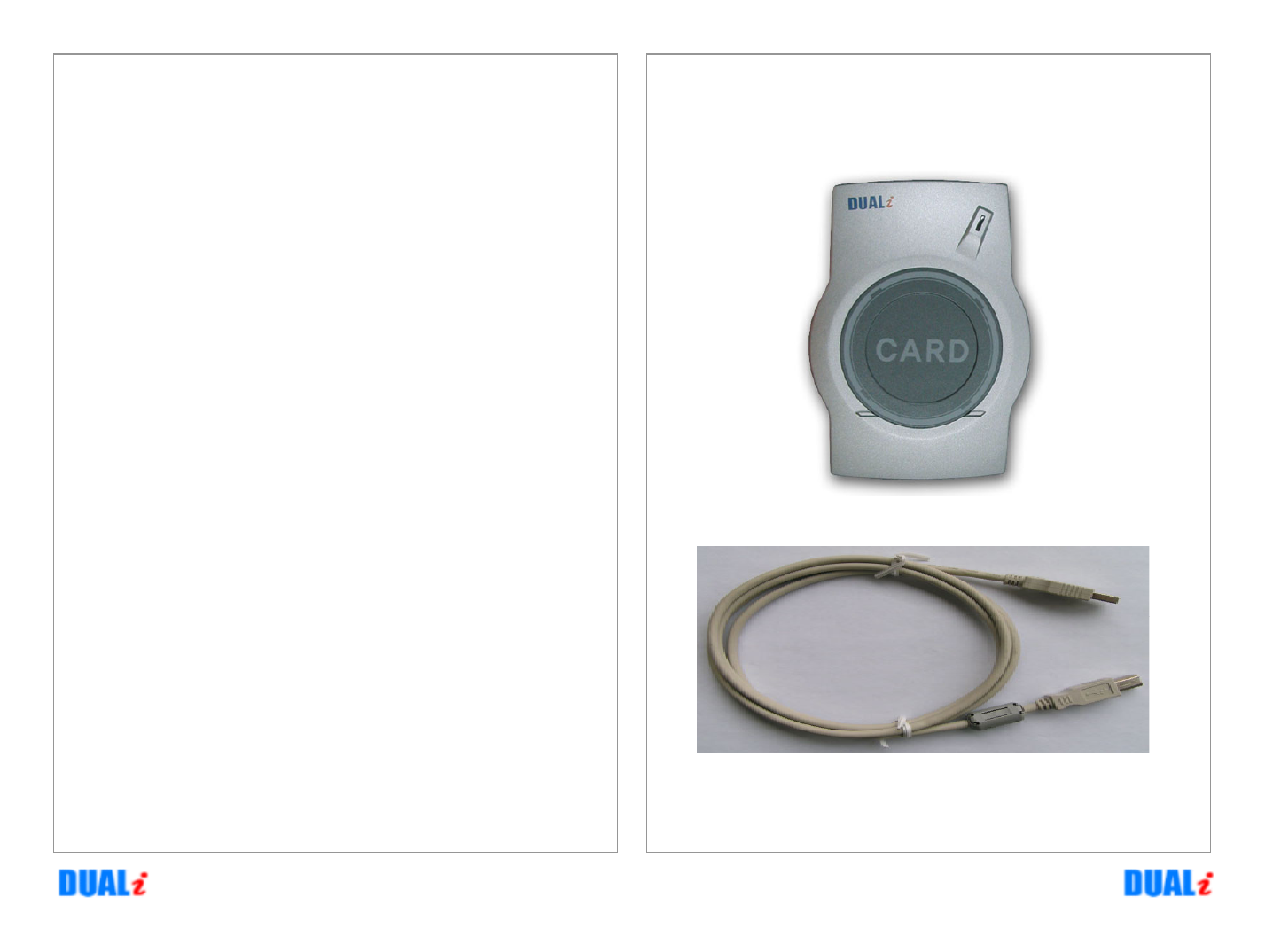

2. Product Contents
READER
USB CABLE
1. Overview
1.1 DualEye-600
- Support read / write the ISO14443 Type
A &B RF-Card, Mifare Card Protocal.
- Host Communication : USB
1.2 Caution
- Do not expose to the hot temperature,
hot sunny, wet condition.
- Fragile on the shake, outside damage.
- Sensitive to the installed environment, do
not expose in the iron metal around the
reader, it should cause the fatal defection
CAUTION : Changes or modifications not
expressly approved by the party responsible
for compliance could void the user’s authority
to operate the equipment.

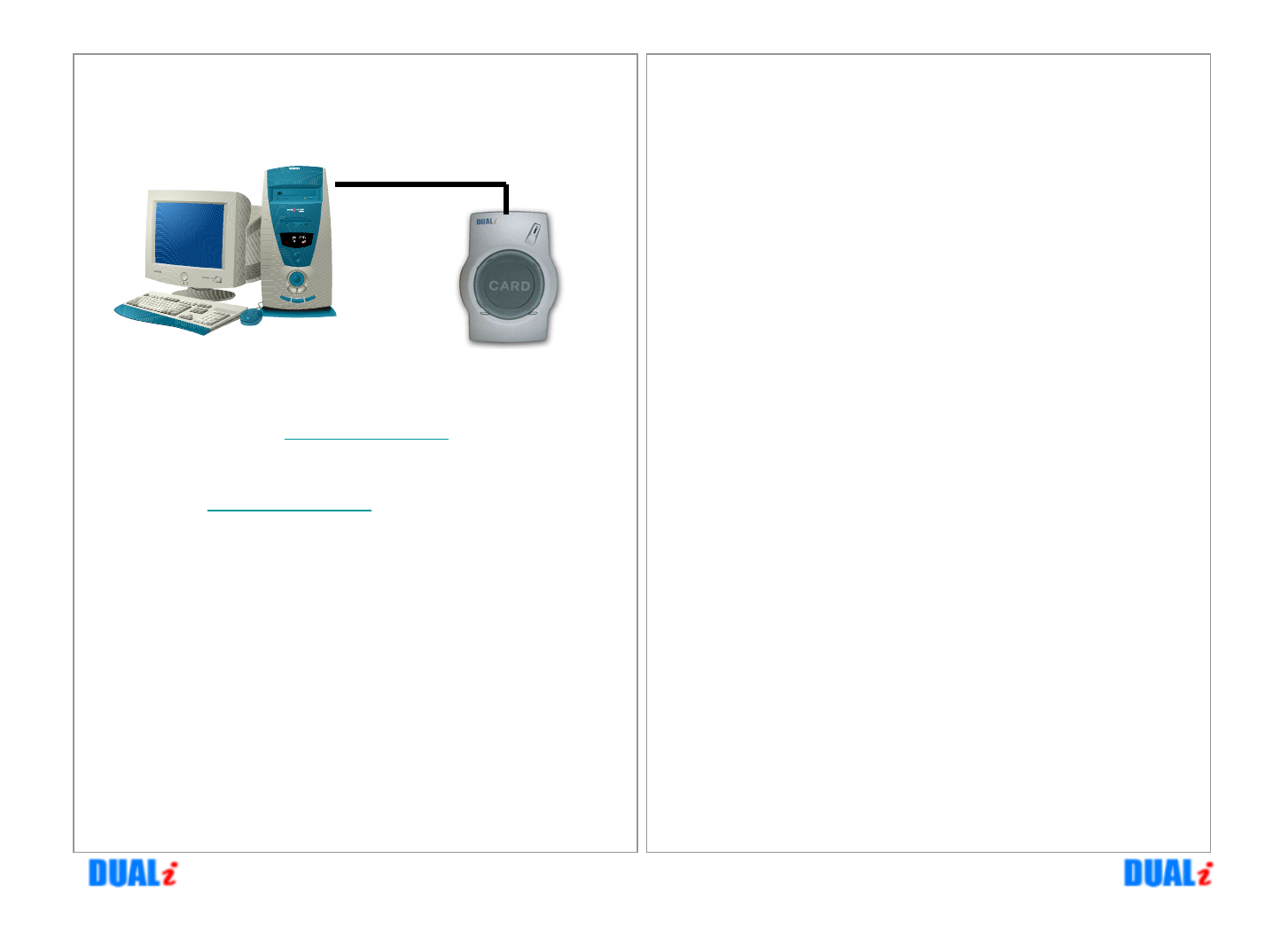

3. Installation
- USB communication : Download USB
Driver from www.duali.com
- Sample working test program : Download
from www.duali.com
- Provided communication protocol
STX(02h) + Length high + Length low + Command or Response
Code + Data + LRC
- Ask to the Service provider ( Program
provider ) for more command and function
protocol
USB CABLE
PC
4. Operation
- You can test it with Duali test program
to read / write on the specific card.
- You can develop many different program
such as Access, time & attendance,
card issuing, PC security with the provided
Duali DLL and Protocol.
- Functions.
* Mifare card Read/Write
* ISO 14443 A-Type Card Read/Write
* ISO 14443 B-Type Card Read/Write
* Buzzer On/Off
65mm
5.2 Characteristic
- Operation Temperature : 0℃~ 60℃
- Input Volatge : DC 5V (USB)
- Card Reading Range : Inside 10 Cm
6. Technical Support
- Address : Room 505 Samsung Technopark,
#471 Wonchen, Youngtong, Suwon, Gyeonggi
443380, Korea.
- URL : www.duali.com
-Tel : +82-31-213-0074

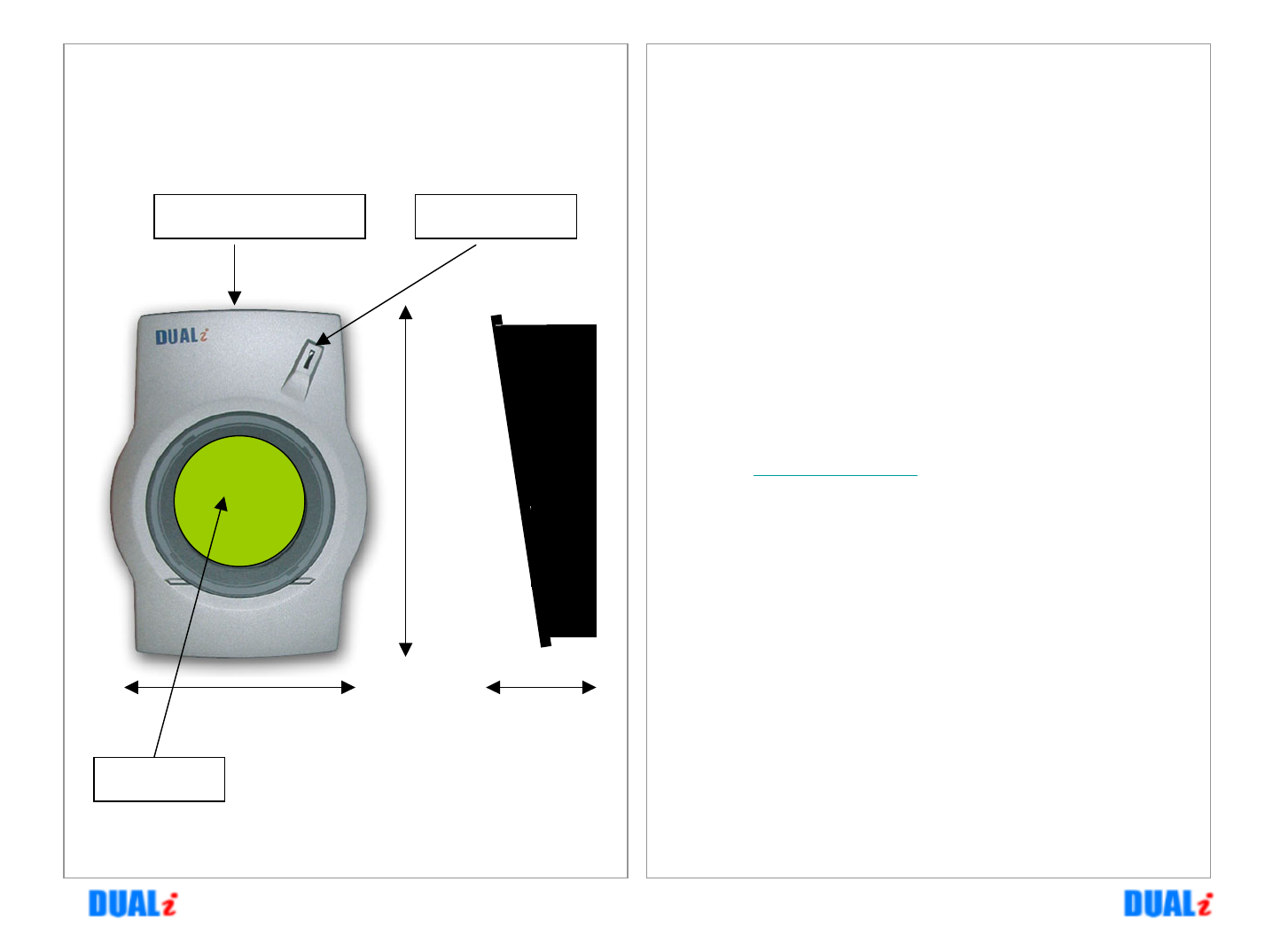

5. Dimension and Characteristic
5.1 Dimension
USB connector Power LED
100mm
40mm
Antenna
