1 Introduction
mPOS is Contact EMV Level 1 and RF EMV Level1, MSR support device. 128x64 Use
oled(128x64) provides information to the user.
There is a KEYPAD for the key input, the state information from the user can be
transmitted at the BuzzerUsing the battery is capable of charging the product.
To connect the charging and discharging or USB cable, AF does not work.RF ON
when the power is always transmitted.
1.1 Product specification
ITEM Specification Note
CPU MAX32550
ARM® Cortex® M3 Processor
Operating
frequency Run at 108 MHz
Working Memory Internal SRAM: 256Kbyte
8KB AES Self-Encrypted SRAM
Program Memory Flash, 1Mbyte
OS None
Communication USB
Serial Comm. Keypad, Contact EMV
Contact EMV L1 Protocol:T=0,T=1/ class A,B,C (5V, 3V, 1.8V)
RF EMV L1 NXP RF IC, NFC, ISO14443
DISPLAY 128x64 OLED (0.96inch)
KeyPad 12EA
MSR Module
Operating Powers 3.3V, 5V
1.2 Contact IC Card Reader 사양
ITEM Specification Note
Protocol T=0,T=1
Class class A,B,C (5V, 3V, 1.8V)
Certification EMV Level1
mPOS Specification
㈜듀얼아이 6/12
2 Structure
2.1 Components Confirmation
- mPOS 1EA
2.2 Description
1) MAIN Board (mPOS MAIN)
- MAX32550 : Cortex M3 with 1MB flash and 256K+8K SRAM
- Secure SRAM : Internal 8KB SRAM
- EMV L1 Module : EMV L1 certification
- Host Communication : (FTDI UART)
- MSR Header : 2 Track MSR header
- Buzzer : Tone controllable buzzer
- Battery : Li-polymer, 560mAh
- LCD : 128X64 DOT, OLED, 0.96inch
2) RF Board
- RF : TYPE A Card Support
mPOS Specification
㈜듀얼아이 7/12
3 Exterior

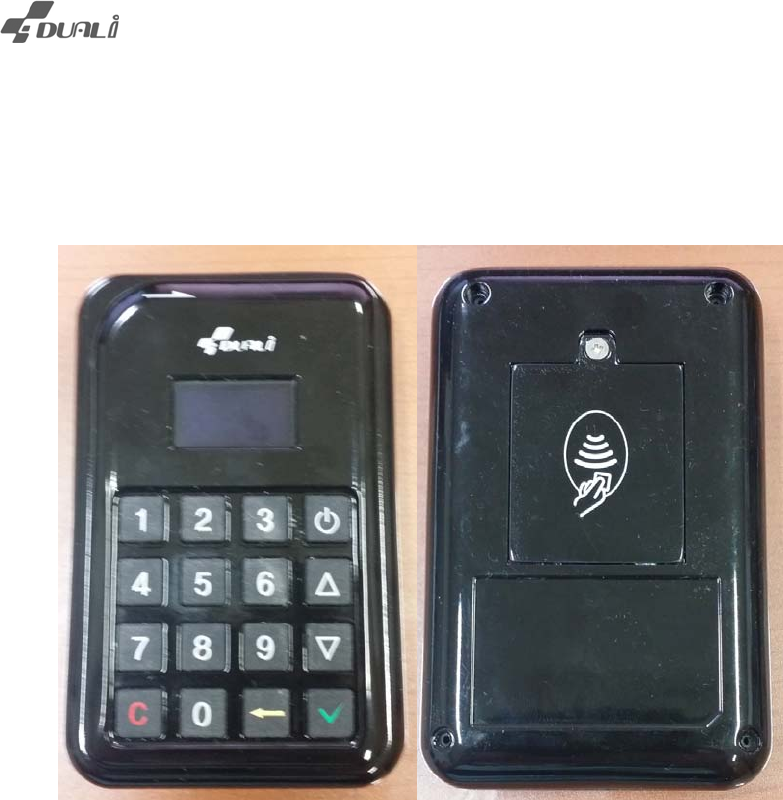

3.1 Product exterior
3.2 Product dimension
- 175 * 59 * 39mm
mPOS Specification
㈜듀얼아이 8/12
4 Power & Interface Specification
4.1 Power Specification
- Battery 3.7V(560mA), USB 5V(Charge)
- Power usage: under 2W
4.2 Current consumption
- Default : 5V, under 200mA
- MAX : 5V, under 300mA (card read/write)
4.3 Communication Specification
- UART TTL 115200bps
mPOS Specification
㈜듀얼아이 9/12
5 Functions
5.1 Operation
- Temperature: -10 ~ 60 ℃
- Humidity : 30 ~ 90 % (relative humidity)
5.2 Storage
- Temperature: -20 ~ 80 ℃
- Humidity: 30 ~ 90 % (relative humidity)
mPOS Specification
㈜듀얼아이 10/12
6 Warning and Notice
- For indoor use only.
- This product is affected by an element like metal or Magnetism. So one
has to take precautions.
- This device is not waterproof.
- Recommended to use apart from metallic devices to maximize RF reading
performance.
mPOS Specification
㈜듀얼아이 11/12
7 Warranty & Service
‣ Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this product,
DE-631, is free from defects in materials and workmanship for a period of 1 year from
the date of purchase.
※ Note Warranty/non-warranty repair fees do not include any shipping charges.
‣ The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component.
- Fault by the unqualified user’s own intention of repairs.
- Product’s inspection requirement.
- Adding certain functions or extension of system.
- Fault by User’s misuse against the product’s manual.
DUALi Inc.
1-308/310 Innoplex, 552 Wonchoen-dong, Youngtong-gu,
Suwon, Gyeonggi-do, Korea (zip: 443-380)
Tel : +82 31-213-0074
Fax : +82 31-213-0078
E-mail : lab@duali.com
Web-site : http://www.duali.com
mPOS Specification
㈜듀얼아이 12/12
8 Certifications
9 FCC STATEMENT
10 CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
11
12 NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
13 -- Reorient or relocate the receiving antenna.
14 -- Increase the separation between the equipment and receiver.
15 -- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
16 -- Consult the dealer or an experienced radio/TV technician for help.
*Please contact our service team for the technical/ sales supports.
